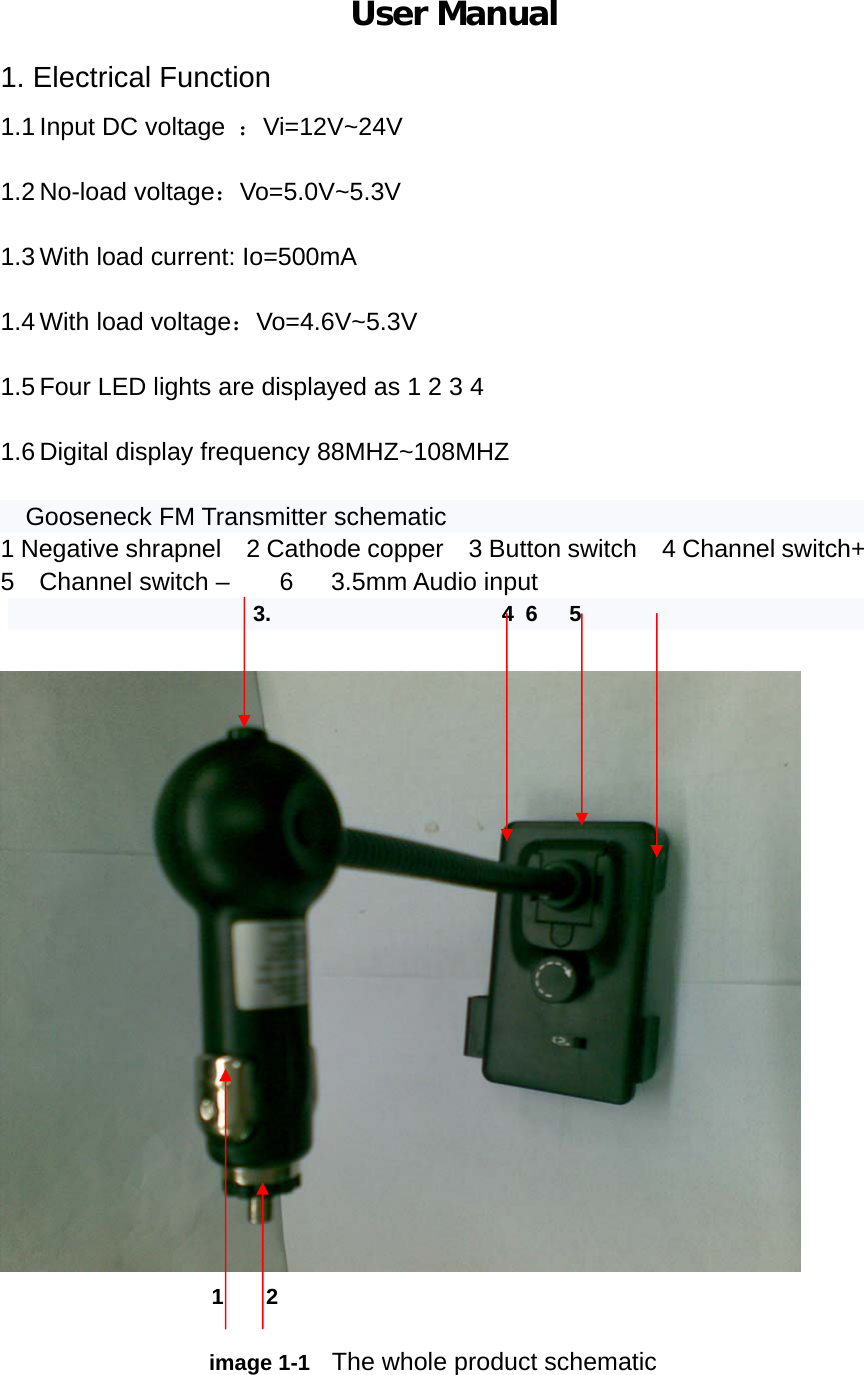

User Manual 1. Electrical Function 1.1 Input DC voltage ：Vi=12V~24V 1.2 No-load voltage：Vo=5.0V~5.3V 1.3 With load current: Io=500mA 1.4 With load voltage：Vo=4.6V~5.3V 1.5 Four LED lights are displayed as 1 2 3 4 1.6 Digital display frequency 88MHZ~108MHZ Gooseneck FM Transmitter schematic 1 Negative shrapnel 2 Cathode copper 3 Button switch 4 Channel switch+ 5 Channel switch – 6 3.5mm Audio input 3. 4 6 5 1 2 image 1-1 The whole product schematic

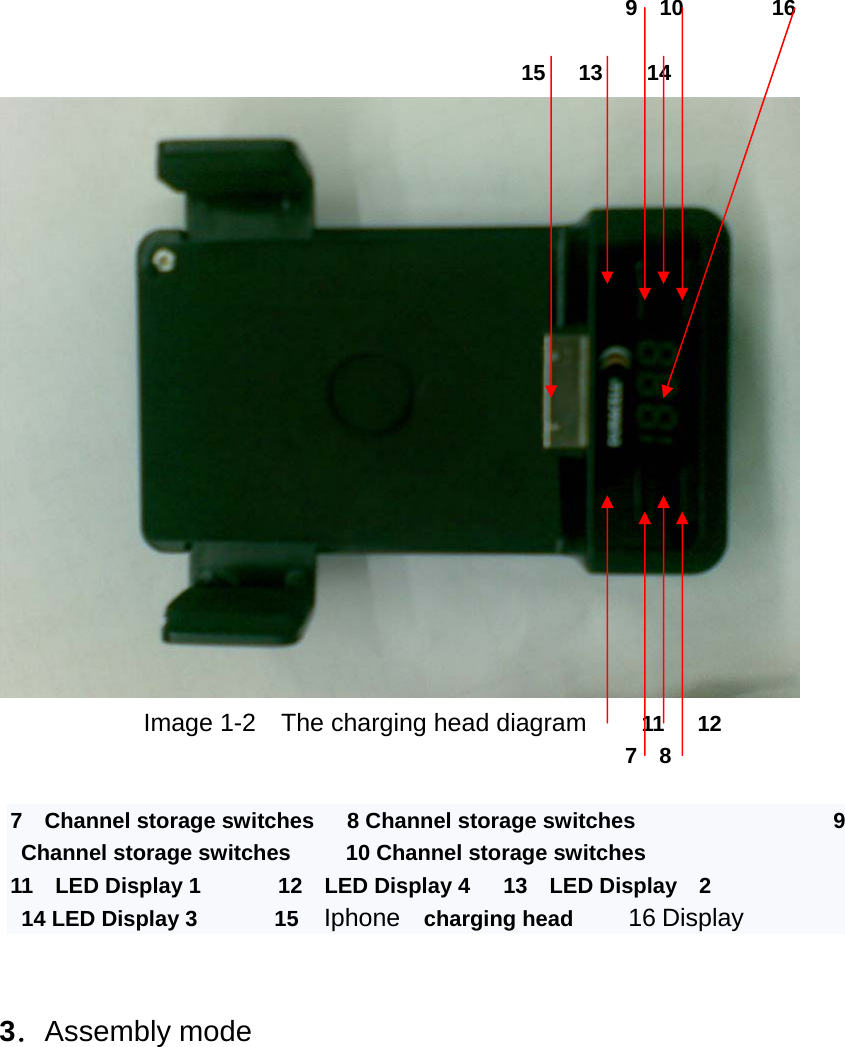

9 10 16 15 13 14 Image 1-2 The charging head diagram 11 12 7 8 7 Channel storage switches 8 Channel storage switches 9 Channel storage switches 10 Channel storage switches 11 LED Display 1 12 LED Display 4 13 LED Display 2 14 LED Display 3 15 Iphone charging head 16 Display 3．Assembly mode

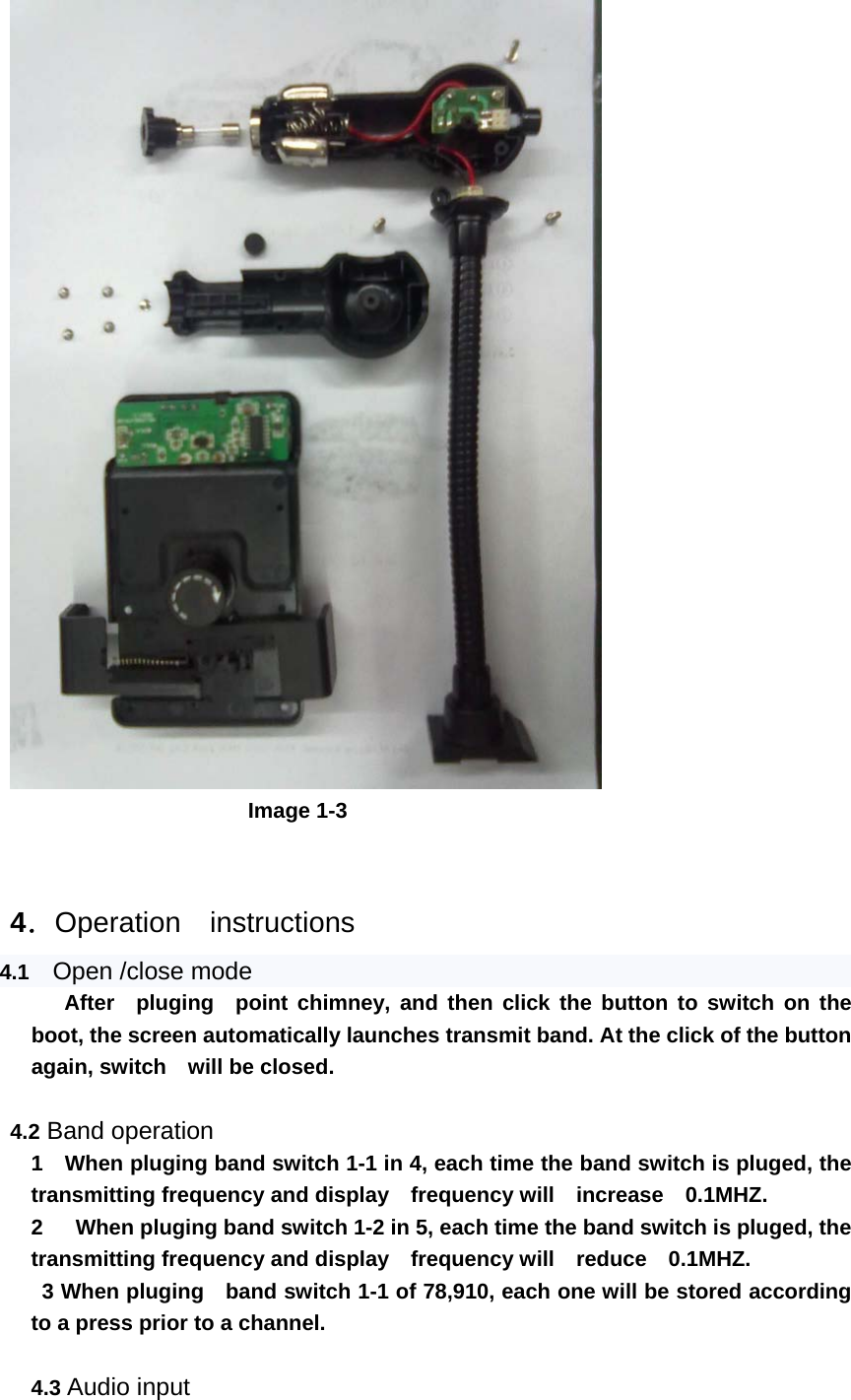

Image 1-3 4．Operation instructions 4.1 Open /close mode After pluging point chimney, and then click the button to switch on the boot, the screen automatically launches transmit band. At the click of the button again, switch will be closed. 4.2 Band operation 1 When pluging band switch 1-1 in 4, each time the band switch is pluged, the transmitting frequency and display frequency will increase 0.1MHZ. 2 When pluging band switch 1-2 in 5, each time the band switch is pluged, the transmitting frequency and display frequency will reduce 0.1MHZ. 3 When pluging band switch 1-1 of 78,910, each one will be stored according to a press prior to a channel. 4.3 Audio input

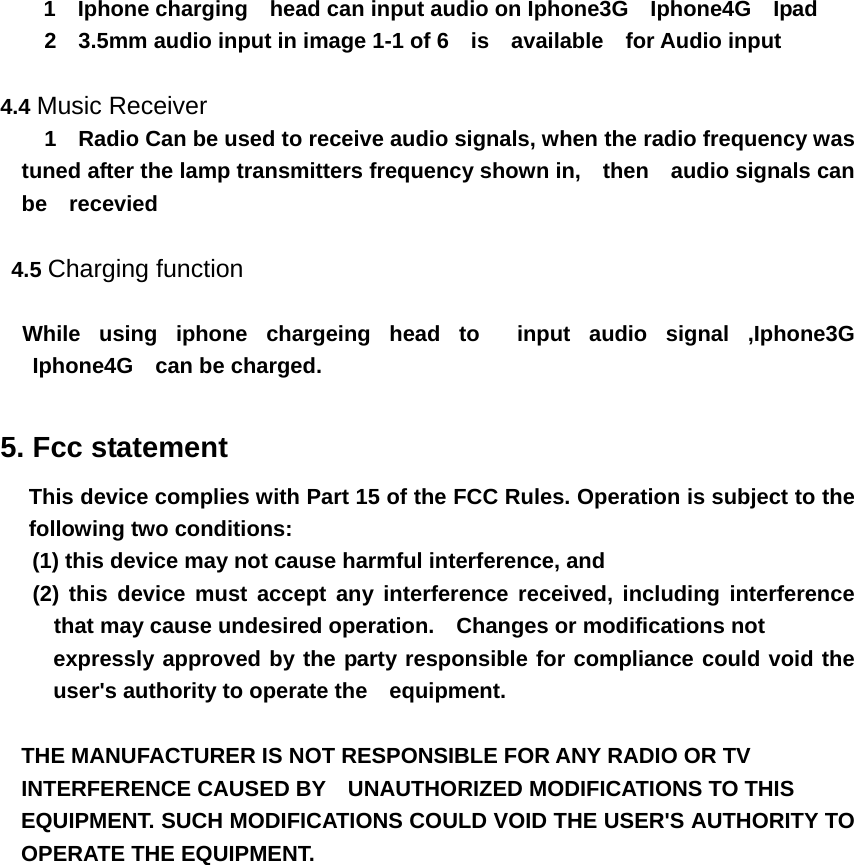

1 Iphone charging head can input audio on Iphone3G Iphone4G Ipad 2 3.5mm audio input in image 1-1 of 6 is available for Audio input 4.4 Music Receiver 1 Radio Can be used to receive audio signals, when the radio frequency was tuned after the lamp transmitters frequency shown in, then audio signals can be recevied 4.5 Charging function While using iphone chargeing head to input audio signal ,Iphone3G Iphone4G can be charged. 5. Fcc statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
