EXPORTPRO TECHNOLOGY MT-101 Digital Proportional System User Manual MT 101 Manual for E24 thunderv

SHENZHEN EXPORTPRO TECHNOLOGY CO., LTD Digital Proportional System MT 101 Manual for E24 thunderv

User Manual

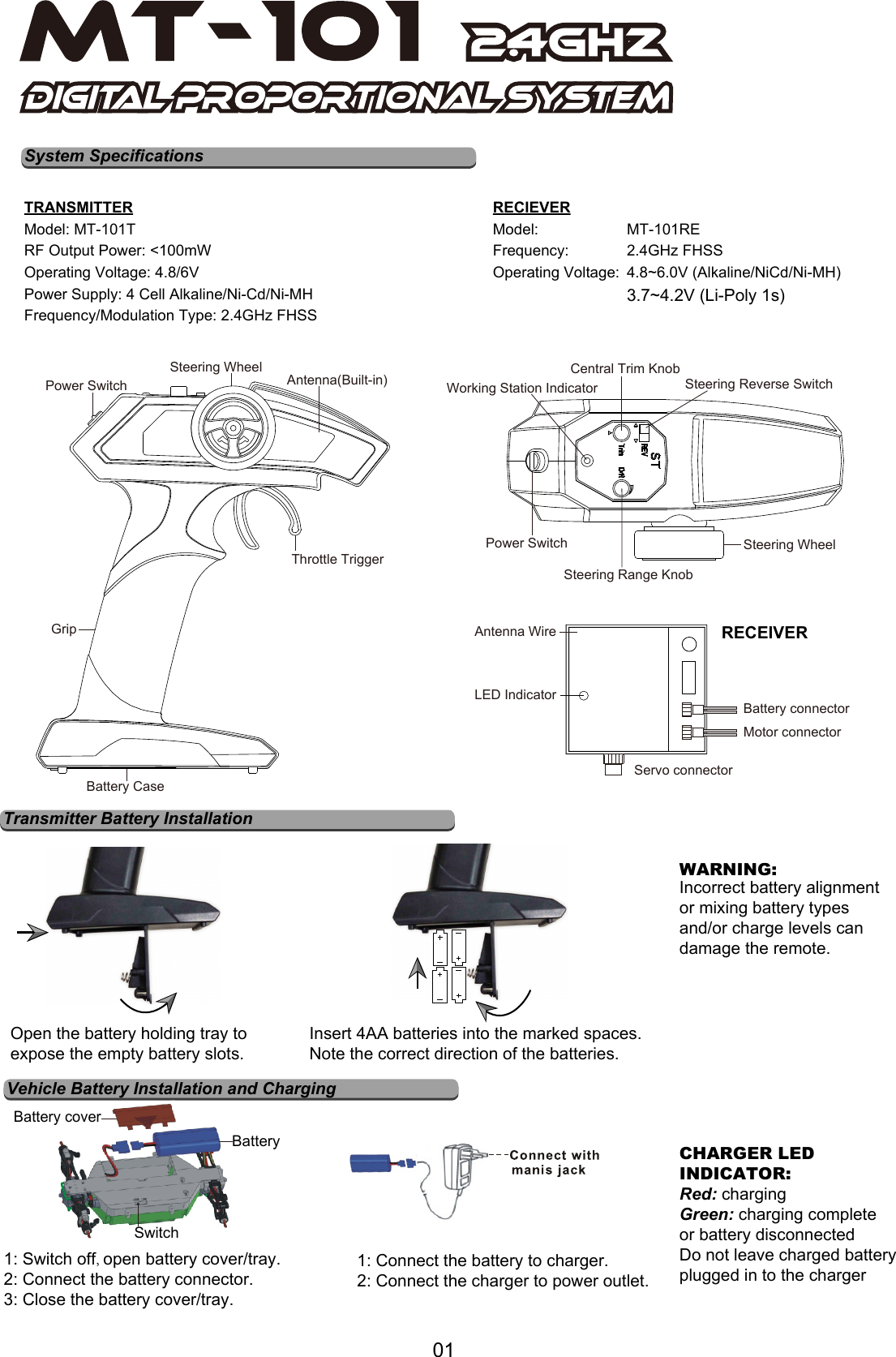

01Transmitter Battery InstallationSystem SpecificationsOpen the battery holding tray toexpose the empty battery slots. 1: Switch off, open battery cover/tray.2: Connect the battery connector.3: Close the battery cover/tray.1: Connect the battery to charger.2: Connect the charger to power outlet.Insert 4AA batteries into the marked spaces. Note the correct direction of the batteries. WARNING:Incorrect battery alignmentor mixing battery typesand/or charge levels can damage the remote. CHARGER LED INDICATOR:Red: chargingGreen: charging completeor battery disconnectedDo not leave charged battery plugged in to the charger Vehicle Battery Installation and ChargingMotor connectorServo connectorLED IndicatorBattery connectorAntenna WireBattery coverBatterySwitchPower SwitchPower SwitchSteering Range KnobSteering WheelSteering WheelAntenna(Built-in) Working Station IndicatorCentral Trim KnobSteering Reverse SwitchThrottle TriggerGripBattery CaseRECEIVERRECIEVERModel: MT-101REFrequency: 2.4GHz FHSSOperating Voltage: 4.8~6.0V (Alkaline/NiCd/Ni-MH) 3.7~4.2V (Li-Poly 1s) TRANSMITTERModel: MT-101TRF Output Power: <100mWOperating Voltage: 4.8/6VPower Supply: 4 Cell Alkaline/Ni-Cd/Ni-MHFrequency/Modulation Type: 2.4GHz FHSS
Steering TrimMT-101T & MT-101RE Bind ProcedureSteering Dual-Rate (D/R)The receiver LED will stay lit indicatingbinding is complete.Steering ReverseMT-101T LED DisplayMT-101RE LED DisplayMT-101TMT-101RE MT-101REMT-101RE MT-101TWorking Station Indicator Step 1: Power off both transmitter and receiver.Step 2: Turn on receiver.The LED indicator on the receiver will flash.Step 3: Turn on the transmitter.The transmitter and receiver will now bindautomitically within 2 seconds. If the wheels point to the left or the car wonders left while at neutral position adjust to the left. If your car tracks straight andwheels appear straight,do not adjust. If the wheels point to the right or the car wonders right while at neutral position adjust to the right.For less steering adjust to the rightFor more steering adjust to the leftUse this adjustment for when the steering is reversed. MT-101REWorking Station Indicator LED ON: Power onLED Rapid Flash: The singal is interruptedLED Slow Flash: Low-voltage warningLED OFF: Power offLED ON: ConnectedLED Rapid Flash: Make sure the steering wheel or throttle triggeris not in the working modeLED Slow Flash: Low-voltage warningLED OFF: Power off This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction
