Eastech Electronics MSB45X0W SOUNDBAR SPEAKER User Manual 1

Eastech Electronics ( Hui Yang ) Co. Ltd SOUNDBAR SPEAKER 1

Contents

User Manual-1

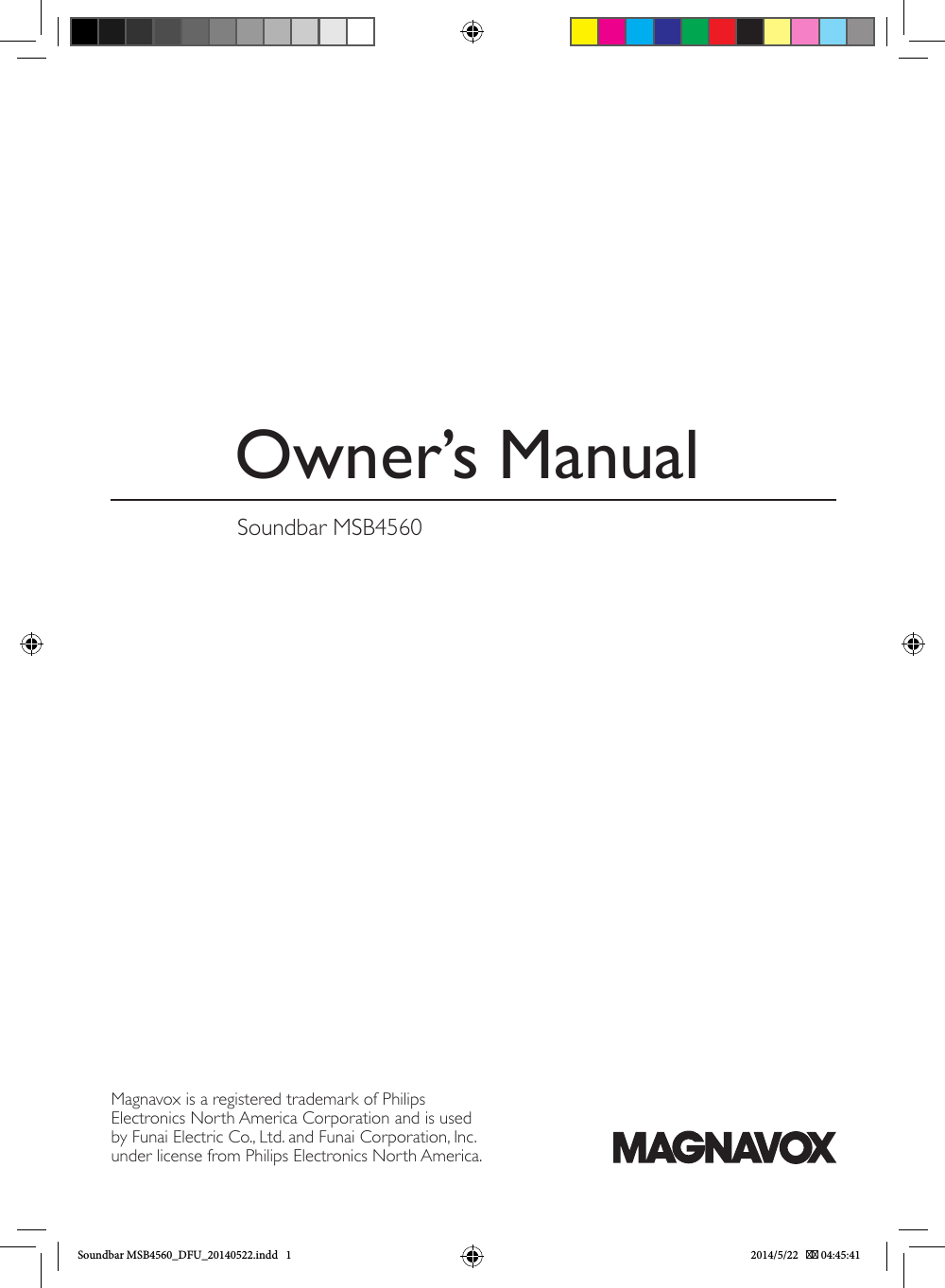

Owner’s ManualSoundbar MSB4560Magnavox is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America.Soundbar MSB4560_DFU_20140522.indd 1 2014/5/22  04:45:41
Soundbar MSB4560_DFU_20140522.indd 2 2014/5/22  04:45:42

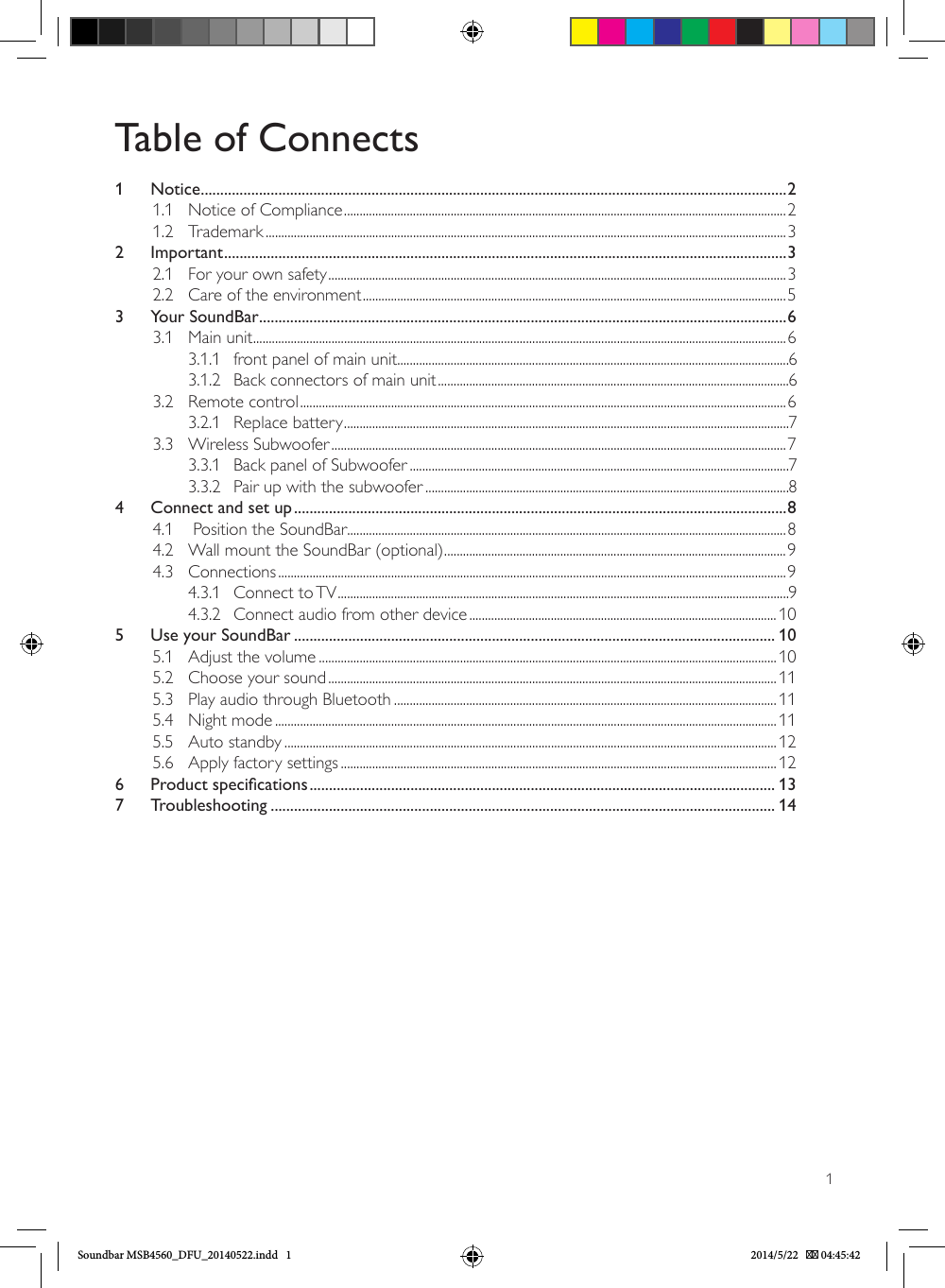

1Table of Connects1 Notice .......................................................................................................................................................2 1.1 Notice of Compliance ............................................................................................................................................. 2 1.2 Trademark ......................................................................................................................................................................32 Important ................................................................................................................................................. 3 2.1 For your own safety .................................................................................................................................................. 3 2.2 Care of the environment ....................................................................................................................................... 53 Your SoundBar ........................................................................................................................................6 3.1 Main unit ..........................................................................................................................................................................6 3.1.1 front panel of main unit .............................................................................................................................6 3.1.2 Back connectors of main unit ................................................................................................................6 3.2 Remote control ........................................................................................................................................................... 6 3.2.1 Replace battery ..............................................................................................................................................7 3.3 Wireless Subwoofer ................................................................................................................................................. 7 3.3.1 Back panel of Subwoofer .........................................................................................................................7 3.3.2 Pair up with the subwoofer ....................................................................................................................84 Connect and set up ...............................................................................................................................8 4.1 Position the SoundBar ............................................................................................................................................8 4.2 Wall mount the SoundBar (optional) .............................................................................................................9 4.3 Connections ..................................................................................................................................................................9 4.3.1 Connect to TV ................................................................................................................................................9 4.3.2 Connect audio from other device .................................................................................................. 105 Use your SoundBar ............................................................................................................................ 10 5.1 Adjust the volume ..................................................................................................................................................10 5.2 Choose your sound ............................................................................................................................................... 11 5.3 Play audio through Bluetooth ..........................................................................................................................11 5.4 Night mode ................................................................................................................................................................11 5.5 Auto standby .............................................................................................................................................................12 5.6 Apply factory settings ........................................................................................................................................... 126 Productspecications ........................................................................................................................ 137 Troubleshooting .................................................................................................................................. 14Soundbar MSB4560_DFU_20140522.indd 1 2014/5/22  04:45:42

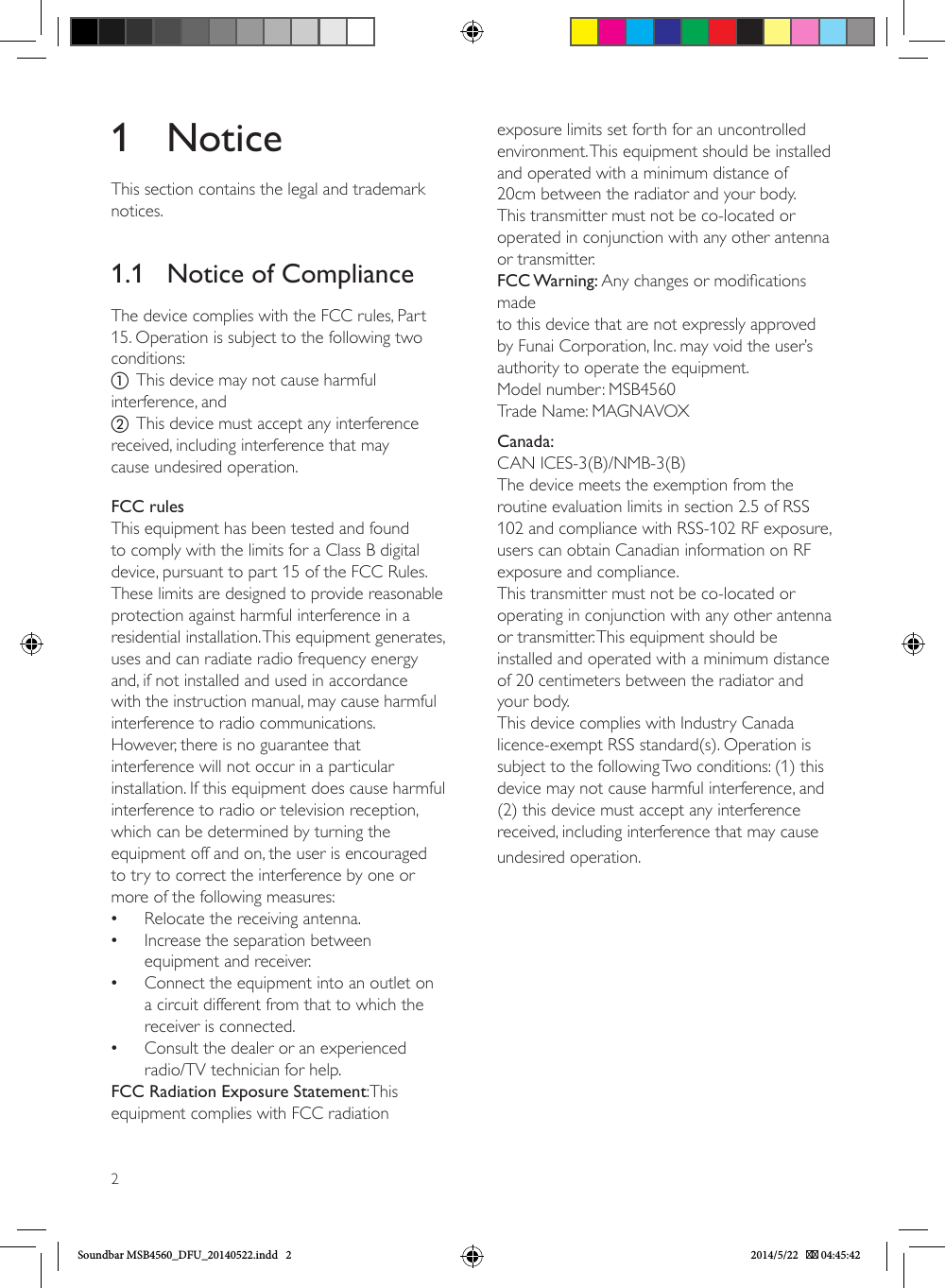

2exposure limits set forth for an uncontrolledenvironment. This equipment should be installedand operated with a minimum distance of20cm between the radiator and your body.This transmitter must not be co-located oroperated in conjunction with any other antennaor transmitter.FCC Warning: Any changes or modications madeto this device that are not expressly approvedby Funai Corporation, Inc. may void the user’sauthority to operate the equipment.Model number: MSB4560Trade Name: MAGNAVOXCanada:CAN ICES-3(B)/NMB-3(B)The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This device complies with Industry Canadalicence-exempt RSS standard(s). Operation issubject to the following Two conditions: (1) thisdevice may not cause harmful interference, and(2) this device must accept any interferencereceived, including interference that may causeundesired operation.1 NoticeThis section contains the legal and trademark notices.1.1 Notice of ComplianceThe device complies with the FCC rules, Part15. Operation is subject to the following twoconditions:a This device may not cause harmfulinterference, andb This device must accept any interferencereceived, including interference that maycause undesired operation.FCC rulesThis equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in aresidential installation. This equipment generates,uses and can radiate radio frequency energyand, if not installed and used in accordancewith the instruction manual, may cause harmfulinterference to radio communications.However, there is no guarantee thatinterference will not occur in a particularinstallation. If this equipment does cause harmfulinterference to radio or television reception,which can be determined by turning theequipment off and on, the user is encouragedto try to correct the interference by one ormore of the following measures: •Relocate the receiving antenna. •Increase the separation between equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure Statement:Thisequipment complies with FCC radiationSoundbar MSB4560_DFU_20140522.indd 2 2014/5/22  04:45:42

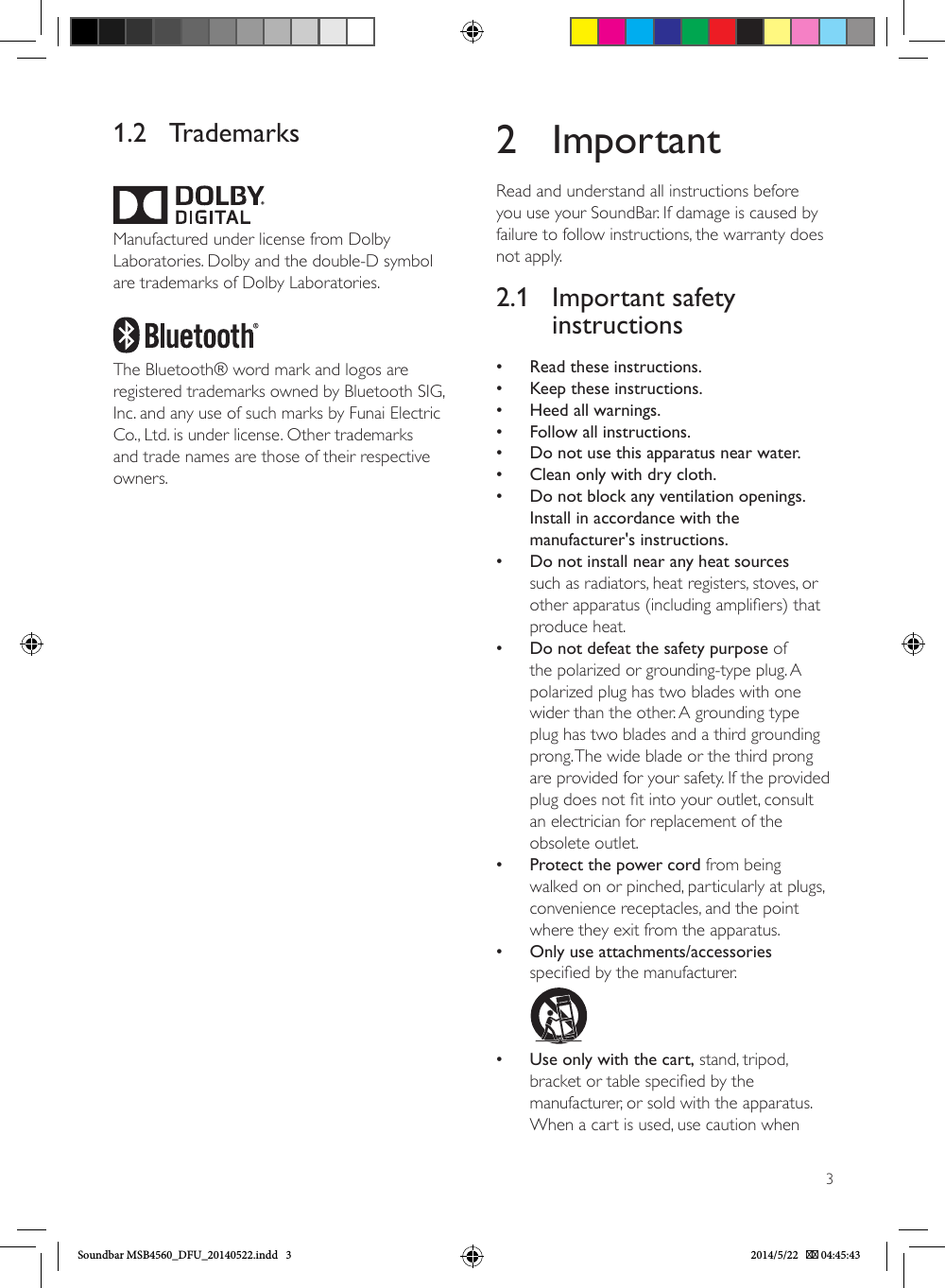

31.2 TrademarksManufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Funai Electric Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.2 ImportantRead and understand all instructions before you use your SoundBar. If damage is caused by failure to follow instructions, the warranty does not apply.2.1 Important safety instructions •Read these instructions. •Keep these instructions. •Heed all warnings. •Follow all instructions. •Do not use this apparatus near water. •Clean only with dry cloth. •Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. •Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet. •Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. •Only use attachments/accessories specied by the manufacturer. •Use only with the cart, stand, tripod, bracket or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when Soundbar MSB4560_DFU_20140522.indd 3 2014/5/22  04:45:43

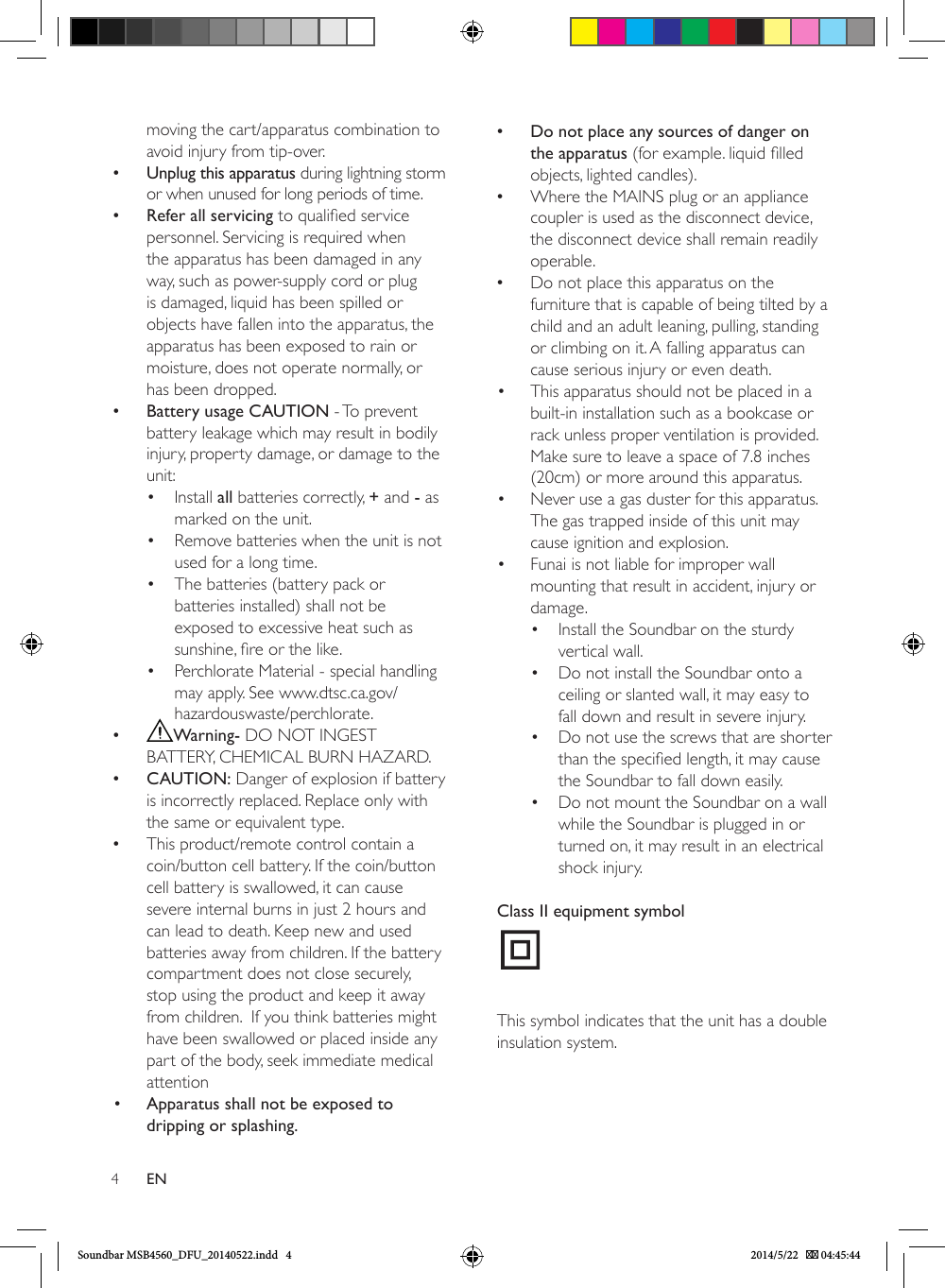

4EN •Do not place any sources of danger on the apparatus (for example. liquid lled objects, lighted candles). •Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. •Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death.• This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches (20cm) or more around this apparatus.• Never use a gas duster for this apparatus. The gas trapped inside of this unit may cause ignition and explosion.• Funai is not liable for improper wall mounting that result in accident, injury or damage.• Install the Soundbar on the sturdy vertical wall.• Do not install the Soundbar onto a ceiling or slanted wall, it may easy to fall down and result in severe injury.• Do not use the screws that are shorter than the specied length, it may cause the Soundbar to fall down easily.• Do not mount the Soundbar on a wall while the Soundbar is plugged in or turned on, it may result in an electrical shock injury.Class II equipment symbol This symbol indicates that the unit has a double insulation system.moving the cart/apparatus combination to avoid injury from tip-over. •Unplug this apparatus during lightning storm or when unused for long periods of time. •Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. •Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:• Install all batteries correctly, + and - as marked on the unit.• Remove batteries when the unit is not used for a long time.• The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.• Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. •Warning- DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD. •CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. •This product/remote control contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention• Apparatus shall not be exposed to dripping or splashing.Soundbar MSB4560_DFU_20140522.indd 4 2014/5/22  04:45:44

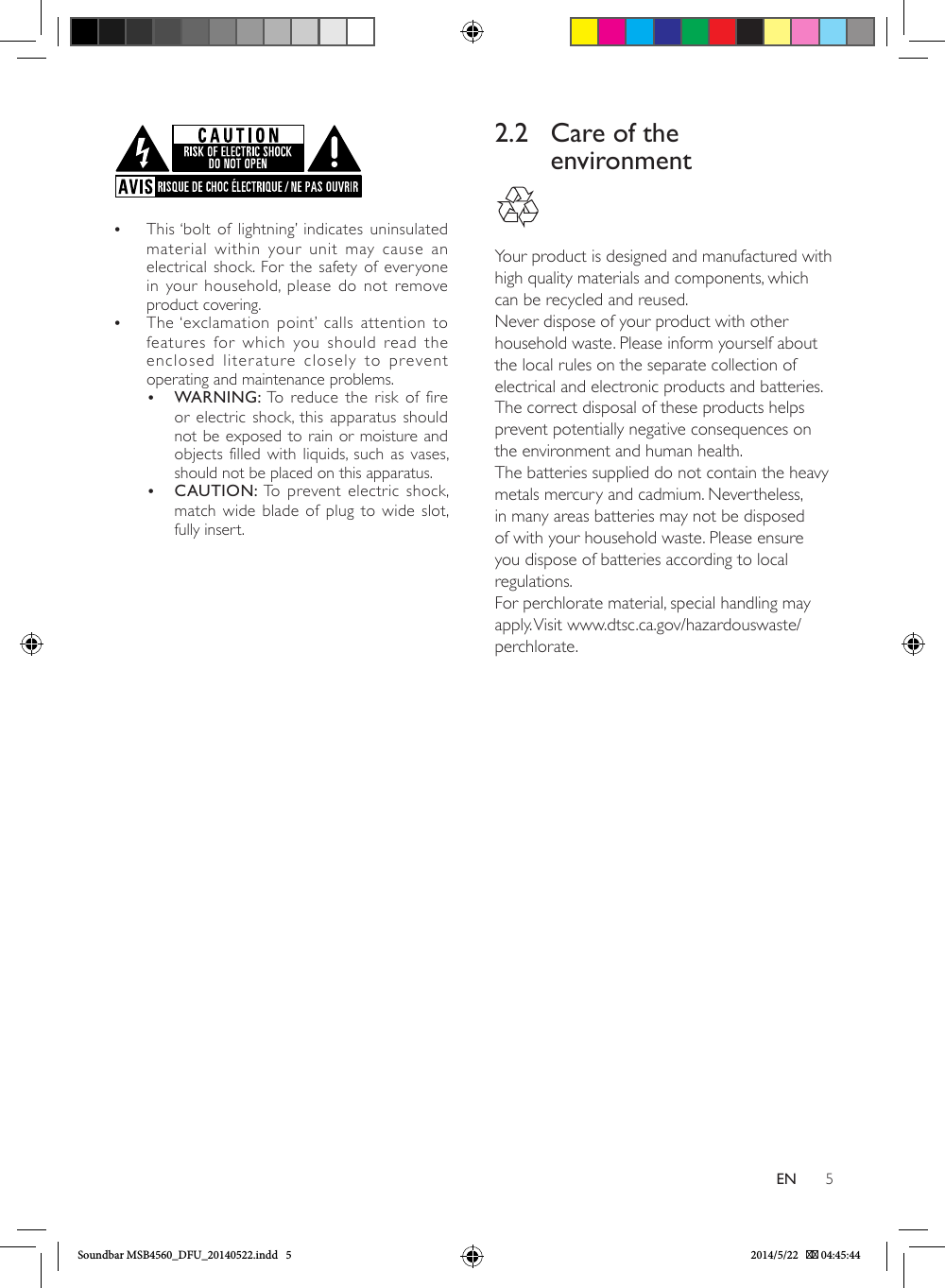

5EN• This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. • The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. • WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. • CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. 2.2 Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many areas batteries may not be disposed of with your household waste. Please ensure you dispose of batteries according to local regulations.For perchlorate material, special handling may apply. Visit www.dtsc.ca.gov/hazardouswaste/perchlorate.Soundbar MSB4560_DFU_20140522.indd 5 2014/5/22  04:45:44

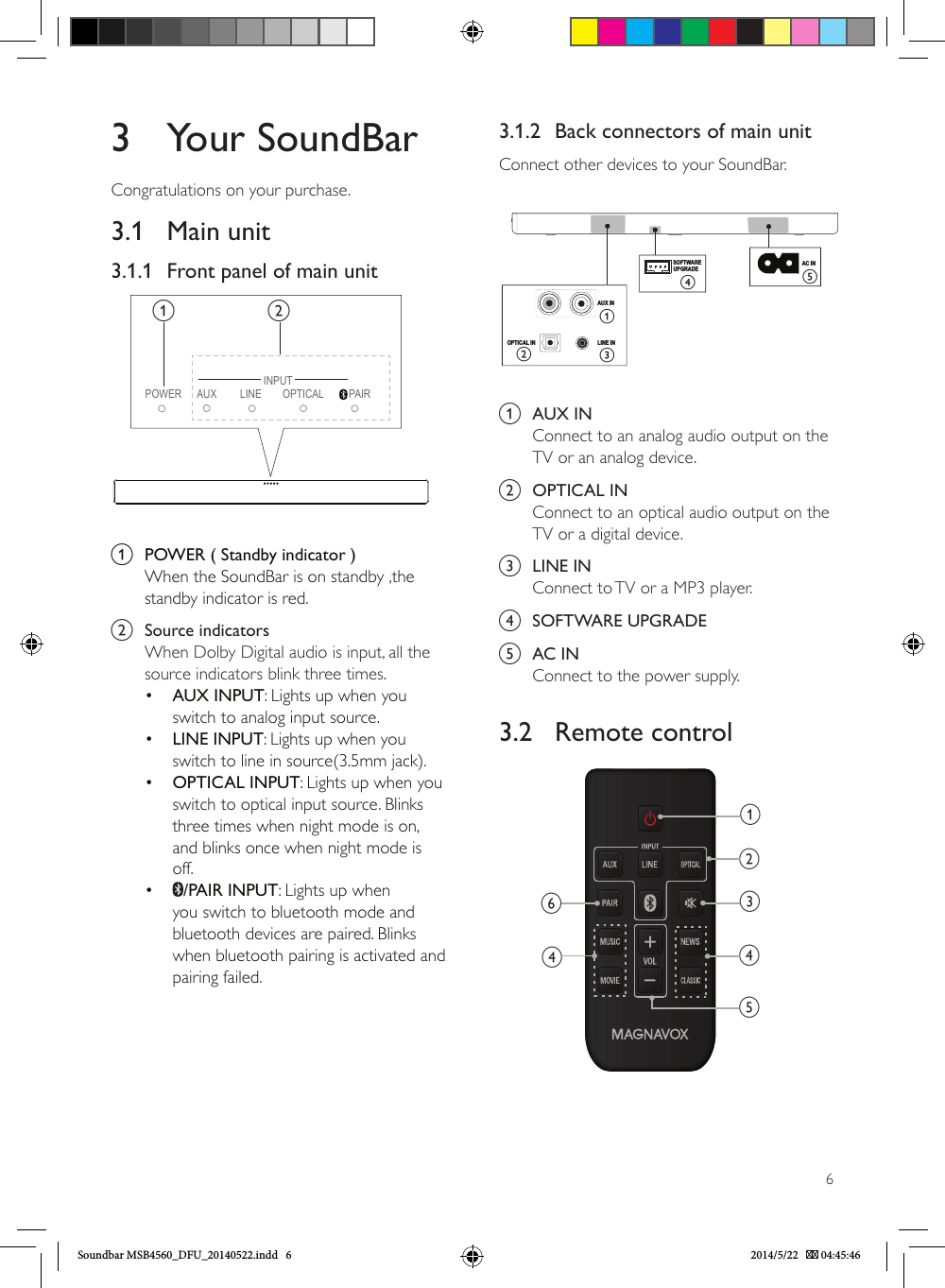

63.1.2 Back connectors of main unitConnect other devices to your SoundBar.AUX INLINE IN OPTICAL INAC INSOFTWAREUPGRADE abcdea AUX INConnect to an analog audio output on the TV or an analog device.b OPTICAL INConnect to an optical audio output on the TV or a digital device.c LINE INConnect to TV or a MP3 player.d SOFTWARE UPGRADEe AC INConnect to the power supply.3.2 Remote control abcdedf 3 Your SoundBarCongratulations on your purchase.3.1 Main unit3.1.1 Front panel of main unitPOWER LINE PAIRINPUTAUX OPTICALab a POWER ( Standby indicator )When the SoundBar is on standby ,thestandby indicator is red. b Source indicatorsWhen Dolby Digital audio is input, all the source indicators blink three times.• AUX INPUT: Lights up when you switch to analog input source. • LINE INPUT: Lights up when you switch to line in source(3.5mm jack).• OPTICAL INPUT: Lights up when you switch to optical input source. Blinks three times when night mode is on, and blinks once when night mode is off.• /PAIR INPUT: Lights up when you switch to bluetooth mode and bluetooth devices are paired. Blinks when bluetooth pairing is activated and pairing failed.Soundbar MSB4560_DFU_20140522.indd 6 2014/5/22  04:45:46

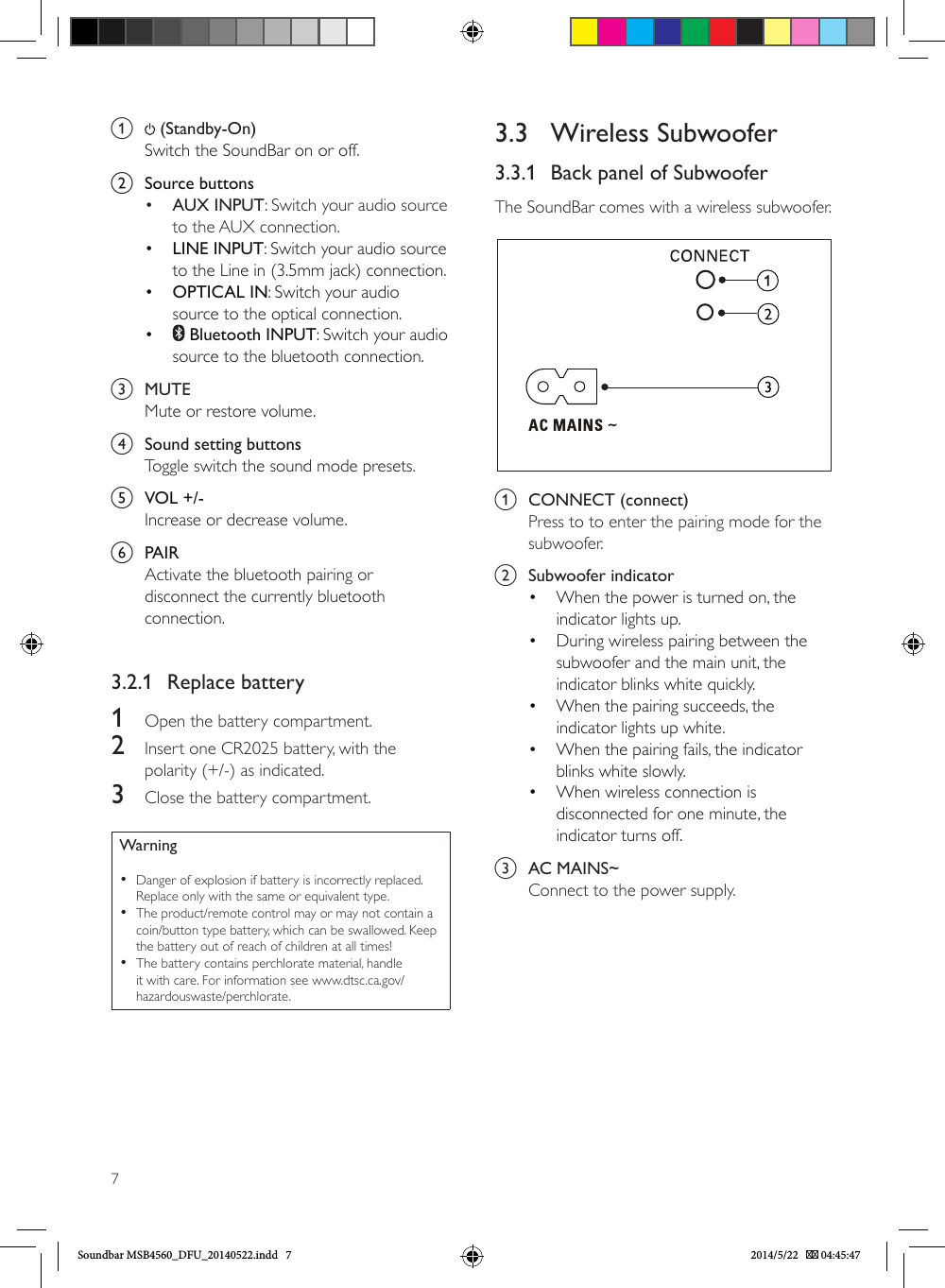

7a (Standby-On) Switch the SoundBar on or off.b Source buttons• AUX INPUT: Switch your audio source to the AUX connection. • LINE INPUT: Switch your audio source to the Line in (3.5mm jack) connection.• OPTICAL IN: Switch your audio source to the optical connection. • Bluetooth INPUT: Switch your audio source to the bluetooth connection. c MUTEMute or restore volume.d Sound setting buttonsToggle switch the sound mode presets.e VOL +/-Increase or decrease volume.f PAIRActivate the bluetooth pairing or disconnect the currently bluetooth connection.3.2.1 Replace battery1 Open the battery compartment.2 Insert one CR2025 battery, with the polarity (+/-) as indicated.3 Close the battery compartment.Warning •Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. •The product/remote control may or may not contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! •The battery contains perchlorate material, handle it with care. For information see www.dtsc.ca.gov/hazardouswaste/perchlorate.3.3 Wireless Subwoofer3.3.1 Back panel of SubwooferThe SoundBar comes with a wireless subwoofer.a CONNECT (connect)Press to to enter the pairing mode for the subwoofer.b Subwoofer indicator• When the power is turned on, the indicator lights up.• During wireless pairing between the subwoofer and the main unit, the indicator blinks white quickly.• When the pairing succeeds, the indicator lights up white.• When the pairing fails, the indicator blinks white slowly.• When wireless connection is disconnected for one minute, the indicator turns off.c AC MAINS~Connect to the power supply.Soundbar MSB4560_DFU_20140522.indd 7 2014/5/22  04:45:47
83.3.2 Pair up with the subwooferThe wireless subwoofer automatically pairs up with the SoundBar for wireless connection when you turn on the SoundBar and the subwoofer.If no audio from the wireless subwoofer can be heard, manually pair up the subwoofer.1 Turn on the SoundBar and the subwoofer.• if the connection to the SoundBar is lost, the indicator on the subwoofer blinks white slowly.2 Press the CONNECT button on the subwoofer to enter the pairing mode.• The indicator on the subwoofer blinks white quickly.3 On your remote control, press AUX button, then long Press PAIR button for 3 seconds. • All the indicators on the front panel of main unit blink back and forth.• The LED on subwoofer will blinks quickly during paring.4 If the paring succeeds, the indicators will show as below.• The ve indicators on the front panel of main unit light up for two seconds, then light off.• The indicator on the subwoofer will stop blink and stay on white.5 If the pairing fails, repeat the steps 1 to 3.• The ve indictors on the front panel of main unit blink twice.• the indicator on the subwoofer blinks white slowly.4 Connect and set upThis section helps you connect your SoundBar to a TV and other devices, and then set it up.For information about the basic connections of your SoundBar and accessories, see the quick start guide.Note •For identication and supply ratings, see the type plate at the back or bottom of the product. •Before you make or change any connections, make sure that all devices are disconnected from the power outlet.4.1 Position the SoundBar.Place the subwoofer at least 1 meter (3 feet) away from your SoundBar, and ten centimeters away from the wall.For best results, place your subwoofer as shown below. Soundbar MSB4560_DFU_20140522.indd 8 2014/5/22  04:45:47

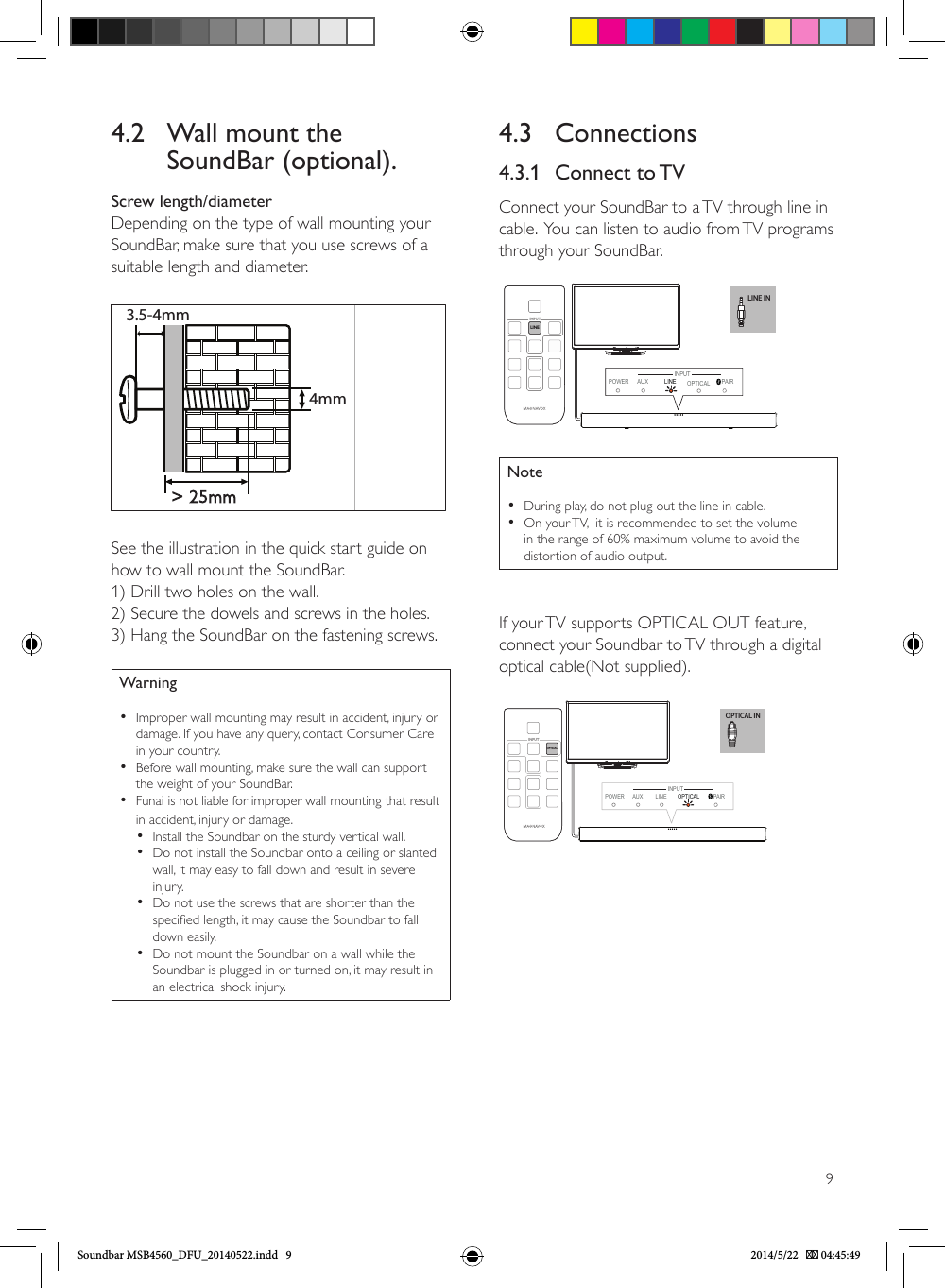

94.3 Connections4.3.1 Connect to TVConnect your SoundBar to a TV through line in cable. You can listen to audio from TV programs through your SoundBar.LINE INLINEINPUTPOWER AUX PAIRINPUTLINE OPTICALNote •During play, do not plug out the line in cable. •On your TV, it is recommended to set the volume in the range of 60% maximum volume to avoid the distortion of audio output.If your TV supports OPTICAL OUT feature, connect your Soundbar to TV through a digital optical cable(Not supplied).OPTICAL INPOWER AUX LINE OPTICAL PAIROPTICAL INPUTINPUT4.2 Wall mount the SoundBar (optional).Screw length/diameterDepending on the type of wall mounting yourSoundBar, make sure that you use screws of asuitable length and diameter.> 25mm3.5-4mm4mmSee the illustration in the quick start guide onhow to wall mount the SoundBar.1) Drill two holes on the wall.2) Secure the dowels and screws in the holes.3) Hang the SoundBar on the fastening screws. Warning •Improper wall mounting may result in accident, injury or damage. If you have any query, contact Consumer Care in your country. •Before wall mounting, make sure the wall can support the weight of your SoundBar. •Funai is not liable for improper wall mounting that result in accident, injury or damage. •Install the Soundbar on the sturdy vertical wall. •Do not install the Soundbar onto a ceiling or slanted wall, it may easy to fall down and result in severe injury. •Do not use the screws that are shorter than the specied length, it may cause the Soundbar to fall down easily. •Do not mount the Soundbar on a wall while the Soundbar is plugged in or turned on, it may result in an electrical shock injury.Soundbar MSB4560_DFU_20140522.indd 9 2014/5/22  04:45:49

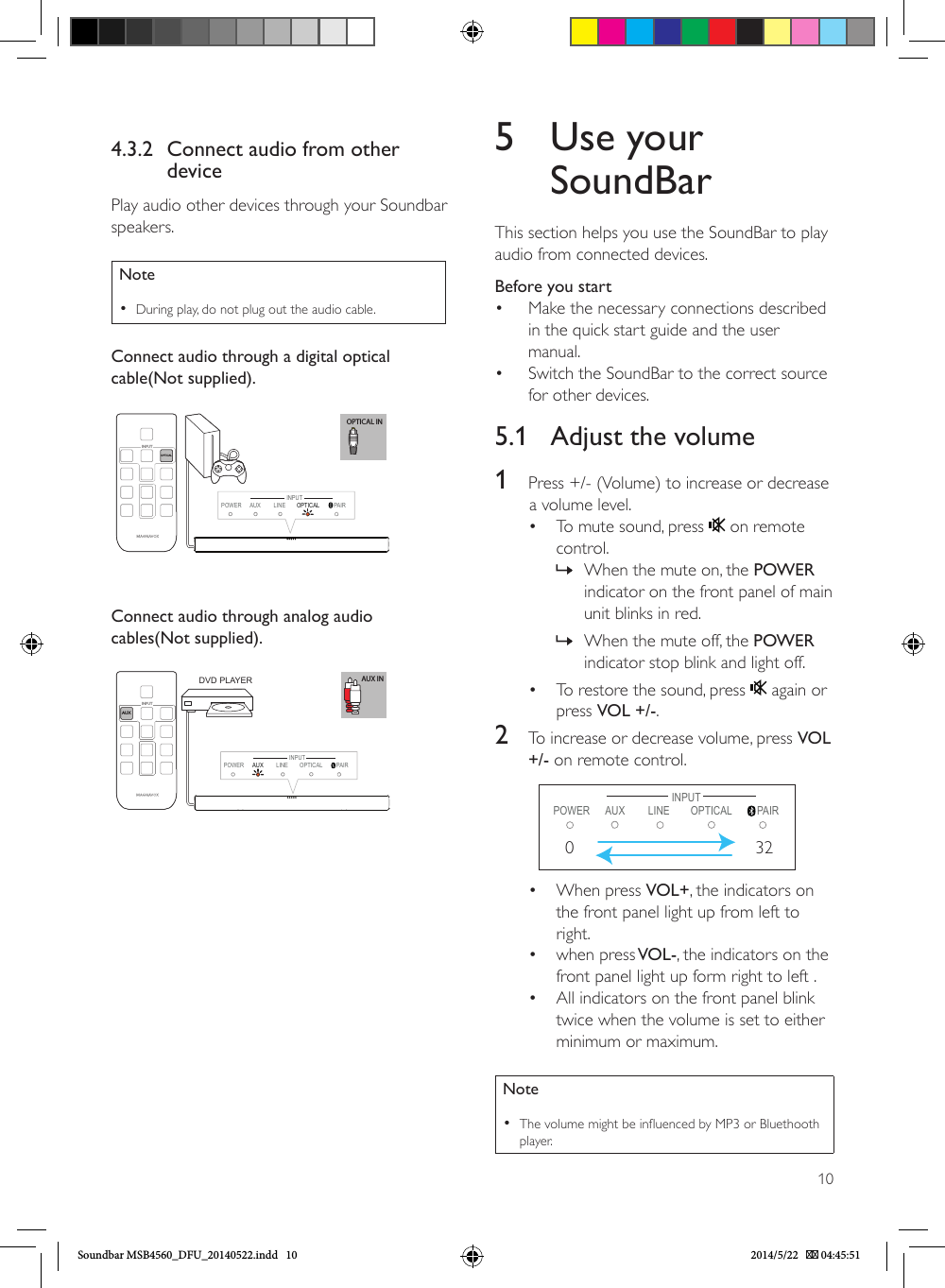

104.3.2 Connect audio from other devicePlay audio other devices through your Soundbar speakers.Note •During play, do not plug out the audio cable.Connect audio through a digital optical cable(Not supplied). OPTICAL INPOWER AUX LINE OPTICAL PAIROPTICAL INPUTINPUTConnect audio through analog audio cables(Not supplied). AUX INAUXINPUTPOWER LINE PAIRINPUTAUX OPTICALDVD PLAYER5 Use your SoundBarThis section helps you use the SoundBar to play audio from connected devices.Before you start• Make the necessary connections described in the quick start guide and the user manual.• Switch the SoundBar to the correct source for other devices.5.1 Adjust the volume 1 Press +/- (Volume) to increase or decrease a volume level.• To mute sound, press on remote control. » When the mute on, the POWER indicator on the front panel of main unit blinks in red. » When the mute off, the POWER indicator stop blink and light off.• To restore the sound, press again or press VOL +/-.2 To increase or decrease volume, press VOL +/- on remote control. POWER LINE PAIRINPUTAUX OPTICAL032• When press VOL+, the indicators on the front panel light up from left to right.• when press VOL-, the indicators on the front panel light up form right to left .• All indicators on the front panel blink twice when the volume is set to either minimum or maximum.Note •The volume might be inuenced by MP3 or Bluethooth player.Soundbar MSB4560_DFU_20140522.indd 10 2014/5/22  04:45:51

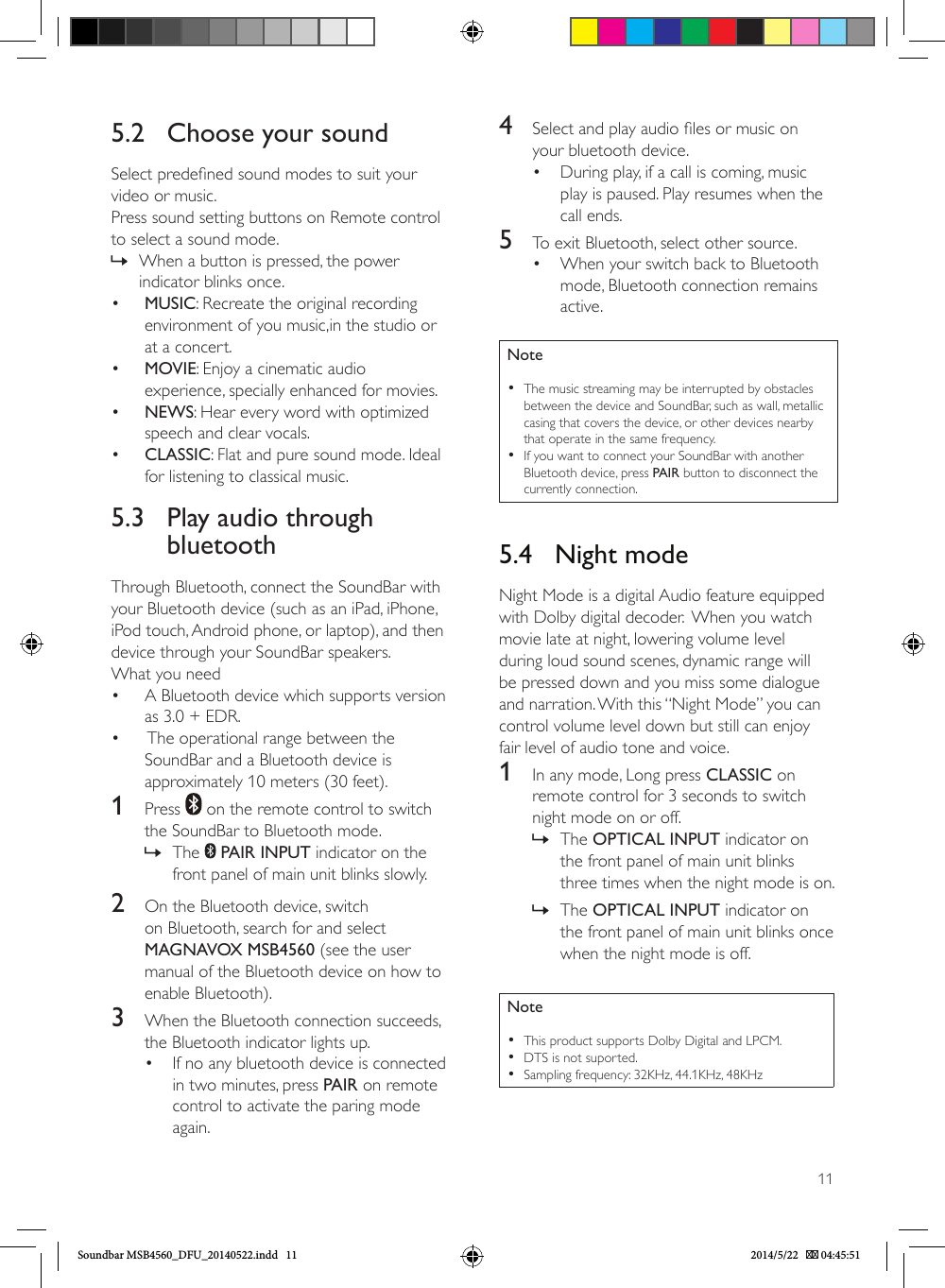

114 Select and play audio les or music on your bluetooth device.• During play, if a call is coming, music play is paused. Play resumes when the call ends.5 To exit Bluetooth, select other source.• When your switch back to Bluetooth mode, Bluetooth connection remains active.Note •The music streaming may be interrupted by obstacles between the device and SoundBar, such as wall, metallic casing that covers the device, or other devices nearby that operate in the same frequency. •If you want to connect your SoundBar with another Bluetooth device, press PAIR button to disconnect the currently connection.5.4 Night modeNight Mode is a digital Audio feature equipped with Dolby digital decoder. When you watch movie late at night, lowering volume level during loud sound scenes, dynamic range will be pressed down and you miss some dialogue and narration. With this “Night Mode” you can control volume level down but still can enjoy fair level of audio tone and voice. 1 In any mode, Long press CLASSIC on remote control for 3 seconds to switch night mode on or off. » The OPTICAL INPUT indicator on the front panel of main unit blinks three times when the night mode is on. » The OPTICAL INPUT indicator on the front panel of main unit blinks once when the night mode is off.Note •This product supports Dolby Digital and LPCM. •DTS is not suported. •Sampling frequency: 32KHz, 44.1KHz, 48KHz5.2 Choose your soundSelect predened sound modes to suit your video or music.Press sound setting buttons on Remote control to select a sound mode. »When a button is pressed, the power indicator blinks once.• MUSIC: Recreate the original recording environment of you music,in the studio or at a concert.• MOVIE: Enjoy a cinematic audio experience, specially enhanced for movies.• NEWS: Hear every word with optimized speech and clear vocals.• CLASSIC: Flat and pure sound mode. Ideal for listening to classical music.5.3 Play audio through bluetoothThrough Bluetooth, connect the SoundBar withyour Bluetooth device (such as an iPad, iPhone,iPod touch, Android phone, or laptop), and thendevice through your SoundBar speakers.What you need• A Bluetooth device which supports version as 3.0 + EDR.• The operational range between the SoundBar and a Bluetooth device is approximately 10 meters (30 feet).1 Press on the remote control to switch the SoundBar to Bluetooth mode. » The PAIR INPUT indicator on the front panel of main unit blinks slowly.2 On the Bluetooth device, switch on Bluetooth, search for and select MAGNAVOX MSB4560 (see the user manual of the Bluetooth device on how to enable Bluetooth).3 When the Bluetooth connection succeeds, the Bluetooth indicator lights up.• If no any bluetooth device is connected in two minutes, press PAIR on remote control to activate the paring mode again.Soundbar MSB4560_DFU_20140522.indd 11 2014/5/22  04:45:51

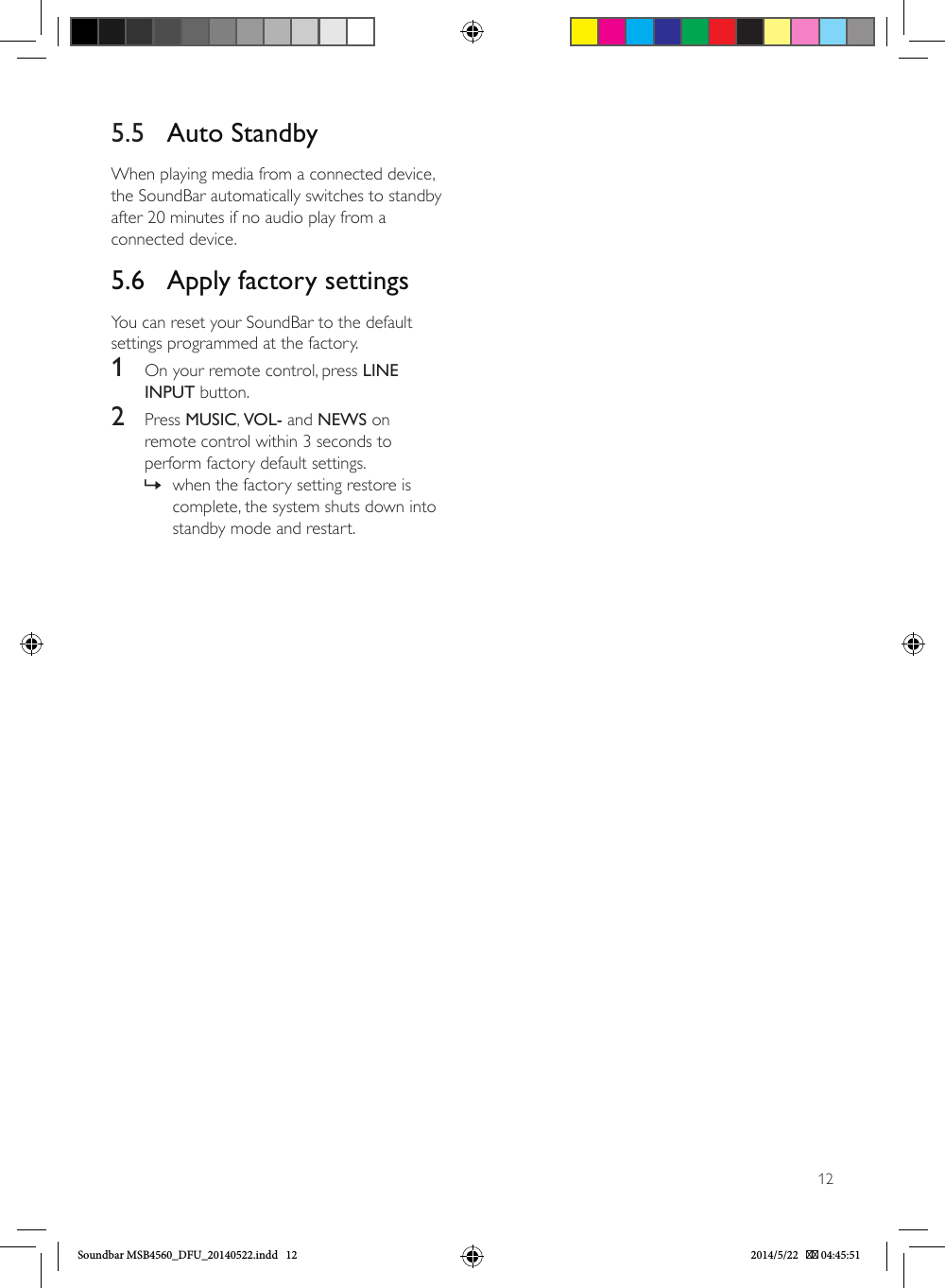

125.5 Auto StandbyWhen playing media from a connected device, the SoundBar automatically switches to standby after 20 minutes if no audio play from a connected device.5.6 Apply factory settingsYou can reset your SoundBar to the default settings programmed at the factory.1 On your remote control, press LINE INPUT button.2 Press MUSIC, VOL- and NEWS on remote control within 3 seconds to perform factory default settings. » when the factory setting restore is complete, the system shuts down into standby mode and restart.Soundbar MSB4560_DFU_20140522.indd 12 2014/5/22  04:45:51

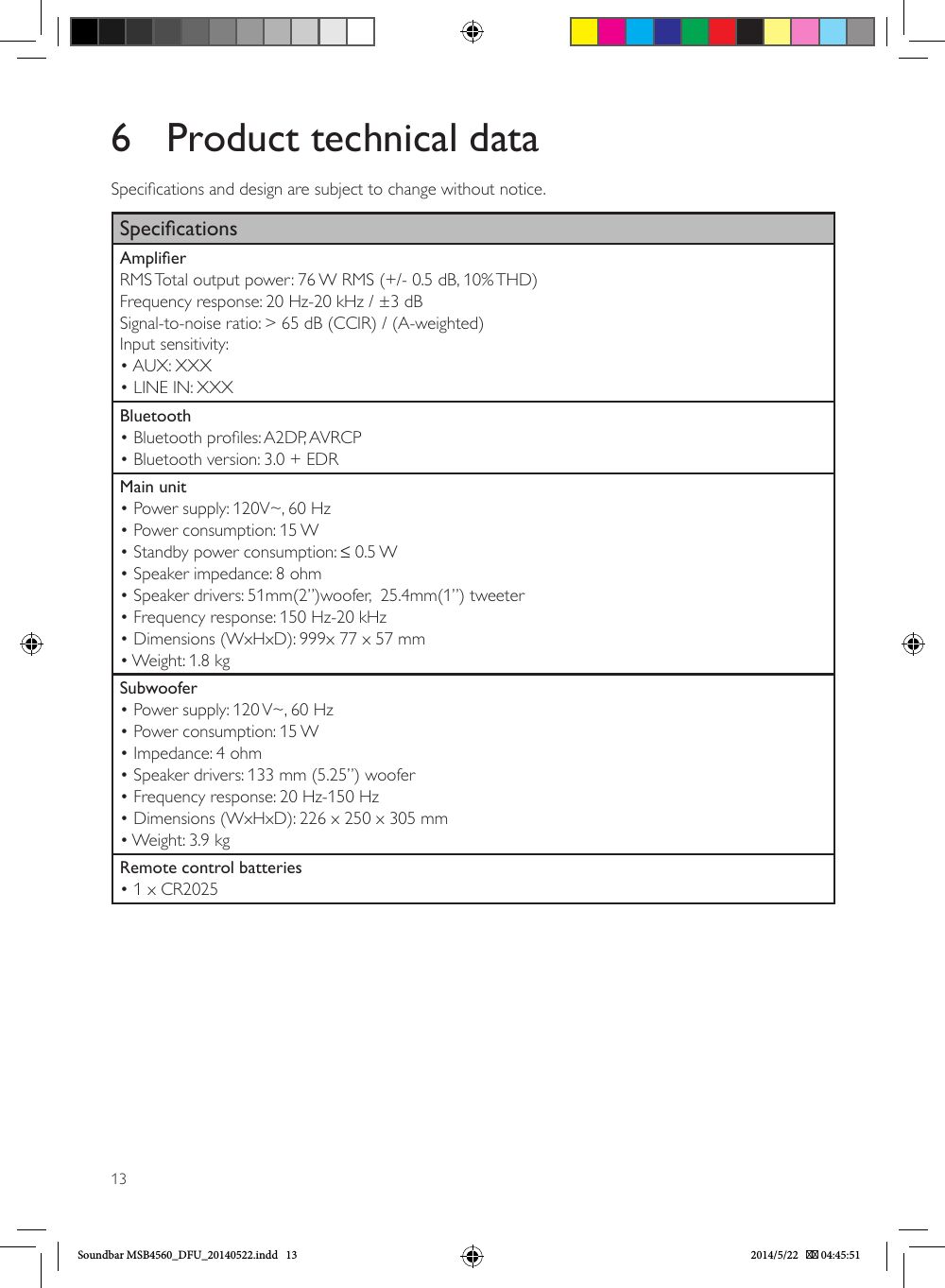

136 Product technical dataSpecications and design are subject to change without notice.SpecicationsAmplierRMS Total output power: 76 W RMS (+/- 0.5 dB, 10% THD)Frequency response: 20 Hz-20 kHz / ±3 dBSignal-to-noise ratio: > 65 dB (CCIR) / (A-weighted)Input sensitivity:• AUX: XXX• LINE IN: XXXBluetooth• Bluetooth proles: A2DP, AVRCP• Bluetooth version: 3.0 + EDRMain unit• Power supply: 120V~, 60 Hz• Power consumption: 15 W• Standby power consumption: ≤ 0.5 W• Speaker impedance: 8 ohm• Speaker drivers: 51mm(2”)woofer, 25.4mm(1”) tweeter• Frequency response: 150 Hz-20 kHz• Dimensions (WxHxD): 999x 77 x 57 mm• Weight: 1.8 kgSubwoofer• Power supply: 120 V~, 60 Hz• Power consumption: 15 W• Impedance: 4 ohm• Speaker drivers: 133 mm (5.25”) woofer• Frequency response: 20 Hz-150 Hz• Dimensions (WxHxD): 226 x 250 x 305 mm• Weight: 3.9 kgRemote control batteries• 1 x CR2025Soundbar MSB4560_DFU_20140522.indd 13 2014/5/22  04:45:51

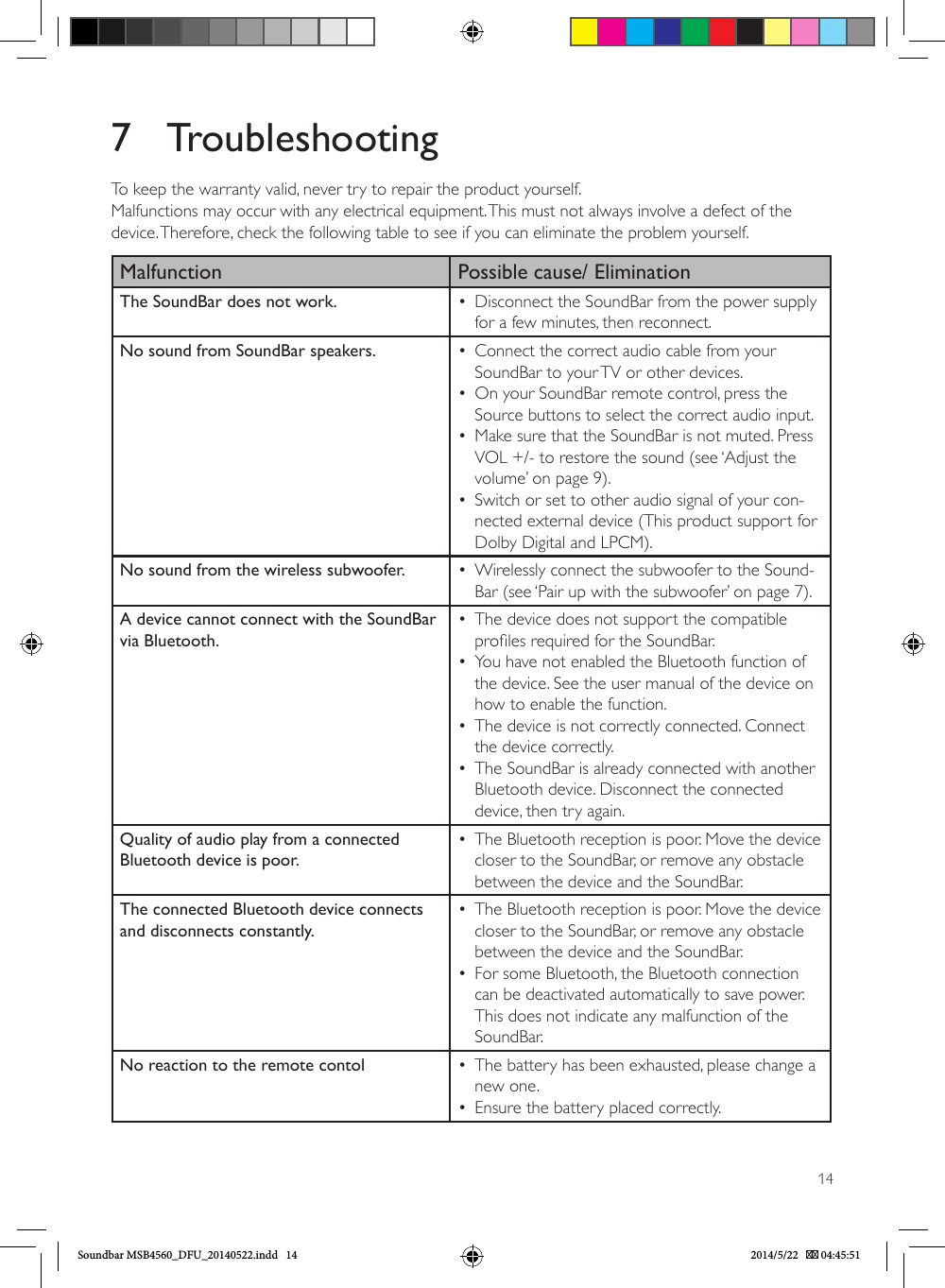

147 TroubleshootingTo keep the warranty valid, never try to repair the product yourself. Malfunctions may occur with any electrical equipment. This must not always involve a defect of the device. Therefore, check the following table to see if you can eliminate the problem yourself. Malfunction Possible cause/ EliminationThe SoundBar does not work. • Disconnect the SoundBar from the power supply for a few minutes, then reconnect.No sound from SoundBar speakers. • Connect the correct audio cable from your SoundBar to your TV or other devices.• On your SoundBar remote control, press the Source buttons to select the correct audio input.• Make sure that the SoundBar is not muted. Press VOL +/- to restore the sound (see ‘Adjust the volume’ on page 9).• Switch or set to other audio signal of your con-nected external device (This product support for Dolby Digital and LPCM).No sound from the wireless subwoofer. • Wirelessly connect the subwoofer to the Sound-Bar (see ‘Pair up with the subwoofer’ on page 7).A device cannot connect with the SoundBar via Bluetooth.• The device does not support the compatible proles required for the SoundBar.• You have not enabled the Bluetooth function of the device. See the user manual of the device on how to enable the function.• The device is not correctly connected. Connect the device correctly.• The SoundBar is already connected with another Bluetooth device. Disconnect the connected device, then try again.Quality of audio play from a connected Bluetooth device is poor.• The Bluetooth reception is poor. Move the device closer to the SoundBar, or remove any obstacle between the device and the SoundBar.The connected Bluetooth device connects and disconnects constantly.• The Bluetooth reception is poor. Move the device closer to the SoundBar, or remove any obstacle between the device and the SoundBar.• For some Bluetooth, the Bluetooth connection can be deactivated automatically to save power. This does not indicate any malfunction of the SoundBar.No reaction to the remote contol • The battery has been exhausted, please change a new one.• Ensure the battery placed correctly.Soundbar MSB4560_DFU_20140522.indd 14 2014/5/22  04:45:51

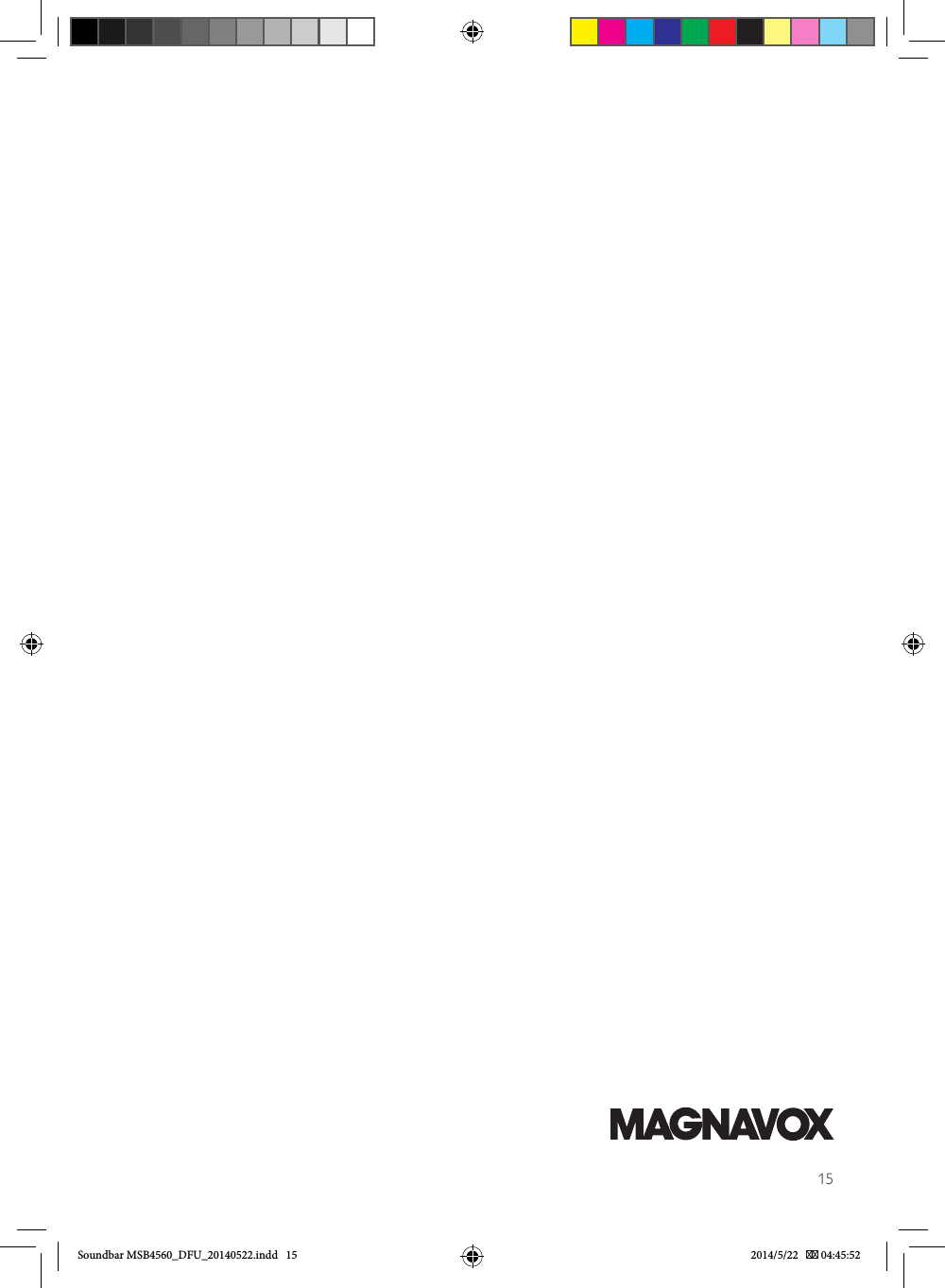

15Soundbar MSB4560_DFU_20140522.indd 15 2014/5/22  04:45:52
