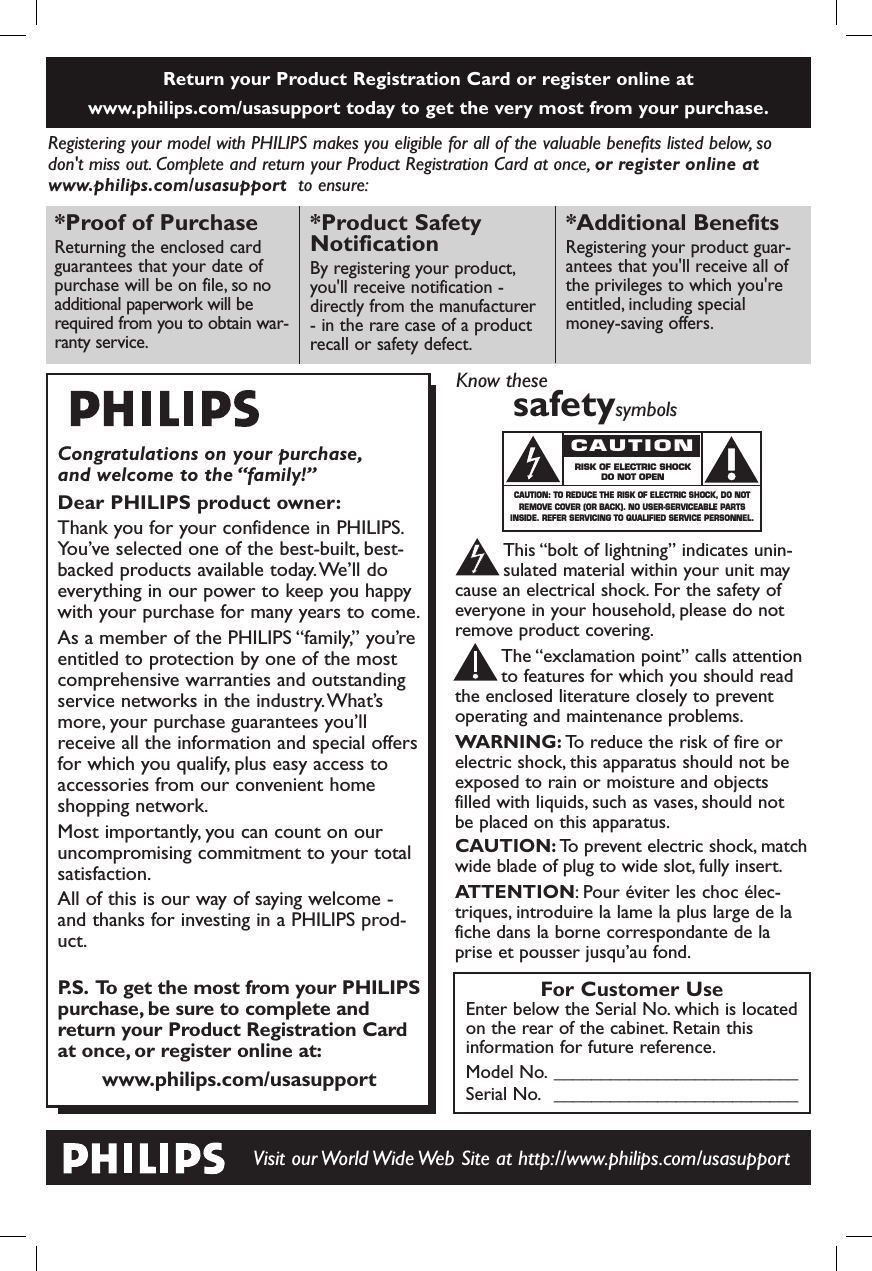

Return your Product Registration Card or register online at www.philips.com/usasupport today to get the very most from your purchase.Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, sodon't miss out. Complete and return your Product Registration Card at once, or register online atwww.philips.com/usasupport to ensure:Visit our World Wide Web Site at http://www.philips.com/usasupportCongratulations on your purchase,and welcome to the “family!”Dear PHILIPS product owner:Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today.We’ll doeverything in our power to keep you happywith your purchase for many years to come.As a member of the PHILIPS “family,” you’reentitled to protection by one of the mostcomprehensive warranties and outstandingservice networks in the industry.What’smore, your purchase guarantees you’llreceive all the information and special offersfor which you qualify, plus easy access toaccessories from our convenient homeshopping network.Most importantly, you can count on ouruncompromising commitment to your totalsatisfaction.All of this is our way of saying welcome -and thanks for investing in a PHILIPS prod-uct.P.S. To get the most from your PHILIPSpurchase, be sure to complete andreturn your Product Registration Cardat once, or register online at:www.philips.com/usasupport*Proof of Purchase Returning the enclosed cardguarantees that your date ofpurchase will be on file, so noadditional paperwork will berequired from you to obtain war-ranty service.*Product Safety NotificationBy registering your product,you'll receive notification -directly from the manufacturer- in the rare case of a productrecall or safety defect.*Additional Benefits Registering your product guar-antees that you'll receive all ofthe privileges to which you'reentitled, including specialmoney-saving offers.For Customer UseEnter below the Serial No. which is locatedon the rear of the cabinet. Retain thisinformation for future reference.Model No. __________________________Serial No. __________________________Know thesesafetysymbolsThis “bolt of lightning” indicates unin-sulated material within your unit maycause an electrical shock. For the safety ofeveryone in your household, please do notremove product covering.The “exclamation point” calls attentionto features for which you should readthe enclosed literature closely to preventoperating and maintenance problems.WARNING: To reduce the risk of fire orelectric shock, this apparatus should not beexposed to rain or moisture and objectsfilled with liquids, such as vases, should notbe placed on this apparatus.CAUTION: To prevent electric shock, matchwide blade of plug to wide slot, fully insert.ATTENTION: Pour éviter les choc élec-triques, introduire la lame la plus large de lafiche dans la borne correspondante de laprise et pousser jusqu’au fond.CA UT IO NRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
1.Read these instructions.2.Keep these instructions.3.Heed all warnings.4.Follow all instructions.5.Do not use this apparatus nearwater.6.Clean only with dry cloth.7.Do not block any ventilationopenings.Install in accordance withthe manufacturer´s instructions.8.Do not install near any heat sourcessuch as radiators, heat registers,stoves,orother apparatus (including ampli ers) that produce heat.9.Do not defeat the safety purpose of the polarized or grounding-type plug.A polarized plug has two blades with one wider than the other . A grounding type plug has two blades and a third grounding prong.The wide blade or the third prong are provided for your safety.If the providedplug does not into your outlet, consult anelectrician for replacement of the obsoleteoutlet.10.Protect the power cord from beingwalked on or pinched particularly at plugs,convenience receptacles, and the pointwhere they exit from the apparatus.11. Only use attachments/accessories specied by the manufacturer. 12.Use only with the cart, stand,tripod,bracket,or table speciedby the manufacturer or sold withthe apparatus.When a cart isused,use caution when movingthe cart/apparatus combinationto avoid injury from tip-over.13.Unplug this apparatus during lightningstorms or when unused for long periods oftime.14.Refer all servicing to quali ed servicepersonnel.Servicing is required when theapparatus has been damaged in any way,such as power-supply cord or plug isdamaged,liquid has been spilled or objectshave fallen into the apparatus,the apparatushas been exposed to rain or moisturedoes,not operate normally, or has been dropped.15.Battery usage CAUTION – Toprevent battery leakage which may result inbodily injury,property damage,or damageto the unit:Install all batter ies correctly, +and-as marked on the unit.Do not mix batteries (old and new or carbon and alkaline,etc.). Remove batteries when the unit is not used for a long time. IMPORTANT SAFETY INSTRUCTIONSAC PolarizedPlug16. Apparatus shall not be exposed to dripping or splashing. 17. Do not place any sources of danger on the apparatus (e.g. liquid lled objects, lighted candles).18. This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance : www.eiae.org. EL 6475-E005:04/01

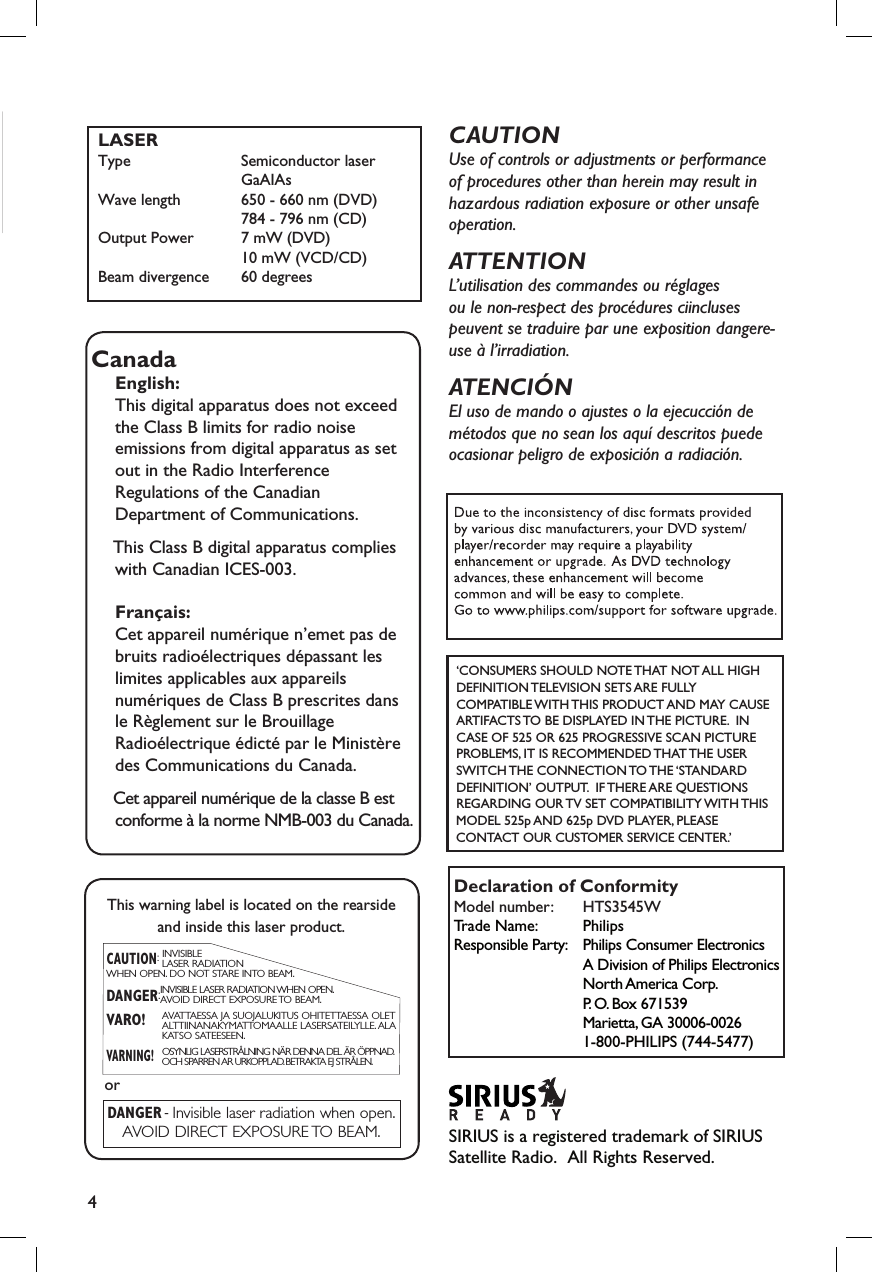

4EnglishLASERType Semiconductor laser GaAIAsWave length 650 - 660 nm (DVD) 784 - 796 nm (CD)Output Power 7 mW (DVD) 10 mW (VCD/CD)Beam divergence 60 degrees CanadaEnglish:This digital apparatus does not exceedthe Class B limits for radio noiseemissions from digital apparatus as setout in the Radio InterferenceRegulations of the CanadianDepartment of Communications. This Class B digital apparatus complies with Canadian ICES-003.Français:Cet appareil numérique n’emet pas debruits radioélectriques dépassant leslimites applicables aux appareilsnumériques de Class B prescrites dansle Règlement sur le BrouillageRadioélectrique édicté par le Ministèredes Communications du Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.This warning label is located on the rearsideand inside this laser product.CAUTION:INVISIBLELASER RADIATIONWHEN OPEN. DO NOT STARE INTO BEAM.DANGER:INVISIBLE LASER RADIATION WHEN OPEN.AVOID DIRECT EXPOSURE TO BEAM.VARO! AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLETALTTIINANAKYMATTOMAALLE LASERSATEILYLLE. ALAKATSO SATEESEEN.VARNING!OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.OCH SPARREN AR URKOPPLAD.BETRAKTA EJ STRÅLEN.DANGER -Invisible laser radiation when open.AVOID DIRECT EXPOSURE TO BEAM.orCAUTIONUse of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.ATTENTIONL’utilisation des commandes ou réglagesou le non-respect des procédures ciinclusespeuvent se traduire par une exposition dangere-use à l’irradiation.ATENCIÓNEl uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’Declaration of ConformityModel number: HTS3545WTrade Name: PhilipsResponsible Party: Philips Consumer Electronics A Division of Philips Electronics North America Corp. P. O. Box 671539 Marietta, GA 30006-0026 1-800-PHILIPS (744-5477)SIRIUS is a registered trademark of SIRIUS Satellite Radio. All Rights Reserved.
EnglishFrançaisEspañol5English ------------------------------------ 6French -----------------------------------60Spanish -------------------------------- 114Environmental informationAll unnecessary packaging has been omitted.We have tried to make the packaging easy toseparate into three materials: cardboard(box), polystyrene foam (buffer) andpolyethylene (bags, protective foam sheet.)Your system consists of materials which canbe recycled and reused if disassembled by aspecialized company. Please observe the localregulations regarding the disposal of packaging materials, exhausted batteries and old equipment.HDMI, and HDMI logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. Manufactured under license from Dolby Laboratories, Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.Manufactured under license from one or more of the following DTS, Inc. U.S. Pat. No’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and world-wide patents issued and pending. ”DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. Copyright 1996, 2002-2006, DTS, Inc. All Rights Reserved. Index DivX Ultra Certi ed products: “DivX, DivX Ultra Certi ed, and associated logos are trademarks of DivX, Inc. and are used under license.Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.This device complies with Part 15 of the FCC Rules. Operations is subject to the following two conditions;(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter.The antennas used for this transmitter must beinstalled to provide a separation distance of at least20 cm from all persons and must not be co- locatedor operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.

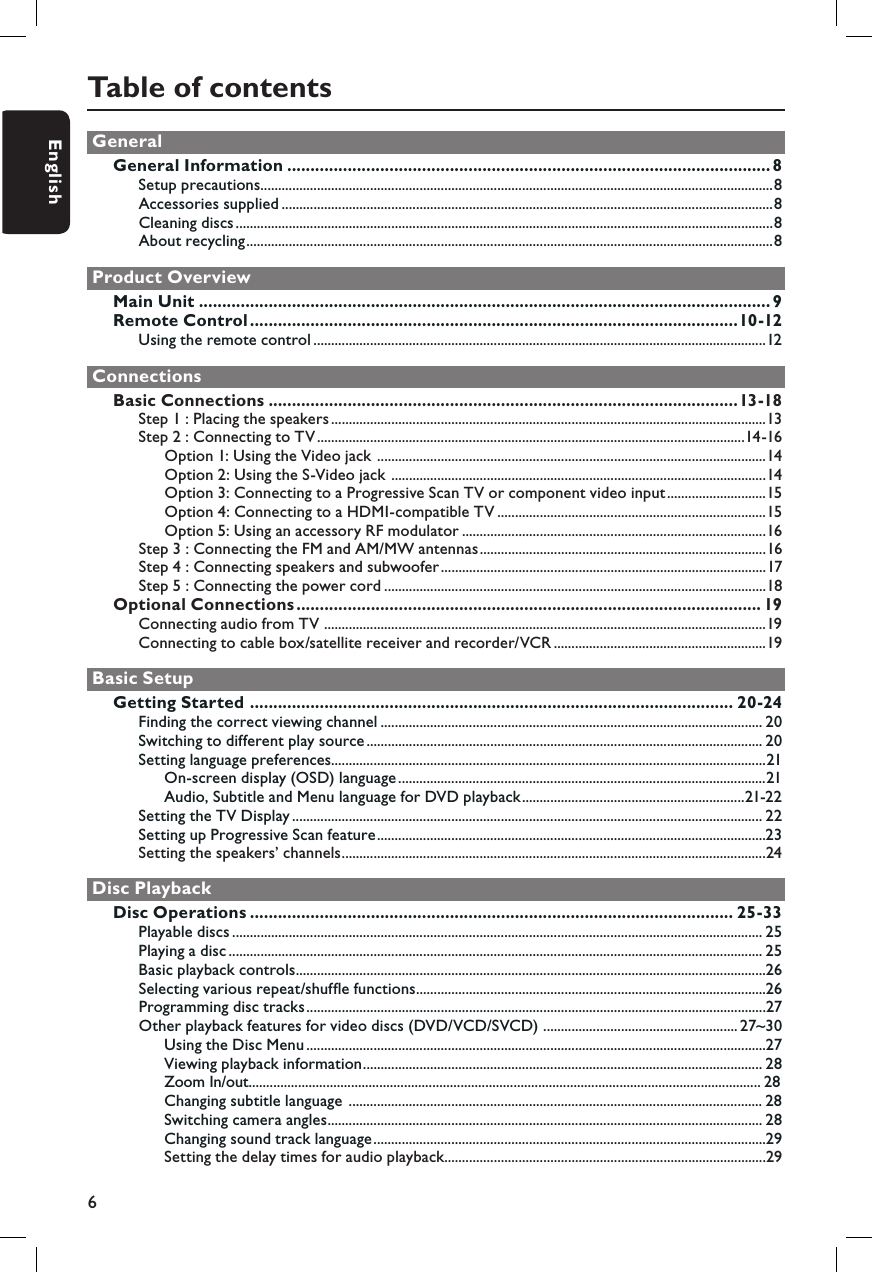

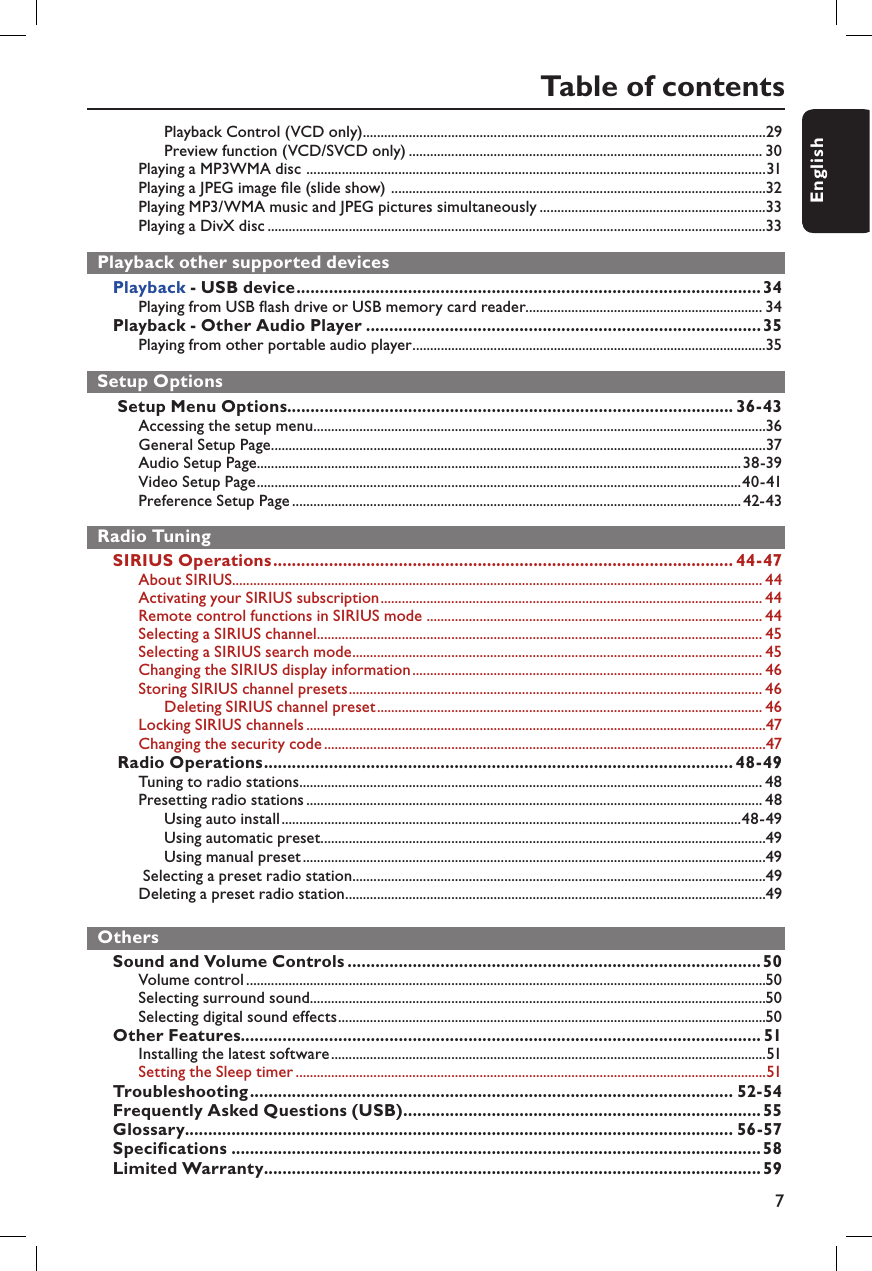

6EnglishTable of contents GeneralGeneral Information ........................................................................................................ 8Setup precautions .................................................................................................................................................8Accessories supplied ...........................................................................................................................................8Cleaning discs ........................................................................................................................................................8About recycling .....................................................................................................................................................8 Product OverviewMain Unit ........................................................................................................................... 9Remote Control .........................................................................................................10-12Using the remote control ................................................................................................................................12 ConnectionsBasic Connections .....................................................................................................13-18Step 1 : Placing the speakers ...........................................................................................................................13Step 2 : Connecting to TV .........................................................................................................................14-16Option 1: Using the Video jack ..............................................................................................................14Option 2: Using the S-Video jack ..........................................................................................................14Option 3: Connecting to a Progressive Scan TV or component video input ............................15Option 4: Connecting to a HDMI-compatible TV ............................................................................15Option 5: Using an accessory RF modulator ......................................................................................16Step 3 : Connecting the FM and AM/MW antennas .................................................................................16Step 4 : Connecting speakers and subwoofer ............................................................................................17Step 5 : Connecting the power cord ............................................................................................................18Optional Connections .................................................................................................... 19Connecting audio from TV .............................................................................................................................19Connecting to cable box/satellite receiver and recorder/VCR ............................................................19 Basic SetupGetting Started ........................................................................................................ 20-24Finding the correct viewing channel ............................................................................................................ 20Switching to different play source ................................................................................................................ 20Setting language preferences ...........................................................................................................................21On-screen display (OSD) language ........................................................................................................21Audio, Subtitle and Menu language for DVD playback ...............................................................21-22Setting the TV Display ..................................................................................................................................... 22Setting up Progressive Scan feature ..............................................................................................................23Setting the speakers’ channels ........................................................................................................................24 Disc PlaybackDisc Operations ........................................................................................................ 25-33Playable discs ...................................................................................................................................................... 25Playing a disc ....................................................................................................................................................... 25Basic playback controls .....................................................................................................................................26Selecting various repeat/shuf e functions ...................................................................................................26Programming disc tracks ..................................................................................................................................27Other playback features for video discs (DVD/VCD/SVCD) ....................................................... 27~30Using the Disc Menu ..................................................................................................................................27Viewing playback information ................................................................................................................. 28Zoom In/out................................................................................................................................................. 28Changing subtitle language ..................................................................................................................... 28Switching camera angles ........................................................................................................................... 28Changing sound track language ...............................................................................................................29Setting the delay times for audio playback ...........................................................................................29
7EnglishPlayback Control (VCD only) ..................................................................................................................29Preview function (VCD/SVCD only) .................................................................................................... 30Playing a MP3WMA disc ..................................................................................................................................31Playing a JPEG image  le (slide show) ..........................................................................................................32Playing MP3/WMA music and JPEG pictures simultaneously ................................................................33Playing a DivX disc .............................................................................................................................................33 Playback other supported devicesPlayback - USB device .................................................................................................... 34Playing from USB  ash drive or USB memory card reader................................................................... 34Playback - Other Audio Player .....................................................................................35Playing from other portable audio player ....................................................................................................35 Setup Options Setup Menu Options................................................................................................ 36-43Accessing the setup menu ................................................................................................................................36General Setup Page ............................................................................................................................................37Audio Setup Page .........................................................................................................................................38-39Video Setup Page .........................................................................................................................................40-41Preference Setup Page ............................................................................................................................... 42-43 Radio TuningSIRIUS Operations ................................................................................................... 44-47About SIRIUS...................................................................................................................................................... 44Activating your SIRIUS subscription ............................................................................................................ 44Remote control functions in SIRIUS mode ............................................................................................... 44Selecting a SIRIUS channel .............................................................................................................................. 45Selecting a SIRIUS search mode .................................................................................................................... 45Changing the SIRIUS display information ................................................................................................... 46Storing SIRIUS channel presets ..................................................................................................................... 46Deleting SIRIUS channel preset ............................................................................................................. 46Locking SIRIUS channels ..................................................................................................................................47Changing the security code .............................................................................................................................47 Radio Operations ..................................................................................................... 48-49Tuning to radio stations ................................................................................................................................... 48Presetting radio stations ................................................................................................................................. 48Using auto install ..................................................................................................................................48-49Using automatic preset ..............................................................................................................................49Using manual preset ...................................................................................................................................49 Selecting a preset radio station .....................................................................................................................49Deleting a preset radio station .......................................................................................................................49 OthersSound and Volume Controls ......................................................................................... 50Volume control ...................................................................................................................................................50Selecting surround sound .................................................................................................................................50Selecting digital sound effects .........................................................................................................................50Other Features................................................................................................................ 51Installing the latest software ...........................................................................................................................51Setting the Sleep timer .....................................................................................................................................51Troubleshooting ........................................................................................................ 52-54Frequently Asked Questions (USB) .............................................................................55Glossary...................................................................................................................... 56-57Speci cations ..................................................................................................................58Limited Warranty ........................................................................................................... 59 Table of contents

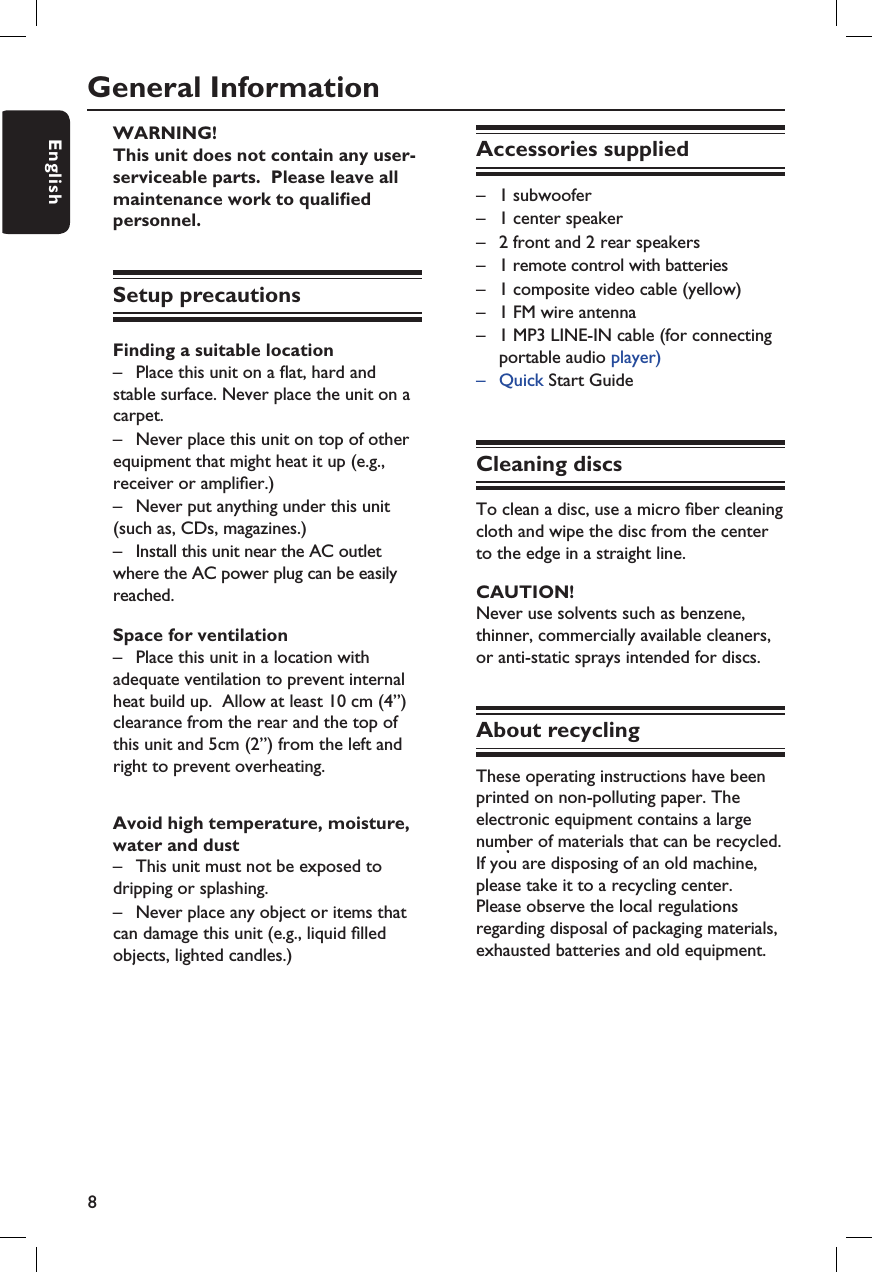

8EnglishGeneral InformationWARNING!This unit does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.Setup precautionsFinding a suitable location– Place this unit on a  at, hard and stable surface. Never place the unit on a carpet.– Never place this unit on top of other equipment that might heat it up (e.g., receiver or ampli er.)– Never put anything under this unit (such as, CDs, magazines.)– Install this unit near the AC outlet where the AC power plug can be easily reached.Space for ventilation– Place this unit in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of this unit and 5cm (2”) from the left and right to prevent overheating.Avoid high temperature, moisture, water and dust– This unit must not be exposed to dripping or splashing.– Never place any object or items that can damage this unit (e.g., liquid  lled objects, lighted candles.)Accessories supplied– 1 subwoofer – 1 center speaker– 2 front and 2 rear speakers – 1 remote control with batteries– 1 composite video cable (yellow) – 1 FM wire antenna– 1 MP3 LINE-IN cable (for connecting portable audio player)– Quick Start GuideCleaning discsTo clean a disc, use a micro  ber cleaning cloth and wipe the disc from the center to the edge in a straight line.CAUTION!Never use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for discs.About recyclingThese operating instructions have been printed on non-polluting paper. The electronic equipment contains a large number of materials that can be recycled. If you are disposing of an old machine, please take it to a recycling center. Please observe the local regulations regarding disposal of packaging materials, exhausted batteries and old equipment.
9EnglishMain Unit125 6 78934a STANDBY-ON2– Turns on this unit or turns off to normal standby mode.b Disc Trayc OPEN/CLOSE ç– Opens/closes the disc tray. d Display panele SOURCE – Selects the relevant active source mode: DISC, FM, AM/MW, SIRIUS, TV, AUX, DI (DIGITAL IN) or MP3 LINE-IN. f í / ë– DISC: skips to the previous or next title/chapter/track.– DISC: press and hold this button for fast forward and backward search.– RADIO: selects a preset radio station. u– DISC: starts/pauses playback.– RADIO: starts auto radio installation for  rst time setup. Ç– Exits an operation. – DISC: stops playback.– RADIO: press and hold this button to erase the current preset radio station. g VOL – Adjusts the volume level.h MP3 LINE-IN jack– Phono input for connecting to the headphone out jack on your portable audio player.i USB jack– Input for USB  ash drive or USB memory card reader.

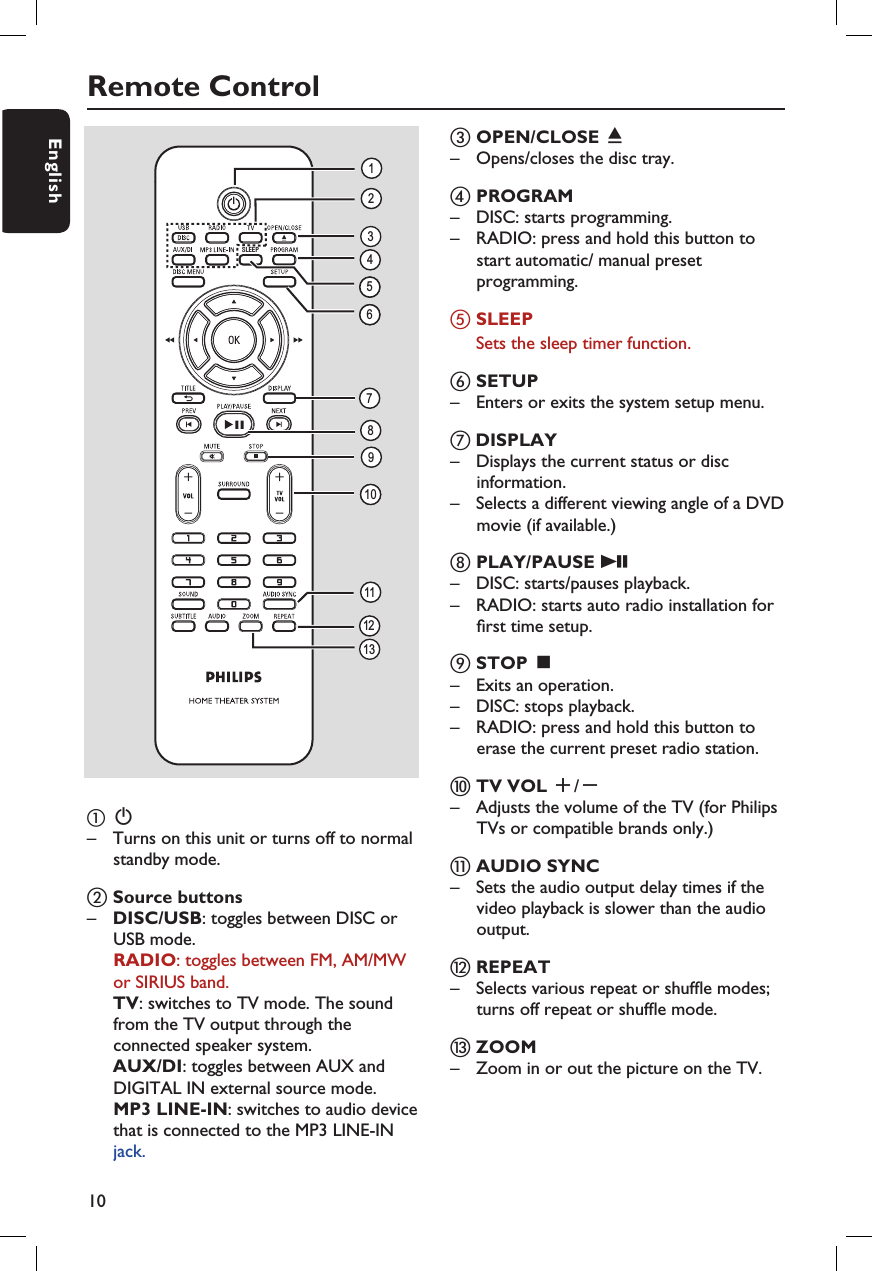

10EnglishRemote ControlSLEEP2346789101112136165a 2– Turns on this unit or turns off to normal standby mode.bSource buttons– DISC/USB: toggles between DISC or USB mode. RADIO: toggles between FM, AM/MW or SIRIUS band. TV: switches to TV mode. The sound from the TV output through the connected speaker system. AUX/DI: toggles between AUX and DIGITAL IN external source mode. MP3 LINE-IN: switches to audio device that is connected to the MP3 LINE-IN jack. c OPEN/CLOSE ç– Opens/closes the disc tray.dPROGRAM– DISC: starts programming.– RADIO: press and hold this button to start automatic/ manual preset programming.e SLEEP Sets the sleep timer function.f SETUP – Enters or exits the system setup menu. g DISPLAY– Displays the current status or disc information.– Selects a different viewing angle of a DVD movie (if available.)h PLAY/PAUSE u– DISC: starts/pauses playback.– RADIO: starts auto radio installation for  rst time setup.i STOP Ç– Exits an operation. – DISC: stops playback.– RADIO: press and hold this button to erase the current preset radio station. j TV VOL +/-– Adjusts the volume of the TV (for Philips TVs or compatible brands only.)k AUDIO SYNC – Sets the audio output delay times if the video playback is slower than the audio output.l REPEAT– Selects various repeat or shuf e modes; turns off repeat or shuf e mode. m ZOOM– Zoom in or out the picture on the TV.

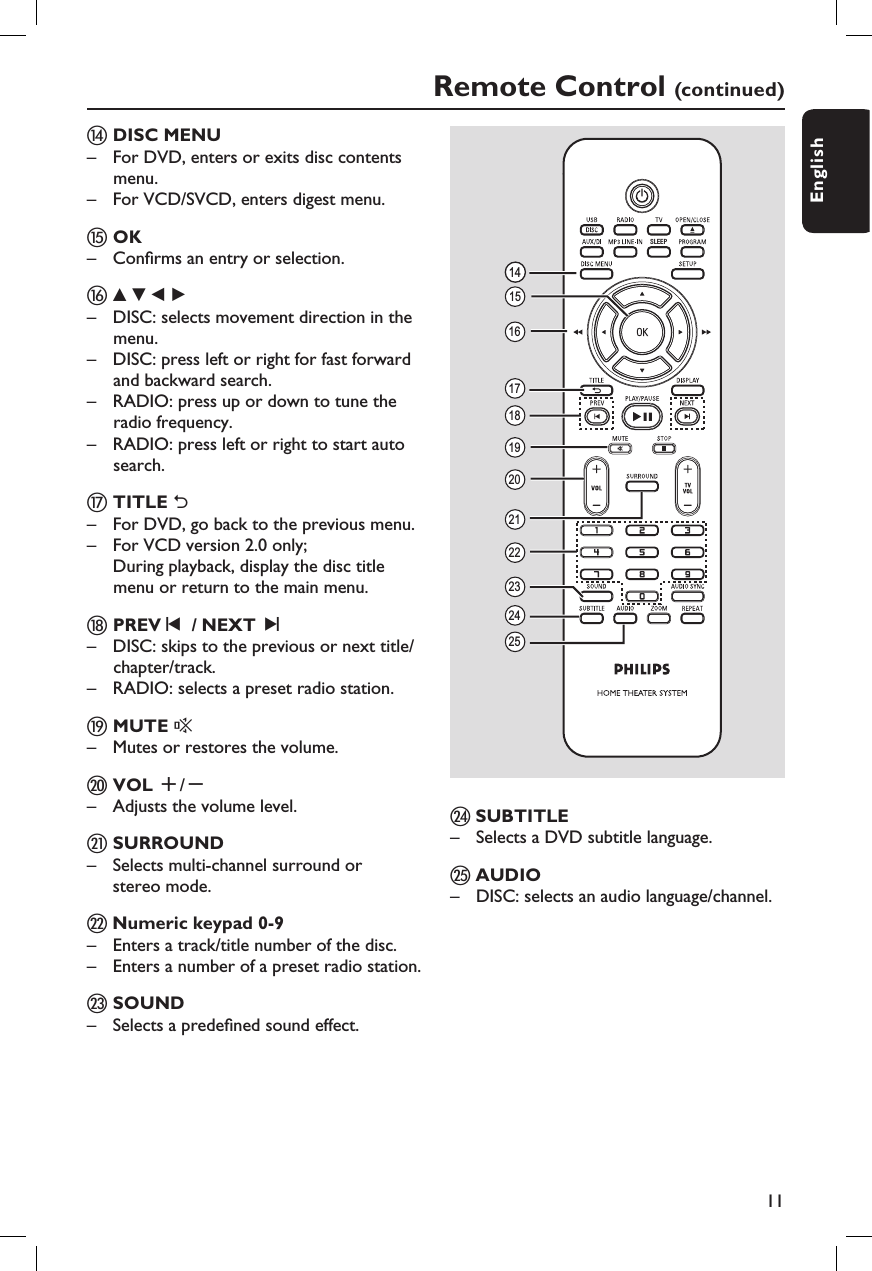

11EnglishRemote Control (continued)151617181920212223242514SLEEPn DISC MENU– For DVD, enters or exits disc contents menu.– For VCD/SVCD, enters digest menu.o OK– Con rms an entry or selection.p v V b B– DISC: selects movement direction in the menu.– DISC: press left or right for fast forward and backward search.– RADIO: press up or down to tune the radio frequency.– RADIO: press left or right to start auto search.q TITLE 2– For DVD, go back to the previous menu.– For VCD version 2.0 only; During playback, display the disc title menu or return to the main menu.r PREVí/ NEXT ë– DISC: skips to the previous or next title/chapter/track.– RADIO: selects a preset radio station.s MUTE %– Mutes or restores the volume.t VOL +/-– Adjusts the volume level.u SURROUND– Selects multi-channel surround or stereo mode.v Numeric keypad 0-9– Enters a track/title number of the disc.– Enters a number of a preset radio station.w SOUND– Selects a prede ned sound effect.x SUBTITLE– Selects a DVD subtitle language.y AUDIO– DISC: selects an audio language/channel.

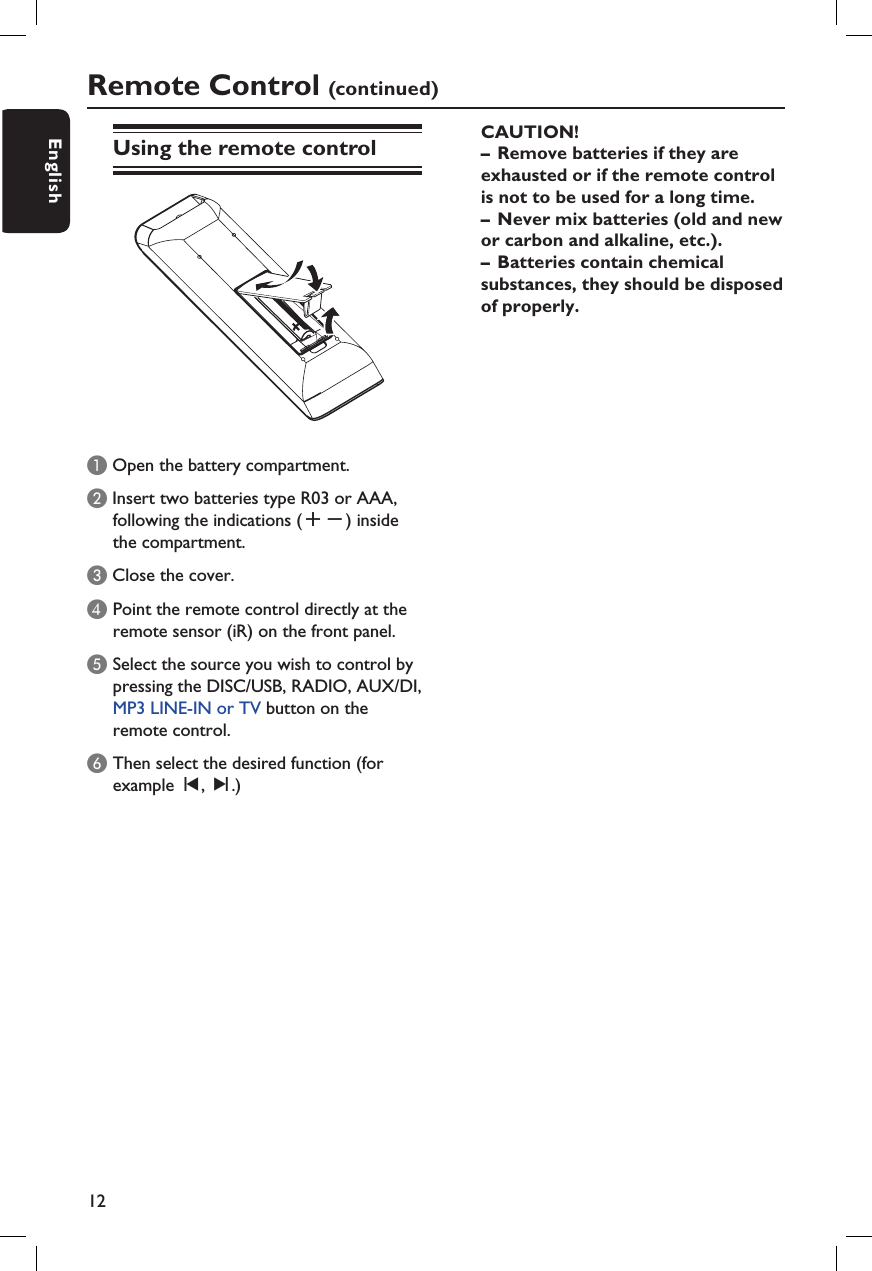

12EnglishRemote Control (continued)Using the remote controlA Open the battery compartment.B Insert two batteries type R03 or AAA,following the indications (+-) insidethe compartment.C Close the cover.D Point the remote control directly at the remote sensor (iR) on the front panel.E Select the source you wish to control by pressing the DISC/USB, RADIO, AUX/DI, MP3 LINE-IN or TV button on the remote control.F Then select the desired function (for example í, ë.) CAUTION!– Remove batteries if they are exhausted or if the remote control is not to be used for a long time.– Never mix batteries (old and new or carbon and alkaline, etc.).– Batteries contain chemical substances, they should be disposed of properly.

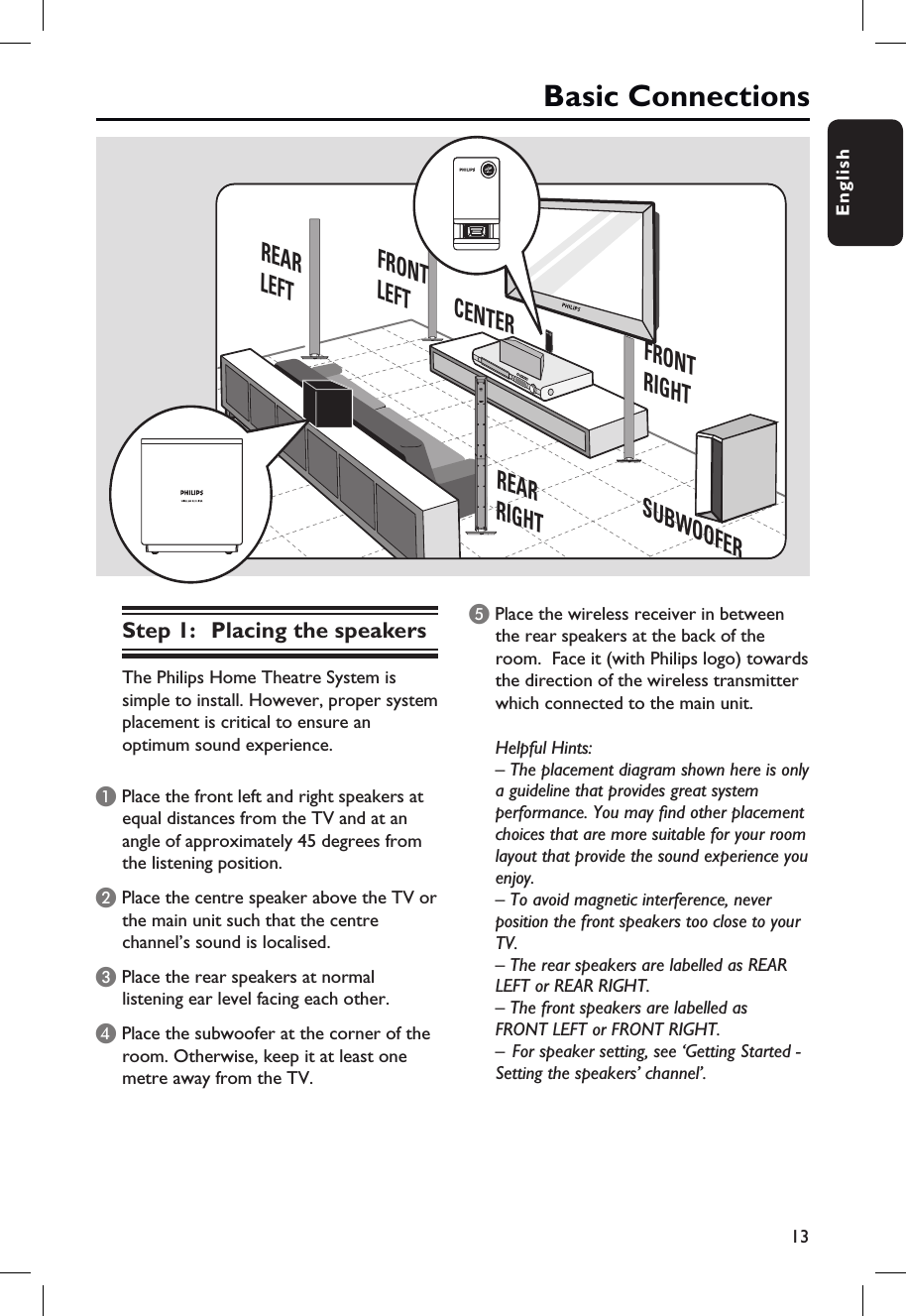

13EnglishBasic ConnectionsStep 1: Placing the speakersThe Philips Home Theatre System is simple to install. However, proper system placement is critical to ensure an optimum sound experience.A Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees from the listening position.B Place the centre speaker above the TV or the main unit such that the centre channel’s sound is localised.C Place the rear speakers at normal listening ear level facing each other.D Place the subwoofer at the corner of the room. Otherwise, keep it at least one metre away from the TV. E Place the wireless receiver in between the rear speakers at the back of the room. Face it (with Philips logo) towards the direction of the wireless transmitter which connected to the main unit. Helpful Hints:– The placement diagram shown here is only a guideline that provides great system performance. You may  nd other placement choices that are more suitable for your room layout that provide the sound experience you enjoy.– To avoid magnetic interference, never position the front speakers too close to your TV.– The rear speakers are labelled as REAR LEFT or REAR RIGHT.– The front speakers are labelled asFRONT LEFT or FRONT RIGHT.– For speaker setting, see ‘Getting Started - Setting the speakers’ channel’.SUBWOOFERFRONTRIGHTFRONTLEFTCENTERREARRIGHTREARLEFT

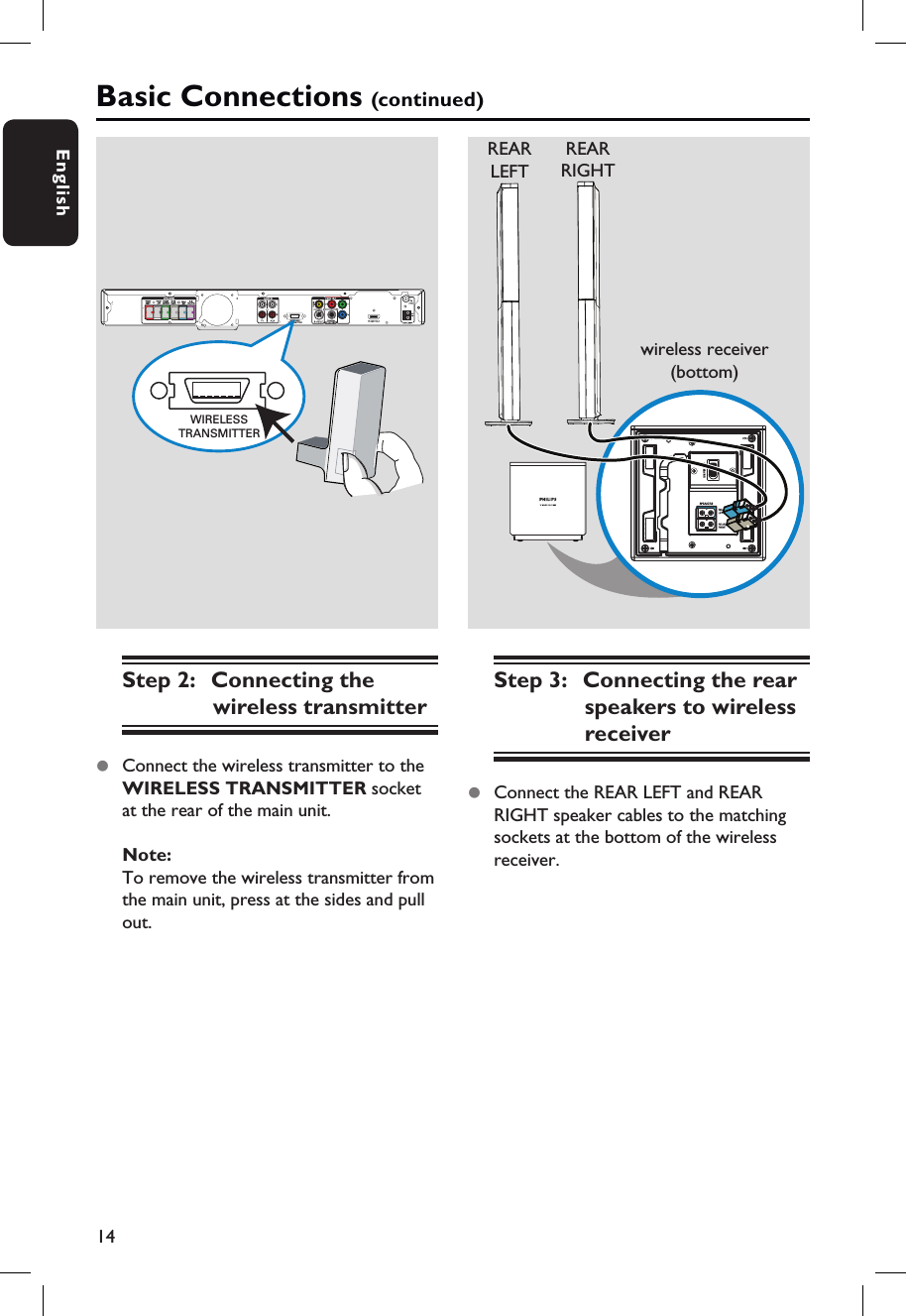

14EnglishWIRELESSTRANSMITTERWIRELESSTRANSMITTERStep 2: Connecting the wireless transmitter Connect the wireless transmitter to the WIRELESS TRANSMITTER socket at the rear of the main unit.Note:To remove the wireless transmitter from the main unit, press at the sides and pull out.Step 3: Connecting the rear speakers to wireless receiver Connect the REAR LEFT and REAR RIGHT speaker cables to the matching sockets at the bottom of the wireless receiver.REAR LEFTREAR RIGHTwireless receiver (bottom)Basic Connections (continued)

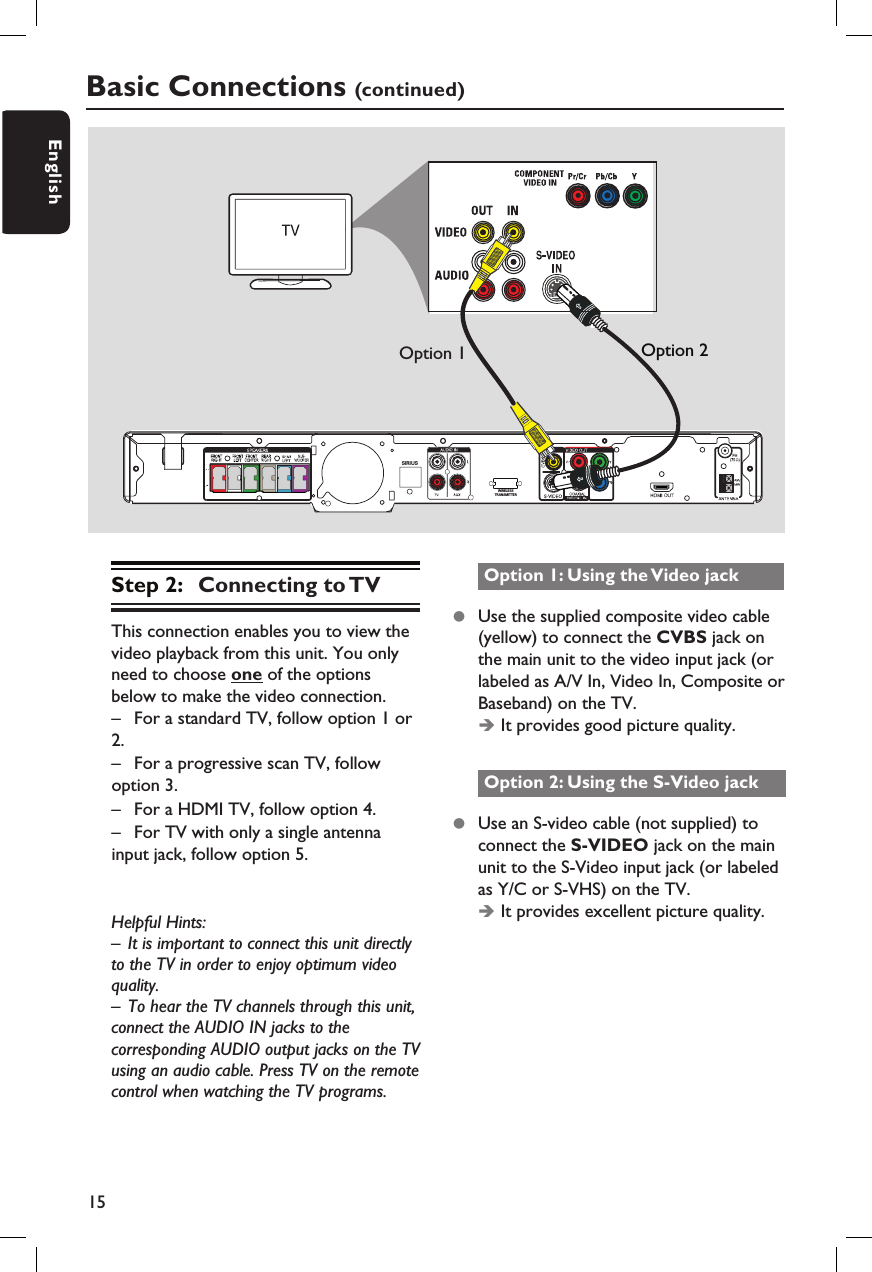

15EnglishStep 2: Connecting to TVThis connection enables you to view the video playback from this unit. You only need to choose one of the options below to make the video connection.– For a standard TV, follow option 1 or 2.– For a progressive scan TV, follow option 3.– For a HDMI TV, follow option 4.– For TV with only a single antenna input jack, follow option 5.Helpful Hints:– It is important to connect this unit directly to the TV in order to enjoy optimum video quality.– To hear the TV channels through this unit, connect the AUDIO IN jacks to the corresponding AUDIO output jacks on the TV using an audio cable. Press TV on the remote control when watching the TV programs.Option 1 Option 2Option 1: Using the Video jackz Use the supplied composite video cable (yellow) to connect the CVBS jack on the main unit to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV.Î It provides good picture quality.Option 2: Using the S-Video jackz Use an S-video cable (not supplied) to connect the S-VIDEO jack on the main unit to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV.Î It provides excellent picture quality.Basic Connections (continued)SIRIUSWIRELESSTRANSMITTER

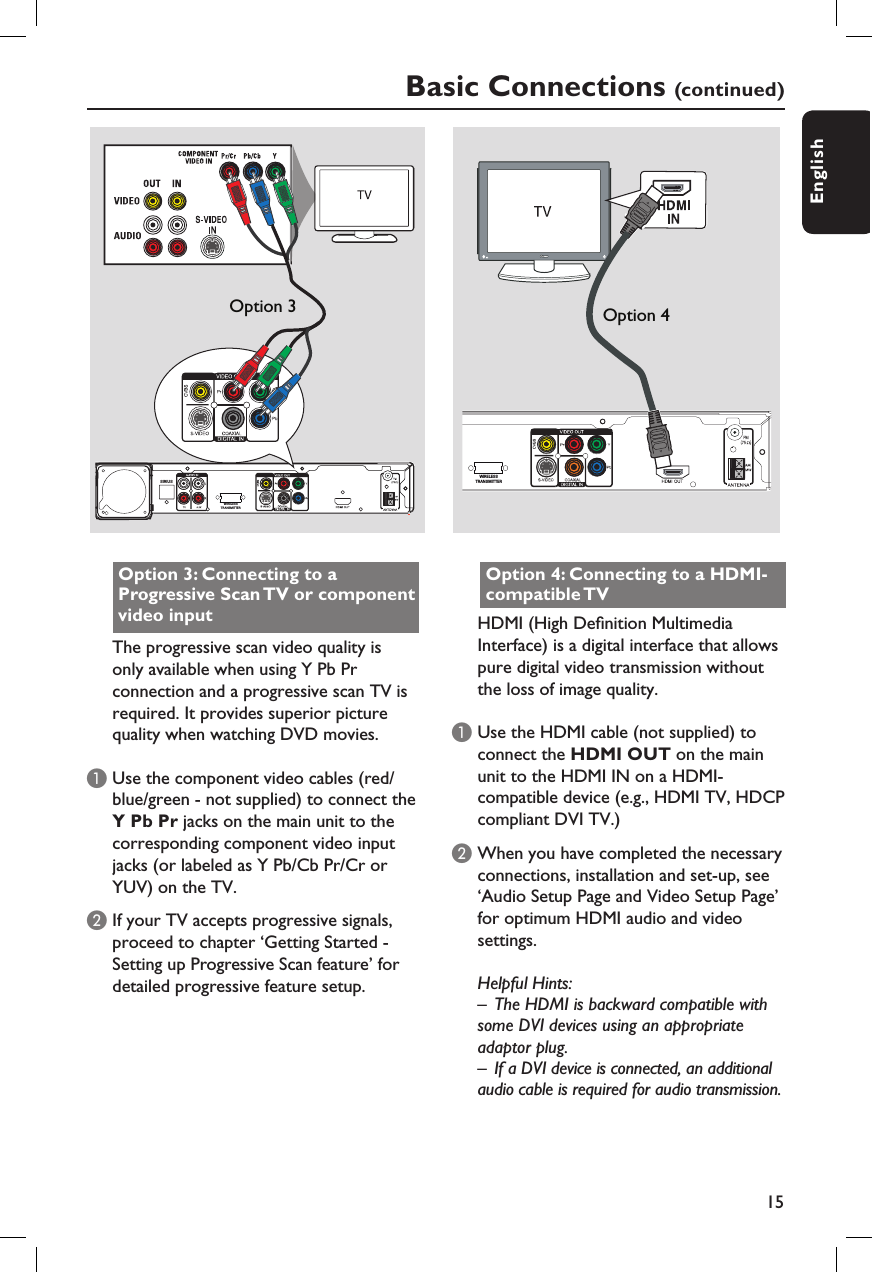

15EnglishBasic Connections (continued)Option 3: Connecting to a Progressive Scan TV or component video inputThe progressive scan video quality is only available when using Y Pb Pr connection and a progressive scan TV is required. It provides superior picture quality when watching DVD movies.A Use the component video cables (red/ blue/green - not supplied) to connect the Y Pb Pr jacks on the main unit to the corresponding component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.B If your TV accepts progressive signals, proceed to chapter ‘Getting Started - Setting up Progressive Scan feature’ for detailed progressive feature setup. Option 4: Connecting to a HDMI-compatible TVHDMI (High De nition Multimedia Interface) is a digital interface that allows pure digital video transmission without the loss of image quality. A Use the HDMI cable (not supplied) to connect the HDMI OUT on the main unit to the HDMI IN on a HDMI-compatible device (e.g., HDMI TV, HDCP compliant DVI TV.)B When you have completed the necessary connections, installation and set-up, see ‘Audio Setup Page and Video Setup Page’ for optimum HDMI audio and video settings.Helpful Hints:– The HDMI is backward compatible with some DVI devices using an appropriate adaptor plug.– If a DVI device is connected, an additional audio cable is required for audio transmission.Option 4SIRIUSOption 3WIRELESSTRANSMITTERWIRELESSTRANSMITTER

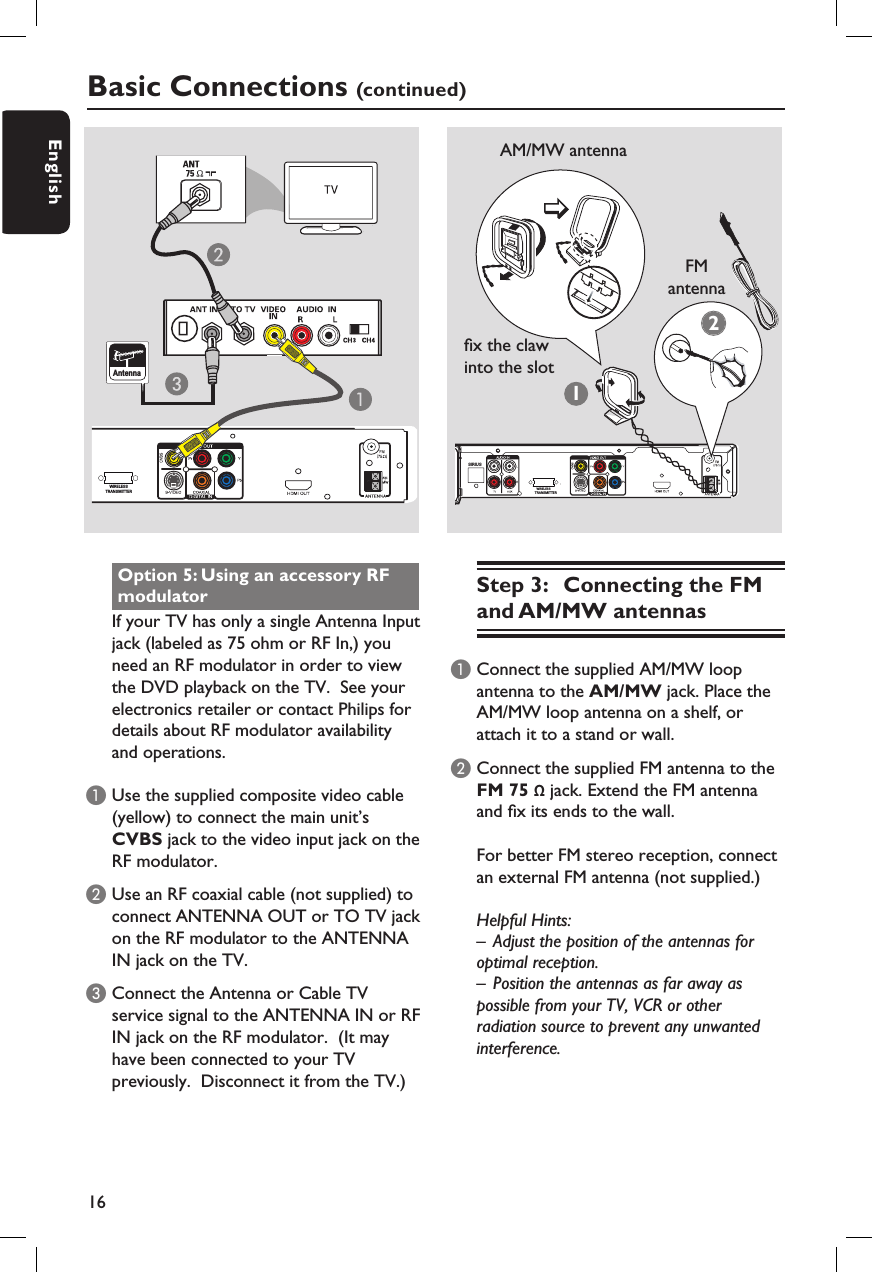

16EnglishStep 3: Connecting the FM and AM/MW antennasA Connect the supplied AM/MW loop antenna to the AM/MW jack. Place the AM/MW loop antenna on a shelf, or attach it to a stand or wall.B Connect the supplied FM antenna to the FM 75 Ω jack. Extend the FM antenna and  x its ends to the wall.For better FM stereo reception, connect an external FM antenna (not supplied.)Helpful Hints:– Adjust the position of the antennas for optimal reception.– Position the antennas as far away as possible from your TV, VCR or other radiation source to prevent any unwanted interference.Basic Connections (continued)Option 5: Using an accessory RF modulatorIf your TV has only a single Antenna Input jack (labeled as 75 ohm or RF In,) you need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details about RF modulator availability and operations.A Use the supplied composite video cable (yellow) to connect the main unit’s CVBS jack to the video input jack on the RF modulator.B Use an RF coaxial cable (not supplied) to connect ANTENNA OUT or TO TV jack on the RF modulator to the ANTENNA IN jack on the TV.C Connect the Antenna or Cable TV service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV.)Antenna12SIRIUSFM antennaAM/MW antenna x the claw into the slotWIRELESSTRANSMITTERWIRELESSTRANSMITTER

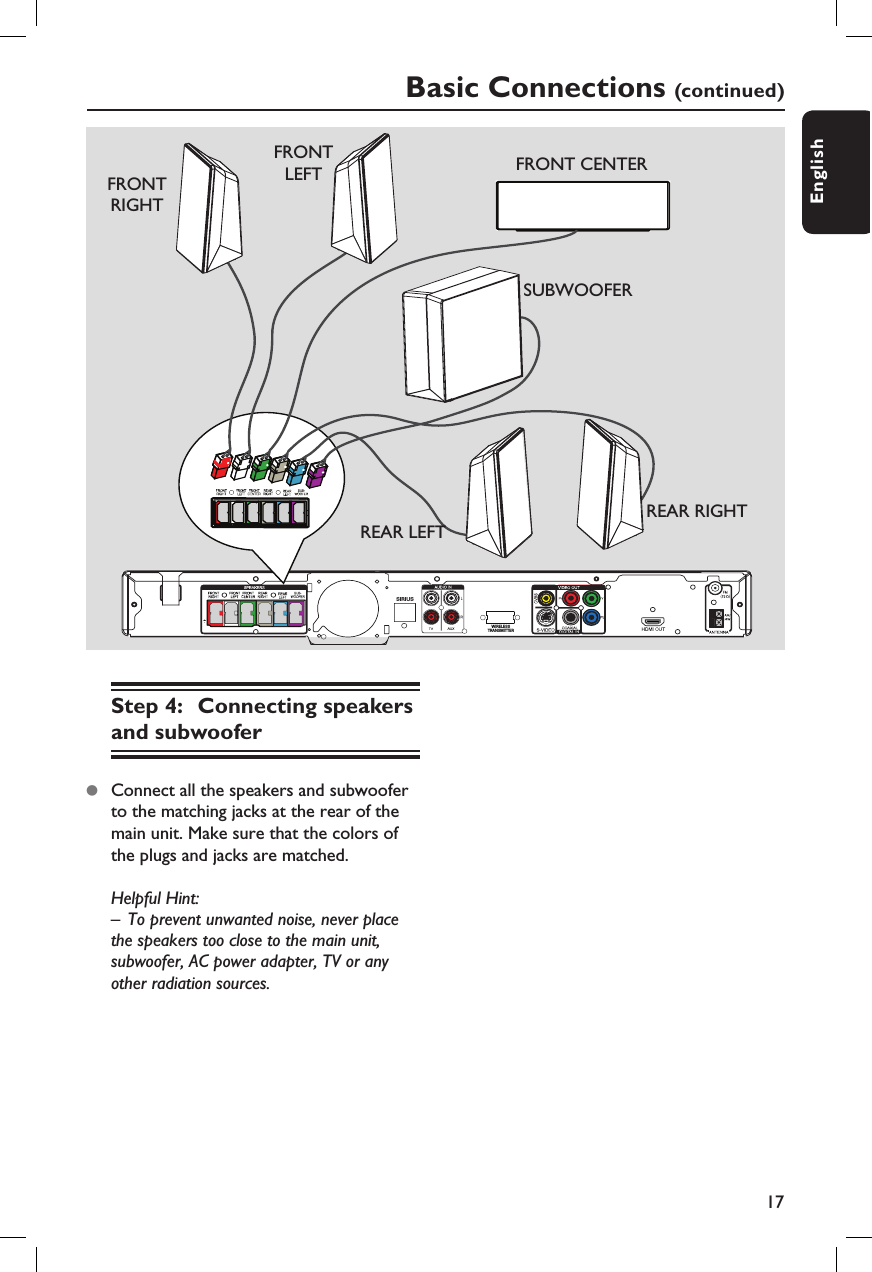

17EnglishBasic Connections (continued) SIRIUSREAR LEFTREAR RIGHTSUBWOOFERFRONT CENTERFRONT LEFTFRONT RIGHTStep 4: Connecting speakers and subwooferzConnect all the speakers and subwoofer to the matching jacks at the rear of the main unit. Make sure that the colors of the plugs and jacks are matched.Helpful Hint:– To prevent unwanted noise, never place the speakers too close to the main unit, subwoofer, AC power adapter, TV or any other radiation sources.WIRELESSTRANSMITTER

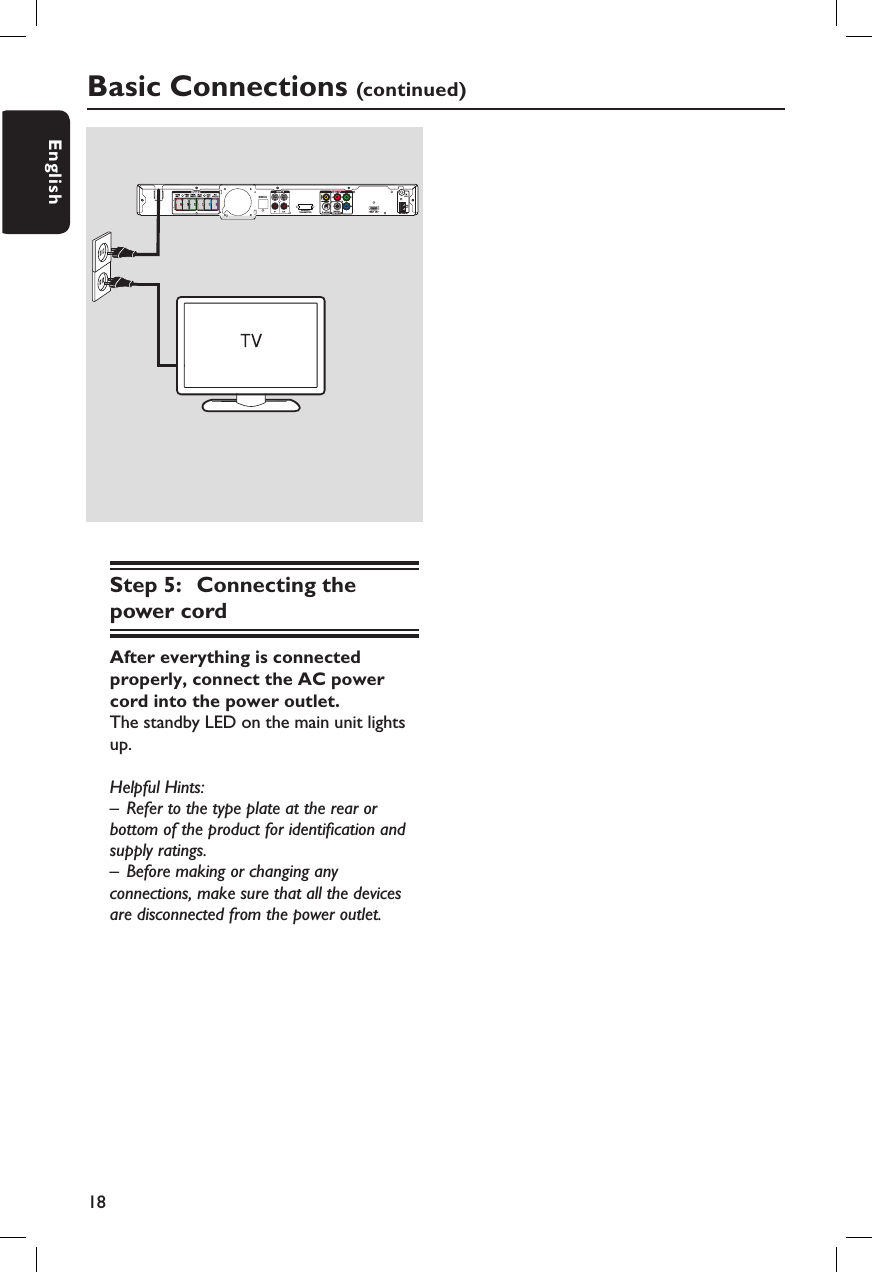

18EnglishBasic Connections (continued)SIRIUSStep 5: Connecting the power cordAfter everything is connected properly, connect the AC power cord into the power outlet.The standby LED on the main unit lights up. Helpful Hints:– Refer to the type plate at the rear or bottom of the product for identi cation and supply ratings.– Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.WIRELESSTRANSMITTER

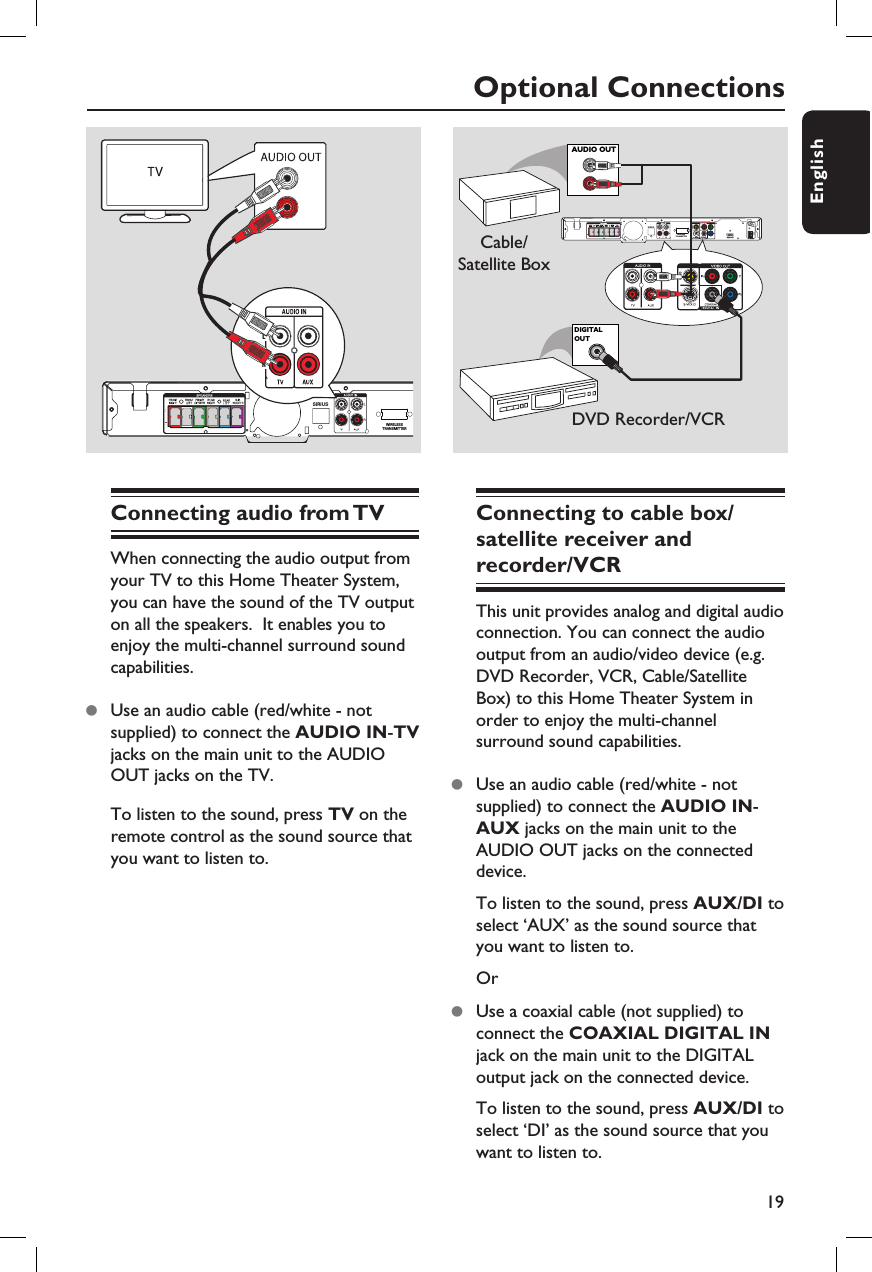

19EnglishOptional ConnectionsConnecting audio from TV When connecting the audio output from your TV to this Home Theater System, you can have the sound of the TV output on all the speakers. It enables you to enjoy the multi-channel surround sound capabilities.z Use an audio cable (red/white - not supplied) to connect the AUDIO IN-TV jacks on the main unit to the AUDIO OUT jacks on the TV.To listen to the sound, press TV on the remote control as the sound source that you want to listen to. Connecting to cable box/satellite receiver and recorder/VCRThis unit provides analog and digital audio connection. You can connect the audio output from an audio/video device (e.g. DVD Recorder, VCR, Cable/Satellite Box) to this Home Theater System in order to enjoy the multi-channel surround sound capabilities. z Use an audio cable (red/white - not supplied) to connect the AUDIO IN-AUX jacks on the main unit to the AUDIO OUT jacks on the connected device.To listen to the sound, press AUX/DI to select ‘AUX’ as the sound source that you want to listen to. Orz Use a coaxial cable (not supplied) to connect the COAXIAL DIGITAL IN jack on the main unit to the DIGITAL output jack on the connected device.To listen to the sound, press AUX/DI to select ‘DI’ as the sound source that you want to listen to. SIRIUSAUDIO OUTDIGITAL OUTCable/Satellite BoxDVD Recorder/VCRSIRIUSRLWIRELESSTRANSMITTERWIRELESSTRANSMITTER

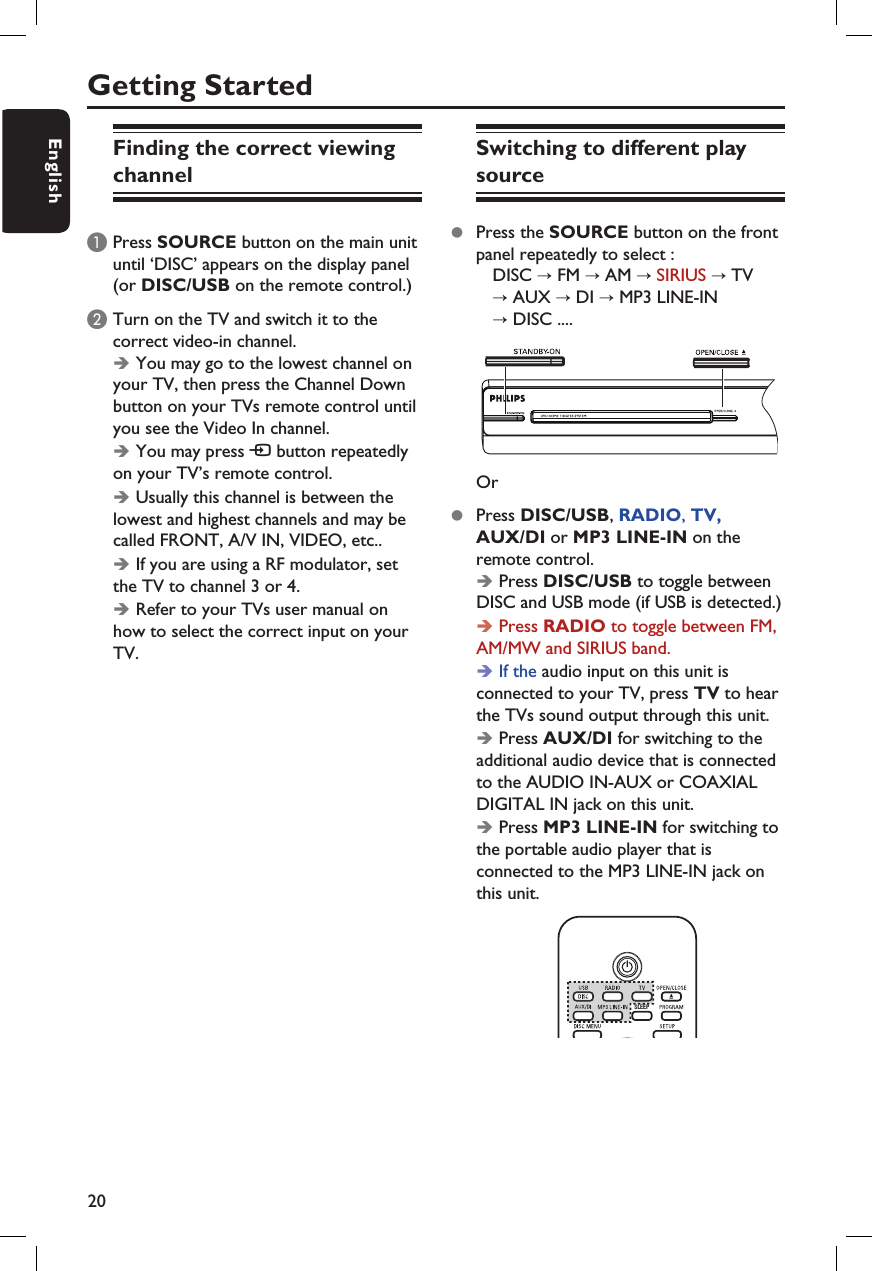

20EnglishFinding the correct viewing channelA Press SOURCE button on the main unit until ‘DISC’ appears on the display panel (or DISC/USB on the remote control.)B Turn on the TV and switch it to the correct video-in channel. Î You may go to the lowest channel on your TV, then press the Channel Down button on your TVs remote control until you see the Video In channel.Î You may press ° button repeatedly on your TV’s remote control.Î Usually this channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO, etc.. Î If you are using a RF modulator, set the TV to channel 3 or 4. Î Refer to your TVs user manual on how to select the correct input on your TV.Getting StartedSwitching to different play sourcezPress the SOURCE button on the front panel repeatedly to select : DISC ¤ FM ¤ AM ¤ SIRIUS ¤ TV ¤ AUX ¤ DI ¤ MP3 LINE-IN ¤ DISC .... OrzPress DISC/USB, RADIO, TV, AUX/DI or MP3 LINE-IN on the remote control.Î Press DISC/USB to toggle between DISC and USB mode (if USB is detected.)Î Press RADIO to toggle between FM, AM/MW and SIRIUS band.Î If the audio input on this unit is connected to your TV, press TV to hear the TVs sound output through this unit.Î Press AUX/DI for switching to the additional audio device that is connected to the AUDIO IN-AUX or COAXIAL DIGITAL IN jack on this unit.Î Press MP3 LINE-IN for switching to the portable audio player that is connected to the MP3 LINE-IN jack on this unit.SLEEP

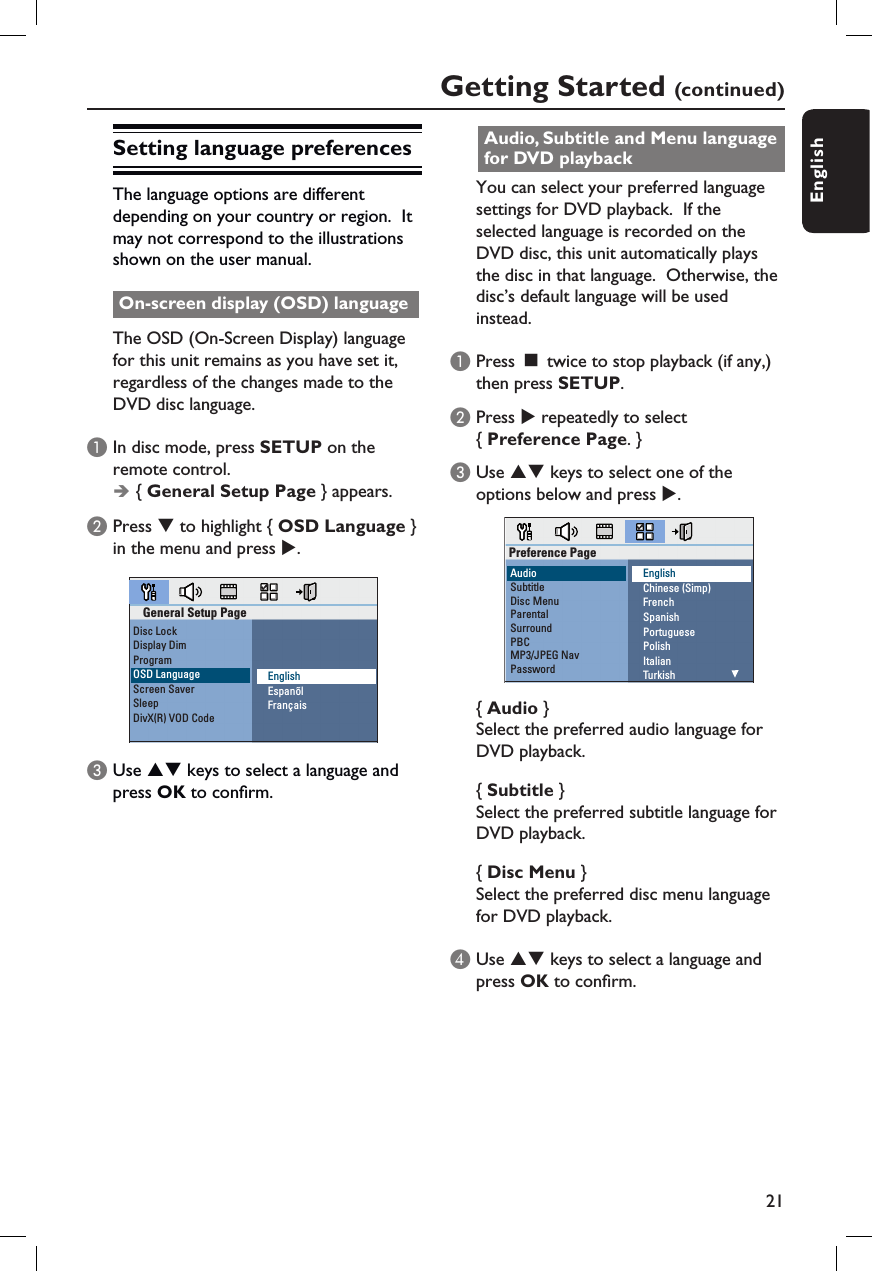

21EnglishSetting language preferencesThe language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.On-screen display (OSD) languageThe OSD (On-Screen Display) language for this unit remains as you have set it, regardless of the changes made to the DVD disc language.A In disc mode, press SETUP on the remote control.Î { General Setup Page } appears.B Press T to highlight { OSD Language } in the menu and press X.General Setup PageDisc LockDisplay DimProgramOSD LanguageScreen SaverSleepDivX(R) VOD CodeEnglishEspanõlFrançaisC Use ST keys to select a language and press OK to con rm.Audio, Subtitle and Menu language for DVD playbackYou can select your preferred language settings for DVD playback. If the selected language is recorded on the DVD disc, this unit automatically plays the disc in that language. Otherwise, the disc’s default language will be used instead. A Press Ç twice to stop playback (if any,) then press SETUP.B Press X repeatedly to select { Preference Page. }C Use ST keys to select one of the options below and press X. EnglishChinese (Simp)FrenchSpanishPortuguesePolishItalianTurkishPreference PageAudioSubtitleDisc MenuParentalSurroundPBCMP3/JPEG NavPassword{ Audio } Select the preferred audio language for DVD playback.{ Subtitle } Select the preferred subtitle language for DVD playback.{ Disc Menu } Select the preferred disc menu language for DVD playback.D Use ST keys to select a language and press OK to con rm.Getting Started (continued)
22EnglishIf the language you want is not available in the list, select { Others. }Use the numeric keypad (0-9) on the remote control to enter the 4-digit language code ‘XXXX’ (see last page) and press OK to con rm.E Repeat steps C ~ D for other settings.Helpful Hints:– During DVD playback, you can switch the audio and subtitle languages by pressing the AUDIO and SUBTITLE buttons on the remote control. However, this does not change the default settings you have made here.– For some DVDs, the subtitle/audio/menu language can only be changed via the DVD disc menu.Setting the TV DisplaySet the aspect ratio of this unit according to the TV type you have connected. The format you select must be available on the disc. If it is not, the setting for TV display will not affect the picture during playback.A In disc mode, press SETUP on the remote control.B Press X repeatedly to select { Video Setup Page. }C Press T to highlight { TV Display } in the menu and press X.Video Setup PageTV TypeTV DisplayProgressivePicture SettingHDMI SetupClosed Caption4:3 Pan Scan4:3 Letter Box16:9 Wide Screen{ 4:3 Pan Scan } Select this if you have a conventional TV and want both sides of the picture to be trimmed or formatted to  t your TV.{ 4:3 Letter Box } Select this if you have a conventional TV. In this case, a wide picture with black bands on the upper and lower portions of the TV will be displayed.{ 16:9 Wide Screen } Select this if you have a wide-screen TV.D Select one of the options and press OK to con rm. Getting Started (continued)

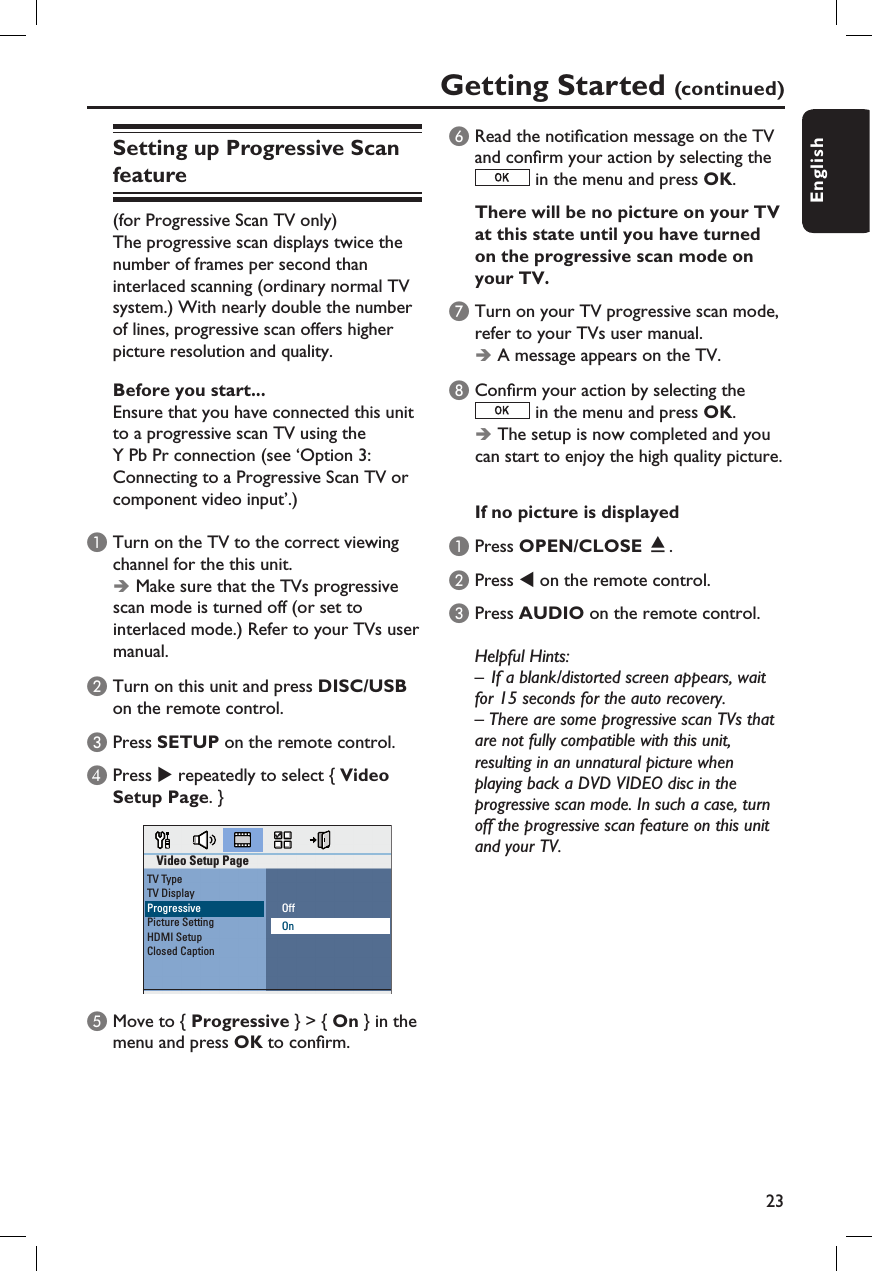

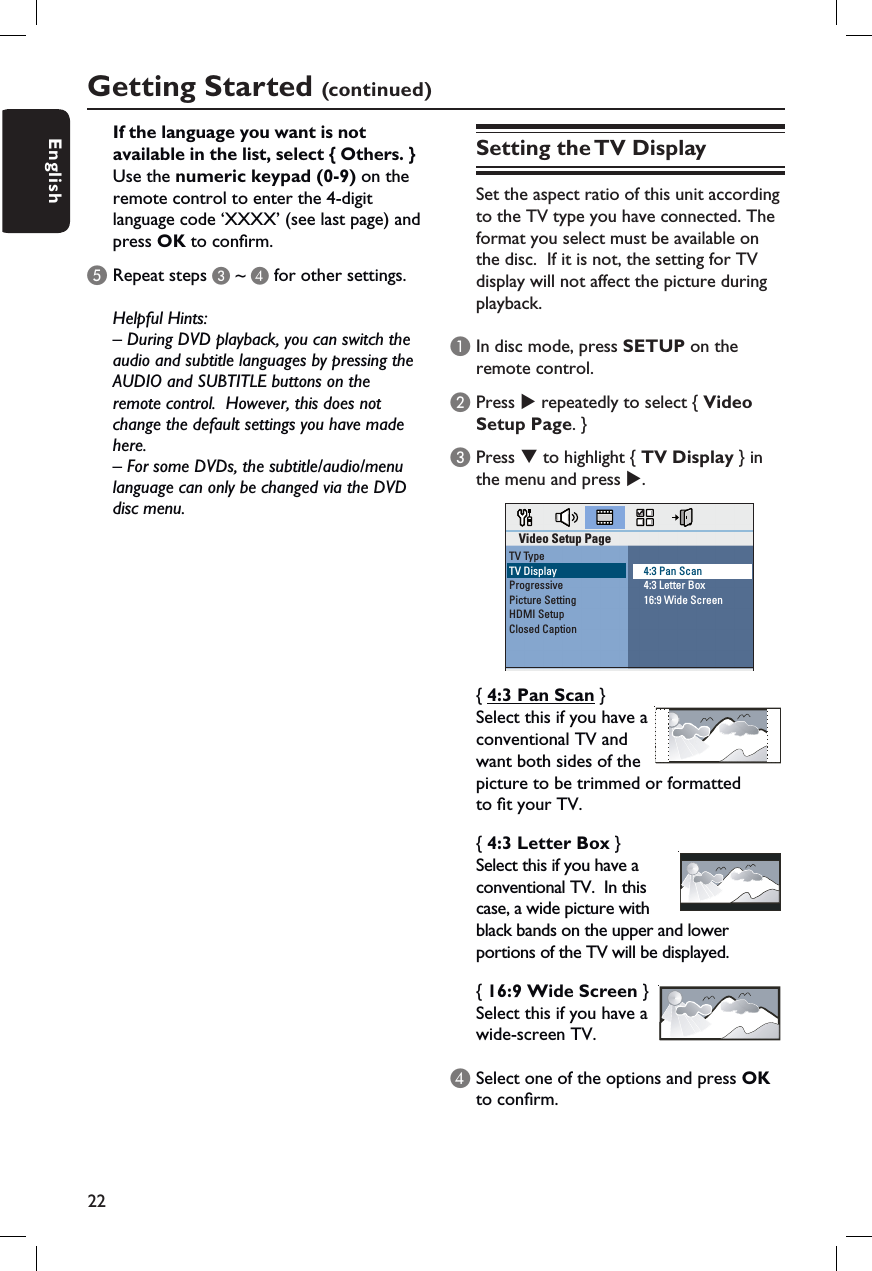

23EnglishSetting up Progressive Scan feature(for Progressive Scan TV only)The progressive scan displays twice the number of frames per second than interlaced scanning (ordinary normal TV system.) With nearly double the number of lines, progressive scan offers higher picture resolution and quality.Before you start...Ensure that you have connected this unit to a progressive scan TV using the Y Pb Pr connection (see ‘Option 3: Connecting to a Progressive Scan TV or component video input’.)A Turn on the TV to the correct viewing channel for the this unit.ÎMake sure that the TVs progressive scan mode is turned off (or set to interlaced mode.) Refer to your TVs user manual.B Turn on this unit and press DISC/USB on the remote control.C Press SETUP on the remote control.D Press X repeatedly to select { Video Setup Page. }Video Setup PageTV TypeTV DisplayProgressivePicture SettingHDMI SetupClosed CaptionOffOnE Move to { Progressive } > { On } in the menu and press OK to con rm.F Read the noti cation message on the TV and con rm your action by selecting the in the menu and press OK. There will be no picture on your TV at this state until you have turned on the progressive scan mode on your TV.G Turn on your TV progressive scan mode, refer to your TVs user manual.Î A message appears on the TV.H Con rm your action by selecting the in the menu and press OK.ÎThe setup is now completed and you can start to enjoy the high quality picture.If no picture is displayedA Press OPEN/CLOSE ç.B Press W on the remote control.C Press AUDIO on the remote control. Helpful Hints:– If a blank/distorted screen appears, wait for 15 seconds for the auto recovery.– There are some progressive scan TVs that are not fully compatible with this unit, resulting in an unnatural picture when playing back a DVD VIDEO disc in the progressive scan mode. In such a case, turn off the progressive scan feature on this unit and your TV.Getting Started (continued)

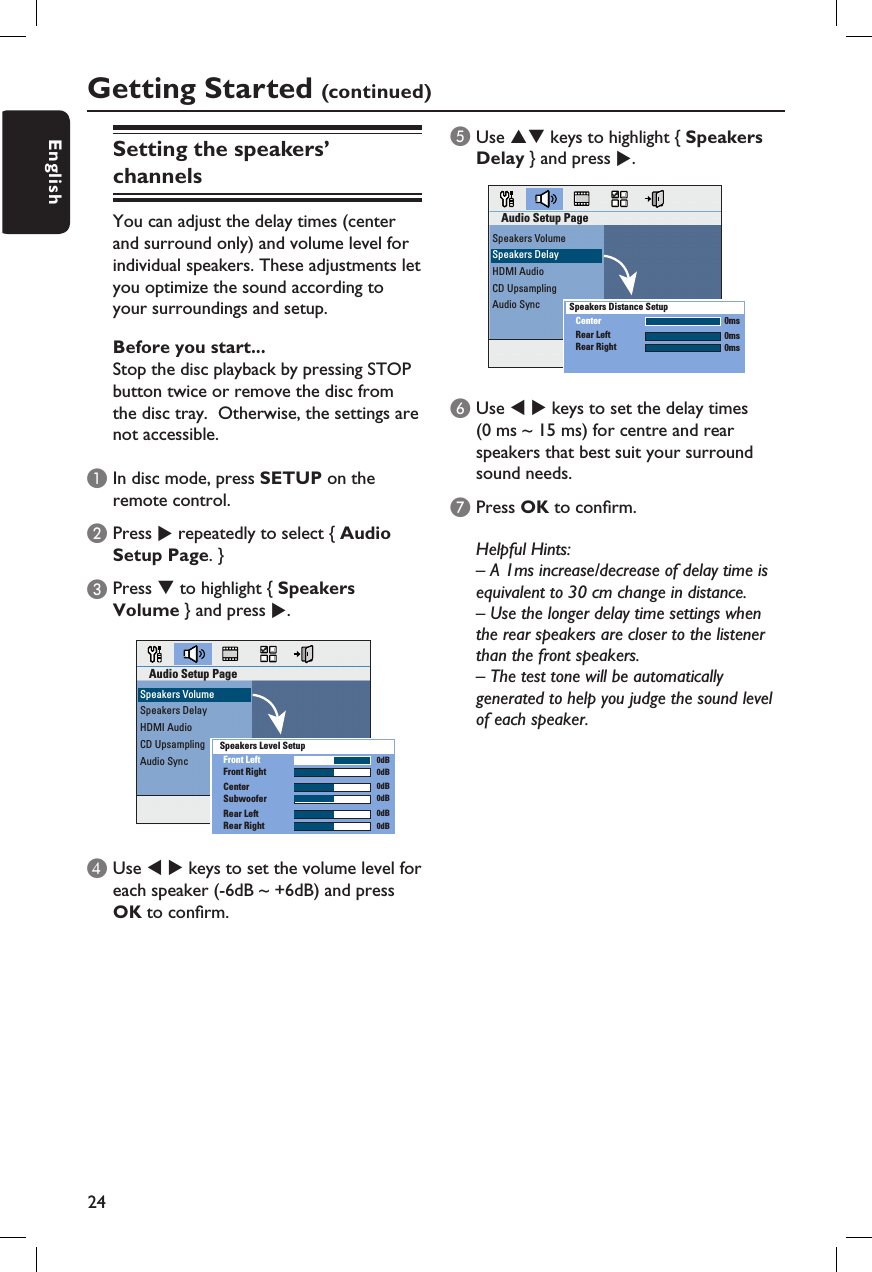

24EnglishGetting Started (continued)Setting the speakers’ channelsYou can adjust the delay times (centerand surround only) and volume level forindividual speakers. These adjustments letyou optimize the sound according to your surroundings and setup.Before you start...Stop the disc playback by pressing STOP button twice or remove the disc from the disc tray. Otherwise, the settings are not accessible.A In disc mode, press SETUP on the remote control.B Press X repeatedly to select { Audio Setup Page. }C Press T to highlight { Speakers Volume } and press X.Audio Setup PageSpeakers VolumeSpeakers DelayHDMI AudioCD UpsamplingAudio Sync Front LeftFront RightCenterSubwooferRear LeftRear Right 0dB 0dB 0dB 0dB 0dB 0dBSpeakers Level SetupD Use W X keys to set the volume level for each speaker (-6dB ~ +6dB) and press OK to con rm.E Use ST keys to highlight { Speakers Delay } and press X.Audio Setup PageSpeakers VolumeSpeakers DelayHDMI AudioCD UpsamplingAudio SyncCenterRear LeftRear RightSpeakers Distance Setup0ms0ms0msF Use W X keys to set the delay times (0 ms ~ 15 ms) for centre and rear speakers that best suit your surround sound needs. G Press OK to con rm.Helpful Hints:– A 1ms increase/decrease of delay time is equivalent to 30 cm change in distance.– Use the longer delay time settings when the rear speakers are closer to the listener than the front speakers.– The test tone will be automatically generated to help you judge the sound level of each speaker.

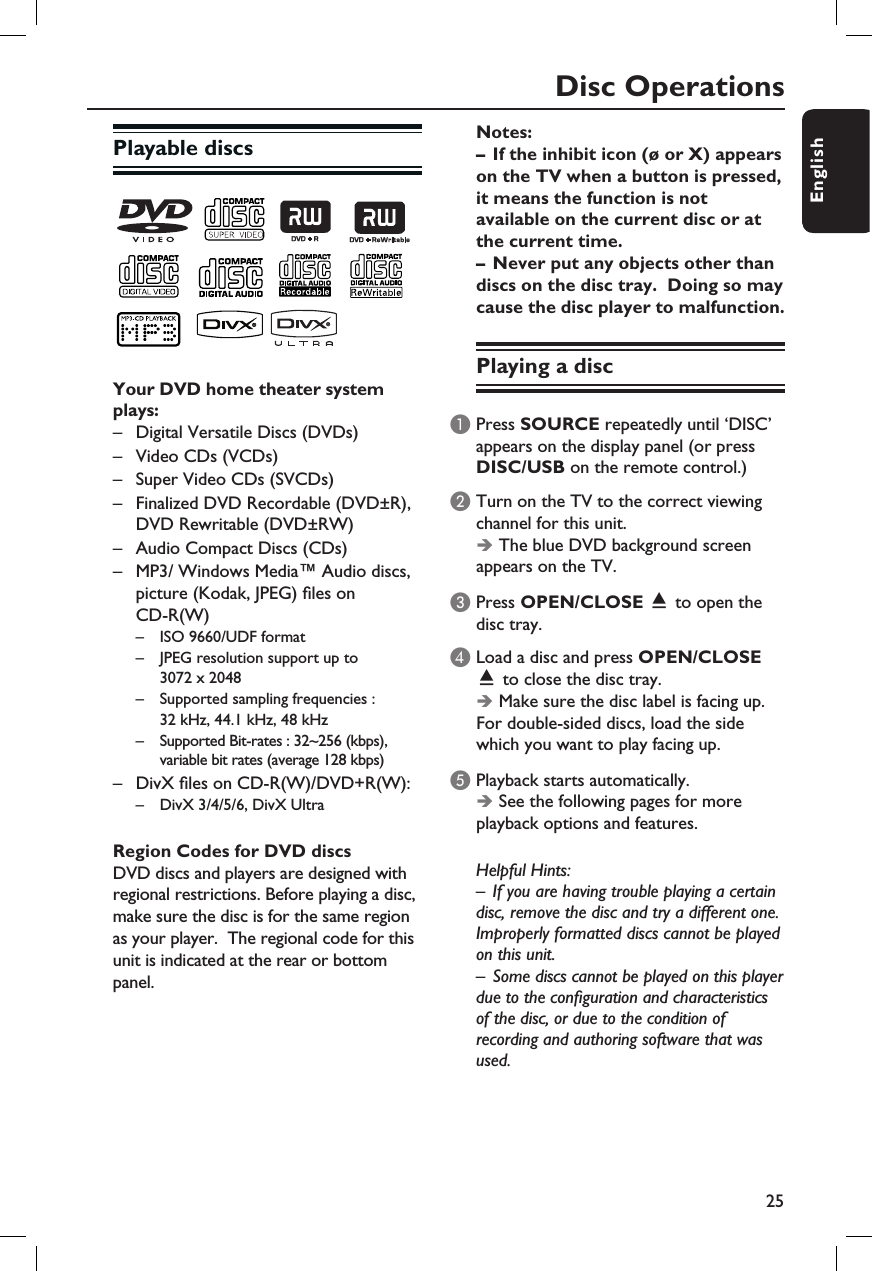

25EnglishDisc OperationsPlayable discsYour DVD home theater system plays:– Digital Versatile Discs (DVDs)– Video CDs (VCDs) – Super Video CDs (SVCDs)– Finalized DVD Recordable (DVD±R), DVD Rewritable (DVD±RW)– Audio Compact Discs (CDs)– MP3/ Windows Media™ Audio discs, picture (Kodak, JPEG)  les on CD-R(W) – ISO 9660/UDF format – JPEG resolution support up to 3072 x 2048 – Supported sampling frequencies : 32 kHz, 44.1 kHz, 48 kHz – Supported Bit-rates : 32~256 (kbps), variable bit rates (average 128 kbps)– DivX  les on CD-R(W)/DVD+R(W): – DivX 3/4/5/6, DivX Ultra Region Codes for DVD discsDVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same region as your player. The regional code for this unit is indicated at the rear or bottom panel.Notes:– If the inhibit icon (ø or X) appears on the TV when a button is pressed, it means the function is not available on the current disc or at the current time.– Never put any objects other than discs on the disc tray. Doing so may cause the disc player to malfunction.Playing a discA Press SOURCE repeatedly until ‘DISC’ appears on the display panel (or press DISC/USB on the remote control.)B Turn on the TV to the correct viewing channel for this unit.Î The blue DVD background screen appears on the TV.C Press OPEN/CLOSE ç to open the disc tray.D Load a disc and press OPEN/CLOSE ç to close the disc tray.ÎMake sure the disc label is facing up. For double-sided discs, load the side which you want to play facing up.E Playback starts automatically. Î See the following pages for more playback options and features.Helpful Hints:– If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs cannot be played on this unit.– Some discs cannot be played on this player due to the con guration and characteristics of the disc, or due to the condition of recording and authoring software that was used.

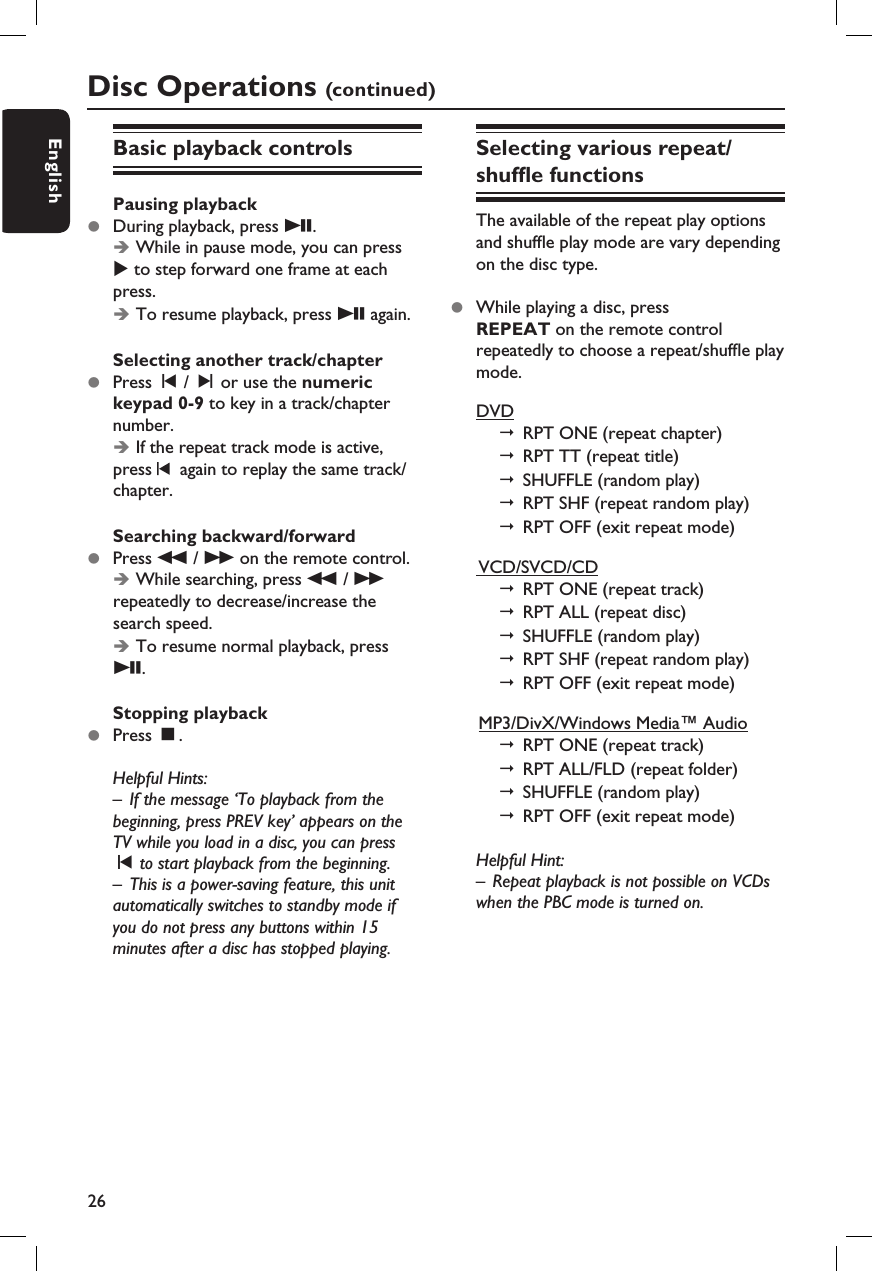

26EnglishDisc Operations (continued)Basic playback controlsPausing playbackz During playback, press u.Î While in pause mode, you can press X to step forward one frame at each press.Î To resume playback, press u again.Selecting another track/chapterz Press í / ë or use the numeric keypad 0-9 to key in a track/chapter number.Î If the repeat track mode is active, press again to replay the same track/chapter.Searching backward/forwardz Press m / M on the remote control. Î While searching, press m / M repeatedly to decrease/increase the search speed. Î To resume normal playback, press u.Stopping playbackz Press Ç.Helpful Hints:– If the message ‘To playback from the beginning, press PREV key’ appears on the TV while you load in a disc, you can press í to start playback from the beginning.– This is a power-saving feature, this unit automatically switches to standby mode if you do not press any buttons within 15 minutes after a disc has stopped playing.Selecting various repeat/shuf e functionsThe available of the repeat play options and shuf e play mode are vary depending on the disc type. z While playing a disc, press REPEAT on the remote control repeatedly to choose a repeat/shuf e play mode.DVD  RPT ONE (repeat chapter)  RPT TT (repeat title)  SHUFFLE (random play)  RPT SHF (repeat random play)  RPT OFF (exit repeat mode) VCD/SVCD/CD  RPT ONE (repeat track)  RPT ALL (repeat disc)  SHUFFLE (random play)  RPT SHF (repeat random play)  RPT OFF (exit repeat mode) MP3/DivX/Windows Media™ Audio  RPT ONE (repeat track)  RPT ALL/FLD (repeat folder)  SHUFFLE (random play)  RPT OFF (exit repeat mode)Helpful Hint:– Repeat playback is not possible on VCDs when the PBC mode is turned on.

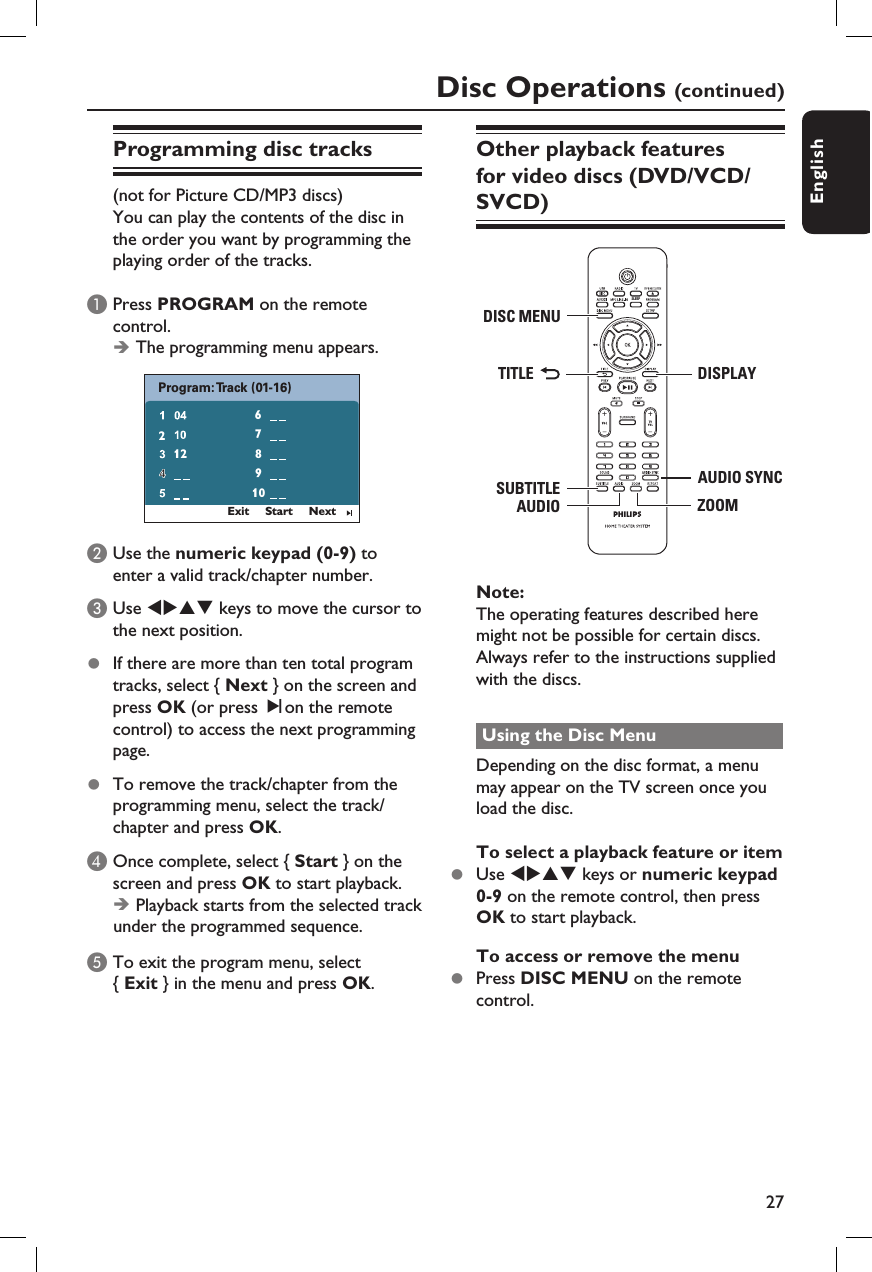

27EnglishDisc Operations (continued)Programming disc tracks(not for Picture CD/MP3 discs) You can play the contents of the disc in the order you want by programming the playing order of the tracks. A Press PROGRAM on the remote control.Î The programming menu appears.12 6 7 8 910Program: Track (01-16)Exit Start Next2B Use the numeric keypad (0-9) to enter a valid track/chapter number.C Use WXST keys to move the cursor to the next position.z If there are more than ten total program tracks, select { Next } on the screen and press OK (or press ëon the remote control) to access the next programming page.z To remove the track/chapter from the programming menu, select the track/chapter and press OK.D Once complete, select { Start } on the screen and press OK to start playback.Î Playback starts from the selected track under the programmed sequence.E To exit the program menu, select { Exit } in the menu and press OK. Other playback features for video discs (DVD/VCD/SVCD) SLEEPDISPLAYAUDIO SYNCZOOMAUDIOTITLEDISC MENUSUBTITLENote:The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.Using the Disc MenuDepending on the disc format, a menu may appear on the TV screen once you load the disc.To select a playback feature or itemz Use WXST keys or numeric keypad 0-9 on the remote control, then press OK to start playback. To access or remove the menuz Press DISC MENU on the remote control.

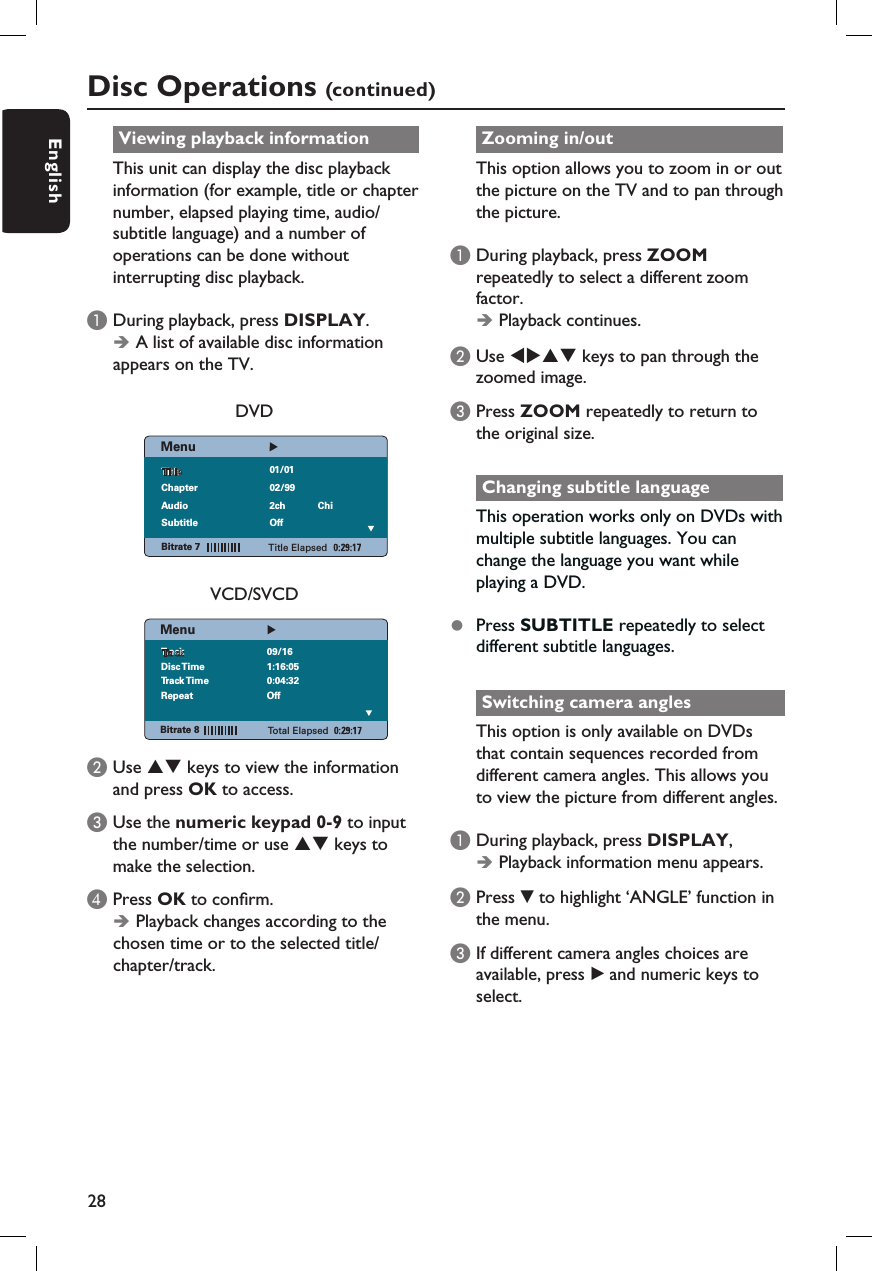

28EnglishViewing playback informationThis unit can display the disc playback information (for example, title or chapter number, elapsed playing time, audio/subtitle language) and a number of operations can be done without interrupting disc playback. A During playback, press DISPLAY.Î A list of available disc information appears on the TV.DVDMenuTitleChapterAudioSubtitle01/0102/992ch ChiOffBitrate 7 Title ElapsedVCD/SVCDBitrate 8 Total ElapsedTrackDisc TimeTrack TimeRepeat09/161:16:050:04:32OffMenuB Use ST keys to view the information and press OK to access.C Use the numeric keypad 0-9 to input the number/time or use ST keys to make the selection.D Press OK to con rm.Î Playback changes according to the chosen time or to the selected title/chapter/track.Zooming in/outThis option allows you to zoom in or out the picture on the TV and to pan through the picture.A During playback, press ZOOM repeatedly to select a different zoom factor.Î Playback continues.B Use WXST keys to pan through the zoomed image.C Press ZOOM repeatedly to return to the original size.Changing subtitle languageThis operation works only on DVDs with multiple subtitle languages. You can change the language you want while playing a DVD.z Press SUBTITLE repeatedly to select different subtitle languages.Switching camera anglesThis option is only available on DVDs that contain sequences recorded from different camera angles. This allows you to view the picture from different angles.A During playback, press DISPLAY, Î Playback information menu appears.B Press V to highlight ‘ANGLE’ function in the menu.C If different camera angles choices are available, press B and numeric keys to select.Disc Operations (continued)

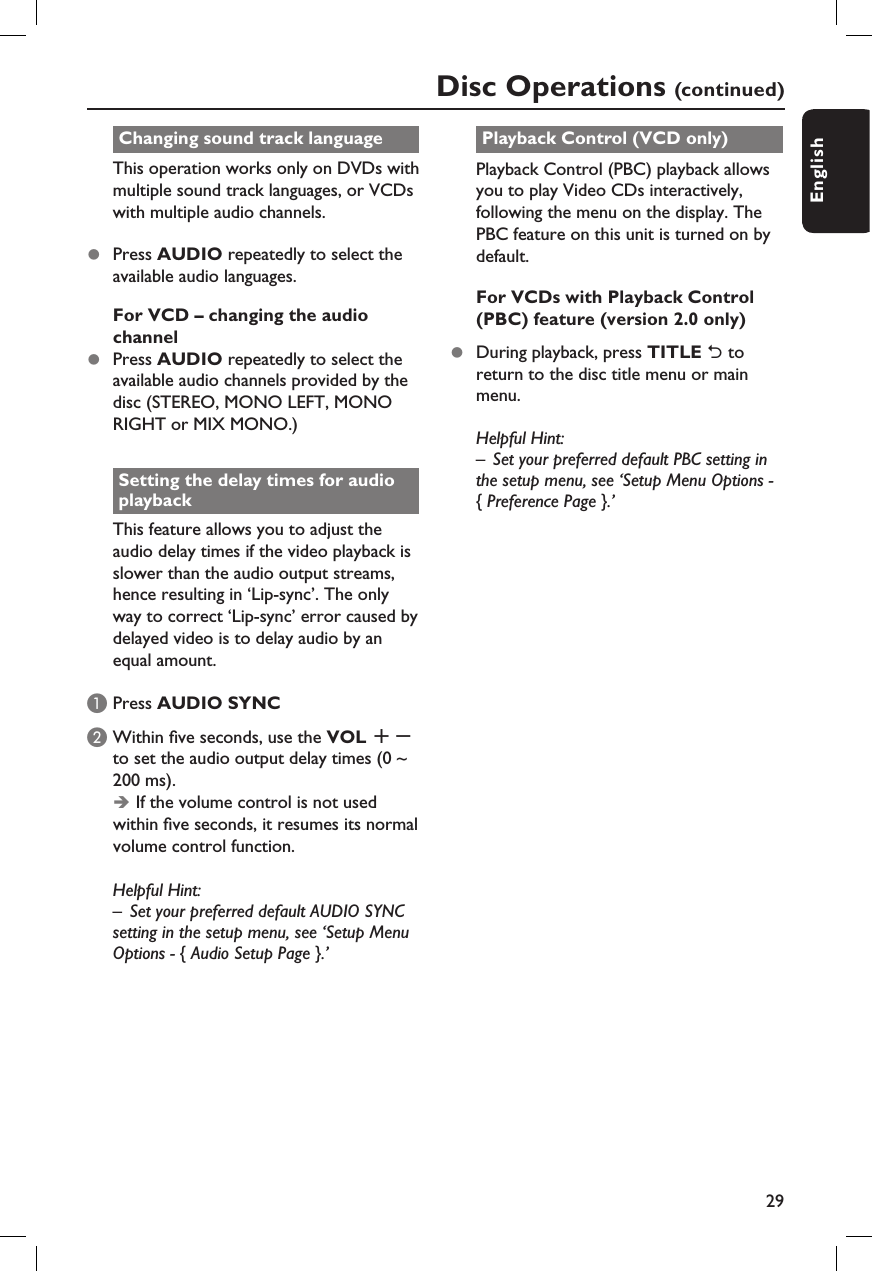

29EnglishChanging sound track languageThis operation works only on DVDs with multiple sound track languages, or VCDs with multiple audio channels.z Press AUDIO repeatedly to select the available audio languages.For VCD – changing the audio channelz Press AUDIO repeatedly to select the available audio channels provided by the disc (STEREO, MONO LEFT, MONO RIGHT or MIX MONO.)Setting the delay times for audio playbackThis feature allows you to adjust the audio delay times if the video playback is slower than the audio output streams, hence resulting in ‘Lip-sync’. The only way to correct ‘Lip-sync’ error caused by delayed video is to delay audio by an equal amount.A Press AUDIO SYNC B Within  ve seconds, use the VOL +- to set the audio output delay times (0 ~ 200 ms).Î If the volume control is not used within  ve seconds, it resumes its normal volume control function.Helpful Hint:– Set your preferred default AUDIO SYNC setting in the setup menu, see ‘Setup Menu Options - { Audio Setup Page }.’Playback Control (VCD only)Playback Control (PBC) playback allows you to play Video CDs interactively, following the menu on the display. The PBC feature on this unit is turned on by default.For VCDs with Playback Control (PBC) feature (version 2.0 only)z During playback, press TITLE 2 to return to the disc title menu or main menu.Helpful Hint:– Set your preferred default PBC setting in the setup menu, see ‘Setup Menu Options - { Preference Page }.’Disc Operations (continued)

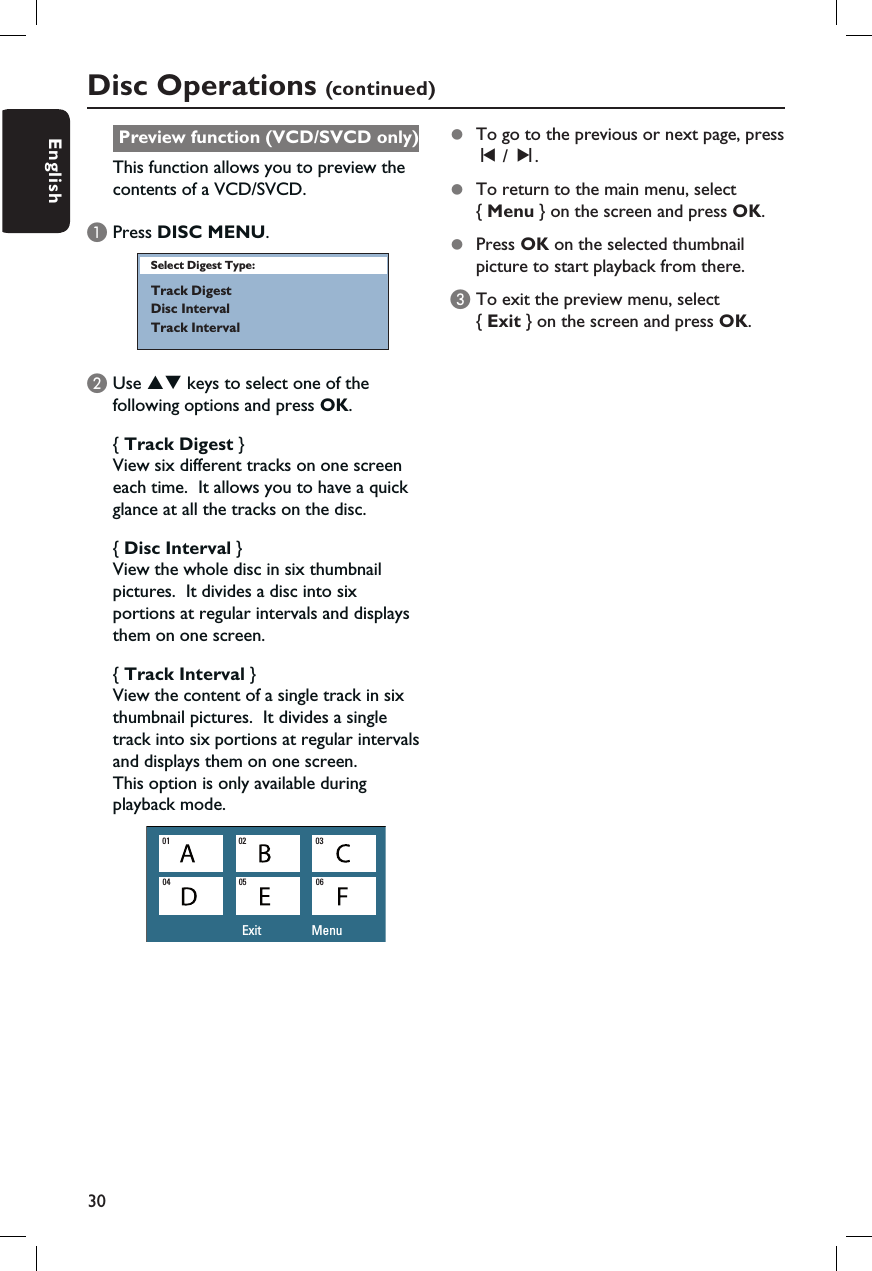

30EnglishPreview function (VCD/SVCD only)This function allows you to preview the contents of a VCD/SVCD.APress DISC MENU.Select Digest Type:Track DigestDisc IntervalTrack IntervalB Use ST keys to select one of the following options and press OK.{ Track Digest }View six different tracks on one screen each time. It allows you to have a quick glance at all the tracks on the disc.{ Disc Interval }View the whole disc in six thumbnail pictures. It divides a disc into six portions at regular intervals and displays them on one screen.{ Track Interval }View the content of a single track in six thumbnail pictures. It divides a single track into six portions at regular intervals and displays them on one screen. This option is only available during playback mode.Exit Menu01 02 0304 05 06Disc Operations (continued)z To go to the previous or next page, press í / ë.z To return to the main menu, select { Menu } on the screen and press OK.z Press OK on the selected thumbnail picture to start playback from there.C To exit the preview menu, select { Exit } on the screen and press OK.

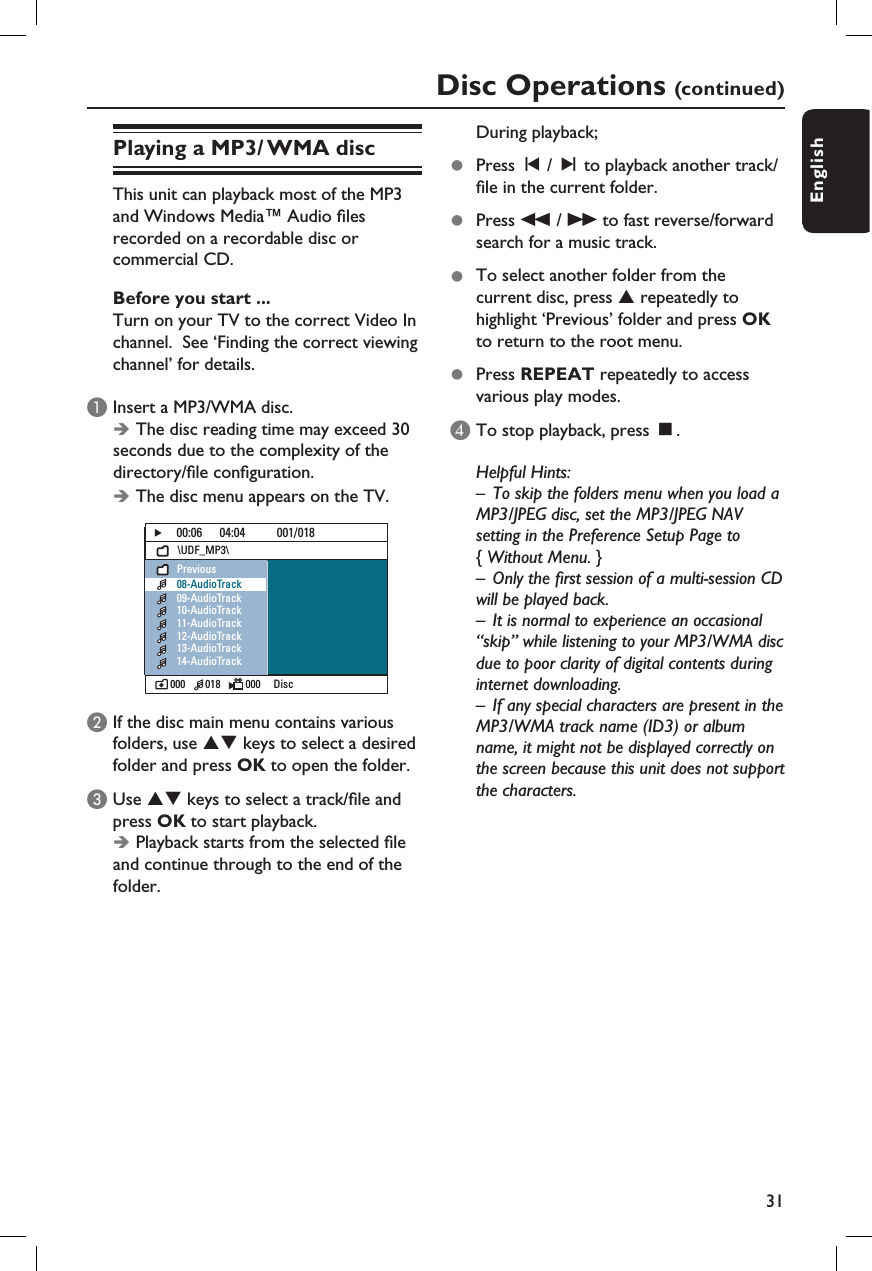

31EnglishPlaying a MP3/ WMA discThis unit can playback most of the MP3 and Windows Media™ Audio  les recorded on a recordable disc or commercial CD.Before you start ... Turn on your TV to the correct Video In channel. See ‘Finding the correct viewing channel’ for details.A Insert a MP3/WMA disc. Î The disc reading time may exceed 30 seconds due to the complexity of the directory/ le con guration.Î The disc menu appears on the TV.00:06 04:04 001/018\UDF_MP3\000 018 000 DiscPrevious08-AudioTrack09-AudioTrack10-AudioTrack11-AudioTrack12-AudioTrack13-AudioTrack14-AudioTrackB If the disc main menu contains various folders, use ST keys to select a desired folder and press OK to open the folder.C Use ST keys to select a track/ le and press OK to start playback.Î Playback starts from the selected  le and continue through to the end of the folder.During playback;z Press í / ë to playback another track/ le in the current folder.z Press m / M to fast reverse/forward search for a music track.z To select another folder from the current disc, press S repeatedly to highlight ‘Previous’ folder and press OK to return to the root menu. z Press REPEAT repeatedly to access various play modes.D To stop playback, press Ç.Helpful Hints:– To skip the folders menu when you load a MP3/JPEG disc, set the MP3/JPEG NAV setting in the Preference Setup Page to { Without Menu. }– Only the  rst session of a multi-session CD will be played back.– It is normal to experience an occasional “skip” while listening to your MP3/WMA disc due to poor clarity of digital contents during internet downloading.– If any special characters are present in the MP3/WMA track name (ID3) or album name, it might not be displayed correctly on the screen because this unit does not support the characters.Disc Operations (continued)

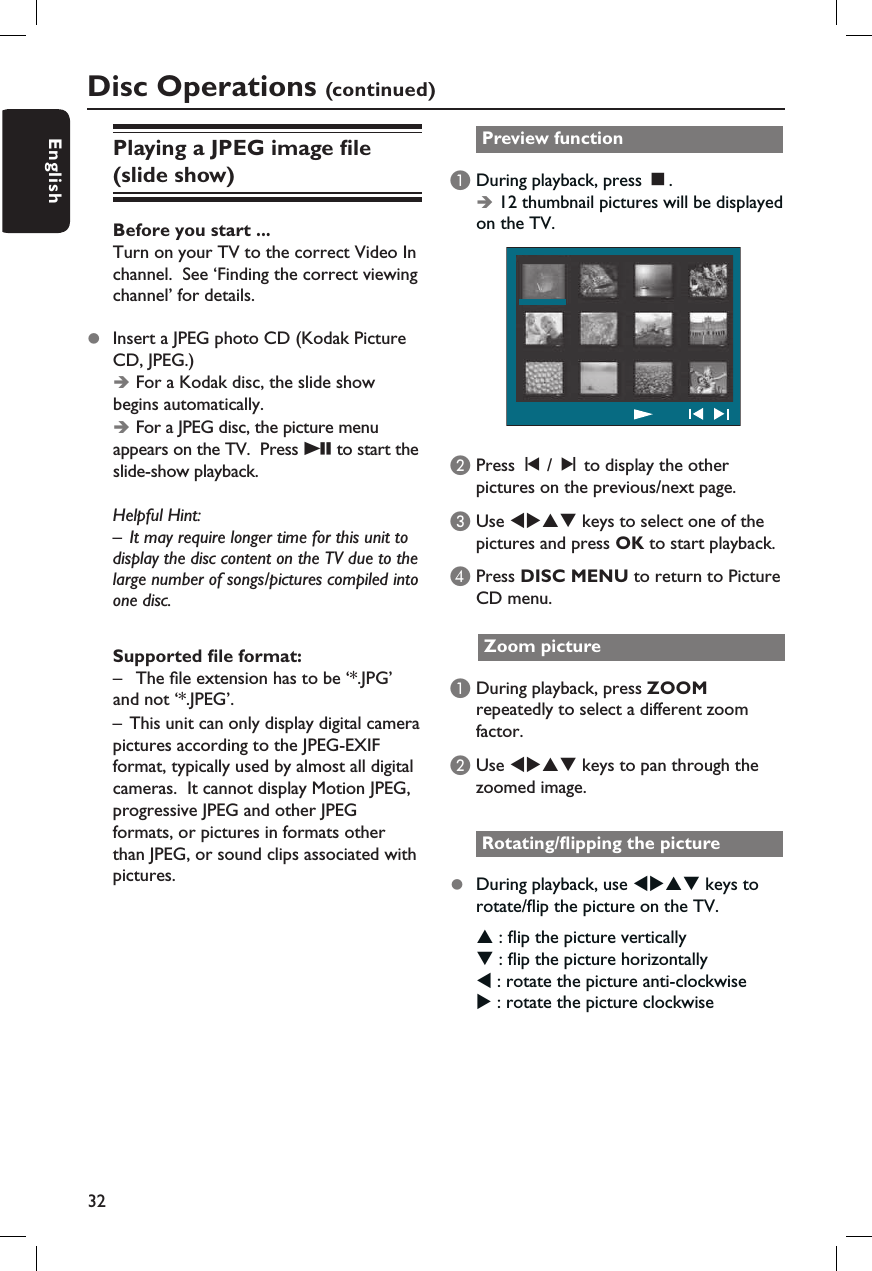

32EnglishPlaying a JPEG image  le (slide show) Before you start ... Turn on your TV to the correct Video In channel. See ‘Finding the correct viewing channel’ for details.z Insert a JPEG photo CD (Kodak Picture CD, JPEG.) Î For a Kodak disc, the slide show begins automatically.Î For a JPEG disc, the picture menu appears on the TV. Press u to start the slide-show playback.Helpful Hint:– It may require longer time for this unit to display the disc content on the TV due to the large number of songs/pictures compiled into one disc.Supported  le format:– The  le extension has to be ‘*.JPG’ and not ‘*.JPEG’.– This unit can only display digital camera pictures according to the JPEG-EXIF format, typically used by almost all digital cameras. It cannot display Motion JPEG, progressive JPEG and other JPEG formats, or pictures in formats other than JPEG, or sound clips associated with pictures.Preview function A During playback, press Ç.Î 12 thumbnail pictures will be displayed on the TV. B Press í / ë to display the other pictures on the previous/next page.C Use WXST keys to select one of the pictures and press OK to start playback.D Press DISC MENU to return to Picture CD menu.Zoom picture A During playback, press ZOOM repeatedly to select a different zoom factor.B Use WXST keys to pan through the zoomed image.Rotating/ ipping the picturez During playback, use WXST keys to rotate/ ip the picture on the TV.S :  ip the picture verticallyT :  ip the picture horizontallyW : rotate the picture anti-clockwiseX : rotate the picture clockwiseDisc Operations (continued)

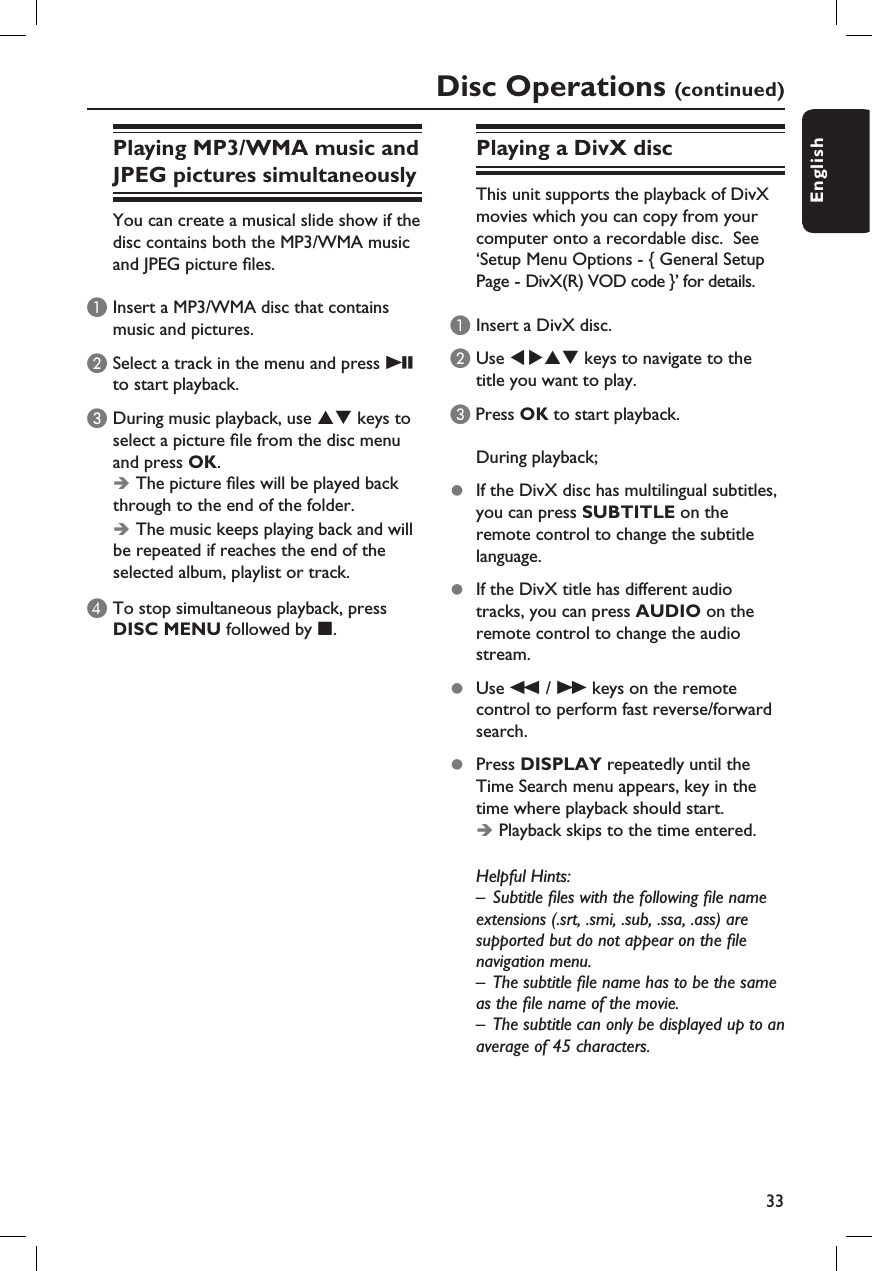

33EnglishDisc Operations (continued)Playing MP3/WMA music and JPEG pictures simultaneouslyYou can create a musical slide show if the disc contains both the MP3/WMA music and JPEG picture  les.A Insert a MP3/WMA disc that contains music and pictures.B Select a track in the menu and press u to start playback.C During music playback, use ST keys to select a picture  le from the disc menu and press OK. Î The picture  les will be played back through to the end of the folder.Î The music keeps playing back and will be repeated if reaches the end of the selected album, playlist or track.D To stop simultaneous playback, press DISC MENU followed by x. Playing a DivX discThis unit supports the playback of DivX movies which you can copy from your computer onto a recordable disc. See ‘Setup Menu Options - { General Setup Page - DivX(R) VOD code }’ for details.A Insert a DivX disc. B Use WXST keys to navigate to the title you want to play.C Press OK to start playback.During playback;z If the DivX disc has multilingual subtitles, you can press SUBTITLE on the remote control to change the subtitle language.z If the DivX title has different audio tracks, you can press AUDIO on the remote control to change the audio stream.z Use m / M keys on the remote control to perform fast reverse/forward search.z Press DISPLAY repeatedly until the Time Search menu appears, key in the time where playback should start.ÎPlayback skips to the time entered.Helpful Hints:– Subtitle  les with the following  le name extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the  le navigation menu.– The subtitle  le name has to be the same as the  le name of the movie.– The subtitle can only be displayed up to an average of 45 characters.

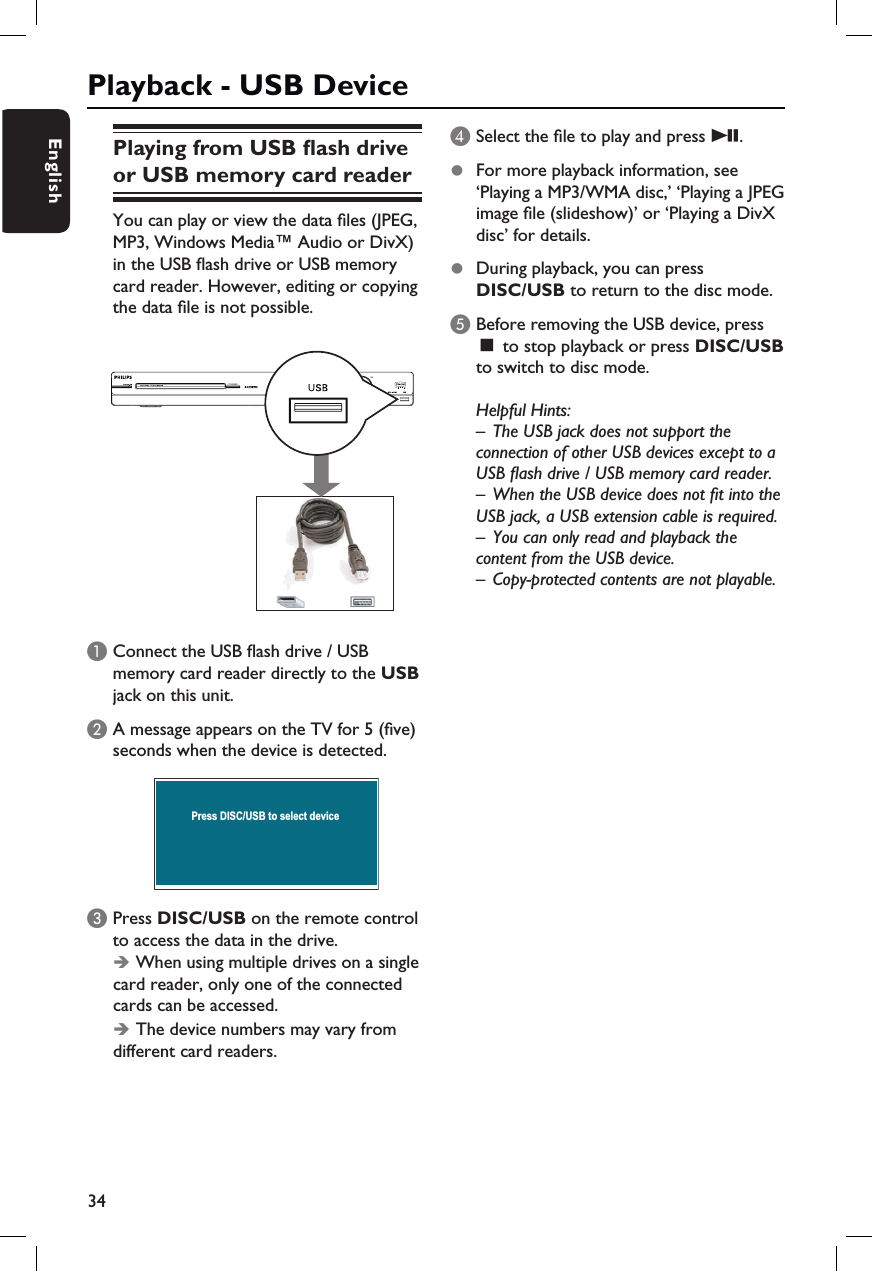

34EnglishPlaying from USB  ash drive or USB memory card readerYou can play or view the data  les (JPEG, MP3, Windows Media™ Audio or DivX) in the USB  ash drive or USB memory card reader. However, editing or copying the data  le is not possible.A Connect the USB  ash drive / USB memory card reader directly to the USB jack on this unit.B A message appears on the TV for 5 ( ve) seconds when the device is detected.Press DISC/USB to select deviceC Press DISC/USB on the remote control to access the data in the drive. Î When using multiple drives on a single card reader, only one of the connected cards can be accessed. Î The device numbers may vary from different card readers.D Select the  le to play and press u. zFor more playback information, see ‘Playing a MP3/WMA disc,’ ‘Playing a JPEG image  le (slideshow)’ or ‘Playing a DivX disc’ for details.z During playback, you can press DISC/USB to return to the disc mode.E Before removing the USB device, press Ç to stop playback or press DISC/USB to switch to disc mode.Helpful Hints:– The USB jack does not support the connection of other USB devices except to a USB  ash drive / USB memory card reader.– When the USB device does not  t into the USB jack, a USB extension cable is required.– You can only read and playback the content from the USB device.– Copy-protected contents are not playable. Playback - USB Device

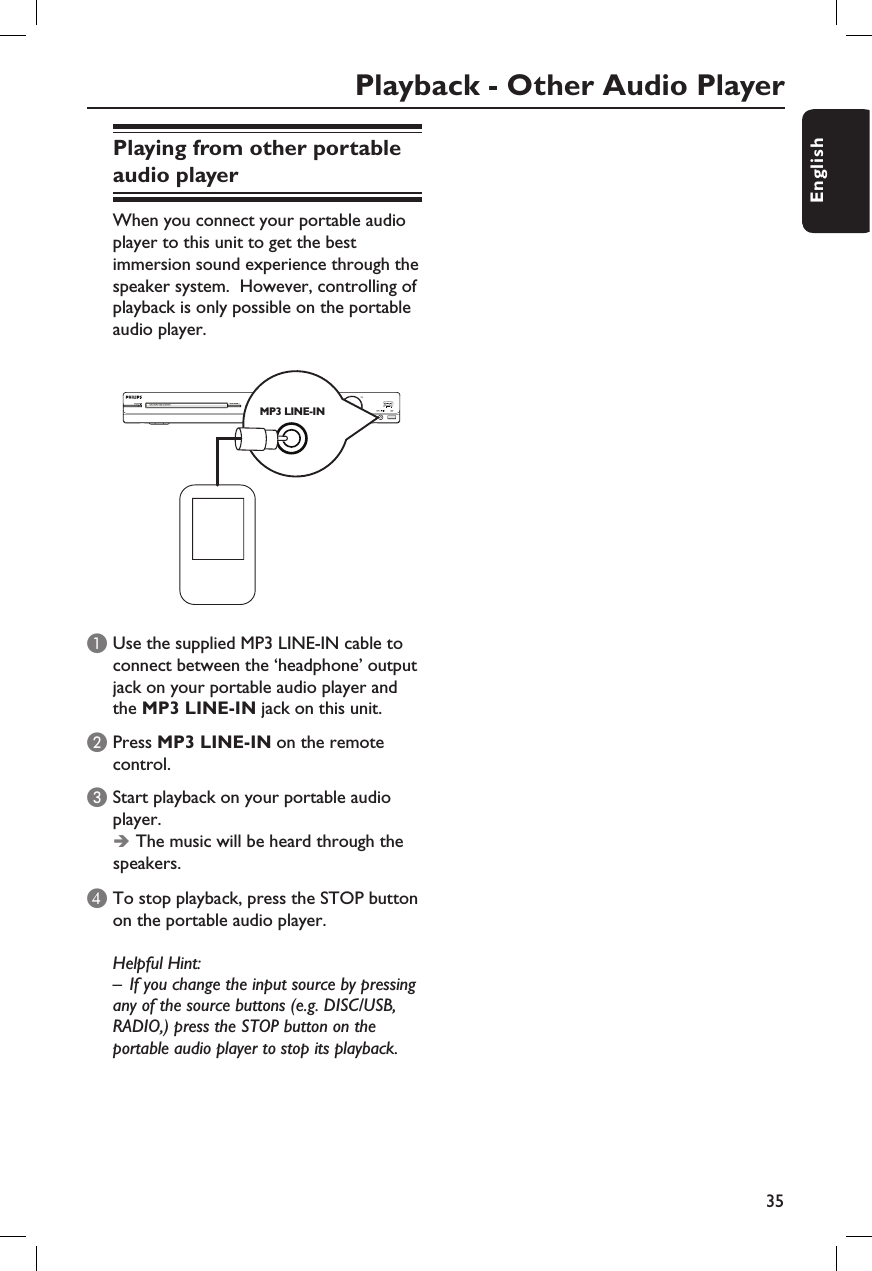

35EnglishPlaying from other portable audio playerWhen you connect your portable audio player to this unit to get the best immersion sound experience through the speaker system. However, controlling of playback is only possible on the portable audio player.MP3 LINE-INA Use the supplied MP3 LINE-IN cable to connect between the ‘headphone’ output jack on your portable audio player and the MP3 LINE-IN jack on this unit.B Press MP3 LINE-IN on the remote control. C Start playback on your portable audio player. Î The music will be heard through the speakers.D To stop playback, press the STOP button on the portable audio player. Helpful Hint:– If you change the input source by pressing any of the source buttons (e.g. DISC/USB, RADIO,) press the STOP button on the portable audio player to stop its playback.Playback - Other Audio Player
36EnglishSetup Menu OptionsAccessing the setup menuThis system setup is carried out via the TV, enabling you to customize this unit to suit your particular requirements. SLEEPSETUPOKA In disc mode, press SETUP on the remote control.ÎThe setup menu appears.B Use W X keys to select one of the setup menu options and press OK.zIf you are not able to access the { Preference Page, } press SETUP to exit the menu. Then, press STOP Ç twice before you press the SETUP again.C Use S T keys to select a setup option and press X to access.D Select the setting you wish to change and press OK to con rm and go back to the previously selected item.Î Instructions and explanations of the options are provided in the following pages.Î If the option in the menu is grayed out, that means the setting is not available or cannot be changed in the current state.E To exit, press SETUP.see page 37see pages 38~39see pages 40~41see pages 42~43General Setup PageDisc LockDisplay DimProgramOSD LanguageScreen SaverSleepDivX(R) VOD CodeAudio Setup PageSpeakers VolumeSpeakers DelayHDMI AudioCD UpsamplingAudio SyncVideo Setup PageTV TypeTV DisplayProgressivePicture SettingHDMI SetupClosed CaptionPreference PageAudioSubtitleDisc MenuParentalSurroundPBCMP3/JPEG NavPasswordDivX SubtitleDefault

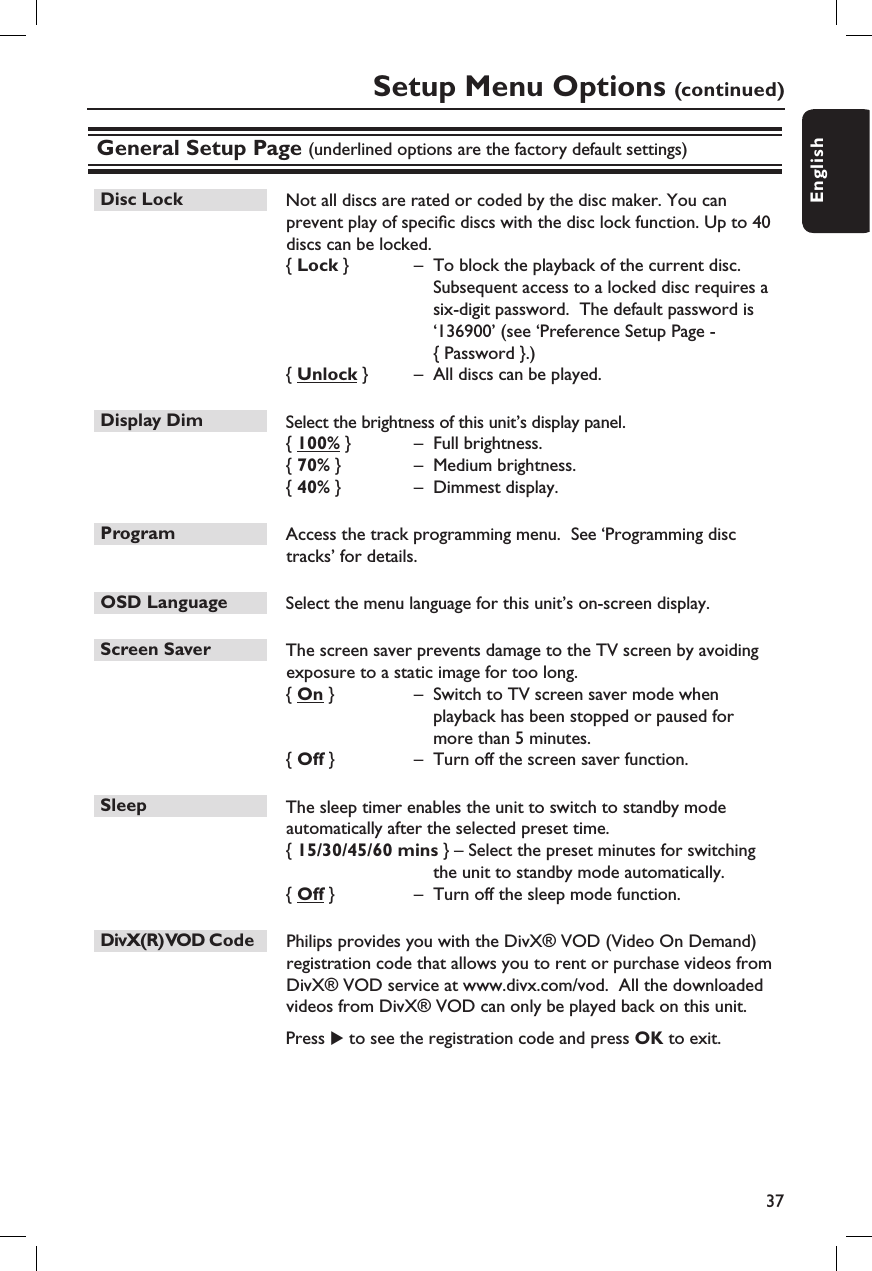

37EnglishSetup Menu Options (continued)General Setup Page (underlined options are the factory default settings)Disc Lock Not all discs are rated or coded by the disc maker. You can prevent play of speci c discs with the disc lock function. Up to 40 discs can be locked.{ Lock } – To block the playback of the current disc. Subsequent access to a locked disc requires a six-digit password. The default password is ‘136900’ (see ‘Preference Setup Page - { Password }.){ Unlock } – All discs can be played.Display Dim Select the brightness of this unit’s display panel.{ 100% } – Full brightness.{ 70% } – Medium brightness.{ 40% } – Dimmest display.Program Access the track programming menu. See ‘Programming disc tracks’ for details.OSD Language Select the menu language for this unit’s on-screen display.Screen Saver The screen saver prevents damage to the TV screen by avoiding exposure to a static image for too long.{ On } – Switch to TV screen saver mode when playback has been stopped or paused for more than 5 minutes.{ Off } – Turn off the screen saver function.Sleep The sleep timer enables the unit to switch to standby mode automatically after the selected preset time.{ 15/30/45/60 mins } – Select the preset minutes for switching the unit to standby mode automatically.{ Off } – Turn off the sleep mode function.DivX(R) VOD Code Philips provides you with the DivX® VOD (Video On Demand) registration code that allows you to rent or purchase videos from DivX® VOD service at www.divx.com/vod. All the downloaded videos from DivX® VOD can only be played back on this unit. Press X to see the registration code and press OK to exit.

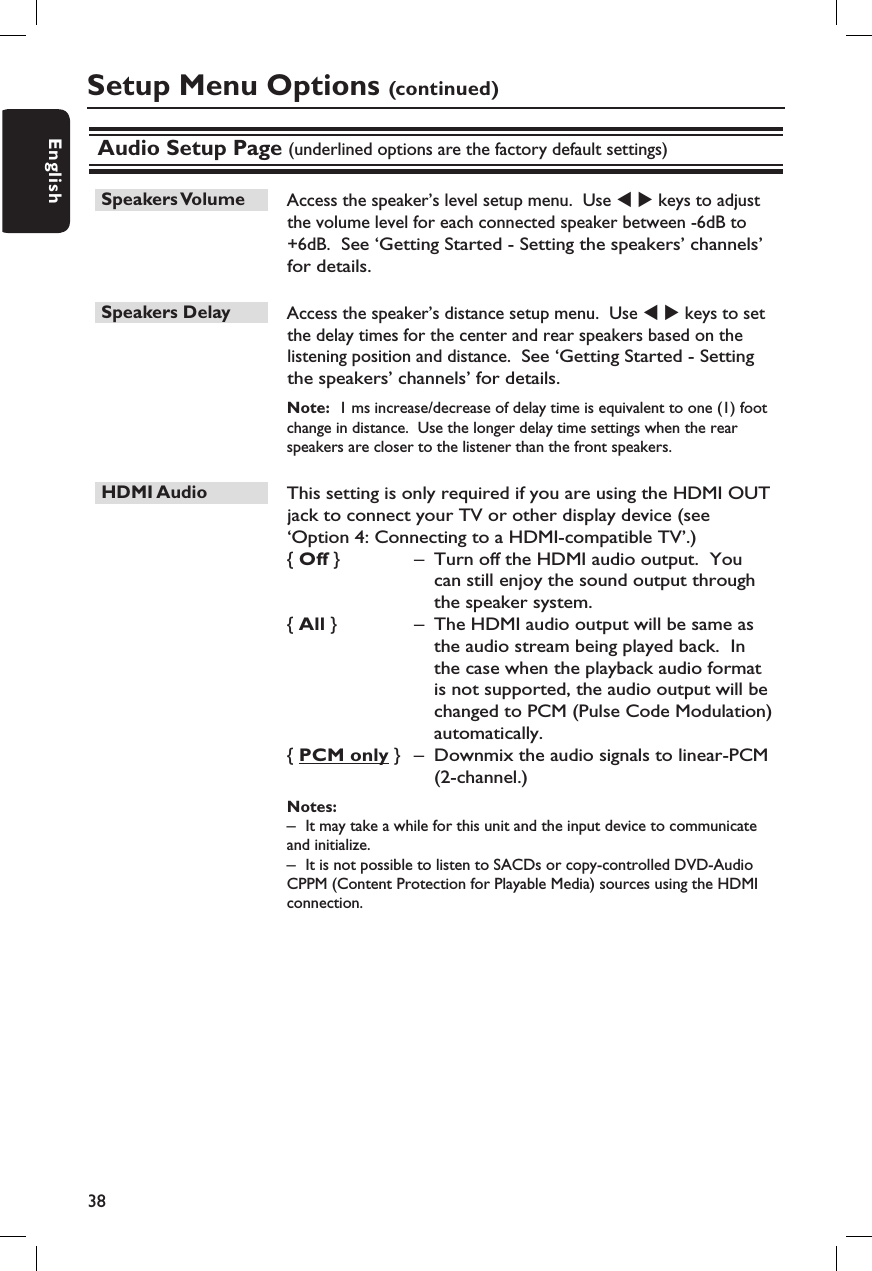

38EnglishAudio Setup Page (underlined options are the factory default settings)Speakers Volume Access the speaker’s level setup menu. Use W X keys to adjust the volume level for each connected speaker between -6dB to +6dB. See ‘Getting Started - Setting the speakers’ channels’ for details.Speakers Delay Access the speaker’s distance setup menu. Use W X keys to set the delay times for the center and rear speakers based on the listening position and distance. See ‘Getting Started - Setting the speakers’ channels’ for details.Note: 1 ms increase/decrease of delay time is equivalent to one (1) foot change in distance. Use the longer delay time settings when the rear speakers are closer to the listener than the front speakers.HDMI Audio This setting is only required if you are using the HDMI OUT jack to connect your TV or other display device (see ‘Option 4: Connecting to a HDMI-compatible TV’.) { Off } – Turn off the HDMI audio output. You can still enjoy the sound output through the speaker system.{ All } – The HDMI audio output will be same as the audio stream being played back. In the case when the playback audio format is not supported, the audio output will be changed to PCM (Pulse Code Modulation) automatically.{ PCM only } – Downmix the audio signals to linear-PCM (2-channel.)Notes: – It may take a while for this unit and the input device to communicate and initialize.– It is not possible to listen to SACDs or copy-controlled DVD-Audio CPPM (Content Protection for Playable Media) sources using the HDMI connection.Setup Menu Options (continued)

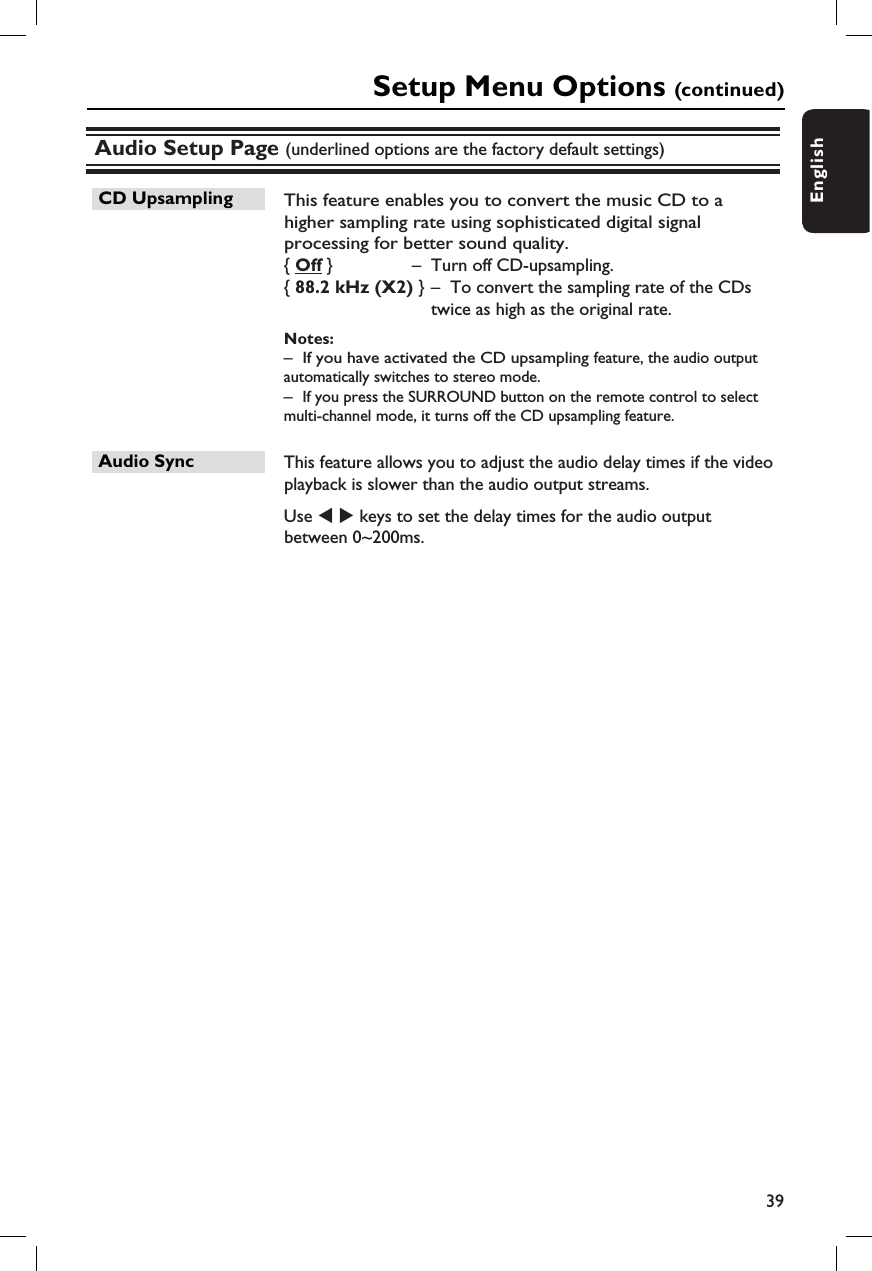

39EnglishCD Upsampling This feature enables you to convert the music CD to a higher sampling rate using sophisticated digital signal processing for better sound quality. { Off } – Turn off CD-upsampling.{ 88.2 kHz (X2) } – To convert the sampling rate of the CDs twice as high as the original rate.Notes: – If you have activated the CD upsampling feature, the audio output automatically switches to stereo mode.– If you press the SURROUND button on the remote control to select multi-channel mode, it turns off the CD upsampling feature.Audio Sync This feature allows you to adjust the audio delay times if the video playback is slower than the audio output streams. Use W X keys to set the delay times for the audio output between 0~200ms.Audio Setup Page (underlined options are the factory default settings)Setup Menu Options (continued)

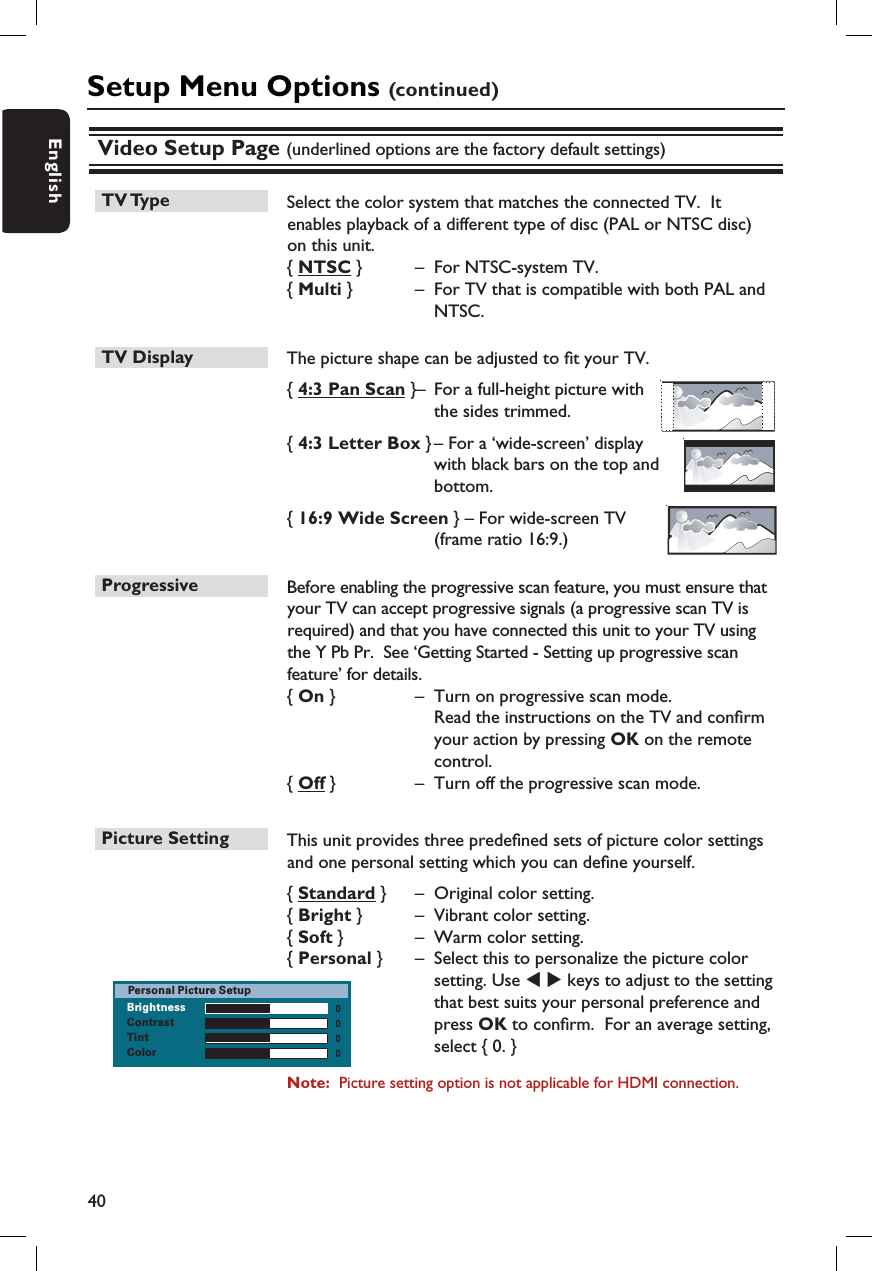

40EnglishVideo Setup Page (underlined options are the factory default settings)TV Type Select the color system that matches the connected TV. It enables playback of a different type of disc (PAL or NTSC disc) on this unit.{ NTSC } – For NTSC-system TV.{ Multi } – For TV that is compatible with both PAL and NTSC.TV Display The picture shape can be adjusted to  t your TV. { 4:3 Pan Scan } – For a full-height picture with the sides trimmed.{ 4:3 Letter Box } – For a ‘wide-screen’ display with black bars on the top and bottom.{ 16:9 Wide Screen } – For wide-screen TV (frame ratio 16:9.) Progressive Before enabling the progressive scan feature, you must ensure that your TV can accept progressive signals (a progressive scan TV is required) and that you have connected this unit to your TV using the Y Pb Pr. See ‘Getting Started - Setting up progressive scan feature’ for details.{ On } – Turn on progressive scan mode. Read the instructions on the TV and con rm your action by pressing OK on the remote control.{ Off } – Turn off the progressive scan mode.Picture Setting This unit provides three prede ned sets of picture color settings and one personal setting which you can de ne yourself.{ Standard } – Original color setting. { Bright } – Vibrant color setting.{ Soft } – Warm color setting.{ Personal } – Select this to personalize the picture color setting. Use W X keys to adjust to the setting that best suits your personal preference and press OK to con rm. For an average setting, select { 0. }Note: Picture setting option is not applicable for HDMI connection.Setup Menu Options (continued)BrightnessContrastTintColorPersonal Picture Setup

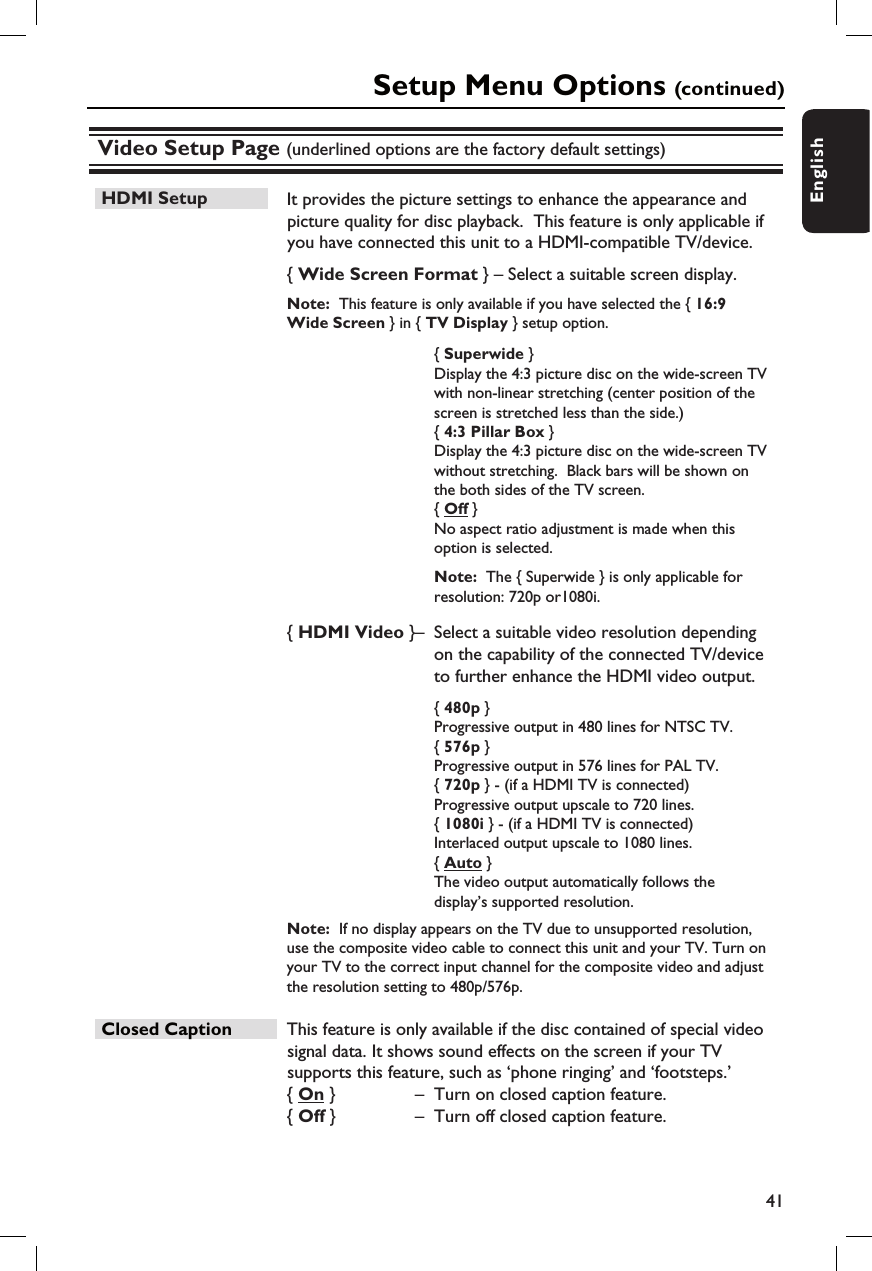

41EnglishHDMI Setup It provides the picture settings to enhance the appearance and picture quality for disc playback. This feature is only applicable if you have connected this unit to a HDMI-compatible TV/device. { Wide Screen Format } – Select a suitable screen display. Note: This feature is only available if you have selected the { 16:9 Wide Screen } in { TV Display } setup option.{ Superwide } Display the 4:3 picture disc on the wide-screen TV with non-linear stretching (center position of the screen is stretched less than the side.){ 4:3 Pillar Box }Display the 4:3 picture disc on the wide-screen TV without stretching. Black bars will be shown on the both sides of the TV screen. { Off }No aspect ratio adjustment is made when this option is selected.Note: The { Superwide } is only applicable for resolution: 720p or1080i.{ HDMI Video }– Select a suitable video resolution depending on the capability of the connected TV/device to further enhance the HDMI video output.{ 480p }Progressive output in 480 lines for NTSC TV.{ 576p }Progressive output in 576 lines for PAL TV.{ 720p } - (if a HDMI TV is connected)Progressive output upscale to 720 lines.{ 1080i } - (if a HDMI TV is connected)Interlaced output upscale to 1080 lines. { Auto } The video output automatically follows the display’s supported resolution.Note: If no display appears on the TV due to unsupported resolution, use the composite video cable to connect this unit and your TV. Turn on your TV to the correct input channel for the composite video and adjust the resolution setting to 480p/576p.Closed Caption This feature is only available if the disc contained of special video signal data. It shows sound effects on the screen if your TV supports this feature, such as ‘phone ringing’ and ‘footsteps.’{ On } – Turn on closed caption feature.{ Off } – Turn off closed caption feature.Video Setup Page (underlined options are the factory default settings)Setup Menu Options (continued)

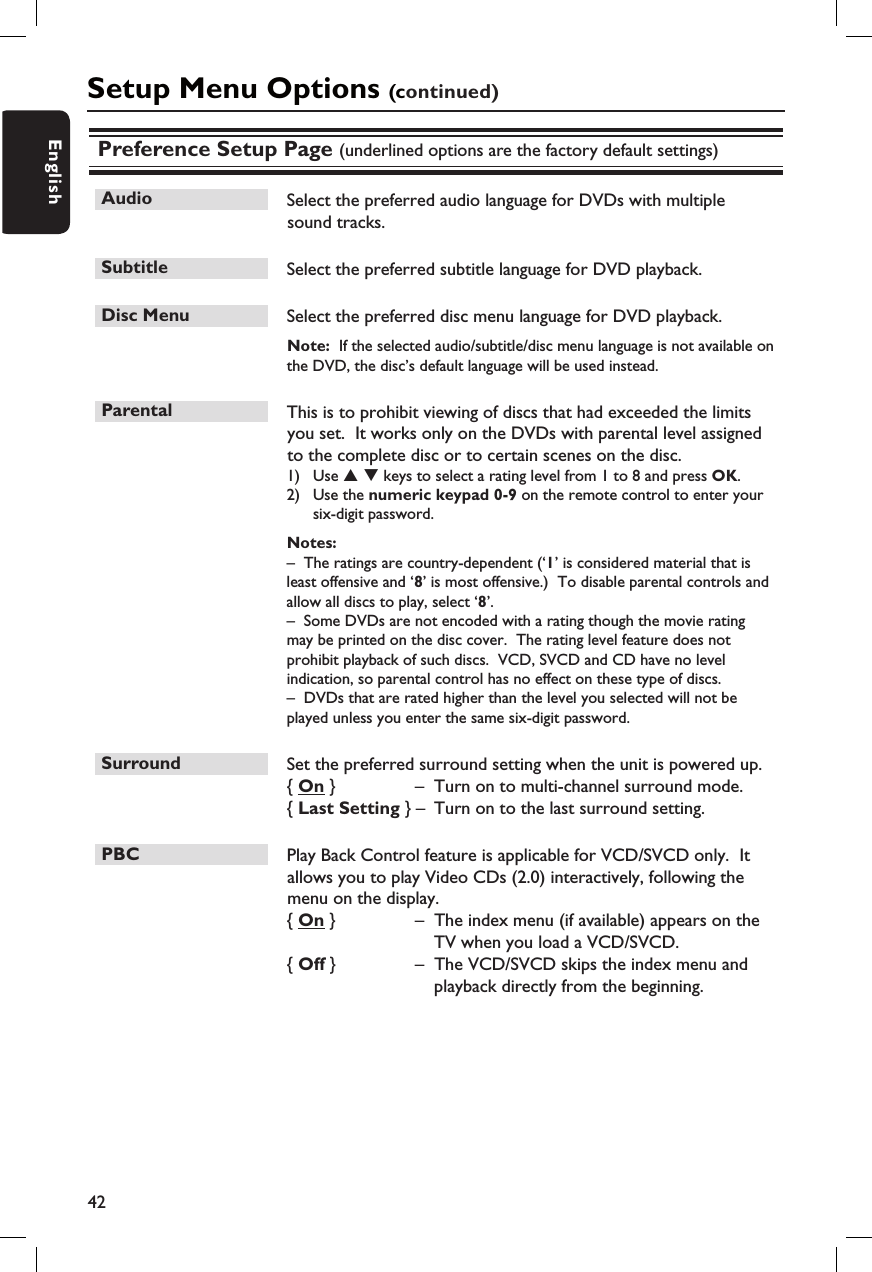

42EnglishPreference Setup Page (underlined options are the factory default settings)Audio Select the preferred audio language for DVDs with multiple sound tracks. Subtitle Select the preferred subtitle language for DVD playback.Disc Menu Select the preferred disc menu language for DVD playback.Note: If the selected audio/subtitle/disc menu language is not available on the DVD, the disc’s default language will be used instead.Parental This is to prohibit viewing of discs that had exceeded the limits you set. It works only on the DVDs with parental level assigned to the complete disc or to certain scenes on the disc. 1) Use S T keys to select a rating level from 1 to 8 and press OK. 2) Use the numeric keypad 0-9 on the remote control to enter your six-digit password.Notes: – The ratings are country-dependent (‘1’ is considered material that is least offensive and ‘8’ is most offensive.) To disable parental controls and allow all discs to play, select ‘8’.– Some DVDs are not encoded with a rating though the movie rating may be printed on the disc cover. The rating level feature does not prohibit playback of such discs. VCD, SVCD and CD have no level indication, so parental control has no effect on these type of discs.– DVDs that are rated higher than the level you selected will not be played unless you enter the same six-digit password. Surround Set the preferred surround setting when the unit is powered up.{ On } – Turn on to multi-channel surround mode. { Last Setting } – Turn on to the last surround setting. PBC Play Back Control feature is applicable for VCD/SVCD only. It allows you to play Video CDs (2.0) interactively, following the menu on the display. { On } – The index menu (if available) appears on the TV when you load a VCD/SVCD.{ Off } – The VCD/SVCD skips the index menu and playback directly from the beginning.Setup Menu Options (continued)

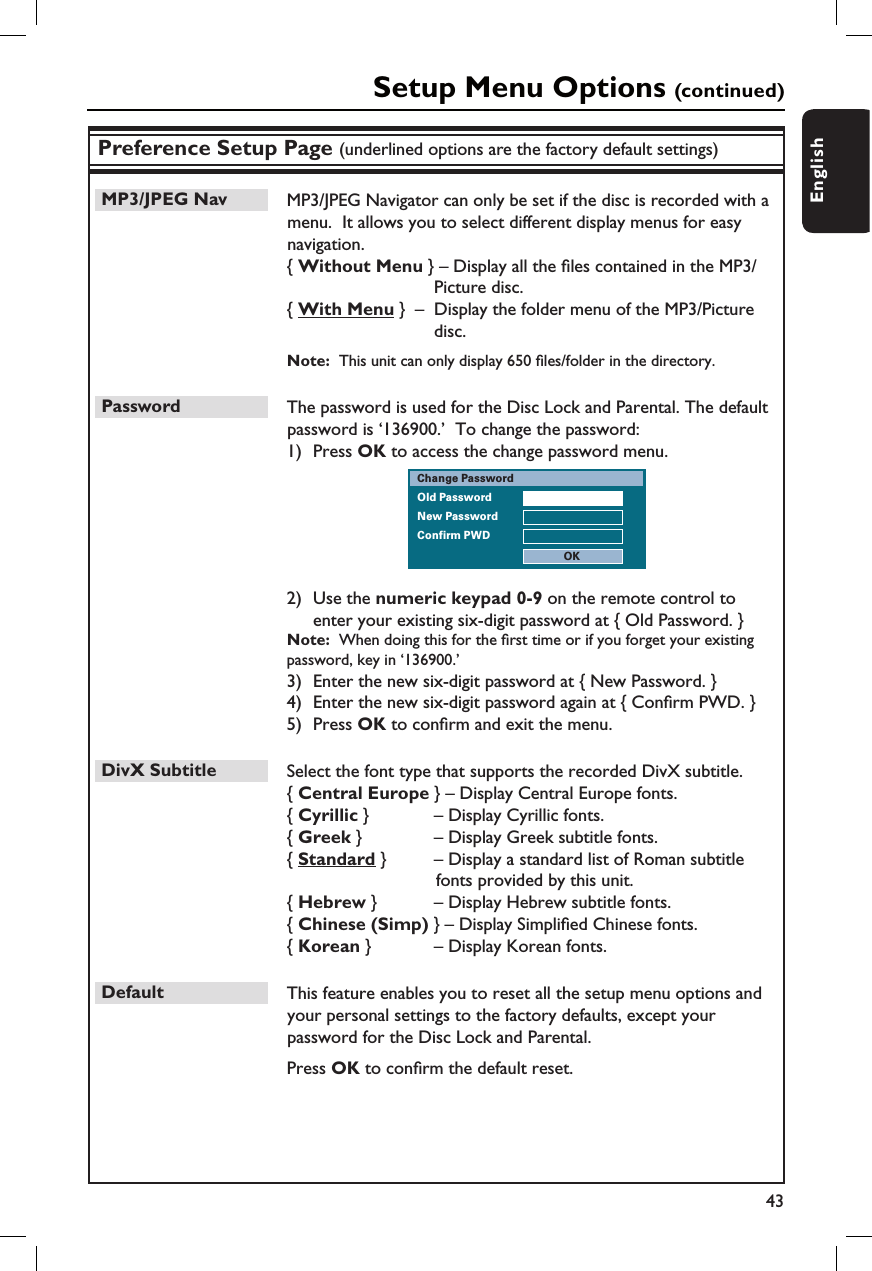

43EnglishPreference Setup Page (underlined options are the factory default settings)MP3/JPEG Nav MP3/JPEG Navigator can only be set if the disc is recorded with a menu. It allows you to select different display menus for easy navigation.{ Without Menu } – Display all the  les contained in the MP3/Picture disc.{ With Menu } – Display the folder menu of the MP3/Picture disc.Note: This unit can only display 650  les/folder in the directory.Password The password is used for the Disc Lock and Parental. The default password is ‘136900.’ To change the password:1) Press OK to access the change password menu.Old PasswordNew PasswordConfirm PWDChange PasswordOK2) Use the numeric keypad 0-9 on the remote control to enter your existing six-digit password at { Old Password. }Note: When doing this for the  rst time or if you forget your existing password, key in ‘136900.’3) Enter the new six-digit password at { New Password. }4) Enter the new six-digit password again at { Con rm PWD. }5) Press OK to con rm and exit the menu.DivX Subtitle Select the font type that supports the recorded DivX subtitle.{ Central Europe } – Display Central Europe fonts.{ Cyrillic } – Display Cyrillic fonts.{ Greek } – Display Greek subtitle fonts.{ Standard } – Display a standard list of Roman subtitle fonts provided by this unit.{ Hebrew } – Display Hebrew subtitle fonts.{ Chinese (Simp) } – Display Simpli ed Chinese fonts.{ Korean } – Display Korean fonts.Default This feature enables you to reset all the setup menu options and your personal settings to the factory defaults, except your password for the Disc Lock and Parental. Press OK to con rm the default reset.Setup Menu Options (continued)
44EnglishAbout SIRIUSSIRIUS is a commercial-free satellite radio featuring digital quality music, sports, news and entertainment programming. This unit is SIRIUS-ready. Simply connect a SIRIUS receiver to this unit to activate your subscription. Note:You can purchase the SIRIUS receiver at most major electronics retailers and most SIRIUS Plug & Play radios and accessories from SIRIUS on-line shop. Visit www.sirius.com for more information.Activating your SIRIUS subscriptionYou subscription to the SIRIUS satallite system applies to this unit only. Identify your unit’s unique SIRIUS ID code before you activate your subscription.To  nd out the SIRIUS ID codeA Press RADIO repeatedly until ‘SIRIUS’ appears on the display panel.B Tune to channel ‘0’. Î The 12-digit SIRIUS ID number appears on the display panel.C Write down this code number for easy reference during activation. To subscribez Contact SIRIUS® Radio on the web or by phone. URL: www.sirius.com Toll-free: 888-539-siriusSIRIUS OperationsRemote control functions in SIRIUS mode SLEEPRADIOTITLE DISPLAYSTOP0~9ZOOMDISC MENU PROGRAMRADIO– Toggle to SIRIUS satellite radio mode.PROGRAM– Used for preset operation.DISC MENU– Change search mode.S / T– Select channel.W / X– Scroll display information.DISPLAY– Change display information for current program.í / ë– Change preset.– In category browse mode, view channel information.TITLE– Enter category browse mode.STOP– Press to cancel preset programming.– Press and hold to delete preset.Numeric keypad 0~9– Enter preset, channel or security code number.ZOOM– Lock operation.

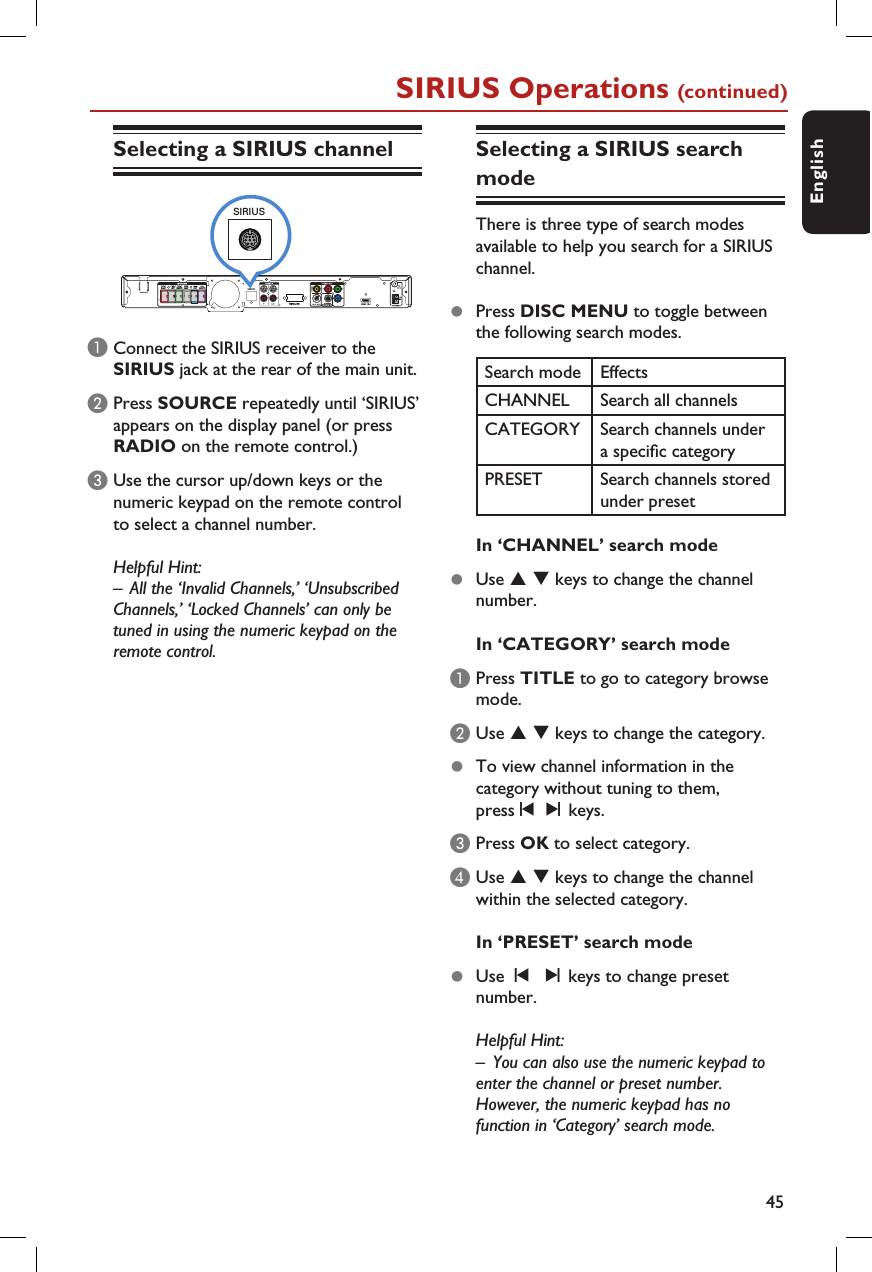

45EnglishSelecting a SIRIUS channelSIRIUSSIRIUSA Connect the SIRIUS receiver to the SIRIUS jack at the rear of the main unit.B Press SOURCE repeatedly until ‘SIRIUS’ appears on the display panel (or press RADIO on the remote control.)C Use the cursor up/down keys or the numeric keypad on the remote control to select a channel number.Helpful Hint:– All the ‘Invalid Channels,’ ‘Unsubscribed Channels,’ ‘Locked Channels’ can only be tuned in using the numeric keypad on the remote control.Selecting a SIRIUS search modeThere is three type of search modes available to help you search for a SIRIUS channel.z Press DISC MENU to toggle between the following search modes.Search mode EffectsCHANNEL Search all channelsCATEGORY Search channels under a speci c categoryPRESET Search channels stored under presetIn ‘CHANNEL’ search modezUse S T keys to change the channel number. In ‘CATEGORY’ search modeA Press TITLE to go to category browse mode.B Use S T keys to change the category.z To view channel information in the category without tuning to them, pressí ë keys.C Press OK to select category. D Use S T keys to change the channel within the selected category.In ‘PRESET’ search modezUse í ë keys to change preset number.Helpful Hint:– You can also use the numeric keypad to enter the channel or preset number. However, the numeric keypad has no function in ‘Category’ search mode.SIRIUS Operations (continued)
46EnglishChanging the SIRIUS display informationz Press DISPLAY repeatedly to toggle between the following information display on the main unit’s display panel.Channel NameProgram TitleArtistComposerCategoryChannel InfoOther messages:ANTENNA ERROR– no antenna detected.LINKING– no audio present.CALL 888-539-SIRIUS TO SUBSCRIBE– unsubscribed channel.UPDATING CHANNELS– channel list is getting updated.FIRMWARE UPDATE–  rmware is getting updated.PWR FAIL– unable to power up module.NO CHNL– no channel meets criteria.INVALID CHANNEL– not a valid channel.SUBSCRIPTION UPDATED– program subscription has changed.Helpful Hint:– If no display information is present, ‘ - - - -’ is shown.Storing SIRIUS channel presetsYou can preset up to 40 SIRIUS Satellite Radio channels.A In any SIRIUS search mode, select the channel you want to preset.B Press PROGRAM. Î ‘P XX YYY’ appears. ‘XX’ is the preset number and ‘YYY’ is the channel number.CUse í / ë keys to select a preset number that you want to store. D Press PROGRAM again to store. E To exit preset programming mode, press Ç.Deleting SIRIUS channel presetA In SIRIUS mode, press DISC MENU until ‘PRESET’ appears.BUse í ë keys to select the channel preset you want to delete.C Press and hold until ‘PRST DEL’ appears.Î The rest of the channel presets remain unchanged.SIRIUS Operations (continued)

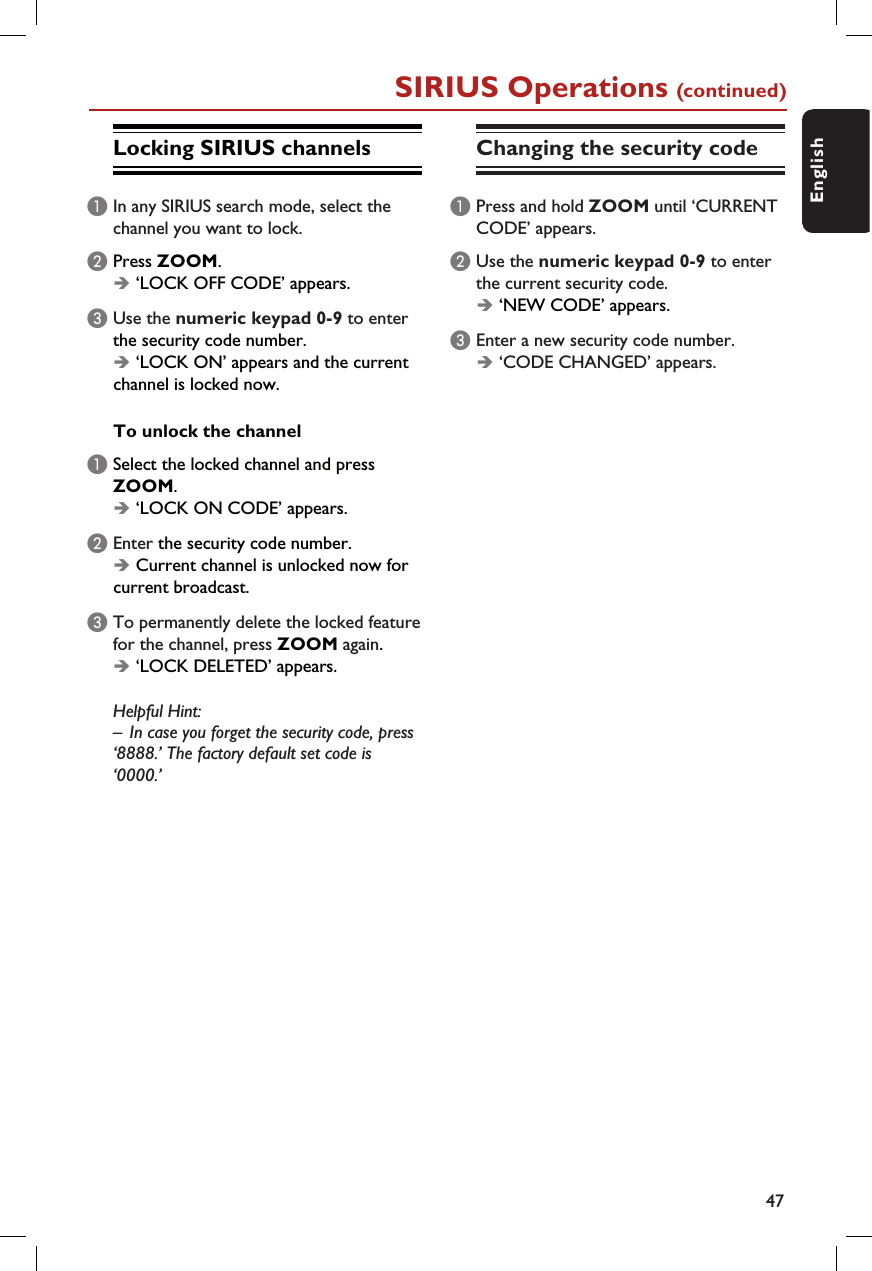

47EnglishSIRIUS Operations (continued)Locking SIRIUS channelsA In any SIRIUS search mode, select the channel you want to lock.B Press ZOOM.Î ‘LOCK OFF CODE’ appears.C Use the numeric keypad 0-9 to enter the security code number.Î ‘LOCK ON’ appears and the current channel is locked now.To unlock the channel A Select the locked channel and press ZOOM.Î ‘LOCK ON CODE’ appears.B Enter the security code number.Î Current channel is unlocked now for current broadcast.C To permanently delete the locked feature for the channel, press ZOOM again.Î ‘LOCK DELETED’ appears. Helpful Hint:– In case you forget the security code, press ‘8888.’ The factory default set code is ‘0000.’Changing the security codeA Press and hold ZOOM until ‘CURRENT CODE’ appears. B Use the numeric keypad 0-9 to enter the current security code.Î ‘NEW CODE’ appears.C Enter a new security code number.Î ‘CODE CHANGED’ appears.

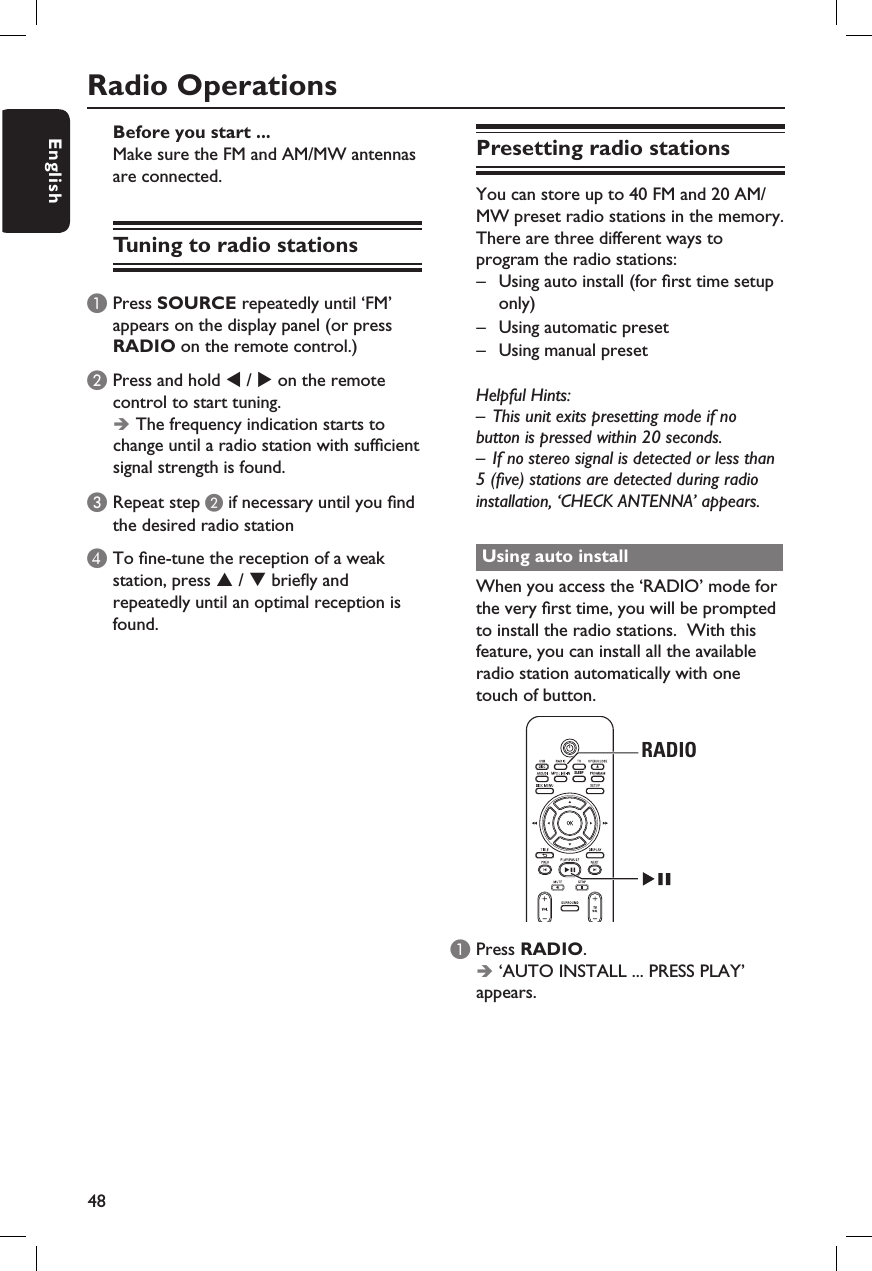

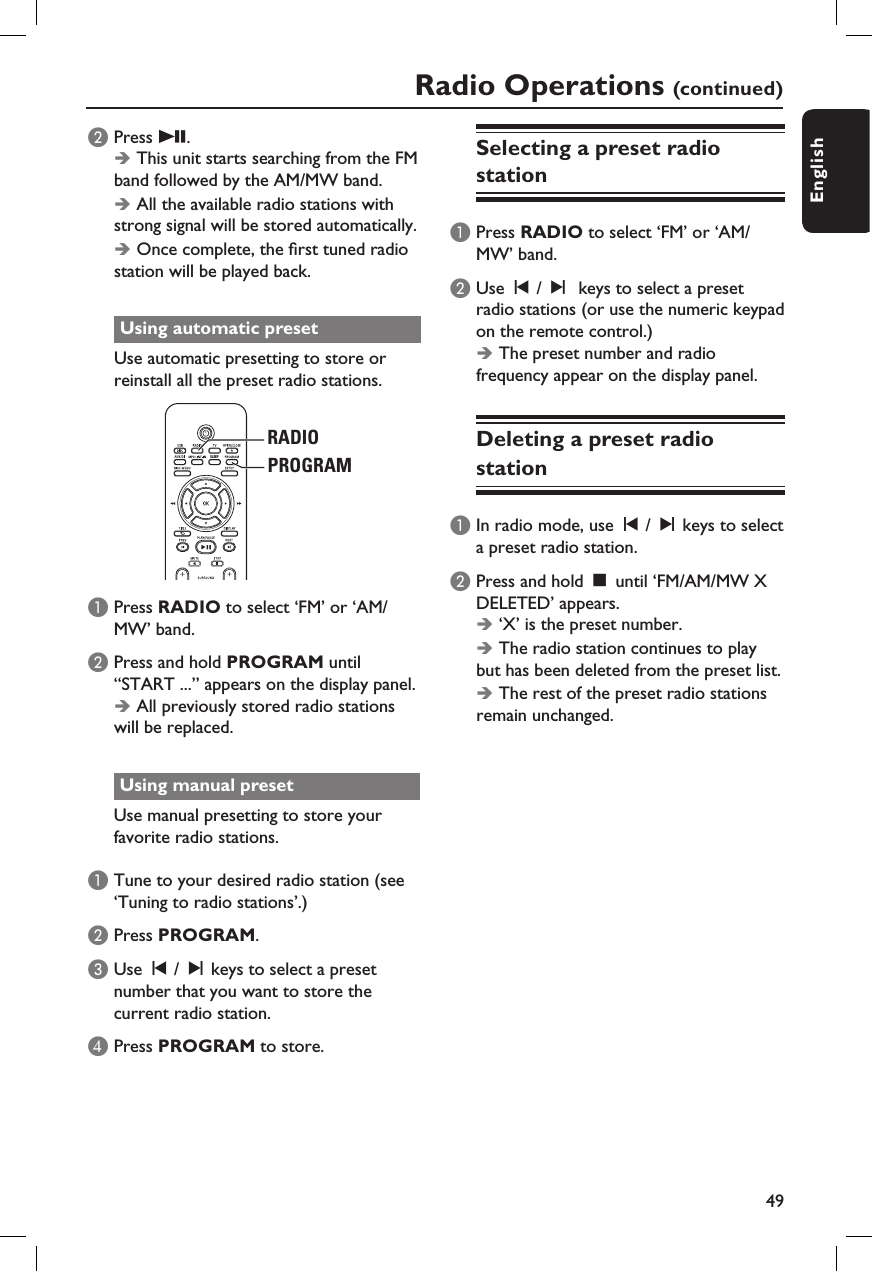

48EnglishRadio OperationsBefore you start ...Make sure the FM and AM/MW antennas are connected.Tuning to radio stationsA Press SOURCE repeatedly until ‘FM’ appears on the display panel (or press RADIO on the remote control.)B Press and hold W / X on the remote control to start tuning.ÎThe frequency indication starts to change until a radio station with suf cient signal strength is found.C Repeat step B if necessary until you  nd the desired radio stationD To  ne-tune the reception of a weak station, press S / T brie y and repeatedly until an optimal reception is found.Presetting radio stationsYou can store up to 40 FM and 20 AM/MW preset radio stations in the memory. There are three different ways to program the radio stations:– Using auto install (for  rst time setup only)– Using automatic preset – Using manual preset Helpful Hints:– This unit exits presetting mode if no button is pressed within 20 seconds.– If no stereo signal is detected or less than 5 ( ve) stations are detected during radio installation, ‘CHECK ANTENNA’ appears.Using auto installWhen you access the ‘RADIO’ mode for the very  rst time, you will be prompted to install the radio stations. With this feature, you can install all the available radio station automatically with one touch of button. SLEEPRADIOA Press RADIO.Î ‘AUTO INSTALL ... PRESS PLAY’ appears.
49EnglishRadio Operations (continued)B Press u.Î This unit starts searching from the FM band followed by the AM/MW band.Î All the available radio stations with strong signal will be stored automatically.Î Once complete, the  rst tuned radio station will be played back.Using automatic presetUse automatic presetting to store or reinstall all the preset radio stations.SLEEPRADIOPROGRAMA Press RADIO to select ‘FM’ or ‘AM/MW’ band.B Press and hold PROGRAM until “START ...” appears on the display panel.Î All previously stored radio stations will be replaced.Using manual presetUse manual presetting to store your favorite radio stations.A Tune to your desired radio station (see ‘Tuning to radio stations’.)B Press PROGRAM.C Use í / ë keys to select a preset number that you want to store the current radio station. D Press PROGRAM to store.Selecting a preset radio stationA Press RADIO to select ‘FM’ or ‘AM/MW’ band.B Use í / ë keys to select a preset radio stations (or use the numeric keypad on the remote control.)Î The preset number and radio frequency appear on the display panel.Deleting a preset radio stationA In radio mode, use í / ë keys to select a preset radio station.B Press and hold Ç until ‘FM/AM/MW X DELETED’ appears.Î ‘X’ is the preset number.Î The radio station continues to play but has been deleted from the preset list.Î The rest of the preset radio stations remain unchanged.

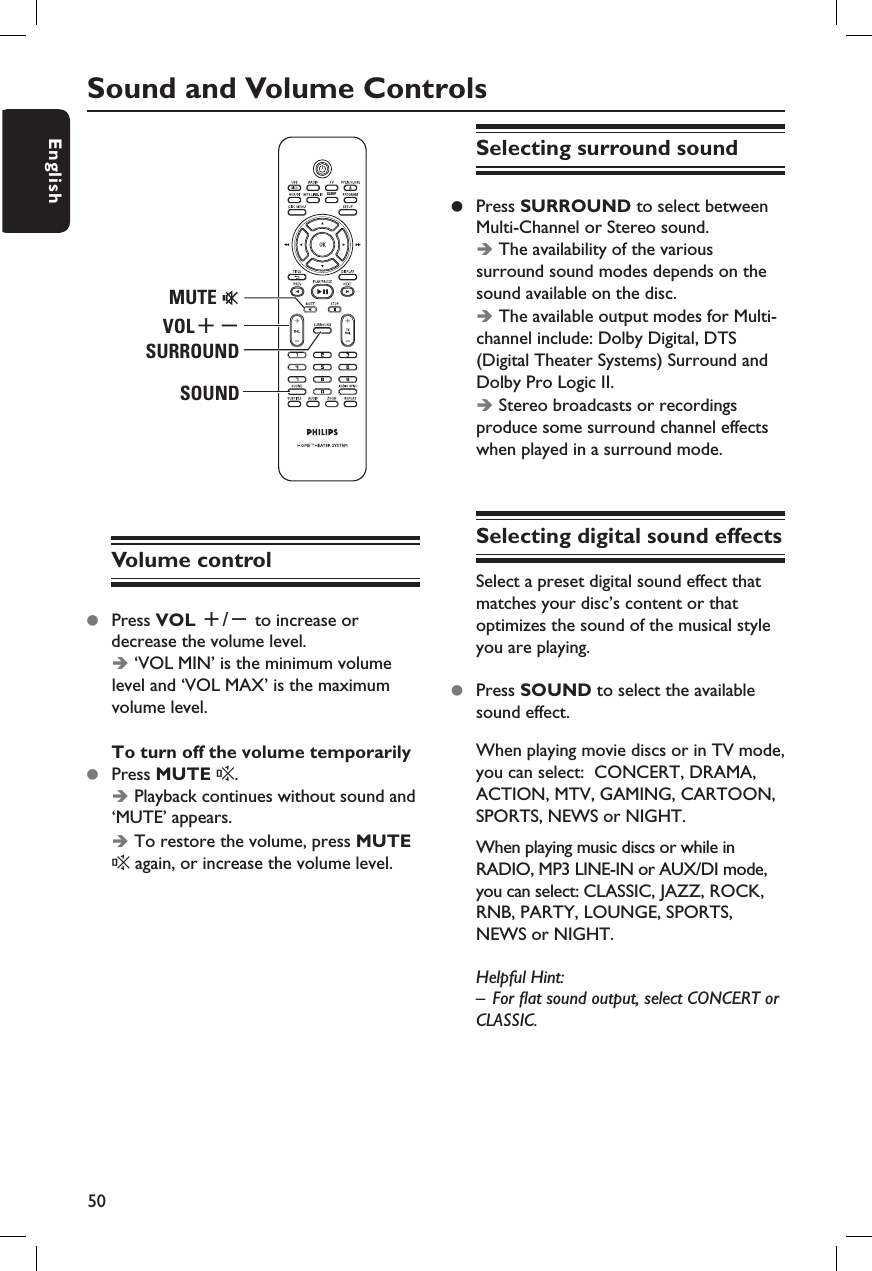

50EnglishSound and Volume ControlsSLEEPMUTESURROUNDVOL+-SOUNDVolume controlz Press VOL +/- to increase or decrease the volume level. Î ‘VOL MIN’ is the minimum volume level and ‘VOL MAX’ is the maximum volume level.To turn off the volume temporarilyz Press MUTE %.Î Playback continues without sound and ‘MUTE’ appears.Î To restore the volume, press MUTE % again, or increase the volume level.Selecting surround soundz Press SURROUND to select between Multi-Channel or Stereo sound.Î The availability of the various surround sound modes depends on the sound available on the disc. Î The available output modes for Multi-channel include: Dolby Digital, DTS (Digital Theater Systems) Surround and Dolby Pro Logic II.Î Stereo broadcasts or recordings produce some surround channel effects when played in a surround mode.Selecting digital sound effectsSelect a preset digital sound effect that matches your disc’s content or that optimizes the sound of the musical style you are playing.z Press SOUND to select the available sound effect.When playing movie discs or in TV mode, you can select: CONCERT, DRAMA, ACTION, MTV, GAMING, CARTOON, SPORTS, NEWS or NIGHT.When playing music discs or while in RADIO, MP3 LINE-IN or AUX/DI mode, you can select: CLASSIC, JAZZ, ROCK, RNB, PARTY, LOUNGE, SPORTS, NEWS or NIGHT.Helpful Hint:– For  at sound output, select CONCERT or CLASSIC.

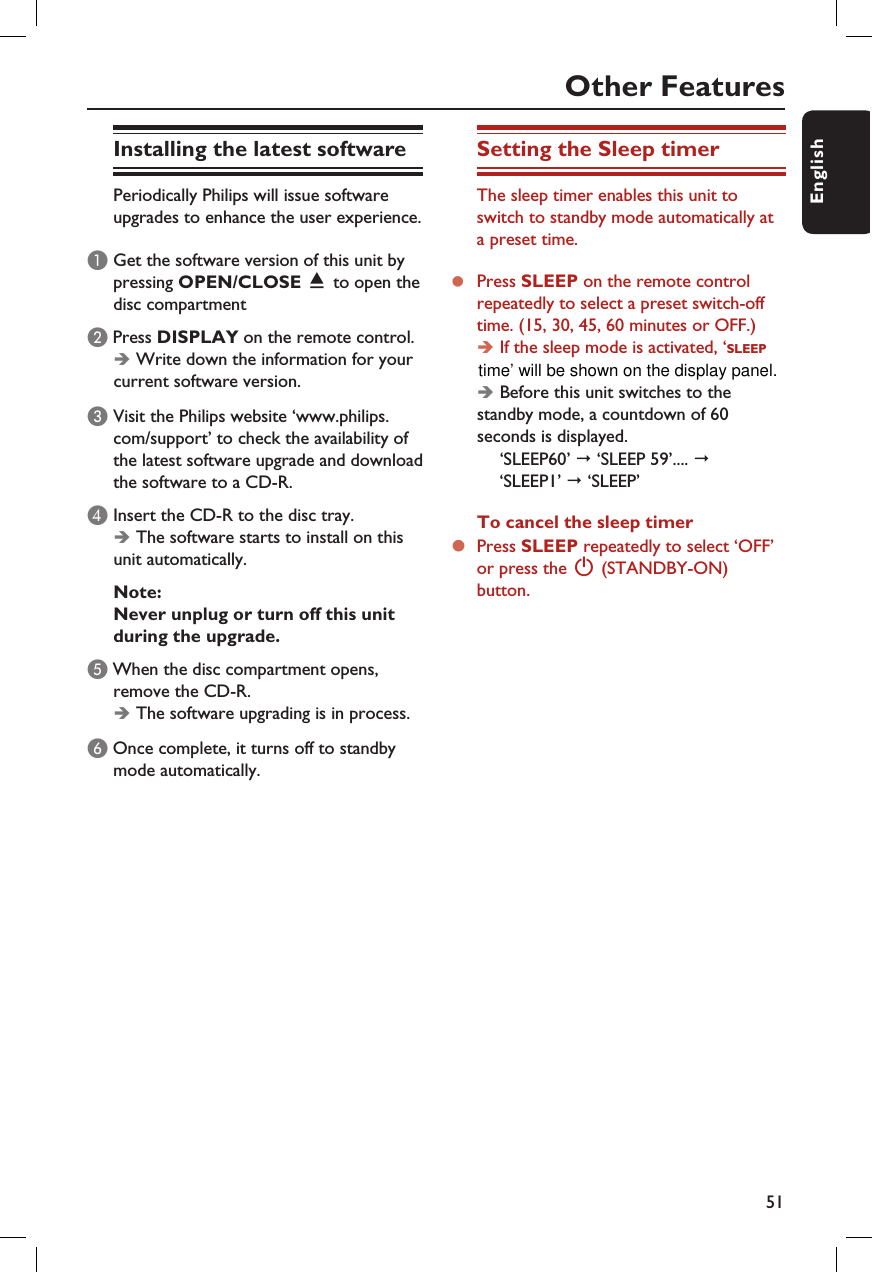

51EnglishInstalling the latest softwarePeriodically Philips will issue software upgrades to enhance the user experience. A Get the software version of this unit by pressing OPEN/CLOSE ç to open the disc compartment B Press DISPLAY on the remote control. ÎWrite down the information for your current software version.C Visit the Philips website ‘www.philips.com/support’ to check the availability of the latest software upgrade and download the software to a CD-R.D Insert the CD-R to the disc tray.ÎThe software starts to install on this unit automatically.Note: Never unplug or turn off this unit during the upgrade.E When the disc compartment opens, remove the CD-R. ÎThe software upgrading is in process. F Once complete, it turns off to standby mode automatically.Other FeaturesSetting the Sleep timerThe sleep timer enables this unit to switch to standby mode automatically at a preset time.z Press SLEEP on the remote control repeatedly to select a preset switch-off time. (15, 30, 45, 60 minutes or OFF.) Î If the sleep mode is activated, ‘SLEEPÎ Before this unit switches to the standby mode, a countdown of 60 seconds is displayed. ‘SLEEP60’  ‘SLEEP 59’....  ‘SLEEP1’  ‘SLEEP’To cancel the sleep timer z Press SLEEP repeatedly to select ‘OFF’ or press the 2 (STANDBY-ON) button.time’ will be shown on the display panel.
52EnglishTroubleshootingWARNINGUnder no circumstances should you try to repair the system yourself, as this willinvalidate the warranty. Do not open the system as there is a risk of electric shock.If a fault occurs,  rst check the points listed below before taking the system for repair. Ifyou are unable to solve a problem by following these instructions, consult your dealer orPhilips for help.No power.No picture.Completely distorted picture or black/white picture.No sound or distorted sound.No surround sound effect from the speakers.The remote control does not function properly.– Press STANDBY-ON on the unit to turn on the power.– Make sure the mains cord is properly connected and the AC outlet has power.– Refer to your TVs manual for correct Video In channel selection. Change the TV channel until you see the DVD screen.– Press DISC/USB to select disc mode.– If this happens when you turn on the progressive scan feature or change the HDMI video setting, wait for 15 seconds for the auto recovery or switch back to the default mode as below: 1) Press OPEN/CLOSE ç. 2) Press W on the remote control. 3) Press AUDIO on the remote control. – Check the video connection.– Sometimes a small amount of picture distortion may appear. This is not a malfunction.– The disc is dirty. Clean the disc.– Adjust the volume.– Check the speaker connections and settings.– Make sure that the audio cables are connected and press SOURCE to select the correct input source (for example, TV or AUX/DI) to choose the device that you want to hear through this unit.– Press SURROUND to select a correct surround sound setting.– Make sure that the source you are playing is recorded or broadcast in surround sound (DTS, Dolby Digital, etc.).– Select the source you want to play (for example, DISC/USB or RADIO) before pressing the function button (X, í / ë.)– Reduce the distance between the remote control and this unit.– Batteries are weak, replace the batteries.– Point the remote control directly toward the IR sensor.Problem (General) Solution

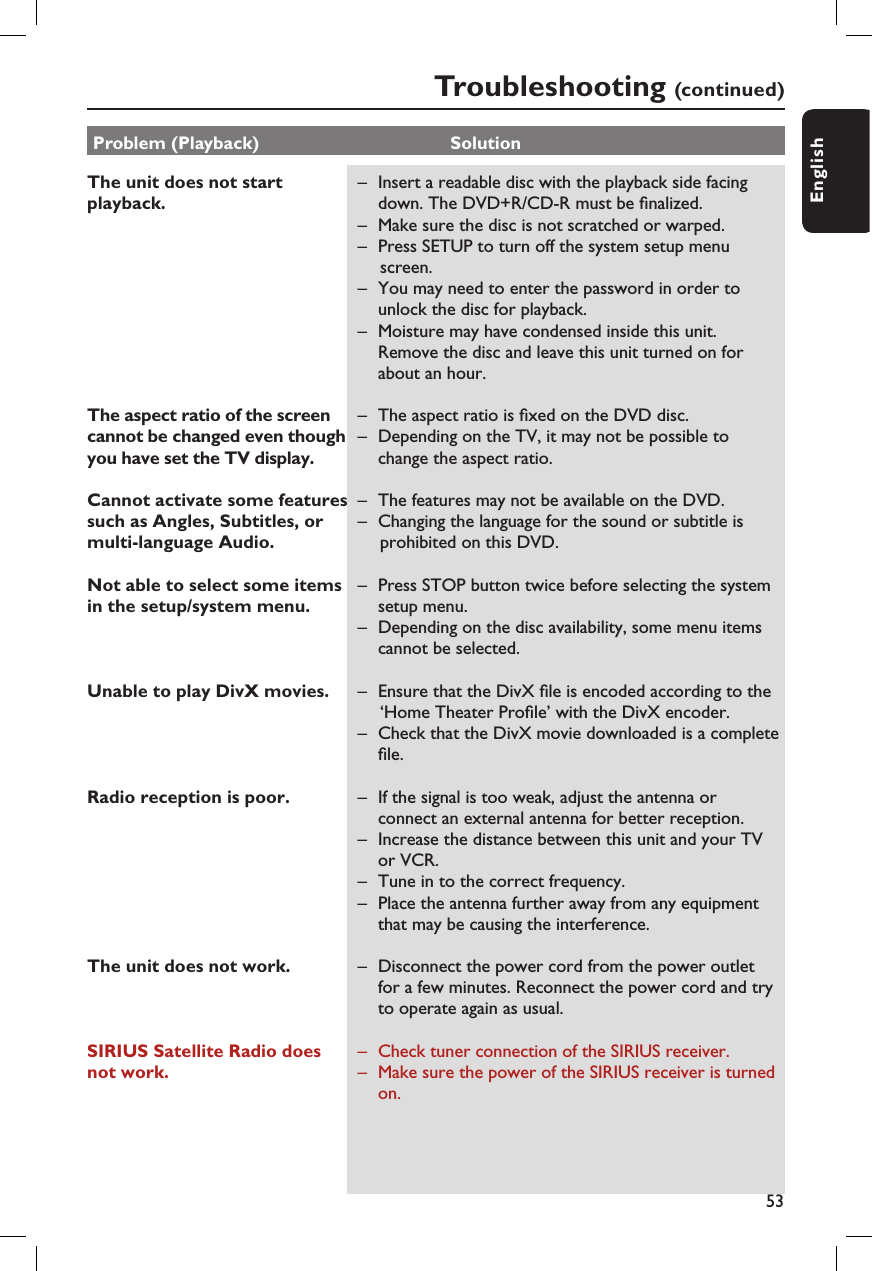

53EnglishThe unit does not start playback.The aspect ratio of the screen cannot be changed even though you have set the TV display.Cannot activate some features such as Angles, Subtitles, or multi-language Audio.Not able to select some items in the setup/system menu.Unable to play DivX movies.Radio reception is poor.The unit does not work.SIRIUS Satellite Radio does not work.– Insert a readable disc with the playback side facing down. The DVD+R/CD-R must be  nalized.– Make sure the disc is not scratched or warped. – Press SETUP to turn off the system setup menu screen.– You may need to enter the password in order to unlock the disc for playback.– Moisture may have condensed inside this unit. Remove the disc and leave this unit turned on for about an hour.– The aspect ratio is  xed on the DVD disc.– Depending on the TV, it may not be possible to change the aspect ratio.– The features may not be available on the DVD.– Changing the language for the sound or subtitle is prohibited on this DVD.– Press STOP button twice before selecting the system setup menu.– Depending on the disc availability, some menu items cannot be selected.– Ensure that the DivX  le is encoded according to the ‘Home Theater Pro le’ with the DivX encoder.– Check that the DivX movie downloaded is a complete  le.– If the signal is too weak, adjust the antenna or connect an external antenna for better reception.– Increase the distance between this unit and your TV or VCR.– Tune in to the correct frequency.– Place the antenna further away from any equipment that may be causing the interference.– Disconnect the power cord from the power outlet for a few minutes. Reconnect the power cord and try to operate again as usual.– Check tuner connection of the SIRIUS receiver. – Make sure the power of the SIRIUS receiver is turned on. Problem (Playback) SolutionTroubleshooting (continued)

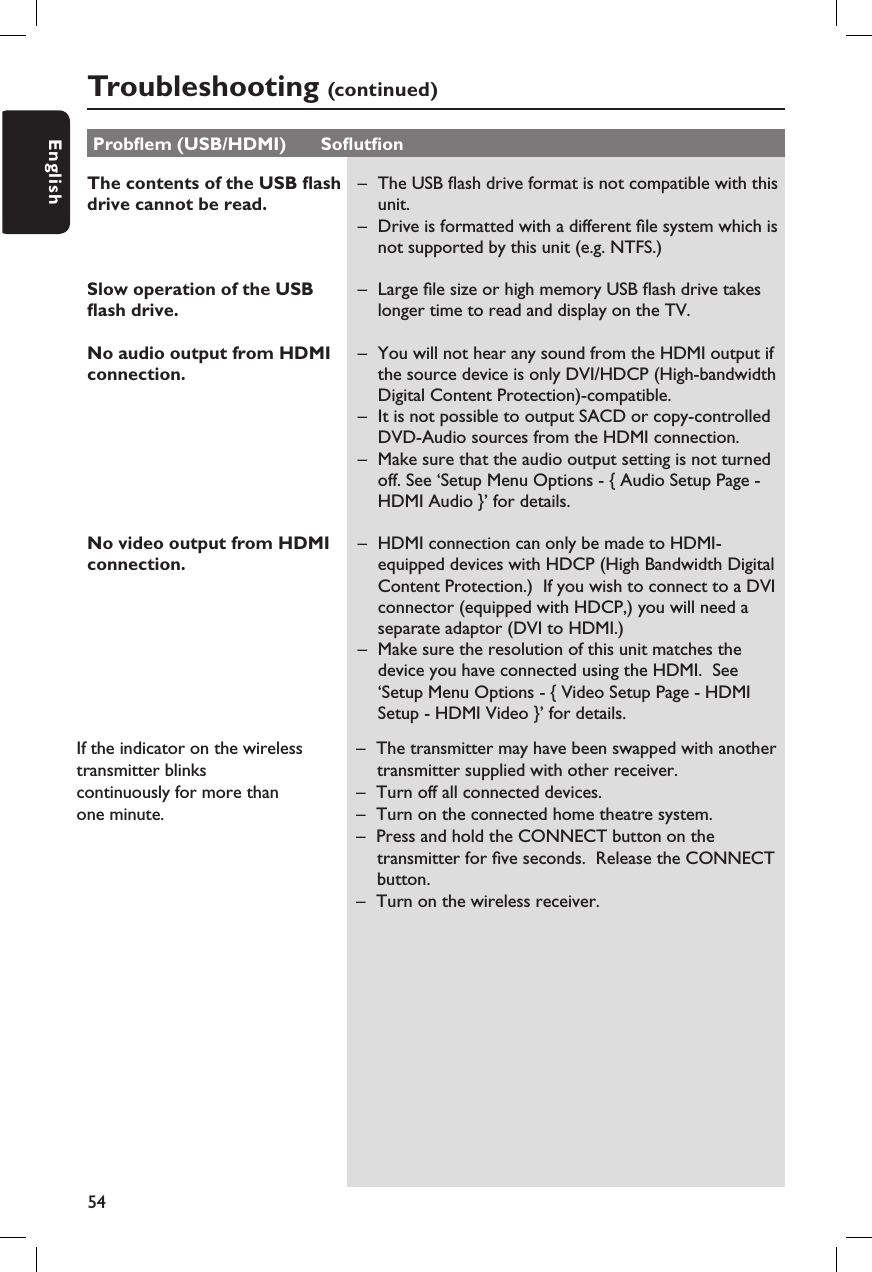

54EnglishProbem (USB/HDMI) SoutonTroubleshooting (continued)The contents of the USB  ash drive cannot be read.Slow operation of the USB  ash drive.No audio output from HDMI connection.No video output from HDMI connection. – The USB  ash drive format is not compatible with this unit.– Drive is formatted with a different  le system which is not supported by this unit (e.g. NTFS.)– Large  le size or high memory USB  ash drive takes longer time to read and display on the TV.– You will not hear any sound from the HDMI output if the source device is only DVI/HDCP (High-bandwidth Digital Content Protection)-compatible.– It is not possible to output SACD or copy-controlled DVD-Audio sources from the HDMI connection.– Make sure that the audio output setting is not turned off. See ‘Setup Menu Options - { Audio Setup Page - HDMI Audio }’ for details.– HDMI connection can only be made to HDMI-equipped devices with HDCP (High Bandwidth Digital Content Protection.) If you wish to connect to a DVI connector (equipped with HDCP,) you will need a separate adaptor (DVI to HDMI.)– Make sure the resolution of this unit matches the device you have connected using the HDMI. See ‘Setup Menu Options - { Video Setup Page - HDMI Setup - HDMI Video }’ for details. If the indicator on the wireless transmitter blinks continuously for more than one minute. – The transmitter may have been swapped with another transmitter supplied with other receiver.– Turn off all connected devices.– Turn on the connected home theatre system.– Press and hold the CONNECT button on the transmitter for  ve seconds. Release the CONNECT button.– Turn on the wireless receiver.

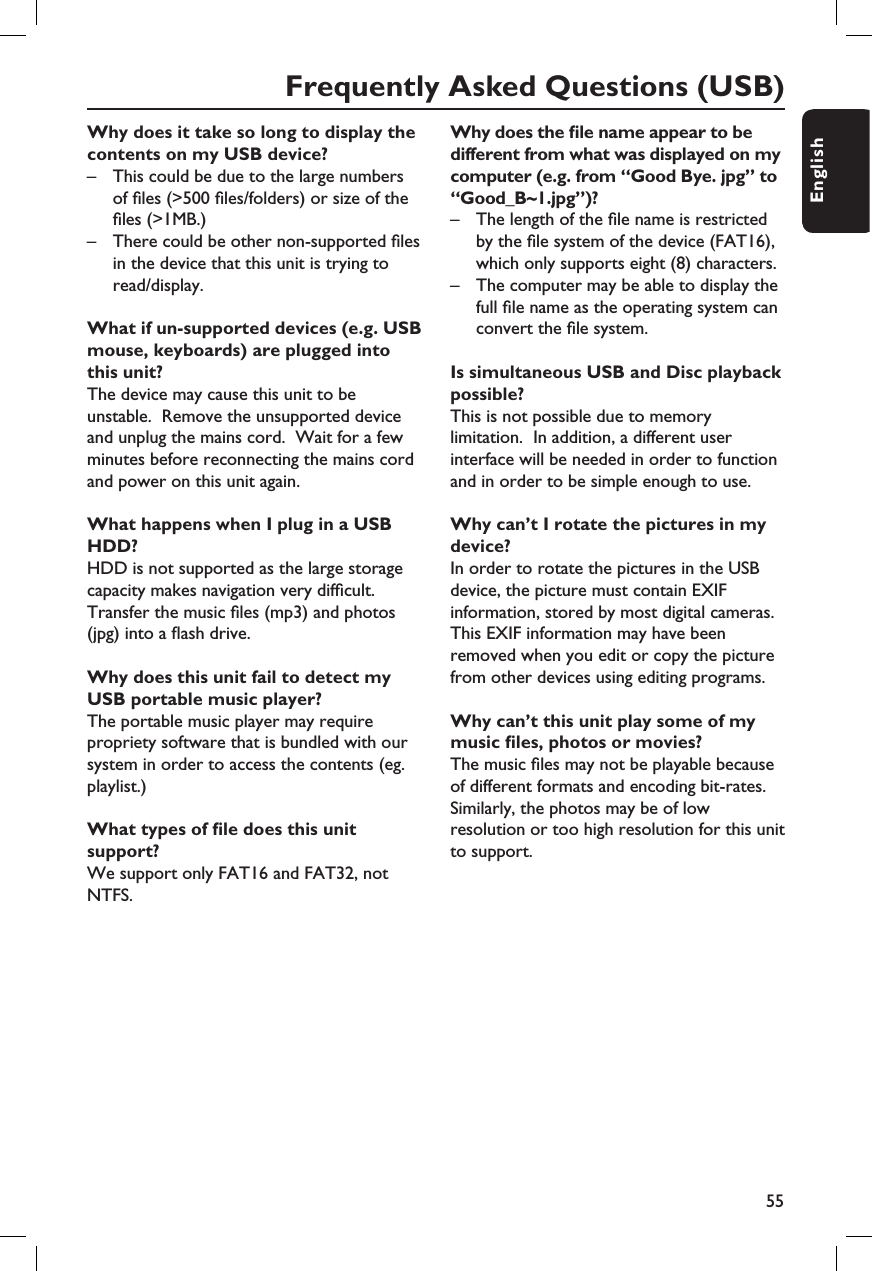

55EnglishWhy does it take so long to display the contents on my USB device?– This could be due to the large numbers of  les (>500  les/folders) or size of the  les (>1MB.)– There could be other non-supported  les in the device that this unit is trying to read/display.What if un-supported devices (e.g. USB mouse, keyboards) are plugged into this unit?The device may cause this unit to be unstable. Remove the unsupported device and unplug the mains cord. Wait for a few minutes before reconnecting the mains cord and power on this unit again.What happens when I plug in a USB HDD?HDD is not supported as the large storage capacity makes navigation very dif cult. Transfer the music  les (mp3) and photos (jpg) into a  ash drive.Why does this unit fail to detect my USB portable music player?The portable music player may require propriety software that is bundled with our system in order to access the contents (eg. playlist.)What types of  le does this unit support?We support only FAT16 and FAT32, not NTFS.Why does the  le name appear to be different from what was displayed on my computer (e.g. from “Good Bye. jpg” to “Good_B~1.jpg”)?– The length of the  le name is restricted by the  le system of the device (FAT16), which only supports eight (8) characters.– The computer may be able to display the full  le name as the operating system can convert the  le system.Is simultaneous USB and Disc playback possible?This is not possible due to memory limitation. In addition, a different user interface will be needed in order to function and in order to be simple enough to use.Why can’t I rotate the pictures in my device?In order to rotate the pictures in the USB device, the picture must contain EXIF information, stored by most digital cameras. This EXIF information may have been removed when you edit or copy the picture from other devices using editing programs.Why can’t this unit play some of my music  les, photos or movies?The music  les may not be playable because of different formats and encoding bit-rates. Similarly, the photos may be of low resolution or too high resolution for this unit to support.Frequently Asked Questions (USB)

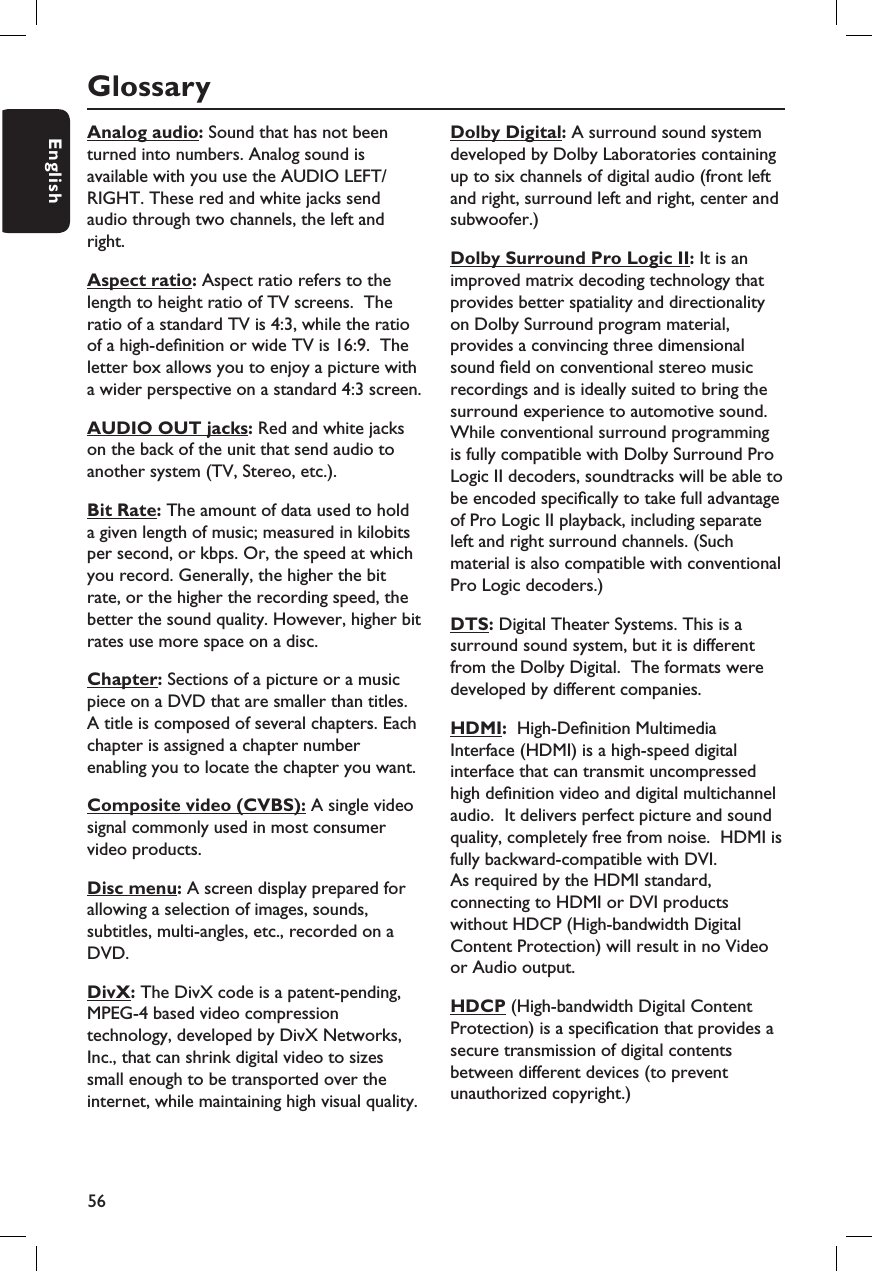

56EnglishGlossaryAnalog audio: Sound that has not been turned into numbers. Analog sound is available with you use the AUDIO LEFT/RIGHT. These red and white jacks send audio through two channels, the left and right.Aspect ratio: Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-de nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.AUDIO OUT jacks: Red and white jacks on the back of the unit that send audio to another system (TV, Stereo, etc.).Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a disc.Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.Composite video (CVBS): A single video signal commonly used in most consumer video products.Disc menu: A screen display prepared for allowing a selection of images, sounds, subtitles, multi-angles, etc., recorded on a DVD.DivX: The DivX code is a patent-pending, MPEG-4 based video compression technology, developed by DivX Networks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer.)Dolby Surround Pro Logic II: It is an improved matrix decoding technology that provides better spatiality and directionality on Dolby Surround program material, provides a convincing three dimensional sound  eld on conventional stereo music recordings and is ideally suited to bring the surround experience to automotive sound. While conventional surround programming is fully compatible with Dolby Surround Pro Logic II decoders, soundtracks will be able to be encoded speci cally to take full advantage of Pro Logic II playback, including separate left and right surround channels. (Such material is also compatible with conventional Pro Logic decoders.)DTS: Digital Theater Systems. This is a surround sound system, but it is different from the Dolby Digital. The formats were developed by different companies.HDMI: High-De nition Multimedia Interface (HDMI) is a high-speed digital interface that can transmit uncompressed high de nition video and digital multichannel audio. It delivers perfect picture and sound quality, completely free from noise. HDMI is fully backward-compatible with DVI.As required by the HDMI standard, connecting to HDMI or DVI products without HDCP (High-bandwidth Digital Content Protection) will result in no Video or Audio output. HDCP (High-bandwidth Digital Content Protection) is a speci cation that provides a secure transmission of digital contents between different devices (to prevent unauthorized copyright.)

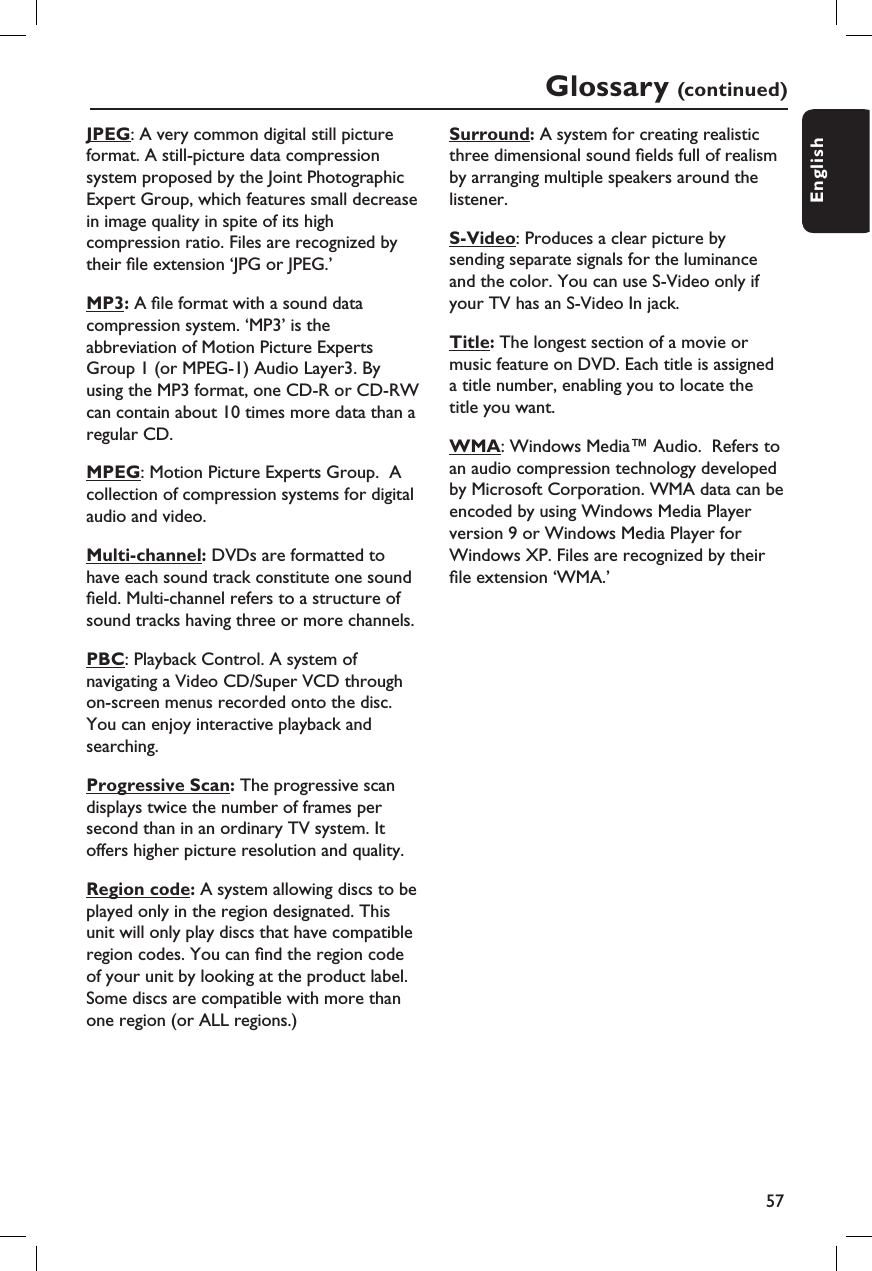

57EnglishGlossary (continued)JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their  le extension ‘JPG or JPEG.’MP3: A  le format with a sound data compression system. ‘MP3’ is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer3. By using the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.MPEG: Motion Picture Experts Group. A collection of compression systems for digital audio and video.Multi-channel: DVDs are formatted to have each sound track constitute one sound  eld. Multi-channel refers to a structure of sound tracks having three or more channels.PBC: Playback Control. A system of navigating a Video CD/Super VCD through on-screen menus recorded onto the disc. You can enjoy interactive playback and searching.Progressive Scan: The progressive scan displays twice the number of frames per second than in an ordinary TV system. It offers higher picture resolution and quality.Region code: A system allowing discs to beplayed only in the region designated. This unit will only play discs that have compatible region codes. You can  nd the region code of your unit by looking at the product label. Some discs are compatible with more than one region (or ALL regions.)Surround: A system for creating realistic three dimensional sound  elds full of realism by arranging multiple speakers around the listener.S-Video: Produces a clear picture by sending separate signals for the luminance and the color. You can use S-Video only if your TV has an S-Video In jack.Title: The longest section of a movie or music feature on DVD. Each title is assigned a title number, enabling you to locate the title you want.WMA: Windows Media™ Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 9 or Windows Media Player for Windows XP. Files are recognized by their  le extension ‘WMA.’

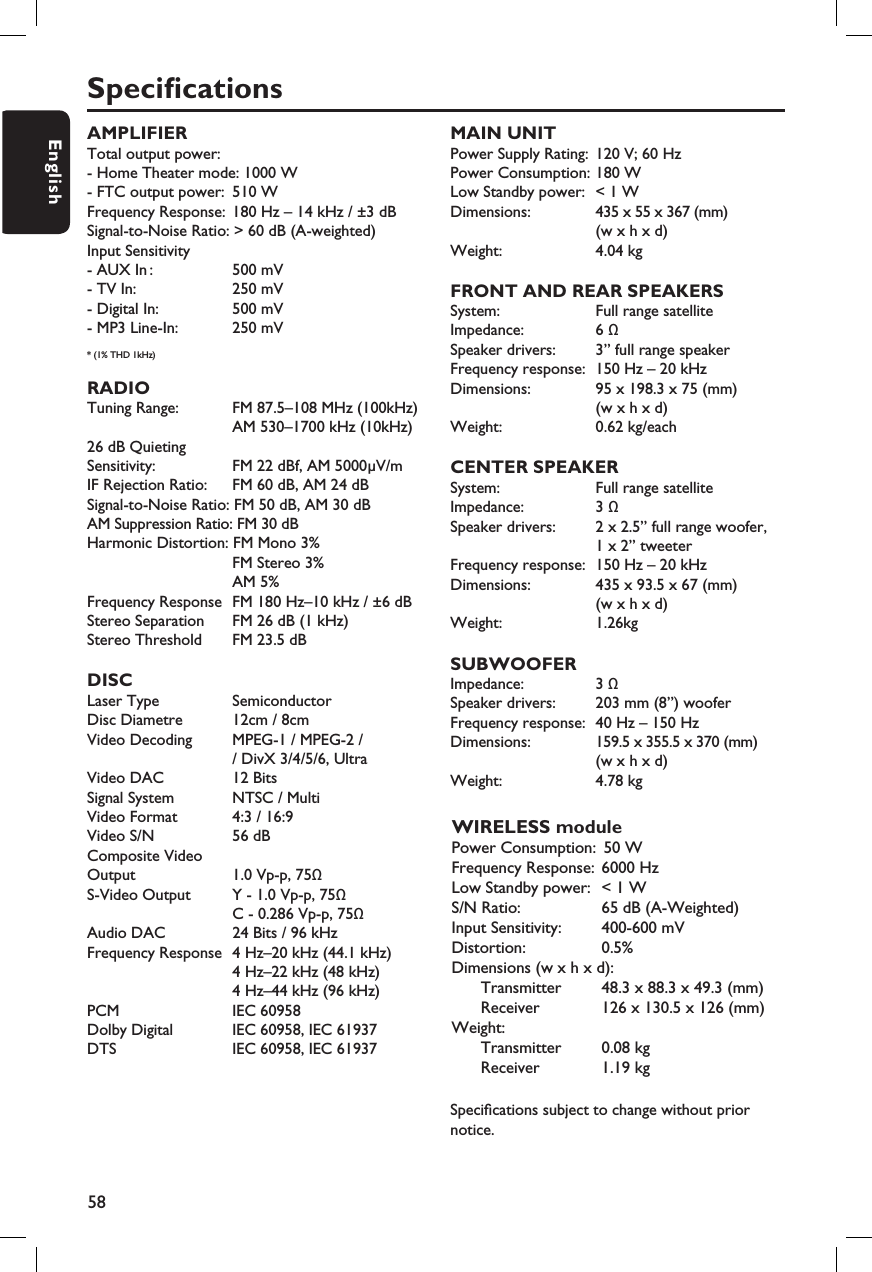

58EnglishSpeci cationsAMPLIFIER Total output power: - Home Theater mode: 1000 W - FTC output power: 510 WFrequency Response: 180 Hz – 14 kHz / ±3 dBSignal-to-Noise Ratio: > 60 dB (A-weighted)Input Sensitivity - AUX In : 500 mV- TV In: 250 mV- Digital In: 500 mV- MP3 Line-In: 250 mV* (1% THD 1kHz)RADIO Tuning Range: FM 87.5–108 MHz (100kHz) AM 530–1700 kHz (10kHz)26 dB Quieting Sensitivity: FM 22 dBf, AM 5000µV/mIF Rejection Ratio: FM 60 dB, AM 24 dBSignal-to-Noise Ratio: FM 50 dB, AM 30 dBAM Suppression Ratio: FM 30 dBHarmonic Distortion: FM Mono 3% FM Stereo 3% AM 5%Frequency Response FM 180 Hz–10 kHz / ±6 dBStereo Separation FM 26 dB (1 kHz)Stereo Threshold FM 23.5 dBDISCLaser Type SemiconductorDisc Diametre 12cm / 8cmVideo Decoding MPEG-1 / MPEG-2 / / DivX 3/4/5/6, Ultra Video DAC 12 BitsSignal System NTSC / MultiVideo Format 4:3 / 16:9Video S/N 56 dB Composite Video Output 1.0 Vp-p, 75ΩS-Video Output Y - 1.0 Vp-p, 75Ω C - 0.286 Vp-p, 75ΩAudio DAC 24 Bits / 96 kHzFrequency Response 4 Hz–20 kHz (44.1 kHz) 4 Hz–22 kHz (48 kHz) 4 Hz–44 kHz (96 kHz)PCM IEC 60958Dolby Digital IEC 60958, IEC 61937DTS IEC 60958, IEC 61937MAIN UNITPower Supply Rating: 120 V; 60 Hz Power Consumption: 180 WLow Standby power: < 1 WDimensions: 435 x 55 x 367 (mm) (w x h x d)Weight: 4.04 kgFRONT AND REAR SPEAKERSSystem: Full range satelliteImpedance: 6 ΩSpeaker drivers: 3” full range speakerFrequency response: 150 Hz – 20 kHz Dimensions: 95 x 198.3 x 75 (mm) (w x h x d)Weight: 0.62 kg/eachCENTER SPEAKERSystem: Full range satelliteImpedance: 3 ΩSpeaker drivers: 2 x 2.5” full range woofer, 1 x 2” tweeterFrequency response: 150 Hz – 20 kHz Dimensions: 435 x 93.5 x 67 (mm) (w x h x d)Weight: 1.26kgSUBWOOFER Impedance: 3 ΩSpeaker drivers: 203 mm (8”) wooferFrequency response: 40 Hz – 150 Hz Dimensions: 159.5 x 355.5 x 370 (mm) (w x h x d)Weight: 4.78 kgSpeci cations subject to change without prior notice.WIRELESS modulePower Consumption: 50 WFrequency Response: 6000 HzLow Standby power: < 1 WS/N Ratio: 65 dB (A-Weighted)Input Sensitivity: 400-600 mVDistortion: 0.5%Dimensions (w x h x d): Transmitter 48.3 x 88.3 x 49.3 (mm) Receiver 126 x 130.5 x 126 (mm)Weight: Transmitter 0.08 kg Receiver 1.19 kg
59EnglishPhilips, P.O. Box 671539, Marietta, GA. 30006-0026PHILIPS LIMITED WARRANTYONE (1) YEARWARRANTY COVERAGE:PHILIPS warranty obligation is limited to the terms set forthbelow.WHO IS COVERED: Philips warrants the product to the original purchaser or theperson receiving the product as a gift against defects in materi-als and workmanship as based on the date of original purchase(“Warranty Period”) from an Authorized Dealer. The originalsales receipt showing the product name and the purchase datefrom an authorized retailer is considered such proof. WHAT IS COVERED:The Philips warranty covers new products if a defect arises anda valid claim is received by Philips within the Warranty Period.At its option, Philips will either (1) repair the product at nocharge, using new or refurbished replacement parts, or (2)exchange the product with a product that is new or which hasbeen manufactured from new, or serviceable used parts and isat least functionally equivalent or most comparable to the origi-nal product in Philips current inventory, or (3) refund the origi-nal purchase price of the product.Philips warrants replacement products or parts provided underthis warranty against defects in materials and workmanshipfrom the date of the replacement or repair for ninety (90) daysor for the remaining portion of the original product’s warranty,whichever provides longer coverage for you. When a productor part is exchanged, any replacement item becomes yourproperty and the replaced item becomes Philips’ property.When a refund is given, your product becomes Philips’ proper-ty.Note: Any product sold and identified as refurbished orrenewed carries a ninety (90) day limited warranty.Replacement product can only be sent if all warrantyrequirements are met. Failure to follow all require-ments can result in delay. WHAT IS NOT COVERED - EXCLUSIONS AND LIM-ITATIONS:This Limited Warranty applies only to the new products manu-factured by or for Philips that can be identified by the trade-mark, trade name, or logo affixed to it. This Limited Warrantydoes not apply to any non-Philips hardware product or anysoftware, even if packaged or sold with the product. Non-Philips manufacturers, suppliers, or publishers may provide aseparate warranty for their own products packaged with thebundled product. Philips is not liable for any damage to or loss of any programs,data, or other information stored on any media contained with-in the product, or any non-Philips product or part not coveredby this warranty. Recovery or reinstallation of programs, dataor other information is not covered under this LimitedWarranty.This warranty does not apply (a) to damage caused by accident,abuse, misuse, misapplication, or non-Philips product, (b) todamage caused by service performed by anyone other thanPhilips or Philips Authorized Service Location, (c) to a productor a part that has been modified without the written permis-sion of Philips, or (d) if any Philips serial number has beenremoved or defaced, or (e) product, accessories or consum-ables sold “AS IS” without warranty of any kind by includingrefurbished Philips product sold “AS IS” by some retailers.This Limited Warranty does not cover:• Shipping charges to return defective product to Philips. • Labor charges for installation or setup of the product, adjust-ment of customer controls on the product, and installationor repair of antenna systems outside of the product.• Product repair and/or part replacement because of improperinstallation, connections to improper voltage supply, abuse,neglect, misuse, accident, unauthorized repair or other causenot within the control of Philips.• Damage or claims for products not being available for use, orfor lost data or lost software.• Damage occurring to product during shipping.• A product that requires modification or adaptation to enableit to operate in any country other than the country forwhich it was designed, manufactured, approved and/orauthorized, or repair of products damaged by these modifica-tions.• A product used for commercial or institutional purposes(including but not limited to rental purposes).• Product lost in shipment and no signature verification receiptcan be provided.• Failure to operate per Owner’s Manual.TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTORICO, OR U.S. VIRGIN ISLANDS…Contact Philips Customer Care Center at:1-888-PHILIPS (1-888-744-5477)TO OBTAIN ASSISTANCE IN CANADA…1-800-661-6162 (French Speaking)1-888-PHILIPS (1-888-744-5477) - (English or Spanish Speaking)REPAIR OR REPLACEMENT AS PROVIDED UNDER THISWARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OFANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICA-BLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILI-TY OR FITNESS FOR A PARTICULAR PURPOSE ON THISPRODUCT IS LIMITED IN DURATION TO THE DURATIONOF THIS WARRANTY. Some states do not allow the exclusions or limitation of inci-dental or consequential damages, or allow limitations on howlong an implied warranty lasts, so the above limitations orexclusions may not apply to you.This warranty gives you specific legal rights. You may have other rights which vary from state/province to st3121 233 48801
