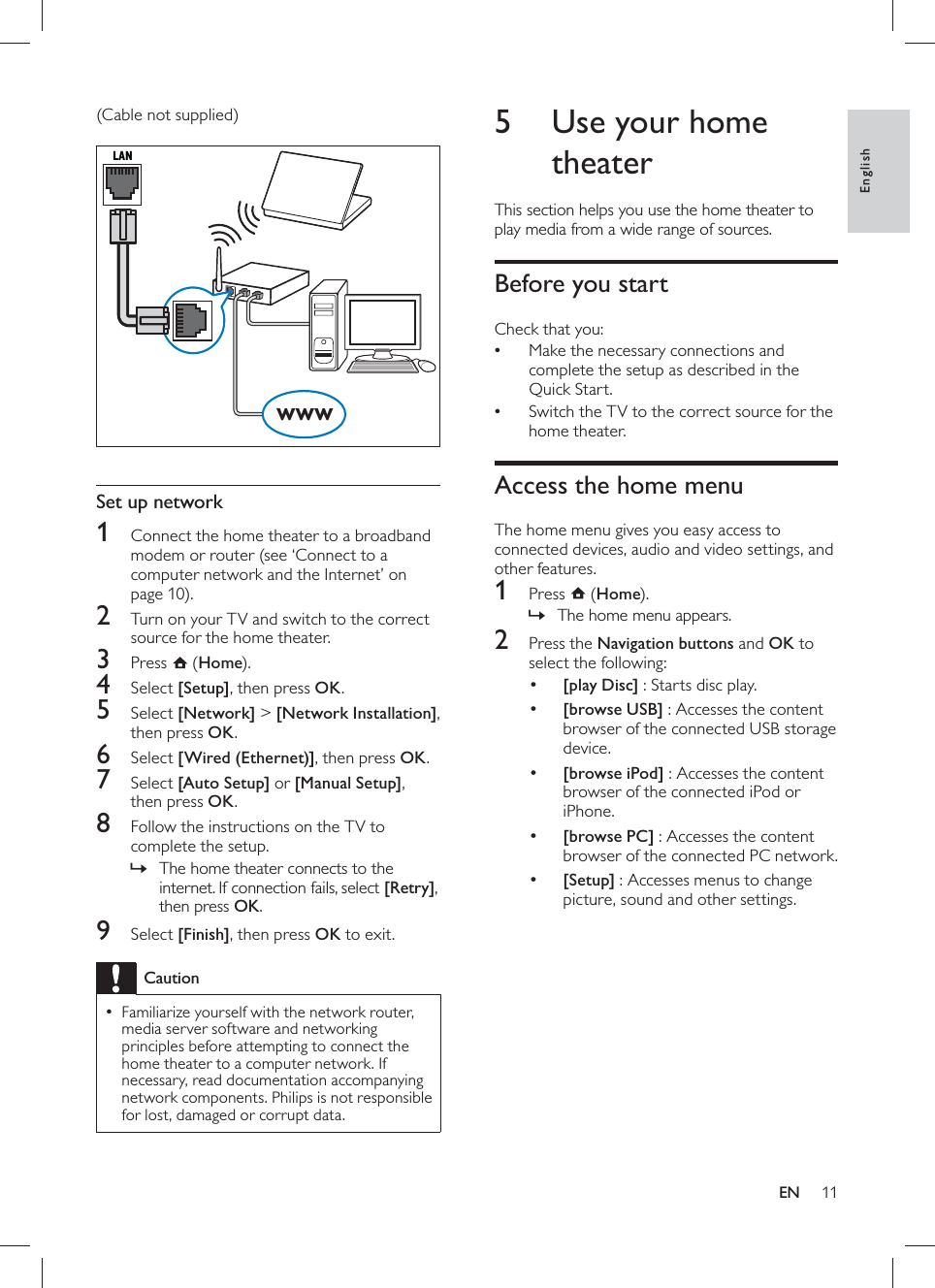

![11 5 Use your home theater This section helps you use the home theater to play media from a wide range of sources. Before you start Check that you: Make the necessary connections and •complete the setup as described in the Quick Start. Switch the TV to the correct source for the •home theater. Access the home menu The home menu gives you easy access to connected devices, audio and video settings, and other features. 1 Press ( Home). The home menu appears.» 2 Press the Navigation buttons and OK to select the following: •[play Disc] : Starts disc play. •[browse USB] : Accesses the content browser of the connected USB storage device. •[browse iPod] : Accesses the content browser of the connected iPod or iPhone. •[browse PC] : Accesses the content browser of the connected PC network. •[Setup] : Accesses menus to change picture, sound and other settings. (Cable not supplied) Set up network 1 Connect the home theater to a broadband modem or router (see ‘Connect to a computer network and the Internet’ on page 10 ). 2 Turn on your TV and switch to the correct source for the home theater. 3 Press ( Home). 4 Select [Setup] , then press OK . 5 Select [Network] > [Network Installation] , then press OK . 6 Select [Wired (Ethernet)] , then press OK . 7 Select [Auto Setup] or [Manual Setup] , then press OK . 8 Follow the instructions on the TV to complete the setup. The home theater connects to the »internet. If connection fails, select [Retry],then press OK . 9 Select [Finish] , then press OK to exit. Caution Familiarize yourself with the network router, •media server software and networking principles before attempting to connect the home theater to a computer network. If necessary, read documentation accompanying network components. Philips is not responsible for lost, damaged or corrupt data.LANwwwEnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-13.png)
![13 Use Bonus View on Blu-ray Blu-ray discs that support the Bonus View feature (also known as Picture-In-Picture) allow you to view special content such as a director’s commentary while watching the main feature. 1 If necessary, enable BonusView (or Picture-In-Picture) in the Blu-ray disc menu. 2 During playback of the main feature, press ( Options). The options menu is displayed.» 3 Select [PIP Selection] > [PIP], then press OK . PIP options [1]/[2] depend on the video »contents. The picture-in-picture video appears in a »small window. 4 Select [2nd Audio Language] or [2nd Subtitle Language] , then press OK . 5 Select the language to play, then press OK . NoteTo turn off the Bonus View (Picture-in- •Picture), press ( Options), select [PIP Selection] > [Off] , then press OK . Access BD-Live on Blu-ray BD-Live enabled Blu-ray discs include exclusive services such as movies and other online bonuses. 1 Prepare the internet connection and set up the network (see ‘Connect to a computer network and the Internet’ on page 10 ). 2 Connect the USB storage device to the home theater. 3 Select the BD-Live icon in the disc menu, then press OK . BD-Live starts to load. The loading time »depends on the disc and your internet connection. 4 Press the Navigation buttons to navigate BD-Live. 5 Press OK to select an item. NoteThe range of BD-Live services depends on •the disc. When you use BD-Live, data on the disc and home •theater are accessed by the content provider. Use a USB storage device with at least 1GB of •free space to store the downloaded fi les. If there is insuffi cient memory to download •BD-Live content, clear memory space . Synchronize audio with video If the audio and video are not synchronized, you can delay the audio to match the video. 1 Press ( Sound options). 2 Select AUDIO SYNC , then press OK . 3 Press the Navigation buttons (up/down) to sync the audio with the video. 4 Press OK to confi rm. Play a disc The home theater can play a wide variety of discs, including video, audio and mixed media (for example, a CD-R that contains JPEG pictures and MP3 music). 1 Insert a disc into the home theater. 2 Press DISC , or select [play Disc] in the home menu and press OK . The disc plays or the disc main menu »appears. 3 Press the following buttons to control play: Button Action Navigation buttonsNavigate menus. OK Confi rms an entry or selection. (Play ) Starts or resumes play. Pauses play. Stops play. / Skips to the previous or next track, chapter or fi le. / Fast backwards or fast forwards. Press repeatedly to change the search speed. Navigation buttons (up/down)Rotates the picture counter-clockwise or clockwise. SUBTITLE Selects subtitle language for video. ( Disc menu ) Accesses or exits the disc menu. ( Options ) Accesses more play options during playback.EnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-15.png)

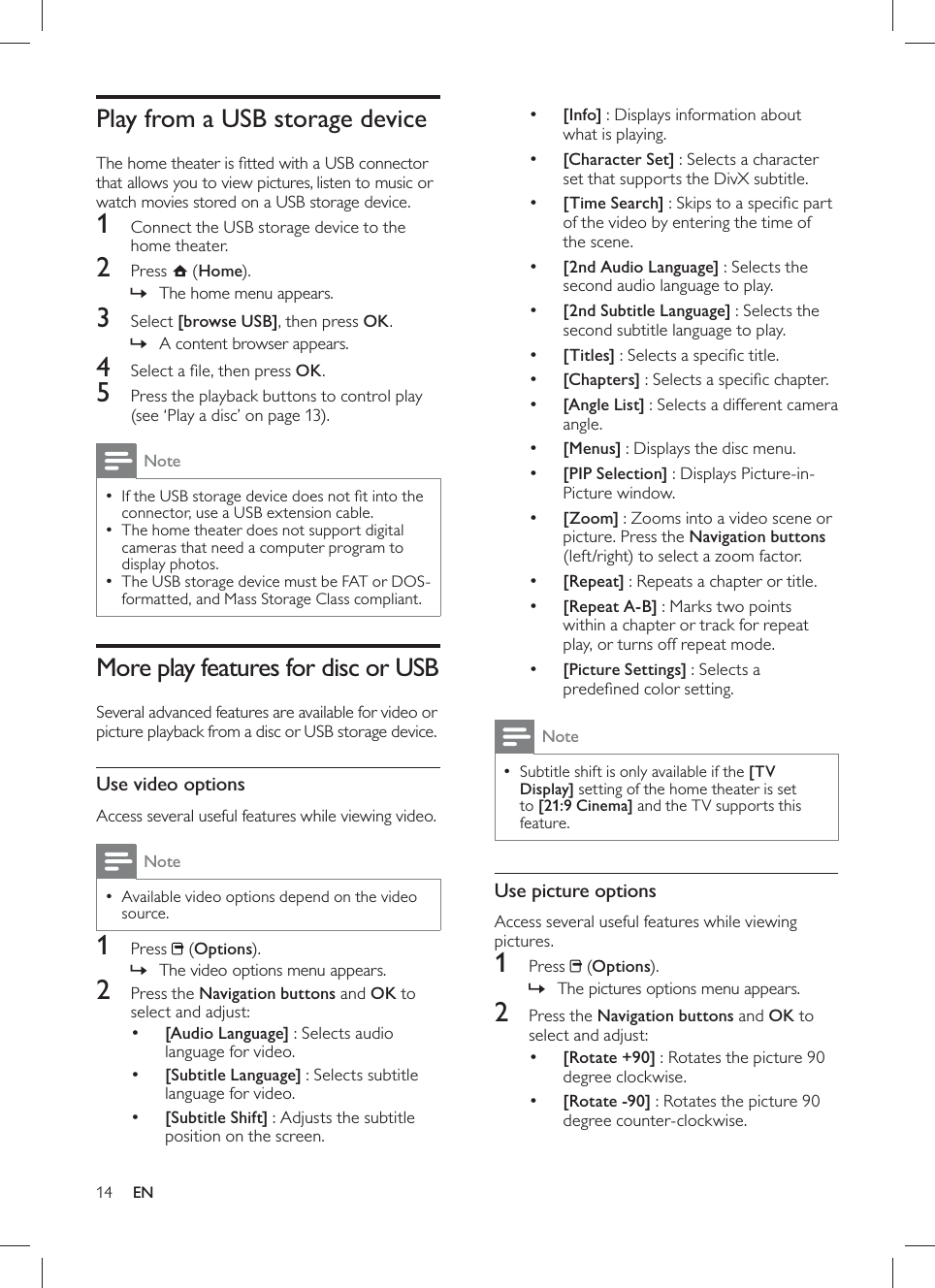

![14 •[Info] : Displays information about what is playing. •[Character Set] : Selects a character set that supports the DivX subtitle. •[Time Search] : Skips to a specifi c part of the video by entering the time of the scene. •[2nd Audio Language] : Selects the second audio language to play. •[2nd Subtitle Language] : Selects the second subtitle language to play. •[Titles] : Selects a specifi c title. •[Chapters] : Selects a specifi c chapter. •[Angle List] : Selects a different camera angle. •[Menus] : Displays the disc menu. •[PIP Selection] : Displays Picture-in-Picture window. •[Zoom] : Zooms into a video scene or picture. Press the Navigation buttons (left/right) to select a zoom factor. •[Repeat] : Repeats a chapter or title. •[Repeat A-B] : Marks two points within a chapter or track for repeat play, or turns off repeat mode. •[Picture Settings] : Selects a predefi ned color setting. Note Subtitle shift is only available if the • [TV Display] setting of the home theater is set to [21:9 Cinema] and the TV supports this feature . Use picture options Access several useful features while viewing pictures. 1 Press ( Options). The pictures options menu appears.» 2 Press the Navigation buttons and OK to select and adjust: •[Rotate +90] : Rotates the picture 90 degree clockwise. •[Rotate -90] : Rotates the picture 90 degree counter-clockwise. Play from a USB storage device The home theater is fi tted with a USB connector that allows you to view pictures, listen to music or watch movies stored on a USB storage device. 1 Connect the USB storage device to the home theater. 2 Press ( Home). The home menu appears.» 3 Select [browse USB] , then press OK . A content browser appears.» 4 Select a fi le, then press OK . 5 Press the playback buttons to control play (see ‘Play a disc’ on page 13 ). NoteIf the USB storage device does not fi t into the •connector, use a USB extension cable. The home theater does not support digital •cameras that need a computer program to display photos. The USB storage device must be FAT or DOS- •formatted, and Mass Storage Class compliant. More play features for disc or USB Several advanced features are available for video or picture playback from a disc or USB storage device. Use video options Access several useful features while viewing video. NoteAvailable video options depend on the video •source. 1 Press ( Options). The video options menu appears.» 2 Press the Navigation buttons and OK to select and adjust: •[Audio Language] : Selects audio language for video. •[Subtitle Language] : Selects subtitle language for video. •[Subtitle Shift] : Adjusts the subtitle position on the screen.EN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-16.png)

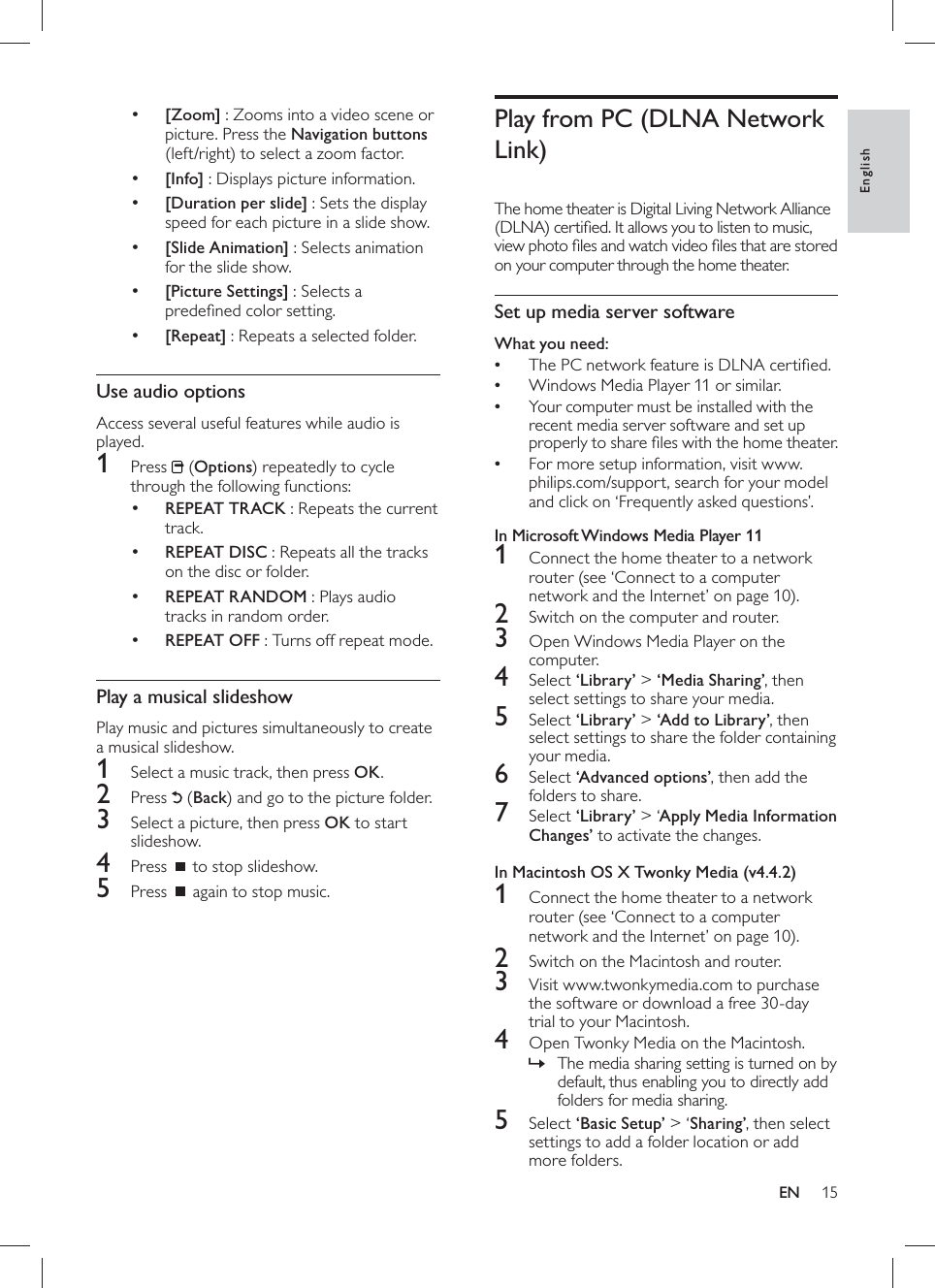

![15 Play from PC (DLNA Network Link) The home theater is Digital Living Network Alliance (DLNA) certifi ed. It allows you to listen to music, view photo fi les and watch video fi les that are stored on your computer through the home theater. Set up media server software What you need: The PC network feature is DLNA certifi ed.• Windows Media Player 11 or similar.• Your computer must be installed with the •recent media server software and set up properly to share fi les with the home theater. For more setup information, visit www.•philips.com/support, search for your model and click on ‘Frequently asked questions’. In Microsoft Windows Media Player 11 1 Connect the home theater to a network router (see ‘Connect to a computer network and the Internet’ on page 10 ). 2 Switch on the computer and router. 3 Open Windows Media Player on the computer. 4 Select ‘Library’ > ‘Media Sharing’ , then select settings to share your media. 5 Select ‘Library’ > ‘Add to Library’ , then select settings to share the folder containing your media. 6 Select ‘Advanced options’ , then add the folders to share. 7 Select ‘Library’ > ‘ Apply Media Information Changes’ to activate the changes. In Macintosh OS X Twonky Media (v4.4.2) 1 Connect the home theater to a network router (see ‘Connect to a computer network and the Internet’ on page 10 ). 2 Switch on the Macintosh and router. 3 Visit www.twonkymedia.com to purchase the software or download a free 30-day trial to your Macintosh. 4 Open Twonky Media on the Macintosh. The media sharing setting is turned on by »default, thus enabling you to directly add folders for media sharing. 5 Select ‘Basic Setup’ > ‘ Sharing’ , then select settings to add a folder location or add more folders. •[Zoom] : Zooms into a video scene or picture. Press the Navigation buttons (left/right) to select a zoom factor. •[Info] : Displays picture information. •[Duration per slide] : Sets the display speed for each picture in a slide show. •[Slide Animation] : Selects animation for the slide show. •[Picture Settings] : Selects a predefi ned color setting. •[Repeat] : Repeats a selected folder. Use audio options Access several useful features while audio is played. 1 Press ( Options ) repeatedly to cycle through the following functions: •REPEAT TRACK : Repeats the current track. •REPEAT DISC : Repeats all the tracks on the disc or folder. •REPEAT RANDOM : Plays audio tracks in random order. •REPEAT OFF : Turns off repeat mode. Play a musical slideshow Play music and pictures simultaneously to create a musical slideshow. 1 Select a music track, then press OK . 2 Press ( Back) and go to the picture folder. 3 Select a picture, then press OK to start slideshow. 4 Press to stop slideshow. 5 Press again to stop music.EnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-17.png)
![16 EN Note AM and digital radio are not supported. • If no stereo signal is detected, or if fewer than •fi ve stations are found, you are prompted to install the radio stations again. For the best reception, place the antenna away •from the TV or other sources of radiation. Play audio from TV or other devices Press AUDIO SOURCE repeatedly to select the audio output of the connected device . Play from an MP3 player Connect and play audio fi les from an MP3 player or other external audio devices. 1 Connect the MP3 player to the home theater. 2 Press AUDIO SOURCE repeatedly until ‘MP3 LINK ’ appears on the display panel. 3 Press the buttons on the MP3 player to select and play audio fi les. Play from an iPod or iPhone By connecting and installing a Philips Dock for iPod/iPhone, you can use the home theater to play music, movies and photos from your iPod or iPhone. Note You can charge your iPod/iPhone on the dock •while the home theater is in iPod mode. Dock your iPod or iPhone 1 Move the slide at the bottom of the dock to ‘ STANDARD’, then connect the dock to the home theater. 2 Connect the yellow composite cable from the dock to the TV. 3 Switch on the iPod or iPhone and place it in the dock. 4 On the home theater remote control, press ( Home), then select [browse iPod] and press OK . 6 Select ‘Save Changes’ to activate the changes. Play multimedia content NoteBefore playing multimedia content from the •computer, ensure that the home theater is connected to the computer network and the media server software is properly set up. 1 Press ( Home). The home menu appears.» 2 Select [browse PC] , then press OK . A content browser appears.» 3 Select a fi le, then press OK . 4 Press the playback buttons to control play (see ‘Play a disc’ on page 13 ). Play from radio The home theater can store up to 40 radio stations. 1 Check that the FM antenna is connected. 2 Press RADIO . “ »AUTO INSTALL...PRESS PLAY ’ appears on the display panel if you have not installed any radio stations. Press ( Play ). 3 Press the following buttons to control play: Button Action / Selects a preset radio station. Navigation buttons (left/right)Searches for a radio station. Navigation buttons (up/down) Fine tunes a radio frequency. Press and hold to erase the preset radio station. Press to stop the installation of radio stations. (Options )Manual: Press once to access program mode, and press again to store the radio station. Automatic: Press and hold for fi ve seconds to reinstall radio stations. RADIO Toggles between stereo and mono sound.](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-18.png)

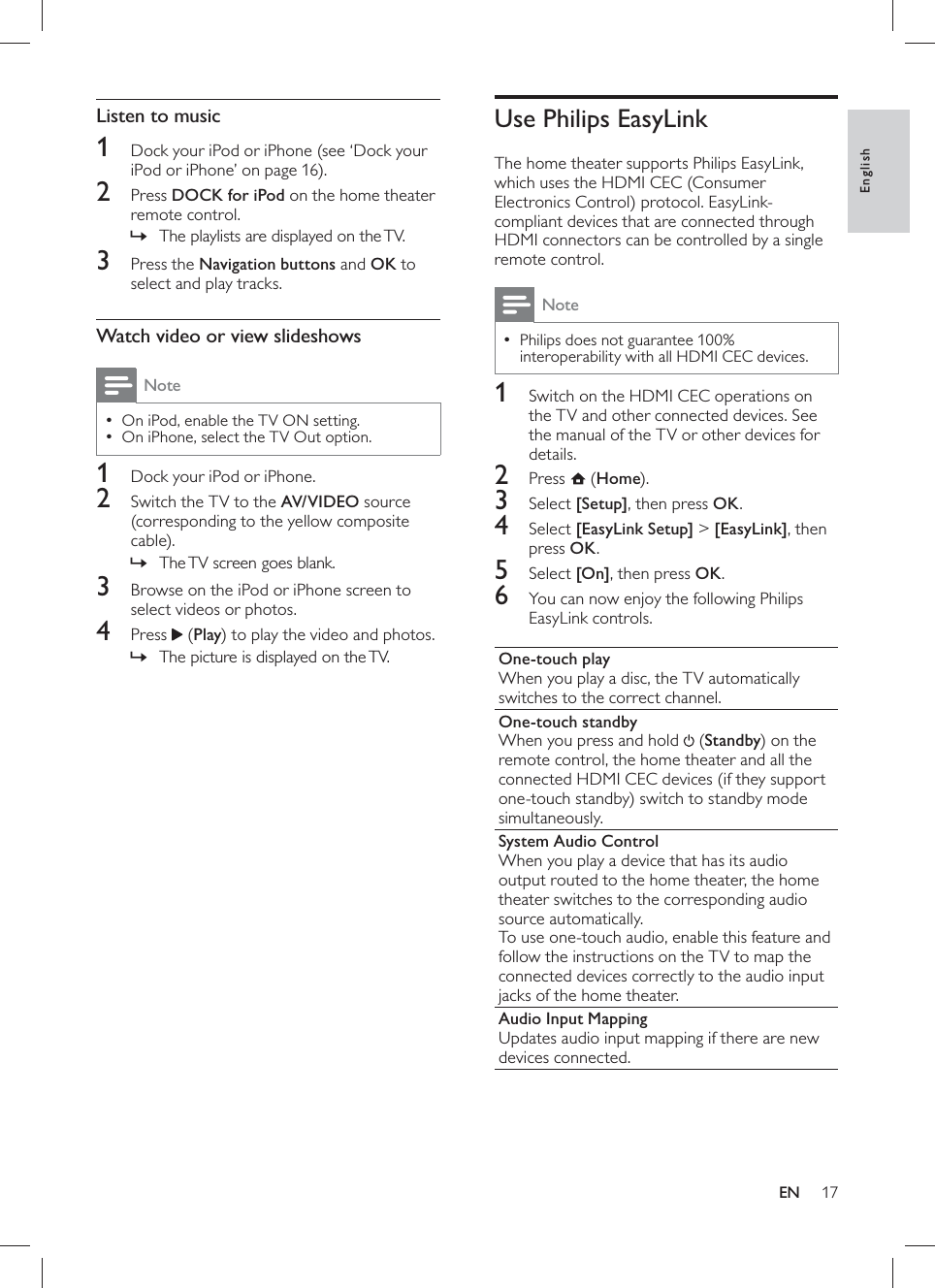

![17 Use Philips EasyLink The home theater supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control. Note Philips does not guarantee 100% •interoperability with all HDMI CEC devices. 1 Switch on the HDMI CEC operations on the TV and other connected devices. See the manual of the TV or other devices for details. 2 Press ( Home). 3 Select [Setup] , then press OK . 4 Select [EasyLink Setup] > [EasyLink] , then press OK . 5 Select [On] , then press OK . 6 You can now enjoy the following Philips EasyLink controls. One-touch play When you play a disc, the TV automatically switches to the correct channel. One-touch standby When you press and hold ( Standby ) on the remote control, the home theater and all the connected HDMI CEC devices (if they support one-touch standby) switch to standby mode simultaneously. System Audio Control When you play a device that has its audio output routed to the home theater, the home theater switches to the corresponding audio source automatically. To use one-touch audio, enable this feature and follow the instructions on the TV to map the connected devices correctly to the audio input jacks of the home theater. Audio Input Mapping Updates audio input mapping if there are new devices connected. Listen to music 1 Dock your iPod or iPhone (see ‘Dock your iPod or iPhone’ on page 16 ). 2 Press DOCK for iPod on the home theater remote control. The playlists are displayed on the TV.» 3 Press the Navigation buttons and OK to select and play tracks. Watch video or view slideshows Note On iPod, enable the TV ON setting. • On iPhone, select the TV Out option. • 1 Dock your iPod or iPhone . 2 Switch the TV to the AV/VIDEO source (corresponding to the yellow composite cable). The TV screen goes blank.» 3 Browse on the iPod or iPhone screen to select videos or photos. 4 Press ( Play) to play the video and photos. The picture is displayed on the TV. »EnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-19.png)

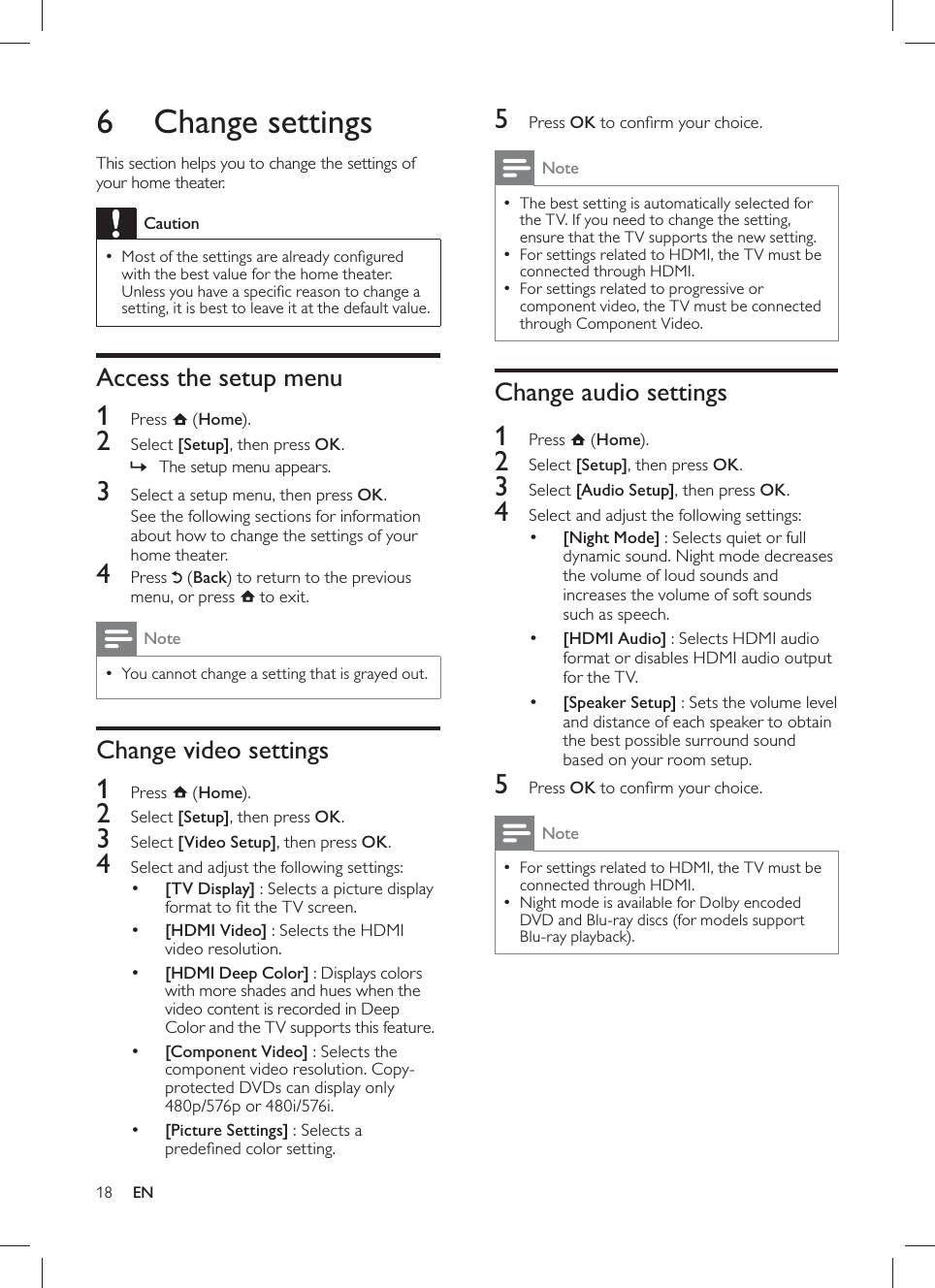

![18 5 Press OK to confi rm your choice. Note The best setting is automatically selected for •the TV. If you need to change the setting, ensure that the TV supports the new setting. For settings related to HDMI, the TV must be •connected through HDMI. For settings related to progressive or •component video, the TV must be connected through Component Video. Change audio settings 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [Audio Setup] , then press OK . 4 Select and adjust the following settings: •[Night Mode] : Selects quiet or full dynamic sound. Night mode decreases the volume of loud sounds and increases the volume of soft sounds such as speech. •[HDMI Audio] : Selects HDMI audio format or disables HDMI audio output for the TV. •[Speaker Setup] : Sets the volume level and distance of each speaker to obtain the best possible surround sound based on your room setup. 5 Press OK to confi rm your choice. Note For settings related to HDMI, the TV must be •connected through HDMI. Night mode is available for Dolby encoded •DVD and Blu-ray discs (for models support Blu-ray playback). 6 Change settings This section helps you to change the settings of your home theater. CautionMost of the settings are already confi gured •with the best value for the home theater. Unless you have a specifi c reason to change a setting, it is best to leave it at the default value. Access the setup menu 1 Press ( Home). 2 Select [Setup] , then press OK . The setup menu appears.» 3 Select a setup menu, then press OK . See the following sections for information about how to change the settings of your home theater. 4 Press ( Back ) to return to the previous menu, or press to exit. NoteYou cannot change a setting that is grayed out. • Change video settings 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [Video Setup] , then press OK . 4 Select and adjust the following settings: •[TV Display] : Selects a picture display format to fi t the TV screen. •[HDMI Video] : Selects the HDMI video resolution. •[HDMI Deep Color] : Displays colors with more shades and hues when the video content is recorded in Deep Color and the TV supports this feature. •[Component Video] : Selects the component video resolution. Copy-protected DVDs can display only 480p/576p or 480i/576i. •[Picture Settings] : Selects a predefi ned color setting.EN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-20.png)

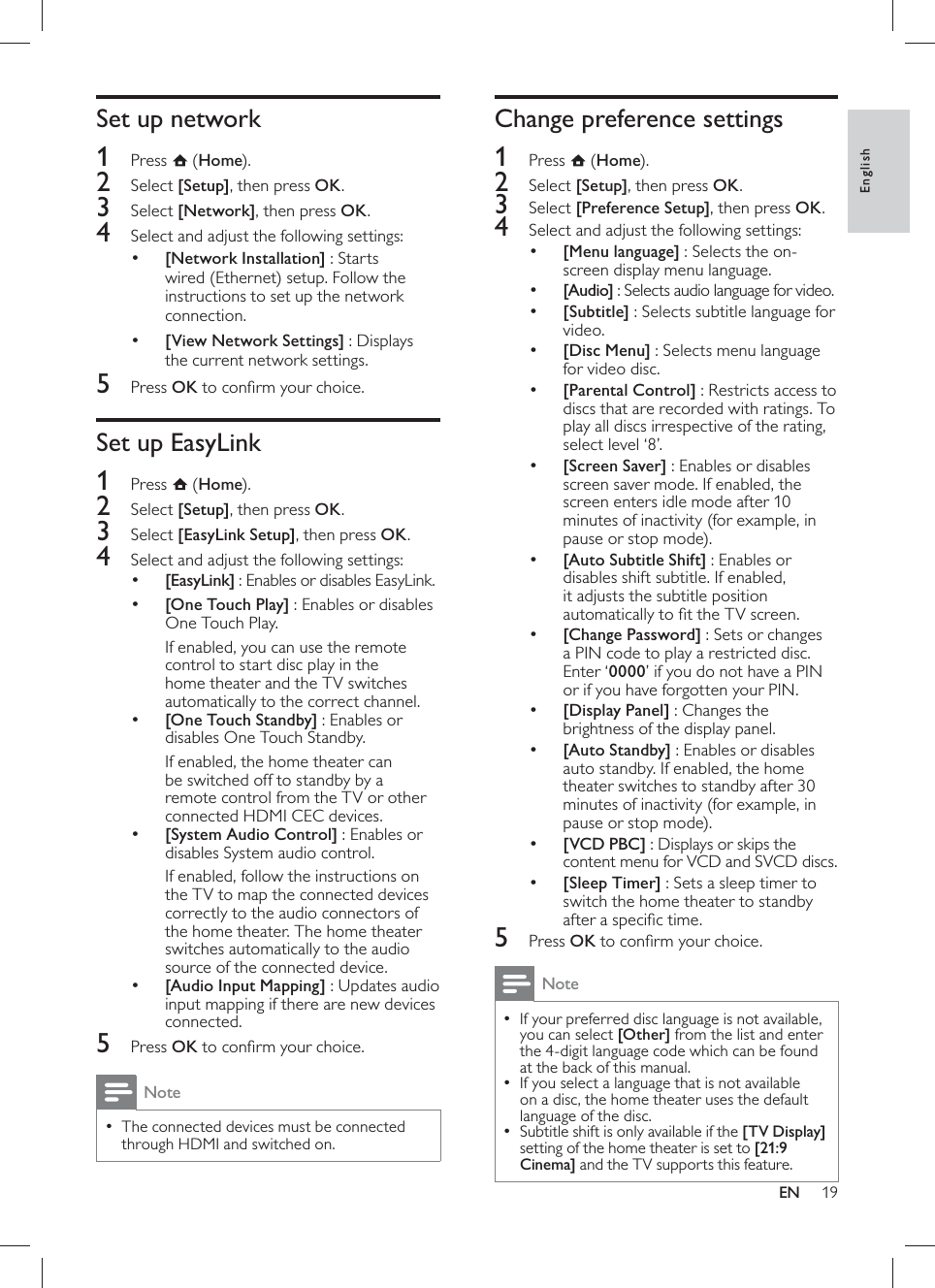

![19 Change preference settings 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [Preference Setup] , then press OK . 4 Select and adjust the following settings: •[Menu language] : Selects the on-screen display menu language. •[Audio] : Selects audio language for video. •[Subtitle] : Selects subtitle language for video. •[Disc Menu] : Selects menu language for video disc. •[Parental Control] : Restricts access to discs that are recorded with ratings. To play all discs irrespective of the rating, select level ‘8’. •[Screen Saver] : Enables or disables screen saver mode. If enabled, the screen enters idle mode after 10 minutes of inactivity (for example, in pause or stop mode). •[Auto Subtitle Shift] : Enables or disables shift subtitle. If enabled, it adjusts the subtitle position automatically to fi t the TV screen. •[Change Password] : Sets or changes a PIN code to play a restricted disc. Enter ‘ 0000’ if you do not have a PIN or if you have forgotten your PIN. •[Display Panel] : Changes the brightness of the display panel. •[Auto Standby] : Enables or disables auto standby. If enabled, the home theater switches to standby after 30 minutes of inactivity (for example, in pause or stop mode). •[VCD PBC] : Displays or skips the content menu for VCD and SVCD discs. •[Sleep Timer] : Sets a sleep timer to switch the home theater to standby after a specifi c time. 5 Press OK to confi rm your choice. Note If your preferred disc language is not available, •you can select [Other] from the list and enter the 4-digit language code which can be found at the back of this manual. If you select a language that is not available •on a disc, the home theater uses the default language of the disc. Subtitle shift is only available if the • [TV Display] setting of the home theater is set to [21:9 Cinema] and the TV supports this feature . Set up network 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [Network] , then press OK . 4 Select and adjust the following settings: •[Network Installation] : Starts wired (Ethernet) setup. Follow the instructions to set up the network connection. •[View Network Settings] : Displays the current network settings. 5 Press OK to confi rm your choice. Set up EasyLink 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [EasyLink Setup] , then press OK . 4 Select and adjust the following settings: •[EasyLink] : Enables or disables EasyLink. •[One Touch Play] : Enables or disables One Touch Play. If enabled, you can use the remote control to start disc play in the home theater and the TV switches automatically to the correct channel. •[One Touch Standby] : Enables or disables One Touch Standby. If enabled, the home theater can be switched off to standby by a remote control from the TV or other connected HDMI CEC devices. •[System Audio Control] : Enables or disables System audio control. If enabled, follow the instructions on the TV to map the connected devices correctly to the audio connectors of the home theater. The home theater switches automatically to the audio source of the connected device. •[Audio Input Mapping] : Updates audio input mapping if there are new devices connected. 5 Press OK to confi rm your choice. NoteThe connected devices must be connected •through HDMI and switched on.EnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-21.png)

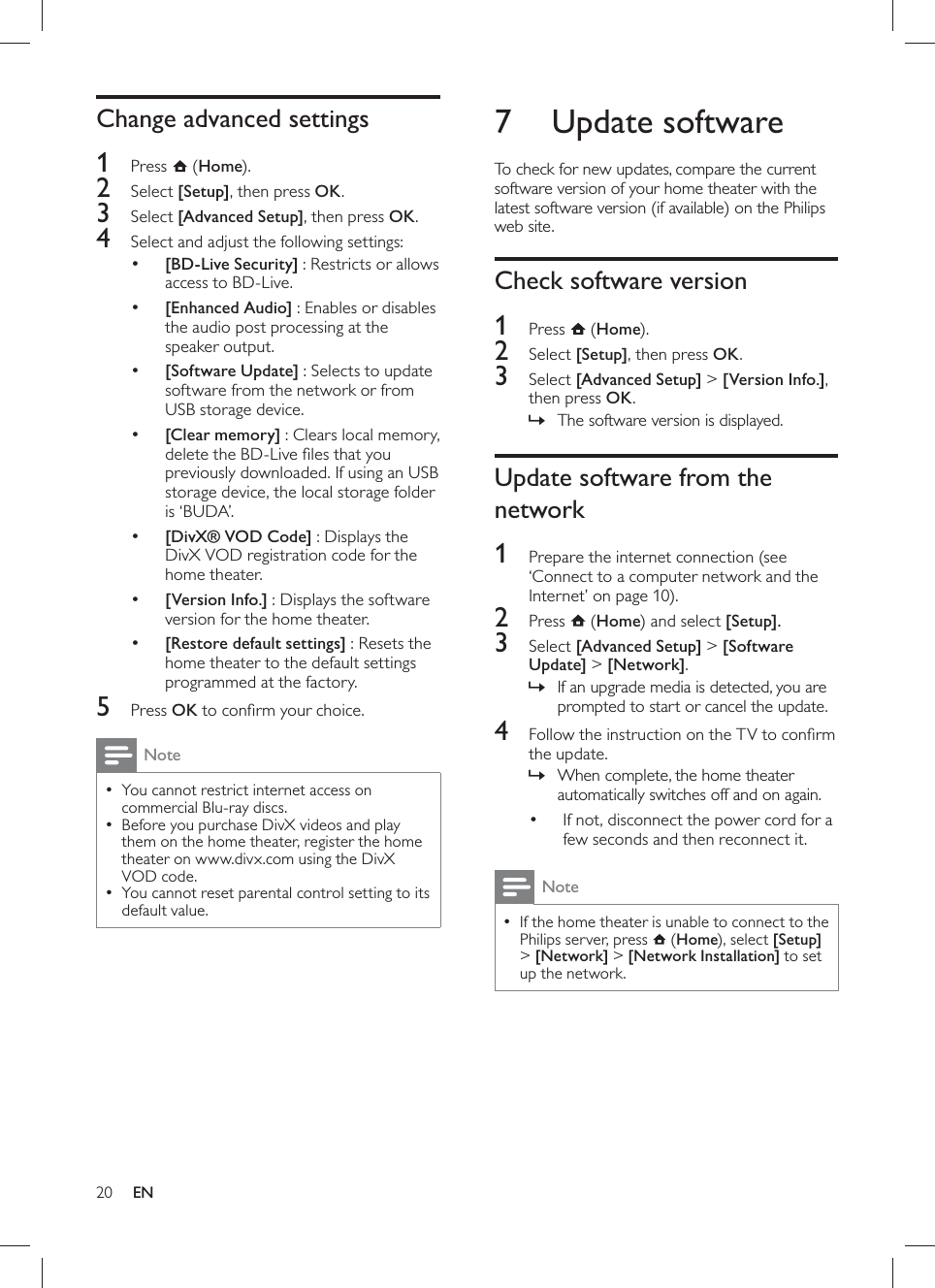

![20 7 Update software To check for new updates, compare the current software version of your home theater with the latest software version (if available) on the Philips web site. Check software version 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [Advanced Setup] > [Version Info.] , then press OK . The software version is displayed.» Update software from the network 1 Prepare the internet connection (see ‘Connect to a computer network and the Internet’ on page 10 ). 2 Press ( Home ) and select [Setup] . 3 Select [Advanced Setup] > [Software Update] > [Network] . If an upgrade media is detected, you are »prompted to start or cancel the update. 4 Follow the instruction on the TV to confi rm the update. When complete, the home theater »automatically switches off and on again. If not, disconnect the power cord for a •few seconds and then reconnect it. NoteIf the home theater is unable to connect to the •Philips server, press ( Home), select [Setup] >[Network] > [Network Installation] to set up the network. Change advanced settings 1 Press ( Home). 2 Select [Setup] , then press OK . 3 Select [Advanced Setup] , then press OK . 4 Select and adjust the following settings: •[BD-Live Security] : Restricts or allows access to BD-Live. •[Enhanced Audio] : Enables or disables the audio post processing at the speaker output. •[Software Update] : Selects to update software from the network or from USB storage device. •[Clear memory] : Clears local memory, delete the BD-Live fi les that you previously downloaded. If using an USB storage device, the local storage folder is ‘BUDA’. •[DivX® VOD Code] : Displays the DivX VOD registration code for the home theater. •[Version Info.] : Displays the software version for the home theater. •[Restore default settings] : Resets the home theater to the default settings programmed at the factory. 5 Press OK to confi rm your choice. NoteYou cannot restrict internet access on •commercial Blu-ray discs. Before you purchase DivX videos and play •them on the home theater, register the home theater on www.divx.com using the DivX VOD code. You cannot reset parental control setting to its •default value.EN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-22.png)

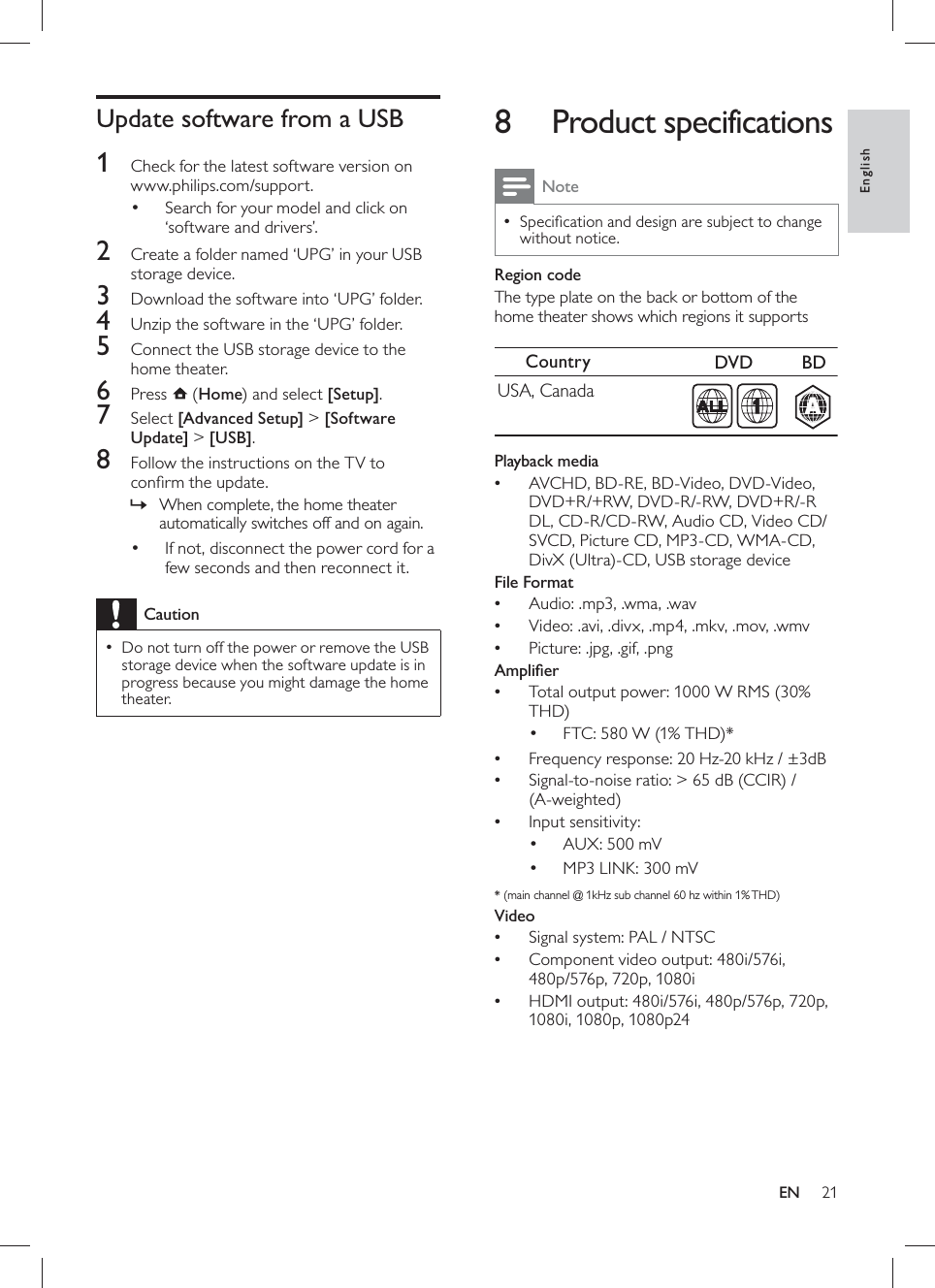

![21 8 Product specifications NoteSpecifi cation and design are subject to change •without notice. Region code The type plate on the back or bottom of the home theater shows which regions it supports Playback media AVCHD, BD-RE, BD-Video, DVD-Video, •DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX (Ultra)-CD, USB storage device File Format Audio: .mp3, .wma, .wav• Video: .avi, .divx, .mp4, .mkv, .mov, .wmv• Picture: .jpg, .gif, .png• Amplifi er Total output power: 1000 W RMS (30% •THD) FTC: 580 W (1% THD)*• Frequency response: 20 Hz-20 kHz / ±3dB• Signal-to-noise ratio: > 65 dB (CCIR) / •(A-weighted) Input sensitivity:• AUX: 500 mV• MP3 LINK: 300 mV• * (main channel @ 1kHz sub channel 60 hz within 1% THD) Video Signal system: PAL / NTSC• Component video output: 480i/576i, •480p/576p, 720p, 1080i HDMI output: 480i/576i, 480p/576p, 720p, •1080i, 1080p, 1080p24Country DVD BDUSA, CanadaAA1 Update software from a USB 1 Check for the latest software version on www.philips.com/support. Search for your model and click on •‘software and drivers’. 2 Create a folder named ‘UPG’ in your USB storage device. 3 Download the software into ‘UPG’ folder. 4 Unzip the software in the ‘UPG’ folder. 5 Connect the USB storage device to the home theater. 6 Press ( Home ) and select [Setup] . 7 Select [Advanced Setup] > [Software Update] > [USB] . 8 Follow the instructions on the TV to confi rm the update. When complete, the home theater »automatically switches off and on again. If not, disconnect the power cord for a •few seconds and then reconnect it. CautionDo not turn off the power or remove the USB •storage device when the software update is in progress because you might damage the home theater.EnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-23.png)
![23 Sound No sound. Ensure that the audio cables are connected •and select the correct input source (for example, AUDIO SOURCE) for the device you want to play. No sound on HDMI connection. You might not hear any sound if the •connected device is not HDCP (High-bandwidth Digital Content Protection) compliant or only DVI compatible. Use an analog or digital audio connection. Ensure that the •[HDMI Audio] is enabled . No sound from TV program. Connect an audio cable from the audio •input on the home theater to the audio output on the TV, then press AUDIO SOURCE repeatedly to select the correct audio source. Distorted sound or echo. Ensure that the TV volume is muted or set •to minimum if you are playing audio through the home theater. Audio and video are not synchronized. 1) Press • ( Sound options ) . 2) Press the Navigation buttons (left/right) repeatedly until AUDIO SYNC is displayed, then press OK . 3) Press the Navigation buttons (up/down) to sync the audio with the video. No sound from rear speakers. Ensure that the audio source currently being •played back has audio present in the rear channels. To enable sound output from the rear speakers for stereo sources, select multi-channel in SURROUND settings. No sound from the rear speakers and the indicator on the wireless receiver blinks continuously for more than one minute. Check whether there is any interference •from nearby electronic devices, remove the confl ict or strong interference, then try the procedures: 1) Disconnect the power cord from the wireless receiver for a few seconds and connect it back again. 2) Press AUDIO SOURCE on the remote control to select ‘AUX’ or ‘MP3 LINK’. 3) Press and hold Navigation buttons (right) until ‘ PAIRING ’ fl ashes on the display panel. 4) If ‘ FAILED ’ is displayed, repeat the above steps. 9 Troubleshooting WarningRisk of electric shock. Never remove the •casing of the product. To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, visit www.philips.com/welcome. If you contact Customer Care Center, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Write the numbers here: Model No. __________________________ Serial No. ___________________________ Main unit The buttons on this home theater do not work. Disconnect the home theater from the •power outlet for a few minutes, then reconnect. Picture No picture. Ensure that the TV is switched to the •correct source for the home theater. No picture on HDMI connection. Change the HDMI video setting or wait for •15 seconds for auto recover. Check if the HDMI cable is faulty. Replace •with a new HDMI cable. No picture on the Component (Y Pb Pr) connection. If the HDMI video connection is set to •[Auto] or [1080p/24Hz] , there is no video output through the component connection. Change the HDMI video setting or remove the HDMI connection. No high-defi nition video signal on the TV. Ensure that the disc contains high-defi nition •video. Ensure that the TV supports high-defi nition •video.EnglishEN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-25.png)

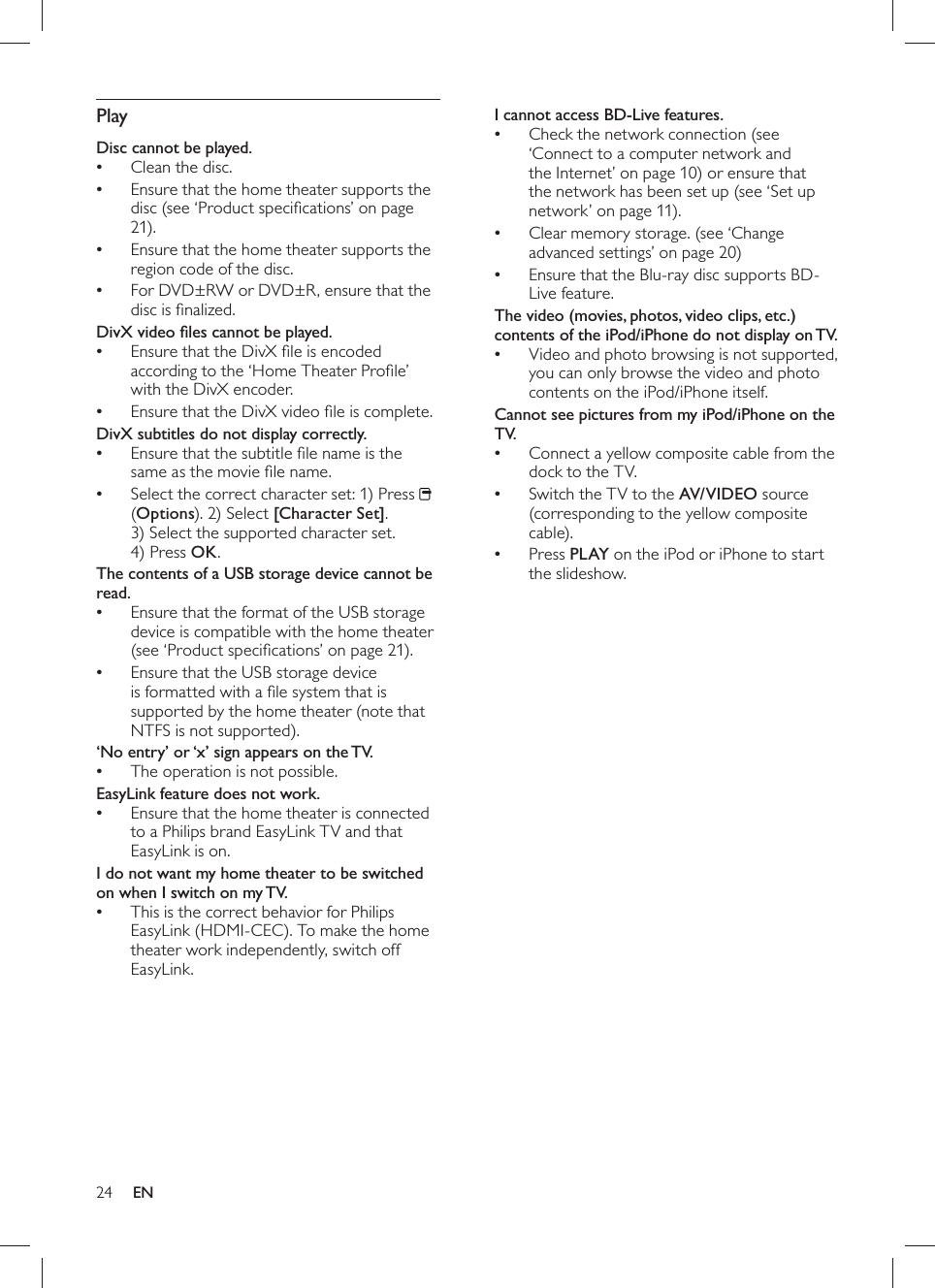

![24 I cannot access BD-Live features. Check the •network connection (see ‘Connect to a computer network and the Internet’ on page 10 ) or ensure that the network has been set up (see ‘Set up network’ on page 11 ). •Clear memory storage. (see ‘Change advanced settings’ on page 20 ) Ensure that the Blu-ray disc supports BD-•Live feature. The video (movies, photos, video clips, etc.) contents of the iPod/iPhone do not display on TV. Video and photo browsing is not supported, •you can only browse the video and photo contents on the iPod/iPhone itself. Cannot see pictures from my iPod/iPhone on the TV. Connect a yellow composite cable from the •dock to the TV. Switch the TV to the •AV/VIDEO source (corresponding to the yellow composite cable). Press •PLAY on the iPod or iPhone to start the slideshow. Play Disc cannot be played. Clean the disc.• Ensure that the home theater supports the •disc (see ‘Product specifi cations’ on page 21 ). Ensure that the home theater supports the •region code of the disc. For DVD±RW or DVD±R, ensure that the •disc is fi nalized. DivX video fi les cannot be played. Ensure that the DivX fi le is encoded •according to the ‘Home Theater Profi le’ with the DivX encoder. Ensure that the DivX video fi le is complete.• DivX subtitles do not display correctly. Ensure that the subtitle fi le name is the •same as the movie fi le name. Select the correct character set: 1) Press • (Options). 2) Select [Character Set] . 3) Select the supported character set. 4) Press OK . The contents of a USB storage device cannot be read. Ensure that the format of the USB storage •device is compatible with the home theater (see ‘Product specifi cations’ on page 21 ). Ensure that the USB storage device •is formatted with a fi le system that is supported by the home theater (note that NTFS is not supported). ‘No entry’ or ‘x’ sign appears on the TV. The operation is not possible.• EasyLink feature does not work. Ensure that the home theater is connected •to a Philips brand EasyLink TV and that EasyLink is on . I do not want my home theater to be switched on when I switch on my TV. This is the correct behavior for Philips •EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink .EN](https://usermanual.wiki/Eastech-Electronics/RWSS5510/User-Guide-1293616-Page-26.png)
