Eforcity VIDEO-FC-FM FM TRANSMITTER User Manual Subject 7W AC to DC SPS LSE9815A05 Specification

Eforcity Corporation FM TRANSMITTER Subject 7W AC to DC SPS LSE9815A05 Specification

USERS MANUAL

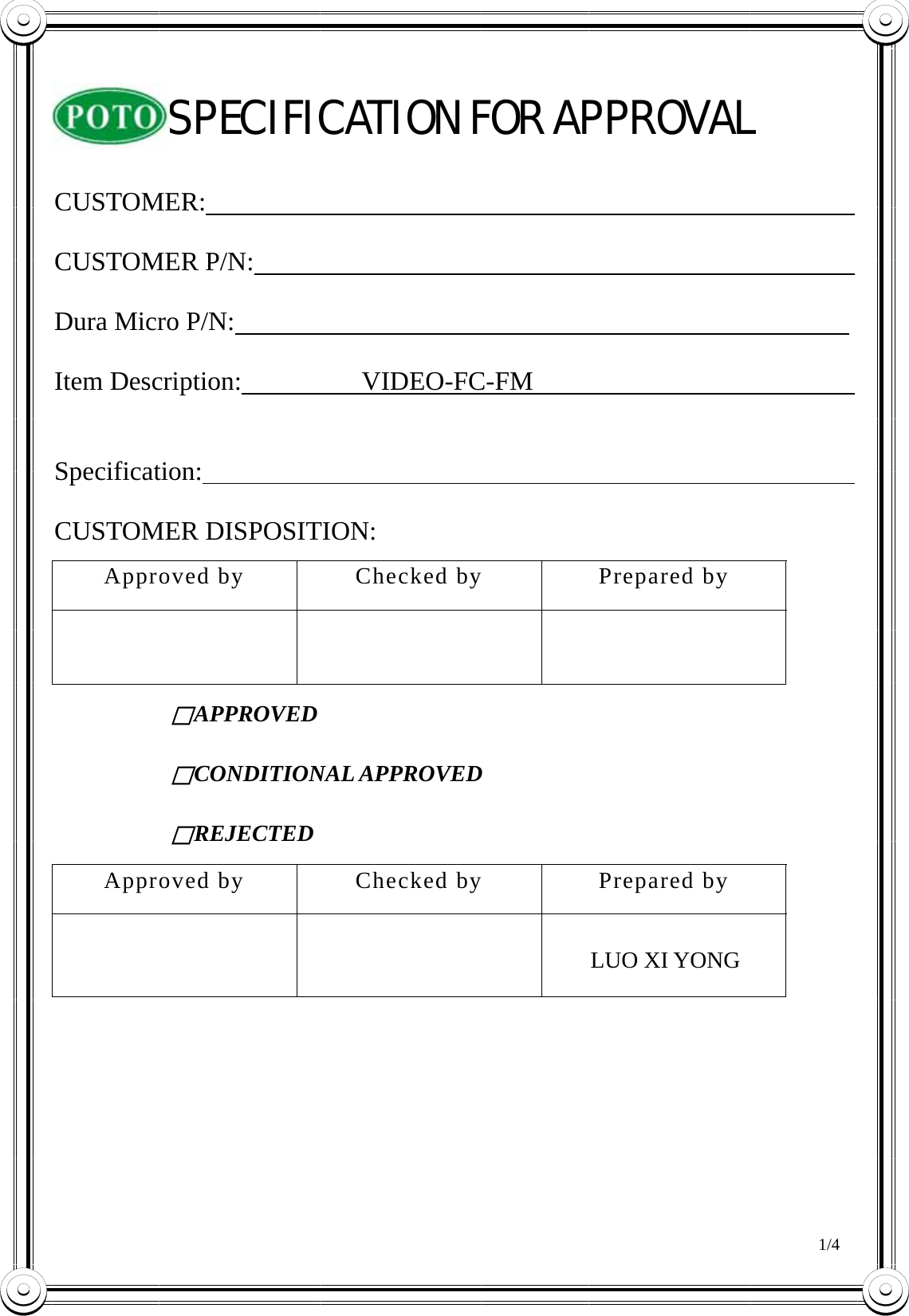

                                   SPECIFICATION FOR APPROVAL        CUSTOMER:                                                 CUSTOMER P/N:                                             Dura Micro P/N:                                               Item Description:         VIDEO-FC-FM                               Specification:                                                  CUSTOMER DISPOSITION: Approved by  Checked by  Prepared by    □APPROVED □CONDITIONAL APPROVED □REJECTED     Approved by  Checked by  Prepared by    LUO XI YONG    1/4

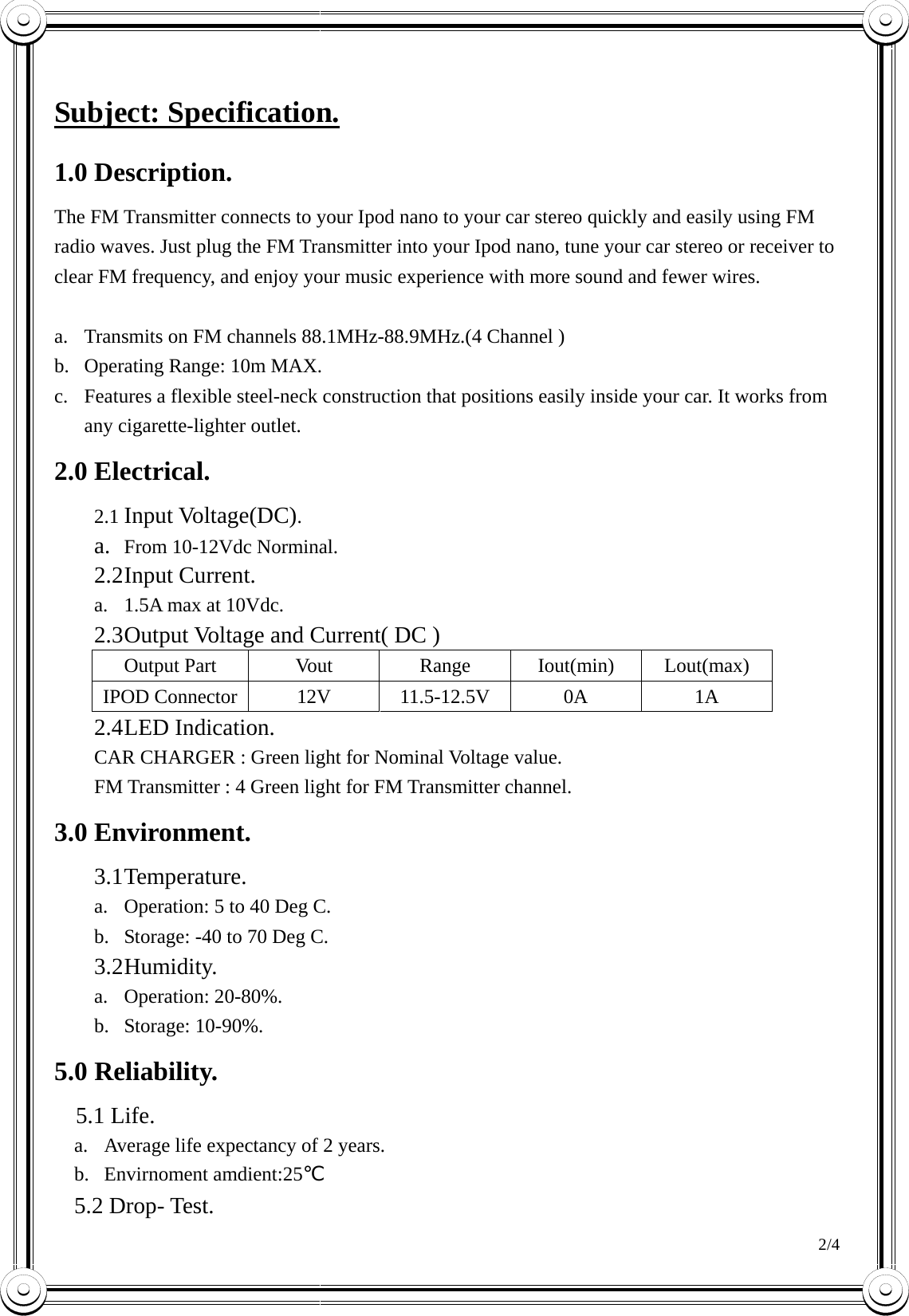

2/4   Subject: Specification. 1.0 Description. The FM Transmitter connects to your Ipod nano to your car stereo quickly and easily using FM radio waves. Just plug the FM Transmitter into your Ipod nano, tune your car stereo or receiver to clear FM frequency, and enjoy your music experience with more sound and fewer wires.  a.  Transmits on FM channels 88.1MHz-88.9MHz.(4 Channel ) b.  Operating Range: 10m MAX. c.  Features a flexible steel-neck construction that positions easily inside your car. It works from any cigarette-lighter outlet.   2.0 Electrical. 2.1 Input Voltage(DC). a.  From 10-12Vdc Norminal. 2.2 Input  Current. a.  1.5A max at 10Vdc. 2.3 Output Voltage and Current( DC ) Output Part  Vout  Range  Iout(min)  Lout(max) IPOD Connector  12V  11.5-12.5V  0A  1A 2.4 LED  Indication. CAR CHARGER : Green light for Nominal Voltage value.   FM Transmitter : 4 Green light for FM Transmitter channel. 3.0 Environment. 3.1 Temperature. a.  Operation: 5 to 40 Deg C. b.  Storage: -40 to 70 Deg C. 3.2 Humidity. a. Operation: 20-80%. b. Storage: 10-90%. 5.0 Reliability.   5.1 Life. a.  Average life expectancy of 2 years. b. Envirnoment amdient:25℃ 5.2 Drop- Test.

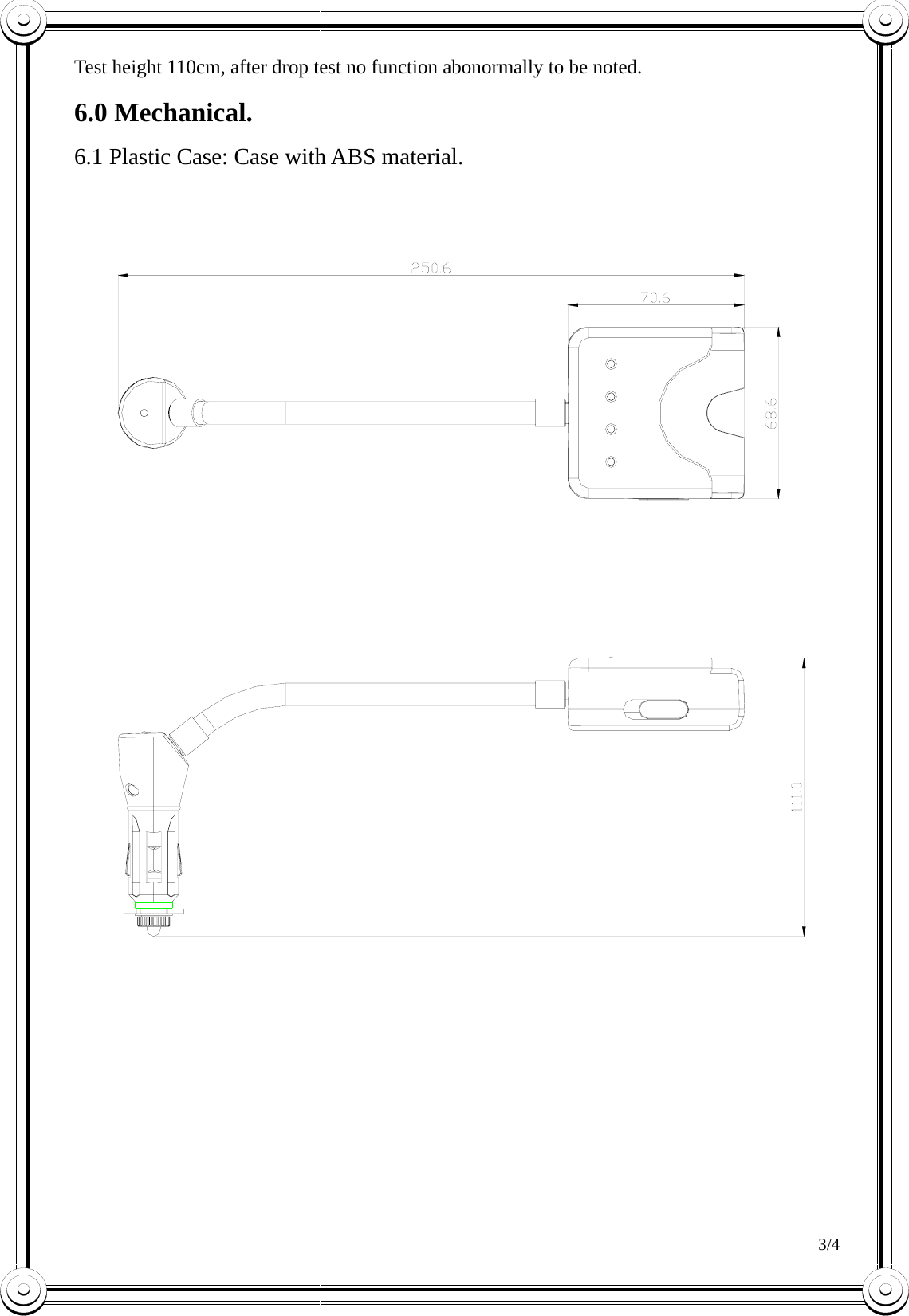

Test height 110cm, after drop test no function abonormally to be noted. 6.0 Mechanical.   6.1 Plastic Case: Case with ABS material.   3/4

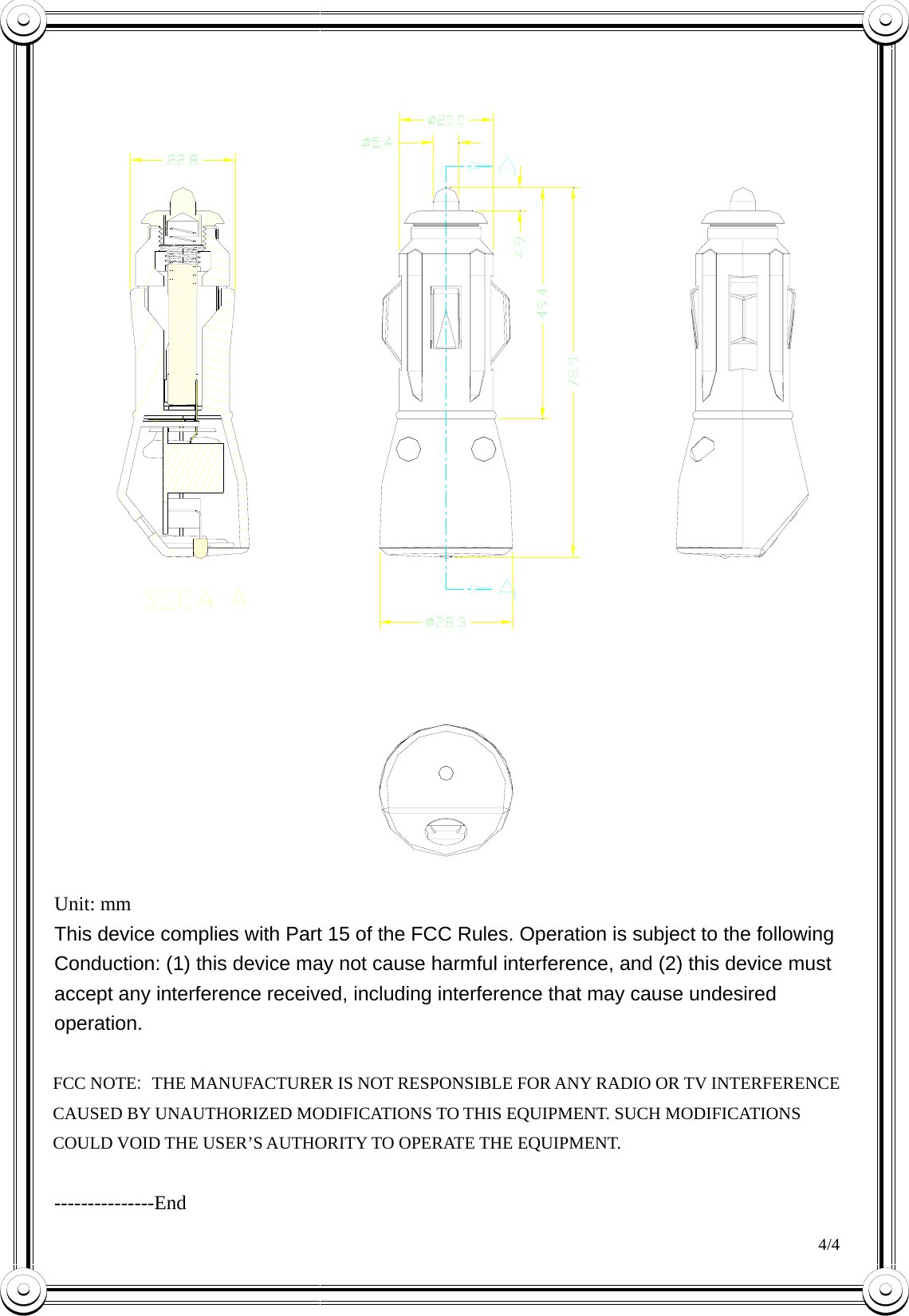

 Unit: mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following Conduction: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.  4/4  ---------------End
