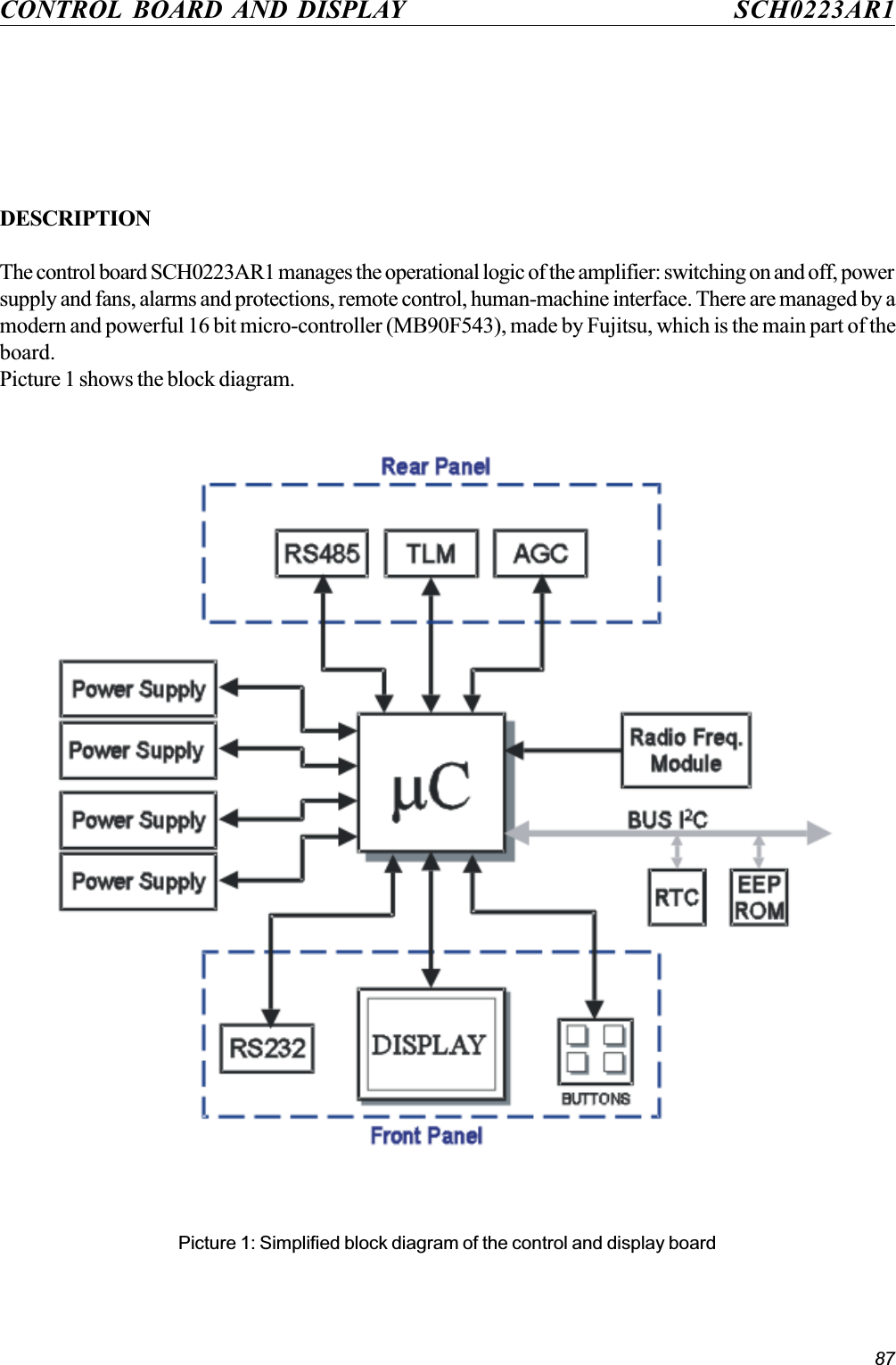

87Picture 1: Simplified block diagram of the control and display boardCONTROL BOARD AND DISPLAY SCH0223AR1DESCRIPTIONThe control board SCH0223AR1 manages the operational logic of the amplifier: switching on and off, powersupply and fans, alarms and protections, remote control, human-machine interface. There are managed by amodern and powerful 16 bit micro-controller (MB90F543), made by Fujitsu, which is the main part of theboard.Picture 1 shows the block diagram.

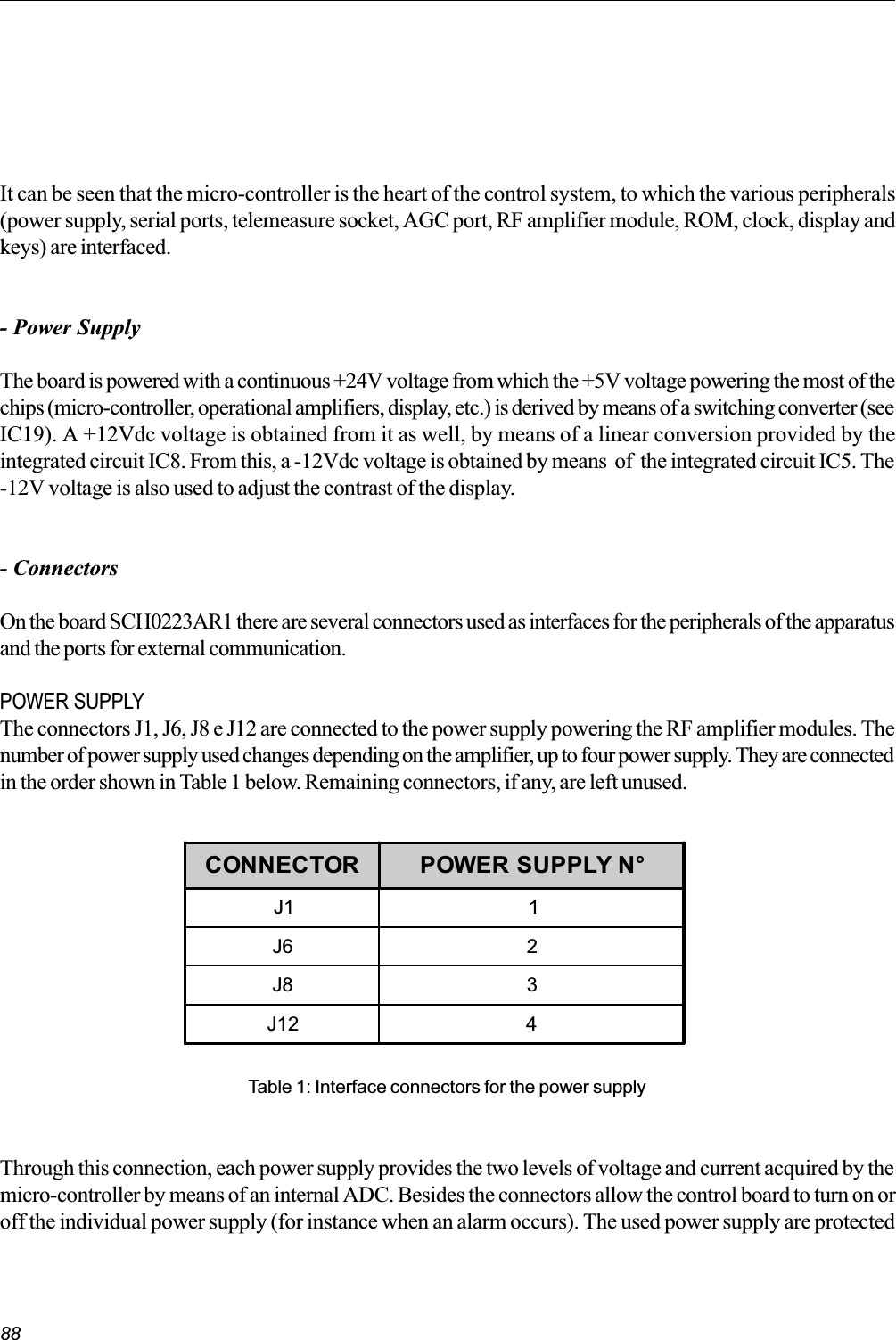

88It can be seen that the micro-controller is the heart of the control system, to which the various peripherals(power supply, serial ports, telemeasure socket, AGC port, RF amplifier module, ROM, clock, display andkeys) are interfaced.- Power SupplyThe board is powered with a continuous +24V voltage from which the +5V voltage powering the most of thechips (micro-controller, operational amplifiers, display, etc.) is derived by means of a switching converter (seeIC19). A +12Vdc voltage is obtained from it as well, by means of a linear conversion provided by theintegrated circuit IC8. From this, a -12Vdc voltage is obtained by means of the integrated circuit IC5. The-12V voltage is also used to adjust the contrast of the display.- ConnectorsOn the board SCH0223AR1 there are several connectors used as interfaces for the peripherals of the apparatusand the ports for external communication.POWER SUPPLYThe connectors J1, J6, J8 e J12 are connected to the power supply powering the RF amplifier modules. Thenumber of power supply used changes depending on the amplifier, up to four power supply. They are connectedin the order shown in Table 1 below. Remaining connectors, if any, are left unused.Table 1: Interface connectors for the power supplyThrough this connection, each power supply provides the two levels of voltage and current acquired by themicro-controller by means of an internal ADC. Besides the connectors allow the control board to turn on oroff the individual power supply (for instance when an alarm occurs). The used power supply are protectedCONNECTOR POWER SUPPLY N°J1 1J6 2J8 3J12 4

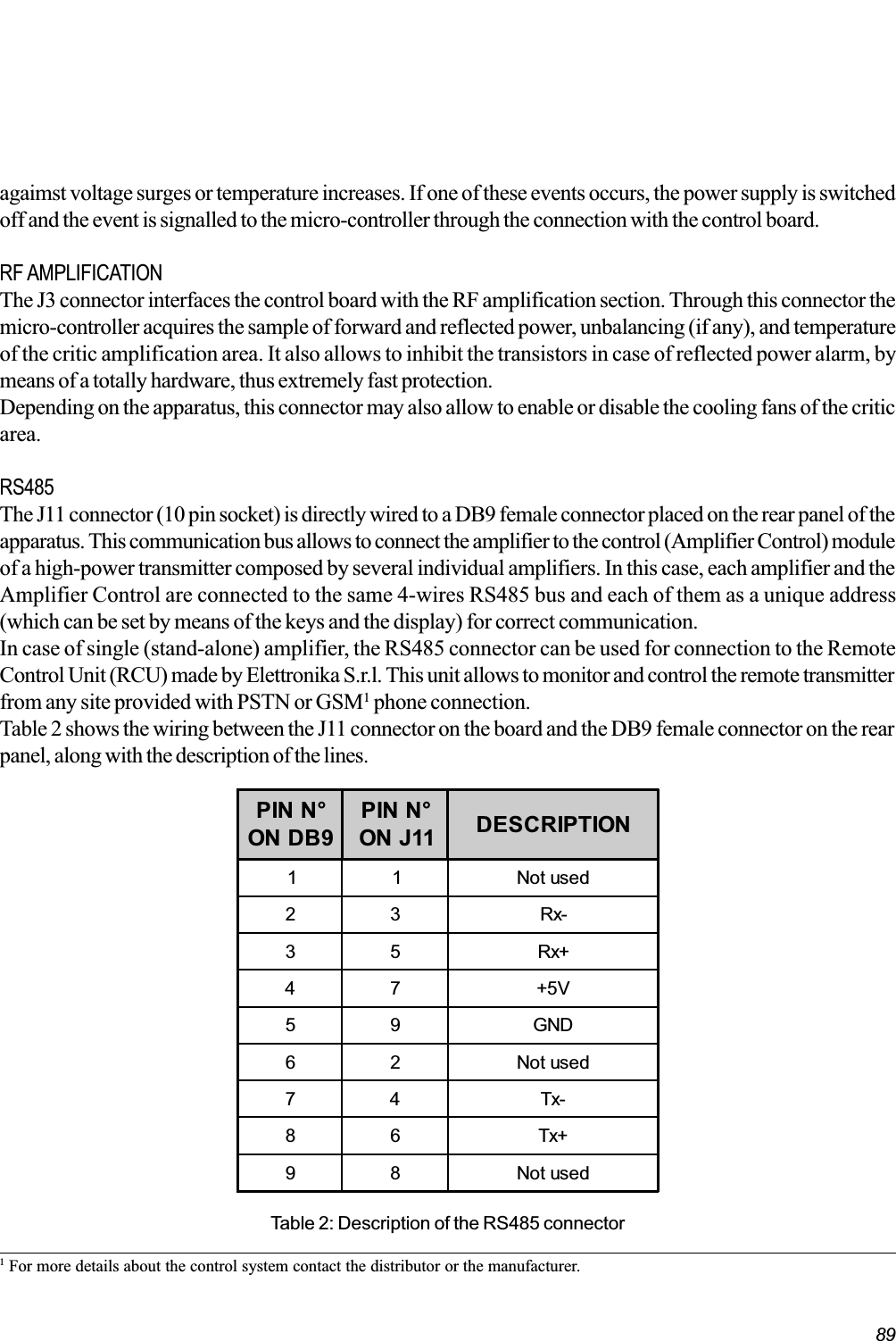

89agaimst voltage surges or temperature increases. If one of these events occurs, the power supply is switchedoff and the event is signalled to the micro-controller through the connection with the control board.RF AMPLIFICATIONThe J3 connector interfaces the control board with the RF amplification section. Through this connector themicro-controller acquires the sample of forward and reflected power, unbalancing (if any), and temperatureof the critic amplification area. It also allows to inhibit the transistors in case of reflected power alarm, bymeans of a totally hardware, thus extremely fast protection.Depending on the apparatus, this connector may also allow to enable or disable the cooling fans of the criticarea.RS485The J11 connector (10 pin socket) is directly wired to a DB9 female connector placed on the rear panel of theapparatus. This communication bus allows to connect the amplifier to the control (Amplifier Control) moduleof a high-power transmitter composed by several individual amplifiers. In this case, each amplifier and theAmplifier Control are connected to the same 4-wires RS485 bus and each of them as a unique address(which can be set by means of the keys and the display) for correct communication.In case of single (stand-alone) amplifier, the RS485 connector can be used for connection to the RemoteControl Unit (RCU) made by Elettronika S.r.l. This unit allows to monitor and control the remote transmitterfrom any site provided with PSTN or GSM1 phone connection.Table 2 shows the wiring between the J11 connector on the board and the DB9 female connector on the rearpanel, along with the description of the lines.1 For more details about the control system contact the distributor or the manufacturer.PIN N°ON DB9PIN N°ON J11 DESCRIPTION11 Not used23 Rx-35 Rx+47 +5V59 GND62 Not used74 Tx-86 Tx+98 Not usedTable 2: Description of the RS485 connector

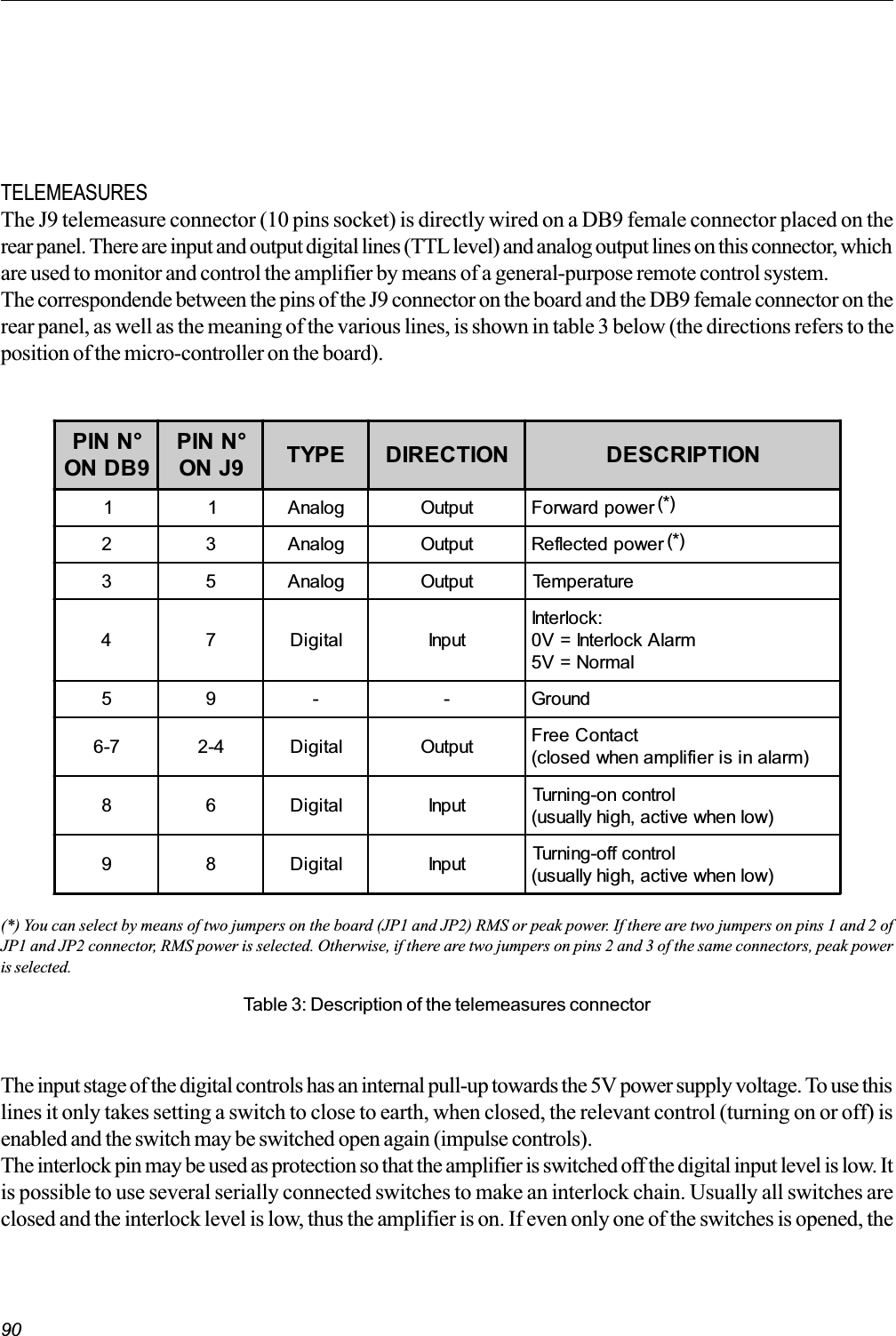

90TELEMEASURESThe J9 telemeasure connector (10 pins socket) is directly wired on a DB9 female connector placed on therear panel. There are input and output digital lines (TTL level) and analog output lines on this connector, whichare used to monitor and control the amplifier by means of a general-purpose remote control system.The correspondende between the pins of the J9 connector on the board and the DB9 female connector on therear panel, as well as the meaning of the various lines, is shown in table 3 below (the directions refers to theposition of the micro-controller on the board).PIN N°ON DB9PIN N°ON J9 TYPE DIRECTION DESCRIPTION1 1 Analog Output Forward power2 3 Analog Output Reflected power3 5 Analog Output Temperature4 7 Digital InputInterlock:0V = Interlock Alarm5V = Normal59 - -Ground6-7 2-4 Digital Output Free Contact(closed when amplifier is in alarm)8 6 Digital Input Turning-on control(usually high, active when low)9 8 Digital Input Turning-off control(usually high, active when low)Table 3: Description of the telemeasures connectorThe input stage of the digital controls has an internal pull-up towards the 5V power supply voltage. To use thislines it only takes setting a switch to close to earth, when closed, the relevant control (turning on or off) isenabled and the switch may be switched open again (impulse controls).The interlock pin may be used as protection so that the amplifier is switched off the digital input level is low. Itis possible to use several serially connected switches to make an interlock chain. Usually all switches areclosed and the interlock level is low, thus the amplifier is on. If even only one of the switches is opened, the(*)(*)(*) You can select by means of two jumpers on the board (JP1 and JP2) RMS or peak power. If there are two jumpers on pins 1 and 2 ofJP1 and JP2 connector, RMS power is selected. Otherwise, if there are two jumpers on pins 2 and 3 of the same connectors, peak poweris selected.
91Picture 2: Usage of the digital input signals of the telemeasures connectorAGC / EXCITERThe connector called J10, as the telemeasures connector and the RS485 bus, is wired to a DB9 femaleconnector placed on the rear panel of the amplifier. This connectors allow the implementation of an automaticgain control between an exciter and the amplifier. A voltage signal related to the forward output powersupplied by the amplifier is provided through two pins of the AGC connector. Connecting one of these to therelevant input pin of the exciter, this can pursuit a given voltage level, so that the output power is alwaysconstant. In order to avoid that, in case of an alarm decreasing the forward power, the exciter stronglyincreases the output level due to the AGC, thus damaging the amplification stages, the connector is providedwith two digital output lines called AGC Alarm. Under alarm conditions, this lines are brought by the micro-controller at a low level, so that the exciter can stop the AGC.Table 4 shows the connection between the J10 connector on the board and the DB9 connector on the rearpanel, along with the description of each pin (the direction of the pin is referred to the position of the micro-controller on the board).level of the interlock signal becomes high (this line has a pull-up towards the +5V power supply voltage aswell) and the protection for interlock alarm is activated for the amplifier, which is switched off. Note that incase the interlock protection is not used, the pin 4 of the DB9 telemeasure connector and the earth pin (pin 5)must be short circuited. Otherwise it is possible to disable the monitoring of the interlock chain from menu (seeuser manual).Picure 2 shows a usage for the digital input signals to turn on and off the amplifier and for the interlock alarm.
92Table 4: Description of the AGC connectorRS232The DB9 female connector on the front panel is an external communication RS232 serial port, through whicha PC can be connected directly to the amplifier in order to perform operations such as the remote control (bymeans of an adequate software2) and the update of the microcontroller firmware.The used communication protocol is asynchronous, at a 19200bps speed, 1 start bit, 8 data bits, 1 stop bit,no parity. No hardware flow is used. The connector is DCE type and the pin used are shown in Table 5.PIN N° ON DB9 123456789DESCRIPTION -TxDRxD-GND----MISCELLANEOUSThe J2 (called AUX), J4, J5 and J17 connectors are not used and are there only for future updates. The SW1dip-switches are partially used for the configuration of the correct mode for the micro-controller. The otherswitches are not used. It is important that the position of the dip-switches is left unchanged, because changingit may set a wrong mode for the micro-controller, affecting the work of the whole amplifier.2 For more information about this application contact the distributor of the manufacturer.PIN N°ON DB9PIN N°ON J10 TYPE DIRECTION DESCRIPTION11- -Ground23DigitalOutputAGC Alarm0V = Alarm5V = Normal35DigitalOutputAGC Alarm0V = Alarm5V = Normal47- -Not used59 - -Not used62 - -Not used7 4 - - Nout used8 6 Analog Output Forward power9 8 Analog Output Forward powerTable 5: Description of the RS232 connector
93FIRMWARE UPDATEThe micro-controller MB90F543 is provided with a built-in Flash memory containing the firmware. Thefirmware can be updated to later versions without removing the apparatus from the rack and/or replacing thechip.To upgrade it, connect a PC to the RS232 socket on the front panel of the apparatus by means of a cableDB9 male - DB9 female (pin-to-pin).Launch on the PC the EKAFlash application, select the serial port in use of the PC and choose the update fileby pressing the ... key and click on Download button.Eventually, turn off the amplifier from the main switch and then turn it on again. The upgrade of the firmwarebegins on the EKAFlash window. Picture 3 shows this window while a firmware is being updated.Picture 3: The EKAFlash window while updating a firmware

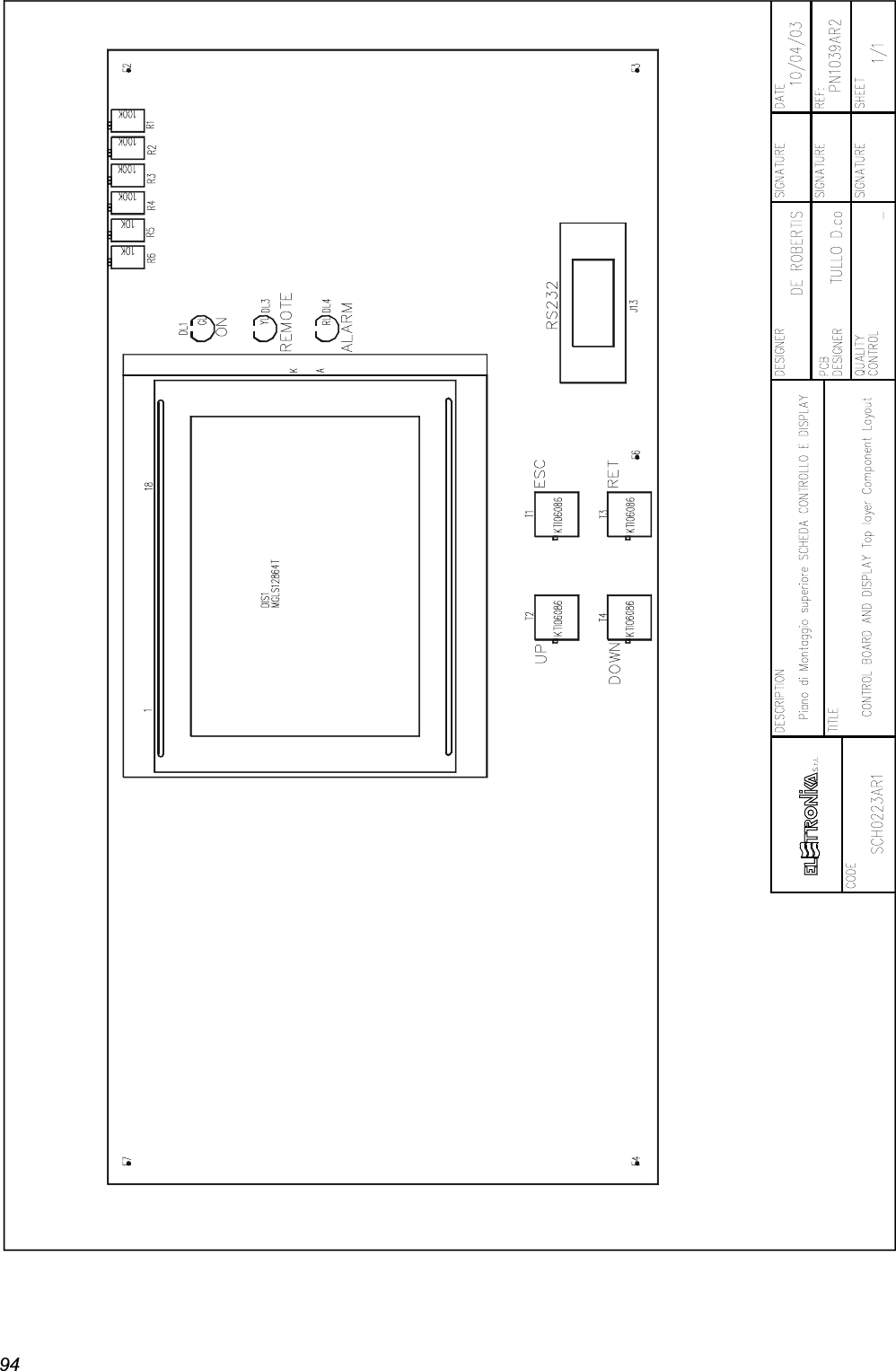

94
95
96

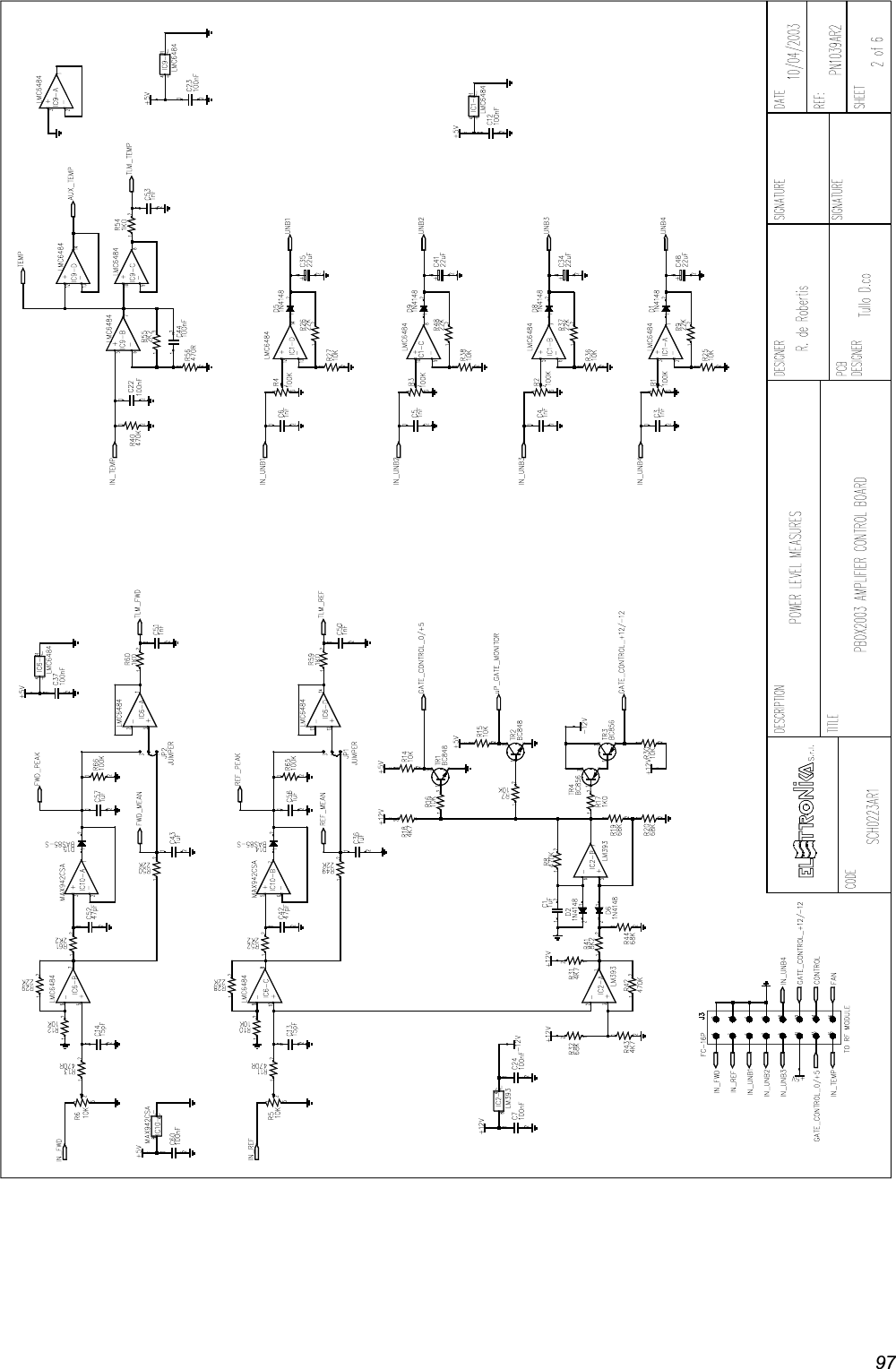

97

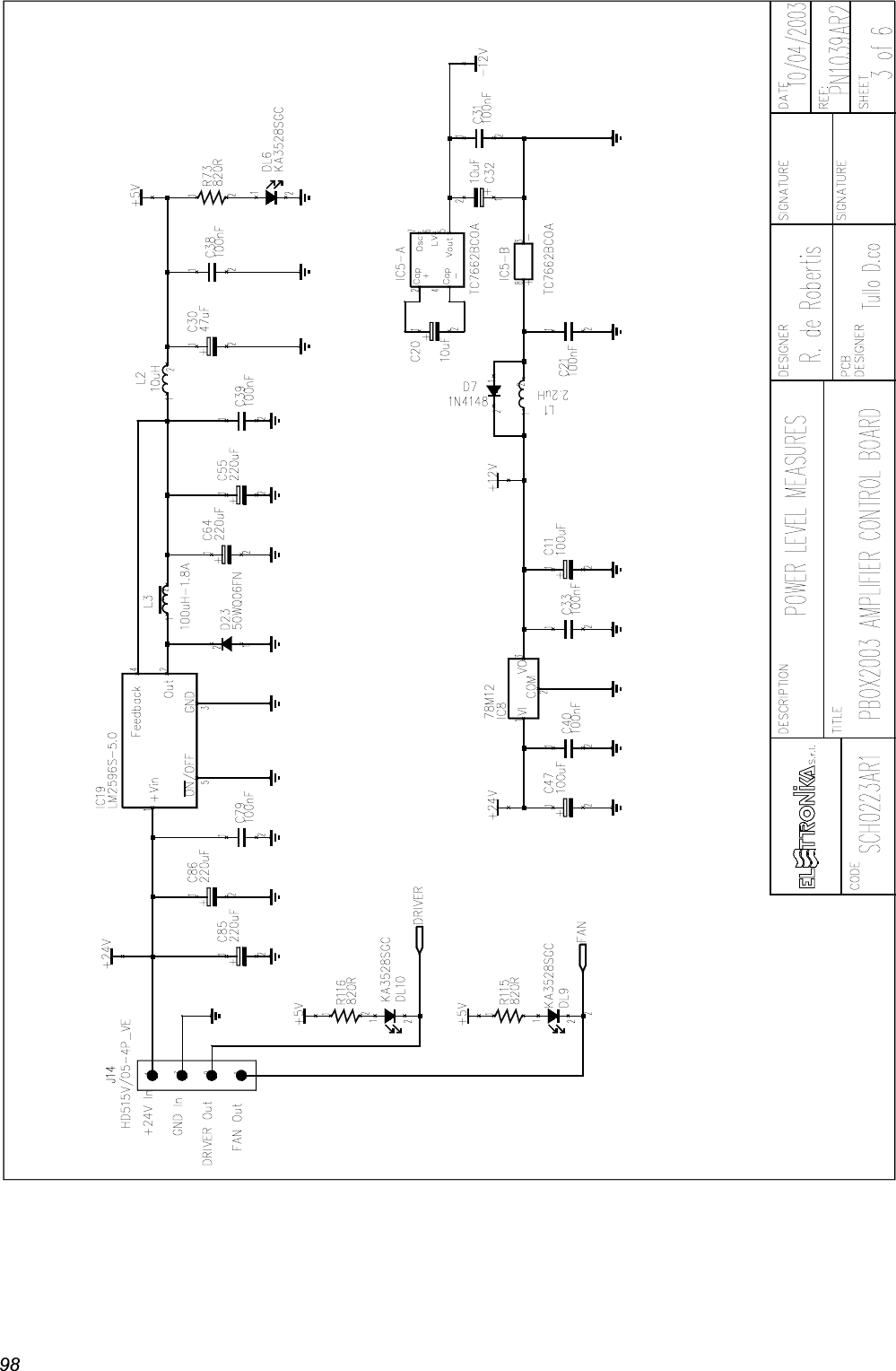

98

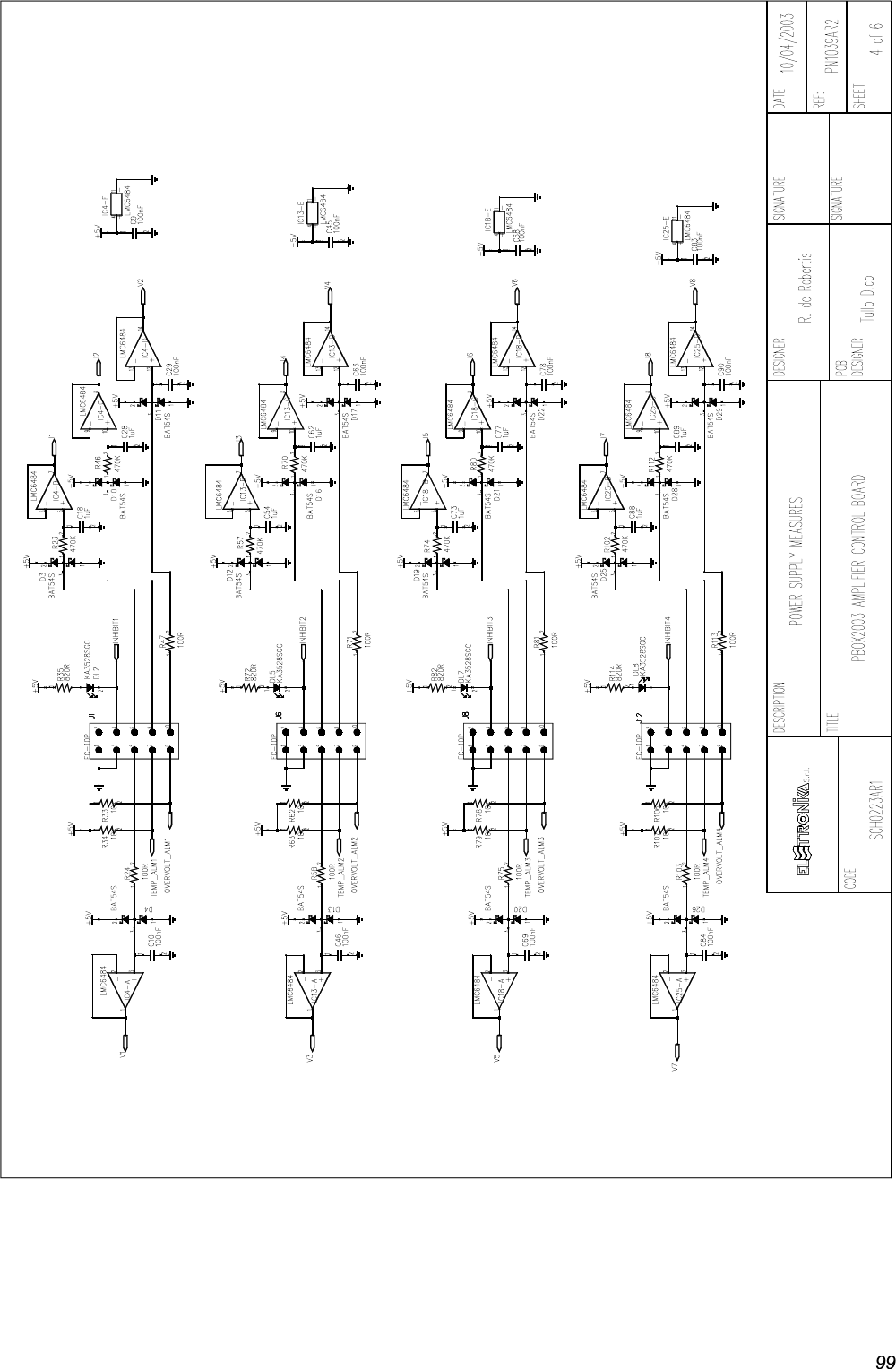

99

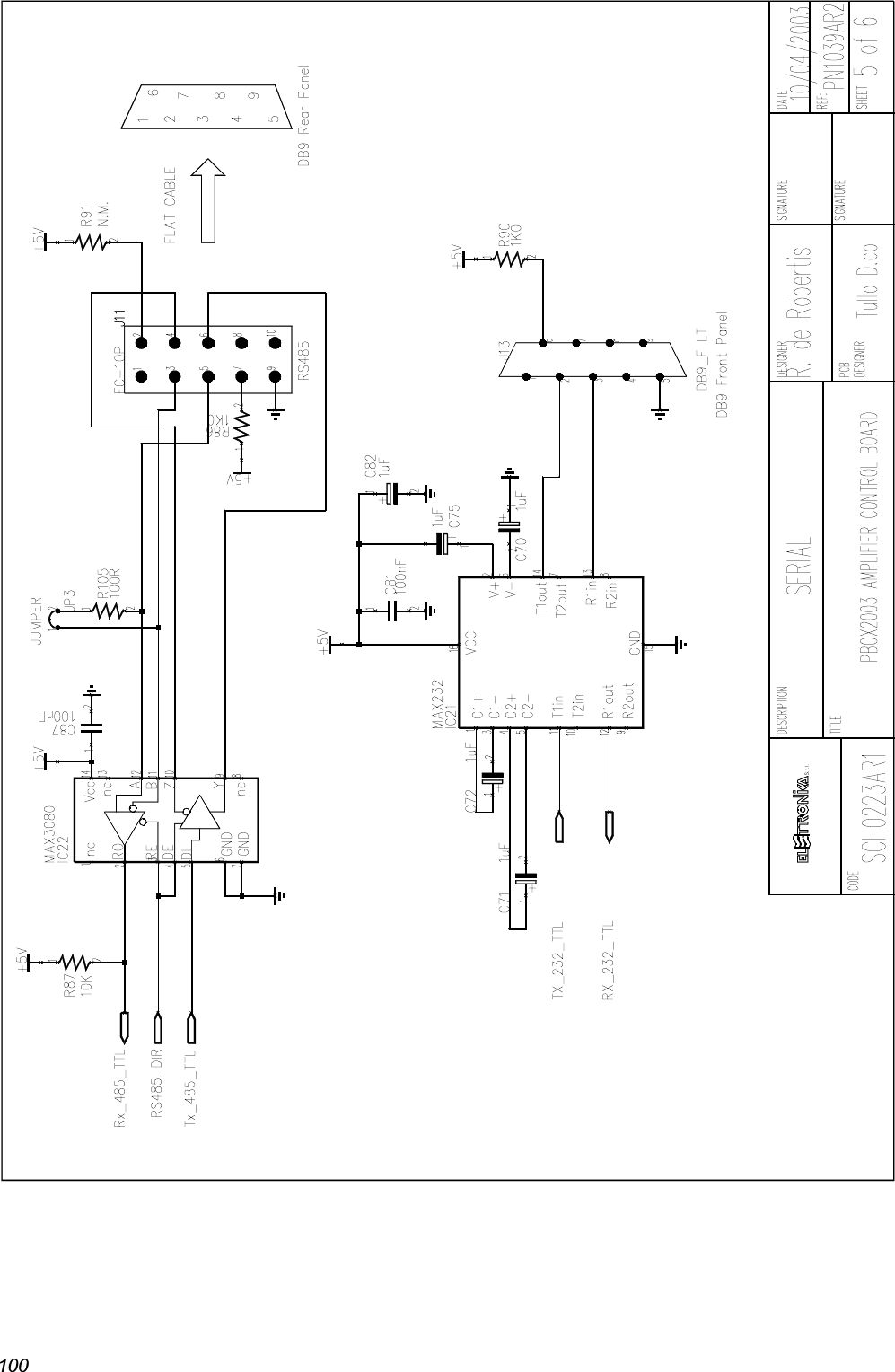

100

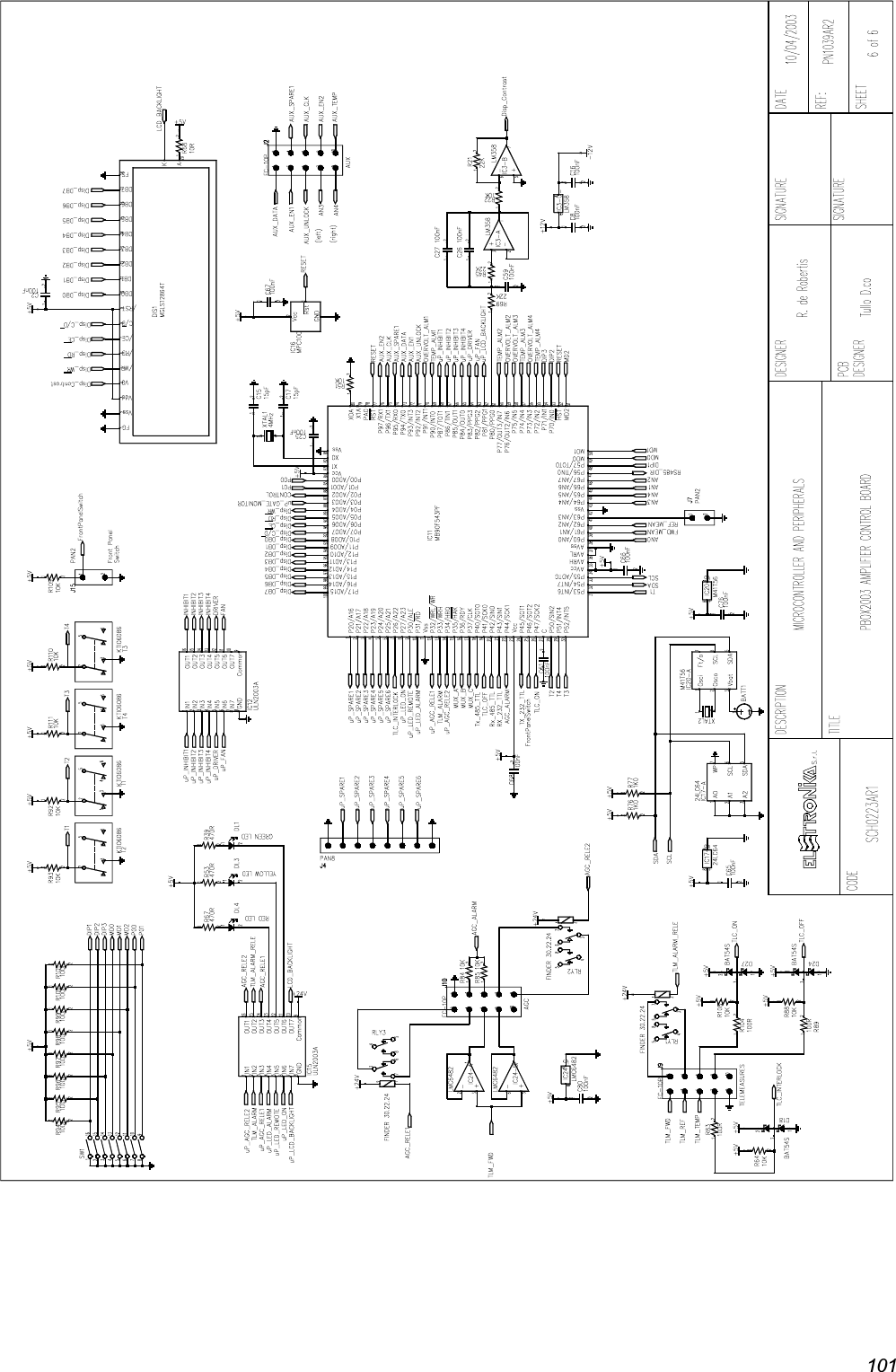

101
102COMPONENT LIST SCH0223AR1Part Name/Number Description Qty. Comps. Page 1/2BATT BH001RB 3093_90 03093 03090 BATTERY HOLDER 1 BATT1CC 100nF-S 01065C 01065C Y5V 1206 COND 46 C2, C7-10, C12, C16, C19, C21-27C29, C31, C33, C37-40, C44-46,C49, C58-61, C63, C65-69, C74,C76, C78-81, C83-84, C87, C90CC 15pF-S 01088 01088 SMD 1206 COND 4 C13-15, C17CC 1nF-S 01096 01096 SMD 1206 COND 7 C3-6, C50-51, C53CC 1uF100V-S 01760A 01760A Y5V 1206 COND 13 C1, C18, C28, C36, C43, C54,C56-57, C62, C73, C77, C88-89CC 47pF-S 01100 01100 SMD 1206 COND 2 C42, C52CE 100uF25V-S 01793B 01793B ELETTR SMD COND 2 C11, C47CE 10uF35V-S 01778A 01778A ELETTR SMD COND 2 C20, C32CE 1uF35V-S 01613A 01613A TANTALIUM ELETTR SMD CO 5 C70-72, C75, C82CE 220uF50V LOW ESR 1799A ELETTR SMD COND LOW ESR 4 C55, C64, C85-86CE 22uF16V-S 01780A ELETTR SMD COND 4 C34-35, C41, C48CE 47uF35V-S 01790A 01790A ELETTR SMD COND 1 C30D 1N4148-S 03002 03002 SMD DIODE 7 D1-2, D5-9D 50WQ06FN 03019A SMD DIODE SCHOTTKY 5,5A 1 D23D BAS85-S 03024 SMD DIODE SCHOTTKY 2 D14-15D BAT54S 03199 SMD SCHOTTKY DIODE A-K T 19 D3-4, D10-13, D16-22, D24-29DIS MGLS12864T 03083A 128x64 DOT (BLUE-LED WH 1 DIS1DL KA-3528SGC 03057 03057 GREEN SMD LED DIODE 7 DL2, DL5-10DL LEDG5 03060 03060 GREEN LED DIODE 5mm 1 DL1DL LEDR5 03061 03061 RED LED DIODE 5mm 1 DL4DL LEDY5 03054B 03054B YELLOW LED DIODE 5mm 1 DL3IC 24LC64 04815 04815 SMD INTEG CIRCUIT 1 IC17IC 78M12 4307B 04307B SMD VOLTAGE REGULATOR 1 IC8IC CD4051BM-S 04615 SMD INTEG CIRCUIT 3 IC7, IC14, IC23IC LM2596S-5.0 04580 SMD INTEG CIRCUIT 1 IC19IC LM358M-S 04660 04660 SMD INTEG CIRCUIT 1 IC3IC LM393-S 04639 04639 SMD INTEG CIRCUIT 1 IC2IC LMC6482-S 04632 SMD INTEG CIRCUIT 1 IC24IC LMC6484-S 04634 SMD INTEG CIRCUIT 7 IC1, IC4, IC6, IC9, IC13, IC18,IC25IC M41T56 04611 04611 SMD INTEG CIRCUIT 1 IC20IC MAX232-S 04804B 04804B SMD INTEG CIRCUIT 1 IC21IC MAX3080-S 04770 04770 SMD INTEG CIRCUIT 1 IC22IC MAX942CSA-S 04572 SMD INTEG CIRCUIT 1 IC10IC MB90F543PF 04596 SMD INTEG CIRCUIT 1 IC11IC MPC100-450DI-TO 04608 INTEG CIRCUIT 1 IC16IC TC7662BCOA 04758A 04758A SMD INTEG CIRCUIT 1 IC5IC ULN2003A 4870 04870 SMD INTEG CIRCUIT 2 IC12, IC15IND 2u2H-S 05020A 05020A INDUCTOR 1 L1

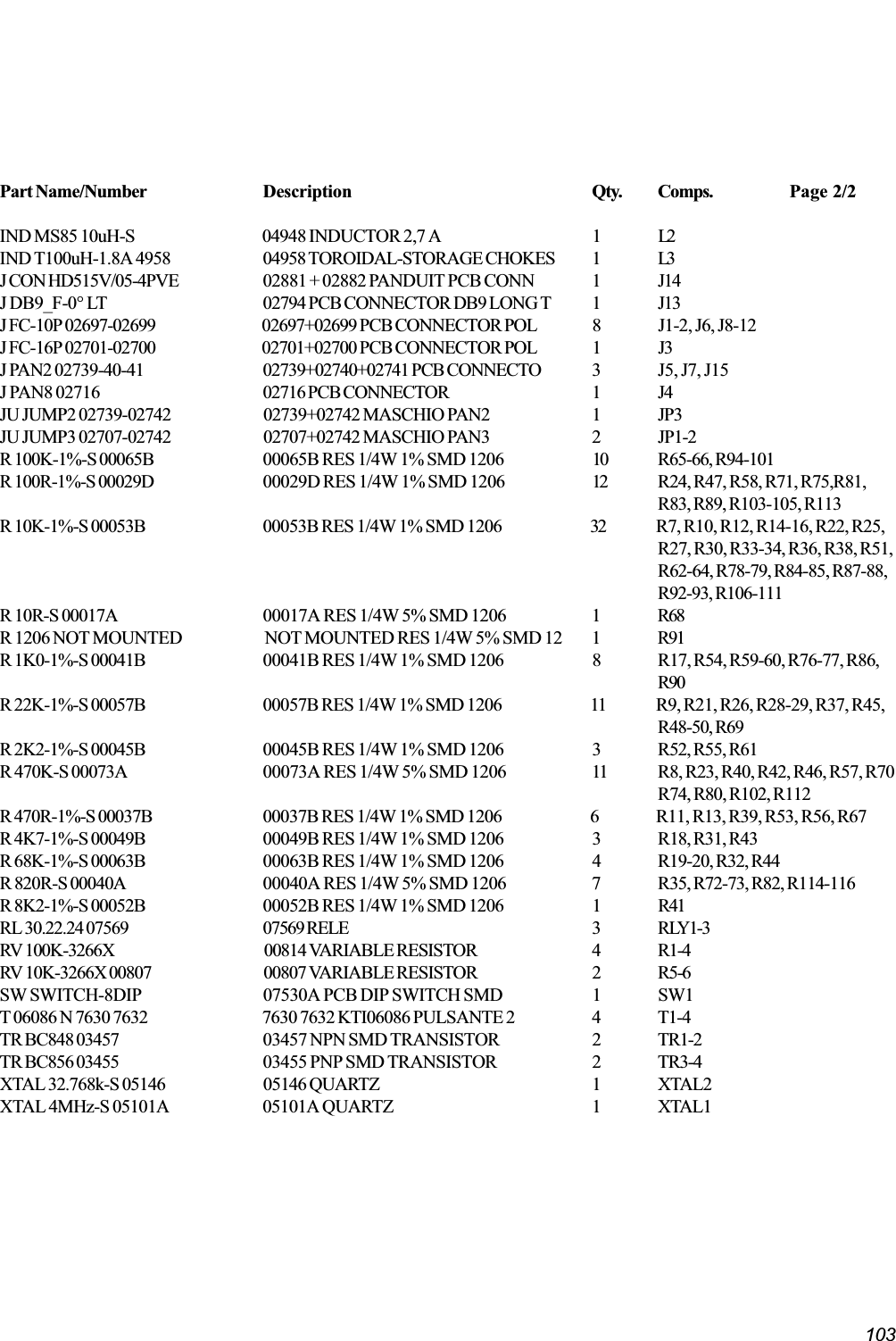

103Part Name/Number Description Qty. Comps. Page 2/2IND MS85 10uH-S 04948 INDUCTOR 2,7 A 1 L2IND T100uH-1.8A 4958 04958 TOROIDAL-STORAGE CHOKES 1 L3J CON HD515V/05-4PVE 02881 + 02882 PANDUIT PCB CONN 1 J14J DB9_F-0° LT 02794 PCB CONNECTOR DB9 LONG T 1 J13J FC-10P 02697-02699 02697+02699 PCB CONNECTOR POL 8 J1-2, J6, J8-12J FC-16P 02701-02700 02701+02700 PCB CONNECTOR POL 1 J3J PAN2 02739-40-41 02739+02740+02741 PCB CONNECTO 3 J5, J7, J15J PAN8 02716 02716 PCB CONNECTOR 1 J4JU JUMP2 02739-02742 02739+02742 MASCHIO PAN2 1 JP3JU JUMP3 02707-02742 02707+02742 MASCHIO PAN3 2 JP1-2R 100K-1%-S 00065B 00065B RES 1/4W 1% SMD 1206 10 R65-66, R94-101R 100R-1%-S 00029D 00029D RES 1/4W 1% SMD 1206 12 R24, R47, R58, R71, R75,R81,R83, R89, R103-105, R113R 10K-1%-S 00053B 00053B RES 1/4W 1% SMD 1206 32 R7, R10, R12, R14-16, R22, R25,R27, R30, R33-34, R36, R38, R51,R62-64, R78-79, R84-85, R87-88,R92-93, R106-111R 10R-S 00017A 00017A RES 1/4W 5% SMD 1206 1 R68R 1206 NOT MOUNTED NOT MOUNTED RES 1/4W 5% SMD 12 1 R91R 1K0-1%-S 00041B 00041B RES 1/4W 1% SMD 1206 8 R17, R54, R59-60, R76-77, R86,R90R 22K-1%-S 00057B 00057B RES 1/4W 1% SMD 1206 11 R9, R21, R26, R28-29, R37, R45,R48-50, R69R 2K2-1%-S 00045B 00045B RES 1/4W 1% SMD 1206 3 R52, R55, R61R 470K-S 00073A 00073A RES 1/4W 5% SMD 1206 11 R8, R23, R40, R42, R46, R57, R70R74, R80, R102, R112R 470R-1%-S 00037B 00037B RES 1/4W 1% SMD 1206 6 R11, R13, R39, R53, R56, R67R 4K7-1%-S 00049B 00049B RES 1/4W 1% SMD 1206 3 R18, R31, R43R 68K-1%-S 00063B 00063B RES 1/4W 1% SMD 1206 4 R19-20, R32, R44R 820R-S 00040A 00040A RES 1/4W 5% SMD 1206 7 R35, R72-73, R82, R114-116R 8K2-1%-S 00052B 00052B RES 1/4W 1% SMD 1206 1 R41RL 30.22.24 07569 07569 RELE 3 RLY1-3RV 100K-3266X 00814 VARIABLE RESISTOR 4 R1-4RV 10K-3266X 00807 00807 VARIABLE RESISTOR 2 R5-6SW SWITCH-8DIP 07530A PCB DIP SWITCH SMD 1 SW1T 06086 N 7630 7632 7630 7632 KTI06086 PULSANTE 2 4 T1-4TR BC848 03457 03457 NPN SMD TRANSISTOR 2 TR1-2TR BC856 03455 03455 PNP SMD TRANSISTOR 2 TR3-4XTAL 32.768k-S 05146 05146 QUARTZ 1 XTAL2XTAL 4MHz-S 05101A 05101A QUARTZ 1 XTAL1

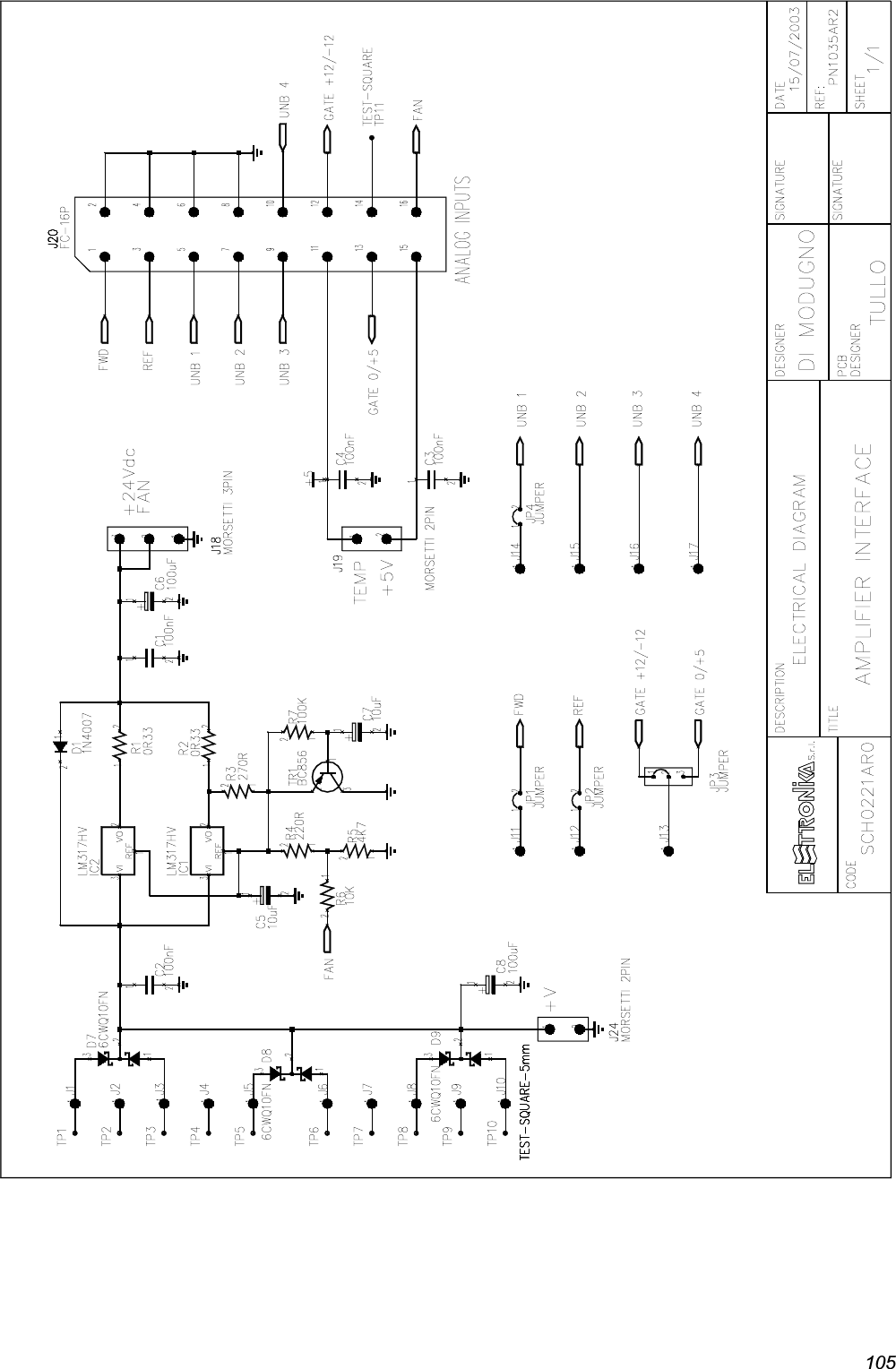

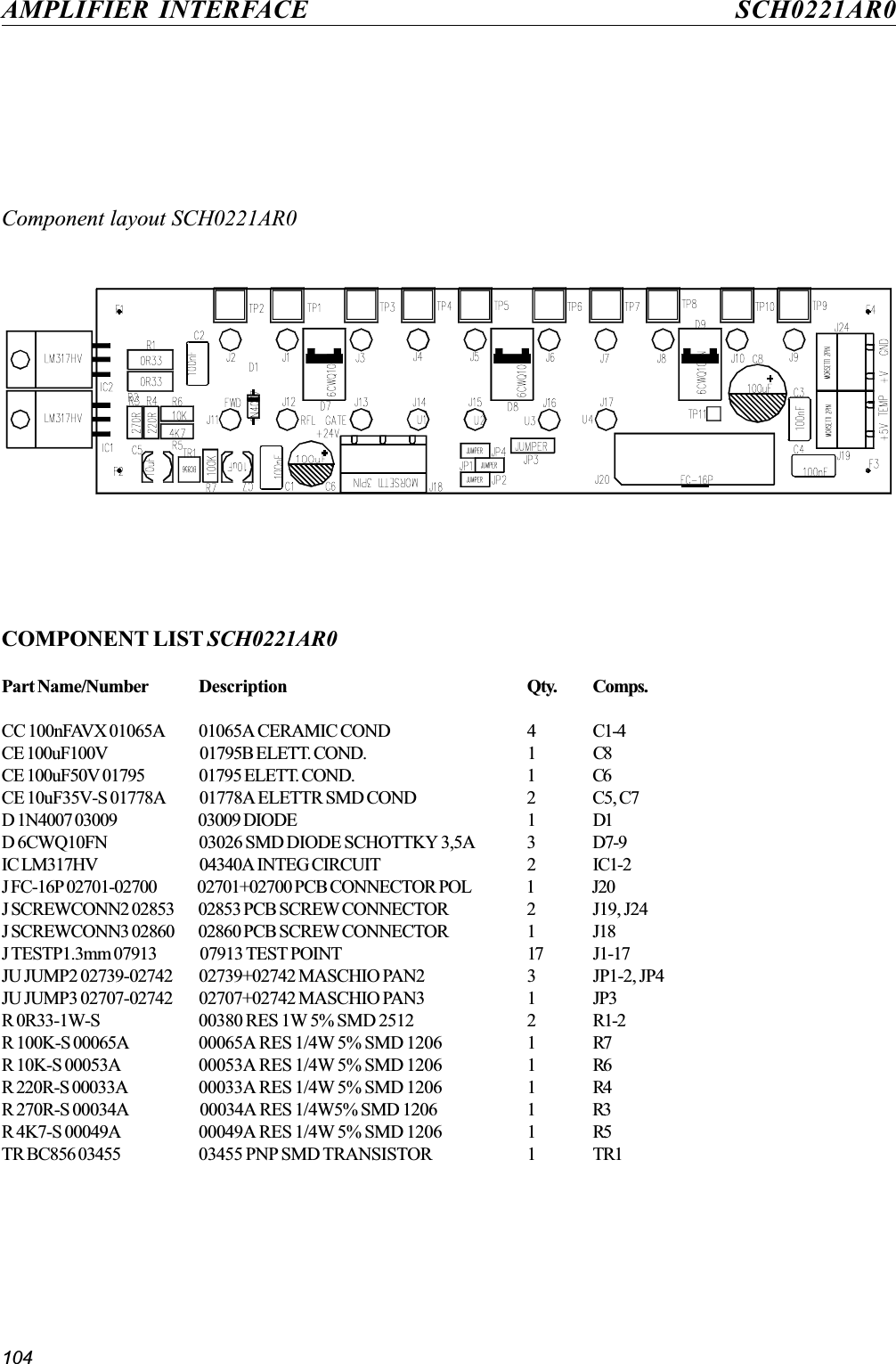

104AMPLIFIER INTERFACE SCH0221AR0Component layout SCH0221AR0COMPONENT LIST SCH0221AR0Part Name/Number Description Qty. Comps.CC 100nFAVX 01065A 01065A CERAMIC COND 4 C1-4CE 100uF100V 01795B ELETT. COND. 1 C8CE 100uF50V 01795 01795 ELETT. COND. 1 C6CE 10uF35V-S 01778A 01778A ELETTR SMD COND 2 C5, C7D 1N4007 03009 03009 DIODE 1 D1D 6CWQ10FN 03026 SMD DIODE SCHOTTKY 3,5A 3 D7-9IC LM317HV 04340A INTEG CIRCUIT 2 IC1-2J FC-16P 02701-02700 02701+02700 PCB CONNECTOR POL 1 J20J SCREWCONN2 02853 02853 PCB SCREW CONNECTOR 2 J19, J24J SCREWCONN3 02860 02860 PCB SCREW CONNECTOR 1 J18J TESTP1.3mm 07913 07913 TEST POINT 17 J1-17JU JUMP2 02739-02742 02739+02742 MASCHIO PAN2 3 JP1-2, JP4JU JUMP3 02707-02742 02707+02742 MASCHIO PAN3 1 JP3R 0R33-1W-S 00380 RES 1W 5% SMD 2512 2 R1-2R 100K-S 00065A 00065A RES 1/4W 5% SMD 1206 1 R7R 10K-S 00053A 00053A RES 1/4W 5% SMD 1206 1 R6R 220R-S 00033A 00033A RES 1/4W 5% SMD 1206 1 R4R 270R-S 00034A 00034A RES 1/4W5% SMD 1206 1 R3R 4K7-S 00049A 00049A RES 1/4W 5% SMD 1206 1 R5TR BC856 03455 03455 PNP SMD TRANSISTOR 1 TR1

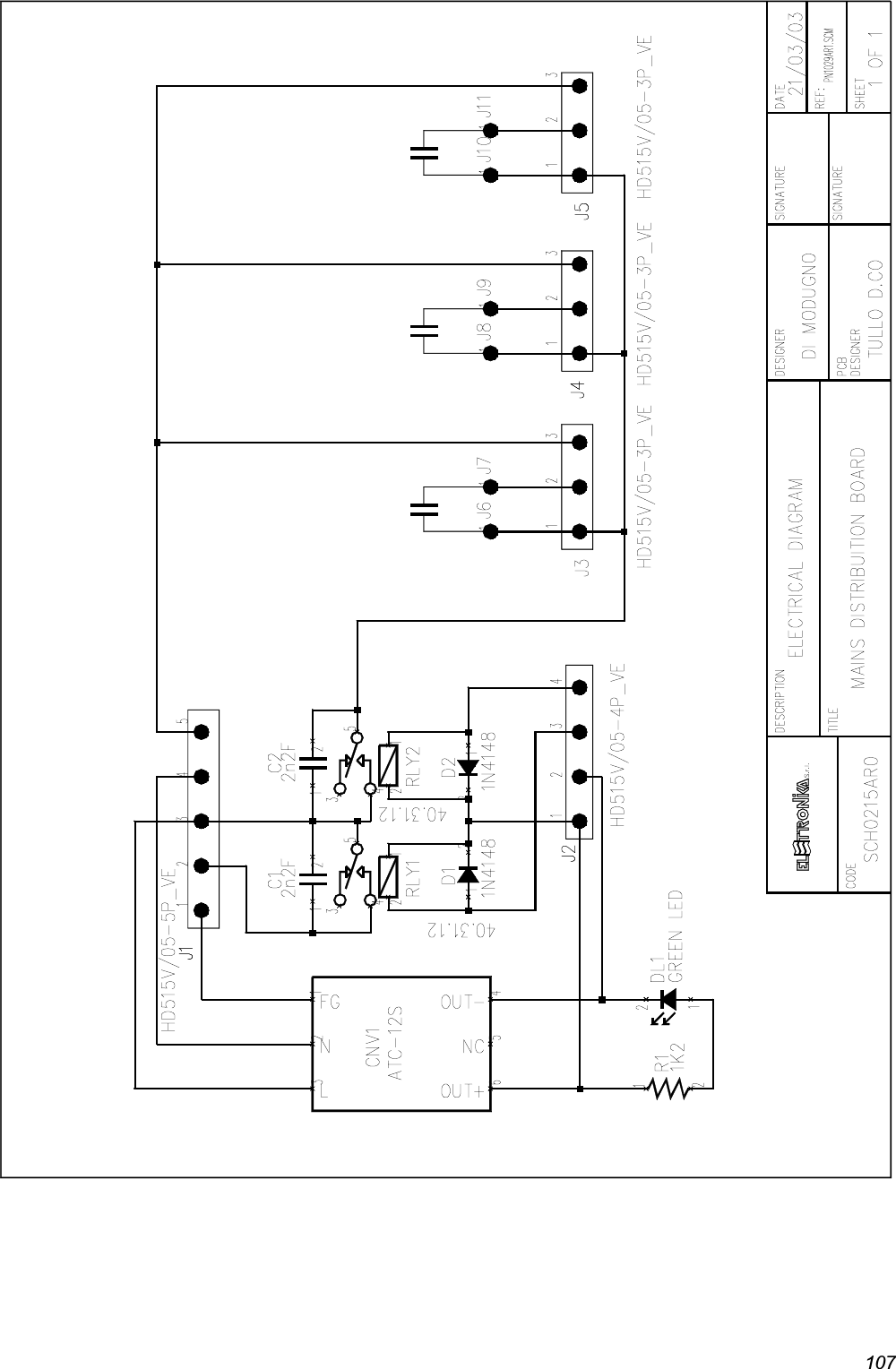

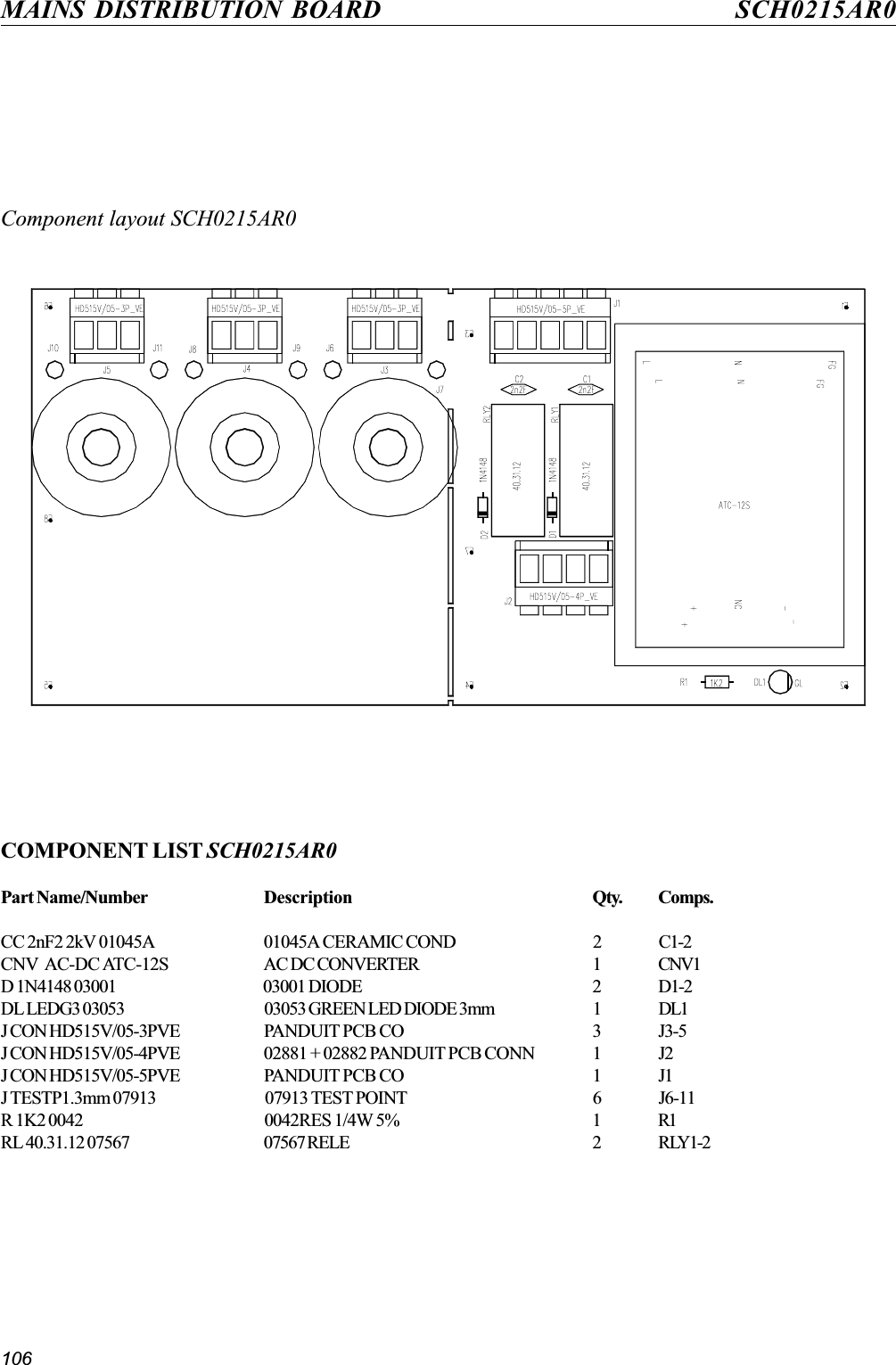

105
106MAINS DISTRIBUTION BOARD SCH0215AR0Component layout SCH0215AR0COMPONENT LIST SCH0215AR0Part Name/Number Description Qty. Comps.CC 2nF2 2kV 01045A 01045A CERAMIC COND 2 C1-2CNV AC-DC ATC-12S AC DC CONVERTER 1 CNV1D 1N4148 03001 03001 DIODE 2 D1-2DL LEDG3 03053 03053 GREEN LED DIODE 3mm 1 DL1J CON HD515V/05-3PVE PANDUIT PCB CO 3 J3-5J CON HD515V/05-4PVE 02881 + 02882 PANDUIT PCB CONN 1 J2J CON HD515V/05-5PVE PANDUIT PCB CO 1 J1J TESTP1.3mm 07913 07913 TEST POINT 6 J6-11R 1K2 0042 0042RES 1/4W 5% 1 R1RL 40.31.12 07567 07567 RELE 2 RLY1-2
107

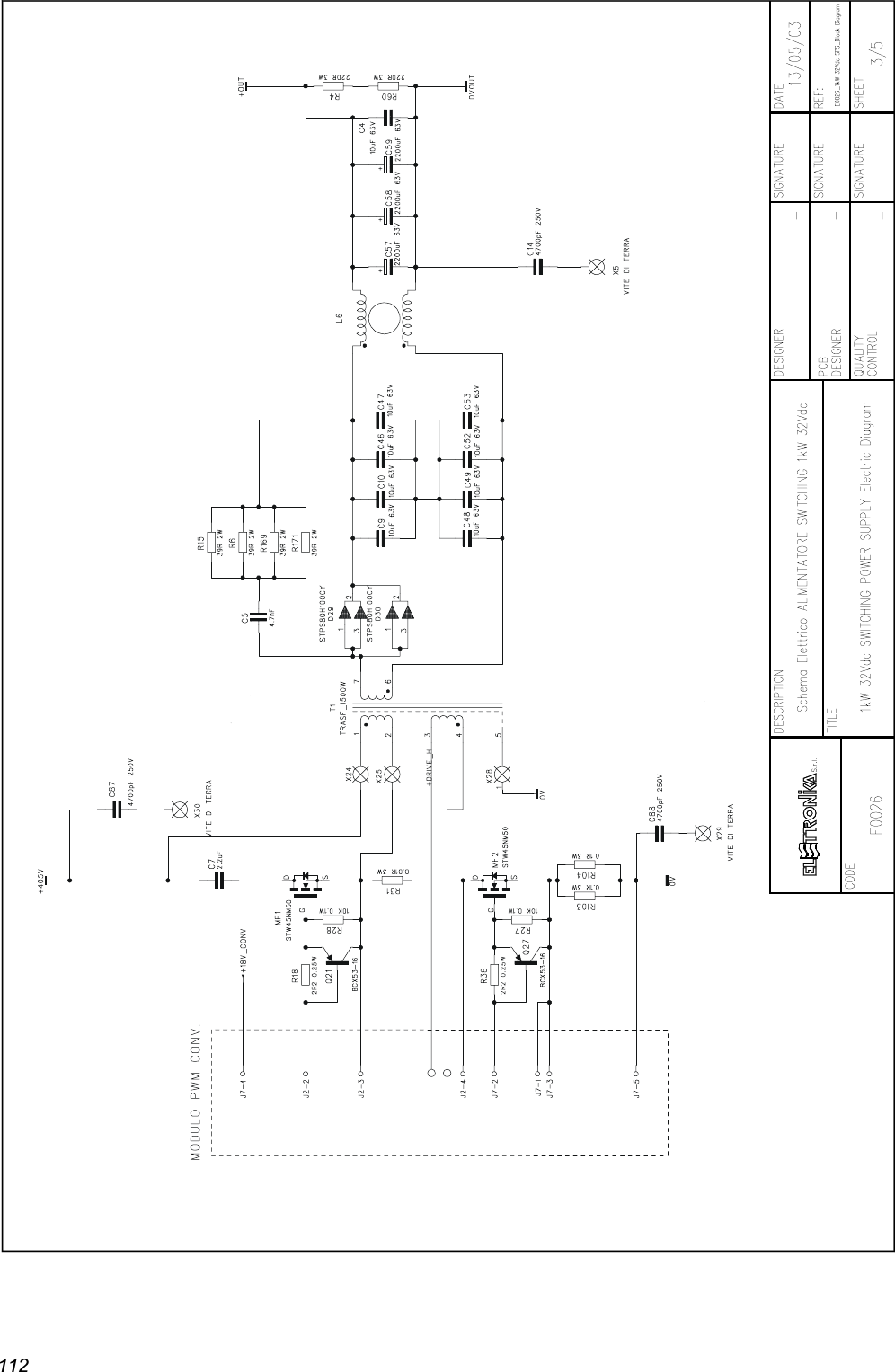

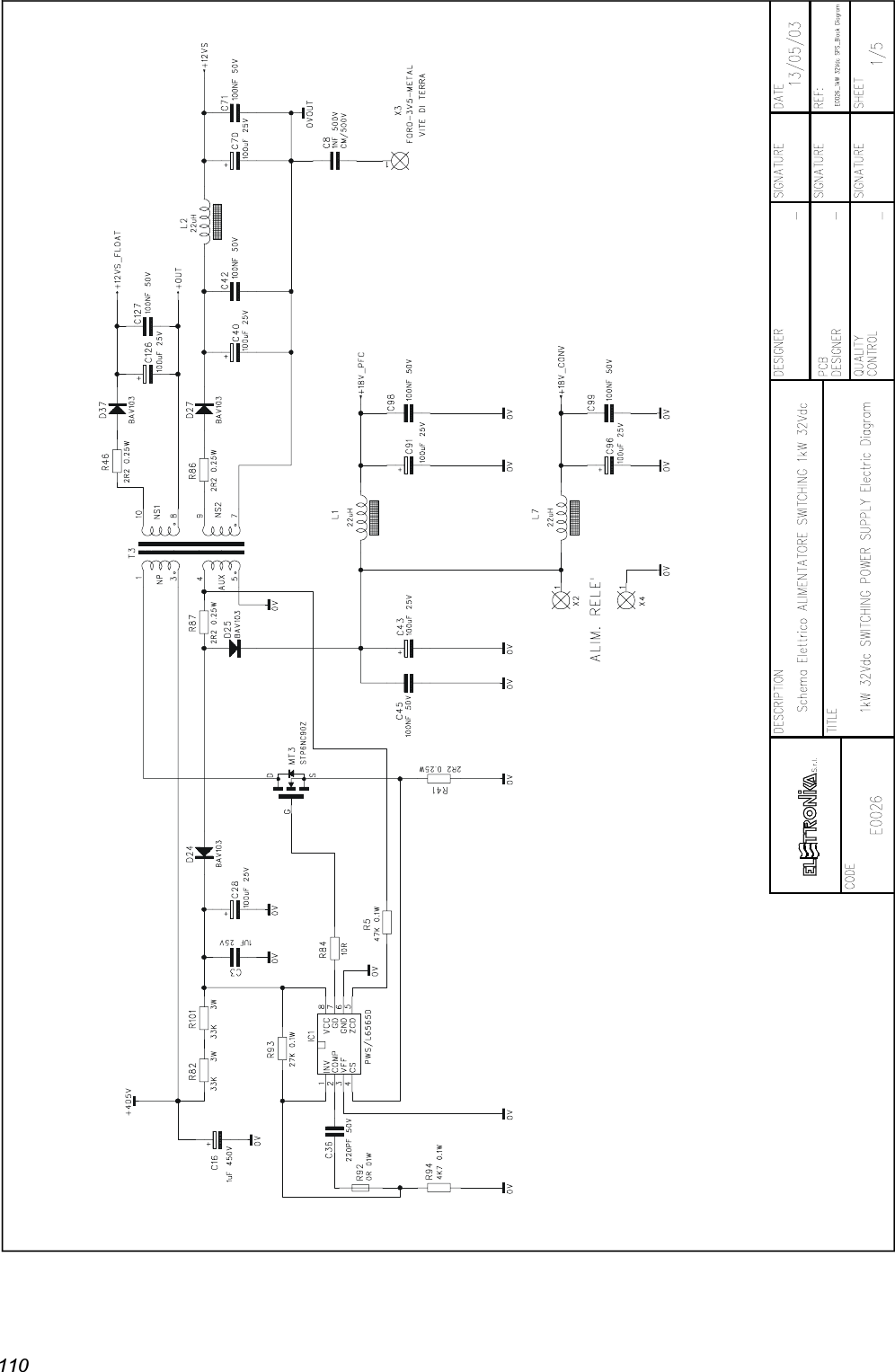

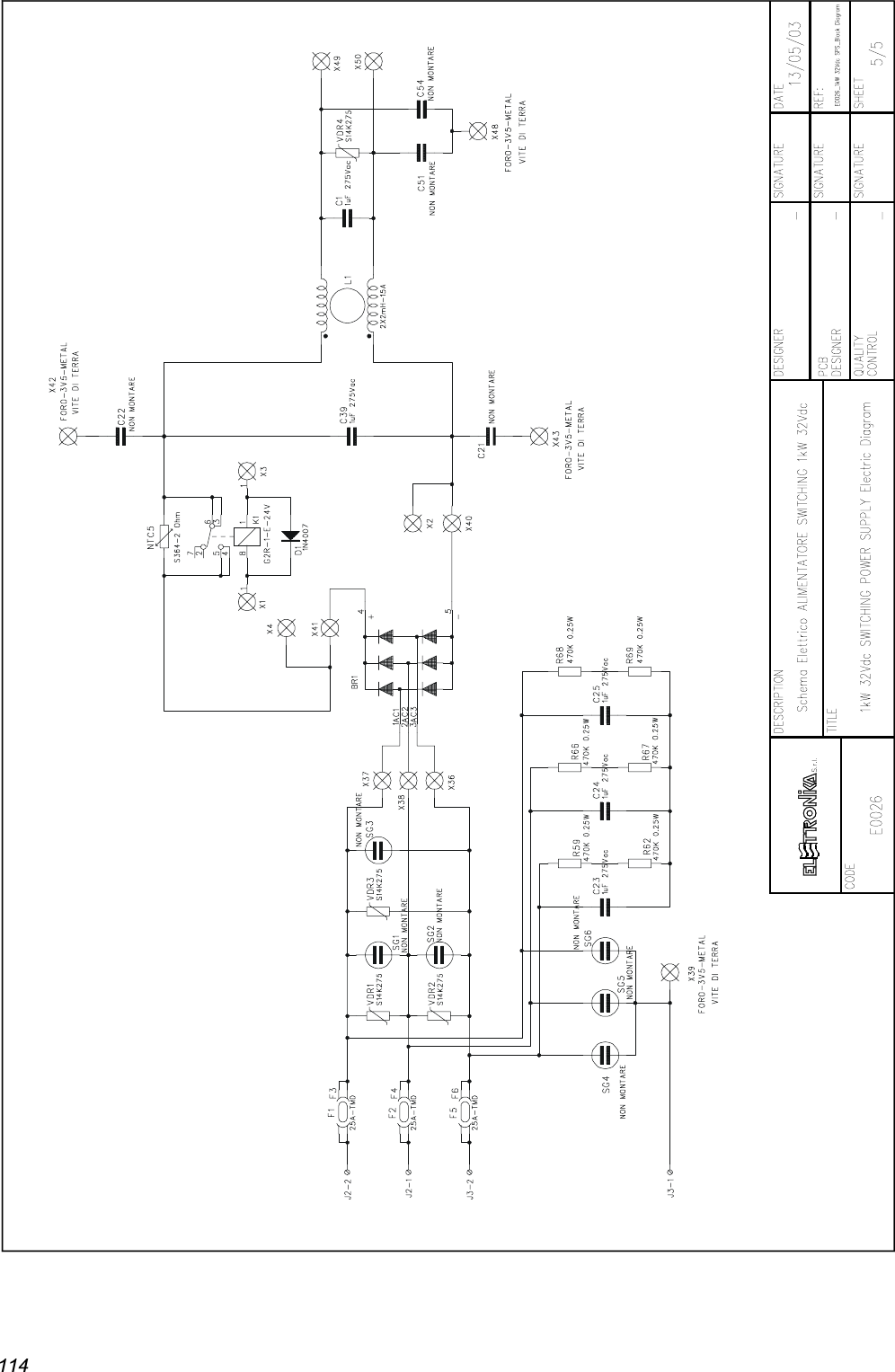

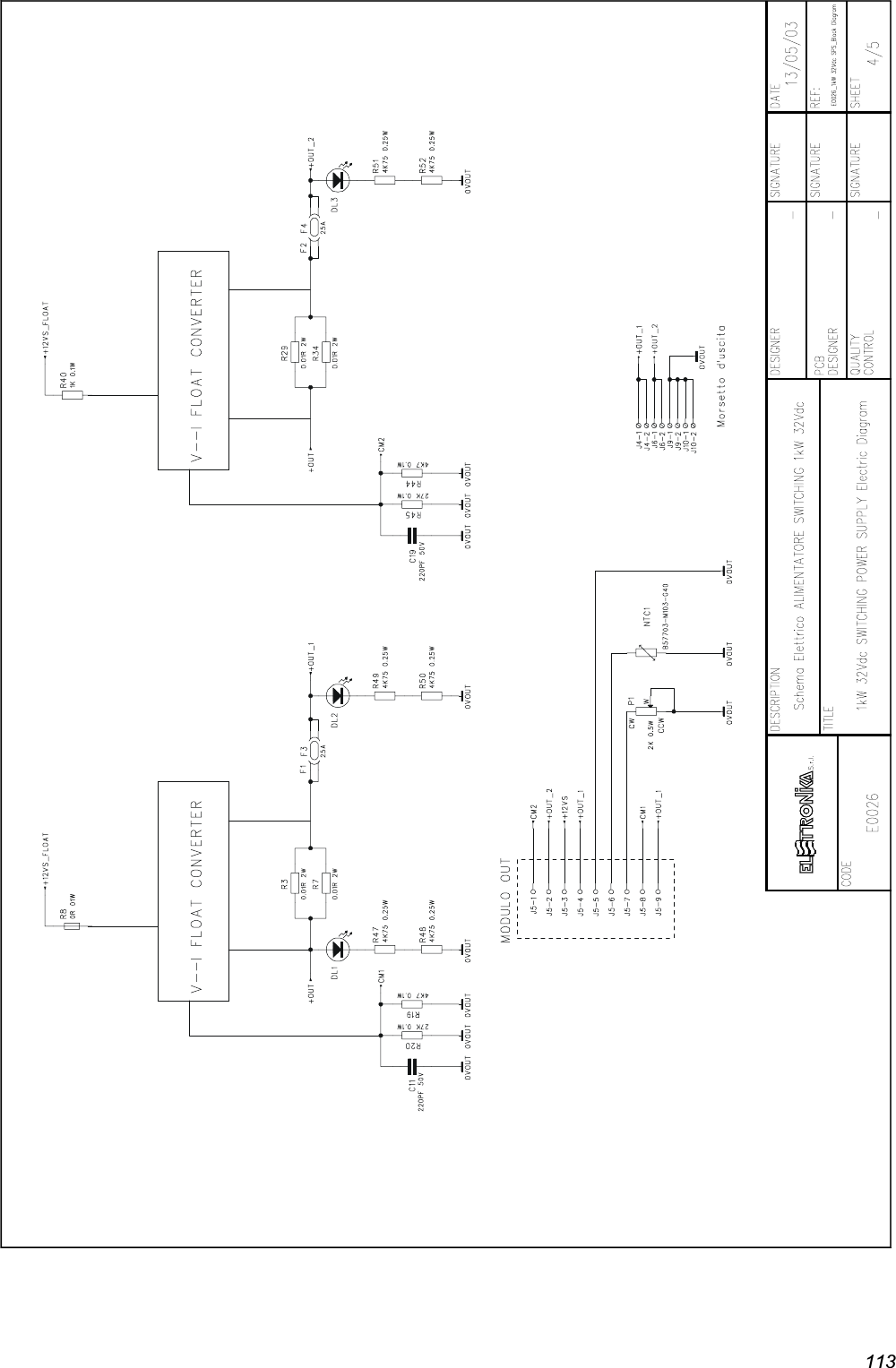

108TECHNICAL CHARACTERISTICS- Input characteristicsVin: 100..240VrmsREND.: 80%lin@FL: 16..6,5ArmsPF>0.95@FL (PFC)- Output characteristicsPout: 1300W on 2 outputsVout: 2 options a) 32Vdc 40A on 2 outputsb) 52Vdc 25A on 2 outputsBlock Diagram1kW 32Vdc SWITCHING POWER SUPPLY E0026AUXPRIMAUXAUXSECL RN S T EMIFILTERPFCPOWERSTAGEMAINCONVERTERPOWERSTAGE+11+2+2OUTPUTCONTROLANDPROTECTIONMONITORFLAT10PINFeedbackinhibitinhibit
109
110
111
112
113
114
115
116

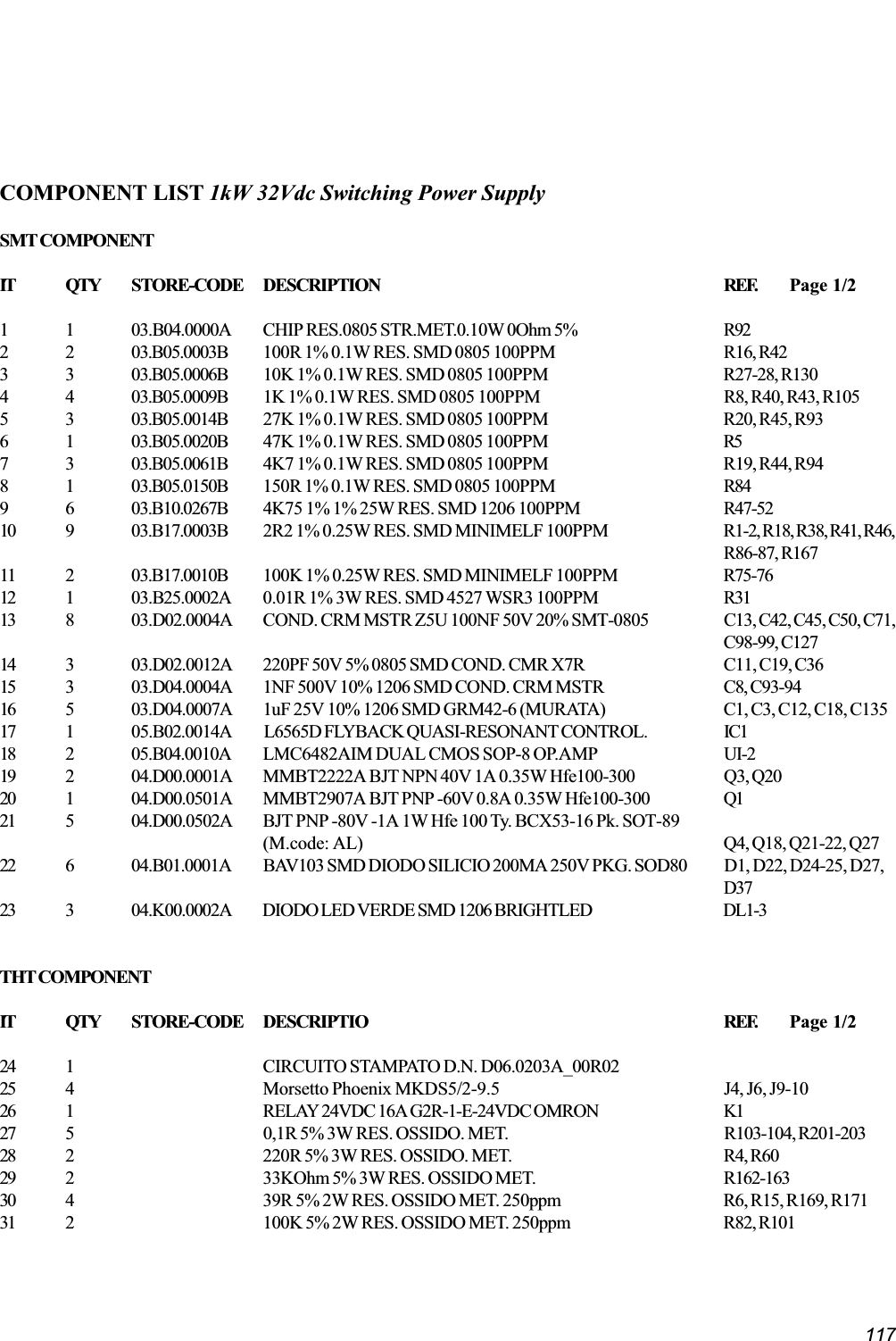

117COMPONENT LIST 1kW 32Vdc Switching Power SupplySMT COMPONENTIT QTY STORE-CODE DESCRIPTION REF. Page 1/21 1 03.B04.0000A CHIP RES.0805 STR.MET.0.10W 0Ohm 5% R922 2 03.B05.0003B 100R 1% 0.1W RES. SMD 0805 100PPM R16, R423 3 03.B05.0006B 10K 1% 0.1W RES. SMD 0805 100PPM R27-28, R1304 4 03.B05.0009B 1K 1% 0.1W RES. SMD 0805 100PPM R8, R40, R43, R1055 3 03.B05.0014B 27K 1% 0.1W RES. SMD 0805 100PPM R20, R45, R936 1 03.B05.0020B 47K 1% 0.1W RES. SMD 0805 100PPM R57 3 03.B05.0061B 4K7 1% 0.1W RES. SMD 0805 100PPM R19, R44, R948 1 03.B05.0150B 150R 1% 0.1W RES. SMD 0805 100PPM R849 6 03.B10.0267B 4K75 1% 1% 25W RES. SMD 1206 100PPM R47-5210 9 03.B17.0003B 2R2 1% 0.25W RES. SMD MINIMELF 100PPM R1-2, R18, R38, R41, R46,R86-87, R16711 2 03.B17.0010B 100K 1% 0.25W RES. SMD MINIMELF 100PPM R75-7612 1 03.B25.0002A 0.01R 1% 3W RES. SMD 4527 WSR3 100PPM R3113 8 03.D02.0004A COND. CRM MSTR Z5U 100NF 50V 20% SMT-0805 C13, C42, C45, C50, C71,C98-99, C12714 3 03.D02.0012A 220PF 50V 5% 0805 SMD COND. CMR X7R C11, C19, C3615 3 03.D04.0004A 1NF 500V 10% 1206 SMD COND. CRM MSTR C8, C93-9416 5 03.D04.0007A 1uF 25V 10% 1206 SMD GRM42-6 (MURATA) C1, C3, C12, C18, C13517 1 05.B02.0014A L6565D FLYBACK QUASI-RESONANT CONTROL. IC118 2 05.B04.0010A LMC6482AIM DUAL CMOS SOP-8 OP.AMP UI-219 2 04.D00.0001A MMBT2222A BJT NPN 40V 1A 0.35W Hfe100-300 Q3, Q2020 1 04.D00.0501A MMBT2907A BJT PNP -60V 0.8A 0.35W Hfe100-300 Q121 5 04.D00.0502A BJT PNP -80V -1A 1W Hfe 100 Ty. BCX53-16 Pk. SOT-89(M.code: AL) Q4, Q18, Q21-22, Q2722 6 04.B01.0001A BAV103 SMD DIODO SILICIO 200MA 250V PKG. SOD80 D1, D22, D24-25, D27,D3723 3 04.K00.0002A DIODO LED VERDE SMD 1206 BRIGHTLED DL1-3THT COMPONENTIT QTY STORE-CODE DESCRIPTIO REF. Page 1/224 1 CIRCUITO STAMPATO D.N. D06.0203A_00R0225 4 Morsetto Phoenix MKDS5/2-9.5 J4, J6, J9-1026 1 RELAY 24VDC 16A G2R-1-E-24VDC OMRON K127 5 0,1R 5% 3W RES. OSSIDO. MET. R103-104, R201-20328 2 220R 5% 3W RES. OSSIDO. MET. R4, R6029 2 33KOhm 5% 3W RES. OSSIDO MET. R162-16330 4 39R 5% 2W RES. OSSIDO MET. 250ppm R6, R15, R169, R17131 2 100K 5% 2W RES. OSSIDO MET. 250ppm R82, R101

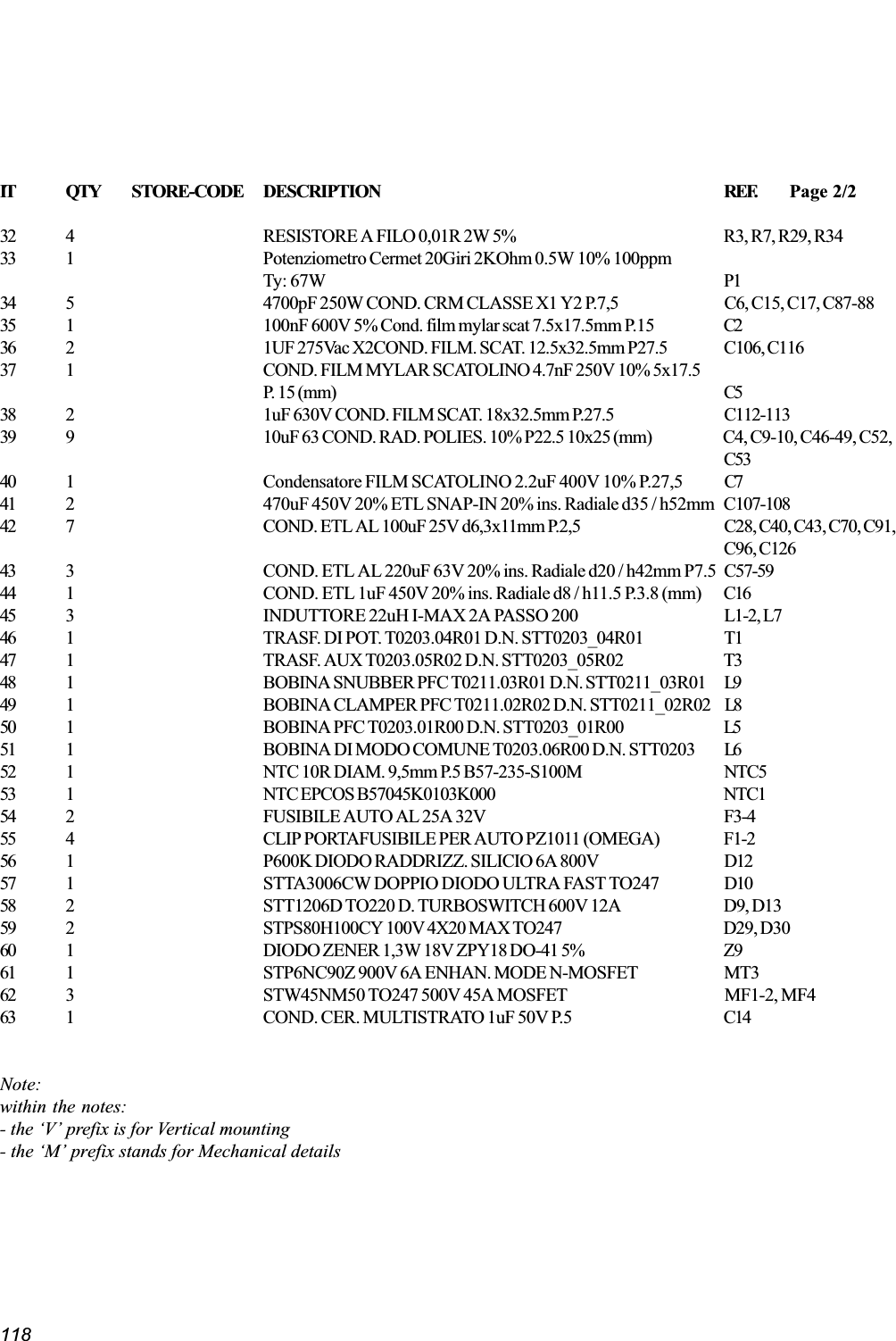

118IT QTY STORE-CODE DESCRIPTION REF. Page 2/232 4 RESISTORE A FILO 0,01R 2W 5% R3, R7, R29, R3433 1 Potenziometro Cermet 20Giri 2KOhm 0.5W 10% 100ppmTy: 67W P134 5 4700pF 250W COND. CRM CLASSE X1 Y2 P.7,5 C6, C15, C17, C87-8835 1 100nF 600V 5% Cond. film mylar scat 7.5x17.5mm P.15 C236 2 1UF 275Vac X2COND. FILM. SCAT. 12.5x32.5mm P27.5 C106, C11637 1 COND. FILM MYLAR SCATOLINO 4.7nF 250V 10% 5x17.5P. 15 (mm) C538 2 1uF 630V COND. FILM SCAT. 18x32.5mm P.27.5 C112-11339 9 10uF 63 COND. RAD. POLIES. 10% P22.5 10x25 (mm) C4, C9-10, C46-49, C52,C5340 1 Condensatore FILM SCATOLINO 2.2uF 400V 10% P.27,5 C741 2 470uF 450V 20% ETL SNAP-IN 20% ins. Radiale d35 / h52mm C107-10842 7 COND. ETL AL 100uF 25V d6,3x11mm P.2,5 C28, C40, C43, C70, C91,C96, C12643 3 COND. ETL AL 220uF 63V 20% ins. Radiale d20 / h42mm P7.5 C57-5944 1 COND. ETL 1uF 450V 20% ins. Radiale d8 / h11.5 P.3.8 (mm) C1645 3 INDUTTORE 22uH I-MAX 2A PASSO 200 L1-2, L746 1 TRASF. DI POT. T0203.04R01 D.N. STT0203_04R01 T147 1 TRASF. AUX T0203.05R02 D.N. STT0203_05R02 T348 1 BOBINA SNUBBER PFC T0211.03R01 D.N. STT0211_03R01 L949 1 BOBINA CLAMPER PFC T0211.02R02 D.N. STT0211_02R02 L850 1 BOBINA PFC T0203.01R00 D.N. STT0203_01R00 L551 1 BOBINA DI MODO COMUNE T0203.06R00 D.N. STT0203 L652 1 NTC 10R DIAM. 9,5mm P.5 B57-235-S100M NTC553 1 NTC EPCOS B57045K0103K000 NTC154 2 FUSIBILE AUTO AL 25A 32V F3-455 4 CLIP PORTAFUSIBILE PER AUTO PZ1011 (OMEGA) F1-256 1 P600K DIODO RADDRIZZ. SILICIO 6A 800V D1257 1 STTA3006CW DOPPIO DIODO ULTRA FAST TO247 D1058 2 STT1206D TO220 D. TURBOSWITCH 600V 12A D9, D1359 2 STPS80H100CY 100V 4X20 MAX TO247 D29, D3060 1 DIODO ZENER 1,3W 18V ZPY18 DO-41 5% Z961 1 STP6NC90Z 900V 6A ENHAN. MODE N-MOSFET MT362 3 STW45NM50 TO247 500V 45A MOSFET MF1-2, MF463 1 COND. CER. MULTISTRATO 1uF 50V P.5 C14Note:within the notes:- the V prefix is for Vertical mounting- the M prefix stands for Mechanical details

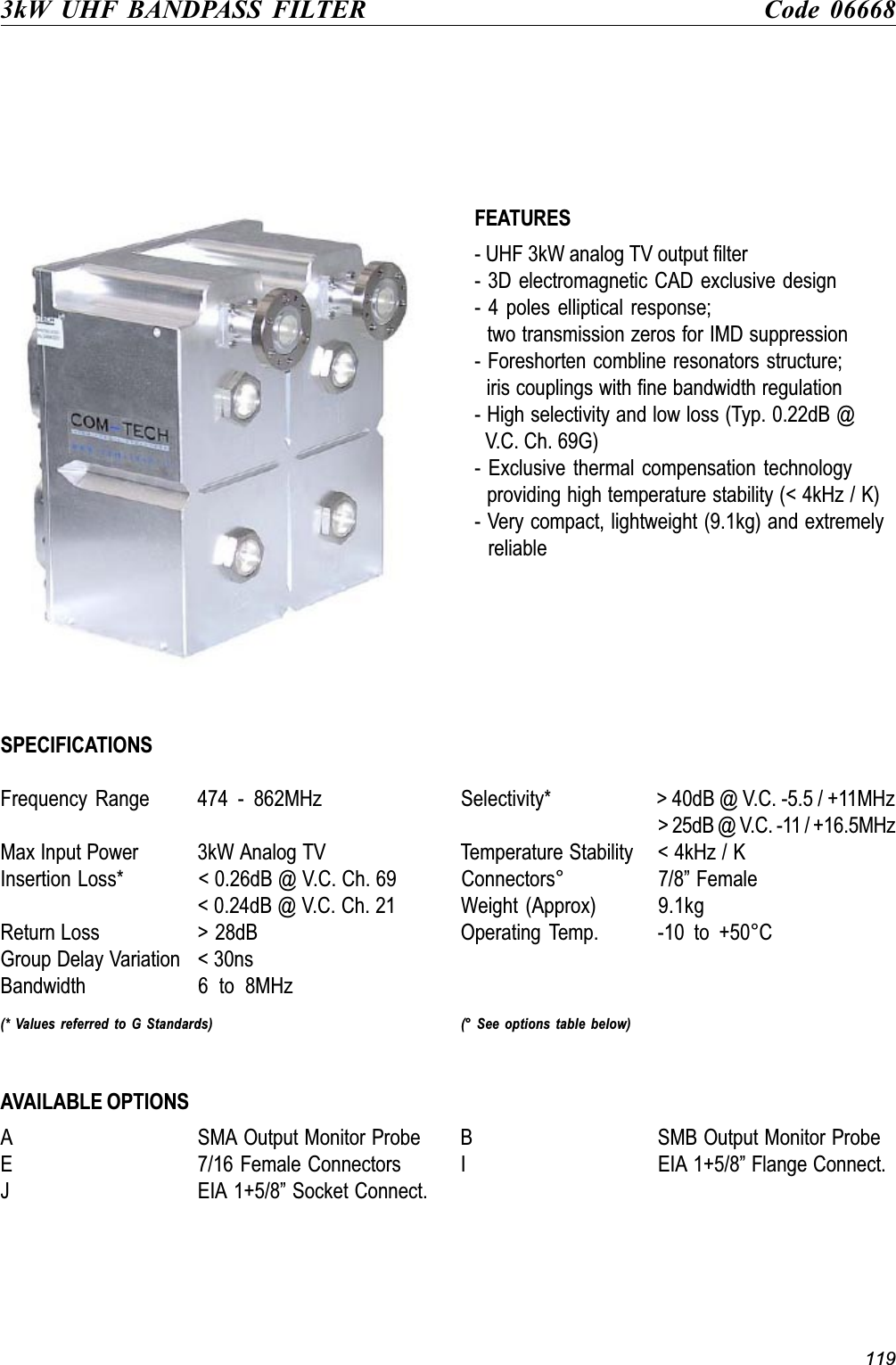

1193kW UHF BANDPASS FILTER Code 06668FEATURES- UHF 3kW analog TV output filter- 3D electromagnetic CAD exclusive design- 4 poles elliptical response; two transmission zeros for IMD suppression- Foreshorten combline resonators structure; iris couplings with fine bandwidth regulation- High selectivity and low loss (Typ. 0.22dB @ V.C. Ch. 69G)- Exclusive thermal compensation technology providing high temperature stability (< 4kHz / K)- Very compact, lightweight (9.1kg) and extremely reliableSPECIFICATIONSFrequency Range 474 - 862MHz Selectivity* > 40dB @ V.C. -5.5 / +11MHz> 25dB @ V.C. -11 / +16.5MHzMax Input Power 3kW Analog TV Temperature Stability < 4kHz / KInsertion Loss* < 0.26dB @ V.C. Ch. 69 Connectors° 7/8 Female< 0.24dB @ V.C. Ch. 21 Weight (Approx) 9.1kgReturn Loss > 28dB Operating Temp. -10 to +50°CGroup Delay Variation < 30nsBandwidth 6 to 8MHz(* Values referred to G Standards) (° See options table below)AVAILABLE OPTIONSA SMA Output Monitor Probe B SMB Output Monitor ProbeE 7/16 Female Connectors I EIA 1+5/8 Flange Connect.J EIA 1+5/8 Socket Connect.

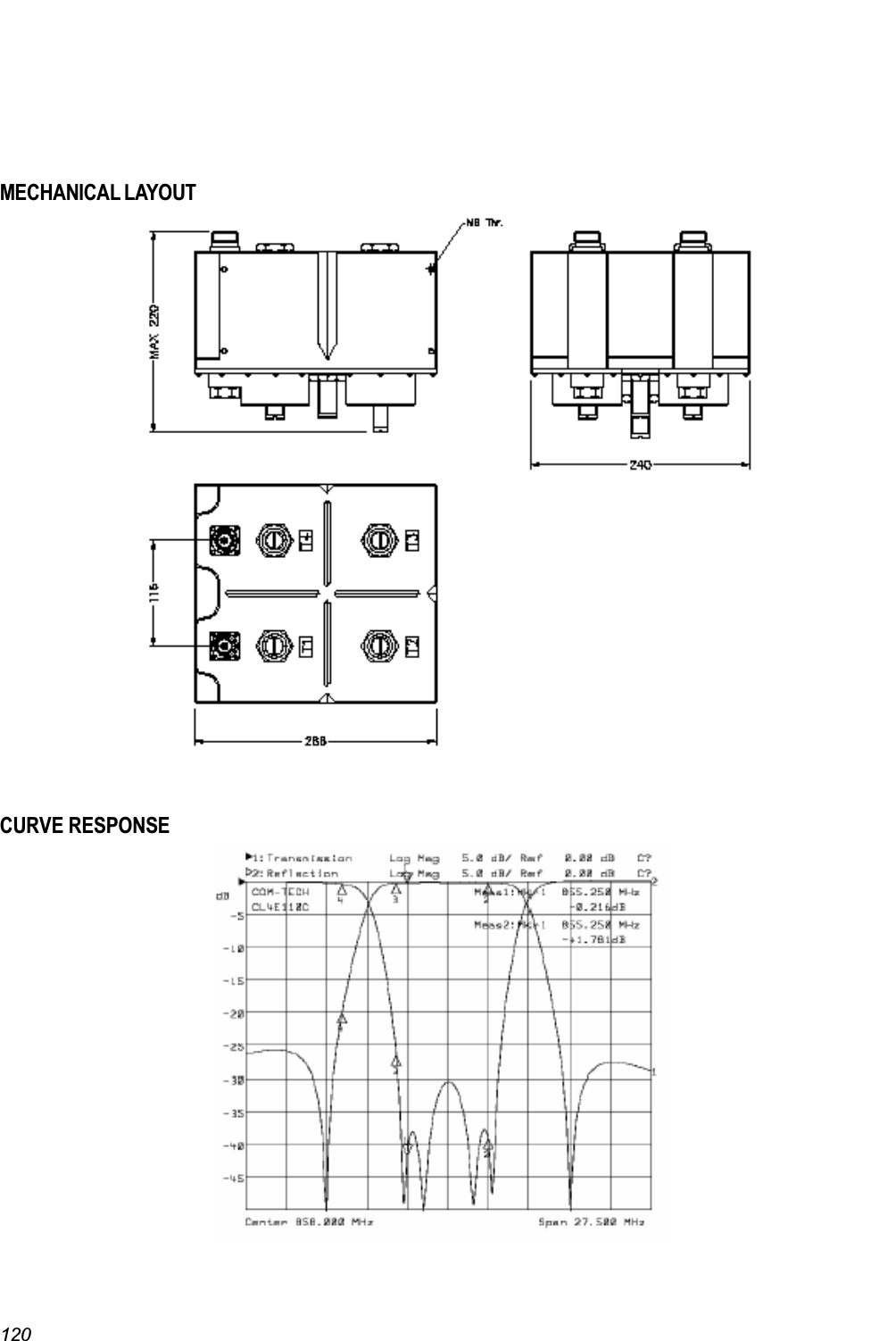

120MECHANICAL LAYOUTCURVE RESPONSE
