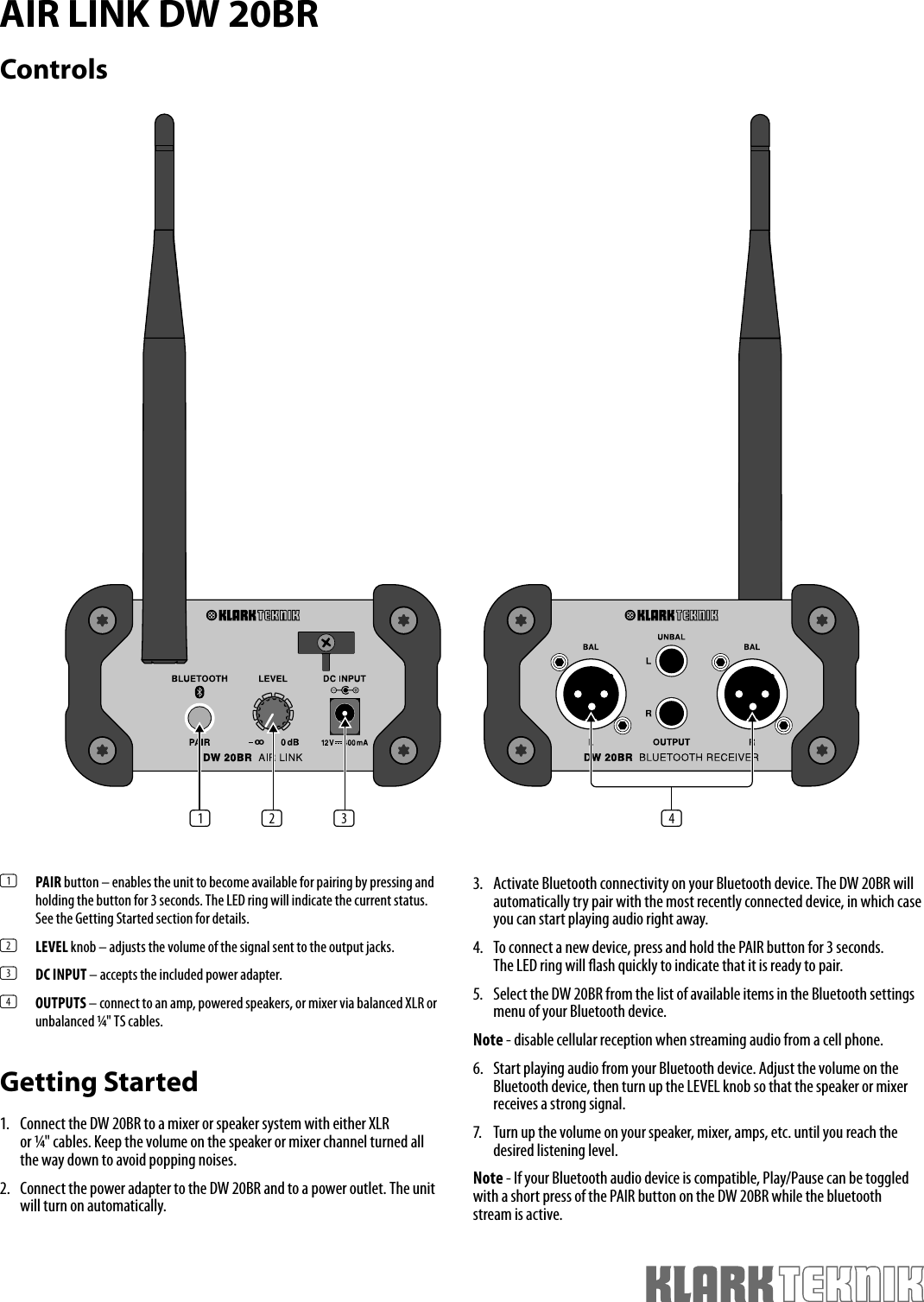

AIR LINK DW 20BRControls(1) PAIR button – enables the unit to become available for pairing by pressing and holding the button for 3 seconds. The LED ring will indicate the current status. See the Getting Started section for details. (2) LEVEL knob – adjusts the volume of the signal sent to the output jacks. (3) DC INPUT – accepts the included power adapter. (4) OUTPUTS – connect to an amp, powered speakers, or mixer via balanced XLR or unbalanced ¼" TS cables. Getting Started1. Connect the DW 20BR to a mixer or speaker system with either XLR or ¼" cables. Keep the volume on the speaker or mixer channel turned all the way down to avoid popping noises. 2. Connect the power adapter to the DW 20BR and to a power outlet. The unit will turn on automatically.3. Activate Bluetooth connectivity on your Bluetooth device. The DW 20BR will automatically try pair with the most recently connected device, in which case you can start playing audio right away. 4. To connect a new device, press and hold the PAIR button for 3 seconds. The LED ring will  ash quickly to indicate that it is ready to pair. 5. Select the DW 20BR from the list of available items in the Bluetooth settings menu of your Bluetooth device. Note - disable cellular reception when streaming audio from a cell phone. 6. Start playing audio from your Bluetooth device. Adjust the volume on the Bluetooth device, then turn up the LEVEL knob so that the speaker or mixer receives a strong signal. 7. Turn up the volume on your speaker, mixer, amps, etc. until you reach the desired listening level.Note - If your Bluetooth audio device is compatible, Play/Pause can be toggled with a short press of the PAIR button on the DW 20BR while the bluetooth stream is active.(1) (2) (3) (4)

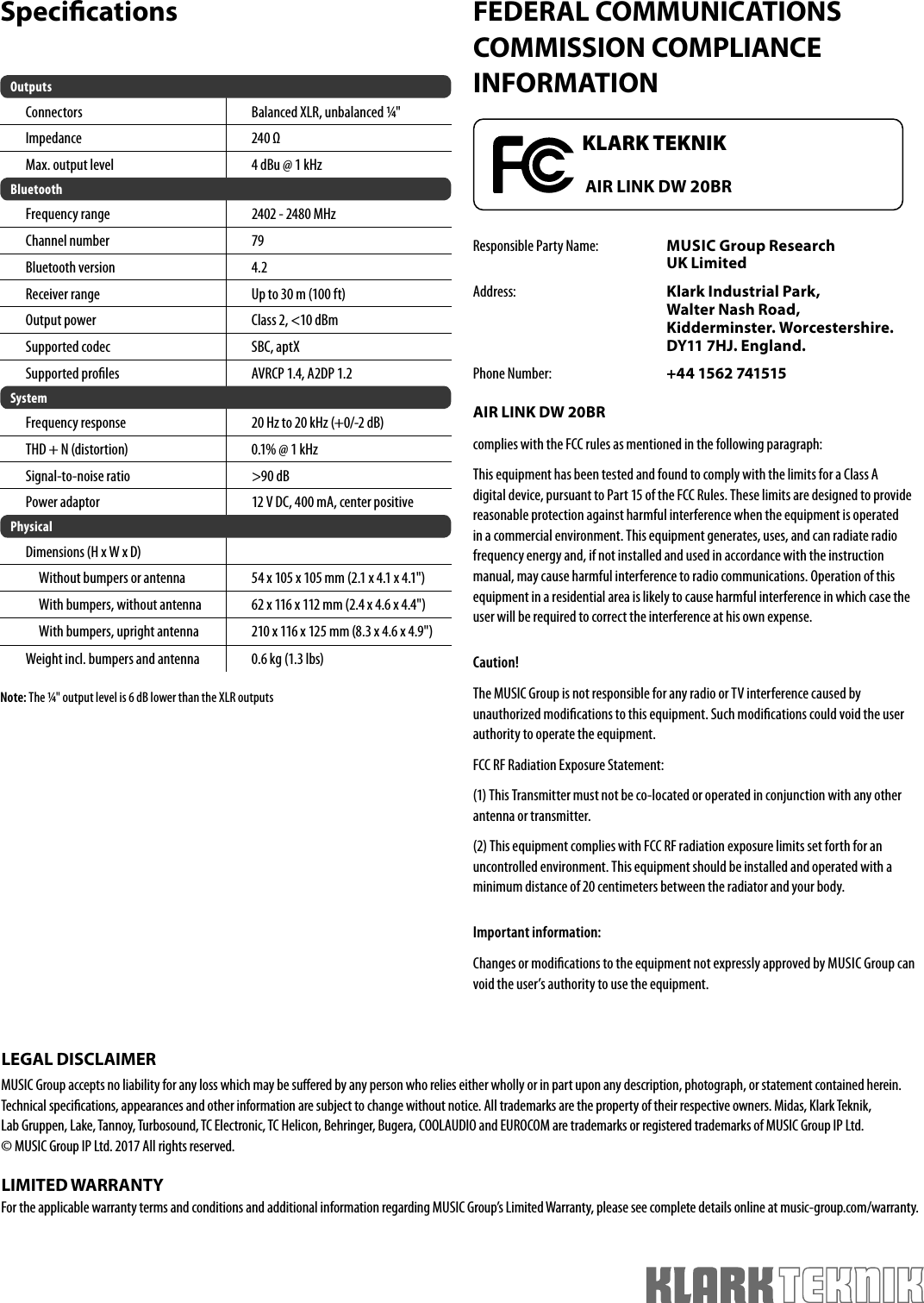

Speci cationsNote: The ¼ " output level is 6 dB lower than the XLR outputsFEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATIONResponsible Party Name: MUSIC Group Research UK LimitedAddress: Klark Industrial Park,Walter Nash Road,Kidderminster. Worcestershire. DY11 7HJ. England.Phone Number: +44 1562 741515AIR LINK DW 20BRcomplies with the FCC rules as mentioned in the following paragraph:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.Caution!The MUSIC Group is not responsible for any radio or TV interference caused by unauthorized modi cations to this equipment. Such modi cations could void the user authority to operate the equipment.FCC RF Radiation Exposure Statement:(1) This Transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.(2) This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.Important information:Changes or modi cations to the equipment not expressly approved by MUSIC Group can void the user’s authority to use the equipment.OutputsConnectors Balanced XLR, unbalanced ¼ "Impedance 240 ΩMax. output level 4 dBu @ 1 kHzBluetoothFrequency range 2402 - 2480 MHz Channel number 79Bluetooth version 4.2 Receiver range Up to 30 m (100 ft) Output power Class 2, <10 dBm Supported codec SBC, aptX Supported pro les AVRCP 1.4, A2DP 1.2 SystemFrequency response 20 Hz to 20 kHz (+0/-2 dB)THD + N (distortion) 0.1% @ 1 kHzSignal-to-noise ratio >90 dBPower adaptor 12 V DC, 400 mA, center positivePhysicalDimensions (H x W x D)Without bumpers or antenna 54 x 105 x 105 mm (2.1 x 4.1 x 4.1")With bumpers, without antenna 62 x 116 x 112 mm (2.4 x 4.6 x 4.4")With bumpers, upright antenna 210 x 116 x 125 mm (8.3 x 4.6 x 4.9")Weight incl. bumpers and antenna 0.6 kg (1.3 lbs)KLARK TEKNIKAIR LINK DW 20BRLEGAL DISCLAIMERMUSIC Group accepts no liability for any loss which may be su ered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical speci cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, COOLAUDIO and EUROCOM are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2017 All rights reserved.LIMITED WARRANTYFor the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at music-group.com/warranty.
