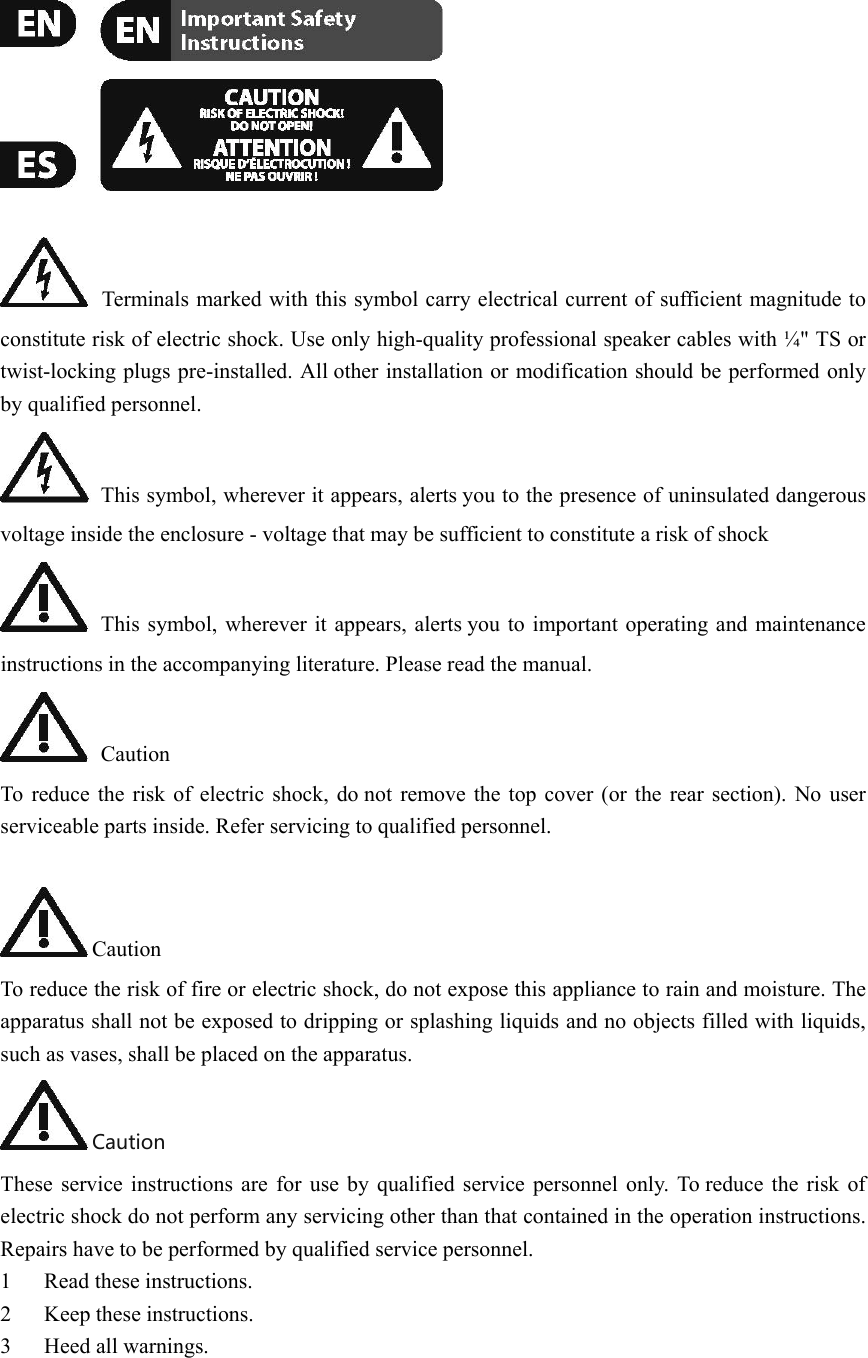

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings.

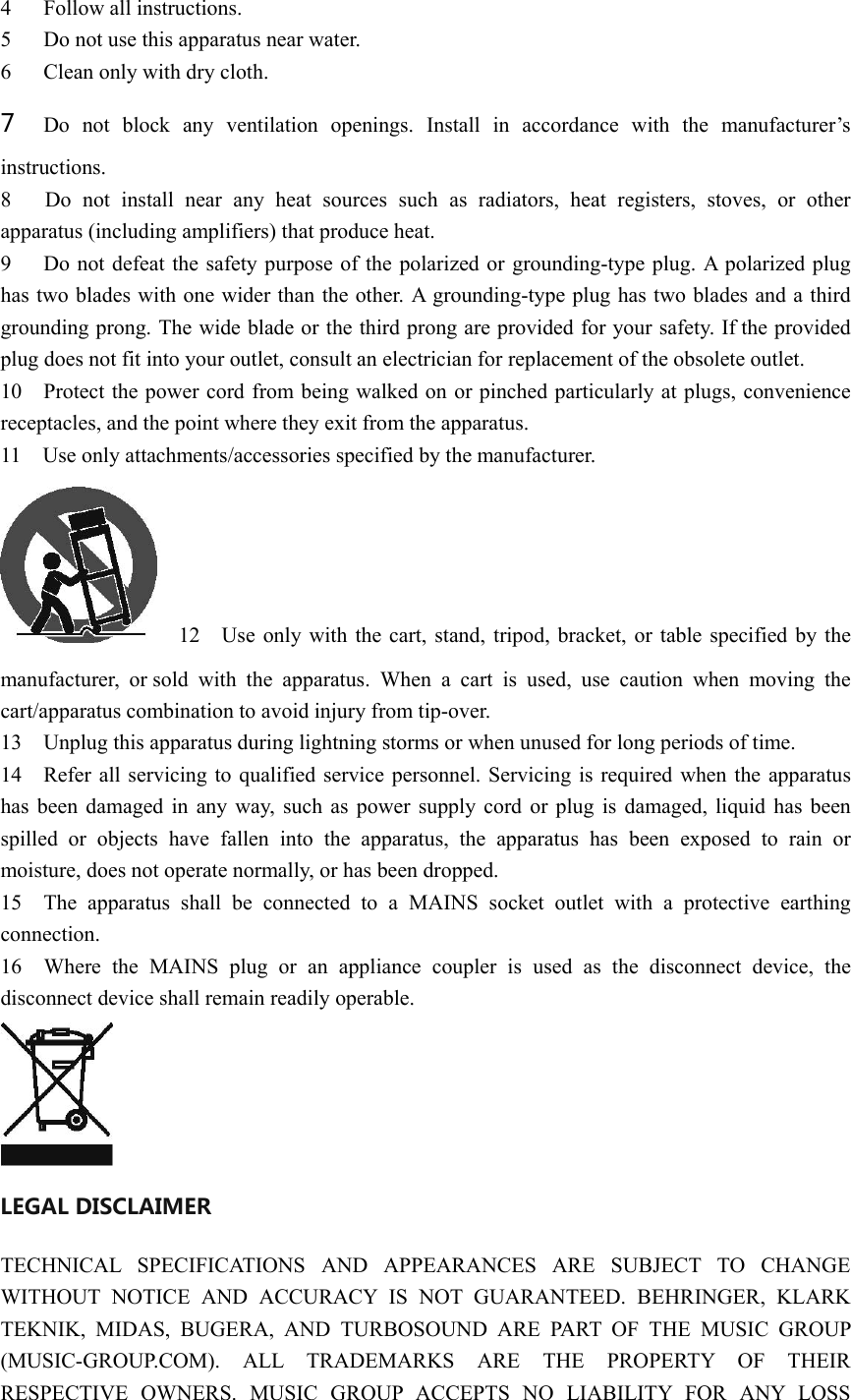

4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Use only attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15 The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection. 16 Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. LEGAL DISCLAIMER TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, AND TURBOSOUND ARE PART OF THE MUSIC GROUP (MUSIC-GROUP.COM). ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS
WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIEDUNDERTAKING OR REPRESENTATION. THIS MANUALIS COPYRIGHTED. NO PART OF THIS MANUAL MAYBE REPRODUCED OR TRANSMITTED IN ANY FORMOR BY ANY MEANS, ELECTRONIC OR MECHANICAL,INCLUDING PHOTOCOPYING AND RECORDING OF ANYKIND, FOR ANY PURPOSE WITHOUT THE EXPRESSWRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED. © 2013MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146,Road Town, Tortola, British Virgin Islands LIMITED WARRANTY For the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at www.music-group.com/warranty.

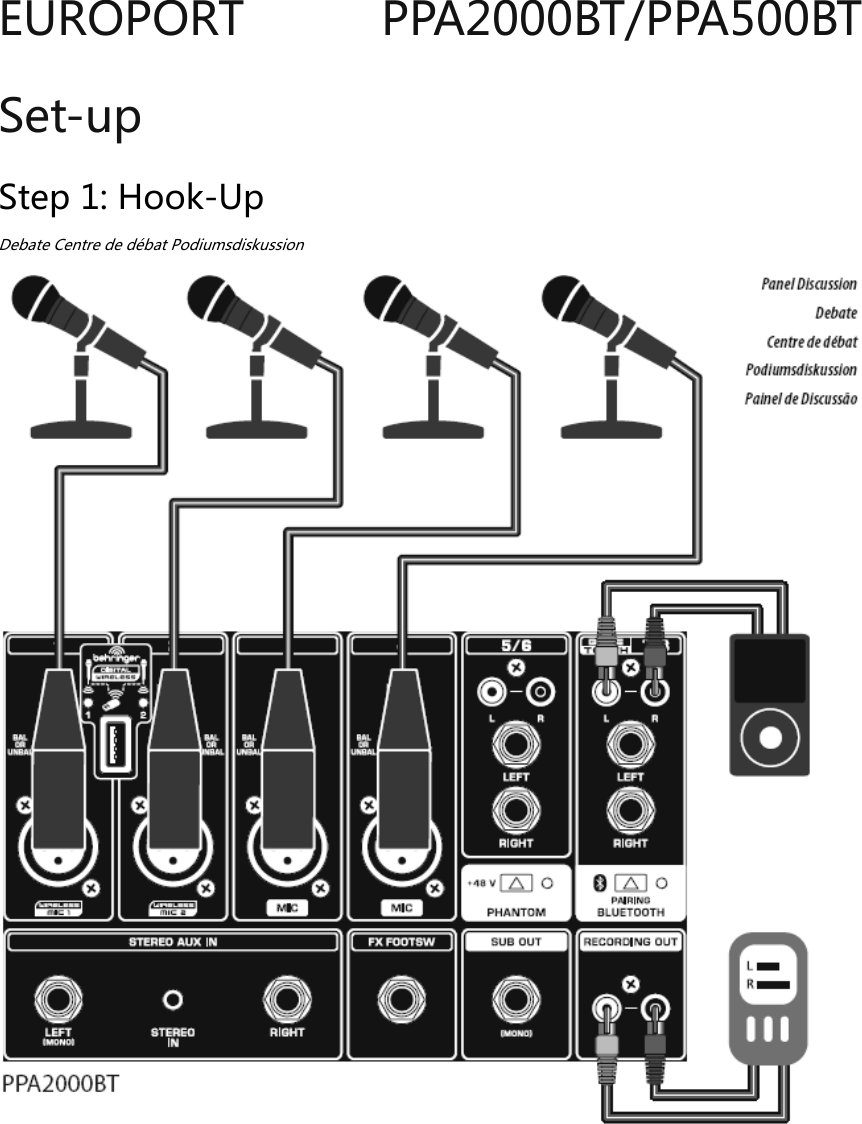

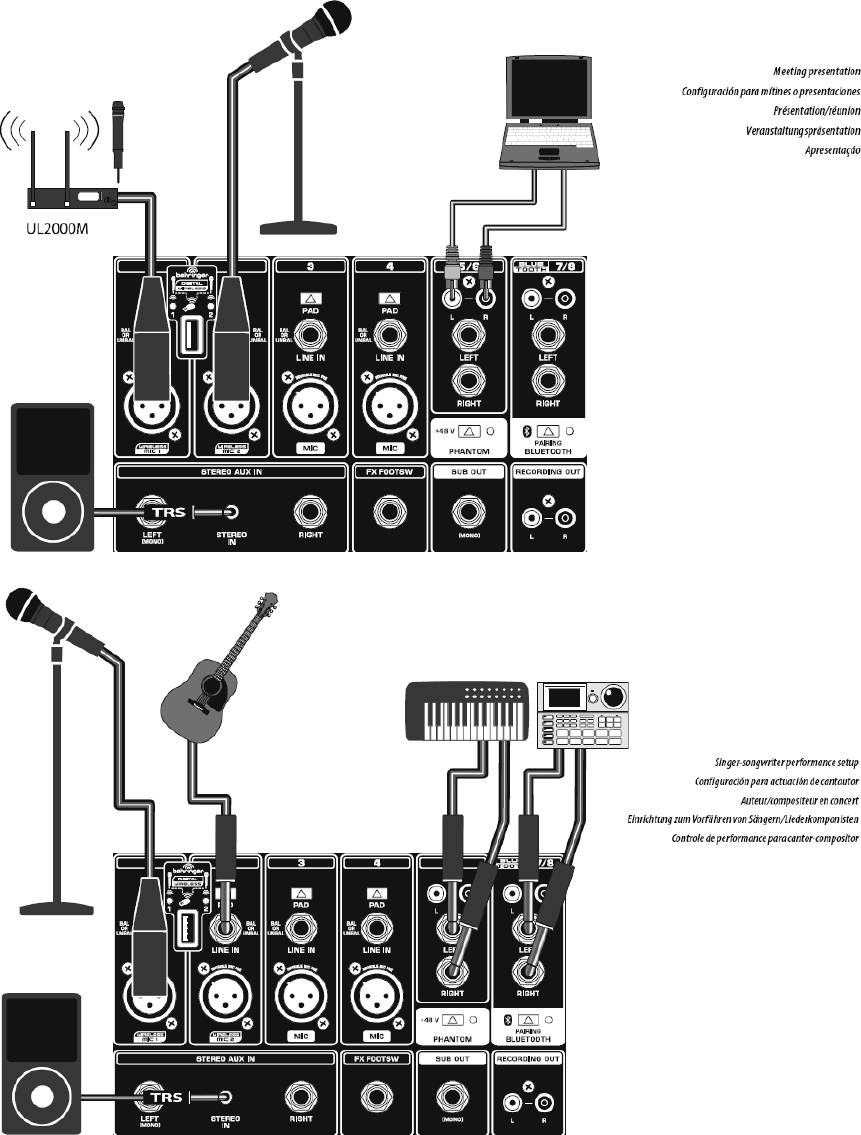

EUROPORT PPA2000BT/PPA500BT Set-up Step 1: Hook-Up Debate Centre de débat Podiumsdiskussion

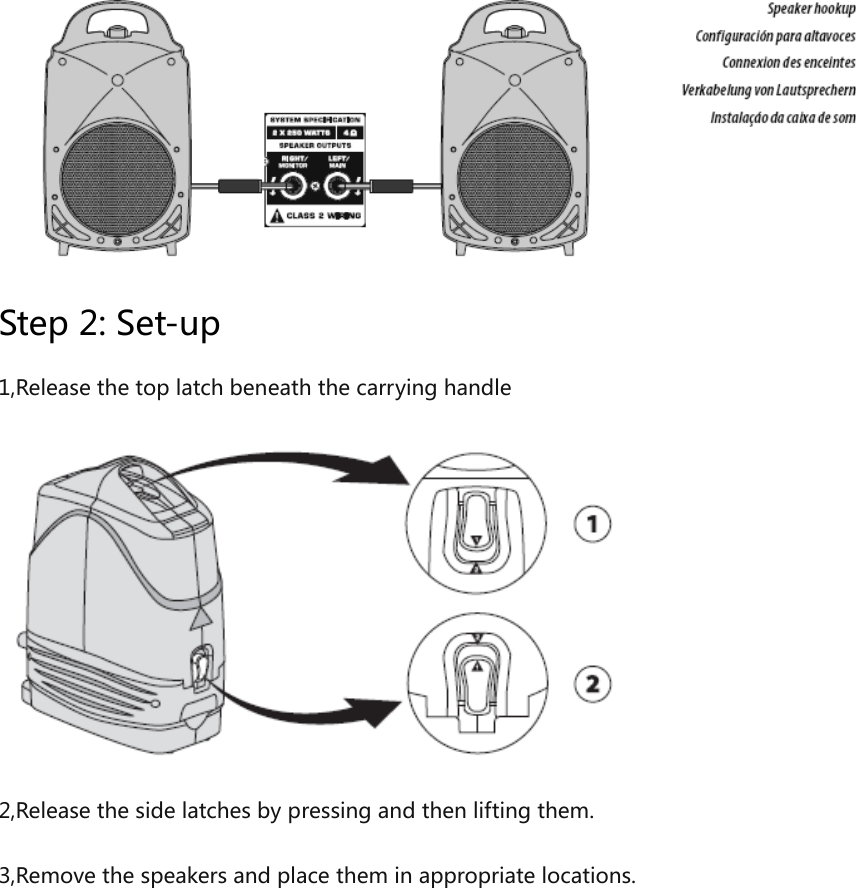

Step 2: Set-up 1,Release the top latch beneath the carrying handle 2,Release the side latches by pressing and then lifting them. 3,Remove the speakers and place them in appropriate locations.
4,Stand the mixer upright.(Make sure the include speaker cables can reach both speakers)
Step 3: Controls. FX knob determines how much of each channel’s signal goes to the DIGITAL EFFECTS PROCESSOR. EQ KNOBS adjust the high and low frequencies for each channel.
PAN knob positions each channel in the stereo field. LEVEL knob adjusts the volume of the individual channel in the overall mix. CLIP LED lights when the input signals overloads the channel. PROGRAM[PUSH] knob controls the effects settings. Rotate this knob to scroll through the effect patches, and push to select a patch. MULTI-FX PROCESSOR unit adds a selected sound effect to any channels which have their EFFECTS knob turned up. Effects include reverb, chorus, delay, and pitch shifter. FX[LEVEL] knob controls the amount of effects added to the main mix.
GRAPHIC EQ adjusts specific frequencies in the sound spectrum. EQ button activates the GRAPHIC EQ. FBQ button activates the FBQ detection system. The EQ IN button must also be activated for this feature to work. MAIN LEVEL CONTROL adjusts the overall volume of the main mix. The MODE switch selects stereo or mono operation. LINE IN jack connects, CD players, sub-mixers, or other line-level source using cables with ¼" plugs. These jacks accept both balanced and PAD function reduces the channel input signal by 20dB. Engage this button if the CLIP LED lights up on a channel. STEREO CHANNELS accept and right sends from a single sound source using either RCA cables or14’’ TS plugs.
AUX IN inputs route stereo signals directly into the main mix through either a sginle1/8’’TRS stereo plug or left and right 1/4’’plugsBLUETOOTH PATRING button and indicator connect your Bluetooth device. PHANTOM button sends 48V of phantom power to power condenser microphones. MIC INPUT jacks accept dynamic(handheld)or condenser microphones using XLR cables. DIGITAL WEIRELESS USB input accepts the optional BEHRINGER wireless microphone receiver. The LEDs indicate wireless microphone signal input, connecting the wireless microphone system disables the MIC 1 and MIC 2 FX FOOTSW jack connects an optional footswitch using a 14’’ TRS plugSUB OUT jack sends the low frequencies of the main mono signal to an active subwoofer ot

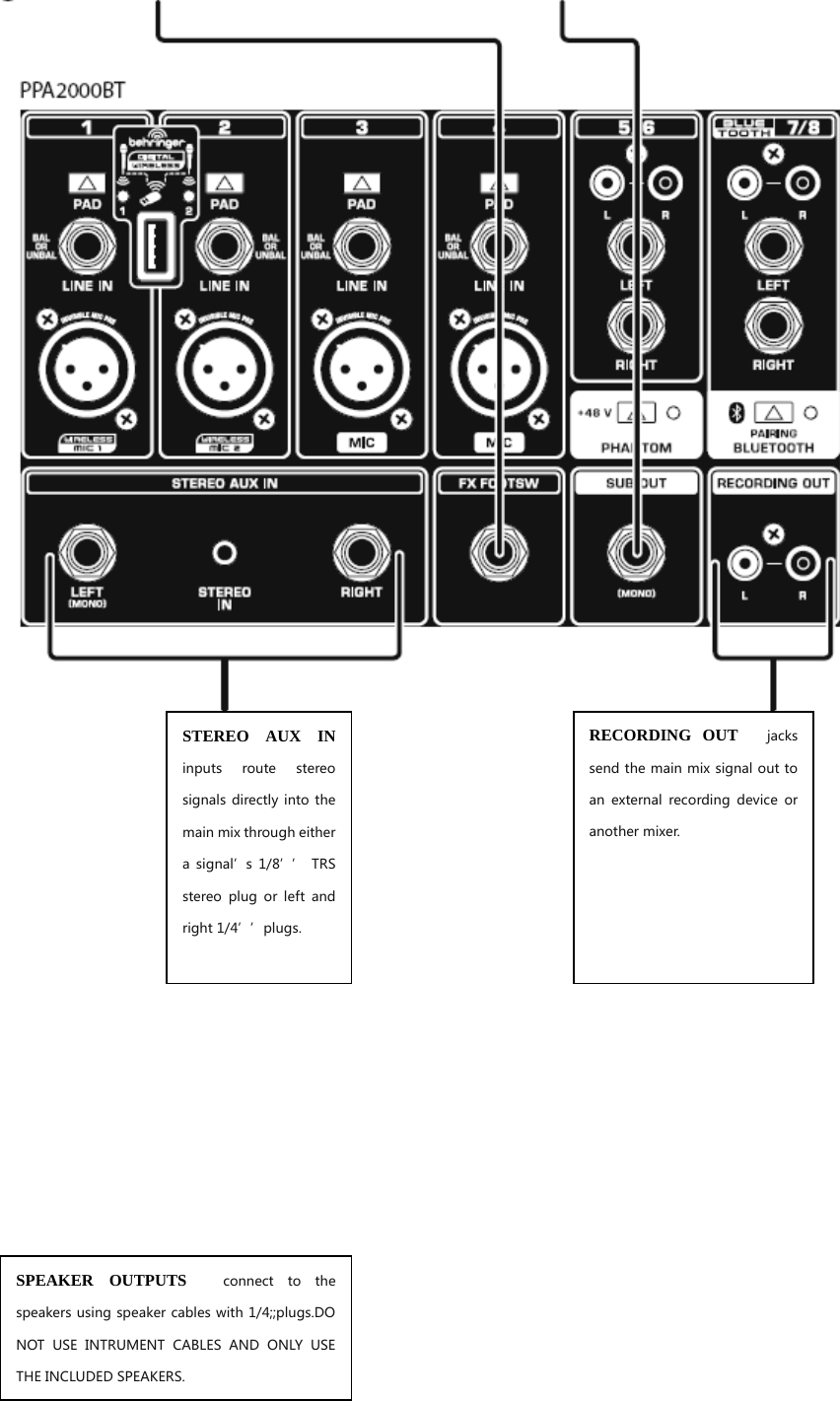

STEREO AUX IN inputs route stereo signals directly into the main mix through either a signal’s 1/8’’ TRS stereo plug or left and right 1/4’’plugs. RECORDING OUT jacks send the main mix signal out to an external recording device or another mixer. SPEAKER OUTPUTS connect to the speakers using speaker cables with 1/4;;plugs.DO NOT USE INTRUMENT CABLES AND ONLY USE THE INCLUDED SPEAKERS.

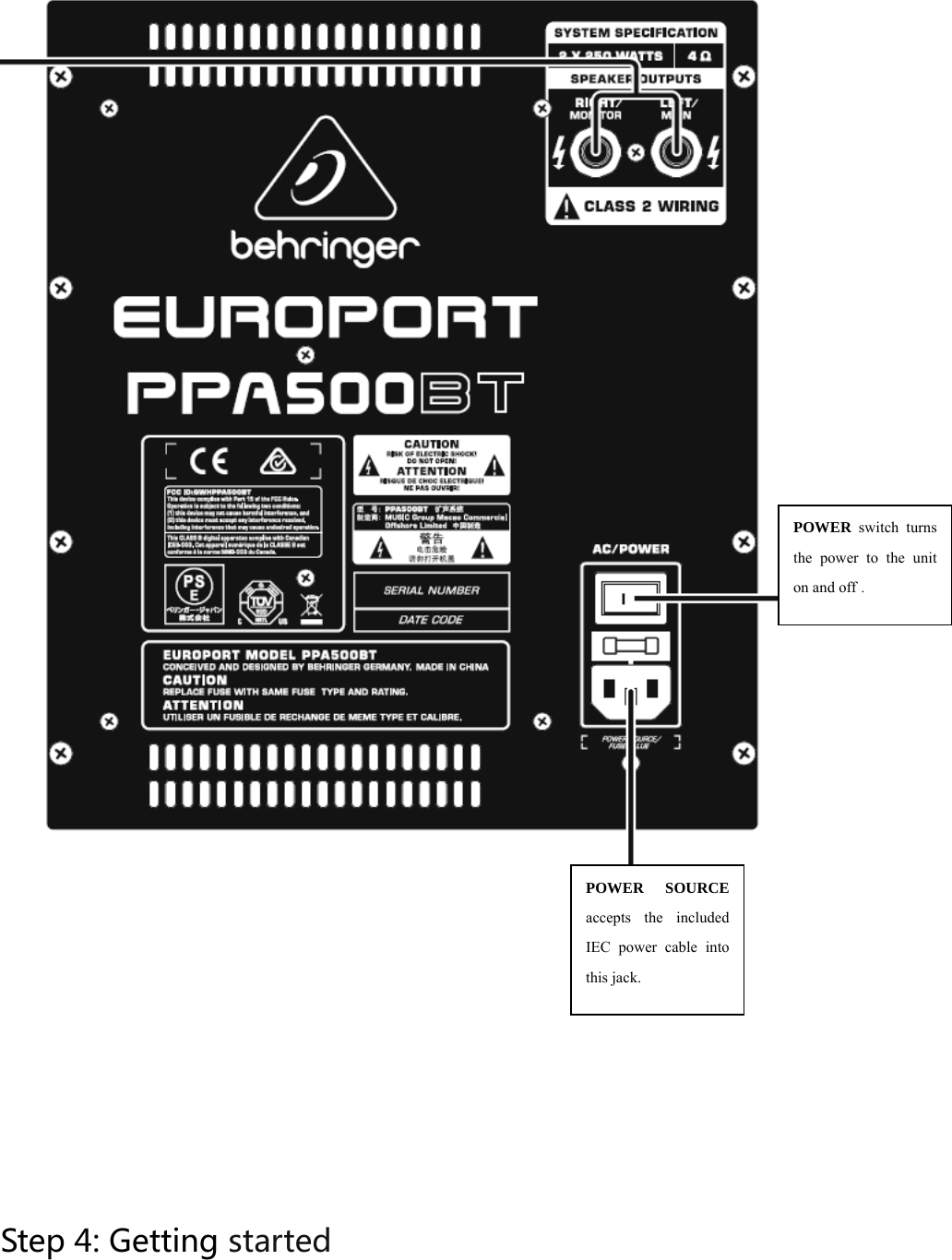

Step 4: Getting started POWER switch turns the power to the unit on and off . POWER SOURCE accepts the included IEC power cable into this jack.

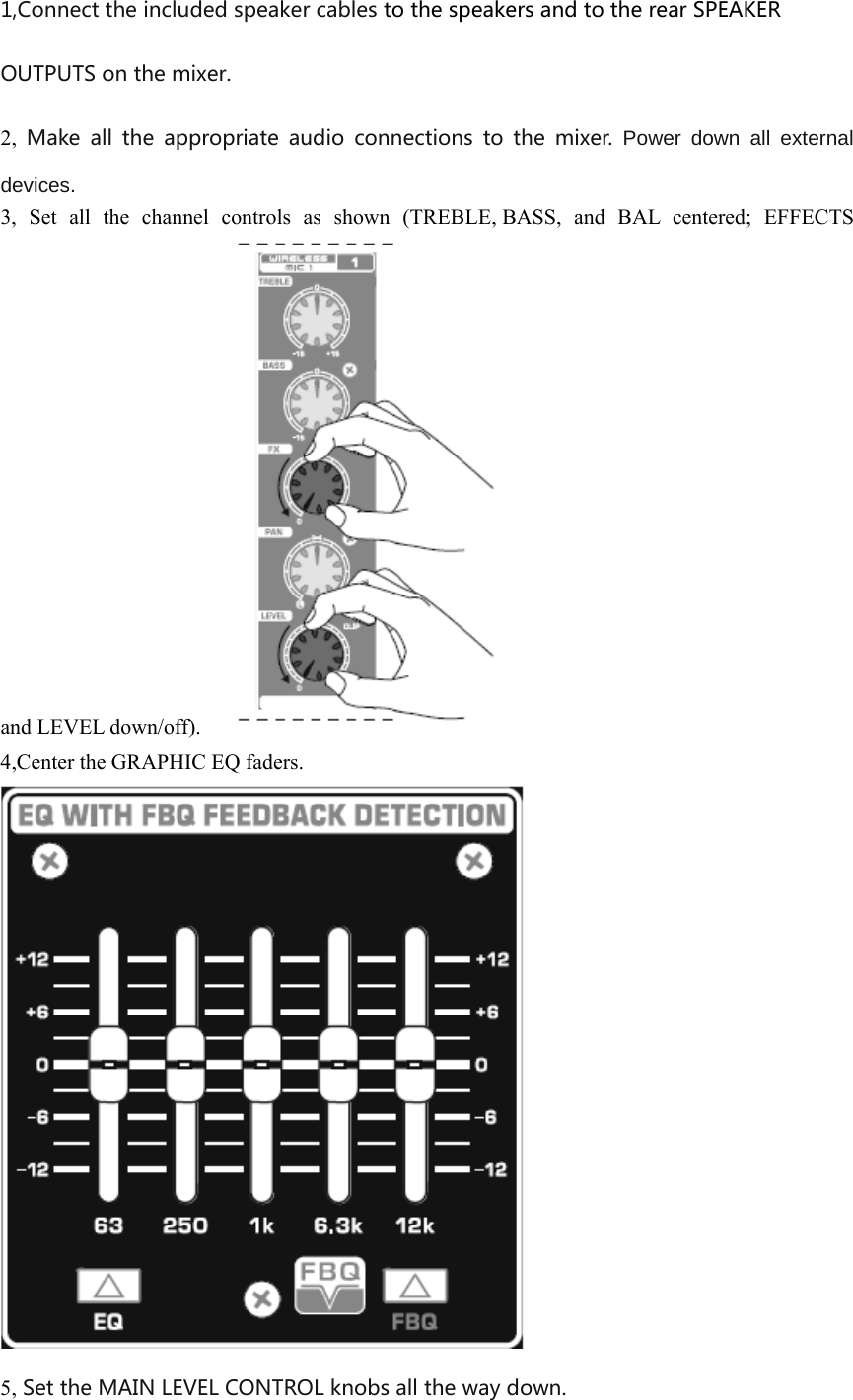

1,Connect the included speaker cables to the speakers and to the rear SPEAKER OUTPUTS on the mixer. 2, Make all the appropriate audio connections to the mixer. Power down all external devices. 3, Set all the channel controls as shown (TREBLE, BASS, and BAL centered; EFFECTS and LEVEL down/off). 4,Center the GRAPHIC EQ faders. 5, Set the MAIN LEVEL CONTROL knobs all the way down.

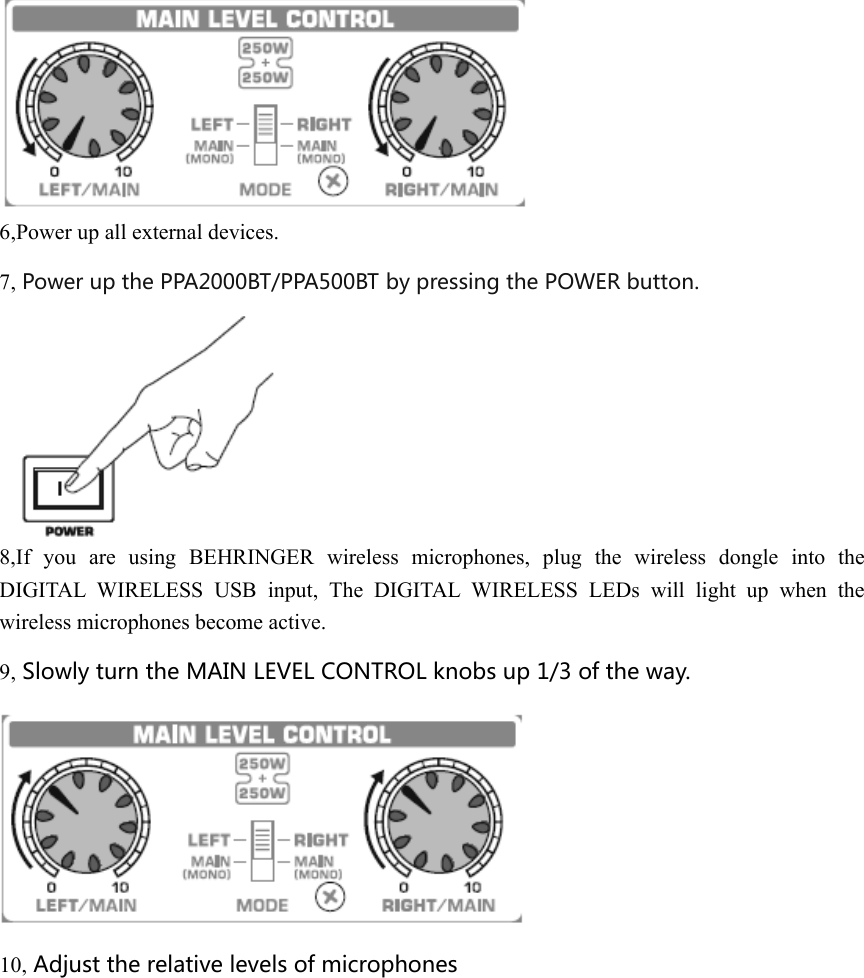

6,Power up all external devices. 7, Power up the PPA2000BT/PPA500BT by pressing the POWER button. 8,If you are using BEHRINGER wireless microphones, plug the wireless dongle into the DIGITAL WIRELESS USB input, The DIGITAL WIRELESS LEDs will light up when the wireless microphones become active. 9, Slowly turn the MAIN LEVEL CONTROL knobs up 1/3 of the way. 10, Adjust the relative levels of microphones

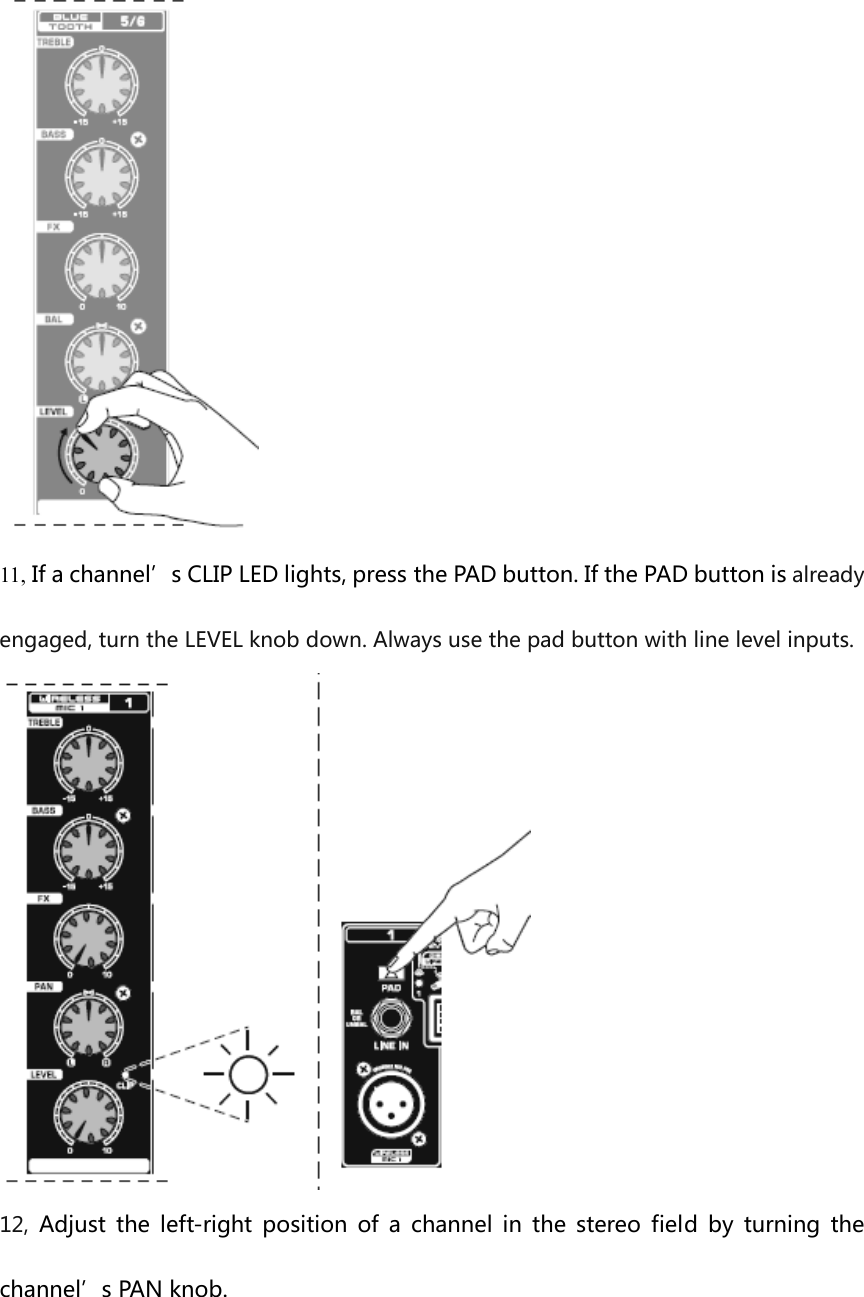

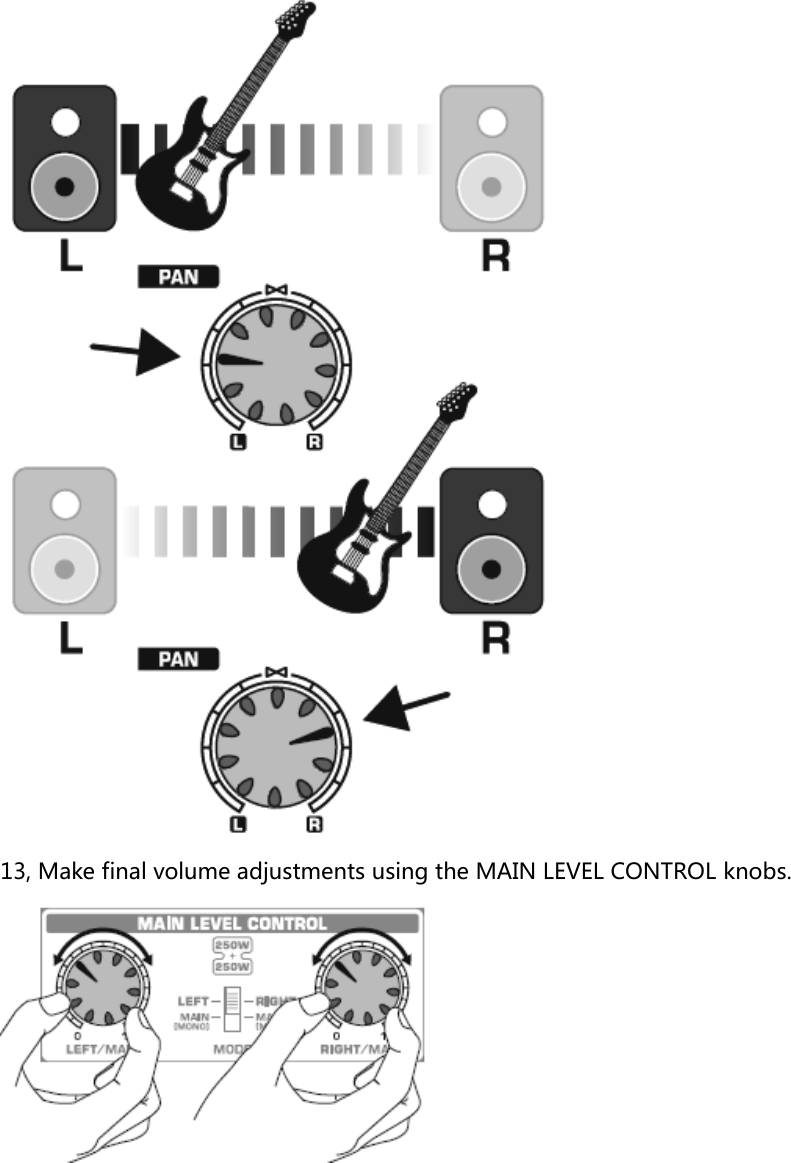

11, If a channel’s CLIP LED lights, press the PAD button. If the PAD button is already engaged, turn the LEVEL knob down. Always use the pad button with line level inputs. 12, Adjust the left-right position of a channel in the stereo field by turning the channel’s PAN knob.
13, Make final volume adjustments using the MAIN LEVEL CONTROL knobs.

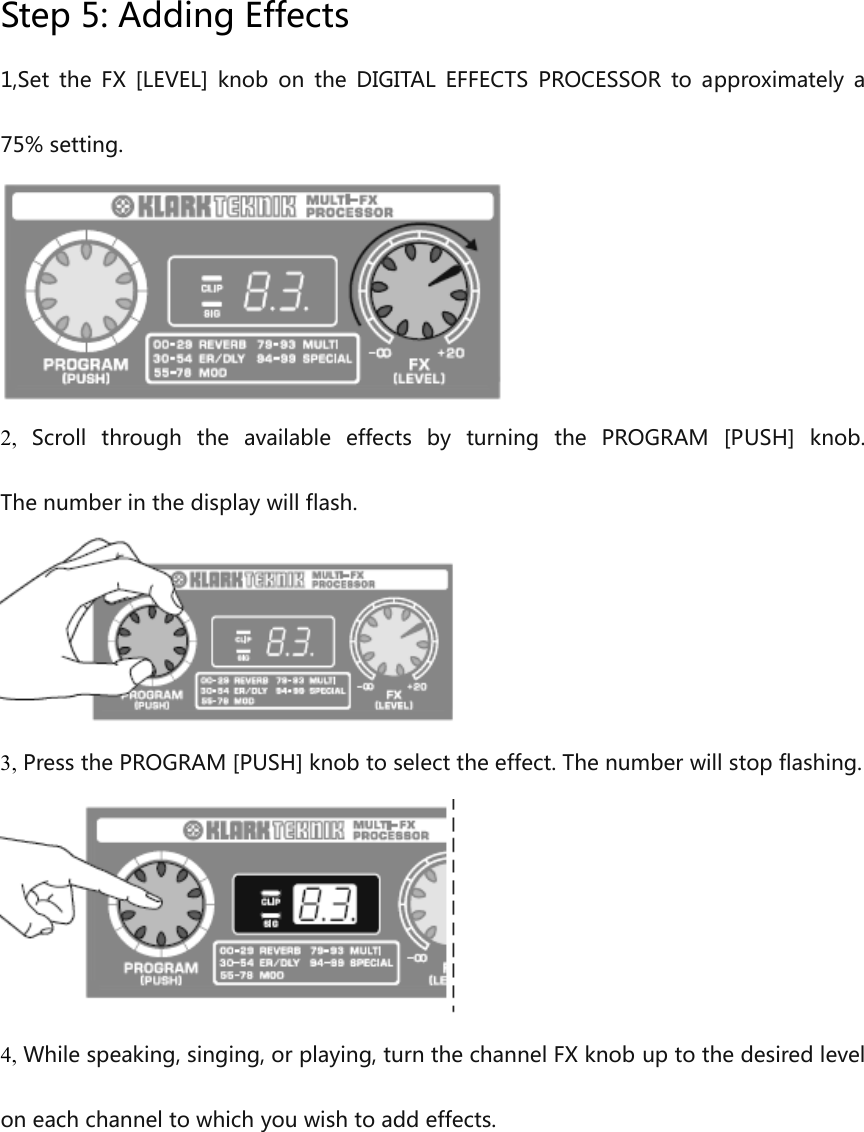

Step 5: Adding Effects 1,Set the FX [LEVEL] knob on the DIGITAL EFFECTS PROCESSOR to approximately a 75% setting. 2, Scroll through the available effects by turning the PROGRAM [PUSH] knob. The number in the display will flash. 3, Press the PROGRAM [PUSH] knob to select the effect. The number will stop flashing. 4, While speaking, singing, or playing, turn the channel FX knob up to the desired level on each channel to which you wish to add effects.

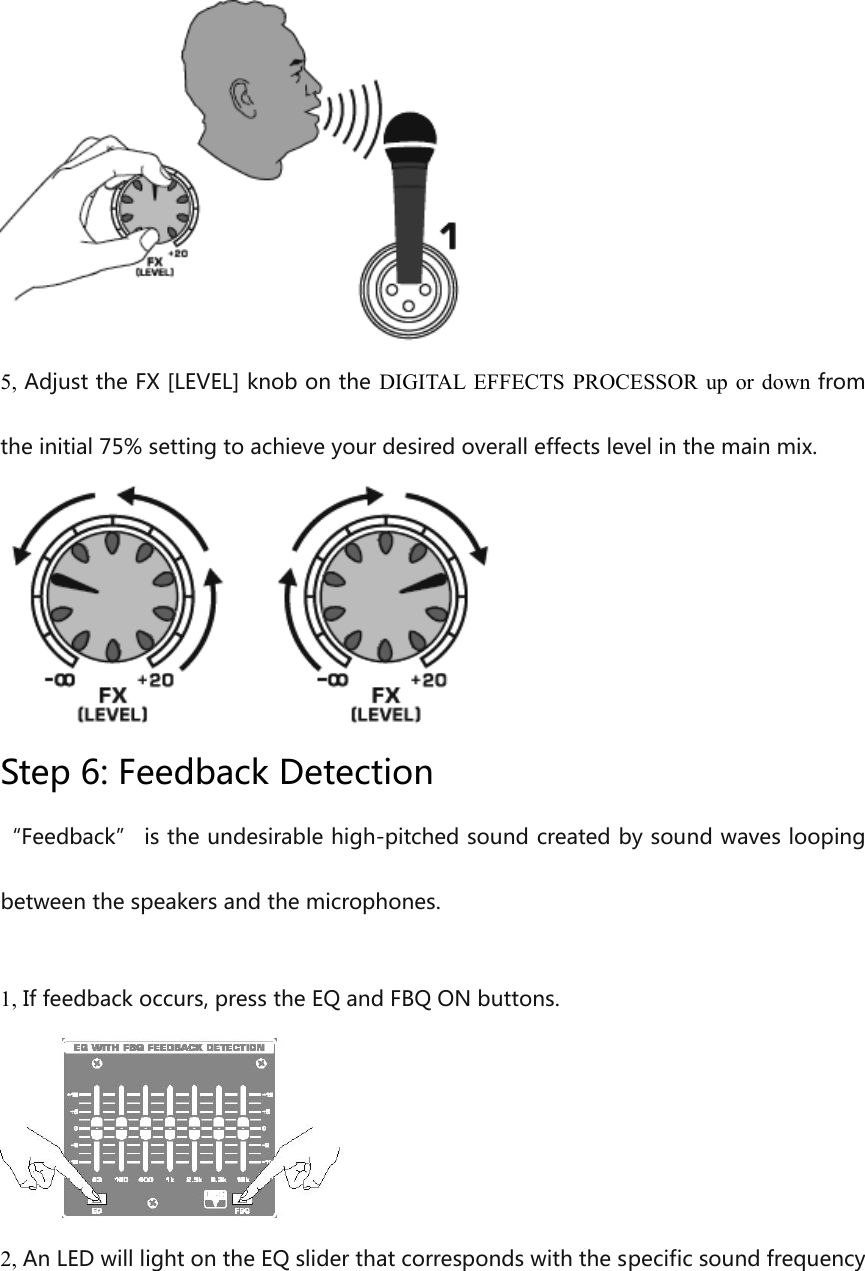

5, Adjust the FX [LEVEL] knob on the DIGITAL EFFECTS PROCESSOR up or down from the initial 75% setting to achieve your desired overall effects level in the main mix. Step 6: Feedback Detection “Feedback” is the undesirable high-pitched sound created by sound waves looping between the speakers and the microphones. 1, If feedback occurs, press the EQ and FBQ ON buttons. 2, An LED will light on the EQ slider that corresponds with the specific sound frequency

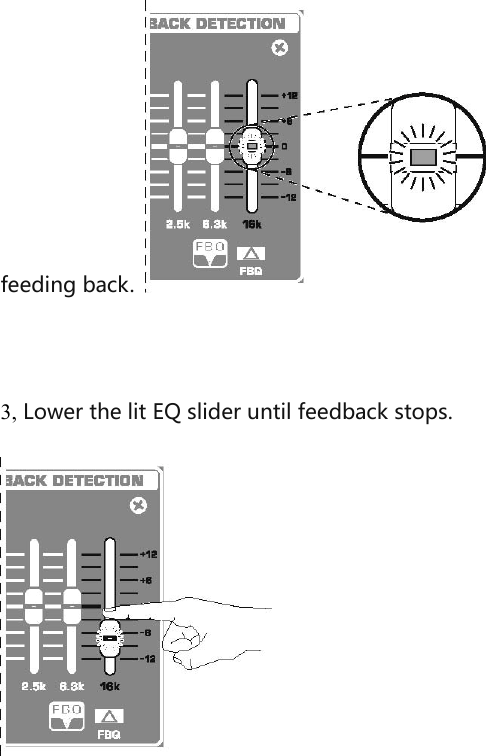

feeding back. 3, Lower the lit EQ slider until feedback stops.

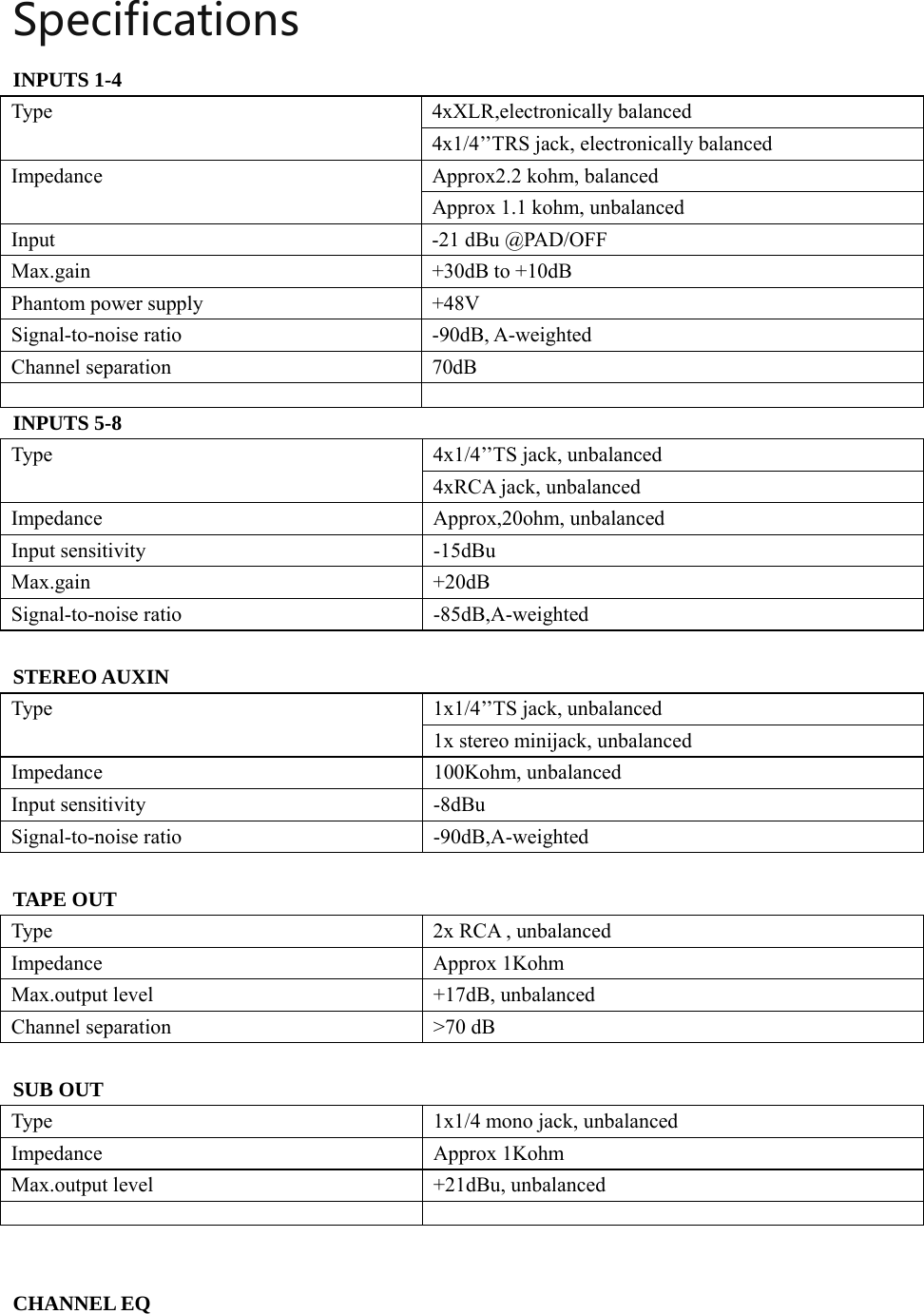

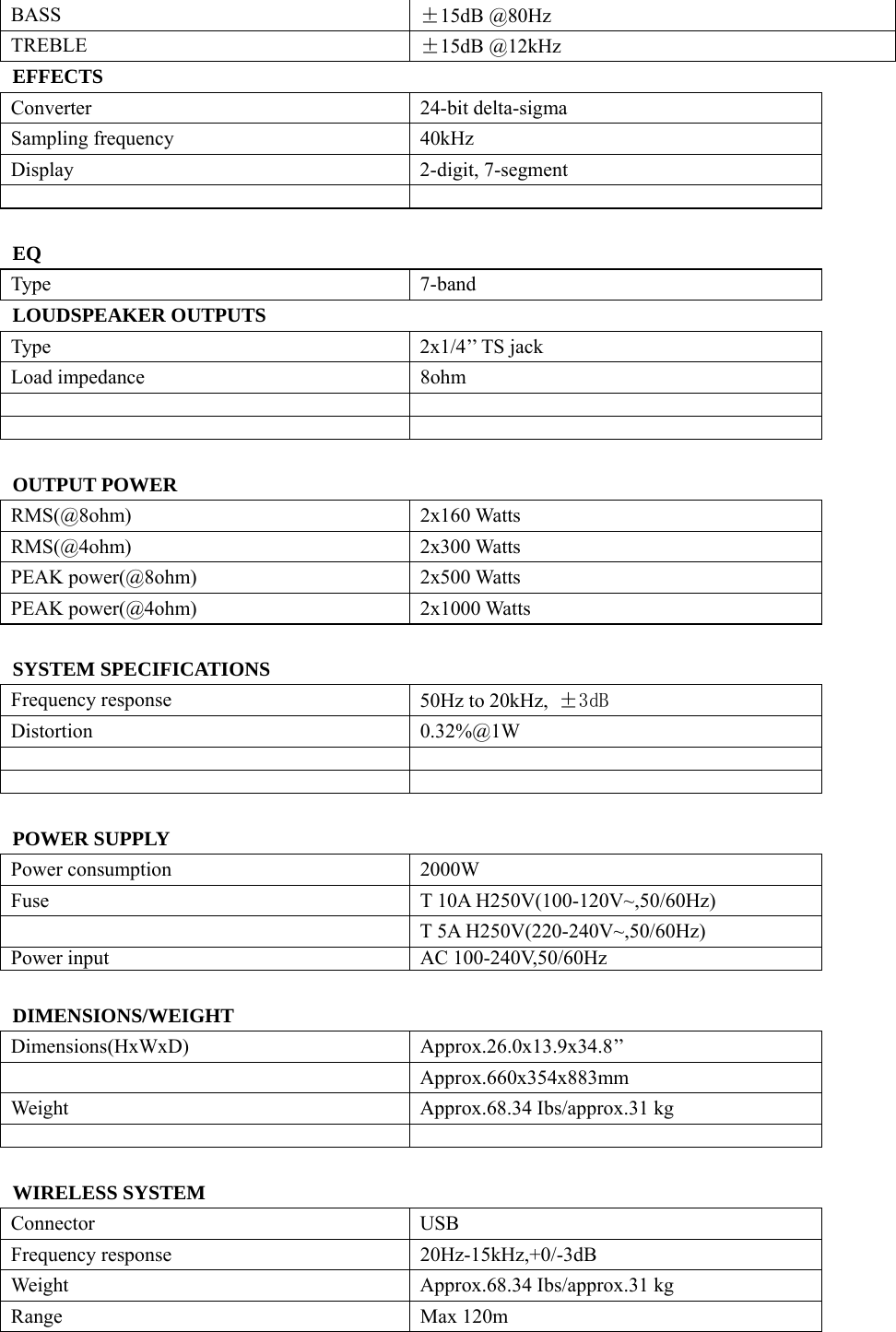

Specifications INPUTS 1-4 4xXLR,electronically balanced Type 4x1/4’’TRS jack, electronically balanced Approx2.2 kohm, balanced Impedance Approx 1.1 kohm, unbalanced Input -21 dBu @PAD/OFF Max.gain +30dB to +10dB Phantom power supply +48V Signal-to-noise ratio -90dB, A-weighted Channel separation 70dB INPUTS 5-8 4x1/4’’TS jack, unbalanced Type 4xRCA jack, unbalanced Impedance Approx,20ohm, unbalanced Input sensitivity -15dBu Max.gain +20dB Signal-to-noise ratio -85dB,A-weighted STEREO AUXIN 1x1/4’’TS jack, unbalanced Type 1x stereo minijack, unbalanced Impedance 100Kohm, unbalanced Input sensitivity -8dBu Signal-to-noise ratio -90dB,A-weighted TAPE OUT Type 2x RCA , unbalanced Impedance Approx 1Kohm Max.output level +17dB, unbalanced Channel separation >70 dB SUB OUT Type 1x1/4 mono jack, unbalanced Impedance Approx 1Kohm Max.output level +21dBu, unbalanced CHANNEL EQ
BASS ±15dB @80Hz TREBLE ±15dB @12kHz EFFECTS Converter 24-bit delta-sigma Sampling frequency 40kHz Display 2-digit, 7-segment EQ Type 7-band LOUDSPEAKER OUTPUTS Type 2x1/4’’ TS jack Load impedance 8ohm OUTPUT POWER RMS(@8ohm) 2x160 Watts RMS(@4ohm) 2x300 Watts PEAK power(@8ohm) 2x500 Watts PEAK power(@4ohm) 2x1000 Watts SYSTEM SPECIFICATIONS Frequency response 50Hz to 20kHz, ±3dB Distortion 0.32%@1W POWER SUPPLY Power consumption 2000W Fuse T 10A H250V(100-120V~,50/60Hz) T 5A H250V(220-240V~,50/60Hz) Power input AC 100-240V,50/60Hz DIMENSIONS/WEIGHT Dimensions(HxWxD) Approx.26.0x13.9x34.8’’ Approx.660x354x883mm Weight Approx.68.34 Ibs/approx.31 kg WIRELESS SYSTEM Connector USB Frequency response 20Hz-15kHz,+0/-3dB Weight Approx.68.34 Ibs/approx.31 kg Range Max 120m

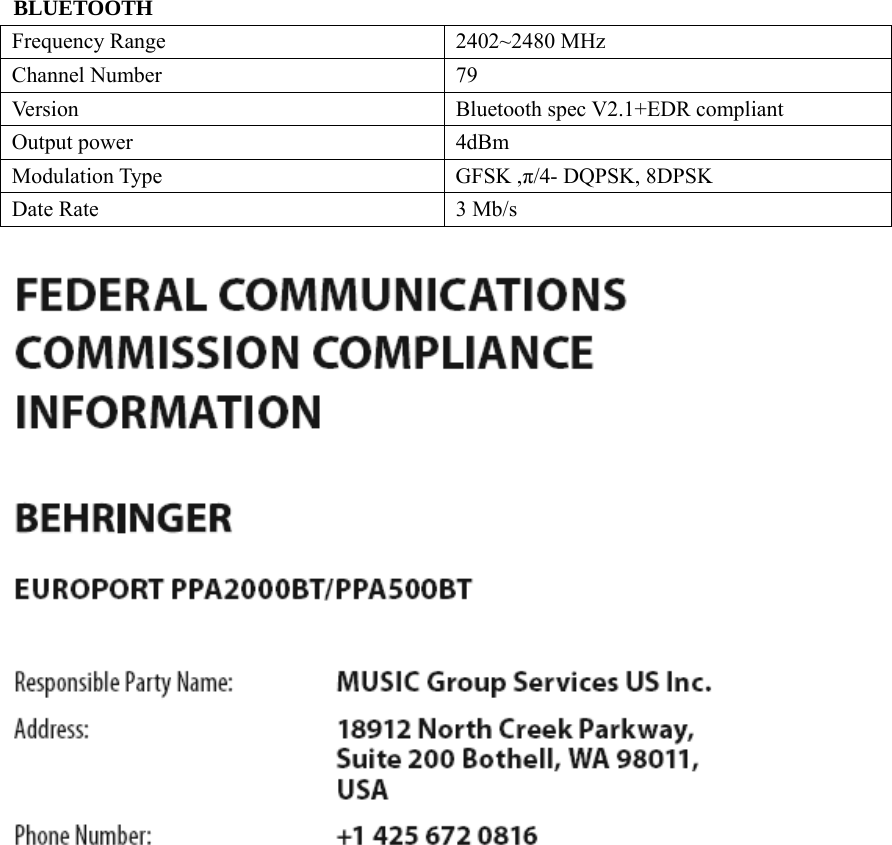

BLUETOOTH Frequency Range 2402~2480 MHz Channel Number 79 Version Bluetooth spec V2.1+EDR compliant Output power 4dBm Modulation Type GFSK ,π/4- DQPSK, 8DPSK Date Rate 3 Mb/s

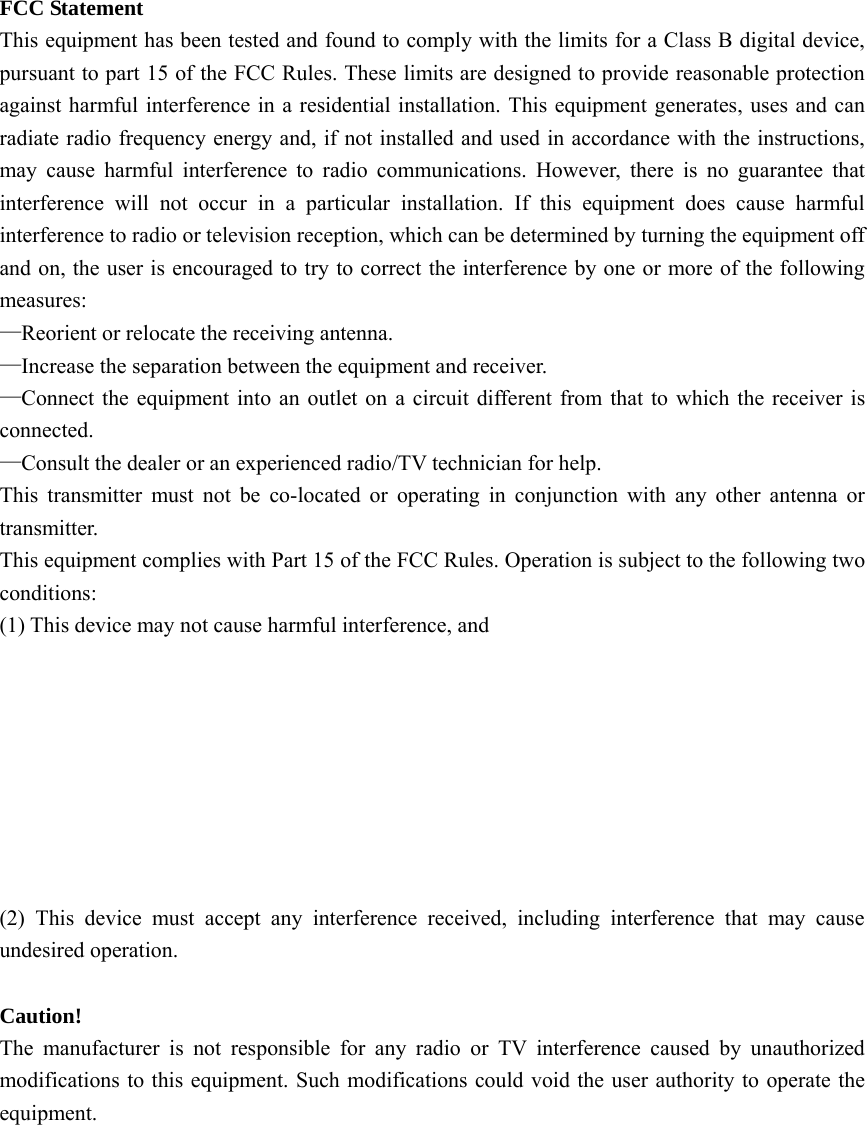

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
