Energate ZRM10 ZigBee Radio Module User Manual ZRM10 Radio Module

Energate Inc. ZigBee Radio Module ZRM10 Radio Module

user manual

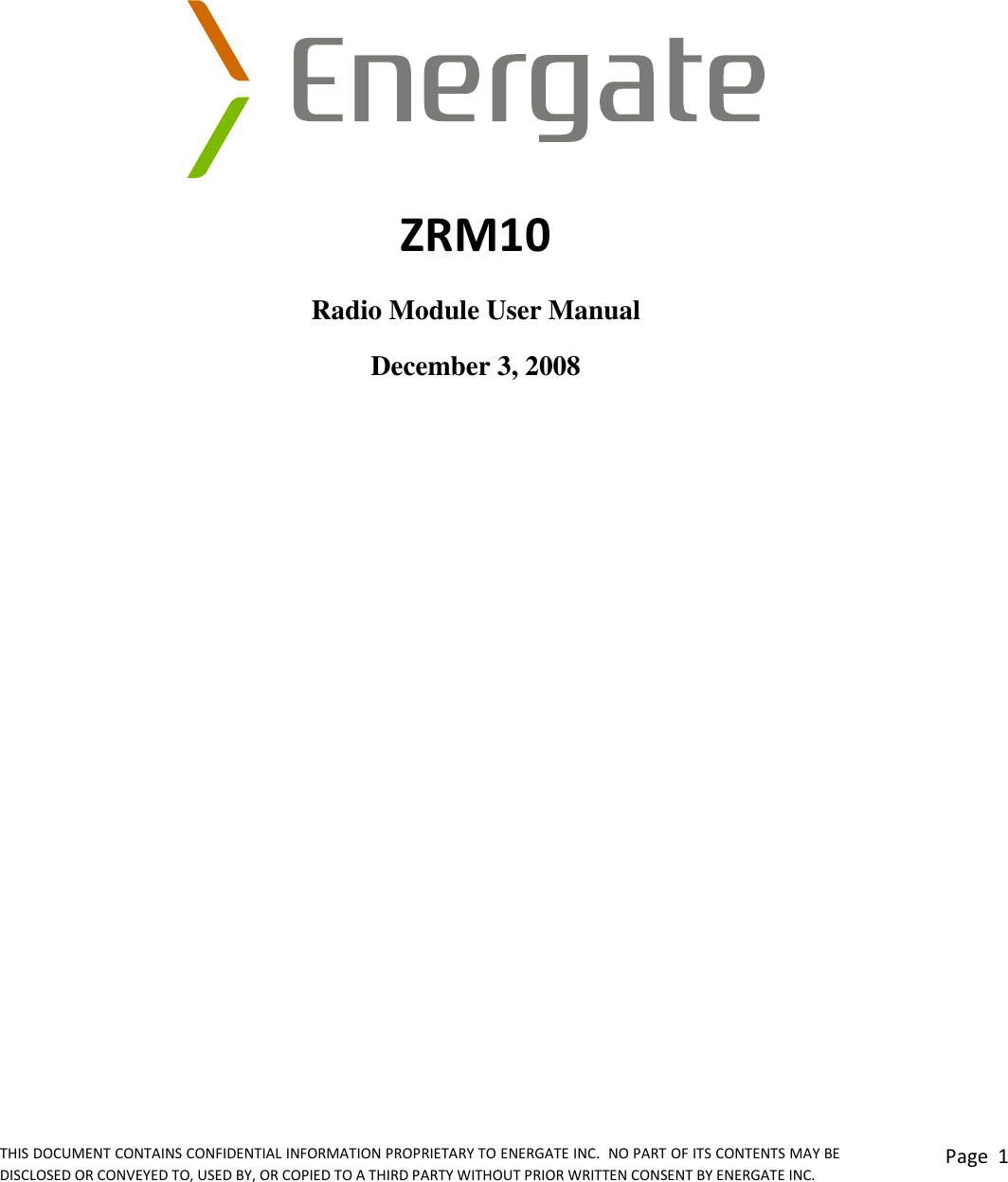

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 1 ZRM10 Radio Module User Manual December 3, 2008

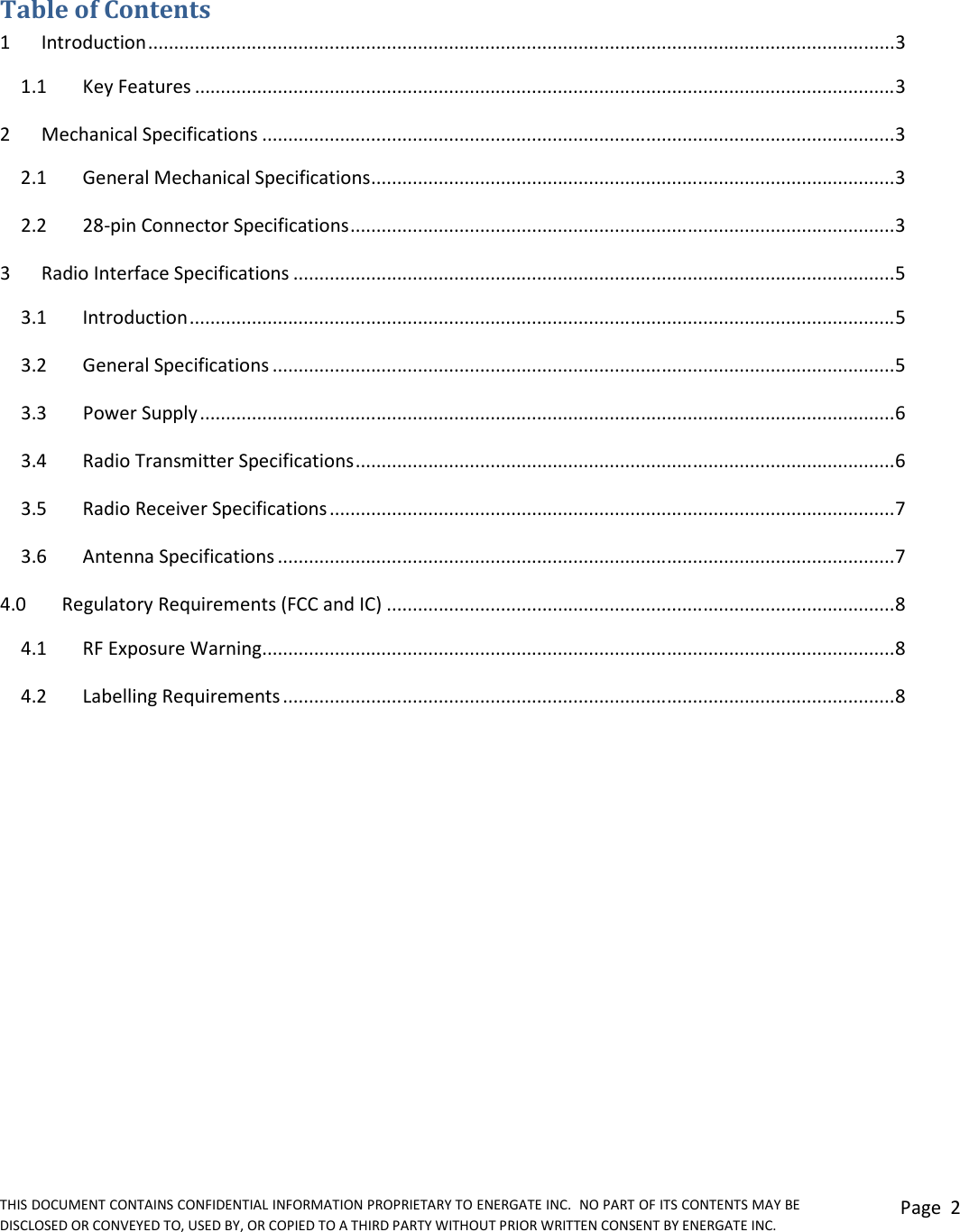

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 2 Table of Contents 1 Introduction ................................................................................................................................................ 3 1.1 Key Features ....................................................................................................................................... 3 2 Mechanical Specifications .......................................................................................................................... 3 2.1 General Mechanical Specifications ..................................................................................................... 3 2.2 28-pin Connector Specifications ......................................................................................................... 3 3 Radio Interface Specifications .................................................................................................................... 5 3.1 Introduction ........................................................................................................................................ 5 3.2 General Specifications ........................................................................................................................ 5 3.3 Power Supply ...................................................................................................................................... 6 3.4 Radio Transmitter Specifications ........................................................................................................ 6 3.5 Radio Receiver Specifications ............................................................................................................. 7 3.6 Antenna Specifications ....................................................................................................................... 7 4.0 Regulatory Requirements (FCC and IC) .................................................................................................. 8 4.1 RF Exposure Warning .......................................................................................................................... 8 4.2 Labelling Requirements ...................................................................................................................... 8
THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 3 1 Introduction This document is the User Manual for the Energate ZRM10 Radio Module. This Radio Module can be integrated into any number of products that require wireless connectivity using the ZigBee protocol. 1.1 Key Features • Utilizes Ember EM250 ZigBee System-on-a-Chip (SoC) • RF Performance Optimized and Guaranteed − Frequency: 2405-2480MHz (ZigBee Ch11 to 26) − Data Rate: 250kb/s − Transmit Power: 100mW (Typical) − Receiver Sensitivity: -95dBm (Typical) for PER=1% • Small Form Factor • 17 GPIO Connections • Supply Voltage: +3.3 VDC (Typical) • Operating Temperature: -40 to 85 °C • PCB Mount Chip Antenna: +1.5dBi (Peak Gain) 2 Mechanical Specifications 2.1 General Mechanical Specifications Parameter Min Typ Max Units Notes Dimensions (L) 43.6 mm Dimensions (W) 29.3 mm Dimensions (T) 5.1 mm Total thickness. 2.2 28-pin Connector Specifications The 28-pin connector that is used on the Energate ZRM10 Radio Module is the Samtec FTS-114-03-L-DV. Below is the pin-out of the Radio Module.

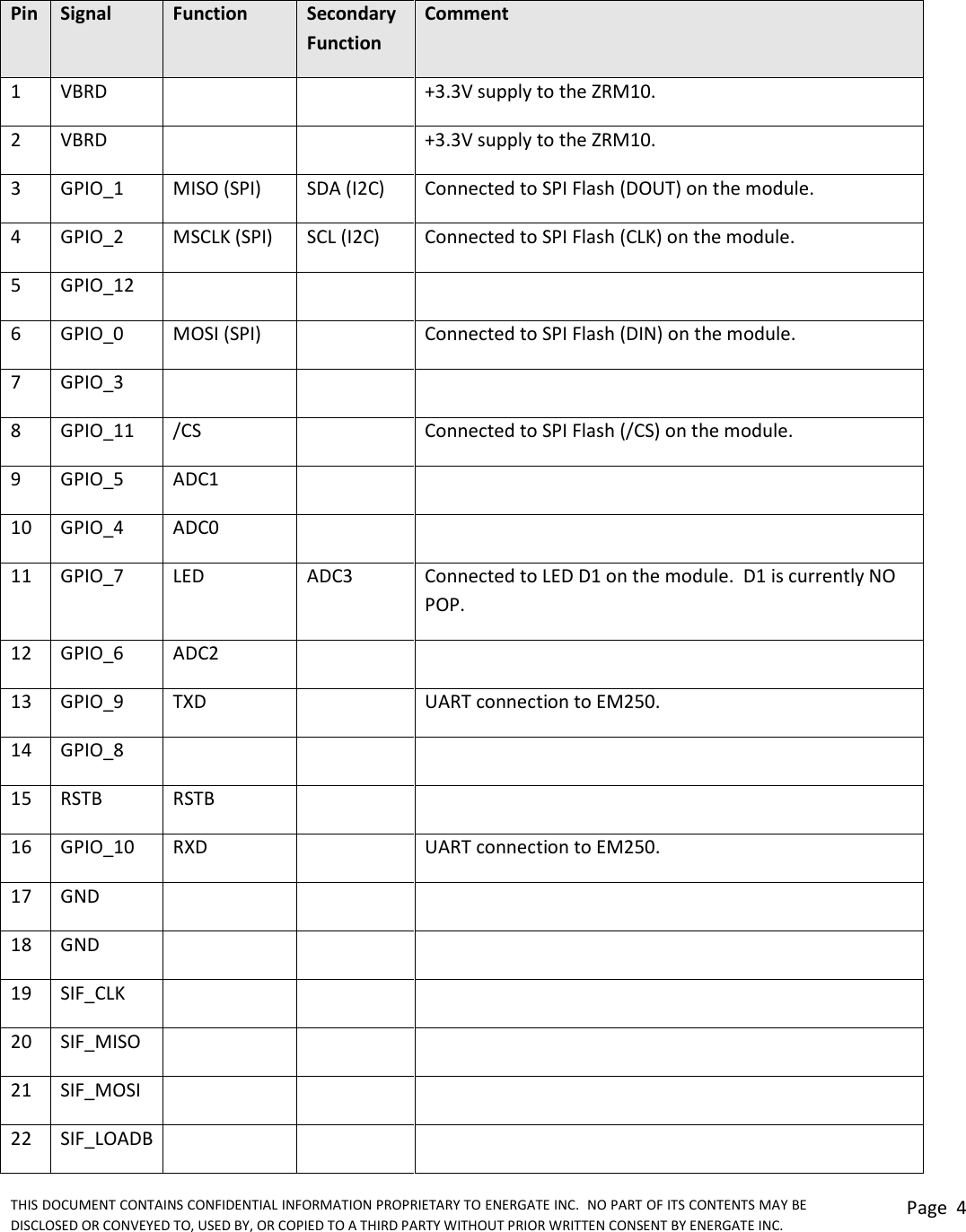

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 4 Pin Signal Function Secondary Function Comment 1 VBRD +3.3V supply to the ZRM10. 2 VBRD +3.3V supply to the ZRM10. 3 GPIO_1 MISO (SPI) SDA (I2C) Connected to SPI Flash (DOUT) on the module. 4 GPIO_2 MSCLK (SPI) SCL (I2C) Connected to SPI Flash (CLK) on the module. 5 GPIO_12 6 GPIO_0 MOSI (SPI) Connected to SPI Flash (DIN) on the module. 7 GPIO_3 8 GPIO_11 /CS Connected to SPI Flash (/CS) on the module. 9 GPIO_5 ADC1 10 GPIO_4 ADC0 11 GPIO_7 LED ADC3 Connected to LED D1 on the module. D1 is currently NO POP. 12 GPIO_6 ADC2 13 GPIO_9 TXD UART connection to EM250. 14 GPIO_8 15 RSTB RSTB 16 GPIO_10 RXD UART connection to EM250. 17 GND 18 GND 19 SIF_CLK 20 SIF_MISO 21 SIF_MOSI 22 SIF_LOADB

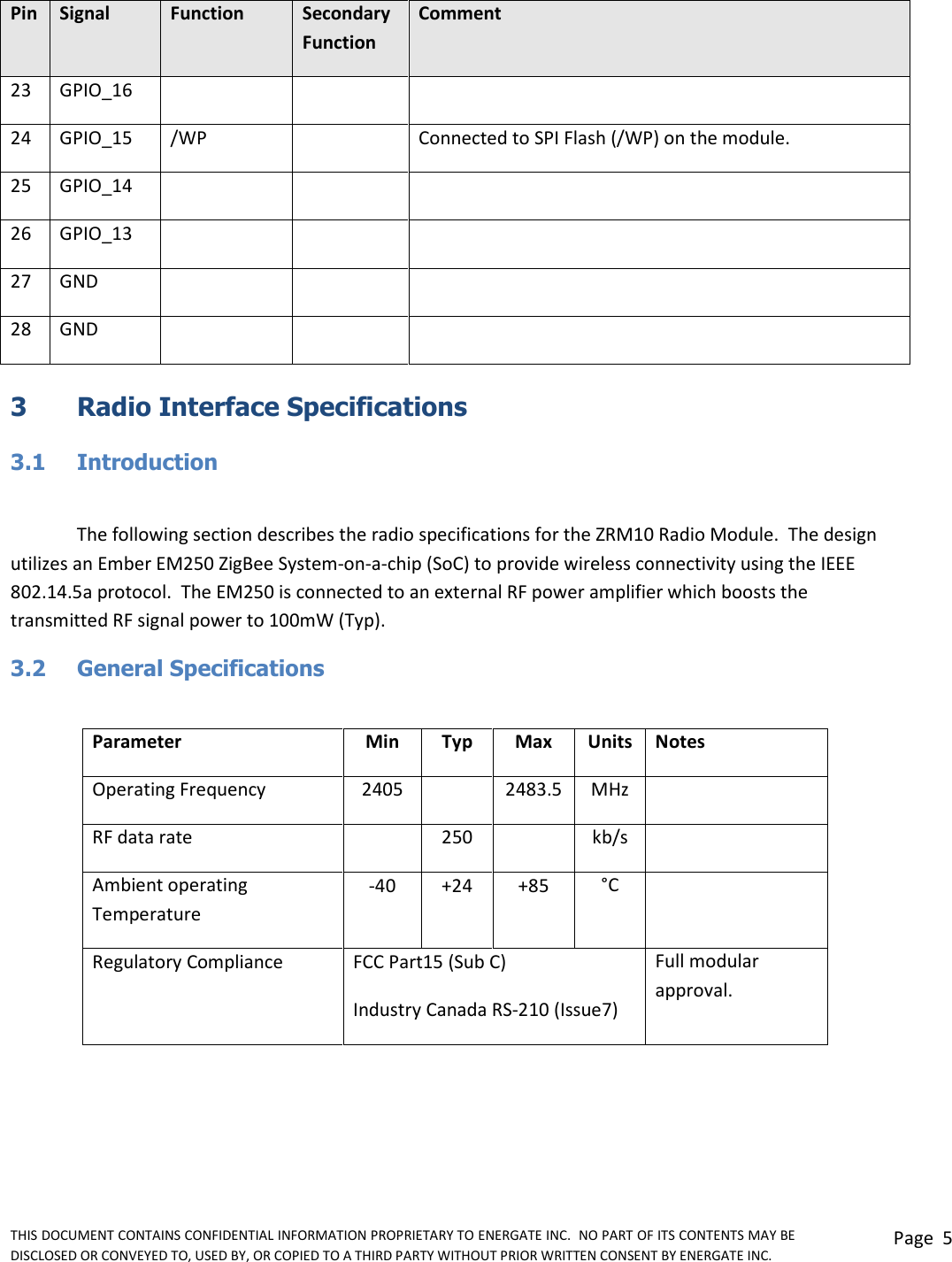

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 5 Pin Signal Function Secondary Function Comment 23 GPIO_16 24 GPIO_15 /WP Connected to SPI Flash (/WP) on the module. 25 GPIO_14 26 GPIO_13 27 GND 28 GND 3 Radio Interface Specifications 3.1 Introduction The following section describes the radio specifications for the ZRM10 Radio Module. The design utilizes an Ember EM250 ZigBee System-on-a-chip (SoC) to provide wireless connectivity using the IEEE 802.14.5a protocol. The EM250 is connected to an external RF power amplifier which boosts the transmitted RF signal power to 100mW (Typ). 3.2 General Specifications Parameter Min Typ Max Units Notes Operating Frequency 2405 2483.5 MHz RF data rate 250 kb/s Ambient operating Temperature -40 +24 +85 °C Regulatory Compliance FCC Part15 (Sub C) Full modular approval. Industry Canada RS-210 (Issue7)

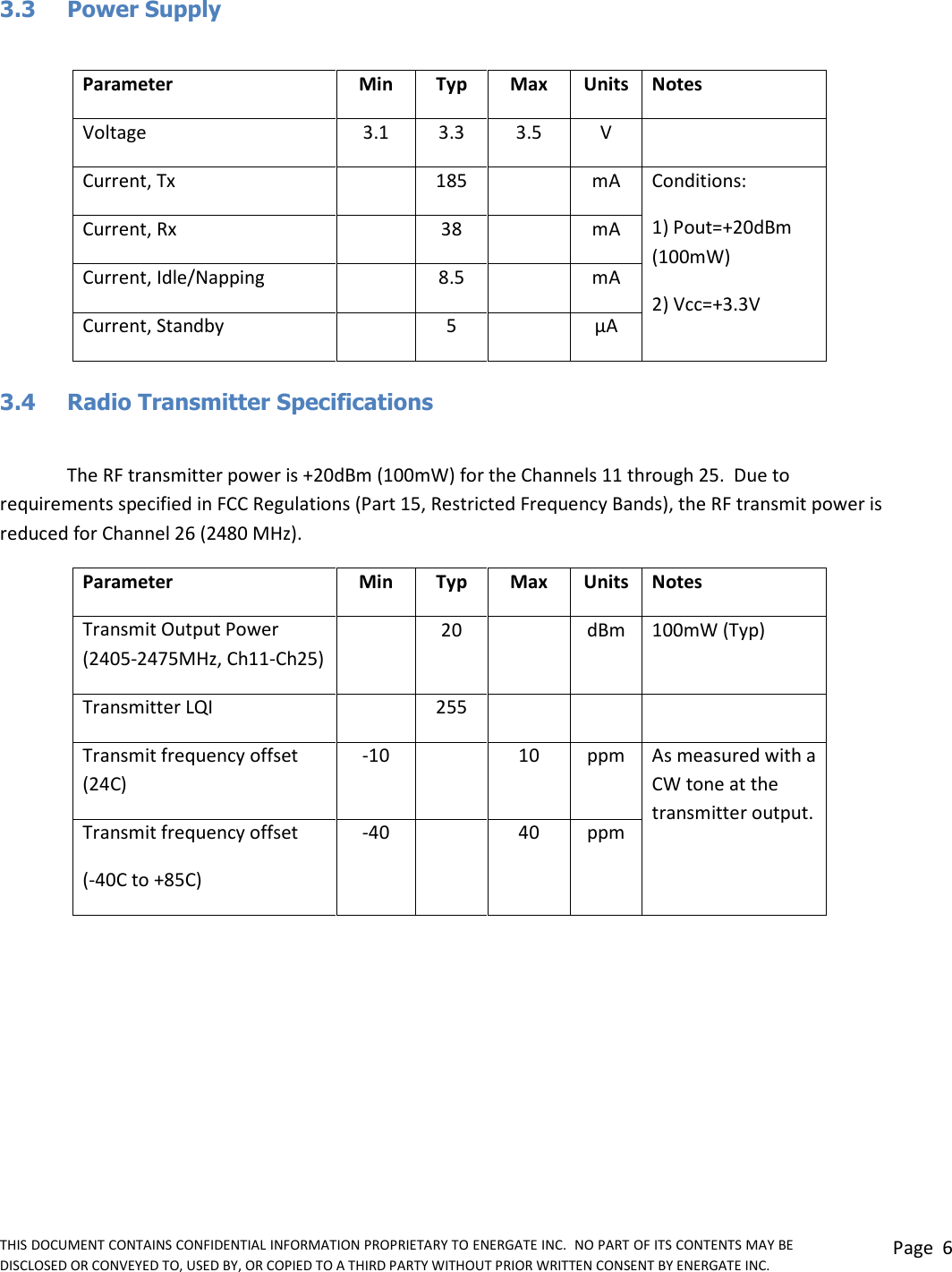

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 6 3.3 Power Supply Parameter Min Typ Max Units Notes Voltage 3.1 3.3 3.5 V Current, Tx 185 mA Conditions: 1) Pout=+20dBm (100mW) 2) Vcc=+3.3V Current, Rx 38 mA Current, Idle/Napping 8.5 mA Current, Standby 5 µA 3.4 Radio Transmitter Specifications The RF transmitter power is +20dBm (100mW) for the Channels 11 through 25. Due to requirements specified in FCC Regulations (Part 15, Restricted Frequency Bands), the RF transmit power is reduced for Channel 26 (2480 MHz). Parameter Min Typ Max Units Notes Transmit Output Power (2405-2475MHz, Ch11-Ch25) 20 dBm 100mW (Typ) Transmitter LQI 255 Transmit frequency offset (24C) -10 10 ppm As measured with a CW tone at the transmitter output. Transmit frequency offset (-40C to +85C) -40 40 ppm

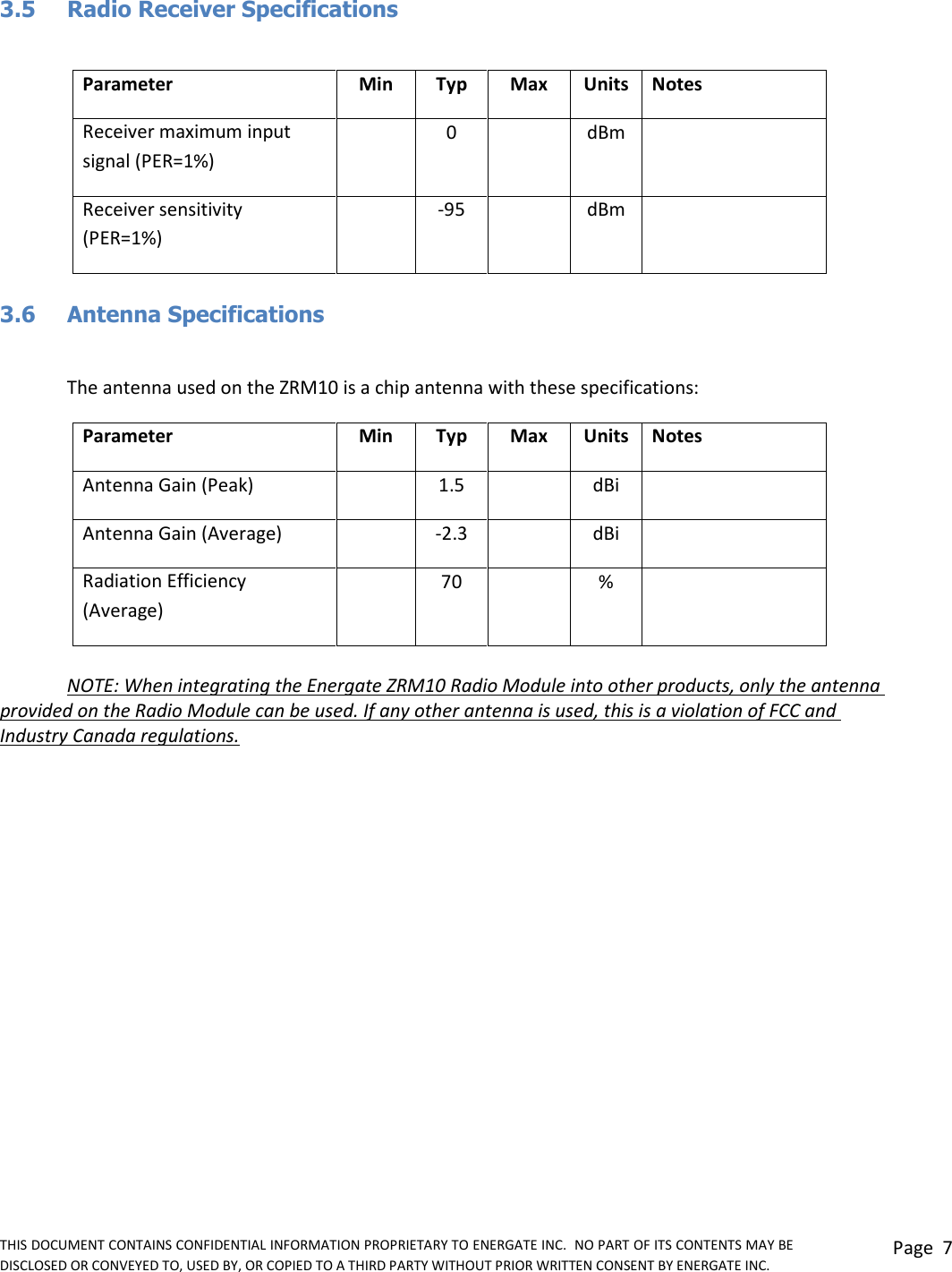

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 7 3.5 Radio Receiver Specifications Parameter Min Typ Max Units Notes Receiver maximum input signal (PER=1%) 0 dBm Receiver sensitivity (PER=1%) -95 dBm 3.6 Antenna Specifications The antenna used on the ZRM10 is a chip antenna with these specifications: Parameter Min Typ Max Units Notes Antenna Gain (Peak) 1.5 dBi Antenna Gain (Average) -2.3 dBi Radiation Efficiency (Average) 70 % NOTE: When integrating the Energate ZRM10 Radio Module into other products, only the antenna provided on the Radio Module can be used. If any other antenna is used, this is a violation of FCC and Industry Canada regulations.

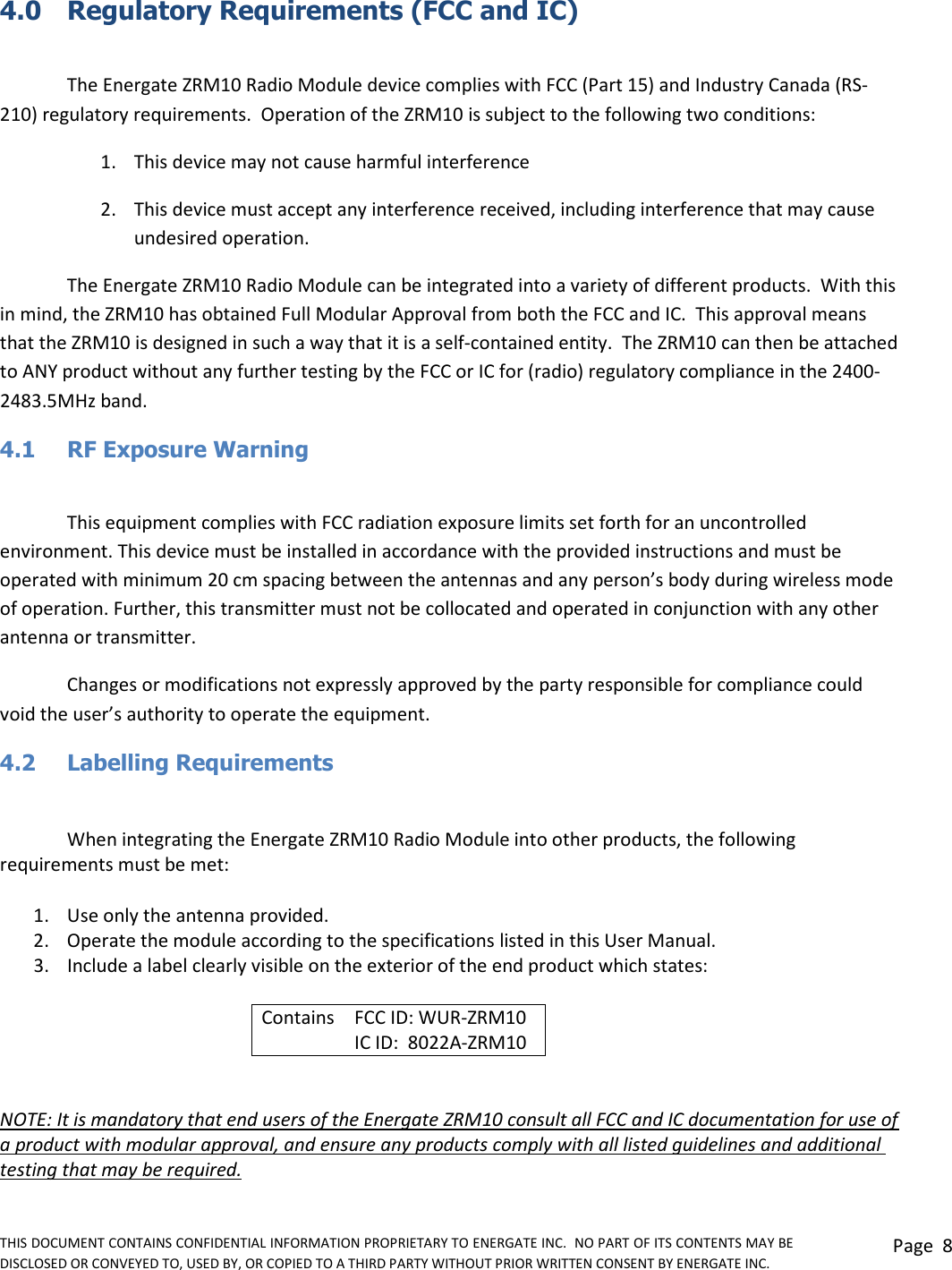

THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO ENERGATE INC. NO PART OF ITS CONTENTS MAY BE DISCLOSED OR CONVEYED TO, USED BY, OR COPIED TO A THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT BY ENERGATE INC. Page 8 4.0 Regulatory Requirements (FCC and IC) The Energate ZRM10 Radio Module device complies with FCC (Part 15) and Industry Canada (RS-210) regulatory requirements. Operation of the ZRM10 is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. The Energate ZRM10 Radio Module can be integrated into a variety of different products. With this in mind, the ZRM10 has obtained Full Modular Approval from both the FCC and IC. This approval means that the ZRM10 is designed in such a way that it is a self-contained entity. The ZRM10 can then be attached to ANY product without any further testing by the FCC or IC for (radio) regulatory compliance in the 2400-2483.5MHz band. 4.1 RF Exposure Warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device must be installed in accordance with the provided instructions and must be operated with minimum 20 cm spacing between the antennas and any person’s body during wireless mode of operation. Further, this transmitter must not be collocated and operated in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4.2 Labelling Requirements When integrating the Energate ZRM10 Radio Module into other products, the following requirements must be met: 1. Use only the antenna provided. 2. Operate the module according to the specifications listed in this User Manual. 3. Include a label clearly visible on the exterior of the end product which states: Contains FCC ID: WUR-ZRM10 IC ID: 8022A-ZRM10 NOTE: It is mandatory that end users of the Energate ZRM10 consult all FCC and IC documentation for use of a product with modular approval, and ensure any products comply with all listed guidelines and additional testing that may be required.
