Escatronic ESCADISTANCE ESCA DISTANCE US/CA User Manual Testreport ETS 300 335

Escatronic GmbH ESCA DISTANCE US/CA Testreport ETS 300 335

Users Manual

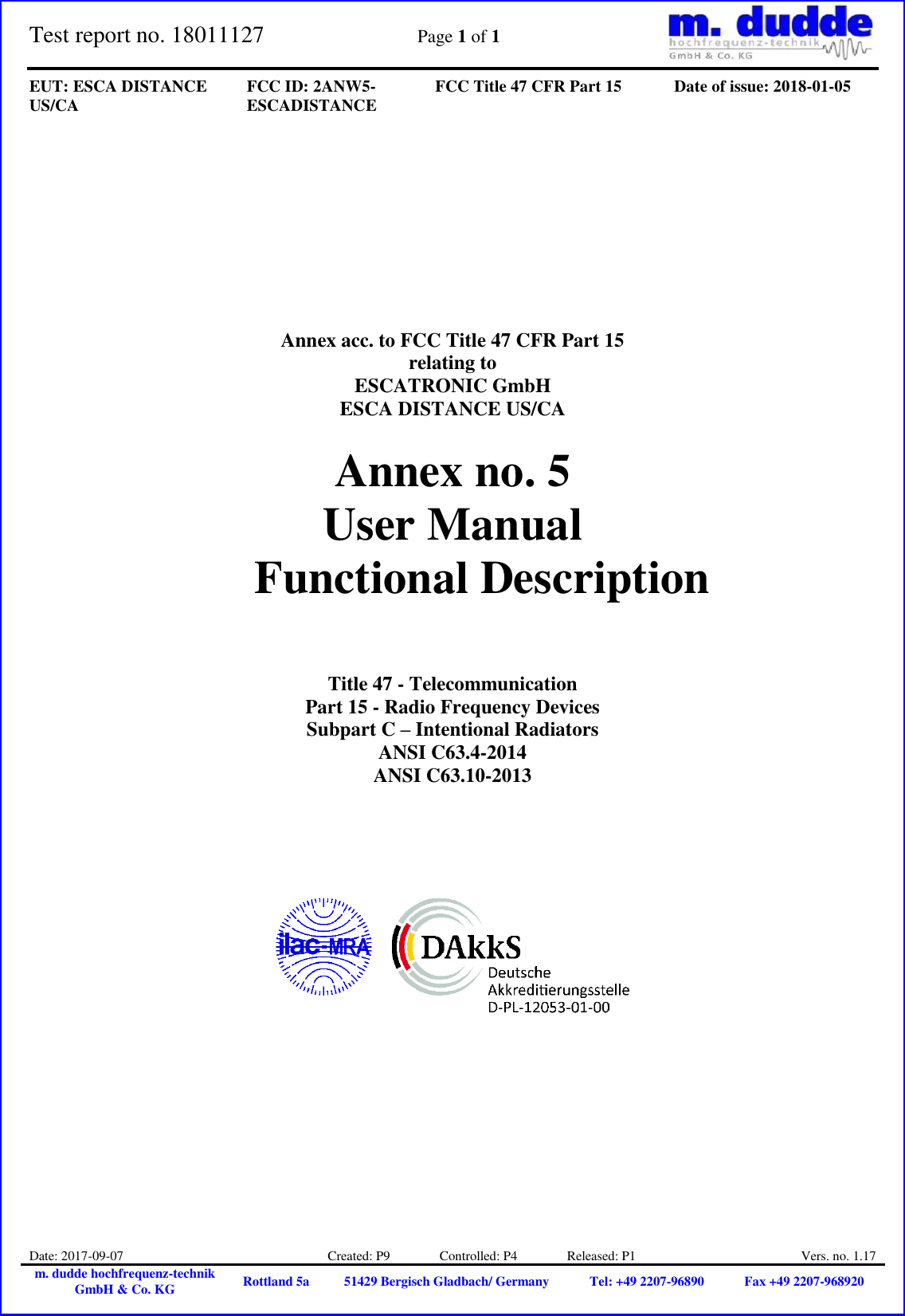

Test report no. 18011127  Page 1 of 1    EUT: ESCA DISTANCE US/CA FCC ID: 2ANW5-ESCADISTANCE FCC Title 47 CFR Part 15 Date of issue: 2018-01-05  Date: 2017-09-07 Created: P9               Controlled: P4               Released: P1 Vers. no. 1.17 m. dudde hochfrequenz-technik GmbH & Co. KG Rottland 5a 51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920            Annex acc. to FCC Title 47 CFR Part 15 relating to ESCATRONIC GmbH ESCA DISTANCE US/CA  Annex no. 5 User Manual  Functional Description     Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators ANSI C63.4-2014 ANSI C63.10-2013

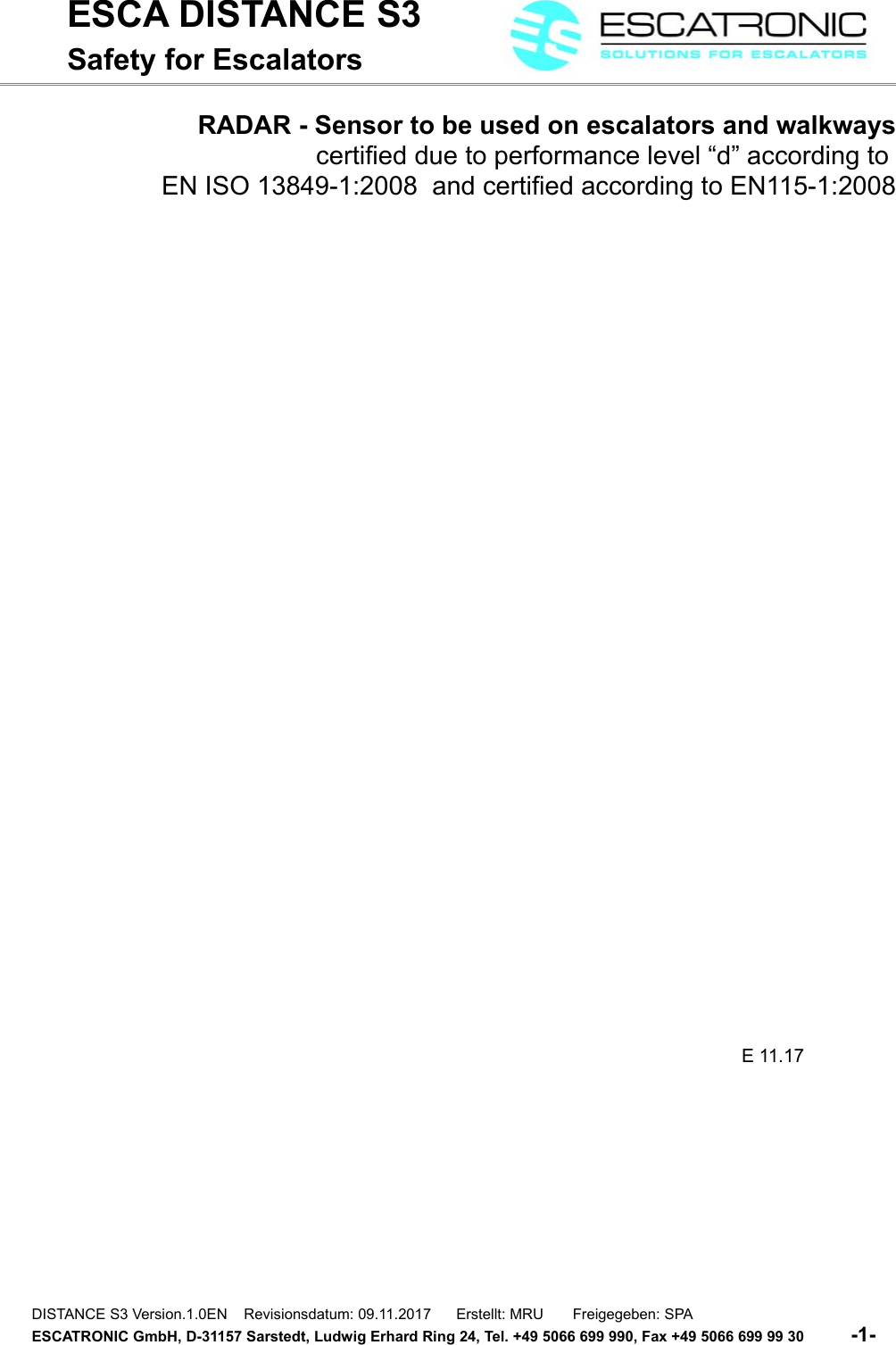

ESCA DISTANCE S3Safety for EscalatorsRADAR - Sensor to be used on escalators and walkwayscertified due to performance level “d” according to EN ISO 13849-1:2008  and certified according to EN115-1:2008 E 11.17DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -1-

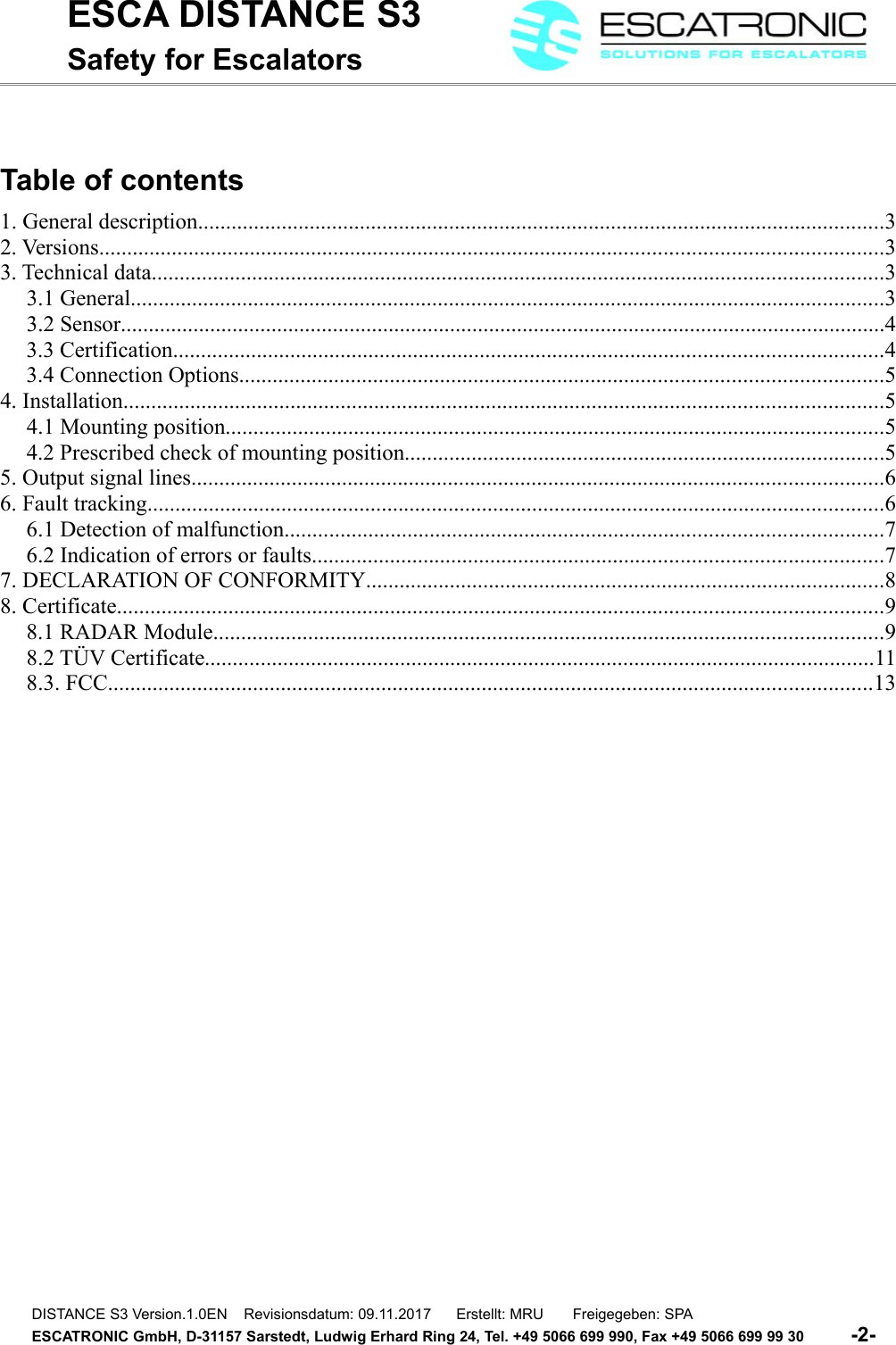

ESCA DISTANCE S3Safety for EscalatorsTable of contents1. General description...........................................................................................................................32. Versions............................................................................................................................................33. Technical data...................................................................................................................................33.1 General.......................................................................................................................................33.2 Sensor.........................................................................................................................................43.3 Certification...............................................................................................................................43.4 Connection Options...................................................................................................................54. Installation........................................................................................................................................54.1 Mounting position......................................................................................................................54.2 Prescribed check of mounting position......................................................................................55. Output signal lines............................................................................................................................66. Fault tracking....................................................................................................................................66.1 Detection of malfunction...........................................................................................................76.2 Indication of errors or faults......................................................................................................77. DECLARATION OF CONFORMITY.............................................................................................88. Certificate.........................................................................................................................................98.1 RADAR Module........................................................................................................................98.2 TÜV Certificate........................................................................................................................118.3. FCC.........................................................................................................................................13DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -2-

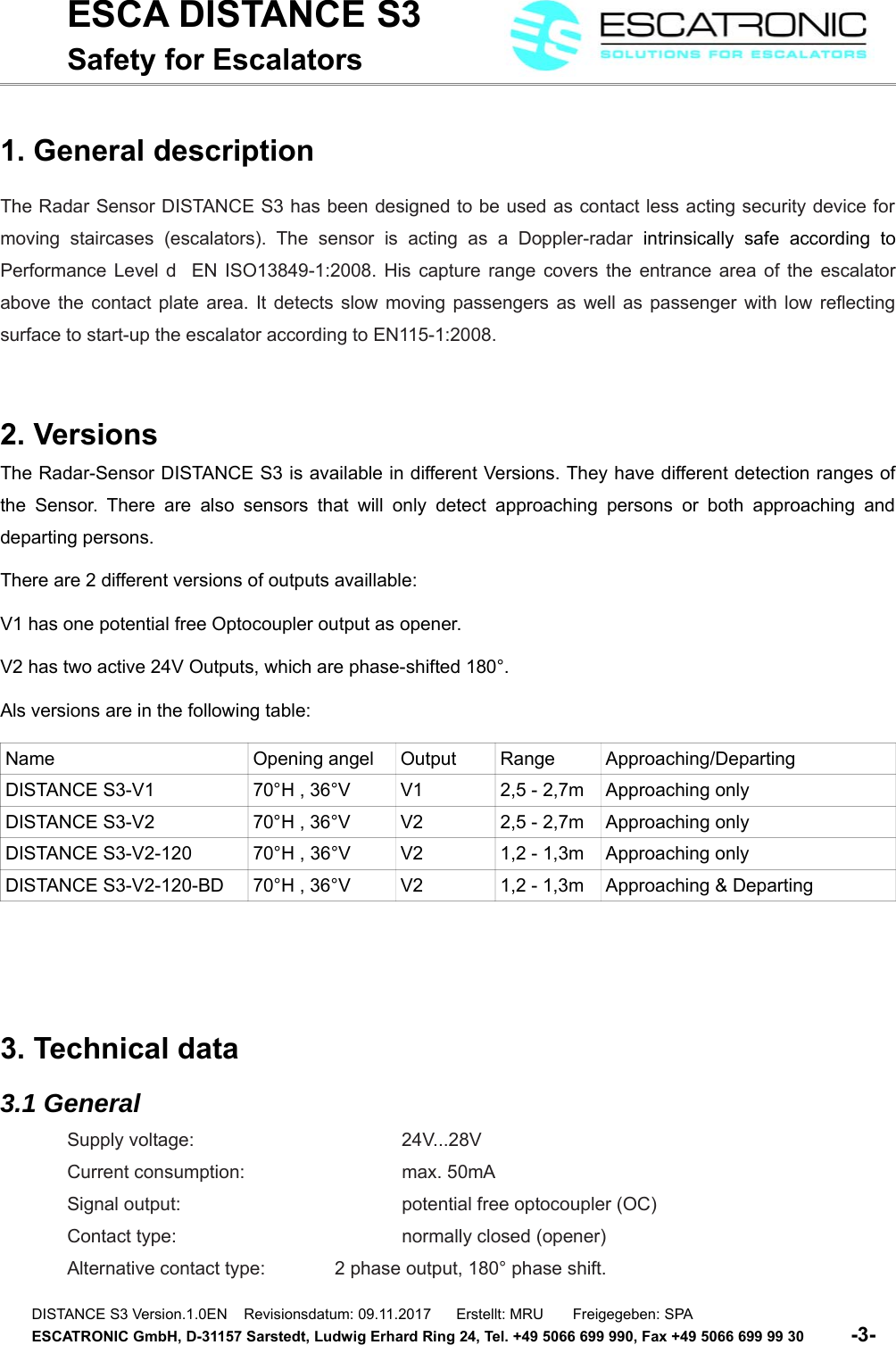

ESCA DISTANCE S3Safety for Escalators1. General descriptionThe Radar Sensor DISTANCE S3 has been designed to be used as contact less acting security device formoving staircases  (escalators).   The   sensor   is  acting   as  a   Doppler-radar  intrinsically  safe   according   toPerformance Level d   EN ISO13849-1:2008. His capture range covers the entrance area of the escalatorabove the contact plate area. It detects slow moving passengers as well as passenger with low reflectingsurface to start-up the escalator according to EN115-1:2008.2. VersionsThe Radar-Sensor DISTANCE S3 is available in different Versions. They have different detection ranges ofthe Sensor. There are also sensors  that will only detect approaching persons or both approaching anddeparting persons.There are 2 different versions of outputs availlable:V1 has one potential free Optocoupler output as opener.V2 has two active 24V Outputs, which are phase-shifted 180°.Als versions are in the following table:Name Opening angel Output Range Approaching/DepartingDISTANCE S3-V1 70°H , 36°V V1 2,5 - 2,7m Approaching onlyDISTANCE S3-V2 70°H , 36°V V2 2,5 - 2,7m Approaching onlyDISTANCE S3-V2-120 70°H , 36°V V2 1,2 - 1,3m Approaching onlyDISTANCE S3-V2-120-BD 70°H , 36°V V2 1,2 - 1,3m Approaching & Departing3. Technical data3.1 GeneralSupply voltage: 24V...28VCurrent consumption:  max. 50mASignal output:  potential free optocoupler (OC)Contact type:  normally closed (opener)Alternative contact type: 2 phase output, 180° phase shift.DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -3-

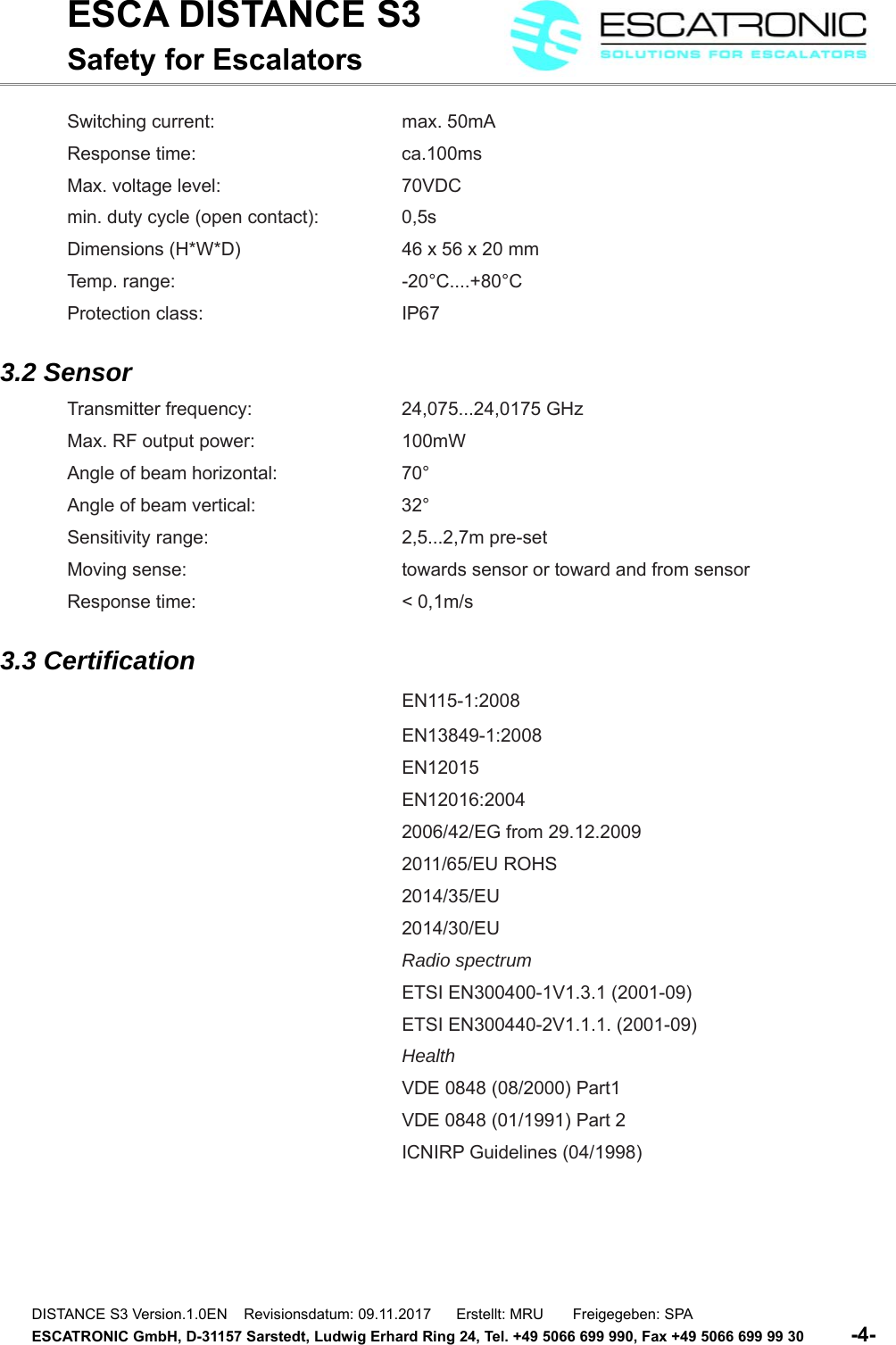

ESCA DISTANCE S3Safety for EscalatorsSwitching current:  max. 50mAResponse time: ca.100msMax. voltage level:  70VDCmin. duty cycle (open contact):  0,5sDimensions (H*W*D)  46 x 56 x 20 mmTemp. range:  -20°C....+80°CProtection class:  IP673.2 SensorTransmitter frequency:  24,075...24,0175 GHzMax. RF output power:  100mWAngle of beam horizontal:  70°Angle of beam vertical:  32°Sensitivity range:  2,5...2,7m pre-setMoving sense:  towards sensor or toward and from sensorResponse time:  < 0,1m/s3.3 CertificationEN115-1:2008EN13849-1:2008EN12015EN12016:20042006/42/EG from 29.12.20092011/65/EU ROHS2014/35/EU2014/30/EURadio spectrumETSI EN300400-1V1.3.1 (2001-09)ETSI EN300440-2V1.1.1. (2001-09)HealthVDE 0848 (08/2000) Part1VDE 0848 (01/1991) Part 2ICNIRP Guidelines (04/1998)DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -4-

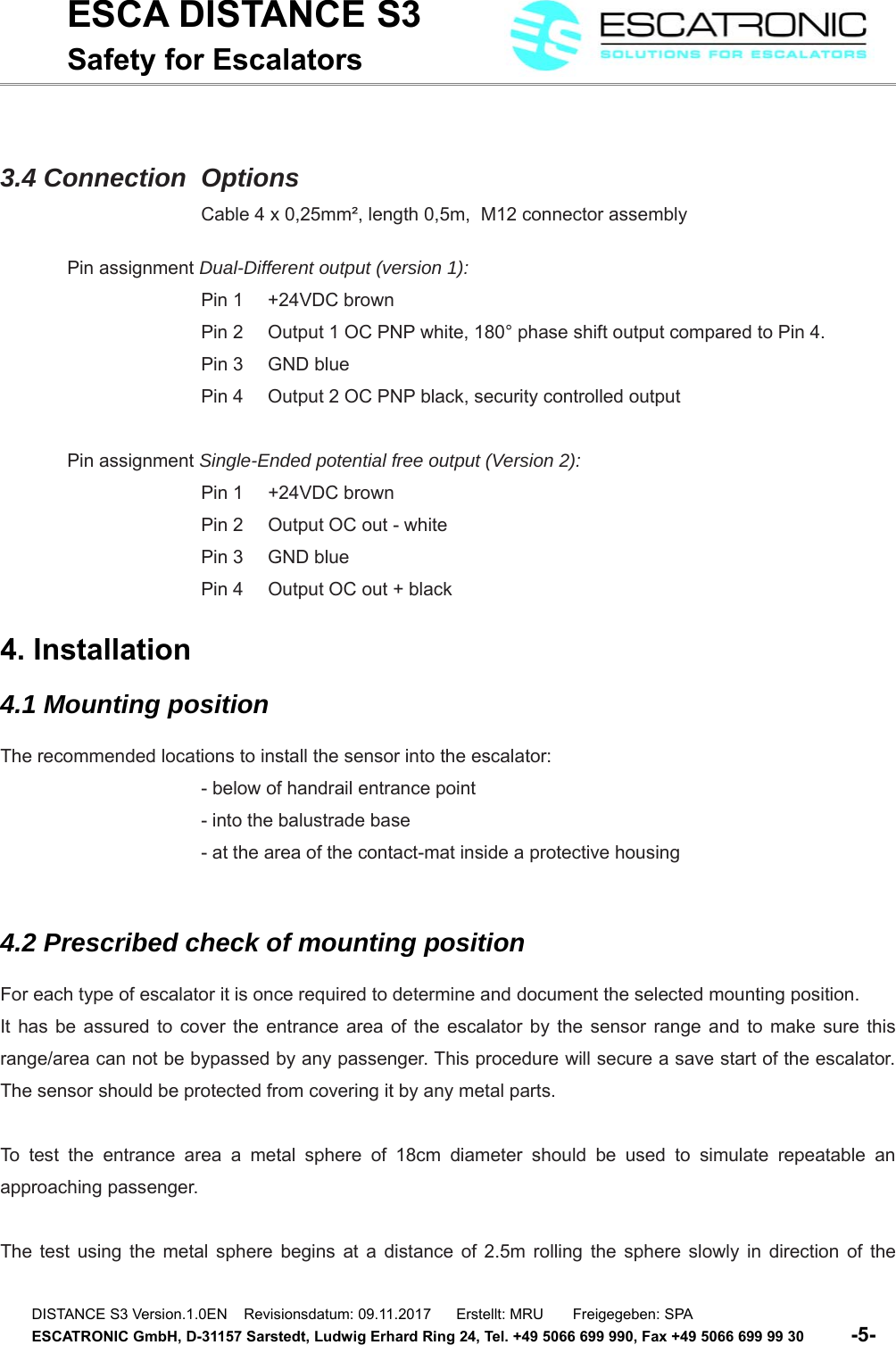

ESCA DISTANCE S3Safety for Escalators3.4 Connection  OptionsCable 4 x 0,25mm², length 0,5m,  M12 connector assemblyPin assignment Dual-Different output (version 1):Pin 1  +24VDC brownPin 2  Output 1 OC PNP white, 180° phase shift output compared to Pin 4.Pin 3  GND bluePin 4  Output 2 OC PNP black, security controlled outputPin assignment Single-Ended potential free output (Version 2):Pin 1 +24VDC brownPin 2 Output OC out - whitePin 3 GND bluePin 4 Output OC out + black4. Installation4.1 Mounting positionThe recommended locations to install the sensor into the escalator:- below of handrail entrance point- into the balustrade base- at the area of the contact-mat inside a protective housing4.2 Prescribed check of mounting positionFor each type of escalator it is once required to determine and document the selected mounting position. It has be assured to cover the entrance area of the escalator by the sensor range and to make sure thisrange/area can not be bypassed by any passenger. This procedure will secure a save start of the escalator.The sensor should be protected from covering it by any metal parts.To test the entrance area a metal sphere of 18cm  diameter should be used to simulate repeatable anapproaching passenger. The test using the metal sphere begins at a distance of 2.5m rolling the sphere slowly in direction of theDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -5-

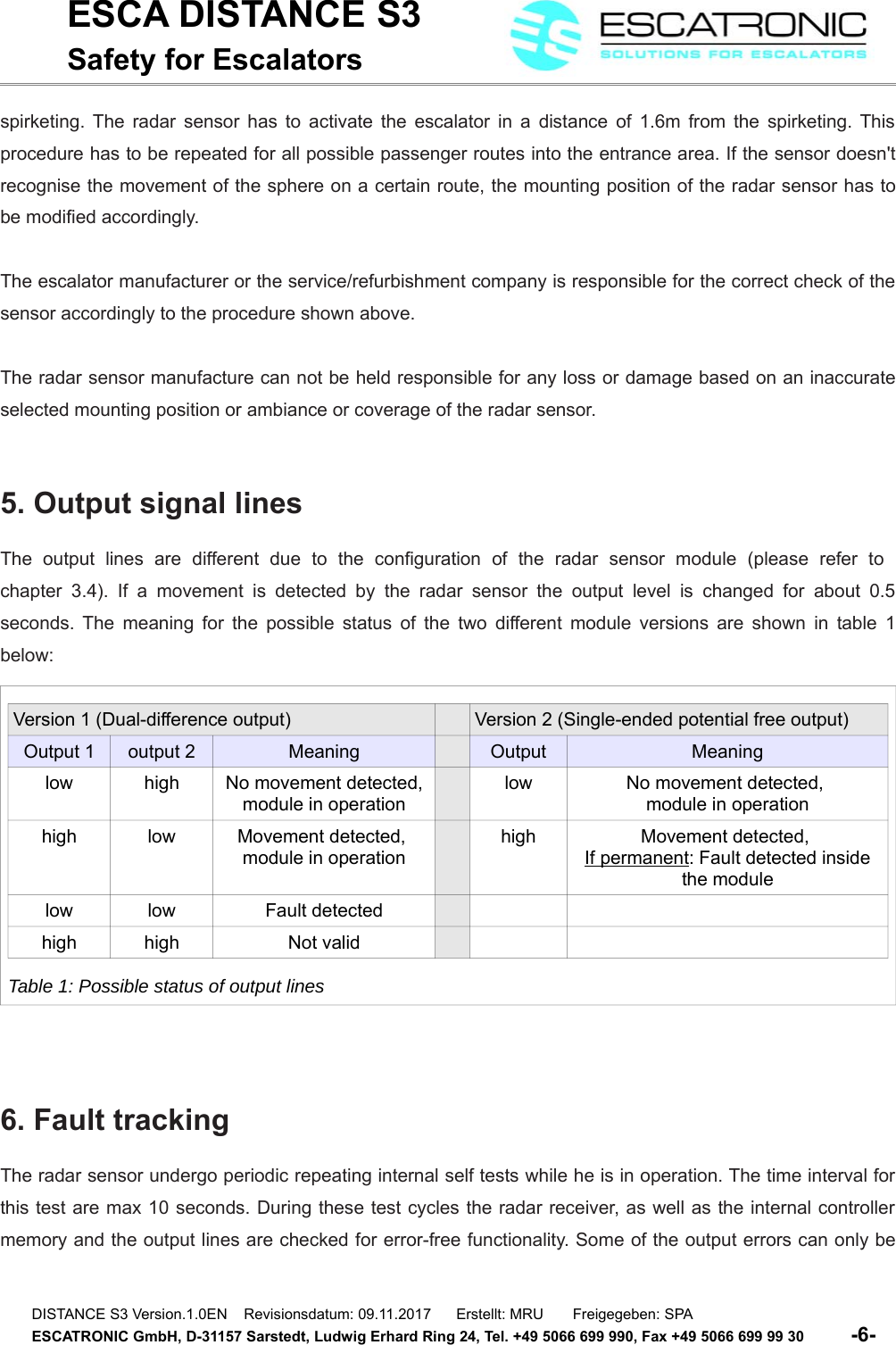

ESCA DISTANCE S3Safety for Escalatorsspirketing. The radar sensor has to activate the escalator in a distance of 1.6m from the spirketing. Thisprocedure has to be repeated for all possible passenger routes into the entrance area. If the sensor doesn'trecognise the movement of the sphere on a certain route, the mounting position of the radar sensor has tobe modified accordingly.The escalator manufacturer or the service/refurbishment company is responsible for the correct check of thesensor accordingly to the procedure shown above.The radar sensor manufacture can not be held responsible for any loss or damage based on an inaccurateselected mounting position or ambiance or coverage of the radar sensor. 5. Output signal linesThe   output   lines   are   different  due   to   the   configuration  of   the   radar   sensor   module   (please   refer   to  chapter 3.4). If a movement is detected by the radar sensor the output level is changed for about 0.5seconds. The meaning for the possible status of the two different module versions are shown in table 1below:6. Fault trackingThe radar sensor undergo periodic repeating internal self tests while he is in operation. The time interval forthis test are max 10 seconds. During these test cycles the radar receiver, as well as the internal controllermemory and the output lines are checked for error-free functionality. Some of the output errors can only beDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -6-   Version 1 (Dual-difference output) Version 2 (Single-ended potential free output)Output 1 output 2 Meaning Output Meaninglow high No movement detected,module in operationlow No movement detected, module in operationhigh low Movement detected, module in operationhigh Movement detected, If permanent: Fault detected insidethe modulelow low Fault detectedhigh high Not validTable 1: Possible status of output lines

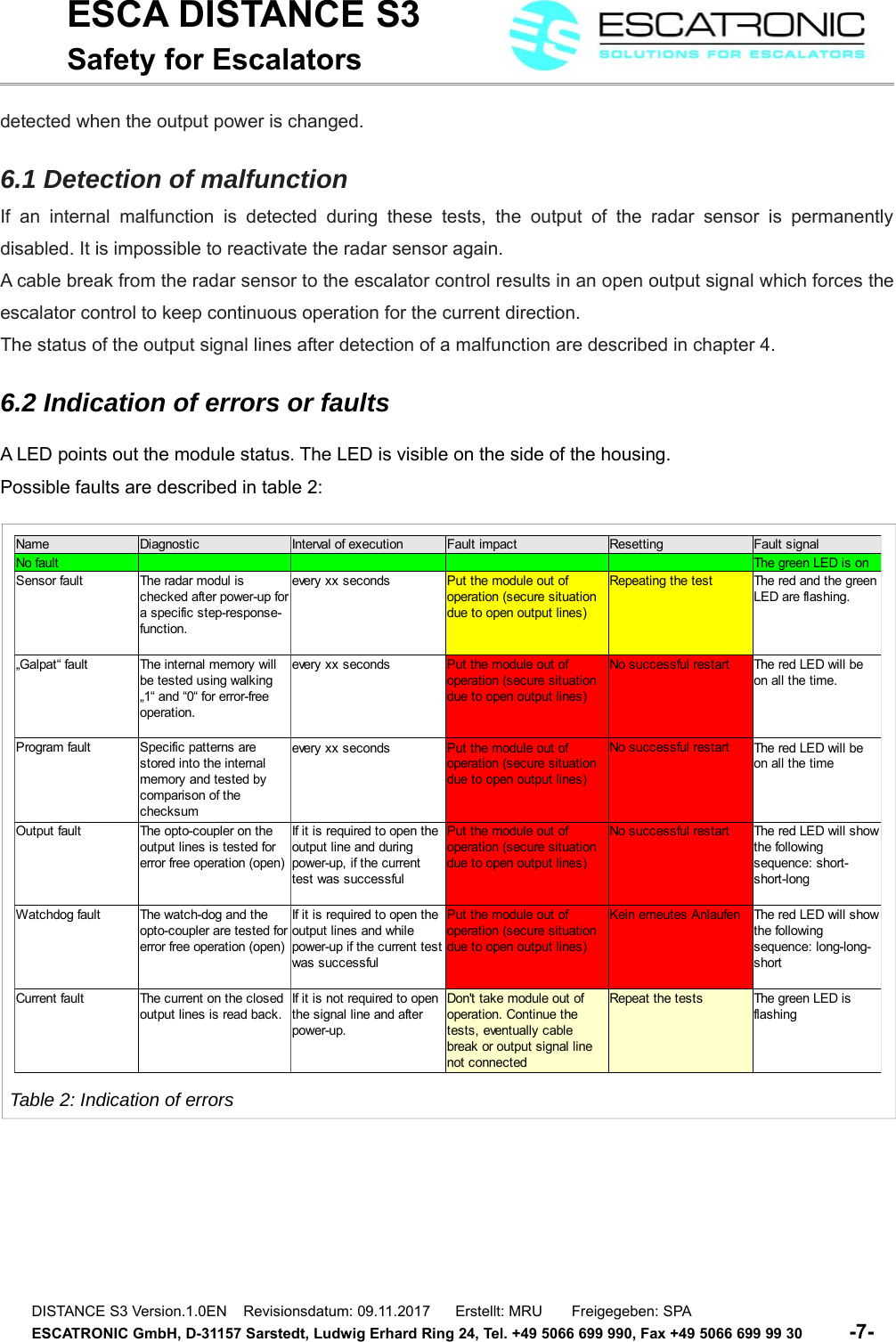

ESCA DISTANCE S3Safety for Escalatorsdetected when the output power is changed.    6.1 Detection of malfunctionIf an  internal malfunction is detected  during  these tests, the  output of the radar  sensor is permanentlydisabled. It is impossible to reactivate the radar sensor again.A cable break from the radar sensor to the escalator control results in an open output signal which forces theescalator control to keep continuous operation for the current direction.The status of the output signal lines after detection of a malfunction are described in chapter 4.6.2 Indication of errors or faultsA LED points out the module status. The LED is visible on the side of the housing.Possible faults are described in table 2: DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -7-   Table 2: Indication of errorsName Diagnostic Interval of execution Fault impact Resetting Fault signalNo fault The green LED is on Sensor fault Repeating the testNo successful restartProgram fault No successful restartOutput fault No successful restartWatchdog faultCurrent fault Repeat the testsThe radar modul is checked after power-up for a specific step-response-function.every xx seconds Put the module out of operation (secure situation due to open output lines)The red and the green LED are flashing.„Galpat“ fault The internal memory will be tested using walking „1“ and “0“ for error-free operation.every xx seconds Put the module out of operation (secure situation due to open output lines)The red LED will be on all the time.Specific patterns are stored into the internal memory and tested by  comparison of the checksumevery xx seconds Put the module out of operation (secure situation due to open output lines)The red LED will be on all the timeThe opto-coupler on the output lines is tested for error free operation (open)If it is required to open the output line and during power-up, if the current test was successfulPut the module out of operation (secure situation due to open output lines)The red LED will show the following sequence: short-short-longThe watch-dog and the opto-coupler are tested for error free operation (open)If it is required to open the output lines and while power-up if the current test was successful Put the module out of operation (secure situation due to open output lines)Kein erneutes Anlaufen The red LED will show the following sequence: long-long-shortThe current on the closed output lines is read back.If it is not required to open the signal line and after power-up.Don't take module out of operation. Continue the tests, eventually cable break or output signal line not connectedThe green LED is flashing

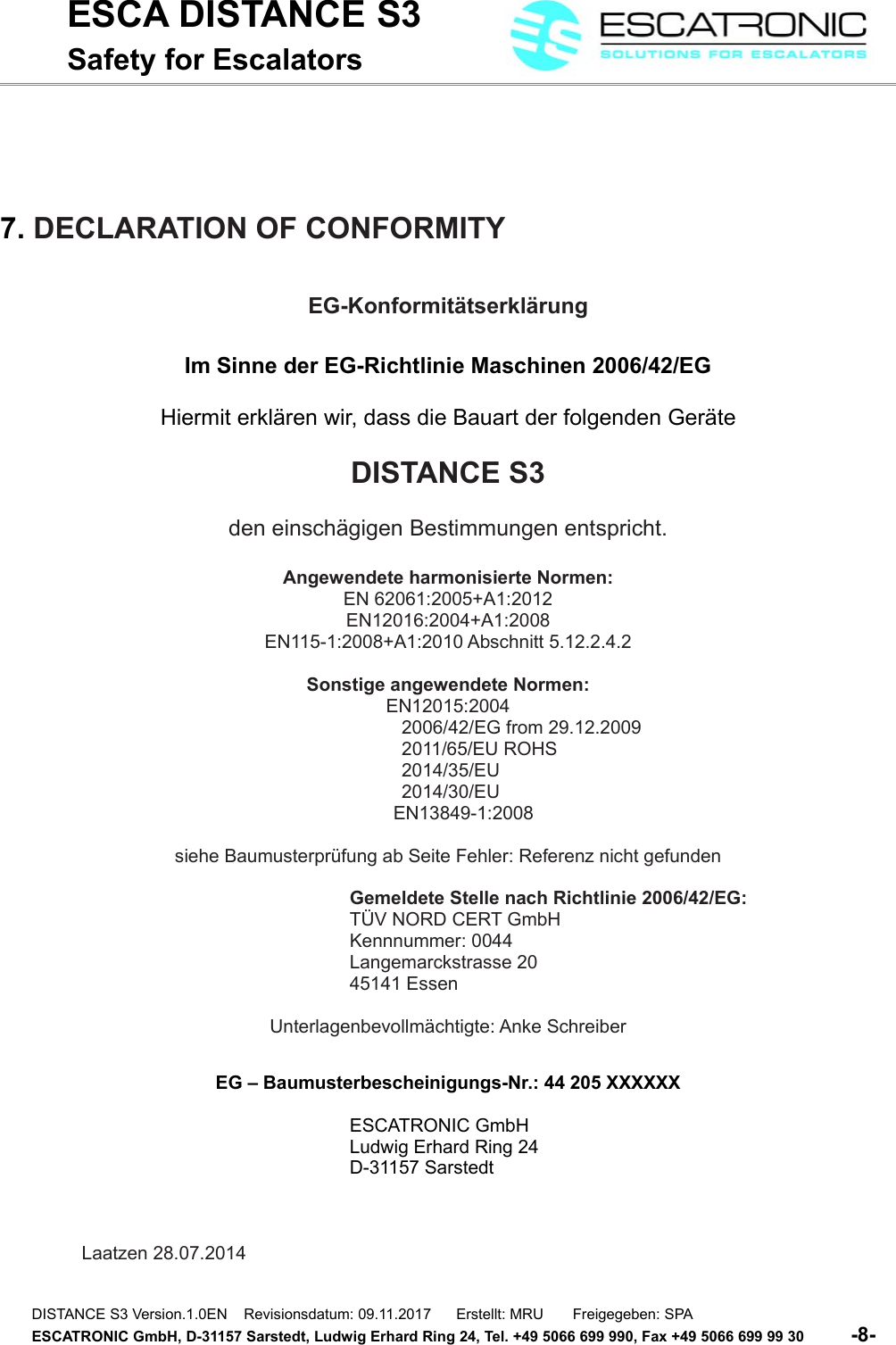

ESCA DISTANCE S3Safety for Escalators7. DECLARATION OF CONFORMITYEG-KonformitätserklärungIm Sinne der EG-Richtlinie Maschinen 2006/42/EGHiermit erklären wir, dass die Bauart der folgenden GeräteDISTANCE S3den einschägigen Bestimmungen entspricht.Angewendete harmonisierte Normen:EN 62061:2005+A1:2012EN12016:2004+A1:2008EN115-1:2008+A1:2010 Abschnitt 5.12.2.4.2Sonstige angewendete Normen:EN12015:20042006/42/EG from 29.12.20092011/65/EU ROHS2014/35/EU2014/30/EU      EN13849-1:2008siehe Baumusterprüfung ab Seite Fehler: Referenz nicht gefundenGemeldete Stelle nach Richtlinie 2006/42/EG:TÜV NORD CERT GmbHKennnummer: 0044Langemarckstrasse 2045141 EssenUnterlagenbevollmächtigte: Anke SchreiberEG – Baumusterbescheinigungs-Nr.: 44 205 XXXXXXESCATRONIC GmbHLudwig Erhard Ring 24D-31157 SarstedtLaatzen 28.07.2014 DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -8-

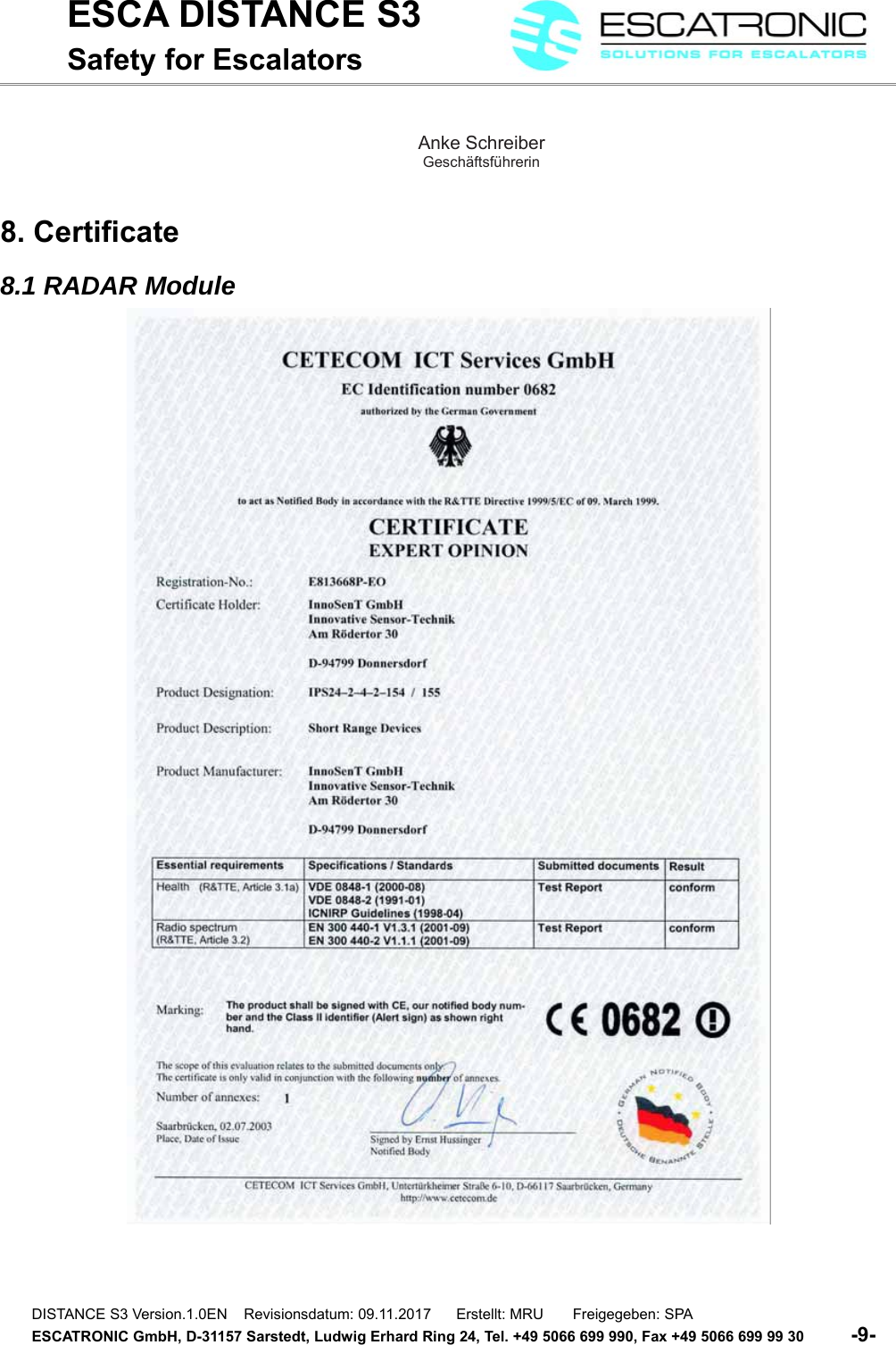

ESCA DISTANCE S3Safety for EscalatorsAnke SchreiberGeschäftsführerin8. Certificate8.1 RADAR ModuleDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -9-

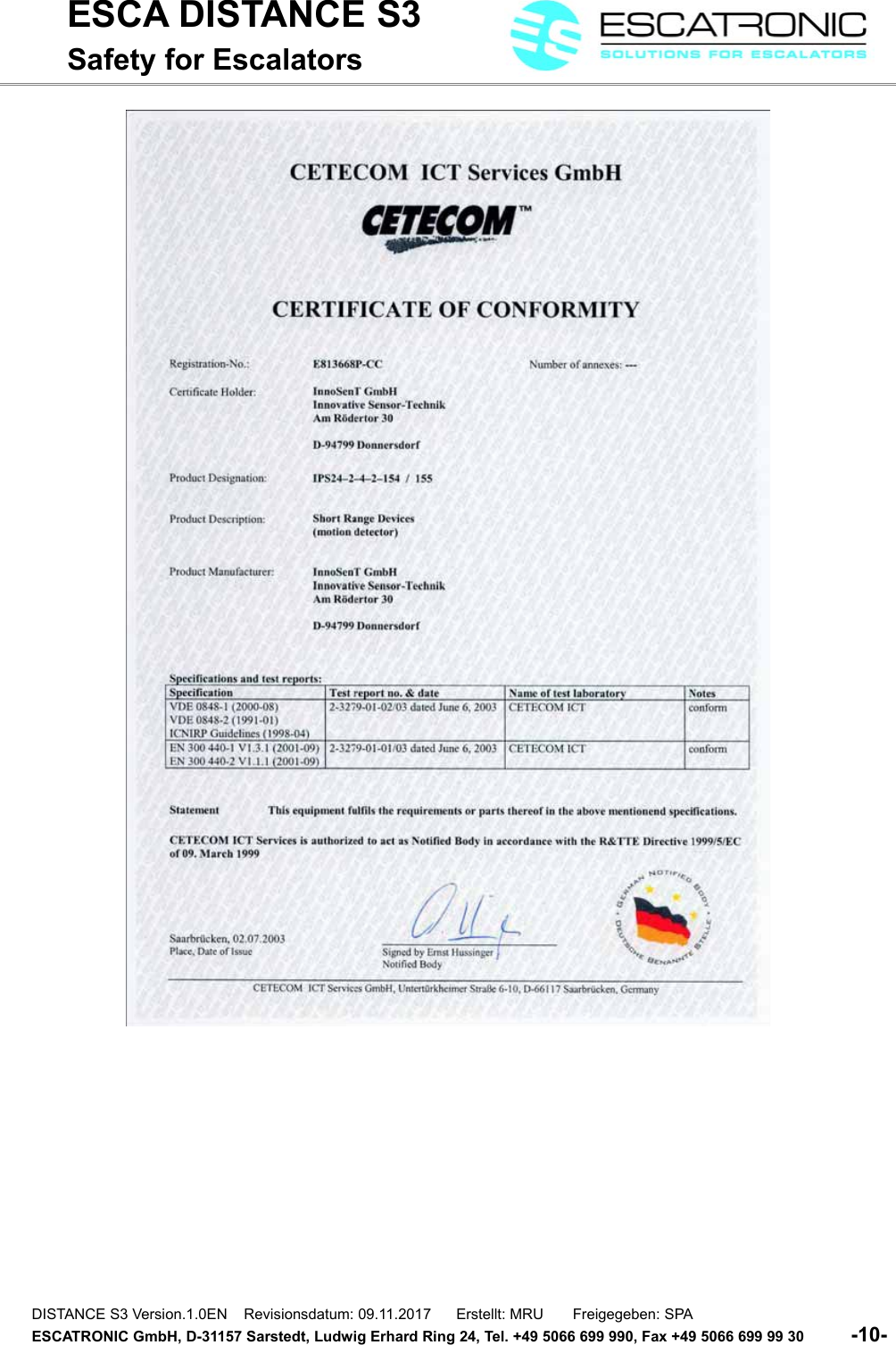

ESCA DISTANCE S3Safety for EscalatorsDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -10-

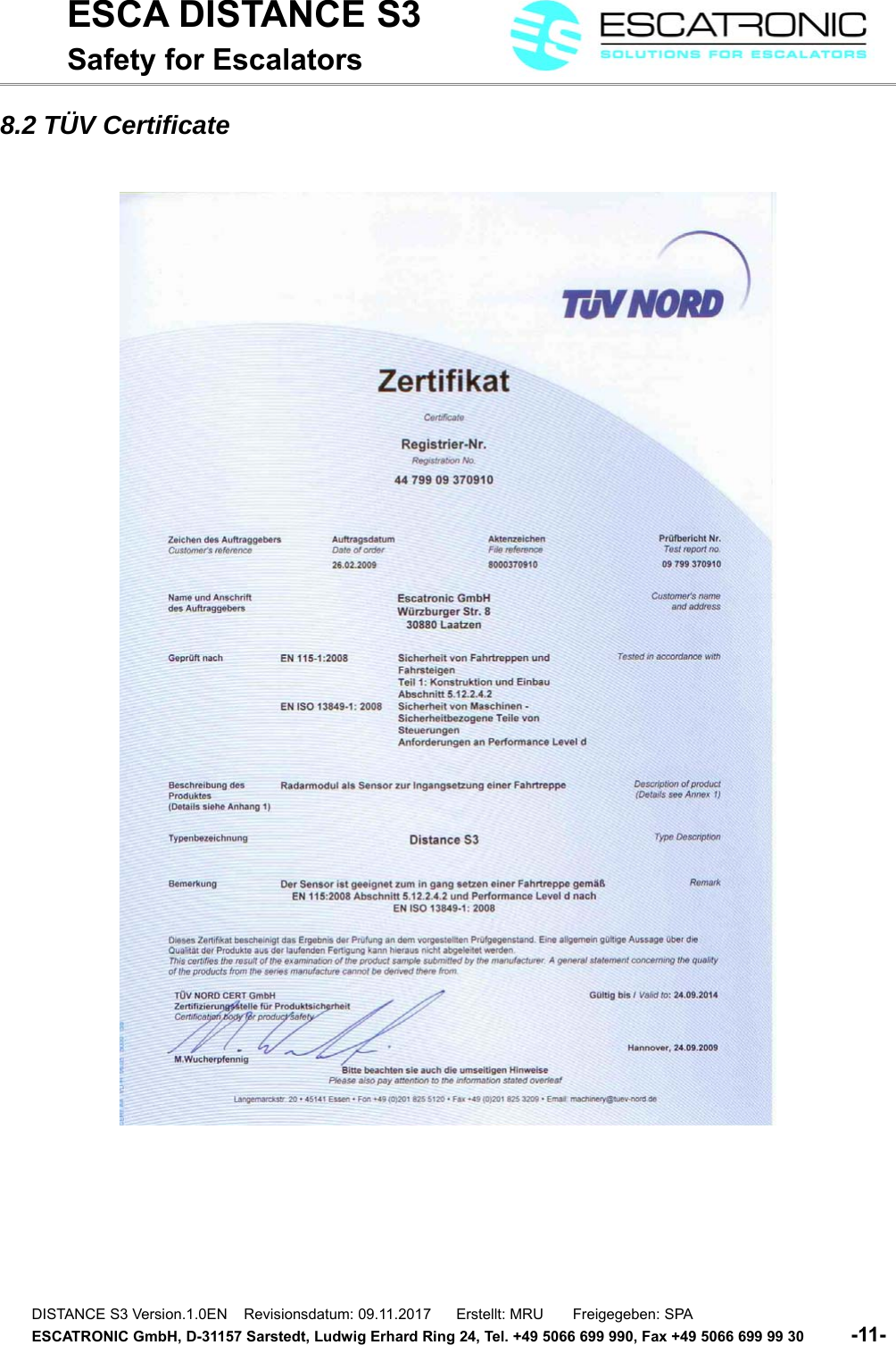

ESCA DISTANCE S3Safety for Escalators8.2 TÜV CertificateDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -11-

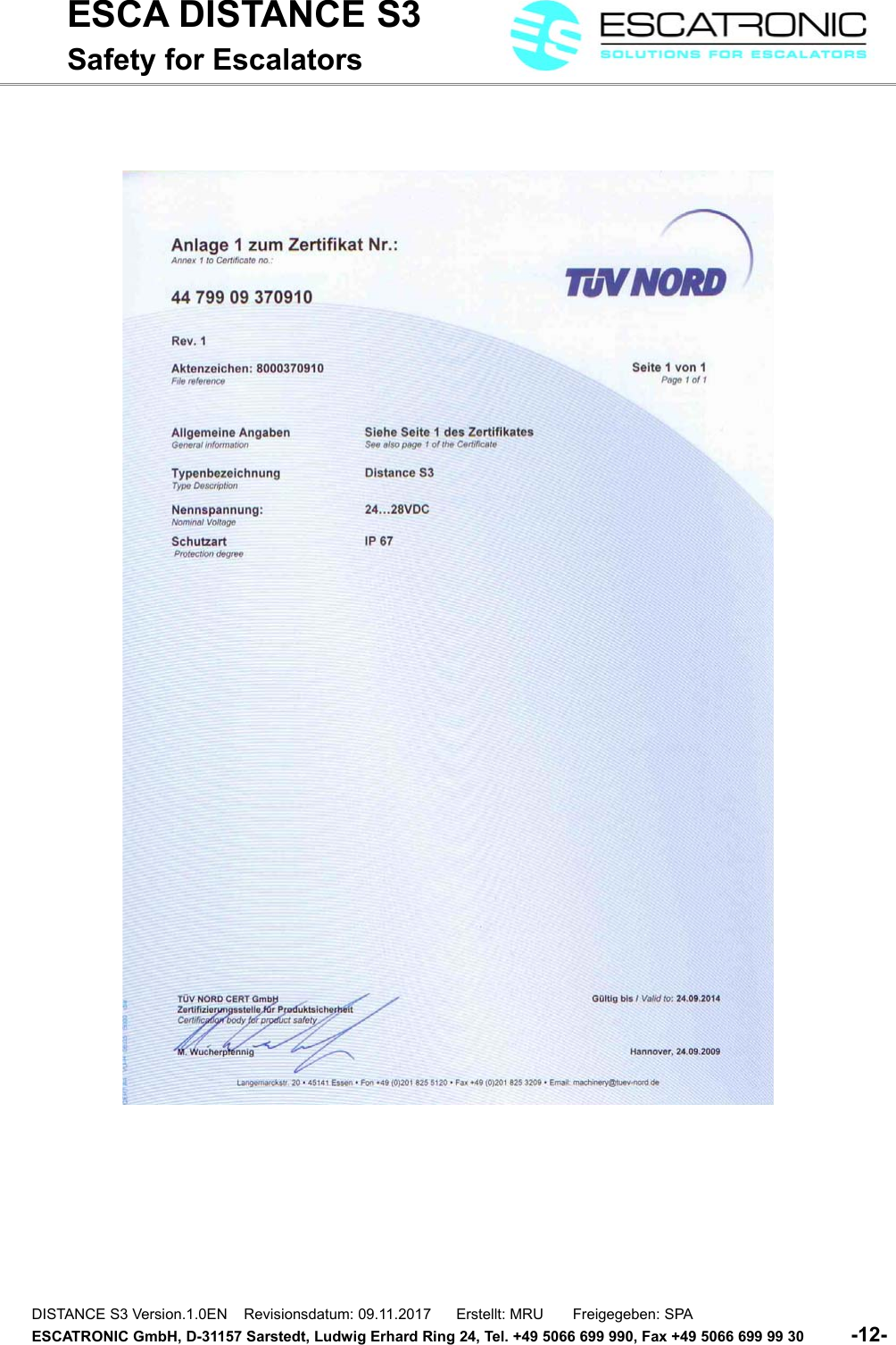

ESCA DISTANCE S3Safety for EscalatorsDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -12-

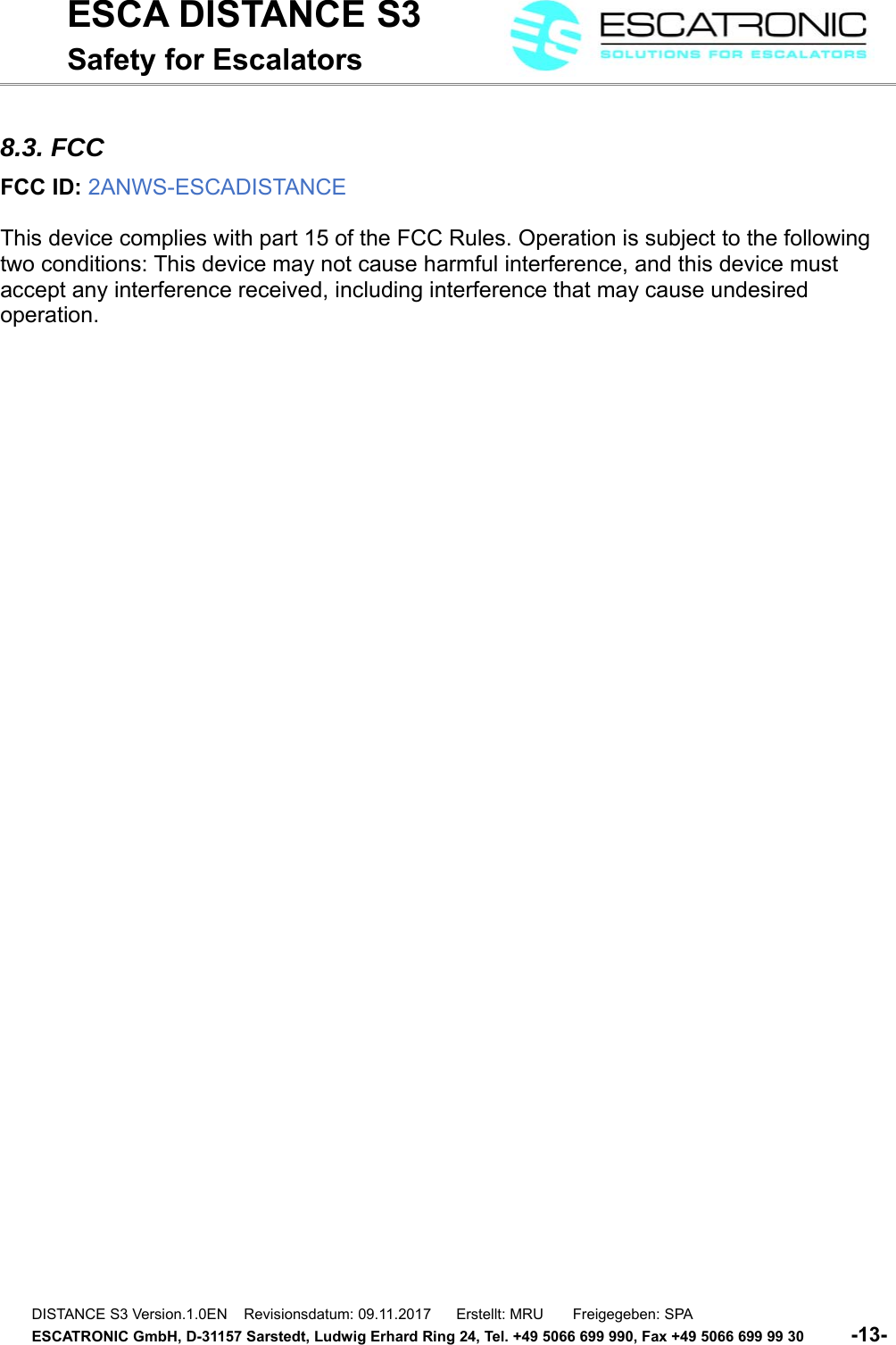

ESCA DISTANCE S3Safety for Escalators8.3. FCCFCC ID: 2ANWS-ESCADISTANCE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -13-

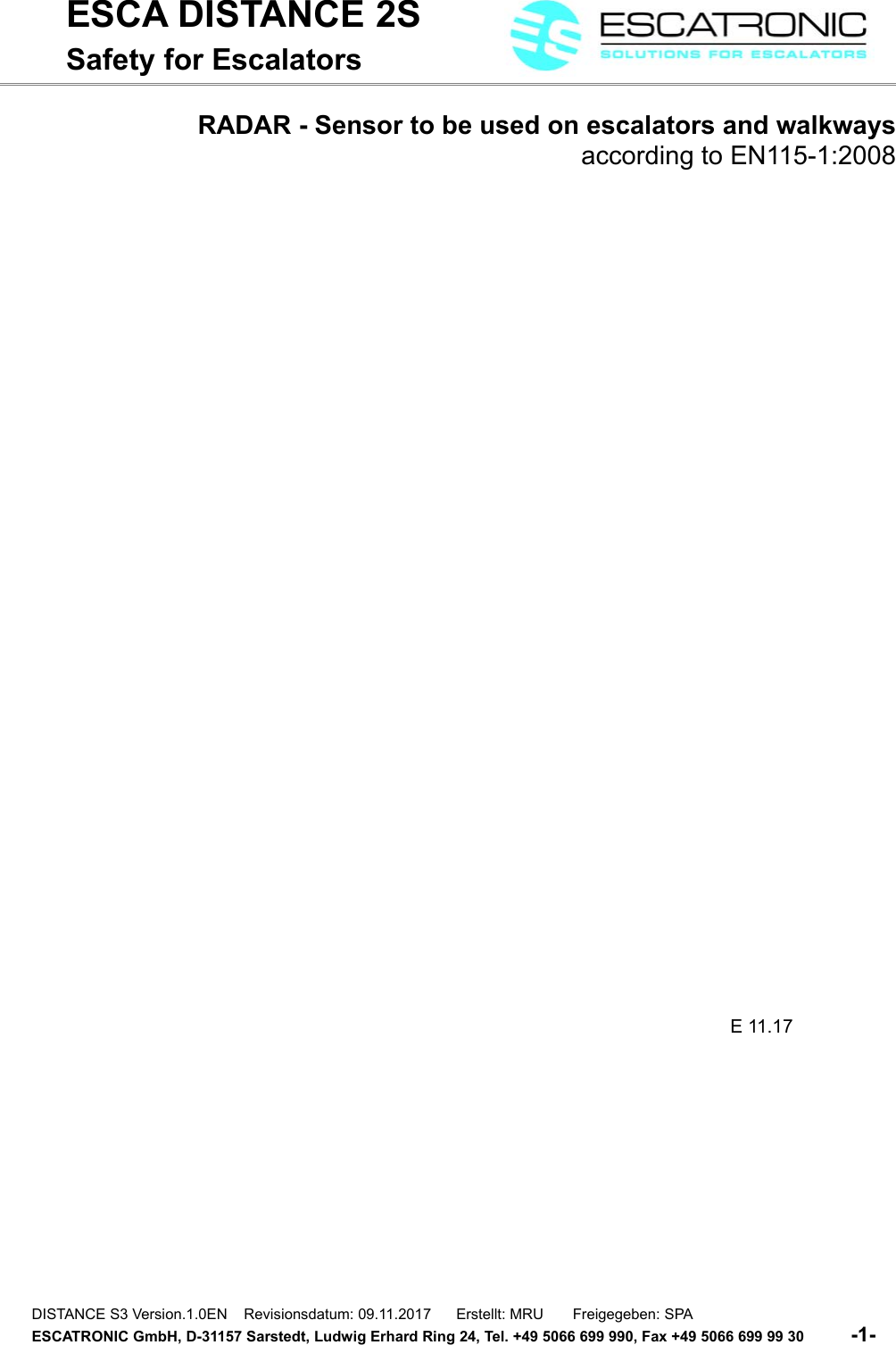

ESCA DISTANCE 2SSafety for EscalatorsRADAR - Sensor to be used on escalators and walkwaysaccording to EN115-1:2008 E 11.17DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -1-

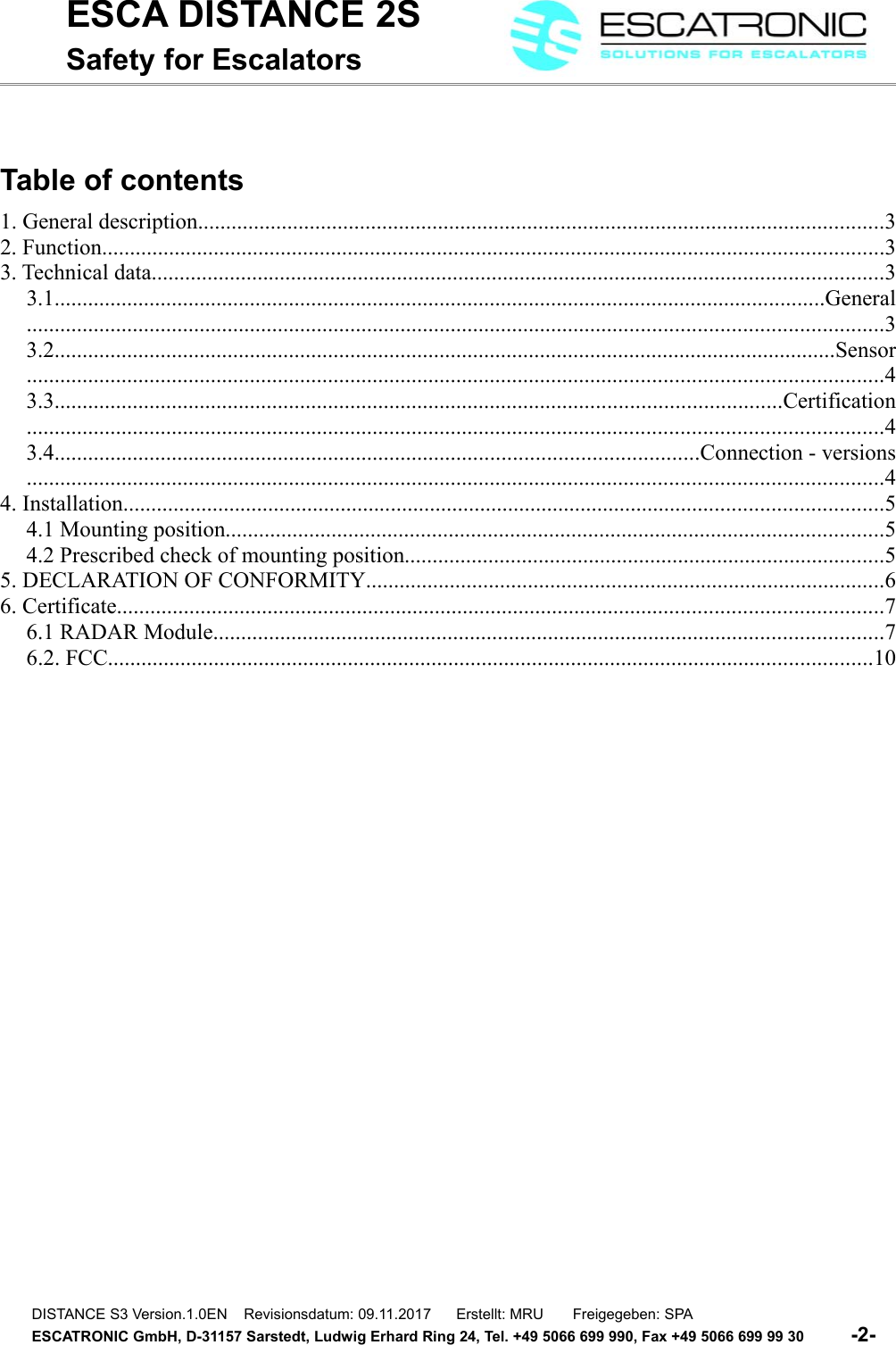

ESCA DISTANCE 2SSafety for EscalatorsTable of contents1. General description...........................................................................................................................32. Function............................................................................................................................................33. Technical data...................................................................................................................................33.1..........................................................................................................................................General.........................................................................................................................................................33.2............................................................................................................................................Sensor.........................................................................................................................................................43.3..................................................................................................................................Certification.........................................................................................................................................................43.4...................................................................................................................Connection - versions.........................................................................................................................................................44. Installation........................................................................................................................................54.1 Mounting position......................................................................................................................54.2 Prescribed check of mounting position......................................................................................55. DECLARATION OF CONFORMITY.............................................................................................66. Certificate.........................................................................................................................................76.1 RADAR Module........................................................................................................................76.2. FCC.........................................................................................................................................10DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -2-

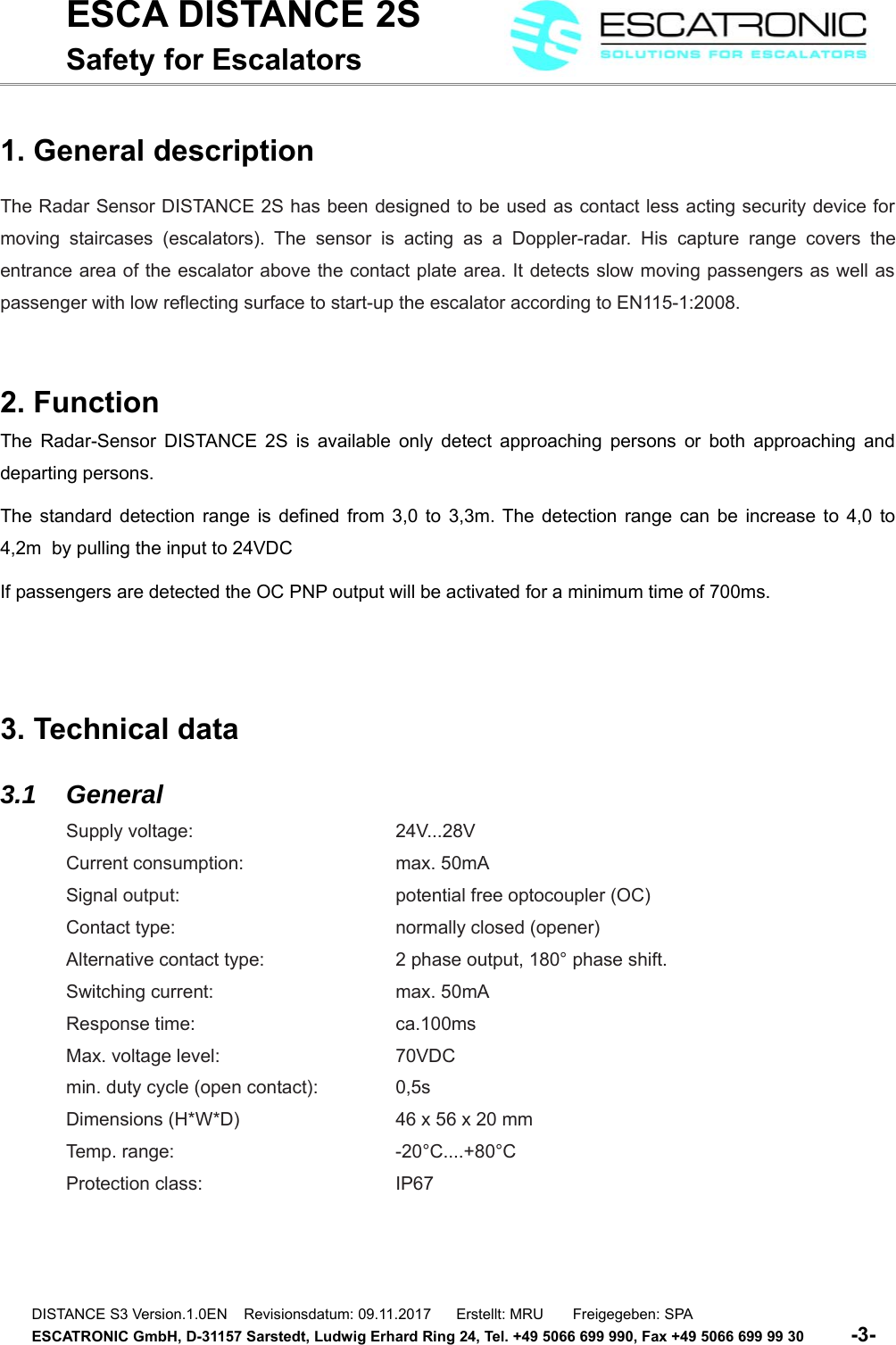

ESCA DISTANCE 2SSafety for Escalators1. General descriptionThe Radar Sensor DISTANCE 2S has been designed to be used as contact less acting security device formoving staircases (escalators). The   sensor  is acting as a   Doppler-radar. His  capture range  covers theentrance area of the escalator above the contact plate area. It detects slow moving passengers as well aspassenger with low reflecting surface to start-up the escalator according to EN115-1:2008.2. FunctionThe Radar-Sensor DISTANCE 2S is available only detect approaching persons or both approaching anddeparting persons.The standard detection range is defined from 3,0 to 3,3m. The detection range can be increase to 4,0 to4,2m  by pulling the input to 24VDCIf passengers are detected the OC PNP output will be activated for a minimum time of 700ms.3. Technical data3.1 GeneralSupply voltage: 24V...28VCurrent consumption:  max. 50mASignal output:  potential free optocoupler (OC)Contact type:  normally closed (opener)Alternative contact type: 2 phase output, 180° phase shift.Switching current:  max. 50mAResponse time: ca.100msMax. voltage level:  70VDCmin. duty cycle (open contact):  0,5sDimensions (H*W*D)  46 x 56 x 20 mmTemp. range:  -20°C....+80°CProtection class:  IP67DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -3-

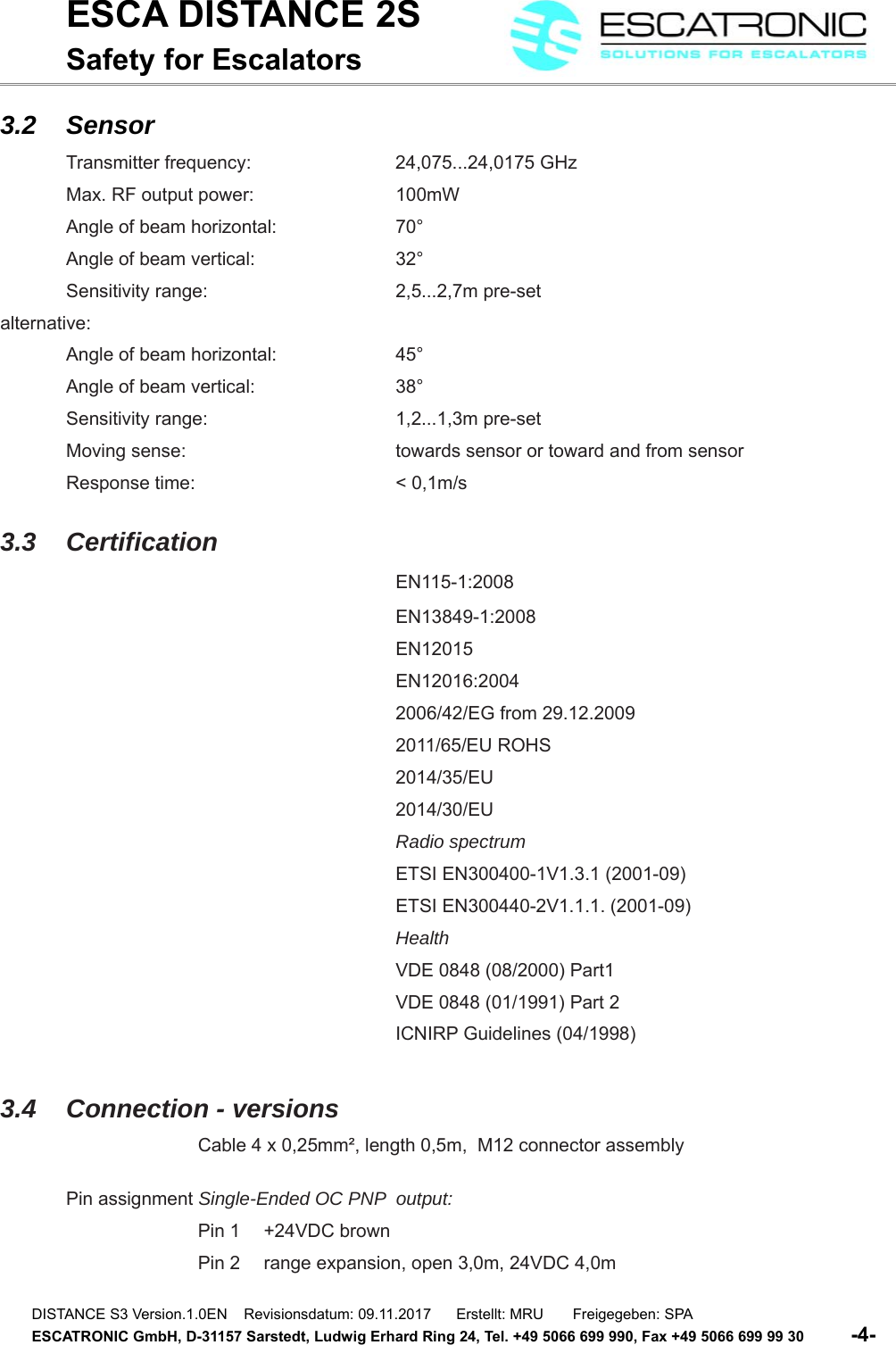

ESCA DISTANCE 2SSafety for Escalators3.2 SensorTransmitter frequency:  24,075...24,0175 GHzMax. RF output power:  100mWAngle of beam horizontal:  70°Angle of beam vertical:  32°Sensitivity range:  2,5...2,7m pre-setalternative:Angle of beam horizontal:  45°Angle of beam vertical:  38°Sensitivity range:  1,2...1,3m pre-setMoving sense:  towards sensor or toward and from sensorResponse time:  < 0,1m/s3.3 CertificationEN115-1:2008EN13849-1:2008EN12015EN12016:20042006/42/EG from 29.12.20092011/65/EU ROHS2014/35/EU2014/30/EURadio spectrumETSI EN300400-1V1.3.1 (2001-09)ETSI EN300440-2V1.1.1. (2001-09)HealthVDE 0848 (08/2000) Part1VDE 0848 (01/1991) Part 2ICNIRP Guidelines (04/1998)3.4 Connection - versionsCable 4 x 0,25mm², length 0,5m,  M12 connector assemblyPin assignment Single-Ended OC PNP  output:Pin 1  +24VDC brownPin 2  range expansion, open 3,0m, 24VDC 4,0mDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -4-

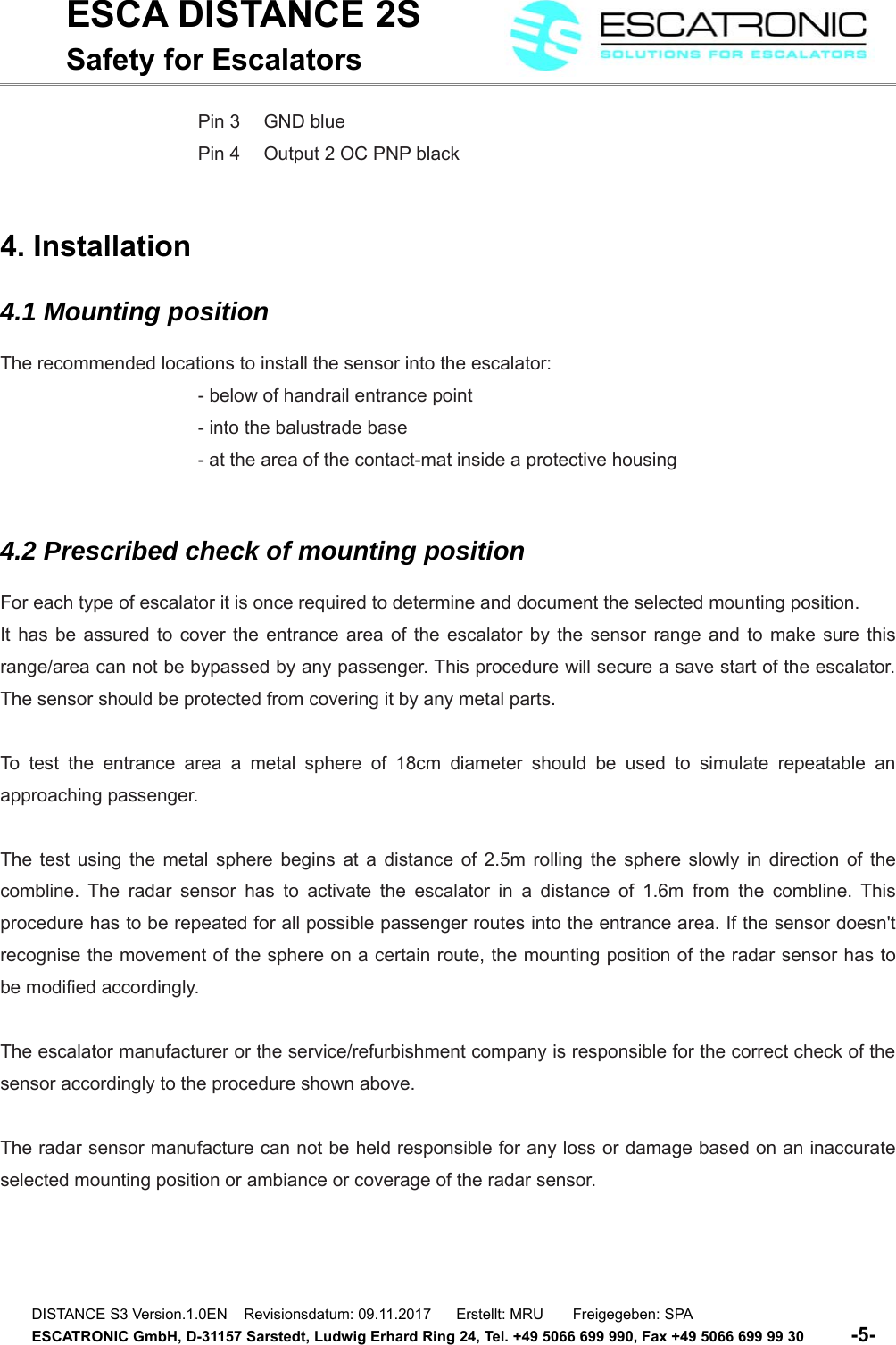

ESCA DISTANCE 2SSafety for EscalatorsPin 3  GND bluePin 4  Output 2 OC PNP black4. Installation4.1 Mounting positionThe recommended locations to install the sensor into the escalator:- below of handrail entrance point- into the balustrade base- at the area of the contact-mat inside a protective housing4.2 Prescribed check of mounting positionFor each type of escalator it is once required to determine and document the selected mounting position. It has be assured to cover the entrance area of the escalator by the sensor range and to make sure thisrange/area can not be bypassed by any passenger. This procedure will secure a save start of the escalator.The sensor should be protected from covering it by any metal parts.To test the entrance area a metal sphere of 18cm  diameter should be used to simulate repeatable anapproaching passenger. The test using the metal sphere begins at a distance of 2.5m rolling the sphere slowly in direction of thecombline. The radar sensor has to activate the escalator in a distance of 1.6m from the combline. Thisprocedure has to be repeated for all possible passenger routes into the entrance area. If the sensor doesn'trecognise the movement of the sphere on a certain route, the mounting position of the radar sensor has tobe modified accordingly.The escalator manufacturer or the service/refurbishment company is responsible for the correct check of thesensor accordingly to the procedure shown above.The radar sensor manufacture can not be held responsible for any loss or damage based on an inaccurateselected mounting position or ambiance or coverage of the radar sensor. DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -5-
ESCA DISTANCE 2SSafety for Escalators5. DECLARATION OF CONFORMITYEG-KonformitätserklärungIm Sinne der EG-Richtlinie Maschinen 2006/42/EGHiermit erklären wir, dass die Bauart der folgenden GeräteDISTANCE 2Sden einschägigen Bestimmungen entspricht.Angewendete harmonisierte Normen:EN12016:2004+A1:2008EN115-1:2008+A1:2010 Abschnitt 5.12.2.4.2Sonstige angewendete Normen:EN12015:20042006/42/EG2002/95/EG RoHS2006/95/EG2004/1008/EGDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -6-

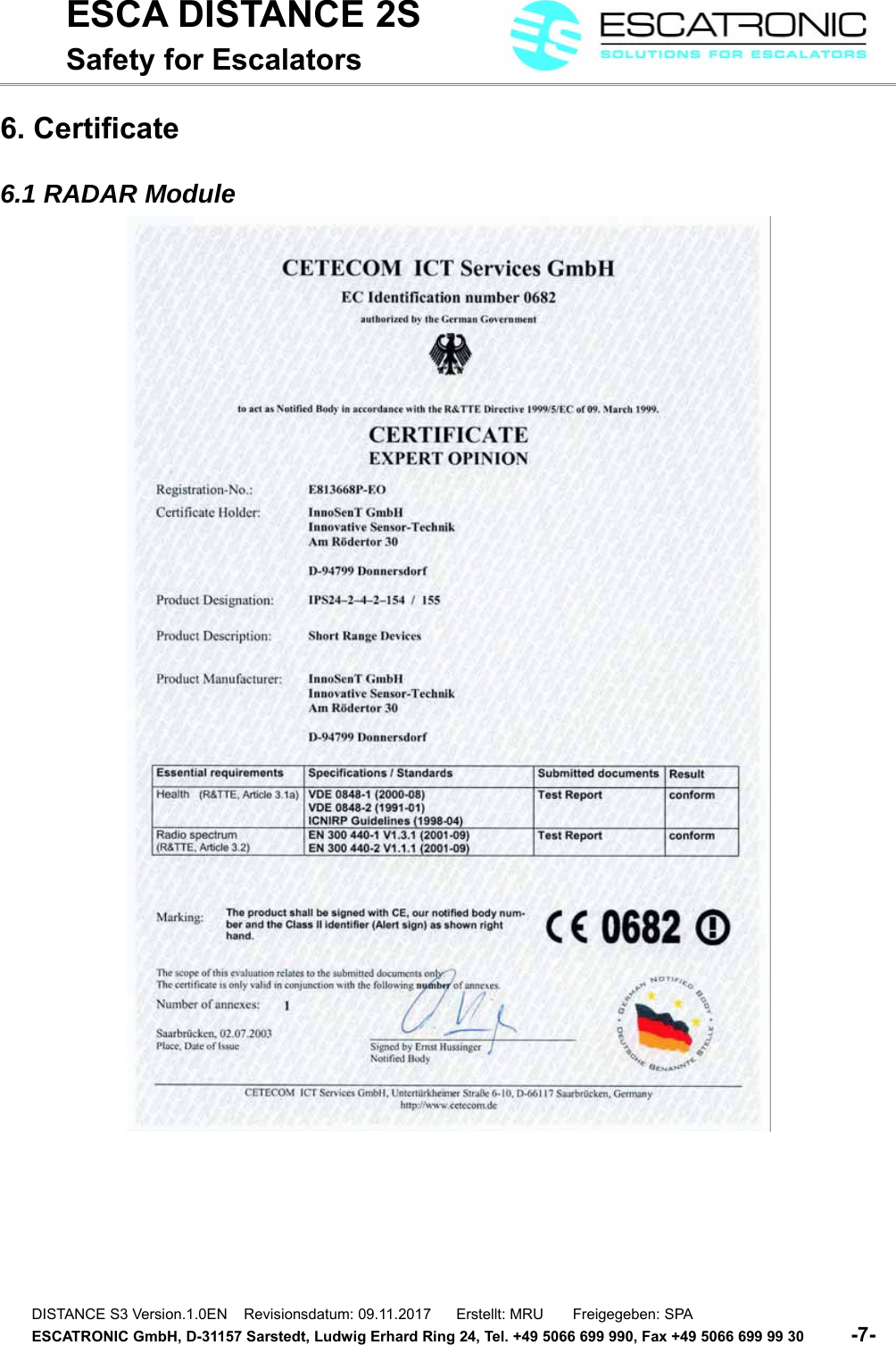

ESCA DISTANCE 2SSafety for Escalators6. Certificate6.1 RADAR ModuleDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -7-

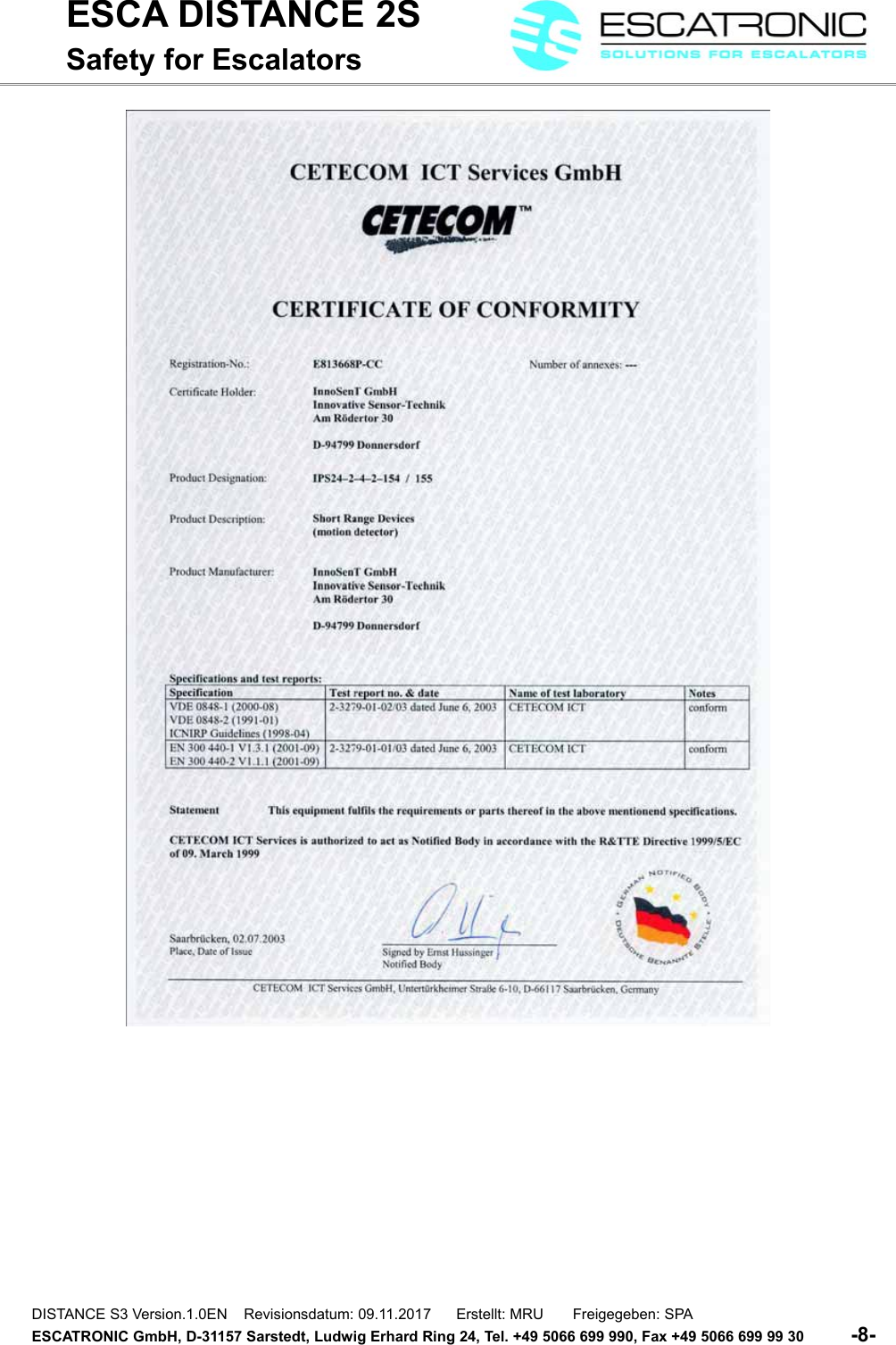

ESCA DISTANCE 2SSafety for EscalatorsDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -8-
ESCA DISTANCE 2SSafety for EscalatorsDISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -9-
ESCA DISTANCE 2SSafety for Escalators6.2. FCCFCC ID: 2ANWS-ESCADISTANCE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. DISTANCE S3 Version.1.0EN    Revisionsdatum: 09.11.2017      Erstellt: MRU       Freigegeben: SPAESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. +49 5066 699 990, Fax +49 5066 699 99 30          -10-

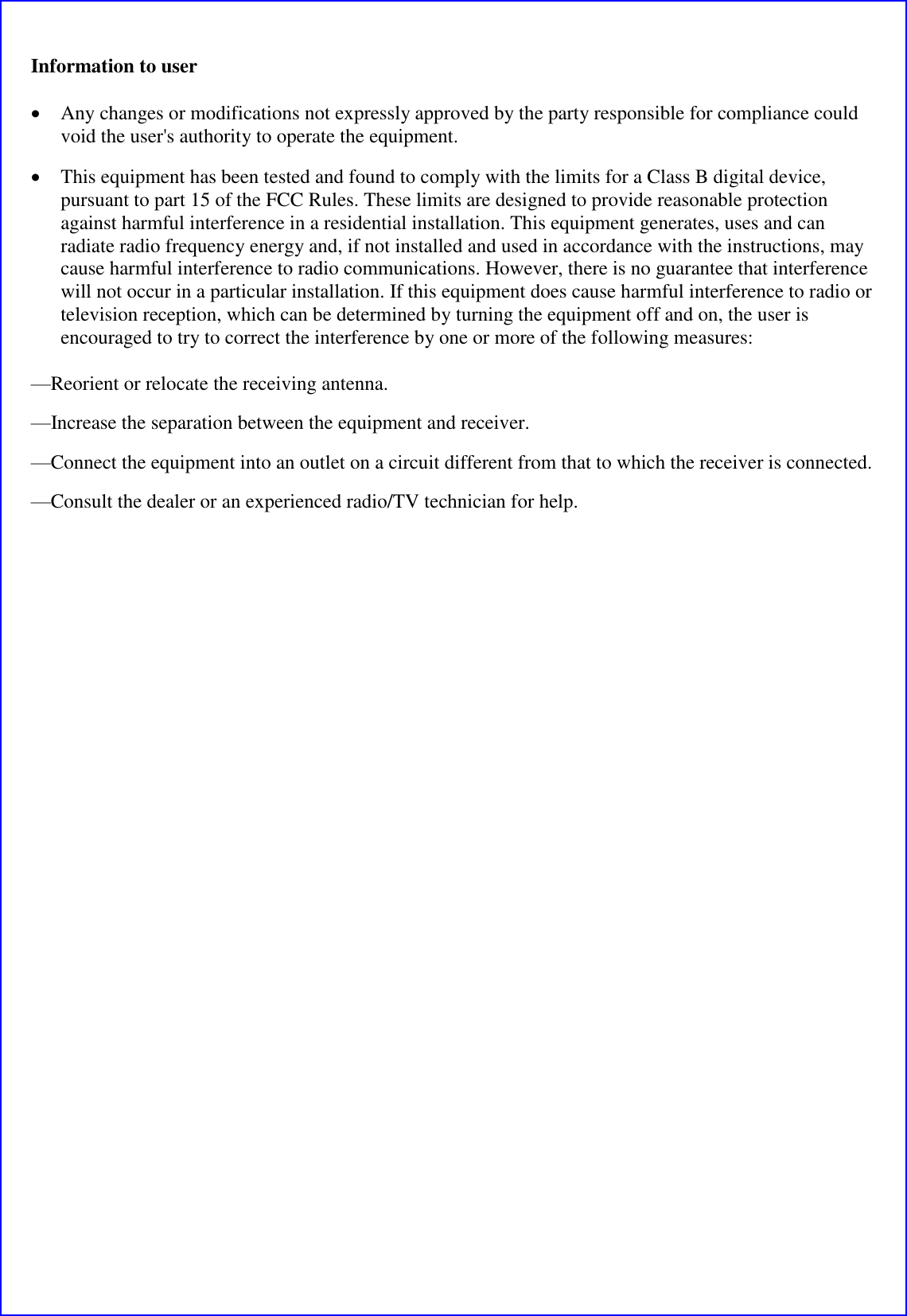

Information to user  • Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
