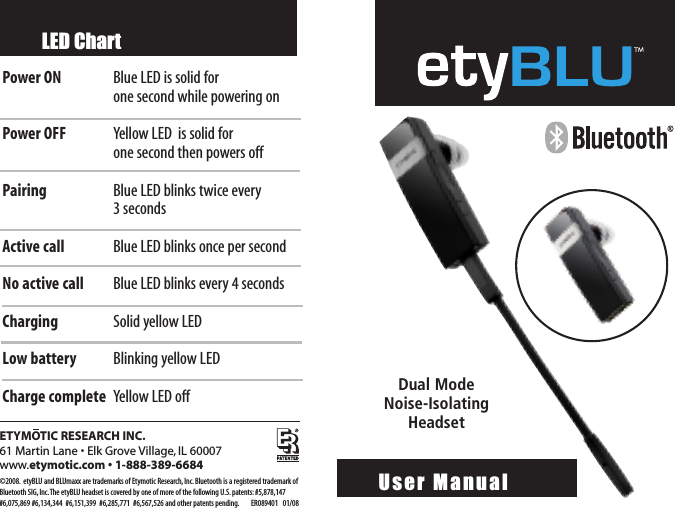

ETYMOTIC RESEARCH INC.61 Martin Lane • Elk Grove Village, IL 60007www.etymotic.com • 1-888-389-6684©2008. etyBLU and BLUmaxx are trademarks of Etymotic Research,Inc.Bluetooth is a registered trademark ofBluetooth SIG,Inc.The etyBLU headset is covered by one of more of the following U.S.patents: #5,878,147#6,075,869 #6,134,344 #6,151,399 #6,285,771 #6,567,526 and other patents pending. ER089401 01/08LED ChartPower ON Blue LED is solid for one second while powering onPower OFF Yellow LED is solid for one second then powers off Pairing Blue LED blinks twice every 3secondsActive call Blue LED blinks once per secondNo active call Blue LED blinks every 4 secondsCharging Solid yellowLEDLowbattery Blinking yellowLEDCharge complete YellowLED offUser Manual Dual Mode Noise-IsolatingHeadset

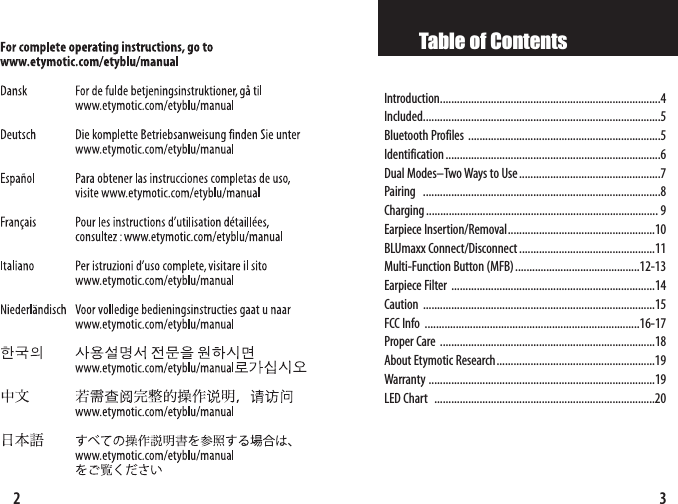

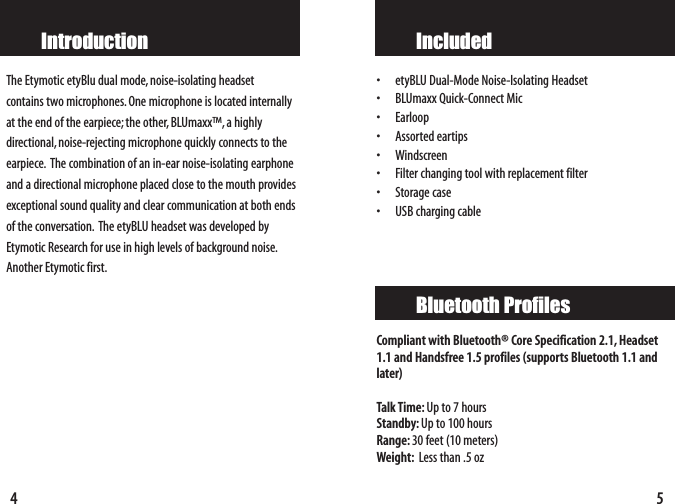

3Table of ContentsIntroduction..............................................................................4Included....................................................................................5Bluetooth Profiles ....................................................................5Identification............................................................................6 Dual Modes–Two Ways to Use..................................................7Pairing ....................................................................................8Charging.................................................................................. 9Earpiece Insertion/Removal....................................................10BLUmaxx Connect/Disconnect ................................................11Multi-Function Button (MFB)............................................12-13Earpiece Filter ........................................................................14Caution ..................................................................................15FCC Info ............................................................................16-17Proper Care ............................................................................18About Etymotic Research........................................................19Warranty ................................................................................19LED Chart..............................................................................202
5Included•etyBLU Dual-Mode Noise-Isolating Headset• BLUmaxx Quick-Connect Mic•Earloop• Assorted eartips • Windscreen• Filter changing tool with replacement filter• Storage case•USB charging cableCompliant with Bluetooth® Core Specification 2.1, Headset1.1 and Handsfree 1.5 profiles (supports Bluetooth 1.1 andlater)Talk Time: Up to 7 hoursStandby: Up to100 hoursRange: 30 feet (10 meters) Weight: Less than .5 oz Bluetooth Profiles4IntroductionThe Etymotic etyBlu dual mode,noise-isolating headset contains two microphones.One microphone is located internallyat the end of the earpiece;the other, BLUmaxx™,a highlydirectional, noise-rejecting microphone quickly connects to theearpiece. The combination of an in-ear noise-isolating earphoneand a directional microphone placed close to the mouth providesexceptional sound quality and clear communication at both endsof the conversation. The etyBLU headset was developed byEtymotic Research for use in high levels of background noise.Another Etymotic first.

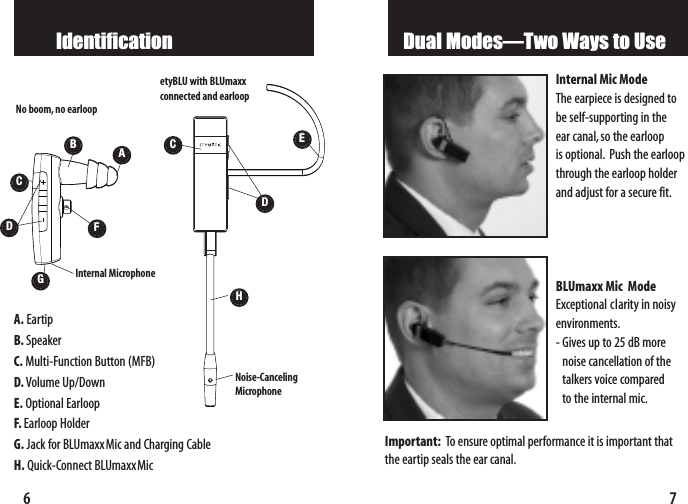

7Dual Modes—Two Ways to UseInternal Mic ModeThe earpiece is designed tobe self-supporting in the ear canal,so the earloop is optional. Push the earloopthrough the earloop holderand adjust for a secure fit.BLUmaxx Mic ModeExceptional clarity in noisyenvironments.-Gives up to 25 dB morenoise cancellation of thetalkers voice compared to the internal mic.Important: To ensure optimal performance it is important thatthe eartip seals the ear canal.IdentificationCE6A. EartipB. SpeakerC. Multi-Function Button (MFB)D. Volume Up/DownE. Optional EarloopF. Earloop HolderG. Jack for BLUmaxxMic and Charging CableH. Quick-ConnectBLUmaxxMicAGNo boom, no earloopDCetyBLU with BLUmaxxconnected and earloopDHNoise-Canceling MicrophoneInternal Microphone BF

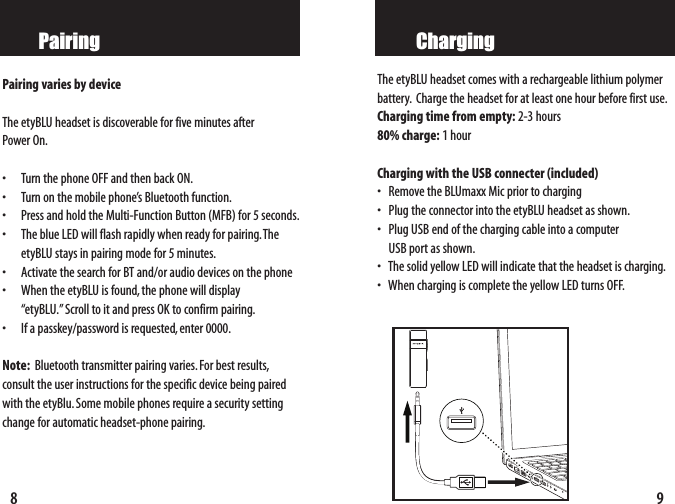

9ChargingThe etyBLU headset comes with a rechargeable lithium polymer battery. Charge the headset for at least one hour before first use.Charging time from empty: 2-3 hours80% charge: 1hourCharging with the USB connecter (included) •Remove the BLUmaxx Mic prior to charging•Plug the connector into the etyBLU headset as shown.•Plug USB end of the charging cable into a computer USB port as shown.•The solid yellow LED will indicate that the headset is charging.•When charging is complete the yellow LED turns OFF.8PairingPairing varies by device The etyBLU headset is discoverable for five minutes after Power On.• Turn the phone OFF and then back ON.• Turn on the mobile phone’s Bluetooth function.• Press and hold the Multi-Function Button (MFB) for 5 seconds.• The blue LED will flash rapidly when ready for pairing.TheetyBLU stays in pairing mode for 5 minutes.• Activate the search for BT and/or audio devices on the phone• When the etyBLU is found, the phone will display “etyBLU.”Scroll to it and press OK to confirm pairing.• If a passkey/password is requested, enter 0000.Note: Bluetooth transmitter pairing varies.For best results,consult the user instructions for the specific device being pairedwith the etyBlu.Some mobile phones require a security settingchange for automatic headset-phone pairing.

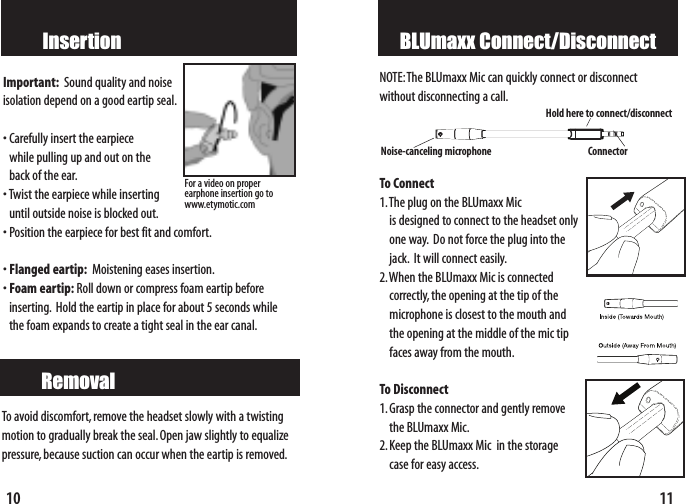

11BLUmaxx Connect/DisconnectNOTE:The BLUmaxx Mic can quickly connect or disconnect without disconnecting a call.To Connect1.The plug on the BLUmaxx Mic is designed to connect to the headset onlyone way. Do not force the plug into thejack. It will connect easily.2.When the BLUmaxx Mic is connected correctly, the opening at the tip of the microphone is closest to the mouth andthe opening at the middle of the mic tip faces away from the mouth.To Disconnect1.Grasp the connector and gently removethe BLUmaxx Mic.2.Keep the BLUmaxx Mic in the storagecase for easy access.Noise-canceling microphone ConnectorHold here to connect/disconnect10InsertionImportant: Sound quality and noiseisolation depend on a good eartip seal.•Carefully insert the earpiece while pulling up and out on the back of the ear.•Twist the earpiece while inserting until outside noise is blocked out.•Position the earpiece for best fit and comfort.•Flanged eartip: Moistening eases insertion.•Foam eartip: Roll down or compress foam eartip beforeinserting. Hold the eartip in place for about 5 seconds whilethe foam expands to create a tight seal in the ear canal.RemovalTo avoid discomfort, remove the headset slowly with a twistingmotion to gradually break the seal.Open jaw slightly to equalizepressure,because suction can occur when the eartip is removed.For a video on proper earphone insertion go towww.etymotic.com

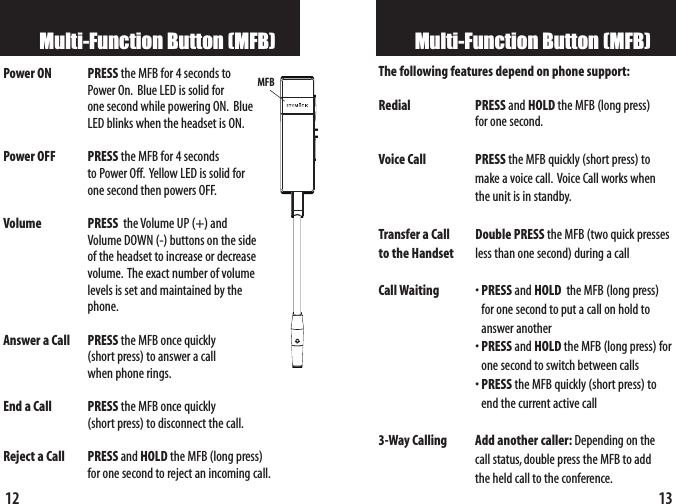

13Multi-Function Button (MFB)The following features depend on phone support:Redial PRESS and HOLD the MFB (long press) for one second.Voice Call PRESS the MFB quickly (short press) to make a voice call. Voice Call works when the unit is in standby.Transfer a Call Double PRESS the MFB (two quick presses to the Handset less than one second) during a call Call Waiting •PRESS and HOLD the MFB (long press) for one second toput a call on hold toanswer another •PRESS and HOLD the MFB (long press) forone second to switch between calls•PRESS the MFB quickly (short press) to end the current active call3-Way Calling Add another caller: Depending on the call status,double press the MFB to add the held call to the conference.12Multi-Function Button (MFB)Power ON PRESS the MFB for 4 seconds to Power On. Blue LED is solid for one second while powering ON. Blue LED blinks when the headset is ON.Power OFF PRESS the MFB for 4 seconds to Power Off. Yellow LED is solid for one second then powers OFF.Volume PRESS the Volume UP (+) and Volume DOWN (-) buttons on the side of the headset toincrease or decreasevolume. The exact number of volume levels is set and maintained by thephone.Answer a Call PRESS the MFB once quickly (short press) to answer a call when phone rings.End a Call PRESS the MFB oncequickly (short press) to disconnect the call.Reject a Call PRESS and HOLD the MFB (long press) for one second to rejectan incoming call.MFB

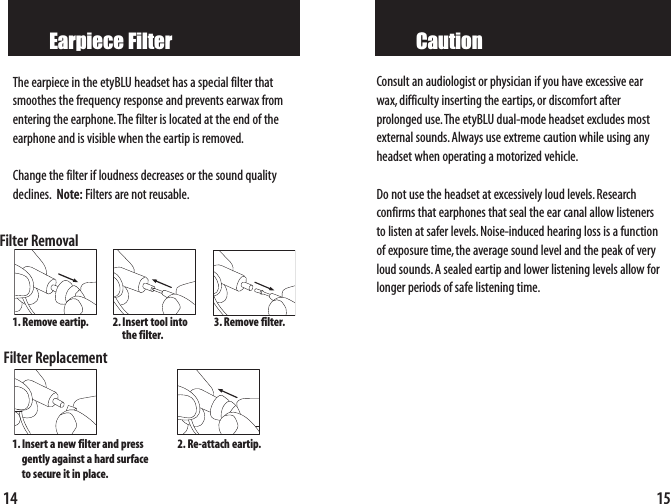

15CautionConsult an audiologist or physician if you have excessive earwax,difficulty inserting the eartips,or discomfort after prolonged use.The etyBLU dual-mode headset excludes mostexternal sounds.Always use extreme caution while using anyheadset when operating a motorized vehicle.Do not use the headset at excessively loud levels.Research confirms that earphones that seal the ear canal allow listenersto listen at safer levels.Noise-induced hearing loss is a functionof exposure time,the average sound level and the peak of veryloud sounds.A sealed eartip and lower listening levels allow forlonger periods of safe listening time.14Earpiece FilterThe earpiece in the etyBLU headset has a special filter thatsmoothes the frequency response and prevents earwax fromentering the earphone.The filter is located at the end of the earphone and is visible when the eartip is removed.Change the filter if loudness decreases or the sound qualitydeclines. Note: Filters are not reusable.Filter RemovalFilter Replacement1. Removeeartip. 2.Insert tool intothe filter.3. Removefilter.1.Insertanewfilter and press gently against a hard surface to secure it in place.2. Re-attach eartip.

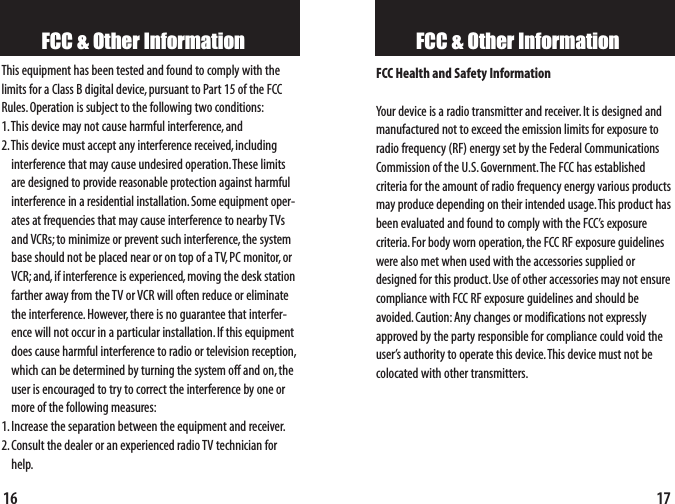

FCC & Other InformationFCC Health and Safety InformationYour device is a radio transmitter and receiver. It is designed andmanufactured not to exceed the emission limits for exposure toradio frequency (RF) energy set by the Federal CommunicationsCommission of the U.S.Government.The FCC has established criteria for the amount of radio frequency energy various productsmay produce depending on their intended usage.This product hasbeen evaluated and found to comply with the FCC’s exposure criteria.For body worn operation,the FCC RF exposure guidelineswere also met when used with the accessories supplied ordesigned for this product.Use of other accessories may not ensurecompliance with FCC RF exposure guidelines and should be avoided.Caution:Any changes or modifications not expresslyapproved by the party responsible for compliance could void theuser’s authority to operate this device.This device must not becolocated with other transmitters.17FCC & Other InformationThis equipment has been tested and found to comply with thelimits for a Class B digital device,pursuant to Part 15 of the FCCRules.Operation is subject to the following two conditions:1.This device may not cause harmful interference,and2.This device must accept any interference received,includinginterference that may cause undesired operation.These limitsare designed to provide reasonable protection against harmfulinterference in a residential installation.Some equipment oper-ates at frequencies that may cause interference to nearby TVsand VCRs;to minimize or prevent such interference,the systembase should not be placed near or on top of a TV, PC monitor, orVCR;and,if interference is experienced,moving the desk stationfarther away from the TV or VCR will often reduce or eliminatethe interference.However, there is no guarantee that interfer-ence will not occur in a particular installation.If this equipmentdoes cause harmful interference to radio or television reception,which can be determined by turning the system off and on,theuser is encouraged to try to correct the interference by one ormore of the following measures:1.Increase the separation between the equipment and receiver.2.Consult the dealer or an experienced radio TV technician forhelp.16

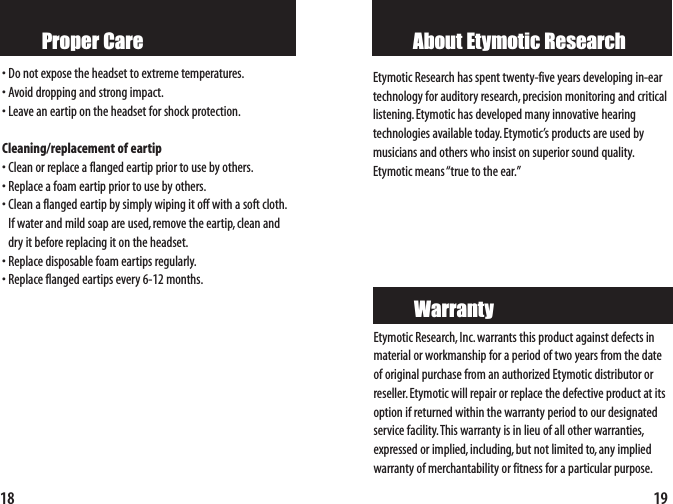

19About Etymotic ResearchEtymotic Research,Inc.warrants this product against defects inmaterial or workmanship for a period of two years from the dateof original purchase from an authorized Etymotic distributor orreseller. Etymotic will repair or replace the defective product at itsoption if returned within the warranty period to our designatedservicefacility.This warranty is in lieu of all other warranties,expressed or implied, including,but not limited to, any impliedwarranty of merchantability or fitness for a particular purpose.WarrantyEtymotic Research has spent twenty-five years developing in-eartechnology for auditory research,precision monitoring and criticallistening.Etymotic has developed many innovative hearing technologies available today. Etymotic’s products are used bymusicians and others who insist on superior sound quality.Etymotic means “true to the ear.”18Proper Care•Do not expose the headset to extreme temperatures.•Avoid dropping and strong impact.•Leave an eartip on the headset for shock protection.Cleaning/replacement of eartip•Clean or replace a flanged eartip prior to use by others.•Replace a foam eartip prior to use by others.•Clean a flanged eartip by simply wiping it off with a soft cloth.If water and mild soap are used,remove the eartip,clean anddry it before replacing it on the headset.•Replace disposable foam eartips regularly.•Replace flanged eartips every 6-12 months.
