Extron Electronics EXTSL250W Wireless Collaboration Gateway User Manual

Extron Electronics Wireless Collaboration Gateway

User Manual

User GuideShareLink 250 WWireless Collaboration SystemsWireless Collaboration Gateway

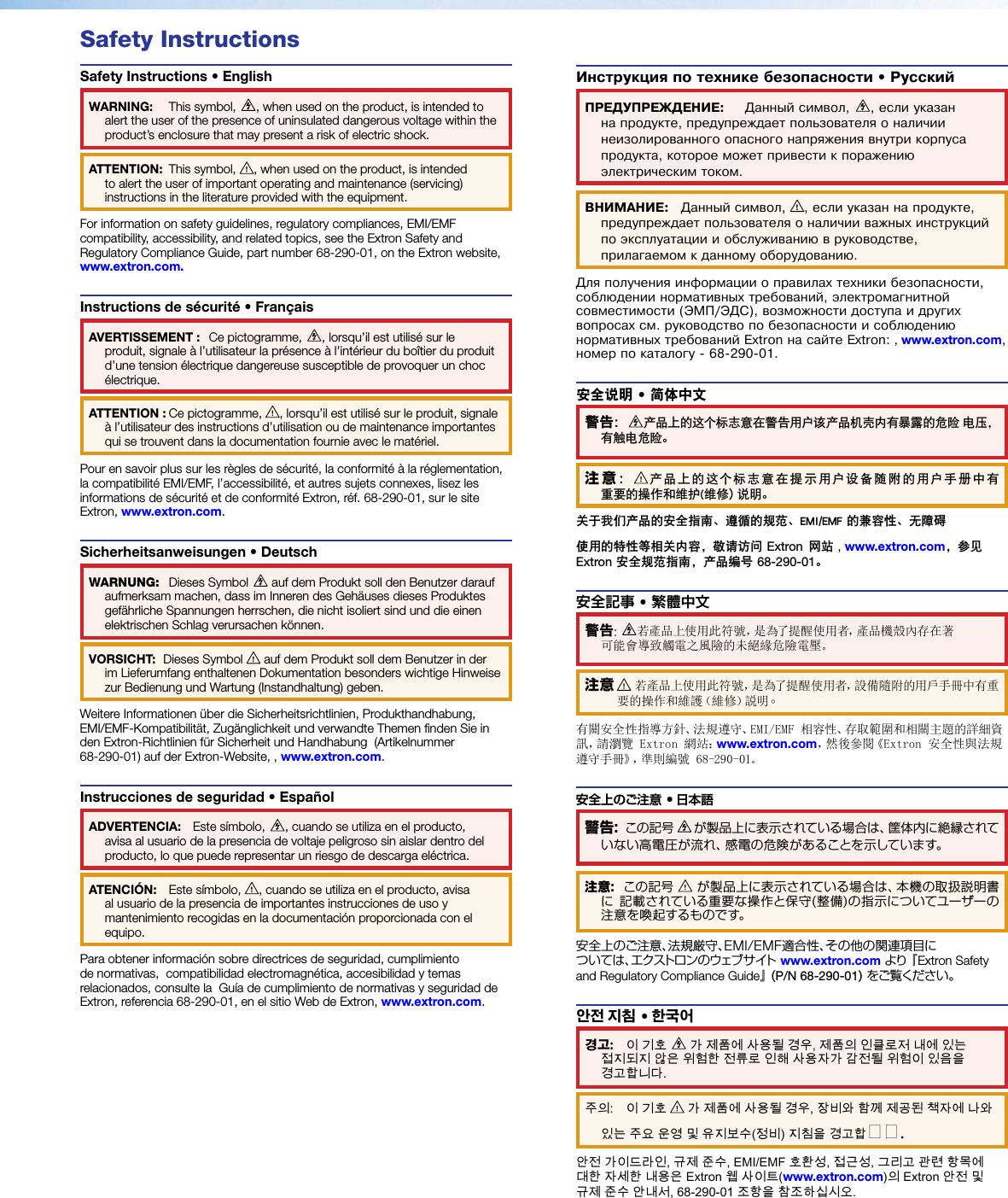

Safety InstructionsSafety Instructions • EnglishWARNING:  This symbol,  , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.ATTENTION:  This symbol,  , when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.Instructions de sécurité • FrançaisAVERTISSEMENT :  Ce pictogramme,  , lorsqu’il est utilisé sur le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.ATTENTION : Ce pictogramme,  , lorsqu’il est utilisé sur le produit, signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.com.Sicherheitsanweisungen • DeutschWARNUNG: Dieses Symbol   auf dem Produkt soll den Benutzer darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.VORSICHT:  Dieses Symbol   auf dem Produkt soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,  EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung  (Artikelnummer  68-290-01) auf der Extron-Website, , www.extron.com.Instrucciones de seguridad • EspañolADVERTENCIA:  Este símbolo,  , cuando se utiliza en el producto, avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.ATENCIÓN:  Este símbolo,  , cuando se utiliza en el producto, avisa al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.Para obtener información sobre directrices de seguridad, cumplimiento de normativas,  compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la  Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.com.Инструкция по технике безопасности • РусскийПРЕДУПРЕЖДЕНИЕ:  Данный символ,  , если указан на продукте, предупреждает пользователя о наличии неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током.ВНИМАНИЕ:   Данный символ,  , если указан на продукте, предупреждает пользователя о наличии важных инструкций по эксплуатации и обслуживанию в руководстве, прилагаемом к данному оборудованию.Для получения информации о правилах техники безопасности, соблюдении нормативных требований, электромагнитной совместимости (ЭМП/ЭДС), возможности доступа и других вопросах см. руководство по безопасности и соблюдению нормативных требований Extron на сайте Extron: , www.extron.com, номер по каталогу - 68-290-01.安全说明 • 简体中文 警告:产品上的这个标志意在警告用户该产品机壳内有暴露的危险 电压,有触电危险。注意:产品上的这个标志意在提示用户设备随附的用户手册中有重要的操作和维护(维修)说明。关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍 使用的特性等相关内容,敬请访问 Extron 网站 , www.extron.com,参见 Extron 安全规范指南,产品编号 68-290-01。安全記事 • 繁體中文警告:  若產品上使用此符號,是為了提醒使用者,產品機殼內存在著可能會導致觸電之風險的未絕緣危險電壓。注意 若產品上使用此符號,是為了提醒使用者,設備隨附的用戶手冊中有重要的操作和維護(維修)説明。有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資訊,請瀏覽 Extron 網站:www.extron.com,然後參閱《Extron 安全性與法規遵守手冊》,準則編號 68-290-01。安全上のご注意 • 日本語 警告: この記号   が製品上に表示されている場合は、筐体内に絶縁されて いない高電圧が流れ、感電の危険があることを示しています。注意: この記号   が製品上に表示されている場合は、本機の取扱説明書に  記載されている重要な操作と保守(整備)の指示についてユーザーの 注 意 を 喚 起 する も ので す。安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に  つ い て は 、エクストロ ンの ウェブ サ イト  www.extron.com より 『 Extron Safety and Regulatory Compliance Guide』 ( P/N 68-290-01) をご覧ください 。안전 지침 • 한국어 경고:   이 기호   가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.주의:  이 기호   가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와 있는 주요 운영 및 유지보수(정비) 지침을 경고합니니.안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.

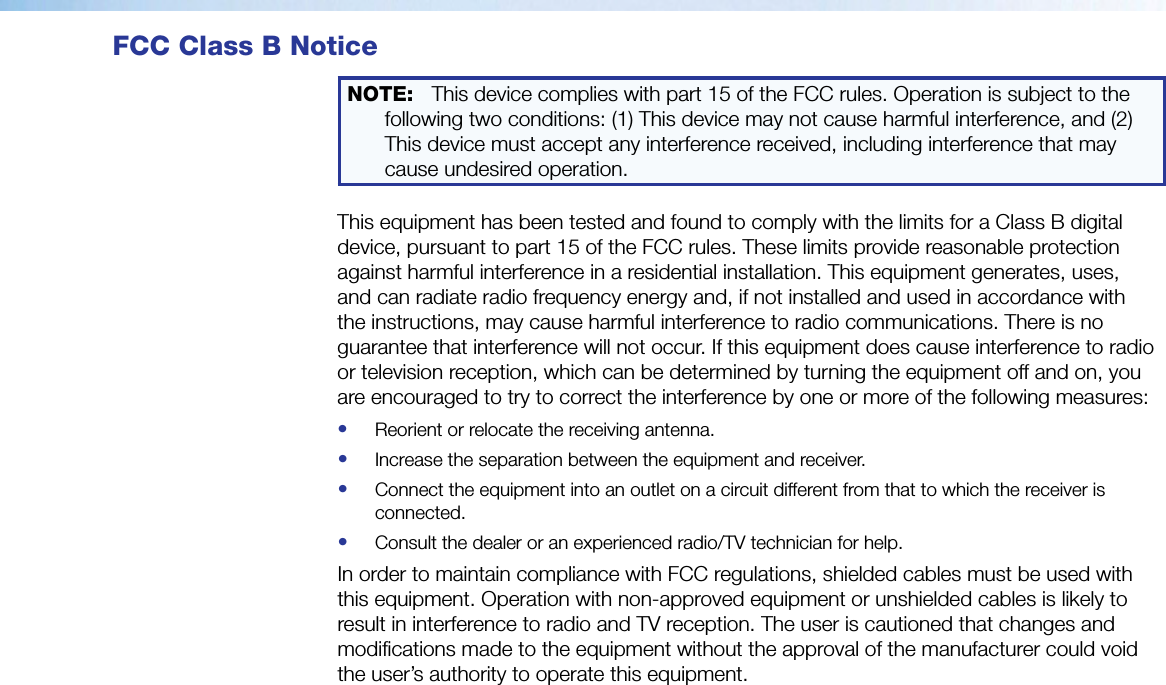

FCC Class B NoticeNOTE:  This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC rules. These limits provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:•  Reorient or relocate the receiving antenna.•  Increase the separation between the equipment and receiver.•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•  Consult the dealer or an experienced radio/TV technician for help.In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate this equipment.

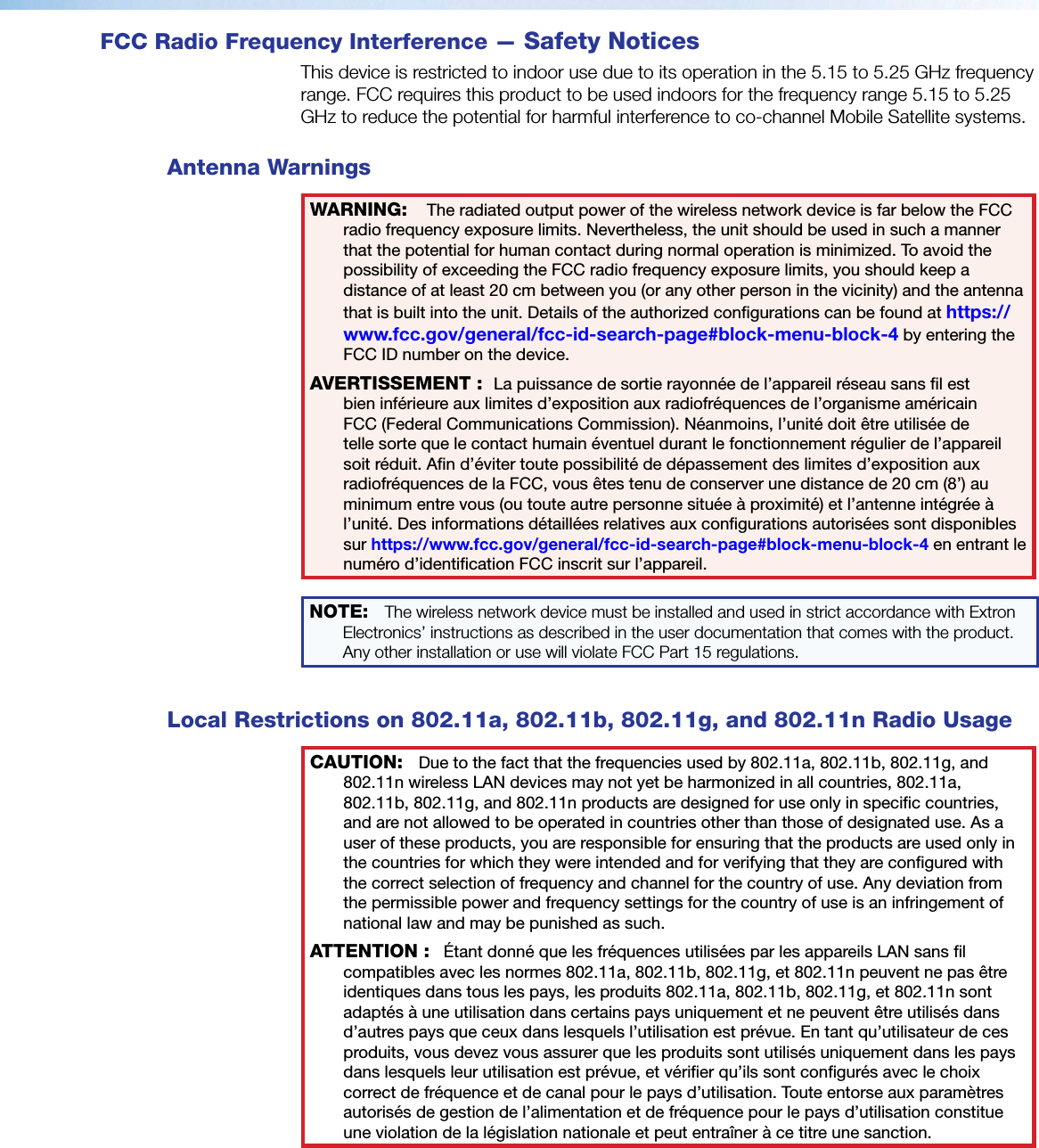

FCC Radio Frequency Interference — Safety NoticesThis device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. Antenna WarningsWARNING: The radiated output power of the wireless network device is far below the FCC radio frequency exposure limits. Nevertheless, the unit should be used in such a manner that the potential for human contact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep a distance of at least 20 cm between you (or any other person in the vicinity) and the antenna that is built into the unit. Details of the authorized congurations can be found at https://www.fcc.gov/general/fcc-id-search-page#block-menu-block-4 by entering the FCC ID number on the device.AVERTISSEMENT: La puissance de sortie rayonnée de l’appareil réseau sans l est bien inférieure aux limites d’exposition aux radiofréquences de l’organisme américain FCC (FederalCommunicationsCommission). Néanmoins, l’unité doit être utilisée de telle sorte que le contact humain éventuel durant le fonctionnement régulier de l’appareil soit réduit. An d’éviter toute possibilité de dépassement des limites d’exposition aux radiofréquences de la FCC, vous êtes tenu de conserver une distance de 20cm (8’) au minimum entre vous (ou toute autre personne située à proximité) et l’antenne intégrée à l’unité. Des informations détaillées relatives aux congurations autorisées sont disponibles sur https://www.fcc.gov/general/fcc-id-search-page#block-menu-block-4 en entrant le numéro d’identicationFCC inscrit sur l’appareil.NOTE: The wireless network device must be installed and used in strict accordance with Extron Electronics’ instructions as described in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations.Local Restrictions on 802.11a, 802.11b, 802.11g, and 802.11n Radio UsageCAUTION: Due to the fact that the frequencies used by 802.11a, 802.11b, 802.11g, and 802.11n wireless LAN devices may not yet be harmonized in all countries, 802.11a, 802.11b, 802.11g, and 802.11n products are designed for use only in specic countries, and are not allowed to be operated in countries other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries for which they were intended and for verifying that they are congured with the correct selection of frequency and channel for the country of use. Any deviation from the permissible power and frequency settings for the country of use is an infringement of national law and may be punished as such.ATTENTION: Étant donné que les fréquences utilisées par les appareils LAN sans l compatibles avec les normes 802.11a, 802.11b, 802.11g, et 802.11n peuvent ne pas être identiques dans tous les pays, les produits 802.11a, 802.11b, 802.11g, et 802.11n sont adaptés à une utilisation dans certains pays uniquement et ne peuvent être utilisés dans d’autres pays que ceux dans lesquels l’utilisation est prévue. En tant qu’utilisateur de ces produits, vous devez vous assurer que les produits sont utilisés uniquement dans les pays dans lesquels leur utilisation est prévue, et vérier qu’ils sont congurés avec le choix correct de fréquence et de canal pour le pays d’utilisation. Toute entorse aux paramètres autorisés de gestion de l’alimentation et de fréquence pour le pays d’utilisation constitue une violation de la législation nationale et peut entraîner à ce titre une sanction.

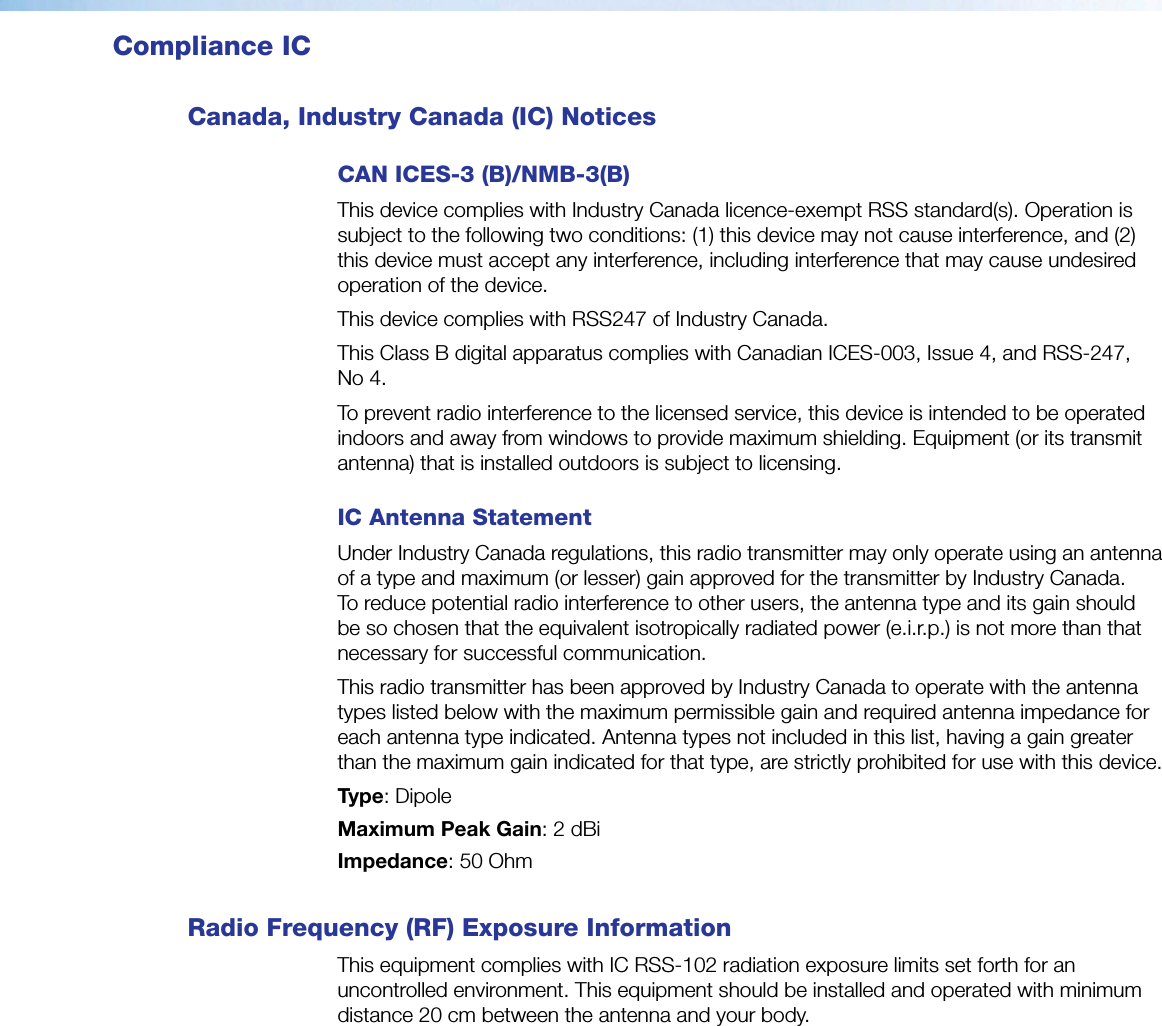

Compliance ICCanada, Industry Canada (IC) NoticesCAN ICES-3 (B)/NMB-3(B)This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.This device complies with RSS247 of Industry Canada.This Class B digital apparatus complies with Canadian ICES-003, Issue 4, and RSS-247, No 4.To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. IC Antenna Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.Type: DipoleMaximum Peak Gain: 2 dBiImpedance: 50 Ohm Radio Frequency (RF) Exposure InformationThis equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the antenna and your body.

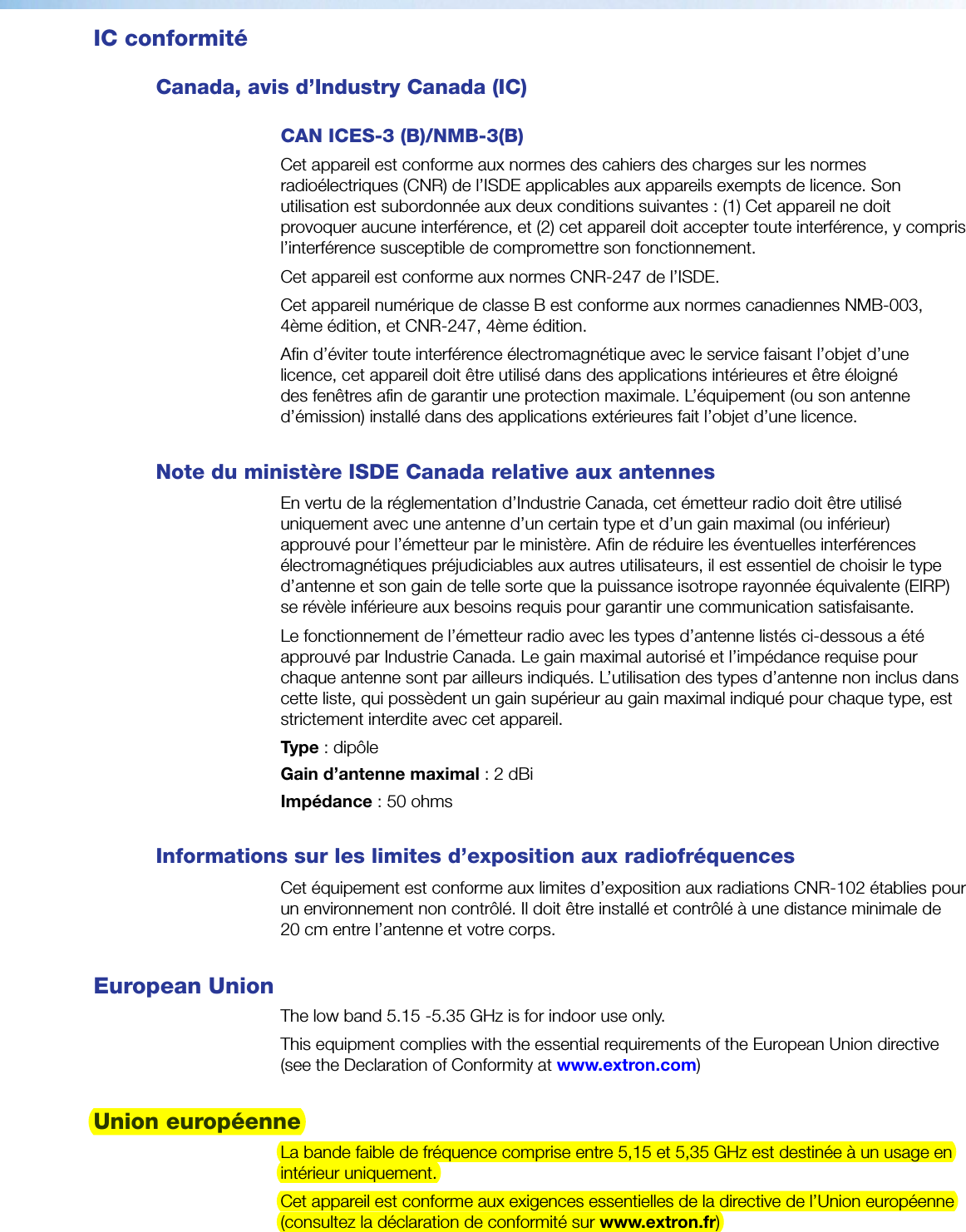

IC conformitéCanada, avis d’Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B)Cet appareil est conforme aux normes des cahiers des charges sur les normes radioélectriques (CNR) de l’ISDE applicables aux appareils exempts de licence. Son utilisation est subordonnée aux deux conditions suivantes: (1)Cet appareil ne doit provoquer aucune interférence, et (2)cet appareil doit accepter toute interférence, y compris l’interférence susceptible de compromettre son fonctionnement. Cet appareil est conforme aux normes CNR-247 de l’ISDE.Cet appareil numérique de classeB est conforme aux normes canadiennes NMB-003, 4ème édition, et CNR-247, 4ème édition.Afin d’éviter toute interférence électromagnétique avec le service faisant l’objet d’une licence, cet appareil doit être utilisé dans des applications intérieures et être éloigné des fenêtres afin de garantir une protection maximale. L’équipement (ou son antenne d’émission) installé dans des applications extérieures fait l’objet d’une licence. Note du ministère ISDECanada relative aux antennesEn vertu de la réglementation d’Industrie Canada, cet émetteur radio doit être utilisé uniquement avec une antenne d’un certain type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par le ministère. Afin de réduire les éventuelles interférences électromagnétiques préjudiciables aux autres utilisateurs, il est essentiel de choisir le type d’antenne et son gain de telle sorte que la puissance isotrope rayonnée équivalente (EIRP) se révèle inférieure aux besoins requis pour garantir une communication satisfaisante.Le fonctionnement de l’émetteur radio avec les types d’antenne listés ci-dessous a été approuvé par Industrie Canada. Le gain maximal autorisé et l’impédance requise pour chaque antenne sont par ailleurs indiqués. L’utilisation des types d’antenne non inclus dans cette liste, qui possèdent un gain supérieur au gain maximal indiqué pour chaque type, est strictement interdite avec cet appareil.Type: dipôleGain d’antenne maximal: 2dBiImpédance: 50ohmsInformations sur les limites d’exposition aux radiofréquencesCet équipement est conforme aux limites d’exposition aux radiations CNR-102 établies pour un environnement non contrôlé. Il doit être installé et contrôlé à une distance minimale de 20cm entre l’antenne et votre corps.European UnionThe low band 5.15 -5.35 GHz is for indoor use only.This equipment complies with the essential requirements of the European Union directive (see the Declaration of Conformity at www.extron.com)Union européenneLa bande faible de fréquence comprise entre 5,15 et 5,35 GHz est destinée à un usage en intérieur uniquement.Cet appareil est conforme aux exigences essentielles de la directive de l’Union européenne (consultez la déclaration de conformité sur www.extron.fr)

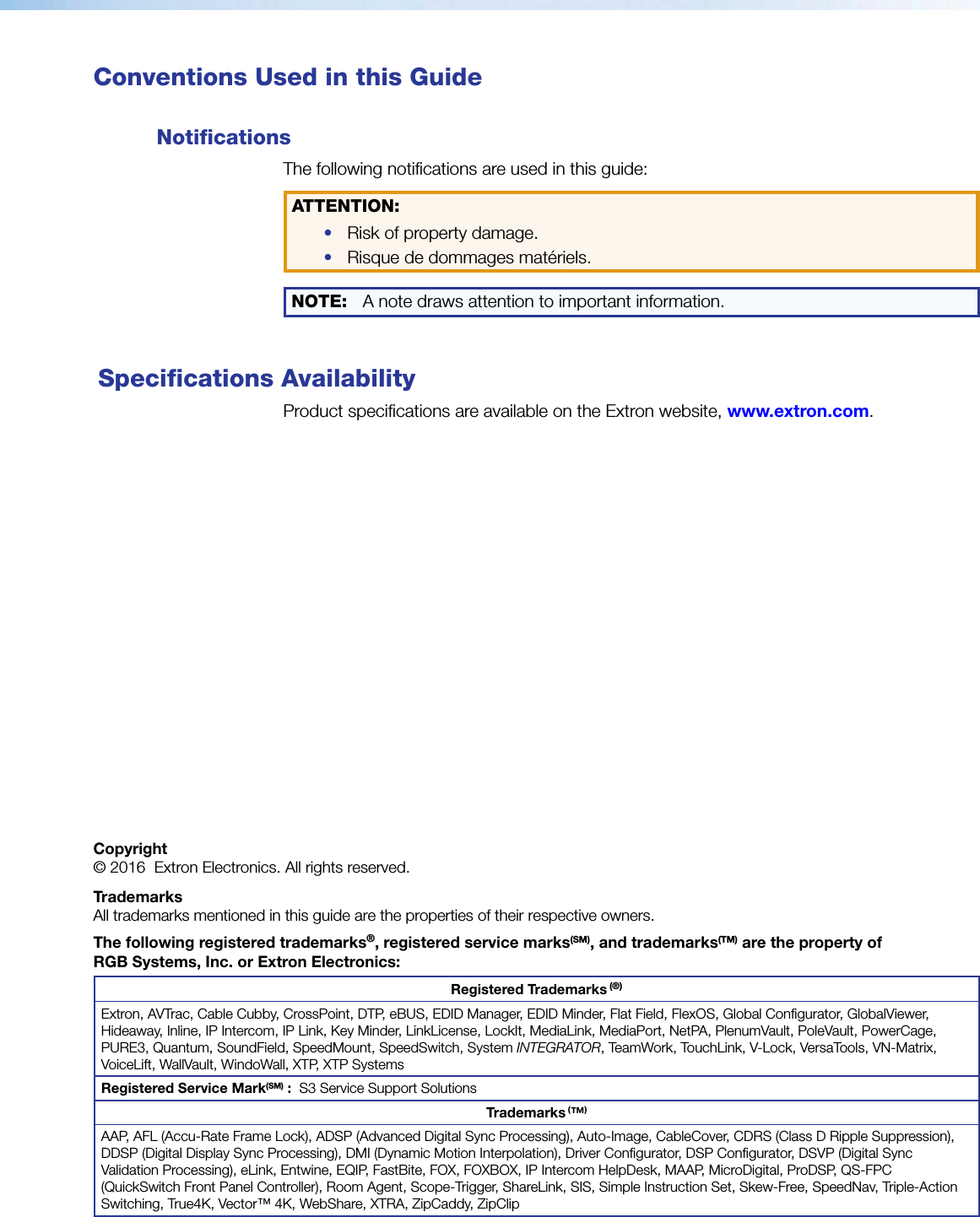

 Conventions Used in this GuideNotifications The following notifications are used in this guide:ATTENTION: •  Risk of property damage. •  Risque de dommages matériels.NOTE: A note draws attention to important information. Specifications AvailabilityProduct specifications are available on the Extron website, www.extron.com.Copyright© 2016  Extron Electronics. All rights reserved.TrademarksAll trademarks mentioned in this guide are the properties of their respective owners.The following registered trademarks®, registered service marks(SM), and trademarks(TM) are the property of RGBSystems, Inc. or Extron Electronics:Registered Trademarks (®)Extron, AVTrac, Cable Cubby, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Global Configurator, GlobalViewer,Hideaway, Inline, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, XTP SystemsRegistered Service Mark(SM) :  S3 Service Support SolutionsTrademarks (™)AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS (Class D Ripple Suppression),DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital SyncValidation Processing), eLink, Entwine, EQIP, FastBite, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, ShareLink, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, Vector™ 4K, WebShare, XTRA, ZipCaddy, ZipClip

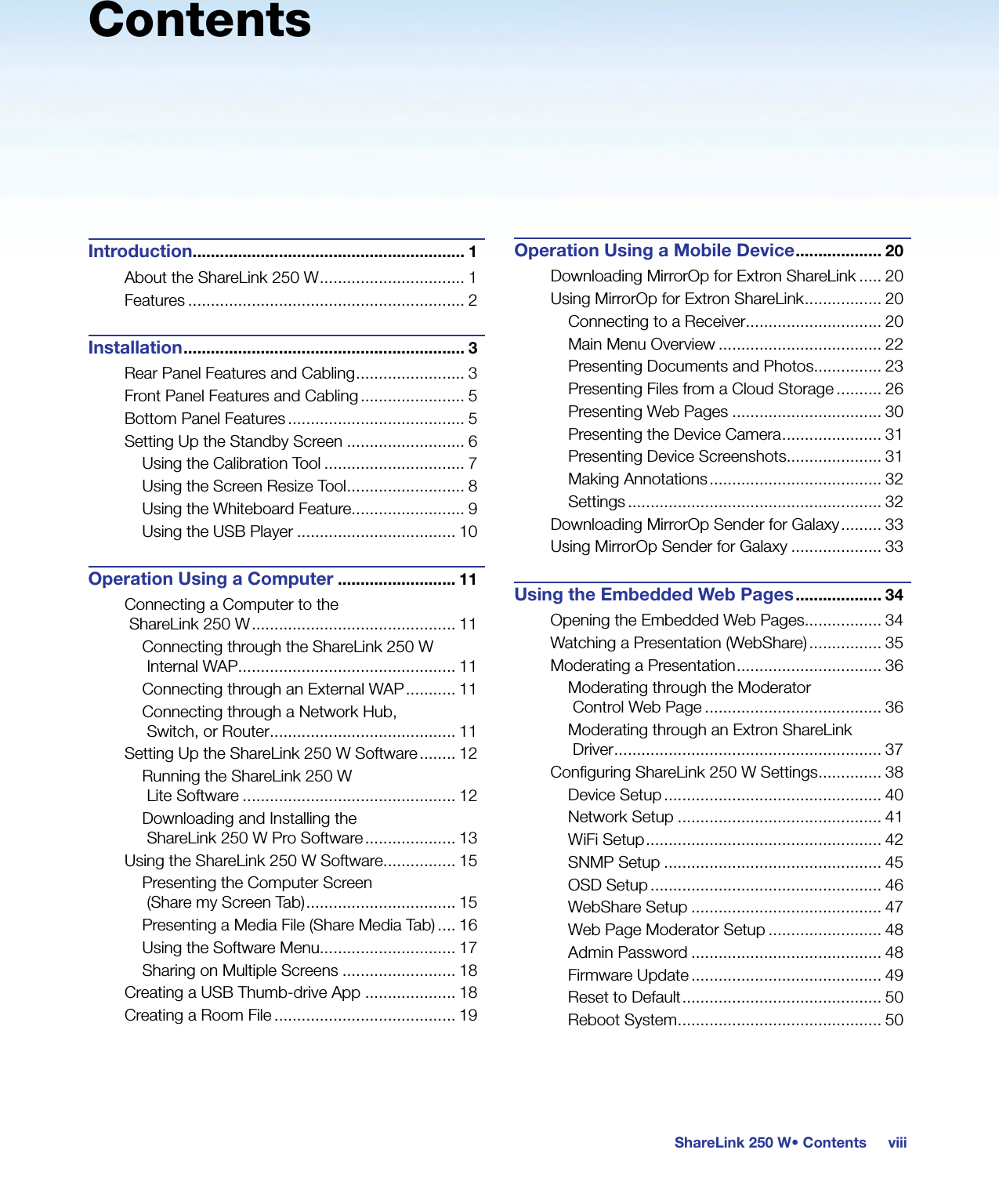

viiiShareLink 250 W• ContentsContentsIntroduction............................................................ 1About the ShareLink 250 W ................................ 1Features ............................................................. 2Installation .............................................................. 3Rear Panel Features and Cabling ........................ 3Front Panel Features and Cabling ....................... 5Bottom Panel Features ....................................... 5Setting Up the Standby Screen .......................... 6Using the Calibration Tool ............................... 7Using the Screen Resize Tool .......................... 8Using the Whiteboard Feature......................... 9Using the USB Player ................................... 10Operation Using a Computer .......................... 11Connecting a Computer to the  ShareLink 250 W ............................................. 11Connecting through the ShareLink 250 W Internal WAP................................................ 11Connecting through an External WAP ........... 11Connecting through a Network Hub,  Switch, or Router ......................................... 11Setting Up the ShareLink 250 W Software ........ 12Running the ShareLink 250 W  Lite Software ............................................... 12Downloading and Installing the  ShareLink 250 W Pro Software .................... 13Using the ShareLink 250 W Software................ 15Presenting the Computer Screen  (Share my Screen Tab) ................................. 15Presenting a Media File (Share Media Tab) .... 16Using the Software Menu.............................. 17Sharing on Multiple Screens ......................... 18Creating a USB Thumb-drive App .................... 18Creating a Room File ........................................ 19Operation Using a Mobile Device ................... 20Downloading MirrorOp for Extron ShareLink ..... 20Using MirrorOp for Extron ShareLink ................. 20Connecting to a Receiver .............................. 20Main Menu Overview .................................... 22Presenting Documents and Photos............... 23Presenting Files from a Cloud Storage .......... 26Presenting Web Pages ................................. 30Presenting the Device Camera ...................... 31Presenting Device Screenshots..................... 31Making Annotations ...................................... 32Settings ........................................................ 32Downloading MirrorOp Sender for Galaxy ......... 33Using MirrorOp Sender for Galaxy .................... 33Using the Embedded Web Pages ................... 34Opening the Embedded Web Pages ................. 34Watching a Presentation (WebShare) ................ 35Moderating a Presentation ................................ 36Moderating through the Moderator  Control Web Page ....................................... 36Moderating through an Extron ShareLink  Driver ........................................................... 37Configuring ShareLink 250 W Settings .............. 38Device Setup ................................................ 40Network Setup ............................................. 41WiFi Setup .................................................... 42SNMP Setup ................................................ 45OSD Setup ................................................... 46WebShare Setup .......................................... 47Web Page Moderator Setup ......................... 48Admin Password .......................................... 48Firmware Update .......................................... 49Reset to Default ............................................ 50Reboot System ............................................. 50

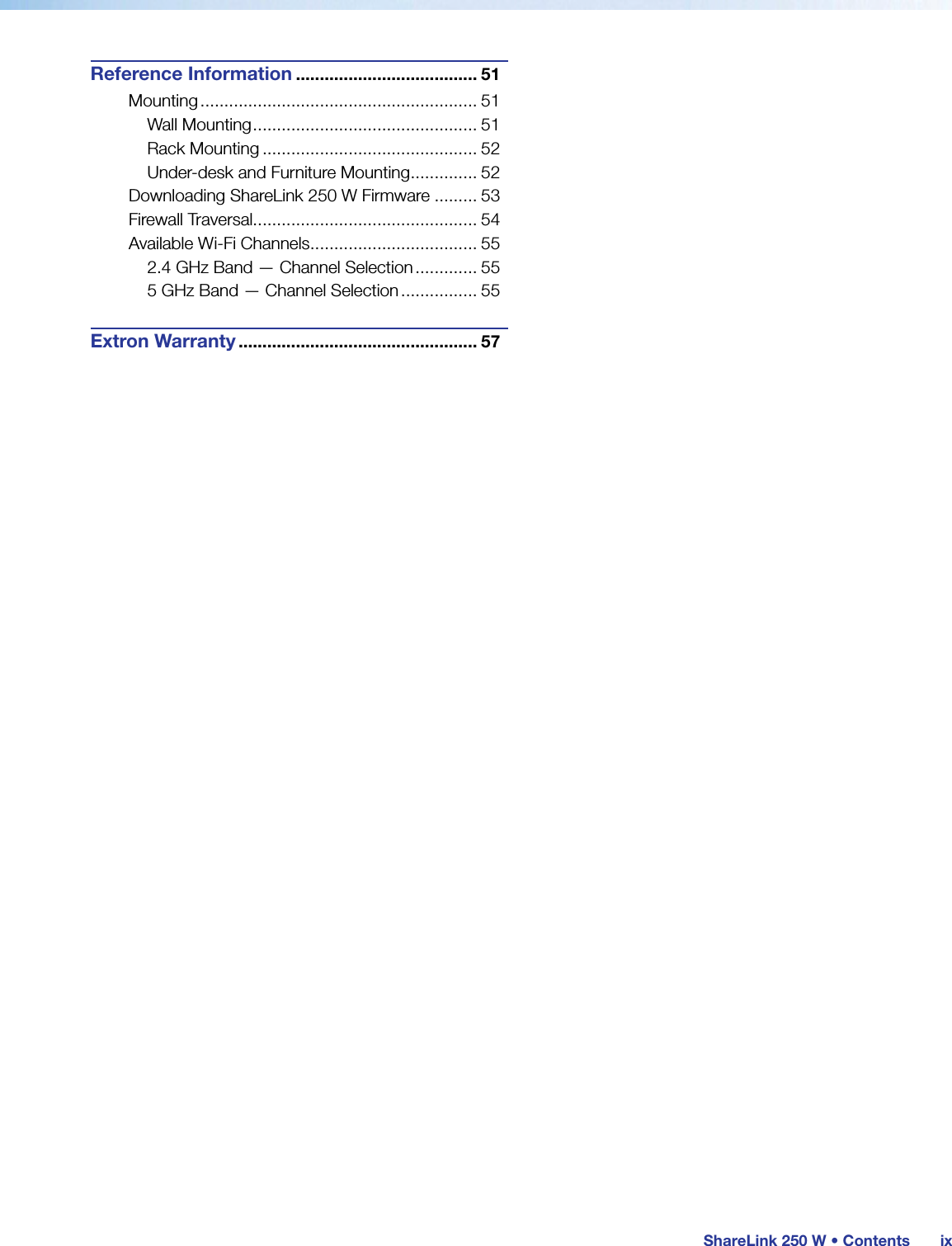

ShareLink 250 W • Contents ixReference Information ...................................... 51Mounting .......................................................... 51Wall Mounting ............................................... 51Rack Mounting ............................................. 52Under-desk and Furniture Mounting .............. 52Downloading ShareLink 250 W Firmware ......... 53Firewall Traversal............................................... 54Available Wi-Fi Channels ................................... 552.4 GHz Band — Channel Selection ............. 555 GHz Band — Channel Selection ................ 55Extron Warranty .................................................. 57

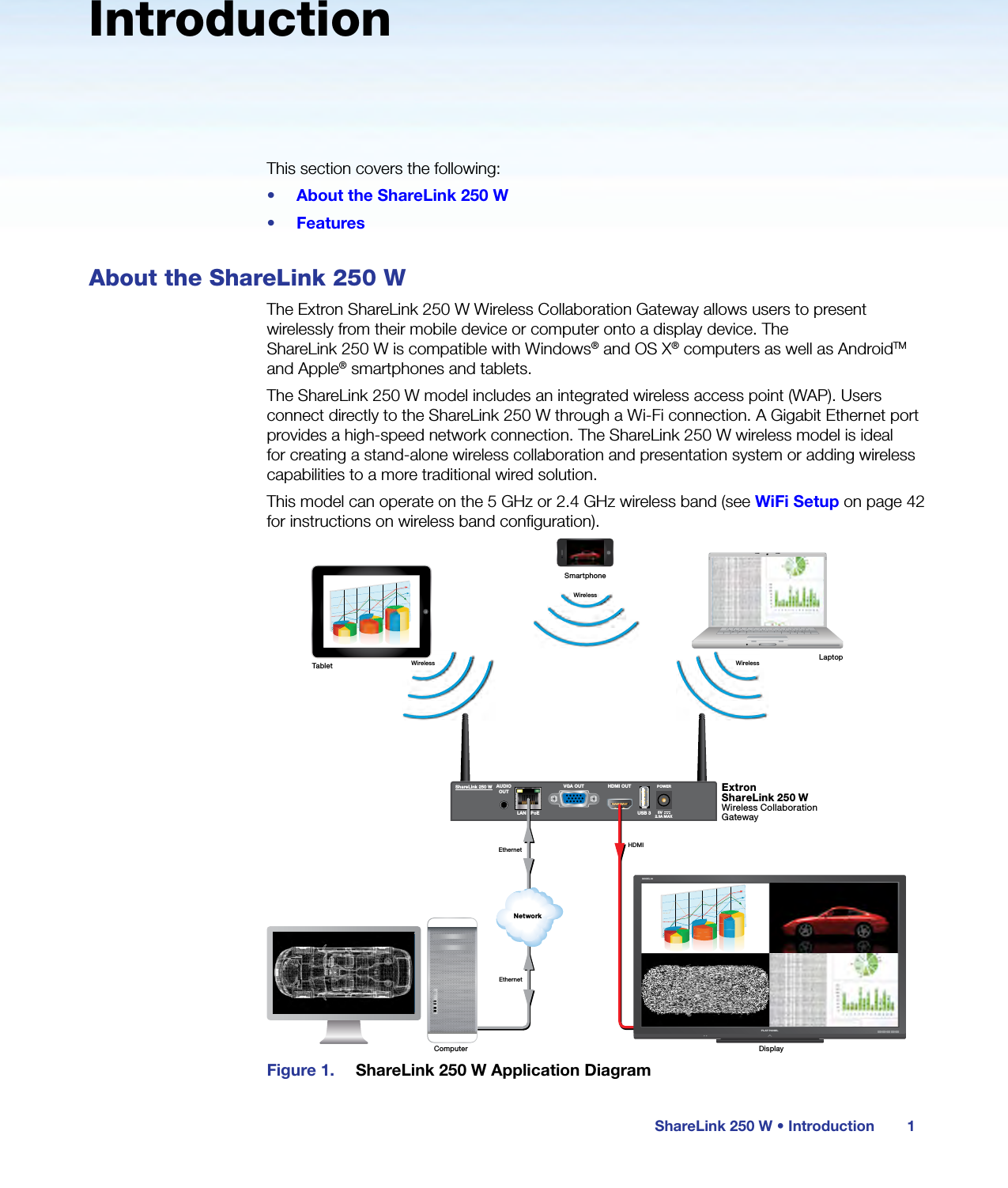

ShareLink 250 W • Introduction 1IntroductionThis section covers the following:•  About the ShareLink 250 W•  FeaturesAbout the ShareLink 250 WThe Extron ShareLink 250 W Wireless Collaboration Gateway allows users to present wirelessly from their mobile device or computer onto a display device. The  ShareLink 250 W is compatible with Windows® and OS X® computers as well as AndroidTM and Apple® smartphones and tablets.The ShareLink 250 W model includes an integrated wireless access point (WAP). Users connect directly to the ShareLink 250 W through a Wi-Fi connection. A Gigabit Ethernet port provides a high-speed network connection. The ShareLink 250 W wireless model is ideal for creating a stand-alone wireless collaboration and presentation system or adding wireless capabilities to a more traditional wired solution.This model can operate on the 5 GHz or 2.4 GHz wireless band (see WiFi Setup on page 42 for instructions on wireless band configuration).ShareLink 250 W AUDIOOUTLAN / PoEVGA OUT HDMI OUTUSB 3POWER5V2.3A MAXMODEL 80FLAT PANELWirelessWirelessWirelessNetworkExtronShareLink 250 WWireless Collaboration GatewayEthernetEthernetHDMIDisplayComputerLaptopTabletSmartphoneFigure 1.  ShareLink 250 W Application Diagram

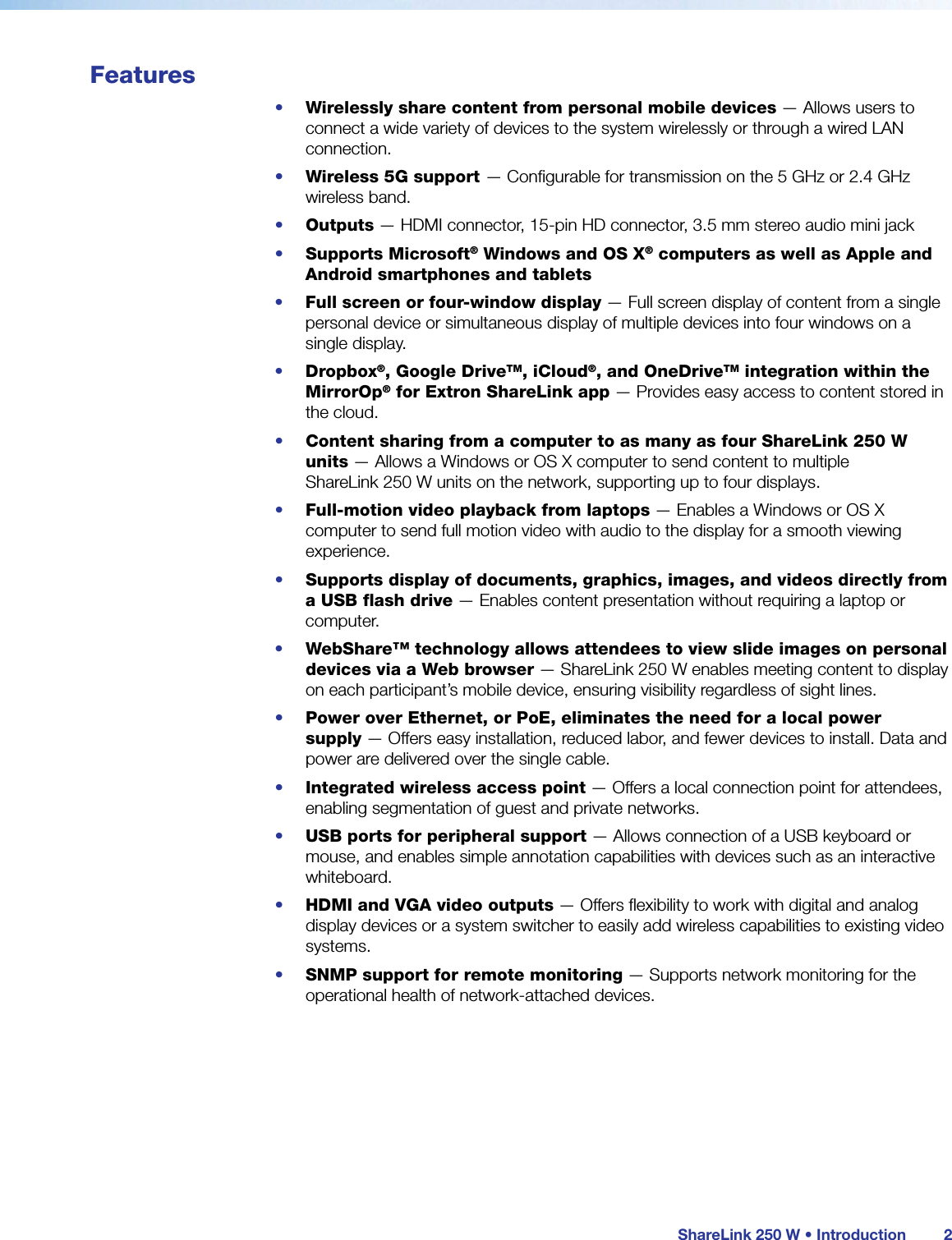

ShareLink 250 W • Introduction 2Features•  Wirelessly share content from personal mobile devices — Allows users to connect a wide variety of devices to the system wirelessly or through a wired LAN connection.•  Wireless 5G support — Configurable for transmission on the 5 GHz or 2.4 GHz wireless band.•  Outputs — HDMI connector, 15-pin HD connector, 3.5 mm stereo audio mini jack•  Supports Microsoft® Windows and OS X® computers as well as Apple and Android smartphones and tablets•  Full screen or four-window display — Full screen display of content from a single personal device or simultaneous display of multiple devices into four windows on a single display.•  Dropbox®, Google DriveTM, iCloud®, and OneDriveTM integration within the MirrorOp® for Extron ShareLink app — Provides easy access to content stored in the cloud.•  Content sharing from a computer to as many as four ShareLink 250 W  units — Allows a Windows or OS X computer to send content to multiple  ShareLink 250 W units on the network, supporting up to four displays. •  Full-motion video playback from laptops — Enables a Windows or OS X computer to send full motion video with audio to the display for a smooth viewing experience.•  Supports display of documents, graphics, images, and videos directly from a USB flash drive — Enables content presentation without requiring a laptop or computer.•  WebShare™ technology allows attendees to view slide images on personal devices via a Web browser — ShareLink 250 W enables meeting content to display on each participant’s mobile device, ensuring visibility regardless of sight lines.•  Power over Ethernet, or PoE, eliminates the need for a local power  supply — Offers easy installation, reduced labor, and fewer devices to install. Data and power are delivered over the single cable.•  Integrated wireless access point — Offers a local connection point for attendees, enabling segmentation of guest and private networks.•  USB ports for peripheral support — Allows connection of a USB keyboard or mouse, and enables simple annotation capabilities with devices such as an interactive whiteboard.•  HDMI and VGA video outputs — Offers flexibility to work with digital and analog display devices or a system switcher to easily add wireless capabilities to existing video systems. •  SNMP support for remote monitoring — Supports network monitoring for the operational health of network-attached devices.

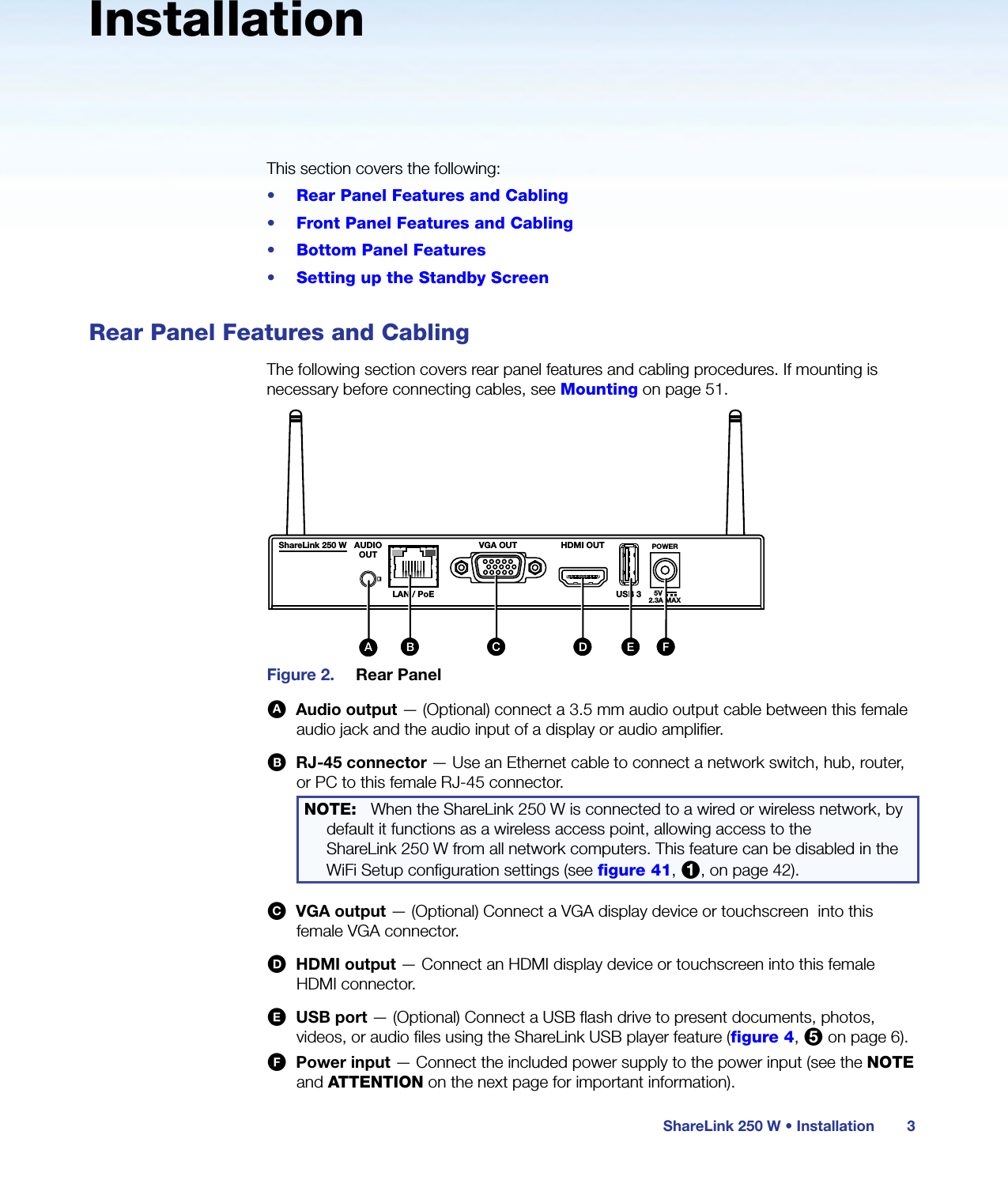

ShareLink 250 W • Installation 3InstallationThis section covers the following:•  Rear Panel Features and Cabling•  Front Panel Features and Cabling•  Bottom Panel Features•  Setting up the Standby ScreenRear Panel Features and CablingThe following section covers rear panel features and cabling procedures. If mounting is necessary before connecting cables, see Mounting on page 51.BBShareLink 250 W AUDIOOUTLAN / PoEVGA OUT HDMI OUTUSB 3POWER5V2.3A MAXExtronANT A ANT B12USBShareLink 250 WCCAA BB CC DD EEFFAAFigure 2.  Rear PanelA  Audio output — (Optional) connect a 3.5 mm audio output cable between this female audio jack and the audio input of a display or audio amplifier.B  RJ-45 connector — Use an Ethernet cable to connect a network switch, hub, router, or PC to this female RJ-45 connector.NOTE:   When the ShareLink 250 W is connected to a wired or wireless network, by default it functions as a wireless access point, allowing access to the  ShareLink 250 W from all network computers. This feature can be disabled in the WiFi Setup configuration settings (see figure 41, 1, on page 42).C  VGA output — (Optional) Connect a VGA display device or touchscreen  into this female VGA connector.D  HDMI output — Connect an HDMI display device or touchscreen into this female HDMI connector.E  USB port — (Optional) Connect a USB flash drive to present documents, photos, videos, or audio files using the ShareLink USB player feature (figure 4, 5 on page 6).F  Power input — Connect the included power supply to the power input (see the NOTE and ATTENTION on the next page for important information).

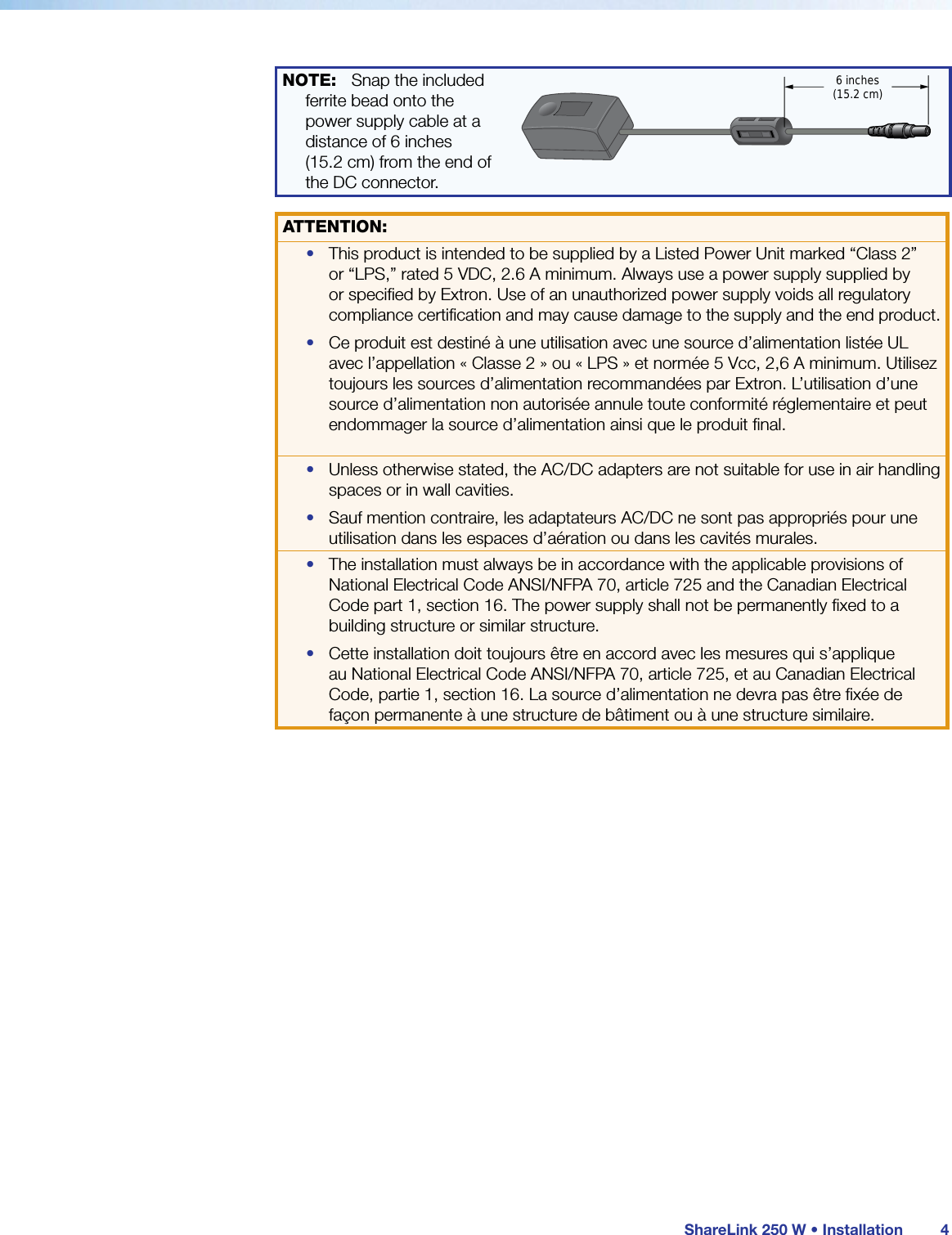

 ShareLink 250 W • Installation 4NOTE:  Snap the included ferrite bead onto the power supply cable at a distance of 6 inches  (15.2 cm) from the end of the DC connector. 6 inches(15.2 cm)ATTENTION:•  This product is intended to be supplied by a Listed Power Unit marked “Class 2” or “LPS,” rated 5 VDC, 2.6 A minimum. Always use a power supply supplied by or specified by Extron. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the end product.•  Ce produit est destiné à une utilisation avec une source d’alimentation listéeUL avec l’appellation «Classe2» ou «LPS» et normée 5Vcc, 2,6A minimum. Utilisez toujours les sources d’alimentation recommandées par Extron. L’utilisation d’une source d’alimentation non autorisée annule toute conformité réglementaire et peut endommager la source d’alimentation ainsi que le produit final.•  Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities.•  Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces d’aération ou dans les cavités murales.•  The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently fixed to a building structure or similar structure.•  Cette installation doit toujours être en accord avec les mesures qui s’applique au National Electrical Code ANSI/NFPA70, article725, et au Canadian Electrical Code, partie1, section16. La source d’alimentation ne devra pas être fixée de façon permanente à une structure de bâtiment ou à une structure similaire.

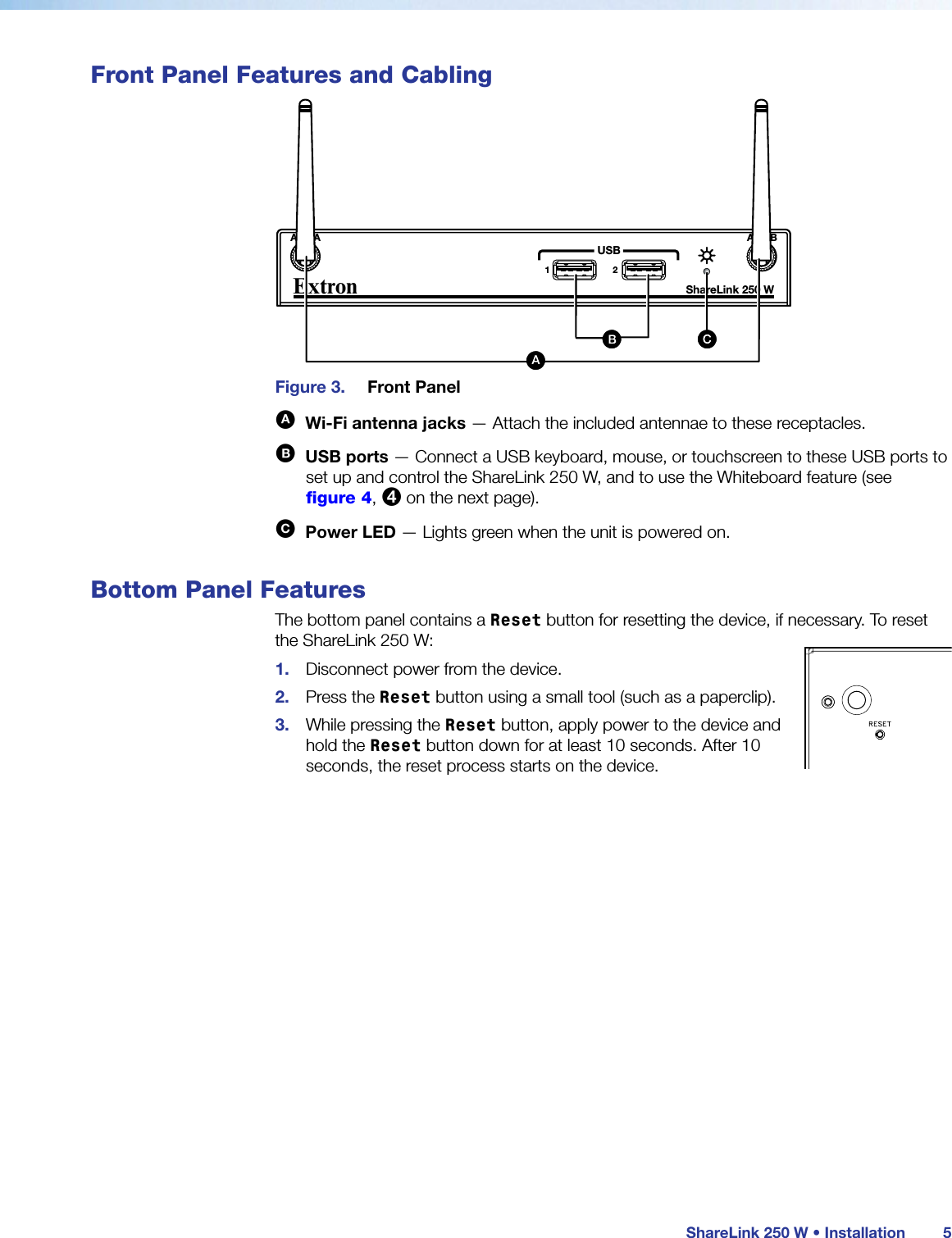

 ShareLink 250 W • Installation 5Front Panel Features and CablingBBShareLink 250 W AUDIOOUTLAN / PoEVGA OUT HDMI OUTUSB 3POWER5V2.3A MAXExtronANT A ANT B12USBShareLink 250 WCCAA BB CC DD EEFFAAFigure 3.  Front PanelA  Wi-Fi antenna jacks — Attach the included antennae to these receptacles.B  USB ports — Connect a USB keyboard, mouse, or touchscreen to these USB ports to set up and control the ShareLink 250 W, and to use the Whiteboard feature (see figure 4, 4 on the next page).C  Power LED — Lights green when the unit is powered on.Bottom Panel FeaturesThe bottom panel contains a Reset button for resetting the device, if necessary. To reset the ShareLink 250 W:1.  Disconnect power from the device.2.  Press the Reset button using a small tool (such as a paperclip).3.  While pressing the Reset button, apply power to the device and hold the Reset button down for at least 10 seconds. After 10 seconds, the reset process starts on the device.

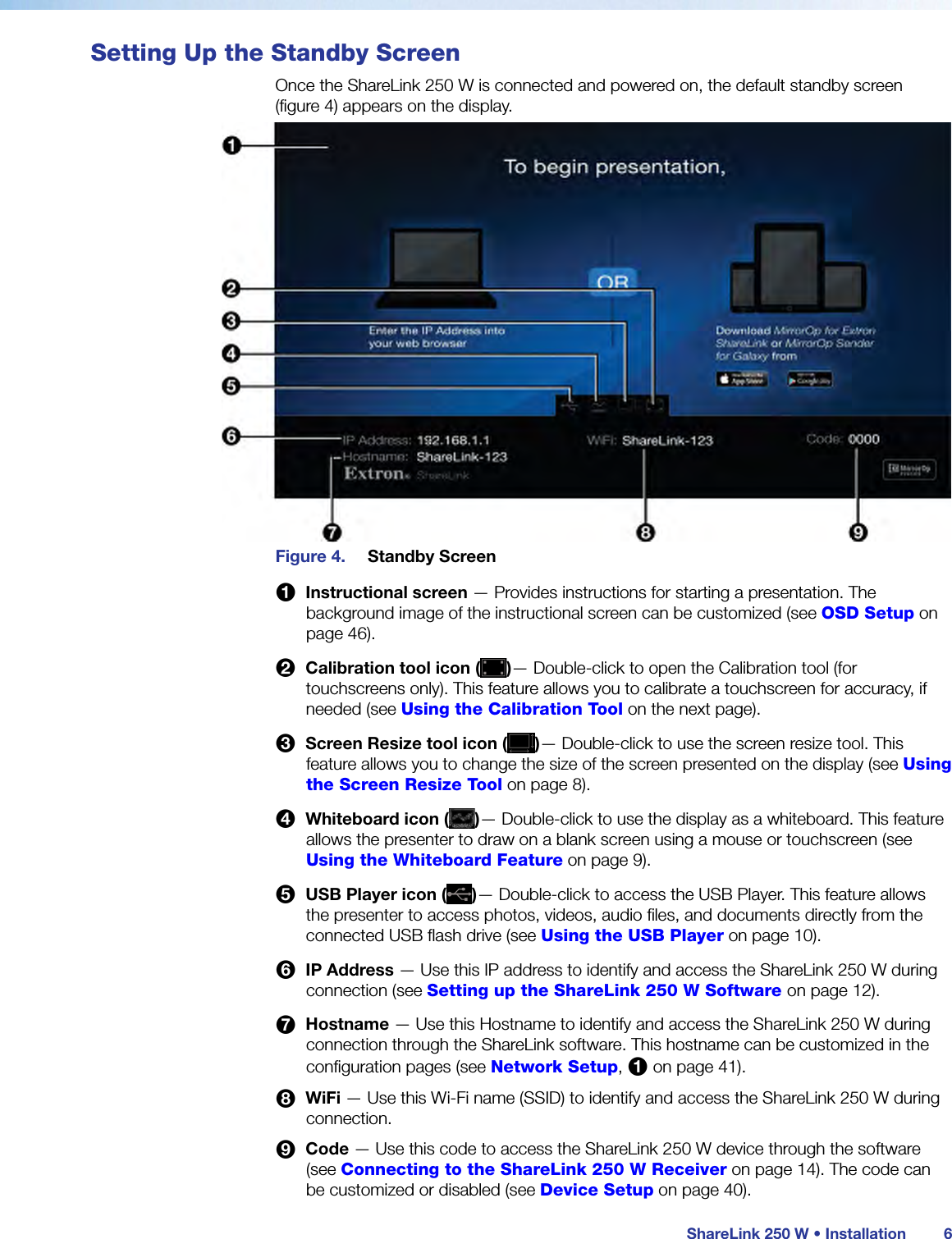

 ShareLink 250 W • Installation 6Setting Up the Standby ScreenOnce the ShareLink 250 W is connected and powered on, the default standby screen  (figure 4) appears on the display.Figure 4.  Standby Screen1  Instructional screen — Provides instructions for starting a presentation. The background image of the instructional screen can be customized (see OSD Setup on page 46).2  Calibration tool icon ( )— Double-click to open the Calibration tool (for touchscreens only). This feature allows you to calibrate a touchscreen for accuracy, if needed (see Using the Calibration Tool on the next page).3  Screen Resize tool icon ( )— Double-click to use the screen resize tool. This feature allows you to change the size of the screen presented on the display (see Using the Screen Resize Tool on page 8).4  Whiteboard icon ( )— Double-click to use the display as a whiteboard. This feature allows the presenter to draw on a blank screen using a mouse or touchscreen (see Using the Whiteboard Feature on page 9).5  USB Player icon ( )— Double-click to access the USB Player. This feature allows the presenter to access photos, videos, audio files, and documents directly from the connected USB flash drive (see Using the USB Player on page 10).6  IP Address — Use this IP address to identify and access the ShareLink 250 W during connection (see Setting up the ShareLink 250 W Software on page 12).7  Hostname — Use this Hostname to identify and access the ShareLink 250 W during connection through the ShareLink software. This hostname can be customized in the configuration pages (see Network Setup, 1 on page 41).8  WiFi — Use this Wi-Fi name (SSID) to identify and access the ShareLink 250 W during connection.9  Code — Use this code to access the ShareLink 250 W device through the software (see Connecting to the ShareLink 250 W Receiver on page 14). The code can be customized or disabled (see Device Setup on page 40).

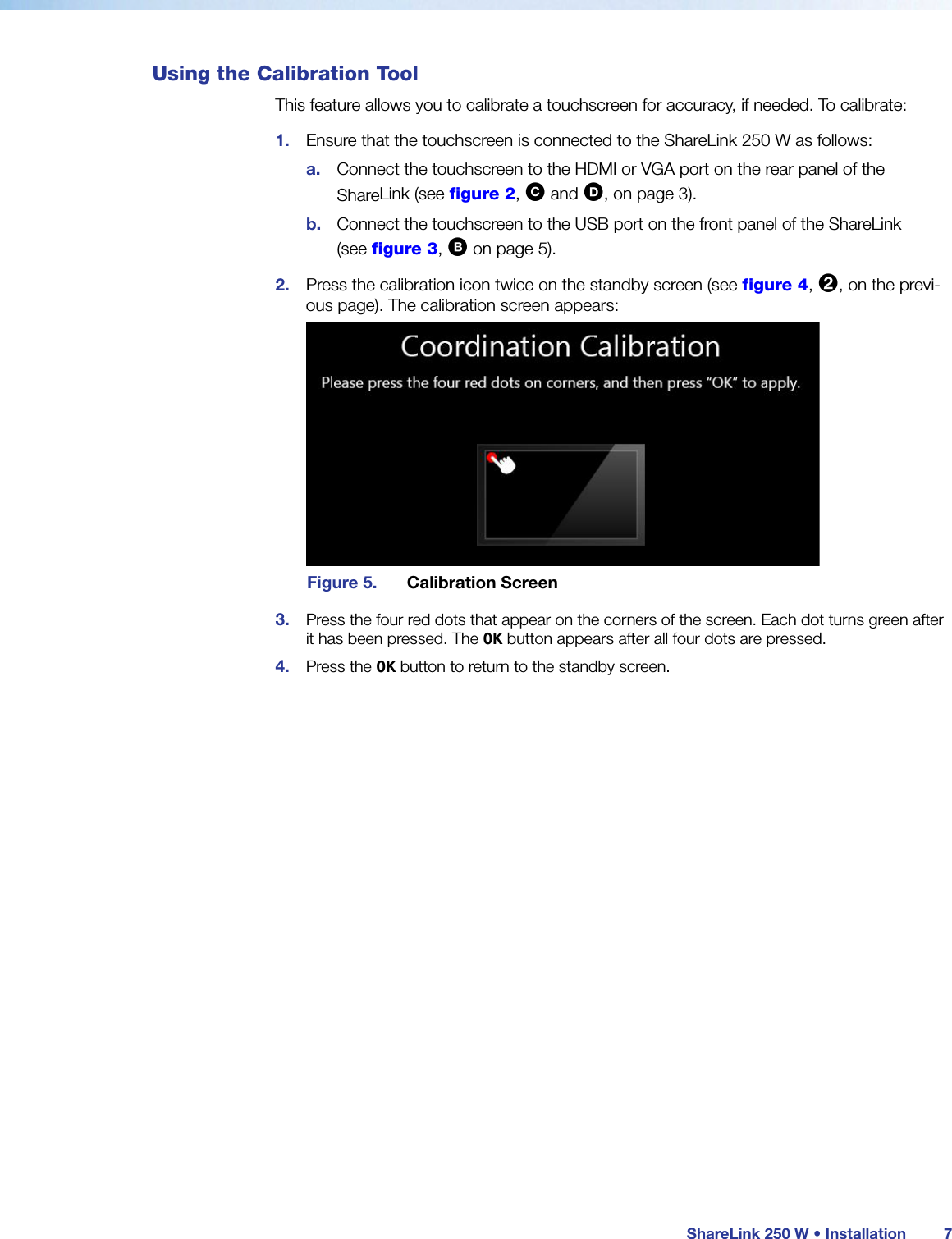

 ShareLink 250 W • Installation 7Using the Calibration ToolThis feature allows you to calibrate a touchscreen for accuracy, if needed. To calibrate:1.  Ensure that the touchscreen is connected to the ShareLink 250 W as follows:a.  Connect the touchscreen to the HDMI or VGA port on the rear panel of the  ShareLink (see figure 2, C and D, on page 3).b.  Connect the touchscreen to the USB port on the front panel of the ShareLink  (see figure 3, B on page 5).2.  Press the calibration icon twice on the standby screen (see figure 4, 2, on the previ-ous page). The calibration screen appears:Figure 5.  Calibration Screen3.  Press the four red dots that appear on the corners of the screen. Each dot turns green after it has been pressed. The OK button appears after all four dots are pressed.4.  Press the OK button to return to the standby screen.

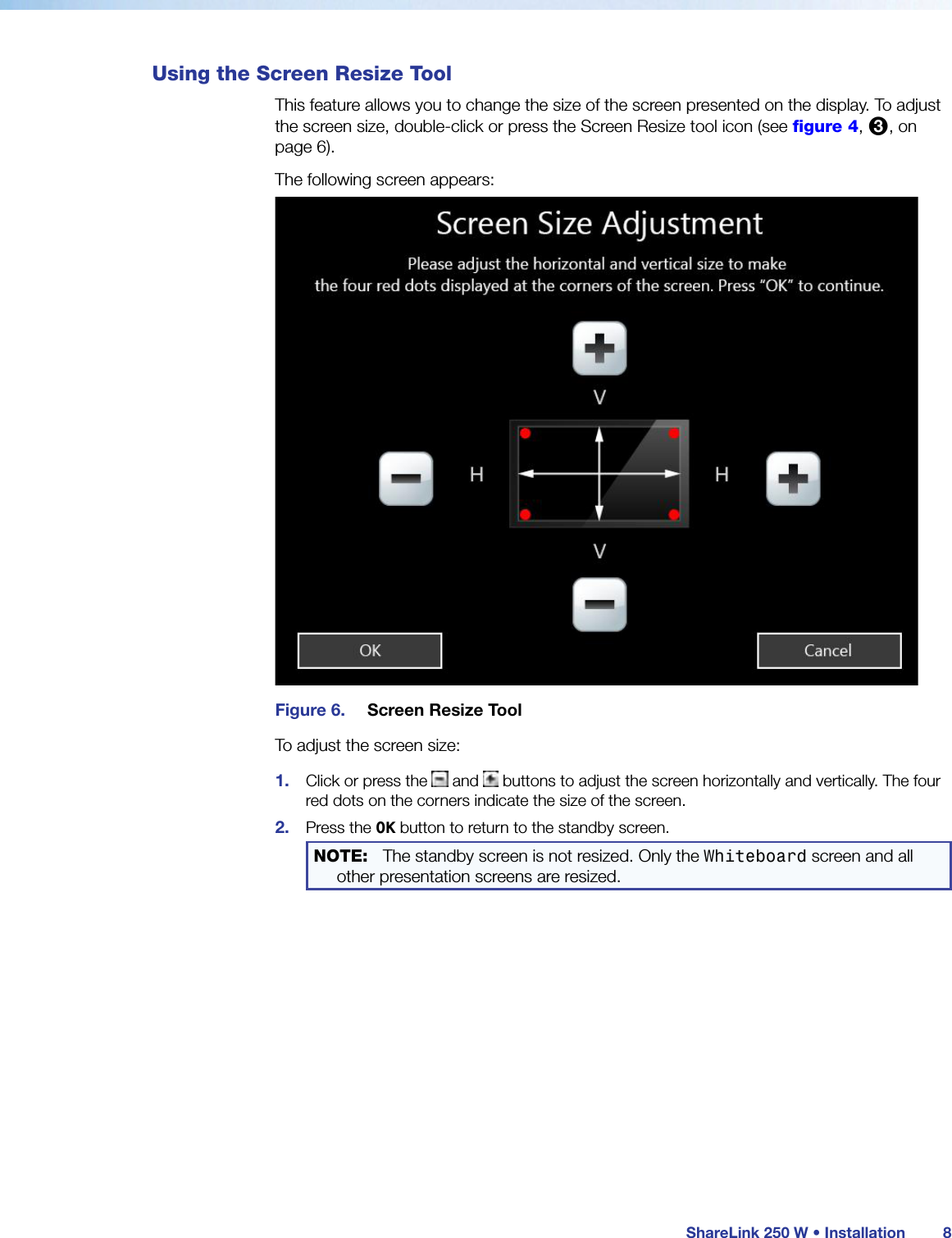

 ShareLink 250 W • Installation 8Using the Screen Resize ToolThis feature allows you to change the size of the screen presented on the display. To adjust the screen size, double-click or press the Screen Resize tool icon (see figure 4, 3, on page 6).The following screen appears:Figure 6.  Screen Resize ToolTo adjust the screen size:1.  Click or press the   and   buttons to adjust the screen horizontally and vertically. The four red dots on the corners indicate the size of the screen.2.  Press the OK button to return to the standby screen.NOTE:   The standby screen is not resized. Only the Whiteboard screen and all other presentation screens are resized.

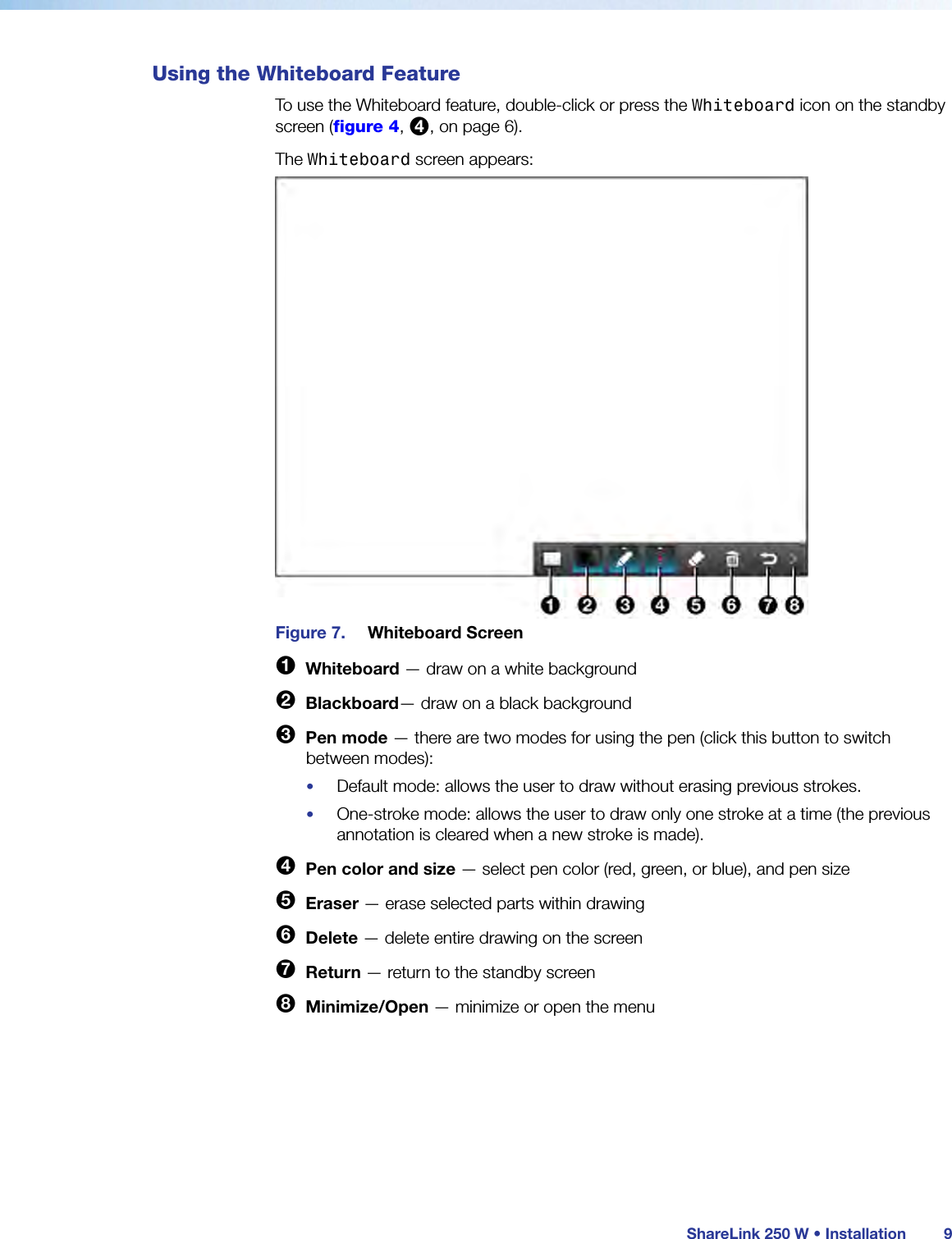

 ShareLink 250 W • Installation 9Using the Whiteboard FeatureTo use the Whiteboard feature, double-click or press the Whiteboard icon on the standby screen (figure 4, 4, on page 6).The Whiteboard screen appears:Figure 7.  Whiteboard Screen1  Whiteboard — draw on a white background2  Blackboard— draw on a black background3  Pen mode — there are two modes for using the pen (click this button to switch between modes):•  Default mode: allows the user to draw without erasing previous strokes.•  One-stroke mode: allows the user to draw only one stroke at a time (the previous annotation is cleared when a new stroke is made).4  Pen color and size — select pen color (red, green, or blue), and pen size5  Eraser — erase selected parts within drawing6  Delete — delete entire drawing on the screen7  Return — return to the standby screen8  Minimize/Open — minimize or open the menu

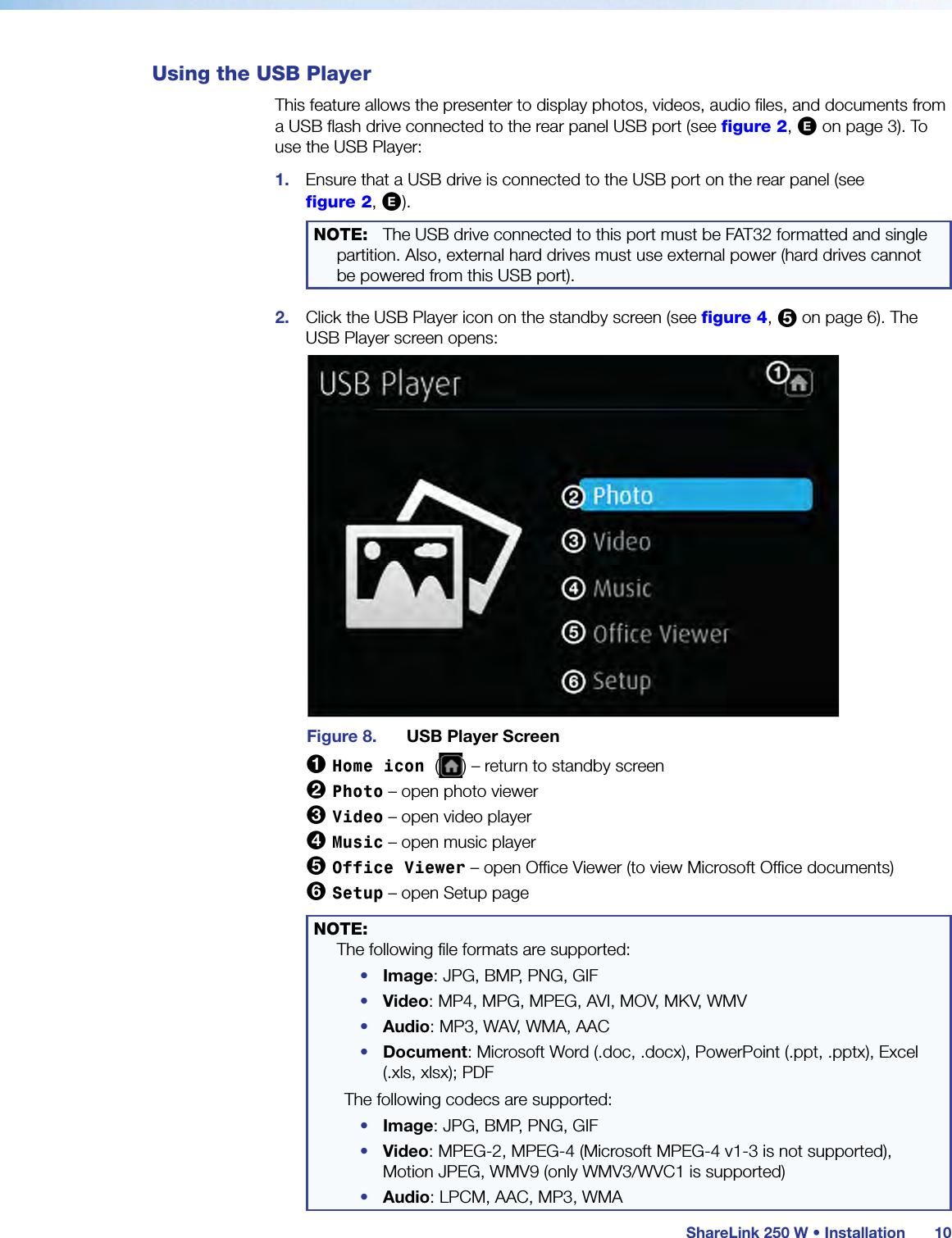

 ShareLink 250 W • Installation 10Using the USB PlayerThis feature allows the presenter to display photos, videos, audio files, and documents from a USB flash drive connected to the rear panel USB port (see figure 2, E on page 3). To use the USB Player:1.  Ensure that a USB drive is connected to the USB port on the rear panel (see  figure 2, E).NOTE:   The USB drive connected to this port must be FAT32 formatted and single partition. Also, external hard drives must use external power (hard drives cannot be powered from this USB port).2.  Click the USB Player icon on the standby screen (see figure 4, 5 on page 6). The  USB Player screen opens:Figure 8.  USB Player Screen1 Home icon ( ) – return to standby screen2 Photo – open photo viewer3 Video – open video player4 Music – open music player5 Office Viewer – open Office Viewer (to view Microsoft Office documents)6 Setup – open Setup pageNOTE:   The following file formats are supported:•  Image: JPG, BMP, PNG, GIF•  Video: MP4, MPG, MPEG, AVI, MOV, MKV, WMV•  Audio: MP3, WAV, WMA, AAC•  Document: Microsoft Word (.doc, .docx), PowerPoint (.ppt, .pptx), Excel (.xls, xlsx); PDFThe following codecs are supported:•  Image: JPG, BMP, PNG, GIF•  Video: MPEG-2, MPEG-4 (Microsoft MPEG-4 v1-3 is not supported), Motion JPEG, WMV9 (only WMV3/WVC1 is supported)•  Audio: LPCM, AAC, MP3, WMA

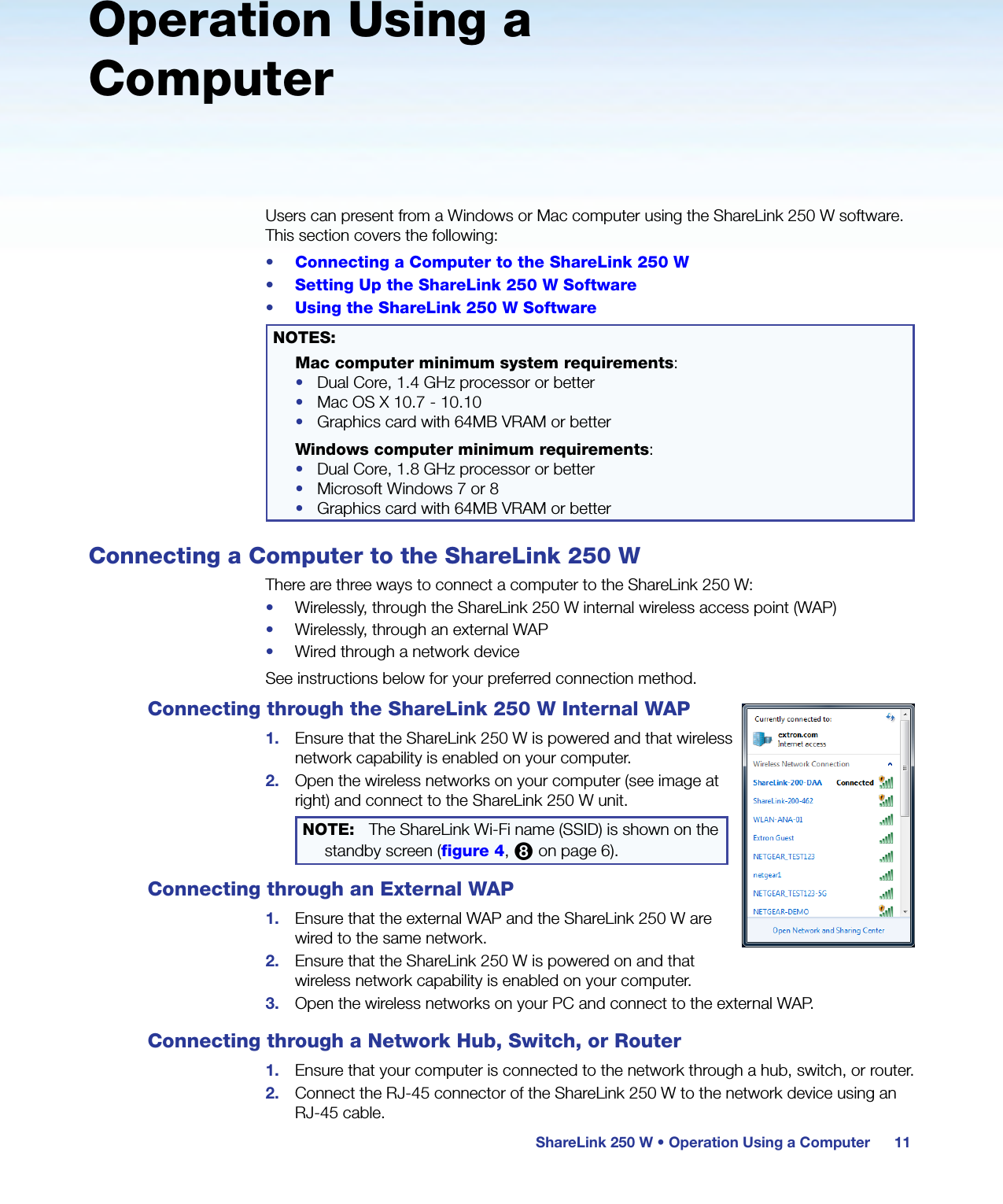

ShareLink 250 W • Operation Using a Computer 11Operation Using a ComputerUsers can present from a Windows or Mac computer using the ShareLink 250 W software. This section covers the following:•  Connecting a Computer to the ShareLink 250 W•  Setting Up the ShareLink 250 W Software•  Using the ShareLink 250 W SoftwareNOTES: Mac computer minimum system requirements:•  Dual Core, 1.4 GHz processor or better•  Mac OS X 10.7 - 10.10•  Graphics card with 64MB VRAM or betterWindows computer minimum requirements:•  Dual Core, 1.8 GHz processor or better•  Microsoft Windows 7 or 8•  Graphics card with 64MB VRAM or betterConnecting a Computer to the ShareLink 250 WThere are three ways to connect a computer to the ShareLink 250 W:•  Wirelessly, through the ShareLink 250 W internal wireless access point (WAP)•  Wirelessly, through an external WAP•  Wired through a network deviceSee instructions below for your preferred connection method.Connecting through the ShareLink 250 W Internal WAP1.  Ensure that the ShareLink 250 W is powered and that wireless network capability is enabled on your computer.2.  Open the wireless networks on your computer (see image at right) and connect to the ShareLink 250 W unit.NOTE:  The ShareLink Wi-Fi name (SSID) is shown on the standby screen (figure 4, 8 on page 6).Connecting through an External WAP1.  Ensure that the external WAP and the ShareLink 250 W are wired to the same network.2.  Ensure that the ShareLink 250 W is powered on and that wireless network capability is enabled on your computer.3.  Open the wireless networks on your PC and connect to the external WAP.Connecting through a Network Hub, Switch, or Router1.  Ensure that your computer is connected to the network through a hub, switch, or router.2.  Connect the RJ-45 connector of the ShareLink 250 W to the network device using an  RJ-45 cable.

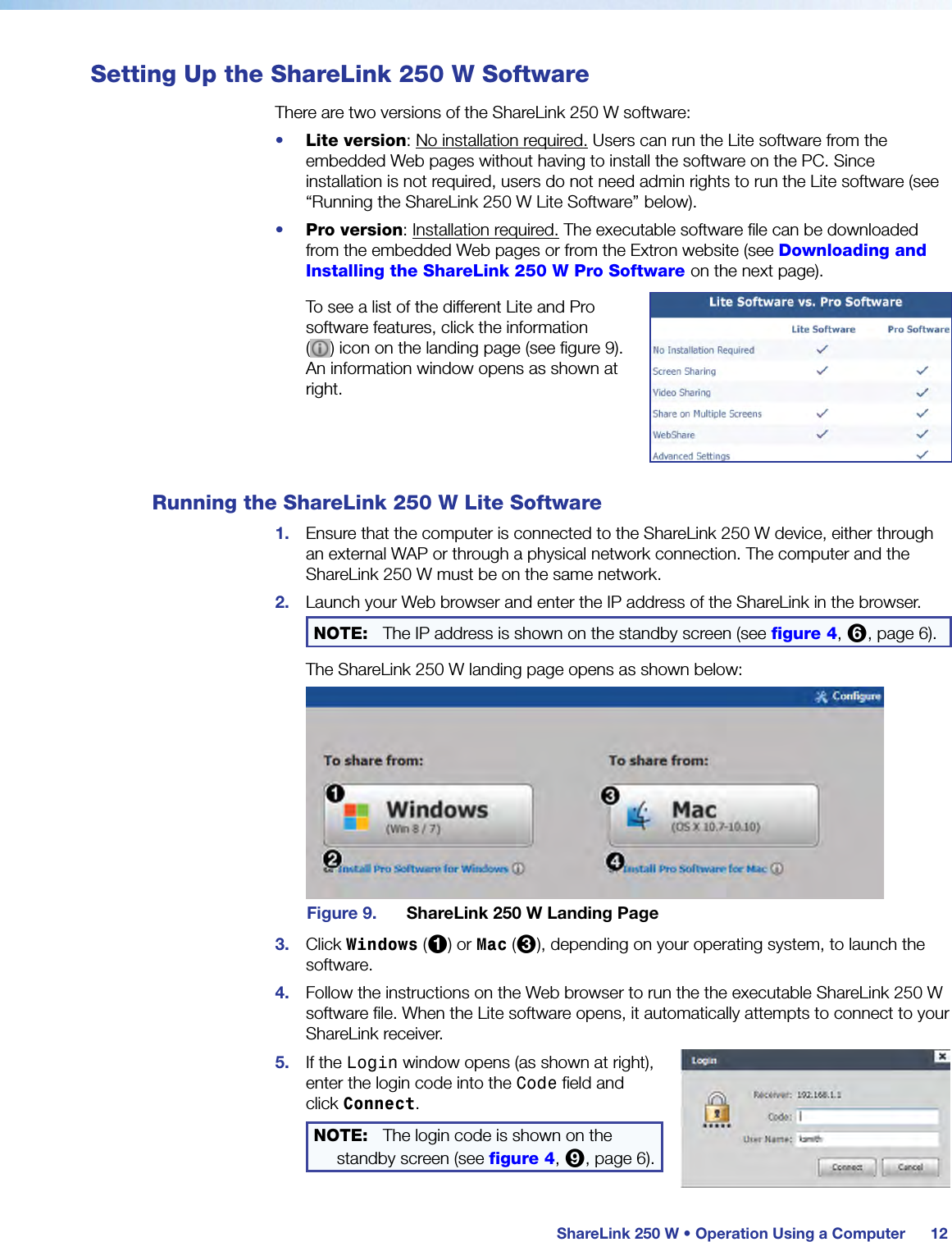

 ShareLink 250 W • Operation Using a Computer 12Setting Up the ShareLink 250 W SoftwareThere are two versions of the ShareLink 250 W software:•  Lite version: No installation required. Users can run the Lite software from the embedded Web pages without having to install the software on the PC. Since installation is not required, users do not need admin rights to run the Lite software (see “Running the ShareLink 250 W Lite Software” below).•  Pro version: Installation required. The executable software file can be downloaded from the embedded Web pages or from the Extron website (see Downloading and Installing the ShareLink 250 W Pro Software on the next page).To see a list of the different Lite and Pro software features, click the information  ( ) icon on the landing page (see figure 9).  An information window opens as shown at right.Running the ShareLink 250 W Lite Software1.  Ensure that the computer is connected to the ShareLink 250 W device, either through an external WAP or through a physical network connection. The computer and the ShareLink 250 W must be on the same network.2.  Launch your Web browser and enter the IP address of the ShareLink in the browser.NOTE:  The IP address is shown on the standby screen (see figure 4, 6, page 6).The ShareLink 250 W landing page opens as shown below:Figure 9.  ShareLink 250 W Landing Page3.  Click Windows (1) or Mac (3), depending on your operating system, to launch the software.4.  Follow the instructions on the Web browser to run the the executable ShareLink 250 W software file. When the Lite software opens, it automatically attempts to connect to your ShareLink receiver.5.  If the Login window opens (as shown at right), enter the login code into the Code field and click Connect.NOTE:  The login code is shown on the standby screen (see figure 4, 9, page 6).

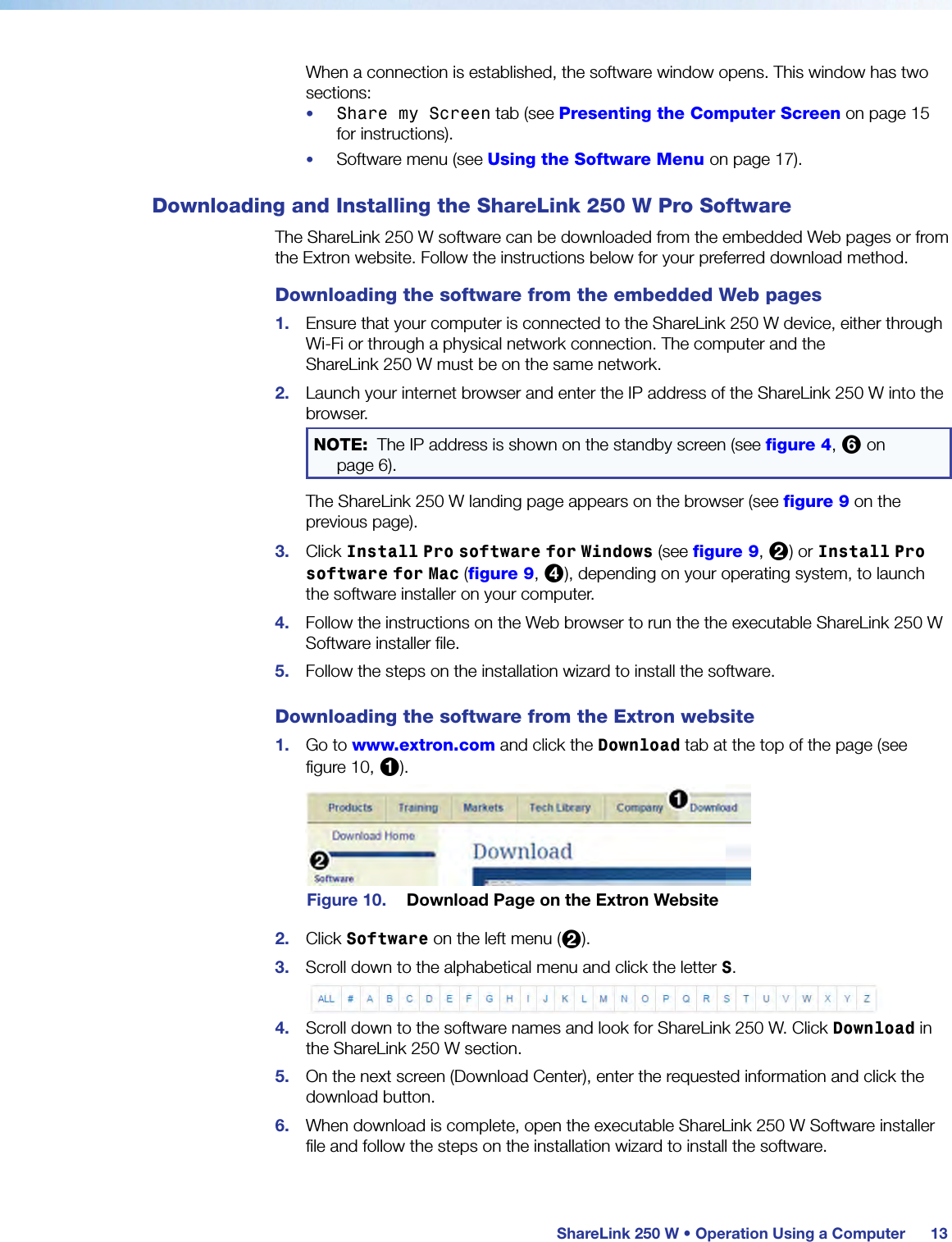

 ShareLink 250 W • Operation Using a Computer 13When a connection is established, the software window opens. This window has two sections:•  Share my Screen tab (see Presenting the Computer Screen on page 15 for instructions).•  Software menu (see Using the Software Menu on page 17).Downloading and Installing the ShareLink 250 W Pro SoftwareThe ShareLink 250 W software can be downloaded from the embedded Web pages or from the Extron website. Follow the instructions below for your preferred download method.Downloading the software from the embedded Web pages1.  Ensure that your computer is connected to the ShareLink 250 W device, either through Wi-Fi or through a physical network connection. The computer and the  ShareLink 250 W must be on the same network.2.  Launch your internet browser and enter the IP address of the ShareLink 250 W into the browser.NOTE:  The IP address is shown on the standby screen (see figure 4, 6 on  page 6).The ShareLink 250 W landing page appears on the browser (see figure 9 on the previous page).3.  Click Install Pro software for Windows (see figure 9, 2) or Install Pro software for Mac (figure 9, 4), depending on your operating system, to launch the software installer on your computer.4.  Follow the instructions on the Web browser to run the the executable ShareLink 250 W Software installer file.5.  Follow the steps on the installation wizard to install the software.Downloading the software from the Extron website1.  Go to www.extron.com and click the Download tab at the top of the page (see figure 10, 1).Figure 10.  Download Page on the Extron Website2.  Click Software on the left menu (2).3.  Scroll down to the alphabetical menu and click the letter S.4.  Scroll down to the software names and look for ShareLink 250 W. Click Download in the ShareLink 250 W section.5.  On the next screen (Download Center), enter the requested information and click the download button.6.  When download is complete, open the executable ShareLink 250 W Software installer file and follow the steps on the installation wizard to install the software.

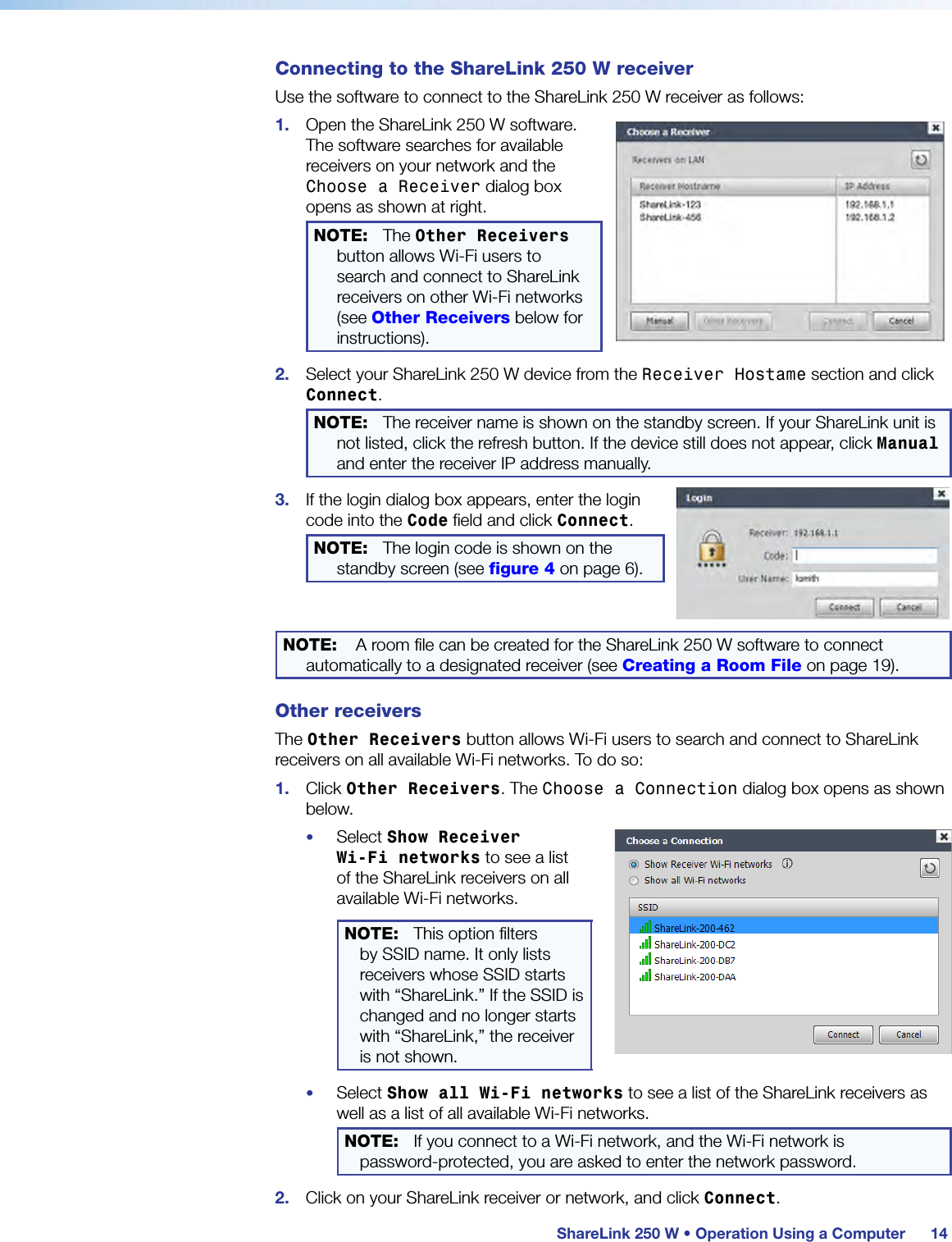

 ShareLink 250 W • Operation Using a Computer 14Connecting to the ShareLink 250 W receiverUse the software to connect to the ShareLink 250 W receiver as follows:1.  Open the ShareLink 250 W software. The software searches for available receivers on your network and the Choose a Receiver dialog box opens as shown at right.NOTE:  The Other Receivers button allows Wi-Fi users to search and connect to ShareLink receivers on other Wi-Fi networks (see Other Receivers below for instructions).2.  Select your ShareLink 250 W device from the Receiver Hostame section and click Connect.NOTE:  The receiver name is shown on the standby screen. If your ShareLink unit is not listed, click the refresh button. If the device still does not appear, click Manual and enter the receiver IP address manually.3.  If the login dialog box appears, enter the login code into the Code field and click Connect.NOTE:  The login code is shown on the standby screen (see figure 4 on page 6).NOTE:  A room file can be created for the ShareLink 250 W software to connect automatically to a designated receiver (see Creating a Room File on page 19).Other receiversThe Other Receivers button allows Wi-Fi users to search and connect to ShareLink receivers on all available Wi-Fi networks. To do so:1.  Click Other Receivers. The Choose a Connection dialog box opens as shown below.•  Select Show Receiver  Wi-Fi networks to see a list of the ShareLink receivers on all available Wi-Fi networks.NOTE: This option filters by SSID name. It only lists receivers whose SSID starts with “ShareLink.” If the SSID is changed and no longer starts with “ShareLink,” the receiver is not shown.•  Select Show all Wi-Fi networks to see a list of the ShareLink receivers as well as a list of all available Wi-Fi networks.NOTE: If you connect to a Wi-Fi network, and the Wi-Fi network is  password-protected, you are asked to enter the network password.2.  Click on your ShareLink receiver or network, and click Connect.

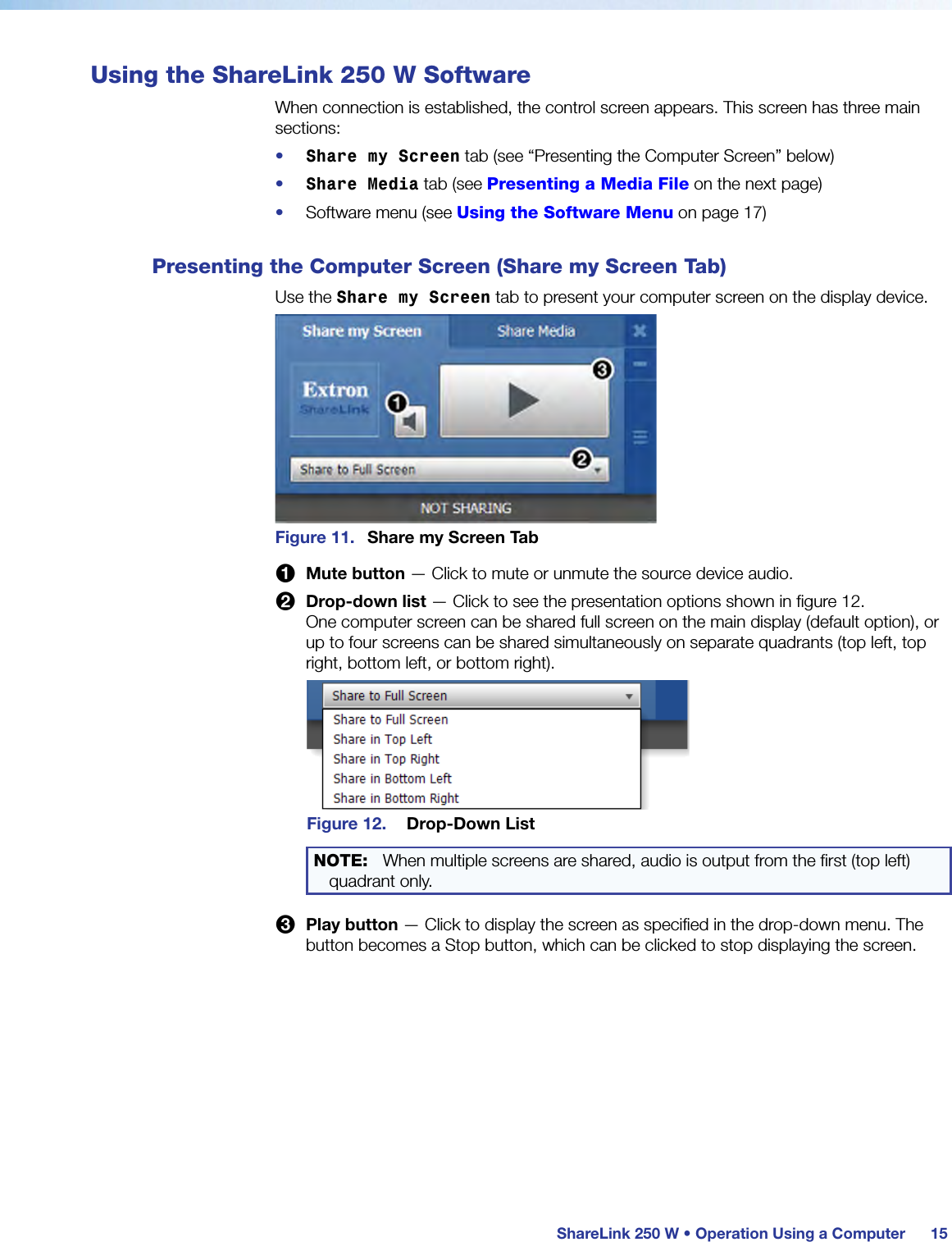

 ShareLink 250 W • Operation Using a Computer 15Using the ShareLink 250 W SoftwareWhen connection is established, the control screen appears. This screen has three main sections:•  Share my Screen tab (see “Presenting the Computer Screen” below)•  Share Media tab (see Presenting a Media File on the next page)•  Software menu (see Using the Software Menu on page 17)Presenting the Computer Screen (Share my Screen Tab)Use the Share my Screen tab to present your computer screen on the display device.Figure 11.  Share my Screen Tab1 Mute button — Click to mute or unmute the source device audio.2 Drop-down list — Click to see the presentation options shown in figure 12. One computer screen can be shared full screen on the main display (default option), or up to four screens can be shared simultaneously on separate quadrants (top left, top right, bottom left, or bottom right).Figure 12.  Drop-Down ListNOTE: When multiple screens are shared, audio is output from the first (top left) quadrant only.3 Play button — Click to display the screen as specified in the drop-down menu. The button becomes a Stop button, which can be clicked to stop displaying the screen.

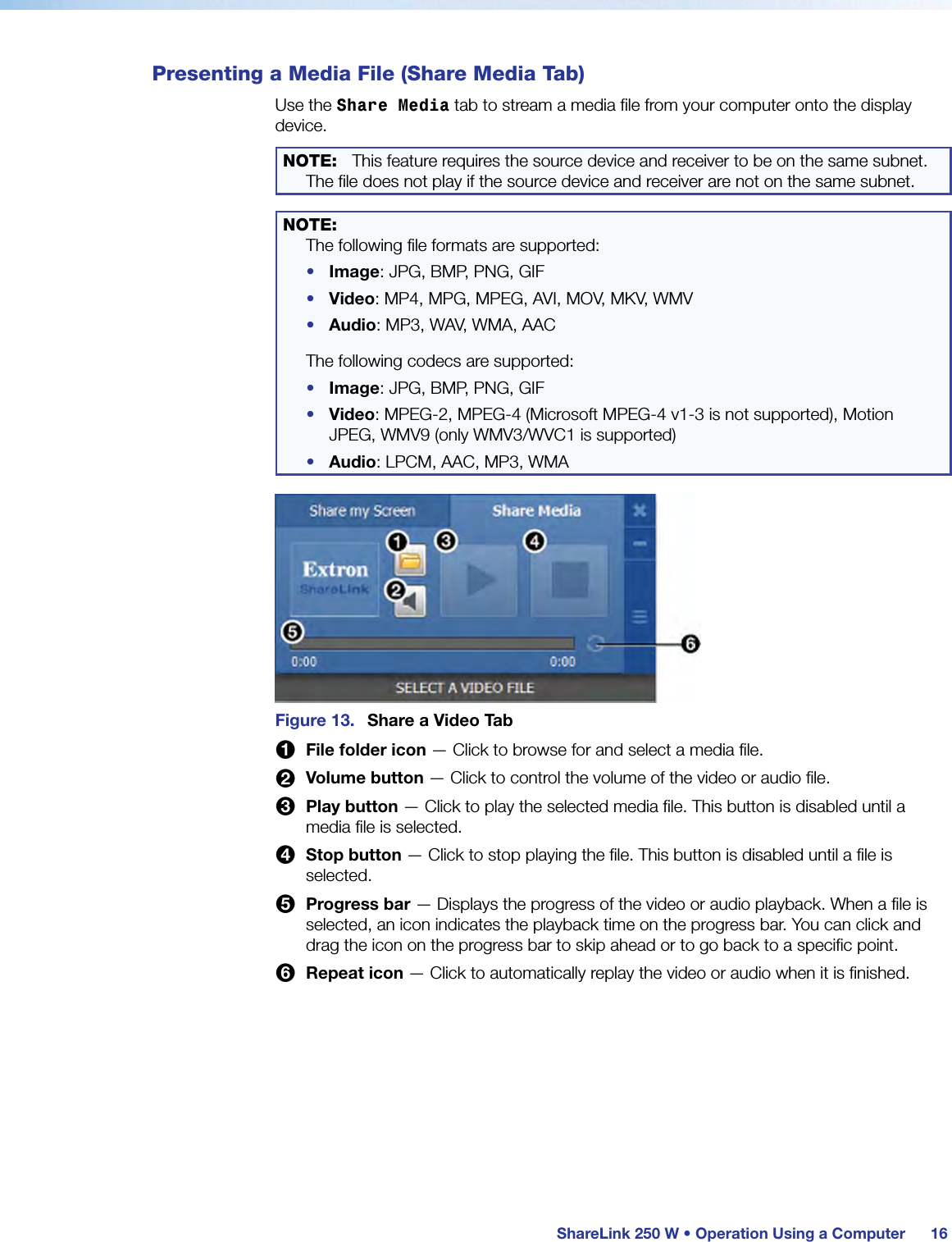

 ShareLink 250 W • Operation Using a Computer 16Presenting a Media File (Share Media Tab)Use the Share Media tab to stream a media file from your computer onto the display device.NOTE:  This feature requires the source device and receiver to be on the same subnet. The file does not play if the source device and receiver are not on the same subnet.NOTE:   The following file formats are supported:•  Image: JPG, BMP, PNG, GIF•  Video: MP4, MPG, MPEG, AVI, MOV, MKV, WMV•  Audio: MP3, WAV, WMA, AACThe following codecs are supported:•  Image: JPG, BMP, PNG, GIF•  Video: MPEG-2, MPEG-4 (Microsoft MPEG-4 v1-3 is not supported), Motion JPEG, WMV9 (only WMV3/WVC1 is supported)•  Audio: LPCM, AAC, MP3, WMAFigure 13.  Share a Video Tab1 File folder icon — Click to browse for and select a media file.2 Volume button — Click to control the volume of the video or audio file.3 Play button — Click to play the selected media file. This button is disabled until a media file is selected.4 Stop button — Click to stop playing the file. This button is disabled until a file is selected.5 Progress bar — Displays the progress of the video or audio playback. When a file is selected, an icon indicates the playback time on the progress bar. You can click and drag the icon on the progress bar to skip ahead or to go back to a specific point.6 Repeat icon — Click to automatically replay the video or audio when it is finished.

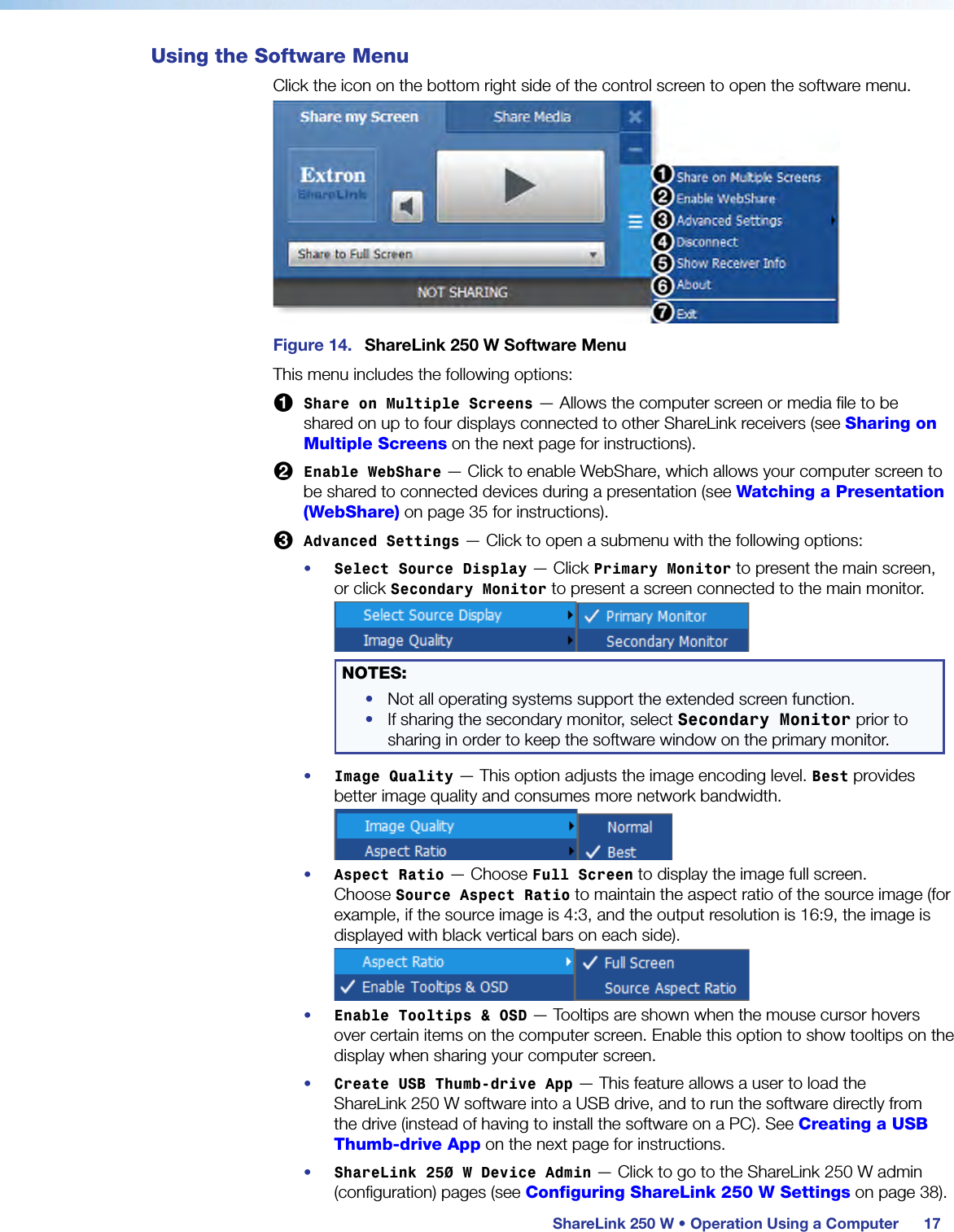

 ShareLink 250 W • Operation Using a Computer 17Using the Software MenuClick the icon on the bottom right side of the control screen to open the software menu.Figure 14.  ShareLink 250 W Software MenuThis menu includes the following options:1 Share on Multiple Screens — Allows the computer screen or media file to be shared on up to four displays connected to other ShareLink receivers (see Sharing on Multiple Screens on the next page for instructions).2 Enable WebShare — Click to enable WebShare, which allows your computer screen to be shared to connected devices during a presentation (see Watching a Presentation (WebShare) on page 35 for instructions).3 Advanced Settings — Click to open a submenu with the following options:•  Select Source Display — Click Primary Monitor to present the main screen, or click Secondary Monitor to present a screen connected to the main monitor. NOTES:•  Not all operating systems support the extended screen function.•  If sharing the secondary monitor, select Secondary Monitor prior to sharing in order to keep the software window on the primary monitor.•  Image Quality — This option adjusts the image encoding level. Best provides better image quality and consumes more network bandwidth.•  Aspect Ratio — Choose Full Screen to display the image full screen. Choose Source Aspect Ratio to maintain the aspect ratio of the source image (for example, if the source image is 4:3, and the output resolution is 16:9, the image is displayed with black vertical bars on each side).•  Enable Tooltips & OSD — Tooltips are shown when the mouse cursor hovers over certain items on the computer screen. Enable this option to show tooltips on the display when sharing your computer screen.•  Create USB Thumb-drive App — This feature allows a user to load the  ShareLink 250 W software into a USB drive, and to run the software directly from the drive (instead of having to install the software on a PC). See Creating a USB Thumb-drive App on the next page for instructions.•  ShareLink 250 W Device Admin — Click to go to the ShareLink 250 W admin (configuration) pages (see Configuring ShareLink 250 W Settings on page 38).

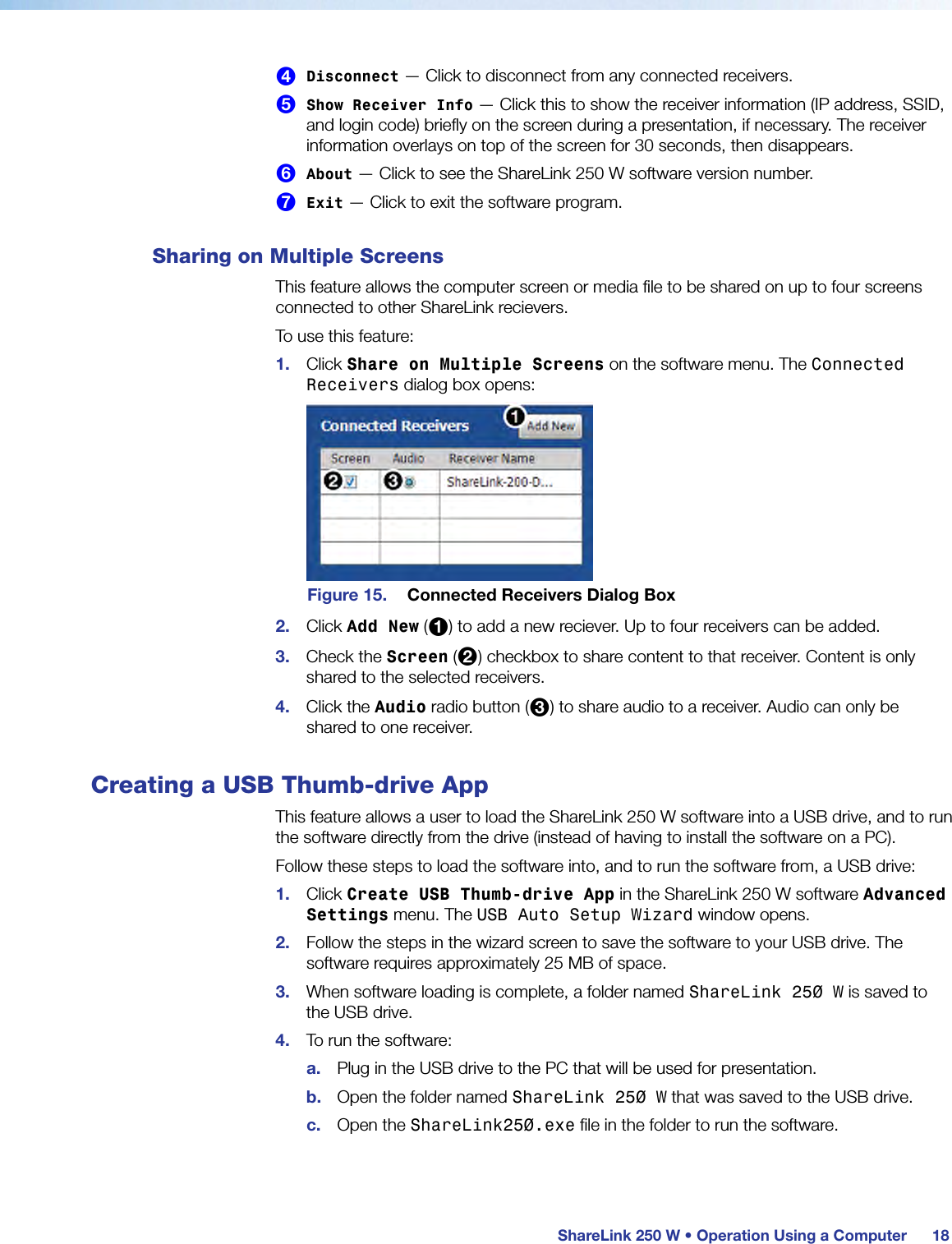

 ShareLink 250 W • Operation Using a Computer 184 Disconnect — Click to disconnect from any connected receivers.5 Show Receiver Info — Click this to show the receiver information (IP address, SSID, and login code) briefly on the screen during a presentation, if necessary. The receiver information overlays on top of the screen for 30 seconds, then disappears.6 About — Click to see the ShareLink 250 W software version number.7 Exit — Click to exit the software program.Sharing on Multiple ScreensThis feature allows the computer screen or media file to be shared on up to four screens connected to other ShareLink recievers.To use this feature:1.  Click Share on Multiple Screens on the software menu. The Connected Receivers dialog box opens:Figure 15.  Connected Receivers Dialog Box2.  Click Add New (1) to add a new reciever. Up to four receivers can be added.3.  Check the Screen (2) checkbox to share content to that receiver. Content is only shared to the selected receivers.4.  Click the Audio radio button (3) to share audio to a receiver. Audio can only be shared to one receiver.Creating a USB Thumb-drive AppThis feature allows a user to load the ShareLink 250 W software into a USB drive, and to run the software directly from the drive (instead of having to install the software on a PC).Follow these steps to load the software into, and to run the software from, a USB drive:1.  Click Create USB Thumb-drive App in the ShareLink 250 W software Advanced Settings menu. The USB Auto Setup Wizard window opens.2.  Follow the steps in the wizard screen to save the software to your USB drive. The software requires approximately 25 MB of space.3.  When software loading is complete, a folder named ShareLink 250 W is saved to the USB drive.4.  To run the software:a.  Plug in the USB drive to the PC that will be used for presentation.b.  Open the folder named ShareLink 250 W that was saved to the USB drive.c.  Open the ShareLink250.exe file in the folder to run the software.

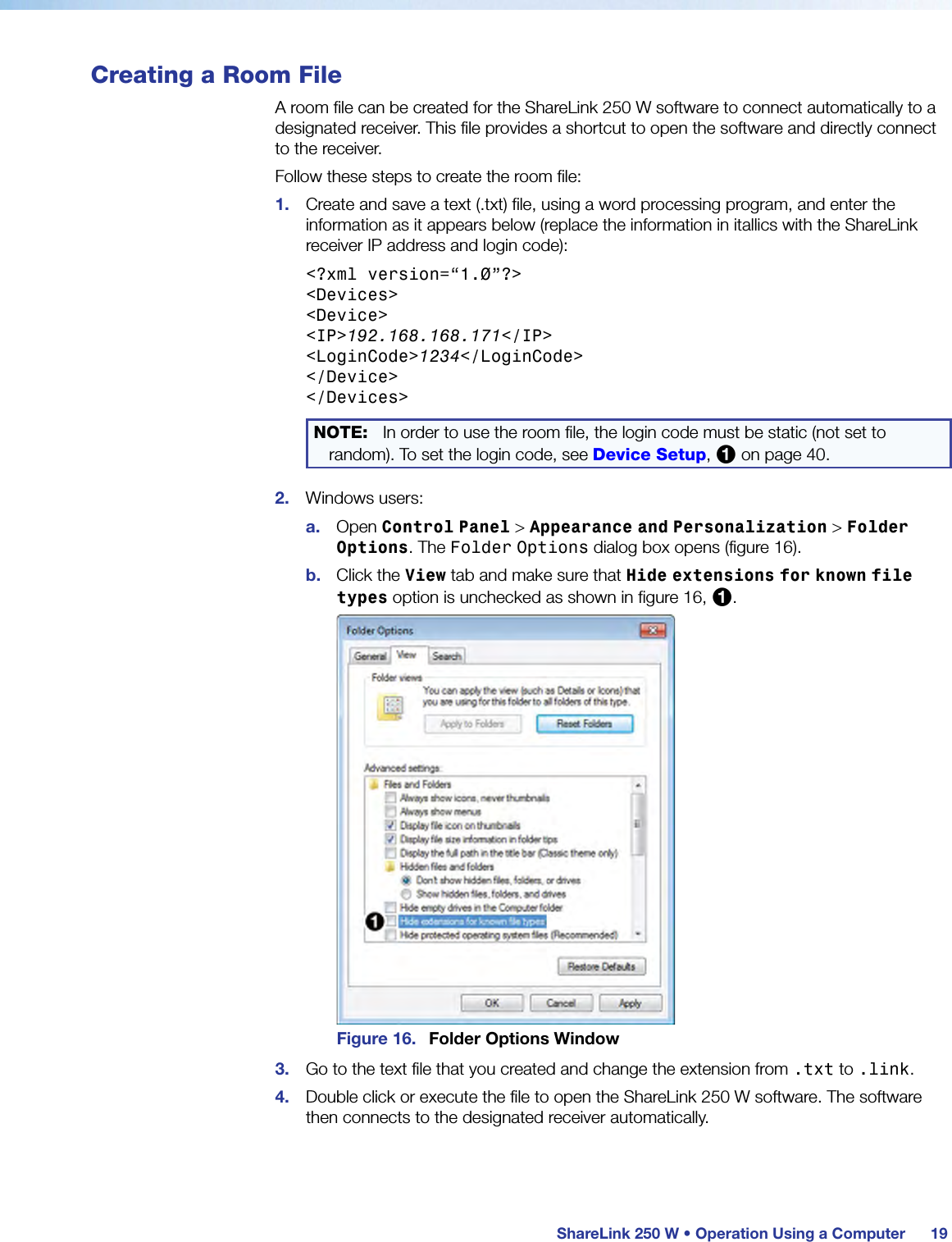

 ShareLink 250 W • Operation Using a Computer 19Creating a Room FileA room file can be created for the ShareLink 250 W software to connect automatically to a designated receiver. This file provides a shortcut to open the software and directly connect to the receiver.Follow these steps to create the room file:1.  Create and save a text (.txt) file, using a word processing program, and enter the information as it appears below (replace the information in itallics with the ShareLink receiver IP address and login code):<?xml version=“1.0”?><Devices><Device><IP>192.168.168.171</IP><LoginCode>1234</LoginCode></Device></Devices>NOTE: In order to use the room file, the login code must be static (not set to random). To set the login code, see Device Setup, 1 on page 40.2.  Windows users:a.  Open Control Panel > Appearance and Personalization > Folder Options. The Folder Options dialog box opens (figure 16).b.  Click the View tab and make sure that Hide extensions for known file types option is unchecked as shown in figure 16, 1.Figure 16.  Folder Options Window3.  Go to the text file that you created and change the extension from .txt to .link.4.  Double click or execute the file to open the ShareLink 250 W software. The software then connects to the designated receiver automatically.

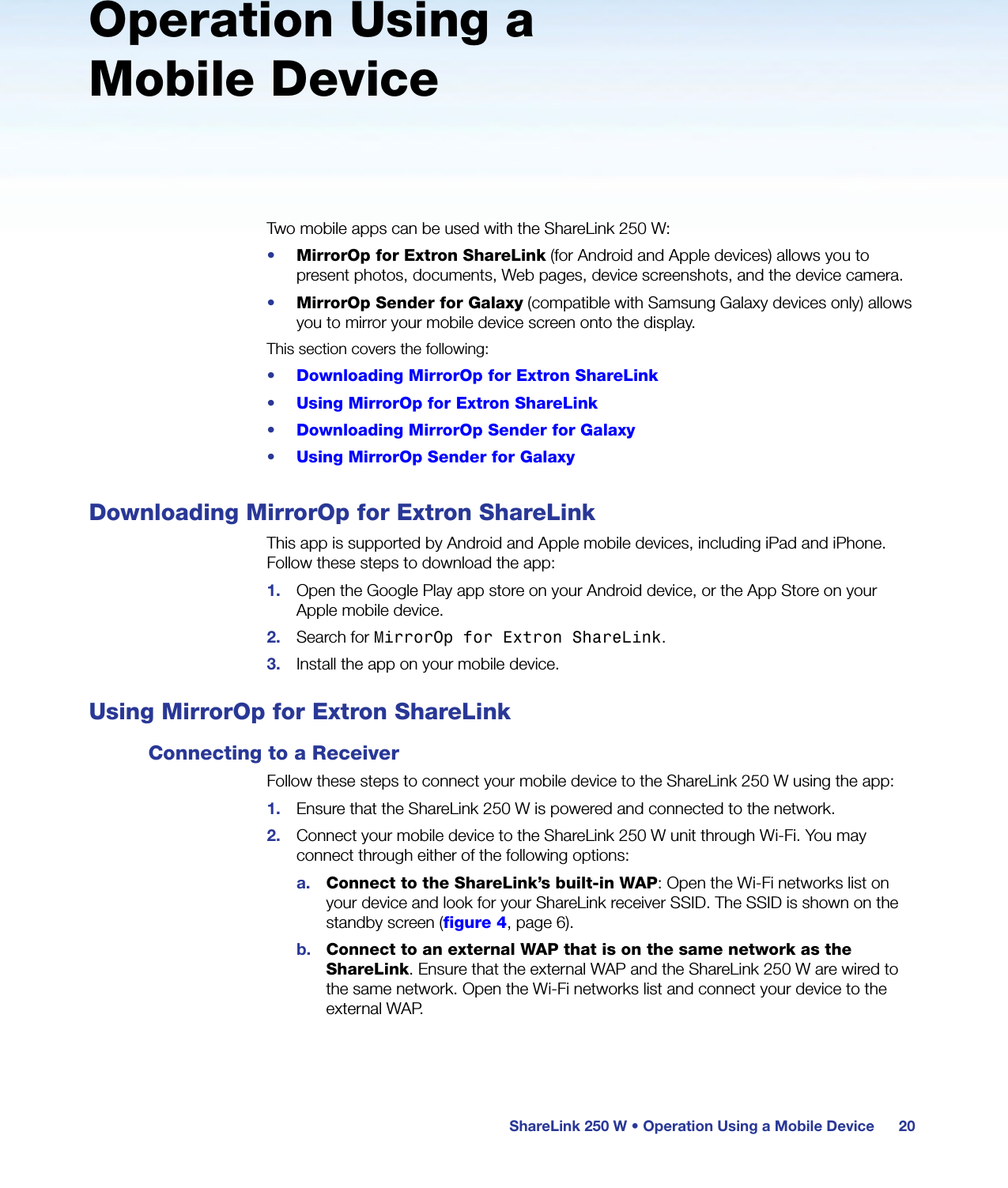

ShareLink 250 W • Operation Using a Mobile Device 20Operation Using a Mobile DeviceTwo mobile apps can be used with the ShareLink 250 W:•  MirrorOp for Extron ShareLink (for Android and Apple devices) allows you to present photos, documents, Web pages, device screenshots, and the device camera.•  MirrorOp Sender for Galaxy (compatible with Samsung Galaxy devices only) allows you to mirror your mobile device screen onto the display.This section covers the following:•  Downloading MirrorOp for Extron ShareLink•  Using MirrorOp for Extron ShareLink•  Downloading MirrorOp Sender for Galaxy•  Using MirrorOp Sender for GalaxyDownloading MirrorOp for Extron ShareLinkThis app is supported by Android and Apple mobile devices, including iPad and iPhone. Follow these steps to download the app:1.  Open the Google Play app store on your Android device, or the App Store on your Apple mobile device.2.  Search for MirrorOp for Extron ShareLink.3.  Install the app on your mobile device.Using MirrorOp for Extron ShareLinkConnecting to a ReceiverFollow these steps to connect your mobile device to the ShareLink 250 W using the app:1.  Ensure that the ShareLink 250 W is powered and connected to the network.2.  Connect your mobile device to the ShareLink 250 W unit through Wi-Fi. You may connect through either of the following options:a.  Connect to the ShareLink’s built-in WAP: Open the Wi-Fi networks list on your device and look for your ShareLink receiver SSID. The SSID is shown on the standby screen (figure 4, page 6).b.  Connect to an external WAP that is on the same network as the ShareLink. Ensure that the external WAP and the ShareLink 250 W are wired to the same network. Open the Wi-Fi networks list and connect your device to the external WAP.

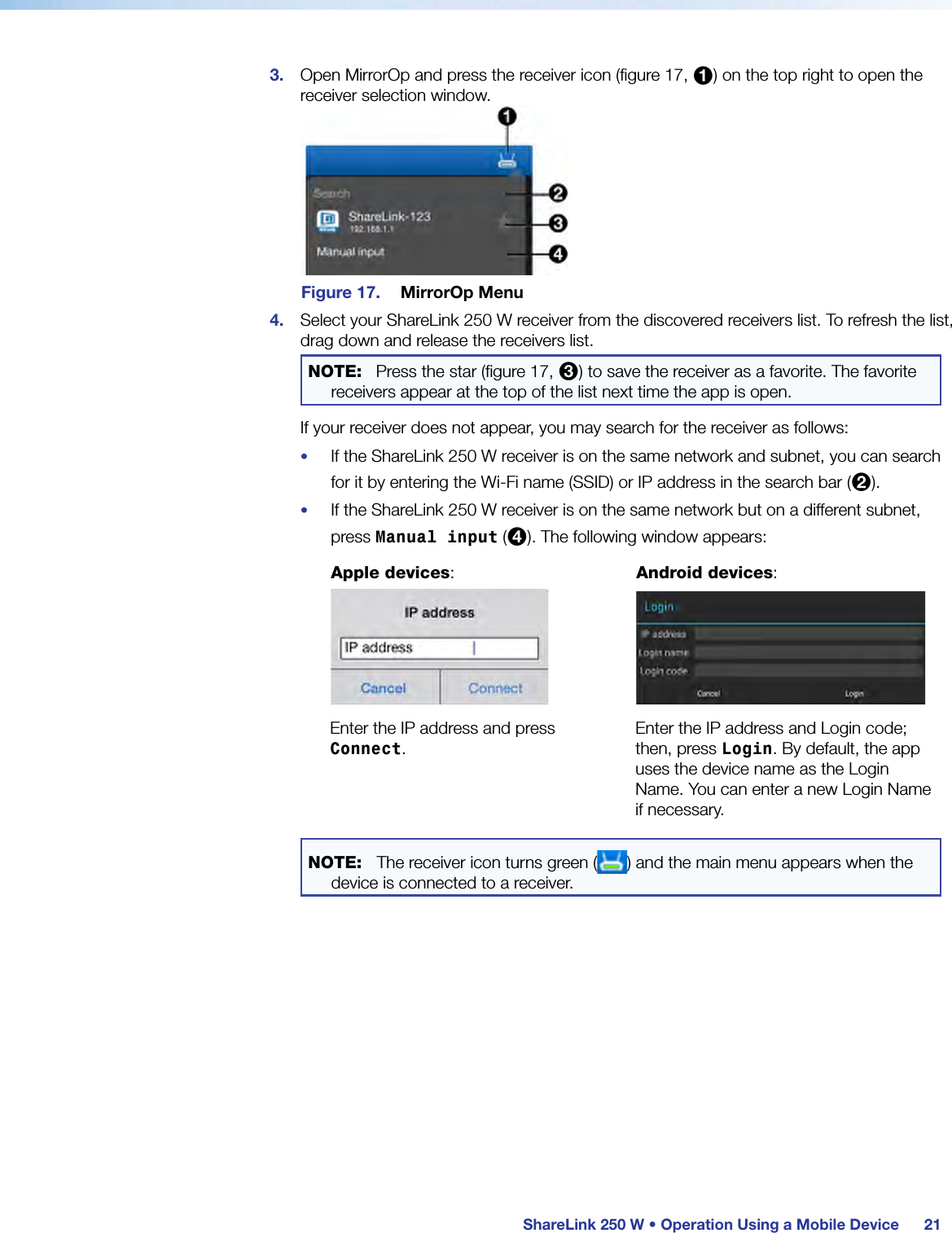

 ShareLink 250 W • Operation Using a Mobile Device 213.  Open MirrorOp and press the receiver icon (figure 17, 1) on the top right to open the receiver selection window.Figure 17.  MirrorOp Menu4.  Select your ShareLink 250 W receiver from the discovered receivers list. To refresh the list, drag down and release the receivers list.NOTE:   Press the star (figure 17, 3) to save the receiver as a favorite. The favorite receivers appear at the top of the list next time the app is open.If your receiver does not appear, you may search for the receiver as follows:•  If the ShareLink 250 W receiver is on the same network and subnet, you can search for it by entering the Wi-Fi name (SSID) or IP address in the search bar (2).•  If the ShareLink 250 W receiver is on the same network but on a different subnet, press Manual input (4). The following window appears:Apple devices:   Android devices:   Enter the IP address and press Connect.Enter the IP address and Login code; then, press Login. By default, the app uses the device name as the Login Name. You can enter a new Login Name if necessary.NOTE:  The receiver icon turns green ( ) and the main menu appears when the device is connected to a receiver.

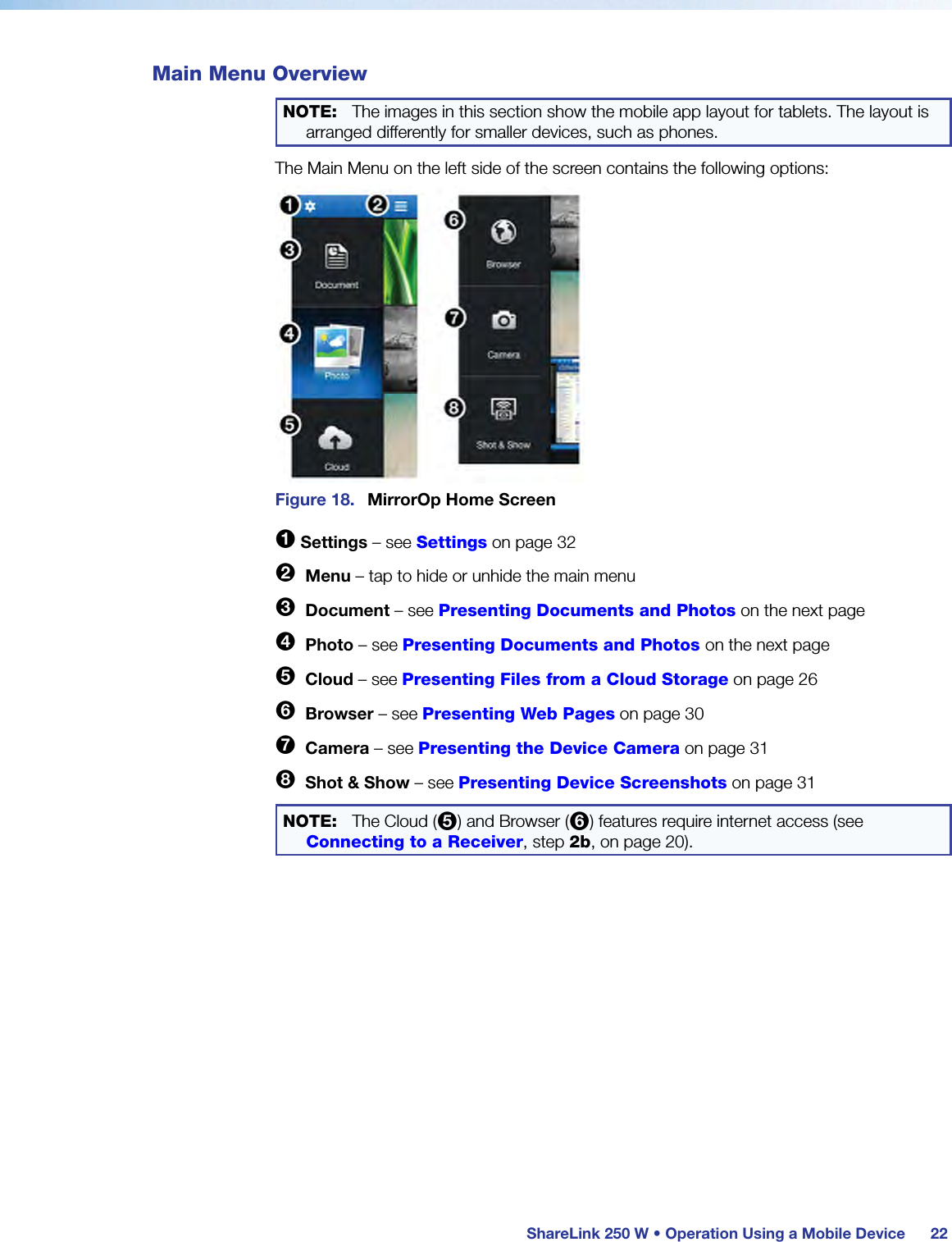

 ShareLink 250 W • Operation Using a Mobile Device 22Main Menu OverviewNOTE:  The images in this section show the mobile app layout for tablets. The layout is arranged differently for smaller devices, such as phones.The Main Menu on the left side of the screen contains the following options:Figure 18.  MirrorOp Home Screen1 Settings – see Settings on page 322  Menu – tap to hide or unhide the main menu3  Document – see Presenting Documents and Photos on the next page4  Photo – see Presenting Documents and Photos on the next page5  Cloud – see Presenting Files from a Cloud Storage on page 266  Browser – see Presenting Web Pages on page 307  Camera – see Presenting the Device Camera on page 318  Shot & Show – see Presenting Device Screenshots on page 31NOTE:  The Cloud (5) and Browser (6) features require internet access (see Connecting to a Receiver, step 2b, on page 20).

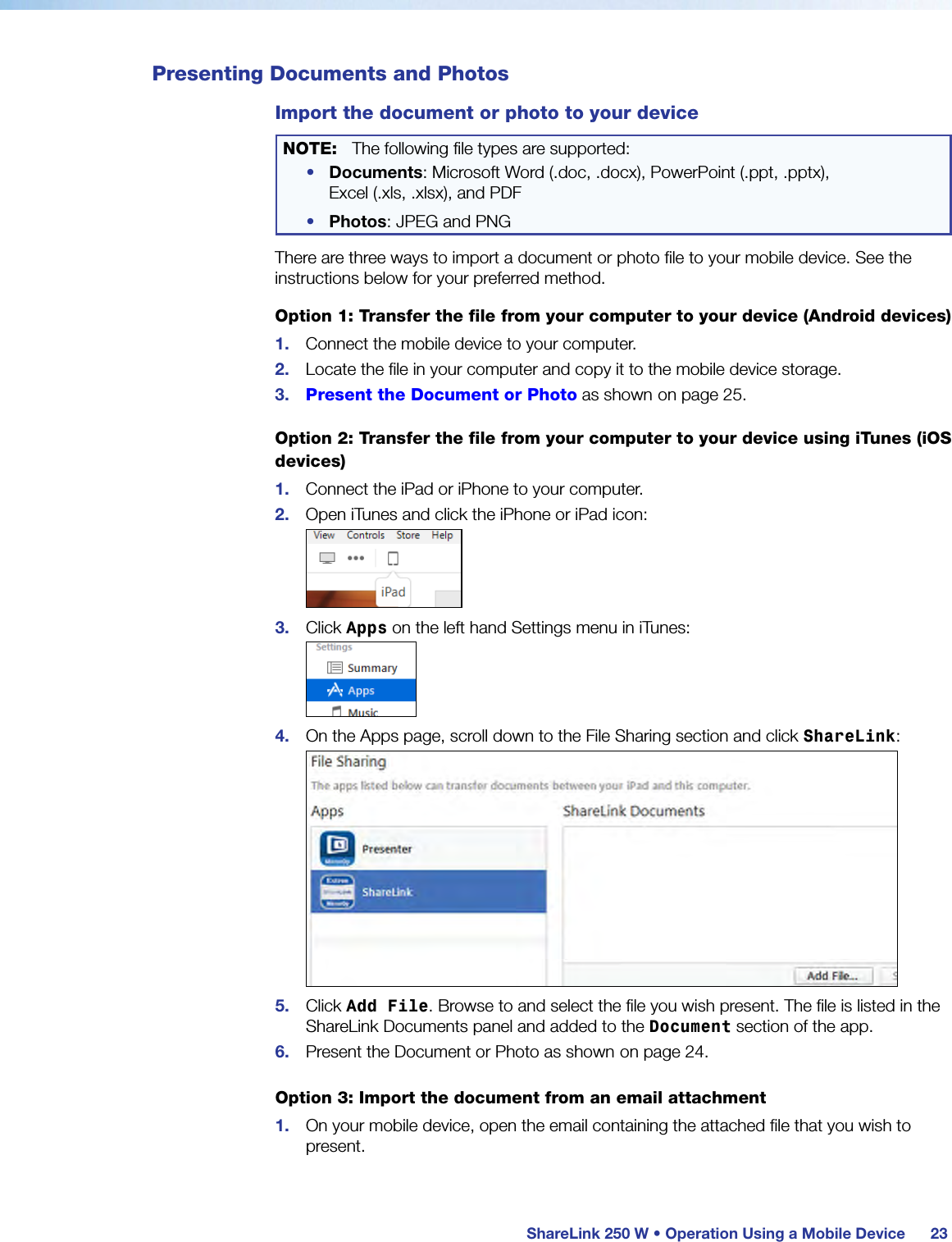

 ShareLink 250 W • Operation Using a Mobile Device 23Presenting Documents and PhotosImport the document or photo to your deviceNOTE:  The following file types are supported:•  Documents: Microsoft Word (.doc, .docx), PowerPoint (.ppt, .pptx),  Excel (.xls, .xlsx), and PDF•  Photos: JPEG and PNGThere are three ways to import a document or photo file to your mobile device. See the instructions below for your preferred method.Option 1: Transfer the file from your computer to your device (Android devices)1.  Connect the mobile device to your computer.2.  Locate the file in your computer and copy it to the mobile device storage.3.  Present the Document or Photo as shown on page 25.Option 2: Transfer the file from your computer to your device using iTunes (iOS devices)1.  Connect the iPad or iPhone to your computer.2.  Open iTunes and click the iPhone or iPad icon:3.  Click Apps on the left hand Settings menu in iTunes:4.  On the Apps page, scroll down to the File Sharing section and click ShareLink:5.  Click Add File. Browse to and select the file you wish present. The file is listed in the ShareLink Documents panel and added to the Document section of the app.6.  Present the Document or Photo as shown on page 24.Option 3: Import the document from an email attachment1.  On your mobile device, open the email containing the attached file that you wish to present.

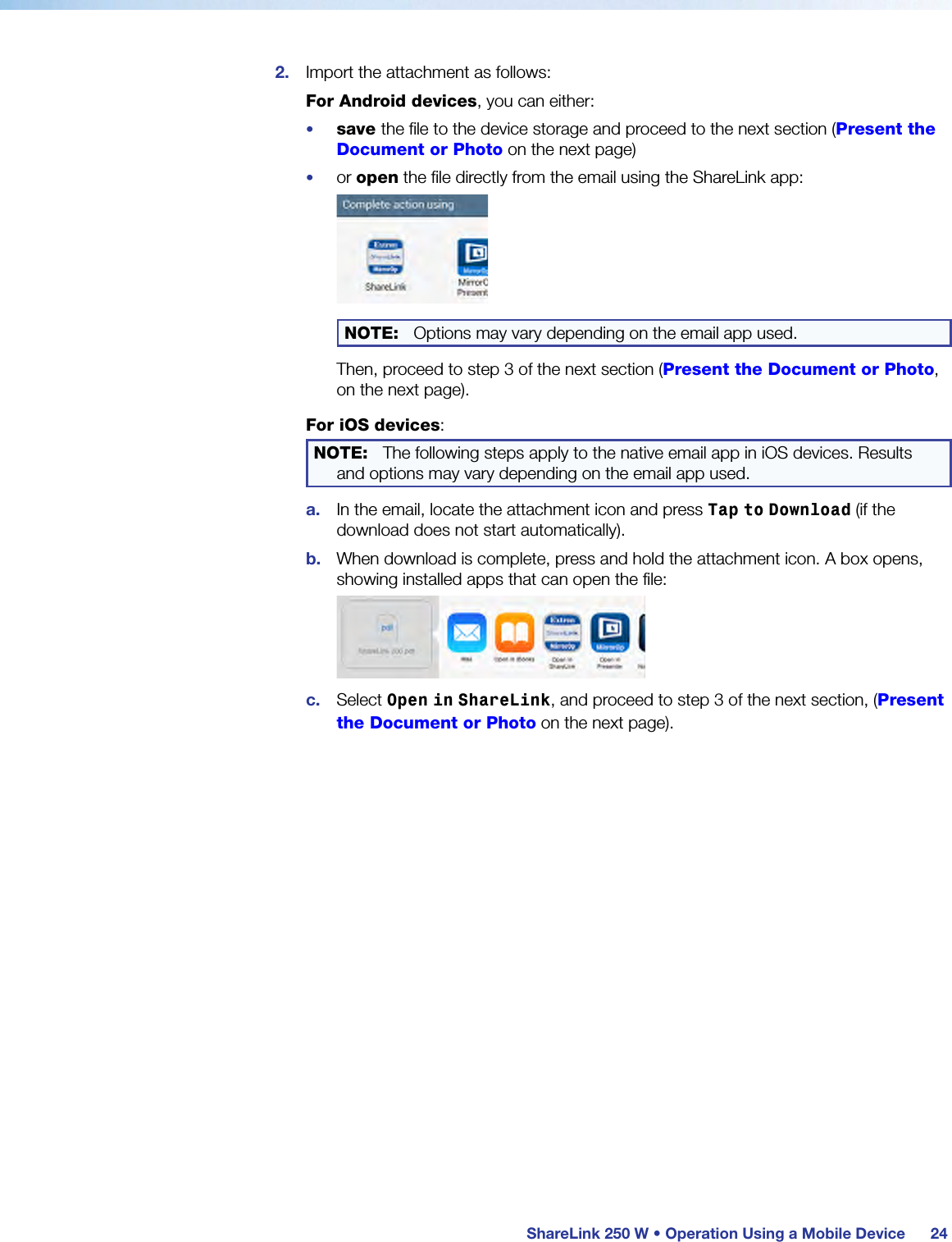

 ShareLink 250 W • Operation Using a Mobile Device 242.  Import the attachment as follows:For Android devices, you can either:•  save the file to the device storage and proceed to the next section (Present the Document or Photo on the next page)•  or open the file directly from the email using the ShareLink app:NOTE:  Options may vary depending on the email app used.Then, proceed to step 3 of the next section (Present the Document or Photo, on the next page).For iOS devices:NOTE:  The following steps apply to the native email app in iOS devices. Results and options may vary depending on the email app used.a.  In the email, locate the attachment icon and press Tap to Download (if the download does not start automatically).b.  When download is complete, press and hold the attachment icon. A box opens, showing installed apps that can open the file:c.  Select Open in ShareLink, and proceed to step 3 of the next section, (Present the Document or Photo on the next page).

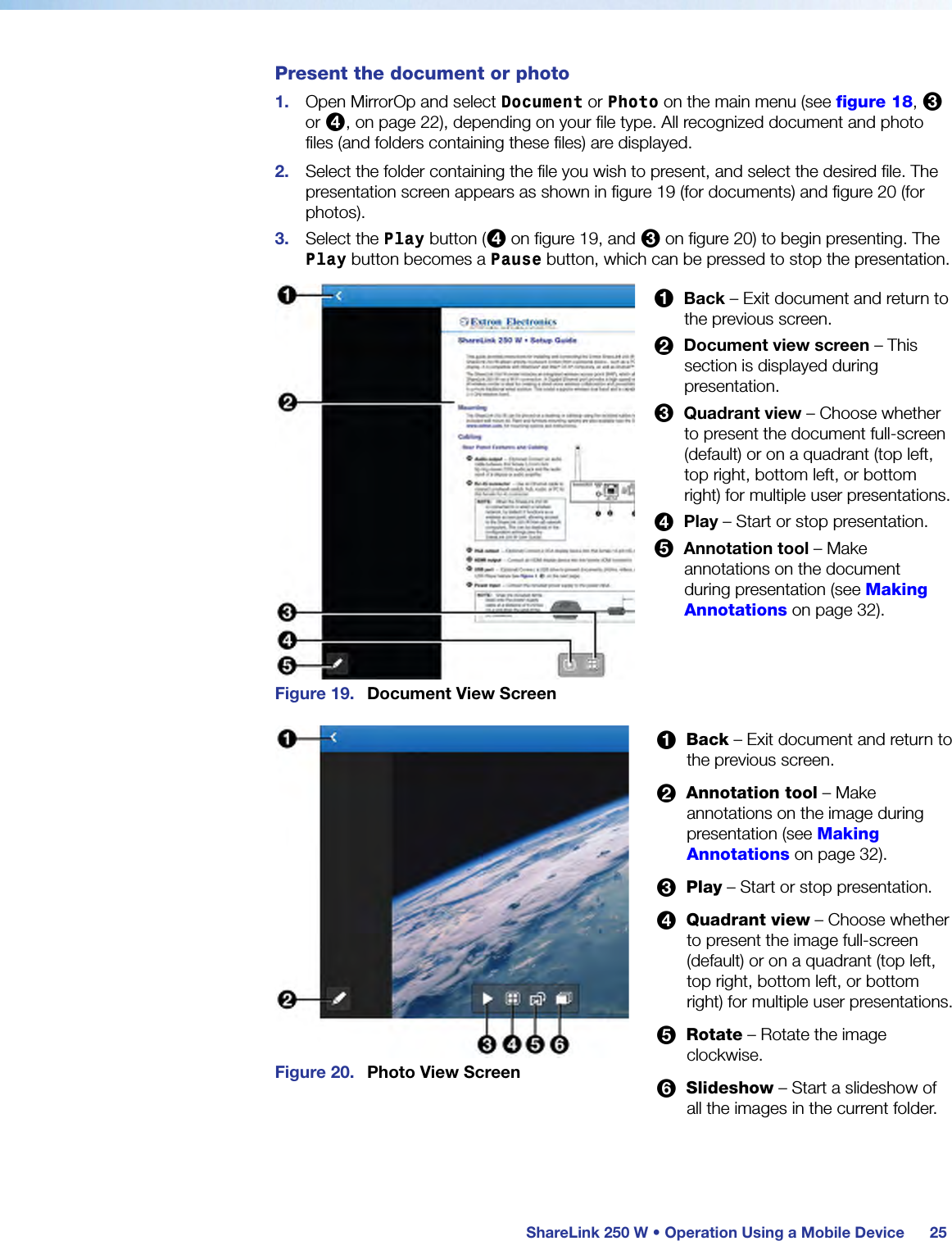

 ShareLink 250 W • Operation Using a Mobile Device 25Present the document or photo1.  Open MirrorOp and select Document or Photo on the main menu (see figure 18, 3 or 4, on page 22), depending on your file type. All recognized document and photo files (and folders containing these files) are displayed.2.  Select the folder containing the file you wish to present, and select the desired file. The presentation screen appears as shown in figure 19 (for documents) and figure 20 (for photos).3.  Select the Play button (4 on figure 19, and 3 on figure 20) to begin presenting. The Play button becomes a Pause button, which can be pressed to stop the presentation.Figure 19.  Document View ScreenFigure 20.  Photo View Screen1  Back – Exit document and return to the previous screen.2  Document view screen – This section is displayed during presentation.3  Quadrant view – Choose whether to present the document full-screen (default) or on a quadrant (top left, top right, bottom left, or bottom right) for multiple user presentations.4  Play – Start or stop presentation.5  Annotation tool – Make annotations on the document during presentation (see Making Annotations on page 32).1  Back – Exit document and return to the previous screen.2  Annotation tool – Make annotations on the image during presentation (see Making Annotations on page 32).3  Play – Start or stop presentation.4  Quadrant view – Choose whether to present the image full-screen (default) or on a quadrant (top left, top right, bottom left, or bottom right) for multiple user presentations.5  Rotate – Rotate the image clockwise.6  Slideshow – Start a slideshow of all the images in the current folder.

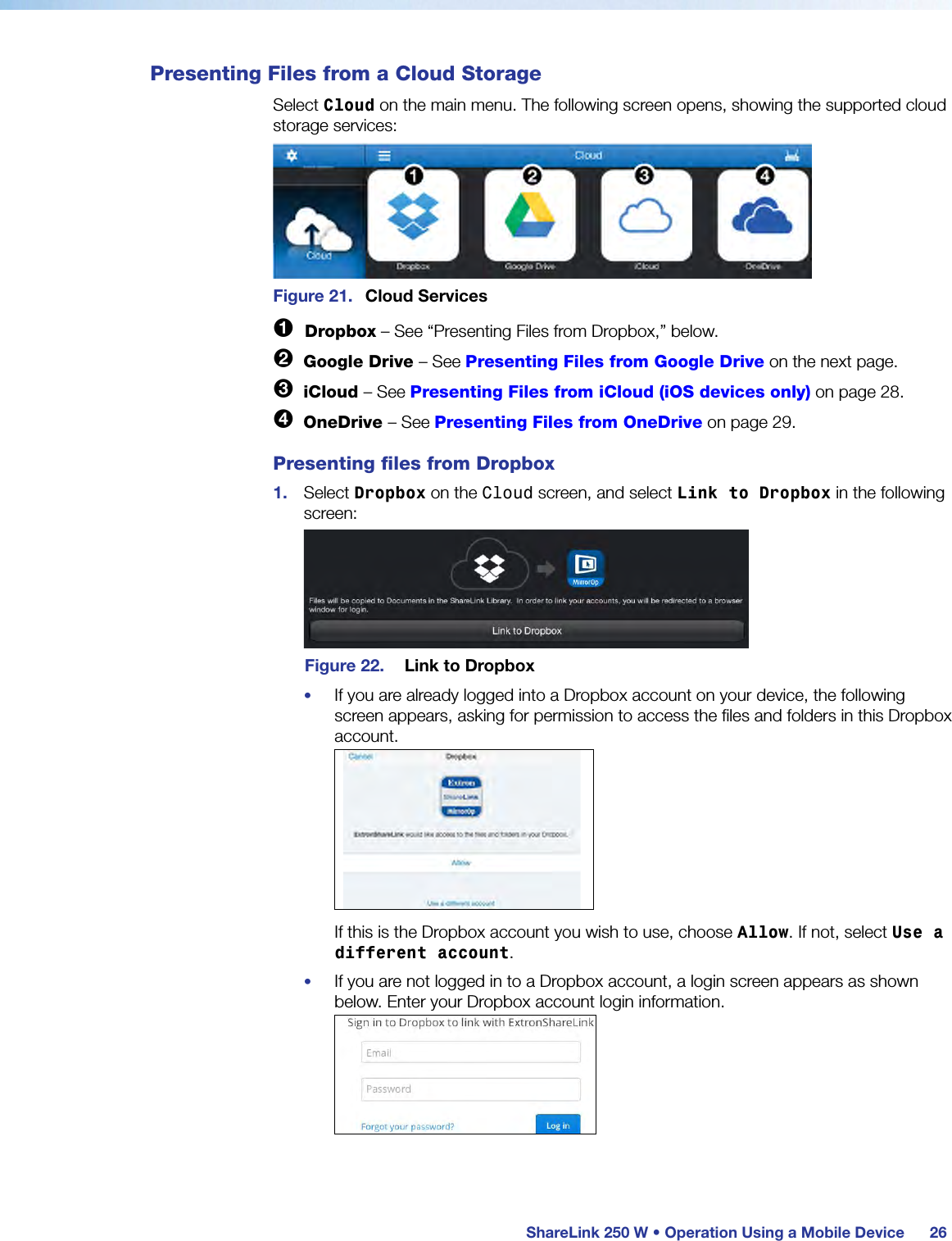

 ShareLink 250 W • Operation Using a Mobile Device 26Presenting Files from a Cloud StorageSelect Cloud on the main menu. The following screen opens, showing the supported cloud storage services:Figure 21.  Cloud Services1  Dropbox – See “Presenting Files from Dropbox,” below.2  Google Drive – See Presenting Files from Google Drive on the next page.3  iCloud – See Presenting Files from iCloud (iOS devices only) on page 28.4  OneDrive – See Presenting Files from OneDrive on page 29.Presenting files from Dropbox1.  Select Dropbox on the Cloud screen, and select Link to Dropbox in the following screen:Figure 22.  Link to Dropbox•  If you are already logged into a Dropbox account on your device, the following screen appears, asking for permission to access the files and folders in this Dropbox account.If this is the Dropbox account you wish to use, choose Allow. If not, select Use a different account.•  If you are not logged in to a Dropbox account, a login screen appears as shown below. Enter your Dropbox account login information.

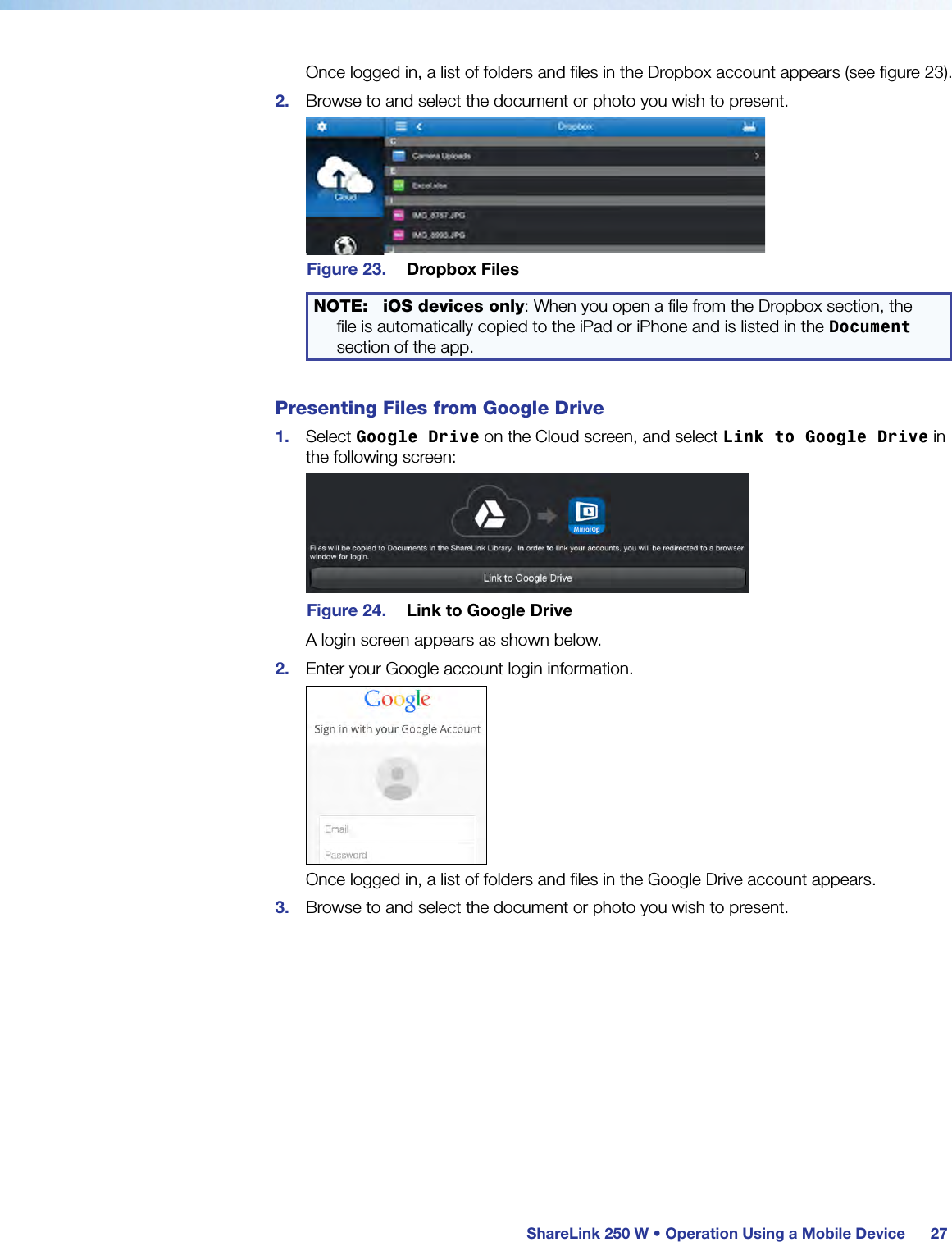

 ShareLink 250 W • Operation Using a Mobile Device 27Once logged in, a list of folders and files in the Dropbox account appears (see figure 23).2.  Browse to and select the document or photo you wish to present.Figure 23.  Dropbox FilesNOTE: iOS devices only: When you open a file from the Dropbox section, the file is automatically copied to the iPad or iPhone and is listed in the Document section of the app.Presenting Files from Google Drive1.  Select Google Drive on the Cloud screen, and select Link to Google Drive in the following screen:Figure 24.  Link to Google DriveA login screen appears as shown below. 2.  Enter your Google account login information.Once logged in, a list of folders and files in the Google Drive account appears.3.  Browse to and select the document or photo you wish to present.

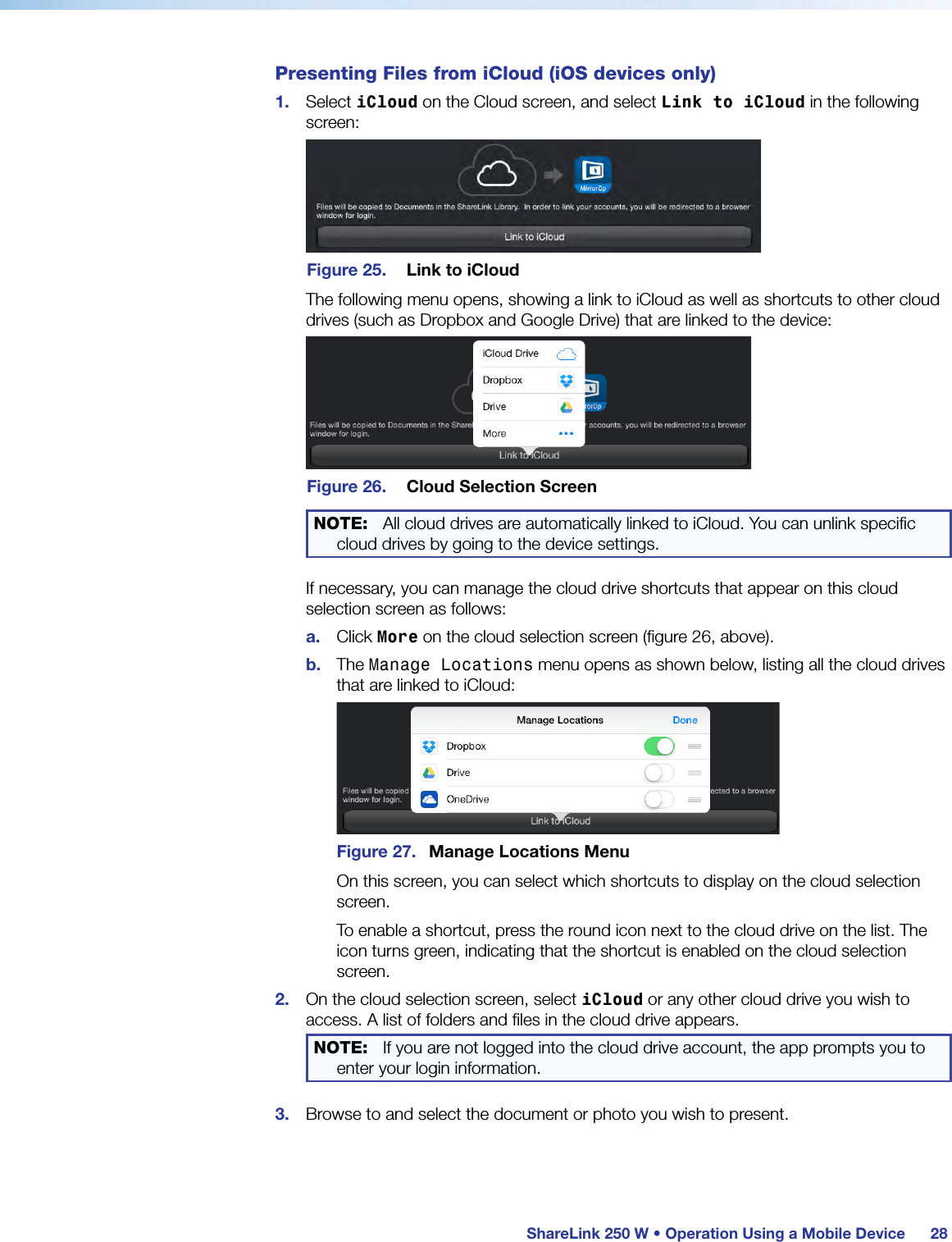

 ShareLink 250 W • Operation Using a Mobile Device 28Presenting Files from iCloud (iOS devices only)1.  Select iCloud on the Cloud screen, and select Link to iCloud in the following screen:Figure 25.  Link to iCloudThe following menu opens, showing a link to iCloud as well as shortcuts to other cloud drives (such as Dropbox and Google Drive) that are linked to the device:Figure 26.  Cloud Selection ScreenNOTE:  All cloud drives are automatically linked to iCloud. You can unlink specific cloud drives by going to the device settings.If necessary, you can manage the cloud drive shortcuts that appear on this cloud selection screen as follows:a.  Click More on the cloud selection screen (figure 26, above).b.  The Manage Locations menu opens as shown below, listing all the cloud drives that are linked to iCloud:Figure 27.  Manage Locations MenuOn this screen, you can select which shortcuts to display on the cloud selection screen.To enable a shortcut, press the round icon next to the cloud drive on the list. The icon turns green, indicating that the shortcut is enabled on the cloud selection screen.2.  On the cloud selection screen, select iCloud or any other cloud drive you wish to access. A list of folders and files in the cloud drive appears.NOTE:  If you are not logged into the cloud drive account, the app prompts you to enter your login information.3.  Browse to and select the document or photo you wish to present.

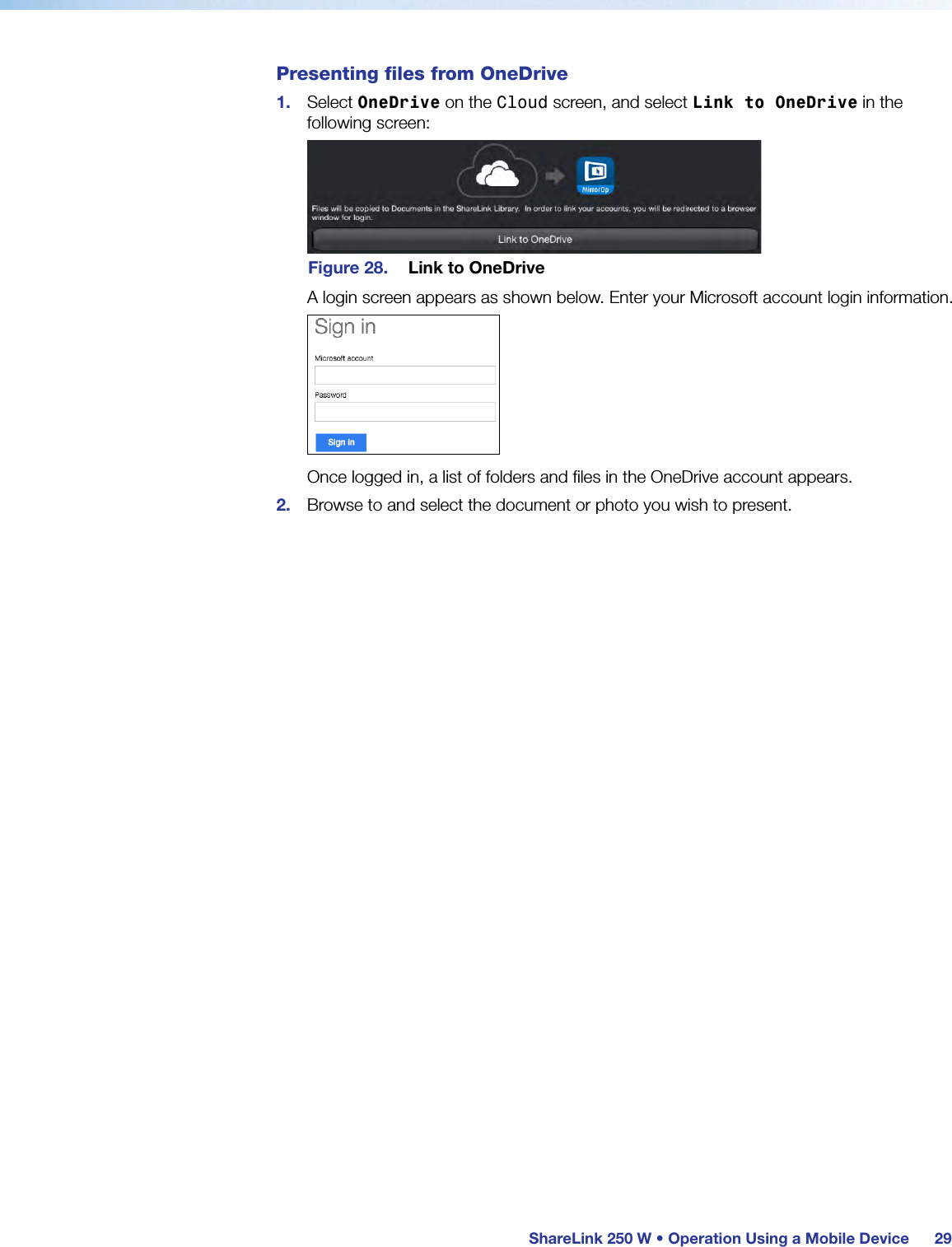

 ShareLink 250 W • Operation Using a Mobile Device 29Presenting files from OneDrive1.  Select OneDrive on the Cloud screen, and select Link to OneDrive in the following screen:Figure 28.  Link to OneDriveA login screen appears as shown below. Enter your Microsoft account login information. Once logged in, a list of folders and files in the OneDrive account appears.2.  Browse to and select the document or photo you wish to present.

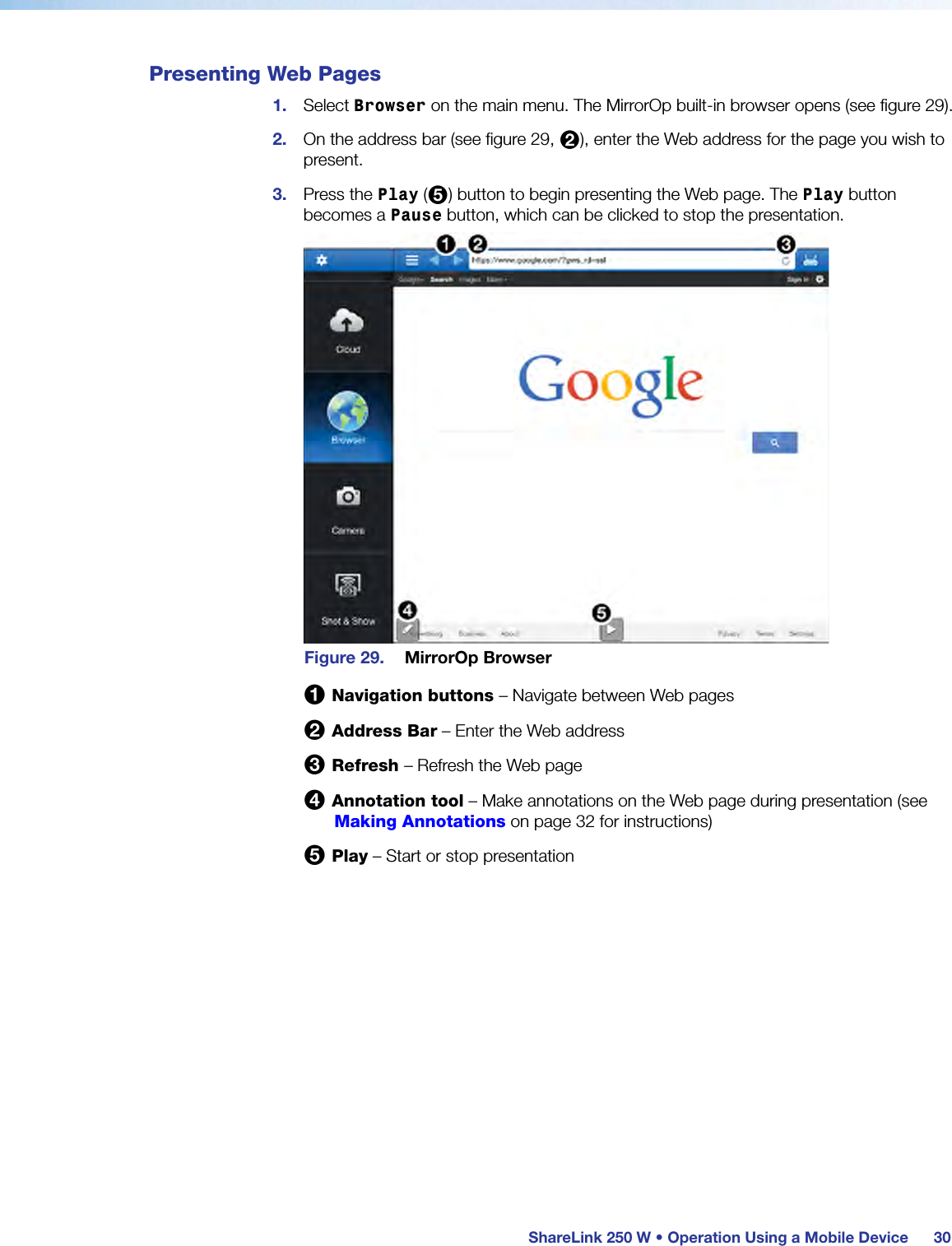

 ShareLink 250 W • Operation Using a Mobile Device 30Presenting Web Pages1.  Select Browser on the main menu. The MirrorOp built-in browser opens (see figure 29).2.  On the address bar (see figure 29, 2), enter the Web address for the page you wish to present.3.  Press the Play (5) button to begin presenting the Web page. The Play button becomes a Pause button, which can be clicked to stop the presentation.Figure 29.  MirrorOp Browser1 Navigation buttons – Navigate between Web pages2 Address Bar – Enter the Web address3 Refresh – Refresh the Web page4 Annotation tool – Make annotations on the Web page during presentation (see Making Annotations on page 32 for instructions)5 Play – Start or stop presentation

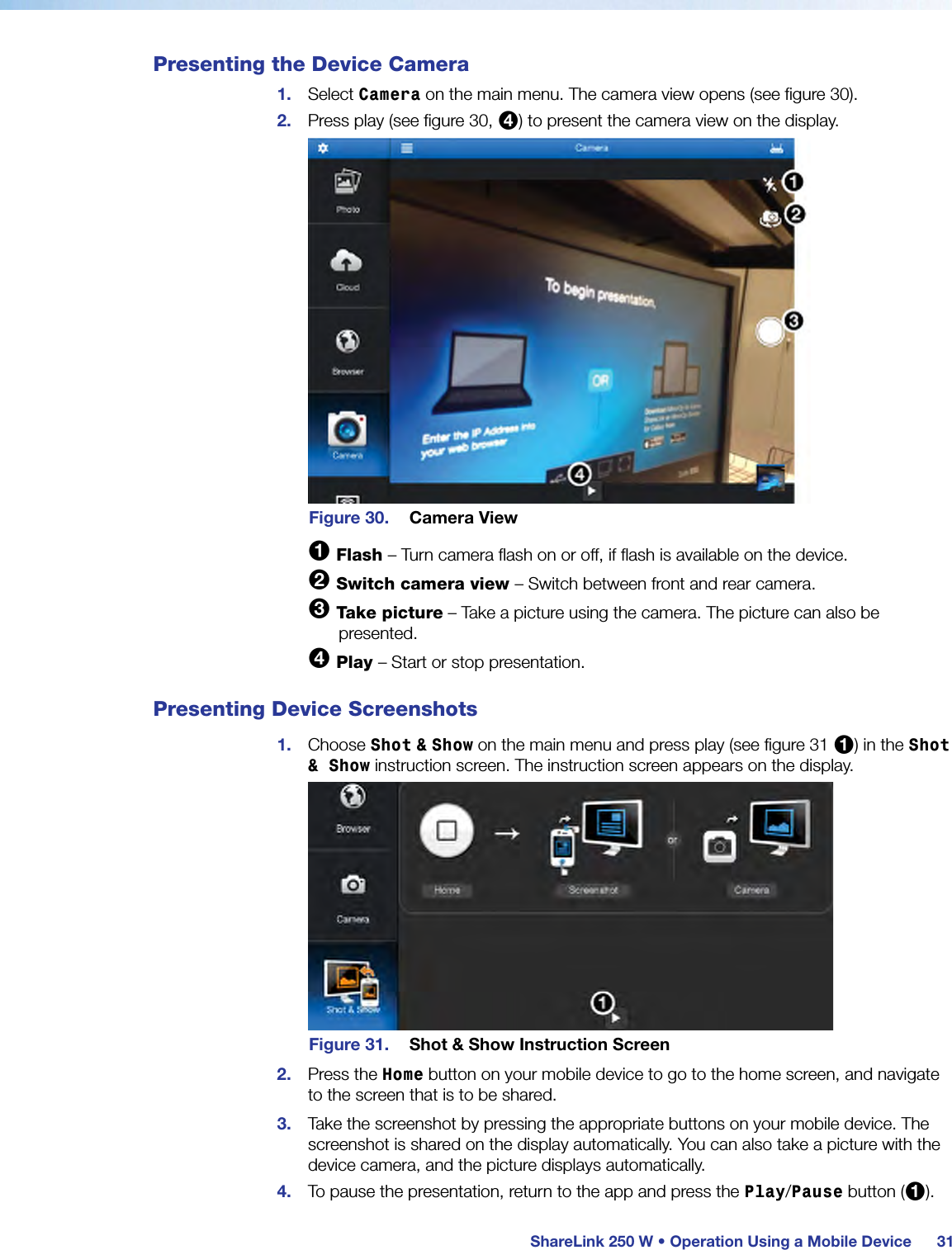

 ShareLink 250 W • Operation Using a Mobile Device 31Presenting the Device Camera1.  Select Camera on the main menu. The camera view opens (see figure 30).2.  Press play (see figure 30, 4) to present the camera view on the display.Figure 30.  Camera View1 Flash – Turn camera flash on or off, if flash is available on the device.2 Switch camera view – Switch between front and rear camera.3 Take picture – Take a picture using the camera. The picture can also be presented.4 Play – Start or stop presentation.Presenting Device Screenshots1.  Choose Shot & Show on the main menu and press play (see figure 31 1) in the Shot & Show instruction screen. The instruction screen appears on the display.Figure 31.  Shot & Show Instruction Screen2.  Press the Home button on your mobile device to go to the home screen, and navigate to the screen that is to be shared.3.  Take the screenshot by pressing the appropriate buttons on your mobile device. The screenshot is shared on the display automatically. You can also take a picture with the device camera, and the picture displays automatically.4.  To pause the presentation, return to the app and press the Play/Pause button (1).

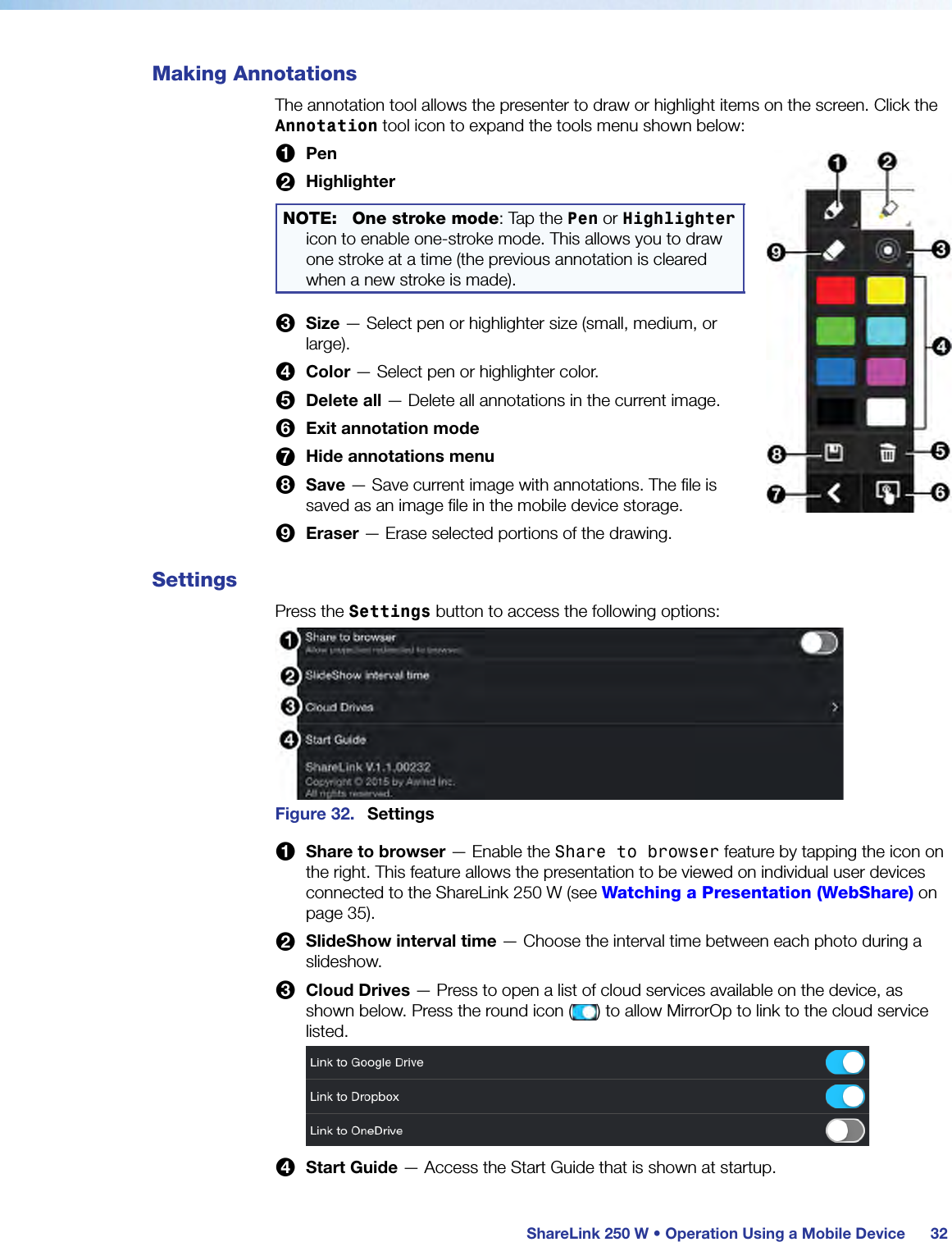

 ShareLink 250 W • Operation Using a Mobile Device 32Making AnnotationsThe annotation tool allows the presenter to draw or highlight items on the screen. Click the Annotation tool icon to expand the tools menu shown below:1 Pen2 HighlighterNOTE: One stroke mode: Tap the Pen or Highlighter icon to enable one-stroke mode. This allows you to draw one stroke at a time (the previous annotation is cleared when a new stroke is made).3 Size — Select pen or highlighter size (small, medium, or large).4 Color — Select pen or highlighter color.5 Delete all — Delete all annotations in the current image.6 Exit annotation mode7 Hide annotations menu8 Save — Save current image with annotations. The file is saved as an image file in the mobile device storage.9 Eraser — Erase selected portions of the drawing.SettingsPress the Settings button to access the following options:Figure 32.  Settings1 Share to browser — Enable the Share to browser feature by tapping the icon on the right. This feature allows the presentation to be viewed on individual user devices connected to the ShareLink 250 W (see Watching a Presentation (WebShare) on page 35).2 SlideShow interval time — Choose the interval time between each photo during a slideshow.3 Cloud Drives — Press to open a list of cloud services available on the device, as shown below. Press the round icon ( ) to allow MirrorOp to link to the cloud service listed.4 Start Guide — Access the Start Guide that is shown at startup.

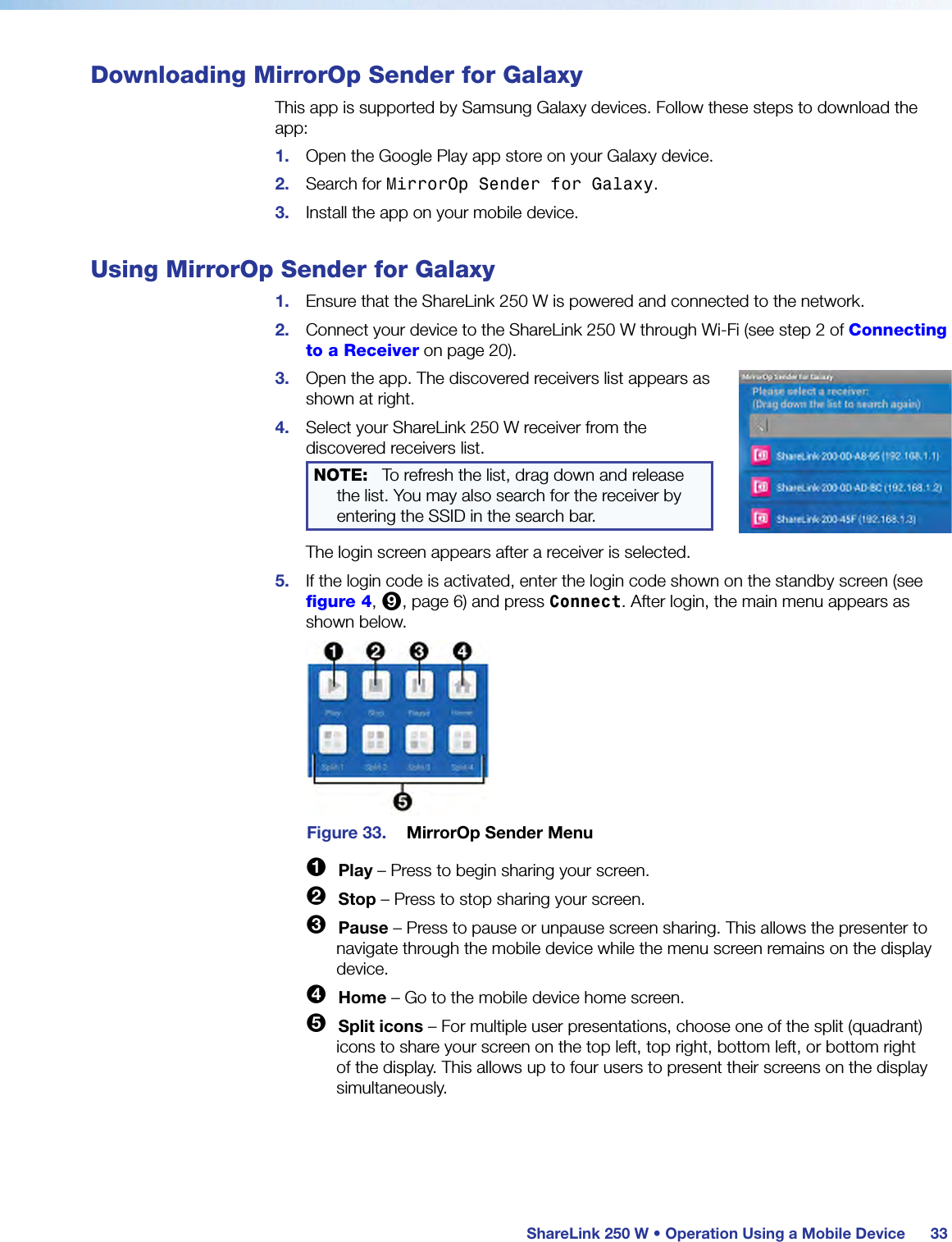

 ShareLink 250 W • Operation Using a Mobile Device 33Downloading MirrorOp Sender for GalaxyThis app is supported by Samsung Galaxy devices. Follow these steps to download the app:1.  Open the Google Play app store on your Galaxy device.2.  Search for MirrorOp Sender for Galaxy.3.  Install the app on your mobile device.Using MirrorOp Sender for Galaxy1.  Ensure that the ShareLink 250 W is powered and connected to the network.2.  Connect your device to the ShareLink 250 W through Wi-Fi (see step 2 of Connecting to a Receiver on page 20).3.  Open the app. The discovered receivers list appears as shown at right.4.  Select your ShareLink 250 W receiver from the discovered receivers list.NOTE:   To refresh the list, drag down and release the list. You may also search for the receiver by entering the SSID in the search bar.The login screen appears after a receiver is selected.5.  If the login code is activated, enter the login code shown on the standby screen (see figure 4, 9, page 6) and press Connect. After login, the main menu appears as shown below.Figure 33.  MirrorOp Sender Menu1 Play – Press to begin sharing your screen.2 Stop – Press to stop sharing your screen.3 Pause – Press to pause or unpause screen sharing. This allows the presenter to navigate through the mobile device while the menu screen remains on the display device.4 Home – Go to the mobile device home screen.5 Split icons – For multiple user presentations, choose one of the split (quadrant) icons to share your screen on the top left, top right, bottom left, or bottom right of the display. This allows up to four users to present their screens on the display simultaneously.

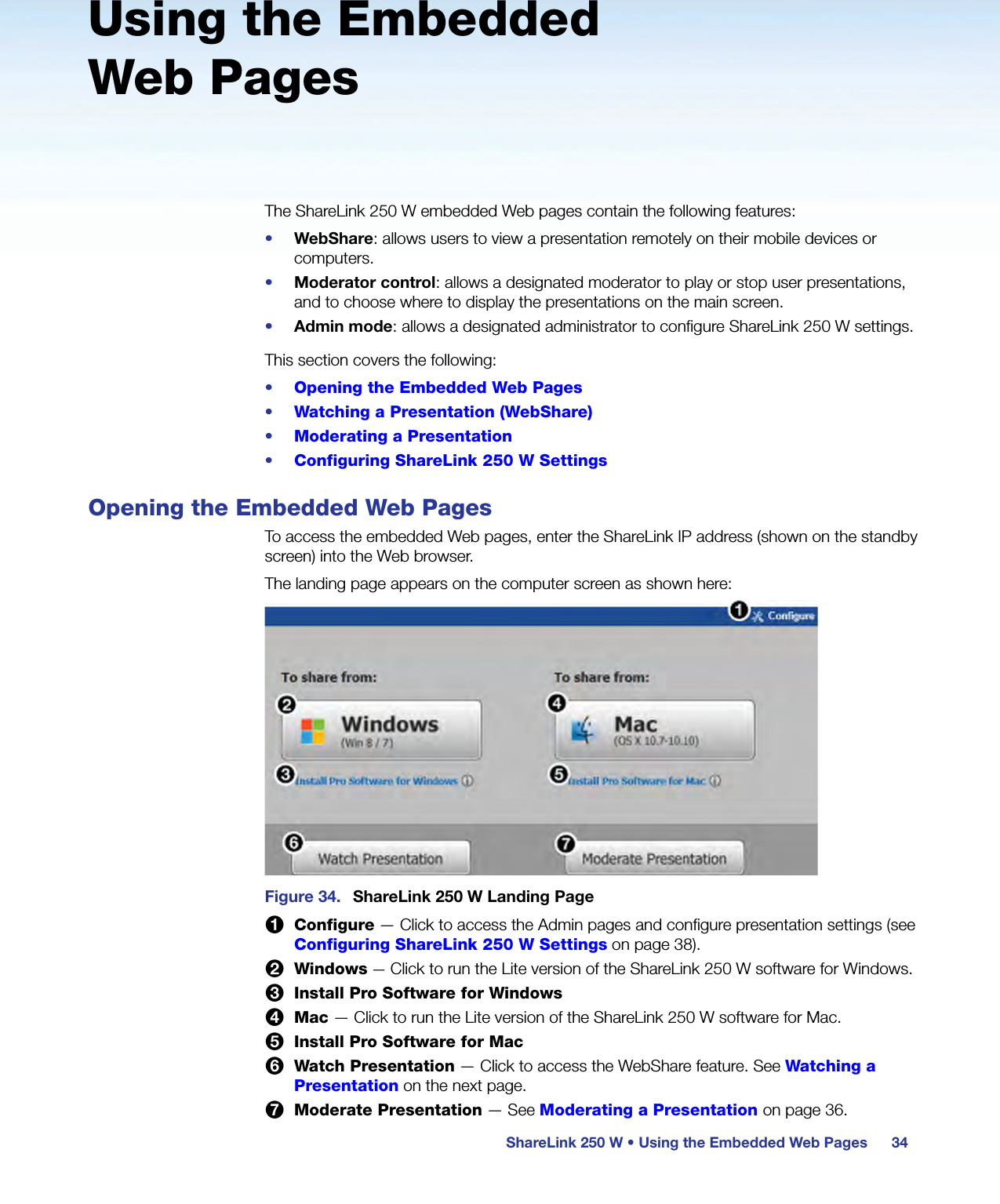

ShareLink 250 W • Using the Embedded Web Pages 34Using the Embedded Web PagesThe ShareLink 250 W embedded Web pages contain the following features:•  WebShare: allows users to view a presentation remotely on their mobile devices or computers.•  Moderator control: allows a designated moderator to play or stop user presentations, and to choose where to display the presentations on the main screen.•  Admin mode: allows a designated administrator to configure ShareLink 250 W settings.This section covers the following:•  Opening the Embedded Web Pages•  Watching a Presentation (WebShare)•  Moderating a Presentation•  Configuring ShareLink 250 W SettingsOpening the Embedded Web PagesTo access the embedded Web pages, enter the ShareLink IP address (shown on the standby screen) into the Web browser.The landing page appears on the computer screen as shown here:Figure 34.  ShareLink 250 W Landing Page1 Configure — Click to access the Admin pages and configure presentation settings (see Configuring ShareLink 250 W Settings on page 38).2 Windows — Click to run the Lite version of the ShareLink 250 W software for Windows.3 Install Pro Software for Windows4 Mac — Click to run the Lite version of the ShareLink 250 W software for Mac.5 Install Pro Software for Mac6 Watch Presentation — Click to access the WebShare feature. See Watching a Presentation on the next page.7 Moderate Presentation — See Moderating a Presentation on page 36.

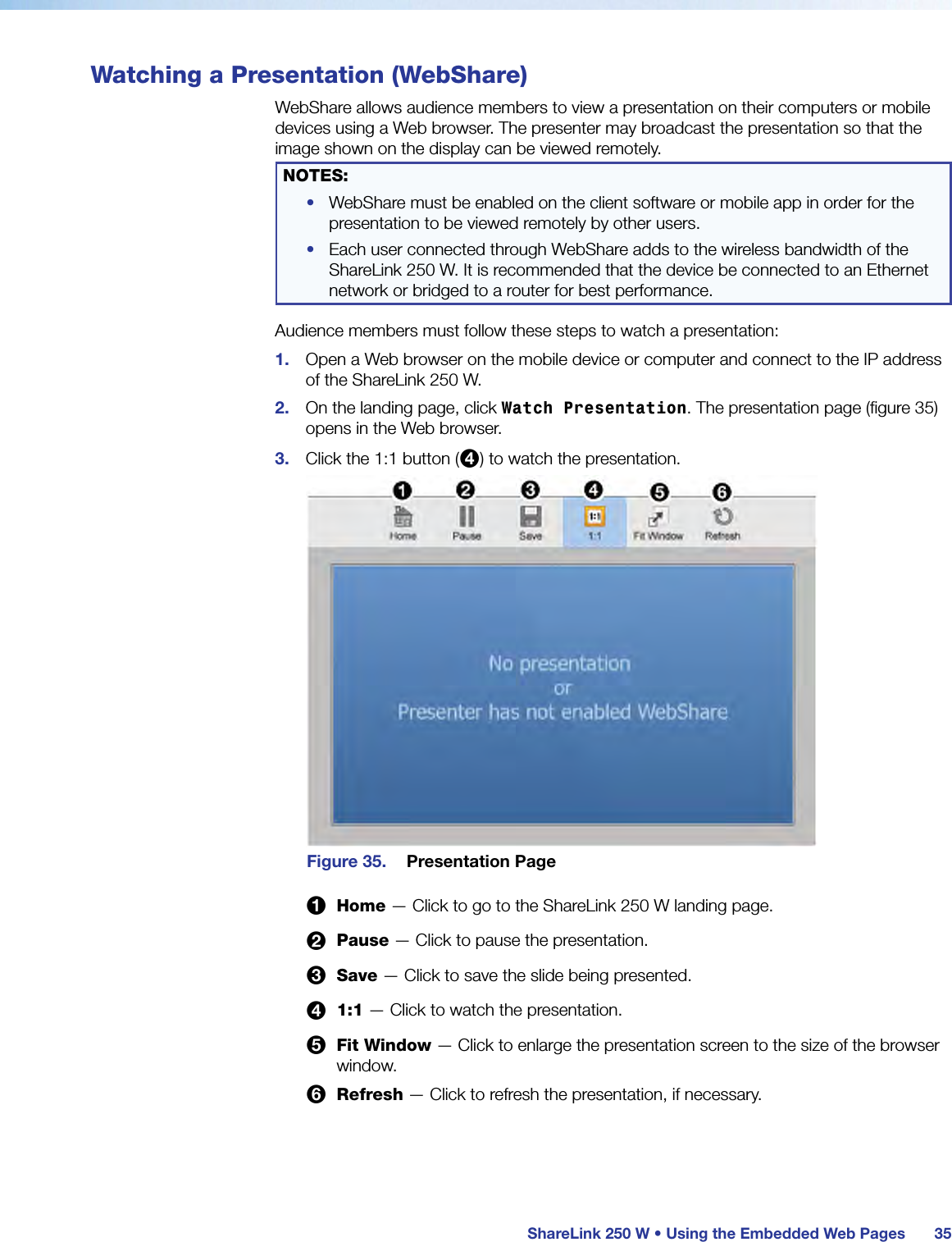

 ShareLink 250 W • Using the Embedded Web Pages 35Watching a Presentation (WebShare)WebShare allows audience members to view a presentation on their computers or mobile devices using a Web browser. The presenter may broadcast the presentation so that the image shown on the display can be viewed remotely.NOTES: •  WebShare must be enabled on the client software or mobile app in order for the presentation to be viewed remotely by other users.•  Each user connected through WebShare adds to the wireless bandwidth of the ShareLink 250 W. It is recommended that the device be connected to an Ethernet network or bridged to a router for best performance.Audience members must follow these steps to watch a presentation:1.  Open a Web browser on the mobile device or computer and connect to the IP address of the ShareLink 250 W.2.  On the landing page, click Watch Presentation. The presentation page (figure 35) opens in the Web browser.3.  Click the 1:1 button (4) to watch the presentation.Figure 35.  Presentation Page1 Home — Click to go to the ShareLink 250 W landing page.2 Pause — Click to pause the presentation.3 Save — Click to save the slide being presented.4 1:1 — Click to watch the presentation.5 Fit Window — Click to enlarge the presentation screen to the size of the browser window.6 Refresh — Click to refresh the presentation, if necessary.

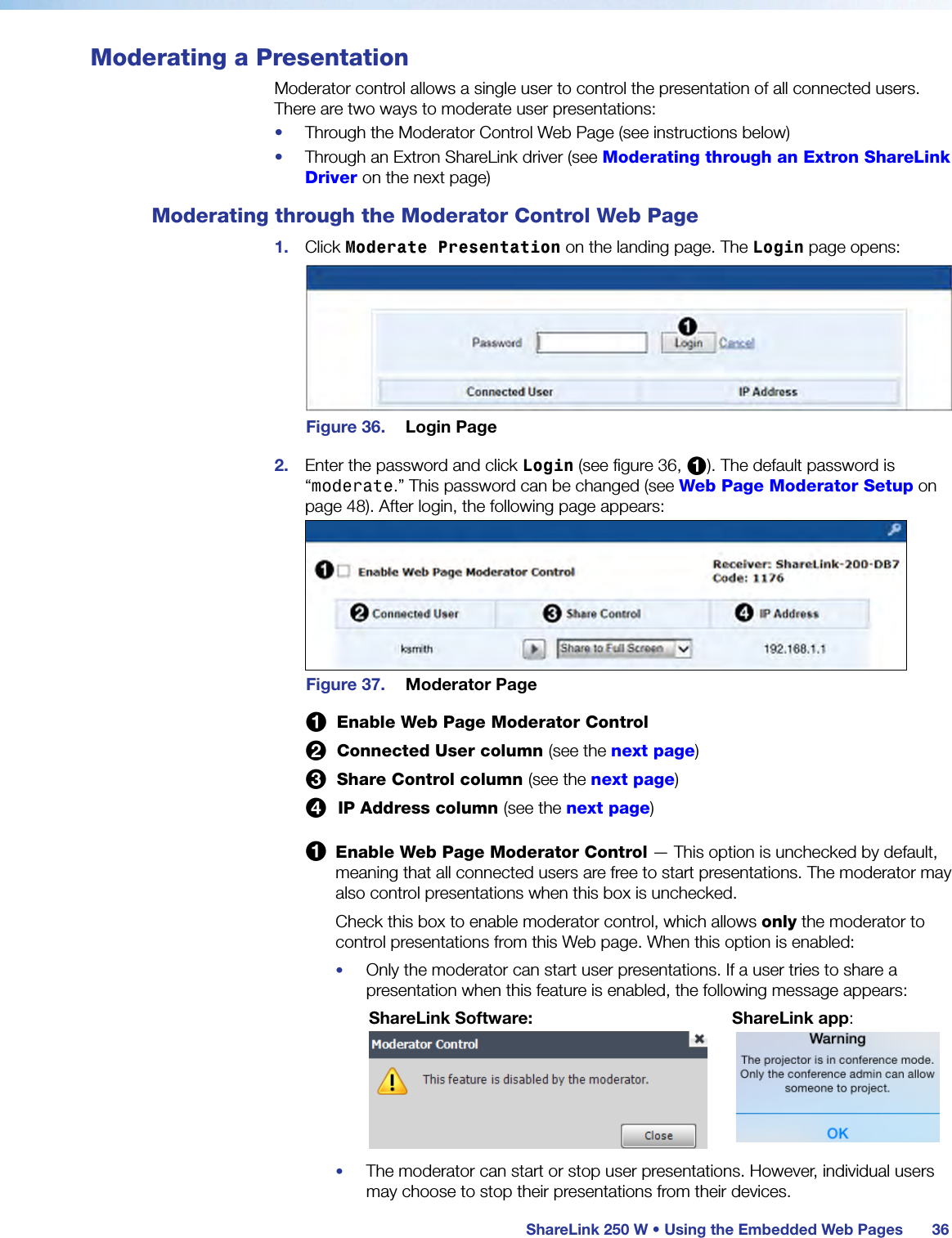

 ShareLink 250 W • Using the Embedded Web Pages 36Moderating a PresentationModerator control allows a single user to control the presentation of all connected users. There are two ways to moderate user presentations:•  Through the Moderator Control Web Page (see instructions below)•  Through an Extron ShareLink driver (see Moderating through an Extron ShareLink Driver on the next page)Moderating through the Moderator Control Web Page1.  Click Moderate Presentation on the landing page. The Login page opens:Figure 36.  Login Page2.  Enter the password and click Login (see figure 36, 1). The default password is “moderate.” This password can be changed (see Web Page Moderator Setup on page 48). After login, the following page appears:Figure 37.  Moderator Page 1  Enable Web Page Moderator Control 2  Connected User column (see the next page) 3  Share Control column (see the next page) 4  IP Address column (see the next page)1 Enable Web Page Moderator Control — This option is unchecked by default, meaning that all connected users are free to start presentations. The moderator may also control presentations when this box is unchecked.Check this box to enable moderator control, which allows only the moderator to control presentations from this Web page. When this option is enabled:•  Only the moderator can start user presentations. If a user tries to share a presentation when this feature is enabled, the following message appears:       ShareLink Software:            ShareLink app:              •  The moderator can start or stop user presentations. However, individual users may choose to stop their presentations from their devices.

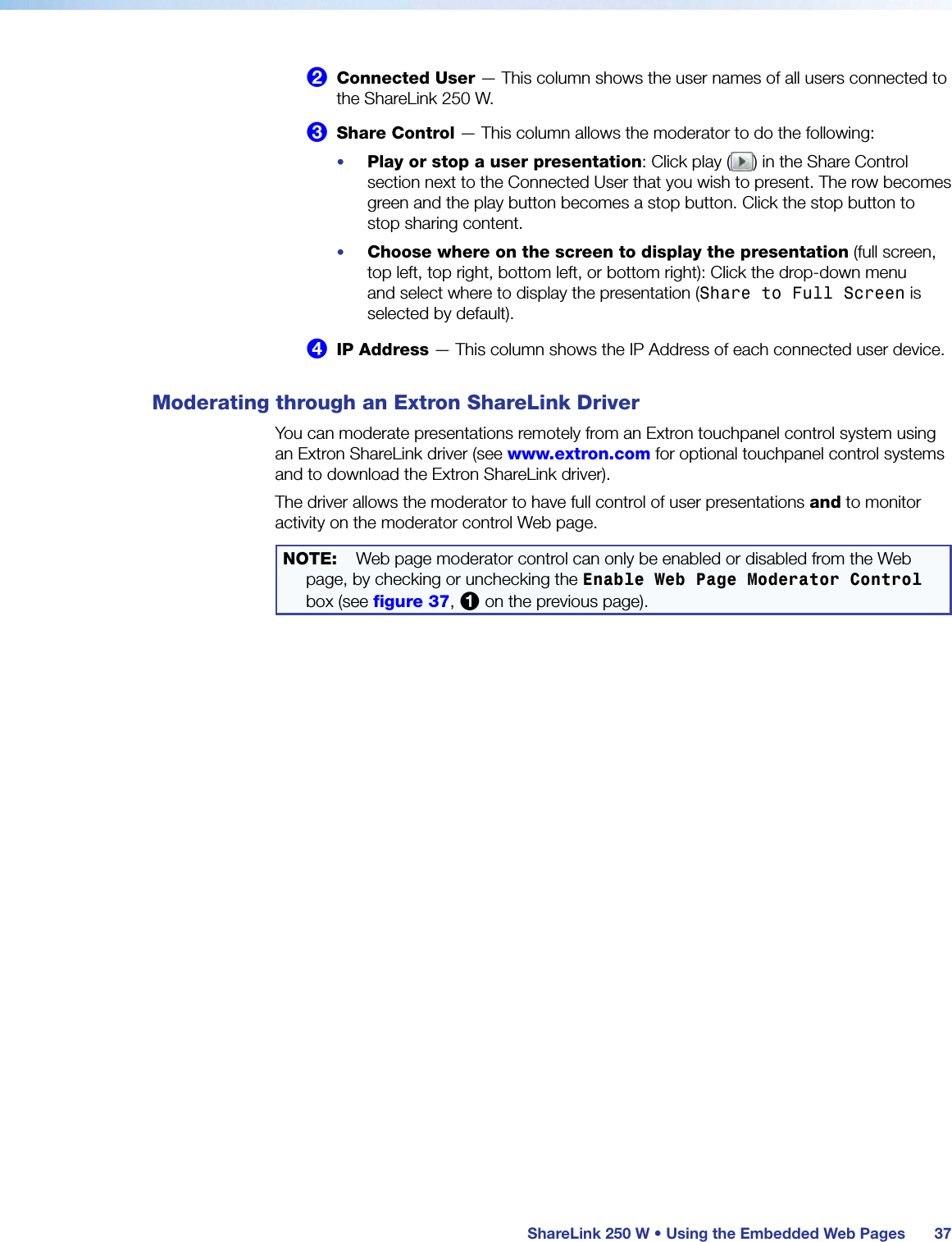

 ShareLink 250 W • Using the Embedded Web Pages 372 Connected User — This column shows the user names of all users connected to the ShareLink 250 W.3 Share Control — This column allows the moderator to do the following:•  Play or stop a user presentation: Click play ( ) in the Share Control section next to the Connected User that you wish to present. The row becomes green and the play button becomes a stop button. Click the stop button to stop sharing content.•  Choose where on the screen to display the presentation (full screen, top left, top right, bottom left, or bottom right): Click the drop-down menu and select where to display the presentation (Share to Full Screen is selected by default).4 IP Address — This column shows the IP Address of each connected user device.Moderating through an Extron ShareLink DriverYou can moderate presentations remotely from an Extron touchpanel control system using an Extron ShareLink driver (see www.extron.com for optional touchpanel control systems and to download the Extron ShareLink driver).The driver allows the moderator to have full control of user presentations and to monitor activity on the moderator control Web page.NOTE:    Web page moderator control can only be enabled or disabled from the Web page, by checking or unchecking the Enable Web Page Moderator Control box (see figure 37, 1 on the previous page).

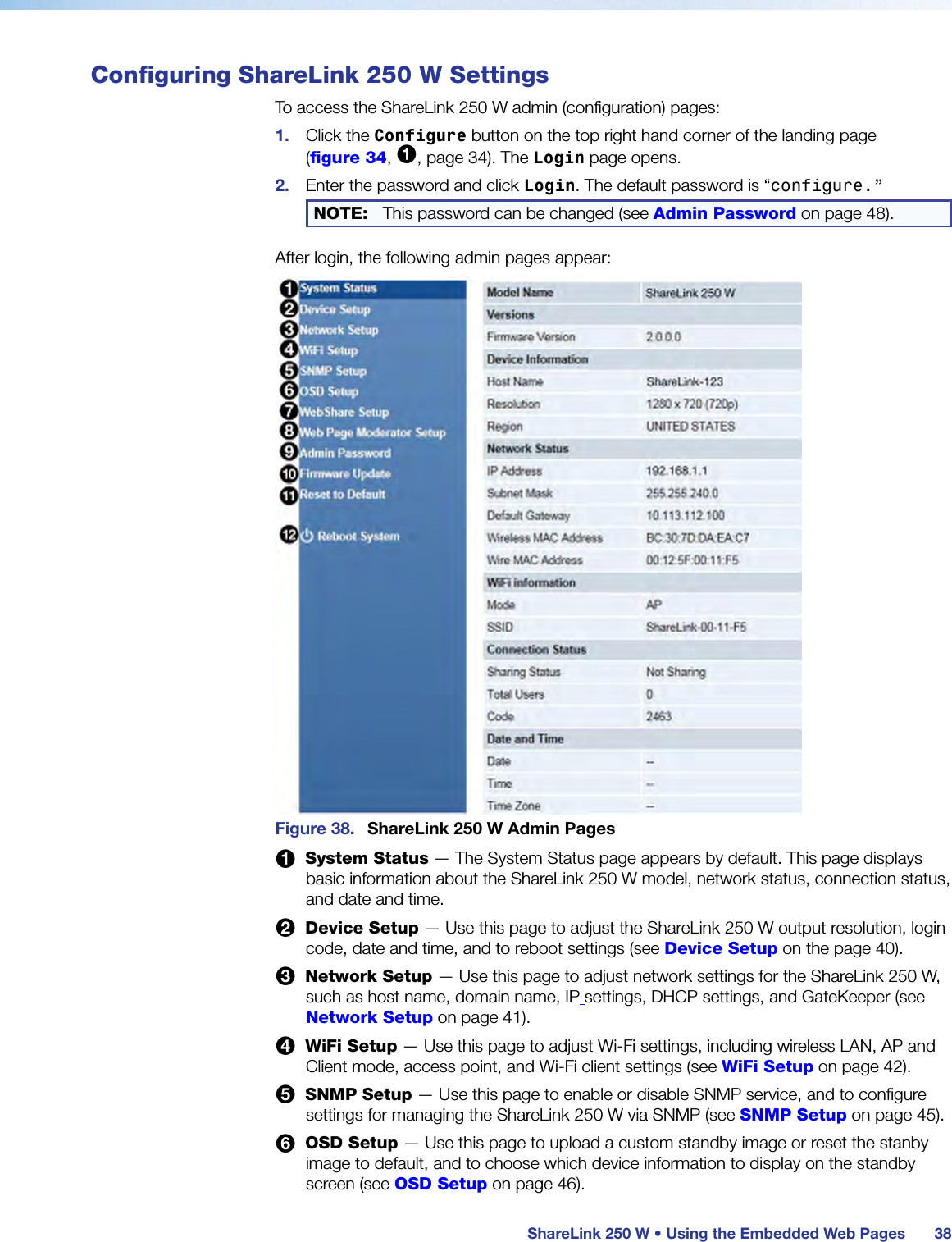

 ShareLink 250 W • Using the Embedded Web Pages 38Configuring ShareLink 250 W SettingsTo access the ShareLink 250 W admin (configuration) pages:1.  Click the Configure button on the top right hand corner of the landing page  (figure 34, 1, page 34). The Login page opens.2.  Enter the password and click Login. The default password is “configure.” NOTE:  This password can be changed (see Admin Password on page 48).After login, the following admin pages appear:Figure 38.  ShareLink 250 W Admin Pages1  System Status — The System Status page appears by default. This page displays basic information about the ShareLink 250 W model, network status, connection status, and date and time.2  Device Setup — Use this page to adjust the ShareLink 250 W output resolution, login code, date and time, and to reboot settings (see Device Setup on the page 40).3  Network Setup — Use this page to adjust network settings for the ShareLink 250 W, such as host name, domain name, IP settings, DHCP settings, and GateKeeper (see Network Setup on page 41).4  WiFi Setup — Use this page to adjust Wi-Fi settings, including wireless LAN, AP and Client mode, access point, and Wi-Fi client settings (see WiFi Setup on page 42).5  SNMP Setup — Use this page to enable or disable SNMP service, and to configure settings for managing the ShareLink 250 W via SNMP (see SNMP Setup on page 45).6  OSD Setup — Use this page to upload a custom standby image or reset the stanby image to default, and to choose which device information to display on the standby screen (see OSD Setup on page 46).

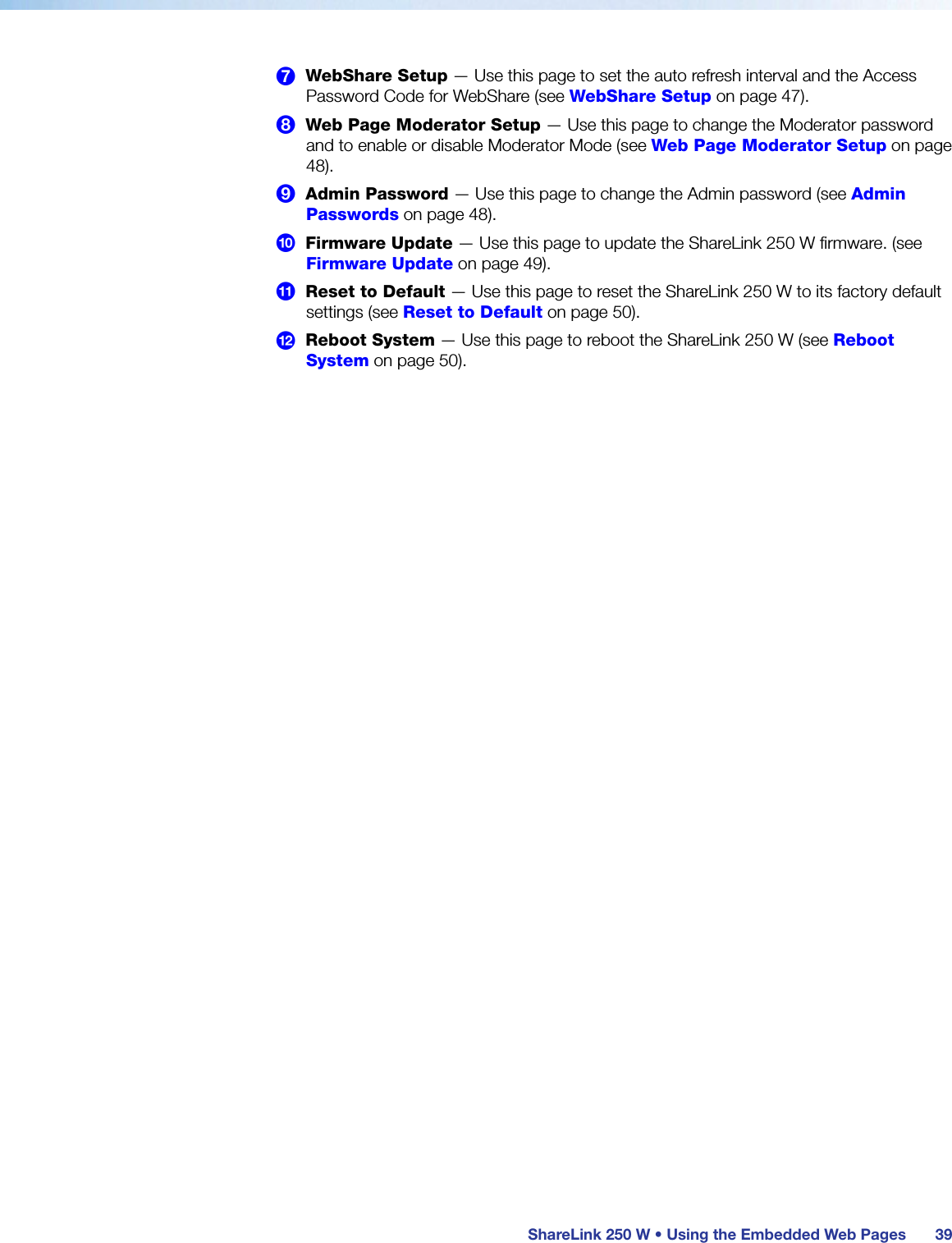

 ShareLink 250 W • Using the Embedded Web Pages 397  WebShare Setup — Use this page to set the auto refresh interval and the Access Password Code for WebShare (see WebShare Setup on page 47).8  Web Page Moderator Setup — Use this page to change the Moderator password and to enable or disable Moderator Mode (see Web Page Moderator Setup on page 48).9  Admin Password — Use this page to change the Admin password (see Admin Passwords on page 48).¢  Firmware Update — Use this page to update the ShareLink 250 W firmware. (see Firmware Update on page 49).£  Reset to Default — Use this page to reset the ShareLink 250 W to its factory default settings (see Reset to Default on page 50).¤  Reboot System — Use this page to reboot the ShareLink 250 W (see Reboot System on page 50).

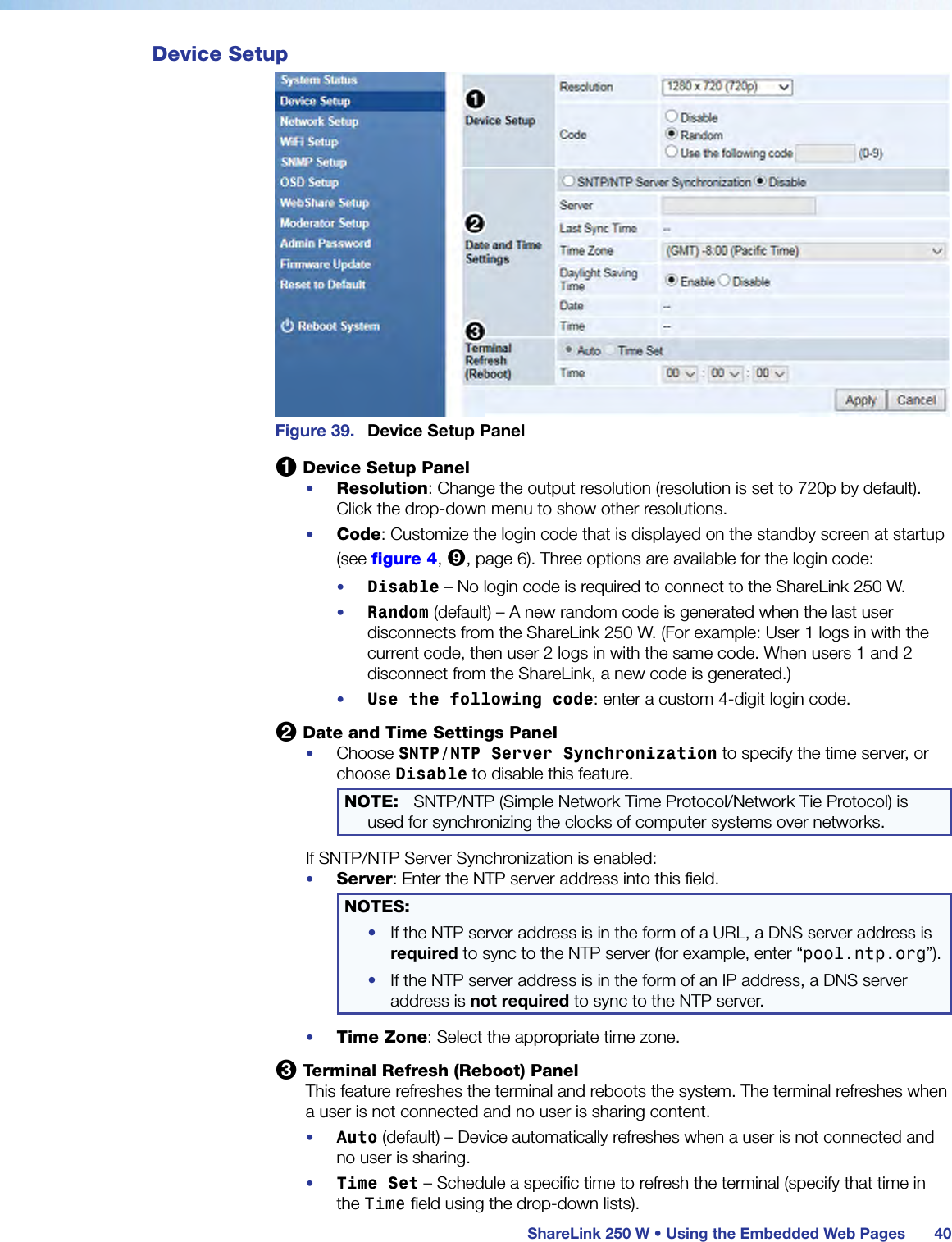

 ShareLink 250 W • Using the Embedded Web Pages 40Device SetupFigure 39.  Device Setup Panel1 Device Setup Panel•  Resolution: Change the output resolution (resolution is set to 720p by default). Click the drop-down menu to show other resolutions.•  Code: Customize the login code that is displayed on the standby screen at startup (see figure 4, 9, page 6). Three options are available for the login code:•  Disable – No login code is required to connect to the ShareLink 250 W.•  Random (default) – A new random code is generated when the last user disconnects from the ShareLink 250 W. (For example: User 1 logs in with the current code, then user 2 logs in with the same code. When users 1 and 2 disconnect from the ShareLink, a new code is generated.)•  Use the following code: enter a custom 4-digit login code.2 Date and Time Settings Panel•  Choose SNTP/NTP Server Synchronization to specify the time server, or choose Disable to disable this feature. NOTE:  SNTP/NTP (Simple Network Time Protocol/Network Tie Protocol) is used for synchronizing the clocks of computer systems over networks.If SNTP/NTP Server Synchronization is enabled:•  Server: Enter the NTP server address into this field.NOTES:  •  If the NTP server address is in the form of a URL, a DNS server address is required to sync to the NTP server (for example, enter “pool.ntp.org”).•  If the NTP server address is in the form of an IP address, a DNS server address is not required to sync to the NTP server.•  Time Zone: Select the appropriate time zone.3 Terminal Refresh (Reboot) PanelThis feature refreshes the terminal and reboots the system. The terminal refreshes when a user is not connected and no user is sharing content.•  Auto (default) – Device automatically refreshes when a user is not connected and no user is sharing.•  Time Set – Schedule a specific time to refresh the terminal (specify that time in the Time field using the drop-down lists).
 ShareLink 250 W • Using the Embedded Web Pages 41Network SetupFigure 40.  Network Setup1 Host Name and Domain Name Panel•  Host Name: Enter a host name for the ShareLink 250 W device or check Same as WiFi Network name to use the default SSID name.•  Domain Name: Enter the domain name for the DNS server.2 IP Setup Panel•  Obtain an IP address automatically (default setting): select this option to obtain an IP address automatically from a DHCP server. The default settings are as follows:IP Address: 192.168.254.254    Subnet Mask: 255.255.255.0, Default Gateway: 192.168.254.254  DNS Server: 0.0.0.0•  Use the following IP address: Select this option to enter a static IP address. Enter the corresponding subnet mask, default gateway, and DNS server.3 DHCP Server Setup Panel•  Auto (default setting): If a DHCP server is available on the network, the  ShareLink 250 W uses an IP address assigned by the server. If a DHCP server is not available on the network, the ShareLink 250 W uses its internal DHCP server to assign IP addresses to network devices. The default settings are as follows:Start IP: 192.168.254.11       End IP: 192.168.254.100Subnet Mask: 255.255.255.0        Default Gateway: 192.168.254.254DNS Server: 192.168.254.254NOTE:  In Auto mode, you may use the default settings above or customize the settings, if needed.•  Disable: Disables the internal DHCP server.

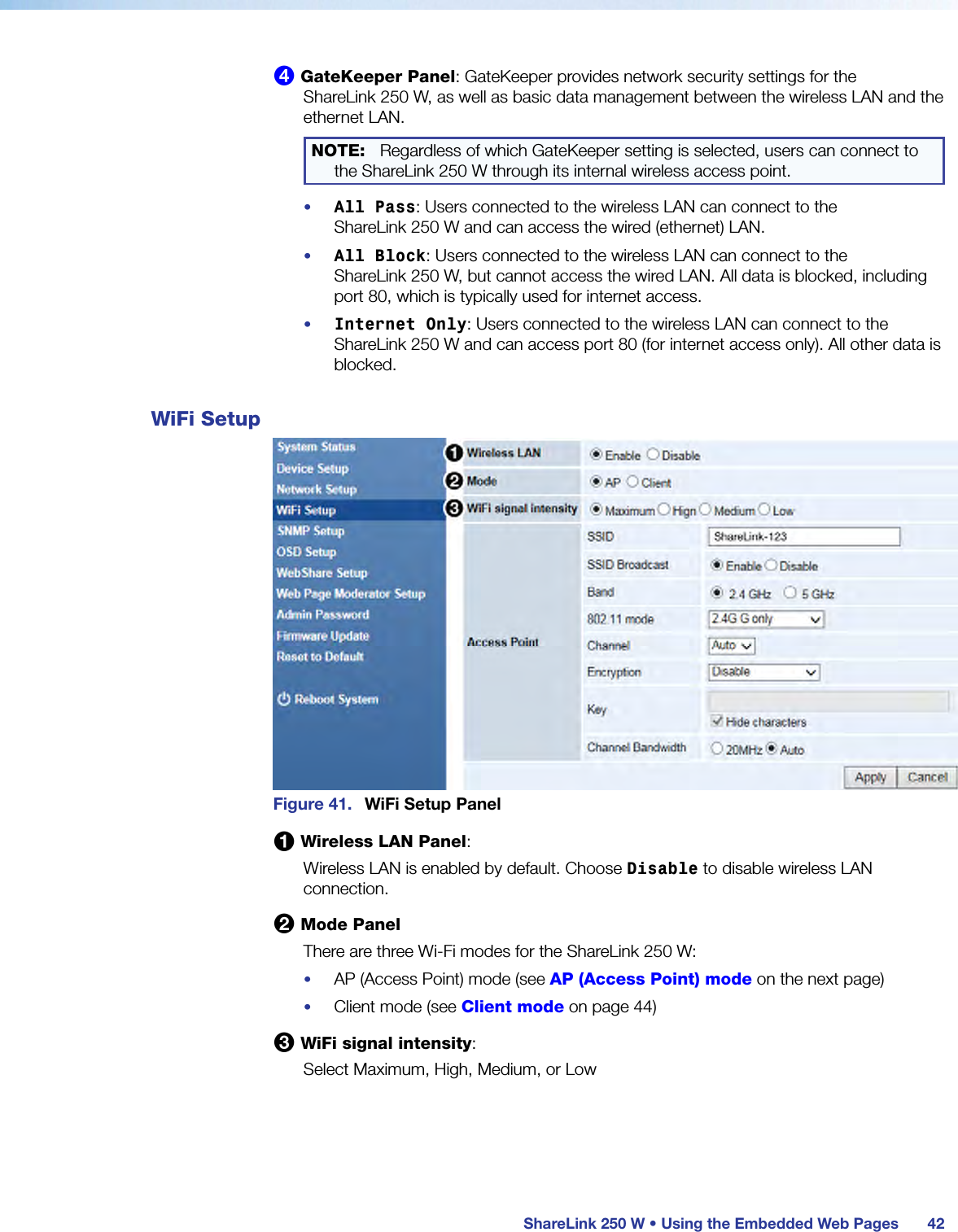

 ShareLink 250 W • Using the Embedded Web Pages 424 GateKeeper Panel: GateKeeper provides network security settings for the  ShareLink 250 W, as well as basic data management between the wireless LAN and the ethernet LAN.NOTE:  Regardless of which GateKeeper setting is selected, users can connect to the ShareLink 250 W through its internal wireless access point.•  All Pass: Users connected to the wireless LAN can connect to the  ShareLink 250 W and can access the wired (ethernet) LAN.•  All Block: Users connected to the wireless LAN can connect to the  ShareLink 250 W, but cannot access the wired LAN. All data is blocked, including port 80, which is typically used for internet access.•  Internet Only: Users connected to the wireless LAN can connect to the  ShareLink 250 W and can access port 80 (for internet access only). All other data is blocked.WiFi SetupFigure 41.  WiFi Setup Panel1 Wireless LAN Panel:Wireless LAN is enabled by default. Choose Disable to disable wireless LAN connection.2 Mode PanelThere are three Wi-Fi modes for the ShareLink 250 W:•  AP (Access Point) mode (see AP (Access Point) mode on the next page)•  Client mode (see Client mode on page 44)3 WiFi signal intensity:Select Maximum, High, Medium, or Low

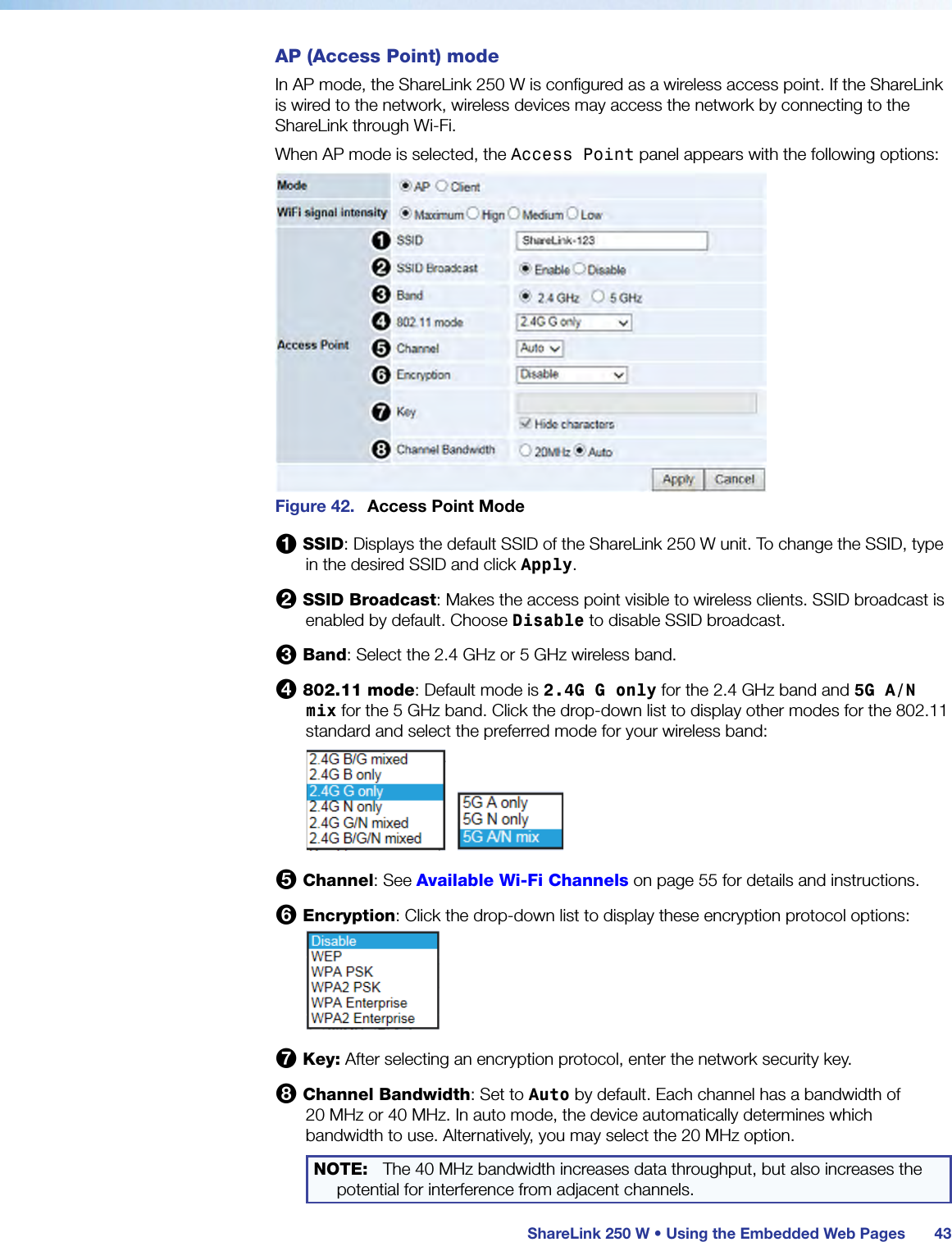

 ShareLink 250 W • Using the Embedded Web Pages 43AP (Access Point) modeIn AP mode, the ShareLink 250 W is configured as a wireless access point. If the ShareLink is wired to the network, wireless devices may access the network by connecting to the ShareLink through Wi-Fi.When AP mode is selected, the Access Point panel appears with the following options:Figure 42.  Access Point Mode1 SSID: Displays the default SSID of the ShareLink 250 W unit. To change the SSID, type in the desired SSID and click Apply.2 SSID Broadcast: Makes the access point visible to wireless clients. SSID broadcast is enabled by default. Choose Disable to disable SSID broadcast.3 Band: Select the 2.4 GHz or 5 GHz wireless band.4 802.11 mode: Default mode is 2.4G G only for the 2.4 GHz band and 5G A/N mix for the 5 GHz band. Click the drop-down list to display other modes for the 802.11 standard and select the preferred mode for your wireless band:5 Channel: See Available Wi-Fi Channels on page 55 for details and instructions.6 Encryption: Click the drop-down list to display these encryption protocol options:7 Key: After selecting an encryption protocol, enter the network security key.8 Channel Bandwidth: Set to Auto by default. Each channel has a bandwidth of  20 MHz or 40 MHz. In auto mode, the device automatically determines which bandwidth to use. Alternatively, you may select the 20 MHz option.NOTE:  The 40 MHz bandwidth increases data throughput, but also increases the potential for interference from adjacent channels.

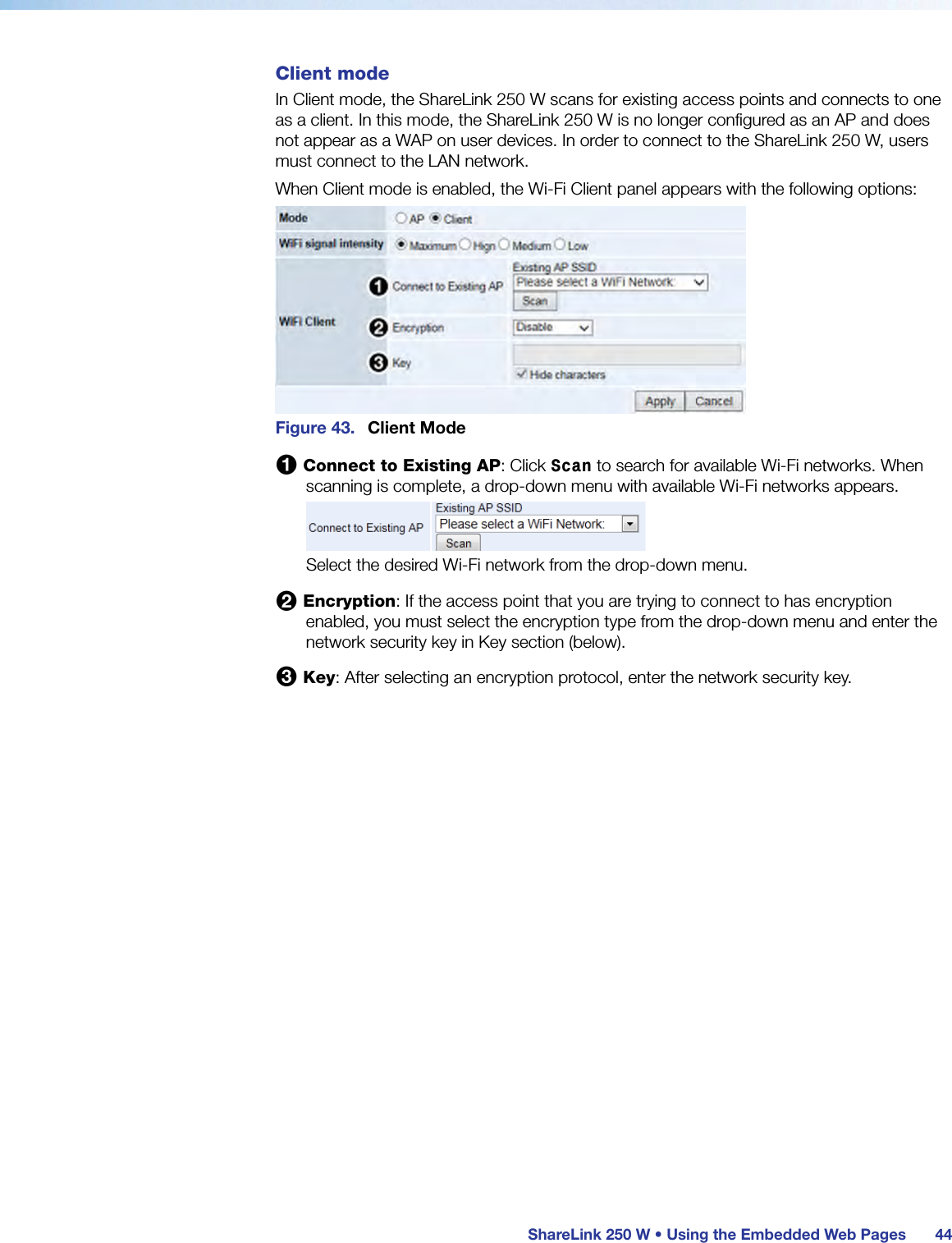

 ShareLink 250 W • Using the Embedded Web Pages 44Client modeIn Client mode, the ShareLink 250 W scans for existing access points and connects to one as a client. In this mode, the ShareLink 250 W is no longer configured as an AP and does not appear as a WAP on user devices. In order to connect to the ShareLink 250 W, users must connect to the LAN network.When Client mode is enabled, the Wi-Fi Client panel appears with the following options:Figure 43.  Client Mode1 Connect to Existing AP: Click Scan to search for available Wi-Fi networks. When scanning is complete, a drop-down menu with available Wi-Fi networks appears.Select the desired Wi-Fi network from the drop-down menu.2 Encryption: If the access point that you are trying to connect to has encryption enabled, you must select the encryption type from the drop-down menu and enter the network security key in Key section (below).3 Key: After selecting an encryption protocol, enter the network security key.

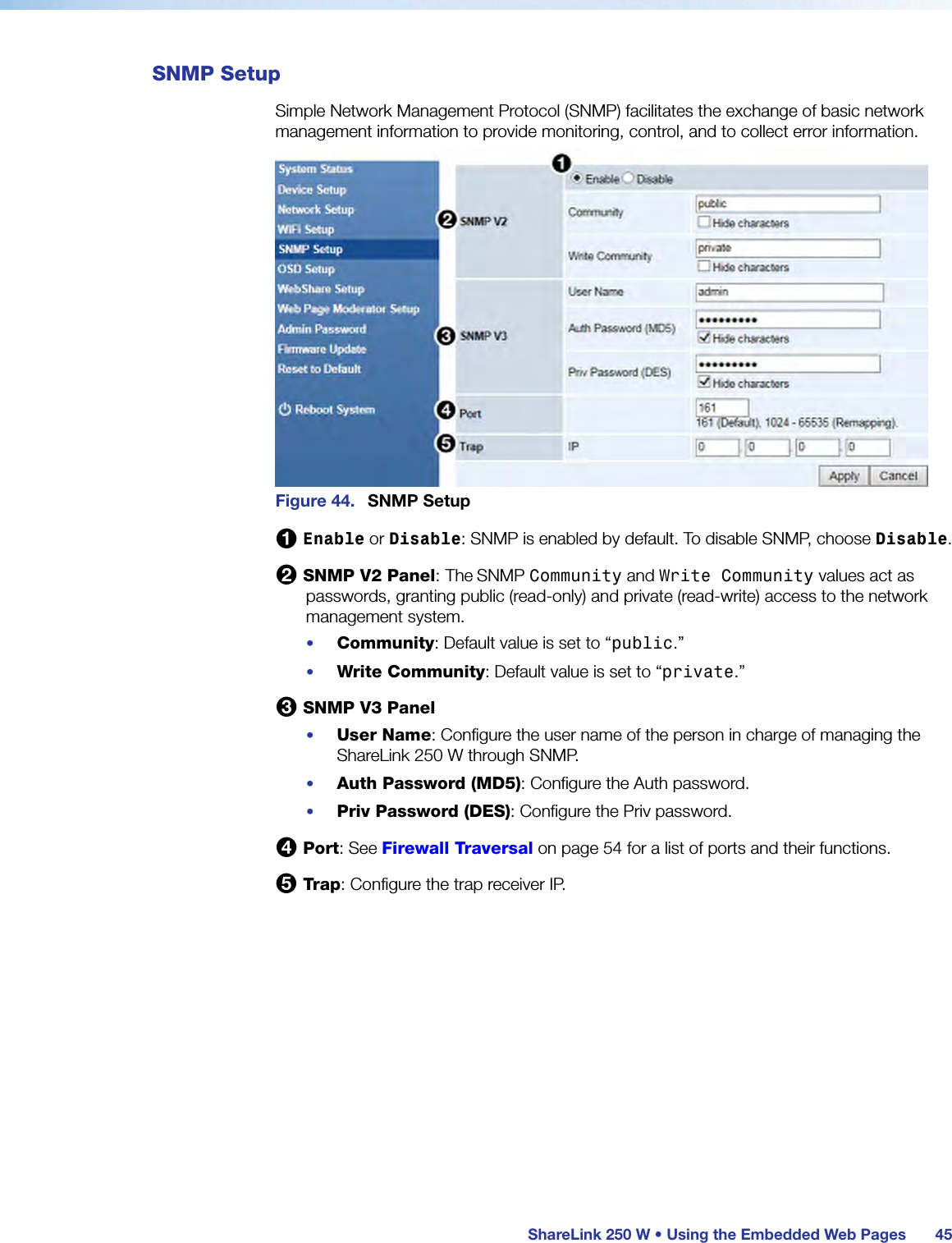

 ShareLink 250 W • Using the Embedded Web Pages 45SNMP SetupSimple Network Management Protocol (SNMP) facilitates the exchange of basic network management information to provide monitoring, control, and to collect error information.Figure 44.  SNMP Setup1 Enable or Disable: SNMP is enabled by default. To disable SNMP, choose Disable.2 SNMP V2 Panel: The SNMP Community and Write Community values act as passwords, granting public (read-only) and private (read-write) access to the network management system.•  Community: Default value is set to “public.”•  Write Community: Default value is set to “private.”3 SNMP V3 Panel•  User Name: Configure the user name of the person in charge of managing the ShareLink 250 W through SNMP.•  Auth Password (MD5): Configure the Auth password.•  Priv Password (DES): Configure the Priv password.4 Port: See Firewall Traversal on page 54 for a list of ports and their functions.5 Trap: Configure the trap receiver IP.

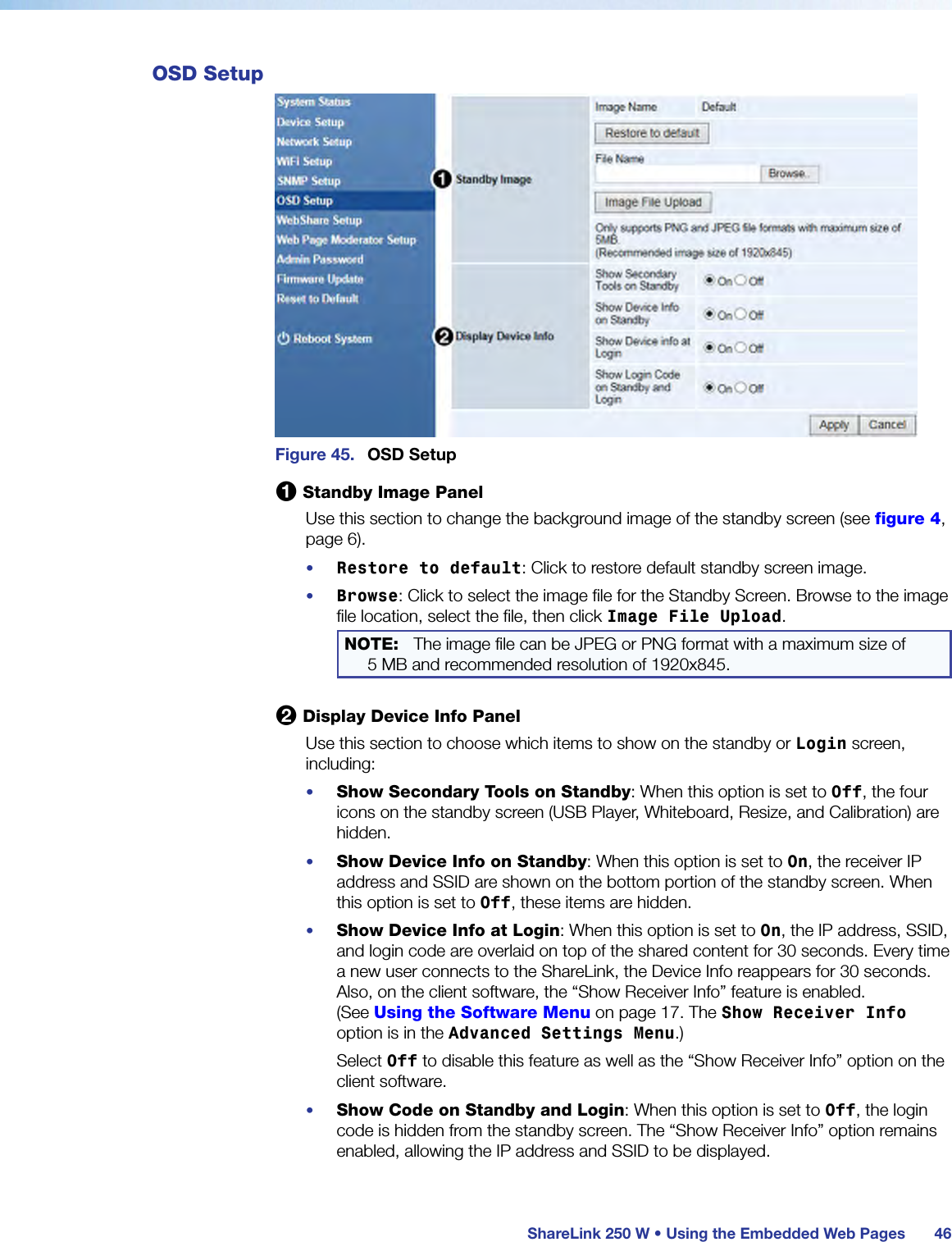

 ShareLink 250 W • Using the Embedded Web Pages 46OSD SetupFigure 45.  OSD Setup1 Standby Image PanelUse this section to change the background image of the standby screen (see figure 4, page 6).•  Restore to default: Click to restore default standby screen image.•  Browse: Click to select the image file for the Standby Screen. Browse to the image file location, select the file, then click Image File Upload.NOTE:  The image file can be JPEG or PNG format with a maximum size of  5 MB and recommended resolution of 1920x845.2 Display Device Info PanelUse this section to choose which items to show on the standby or Login screen, including:•  Show Secondary Tools on Standby: When this option is set to Off, the four icons on the standby screen (USB Player, Whiteboard, Resize, and Calibration) are hidden.•  Show Device Info on Standby: When this option is set to On, the receiver IP address and SSID are shown on the bottom portion of the standby screen. When this option is set to Off, these items are hidden.•  Show Device Info at Login: When this option is set to On, the IP address, SSID, and login code are overlaid on top of the shared content for 30 seconds. Every time a new user connects to the ShareLink, the Device Info reappears for 30 seconds.  Also, on the client software, the “Show Receiver Info” feature is enabled.  (See Using the Software Menu on page 17. The Show Receiver Info option is in the Advanced Settings Menu.)Select Off to disable this feature as well as the “Show Receiver Info” option on the client software.•  Show Code on Standby and Login: When this option is set to Off, the login code is hidden from the standby screen. The “Show Receiver Info” option remains enabled, allowing the IP address and SSID to be displayed.

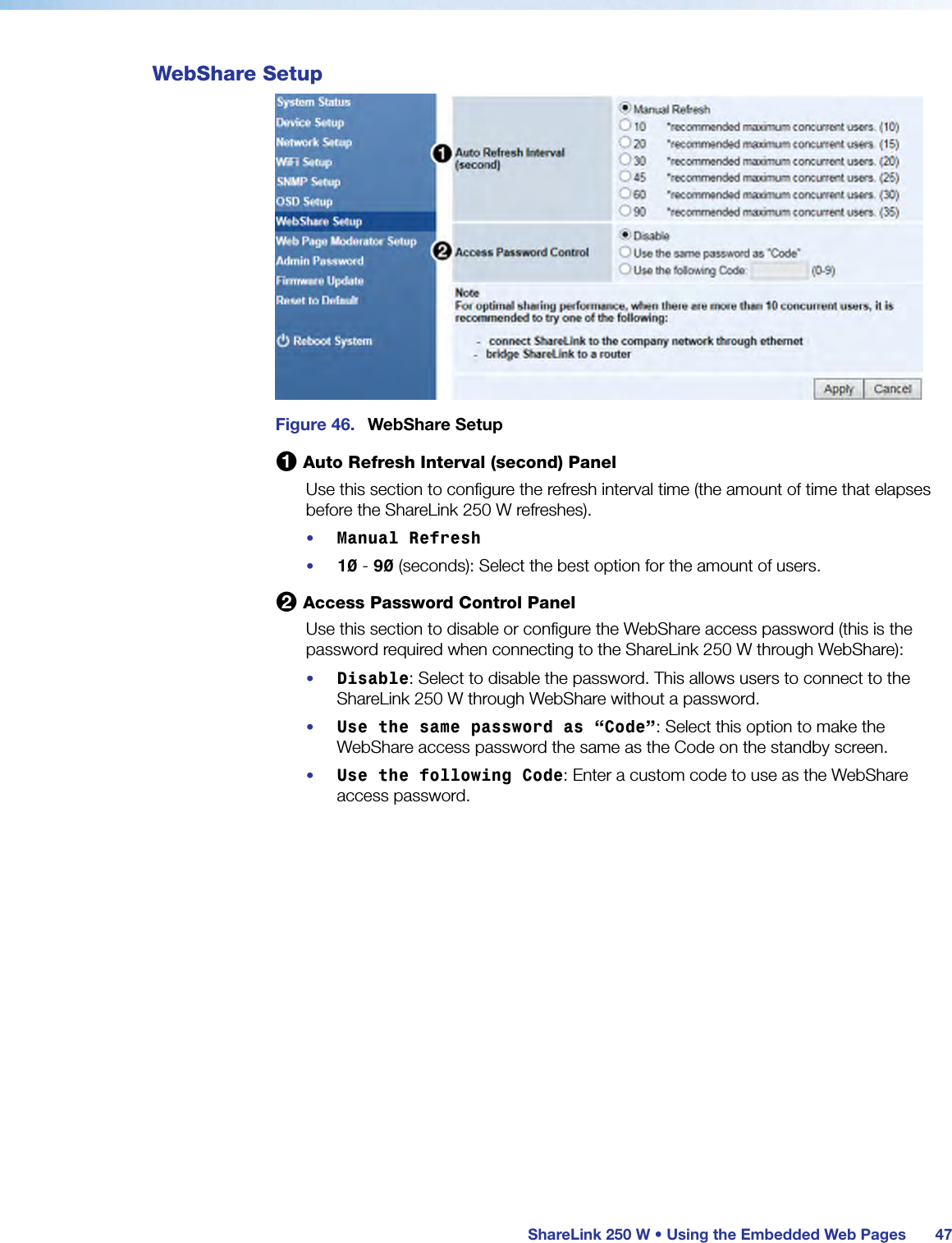

 ShareLink 250 W • Using the Embedded Web Pages 47WebShare SetupFigure 46.  WebShare Setup1 Auto Refresh Interval (second) PanelUse this section to configure the refresh interval time (the amount of time that elapses before the ShareLink 250 W refreshes).•  Manual Refresh•  10 - 90 (seconds): Select the best option for the amount of users.2 Access Password Control PanelUse this section to disable or configure the WebShare access password (this is the password required when connecting to the ShareLink 250 W through WebShare):•  Disable: Select to disable the password. This allows users to connect to the ShareLink 250 W through WebShare without a password.•  Use the same password as “Code”: Select this option to make the WebShare access password the same as the Code on the standby screen.•  Use the following Code: Enter a custom code to use as the WebShare access password.

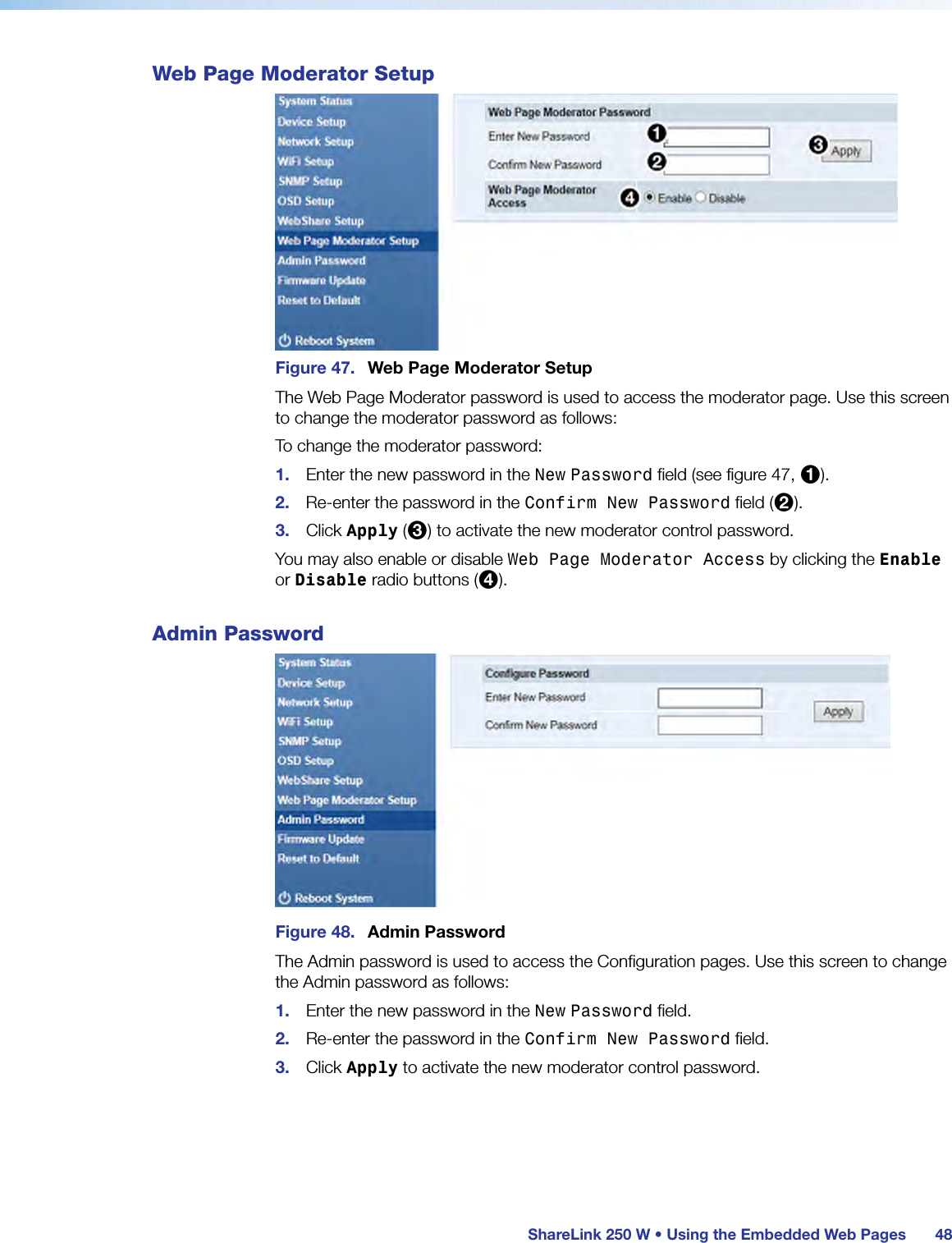

 ShareLink 250 W • Using the Embedded Web Pages 48Web Page Moderator SetupFigure 47.  Web Page Moderator SetupThe Web Page Moderator password is used to access the moderator page. Use this screen to change the moderator password as follows: To change the moderator password:1.  Enter the new password in the New Password field (see figure 47, 1).2.  Re-enter the password in the Confirm New Password field (2).3.  Click Apply (3) to activate the new moderator control password.You may also enable or disable Web Page Moderator Access by clicking the Enable or Disable radio buttons (4).Admin PasswordFigure 48.  Admin PasswordThe Admin password is used to access the Configuration pages. Use this screen to change the Admin password as follows: 1.  Enter the new password in the New Password field.2.  Re-enter the password in the Confirm New Password field.3.  Click Apply to activate the new moderator control password.

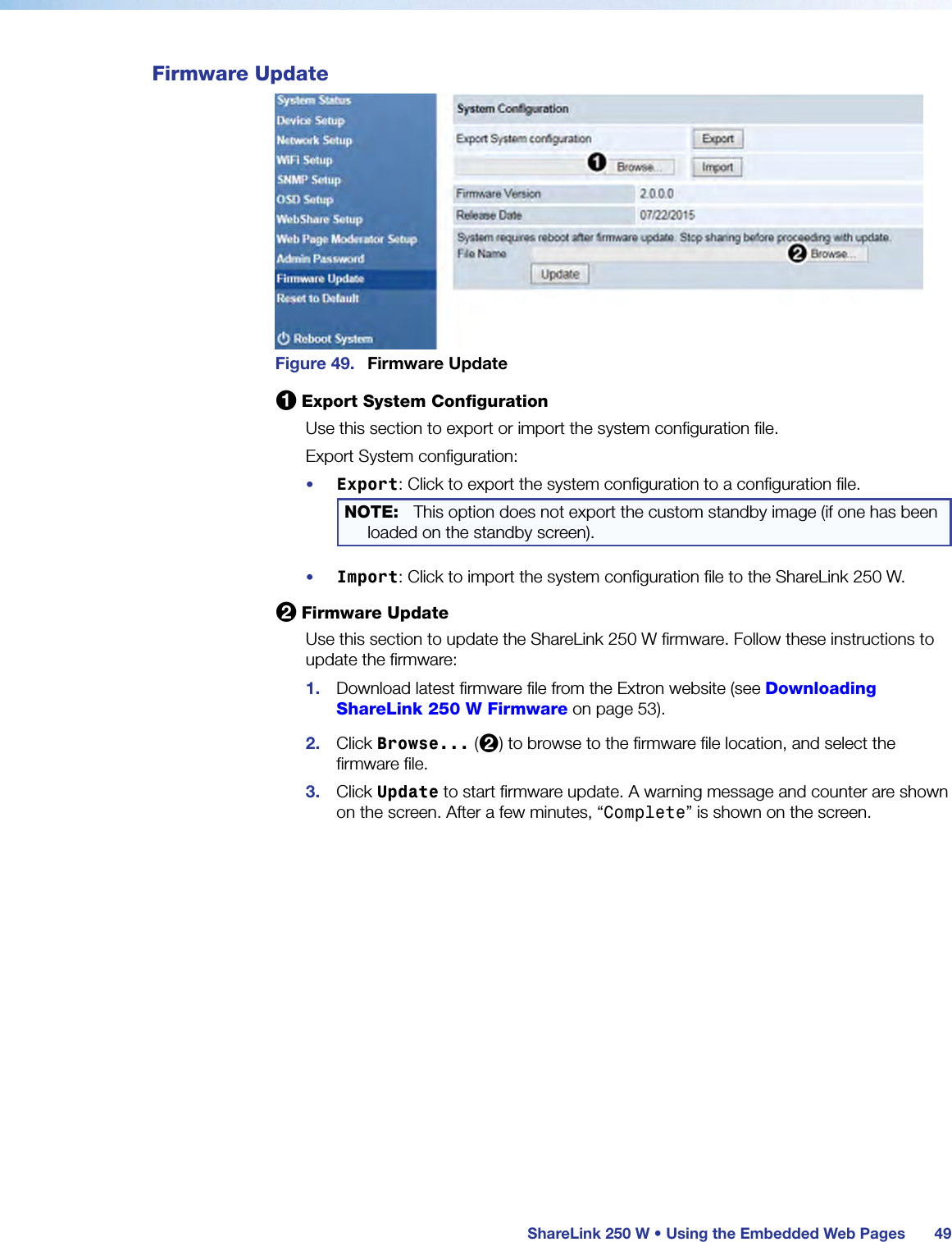

 ShareLink 250 W • Using the Embedded Web Pages 49Firmware UpdateFigure 49.  Firmware Update1 Export System ConfigurationUse this section to export or import the system configuration file.Export System configuration:•  Export: Click to export the system configuration to a configuration file.NOTE:  This option does not export the custom standby image (if one has been loaded on the standby screen).•  Import: Click to import the system configuration file to the ShareLink 250 W.2 Firmware UpdateUse this section to update the ShareLink 250 W firmware. Follow these instructions to update the firmware:1.  Download latest firmware file from the Extron website (see Downloading  ShareLink 250 W Firmware on page 53).2.  Click Browse... (2) to browse to the firmware file location, and select the firmware file.3.  Click Update to start firmware update. A warning message and counter are shown on the screen. After a few minutes, “Complete” is shown on the screen.

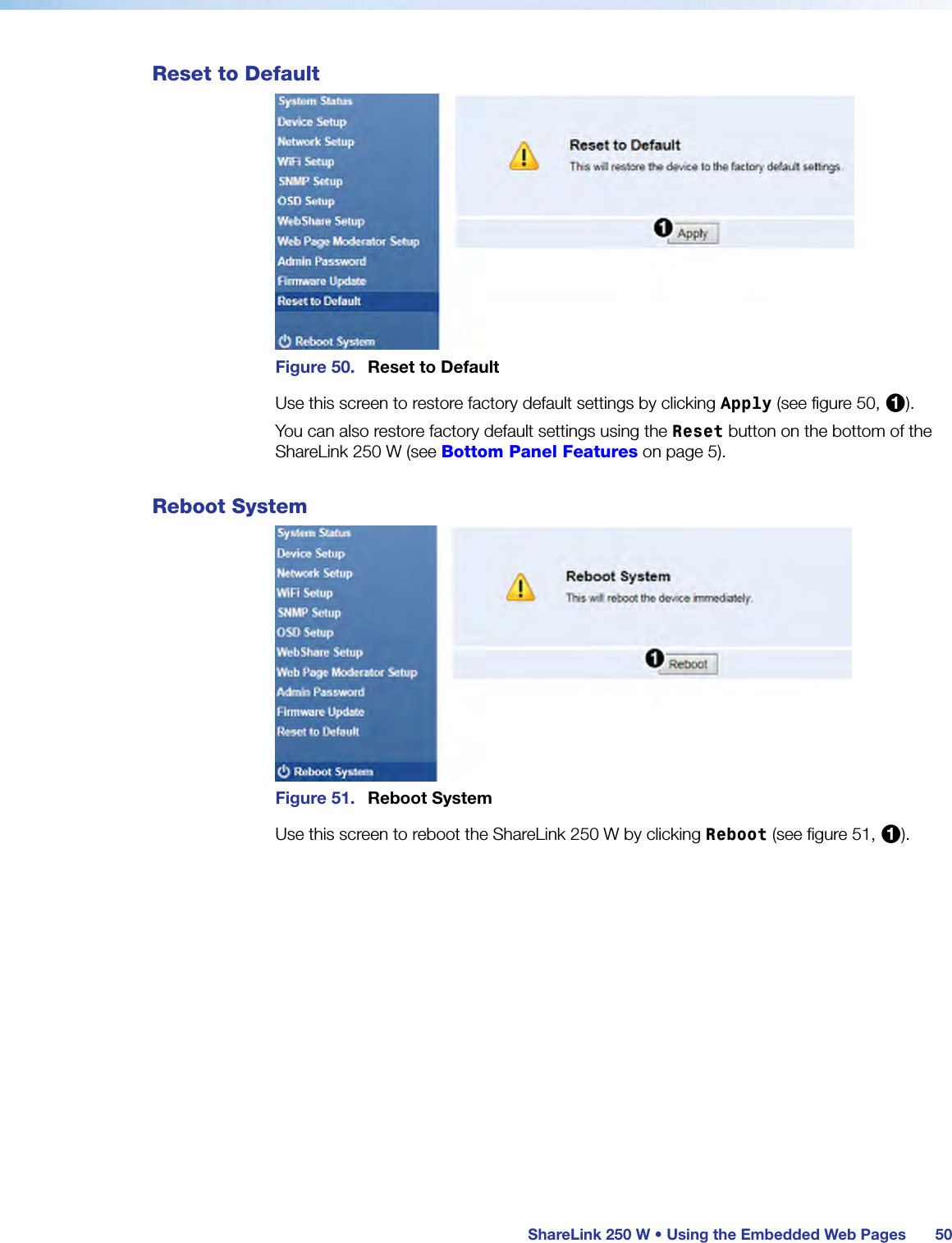

 ShareLink 250 W • Using the Embedded Web Pages 50Reset to DefaultFigure 50.  Reset to DefaultUse this screen to restore factory default settings by clicking Apply (see figure 50, 1).You can also restore factory default settings using the Reset button on the bottom of the ShareLink 250 W (see Bottom Panel Features on page 5).Reboot SystemFigure 51.  Reboot SystemUse this screen to reboot the ShareLink 250 W by clicking Reboot (see figure 51, 1).

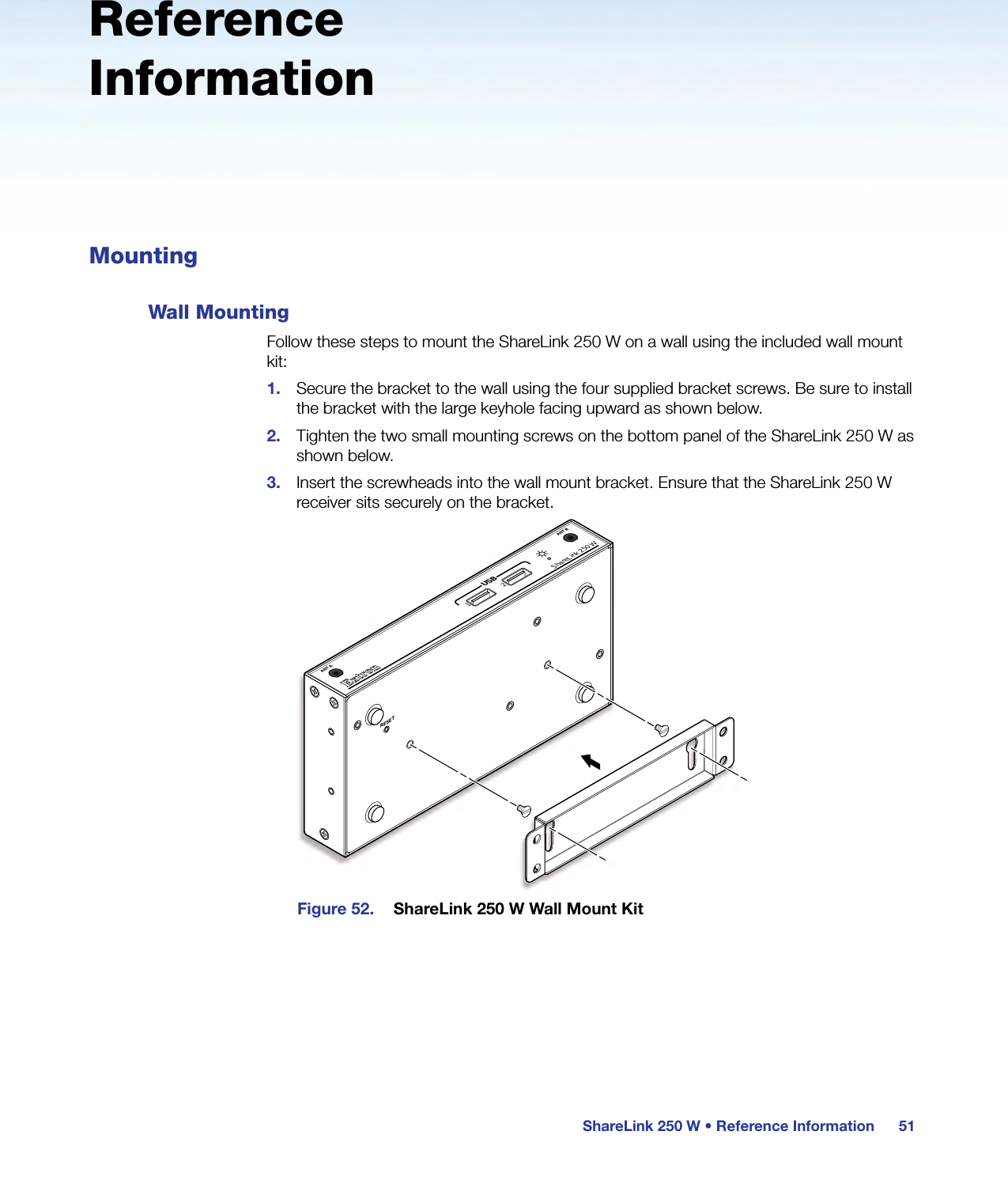

ShareLink 250 W • Reference Information 51Reference InformationMountingWall MountingFollow these steps to mount the ShareLink 250 W on a wall using the included wall mount kit:1.  Secure the bracket to the wall using the four supplied bracket screws. Be sure to install the bracket with the large keyhole facing upward as shown below.2.  Tighten the two small mounting screws on the bottom panel of the ShareLink 250 W as shown below.3.  Insert the screwheads into the wall mount bracket. Ensure that the ShareLink 250 W receiver sits securely on the bracket.ShareLink 250 WANT A ANT BUSB21RESETFigure 52.  ShareLink 250 W Wall Mount Kit

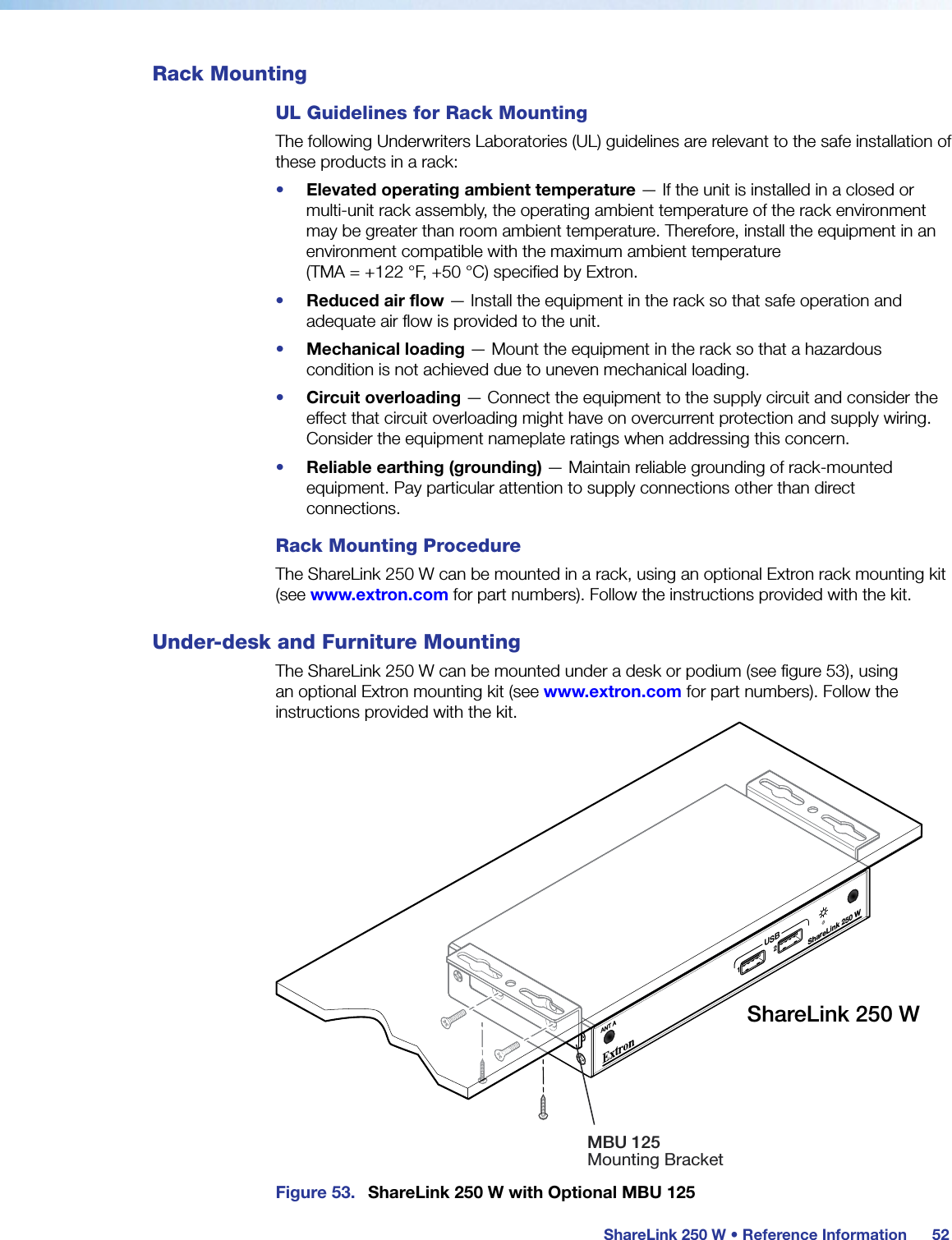

ShareLink 250 W • Reference Information52Rack MountingUL Guidelines for Rack MountingThe following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of these products in a rack:•  Elevated operating ambient temperature — If the unit is installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the equipment in an environment compatible with the maximum ambient temperature  (TMA = +122 °F, +50°C) specified by Extron.•  Reduced air flow — Install the equipment in the rack so that safe operation and adequate air flow is provided to the unit.•  Mechanical loading — Mount the equipment in the rack so that a hazardous condition is not achieved due to uneven mechanical loading.•  Circuit overloading — Connect the equipment to the supply circuit and consider the effect that circuit overloading might have on overcurrent protection and supply wiring. Consider the equipment nameplate ratings when addressing this concern.•  Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections.Rack Mounting ProcedureThe ShareLink 250 W can be mounted in a rack, using an optional Extron rack mounting kit (see www.extron.com for part numbers). Follow the instructions provided with the kit.Under-desk and Furniture MountingThe ShareLink 250 W can be mounted under a desk or podium (see figure 53), using an optional Extron mounting kit (see www.extron.com for part numbers). Follow the instructions provided with the kit.ShareLink 250 W12USBANT AShareLink 250 WMBU 125Mounting BracketFigure 53.  ShareLink 250 W with Optional MBU 125

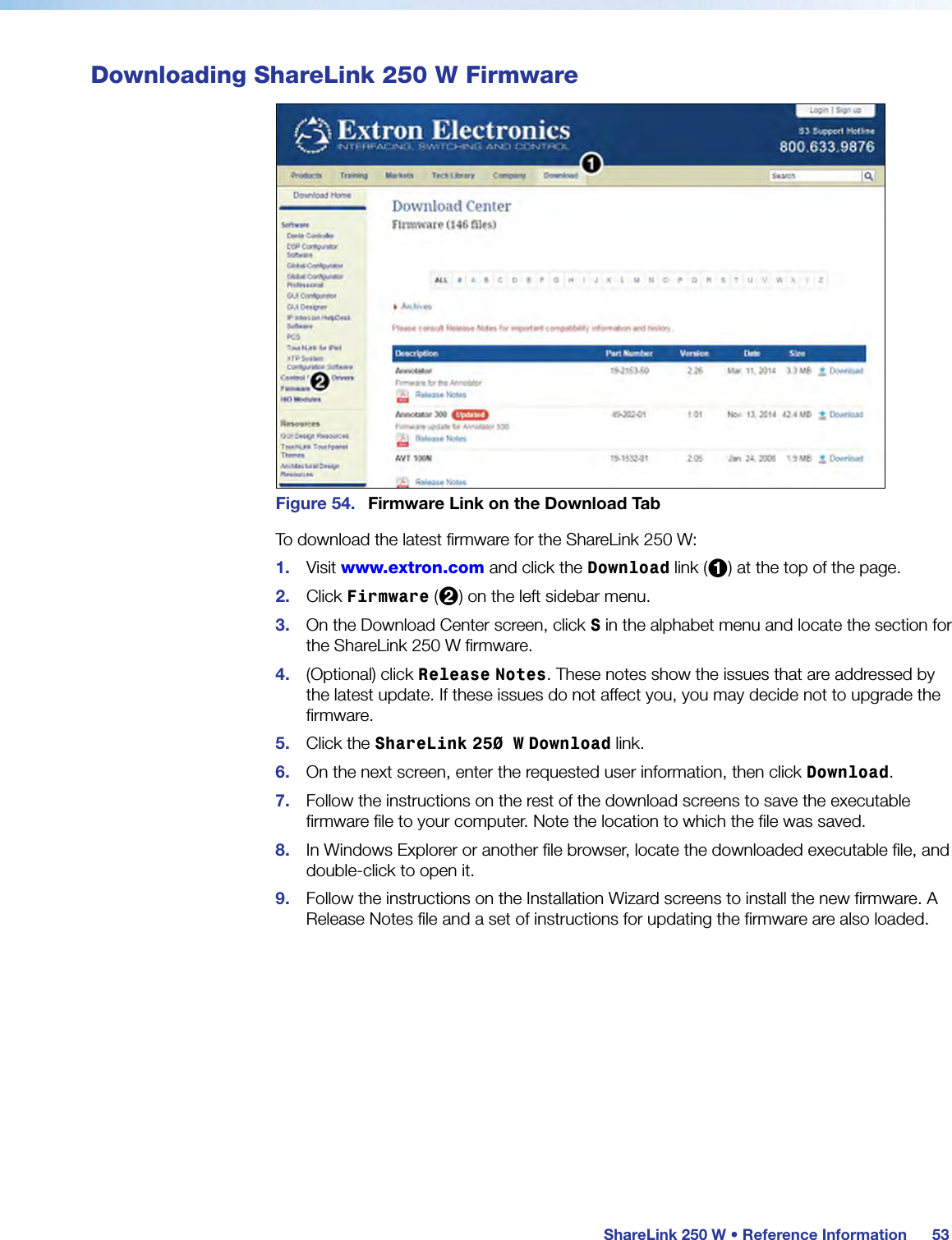

ShareLink 250 W • Reference Information53Downloading ShareLink 250 W FirmwareFigure 54.  Firmware Link on the Download TabTo download the latest firmware for the ShareLink 250 W:1.  Visit www.extron.com and click the Download link (1) at the top of the page.2.  Click Firmware (2) on the left sidebar menu.3.  On the Download Center screen, click S in the alphabet menu and locate the section for the ShareLink 250 W firmware.4.  (Optional) click Release Notes. These notes show the issues that are addressed by the latest update. If these issues do not affect you, you may decide not to upgrade the firmware.5.  Click the ShareLink 250 W Download link.6.  On the next screen, enter the requested user information, then click Download.7.  Follow the instructions on the rest of the download screens to save the executable  firmware file to your computer. Note the location to which the file was saved.8.  In Windows Explorer or another file browser, locate the downloaded executable file, and double-click to open it.9.  Follow the instructions on the Installation Wizard screens to install the new firmware. A Release Notes file and a set of instructions for updating the firmware are also loaded.

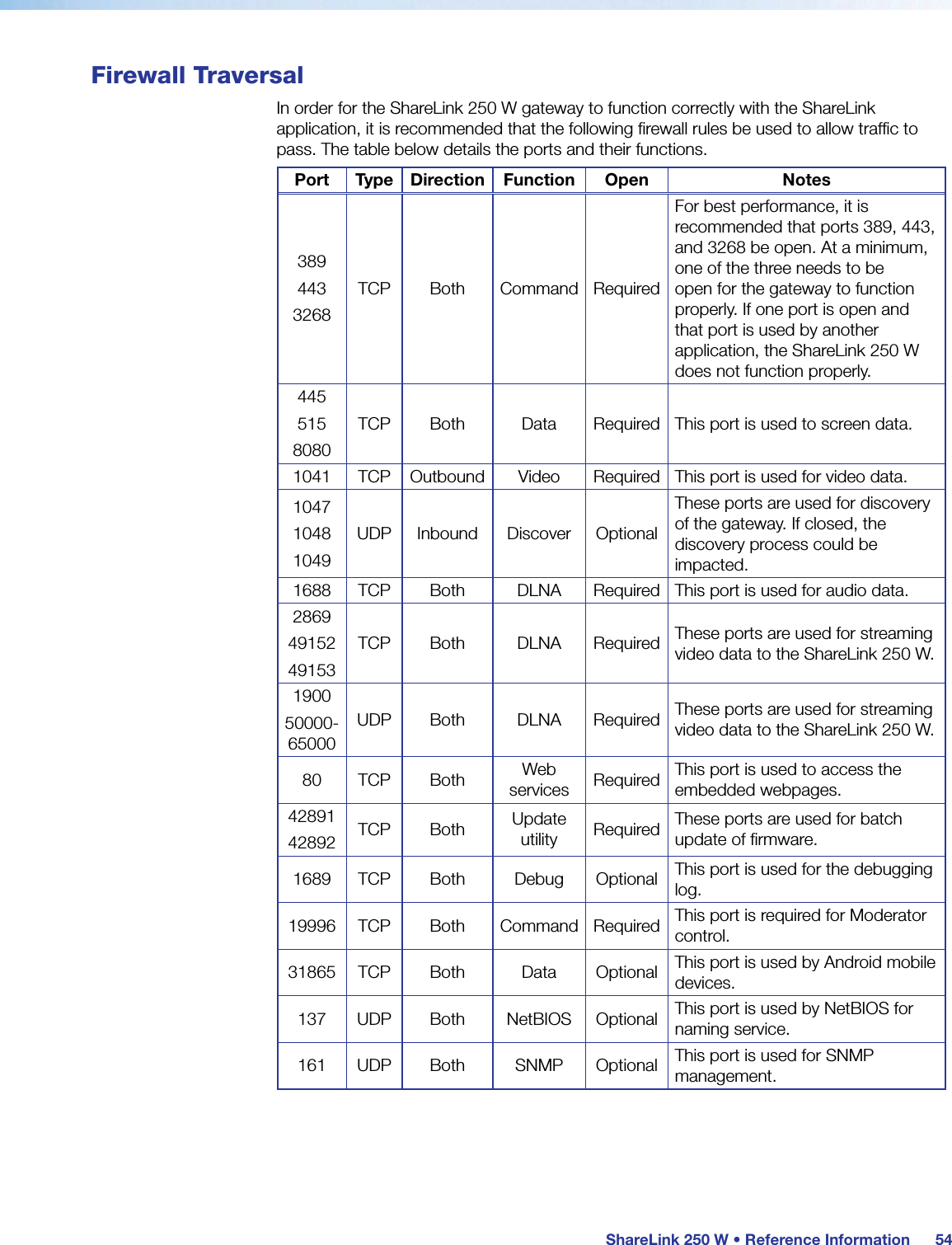

ShareLink 250 W • Reference Information54Firewall TraversalIn order for the ShareLink 250 W gateway to function correctly with the ShareLink application, it is recommended that the following firewall rules be used to allow traffic to pass. The table below details the ports and their functions.PortType Direction Function Open Notes3894433268TCP Both Command RequiredFor best performance, it is recommended that ports 389, 443, and 3268 be open. At a minimum, one of the three needs to be open for the gateway to function properly. If one port is open and that port is used by another application, the ShareLink 250 W does not function properly.4455158080TCP Both Data Required This port is used to screen data.1041 TCP Outbound Video Required This port is used for video data.104710481049UDP Inbound Discover OptionalThese ports are used for discovery of the gateway. If closed, the discovery process could be impacted.1688 TCP Both DLNA Required This port is used for audio data. 28694915249153TCP Both DLNA Required These ports are used for streaming video data to the ShareLink 250 W. 190050000-65000UDP Both DLNA Required These ports are used for streaming video data to the ShareLink 250 W.80 TCP Both Web services Required This port is used to access the embedded webpages.4289142892 TCP Both Update utility Required These ports are used for batch update of firmware.1689 TCP Both Debug Optional This port is used for the debugging log.19996 TCP Both Command Required This port is required for Moderator control.31865 TCP Both Data Optional This port is used by Android mobile devices.137 UDP Both NetBIOS Optional This port is used by NetBIOS for naming service.161 UDP Both SNMP Optional This port is used for SNMP management.

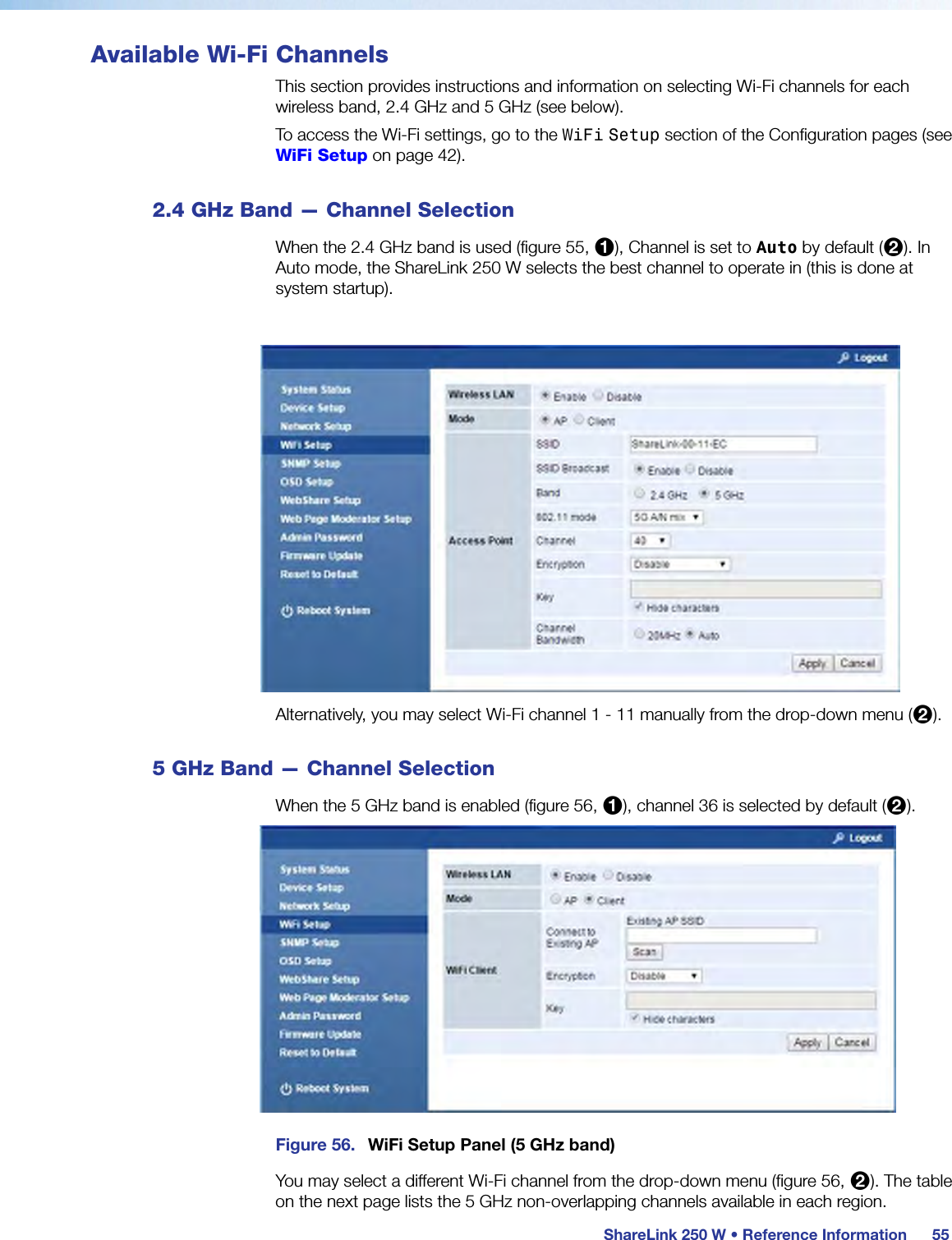

ShareLink 250 W • Reference Information55Available Wi-Fi ChannelsThis section provides instructions and information on selecting Wi-Fi channels for each wireless band, 2.4 GHz and 5 GHz (see below).To access the Wi-Fi settings, go to the WiFi Setup section of the Configuration pages (see WiFi Setup on page 42).2.4 GHz Band — Channel SelectionWhen the 2.4 GHz band is used (figure 55, 1), Channel is set to Auto by default (2). In Auto mode, the ShareLink 250 W selects the best channel to operate in (this is done at system startup).Figure 55. WiFi Setup Panel (2.4 GHz band)Alternatively, you may select Wi-Fi channel 1 - 11 manually from the drop-down menu (2).5 GHz Band — Channel SelectionWhen the 5 GHz band is enabled (figure 56, 1), channel 36 is selected by default (2).Figure 56. WiFi Setup Panel (5 GHz band)You may select a different Wi-Fi channel from the drop-down menu (figure 56, 2). The table  on the next page lists the 5 GHz non-overlapping channels available in each region.

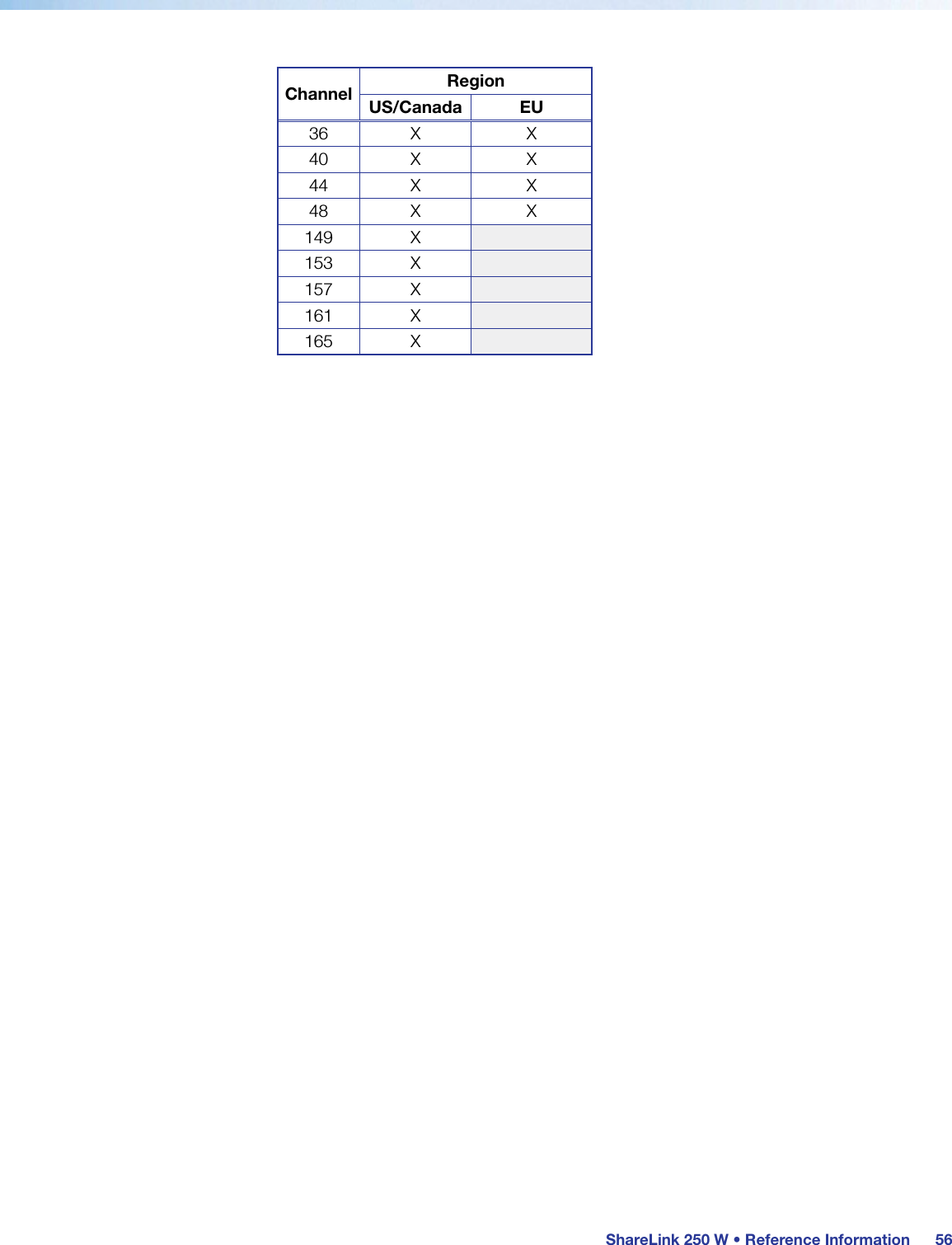

ShareLink 250 W • Reference Information56Channel RegionUS/Canada EU36XX40XX44XX48XX149 X153 X157 X161 X165 X

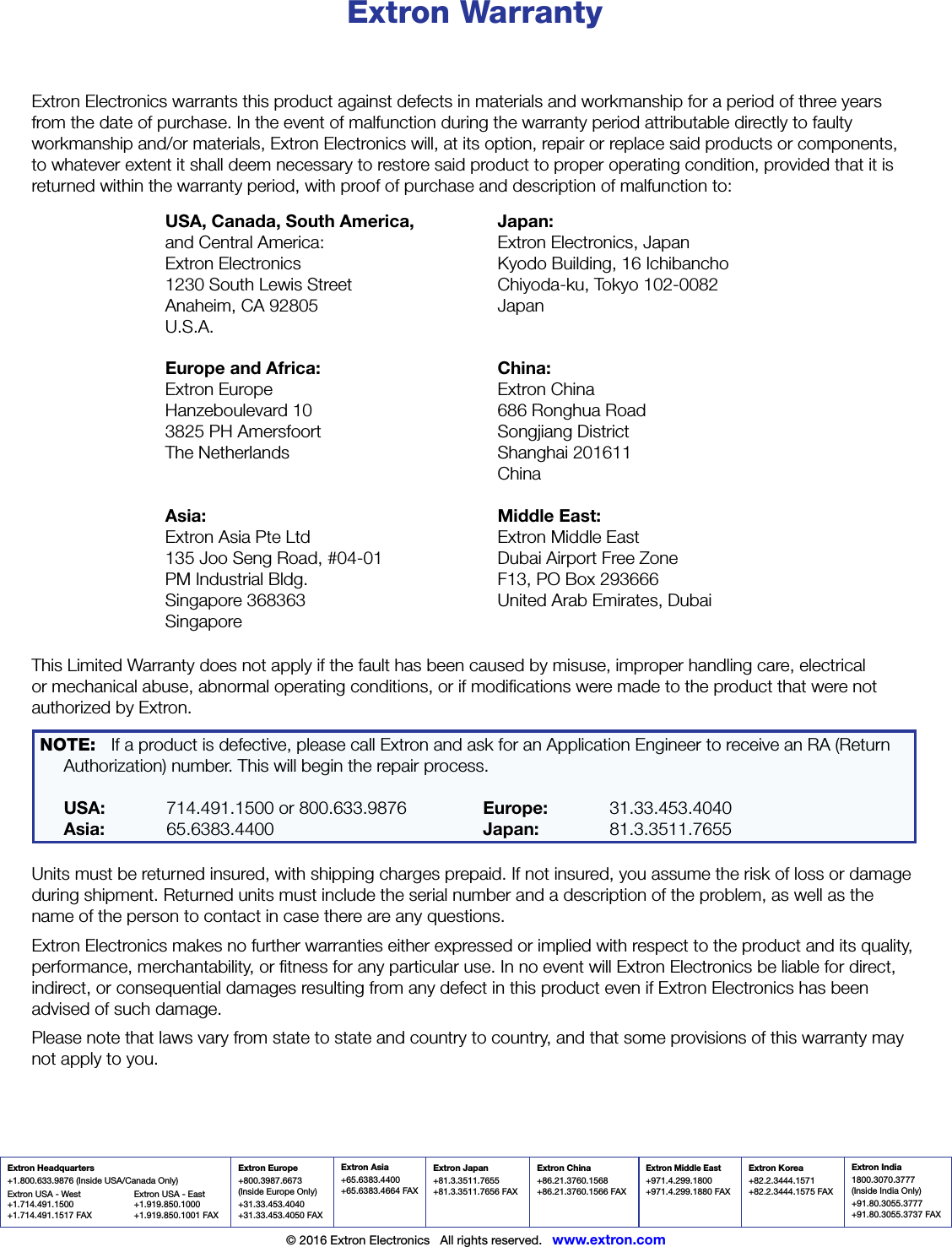

Extron Headquarters+1.800.633.9876 (Inside USA/Canada Only)Extron USA - West  Extron USA - East +1.714.491.1500 +1.919.850.1000 +1.714.491.1517 FAX  +1.919.850.1001 FAXExtron Europe+800.3987.6673 (Inside Europe Only)+31.33.453.4040 +31.33.453.4050 FAXExtron Asia+65.6383.4400+65.6383.4664 FAXExtron Japan+81.3.3511.7655+81.3.3511.7656 FAXExtron China+86.21.3760.1568 +86.21.3760.1566 FAXExtron Middle East+971.4.299.1800+971.4.299.1880 FAXExtron Korea+82.2.3444.1571+82.2.3444.1575 FAXExtron India1800.3070.3777 (Inside India Only)+91.80.3055.3777 +91.80.3055.3737 FAX© 2016 Extron Electronics   All rights reserved.   www.extron.comExtron WarrantyExtron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:USA, Canada, South America, and Central America: Extron Electronics 1230 South Lewis Street Anaheim, CA 92805 U.S.A.Japan: Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 JapanEurope and Africa: Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The NetherlandsChina: Extron China 686 Ronghua Road Songjiang District Shanghai 201611 ChinaAsia: Extron Asia Pte Ltd 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363 SingaporeMiddle East: Extron Middle East Dubai Airport Free Zone F13, PO Box 293666 United Arab Emirates, DubaiThis Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.NOTE:  If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return Authorization) number. This will begin the repair process.  USA:   714.491.1500 or 800.633.9876    Europe: 31.33.453.4040  Asia:  65.6383.4400    Japan:   81.3.3511.7655 Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions. Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
