Fandom Connect Operating BUZCONMD BUZZ BLE MODULE ONLY User Manual

Buzz Products PTY LTD BUZZ BLE MODULE ONLY

User Manual

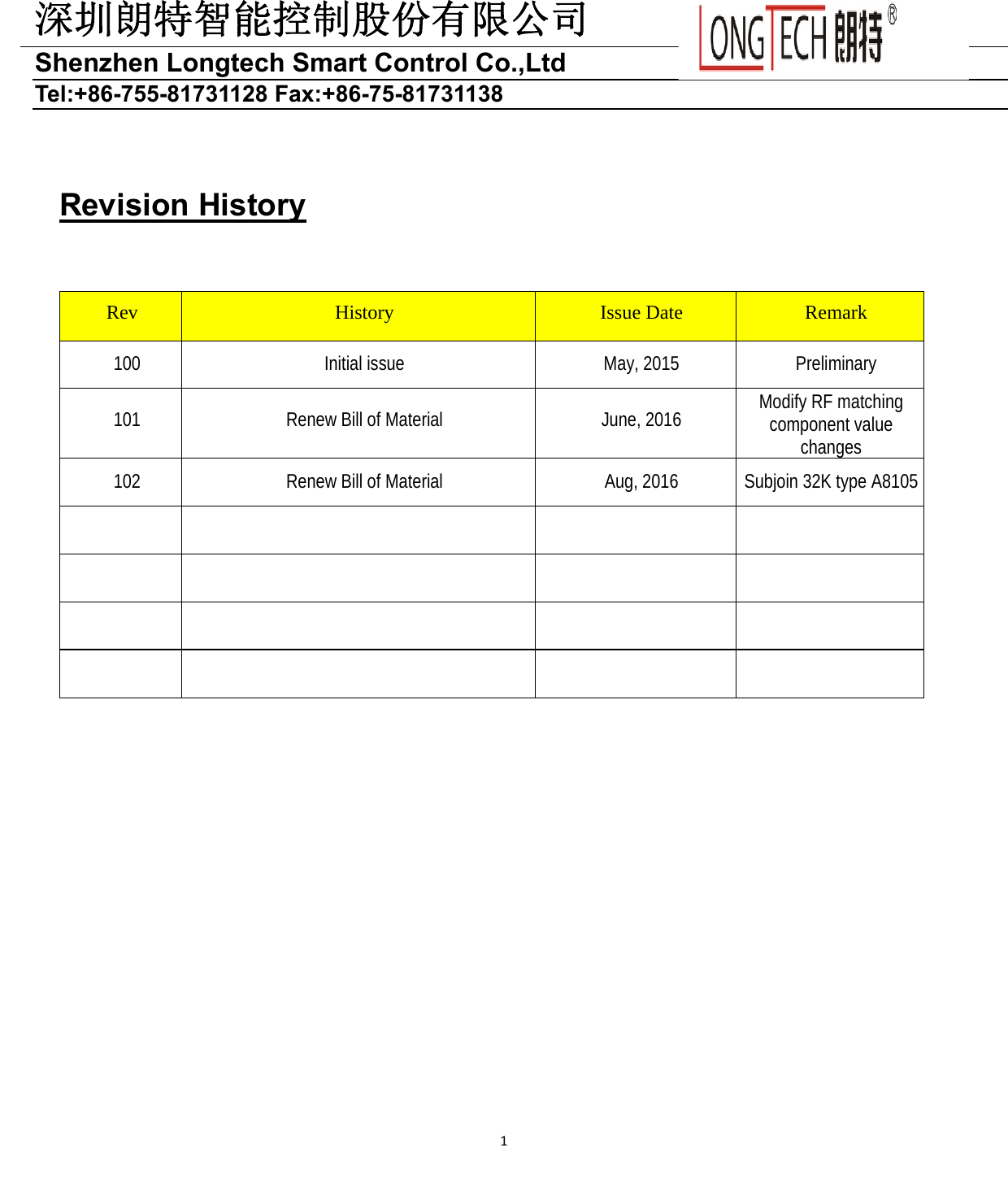

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 1 Revision History Rev History Issue Date Remark 100 Initial issue May, 2015 Preliminary 101 Renew Bill of Material June, 2016 Modify RF matching component value changes 102 Renew Bill of Material Aug, 2016 Subjoin 32K type A8105 

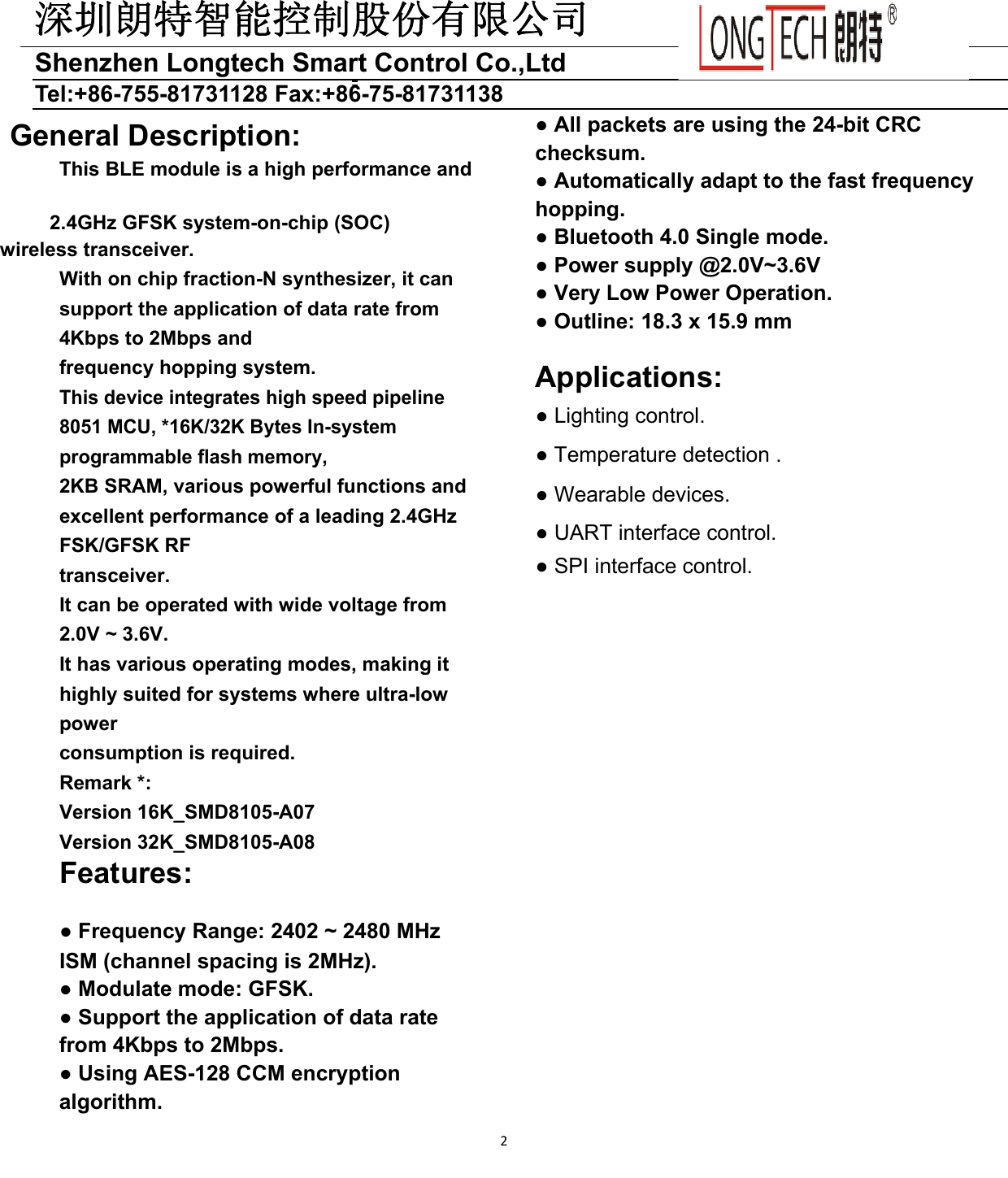

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 2 General Description: This BLE module is a high performance and 2.4GHz GFSK system-on-chip (SOC) wireless transceiver. With on chip fraction-N synthesizer, it can support the application of data rate from 4Kbps to 2Mbps and frequency hopping system. This device integrates high speed pipeline 8051 MCU, *16K/32K Bytes In-system programmable flash memory, 2KB SRAM, various powerful functions and excellent performance of a leading 2.4GHz FSK/GFSK RF transceiver. It can be operated with wide voltage from 2.0V ~ 3.6V. It has various operating modes, making it highly suited for systems where ultra-low power consumption is required. Remark *: Version 16K_SMD8105-A07 Version 32K_SMD8105-A08 Features: ● Frequency Range: 2402 ~ 2480 MHz ISM (channel spacing is 2MHz). ● Modulate mode: GFSK. ● Support the application of data rate from 4Kbps to 2Mbps. ● Using AES-128 CCM encryption algorithm. ● All packets are using the 24-bit CRC checksum. ● Automatically adapt to the fast frequency hopping. ● Bluetooth 4.0 Single mode. ● Power supply @2.0V~3.6V ● Very Low Power Operation. ● Outline: 18.3 x 15.9 mm Applications: ● Lighting control. ● Temperature detection . ● Wearable devices. ● UART interface control. ● SPI interface control.

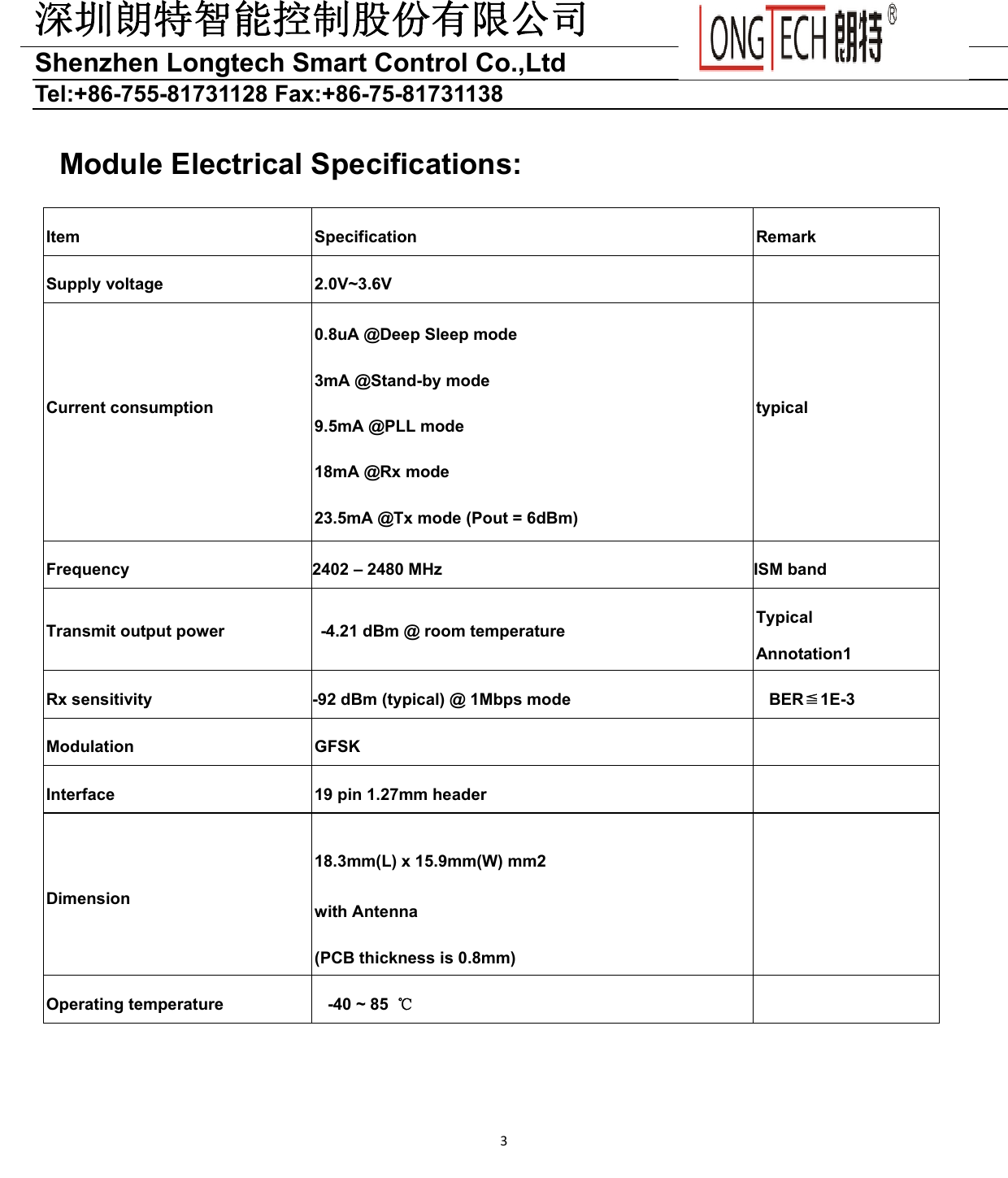

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 3Module Electrical Specifications: Item Specification Remark Supply voltage 2.0V~3.6V Current consumption 0.8uA @Deep Sleep mode 3mA @Stand-by mode 9.5mA @PLL mode 18mA @Rx mode 23.5mA @Tx mode (Pout = 6dBm) typical Frequency 2402 – 2480 MHz ISM band Transmit output power -4.21 dBm @ room temperature Typical Annotation1 Rx sensitivity -92 dBm (typical) @ 1Mbps mode BER≦1E-3 Modulation GFSK Interface 19 pin 1.27mm header Dimension 18.3mm(L) x 15.9mm(W) mm2 with Antenna (PCB thickness is 0.8mm) Operating temperature -40 ~ 85 ℃ 

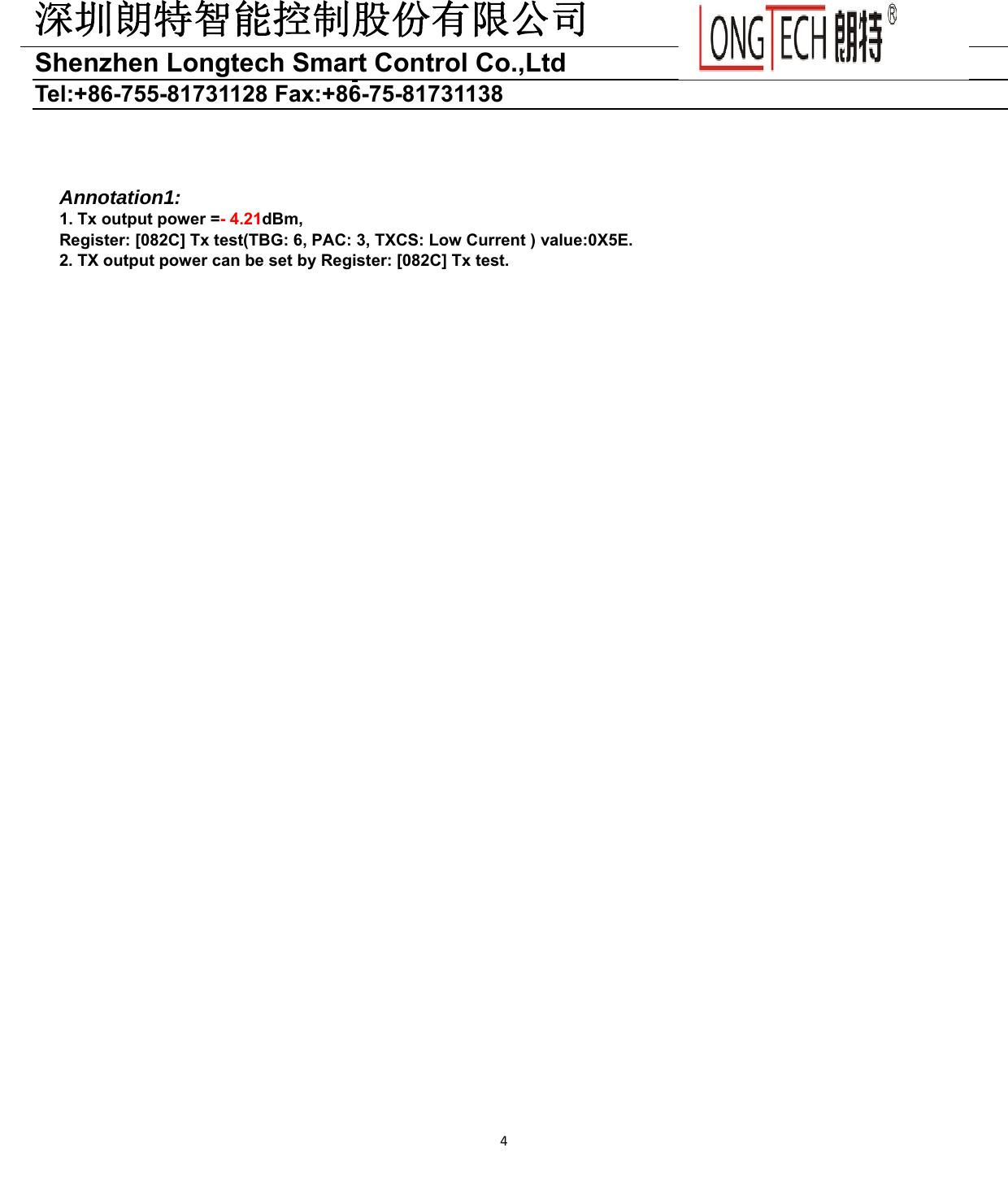

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 4  Annotation1: 1. Tx output power =- 4.21dBm, Register: [082C] Tx test(TBG: 6, PAC: 3, TXCS: Low Current ) value:0X5E. 2. TX output power can be set by Register: [082C] Tx test.

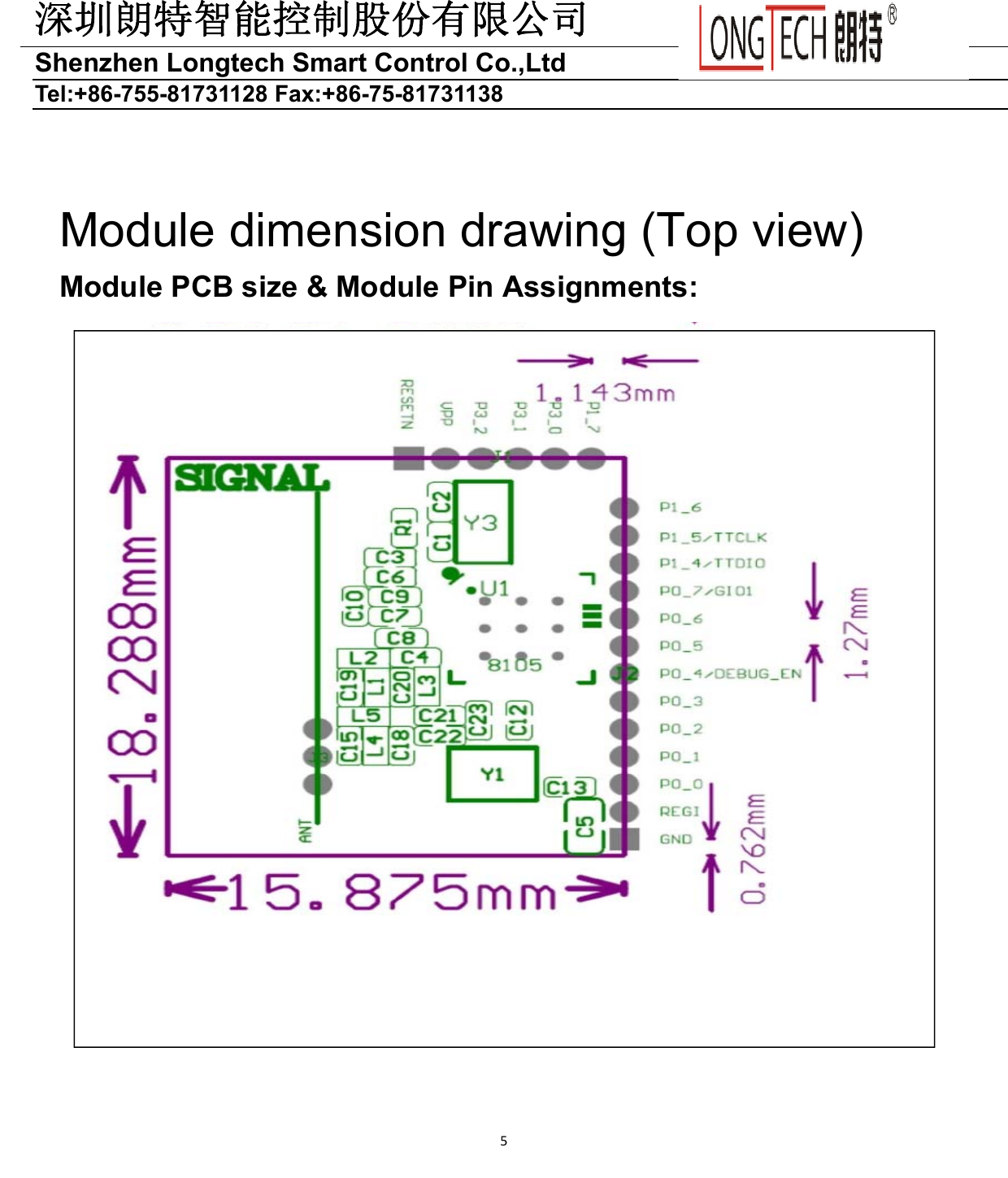

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 5 Module dimension drawing (Top view) Module PCB size & Module Pin Assignments: 

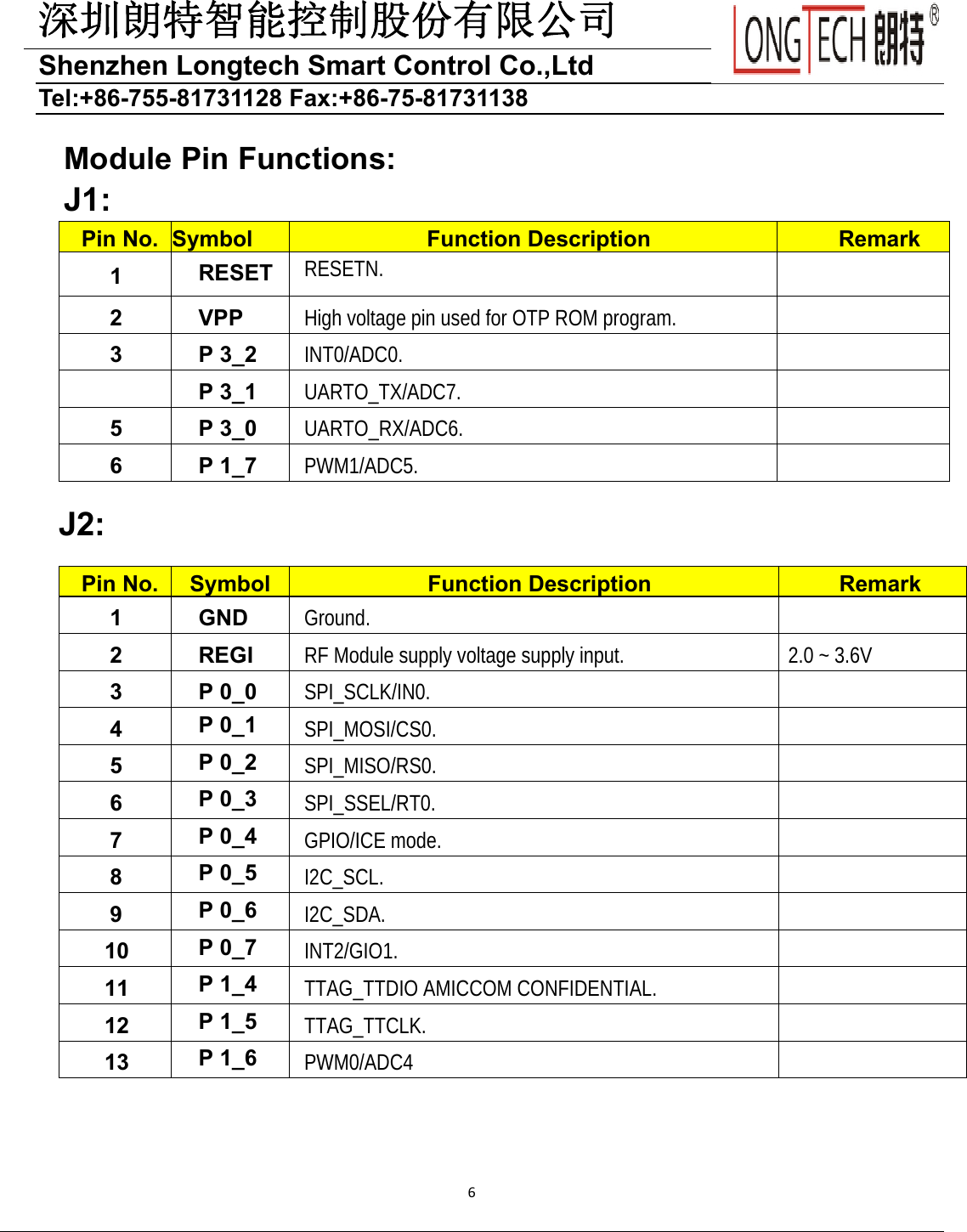

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 6 Module Pin Functions: J1: Pin No. Symbol Function Description Remark1 RESET RESETN. 2 VPP High voltage pin used for OTP ROM program. 3 P 3_2 INT0/ADC0. P 3_1 UARTO_TX/ADC7. 5 P 3_0 UARTO_RX/ADC6. 6 P 1_7 PWM1/ADC5. J2: Pin No. Symbol Function Description Remark1 GND Ground. 2 REGI RF Module supply voltage supply input. 2.0 ~ 3.6V 3 P 0_0 SPI_SCLK/IN0. 4 P 0_1 SPI_MOSI/CS0. 5 P 0_2 SPI_MISO/RS0. 6 P 0_3 SPI_SSEL/RT0. 7 P 0_4 GPIO/ICE mode. 8 P 0_5 I2C_SCL. 9 P 0_6 I2C_SDA. 10 P 0_7 INT2/GIO1. 11 P 1_4 TTAG_TTDIO AMICCOM CONFIDENTIAL. 12 P 1_5 TTAG_TTCLK. 13 P 1_6 PWM0/ADC4 

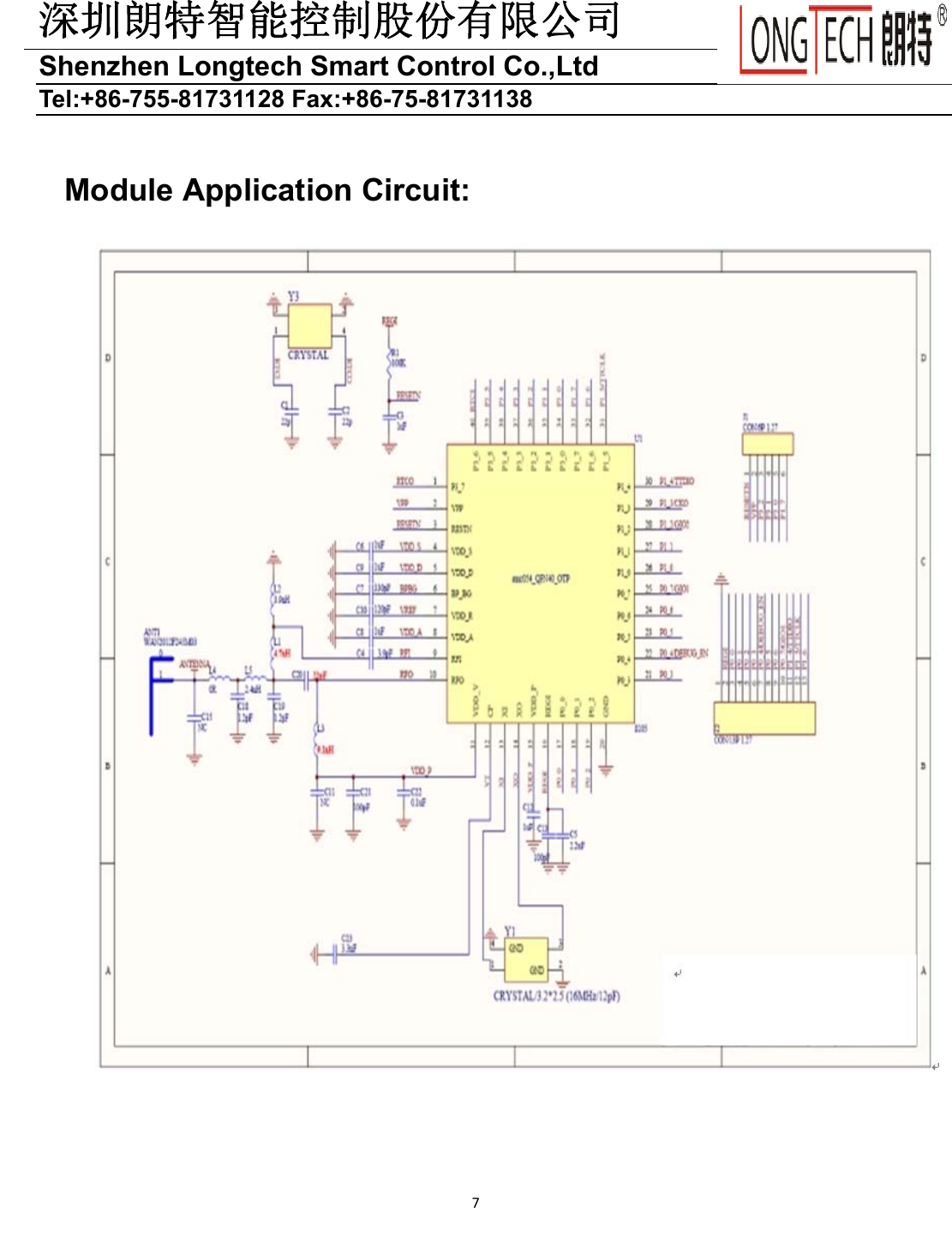

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 7 Module Application Circuit: 

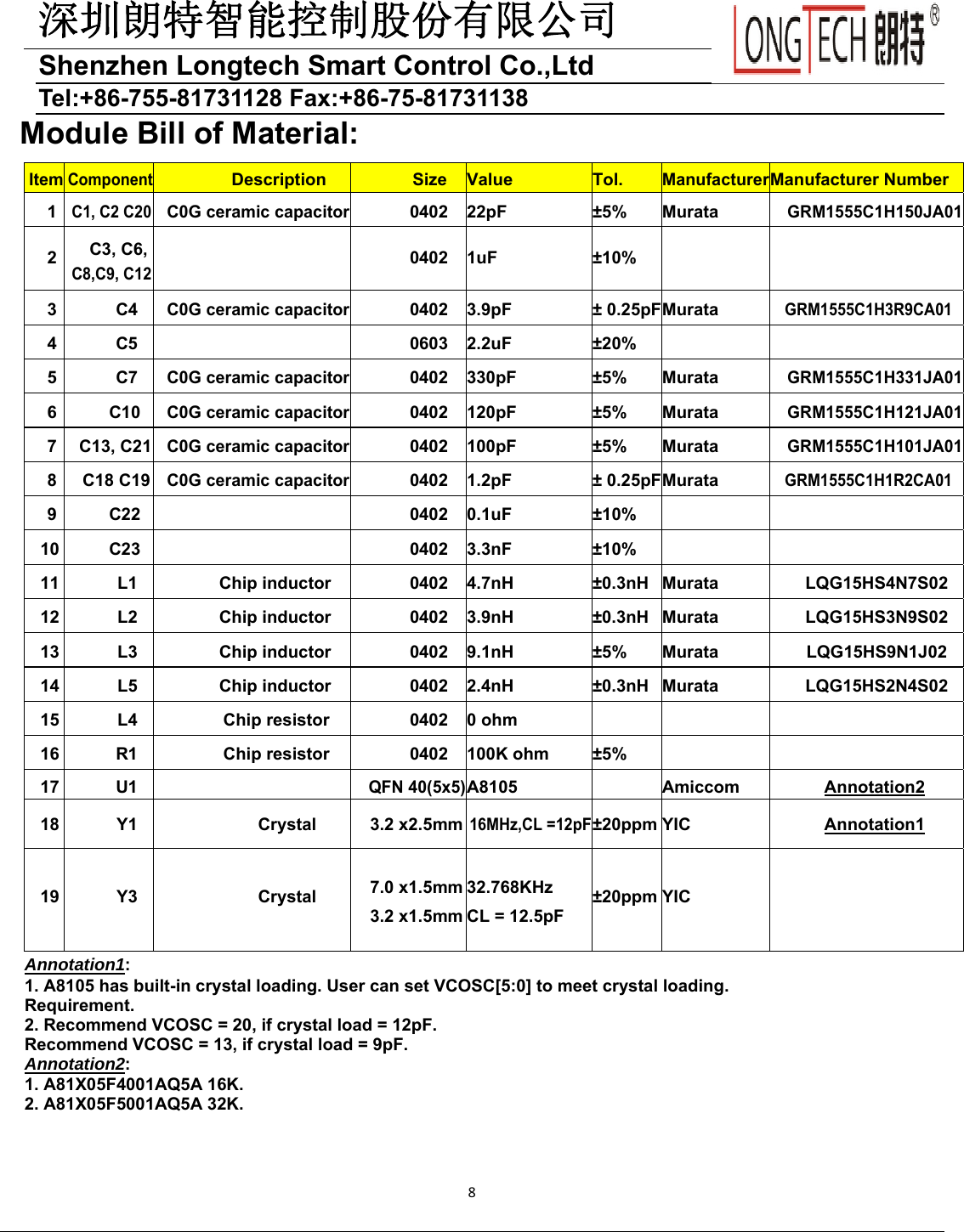

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 8 Module Bill of Material: ItemComponentDescription Size Value Tol. ManufacturerManufacturer Number 1 C1, C2 C20 C0G ceramic capacitor 0402 22pF ±5% Murata GRM1555C1H150JA012 C3, C6, C8,C9, C12 0402 1uF ±10% 3 C4 C0G ceramic capacitor 0402 3.9pF ± 0.25pFMurata GRM1555C1H3R9CA01 4 C5 0603 2.2uF ±20% 5 C7 C0G ceramic capacitor 0402 330pF ±5% Murata GRM1555C1H331JA016 C10 C0G ceramic capacitor 0402 120pF ±5% Murata GRM1555C1H121JA017 C13, C21 C0G ceramic capacitor 0402 100pF ±5% Murata GRM1555C1H101JA018 C18 C19 C0G ceramic capacitor 0402 1.2pF ± 0.25pFMurata GRM1555C1H1R2CA01 9 C22 0402 0.1uF ±10% 10 C23 0402 3.3nF ±10% 11 L1 Chip inductor 0402 4.7nH ±0.3nH Murata LQG15HS4N7S02 12 L2 Chip inductor 0402 3.9nH ±0.3nH Murata LQG15HS3N9S02 13 L3 Chip inductor 0402 9.1nH ±5% Murata LQG15HS9N1J02 14 L5 Chip inductor 0402 2.4nH ±0.3nH Murata LQG15HS2N4S02 15 L4 Chip resistor 0402 0 ohm 16 R1 Chip resistor 0402 100K ohm ±5% 17 U1 QFN 40(5x5)A8105 Amiccom Annotation2 18 Y1 Crystal 3.2 x2.5mm16MHz,CL =12pF±20ppmYIC Annotation1 19 Y3 Crystal 7.0 x1.5mm3.2 x1.5mm32.768KHz CL = 12.5pF ±20ppmYIC Annotation1: 1. A8105 has built-in crystal loading. User can set VCOSC[5:0] to meet crystal loading. Requirement. 2. Recommend VCOSC = 20, if crystal load = 12pF. Recommend VCOSC = 13, if crystal load = 9pF. Annotation2: 1. A81X05F4001AQ5A 16K. 2. A81X05F5001AQ5A 32K.

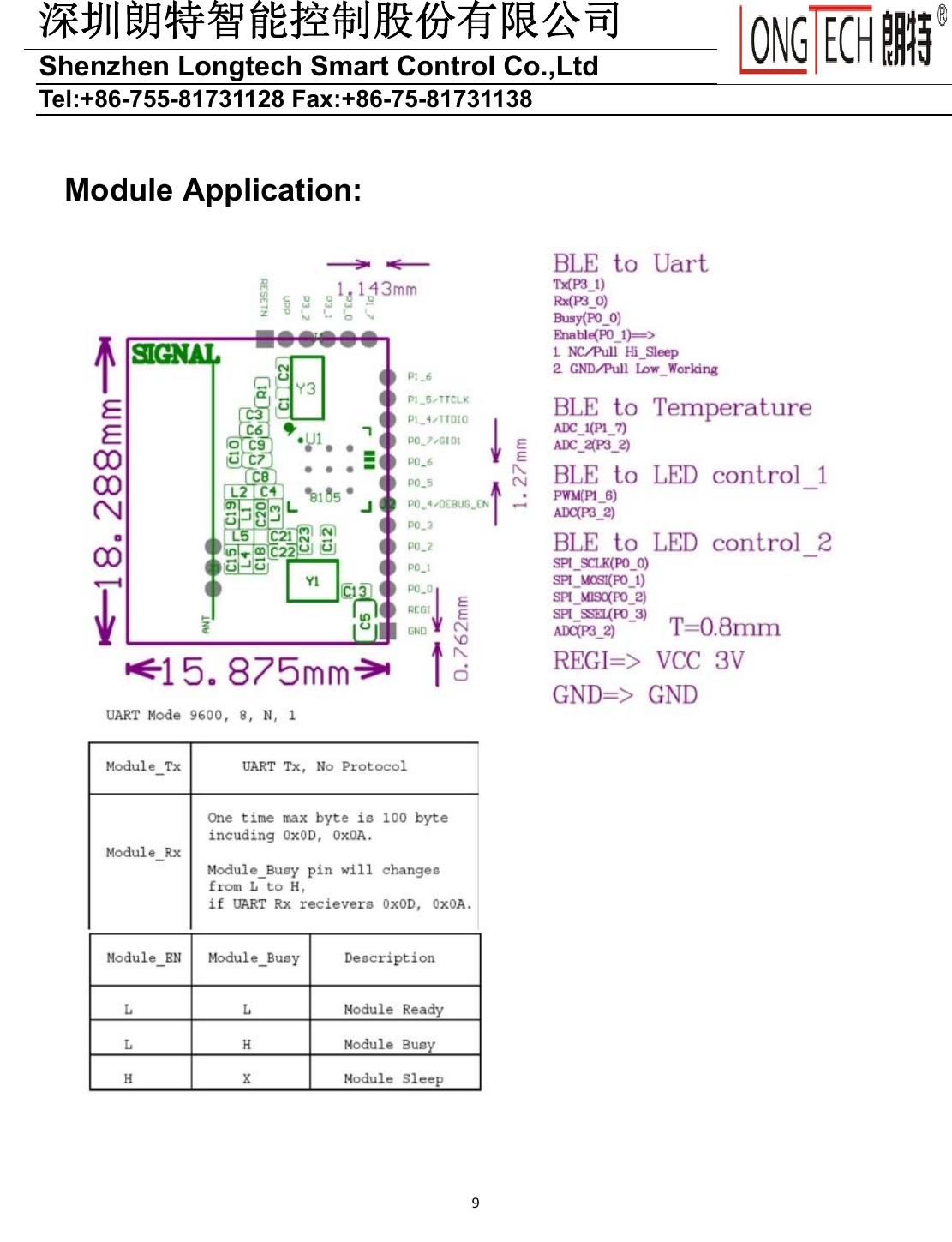

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 9 Module Application: 

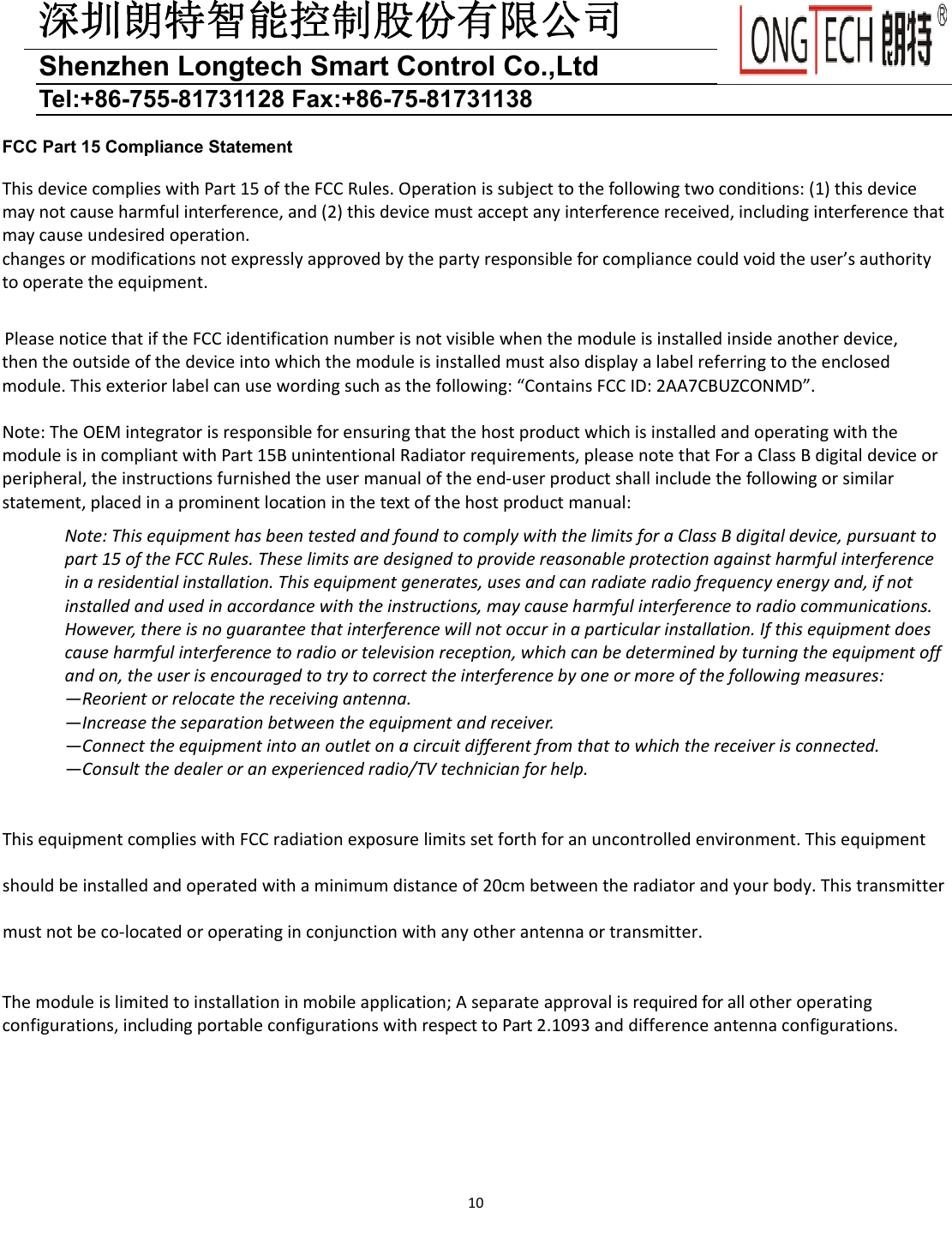

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 10FCC Part 15 Compliance Statement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.PleasenoticethatiftheFCCidentificationnumberisnotvisiblewhenthemoduleisinstalledinsideanotherdevice,thentheoutsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanusewordingsuchasthefollowing:“ContainsFCCID:2AA7CBUZCONMD”.Note:TheOEMintegratorisresponsibleforensuringthatthehostproductwhichisinstalledandoperatingwiththemoduleisincompliantwithPart15BunintentionalRadiatorrequirements,pleasenotethatForaClassBdigitaldeviceorperipheral,theinstructionsfurnishedtheusermanualoftheend‐userproductshallincludethefollowingorsimilarstatement,placedinaprominentlocationinthetextofthehostproductmanual:Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:—Reorientorrelocatethereceivingantenna.—Increasetheseparationbetweentheequipmentandreceiver.—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceof20cmbetweentheradiatorandyourbody.Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.Themoduleislimitedtoinstallationinmobileapplication;Aseparateapprovalisrequiredforallotheroperatingconfigurations,includingportableconfigurationswithrespecttoPart2.1093anddifferenceantennaconfigurations.

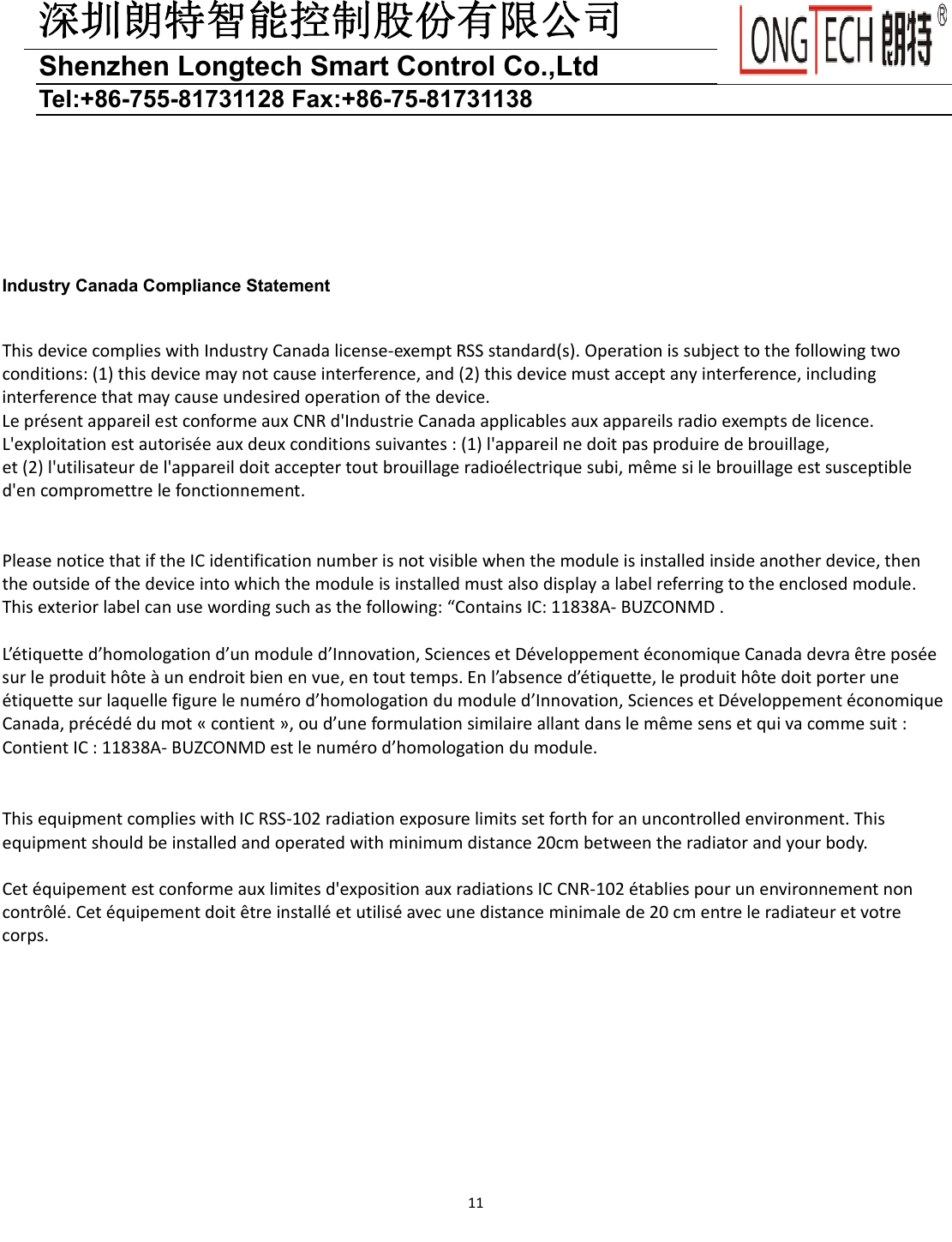

深圳朗特智能控制股份有限公司Shenzhen Longtech Smart Control Co.,Ltd Tel:+86-755-81731128 Fax:+86-75-81731138 11 Industry Canada Compliance Statement ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.PleasenoticethatiftheICidentificationnumberisnotvisiblewhenthemoduleisinstalledinsideanotherdevice,thentheoutsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanusewordingsuchasthefollowing:“ContainsIC:11838A‐BUZCONMD.L’étiquetted’homologationd’unmoduled’Innovation,SciencesetDéveloppementéconomiqueCanadadevraêtreposéesurleproduithôteàunendroitbienenvue,entouttemps.Enl’absenced’étiquette,leproduithôtedoitporteruneétiquettesurlaquellefigurelenumérod’homologationdumoduled’Innovation,SciencesetDéveloppementéconomiqueCanada,précédédumot«contient»,oud’uneformulationsimilaireallantdanslemêmesensetquivacommesuit:ContientIC:11838A‐BUZCONMDestlenumérod’homologationdumodule.ThisequipmentcomplieswithICRSS‐102radiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiatorandyourbody.Cetéquipementestconformeauxlimitesd'expositionauxradiationsICCNR‐102établiespourunenvironnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavecunedistanceminimalede20cmentreleradiateuretvotrecorps.
