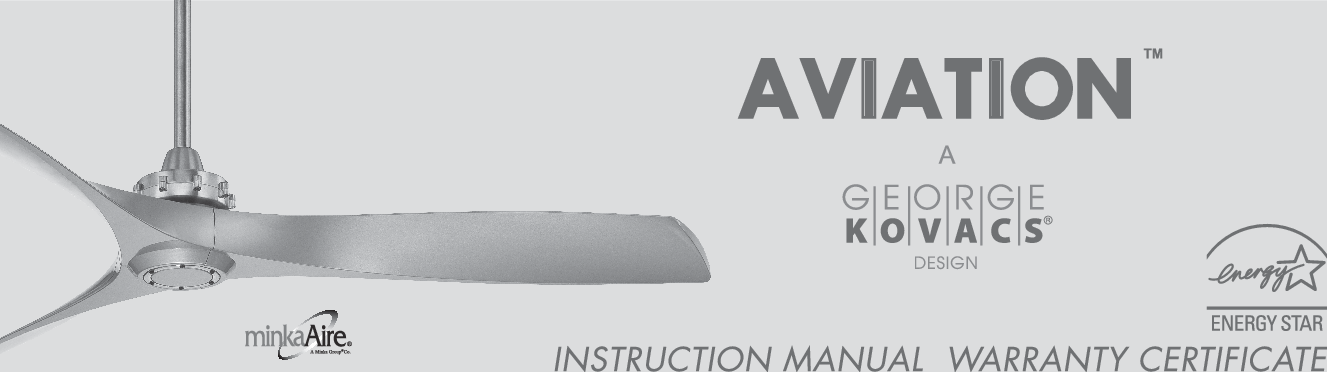

Manual design and all elements of manual design are protected by U.S. FedeThis product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.ral and/or State Law, including Patent, Trademark and/or Copyright Laws.

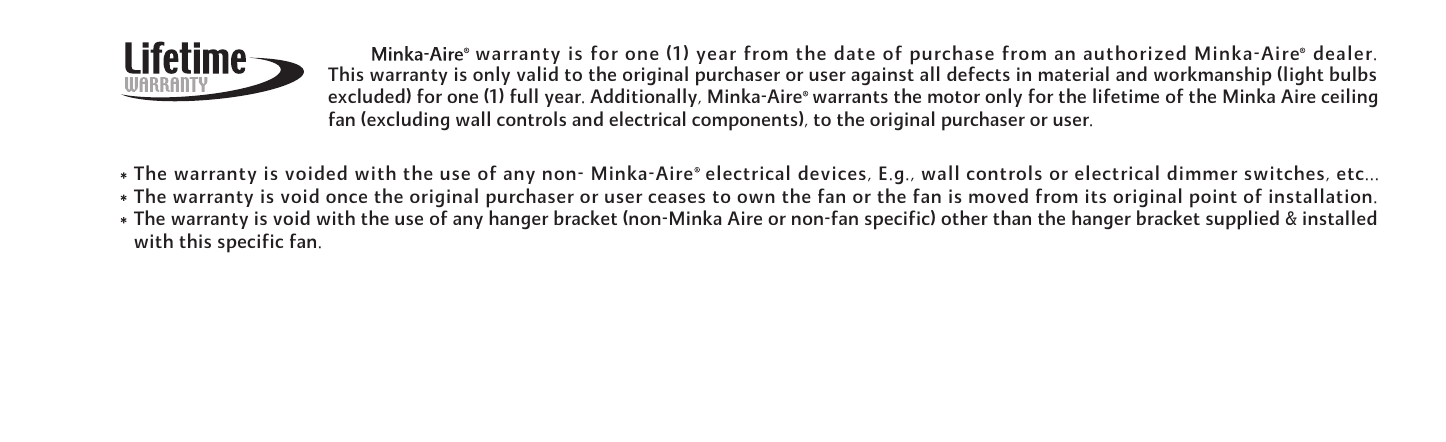

warranty is for one (1) year from the date of purchase from an authorized Minka-Aire dealer.This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbsexcluded) for one (1) full year. Additionally, Minka-Aire warrants the motor only for the lifetime of the Minka Aire ceilingfan (excluding wall controls and electrical components), to the original purchaser or user.The warranty is voided with the use of any non- Minka-Aire electrical devices, E.g., wall controls or electrical dimmer switches, etc...The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installedwith this specific fan.

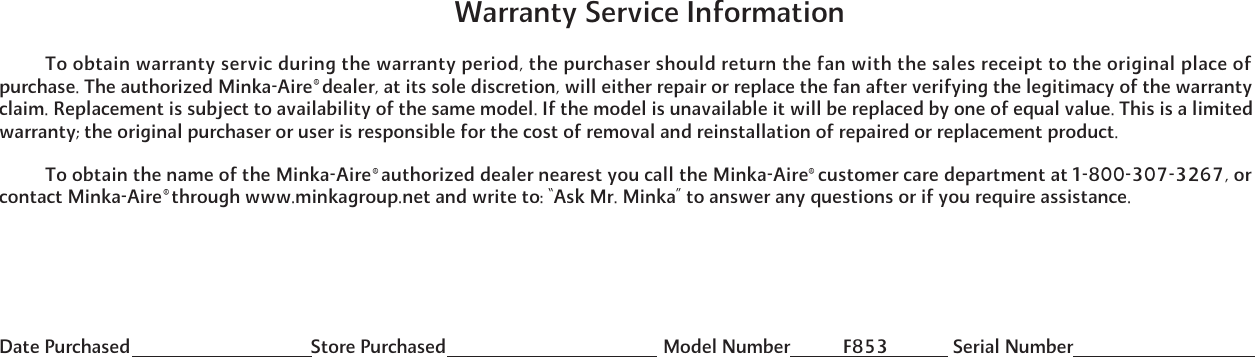

To obtain the name of the Minka-Aire authorized dealer nearest you call the Minka-Aire customer care department at 1-800-307-3267, orcontact Minka-Aire through www.minkagroup.net and write to: “Ask Mr. Minka” to answer any questions or if you require assistance. To obtain warranty servic during the warranty period, the purchaser should return the fan with the sales receipt to the original place ofpurchase. The authorized Minka-Aire dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warrantyclaim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a limitedwarranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.®®®®Date Purchased Store Purchased Model Number Serial NumberF853 Warranty Service Information

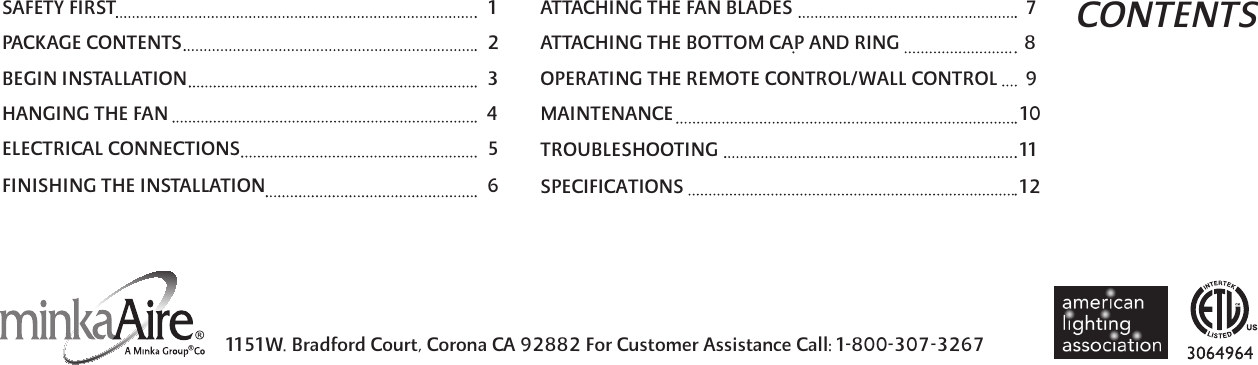

CONTENTS1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267 SAFETY FIRST 1PACKAGE CONTENTS 2BEGIN INSTALLATION 3HANGING THE FAN 4ELECTRICAL CONNECTIONS 5ATTACHING THE FAN BLADES 7ATTACHING THE BOTTOM CAP AND RING 8OPERATING THE REMOTE CONTROL/WALL CONTROL 9MAINTENANCE 10TROUBLESHOOTING 11FINISHING THE INSTALLATION 6 SPECIFICATIONS 12

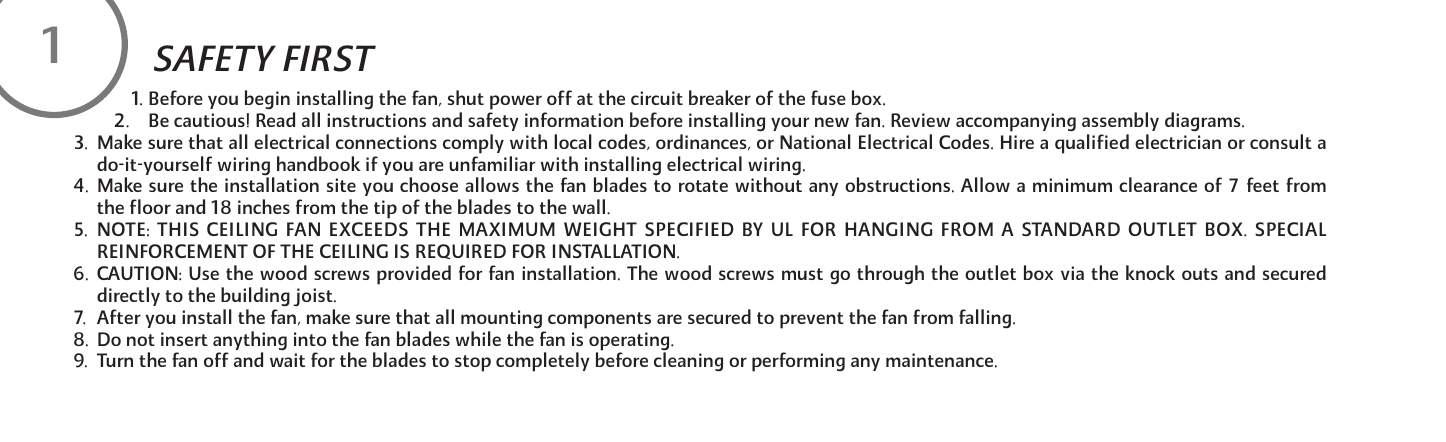

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult ado-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet fromthe floor and 18 inches from the tip of the blades to the wall.5. NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FOR HANGING FROM A STANDARD OUTLET BOX. SPECIALREINFORCEMENT OF THE CEILING IS REQUIRED FOR INSTALLATION.6. CAUTION: Use the wood screws provided for fan installation. The wood screws must go through the outlet box via the knock outs and secureddirectly to the building joist.7. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.8. Do not insert anything into the fan blades while the fan is operating.9. Turn the fan off and wait for the blades to stop completely before cleaning or performing any maintenance.1SAFETY FIRST

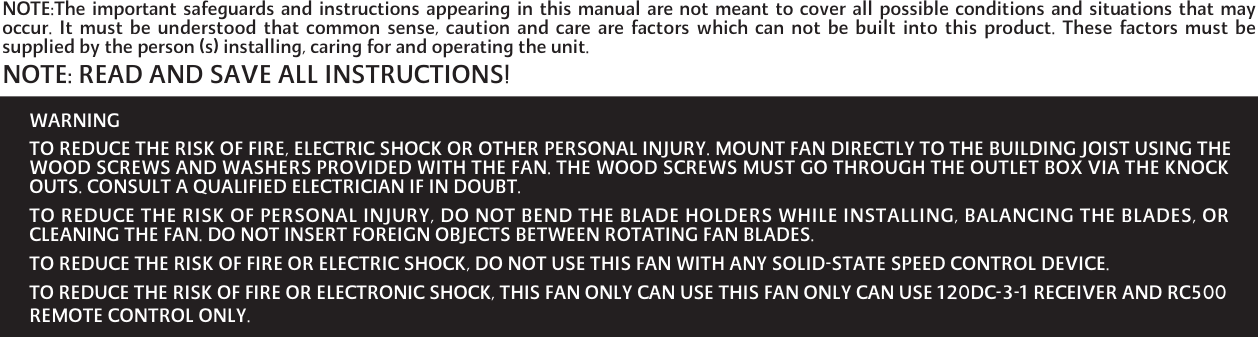

WARNINGTO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY. MOUNT FAN DIRECTLY TO THE BUILDING JOIST USING THEWOOD SCREWS AND WASHERS PROVIDED WITH THE FAN. THE WOOD SCREWS MUST GO THROUGH THE OUTLET BOX VIA THE KNOCKOUTS. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES, ORCLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE THIS FAN ONLY CAN USE 120DC-3-1 RECEIVER AND RC500 REMOTE CONTROL ONLY.NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that mayoccur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must besupplied by the person (s) installing, caring for and operating the unit.NOTE: READ AND SAVE ALL INSTRUCTIONS!

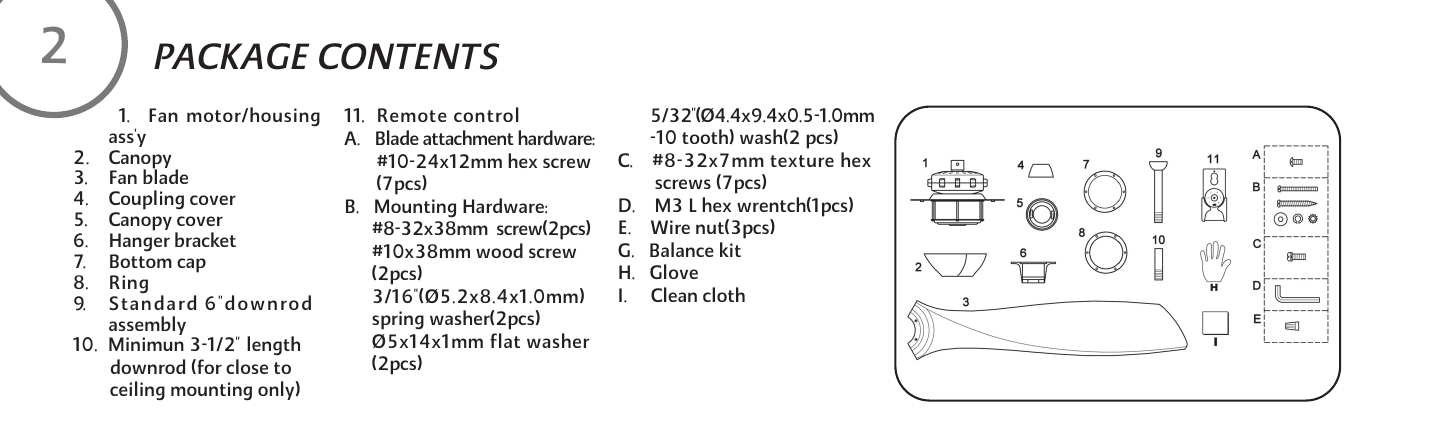

1. Fan motor/housingass'y2. Canopy3. Fan blade4. Coupling cover5. Canopy cover6. Hanger bracket7. Bottom cap9. Standard 6"downrodassembly8. Ring10. Minimun 3-1/2" length downrod (for close to ceiling mounting only)11. Remote control2PACKAGE CONTENTSA. Blade attachment hardware: #10-24x12mm hex screw (7pcs)B. Mounting Hardware: #8-32x38mm screw(2pcs) #10x38mm wood screw (2pcs) 3/16"(Ø5.2x8.4x1.0mm) spring washer(2pcs) Ø5x14x1mm flat washer (2pcs) 5/32"(Ø4.4x9.4x0.5-1.0mm -10 tooth) wash(2 pcs)C. #8-32x7mm texture hex screws (7pcs)D. M3 L hex wrentch(1pcs)E. Wire nut(3pcs)G. Balance kitH. GloveI. Clean cloth

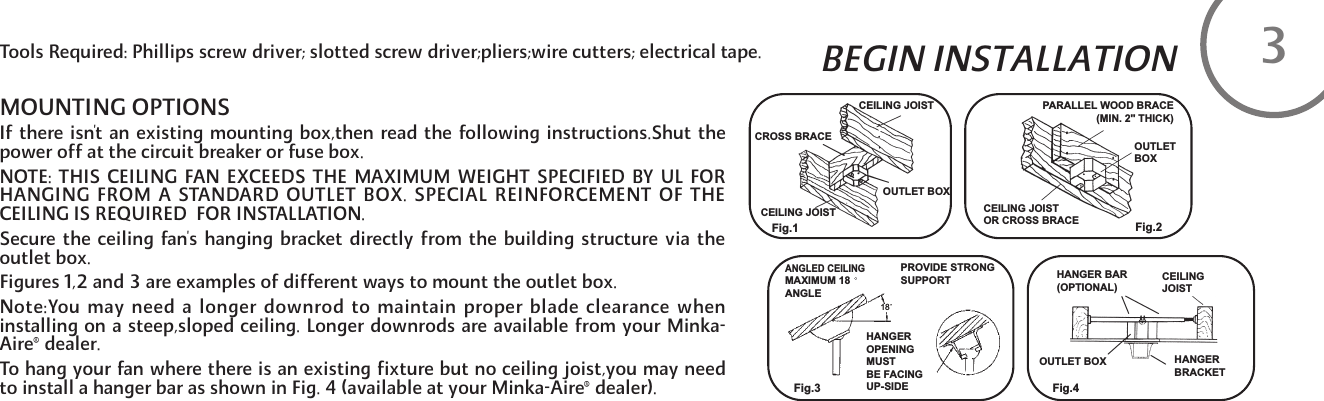

BEGIN INSTALLATIONMOUNTING OPTIONSIf there isn't an existing mounting box,then read the following instructions.Shut thepower off at the circuit breaker or fuse box.NOTE: THIS CEILING FAN EXCEEDS THE MAXIMUM WEIGHT SPECIFIED BY UL FORHANGING FROM A STANDARD OUTLET BOX. SPECIAL REINFORCEMENT OF THECEILING IS REQUIRED FOR INSTALLATION. Secure the ceiling fan's hanging bracket directly from the building structure via theoutlet box.Figures 1,2 and 3 are examples of different ways to mount the outlet box.Note:You may need a longer downrod to maintain proper blade clearance wheninstalling on a steep,sloped ceiling. Longer downrods are available from your Minka-Aire®dealer.To hang your fan where there is an existing fixture but no ceiling joist,you may needto install a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).Tools Required: Phillips screw driver; slotted screw driver;pliers;wire cutters; electrical tape. 3CEILING JOISTCEILING JOISTOUTLET BOXCROSS BRACEPARALLEL WOOD BRACE (MIN. 2" THICK)OUTLETBOXCEILING JOISTOR CROSS BRACEFig.1 Fig.2Fig.3 Fig.4ANGLED CEILINGMAXIMUM 18ANGLEPROVIDE STRONGSUPPORTHANGEROPENINGMUSTBE FACINGUP-SIDEOUTLET BOXHANGER BAR(OPTIONAL)CEILINGJOISTHANGERBRACKET18

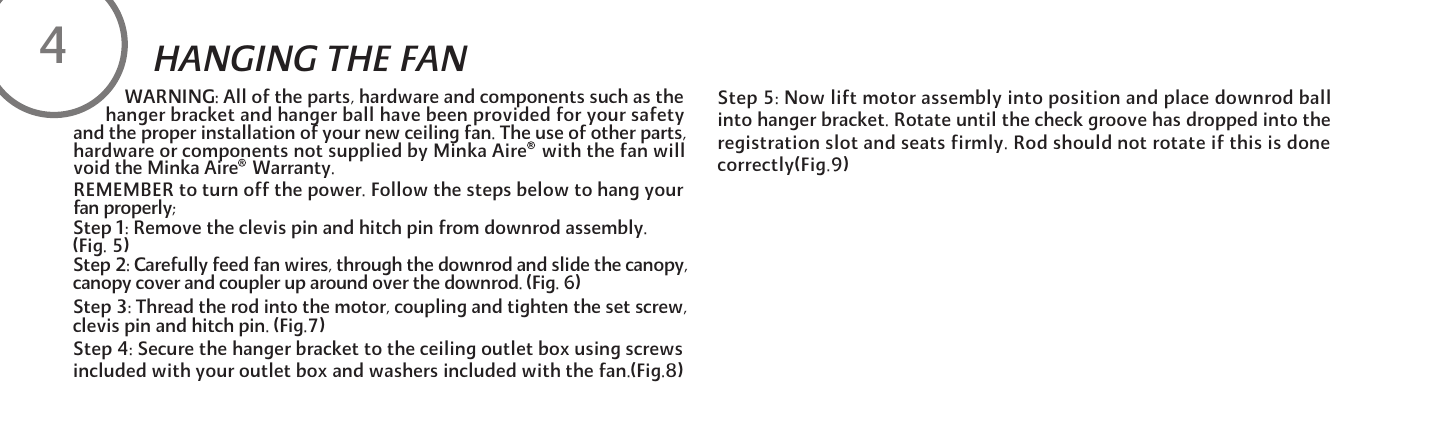

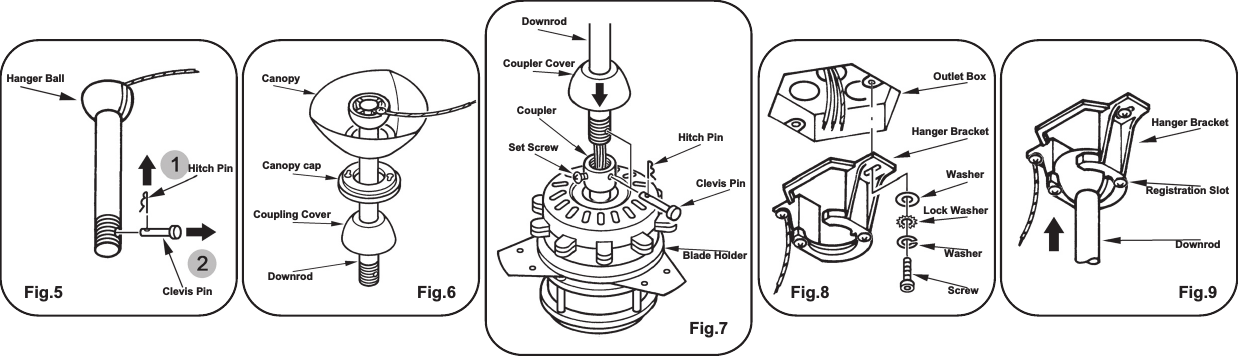

REMEMBER to turn off the power. Follow the steps below to hang yourfan properly;Step 1: Remove the clevis pin and hitch pin from downrod assembly. (Fig. 5)Step 2: Carefully feed fan wires, through the downrod and slide the canopy, canopy cover and coupler up around over the downrod. (Fig. 6)Step 3: Thread the rod into the motor, coupling and tighten the set screw, clevis pin and hitch pin. (Fig.7)Step 4: Secure the hanger bracket to the ceiling outlet box using screws included with your outlet box and washers included with the fan.(Fig.8)Step 5: Now lift motor assembly into position and place downrod ball into hanger bracket. Rotate until the check groove has dropped into the registration slot and seats firmly. Rod should not rotate if this is done correctly(Fig.9)HANGING THE FAN4 WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safetyand the proper installation of your new ceiling fan. The use of other parts,hardware or components not supplied by Minka Aire with the fan willvoid the Minka Aire Warranty.
Hanger BallHitch PinClevis PinCanopyDownrodDownrodCoupler CoverCouplerSet Screw Hitch PinClevis PinBlade HolderOutlet BoxCoupling CoverCanopy capDownrodHanger BracketHanger BracketRegistration SlotWasherWasherScrewLock WasherFig.5 Fig.6 Fig.8 Fig.9Fig.7

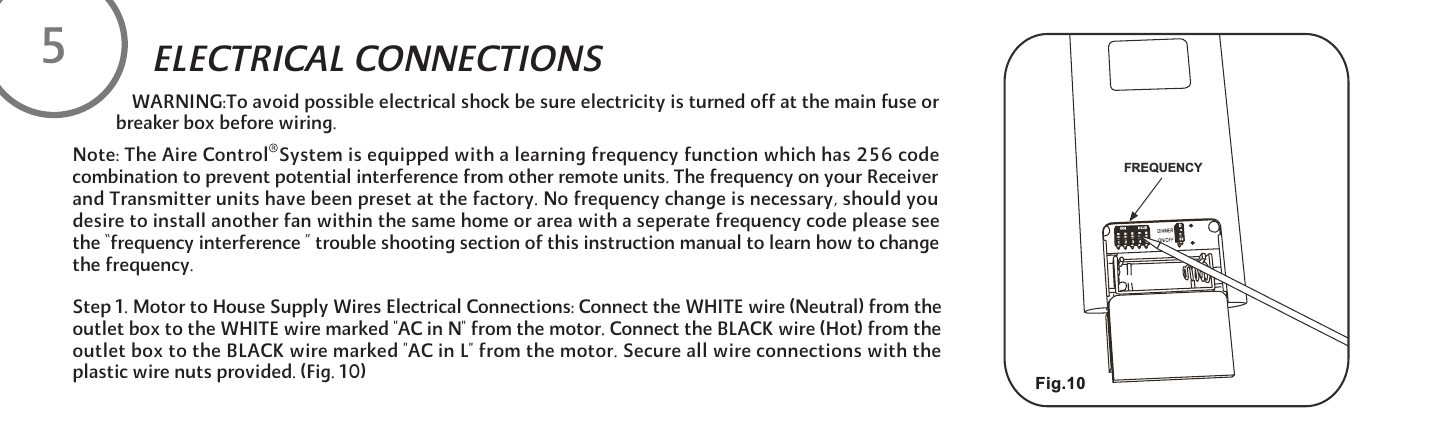

WARNING:To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring.Step 1. Motor to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the motor. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the motor. Secure all wire connections with the plastic wire nuts provided. (Fig. 10)ELECTRICAL CONNECTIONS 5Note: The Aire Control System is equipped with a learning frequency function which has 256 code combination to prevent potential interference from other remote units. The frequency on your Receiver and Transmitter units have been preset at the factory. No frequency change is necessary, should you desire to install another fan within the same home or area with a seperate frequency code please see the “frequency interference ” trouble shooting section of this instruction manual to learn how to change the frequency. Fig.10YCNEUQERF
