Fengmi YKF429-004 Bluetooth Remote Control User Manual

Fengmi(Beijing)Technology Co., Ltd Bluetooth Remote Control Users Manual

Users Manual

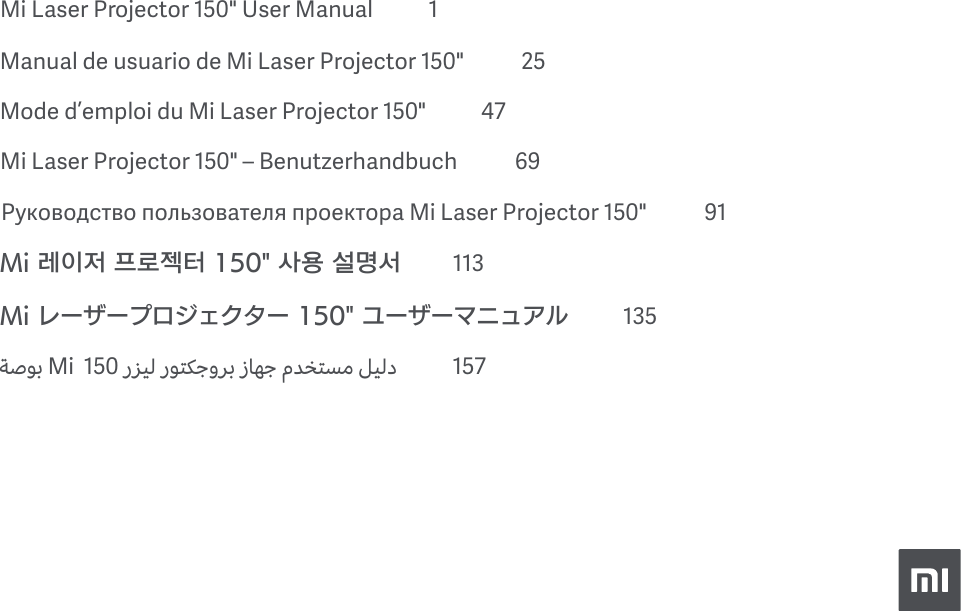

Mi Laser Projector 150" User Manual 1Manual de usuario de Mi Laser Projector 150" 25Mode d’emploi du Mi Laser Projector150" 47Mi Laser Projector 150" – Benutzerhandbuch 69Руководство пользователя проектора Mi Laser Projector 150" 91Mi 레이저 프로젝터 150" 사용 설명서 113Mi レーザープロジェクター 150" ユーザーマニュアル 135ﺔﺻﻮﺑ Mi 150 رﺰﻴﻟ رﻮﺘﻜﺟوﺮﺑ زﺎﻬﺟ مﺪﺨﺘﺴﻣ ﻞﻴﻟد 157

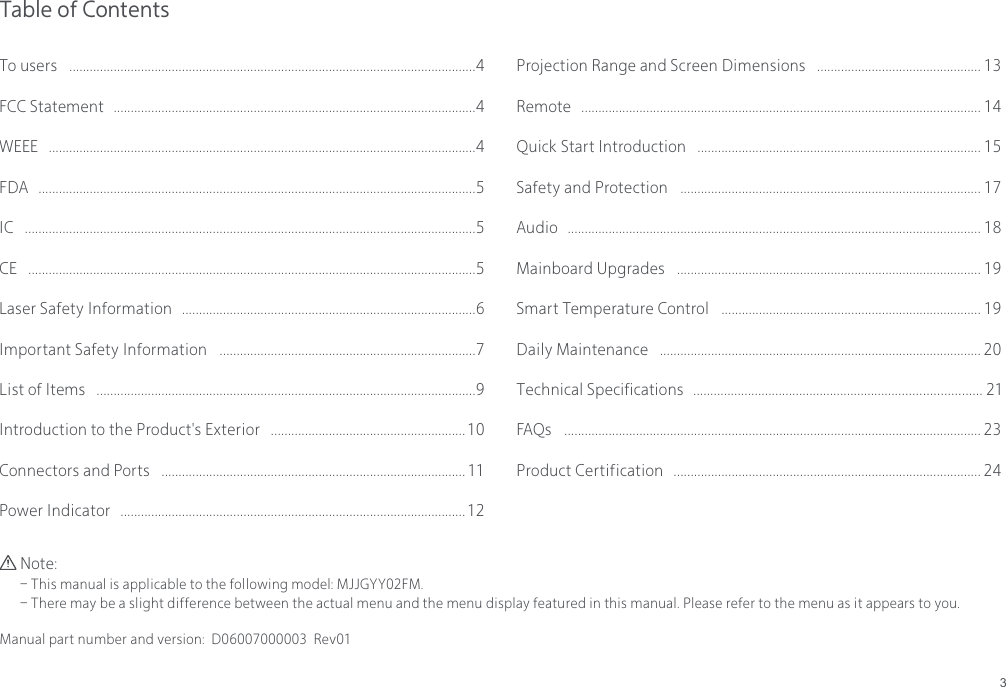

3Table of ContentsNote:- This manual is applicable to the following model: MJJGYY02FM.- There may be a slight difference between the actual menu and the menu display featured in this manual. Please refer to the menu as it appears to you.Manual part number and version: D06007000003 Rev01To users  .......................................................................................................................4FCC Statement  ..........................................................................................................4WEEE  .............................................................................................................................4FDA  ................................................................................................................................5IC  ....................................................................................................................................5CE  ...................................................................................................................................5Laser Safety Information  ......................................................................................6Important Safety Information  ...........................................................................7List of Items  ...............................................................................................................9Introduction to the Product's Exterior  ......................................................... 10Connectors and Ports  ......................................................................................... 11Power Indicator  ..................................................................................................... 12Projection Range and Screen Dimensions  ................................................ 13Remote  ..................................................................................................................... 14Quick Start Introduction  ................................................................................... 15Safety and Protection  ........................................................................................ 17Audio  ......................................................................................................................... 18Mainboard Upgrades  ......................................................................................... 19Smart Temperature Control  ............................................................................ 19Daily Maintenance  .............................................................................................. 20Technical Specifications .................................................................................... 21FAQs  .......................................................................................................................... 23Product Certification  .......................................................................................... 24

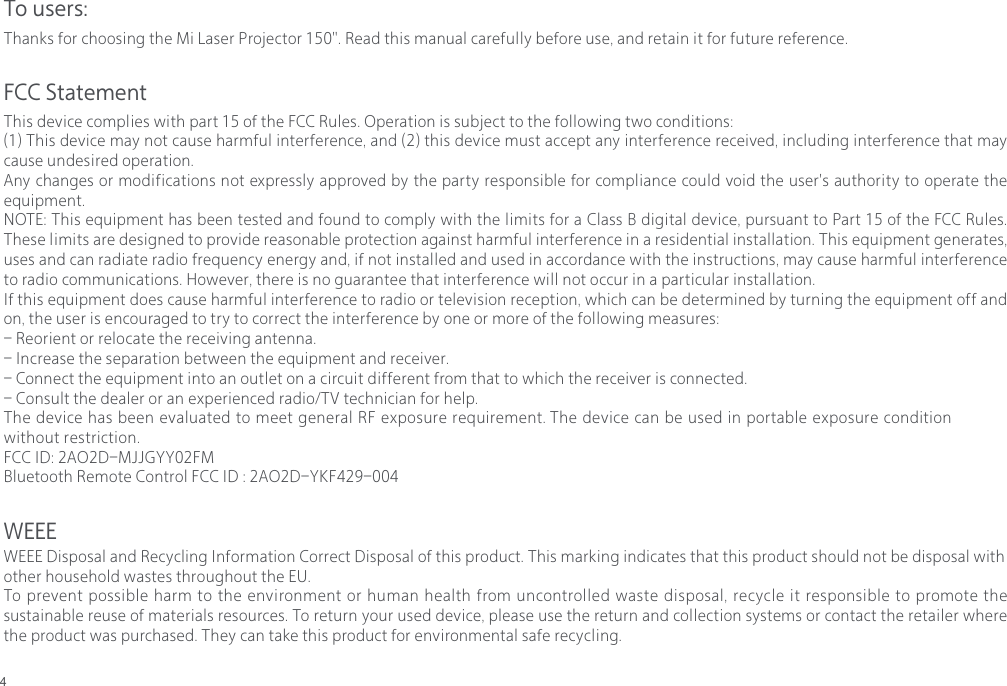

4To users:FCC StatementThanks for choosing the Mi Laser Projector 150". Read this manual carefully before use, and retain it for future reference.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.FCC ID: 2AO2D-MJJGYY02FMBluetooth Remote Control FCC ID : 2AO2D-YKF429-004 WEEEWEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

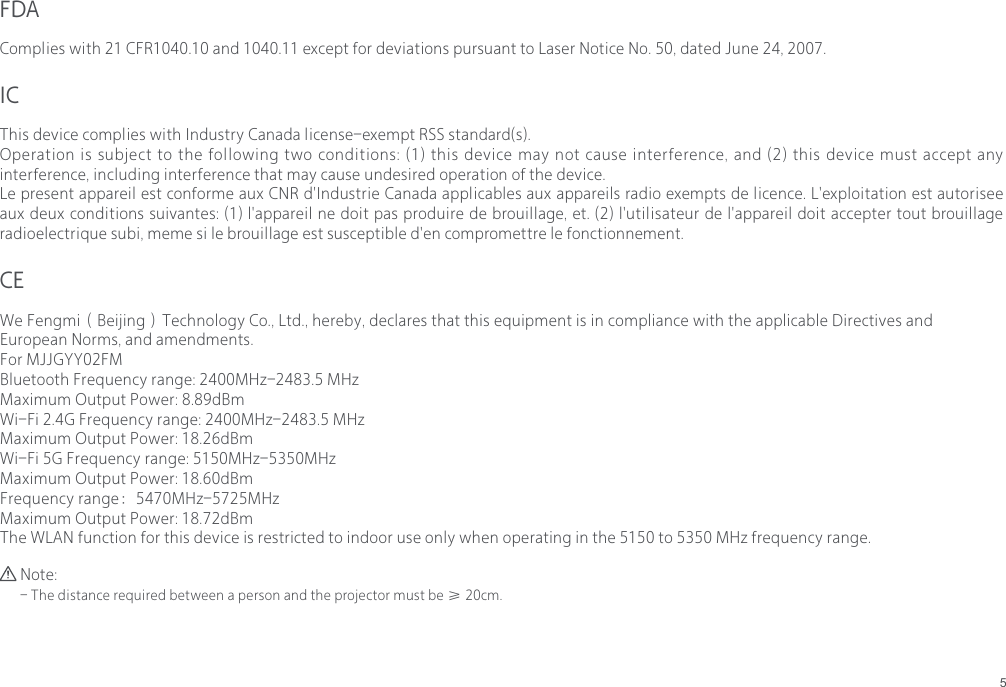

5FDACEICComplies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.We Fengmi（Beijing）Technology Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Directives and European Norms, and amendments.For MJJGYY02FMBluetooth Frequency range: 2400MHz-2483.5 MHzMaximum Output Power: 8.89dBmWi-Fi 2.4G Frequency range: 2400MHz-2483.5 MHzMaximum Output Power: 18.26dBmWi-Fi 5G Frequency range: 5150MHz-5350MHzMaximum Output Power: 18.60dBmFrequency range：5470MHz-5725MHzMaximum Output Power: 18.72dBmThe WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et. (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.Note:- The distance required between a person and the projector must be ≥ 20cm.

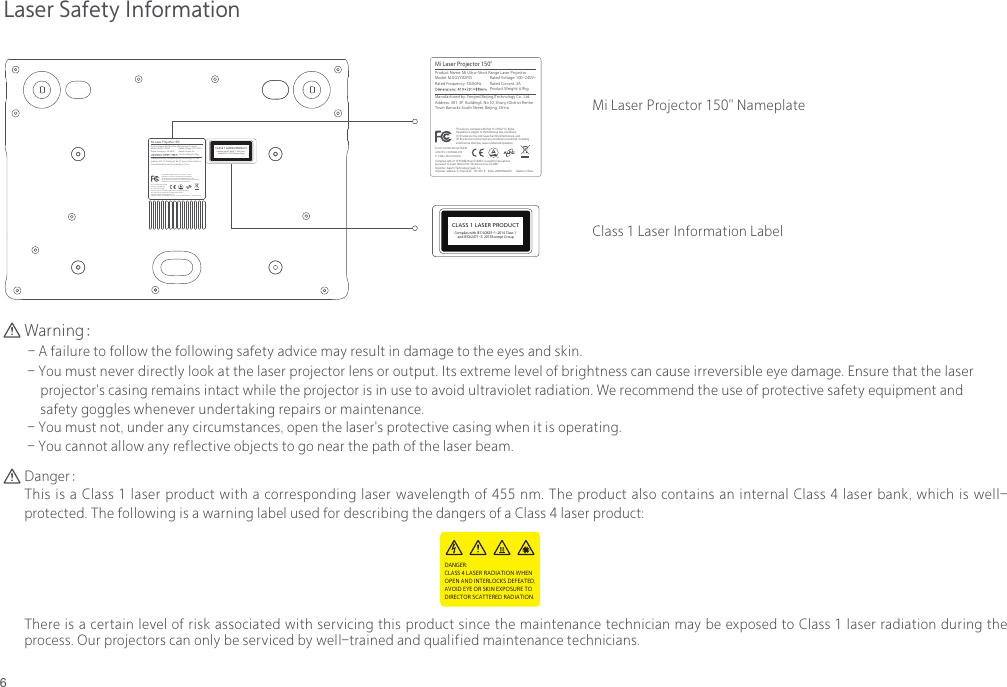

6Laser Safety InformationWarning： - A failure to follow the following safety advice may result in damage to the eyes and skin. - You must never directly look at the laser projector lens or output. Its extreme level of brightness can cause irreversible eye damage. Ensure that the laser projector's casing remains intact while the projector is in use to avoid ultraviolet radiation. We recommend the use of protective safety equipment and safety goggles whenever undertaking repairs or maintenance. - You must not, under any circumstances, open the laser's protective casing when it is operating. - You cannot allow any reflective objects to go near the path of the laser beam.Danger：This is a Class 1 laser product with a corresponding laser wavelength of 455 nm. The product also contains an internal Class 4 laser bank, which is well-protected. The following is a warning label used for describing the dangers of a Class 4 laser product: There is a certain level of risk associated with servicing this product since the maintenance technician may be exposed to Class 1 laser radiation during the process. Our projectors can only be serviced by well-trained and qualified maintenance technicians.DANGER:CLASS 4 LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED,AVOID EYE OR SKIN EXPOSURE TODIRECTOR SCATTERED RADIATION.CLASS 1 LASER PRODUCTComplies with IEC 60825-1: 2014 Class 1 and IEC62471-5: 2015Exempt GroupMi Laser Projector 150"Address: 301, 3F, Building3, No.10, Shunyi District Renhe Town Barracks South Street, Beijing, ChinaManufactured by: Fengmi(Beijing)Technology Co., Ltd.Model: MJJGYY02FM Rated Voltage: 100-240V~Product Name: Mi Ultra-Short Range Laser ProjectorRated Frequency: 50/60HzProduct Weight: 6.9kgRated Current: 3AFCC ID: 2AO2D-MJJGYY02FMCAN ICES-3 (B)/NMB-3(B)Complies with 21 CFR1040.10 and 1040.11 except for deviationspursuant to Laser Notice No. 50, dated June 24, 2007Importer address: C/.Orense N.°70-Ofic. 8° Dcha, 28020 MadridImporter: Xiaomi Technology Spain, S.L.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.Made in ChinaIC: 23681-MJJGYY02FMMi Laser Projector 150" NameplateClass 1 Laser Information LabelCLASS 1 LASER PRODUCTComplies with IEC 60825-1: 2014 Class 1 and IEC62471-5: 2015Exempt GroupMi Laser Projector 150"Address: 301, 3F, Building3, No.10, Shunyi District Renhe Town Barracks South Street, Beijing, ChinaManufactured by: Fengmi(Beijing)Technology Co., Ltd.Model: MJJGYY02FM Rated Voltage: 100-240V~Product Name: Mi Ultra-Short Range Laser ProjectorRated Frequency: 50/60HzProduct Weight: 6.9kgRated Current: 3AFCC ID: 2AO2D-MJJGYY02FMCAN ICES-3 (B)/NMB-3(B)Complies with 21 CFR1040.10 and 1040.11 except for deviationspursuant to Laser Notice No. 50, dated June 24, 2007Importer address: C/.Orense N.°70-Ofic. 8° Dcha, 28020 MadridImporter: Xiaomi Technology Spain, S.L.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.Made in ChinaIC: 23681-MJJGYY02FM

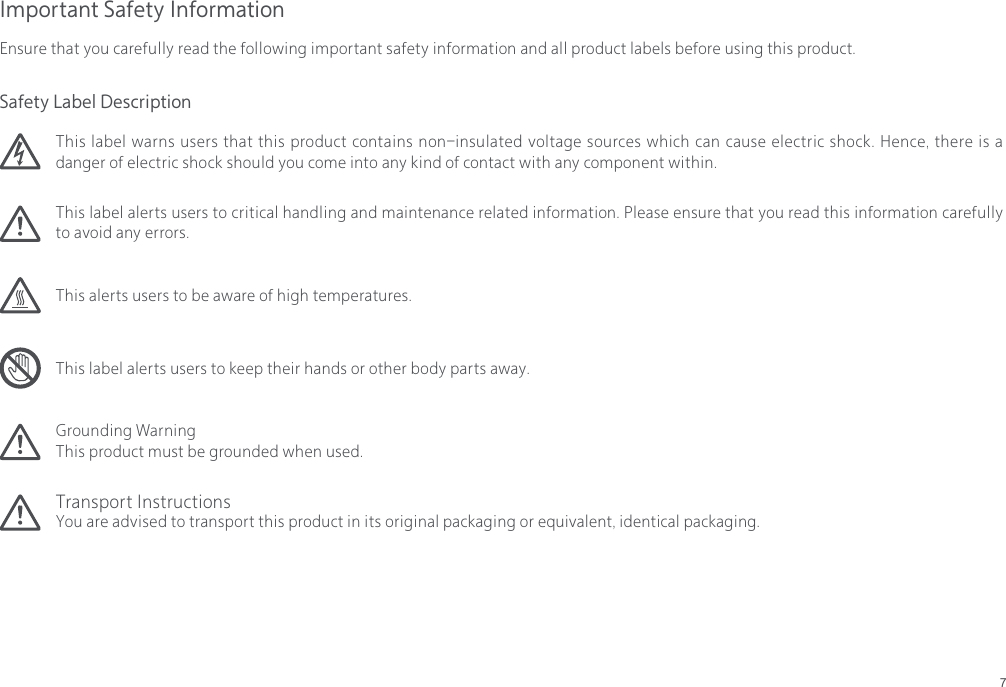

7Grounding WarningThis product must be grounded when used.Transport InstructionsYou are advised to transport this product in its original packaging or equivalent, identical packaging.Important Safety InformationEnsure that you carefully read the following important safety information and all product labels before using this product.This label warns users that this product contains non-insulated voltage sources which can cause electric shock. Hence, there is a danger of electric shock should you come into any kind of contact with any component within.This alerts users to be aware of high temperatures.This label alerts users to critical handling and maintenance related information. Please ensure that you read this information carefully to avoid any errors.This label alerts users to keep their hands or other body parts away.Safety Label Description

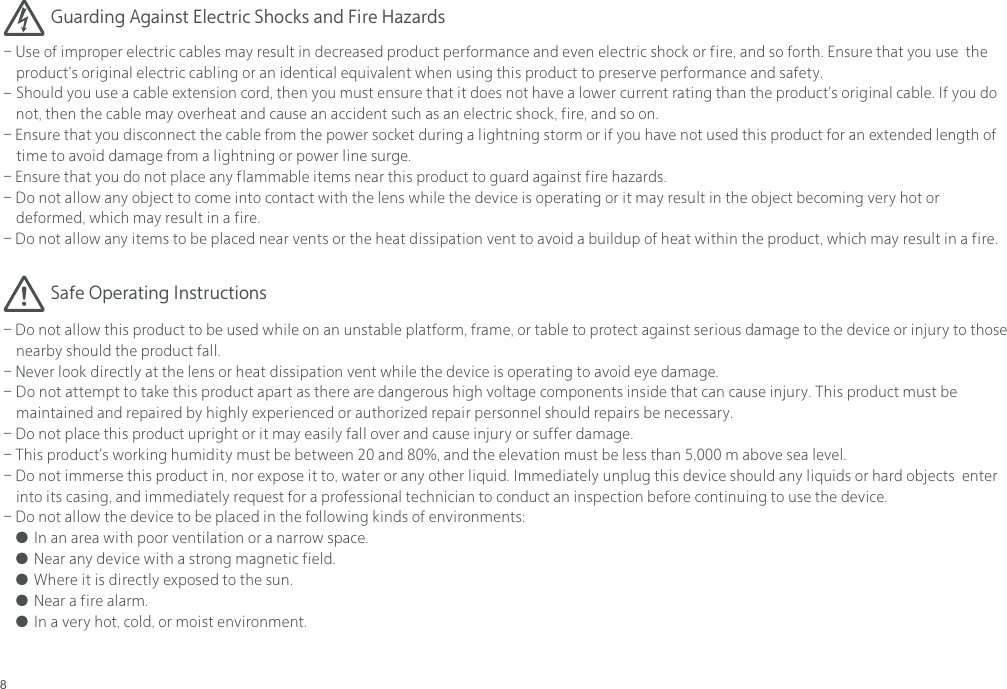

8- Use of improper electric cables may result in decreased product performance and even electric shock or fire, and so forth. Ensure that you use the product's original electric cabling or an identical equivalent when using this product to preserve performance and safety.- Should you use a cable extension cord, then you must ensure that it does not have a lower current rating than the product's original cable. If you do not, then the cable may overheat and cause an accident such as an electric shock, fire, and so on.- Ensure that you disconnect the cable from the power socket during a lightning storm or if you have not used this product for an extended length of time to avoid damage from a lightning or power line surge.- Ensure that you do not place any flammable items near this product to guard against fire hazards.- Do not allow any object to come into contact with the lens while the device is operating or it may result in the object becoming very hot or deformed, which may result in a fire.- Do not allow any items to be placed near vents or the heat dissipation vent to avoid a buildup of heat within the product, which may result in a fire.- Do not allow this product to be used while on an unstable platform, frame, or table to protect against serious damage to the device or injury to those nearby should the product fall.- Never look directly at the lens or heat dissipation vent while the device is operating to avoid eye damage.- Do not attempt to take this product apart as there are dangerous high voltage components inside that can cause injury. This product must be maintained and repaired by highly experienced or authorized repair personnel should repairs be necessary.- Do not place this product upright or it may easily fall over and cause injury or suffer damage.- This product's working humidity must be between 20 and 80%, and the elevation must be less than 5,000 m above sea level.- Do not immerse this product in, nor expose it to, water or any other liquid. Immediately unplug this device should any liquids or hard objects enter into its casing, and immediately request for a professional technician to conduct an inspection before continuing to use the device.- Do not allow the device to be placed in the following kinds of environments:● In an area with poor ventilation or a narrow space.● Near any device with a strong magnetic field.● Where it is directly exposed to the sun.● Near a fire alarm. ● In a very hot, cold, or moist environment.Safe Operating InstructionsGuarding Against Electric Shocks and Fire Hazards

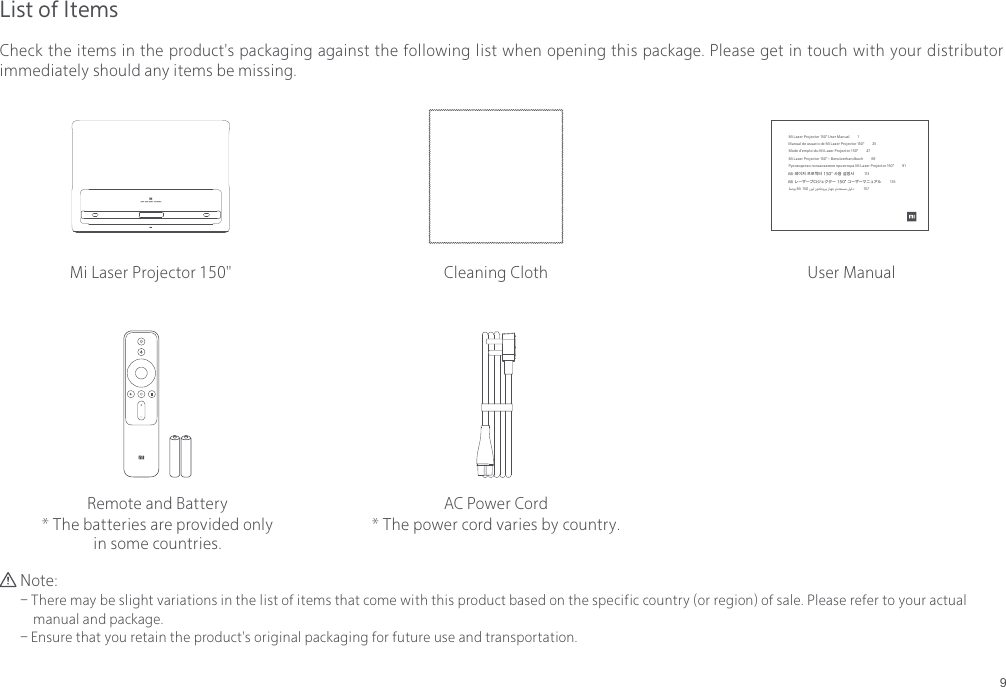

9List of ItemsCheck the items in the product's packaging against the following list when opening this package. Please get in touch with your distributor immediately should any items be missing. Note:- There may be slight variations in the list of items that come with this product based on the specific country (or region) of sale. Please refer to your actual manual and package.- Ensure that you retain the product's original packaging for future use and transportation.AC Power Cord* The power cord varies by country.Mi Laser Projector 150" User ManualCleaning ClothRemote and Battery* The batteries are provided only in some countries.Mi Laser Projector 150" User Manual 1 Manual de usuario de Mi Laser Projector 150" 25Mode d’emploi du Mi Laser Projector150" 47Mi Laser Projector 150" – Benutzerhandbuch 69Руководство пользователя проектора Mi Laser Projector 150" 91Mi 레이저 프로젝터 150" 사용 설명서 113 Mi レーザープロジェクター 150" ユーザーマニュアル 135 ﺔﺻﻮﺑ Mi 150 رﺰﻴﻟ رﻮﺘﻜﺟوﺮﺑ زﺎﻬﺟ مﺪﺨﺘﺴﻣ ﻞﻴﻟد 157

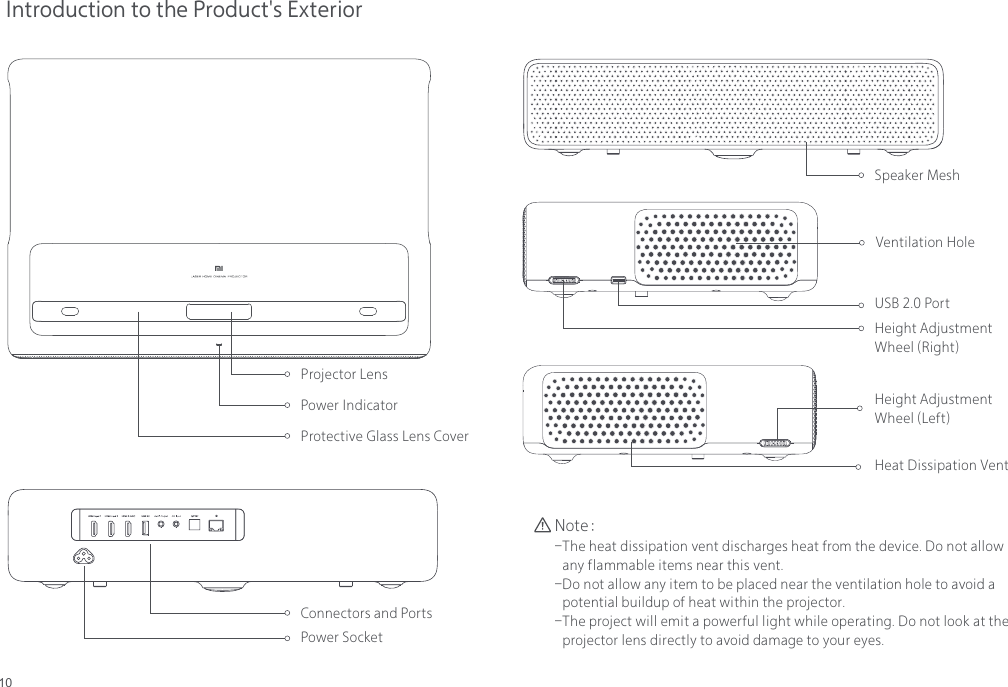

10Introduction to the Product's ExteriorProjector LensPower IndicatorProtective Glass Lens CoverSpeaker MeshConnectors and PortsPower SocketHeat Dissipation VentHeight Adjustment Wheel (Left)Ventilation HoleHeight Adjustment Wheel (Right)USB 2.0 PortNote：-The heat dissipation vent discharges heat from the device. Do not allow any flammable items near this vent.-Do not allow any item to be placed near the ventilation hole to avoid a potential buildup of heat within the projector.-The project will emit a powerful light while operating. Do not look at the projector lens directly to avoid damage to your eyes.

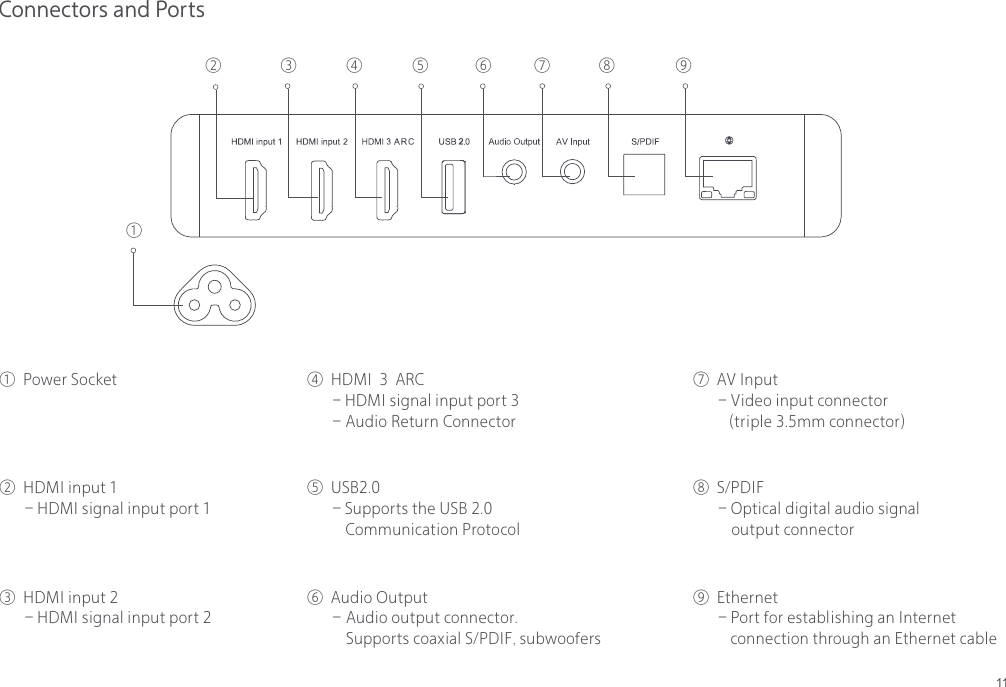

11Connectors and Ports②①③ ④ ⑤ ⑥ ⑦ ⑧ ⑨① Power Socket⑥ Audio Output- Audio output connector. Supports coaxial S/PDIF, subwoofers ⑦ AV Input- Video input connector (triple 3.5mm connector) ⑧ S/PDIF- Optical digital audio signal output connector⑨ Ethernet- Port for establishing an Internet connection through an Ethernet cable② HDMI input 1- HDMI signal input port 1③ HDMI input 2- HDMI signal input port 2④ HDMI 3 ARC- HDMI signal input port 3- Audio Return Connector⑤ USB2.0- Supports the USB 2.0 Communication Protocol

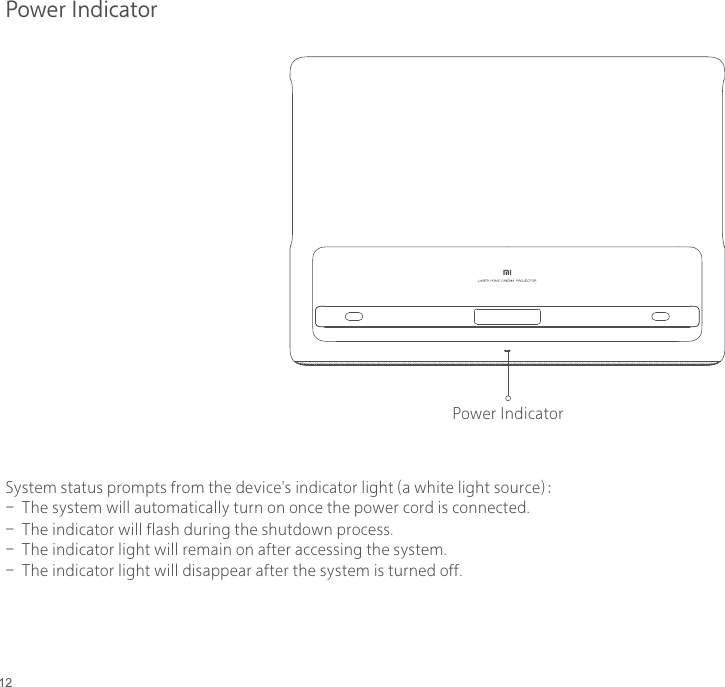

12Power IndicatorSystem status prompts from the device's indicator light (a white light source)： - The system will automatically turn on once the power cord is connected. - The indicator will flash during the shutdown process.- The indicator light will remain on after accessing the system.- The indicator light will disappear after the system is turned off.Power Indicator

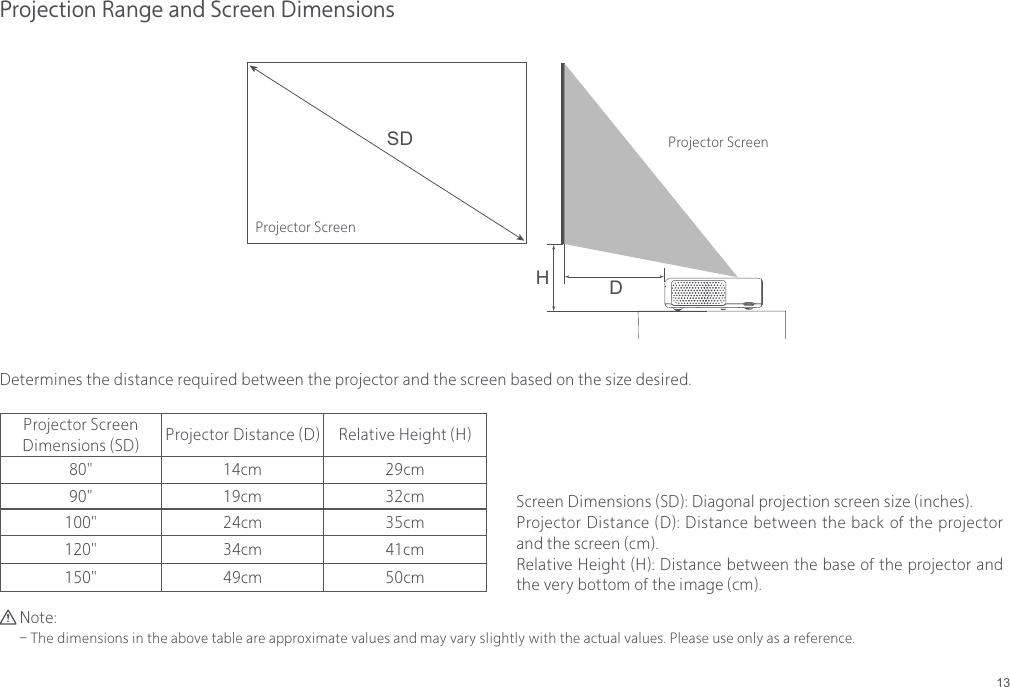

13Projection Range and Screen DimensionsDetermines the distance required between the projector and the screen based on the size desired.Screen Dimensions (SD): Diagonal projection screen size (inches).Projector Distance (D): Distance between the back of the projector and the screen (cm).Relative Height (H): Distance between the base of the projector and the very bottom of the image (cm).Projector Screen Dimensions (SD) Projector Distance (D) Relative Height (H)80" 14cm 29cm90" 19cm 32cm100" 24cm 35cm120" 34cm 41cm150" 49cm 50cmSDDHProjector ScreenProjector ScreenNote:- The dimensions in the above table are approximate values and may vary slightly with the actual values. Please use only as a reference.

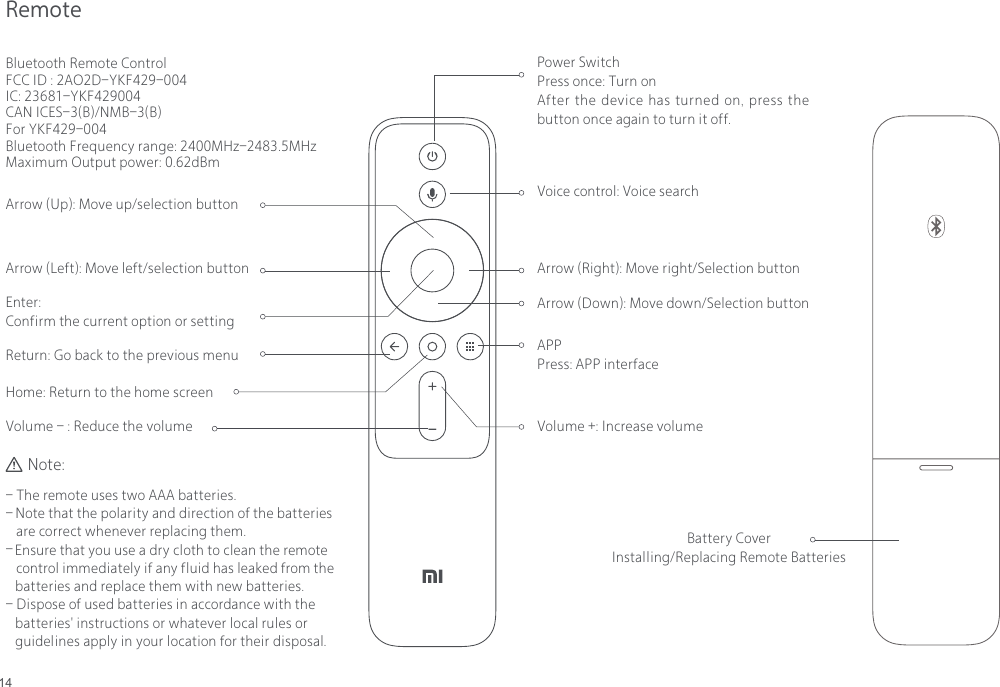

14RemotePower SwitchPress once: Turn onAfter the device has turned on, press the button once again to turn it off.Voice control: Voice searchArrow (Up): Move up/selection buttonBluetooth Remote Control FCC ID : 2AO2D-YKF429-004 IC: 23681-YKF429004CAN ICES-3(B)/NMB-3(B)For YKF429-004Bluetooth Frequency range: 2400MHz-2483.5MHzMaximum Output power: 0.62dBmArrow (Left): Move left/selection button Arrow (Right): Move right/Selection buttonArrow (Down): Move down/Selection buttonAPP Press: APP interfaceEnter: Confirm the current option or settingHome: Return to the home screenReturn: Go back to the previous menuVolume - : Reduce the volume Volume +: Increase volumeBattery CoverInstalling/Replacing Remote Batteries- The remote uses two AAA batteries.- Note that the polarity and direction of the batteries are correct whenever replacing them.- Ensure that you use a dry cloth to clean the remote control immediately if any fluid has leaked from the batteries and replace them with new batteries.- Dispose of used batteries in accordance with the batteries' instructions or whatever local rules or guidelines apply in your location for their disposal.Note:

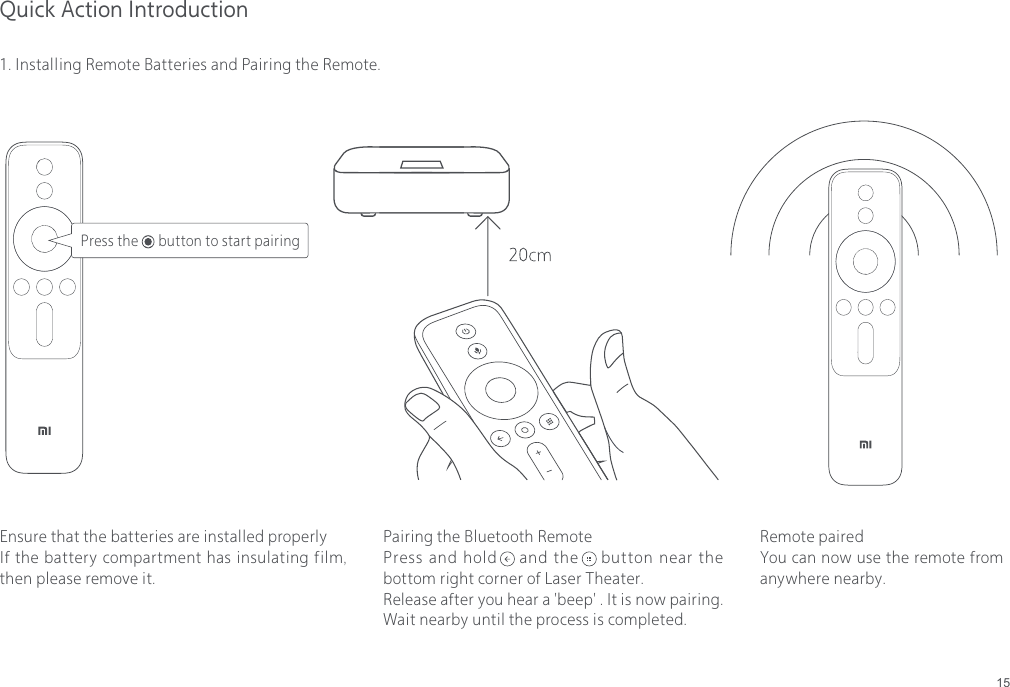

15Quick Action Introduction1. Installing Remote Batteries and Pairing the Remote.Ensure that the batteries are installed properlyIf the battery compartment has insulating film, then please remove it.Remote pairedYou can now use the remote from anywhere nearby.Pairing the Bluetooth RemotePress and hold and the button near the bottom right corner of Laser Theater.Release after you hear a 'beep' . It is now pairing. Wait nearby until the process is completed.Press the button to start pairing

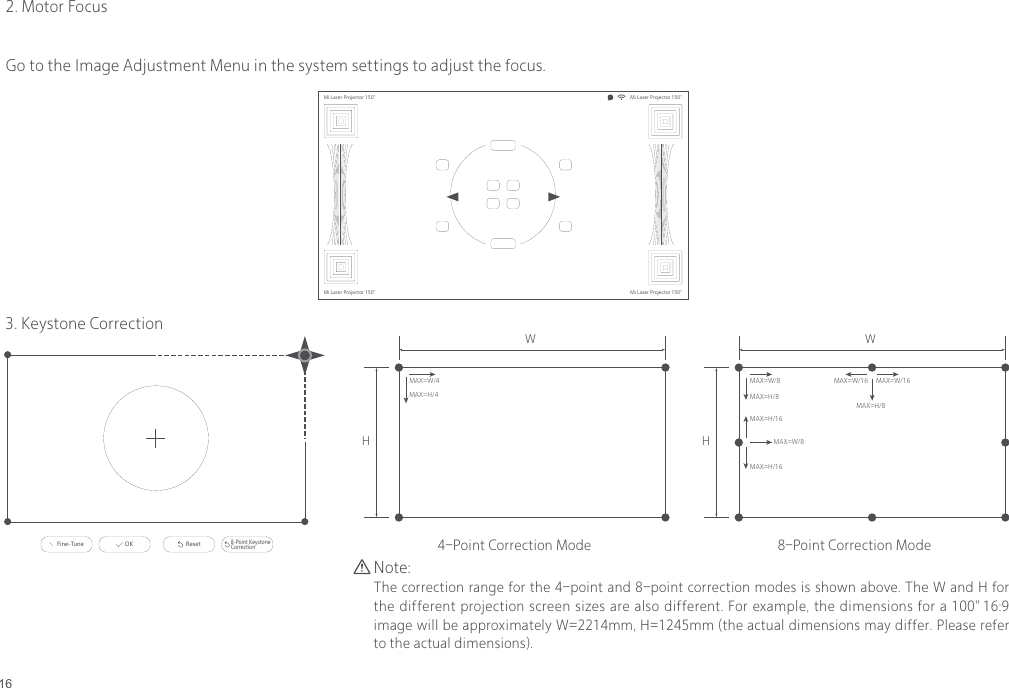

162. Motor FocusMi Laser Projector 150" Mi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150"8-Point Keystone CorrectionResetFine-Tune OKMi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150" Mi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150"8-Point Keystone CorrectionResetFine-Tune OKMi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150"Mi Laser Projector 150"3. Keystone CorrectionNote:The correction range for the 4-point and 8-point correction modes is shown above. The W and H for the different projection screen sizes are also different. For example, the dimensions for a 100" 16:9 image will be approximately W=2214mm, H=1245mm (the actual dimensions may differ. Please refer to the actual dimensions).WMAX=W/4MAX=H/4HWMAX=W/8MAX=H/16MAX=W/8MAX=H/16MAX=W/16MAX=H/8MAX=W/16MAX=H/8H4-Point Correction Mode 8-Point Correction ModeGo to the Image Adjustment Menu in the system settings to adjust the focus.

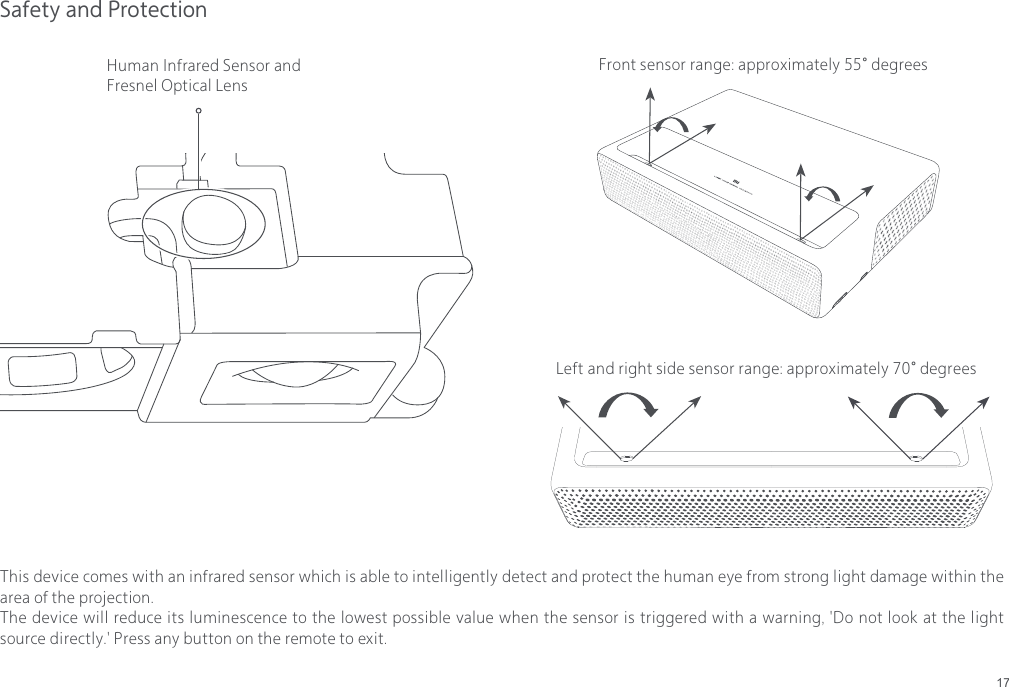

17Safety and ProtectionThis device comes with an infrared sensor which is able to intelligently detect and protect the human eye from strong light damage within the area of the projection.The device will reduce its luminescence to the lowest possible value when the sensor is triggered with a warning, 'Do not look at the light source directly.' Press any button on the remote to exit.Human Infrared Sensor and Fresnel Optical LensFront sensor range: approximately 55° degreesLeft and right side sensor range: approximately 70° degrees
18AudioHigh Frequency Speaker High Frequency SpeakerFull Range Speaker Full Range SpeakerAudio AudioThe projector has four built-in, high-quality speakers with approximately 30w total output. It can be used as a stand-alone Bluetooth stereo.

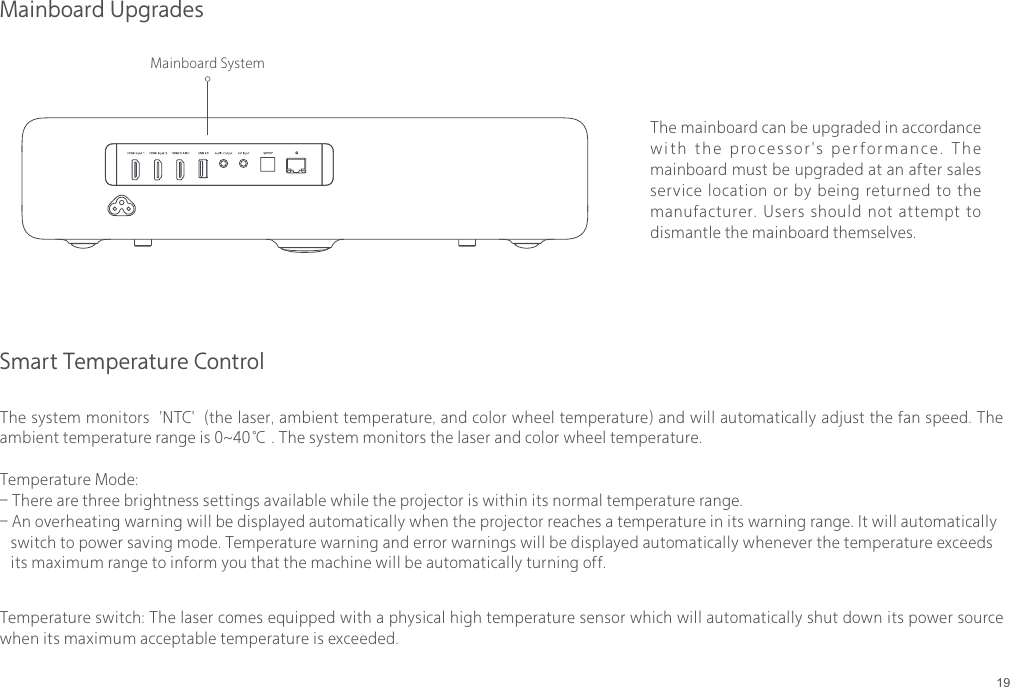

19Mainboard UpgradesThe mainboard can be upgraded in accordance with the processor's performance. The mainboard must be upgraded at an after sales service location or by being returned to the manufacturer. Users should not attempt to dismantle the mainboard themselves.Mainboard SystemSmart Temperature ControlThe system monitors 'NTC' (the laser, ambient temperature, and color wheel temperature) and will automatically adjust the fan speed. The ambient temperature range is 0~40℃ . The system monitors the laser and color wheel temperature.Temperature Mode:- There are three brightness settings available while the projector is within its normal temperature range.- An overheating warning will be displayed automatically when the projector reaches a temperature in its warning range. It will automatically switch to power saving mode. Temperature warning and error warnings will be displayed automatically whenever the temperature exceeds its maximum range to inform you that the machine will be automatically turning off.Temperature switch: The laser comes equipped with a physical high temperature sensor which will automatically shut down its power source when its maximum acceptable temperature is exceeded.

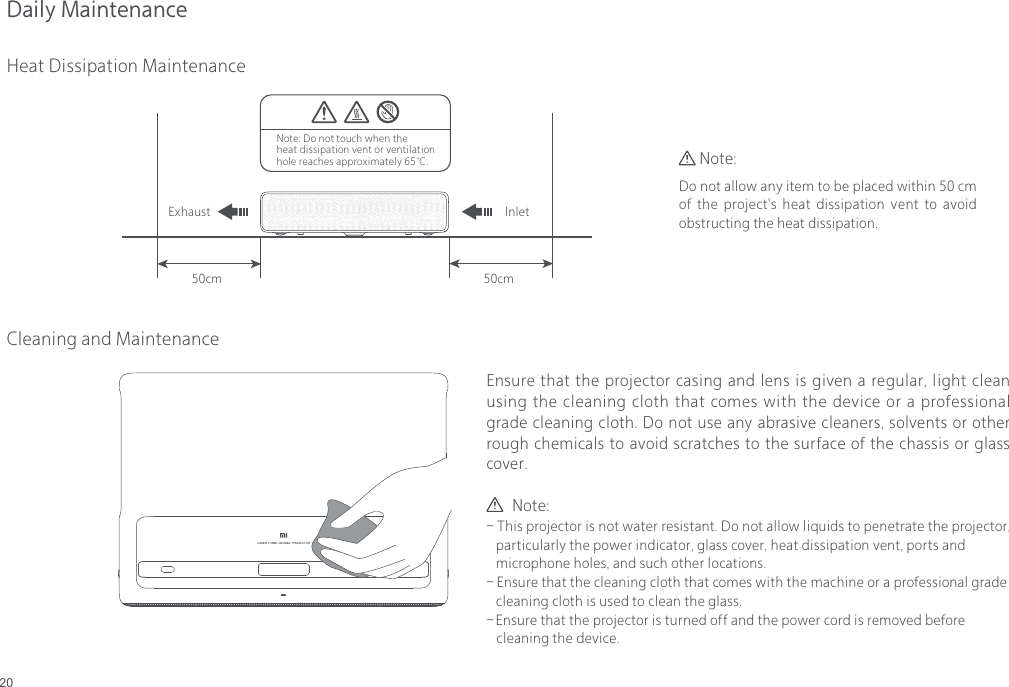

20Daily MaintenanceHeat Dissipation Maintenance50cmInletExhaust50cmNote: Do not touch when the heat dissipation vent or ventilation hole reaches approximately 65℃.Cleaning and MaintenanceEnsure that the projector casing and lens is given a regular, light clean using the cleaning cloth that comes with the device or a professional grade cleaning cloth. Do not use any abrasive cleaners, solvents or other rough chemicals to avoid scratches to the surface of the chassis or glass cover.Do not allow any item to be placed within 50 cm of the project's heat dissipation vent to avoid obstructing the heat dissipation.Note: Note:- This projector is not water resistant. Do not allow liquids to penetrate the projector, particularly the power indicator, glass cover, heat dissipation vent, ports and microphone holes, and such other locations.- Ensure that the cleaning cloth that comes with the machine or a professional grade cleaning cloth is used to clean the glass.- Ensure that the projector is turned off and the power cord is removed before cleaning the device.
21Technical SpecificationsBasic Information Model Mi Laser Projector 150" Dimensions 410mm×291mm×88mm Weight 6.9kgBasic Functions Lens focus Motor focus Dust cover Glass Dust CoverOptical Parameters Display technology 0.47"DMD Light technology ALPD Standard resolution Full HD (1920×1080)Projection Parameters Frame refresh rate 60/120Hz (1920×1080@60Hz is recommended for best results) Lens focal length 18.08mm Projection ratio (TR) 0.233 Picture size 80"-150" Keystone correction 8-Point Keystone Correction, 4-Point Keystone CorrectionSystem Parameters CPU T962X Cortex-A53 Four 1.8gHz cores/64 bit RAM 2G DDR4 Built-in storage 16GB eMMC high speed flash memorySystem Software Operating system Google Android System Compatibility Google Android Player APP Store Google Play Store AV wireless transmission Chrome Cast Brightness mode Dynamic, movie, standard Dynamic image Supports HDRAudio Speaker stereo Full range×2 + high-frequency×2 (Total ≈ 30w)

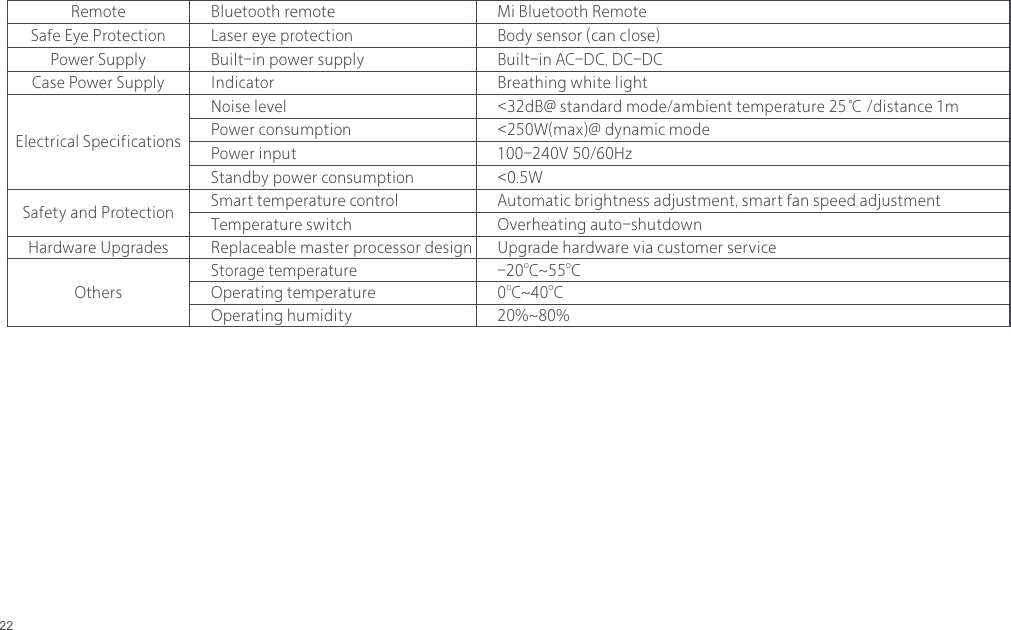

22Remote Bluetooth remote Mi Bluetooth RemoteSafe Eye Protection Laser eye protection Body sensor (can close)Power Supply Built-in power supply Built-in AC-DC, DC-DCCase Power Supply Indicator Breathing white lightElectrical Specifications Noise level <32dB@ standard mode/ambient temperature 25℃ /distance 1m Power consumption <250W(max)@ dynamic mode Power input 100-240V 50/60Hz Standby power consumption <0.5WSafety and Protection Smart temperature control Automatic brightness adjustment, smart fan speed adjustment Temperature switch Overheating auto-shutdown Hardware Upgrades Replaceable master processor design Upgrade hardware via customer serviceOthers Storage temperature -20oC~55oC Operating temperature 0oC~40oC Operating humidity 20%~80%

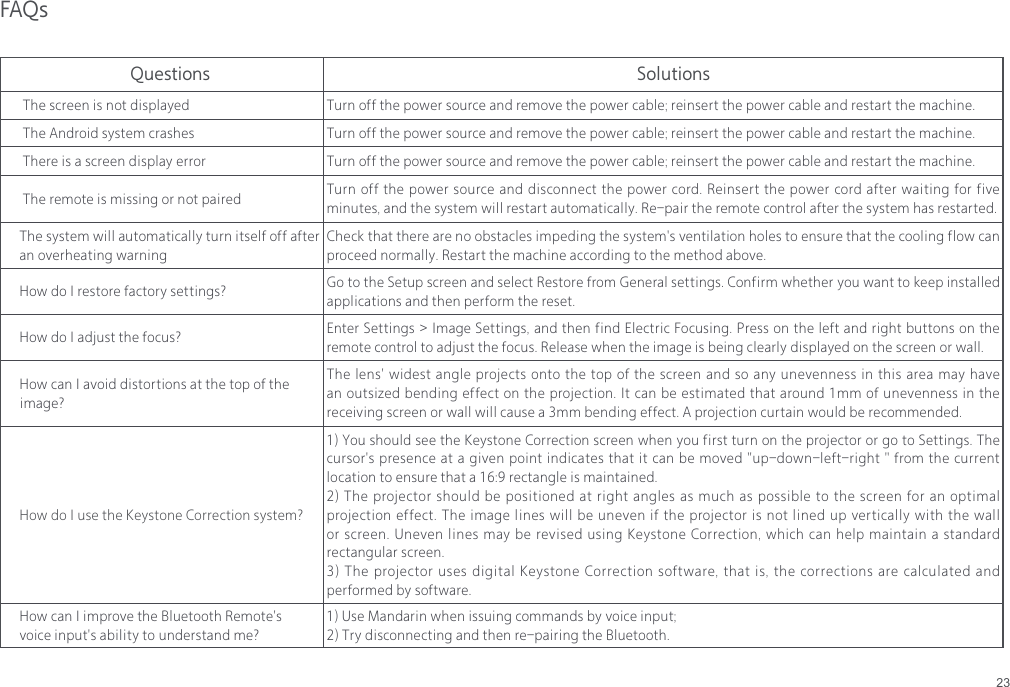

23FAQs Questions Solutions The screen is not displayed Turn off the power source and remove the power cable; reinsert the power cable and restart the machine. The Android system crashes Turn off the power source and remove the power cable; reinsert the power cable and restart the machine. There is a screen display error Turn off the power source and remove the power cable; reinsert the power cable and restart the machine. The remote is missing or not paired Turn off the power source and disconnect the power cord. Reinsert the power cord after waiting for five minutes, and the system will restart automatically. Re-pair the remote control after the system has restarted. The system will automatically turn itself off after an overheating warningCheck that there are no obstacles impeding the system's ventilation holes to ensure that the cooling flow can proceed normally. Restart the machine according to the method above. How do I restore factory settings? Go to the Setup screen and select Restore from General settings. Confirm whether you want to keep installed applications and then perform the reset. How do I adjust the focus? Enter Settings > Image Settings, and then find Electric Focusing. Press on the left and right buttons on the remote control to adjust the focus. Release when the image is being clearly displayed on the screen or wall. How can I avoid distortions at the top of the image?The lens' widest angle projects onto the top of the screen and so any unevenness in this area may have an outsized bending effect on the projection. It can be estimated that around 1mm of unevenness in the receiving screen or wall will cause a 3mm bending effect. A projection curtain would be recommended. How do I use the Keystone Correction system?1) You should see the Keystone Correction screen when you first turn on the projector or go to Settings. The cursor's presence at a given point indicates that it can be moved "up-down-left-right " from the current location to ensure that a 16:9 rectangle is maintained. 2) The projector should be positioned at right angles as much as possible to the screen for an optimalprojection effect. The image lines will be uneven if the projector is not lined up vertically with the wall or screen. Uneven lines may be revised using Keystone Correction, which can help maintain a standard rectangular screen. 3) The projector uses digital Keystone Correction software, that is, the corrections are calculated andperformed by software. How can I improve the Bluetooth Remote's voice input's ability to understand me?1) Use Mandarin when issuing commands by voice input; 2) Try disconnecting and then re-pairing the Bluetooth.

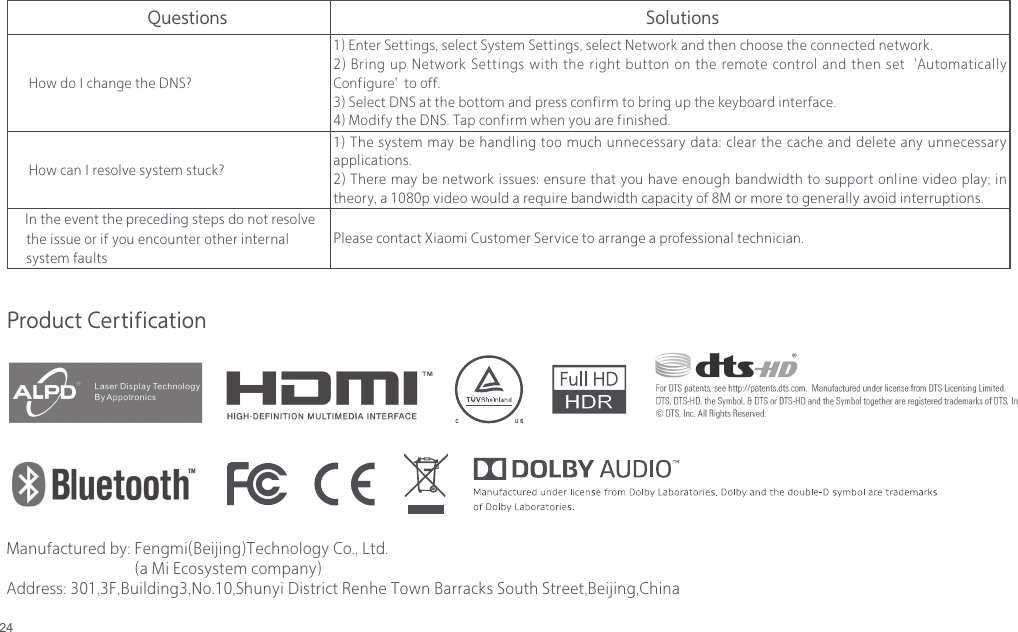

24 Questions Solutions How do I change the DNS?1) Enter Settings, select System Settings, select Network and then choose the connected network.2) Bring up Network Settings with the right button on the remote control and then set 'AutomaticallyConfigure' to off.3) Select DNS at the bottom and press confirm to bring up the keyboard interface.4) Modify the DNS. Tap confirm when you are finished. How can I resolve system stuck?1) The system may be handling too much unnecessary data: clear the cache and delete any unnecessaryapplications.2) There may be network issues: ensure that you have enough bandwidth to support online video play; intheory, a 1080p video would a require bandwidth capacity of 8M or more to generally avoid interruptions. In the event the preceding steps do not resolve the issue or if you encounter other internal system faultsPlease contact Xiaomi Customer Service to arrange a professional technician.Product CertificationManufactured by: Fengmi(Beijing)Technology Co., Ltd.(a Mi Ecosystem company)Address: 301,3F,Building3,No.10,Shunyi District Renhe Town Barracks South Street,Beijing,China
