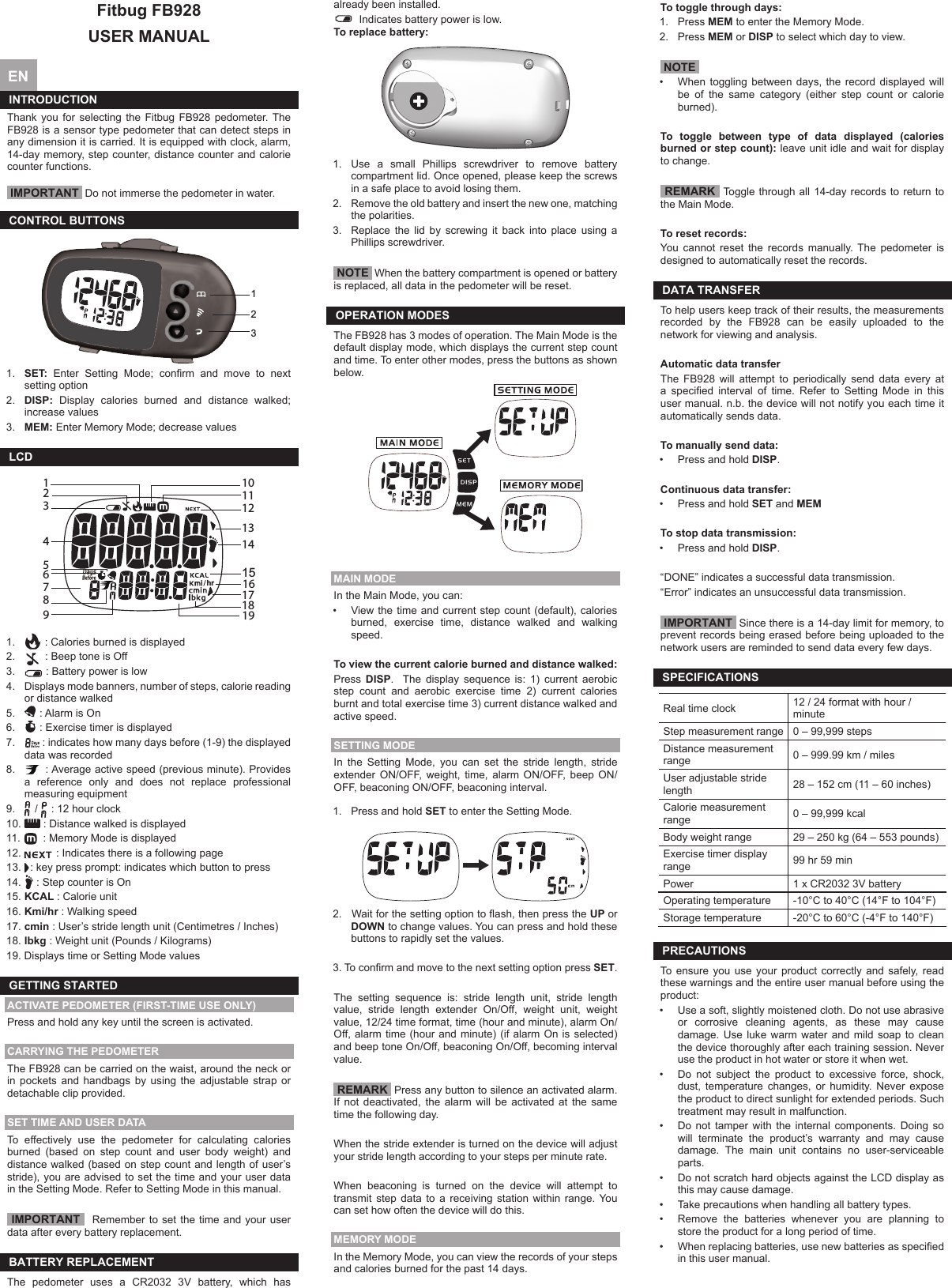

Fitbug FB928 Pedometer User Manual

Fitbug Ltd. Pedometer

User Manual

Fitbug FB928USER MANUAL EN INTRODUCTION Thank you for selecting the Fitbug FB928 pedometer. The FB928 is a sensor type pedometer that can detect steps in any dimension it is carried. It is equipped with clock, alarm, 14-day memory, step counter, distance counter and calorie counter functions. IMPORTANT Do not immerse the pedometer in water.CONTROL BUTTONS1231. SET: Enter Setting Mode; conrm and move to next setting option2. DISP: Display calories burned and distance walked; increase values3. MEM: Enter Memory Mode; decrease valuesLCD110111213234789651415181719hr 161. : Calories burned is displayed2. : Beep tone is Off3. : Battery power is low4. Displays mode banners, number of steps, calorie reading or distance walked 5. : Alarm is On6. : Exercise timer is displayed7. : indicates how many days before (1-9) the displayed data was recorded8. : Average active speed (previous minute). Provides a reference only and does not replace professional measuring equipment9. / : 12 hour clock10. : Distance walked is displayed11. : Memory Mode is displayed 12. : Indicates there is a following page13. : key press prompt: indicates which button to press14. : Step counter is On15. KCAL : Calorie unit16. Kmi/hr : Walking speed17. cmin : User’s stride length unit (Centimetres / Inches)18. lbkg : Weight unit (Pounds / Kilograms)19. Displays time or Setting Mode valuesGETTING STARTEDACTIVATE PEDOMETER (FIRST-TIME USE ONLY)Press and hold any key until the screen is activated. CARRYING THE PEDOMETERThe FB928 can be carried on the waist, around the neck or in pockets and handbags by using the adjustable strap or detachable clip provided. SET TIME AND USER DATATo effectively use the pedometer for calculating calories burned (based on step count and user body weight) and distance walked (based on step count and length of user’s stride), you are advised to set the time and your user data in the Setting Mode. Refer to Setting Mode in this manual. IMPORTANT Remember to set the time and your user data after every battery replacement.BATTERY REPLACEMENTThe pedometer uses a CR2032 3V battery, which has already been installed. Indicates battery power is low. To replace battery:1. Use a small Phillips screwdriver to remove battery compartment lid. Once opened, please keep the screws in a safe place to avoid losing them.2. Remove the old battery and insert the new one, matching the polarities.3. Replace the lid by screwing it back into place using a Phillips screwdriver. NOTE When the battery compartment is opened or battery is replaced, all data in the pedometer will be reset.OPERATION MODESThe FB928 has 3 modes of operation. The Main Mode is the default display mode, which displays the current step count and time. To enter other modes, press the buttons as shown below.MAIN MODEIn the Main Mode, you can:• View the time and current step count (default), calories burned, exercise time, distance walked and walking speed.To view the current calorie burned and distance walked:Press DISP. The display sequence is: 1) current aerobic step count and aerobic exercise time 2) current calories burnt and total exercise time 3) current distance walked and active speed.SETTING MODEIn the Setting Mode, you can set the stride length, stride extender ON/OFF, weight, time, alarm ON/OFF, beep ON/OFF, beaconing ON/OFF, beaconing interval.1. Press and hold SET to enter the Setting Mode.2. Wait for the setting option to ash, then press the UP or DOWN to change values. You can press and hold these buttons to rapidly set the values.3. To conrm and move to the next setting option press SET.The setting sequence is: stride length unit, stride length value, stride length extender On/Off, weight unit, weight value, 12/24 time format, time (hour and minute), alarm On/Off, alarm time (hour and minute) (if alarm On is selected) and beep tone On/Off, beaconing On/Off, becoming interval value. REMARK Press any button to silence an activated alarm. If not deactivated, the alarm will be activated at the same time the following day.When the stride extender is turned on the device will adjust your stride length according to your steps per minute rate.When beaconing is turned on the device will attempt to transmit step data to a receiving station within range. You can set how often the device will do this.MEMORY MODEIn the Memory Mode, you can view the records of your steps and calories burned for the past 14 days.To toggle through days:1. Press MEM to enter the Memory Mode.2. Press MEM or DISP to select which day to view. NOTE • When toggling between days, the record displayed will be of the same category (either step count or calorie burned).To toggle between type of data displayed (calories burned or step count): leave unit idle and wait for display to change. REMARK Toggle through all 14-day records to return to the Main Mode.To reset records:You cannot reset the records manually. The pedometer is designed to automatically reset the records. DATA TRANSFERTo help users keep track of their results, the measurements recorded by the FB928 can be easily uploaded to the network for viewing and analysis.Automatic data transfer The FB928 will attempt to periodically send data every at a specied interval of time. Refer to Setting Mode in this user manual. n.b. the device will not notify you each time it automatically sends data.To manually send data: • Press and hold DISP.Continuous data transfer: • Press and hold SET and MEMTo stop data transmission:• Press and hold DISP.“DONE” indicates a successful data transmission.“Error” indicates an unsuccessful data transmission. IMPORTANT Since there is a 14-day limit for memory, to prevent records being erased before being uploaded to the network users are reminded to send data every few days.SPECIFICATIONSReal time clock 12 / 24 format with hour / minuteStep measurement range 0 – 99,999 stepsDistance measurement range 0 – 999.99 km / milesUser adjustable stride length 28 – 152 cm (11 – 60 inches)Calorie measurement range 0 – 99,999 kcalBody weight range 29 – 250 kg (64 – 553 pounds)Exercise timer display range 99 hr 59 minPower 1 x CR2032 3V batteryOperating temperature -10°C to 40°C (14°F to 104°F)Storage temperature -20°C to 60°C (-4°F to 140°F)PRECAUTIONSTo ensure you use your product correctly and safely, read these warnings and the entire user manual before using the product:• Use a soft, slightly moistened cloth. Do not use abrasive or corrosive cleaning agents, as these may cause damage. Use luke warm water and mild soap to clean the device thoroughly after each training session. Never use the product in hot water or store it when wet.• Do not subject the product to excessive force, shock, dust, temperature changes, or humidity. Never expose the product to direct sunlight for extended periods. Such treatment may result in malfunction.• Do not tamper with the internal components. Doing so will terminate the product’s warranty and may cause damage. The main unit contains no user-serviceable parts.• Do not scratch hard objects against the LCD display as this may cause damage.• Take precautions when handling all battery types.• Remove the batteries whenever you are planning to store the product for a long period of time.• When replacing batteries, use new batteries as specied in this user manual.
• The product is a precision instrument. Never attempt to take this device apart. Contact the retailer or our customer service department if the product requires servicing.• Do not touch the exposed electronic circuitry, as there is a danger of electric shock.• Check all major functions if the device has not been used for a long time. Maintain regular cleaning of your device. • When disposing of this product, ensure it is collected separately for special treatment and not as normal household waste.• Due to printing limitations, the displays shown in this manual may differ from the actual display.• The contents of this manual may not be reproduced without the permission of the manufacturer.• Should there be any discrepancy between the English and other language versions, the English version shall apply and prevail. NOTE The technical specications for this product and the contents of the user manual are subject to change without notice. NOTE Features and accessories will not be available in all countries. For more information, please contact your local retailer.ABOUT FITBUGVisit our website (http://www.tbug.com or http://usa.tbug.com ) to learn more about Fitbug products.If you’re in the US and would like to contact our Customer service, please visit: http://usa.tbug.comFor international inquiries, please visit: http://www.tbug.comEU-DECLARATION OF CONFORMITYHereby, Fitbug, declares that this Fitbug FB928 device is in compliance with EMC directive 2004/108/EC. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientic Customer Service.FCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced technician for help.DECLARATION OF CONFORMITYThe following information is not to be used as contact for support or sales. Please visit our website at http://www.tbug.com or http://usa.tbug.com for all enquiries. WeName: Fitbug Ltd Address: 1st Floor Waterside House 47 Kentish Town Rd London NW1 8NXdeclare that the product Product No.: FB928Product Name: Fitbug FB928 bugManufacturer: FitbugAddress: 1st Floor Waterside House 47 Kentish Town Rd London NW1 8NXUK: 0845 688 3348USA: 1-877-434-8284International: +44207 449 4949
