Flextronics TB1203945 Notebook PC User Manual

Flextronics International (Taiwan) Ltd. Notebook PC

User Manual

Notebook PC User’s Guide Model: TB120UI1 First Edition: February 2007
User's Guide Page II Specifications and information found in this guide are subject to change without notice. Any changes therefore will be incorporated in future editions. The manufacturer assumes no responsibility for errors or omissions in this document. Windows™ is the trademark of Microsoft Corporation. Intel® is the trademark of Intel Corporation. Bluetooth® is the trademark owned by its proprietor. Other trademarks are properties of their respective owners. NOTICE TRADEMARKS
User's Guide Page III The following standards are adopted throughout this guide:  Notebook in boldface (with or without capitalization) refers to the notebook computer that you have purchased.  Boldface type is also used to highlight important information in this document.  Whenever extra caution is called for, the information will be boxed in a dark frame preceded by "Note:" or "Warning:" Standards
User's Guide Page IV This page is left blank intentionally.
User’s Guide Contents Page V CHAPTER 1 BEFORE YOU BEGIN ................................................1-1 1.1 CHECKING WHAT YOU RECEIVED ................................................................. 1-1 1.2 EXAMINING YOUR COMPUTER....................................................................... 1-2 1.3 THE THREE SYSTEM LEDS........................................................................... 1-7 1.4 THE FIVE STATUS LEDS............................................................................... 1-8 1.5 THE POWER BUTTON ..................................................................................... 1-9 1.6 THE SIX SYSTEM BUTTONS.......................................................................... 1-10 1.7 ATTENTION ON PCMCIA AND MEDIA CARD SOCKETS .............................. 1-12 1.8 OPERATING TEMPERATURE.......................................................................... 1-14 1.9 THE <FN> KEY ............................................................................................ 1-15 CHAPTER 2 BATTERY .....................................................................2-1 2.1 BATTERY PACK.............................................................................................. 2-1 2.2 RECHARGING THE BATTERY PACK ................................................................ 2-1 2.3 QUESTIONS AND ANSWERS ........................................................................... 2-2 2.4 BATTERY MAINTENANCE............................................................................... 2-3 2.5 POWER CONSUMPTION................................................................................... 2-3 2.6 REDUCING POWER CONSUMPTION ................................................................. 2-4 2.7 REMOVING THE BATTERY PACK.................................................................... 2-4 CHAPTER 3 MEMORY .....................................................................3-1 3.1 REMOVING MEMORY MODULE ...................................................................... 3-2 CHAPTER 4 THE HARD DISK DRIVE...........................................4-1 4.1 REMOVING THE HARD DISK DRIVE ...........................................4-1 APPENDIX A - AGENCY REGULATORY NOTICES .................A-1 CONTENTS

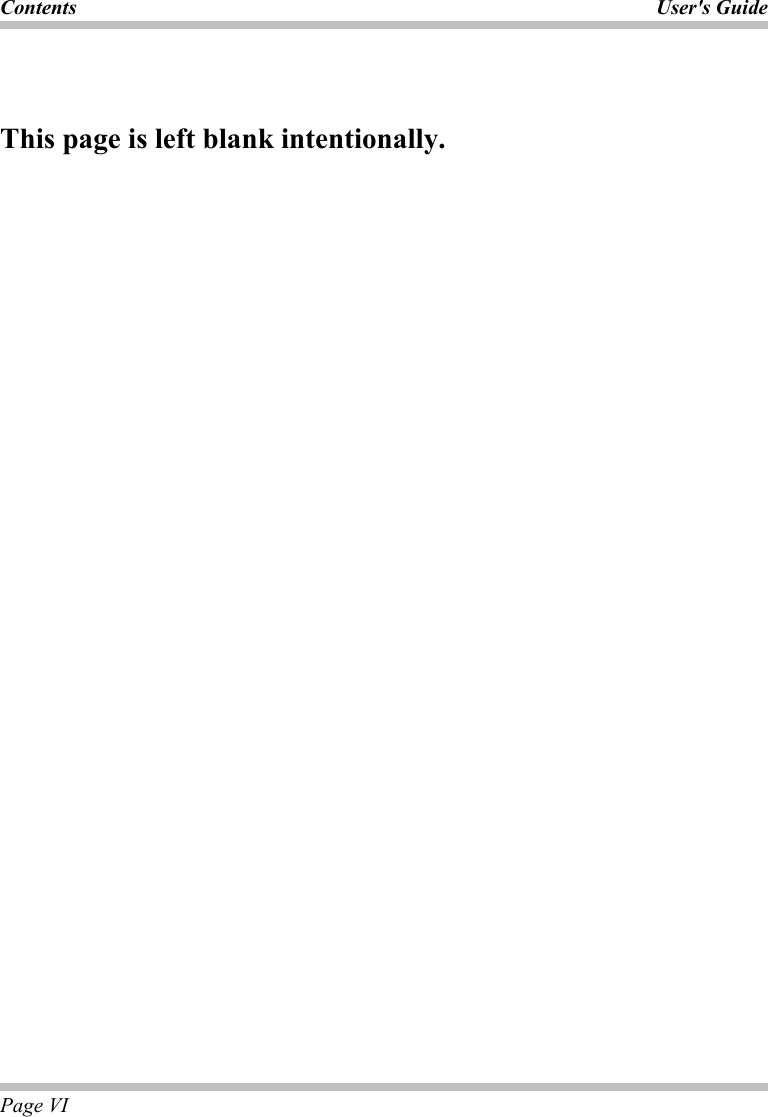

Contents User's Guide Page VI This page is left blank intentionally.
User's Guide Before You Begin Page 1-1 Chapter 1 Before You Begin Please read this section before you start using your computer. 1.1 Checking What You Received Your notebook package should contain the following items: • The Notebook. • AC Adapter. • AC Power Cord. • CD Disc (Including Drivers and User’s Guide). • Battery Pack. Note: You should keep the original factory carton and packing materials in case you need to ship the unit back for servicing.

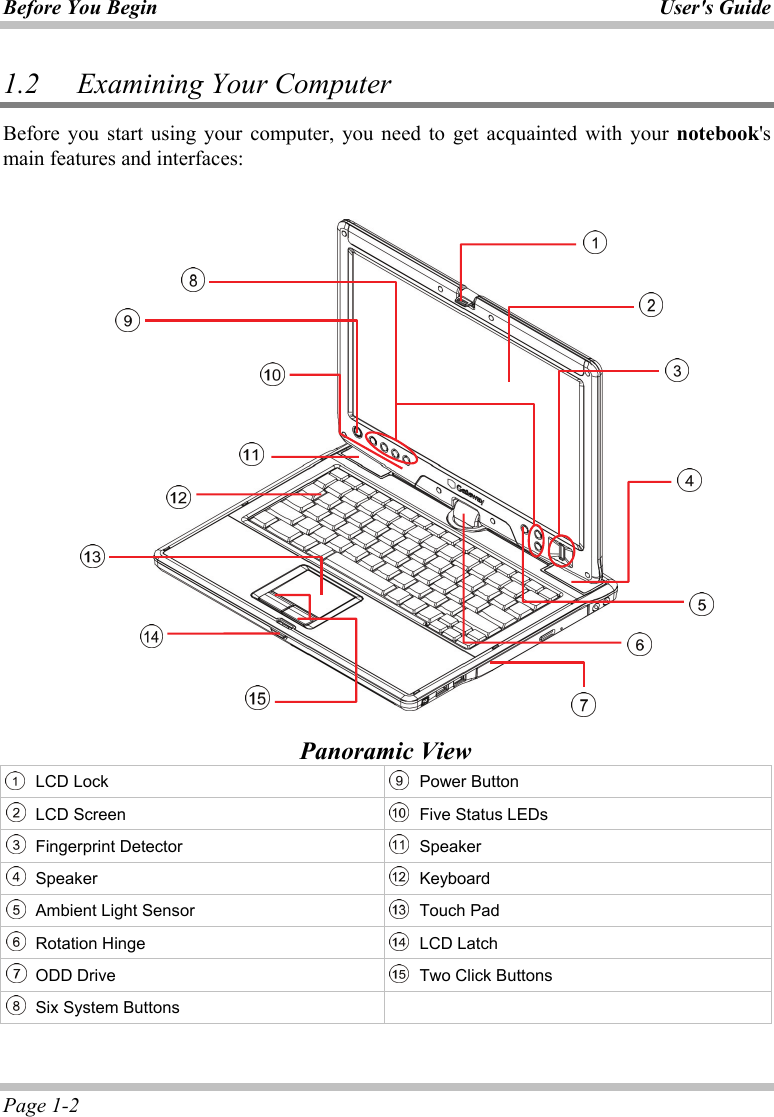

Before You Begin User's Guide Page 1-2 1.2 Examining Your Computer Before you start using your computer, you need to get acquainted with your notebook's main features and interfaces: Panoramic View LCD Lock Power Button LCD Screen Five Status LEDs Fingerprint Detector Speaker Speaker Keyboard Ambient Light Sensor Touch Pad Rotation Hinge LCD Latch ODD Drive Two Click Buttons Six System Buttons

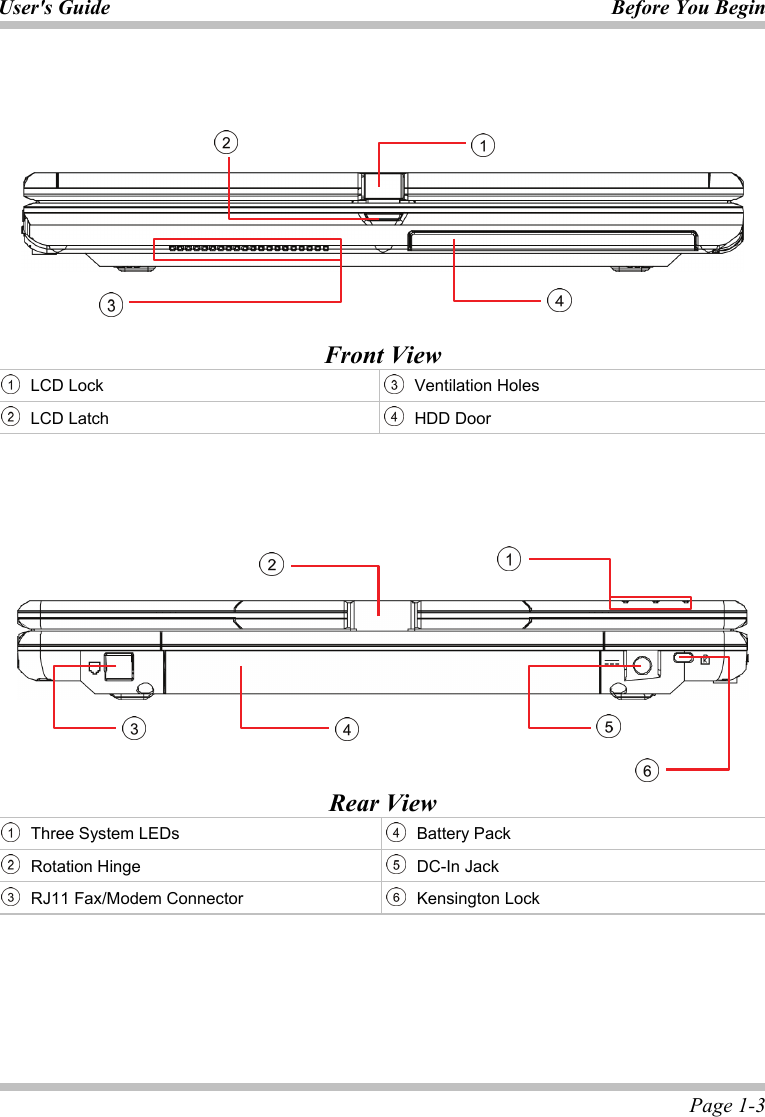

User's Guide Before You Begin Page 1-3 Front View LCD Lock Ventilation Holes LCD Latch HDD Door Rear View Three System LEDs Battery Pack Rotation Hinge DC-In Jack RJ11 Fax/Modem Connector Kensington Lock
Before You Begin User's Guide Page 1-4 Left View Stylus Slot Cable Docking (Optional) Connector PCMCIA Slot RJ45 LAN Connector Ventilation Holes Media Card Slot VGA Connector PCMCIA Eject Handle Right View Headphone Jack (SPDIF) ODD Eject Button ODD Drive Emergency Hole Two USB Connectors Microphone Jack IEEE1394 Connector
User's Guide Before You Begin Page 1-5 Note: The stylus pen together with the system touch-screen LCD display provides you a touch-screen operation by emulating the industry standard mouse right click. You are advised to keep the stylus pen in the stylus slot when not in use.
Before You Begin User's Guide Page 1-6 Bottom View Battery Pack Battery Power Meter Ventilation Holes Two Battery Latches Memory Door HDD Door Mini-PCI Express Door Two Types of Audio Jack Mono Jack:Your microphone jet should have this type of connector as shown here. Stereo Jack: Your headphone jet should have this type of connector as shown here.

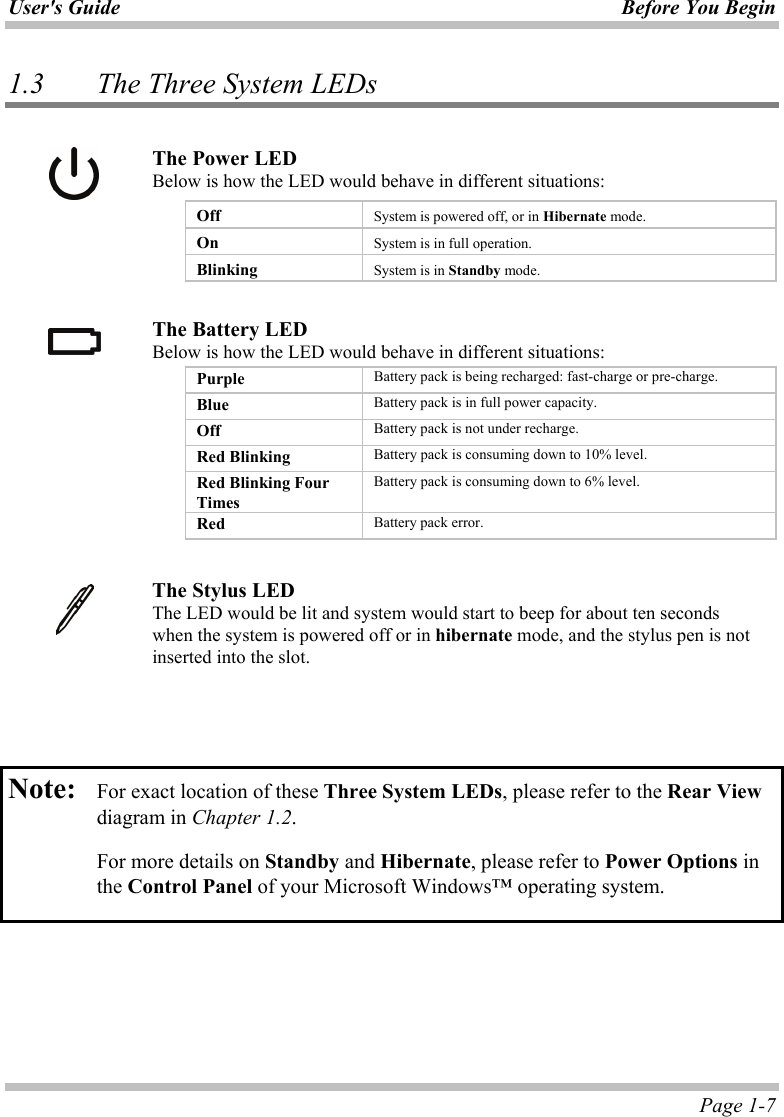

User's Guide Before You Begin Page 1-7 1.3 The Three System LEDs The Power LED Below is how the LED would behave in different situations: Off System is powered off, or in Hibernate mode. On System is in full operation. Blinking System is in Standby mode. The Battery LED Below is how the LED would behave in different situations: Purple Battery pack is being recharged: fast-charge or pre-charge. Blue Battery pack is in full power capacity. Off Battery pack is not under recharge. Red Blinking Battery pack is consuming down to 10% level. Red Blinking Four Times Battery pack is consuming down to 6% level. Red Battery pack error. The Stylus LED The LED would be lit and system would start to beep for about ten seconds when the system is powered off or in hibernate mode, and the stylus pen is not inserted into the slot. Note: For exact location of these Three System LEDs, please refer to the Rear View diagram in Chapter 1.2. For more details on Standby and Hibernate, please refer to Power Options in the Control Panel of your Microsoft Windows™ operating system.

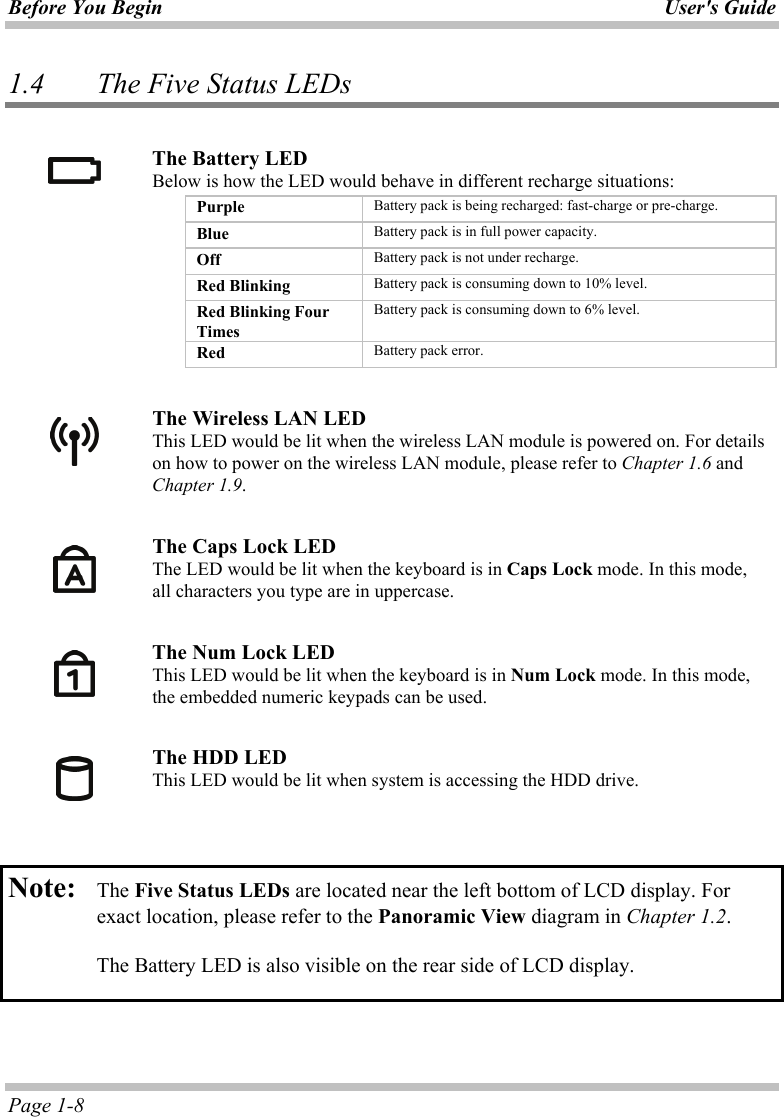

Before You Begin User's Guide Page 1-8 1.4 The Five Status LEDs The Battery LED Below is how the LED would behave in different recharge situations: Purple Battery pack is being recharged: fast-charge or pre-charge. Blue Battery pack is in full power capacity. Off Battery pack is not under recharge. Red Blinking Battery pack is consuming down to 10% level. Red Blinking Four Times Battery pack is consuming down to 6% level. Red Battery pack error. The Wireless LAN LED This LED would be lit when the wireless LAN module is powered on. For details on how to power on the wireless LAN module, please refer to Chapter 1.6 and Chapter 1.9. The Caps Lock LED The LED would be lit when the keyboard is in Caps Lock mode. In this mode, all characters you type are in uppercase. The Num Lock LED This LED would be lit when the keyboard is in Num Lock mode. In this mode, the embedded numeric keypads can be used. The HDD LED This LED would be lit when system is accessing the HDD drive. Note: The Five Status LEDs are located near the left bottom of LCD display. For exact location, please refer to the Panoramic View diagram in Chapter 1.2. The Battery LED is also visible on the rear side of LCD display.

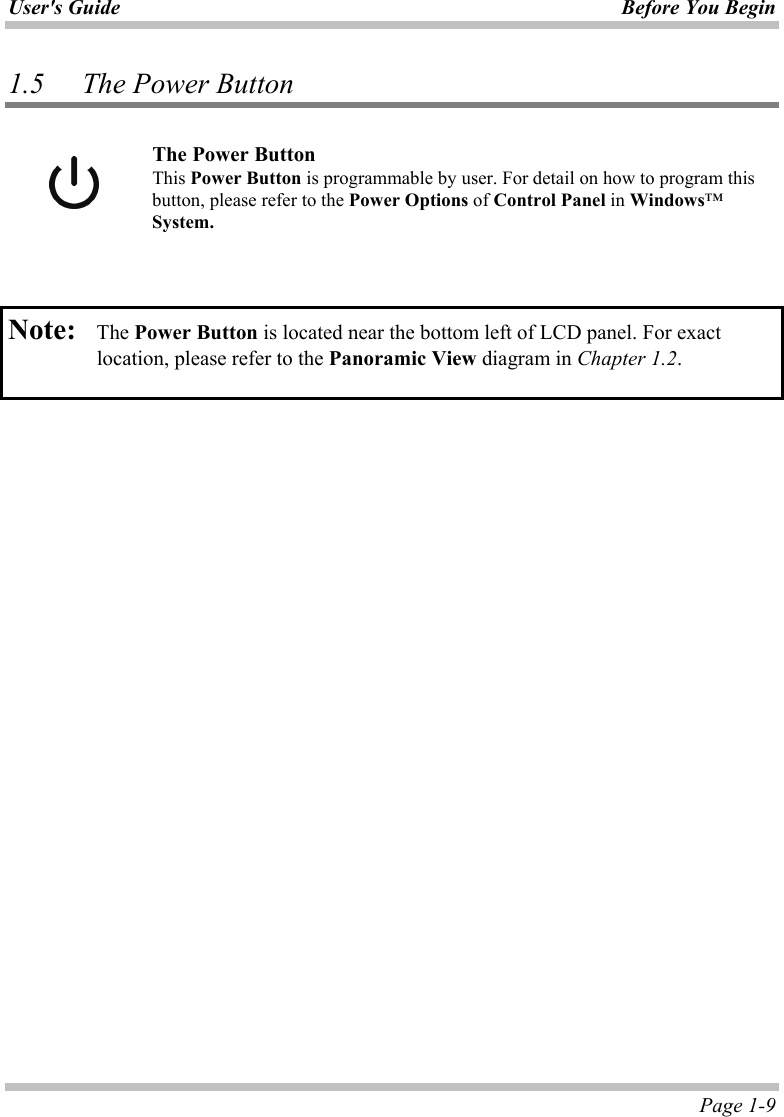

User's Guide Before You Begin Page 1-9 1.5 The Power Button The Power Button This Power Button is programmable by user. For detail on how to program this button, please refer to the Power Options of Control Panel in Windows™ System. Note: The Power Button is located near the bottom left of LCD panel. For exact location, please refer to the Panoramic View diagram in Chapter 1.2.
Before You Begin User's Guide Page 1-10 1.6 The Six System Buttons The SAS (Alt+Ctrl+Del) Button Press this switch to emulate Windows’ “Alt”, “Ctrl” and “Del” buttons pressed simultaneously. The Display Rotation Button Press this button to rotate the image displayed on the LCD screen. Screen image would rotate by an angle of 90 degree each time when this button is pressed. The Mobility Center Button Press this button to enter the menu of Windows Mobility Center in Windows Vista™ operating system. The Wireless LAN/ Bluetooth® Button Press this button to power on and power off both the Wireless LAN and Bluetooth® modules. Powering on the Wireless LAN and Bluetooth® by pressing this button does not automatically activate the Wireless LAN and Bluetooth® functions. After powering on, you need to activate the Wireless LAN and Bluetooth® functions through Windows™. The main purpose of this button is to provide you a quick way to turn off the power of Wireless LAN and Bluetooth® when entering venues like airplanes, airports, and hospitals where the usage of Wireless LAN and Bluetooth® are prohibited or not advisable. The Enter Button Press this button to emulate the function of “Enter”. The Backspace Button Press this button to emulate the function of “Back Space”. Note: The Six System Buttons are located near the bottom of LCD display. For exact location, please refer to the Panoramic View diagram in Chapter 1.2.

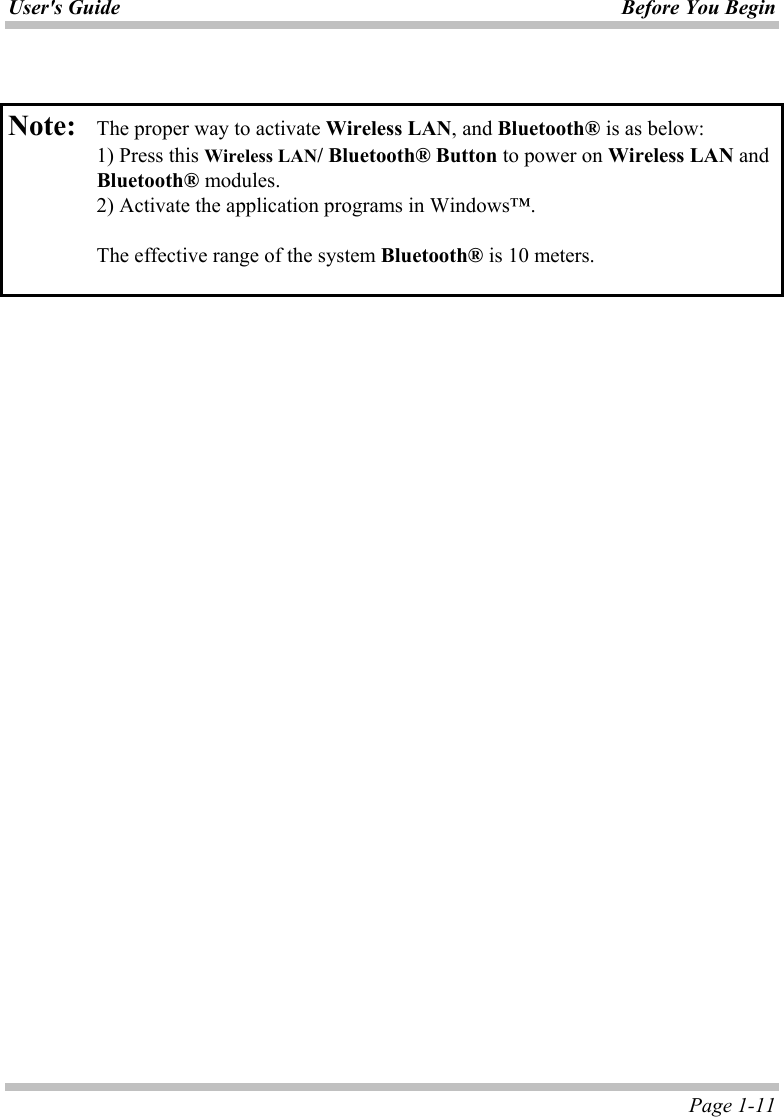

User's Guide Before You Begin Page 1-11 Note: The proper way to activate Wireless LAN, and Bluetooth® is as below: 1) Press this Wireless LAN/ Bluetooth® Button to power on Wireless LAN and Bluetooth® modules. 2) Activate the application programs in Windows™. The effective range of the system Bluetooth® is 10 meters.

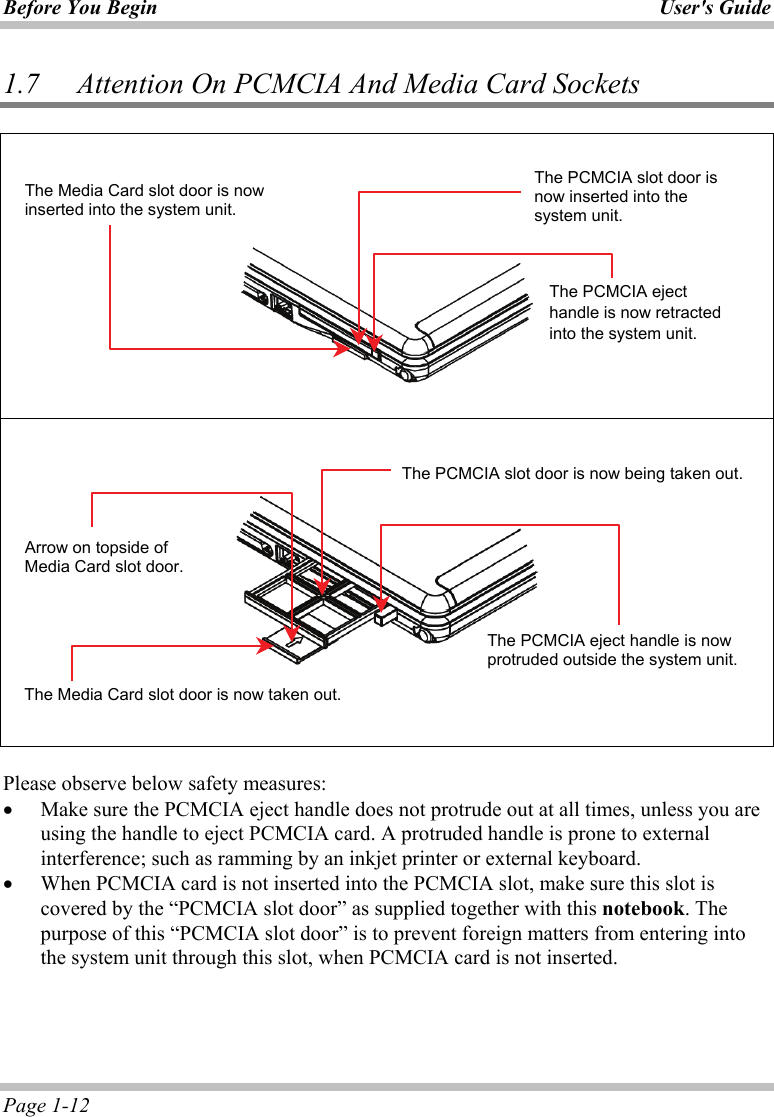

Before You Begin User's Guide Page 1-12 1.7 Attention On PCMCIA And Media Card Sockets Please observe below safety measures: • Make sure the PCMCIA eject handle does not protrude out at all times, unless you are using the handle to eject PCMCIA card. A protruded handle is prone to external interference; such as ramming by an inkjet printer or external keyboard. • When PCMCIA card is not inserted into the PCMCIA slot, make sure this slot is covered by the “PCMCIA slot door” as supplied together with this notebook. The purpose of this “PCMCIA slot door” is to prevent foreign matters from entering into the system unit through this slot, when PCMCIA card is not inserted. The PCMCIA eject handle is now retracted into the system unit. The Media Card slot door is now taken out.Arrow on topside of Media Card slot door. The Media Card slot door is now inserted into the system unit. The PCMCIA slot door is now inserted into the system unit. The PCMCIA eject handle is now protruded outside the system unit. The PCMCIA slot door is now being taken out.

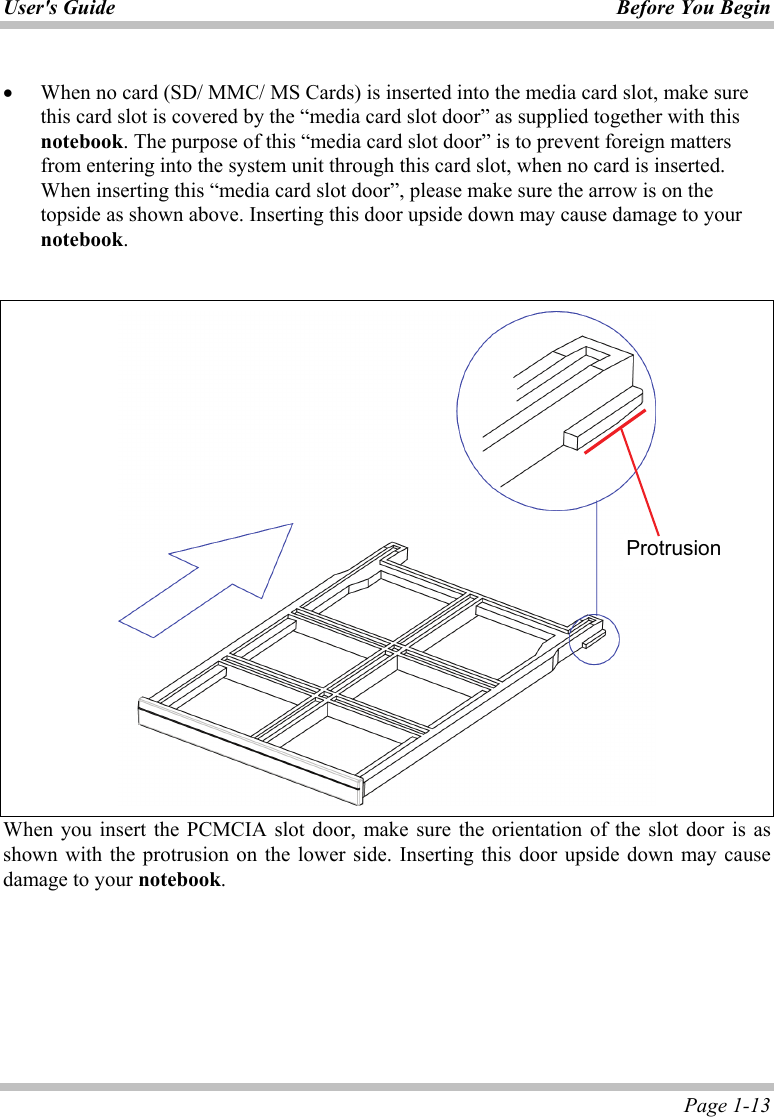

User's Guide Before You Begin Page 1-13 • When no card (SD/ MMC/ MS Cards) is inserted into the media card slot, make sure this card slot is covered by the “media card slot door” as supplied together with this notebook. The purpose of this “media card slot door” is to prevent foreign matters from entering into the system unit through this card slot, when no card is inserted. When inserting this “media card slot door”, please make sure the arrow is on the topside as shown above. Inserting this door upside down may cause damage to your notebook. When you insert the PCMCIA slot door, make sure the orientation of the slot door is as shown with the protrusion on the lower side. Inserting this door upside down may cause damage to your notebook. Protrusion

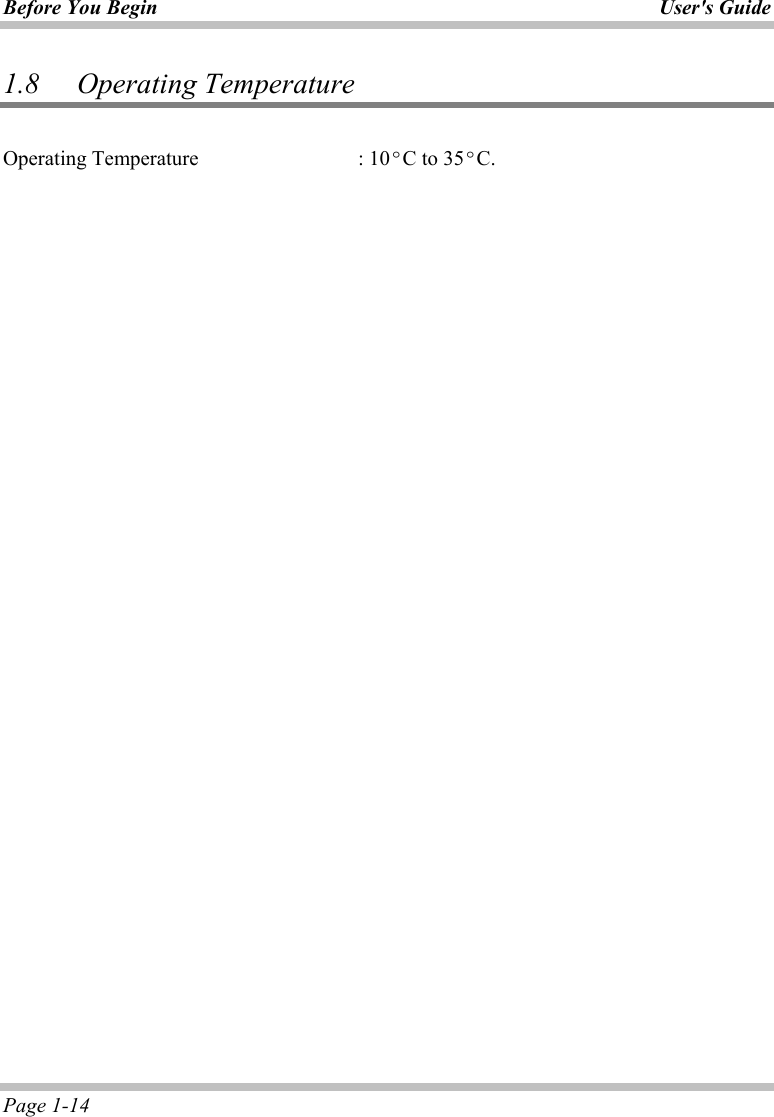

Before You Begin User's Guide Page 1-14 1.8 Operating Temperature Operating Temperature : 10ºC to 35ºC.

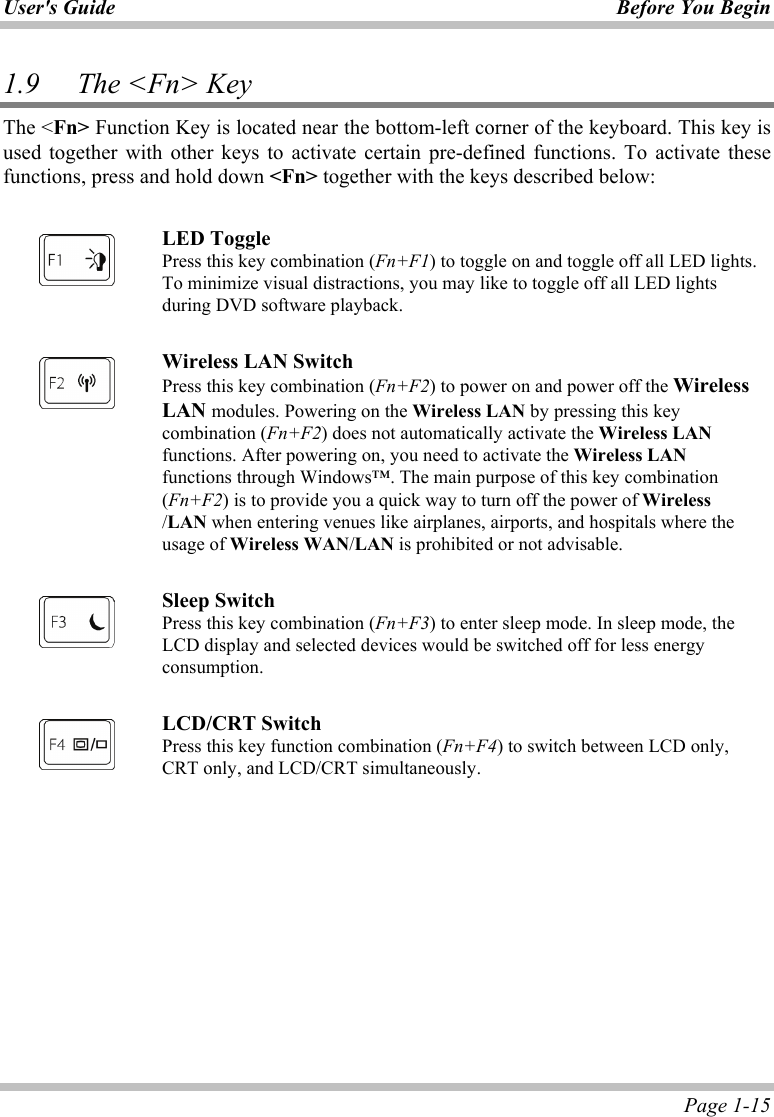

User's Guide Before You Begin Page 1-15 1.9 The <Fn> Key The <Fn> Function Key is located near the bottom-left corner of the keyboard. This key is used together with other keys to activate certain pre-defined functions. To activate these functions, press and hold down <Fn> together with the keys described below: LED Toggle Press this key combination (Fn+F1) to toggle on and toggle off all LED lights. To minimize visual distractions, you may like to toggle off all LED lights during DVD software playback. Wireless LAN Switch Press this key combination (Fn+F2) to power on and power off the Wireless LAN modules. Powering on the Wireless LAN by pressing this key combination (Fn+F2) does not automatically activate the Wireless LAN functions. After powering on, you need to activate the Wireless LAN functions through Windows™. The main purpose of this key combination (Fn+F2) is to provide you a quick way to turn off the power of Wireless /LAN when entering venues like airplanes, airports, and hospitals where the usage of Wireless WAN/LAN is prohibited or not advisable. Sleep Switch Press this key combination (Fn+F3) to enter sleep mode. In sleep mode, the LCD display and selected devices would be switched off for less energy consumption. LCD/CRT Switch Press this key function combination (Fn+F4) to switch between LCD only, CRT only, and LCD/CRT simultaneously.

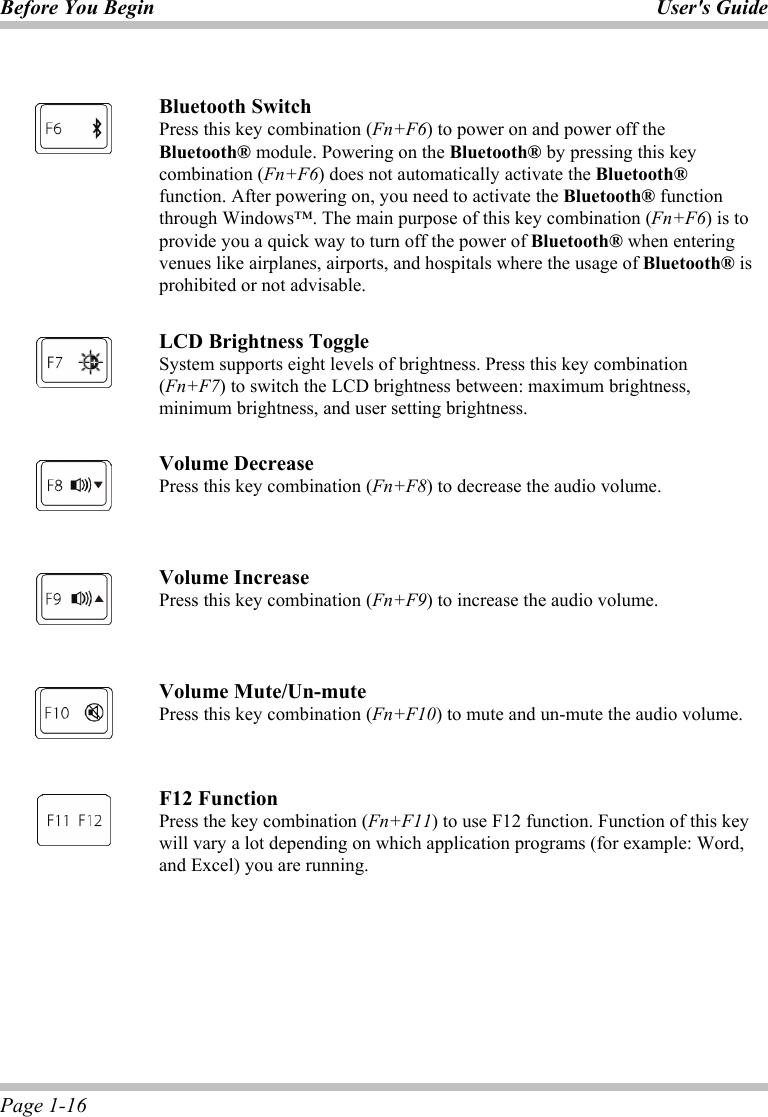

Before You Begin User's Guide Page 1-16 Bluetooth Switch Press this key combination (Fn+F6) to power on and power off the Bluetooth® module. Powering on the Bluetooth® by pressing this key combination (Fn+F6) does not automatically activate the Bluetooth® function. After powering on, you need to activate the Bluetooth® function through Windows™. The main purpose of this key combination (Fn+F6) is to provide you a quick way to turn off the power of Bluetooth® when entering venues like airplanes, airports, and hospitals where the usage of Bluetooth® is prohibited or not advisable. LCD Brightness Toggle System supports eight levels of brightness. Press this key combination (Fn+F7) to switch the LCD brightness between: maximum brightness, minimum brightness, and user setting brightness. Volume Decrease Press this key combination (Fn+F8) to decrease the audio volume. Volume Increase Press this key combination (Fn+F9) to increase the audio volume. Volume Mute/Un-mute Press this key combination (Fn+F10) to mute and un-mute the audio volume. F12 Function Press the key combination (Fn+F11) to use F12 function. Function of this key will vary a lot depending on which application programs (for example: Word, and Excel) you are running.

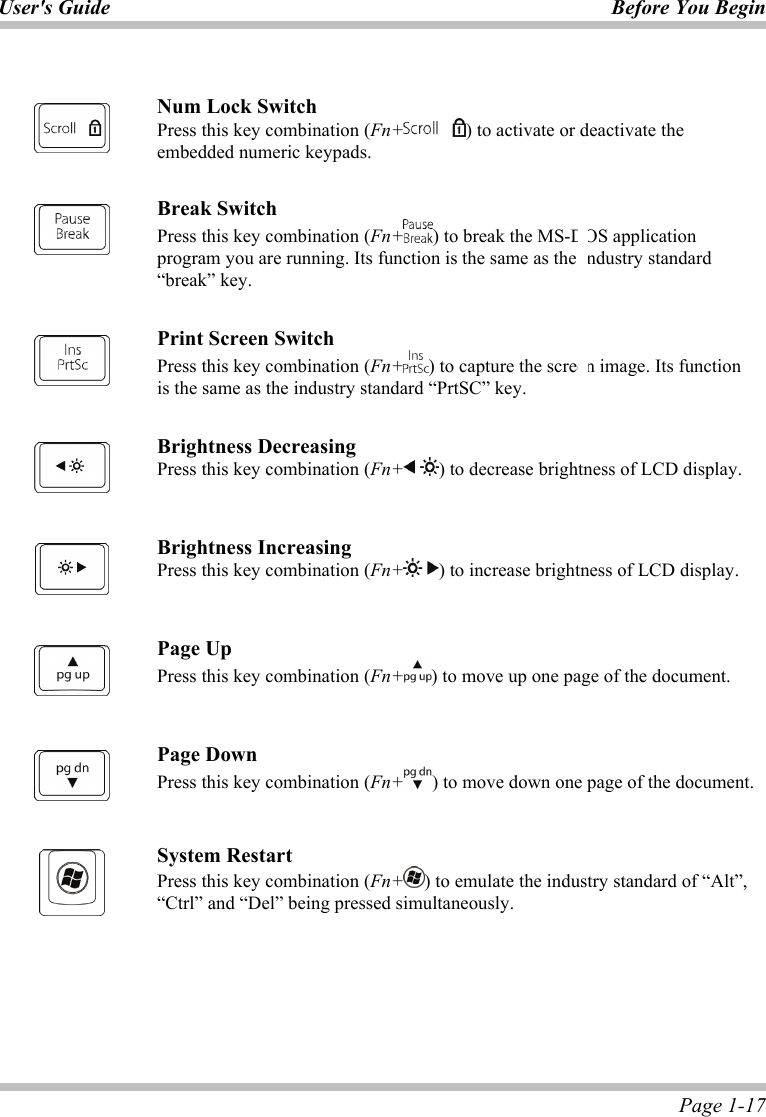

User's Guide Before You Begin Page 1-17 Num Lock Switch Press this key combination (Fn+ ) to activate or deactivate the embedded numeric keypads. Break Switch Press this key combination (Fn+ ) to break the MS-DOS application program you are running. Its function is the same as the industry standard “break” key. Print Screen Switch Press this key combination (Fn+ ) to capture the screen image. Its function is the same as the industry standard “PrtSC” key. Brightness Decreasing Press this key combination (Fn+ ) to decrease brightness of LCD display. Brightness Increasing Press this key combination (Fn+ ) to increase brightness of LCD display. Page Up Press this key combination (Fn+ ) to move up one page of the document. Page Down Press this key combination (Fn+ ) to move down one page of the document. System Restart Press this key combination (Fn+ ) to emulate the industry standard of “Alt”, “Ctrl” and “Del” being pressed simultaneously.

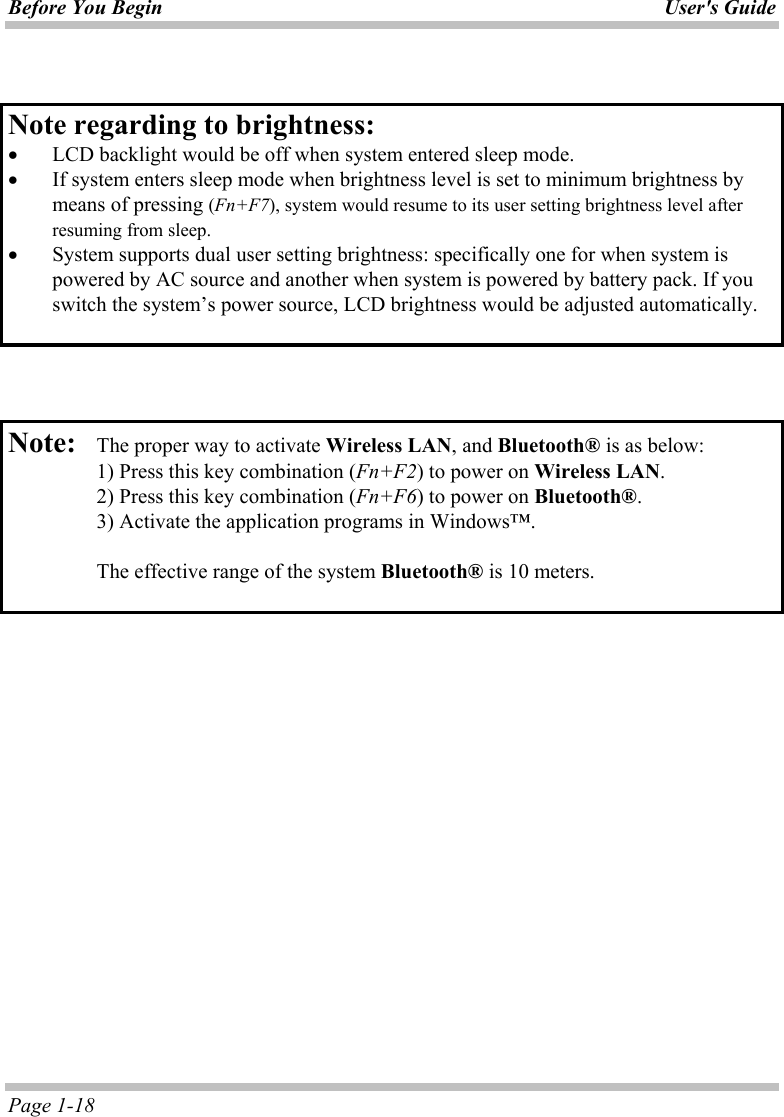

Before You Begin User's Guide Page 1-18 Note regarding to brightness: • LCD backlight would be off when system entered sleep mode. • If system enters sleep mode when brightness level is set to minimum brightness by means of pressing (Fn+F7), system would resume to its user setting brightness level after resuming from sleep. • System supports dual user setting brightness: specifically one for when system is powered by AC source and another when system is powered by battery pack. If you switch the system’s power source, LCD brightness would be adjusted automatically. Note: The proper way to activate Wireless LAN, and Bluetooth® is as below: 1) Press this key combination (Fn+F2) to power on Wireless LAN. 2) Press this key combination (Fn+F6) to power on Bluetooth®. 3) Activate the application programs in Windows™. The effective range of the system Bluetooth® is 10 meters.

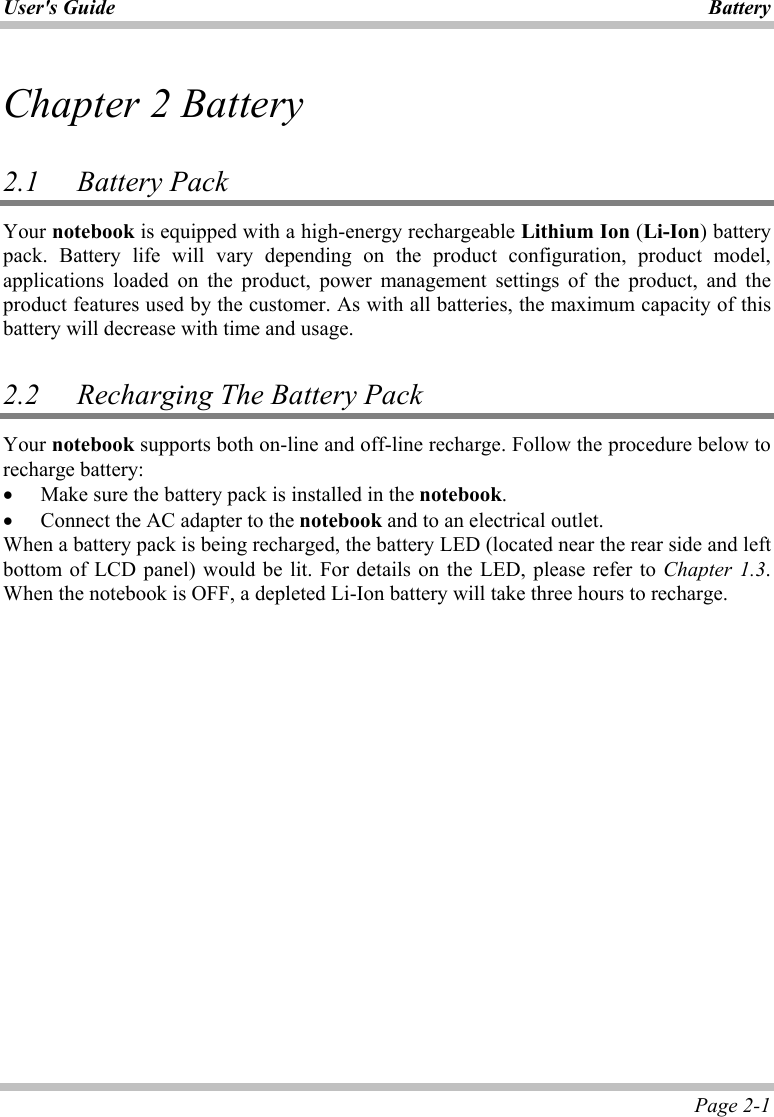

User's Guide Battery Page 2-1 Chapter 2 Battery 2.1 Battery Pack Your notebook is equipped with a high-energy rechargeable Lithium Ion (Li-Ion) battery pack. Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage. 2.2 Recharging The Battery Pack Your notebook supports both on-line and off-line recharge. Follow the procedure below to recharge battery: • Make sure the battery pack is installed in the notebook. • Connect the AC adapter to the notebook and to an electrical outlet. When a battery pack is being recharged, the battery LED (located near the rear side and left bottom of LCD panel) would be lit. For details on the LED, please refer to Chapter 1.3. When the notebook is OFF, a depleted Li-Ion battery will take three hours to recharge.

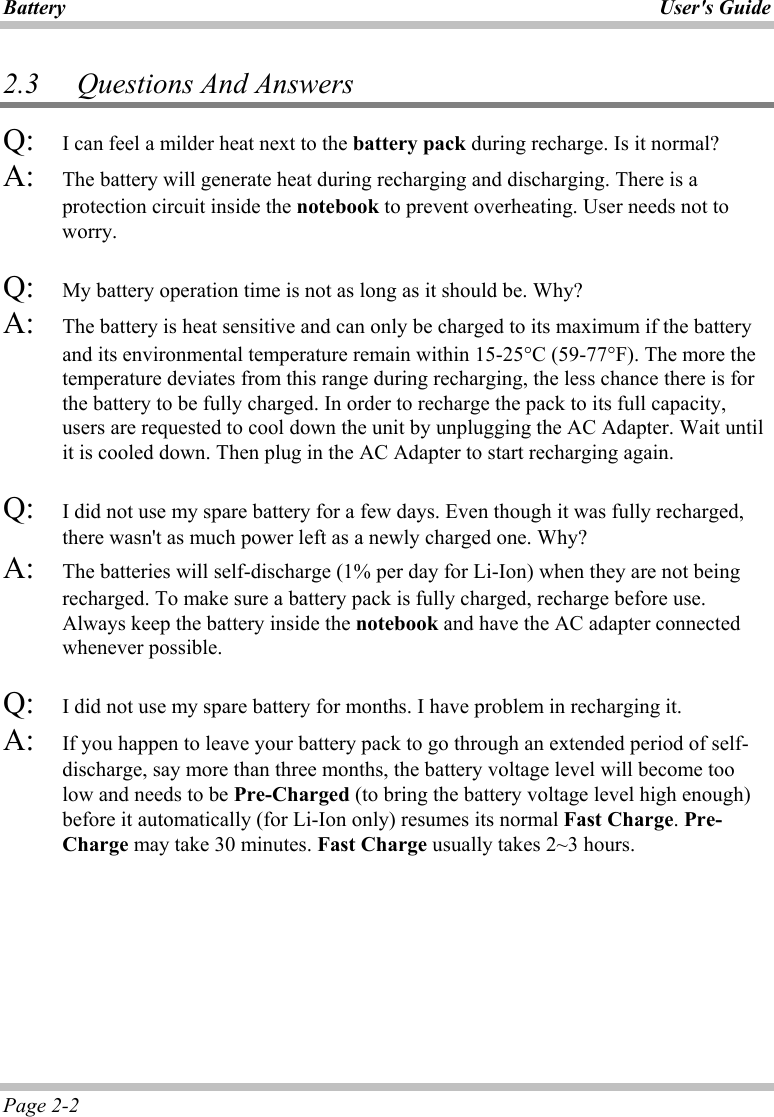

Battery User's Guide Page 2-2 2.3 Questions And Answers Q: I can feel a milder heat next to the battery pack during recharge. Is it normal? A: The battery will generate heat during recharging and discharging. There is a protection circuit inside the notebook to prevent overheating. User needs not to worry. Q: My battery operation time is not as long as it should be. Why? A: The battery is heat sensitive and can only be charged to its maximum if the battery and its environmental temperature remain within 15-25°C (59-77°F). The more the temperature deviates from this range during recharging, the less chance there is for the battery to be fully charged. In order to recharge the pack to its full capacity, users are requested to cool down the unit by unplugging the AC Adapter. Wait until it is cooled down. Then plug in the AC Adapter to start recharging again. Q: I did not use my spare battery for a few days. Even though it was fully recharged, there wasn't as much power left as a newly charged one. Why? A: The batteries will self-discharge (1% per day for Li-Ion) when they are not being recharged. To make sure a battery pack is fully charged, recharge before use. Always keep the battery inside the notebook and have the AC adapter connected whenever possible. Q: I did not use my spare battery for months. I have problem in recharging it. A: If you happen to leave your battery pack to go through an extended period of self-discharge, say more than three months, the battery voltage level will become too low and needs to be Pre-Charged (to bring the battery voltage level high enough) before it automatically (for Li-Ion only) resumes its normal Fast Charge. Pre-Charge may take 30 minutes. Fast Charge usually takes 2~3 hours.

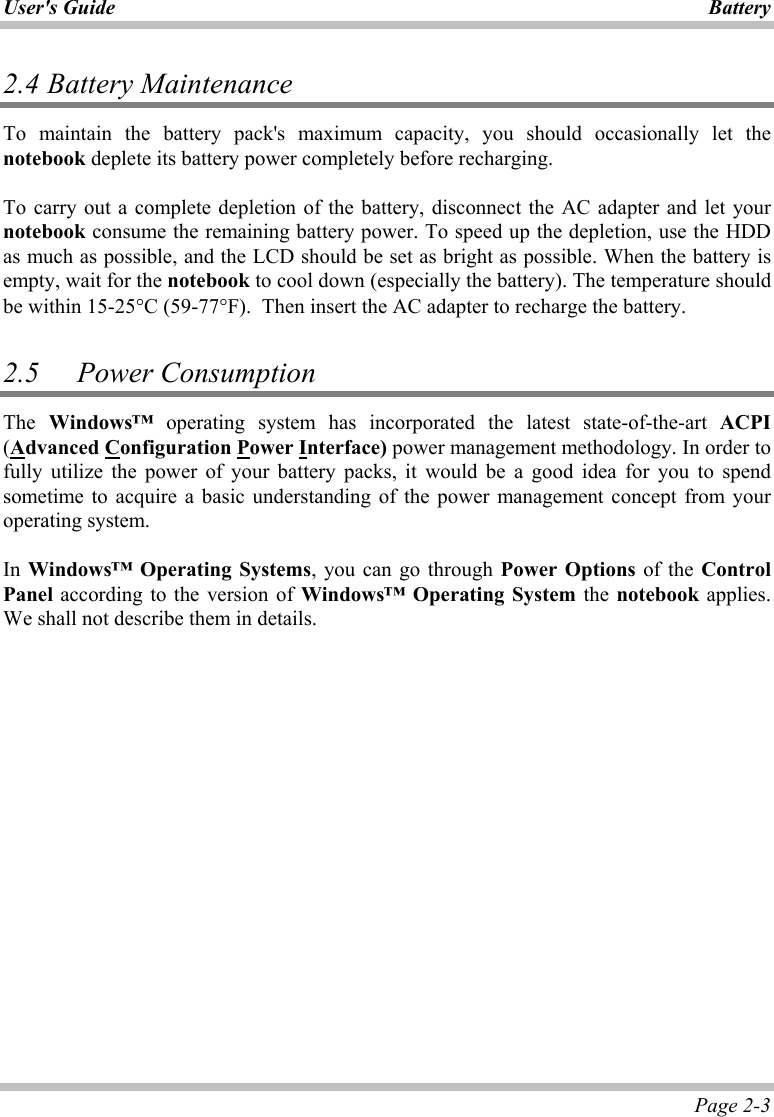

User's Guide Battery Page 2-3 2.4 Battery Maintenance To maintain the battery pack's maximum capacity, you should occasionally let the notebook deplete its battery power completely before recharging. To carry out a complete depletion of the battery, disconnect the AC adapter and let your notebook consume the remaining battery power. To speed up the depletion, use the HDD as much as possible, and the LCD should be set as bright as possible. When the battery is empty, wait for the notebook to cool down (especially the battery). The temperature should be within 15-25°C (59-77°F). Then insert the AC adapter to recharge the battery. 2.5 Power Consumption The Windows™ operating system has incorporated the latest state-of-the-art ACPI (Advanced Configuration Power Interface) power management methodology. In order to fully utilize the power of your battery packs, it would be a good idea for you to spend sometime to acquire a basic understanding of the power management concept from your operating system. In Windows™ Operating Systems, you can go through Power Options of the Control Panel according to the version of Windows™ Operating System the notebook applies. We shall not describe them in details.

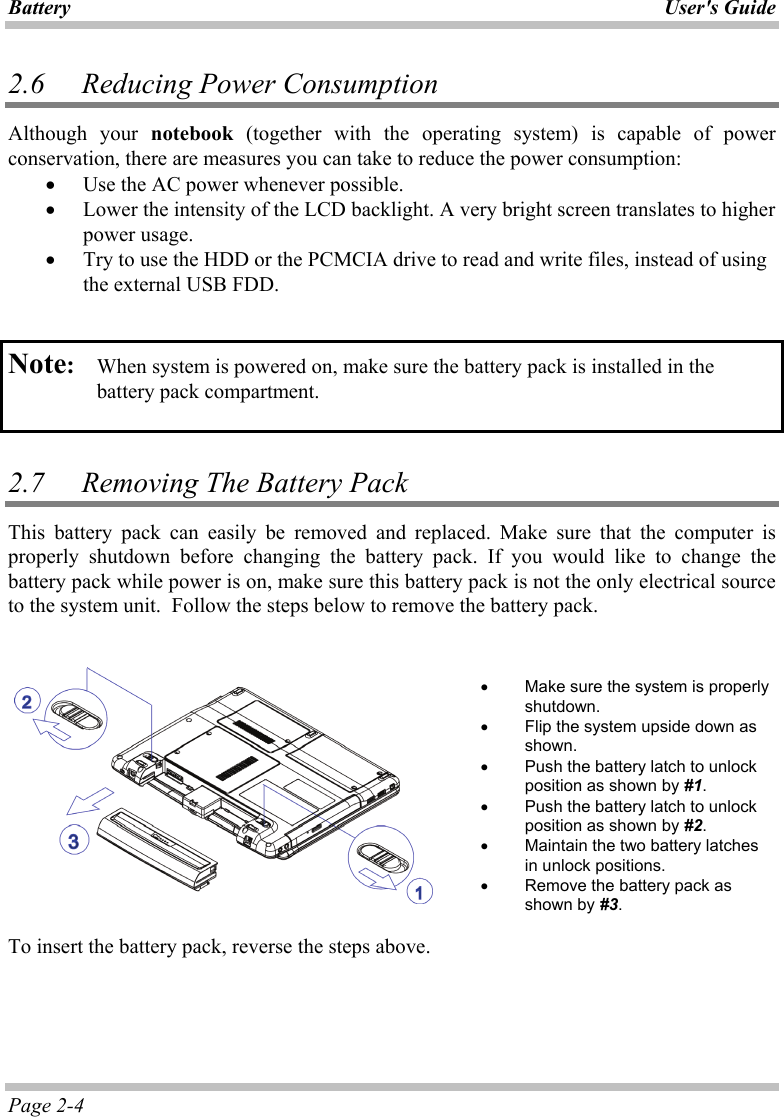

Battery User's Guide Page 2-4 2.6 Reducing Power Consumption Although your notebook (together with the operating system) is capable of power conservation, there are measures you can take to reduce the power consumption: • Use the AC power whenever possible. • Lower the intensity of the LCD backlight. A very bright screen translates to higher power usage. • Try to use the HDD or the PCMCIA drive to read and write files, instead of using the external USB FDD. Note: When system is powered on, make sure the battery pack is installed in the battery pack compartment. 2.7 Removing The Battery Pack This battery pack can easily be removed and replaced. Make sure that the computer is properly shutdown before changing the battery pack. If you would like to change the battery pack while power is on, make sure this battery pack is not the only electrical source to the system unit. Follow the steps below to remove the battery pack. • Make sure the system is properly shutdown. • Flip the system upside down as shown. • Push the battery latch to unlock position as shown by #1. • Push the battery latch to unlock position as shown by #2. • Maintain the two battery latches in unlock positions. • Remove the battery pack as shown by #3. To insert the battery pack, reverse the steps above.

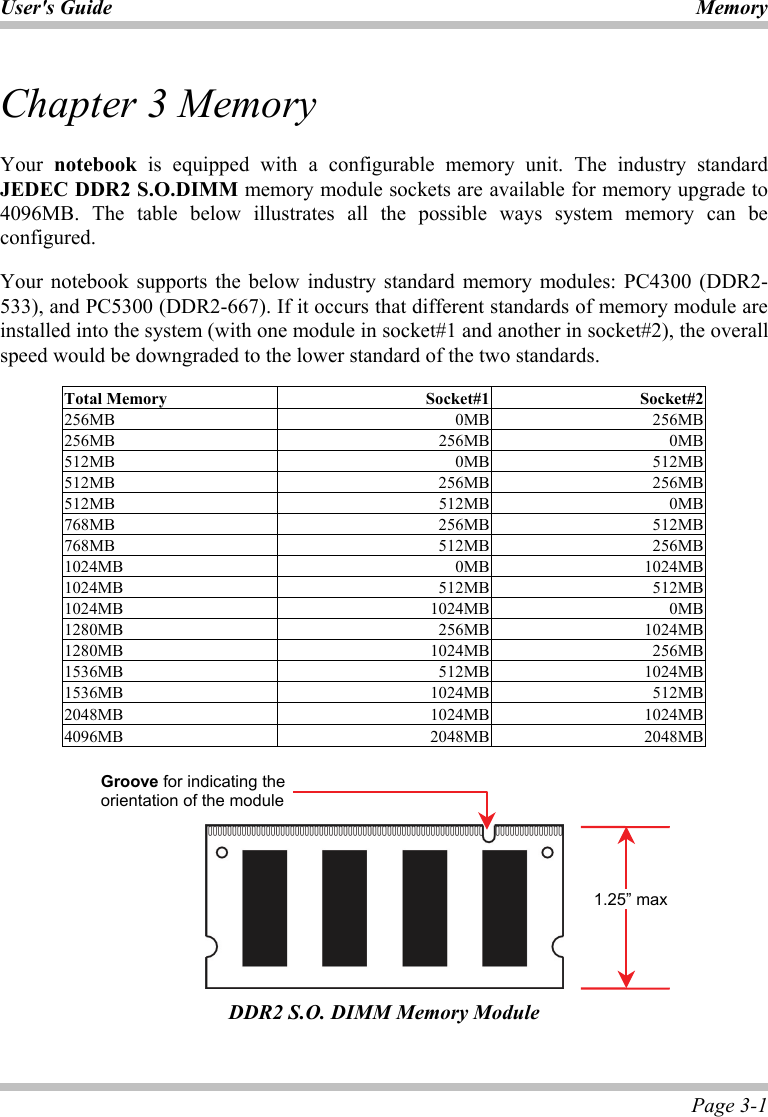

User's Guide Memory Page 3-1 Chapter 3 Memory Your notebook is equipped with a configurable memory unit. The industry standard JEDEC DDR2 S.O.DIMM memory module sockets are available for memory upgrade to 4096MB. The table below illustrates all the possible ways system memory can be configured. Your notebook supports the below industry standard memory modules: PC4300 (DDR2- 533), and PC5300 (DDR2-667). If it occurs that different standards of memory module are installed into the system (with one module in socket#1 and another in socket#2), the overall speed would be downgraded to the lower standard of the two standards. Total Memory Socket#1 Socket#2 256MB 0MB 256MB 256MB 256MB 0MB 512MB 0MB 512MB 512MB 256MB 256MB 512MB 512MB 0MB 768MB 256MB 512MB 768MB 512MB 256MB 1024MB 0MB 1024MB 1024MB 512MB 512MB 1024MB 1024MB 0MB 1280MB 256MB 1024MB 1280MB 1024MB 256MB 1536MB 512MB 1024MB 1536MB 1024MB 512MB 2048MB 1024MB 1024MB 4096MB 2048MB 2048MB DDR2 S.O. DIMM Memory Module Groove for indicating the orientation of the module1.25” max
Memory User's Guide Page 3-2 3.1 Removing Memory Module Below is the procedure on how to remove the memory module. • Make sure the system is properly shutdown. • Flip the system upside down as shown. • Remove the battery pack as shown in Chapter 2. • Remove the two screws as shown by #1. • Remove the compartment door as shown by #2. • Press the spring-locks sideways as shown by #1. • The first memory module would pop up as shown by #2. • Remove the first memory module as shown by #3. Two Memory Modules

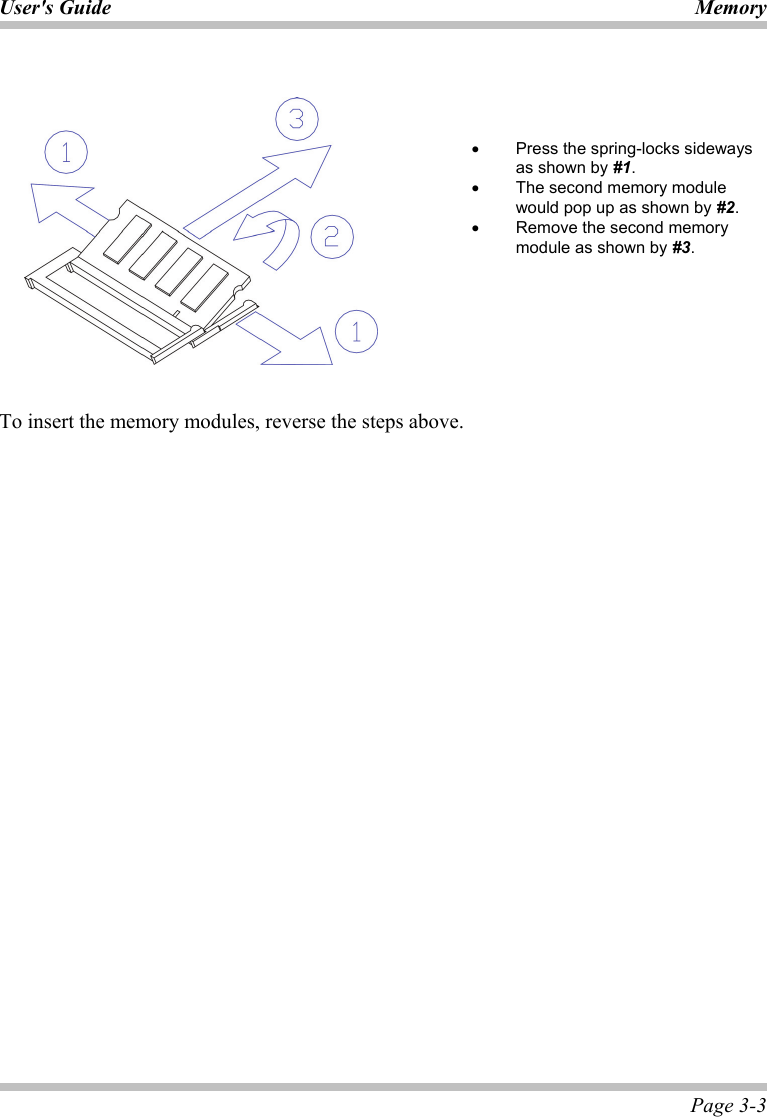

User's Guide Memory Page 3-3 • Press the spring-locks sideways as shown by #1. • The second memory module would pop up as shown by #2. • Remove the second memory module as shown by #3. To insert the memory modules, reverse the steps above.

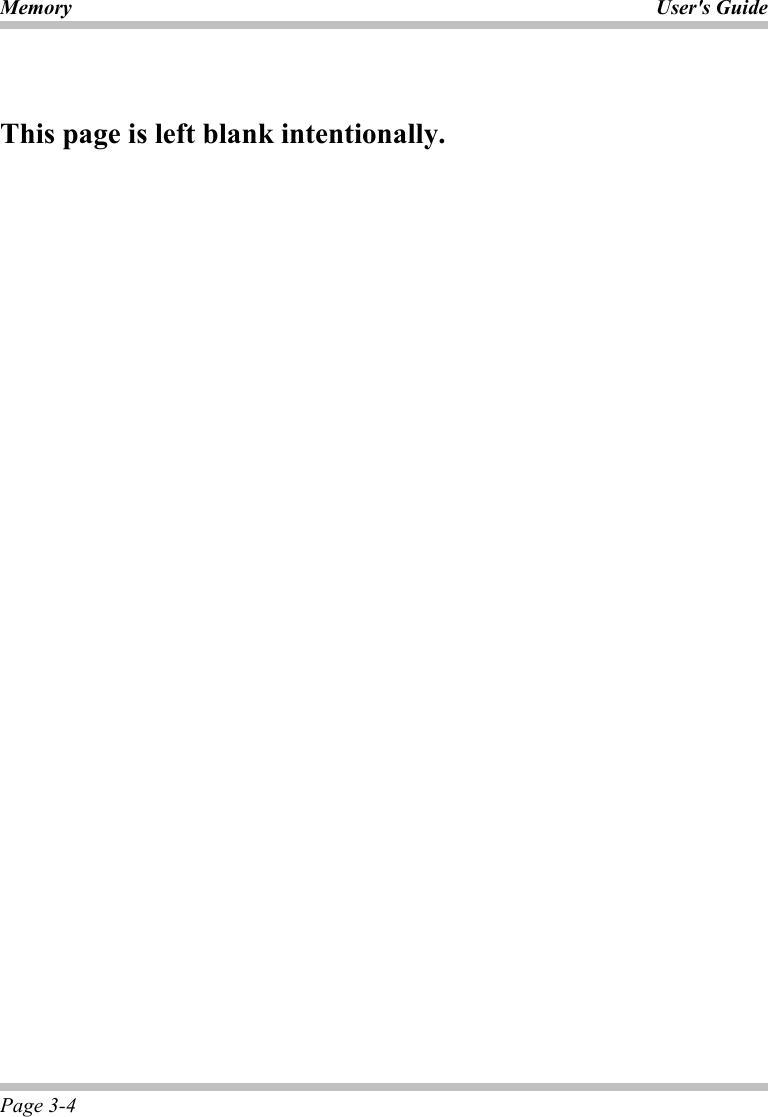

Memory User's Guide Page 3-4 This page is left blank intentionally.

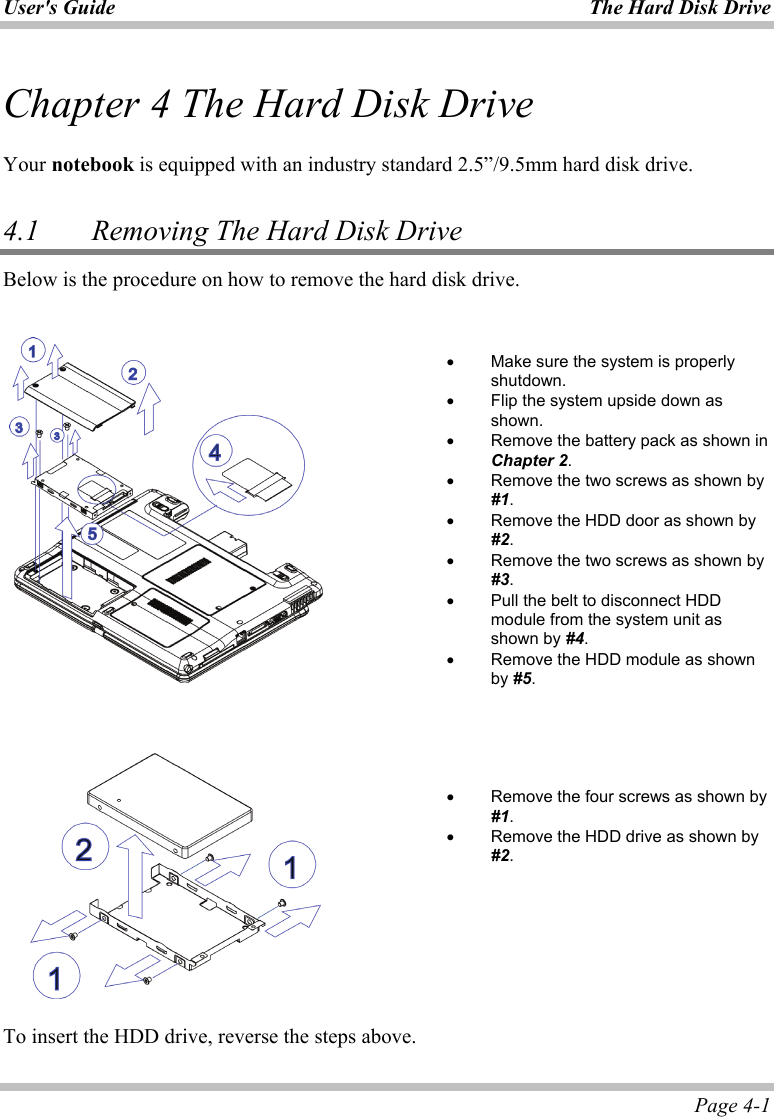

User's Guide The Hard Disk Drive Page 4-1 Chapter 4 The Hard Disk Drive Your notebook is equipped with an industry standard 2.5”/9.5mm hard disk drive. 4.1 Removing The Hard Disk Drive Below is the procedure on how to remove the hard disk drive. • Make sure the system is properly shutdown. • Flip the system upside down as shown. • Remove the battery pack as shown in Chapter 2. • Remove the two screws as shown by #1. • Remove the HDD door as shown by #2. • Remove the two screws as shown by #3. • Pull the belt to disconnect HDD module from the system unit as shown by #4. • Remove the HDD module as shown by #5. • Remove the four screws as shown by #1. • Remove the HDD drive as shown by #2. To insert the HDD drive, reverse the steps above.

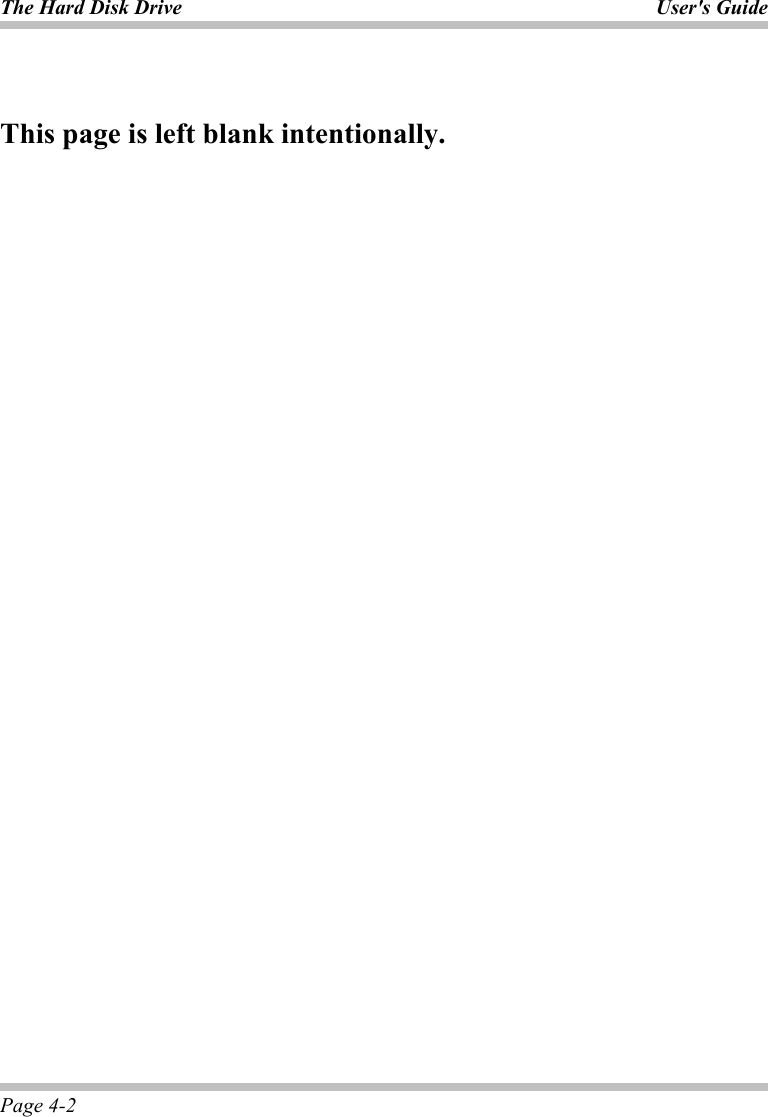

The Hard Disk Drive User's Guide Page 4-2 This page is left blank intentionally.

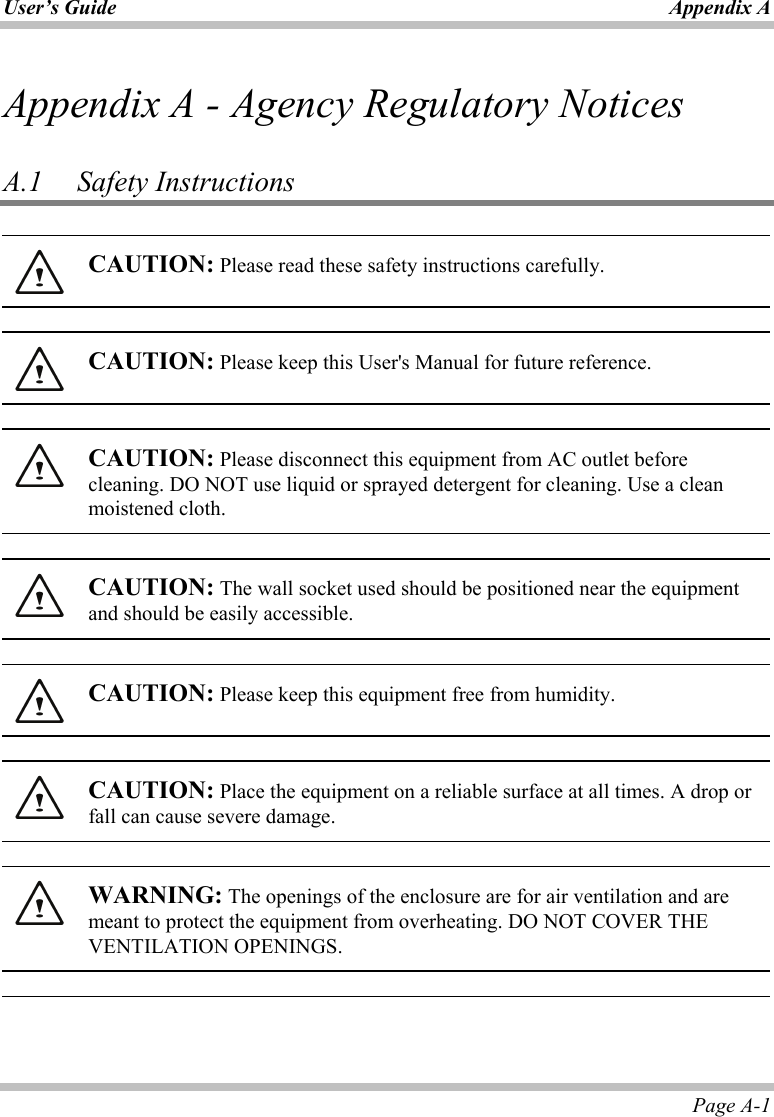

User’s Guide Appendix A Page A-1 Appendix A - Agency Regulatory Notices A.1 Safety Instructions CAUTION: Please read these safety instructions carefully. CAUTION: Please keep this User's Manual for future reference. CAUTION: Please disconnect this equipment from AC outlet before cleaning. DO NOT use liquid or sprayed detergent for cleaning. Use a clean moistened cloth. CAUTION: The wall socket used should be positioned near the equipment and should be easily accessible. CAUTION: Please keep this equipment free from humidity. CAUTION: Place the equipment on a reliable surface at all times. A drop or fall can cause severe damage. WARNING: The openings of the enclosure are for air ventilation and are meant to protect the equipment from overheating. DO NOT COVER THE VENTILATION OPENINGS.

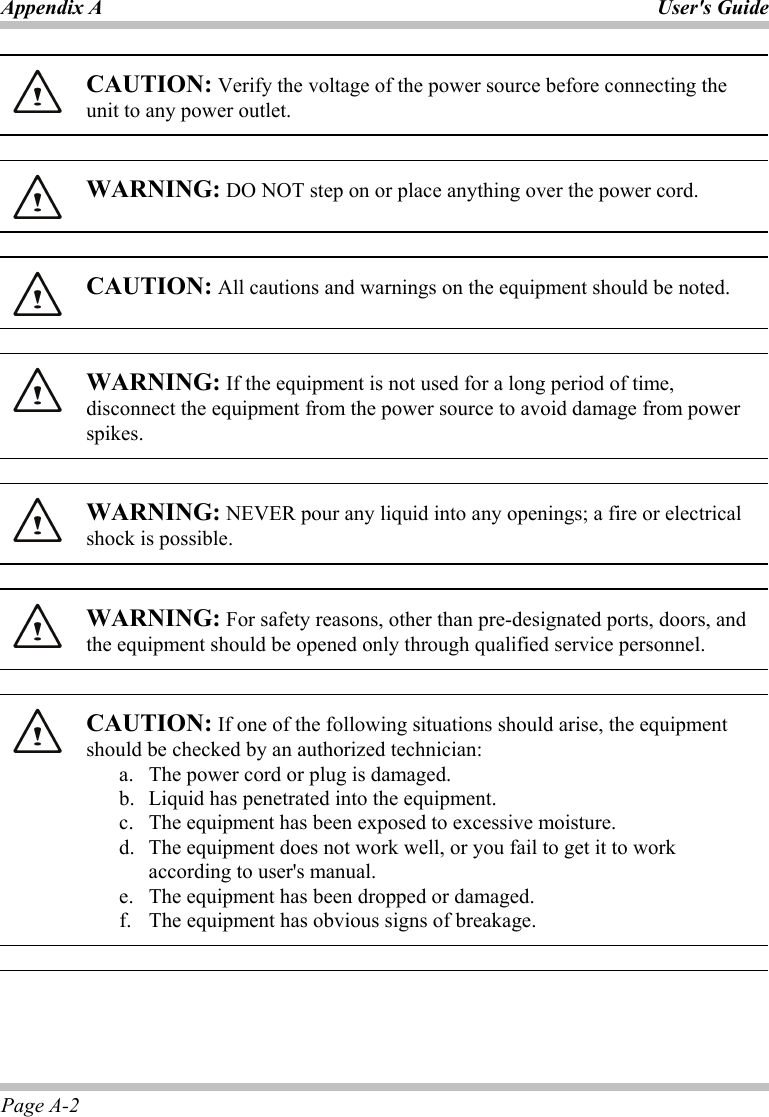

Appendix A User's Guide Page A-2 CAUTION: Verify the voltage of the power source before connecting the unit to any power outlet. WARNING: DO NOT step on or place anything over the power cord. CAUTION: All cautions and warnings on the equipment should be noted. WARNING: If the equipment is not used for a long period of time, disconnect the equipment from the power source to avoid damage from power spikes. WARNING: NEVER pour any liquid into any openings; a fire or electrical shock is possible. WARNING: For safety reasons, other than pre-designated ports, doors, and the equipment should be opened only through qualified service personnel. CAUTION: If one of the following situations should arise, the equipment should be checked by an authorized technician: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to excessive moisture. d. The equipment does not work well, or you fail to get it to work according to user's manual. e. The equipment has been dropped or damaged. f. The equipment has obvious signs of breakage.

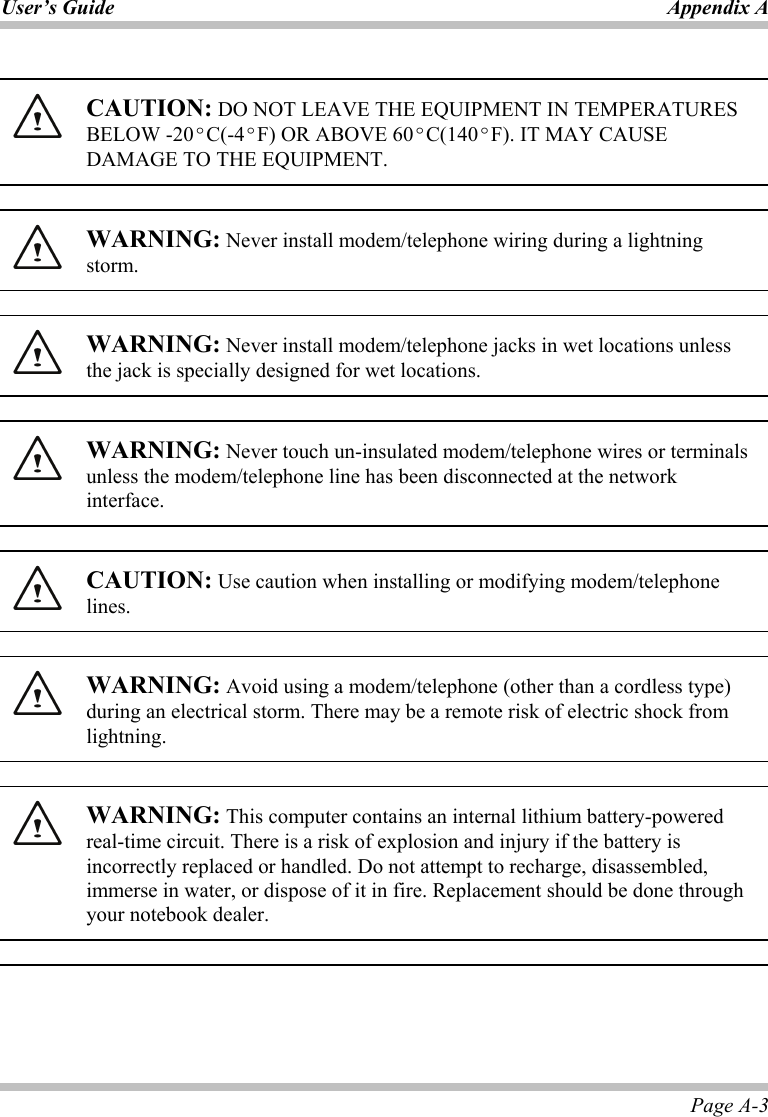

User’s Guide Appendix A Page A-3 CAUTION: DO NOT LEAVE THE EQUIPMENT IN TEMPERATURES BELOW -20ºC(-4ºF) OR ABOVE 60ºC(140ºF). IT MAY CAUSE DAMAGE TO THE EQUIPMENT. WARNING: Never install modem/telephone wiring during a lightning storm. WARNING: Never install modem/telephone jacks in wet locations unless the jack is specially designed for wet locations. WARNING: Never touch un-insulated modem/telephone wires or terminals unless the modem/telephone line has been disconnected at the network interface. CAUTION: Use caution when installing or modifying modem/telephone lines. WARNING: Avoid using a modem/telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. WARNING: This computer contains an internal lithium battery-powered real-time circuit. There is a risk of explosion and injury if the battery is incorrectly replaced or handled. Do not attempt to recharge, disassembled, immerse in water, or dispose of it in fire. Replacement should be done through your notebook dealer.

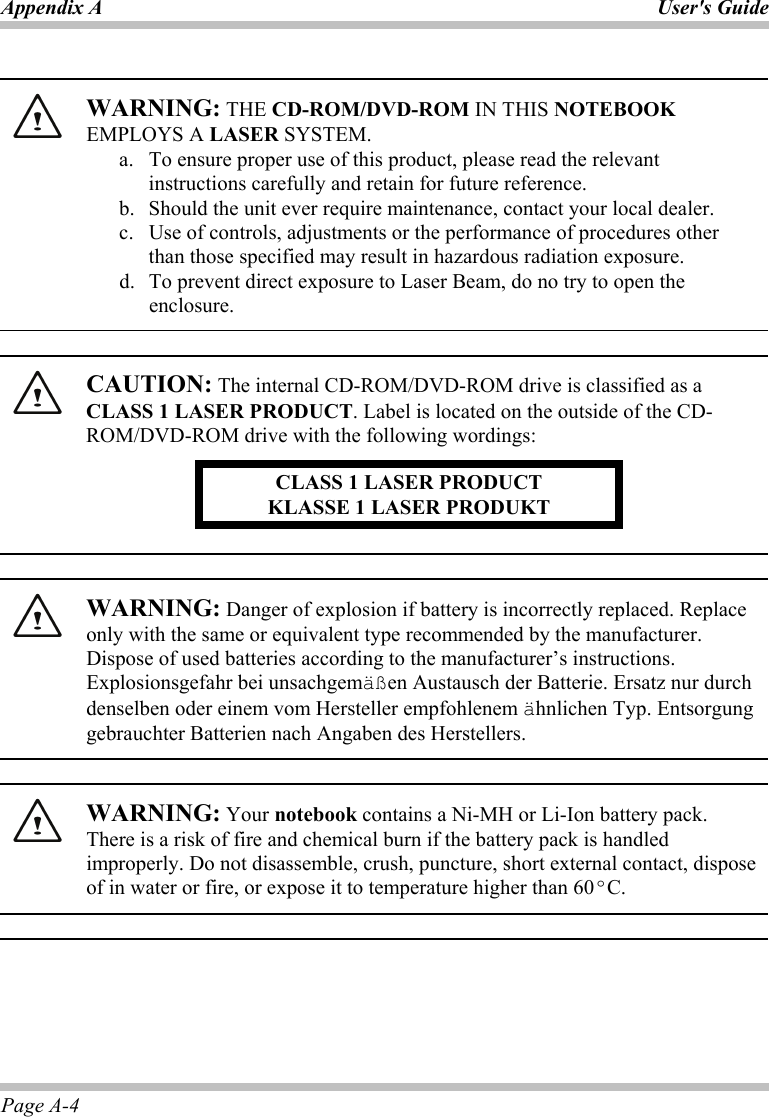

Appendix A User's Guide Page A-4 WARNING: THE CD-ROM/DVD-ROM IN THIS NOTEBOOK EMPLOYS A LASER SYSTEM. a. To ensure proper use of this product, please read the relevant instructions carefully and retain for future reference. b. Should the unit ever require maintenance, contact your local dealer. c. Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure. d. To prevent direct exposure to Laser Beam, do no try to open the enclosure. CAUTION: The internal CD-ROM/DVD-ROM drive is classified as a CLASS 1 LASER PRODUCT. Label is located on the outside of the CD-ROM/DVD-ROM drive with the following wordings: CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT WARNING: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. WARNING: Your notebook contains a Ni-MH or Li-Ion battery pack. There is a risk of fire and chemical burn if the battery pack is handled improperly. Do not disassemble, crush, puncture, short external contact, dispose of in water or fire, or expose it to temperature higher than 60ºC.

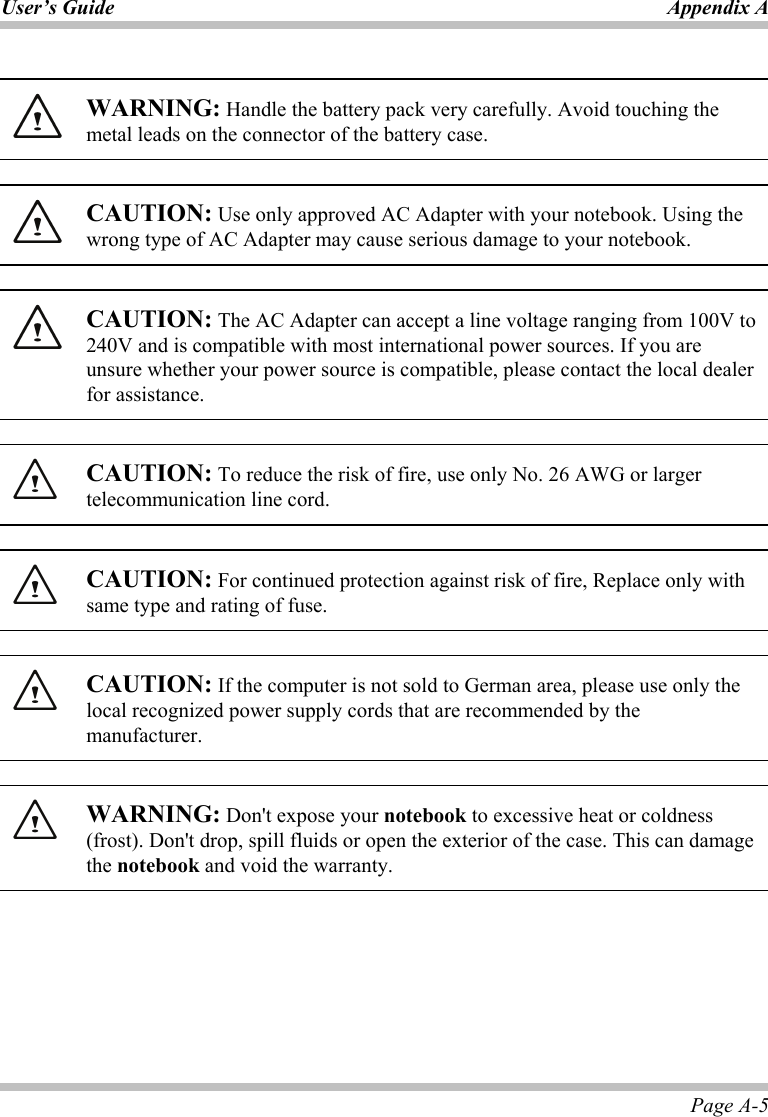

User’s Guide Appendix A Page A-5 WARNING: Handle the battery pack very carefully. Avoid touching the metal leads on the connector of the battery case. CAUTION: Use only approved AC Adapter with your notebook. Using the wrong type of AC Adapter may cause serious damage to your notebook. CAUTION: The AC Adapter can accept a line voltage ranging from 100V to 240V and is compatible with most international power sources. If you are unsure whether your power source is compatible, please contact the local dealer for assistance. CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. CAUTION: For continued protection against risk of fire, Replace only with same type and rating of fuse. CAUTION: If the computer is not sold to German area, please use only the local recognized power supply cords that are recommended by the manufacturer. WARNING: Don't expose your notebook to excessive heat or coldness (frost). Don't drop, spill fluids or open the exterior of the case. This can damage the notebook and void the warranty.
Appendix A User's Guide Page A-6 A.2 Agency Notice Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the manufacturer responsible for compliance may void the user’s authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

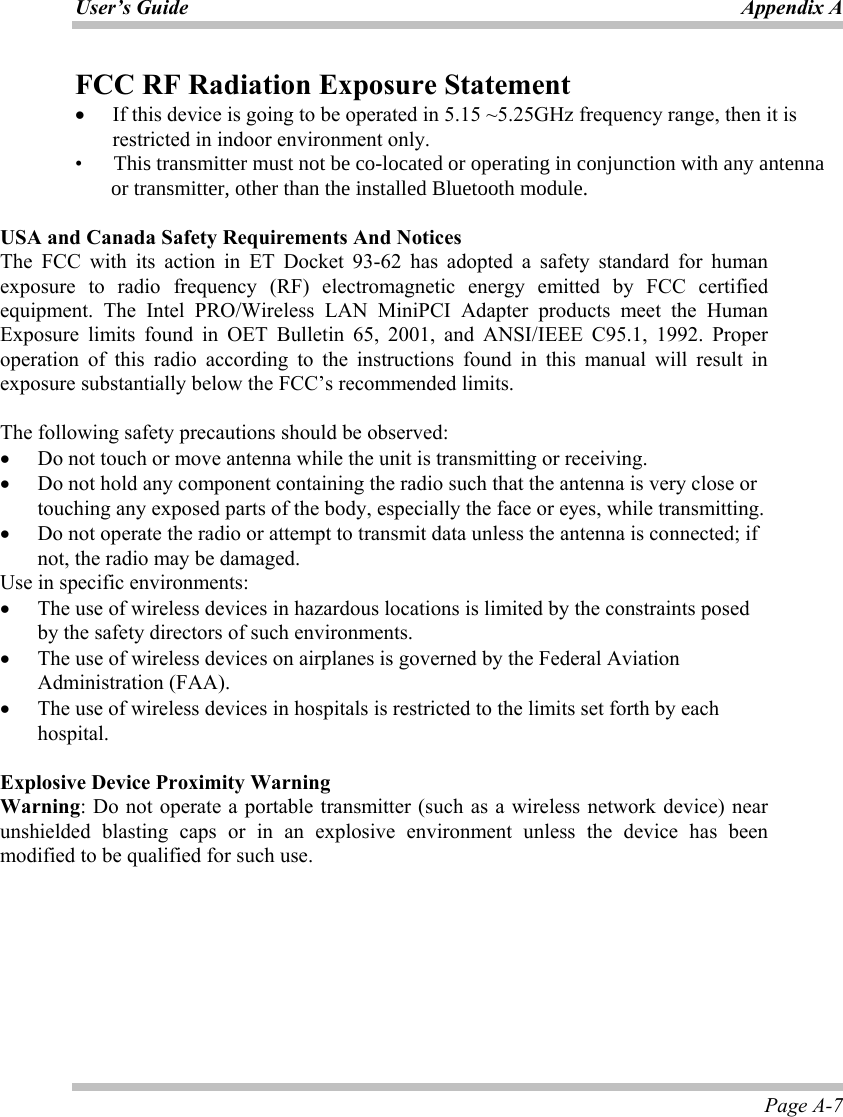

User’s Guide Appendix A Page A-7 FCC RF Radiation Exposure Statement • If this device is going to be operated in 5.15 ~5.25GHz frequency range, then it is restricted in indoor environment only. • This transmitter must not be co-located or operating in conjunction with any antenna or transmitter, other than the installed Bluetooth module. USA and Canada Safety Requirements And Notices The FCC with its action in ET Docket 93-62 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. The Intel PRO/Wireless LAN MiniPCI Adapter products meet the Human Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992. Proper operation of this radio according to the instructions found in this manual will result in exposure substantially below the FCC’s recommended limits. The following safety precautions should be observed: • Do not touch or move antenna while the unit is transmitting or receiving. • Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. • Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged. Use in specific environments: • The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments. • The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA). • The use of wireless devices in hospitals is restricted to the limits set forth by each hospital. Explosive Device Proximity Warning Warning: Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.
Appendix A User's Guide Page A-8 Use On Aircraft Caution Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. Canadian Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Avis Canadien Cet appareil numerque de la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada. Canada Radio Frequency Interference Requirements This Class B digital apparatus complies with Canadian ICES-003, Issue 2, and RSS-210, Issue 4 (Dec. 2000). “To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.” Cet appareil numérique de la classe B est conforme à la norme NMB-003, No. 2, et CNR-210, No. 4 (Dec. 2000). “Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit être utilizé à l’intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à l’extérieur, il doit faire l’objet d’une licence.” European Union Notice Product with the CE Marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community and if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC). Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): • EN55022 (CISPR 22)⎯ Electromagnetic Interference • EN55024 (IEC61000-4-2,3,4,5,6,8,11)⎯ Electromagnetic Immunity • EN61000-3-2⎯ (IEC61000-3-2)-Power Line Harmonics • EN61000-3-3⎯ (IEC61000-3-3)-Power Line Flicker • EN60950 (IEC60950) ⎯ Product Safety

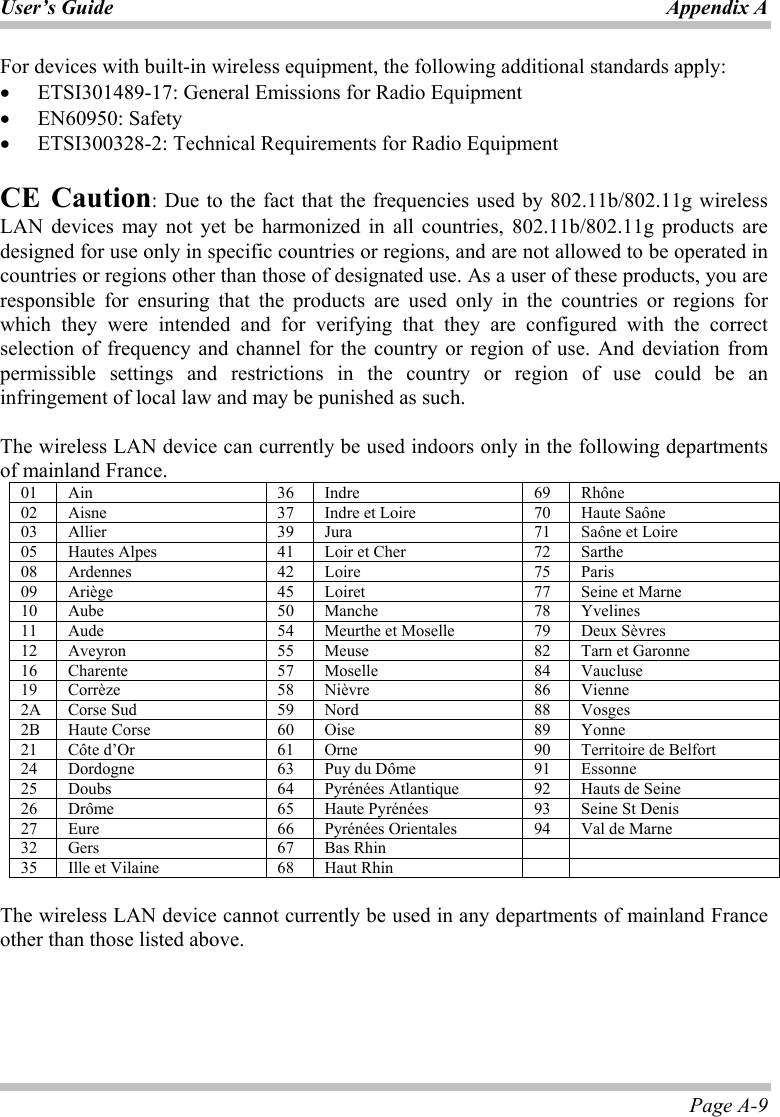

User’s Guide Appendix A Page A-9 For devices with built-in wireless equipment, the following additional standards apply: • ETSI301489-17: General Emissions for Radio Equipment • EN60950: Safety • ETSI300328-2: Technical Requirements for Radio Equipment CE Caution: Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use. As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. And deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such. The wireless LAN device can currently be used indoors only in the following departments of mainland France. 01 Ain 36 Indre 69 Rhône 02 Aisne 37 Indre et Loire 70 Haute Saône 03 Allier 39 Jura 71 Saône et Loire 05 Hautes Alpes 41 Loir et Cher 72 Sarthe 08 Ardennes 42 Loire 75 Paris 09 Ariège 45 Loiret 77 Seine et Marne 10 Aube 50 Manche 78 Yvelines 11 Aude 54 Meurthe et Moselle 79 Deux Sèvres 12 Aveyron 55 Meuse 82 Tarn et Garonne 16 Charente 57 Moselle 84 Vaucluse 19 Corrèze 58 Nièvre 86 Vienne 2A Corse Sud 59 Nord 88 Vosges 2B Haute Corse 60 Oise 89 Yonne 21 Côte d’Or 61 Orne 90 Territoire de Belfort 24 Dordogne 63 Puy du Dôme 91 Essonne 25 Doubs 64 Pyrénées Atlantique 92 Hauts de Seine 26 Drôme 65 Haute Pyrénées 93 Seine St Denis 27 Eure 66 Pyrénées Orientales 94 Val de Marne 32 Gers 67 Bas Rhin 35 Ille et Vilaine 68 Haut Rhin The wireless LAN device cannot currently be used in any departments of mainland France other than those listed above.

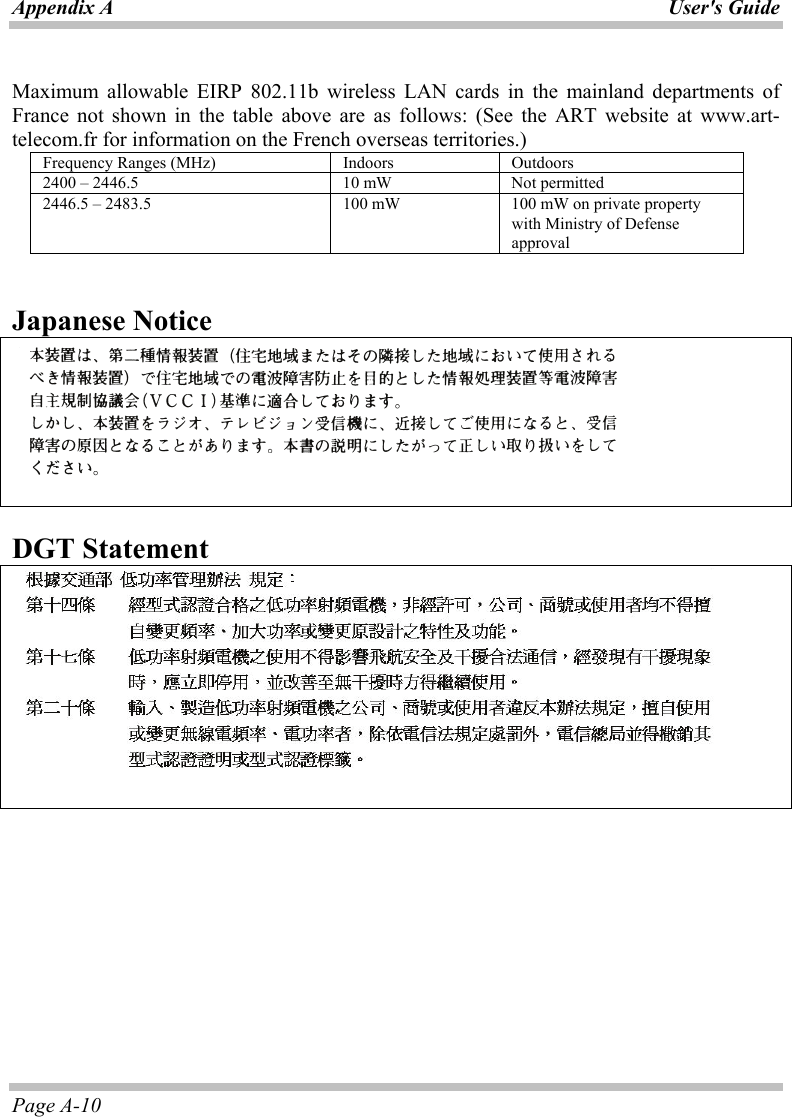

Appendix A User's Guide Page A-10 Maximum allowable EIRP 802.11b wireless LAN cards in the mainland departments of France not shown in the table above are as follows: (See the ART website at www.art-telecom.fr for information on the French overseas territories.) Frequency Ranges (MHz) Indoors Outdoors 2400 – 2446.5 10 mW Not permitted 2446.5 – 2483.5 100 mW 100 mW on private property with Ministry of Defense approval Japanese Notice DGT Statement

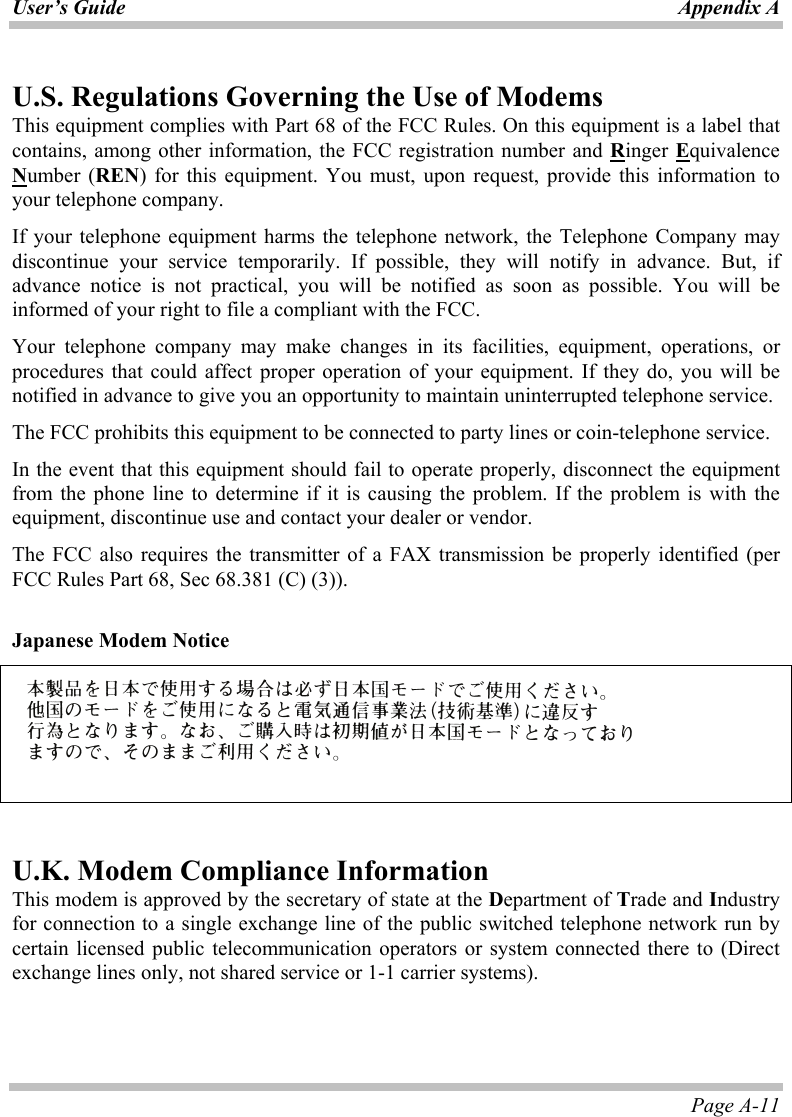

User’s Guide Appendix A Page A-11 U.S. Regulations Governing the Use of Modems This equipment complies with Part 68 of the FCC Rules. On this equipment is a label that contains, among other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company. If your telephone equipment harms the telephone network, the Telephone Company may discontinue your service temporarily. If possible, they will notify in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will be informed of your right to file a compliant with the FCC. Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect proper operation of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. The FCC prohibits this equipment to be connected to party lines or coin-telephone service. In the event that this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor. The FCC also requires the transmitter of a FAX transmission be properly identified (per FCC Rules Part 68, Sec 68.381 (C) (3)). Japanese Modem Notice U.K. Modem Compliance Information This modem is approved by the secretary of state at the Department of Trade and Industry for connection to a single exchange line of the public switched telephone network run by certain licensed public telecommunication operators or system connected there to (Direct exchange lines only, not shared service or 1-1 carrier systems).

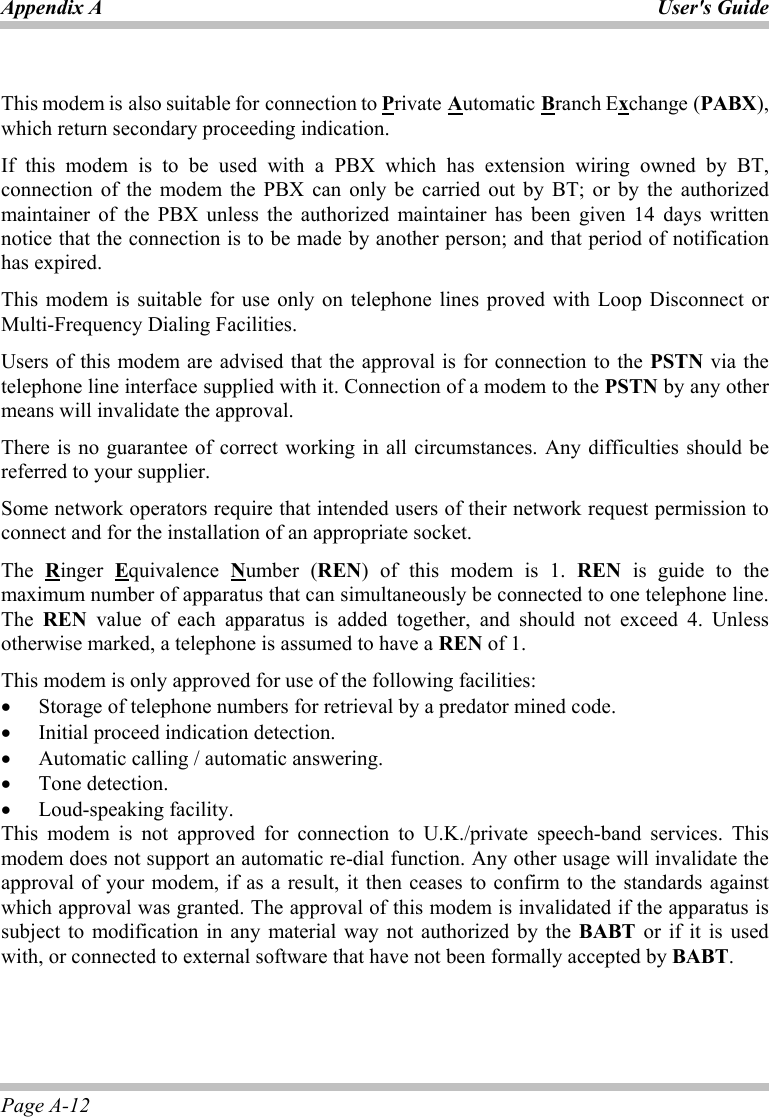

Appendix A User's Guide Page A-12 This modem is also suitable for connection to Private Automatic Branch Exchange (PABX), which return secondary proceeding indication. If this modem is to be used with a PBX which has extension wiring owned by BT, connection of the modem the PBX can only be carried out by BT; or by the authorized maintainer of the PBX unless the authorized maintainer has been given 14 days written notice that the connection is to be made by another person; and that period of notification has expired. This modem is suitable for use only on telephone lines proved with Loop Disconnect or Multi-Frequency Dialing Facilities. Users of this modem are advised that the approval is for connection to the PSTN via the telephone line interface supplied with it. Connection of a modem to the PSTN by any other means will invalidate the approval. There is no guarantee of correct working in all circumstances. Any difficulties should be referred to your supplier. Some network operators require that intended users of their network request permission to connect and for the installation of an appropriate socket. The Ringer Equivalence Number (REN) of this modem is 1. REN is guide to the maximum number of apparatus that can simultaneously be connected to one telephone line. The REN value of each apparatus is added together, and should not exceed 4. Unless otherwise marked, a telephone is assumed to have a REN of 1. This modem is only approved for use of the following facilities: • Storage of telephone numbers for retrieval by a predator mined code. • Initial proceed indication detection. • Automatic calling / automatic answering. • Tone detection. • Loud-speaking facility. This modem is not approved for connection to U.K./private speech-band services. This modem does not support an automatic re-dial function. Any other usage will invalidate the approval of your modem, if as a result, it then ceases to confirm to the standards against which approval was granted. The approval of this modem is invalidated if the apparatus is subject to modification in any material way not authorized by the BABT or if it is used with, or connected to external software that have not been formally accepted by BABT.
