FlyAudio 75322 Ford 322 special model 2009 Focus 2011 Mondeo User Manual 1

FLYAUDIO CORPORATION Ford 322 special model 2009 Focus 2011 Mondeo 1

Contents

User manual 1

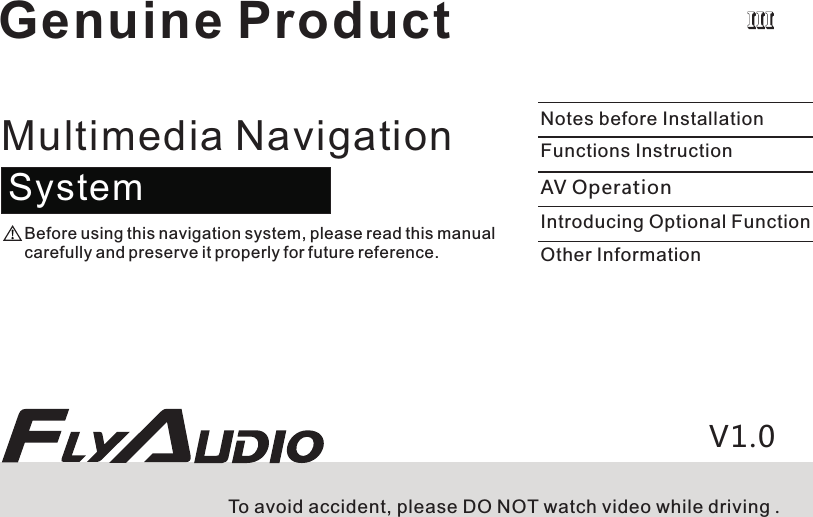

Notes before InstallationFunctions InstructionAV OperationIntroducing Optional FunctionOther InformationMultimedia NavigationSystemBefore using this navigation system, please read this manual carefully and preserve it properly for future reference.V1.0To avoid accident, please DO NOT watch video while driving .Genuine Product

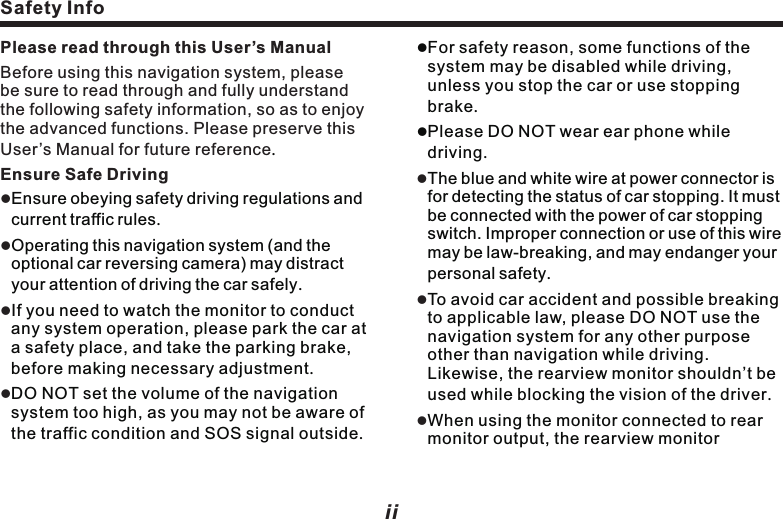

Safety InfoPlease read through this User’s ManualBefore using this navigation system, please be sure to read through and fully understand the following safety information, so as to enjoy the advanced functions. Please preserve this User’s Manual for future referenceEnsure Safe Driving.Ensure obeying safety driving regulations and current traffic rules.Operating this navigation system (and the optional car reversing camera) may distract your attention of driving the car safely.If you need to watch the monitor to conduct any system operation, please park the car at a safety place, and take the parking brake, before making necessary adjustment.DO NOT set the volume of the navigation system too high, as you may not be aware of the traffic condition and SOS signal outside.lllllFor safety reason, some functions of the system may be disabled while driving, unless you stop the car or use stopping brake.lPlease DO NOT wear ear phone while driving.The blue and white wire at power connector is for detecting the status of car stopping. It must be connected with the power of car stopping switch. Improper connection or use of this wire may be law-breaking, and may endanger your personal safety.To avoid car accident and possible breaking to applicable law, please DO NOT use the navigation system for any other purpose other than navigation while driving. Likewise, the rearview monitor shouldn’t be used while blocking the vision of the driver.When using the monitor connected to rear monitor output, the rearview monitorlll   iiAnnouncement output of this system is for connecting to monitor, so as the passengers in rear seats lWatching video and conducting relevant operation while driving is prohibited by the laws in some countries. For your and other person’s safety, please DO NOT do it while driving.lDO NOT contact this system with liquid,  watch program and conduct relevant operation while driving.       Warning:lPlease DO NOT install or fix your navigation system on your own. Danger could happen when this navigation system is installed or fixed by the personnel without receiving electronic device and automobile parts training, and you may be under the risk of electric shock or other dangers. Please DO NOT watch program and conduct relevant operation while driving. iiiotherwise, electric shock may happen, it may also cause damage to the system, smoke and overheat etc. SafetyAnnouncementlThe navigation function of this product (and the optional car reversing camera) serves as your assistance while driving. It doesn’t mean that you could distract attention, absent-minded or lose judgment while driving. The accident it caused is irrelevant with our company.lThe intellectual right of the digital map written into TF card belongs to the supplier. Map supplier is responsible for the content of it.Announcement      This User’s Manual mainly introduces the function, purpose and operation of the vehicle AV system product. This manual serves as an operation guideline for
Safety InfoPlease read through this User’s ManualBefore using this navigation system, please be sure to read through and fully understand the following safety information, so as to enjoy the advanced functions. Please preserve this User’s Manual for future referenceEnsure Safe Driving.Ensure obeying safety driving regulations and current traffic rules.Operating this navigation system (and the optional car reversing camera) may distract your attention of driving the car safely.If you need to watch the monitor to conduct any system operation, please park the car at a safety place, and take the parking brake, before making necessary adjustment.DO NOT set the volume of the navigation system too high, as you may not be aware of the traffic condition and SOS signal outside.lllllFor safety reason, some functions of the system may be disabled while driving, unless you stop the car or use stopping brake.lPlease DO NOT wear ear phone while driving.The blue and white wire at power connector is for detecting the status of car stopping. It must be connected with the power of car stopping switch. Improper connection or use of this wire may be law-breaking, and may endanger your personal safety.To avoid car accident and possible breaking to applicable law, please DO NOT use the navigation system for any other purpose other than navigation while driving. Likewise, the rearview monitor shouldn’t be used while blocking the vision of the driver.When using the monitor connected to rear monitor output, the rearview monitorlll   iiAnnouncement output of this system is for connecting to monitor, so as the passengers in rear seats lWatching video and conducting relevant operation while driving is prohibited by the laws in some countries. For your and other person’s safety, please DO NOT do it while driving.lDO NOT contact this system with liquid,  watch program and conduct relevant operation while driving.       Warning:lPlease DO NOT install or fix your navigation system on your own. Danger could happen when this navigation system is installed or fixed by the personnel without receiving electronic device and automobile parts training, and you may be under the risk of electric shock or other dangers. Please DO NOT watch program and conduct relevant operation while driving. iiiotherwise, electric shock may happen, it may also cause damage to the system, smoke and overheat etc. SafetyAnnouncementlThe navigation function of this product (and the optional car reversing camera) serves as your assistance while driving. It doesn’t mean that you could distract attention, absent-minded or lose judgment while driving. The accident it caused is irrelevant with our company.lThe intellectual right of the digital map written into TF card belongs to the supplier. Map supplier is responsible for the content of it.Announcement      This User’s Manual mainly introduces the function, purpose and operation of the vehicle AV system product. This manual serves as an operation guideline for

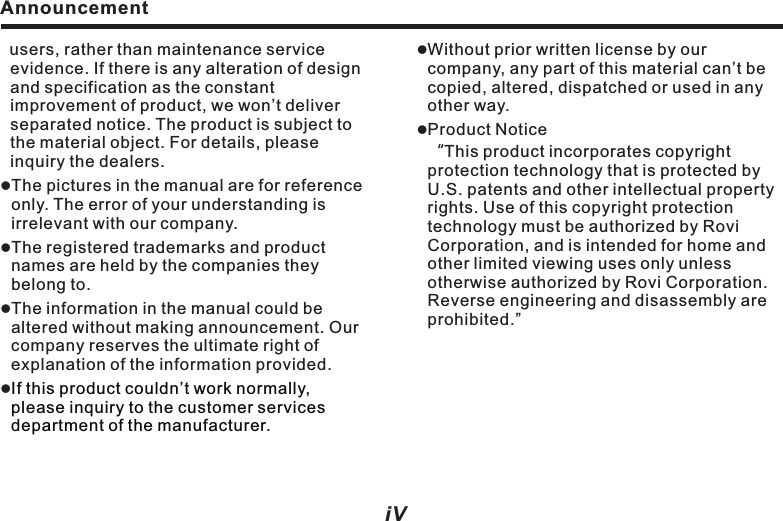

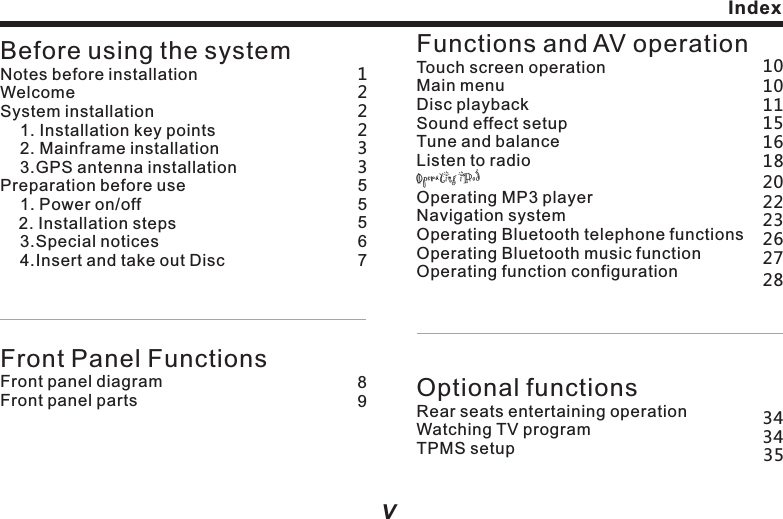

Announcement  users, rather than maintenance service evidence. If there is any alteration of design and specification as the constant improvement of product, we won’t deliver separated notice. The product is subject to the material object. For details, please inquiry the dealers. lreferencelllThe pictures in the manual are for   only. The error of your understanding is irrelevant with our company.The registered trademarks and product names are held by the companies they belong to. The information in the manual could be altered without making announcement. Our company reserves the ultimate right of explanation of the information provided.If this product couldn’t work normally, please inquiry to the customer services department of the manufacturer.Before using the systemNotes before installationWelcomeSystem installation    1. Installation key points     2. Mainframe installation    3.GPS antenna installationPreparation before use    1. Power on/off    2. Installation steps    3.Special notices    4.Insert and take out DiscFront Panel FunctionsFront panel diagramFront panel partsFunctions and AV operationTouch screen operationMain menu  Disc playback Sound effect setupTune and balanceListen to radioOperating iPodOperating MP3 player                                      Navigation systemOperating Bluetooth telephone functionsOperating Bluetooth music functionOperating function configurationOptional functionsRear seats entertaining operationWatching TV programTPMS setup12389223555671010163434111518202223262728IndexiV VlWithout prior written license by our company, any part of this material can’t be copied, altered, dispatched or used in any other way. lProduct Notice                                               “This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.”35
Announcement  users, rather than maintenance service evidence. If there is any alteration of design and specification as the constant improvement of product, we won’t deliver separated notice. The product is subject to the material object. For details, please inquiry the dealers. lreferencelllThe pictures in the manual are for   only. The error of your understanding is irrelevant with our company.The registered trademarks and product names are held by the companies they belong to. The information in the manual could be altered without making announcement. Our company reserves the ultimate right of explanation of the information provided.If this product couldn’t work normally, please inquiry to the customer services department of the manufacturer.Before using the systemNotes before installationWelcomeSystem installation    1. Installation key points     2. Mainframe installation    3.GPS antenna installationPreparation before use    1. Power on/off    2. Installation steps    3.Special notices    4.Insert and take out DiscFront Panel FunctionsFront panel diagramFront panel partsFunctions and AV operationTouch screen operationMain menu  Disc playback Sound effect setupTune and balanceListen to radioOperating iPodOperating MP3 player                                      Navigation systemOperating Bluetooth telephone functionsOperating Bluetooth music functionOperating function configurationOptional functionsRear seats entertaining operationWatching TV programTPMS setup12389223555671010163434111518202223262728IndexiV VlWithout prior written license by our company, any part of this material can’t be copied, altered, dispatched or used in any other way. lProduct Notice                                               “This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.”35

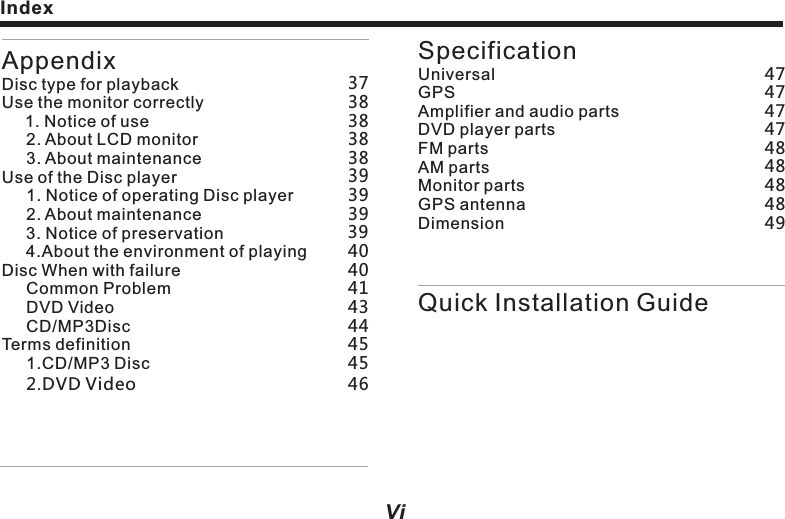

ViAppendixDisc type for playbackUse the monitor correctly     1. Notice of use     2. About LCD monitor     3. About maintenance Use of the Disc player     1. Notice of operating Disc player     2. About maintenance        3. Notice of preservation     4.About the environment of playing Disc When with failure     Common Problem     DVD Video     CD/MP3DiscTerms definition     1.CD/MP3 Disc     2.DVD Video         SpecificationUniversalGPSAmplifier and audio partsDVD player partsFM parts AM parts Monitor partsGPS antennaDimensionQuick Installation Guide4747484747484848493738394344383839393940404145463845Index Before using the system1Notice before installationProduct manufacture doesn’t recommend you to install or maintenance this navigation system on your own, as you may be under electric shock or other dangers. Please entrust all about the installation and maintenance to the official licensed staff.      Following dangerous installation positions or approaches are forbidden.Driver’s vision or vehicle operation may be hindered. For example, front ground of driving seat, or where close to steering wheel and gear lever.    Warning:lWhen the vehicle comes to a sudden stop, driver or passenger may be injured. lllDriver’s ability of safe driving may be influenced.The product is forbidden to be installed on meter panel, car gate or column, as well as the front or where close to the opening area of vehicle air bag. Please refer to your vehicle user’s manual to understand such opening area.lIf hole drilling or other alteration is needed while installing, please consult with the dealer nearby.l     When opening hole on panel, please make sure with rear space. Please DO NOT damage fuel cable, brake cable, electrical components, communication cable or power cable.When using screw, please make sure it is not contacted with any electric wire. Vibration may damage electric wire or the insulated skin, causing short circuit or damage to other vehicles.For ensuring correct installation, please use the standard parts to install in complied with the regulations. If using any non-standard part, the internal    Caution:ll
ViAppendixDisc type for playbackUse the monitor correctly     1. Notice of use     2. About LCD monitor     3. About maintenance Use of the Disc player     1. Notice of operating Disc player     2. About maintenance        3. Notice of preservation     4.About the environment of playing Disc When with failure     Common Problem     DVD Video     CD/MP3DiscTerms definition     1.CD/MP3 Disc     2.DVD Video         SpecificationUniversalGPSAmplifier and audio partsDVD player partsFM parts AM parts Monitor partsGPS antennaDimensionQuick Installation Guide4747484747484848493738394344383839393940404145463845Index Before using the system1Notice before installationProduct manufacture doesn’t recommend you to install or maintenance this navigation system on your own, as you may be under electric shock or other dangers. Please entrust all about the installation and maintenance to the official licensed staff.      Following dangerous installation positions or approaches are forbidden.Driver’s vision or vehicle operation may be hindered. For example, front ground of driving seat, or where close to steering wheel and gear lever.    Warning:lWhen the vehicle comes to a sudden stop, driver or passenger may be injured. lllDriver’s ability of safe driving may be influenced.The product is forbidden to be installed on meter panel, car gate or column, as well as the front or where close to the opening area of vehicle air bag. Please refer to your vehicle user’s manual to understand such opening area.lIf hole drilling or other alteration is needed while installing, please consult with the dealer nearby.l     When opening hole on panel, please make sure with rear space. Please DO NOT damage fuel cable, brake cable, electrical components, communication cable or power cable.When using screw, please make sure it is not contacted with any electric wire. Vibration may damage electric wire or the insulated skin, causing short circuit or damage to other vehicles.For ensuring correct installation, please use the standard parts to install in complied with the regulations. If using any non-standard part, the internal    Caution:ll

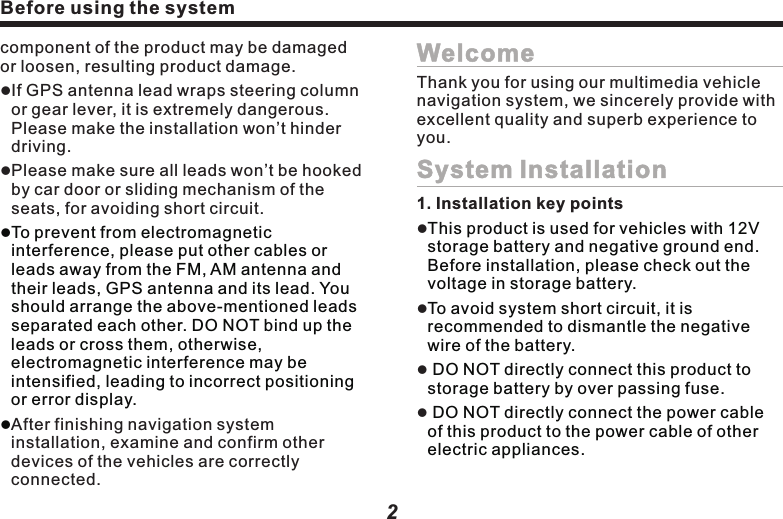

2component of the product may be damaged or loosen, resulting product damage.lIf GPS antenna lead wraps steering column or gear lever, it is extremely dangerous. Please make the installation won’t hinder driving.   lPlease make sure all leads won’t be hooked by car door or sliding mechanism of the seats, for avoiding short circuit.lTo prevent from electromagnetic interference, please put other cables or leads away from the FM, AM antenna and their leads, GPS antenna and its lead. You should arrange the above-mentioned leads separated each other. DO NOT bind up the leads or cross them, otherwise, electromagnetic interference may be intensified, leading to incorrect positioning or error display.lAfter finishing navigation system installation, examine and confirm other devices of the vehicles are correctly connected.WelcomeSystem InstallationThank you for using our multimedia vehicle navigation system, we sincerely provide with excellent quality and superb experience to you.1. Installation key pointsllllThis product is used for vehicles with 12V storage battery and negative ground end. Before installation, please check out the voltage in storage battery.To avoid system short circuit, it is recommended to dismantle the negative wire of the battery. DO NOT directly connect this product to storage battery by over passing fuse. DO NOT directly connect the power cable of this product to the power cable of other electric appliances. Before using the systemBefore using the system2. Mainframe installation       Don’t damage or stain the panel.lllCaution:3. GPS antenna installationFirstly take out the original mainframe.Dismantle the bracket and screws, and then preserve them. Use connection cable to finish connection.Lastly, put the mainframe in place, and use the original installing screws to fasten the mainframe.Before using binding tape to fasten the GPS antenna, please be sure to use proper 3 cleanse the adhering area. After cleansing, tear down the back paper, place the GPS antenna at a proper place, and press it tight with strength. Dismantle the side panel, take the cable through storage box, to the mainframe at central control platform. Please bind up the cable with the original cables.  Connect the GPS antenna port with the mainframe.Please make sure all devices are installed at safe places. If user’s vehicle is installed with other devices, please make sure such installation won’t interfere with its function.lBefore installation, please read through all instructions. It is advised to ask auto Hi-Fi professional dealer to install this machine.Caution:l
2component of the product may be damaged or loosen, resulting product damage.lIf GPS antenna lead wraps steering column or gear lever, it is extremely dangerous. Please make the installation won’t hinder driving.   lPlease make sure all leads won’t be hooked by car door or sliding mechanism of the seats, for avoiding short circuit.lTo prevent from electromagnetic interference, please put other cables or leads away from the FM, AM antenna and their leads, GPS antenna and its lead. You should arrange the above-mentioned leads separated each other. DO NOT bind up the leads or cross them, otherwise, electromagnetic interference may be intensified, leading to incorrect positioning or error display.lAfter finishing navigation system installation, examine and confirm other devices of the vehicles are correctly connected.WelcomeSystem InstallationThank you for using our multimedia vehicle navigation system, we sincerely provide with excellent quality and superb experience to you.1. Installation key pointsllllThis product is used for vehicles with 12V storage battery and negative ground end. Before installation, please check out the voltage in storage battery.To avoid system short circuit, it is recommended to dismantle the negative wire of the battery. DO NOT directly connect this product to storage battery by over passing fuse. DO NOT directly connect the power cable of this product to the power cable of other electric appliances. Before using the systemBefore using the system2. Mainframe installation       Don’t damage or stain the panel.lllCaution:3. GPS antenna installationFirstly take out the original mainframe.Dismantle the bracket and screws, and then preserve them. Use connection cable to finish connection.Lastly, put the mainframe in place, and use the original installing screws to fasten the mainframe.Before using binding tape to fasten the GPS antenna, please be sure to use proper 3 cleanse the adhering area. After cleansing, tear down the back paper, place the GPS antenna at a proper place, and press it tight with strength. Dismantle the side panel, take the cable through storage box, to the mainframe at central control platform. Please bind up the cable with the original cables.  Connect the GPS antenna port with the mainframe.Please make sure all devices are installed at safe places. If user’s vehicle is installed with other devices, please make sure such installation won’t interfere with its function.lBefore installation, please read through all instructions. It is advised to ask auto Hi-Fi professional dealer to install this machine.Caution:l

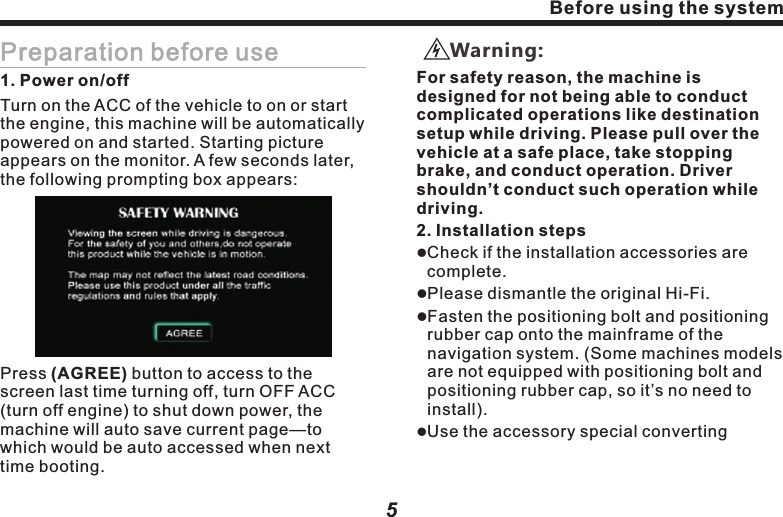

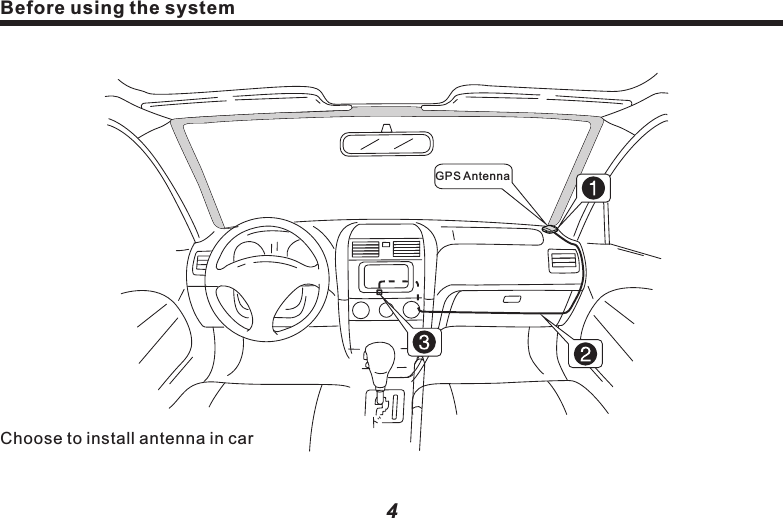

Choose to install antenna in car4Before using the systemBefore using the systemGPS Antenna5Preparation before use1. Power on/offTurn on the ACC of the vehicle to on or start the engine, this machine will be automatically powered on and started. Starting picture appears on the monitor. A few seconds later, the following prompting box appears:Press (AGREE) button to access to the screen last time turning off, turn OFF ACC (turn off engine) to shut down power, the machine will auto save current page—to which would be auto accessed when next time booting.      For safety reason, the machine is designed for not being able to conduct complicated operations like destination setup while driving. Please pull over the vehicle at a safe place, take stopping brake, and conduct operation. Driver shouldn’t conduct such operation while driving.Warning:2. Installation stepslCheck if the installation accessories are complete.lPlease dismantle the original Hi-Fi.lFasten the positioning bolt and positioning rubber cap onto the mainframe of the navigation system. (Some machines models are not equipped with positioning bolt and positioning rubber cap, so it’s no need to install).         lUse the accessory special converting
Choose to install antenna in car4Before using the systemBefore using the systemGPS Antenna5Preparation before use1. Power on/offTurn on the ACC of the vehicle to on or start the engine, this machine will be automatically powered on and started. Starting picture appears on the monitor. A few seconds later, the following prompting box appears:Press (AGREE) button to access to the screen last time turning off, turn OFF ACC (turn off engine) to shut down power, the machine will auto save current page—to which would be auto accessed when next time booting.      For safety reason, the machine is designed for not being able to conduct complicated operations like destination setup while driving. Please pull over the vehicle at a safe place, take stopping brake, and conduct operation. Driver shouldn’t conduct such operation while driving.Warning:2. Installation stepslCheck if the installation accessories are complete.lPlease dismantle the original Hi-Fi.lFasten the positioning bolt and positioning rubber cap onto the mainframe of the navigation system. (Some machines models are not equipped with positioning bolt and positioning rubber cap, so it’s no need to install).         lUse the accessory special converting

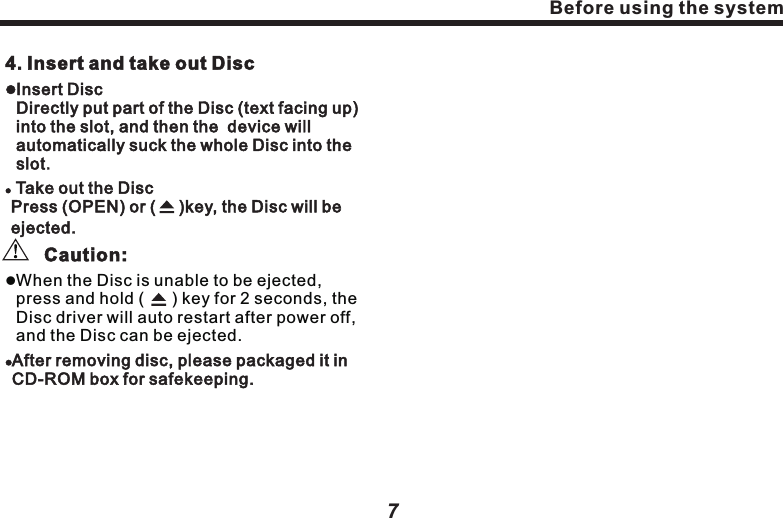

4. Insert and take out DisclInsert Disc                                           Directly put part of the Disc (text facing up) into the slot, and then the  device will automatically suck the whole Disc into the slot.l Take out the Disc                                           Press (OPEN) or (     )key, the Disc will be ejected.         Caution:lAfter removing disc, please packaged it in CD-ROM box for safekeeping. lWhen the Disc is unable to be ejected, press and hold (      ) key for 2 seconds, the Disc driver will auto restart after power off, and the Disc can be ejected.Before using the systemBefore using the systemcable to quickly install as per the system connection diagram in the guideline. Connect the original Hi-Fi cable, peripheralauxiliary devices and mainframe, connect automobile ACC key switch, turn on machine power to have a trial run. If the machine can’t be turned on, please firstly check out the wiring, until the solution is found. If the machine can normally work,shut down ACC and turn off the vehicle. lInstall the correctly wired mainframe into the original Hi-Fi position, and make sure the installation stable.  3. Special noticelBe careful of not damaging automobile wiring.lTo ensure normal playback of CD/DVD, the horizontal angle of installation should be less than 20°lTo avoid short circuit when wiring, it’s advised to dismantle the negative end of the battery before installation.6lTo prevent from accidental damage, please DO NOT plug the parts when power is on.lPlease verify the vehicle model is matching with one of the standard models in the vehicle conversion line of the navigation system.lPlease check out the connection of auto wiring with Hi-Fi cable in navigation system.lBefore power on, please confirm all parts of the system are correctly connected.  Please verify the standard (+) pole (yellow) and ground wire (black) in converting cable in navigation system accessories are not short circuit. Connect the power cable to other wire may damage the machine or vehicle.lDO NOT directly connect the power cable of this product to the power cable of other electric appliances.7
4. Insert and take out DisclInsert Disc                                           Directly put part of the Disc (text facing up) into the slot, and then the  device will automatically suck the whole Disc into the slot.l Take out the Disc                                           Press (OPEN) or (     )key, the Disc will be ejected.         Caution:lAfter removing disc, please packaged it in CD-ROM box for safekeeping. lWhen the Disc is unable to be ejected, press and hold (      ) key for 2 seconds, the Disc driver will auto restart after power off, and the Disc can be ejected.Before using the systemBefore using the systemcable to quickly install as per the system connection diagram in the guideline. Connect the original Hi-Fi cable, peripheralauxiliary devices and mainframe, connect automobile ACC key switch, turn on machine power to have a trial run. If the machine can’t be turned on, please firstly check out the wiring, until the solution is found. If the machine can normally work,shut down ACC and turn off the vehicle. lInstall the correctly wired mainframe into the original Hi-Fi position, and make sure the installation stable.  3. Special noticelBe careful of not damaging automobile wiring.lTo ensure normal playback of CD/DVD, the horizontal angle of installation should be less than 20°lTo avoid short circuit when wiring, it’s advised to dismantle the negative end of the battery before installation.6lTo prevent from accidental damage, please DO NOT plug the parts when power is on.lPlease verify the vehicle model is matching with one of the standard models in the vehicle conversion line of the navigation system.lPlease check out the connection of auto wiring with Hi-Fi cable in navigation system.lBefore power on, please confirm all parts of the system are correctly connected.  Please verify the standard (+) pole (yellow) and ground wire (black) in converting cable in navigation system accessories are not short circuit. Connect the power cable to other wire may damage the machine or vehicle.lDO NOT directly connect the power cable of this product to the power cable of other electric appliances.7

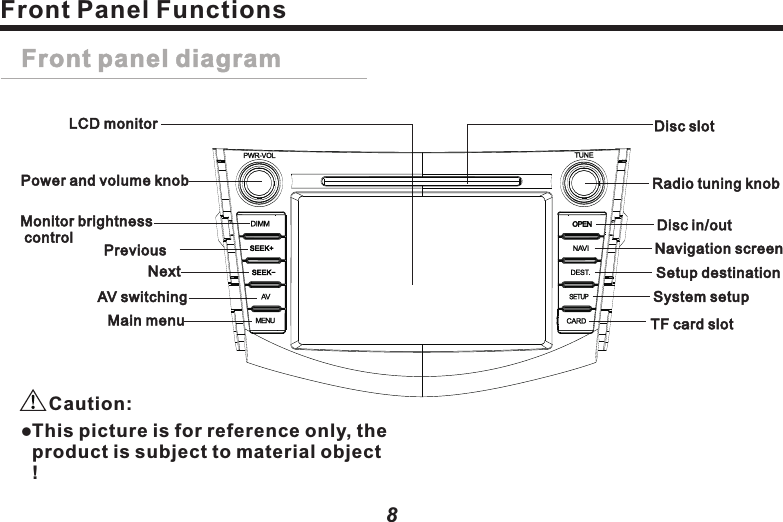

Front panel diagram    This picture is for reference only, the product is subject to material object ! Caution:lFront Panel Functions8AV switchingLCD monitorMonitor brightness control PreviousMain menuPower and volume knobDisc in/outDisc slotNavigation screenSetup destinationSystem setupRadio tuning knobNextTF card slot Front Panel Functions9Function of front panel partsLCD monitor—for touch screen control(Brightness control)—for turning on screen, or making it dim, medium and bright.(Switch)—Press it to rotate among DVD, FM1,FM2,AM,AUX and MP3.(Next)—When playing AV, press to select next song; when listening to radio, press to select next .(Previous)—When playing AV, press to select previous song; when listening to radio, press to select  previous radio channel.(Main Menu)—Press it to switch to main menu at any time.Power and volume knob—Adjust the output volume Turn it clockwise to increase volume, turn it counter-clockwise to decrease volume.  Press the knob to turn on/off mute.DIMMAVSEEK+SEEK-MENUlllPress and hold the knob for 2 seconds, monitor will be in stand-by mode, touch lllcard slot —Insert a TF card with GPS navigation  software. screen to continue previous operation.Disc in/out slot— insert and take out Disc(Disc in/out control)—to eject Disc, if without Disc, press it, the monitor will display “insert Disc” prompt.(Navigation screen)—short cut to access to GPS navigation screen.(Destination)— Access to destination setup.(System setup)— Alter system relevant setupRadio turning knobWhen listening to radio, turn the knob to select channel.Press the knob to access to “tune and balance”.In GPS navigation screen, turn the knob to zoom in/out the map.OPENNAVIDEST.SETUPTF
Front panel diagram    This picture is for reference only, the product is subject to material object ! Caution:lFront Panel Functions8AV switchingLCD monitorMonitor brightness control PreviousMain menuPower and volume knobDisc in/outDisc slotNavigation screenSetup destinationSystem setupRadio tuning knobNextTF card slot Front Panel Functions9Function of front panel partsLCD monitor—for touch screen control(Brightness control)—for turning on screen, or making it dim, medium and bright.(Switch)—Press it to rotate among DVD, FM1,FM2,AM,AUX and MP3.(Next)—When playing AV, press to select next song; when listening to radio, press to select next .(Previous)—When playing AV, press to select previous song; when listening to radio, press to select  previous radio channel.(Main Menu)—Press it to switch to main menu at any time.Power and volume knob—Adjust the output volume Turn it clockwise to increase volume, turn it counter-clockwise to decrease volume.  Press the knob to turn on/off mute.DIMMAVSEEK+SEEK-MENUlllPress and hold the knob for 2 seconds, monitor will be in stand-by mode, touch lllcard slot —Insert a TF card with GPS navigation  software. screen to continue previous operation.Disc in/out slot— insert and take out Disc(Disc in/out control)—to eject Disc, if without Disc, press it, the monitor will display “insert Disc” prompt.(Navigation screen)—short cut to access to GPS navigation screen.(Destination)— Access to destination setup.(System setup)— Alter system relevant setupRadio turning knobWhen listening to radio, turn the knob to select channel.Press the knob to access to “tune and balance”.In GPS navigation screen, turn the knob to zoom in/out the map.OPENNAVIDEST.SETUPTF

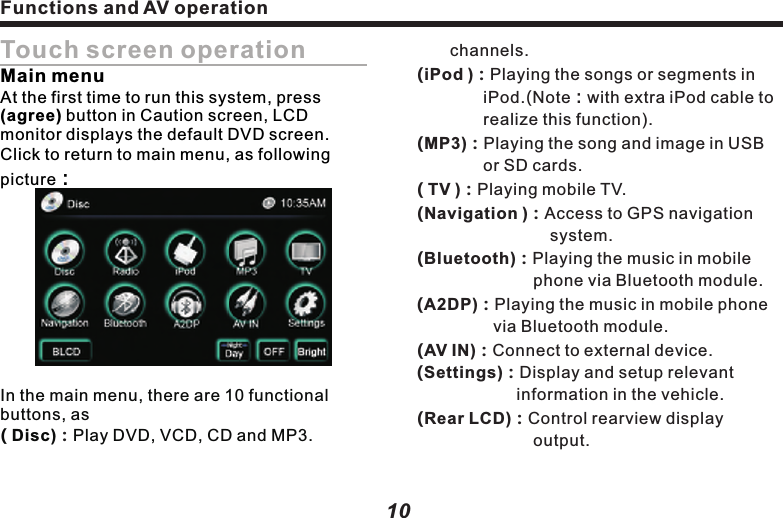

Touch screen operationMain menuAt the first time to run this system, press (agree) button in Caution screen, LCD monitor displays the default DVD screen.Click to return to main menu, as following picture:In the main menu, there are 10 functional buttons, as ( Disc) Play DVD, VCD, CD and MP3.:10  channels.(iPod ):Playing the songs or segments in      iPod.(Note:with extra iPod cable to          realize this function).:    ::         :        :      (AV IN):Connect to external device.:        (Rear LCD):Control rearview display           output.           (MP3) Playing the song and image in USB      or SD cards.( TV ) Playing mobile TV.(Navigation ) Access to GPS navigation system.(Bluetooth) Playing the music in mobile   phone via Bluetooth module.(A2DP) Playing the music in mobile phone      via Bluetooth module.(Settings) Display and setup relevant information in the vehicle.    Functions and AV operation Functions and AV operation11detailed setup, see the “brake sensing” setup in later pages(P-28).DVD Disc playbackWhen the following picture appears in the monitor, the way to insert Disc: see theprevious instruction of “Insert and take out Disc (P-7).Insert Disc to auto access to playback screen. If this Disc is a DVD, you will see the following screen:                                    In this system, many functions are optional, and useable only when they are chosen. For detailed  please see optional function.1. Disc Playback    For safety reason, when watching the image on monitor, please stop your vehicle and take stopping brake. For (Day/Night):Press (Day/Night) button to           switch to night mode, button indicator will be on, screen is dark. Press(Day/night mode) again to switch to day mode. (Off)(Dark)(Soft)(Bright):Between day    mode and non-day mode, user may        choose 1 out of 4 display modes as      needed. Caution:loperation, Caution:l
Touch screen operationMain menuAt the first time to run this system, press (agree) button in Caution screen, LCD monitor displays the default DVD screen.Click to return to main menu, as following picture:In the main menu, there are 10 functional buttons, as ( Disc) Play DVD, VCD, CD and MP3.:10  channels.(iPod ):Playing the songs or segments in      iPod.(Note:with extra iPod cable to          realize this function).:    ::         :        :      (AV IN):Connect to external device.:        (Rear LCD):Control rearview display           output.           (MP3) Playing the song and image in USB      or SD cards.( TV ) Playing mobile TV.(Navigation ) Access to GPS navigation system.(Bluetooth) Playing the music in mobile   phone via Bluetooth module.(A2DP) Playing the music in mobile phone      via Bluetooth module.(Settings) Display and setup relevant information in the vehicle.    Functions and AV operation Functions and AV operation11detailed setup, see the “brake sensing” setup in later pages(P-28).DVD Disc playbackWhen the following picture appears in the monitor, the way to insert Disc: see theprevious instruction of “Insert and take out Disc (P-7).Insert Disc to auto access to playback screen. If this Disc is a DVD, you will see the following screen:                                    In this system, many functions are optional, and useable only when they are chosen. For detailed  please see optional function.1. Disc Playback    For safety reason, when watching the image on monitor, please stop your vehicle and take stopping brake. For (Day/Night):Press (Day/Night) button to           switch to night mode, button indicator will be on, screen is dark. Press(Day/night mode) again to switch to day mode. (Off)(Dark)(Soft)(Bright):Between day    mode and non-day mode, user may        choose 1 out of 4 display modes as      needed. Caution:loperation, Caution:l

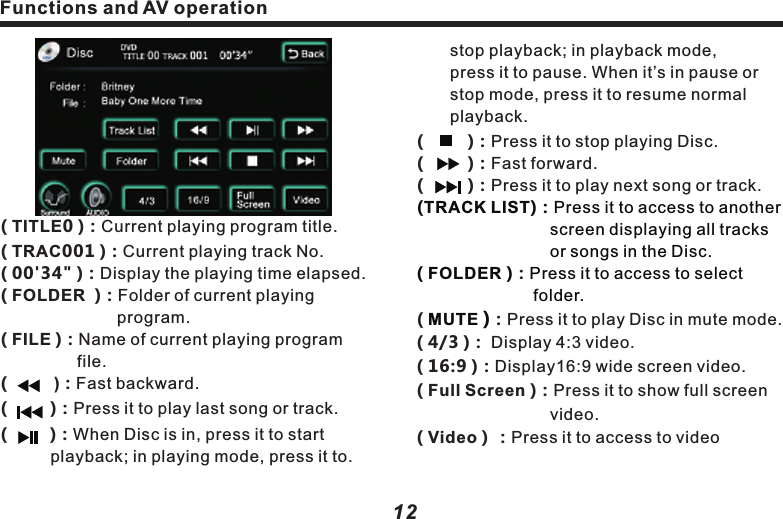

  stop playback; in playback mode,       press it to pause. When it’s in pause or    stop mode, press it to resume normal    playback.(      ):Press it to stop playing Disc.(         ):Fast forward.(         ):Press it to play next song or track.:          (  :Press it to play Disc in mute mode.:::        :    (TRACK LIST):Press it to access to another         screen displaying all tracks            or songs in the Disc.( FOLDER )Press it to access to select folder.MUTE )( 4/3 )  Display 4:3 video.( 16:9 ) Display16:9 wide screen video.( Full Screen ) Press it to show full screen video.( Video)Press it to access to video Functions and AV operation12( TITLE0 ):Current playing program title. ( TRAC001 ):Current playing track No.( 00'34" ):Display the playing time elapsed.( FOLDER  ):Folder of current playing          program.( FILE ):Name of current playing program        file.(          ):Fast backward(         ):Press it to play last song or track(         ):When Disc is in, press it to start      playback; in playing mode, press it to.       ..Functions and AV operation   it when playing to switch to different     subtitles (multiple subtitles).      ( SETUP ):Adjust video color, contrast,         chroma and brightness, as         following picture:( - ) or  ( + ):Increase or decrease, adjust to        appropriate visual effect.( MENU ):This is first level menu. If it’s         playing, press it to pause and          access to Disc main menu.  operation and menu screen, as following   picture:( 0h2'30" ):Display elapsed playback time.( AUDIO  ):When using Disc recorded with       multiple sound tracks format,       press it when playing to switch to       sound tracks in different formats       (multiple format) .:         ( SUBTITLE ) When using Disc recorded with multiple subtitles, press13
  stop playback; in playback mode,       press it to pause. When it’s in pause or    stop mode, press it to resume normal    playback.(      ):Press it to stop playing Disc.(         ):Fast forward.(         ):Press it to play next song or track.:          (  :Press it to play Disc in mute mode.:::        :    (TRACK LIST):Press it to access to another         screen displaying all tracks            or songs in the Disc.( FOLDER )Press it to access to select folder.MUTE )( 4/3 )  Display 4:3 video.( 16:9 ) Display16:9 wide screen video.( Full Screen ) Press it to show full screen video.( Video)Press it to access to video Functions and AV operation12( TITLE0 ):Current playing program title. ( TRAC001 ):Current playing track No.( 00'34" ):Display the playing time elapsed.( FOLDER  ):Folder of current playing          program.( FILE ):Name of current playing program        file.(          ):Fast backward(         ):Press it to play last song or track(         ):When Disc is in, press it to start      playback; in playing mode, press it to.       ..Functions and AV operation   it when playing to switch to different     subtitles (multiple subtitles).      ( SETUP ):Adjust video color, contrast,         chroma and brightness, as         following picture:( - ) or  ( + ):Increase or decrease, adjust to        appropriate visual effect.( MENU ):This is first level menu. If it’s         playing, press it to pause and          access to Disc main menu.  operation and menu screen, as following   picture:( 0h2'30" ):Display elapsed playback time.( AUDIO  ):When using Disc recorded with       multiple sound tracks format,       press it when playing to switch to       sound tracks in different formats       (multiple format) .:         ( SUBTITLE ) When using Disc recorded with multiple subtitles, press13

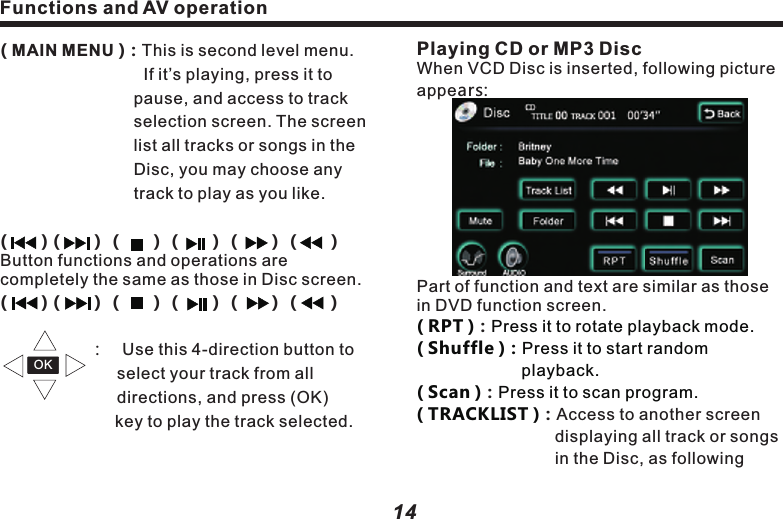

Playing CD or MP3 DiscWhen VCD Disc is inserted, following picture appears:Part of function and text are similar as those in DVD function screen.Access to another screen displaying all track or songs in the Disc, as following ( RPT ) Press it to rotate playback mode. ( Shuffle ):Press it to start random            playback.           ( Scan )Press it to scan program.( TRACKLIST ):::                   Functions and AV operationFunctions and AV operation1514( MAIN MENU ):This is second level menu.            If it’s playing, press it to          pause, and access to track         selection screen. The screen            list all tracks or songs in the         Disc, you may choose any          track to play as you like.           (       )(     )(     )(     )(     )(     )Button functions and operations are completely the same as those in Disc screen.(       )(     )(     )(     )(     )(     )                                         : Use this 4-direction button to         select your track from all                 directions, and press (OK)            key to play the track selected. OK picture:    Caution:Program navigation:Touch (Prev) and                                 (Next) on touch screen    lTouch the button on screen to select relevant track or song for playback. The selected button will be highlighted, with serial No. and time displayed on top of the screen.( FOLDER ):Press it to show files list, as          follows:    to navigate files list or folders list. Sound Effect SetupClick( SURROUND )to set up sound effect, as follows:
Playing CD or MP3 DiscWhen VCD Disc is inserted, following picture appears:Part of function and text are similar as those in DVD function screen.Access to another screen displaying all track or songs in the Disc, as following ( RPT ) Press it to rotate playback mode. ( Shuffle ):Press it to start random            playback.           ( Scan )Press it to scan program.( TRACKLIST ):::                   Functions and AV operationFunctions and AV operation1514( MAIN MENU ):This is second level menu.            If it’s playing, press it to          pause, and access to track         selection screen. The screen            list all tracks or songs in the         Disc, you may choose any          track to play as you like.           (       )(     )(     )(     )(     )(     )Button functions and operations are completely the same as those in Disc screen.(       )(     )(     )(     )(     )(     )                                         : Use this 4-direction button to         select your track from all                 directions, and press (OK)            key to play the track selected. OK picture:    Caution:Program navigation:Touch (Prev) and                                 (Next) on touch screen    lTouch the button on screen to select relevant track or song for playback. The selected button will be highlighted, with serial No. and time displayed on top of the screen.( FOLDER ):Press it to show files list, as          follows:    to navigate files list or folders list. Sound Effect SetupClick( SURROUND )to set up sound effect, as follows:

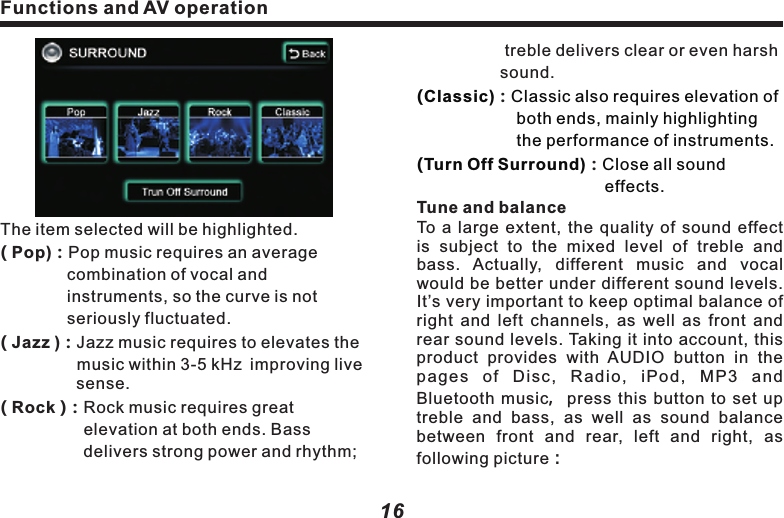

The item selected will be highlighted.( Pop):Pop music requires an average       combination of vocal and          instruments, so the curve is not       seriously fluctuated.     ( Jazz ) Jazz music requires to elevates the       music within 3-5 kHz improving live       sense.( Rock ):Rock music requires great          elevation at both ends. Bass         delivers strong power and rhythm;:Functions and AV operation17Functions and AV operation16      treble delivers clear or even harsh      sound. ::Tune and balanceTo  a  large  extent, the  quality of  sound  effect is  subject  to  the  mixed  level  of  treble  and bass.  Actually,  different  music  and  vocal would be better under different sound levels. It’s very important to keep optimal balance of right  and left  channels, as  well as  front  and rear sound levels. Taking it into account, this product  provides  with  AUDIO  button  in  the pages  of  Disc,  Radio,  iPod,  MP3  and Bluetooth music,press  this  button to  set  up treble  and  bass,  as  well  as  sound  balance between  front  and  rear,  left  and  right,  as following picture:(Classic) Classic also requires elevation of       both ends, mainly highlighting        the performance of instruments.(Turn Off Surround) Close all sound                   effects. “TREB" ( + )or( - ):Add or reduce treble.“MID"    ( + )or( - ):Add or reduce middle.“BASS" ( + )or( - ):Add or reduce bass.10KHz ):Intensify treble, switch treble          frequency.500Hz ):Intensify alto, switch alto            frequency.80Hz):Intensify bass,switch bass frequency.FRONT)or REAR):Adjust sound balance( ( (( (   between front and rear speakers. L )or(R ):Adjust the sound balance between       left and right speakers. Press(L)         or(R), (FRONT ) or (REAR ) once,         yellow bar will move to corresponding      direction by 1 unit.     Back ):  Press this button to return to                       operation screen of upper level.Caution:l When listening to stereo CD or radio,change left/right balance, the volume  of a group of sound will increase, while that of the other group will decrease.((
The item selected will be highlighted.( Pop):Pop music requires an average       combination of vocal and          instruments, so the curve is not       seriously fluctuated.     ( Jazz ) Jazz music requires to elevates the       music within 3-5 kHz improving live       sense.( Rock ):Rock music requires great          elevation at both ends. Bass         delivers strong power and rhythm;:Functions and AV operation17Functions and AV operation16      treble delivers clear or even harsh      sound. ::Tune and balanceTo  a  large  extent, the  quality of  sound  effect is  subject  to  the  mixed  level  of  treble  and bass.  Actually,  different  music  and  vocal would be better under different sound levels. It’s very important to keep optimal balance of right  and left  channels, as  well as  front  and rear sound levels. Taking it into account, this product  provides  with  AUDIO  button  in  the pages  of  Disc,  Radio,  iPod,  MP3  and Bluetooth music,press  this  button to  set  up treble  and  bass,  as  well  as  sound  balance between  front  and  rear,  left  and  right,  as following picture:(Classic) Classic also requires elevation of       both ends, mainly highlighting        the performance of instruments.(Turn Off Surround) Close all sound                   effects. “TREB" ( + )or( - ):Add or reduce treble.“MID"    ( + )or( - ):Add or reduce middle.“BASS" ( + )or( - ):Add or reduce bass.10KHz ):Intensify treble, switch treble          frequency.500Hz ):Intensify alto, switch alto            frequency.80Hz):Intensify bass,switch bass frequency.FRONT)or REAR):Adjust sound balance( ( (( (   between front and rear speakers. L )or(R ):Adjust the sound balance between       left and right speakers. Press(L)         or(R), (FRONT ) or (REAR ) once,         yellow bar will move to corresponding      direction by 1 unit.     Back ):  Press this button to return to                       operation screen of upper level.Caution:l When listening to stereo CD or radio,change left/right balance, the volume  of a group of sound will increase, while that of the other group will decrease.((

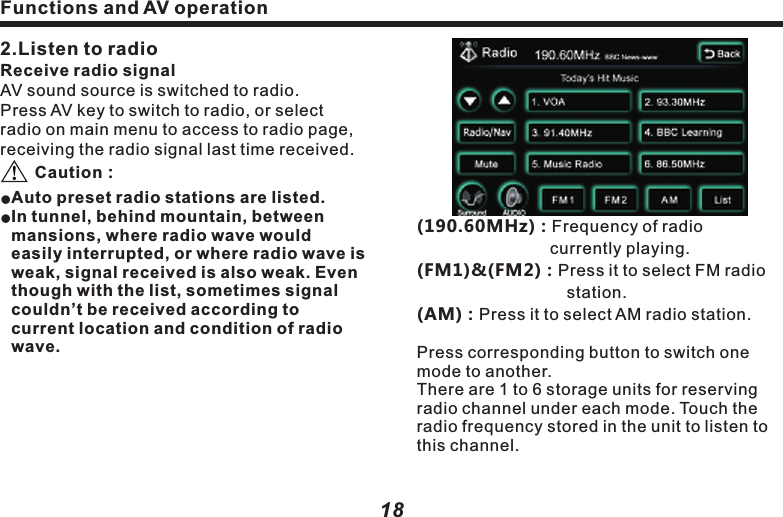

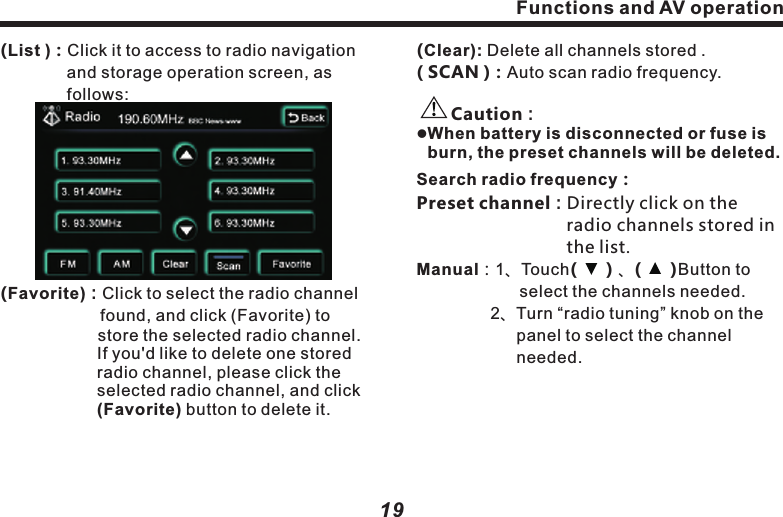

Functions and AV operation19(190.60MHz):Frequency of radio               currently playing.(FM1)&(FM2):Press it to select FM radio          station.(AM):Press it to select AM radio station.Press corresponding button to switch one mode to another.There are 1 to 6 storage units for reserving radio channel under each mode. Touch the radio frequency stored in the unit to listen to this channel.(List ):Click it to access to radio navigation     and storage operation screen, as      follows:     (Favorite):Click to select the radio channel       found, and click (Favorite) to store the selected radio channel. If you'd like to delete one stored radio channel, please click the selected radio channel, and click (Favorite) button to delete it.Functions and AV operation182.Listen to radioReceive radio signalAV sound source is switched to radio.Press AV key to switch to radio, or select radio on main menu to access to radio page, receiving the radio signal last time received.      Auto preset radio stations are listed.In tunnel, behind mountain, between mansions, where radio wave would easily interrupted, or where radio wave is weak, signal received is also weak. Even though with the list, sometimes signal couldn’t be received according to current location and condition of radio wave. Caution:ll(Clear): Delete all channels stored .( SCAN ):Auto scan radio frequency.      Caution:lWhen battery is disconnected or fuse is burn, the preset channels will be deleted.Search radio frequency:   Preset channel:Directly click on the            radio channels stored in          the list.Manual:1、Touch(      ) 、(      )Button to           select the channels needed.               2、Turn “radio tuning” knob on the           panel to select the channel             needed.
Functions and AV operation19(190.60MHz):Frequency of radio               currently playing.(FM1)&(FM2):Press it to select FM radio          station.(AM):Press it to select AM radio station.Press corresponding button to switch one mode to another.There are 1 to 6 storage units for reserving radio channel under each mode. Touch the radio frequency stored in the unit to listen to this channel.(List ):Click it to access to radio navigation     and storage operation screen, as      follows:     (Favorite):Click to select the radio channel       found, and click (Favorite) to store the selected radio channel. If you'd like to delete one stored radio channel, please click the selected radio channel, and click (Favorite) button to delete it.Functions and AV operation182.Listen to radioReceive radio signalAV sound source is switched to radio.Press AV key to switch to radio, or select radio on main menu to access to radio page, receiving the radio signal last time received.      Auto preset radio stations are listed.In tunnel, behind mountain, between mansions, where radio wave would easily interrupted, or where radio wave is weak, signal received is also weak. Even though with the list, sometimes signal couldn’t be received according to current location and condition of radio wave. Caution:ll(Clear): Delete all channels stored .( SCAN ):Auto scan radio frequency.      Caution:lWhen battery is disconnected or fuse is burn, the preset channels will be deleted.Search radio frequency:   Preset channel:Directly click on the            radio channels stored in          the list.Manual:1、Touch(      ) 、(      )Button to           select the channels needed.               2、Turn “radio tuning” knob on the           panel to select the channel             needed.

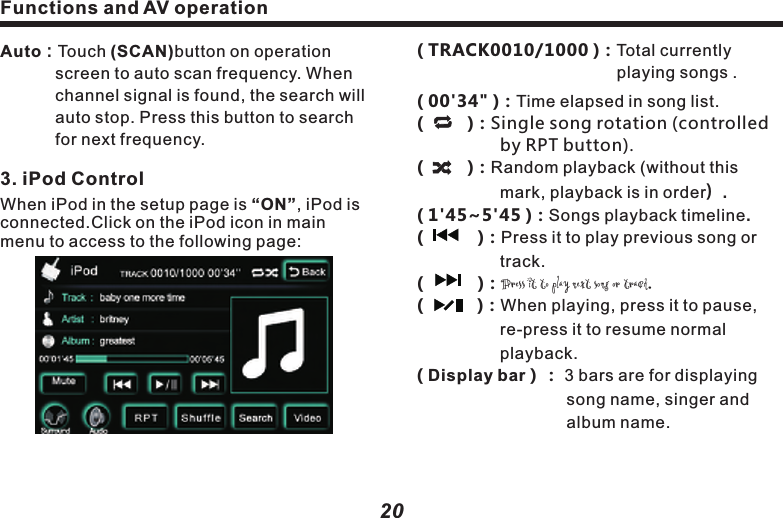

( TRACK0010/1000 ):Total currently               playing songs .( 00'34" ) Time elapsed in song list.:(         ):Single song rotation (controlled      by RPT button).(         ):Random playback (without this        mark, playback is in order).( 1'45~5'45 ):Songs playback timeline.(           ):Press it to play previous song or       track.  (           ):Press it to play next song or track.(           ):When playing, press it to pause,       re-press it to resume normal           playback.( Display bar): 3 bars are for displaying           song name, singer and             album name.                                   Functions and AV operation( RPT )Press it to switch to rotating playback mode.( Shuffle )Press it to switch to random play back mode.:          :             ( Search ): Click it to access to playback         list. "Song navigation ":Press(Prev)        (Next)button to turn the page.As following picture:“            ”:Return to iPod folder page.“      Back  ”: Return to page setup.21Auto:Touch (SCAN)button on operation        screen to auto scan frequency. When           channel signal is found, the search will       auto stop. Press this button to search      for next frequency.3. iPod ControlWhen iPod in the setup page is “ON”, iPod is connected.Click on the iPod icon in main menu to access to the following page:Functions and AV operation20( Video ):Press it to access to video page.(     ): Press it to play previous song or       track. (          ):Fast backward control.(        ):When the Disc is inserted, press it      to start playback; when in playback      mode, press it to pause. When it’s      paused or stopped, press it to        resume normal playback.
( TRACK0010/1000 ):Total currently               playing songs .( 00'34" ) Time elapsed in song list.:(         ):Single song rotation (controlled      by RPT button).(         ):Random playback (without this        mark, playback is in order).( 1'45~5'45 ):Songs playback timeline.(           ):Press it to play previous song or       track.  (           ):Press it to play next song or track.(           ):When playing, press it to pause,       re-press it to resume normal           playback.( Display bar): 3 bars are for displaying           song name, singer and             album name.                                   Functions and AV operation( RPT )Press it to switch to rotating playback mode.( Shuffle )Press it to switch to random play back mode.:          :             ( Search ): Click it to access to playback         list. "Song navigation ":Press(Prev)        (Next)button to turn the page.As following picture:“            ”:Return to iPod folder page.“      Back  ”: Return to page setup.21Auto:Touch (SCAN)button on operation        screen to auto scan frequency. When           channel signal is found, the search will       auto stop. Press this button to search      for next frequency.3. iPod ControlWhen iPod in the setup page is “ON”, iPod is connected.Click on the iPod icon in main menu to access to the following page:Functions and AV operation20( Video ):Press it to access to video page.(     ): Press it to play previous song or       track. (          ):Fast backward control.(        ):When the Disc is inserted, press it      to start playback; when in playback      mode, press it to pause. When it’s      paused or stopped, press it to        resume normal playback.
Functions and AV operation23( TRACK1 ):Currently playing track No.( 00'34" ):Display elapsed playing time.( Display bar ):3 bars are for displaying song name, singer and album name.( 1'45)( 6'45 ):Song playing timeline.(      ):Press it to play previous song or       track . (        ):Press it to play next song or         track.  ( ):In playback mode,press it to         pause,Press it again to resume       normal playback.(  RPT  ):Press it to switch to rotating         playback mode. ( Shuffle ):Press it to switch to random          playback mode.( Playlist ):Press it to access to next screen       displaying all tracks and songs in       the Disc.          ( Prev )(Next ):Choose song, use the middle         slidingbar to navigate, as          following picture: 5.Navigation systemClick on (Navigation) icon in main screen to access to Navigationcontrol screen:(Run Navigation):Click on the map           software in the pathway,              as follows:(          ):Fast forward control.(        ):Press it to play next track or song.( SETUP ):The same as DVD operation. 4.MP3 Player ControlClick(Mp3 )button to access toMP3 player control screen, as following picture:        ( USB or SD ):In(Playlist) select one playback device. The icon on it will correspondingly change to blue, indicating playing the music or image in the device. Functions and AV operation22( Browse ):Click it to see the map, as         follows:

Navigation menu
