Formosa Teletek BT11FTT06 USB Bluetooth Dongle User Manual BTW English

Formosa Teletek Corporation USB Bluetooth Dongle BTW English

User Manual

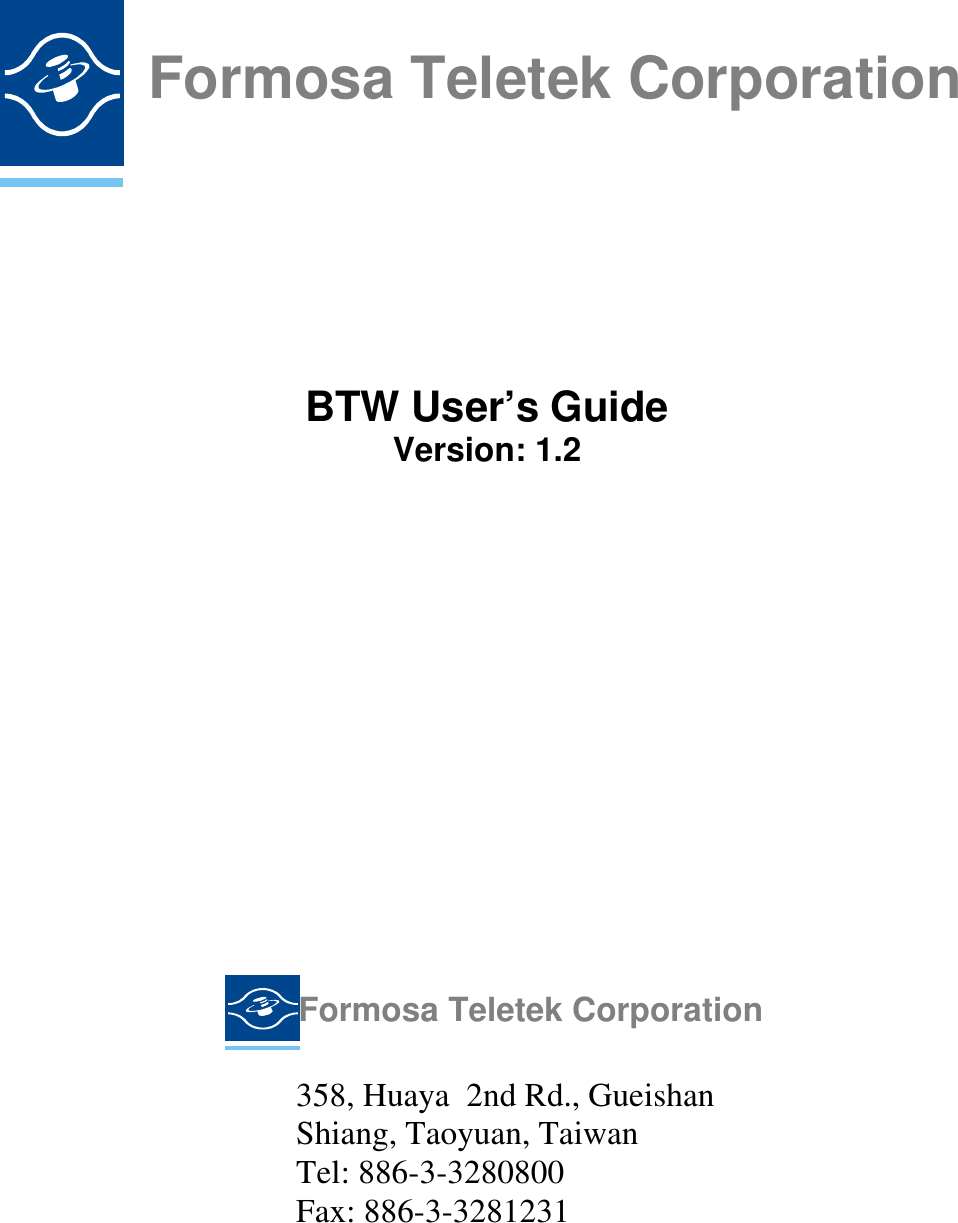

Formosa Teletek CorporationBTW User’s GuideVersion: 1.2Formosa Teletek Corporation358, Huaya 2nd Rd., GueishanShiang, Taoyuan, TaiwanTel: 886-3-3280800Fax: 886-3-3281231

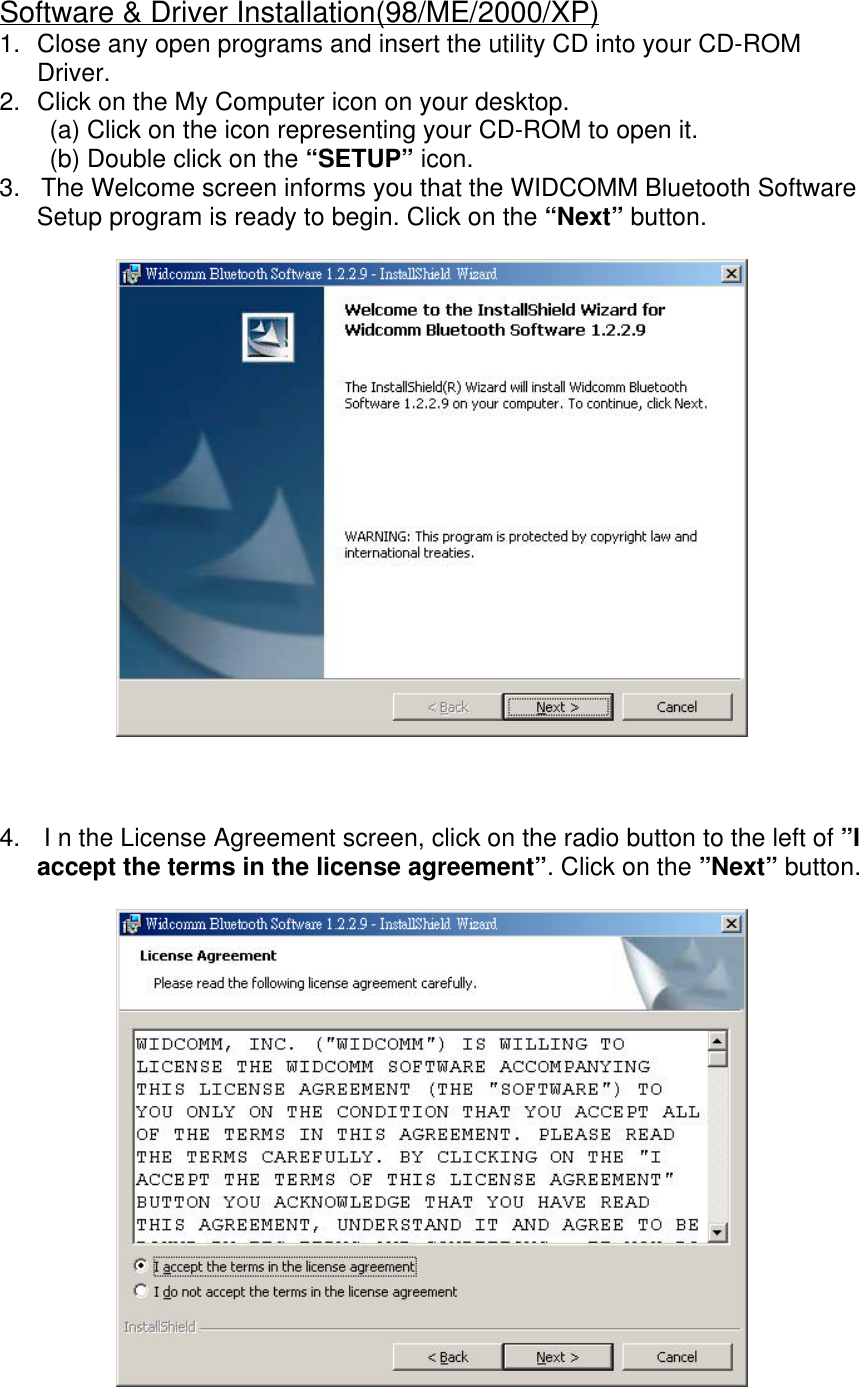

Software & Driver Installation(98/ME/2000/XP)1. Close any open programs and insert the utility CD into your CD-ROMDriver.2. Click on the My Computer icon on your desktop.(a) Click on the icon representing your CD-ROM to open it.(b) Double click on the “SETUP” icon.3. The Welcome screen informs you that the WIDCOMM Bluetooth SoftwareSetup program is ready to begin. Click on the “Next” button.4. I n the License Agreement screen, click on the radio button to the left of ”Iaccept the terms in the license agreement”. Click on the ”Next” button.

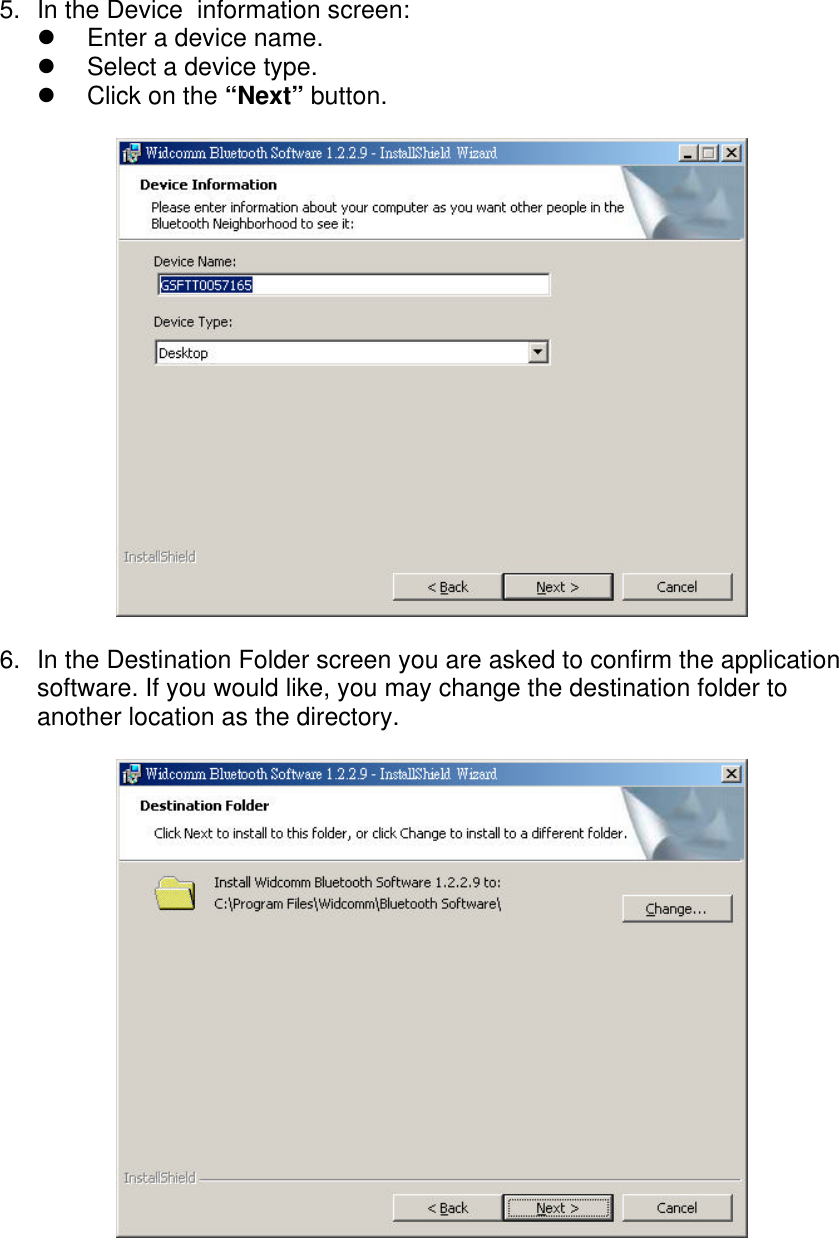

5. In the Device information screen:l Enter a device name.l Select a device type.l Click on the “Next” button.6. In the Destination Folder screen you are asked to confirm the applicationsoftware. If you would like, you may change the destination folder toanother location as the directory.

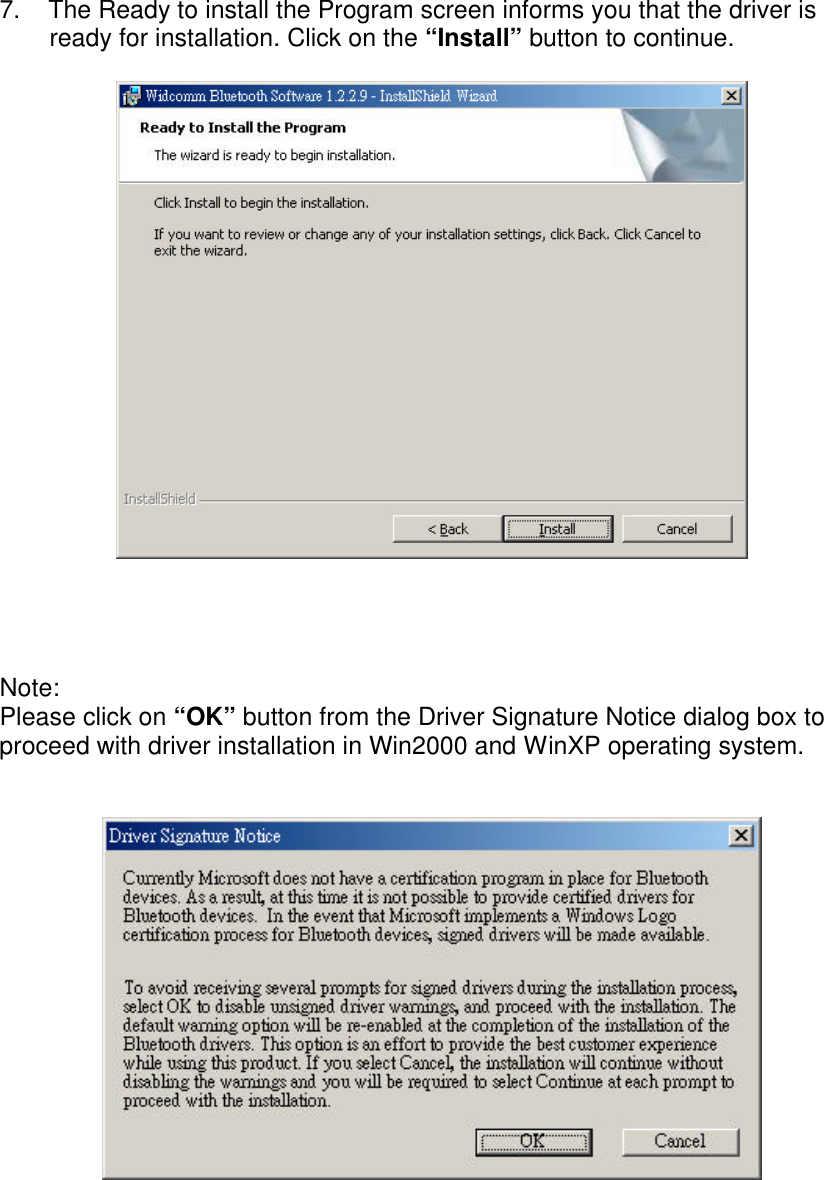

7. The Ready to install the Program screen informs you that the driver isready for installation. Click on the “Install” button to continue.Note:Please click on “OK” button from the Driver Signature Notice dialog box toproceed with driver installation in Win2000 and WinXP operating system.
8. When the files have been copied, you will be presented with a screeninforming of its completion.(a) Click on the ”Finish” button, a pop-up dialog box will on the screen.(b) Click the ”Yes” button to reboot your PC.9. After you reboot your PC, the FORMOSA TELETEK USB DONGLE Driverwill install Finish and the ”Bluetooth Icon” Btw.ico resides in the Windowssystem tray.Notice: The changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operatethe equipment.

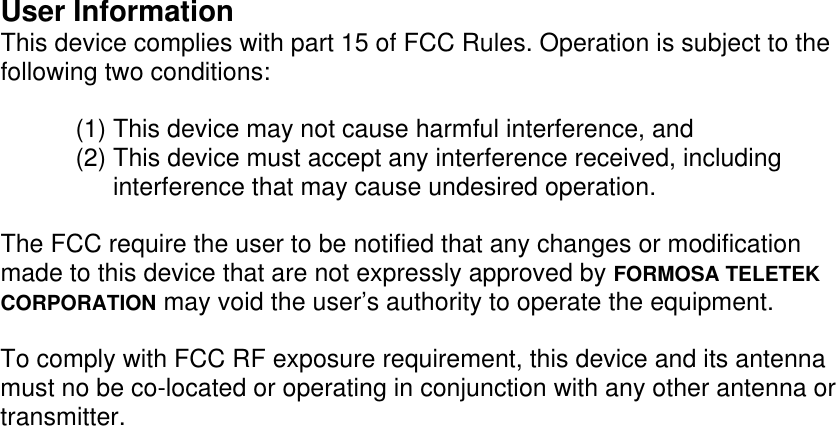

User InformationThis device complies with part 15 of FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, includinginterference that may cause undesired operation.The FCC require the user to be notified that any changes or modificationmade to this device that are not expressly approved by FORMOSA TELETEKCORPORATION may void the user’s authority to operate the equipment.To comply with FCC RF exposure requirement, this device and its antennamust no be co-located or operating in conjunction with any other antenna ortransmitter.
