Formosa Teletek BTHC01 Bluetooth CarKit User Manual User guide

Formosa Teletek Corporation Bluetooth CarKit User guide

User Manual

Bluetooh Handsfree Carkit Bluetooth your life Introduction The Bluetooth Handsfree Carkit is base on Bluetooth wireless technology connects to a compatible phone without wires. It is easily convert your mobile phone communication into this in-car solution, talking through its build-in high quality speaker and external microphone. This handsfree in-car device integrated CSR BC02 and Formosa Teletek LTCC technology, providing fast and reliable transmission of voice. Note: This bluetooth carkit just supports “call receiving” function, if bluetooth phone only has headset profile, without handsfree profile, such Sony Ericsson P800, Philip fisio 820. It doesn’t support a bluetooth phone without headset and handsfree profile, such Nokia 7650. The following page of this user manual focus on how to use this product Overview Volume up Volume down Speaker Main button Link button Power switch

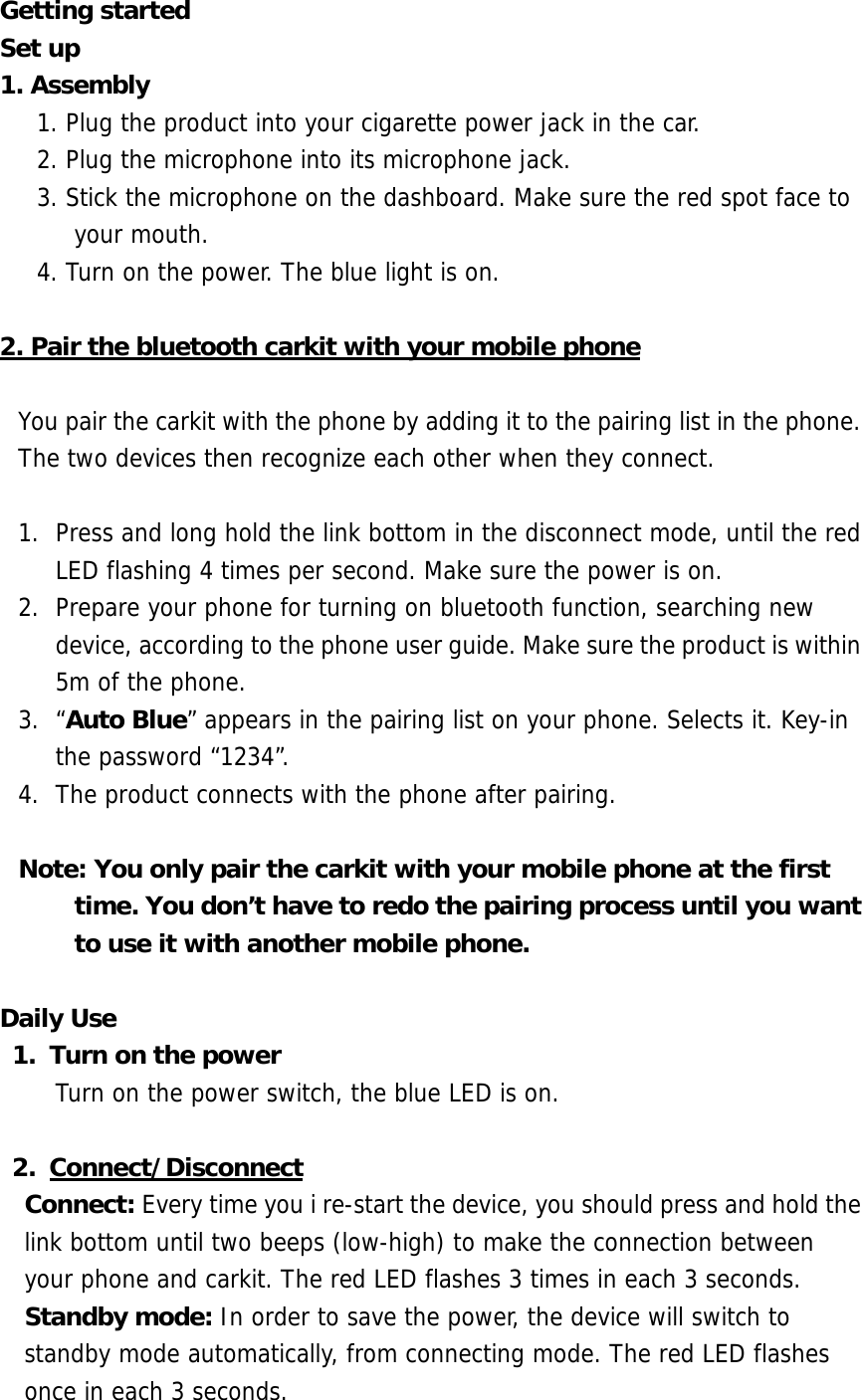

Getting started Set up 1. Assembly 1. Plug the product into your cigarette power jack in the car. 2. Plug the microphone into its microphone jack. 3. Stick the microphone on the dashboard. Make sure the red spot face to your mouth. 4. Turn on the power. The blue light is on. 2. Pair the bluetooth carkit with your mobile phone You pair the carkit with the phone by adding it to the pairing list in the phone. The two devices then recognize each other when they connect. 1. Press and long hold the link bottom in the disconnect mode, until the red LED flashing 4 times per second. Make sure the power is on. 2. Prepare your phone for turning on bluetooth function, searching new device, according to the phone user guide. Make sure the product is within 5m of the phone. 3. “Auto Blue” appears in the pairing list on your phone. Selects it. Key-in the password “1234”. 4. The product connects with the phone after pairing. Note: You only pair the carkit with your mobile phone at the first time. You don’t have to redo the pairing process until you want to use it with another mobile phone. Daily Use 1. Turn on the power Turn on the power switch, the blue LED is on. 2. Connect/Disconnect Connect: Every time you i re-start the device, you should press and hold the link bottom until two beeps (low-high) to make the connection between your phone and carkit. The red LED flashes 3 times in each 3 seconds. Standby mode: In order to save the power, the device will switch to standby mode automatically, from connecting mode. The red LED flashes once in each 3 seconds.

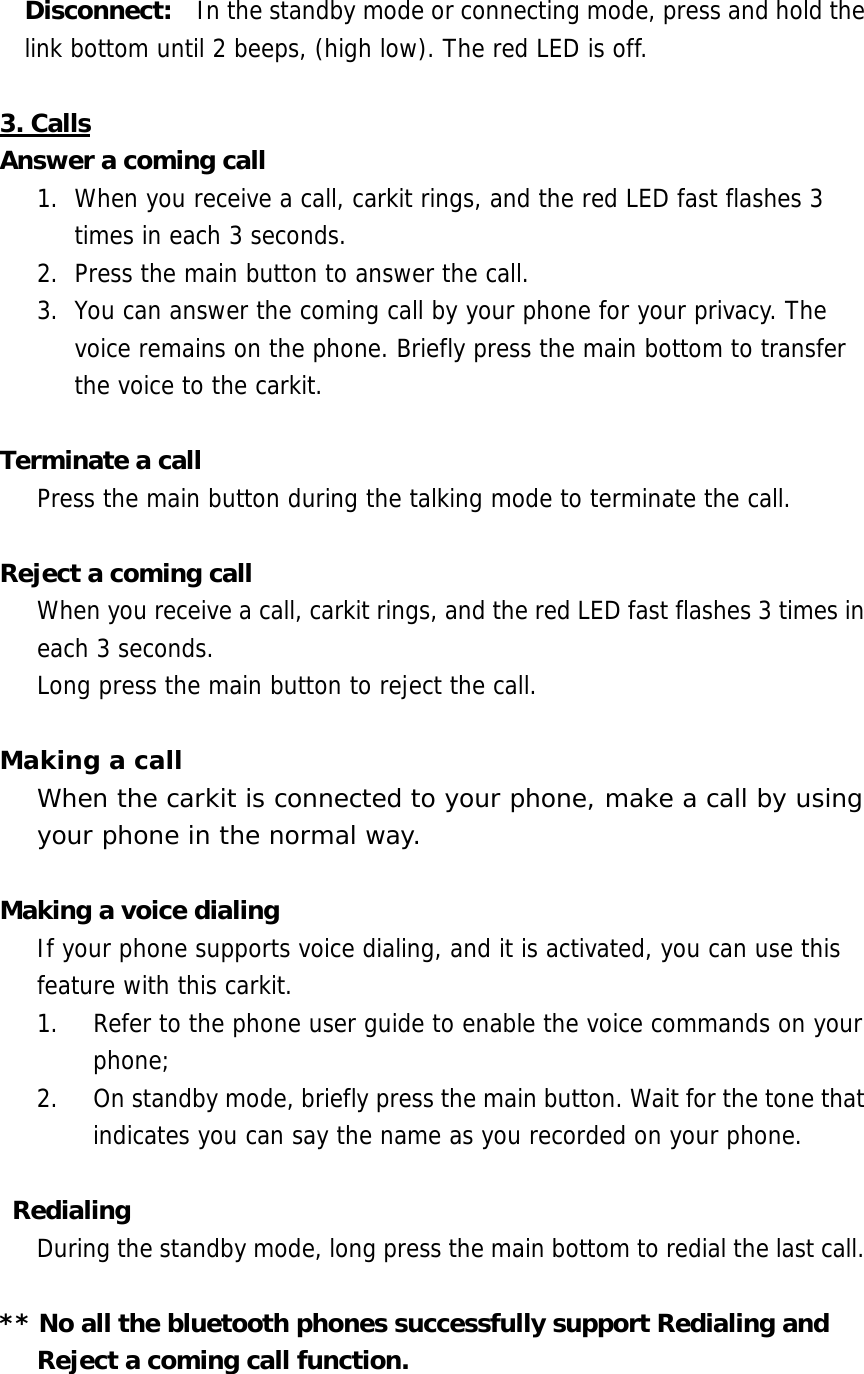

Disconnect: In the standby mode or connecting mode, press and hold the link bottom until 2 beeps, (high low). The red LED is off. 3. Calls Answer a coming call 1. When you receive a call, carkit rings, and the red LED fast flashes 3 times in each 3 seconds. 2. Press the main button to answer the call. 3. You can answer the coming call by your phone for your privacy. The voice remains on the phone. Briefly press the main bottom to transfer the voice to the carkit. Terminate a call Press the main button during the talking mode to terminate the call. Reject a coming call When you receive a call, carkit rings, and the red LED fast flashes 3 times in each 3 seconds. Long press the main button to reject the call. Making a call When the carkit is connected to your phone, make a call by using your phone in the normal way. Making a voice dialing If your phone supports voice dialing, and it is activated, you can use this feature with this carkit. 1. Refer to the phone user guide to enable the voice commands on your phone; 2. On standby mode, briefly press the main button. Wait for the tone that indicates you can say the name as you recorded on your phone. Redialing During the standby mode, long press the main bottom to redial the last call. ** No all the bluetooth phones successfully support Redialing and Reject a coming call function.

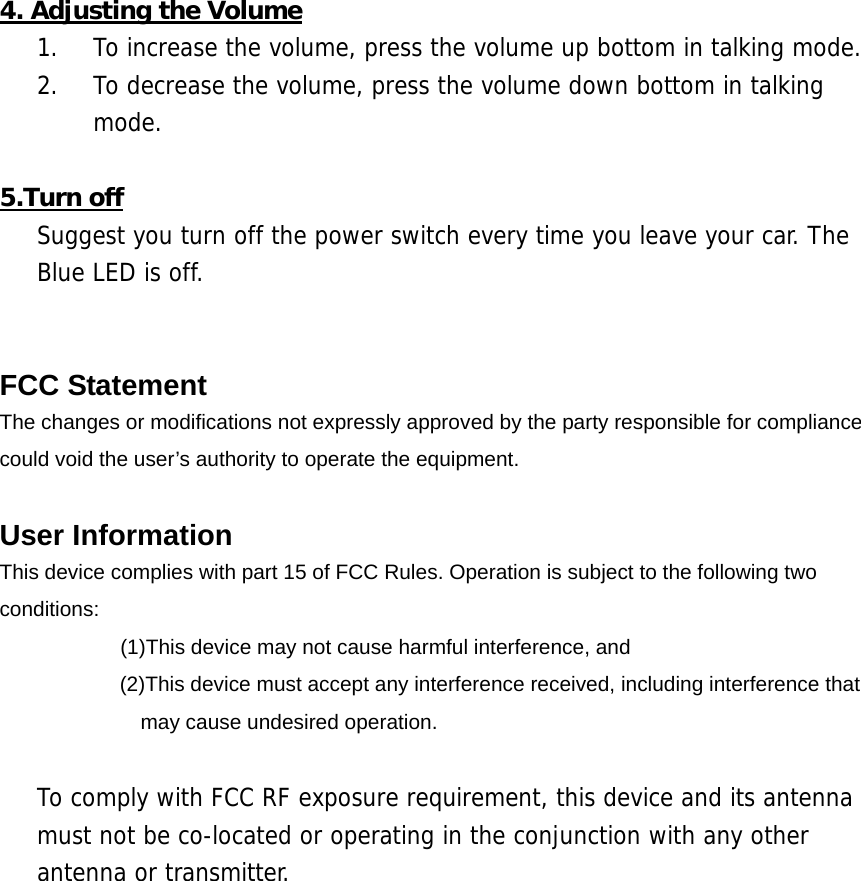

4. Adjusting the Volume 1. To increase the volume, press the volume up bottom in talking mode. 2. To decrease the volume, press the volume down bottom in talking mode. 5.Turn off Suggest you turn off the power switch every time you leave your car. The Blue LED is off. FCC Statement The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. User Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. To comply with FCC RF exposure requirement, this device and its antenna must not be co-located or operating in the conjunction with any other antenna or transmitter.
