Front Electronics 2924 Bluetooth Keyboard User Manual

Front Electronics (H.K.) Ltd. Bluetooth Keyboard Users Manual

Users Manual

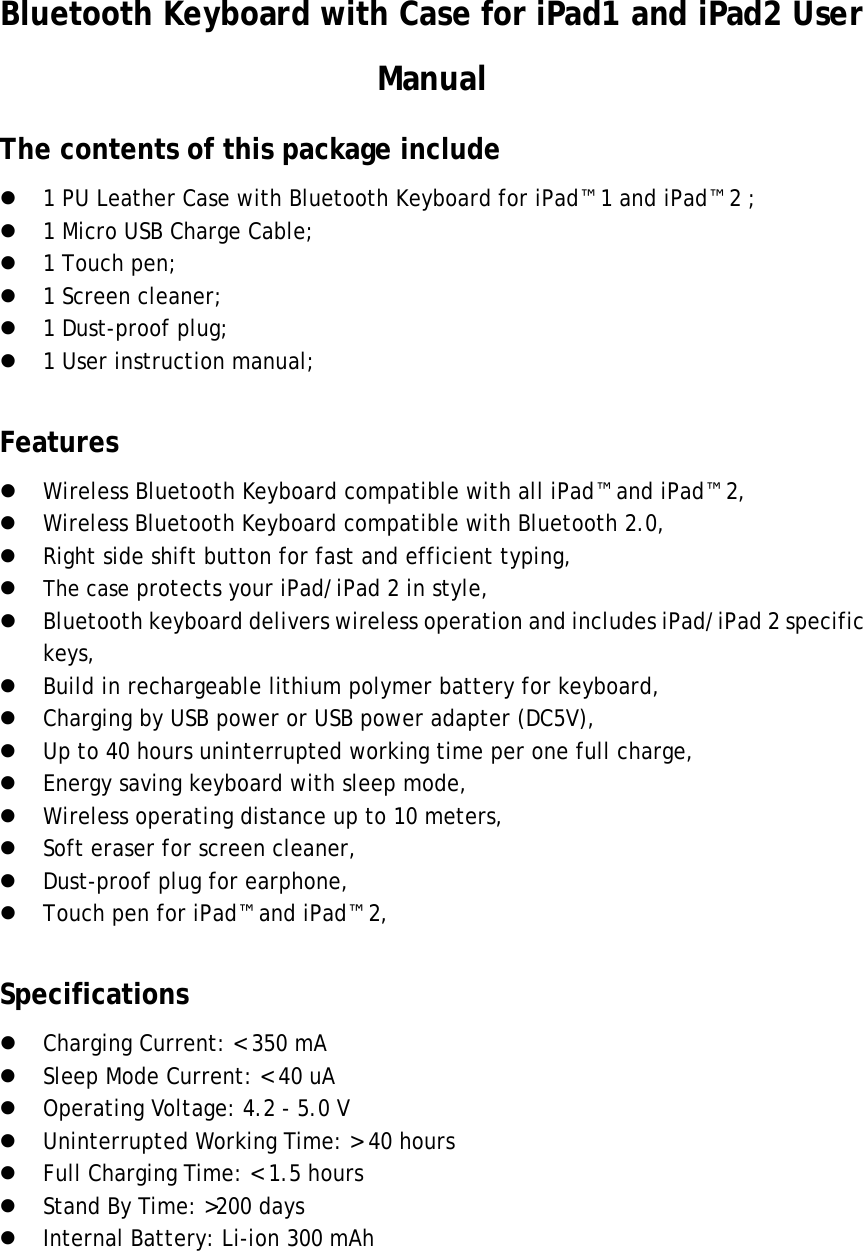

Bluetooth Keyboard with Case for iPad1 and iPad2 User Manual The contents of this package include  1 PU Leather Case with Bluetooth Keyboard for iPad™ 1 and iPad™ 2 ;  1 Micro USB Charge Cable;  1 Touch pen;  1 Screen cleaner;  1 Dust-proof plug;  1 User instruction manual; Features  Wireless Bluetooth Keyboard compatible with all iPad™ and iPad™ 2,  Wireless Bluetooth Keyboard compatible with Bluetooth 2.0,  Right side shift button for fast and efficient typing,  The case protects your iPad/iPad 2 in style,  Bluetooth keyboard delivers wireless operation and includes iPad/iPad 2 specific keys,  Build in rechargeable lithium polymer battery for keyboard,  Charging by USB power or USB power adapter (DC5V),  Up to 40 hours uninterrupted working time per one full charge,  Energy saving keyboard with sleep mode,  Wireless operating distance up to 10 meters,  Soft eraser for screen cleaner,  Dust-proof plug for earphone,  Touch pen for iPad™ and iPad™ 2, Specifications  Charging Current: < 350 mA  Sleep Mode Current: < 40 uA  Operating Voltage: 4.2 - 5.0 V  Uninterrupted Working Time: > 40 hours  Full Charging Time: < 1.5 hours  Stand By Time: >200 days  Internal Battery: Li-ion 300 mAh

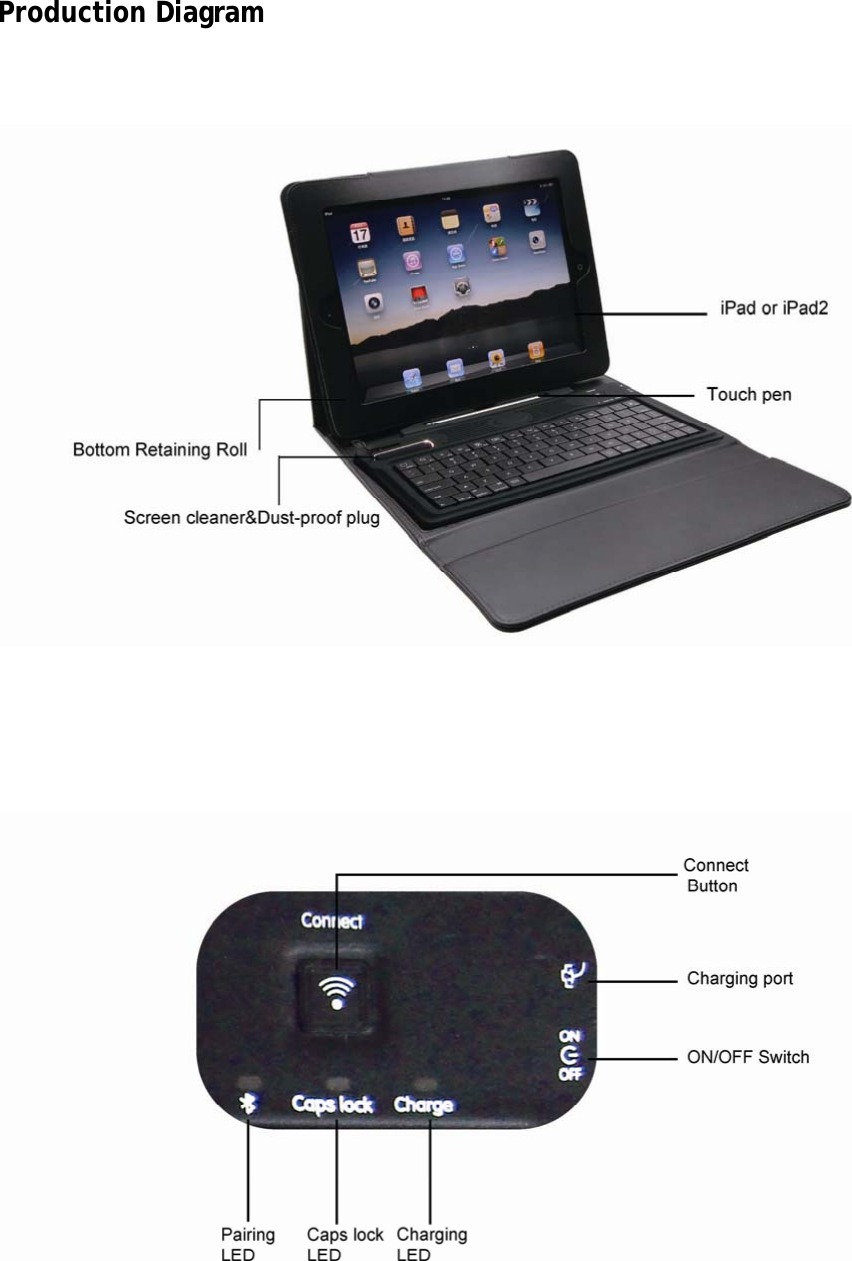

Production Diagram

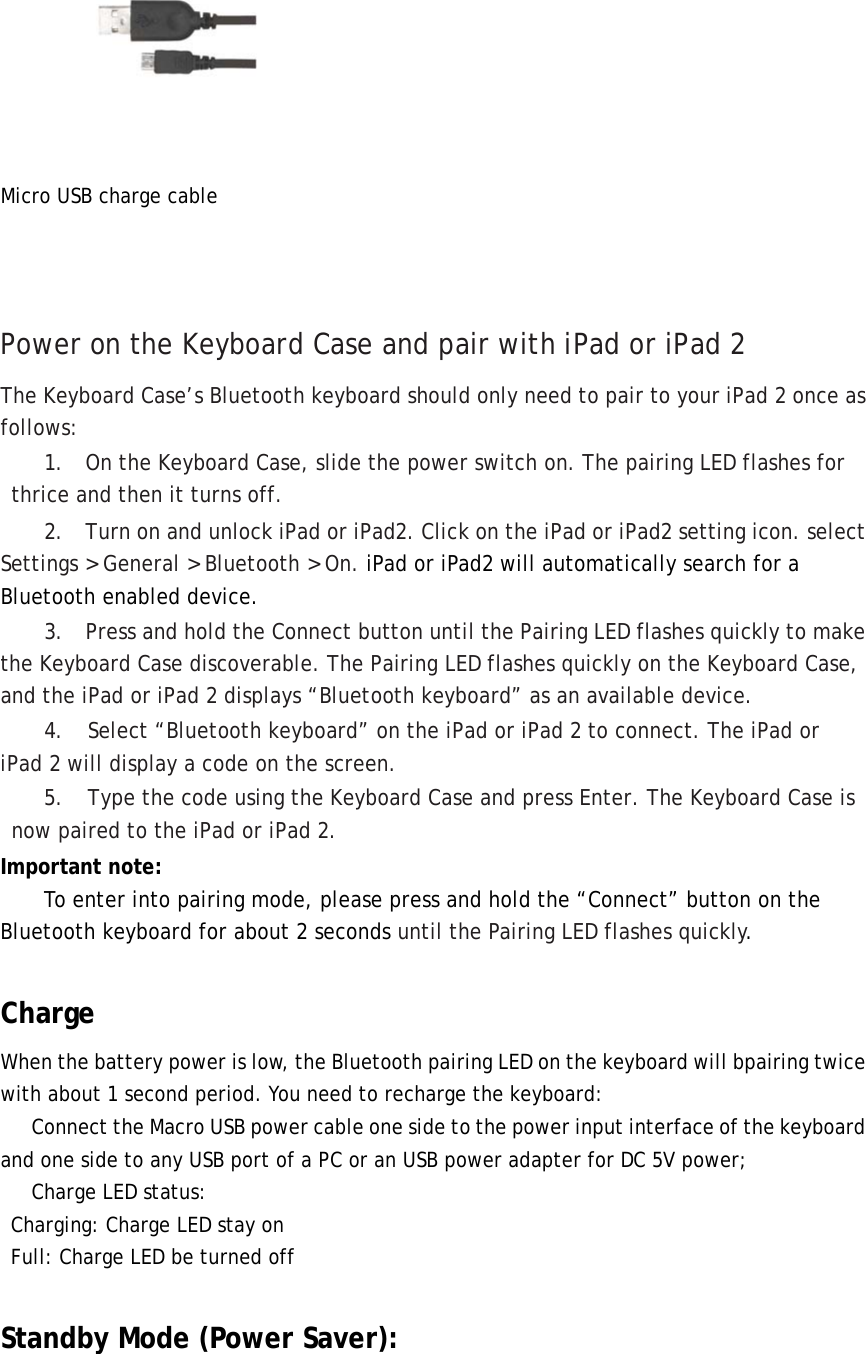

Micro USB charge cable Power on the Keyboard Case and pair with iPad or iPad 2 The Keyboard Case’s Bluetooth keyboard should only need to pair to your iPad 2 once as follows: 1. On the Keyboard Case, slide the power switch on. The pairing LED flashes for thrice and then it turns off. 2. Turn on and unlock iPad or iPad2. Click on the iPad or iPad2 setting icon. select Settings > General > Bluetooth > On. iPad or iPad2 will automatically search for a Bluetooth enabled device. 3. Press and hold the Connect button until the Pairing LED flashes quickly to make the Keyboard Case discoverable. The Pairing LED flashes quickly on the Keyboard Case, and the iPad or iPad 2 displays “Bluetooth keyboard” as an available device. 4. Select “Bluetooth keyboard” on the iPad or iPad 2 to connect. The iPad or iPad 2 will display a code on the screen. 5. Type the code using the Keyboard Case and press Enter. The Keyboard Case is now paired to the iPad or iPad 2. Important note: To enter into pairing mode, please press and hold the “Connect” button on the Bluetooth keyboard for about 2 seconds until the Pairing LED flashes quickly. Charge When the battery power is low, the Bluetooth pairing LED on the keyboard will bpairing twice with about 1 second period. You need to recharge the keyboard: Connect the Macro USB power cable one side to the power input interface of the keyboard and one side to any USB port of a PC or an USB power adapter for DC 5V power; Charge LED status: Charging: Charge LED stay on Full: Charge LED be turned off Standby Mode (Power Saver):

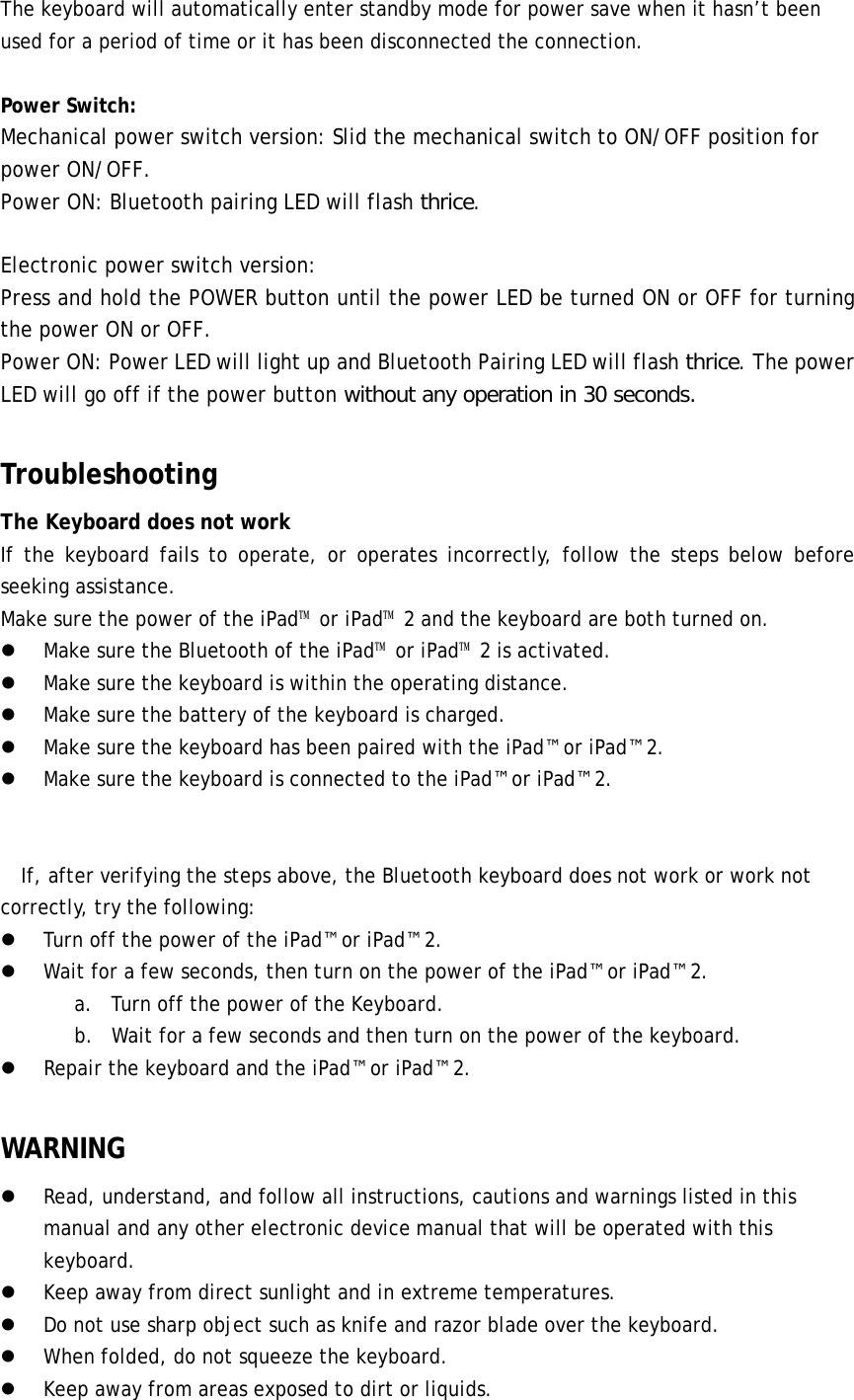

The keyboard will automatically enter standby mode for power save when it hasn’t been used for a period of time or it has been disconnected the connection. Power Switch: Mechanical power switch version: Slid the mechanical switch to ON/OFF position for power ON/OFF. Power ON: Bluetooth pairing LED will flash thrice. Electronic power switch version: Press and hold the POWER button until the power LED be turned ON or OFF for turning the power ON or OFF. Power ON: Power LED will light up and Bluetooth Pairing LED will flash thrice. The power LED will go off if the power button without any operation in 30 seconds. Troubleshooting The Keyboard does not work If the keyboard fails to operate, or operates incorrectly, follow the steps below before seeking assistance. Make sure the power of the iPad™ or iPad™ 2 and the keyboard are both turned on.  Make sure the Bluetooth of the iPad™ or iPad™ 2 is activated.  Make sure the keyboard is within the operating distance.  Make sure the battery of the keyboard is charged.  Make sure the keyboard has been paired with the iPad™ or iPad™ 2.  Make sure the keyboard is connected to the iPad™ or iPad™ 2. If, after verifying the steps above, the Bluetooth keyboard does not work or work not correctly, try the following:  Turn off the power of the iPad™ or iPad™ 2.  Wait for a few seconds, then turn on the power of the iPad™ or iPad™ 2. a. Turn off the power of the Keyboard. b. Wait for a few seconds and then turn on the power of the keyboard.  Repair the keyboard and the iPad™ or iPad™ 2. WARNING  Read, understand, and follow all instructions, cautions and warnings listed in this manual and any other electronic device manual that will be operated with this keyboard.  Keep away from direct sunlight and in extreme temperatures.  Do not use sharp object such as knife and razor blade over the keyboard.  When folded, do not squeeze the keyboard.  Keep away from areas exposed to dirt or liquids.

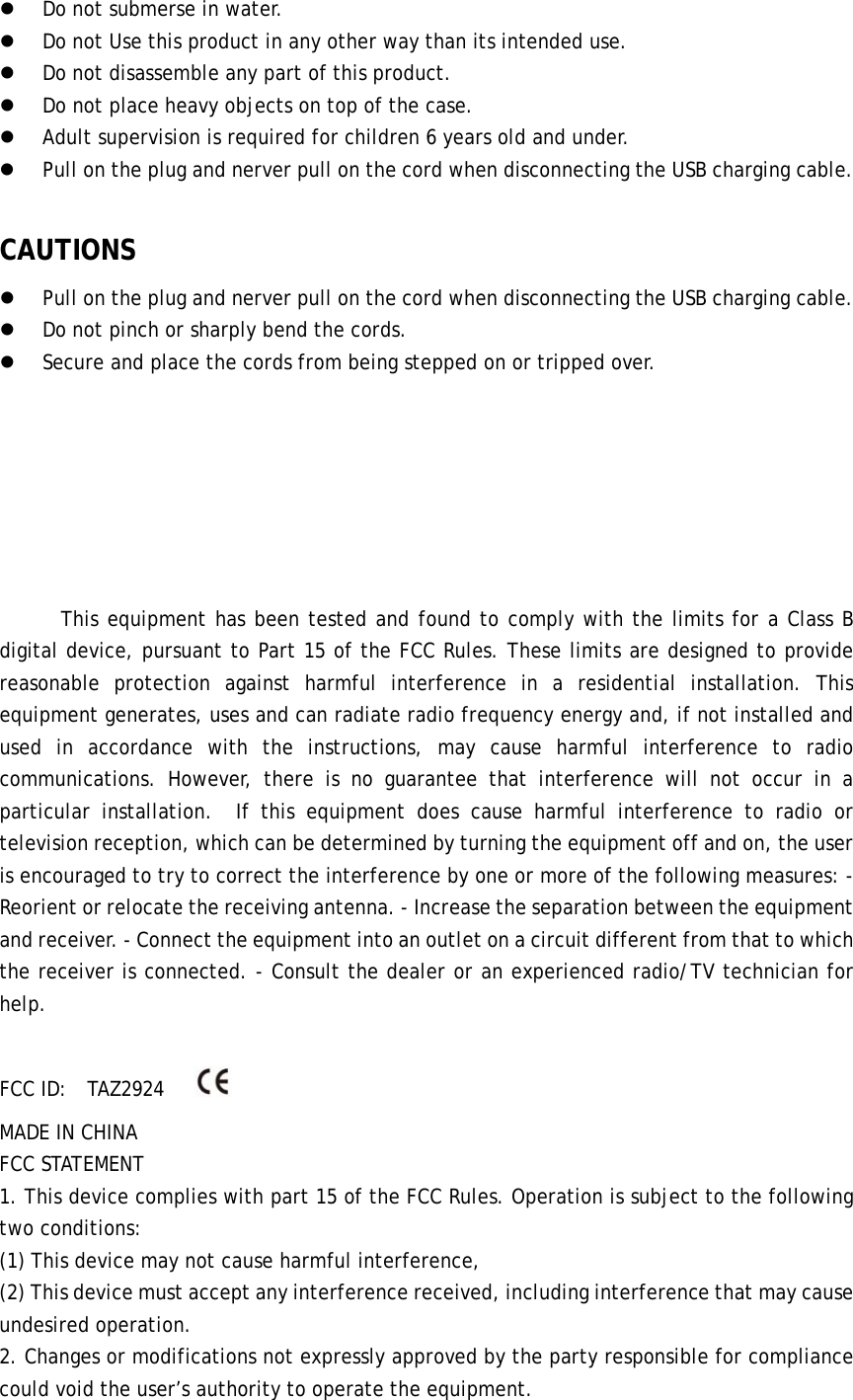

 Do not submerse in water.  Do not Use this product in any other way than its intended use.  Do not disassemble any part of this product.  Do not place heavy objects on top of the case.  Adult supervision is required for children 6 years old and under.  Pull on the plug and nerver pull on the cord when disconnecting the USB charging cable. CAUTIONS  Pull on the plug and nerver pull on the cord when disconnecting the USB charging cable.  Do not pinch or sharply bend the cords.  Secure and place the cords from being stepped on or tripped over. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC ID: TAZ2924 MADE IN CHINA FCC STATEMENT 1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
