GENERAL TOOLS and INSTRUMENTS DCS100T Wireless Transmitter User Manual

GENERAL TOOLS & INSTRUMENTS COMPANY LLC Wireless Transmitter

User Manual

Wireless USB Transmitter/Wireless USB ReceiverModel: DCS100T/DCS100ROperation Manual

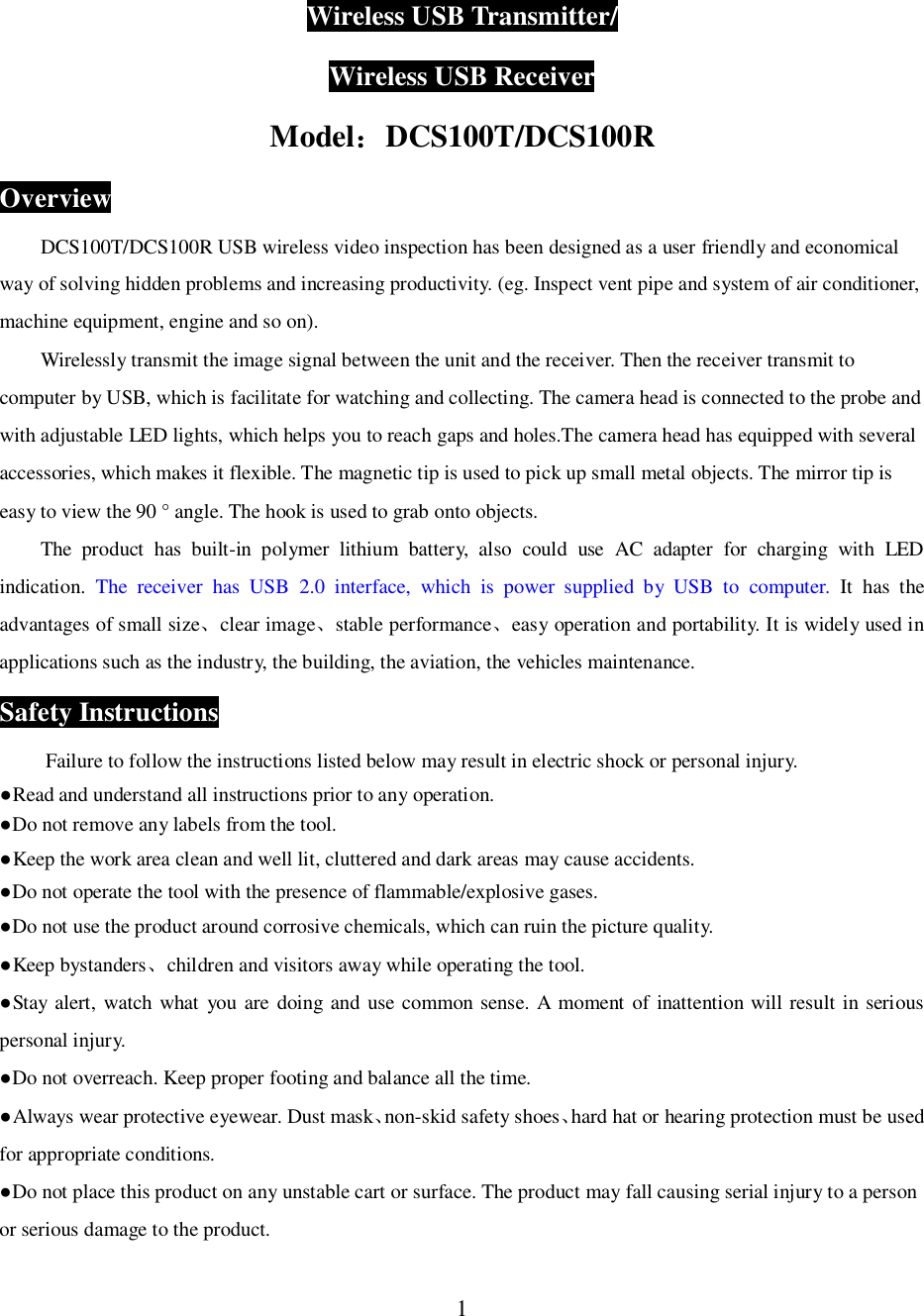

1Wireless USB Transmitter/Wireless USB ReceiverModelDCS100T/DCS100ROverviewDCS100T/DCS100R USB wireless video inspection has been designed as a user friendly and economicalway of solving hidden problems and increasing productivity. (eg. Inspect vent pipe and system of air conditioner,machine equipment, engine and so on).Wirelessly transmit the image signal between the unit and the receiver. Then the receiver transmit tocomputer by USB, which is facilitate for watching and collecting. The camera head is connected to the probe andwith adjustable LED lights, which helps you to reach gaps and holes.The camera head has equipped with severalaccessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip iseasy to view the 90 ° angle. The hook is used to grab onto objects.The product has built-in polymer lithium battery, also could use AC adapter for charging with LEDindication. The receiver has USB 2.0 interface, which is power supplied by USB to computer. It has theadvantages of small sizeclear imagestable performanceeasy operation and portability. It is widely used inapplications such as the industry, the building, the aviation, the vehicles maintenance.Safety InstructionsFailure to follow the instructions listed below may result in electric shock or personal injury.Read and understand all instructions prior to any operation.Do not remove any labels from the tool.Keep the work area clean and well lit, cluttered and dark areas may cause accidents.Do not operate the tool with the presence of flammable/explosive gases.Do not use the product around corrosive chemicals, which can ruin the picture quality.Keep bystanderschildren and visitors away while operating the tool.Stay alert, watch what you are doing and use common sense. A moment of inattention will result in seriouspersonal injury.Do not overreach. Keep proper footing and balance all the time.Always wear protective eyewear. Dust masknon-skid safety shoeshard hat or hearing protection must be usedfor appropriate conditions.Do not place this product on any unstable cart or surface. The product may fall causing serial injury to a personor serious damage to the product.

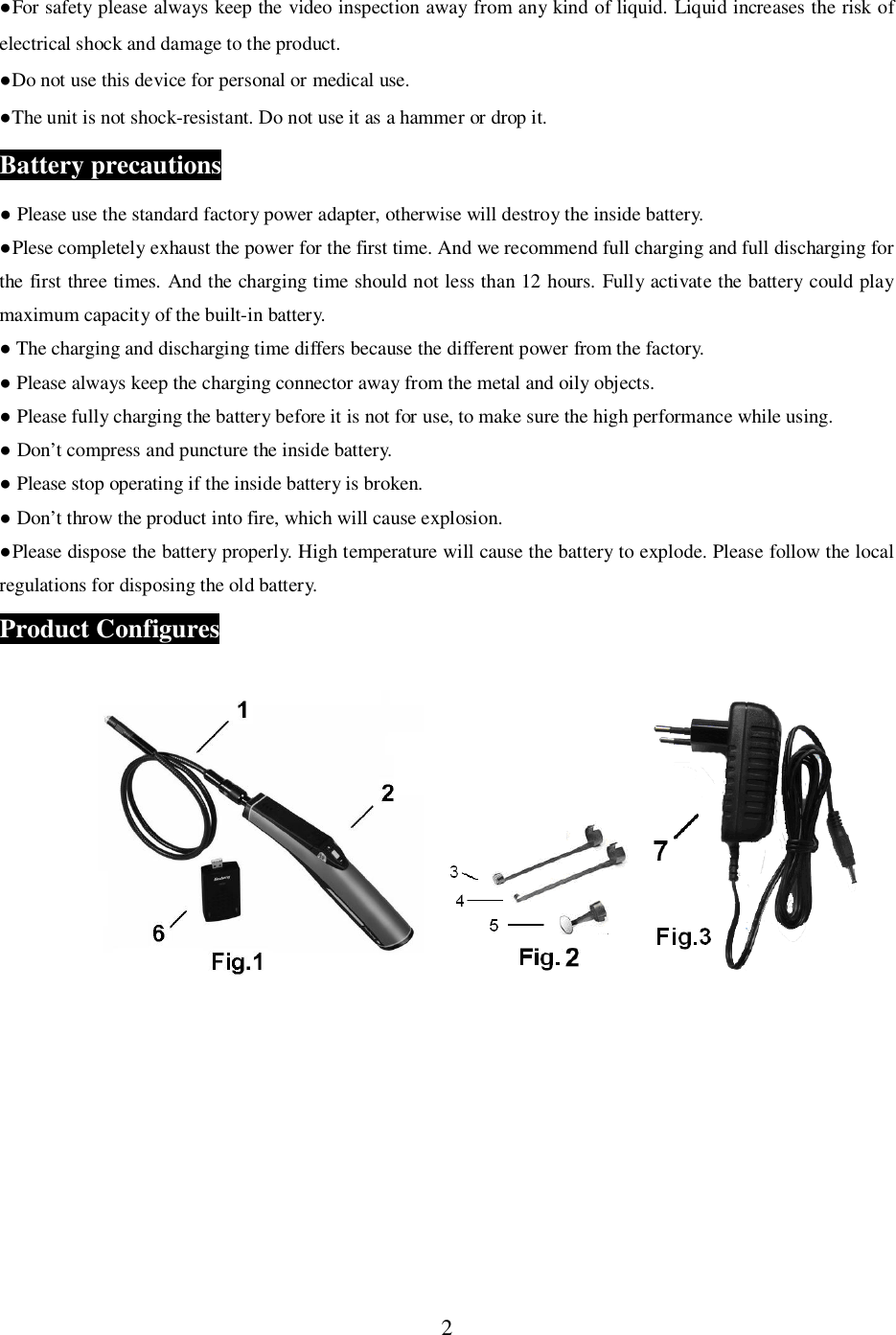

2For safety please always keep the video inspection away from any kind of liquid. Liquid increases the risk ofelectrical shock and damage to the product.Do not use this device for personal or medical use.The unit is not shock-resistant. Do not use it as a hammer or drop it.Battery precautions Please use the standard factory power adapter, otherwise will destroy the inside battery.Plese completely exhaust the power for the first time. And we recommend full charging and full discharging forthe first three times. And the charging time should not less than 12 hours. Fully activate the battery could playmaximum capacity of the built-in battery. The charging and discharging time differs because the different power from the factory. Please always keep the charging connector away from the metal and oily objects. Please fully charging the battery before it is not for use, to make sure the high performance while using. Don’t compress and puncture the inside battery. Please stop operating if the inside battery is broken. Don’t throw the product into fire, which will cause explosion.Please dispose the battery properly. High temperature will cause the battery to explode. Please follow the localregulations for disposing the old battery.Product Configures

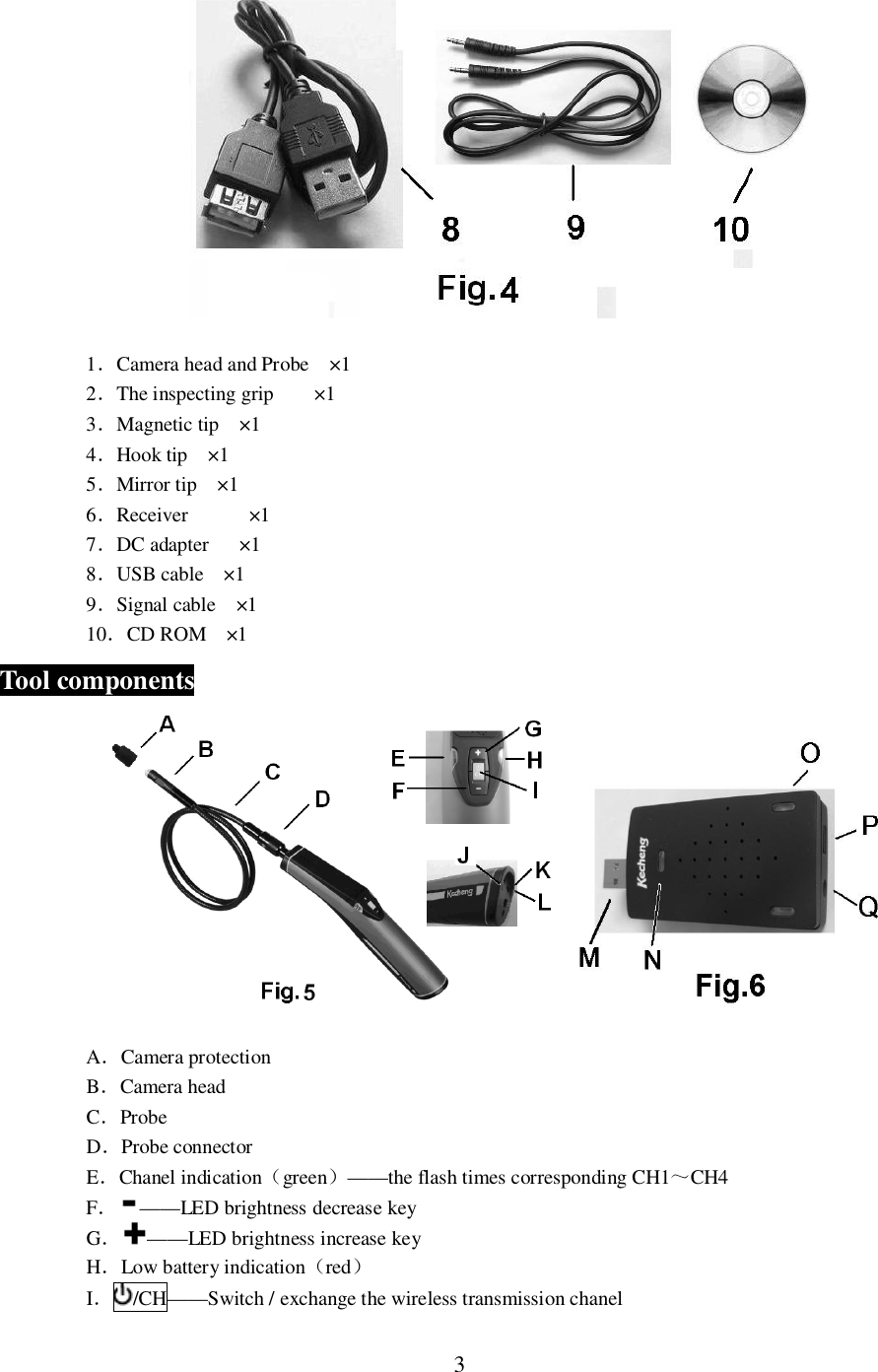

31Camera head and Probe ×12The inspecting grip ×13Magnetic tip ×14Hook tip ×15Mirror tip ×16Receiver ×17DC adapter ×18USB cable ×19Signal cable ×110CD ROM ×1Tool componentsACamera protectionBCamera headCProbeDProbe connectorEChanel indicationgreen——the flash times corresponding CH1CH4F——LED brightness decrease keyG——LED brightness increase keyHLow battery indicationredI/CH——Switch / exchange the wireless transmission chanel

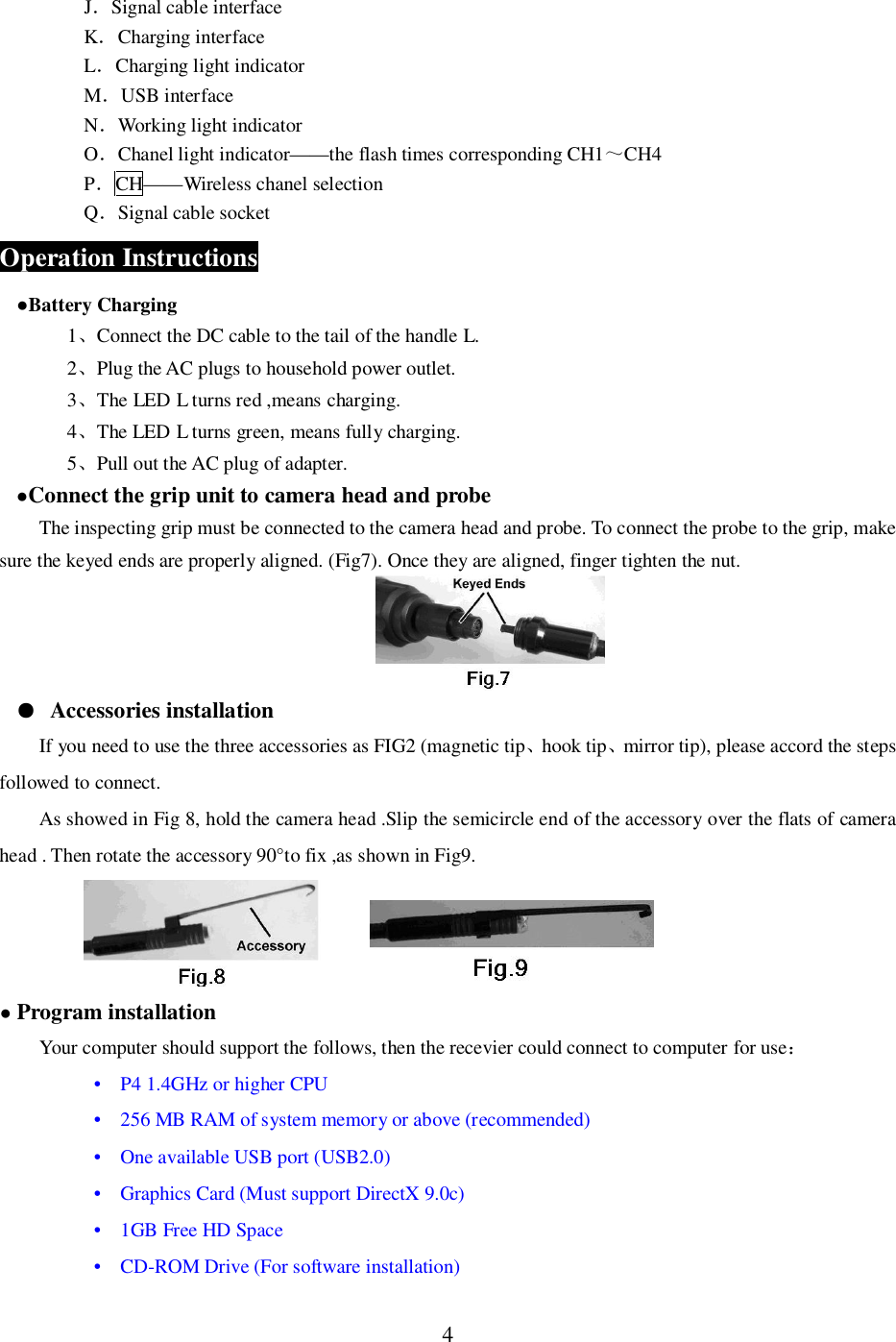

4JSignal cable interfaceKCharging interfaceLCharging light indicatorMUSB interfaceNWorking light indicatorOChanel light indicator——the flash times corresponding CH1CH4PCH——Wireless chanel selectionQSignal cable socketOperation InstructionsBattery Charging1Connect the DC cable to the tail of the handle L.2Plug the AC plugs to household power outlet.3The LED L turns red ,means charging.4The LED L turns green, means fully charging.5Pull out the AC plug of adapter.Connect the grip unit to camera head and probeThe inspecting grip must be connected to the camera head and probe. To connect the probe to the grip, makesure the keyed ends are properly aligned. (Fig7). Once they are aligned, finger tighten the nut.Accessories installationIf you need to use the three accessories as FIG2 (magnetic tiphook tipmirror tip), please accord the stepsfollowed to connect.As showed in Fig 8, hold the camera head .Slip the semicircle end of the accessory over the flats of camerahead . Then rotate the accessory 90°to fix ,as shown in Fig9.Program installationYour computer should support the follows, then the recevier could connect to computer for use• P4 1.4GHz or higher CPU • 256 MB RAM of system memory or above (recommended) • One available USB port (USB2.0) • Graphics Card (Must support DirectX 9.0c)• 1GB Free HD Space • CD-ROM Drive (For software installation)

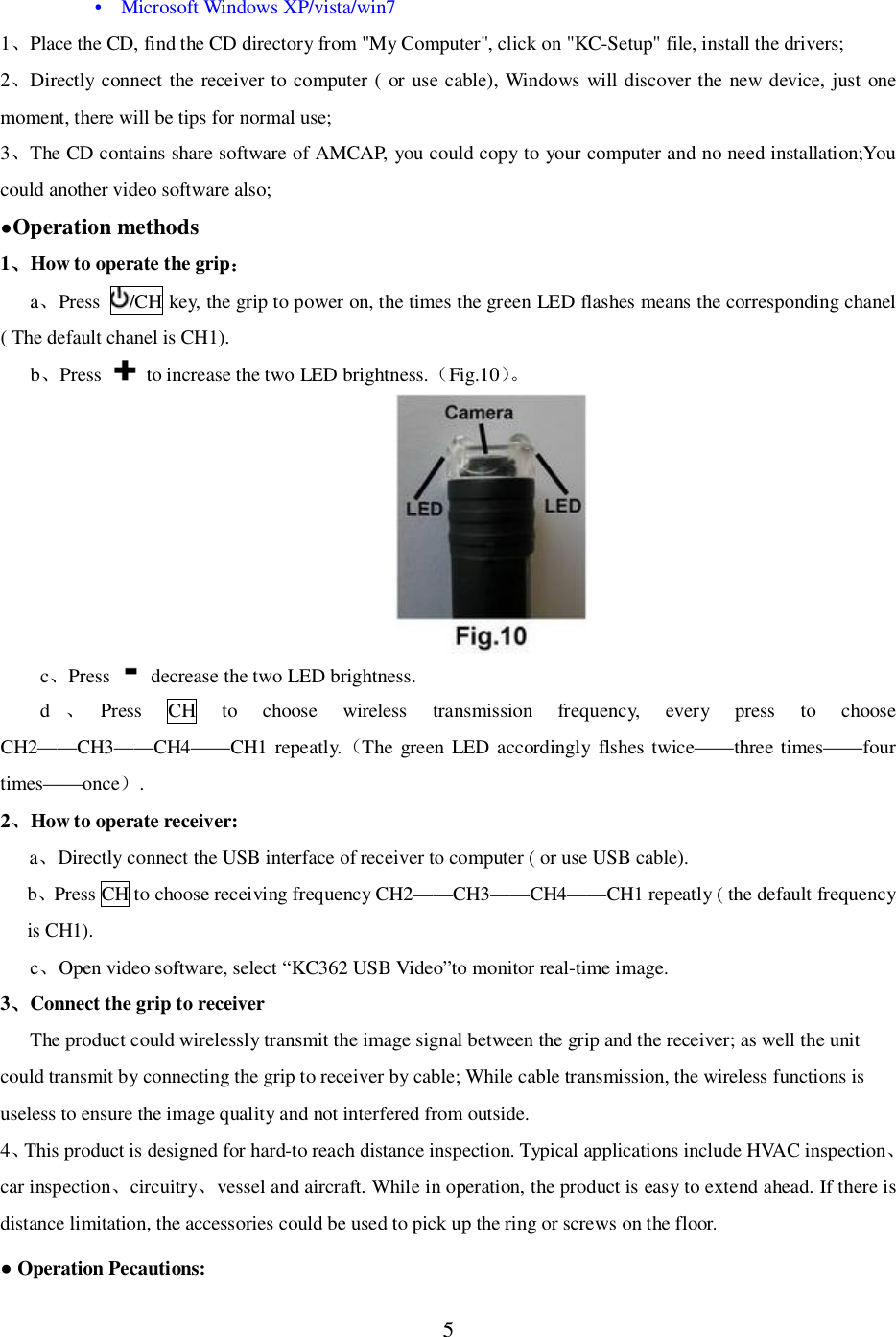

5 • Microsoft Windows XP/vista/win71Place the CD, find the CD directory from "My Computer", click on "KC-Setup" file, install the drivers;2Directly connect the receiver to computer ( or use cable), Windows will discover the new device, just onemoment, there will be tips for normal use;3The CD contains share software of AMCAP, you could copy to your computer and no need installation;Youcould another video software also;Operation methods1How to operate the gripaPress /CH key, the grip to power on, the times the green LED flashes means the corresponding chanel( The default chanel is CH1).bPress to increase the two LED brightness.Fig.10c  Press decrease the two LED brightness.dPress CH to choose wireless transmission frequency, every press to chooseCH2——CH3——CH4——CH1 repeatly.The green LED accordingly flshes twice——three times——fourtimes——once.2How to operate receiver:aDirectly connect the USB interface of receiver to computer ( or use USB cable).bPress CH to choose receiving frequency CH2——CH3——CH4——CH1 repeatly ( the default frequencyis CH1).cOpen video software, select “KC362 USB Video”to monitor real-time image.3Connect the grip to receiverThe product could wirelessly transmit the image signal between the grip and the receiver; as well the unitcould transmit by connecting the grip to receiver by cable; While cable transmission, the wireless functions isuseless to ensure the image quality and not interfered from outside.4This product is designed for hard-to reach distance inspection. Typical applications include HVAC inspectioncar inspectioncircuitryvessel and aircraft. While in operation, the product is easy to extend ahead. If there isdistance limitation, the accessories could be used to pick up the ring or screws on the floor. Operation Pecautions:

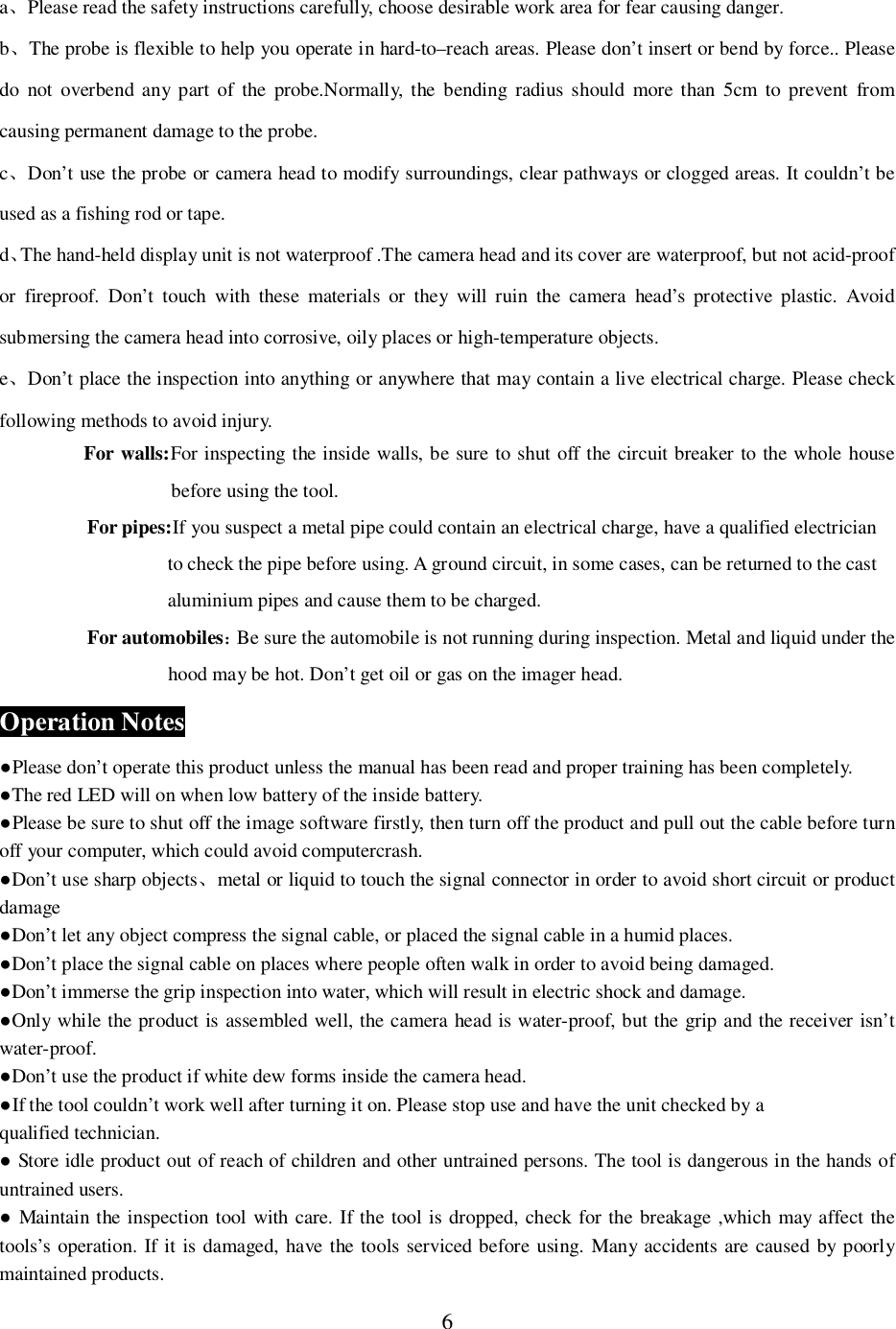

6aPlease read the safety instructions carefully, choose desirable work area for fear causing danger.bThe probe is flexible to help you operate in hard-to–reach areas. Please don’t insert or bend by force.. Pleasedo not overbend any part of the probe.Normally, the bending radius should more than 5cm to prevent fromcausing permanent damage to the probe.cDon’t use the probe or camera head to modify surroundings, clear pathways or clogged areas. It couldn’t beused as a fishing rod or tape.dThe hand-held display unit is not waterproof .The camera head and its cover are waterproof, but not acid-proofor fireproof. Don’t touch with these materials or they will ruin the camera head’s protective plastic. Avoidsubmersing the camera head into corrosive, oily places or high-temperature objects.eDon’t place the inspection into anything or anywhere that may contain a live electrical charge. Please checkfollowing methods to avoid injury.For walls:For inspecting the inside walls, be sure to shut off the circuit breaker to the whole housebefore using the tool.For pipes:If you suspect a metal pipe could contain an electrical charge, have a qualified electricianto check the pipe before using. A ground circuit, in some cases, can be returned to the castaluminium pipes and cause them to be charged.For automobilesBe sure the automobile is not running during inspection. Metal and liquid under thehood may be hot. Don’t get oil or gas on the imager head.Operation NotesPlease don’t operate this product unless the manual has been read and proper training has been completely.The red LED will on when low battery of the inside battery.Please be sure to shut off the image software firstly, then turn off the product and pull out the cable before turnoff your computer, which could avoid computercrash.Don’t use sharp objectsmetal or liquid to touch the signal connector in order to avoid short circuit or productdamageDon’t let any object compress the signal cable, or placed the signal cable in a humid places.Don’t place the signal cable on places where people often walk in order to avoid being damaged.Don’t immerse the grip inspection into water, which will result in electric shock and damage.Only while the product is assembled well, the camera head is water-proof, but the grip and the receiver isn’twater-proof.Don’t use the product if white dew forms inside the camera head.If the tool couldn’t work well after turning it on. Please stop use and have the unit checked by aqualified technician. Store idle product out of reach of children and other untrained persons. The tool is dangerous in the hands ofuntrained users. Maintain the inspection tool with care. If the tool is dropped, check for the breakage ,which may affect thetools’s operation. If it is damaged, have the tools serviced before using. Many accidents are caused by poorlymaintained products.

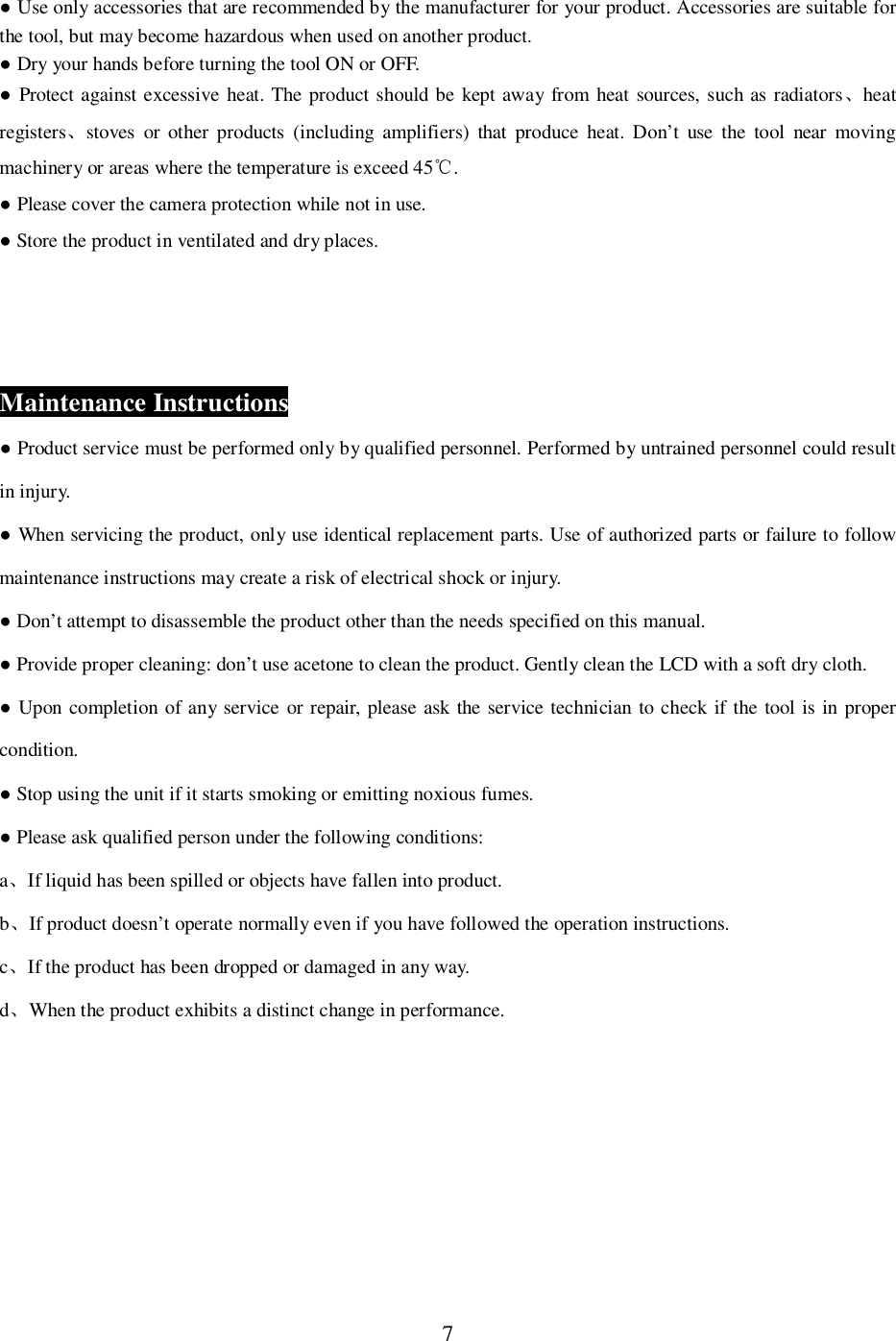

7 Use only accessories that are recommended by the manufacturer for your product. Accessories are suitable forthe tool, but may become hazardous when used on another product. Dry your hands before turning the tool ON or OFF. Protect against excessive heat. The product should be kept away from heat sources, such as radiatorsheatregistersstoves or other products (including amplifiers) that produce heat. Don’t use the tool near movingmachinery or areas where the temperature is exceed 45 . Please cover the camera protection while not in use. Store the product in ventilated and dry places.Maintenance Instructions Product service must be performed only by qualified personnel. Performed by untrained personnel could resultin injury. When servicing the product, only use identical replacement parts. Use of authorized parts or failure to followmaintenance instructions may create a risk of electrical shock or injury. Don’t attempt to disassemble the product other than the needs specified on this manual. Provide proper cleaning: don’t use acetone to clean the product. Gently clean the LCD with a soft dry cloth. Upon completion of any service or repair, please ask the service technician to check if the tool is in propercondition. Stop using the unit if it starts smoking or emitting noxious fumes. Please ask qualified person under the following conditions:aIf liquid has been spilled or objects have fallen into product.bIf product doesn’t operate normally even if you have followed the operation instructions.cIf the product has been dropped or damaged in any way.dWhen the product exhibits a distinct change in performance.

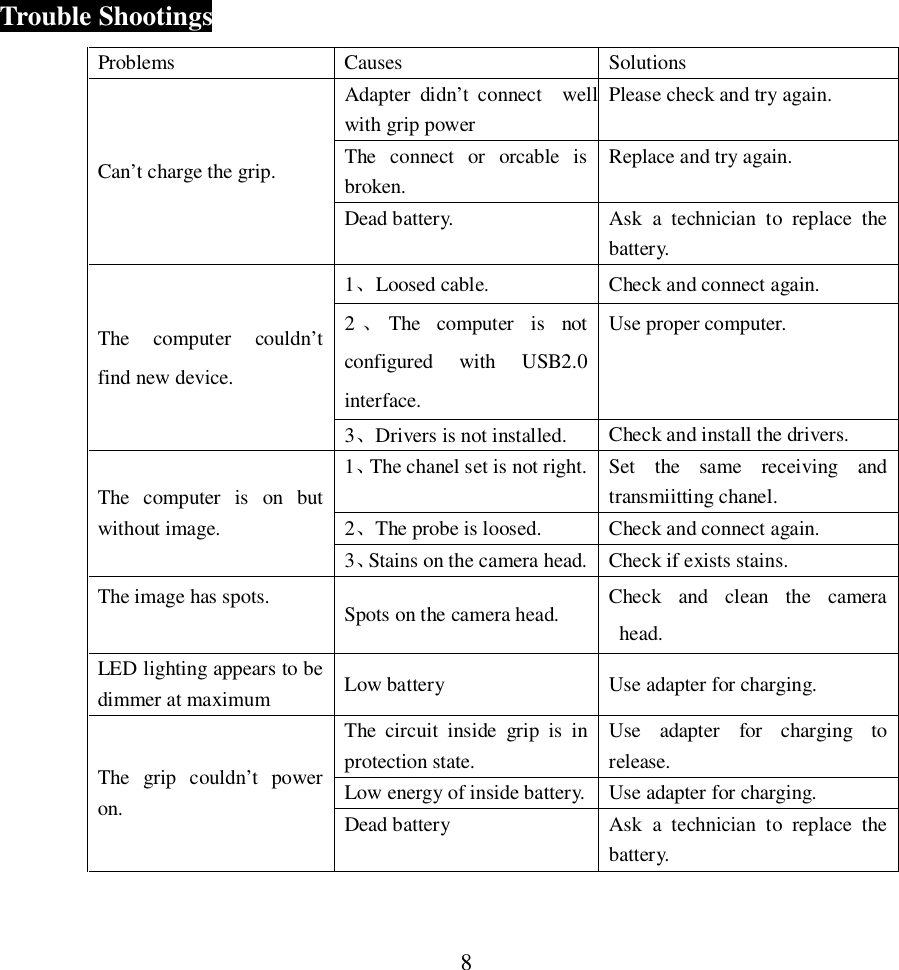

8Trouble ShootingsProblems Causes SolutionsCan’t charge the grip.Adapter didn’t connect wellwith grip powerPlease check and try again.The connect or orcable isbroken.Replace and try again.Dead battery. Ask a technician to replace thebatter y.The computer couldn’tfind new device.1Loosed cable. Check and connect again.2The computer is notconfigured with USB2.0interface.Use proper computer.3Drivers is not installed. Check and install the drivers.The computer is on butwithout image.1The chanel set is not right. Set the same receiving andtransmiitting chanel.2The probe is loosed. Check and connect again.3Stains on the camera head. Check if exists stains.The image has spots. Spots on the camera head. Check and clean the camerahead.LED lighting appears to bedimmer at maximum Low battery Use adapter for charging.The grip couldn’t poweron.The circuit inside grip is inprotection state.Use adapter for charging torelease.Low energy of inside battery. Use adapter for charging.Dead battery Ask a technician to replace thebatter y.

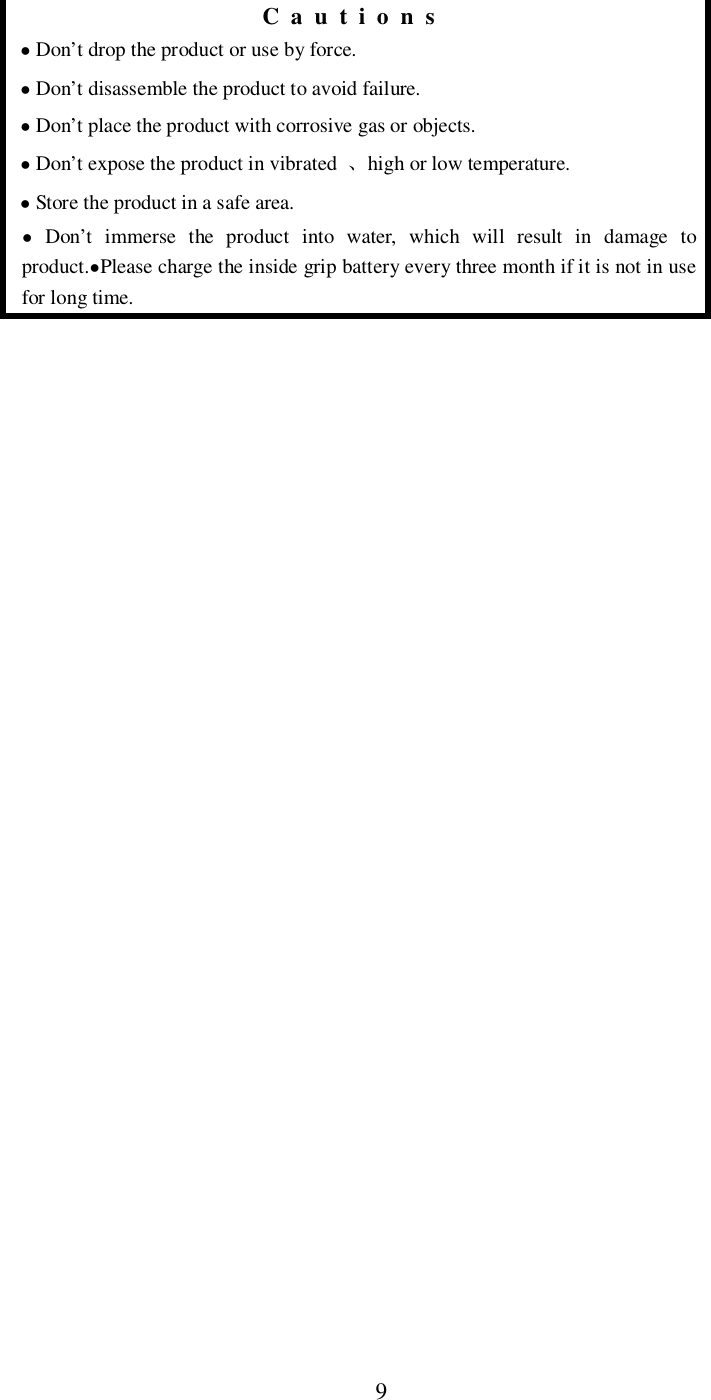

9Cautions Don’t drop the product or use by force. Don’t disassemble the product to avoid failure. Don’t place the product with corrosive gas or objects. Don’t expose the product in vibrated high or low temperature. Store the product in a safe area. Don’t immerse the product into water, which will result in damage toproduct.Please charge the inside grip battery every three month if it is not in usefor long time.

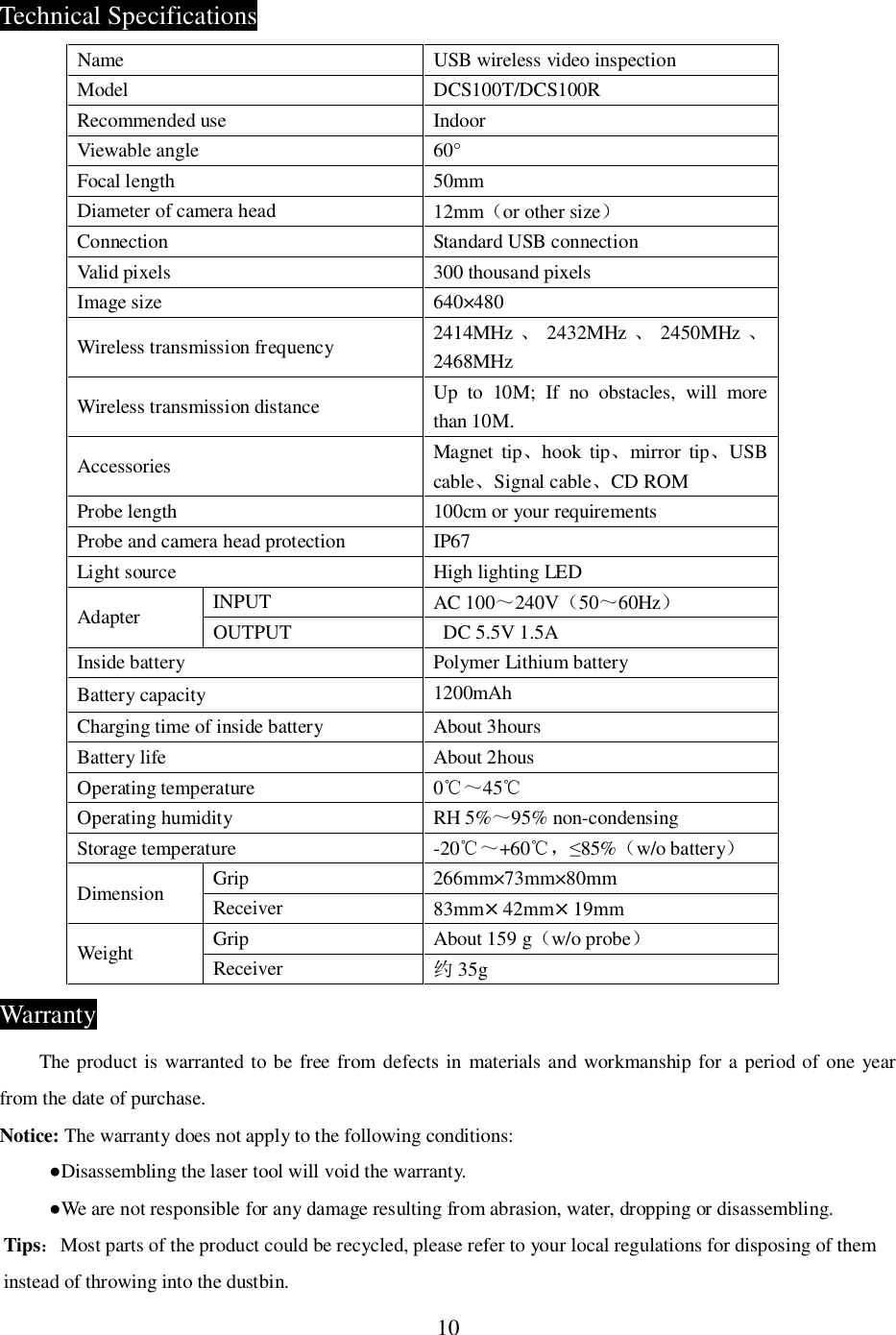

10Technical SpecificationsName USB wireless video inspectionModel DCS100T/DCS100RRecommended use IndoorViewable angle 60°Focal length 50mmDiameter of camera head 12mmor other sizeConnection Standard USB connectionValid pixels 300 thousand pixelsImage size 640×480Wireless transmission frequency 2414MHz 2432MHz 2450MHz 2468MHzWireless transmission distance Up to 10M; If no obstacles, will morethan 10M.Accessories Magnet tiphook tipmirror tipUSBcableSignal cableCD ROMProbe length 100cm or your requirementsProbe and camera head protection IP67Light source High lighting LEDAdapter INPUT AC 100240V5060HzOUTPUT DC 5.5V 1.5AInside battery Polymer Lithium batteryBattery capacity 1200mAhCharging time of inside battery About 3hoursBattery life About 2housOperating temperature 045Operating humidity RH 5%95% non-condensingStorage temperature -20+6085%w/o batteryDimension Grip 266mm×73mm×80mmReceiver 83mm×42mm×19mmWeight Grip About 159 gw/o probeReceiver 󱭻35gWarrantyThe product is warranted to be free from defects in materials and workmanship for a period of one yearfrom the date of purchase.Notice: The warranty does not apply to the following conditions:Disassembling the laser tool will void the warranty.We are not responsible for any damage resulting from abrasion, water, dropping or disassembling.TipsMost parts of the product could be recycled, please refer to your local regulations for disposing of theminstead of throwing into the dustbin.

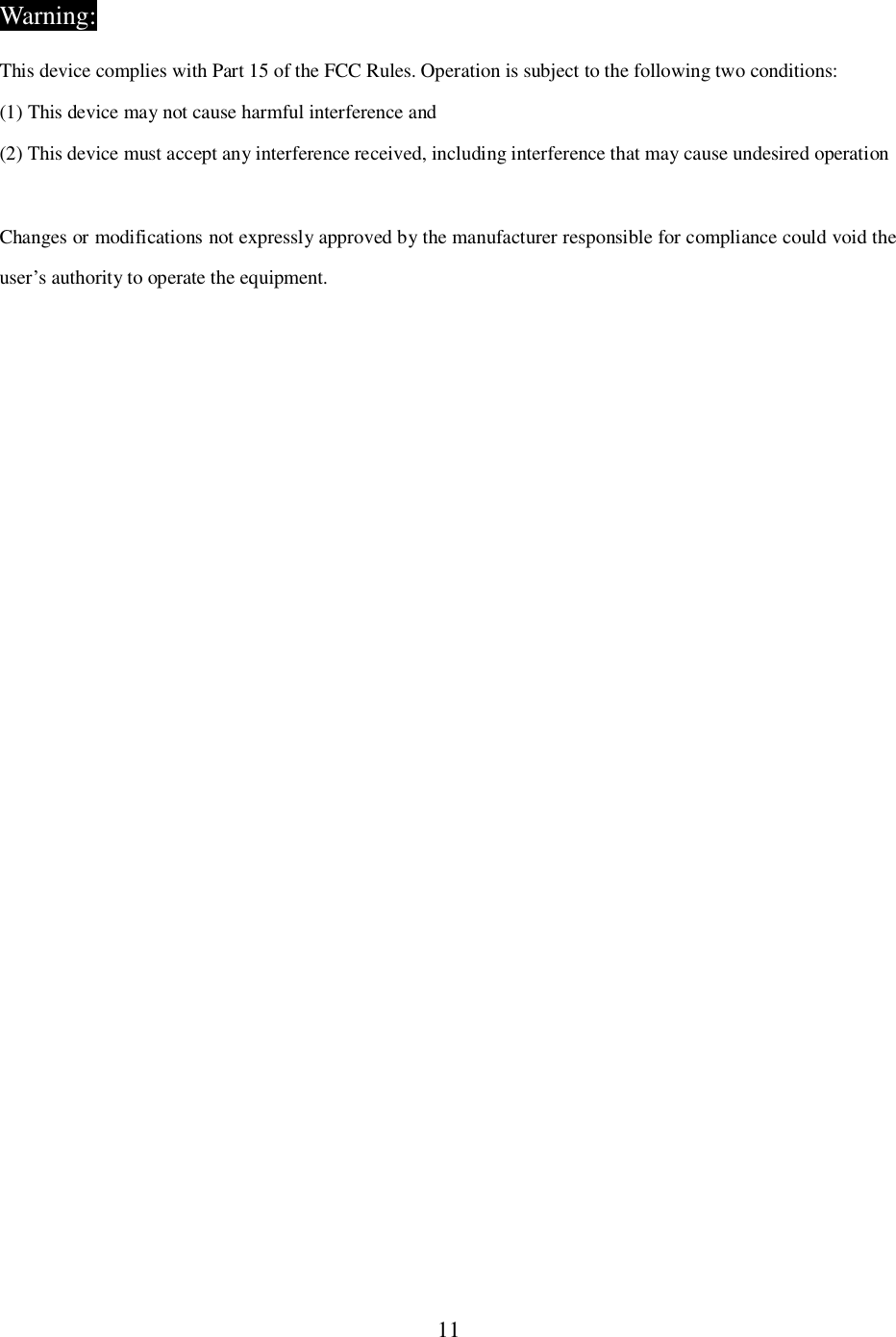

11Warning:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference and(2) This device must accept any interference received, including interference that may cause undesired operationChanges or modifications not expressly approved by the manufacturer responsible for compliance could void theuser’s authority to operate the equipment.
