GIEC DIGITAL TM800A710M Tablet PC User Manual

SHENZHEN GIEC DIGITAL CO., LTD Tablet PC Users Manual

Users Manual

TM800A710M User’s Guide
2Getting StartedThis guide has been designed to help familiarize you with the features and functions of the Solo 10A, and get you ‘up-and-running’ as soon as possible. Once you’re online, visit www.nuvision.com to register your tablet, and access more information to optimize your NuVision experience.

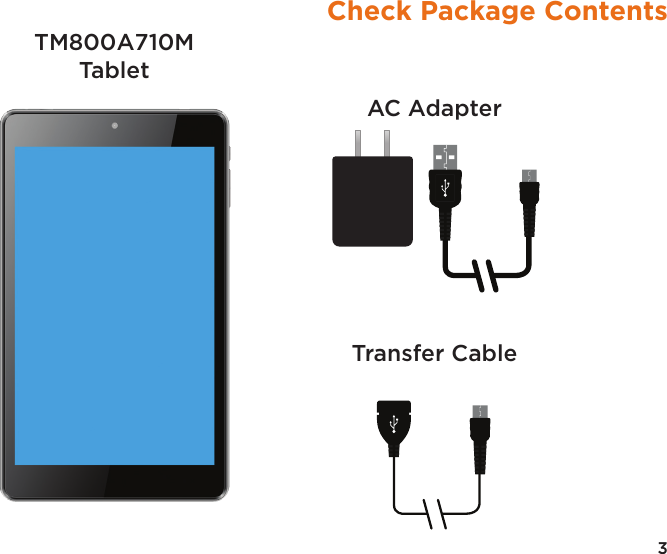

3Check Package ContentsAC AdapterTransfer CableTM800A710M Tablet

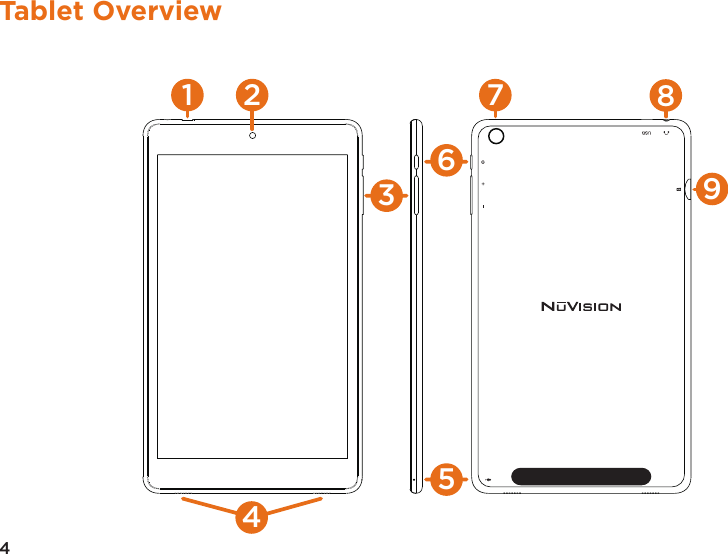

4Tablet Overview41 2657839
51Micro USB Power Port2Front Camera3Volume (+/-)4Speakers 5Microphone6Power Button7Rear Camera83.5mm Headphone Jack Plug9Micro TF Memory Card Slot
6To Connect to the Internet, you will need:orandNAME (SSID): XXXXXXWIFI INFOPASSWORD: XXXXXX(Home WiFi Router)

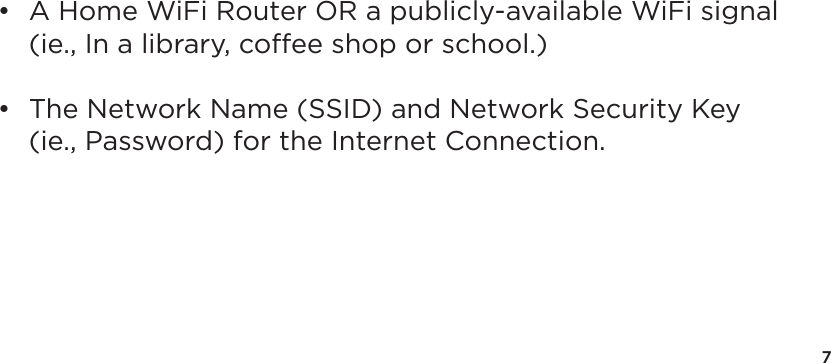

7• A Home WiFi Router OR a publicly-available WiFi signal (ie., In a library, coffee shop or school.)• The Network Name (SSID) and Network Security Key (ie., Password) for the Internet Connection.
8Charge the Tablet16HoursCharge

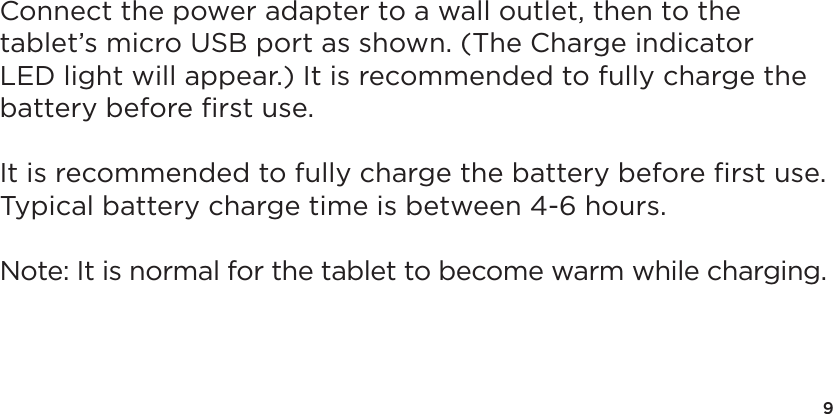

9Connect the power adapter to a wall outlet, then to the tablet’s micro USB port as shown. (The Charge indicator LED light will appear.) It is recommended to fully charge the battery before first use.It is recommended to fully charge the battery before first use. Typical battery charge time is between 4-6 hours.Note: It is normal for the tablet to become warm while charging.

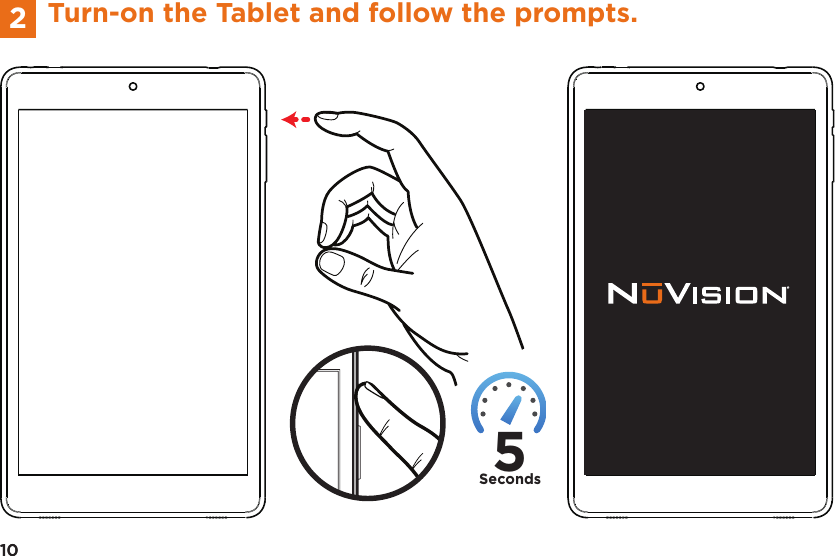

5Seconds10Turn-on the Tablet and follow the prompts.102

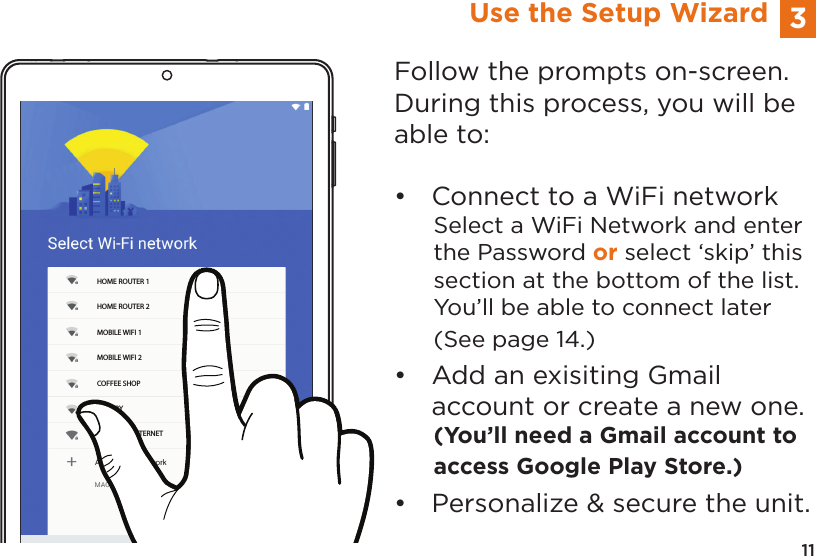

11HOME ROUTER 1HOME ROUTER 2MOBILE WIFI 1MOBILE WIFI 2COFFEE SHOPLIBRARYNEIGHBOR INTERNET3Use the Setup WizardFollow the prompts on-screen. During this process, you will be able to:• Connect to a WiFi networkSelect a WiFi Network and enter the Password or select ‘skip’ this section at the bottom of the list. You’ll be able to connect later (See page 14.) • Add an exisiting Gmail account or create a new one.(You’ll need a Gmail account to access Google Play Store.)• Personalize & secure the unit.

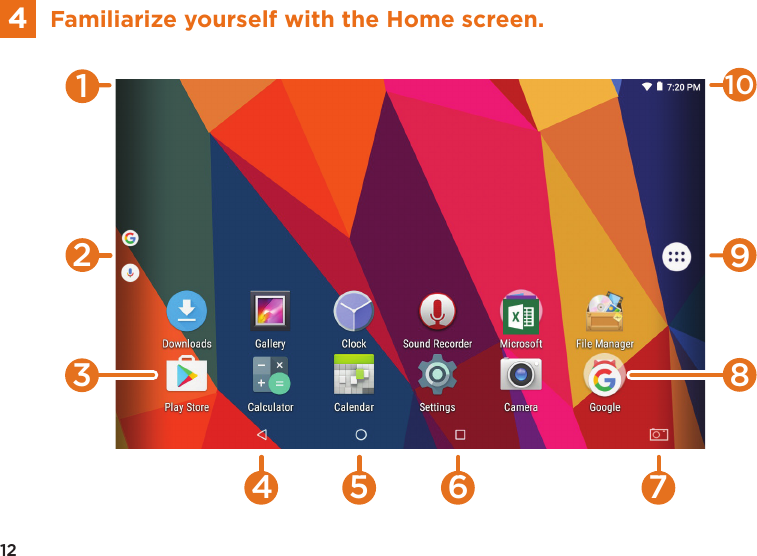

12Familiarize yourself with the Home screen.483254 6 71091

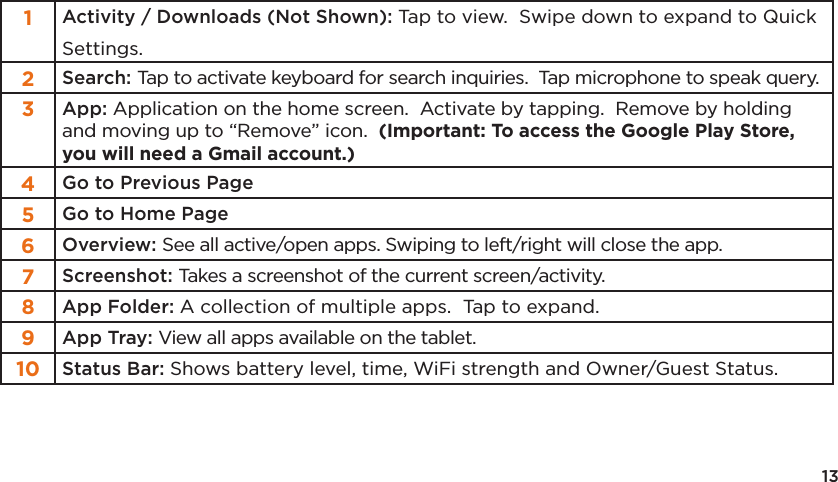

131Activity / Downloads (Not Shown): Tap to view. Swipe down to expand to Quick Settings.2Search: Tap to activate keyboard for search inquiries. Tap microphone to speak query.3App: Application on the home screen. Activate by tapping. Remove by holding and moving up to “Remove” icon. (Important: To access the Google Play Store, you will need a Gmail account.)4Go to Previous Page5Go to Home Page6Overview: See all active/open apps. Swiping to left/right will close the app.7Screenshot: Takes a screenshot of the current screen/activity.8App Folder: A collection of multiple apps. Tap to expand.9App Tray: View all apps available on the tablet.10 Status Bar: Shows battery level, time, WiFi strength and Owner/Guest Status.

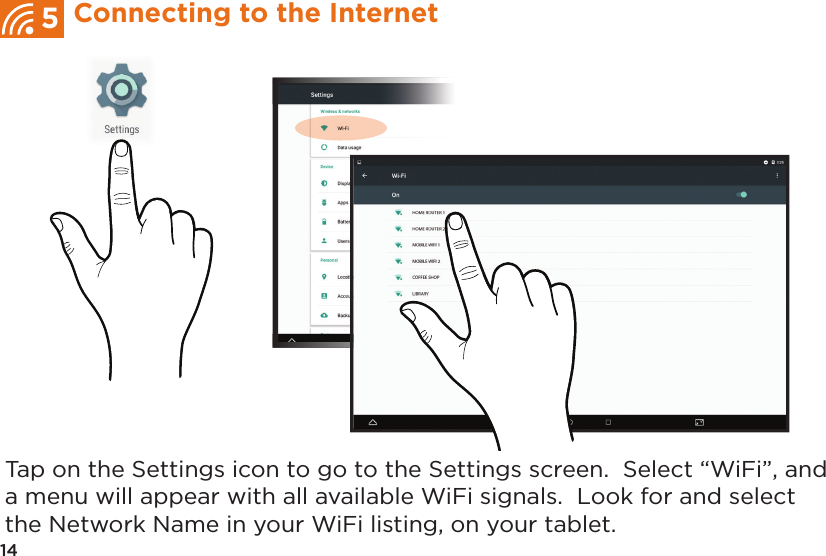

Tap on the Settings icon to go to the Settings screen. Select “WiFi”, and a menu will appear with all available WiFi signals. Look for and select the Network Name in your WiFi listing, on your tablet.14Connecting to the Internet5
15Enter the Password and select “CONNECT”. The tablet will authenticate the Password, and connect you to the WiFi if it is correct. See page 6 for information on finding your Network Name and Network Security Key (ie., Password).

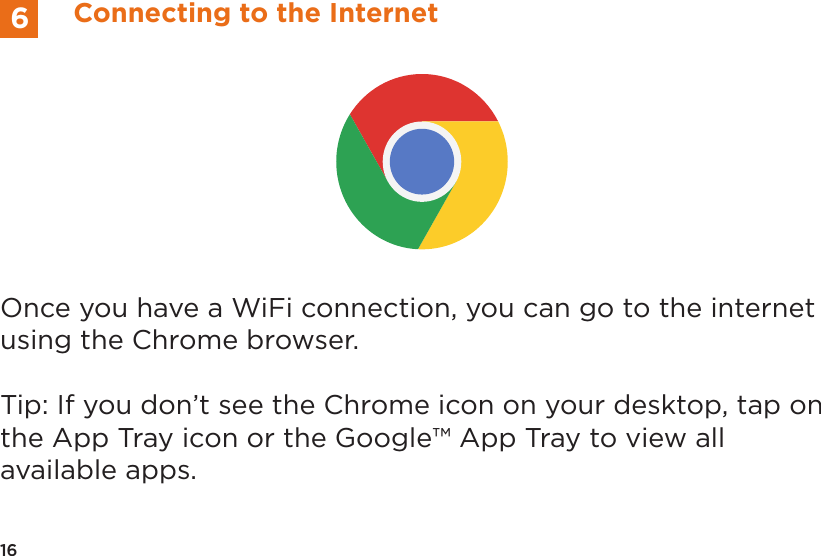

Once you have a WiFi connection, you can go to the internet using the Chrome browser. Tip: If you don’t see the Chrome icon on your desktop, tap on the App Tray icon or the Google™ App Tray to view all available apps.16Connecting to the Internet6

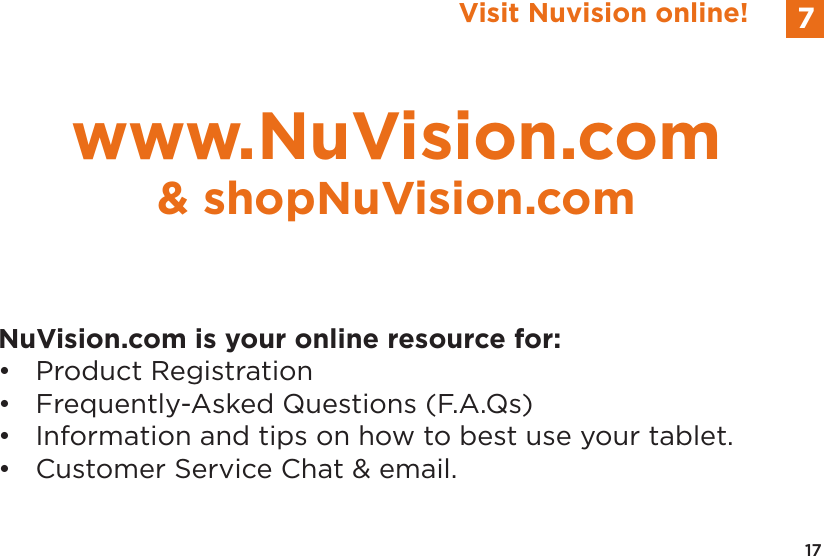

17Visit Nuvision online! 7NuVision.com is your online resource for:• Product Registration• Frequently-Asked Questions (F.A.Qs)• Information and tips on how to best use your tablet.• Customer Service Chat & email.www.NuVision.com& shopNuVision.com
18 18Chat @ www.NuVision.comwww.nuvision.com/supportPhone:(800) 890-1288Hours: 8:30am to 5:30pm PST M-FEmail: cs@nuvision.comCustomer ServiceRegister your tablet today at www.nuvision.com

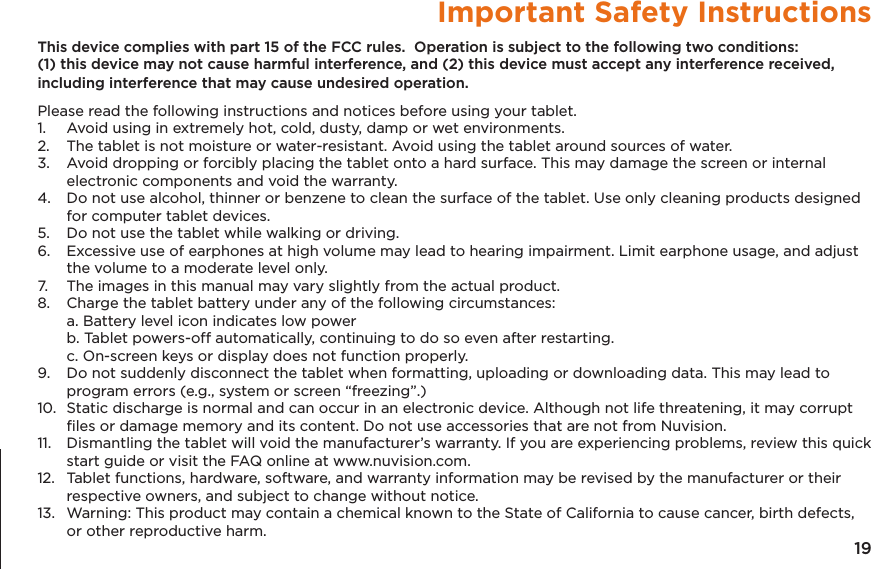

19Important Safety InstructionsThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Please read the following instructions and notices before using your tablet.1. Avoid using in extremely hot, cold, dusty, damp or wet environments.2. The tablet is not moisture or water-resistant. Avoid using the tablet around sources of water.3. Avoid dropping or forcibly placing the tablet onto a hard surface. This may damage the screen or internal electronic components and void the warranty.4. Do not use alcohol, thinner or benzene to clean the surface of the tablet. Use only cleaning products designed for computer tablet devices.5. Do not use the tablet while walking or driving.6. Excessive use of earphones at high volume may lead to hearing impairment. Limit earphone usage, and adjust the volume to a moderate level only.7. The images in this manual may vary slightly from the actual product.8. Charge the tablet battery under any of the following circumstances: a. Battery level icon indicates low power b. Tablet powers-off automatically, continuing to do so even after restarting. c. On-screen keys or display does not function properly.9. Do not suddenly disconnect the tablet when formatting, uploading or downloading data. This may lead to program errors (e.g., system or screen “freezing”.)10. Static discharge is normal and can occur in an electronic device. Although not life threatening, it may corrupt files or damage memory and its content. Do not use accessories that are not from Nuvision.11. Dismantling the tablet will void the manufacturer’s warranty. If you are experiencing problems, review this quick start guide or visit the FAQ online at www.nuvision.com.12. Tablet functions, hardware, software, and warranty information may be revised by the manufacturer or their respective owners, and subject to change without notice.13. Warning: This product may contain a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
20Compliance InformationFCC NOTICEThe following statement applies to all products that have received FCC approval. Applicable products wear the FCC logo, and /or an FCC ID in the format FCC ID:xx-xxx-xxx on the product label. This mobile device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This mobile device may not cause harmful interference, and this mobile device must accept any interference received, including interference that may cause undesired operation. This mobile device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Warning StatementOperation is subject to the following two conditions: this device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device.IMPORTANT NOTICE: IC Radiation Exposure StatementThis equipment should be installed and operated with minimum distance 0.5cm between the radiator and your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

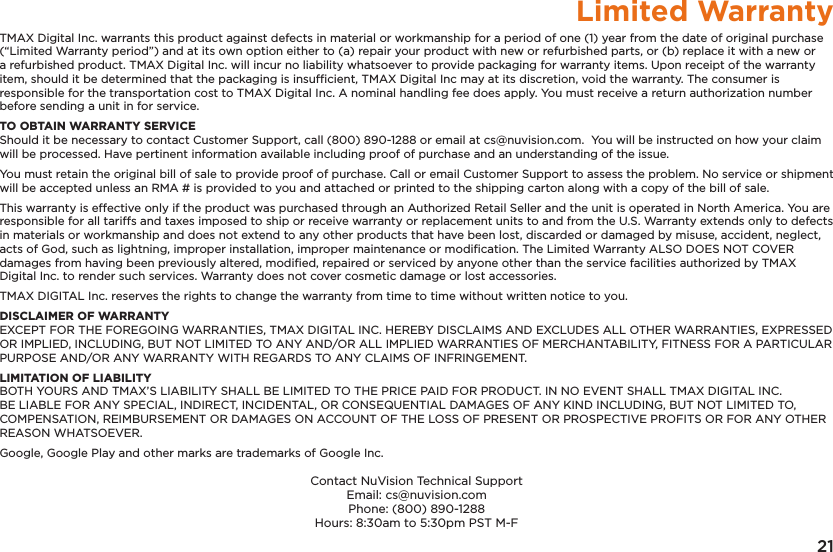

21Limited WarrantyTMAX Digital Inc. warrants this product against defects in material or workmanship for a period of one (1) year from the date of original purchase (“Limited Warranty period”) and at its own option either to (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. TMAX Digital Inc. will incur no liability whatsoever to provide packaging for warranty items. Upon receipt of the warranty item, should it be determined that the packaging is insufficient, TMAX Digital Inc may at its discretion, void the warranty. The consumer is responsible for the transportation cost to TMAX Digital Inc. A nominal handling fee does apply. You must receive a return authorization number before sending a unit in for service.TO OBTAIN WARRANTY SERVICEShould it be necessary to contact Customer Support, call (800) 890-1288 or email at cs@nuvision.com. You will be instructed on how your claim will be processed. Have pertinent information available including proof of purchase and an understanding of the issue.You must retain the original bill of sale to provide proof of purchase. Call or email Customer Support to assess the problem. No service or shipment will be accepted unless an RMA # is provided to you and attached or printed to the shipping carton along with a copy of the bill of sale. This warranty is effective only if the product was purchased through an Authorized Retail Seller and the unit is operated in North America. You are responsible for all tariffs and taxes imposed to ship or receive warranty or replacement units to and from the U.S. Warranty extends only to defects in materials or workmanship and does not extend to any other products that have been lost, discarded or damaged by misuse, accident, neglect, acts of God, such as lightning, improper installation, improper maintenance or modification. The Limited Warranty ALSO DOES NOT COVER damages from having been previously altered, modified, repaired or serviced by anyone other than the service facilities authorized by TMAX Digital Inc. to render such services. Warranty does not cover cosmetic damage or lost accessories.TMAX DIGITAL Inc. reserves the rights to change the warranty from time to time without written notice to you.DISCLAIMER OF WARRANTYEXCEPT FOR THE FOREGOING WARRANTIES, TMAX DIGITAL INC. HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARDS TO ANY CLAIMS OF INFRINGEMENT. LIMITATION OF LIABILITYBOTH YOURS AND TMAX’S LIABILITY SHALL BE LIMITED TO THE PRICE PAID FOR PRODUCT. IN NO EVENT SHALL TMAX DIGITAL INC. BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS OR FOR ANY OTHER REASON WHATSOEVER.Google, Google Play and other marks are trademarks of Google Inc.Contact NuVision Technical SupportEmail: cs@nuvision.comPhone: (800) 890-1288 Hours: 8:30am to 5:30pm PST M-F
