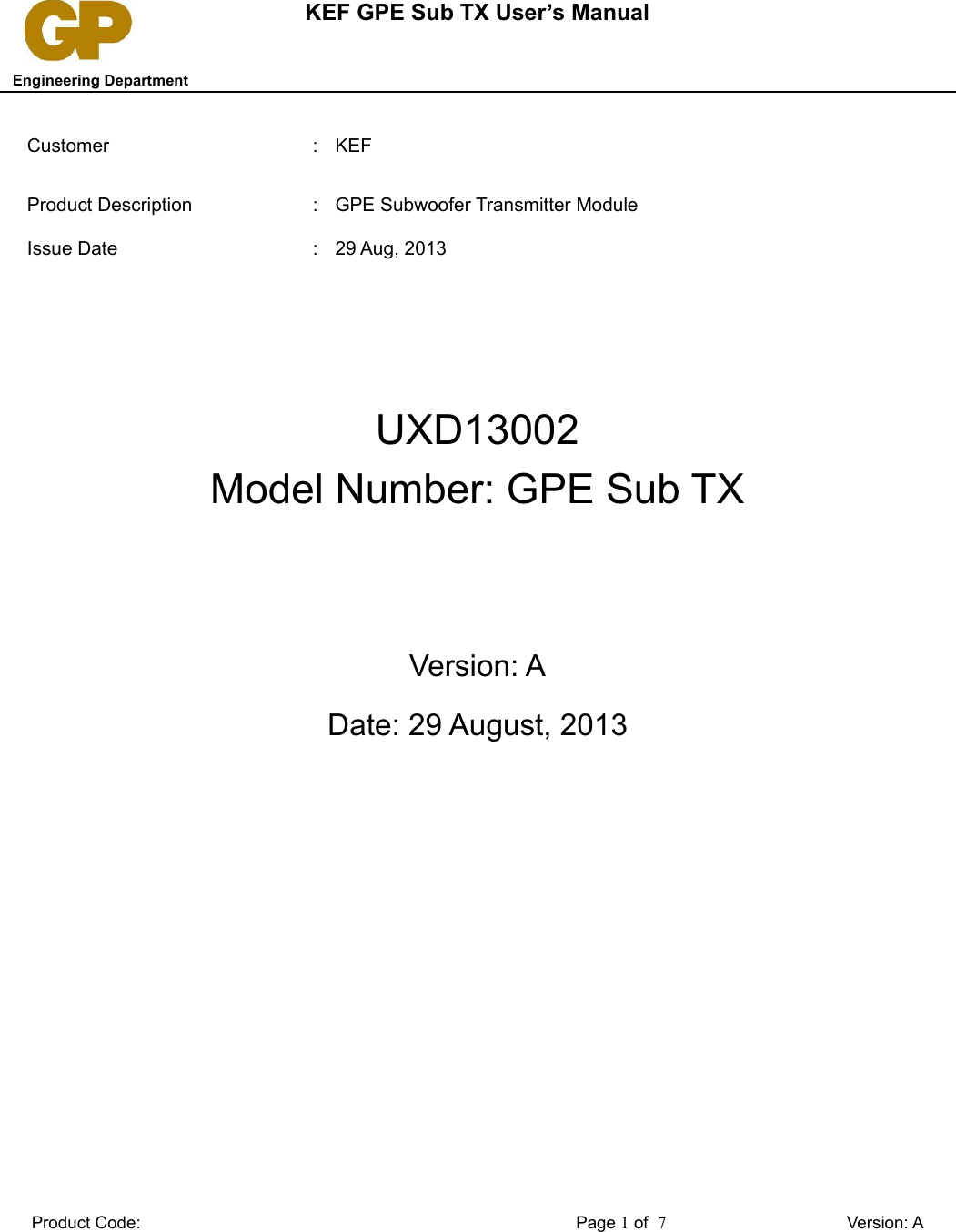

KEF GPE Sub TX User’s Manual Engineering DepartmentCustomer : KEFProduct Description : GPE Subwoofer Transmitter ModuleIssue Date : 29 Aug, 2013UXD13002Model Number: GPE Sub TXVersion: ADate: 29 August, 2013Product Code: Page 1 of 7Version: A

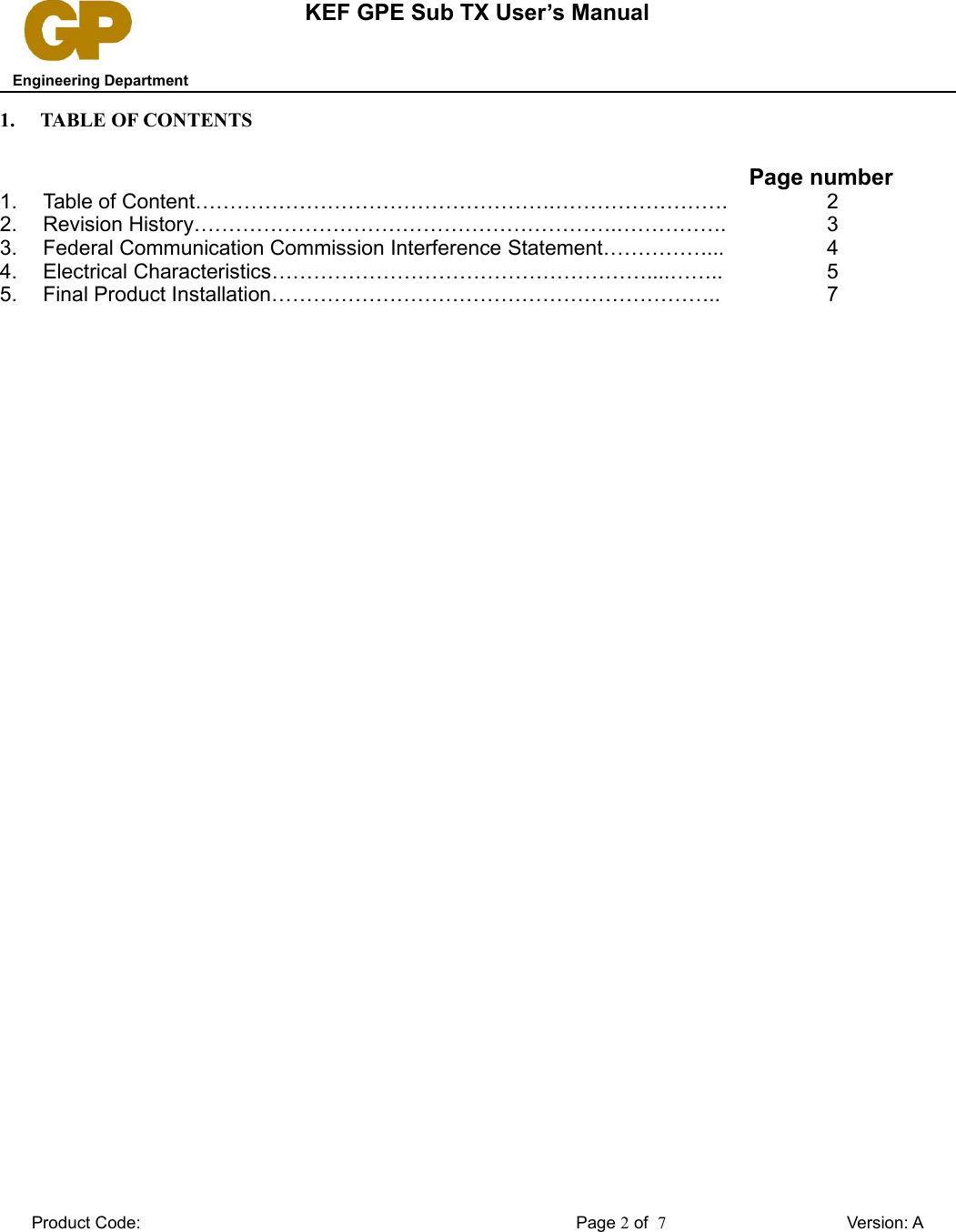

KEF GPE Sub TX User’s Manual Engineering Department1. TABLE OF CONTENTSPage number1. Table of Content…………………………………………….……………………. 22. Revision History…………………………………………………….……………. 33. Federal Communication Commission Interference Statement……………... 44. Electrical Characteristics………………………………………………....…….. 55. Final Product Installation……………………………………………………….. 7Product Code: Page 2 of 7Version: A
KEF GPE Sub TX User’s Manual Engineering Department2. Revision HistoryVersion Date Sections Pages RevisionsA 29th August 2013 1 - 5 12 New IssueProduct Code: Page 3 of 7Version: A

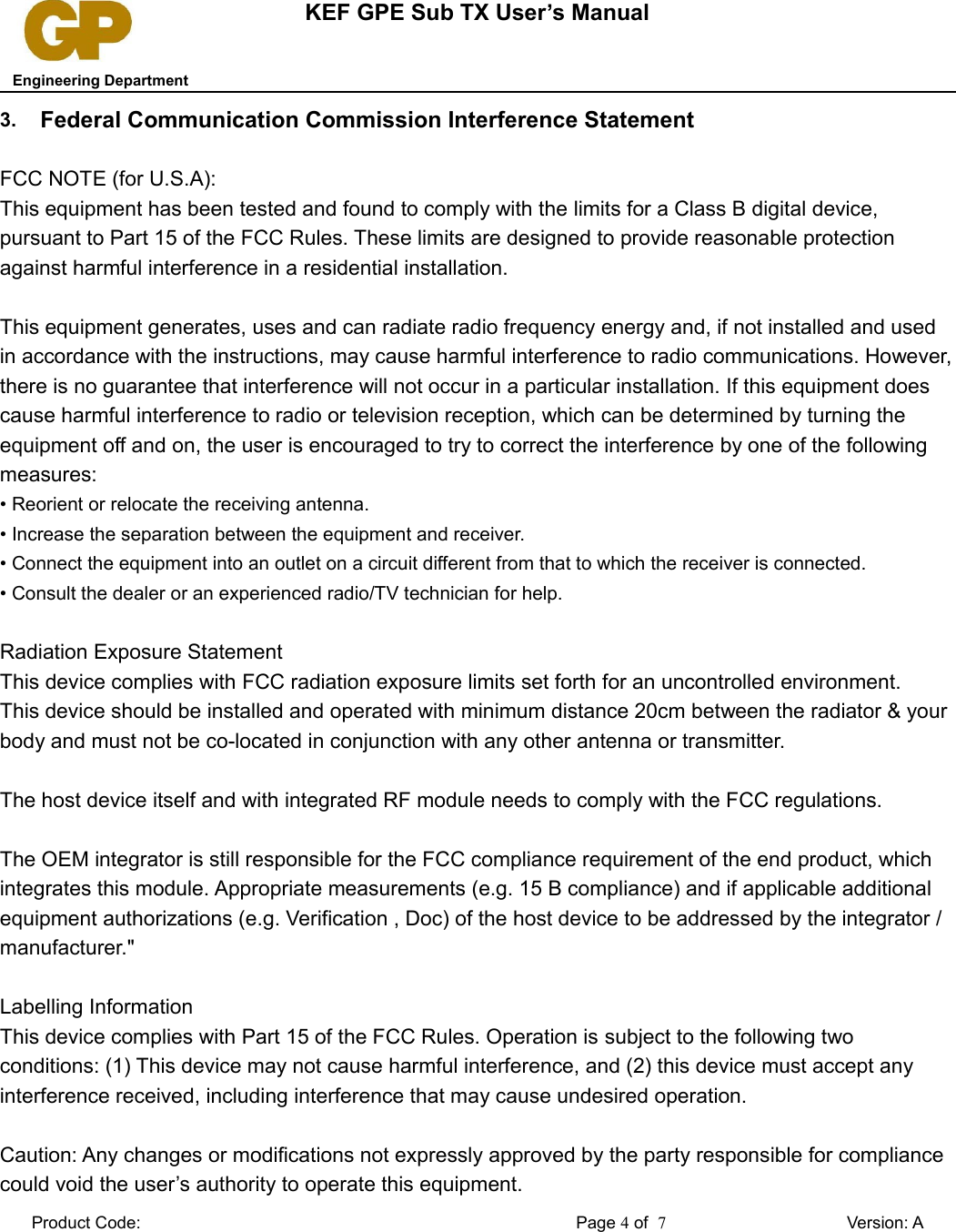

KEF GPE Sub TX User’s Manual Engineering Department3. Federal Communication Commission Interference StatementFCC NOTE (for U.S.A):This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Radiation Exposure StatementThis device complies with FCC radiation exposure limits set forth for an uncontrolled environment.This device should be installed and operated with minimum distance 20cm between the radiator & your body and must not be co-located in conjunction with any other antenna or transmitter.The host device itself and with integrated RF module needs to comply with the FCC regulations. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator / manufacturer." Labelling InformationThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.Product Code: Page 4 of 7Version: A

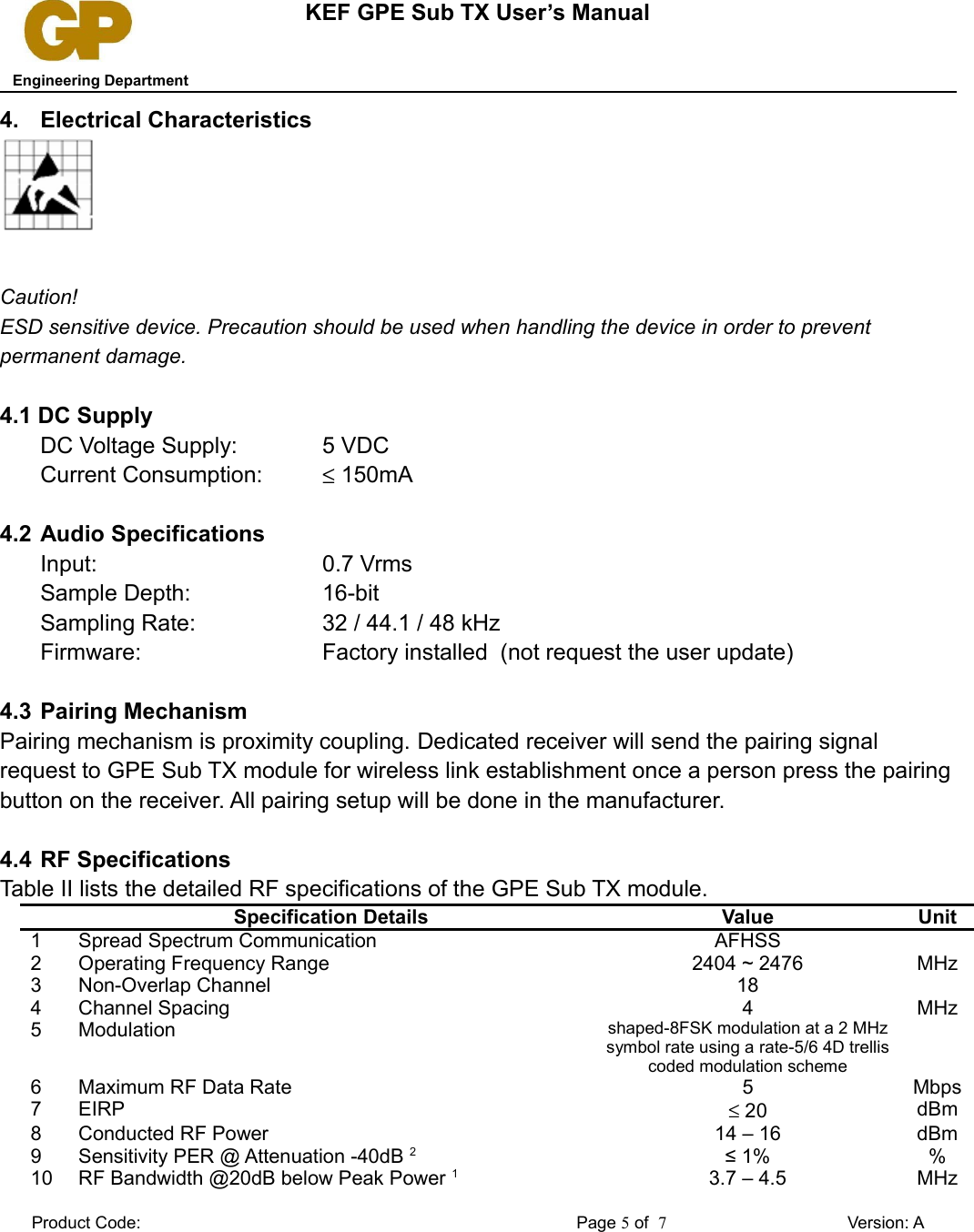

KEF GPE Sub TX User’s Manual Engineering Department4. Electrical CharacteristicsCaution! ESD sensitive device. Precaution should be used when handling the device in order to prevent permanent damage.4.1 DC SupplyDC Voltage Supply: 5 VDCCurrent Consumption: ≤ 150mA4.2 Audio SpecificationsInput: 0.7 VrmsSample Depth: 16-bitSampling Rate: 32 / 44.1 / 48 kHzFirmware: Factory installed (not request the user update)4.3 Pairing MechanismPairing mechanism is proximity coupling. Dedicated receiver will send the pairing signal request to GPE Sub TX module for wireless link establishment once a person press the pairing button on the receiver. All pairing setup will be done in the manufacturer. 4.4 RF SpecificationsTable II lists the detailed RF specifications of the GPE Sub TX module.Specification Details Value Unit1 Spread Spectrum Communication AFHSS2 Operating Frequency Range 2404 ~ 2476 MHz3 Non-Overlap Channel 184 Channel Spacing 4 MHz5 Modulation shaped-8FSK modulation at a 2 MHz symbol rate using a rate-5/6 4D trellis coded modulation scheme6 Maximum RF Data Rate 5 Mbps7 EIRP ≤ 20 dBm8 Conducted RF Power 14 – 16 dBm9 Sensitivity PER @ Attenuation -40dB 2≤ 1% %10 RF Bandwidth @20dB below Peak Power 13.7 – 4.5 MHzProduct Code: Page 5 of 7Version: A

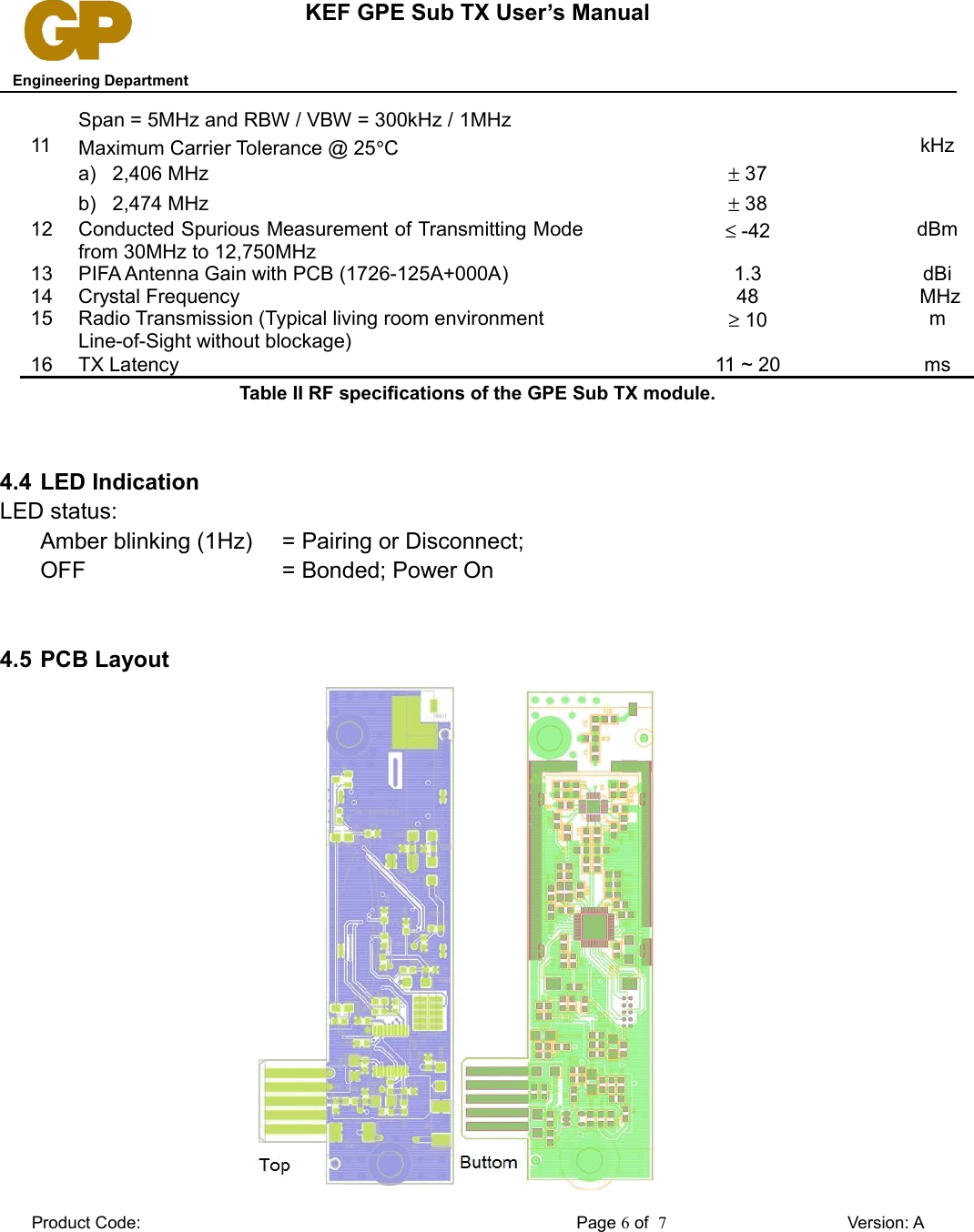

KEF GPE Sub TX User’s Manual Engineering DepartmentSpan = 5MHz and RBW / VBW = 300kHz / 1MHz11 Maximum Carrier Tolerance @ 25°Ca) 2,406 MHzb) 2,474 MHz ± 37± 38kHz12 Conducted Spurious Measurement of Transmitting Mode from 30MHz to 12,750MHz ≤ -42 dBm13 PIFA Antenna Gain with PCB (1726-125A+000A) 1.3 dBi14 Crystal Frequency 48 MHz15 Radio Transmission (Typical living room environment Line-of-Sight without blockage) ≥ 10 m16 TX Latency 11 ~ 20 msTable II RF specifications of the GPE Sub TX module.4.4 LED IndicationLED status:Amber blinking (1Hz) = Pairing or Disconnect; OFF = Bonded; Power On4.5 PCB LayoutProduct Code: Page 6 of 7Version: A

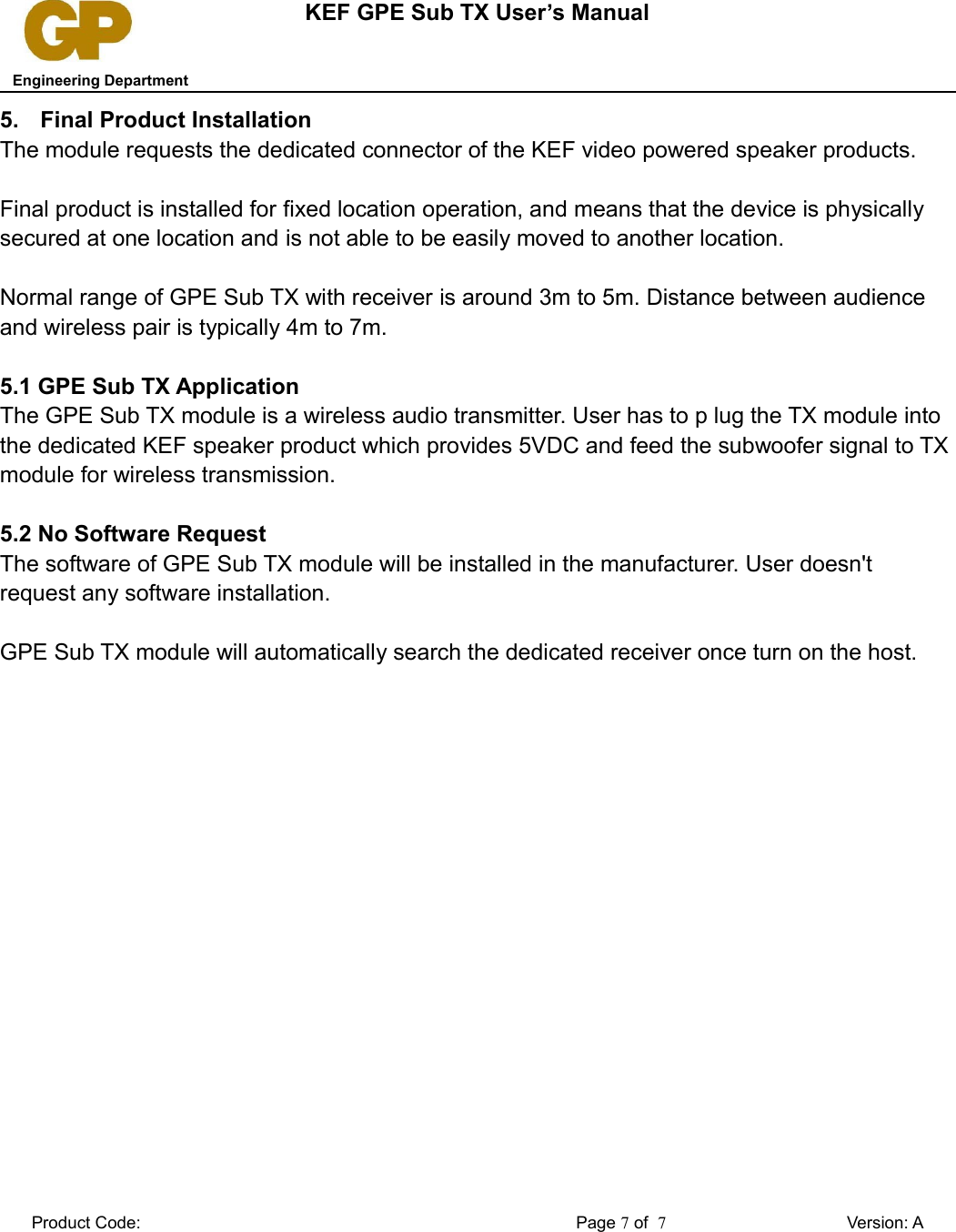

KEF GPE Sub TX User’s Manual Engineering Department5. Final Product InstallationThe module requests the dedicated connector of the KEF video powered speaker products. Final product is installed for fixed location operation, and means that the device is physically secured at one location and is not able to be easily moved to another location.Normal range of GPE Sub TX with receiver is around 3m to 5m. Distance between audience and wireless pair is typically 4m to 7m.5.1 GPE Sub TX ApplicationThe GPE Sub TX module is a wireless audio transmitter. User has to p lug the TX module into the dedicated KEF speaker product which provides 5VDC and feed the subwoofer signal to TX module for wireless transmission.5.2 No Software RequestThe software of GPE Sub TX module will be installed in the manufacturer. User doesn't request any software installation.GPE Sub TX module will automatically search the dedicated receiver once turn on the host.Product Code: Page 7 of 7Version: A
