GTO Access Systems MM136G3BASE INTERCOM BASE UNIT User Manual MM136

GTO Access Systems, LLC INTERCOM BASE UNIT MM136

User Manual

Crystal clear two-way communication up to 500 feet wireless.Wireless Gate Entry IntercomThank you for purchasing the Mighty Mule Wireless Gate Entry Intercom. Please read the directions carefully and completely before installing.Instructions for Wireless and Wired Installations Nortek Security & Control • Telephone (800) 543-4283 • Fax (850) 575-8912 • website www.mightymule.comSAFETY NOTE: Never install the keypad portion of this unit where a person can reach through the gate to activate it, or where a person can touch the gate while activating the keypad. The recommended minimum distance between the gate and keypad is 10 ft.©2017 Nortek Security & Controlrev - 1106-17IMPORTANT: Allow the intercom base unit’s battery to charge for 12 hours before time. See page 6 for details.Keypad UnitBase UnitBase Unit
1The INTERCOM has two separate units. The KEYPAD (outside unit) should be mounted outside the gate allowing the driver of the vehicle approaching the property to press the CALL button from their vehicle. The BASE (inside unit), with it’s rechargeable battery, can be plugged into any 110 Volt AC outlet for use while charging. It can also be disconnected from the charger allowing it to go any where within range for convenience. Up to three additional BASES can be added for convenience in different locations throughout the house. When someone without an access code approaches the gate, they can press the CALL button on the keypad which will ring the BASE unit inside the house. To answer the CALL, the person inside presses and holds the ANSWER button to talk to the person at the gate, releasing the ANSWER button to listen. To allow the person calling to open the gate, the GRANT PERMISSION button must be pressed. Then the person at the gate can press any number key on the KEYPAD to open the gate. The “END CALL” button terminates the calls and the “ON/OFF” switch can be used to conserve power when using unit on battery.Up to 25 different personal entry codes may be programmed into the KEYPAD, allowing you to give different temporary and permanent entry codes to different users. For example, you can give a delivery person their own temporary entry code, which you can easily change after he has made the delivery. This will prevent him from being able to regain access, while still allowing those to whom you gave permanent entry codes full access.After entering a valid code, pressing any key on the KEYPAD while the gate is opening will stop the gate; pressing any key while the gate is stopped will cause the gate to reverse direction. The KEYPAD will not affect the auto-close setting of your gate opener system.The KEYPAD number pad will light up and the unit will beep at the press of any key. The KEYPAD memory will rec-string. This will discourage an unauthorized person from trying to use random numbers to access your property.Your entry codes will remain stored in memory even when the batteries go dead. The KEYPAD will remember your entry codes as long as you don’t press the RESET button.Features of the Intercom/KeypadIMPORTANT: directly to the gate opener using 16 gauge (AWG) stranded, direct burial, low voltage wire (part no. RB509 not included).See page 8 for details.
2Wired Installation of the Keypad NOTE: If you also plan to power the keypad with the gate opener’s battery and hard wire the com-munication between the keypad and the gate opener, run two pairs of wires as described below. One pair to hard-wire the keypad to the gate opener’s control board and the other pair to connect the keypad to the gate opener’s battery.Step 1: Turn the gate opener’s power switch OFF. Use 16 gauge (AWG) stranded, direct burial, low voltage wire (part no. RB509) to connect the keypad to the opener control board. Run wire through PVC pipe from the ground to keypad and from the ground to the opener control board to protect the wire from lawn mowers or grazing animals.Determine how the wire will enter the keypad (i.e. from the back through a hole drilled in the mount-ing post or running the wire on the surface of the post). Remove the small rectangular knock-out on the back of the keypad cover and pull the wire into the cover. Then mount the cover to the post using the screws provided.Keypad DescriptionInstalling Batterieskeypad. If an external DC power supply such as the gate opener’s pow-er source is used, the AA batteries will act as a back up. Low voltage wire from the gate opener battery must be connected to the POWER IN terminals on the keypad control board. Step 1: Remove the two screws from the bottom of the keypad and separate the keypad from its housing.Step 2: Install four (4) AA batteries (not included). 1 2ABC 3DEF4GHI 5JKL 6MNO7PRS 8TUV 9WXY0CALLSTATUSPROGRAMCALLING GRANTEDSTATUS Light:This led will blink once when any key is pressed and provides visual feedback during access code programming.GRANTED Light:LED turns GREEN when access permission is granted.Keypad - FrontBattery Holder:Use 4 AA batteries if hard-wired power supply is not used. If external power source is used the 4 AA batteries will provide a back-up power source. 2%,!9/54054!#$#0/7%2).o*%4&5oooo3&4&5+6.1&3ID SET button:This button is used only when there is another pair of Mighty Mule wireless intercom units nearby causing interference. DIP Switches:Match these switches to your remote transmitter to program the keypad.Relay output:Used to connect the keypad to gate opener in hard-wired applications.Power Input:Used to connect keypad to gate opener for continuous power supply. Keypad - InsideKnock-outWireless Installation of the KeypadNOTE: For wireless applications, the keypad must be in the line of sight of the gate opener receiver and the distance from the keypad to the opener’s receiver should not exceed 50 ft. Always test the keypad range before permanently mounting it. A metal housing or metal object could cause interference. Step 1: Mount the keypad cover using the screws provided. Set the keypad DIP switches to match your entry transmitter’s DIP switch settings. NOTE: If you have not changed your opener’s transmitter code from the factory setting, see the “Setting Your Personal Transmitter Code” section in the gate openers manual then set the keypad DIP switches to match the new trans-mitter DIP switch setting.Step 2: Slide the keypad into the cover and secure with the small screws provided. 12ABC 3DEF4GHI 5JKL 6MNO7PRS 8TUV 9WXY0CALLSTATUSPROGRAMCALLING GRANTED123456789+0–PROGRAM button:Used to program access codes.CALLING Light:LED is RED when calling and turns GREEN when call is answered.RESET button:Pressing this button for 2 seconds will reprogram the keypad to factory settings. All codes are deleted. Default master code is 1234.
3ONALARM ACCESSORY RCVRSEQ1SEQ2LEARNBLUORGWHTGRNR B GConnect #1 wire from the RELAY OUTPUT terminals on the keypad to WHT terminal on the gate opener control board.Connect #2 wirefrom the RELAY OUTPUT terminals on the keypad to the GRN terminal on the gate opener control board.PRO-1000/2000, PRO-SL1000/SL2000 and Old Mighty MuleControl Boards#1#2RELAYOUTPUTAC/DCPOWER IN123456789+0–Jumper ONJumper OFFHard-wire from Gate OpenerPower Supply from Opener Battery#1#2Step 2: For hard-wired communication between the keypad and gate opener, using 16 gauge (AWG) stranded, direct burial, low voltage wire (part no. RB509) strip the wires back 3/16” and attach the wires to the terminal block marked RELAY OUTPUT on the keypad control board as shown to the right. Connect the other end to the opener’s control board as shown in Control Board Connections section below.To wire the power supply to the keypad, attach the wires to the AC/DC POWER IN terminal on the keypad control board as shown to the right. Connect the other end to the opener’s battery - one end to the POSITIVE (RED) pole and the other to the NEGA-TIVE (BLACK) pole.NOTE: For a hard-wired application the jumper between the two terminals on the keypad control board must be connected (ON) as shown. This will disable the 318 MHz RF transmitter. Step 3: Slide the keypad into the cover and secure with the small screws provided.Step 4: Turn the power to the opener OFF. Remove the opener control board cover and feed enough of the low voltage wire from the keypad through a strain relief to reach the gate opener control board terminals.Step 5: Attach the wires from the keypad to the opener control board terminal blocks as shown below.Step 6: Replace the control board cover and turn the power switch ON. Test the keypad by entering 1 2 3 4.Step 7: Program your ‘Personal Master Code’ and any additional entry codes (for a total of 25 entry codes). See Programming the Keypad section. Control Board Connections12ABC 3DEF4GHI 5JKL 6MNO7PRS 8TUV 9WXY0CALLSTATUSPROGRAMCALLING GRANTEDNOTE: If your control board doesn’t look like any of these diagrams, please call Technical Service at 1-800-543-1236 or 850-575-4144 for additional support.GRN BLK RED RECEIVER COM COM CLOSECYCLE CLOSE SAFETY EXIT OPEN SHADOW LOOP CLOSE EDGE OPEN EDGE J11J11 J8 J12 GTO/PRO DC Powered PRO-SW3000 and PRO-SW4000 Control Boards Connect #1 wire from the RELAY OUTPUT terminals on the keypad to CYCLE terminal on the gate opener control board. Connect #2 wire from the RELAY OUTPUT terminals on the keypad to the COM terminal on the gate opener control board. #1 #2 RECR GRN BLK RED EXIT SAFETY EDGE CYCLE COMMON LINK Mighty Mule 350 Control Board Connect #1 wire from the RELAY OUTPUT terminals on the keypad to CYCLE terminal on the gate opener control board. Connect #2 wire from the RELAY OUTPUT terminals on the keypad to the COMMMON terminal on the gate opener control board. #1 #2 RECEIVERCOM COMCYCLECLOSESAFETYEXIT/OPENSHADOWLOOPCLOSEEDGEOPENEDGEBLKGRN REDMighty Mule 500 & 502 Control BoardsConnect the #1 wire fromRELAY OUTPUT terminals on the keypad to the CYCLE terminal on the opener control board.Connect the #2 wire from the RELAY OUTPUT terminals on the keypad to one of the COMMON terminals on the opener control board. #1#2RECEIVERALMGTO RCVR.COMGRNBLKREDCYCLESAFETYEXITSHADOWOPENEDGECOMCONTROL INPUTSCLOSEEDGEConnect #1 wire fromthe RELAY OUTPUT terminals on the keypad to CYCLE terminal on the gate opener control board.Connect #2 wire from the RELAY OUTPUT terminals on the keypad to the COM terminal on the gate opener control board. #1#2GEN-3 (Blue) Control BoardsCOMCOMCOMGTO Inc.SX4000 LCYCLESAFETYOPEN EDGERUN 2OPENCLOSESTOPCOMCOMCOMSHADOWLOOPConnect #1 wire from the RELAY OUTPUT terminals on the keypad to CYCLE terminal on the gate opener control board.Connect #2 wire from the RELAY OUTPUT terminals on the keypad to the COM terminal on the gate opener control board.#1#2GTO/PRO GP-SL100 and GP-SW100Control Boards

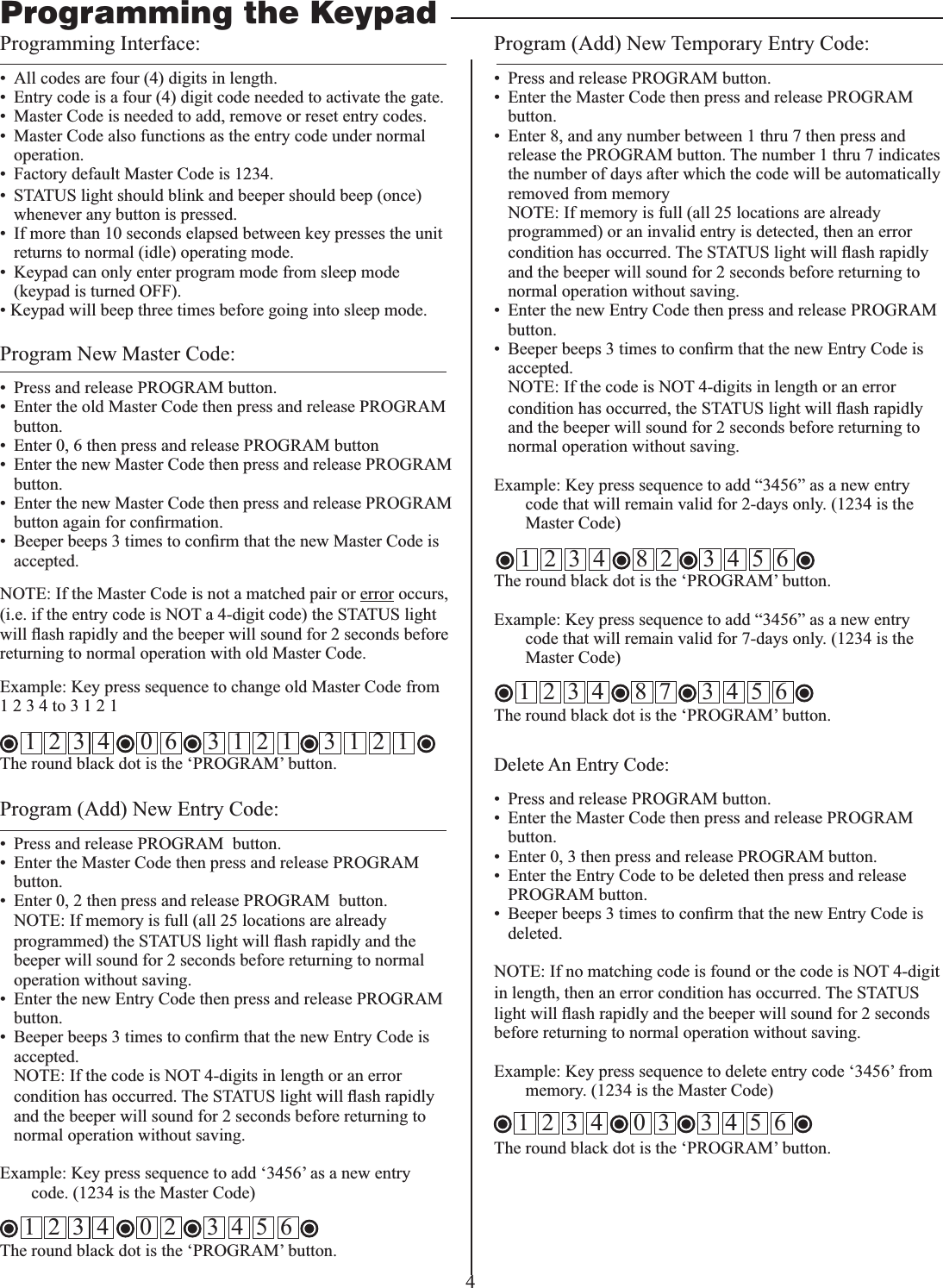

4Programming Interface:• All codes are four (4) digits in length.• Entry code is a four (4) digit code needed to activate the gate.• Master Code is needed to add, remove or reset entry codes.• Master Code also functions as the entry code under normal operation.• Factory default Master Code is 1234.• STATUS light should blink and beeper should beep (once) whenever any button is pressed. • If more than 10 seconds elapsed between key presses the unit returns to normal (idle) operating mode.• Keypad can only enter program mode from sleep mode (keypad is turned OFF). • Keypad will beep three times before going into sleep mode.Program New Master Code:• Press and release PROGRAM button. • Enter the old Master Code then press and release PROGRAM button.• Enter 0, 6 then press and release PROGRAM button• Enter the new Master Code then press and release PROGRAM button.• Enter the new Master Code then press and release PROGRAM accepted.NOTE: If the Master Code is not a matched pair or error occurs, (i.e. if the entry code is NOT a 4-digit code) the STATUS light returning to normal operation with old Master Code.1 2 3 4 to 3 1 2 1 1 2 3 4 0 6 3 1 2 1 3 1 2 1 The round black dot is the ‘PROGRAM’ button.Program (Add) New Entry Code:• Press and release PROGRAM button. • Enter the Master Code then press and release PROGRAM button.• Enter 0, 2 then press and release PROGRAM button. NOTE: If memory is full (all 25 locations are already programmed) the STATUS lightbeeper will sound for 2 seconds before returning to normal operation without saving.• Enter the new Entry Code then press and release PROGRAM button.accepted. NOTE: If the code is NOT 4-digits in length or an error condition has occurred. The STATUS lightand the beeper will sound for 2 seconds before returning to normal operation without saving.code. (1234 is the Master Code)The round black dot is the ‘PROGRAM’ button.Program (Add) New Temporary Entry Code:• Press and release PROGRAM button. • Enter the Master Code then press and release PROGRAM button.• Enter 8, and any number between 1 thru 7 then press and release the PROGRAM button. The number 1 thru 7 indicates the number of days after which the code will be automatically removed from memory NOTE: If memory is full (all 25 locations are already programmed) or an invalid entry is detected, then an error condition has occurred. The STATUS lightand the beeper will sound for 2 seconds before returning to normal operation without saving.• Enter the new Entry Code then press and release PROGRAM button.accepted. NOTE: If the code is NOT 4-digits in length or an error condition has occurred, the STATUS lightand the beeper will sound for 2 seconds before returning to normal operation without saving.code that will remain valid for 2-days only. (1234 is the Master Code)The round black dot is the ‘PROGRAM’ button.code that will remain valid for 7-days only. (1234 is the Master Code)The round black dot is the ‘PROGRAM’ button.Programming the KeypadDelete An Entry Code:• Press and release PROGRAM button. • Enter the Master Code then press and release PROGRAM button.• Enter 0, 3 then press and release PROGRAM button.• Enter the Entry Code to be deleted then press and release PROGRAM button.deleted.NOTE: If no matching code is found or the code is NOT 4-digit in length, then an error condition has occurred. The STATUS lightbefore returning to normal operation without saving. memory. (1234 is the Master Code)The round black dot is the ‘PROGRAM’ button.1 2 3 4 0 2 3 4 5 6 1 2 3 4 8 2 3 4 5 6 1 2 3 4 0 3 3 4 5 6 1 2 3 4 8 7 3 4 5 6

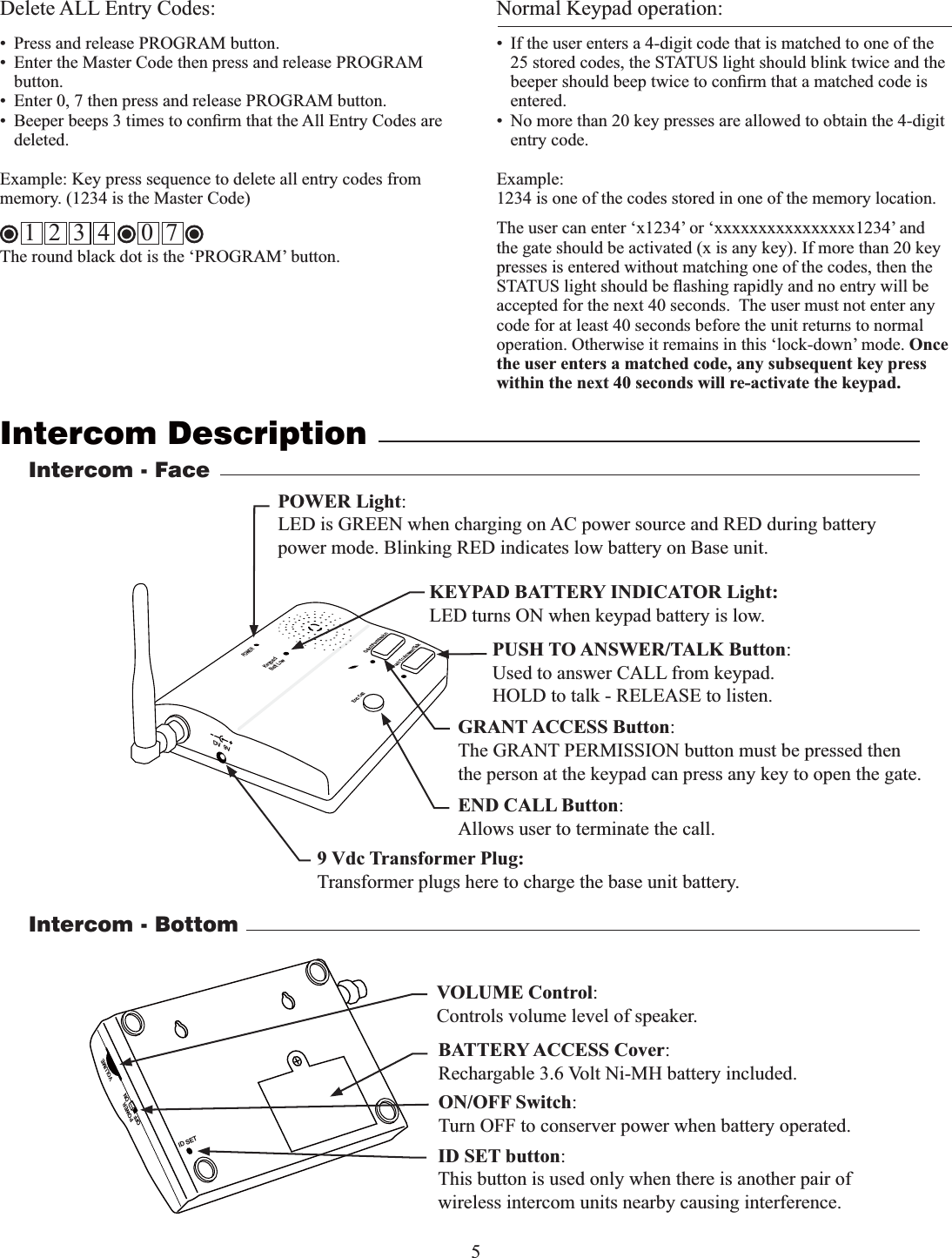

5Intercom DescriptionNormal Keypad operation:• If the user enters a 4-digit code that is matched to one of the 25 stored codes, the STATUS light should blink twice and the entered. • No more than 20 key presses are allowed to obtain the 4-digit entry code. Example: 1234 is one of the codes stored in one of the memory location. The user can enter ‘x1234’ or ‘xxxxxxxxxxxxxxxx1234’ and the gate should be activated (x is any key). If more than 20 key presses is entered without matching one of the codes, then the accepted for the next 40 seconds. The user must not enter any code for at least 40 seconds before the unit returns to normal operation. Otherwise it remains in this ‘lock-down’ mode. Once the user enters a matched code, any subsequent key press within the next 40 seconds will re-activate the keypad.Delete ALL Entry Codes:• Press and release PROGRAM button. • Enter the Master Code then press and release PROGRAM button.• Enter 0, 7 then press and release PROGRAM button.deleted. memory. (1234 is the Master Code) The round black dot is the ‘PROGRAM’ button.1 2 3 4 0 7GRANT ACCESS Button:The GRANT PERMISSION button must be pressed then the person at the keypad can press any key to open the gate.Intercom - FacePUSH TO ANSWER/TALK Button:Used to answer CALL from keypad.HOLD to talk - RELEASE to listen.POWER Keypad Batt Low Grant PermissionPush To Answer/TalkEnd CallDV 9V POWER Light:LED is GREEN when charging on AC power source and RED during battery power mode. Blinking RED indicates low battery on Base unit.KEYPAD BATTERY INDICATOR Light:LED turns ON when keypad battery is low.9 Vdc Transformer Plug:Transformer plugs here to charge the base unit battery. ID SETVOLUMEPOWEROFF ONIntercom - BottomON/OFF Switch:Turn OFF to conserver power when battery operated.VOLUME Control:Controls volume level of speaker.ID SET button:This button is used only when there is another pair of wireless intercom units nearby causing interference. END CALL Button:Allows user to terminate the call.BATTERY ACCESS Cover:Rechargable 3.6 Volt Ni-MH battery included.

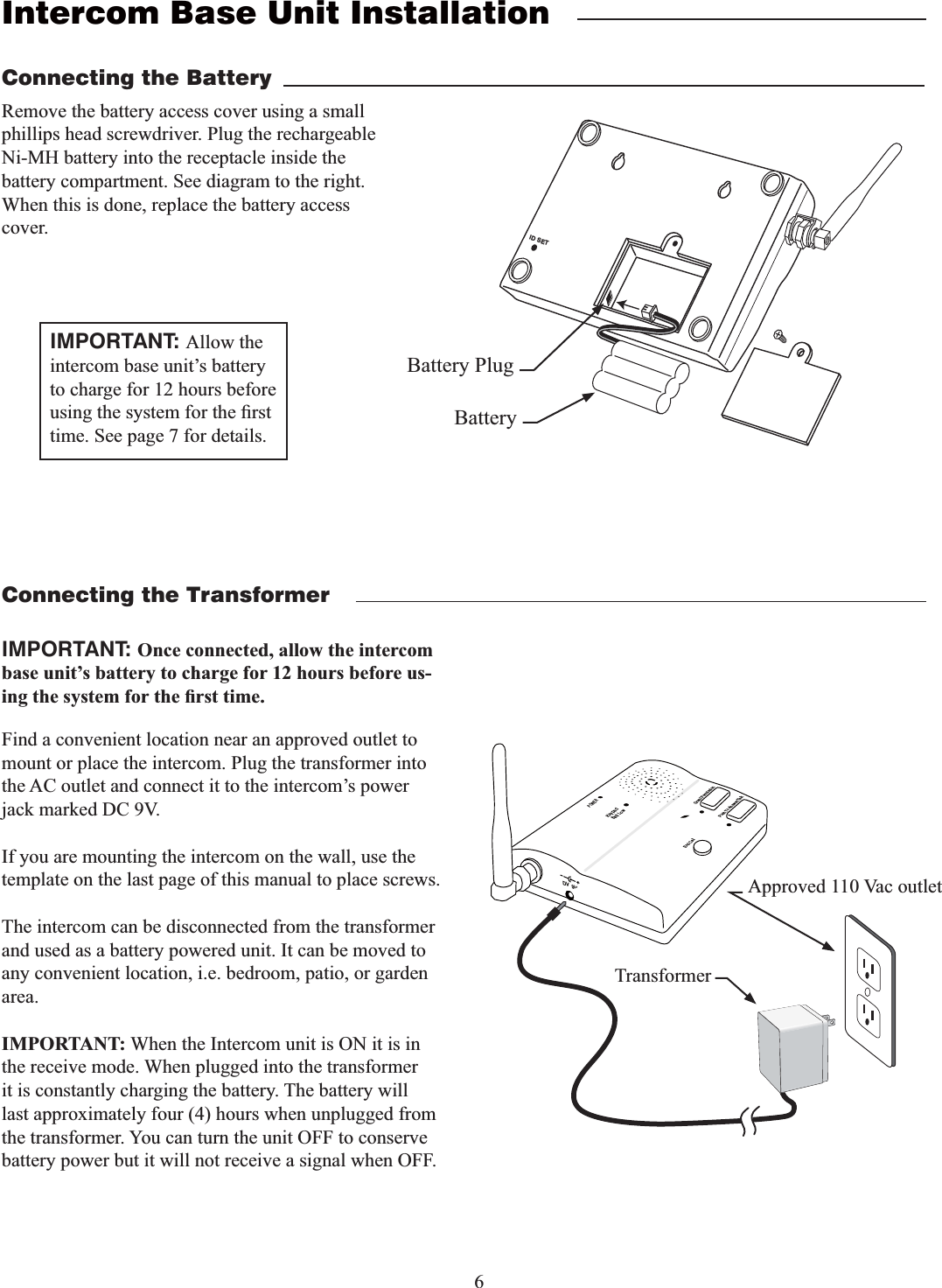

6Intercom Base Unit InstallationFind a convenient location near an approved outlet to mount or place the intercom. Plug the transformer into the AC outlet and connect it to the intercom’s power jack marked DC 9V.If you are mounting the intercom on the wall, use the template on the last page of this manual to place screws.The intercom can be disconnected from the transformer and used as a battery powered unit. It can be moved to any convenient location, i.e. bedroom, patio, or garden area.IMPORTANT: When the Intercom unit is ON it is in the receive mode. When plugged into the transformer it is constantly charging the battery. The battery will last approximately four (4) hours when unplugged from the transformer. You can turn the unit OFF to conserve battery power but it will not receive a signal when OFF.Remove the battery access cover using a small phillips head screwdriver. Plug the rechargeable Ni-MH battery into the receptacle inside the battery compartment. See diagram to the right. When this is done, replace the battery access cover.Connecting the BatteryConnecting the TransformerID SETBattery PlugBatteryPOWERKeypadBatt LowGrant PermissionPush To Answer/TalkEnd CallDV 9VTransformerApproved 110 Vac outletIMPORTANT: Once connected, allow the intercom base unit’s battery to charge for 12 hours before us-IMPORTANT: Allow the intercom base unit’s battery to charge for 12 hours before time. See page 7 for details.

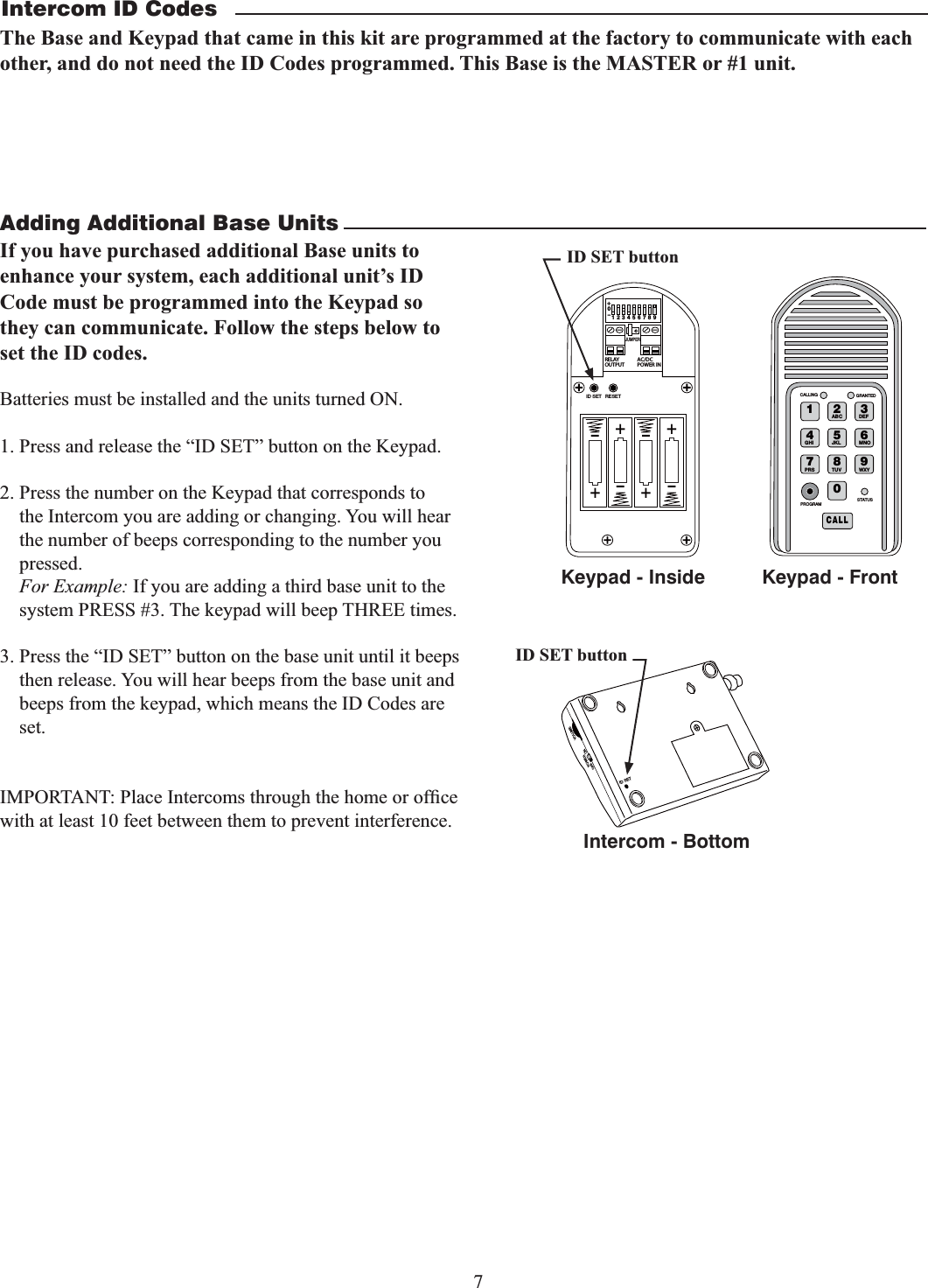

7Adding Additional Base UnitsBatteries must be installed and the units turned ON.1. Press and release the “ID SET” button on the Keypad.2. Press the number on the Keypad that corresponds to the Intercom you are adding or changing. You will hear the number of beeps corresponding to the number you pressed. For Example: If you are adding a third base unit to the system PRESS #3. The keypad will beep THREE times.3. Press the “ID SET” button on the base unit until it beeps then release. You will hear beeps from the base unit and beeps from the keypad, which means the ID Codes are set.with at least 10 feet between them to prevent interference. 2%,!9/54054!#$#0/7%2).o*%4&5oooo3&4&5+6.1&3ID SET buttonID SETVOLUMEPOWEROFF ONKeypad - InsideIntercom - Bottom1 2ABC 3DEF4GHI 5JKL 6MNO7PRS 8TUV 9WXY0CALLSTATUSPROGRAMCALLING GRANTEDKeypad - FrontID SET buttonIntercom ID CodesThe Base and Keypad that came in this kit are programmed at the factory to communicate with each other, and do not need the ID Codes programmed. This Base is the MASTER or #1 unit. If you have purchased additional Base units to enhance your system, each additional unit’s ID Code must be programmed into the Keypad so they can communicate. Follow the steps below to set the ID codes.
8Test the SystemIMPORTANT: The Base unit and the Keypad can not be within 30 feet of each other when operating. If units are closer than 30 feet the signal will be inconsistent as well as emit speaker feed back. Also, multiple Base units must be no closer than 10 feet from each other to prevent interference.Have someone press the CALL button on the keypad at the gate. When the base unit inside the house rings, press the ANSWER button and talk to the person at the gate to check the connection and range. Then press the GRANT PERMISSION button and have the person at the gate press any key on the keypad to activate the gate.Trouble ShootingMake sure all connections are secure and correct.Other electronic devices in the same area may interfere with the factory ID code. If the system does not communicate at all, reset the intercom/keypad ID code as follows.1. Open the keypad and locate the “ID SET” button above the batteries. 2. Locate the “ID SET” button on the bottom of the intercom base unit. 3. Make sure the “antenna-to-antenna” distance between the keypad and the base unit is at least 30 feet.4. Reset the MASTER Intercom base unit’s ID Code.IMPORTANT: Base units must be no closer than 10 feet from each other to prevent interference.Batteries must be installed and the units turned ON.A. Press the “ID SET” button on the Keypad until you hear a beep, then release. This erases all stored ID Codes.B. Press the “ID SET” button on the MASTER Inter-com for approximately 2 seconds then release. You will hear ONE beep from the Intercom and TWO from the Keypad, which means the ID Codes are reset.C. Test the system by pressing the CALL button on the Keypad to see if the Intercom receives the signal. NOTE: If the system is now working you will need to reset any additional Intercom you have installed. See “Adding Additional Intercoms”.2%,!9/54054!#$#0/7%2).o*%4&5oooo3&4&5+6.1&3ID SET buttonsID SETVOLUMEPOWEROFF ONKeypad - InsideIntercom - BottomIf all connections are correct and the ID SET change didn’t solve the communication problem, please call our Technical Service Department at 1-800-543-1236 Monday - Friday 8:00 am to 7:00 p.m. (ET).
9Limited One Year WarrantyNortek Security & Control (NSC) gate opener accessories are warranted by the manufacturer against defects in workmanship for a period of one (1) year from the date of purchase, provided recommended installation procedures have been followed.In the case of product failure due to defective material or manufacturer workmanship within the one (1) year warranty period, the accessory will be repaired or replaced (at the manufacturer’s option) at no charge to the customer, if returned freight prepaid to Nortek Security & Control. IMPORTANT: Call 850/575-4144 or fax 850/575-8950 for a Return Goods Authorization (RGA) number before returning goods to factory. Products received at the factory without an RGA will not be accepted. Replacement or repaired parts are covered by this warranty for the remainder of the one (1) year warranty period. NSC will pay the shipping charges for return to the owner of items repaired.The manufacturer will not be responsible for any charges or damages incurred in the removal of the defective parts for repair, or for the re-installation of those parts after repair. This warranty shall be considered void if damage to the product(s) was due to improper installation or use, connection to an improper power source, tampering, or After the one (1) year warranty period, NSC or one of its authorized service centers will make any necessary repairs for a nominal fee. Call NSC at 850/575-4144 for more -Monday thru Friday 8:00 am to 7:00 p.m. (ET) at 1-800-543-1236.Nortek Security & Control • Telephone (800) 543-4283 • Fax (850) 575-8912 • website www.mightymule.comHole Template for Mounting the Base UnitThe contents of all material available on this installation manual are copyrighted by Nortek Security & Control (“NSC”), unless otherwise indicated. All rights are reserved by NSC, and content may not be reproduced, downloaded, disseminated, published, or transferred in any form or by any means, except with the prior, written permission of NSC. Any reprinting of NSC publica-tions is by permission only. Copyright infringement is a violation of federal law. GTO®, GTO/PRO®, Mighty Mule® are registered trademarks of Nortek Security & Control. GTO Access Systems™ is a trademark of Nortek Security & Control and are the exclusive prop-erty of Nortek Security & Control (“NSC”). All rights are reserved by NSC, and these marks may not be used, in any for without the prior, written permission of NSC.  318MHz from keypad to gate opener900MHz from keypad to base stationMemory - Keypad Stores up to 25 four digit entry codesPower Consumption – Keypad 60 ma when relay is closedPower Supply – Keypad 8-24vdc or four AA batteriesPower Supply – Base Station 9 vdc 300ma transformer; 3.6V Ni-MH 800ma rechargeable battery packRange from keypad to base station 500’ wirelessRange from keypad to gate opener 50’ wireless 100’ wired using 16 awg wireRelay Output – Keypad Momentary, dry, normally open contact closes for 2 seconds upon activationRelay Output Rating – Keypad 12 or 24vdc 100ma Wiring – Base & Keypad Antennas RG6 or RG59 Coaxial CableWiring – Keypad Power & Relay Output 16 awg stranded low voltage direct burial wireUSA & Canada (800) 421-1587 & (800) 392-0123(760) 438-7000 - Toll Free FAX (800) 468-1340www.nortekcontrol.com

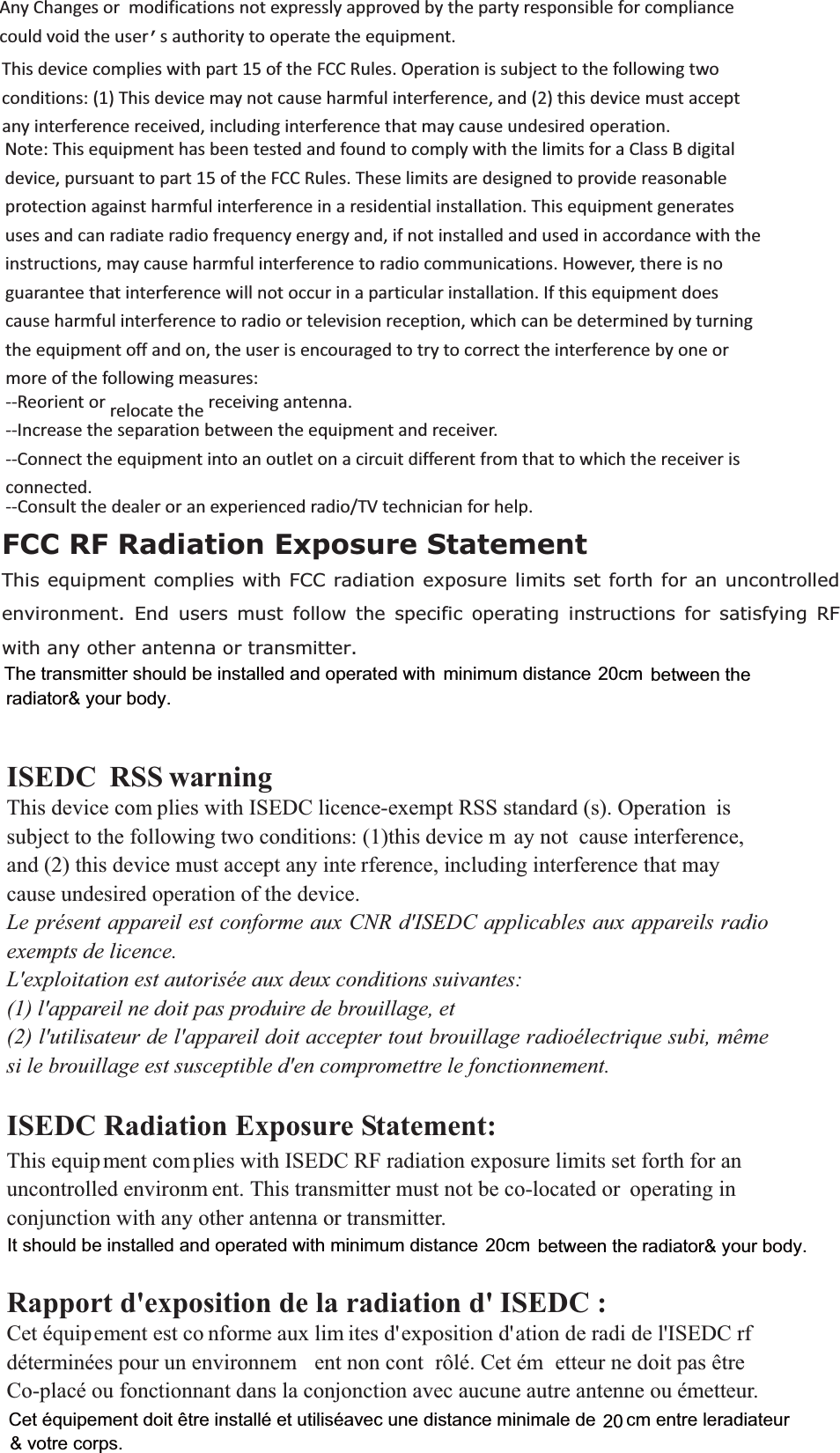

C5@4-:E;@41>-:@1::-;>@>-:?95@@1>Cet équipement doit être installé et utiliséavec une distance minimale de cm entre leradiateur ISEDC RSS warning7KLVGHYLFHFRP SOLHVZLWK,6('&OLFHQFHH[HPSW566VWDQGDUGV2SHUDWLRQ LVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQVWKLVGHYLFHP D\QRW FDXVHLQWHUIHUHQFHDQGWKLVGHYLFHPXVWDFFHSWDQ\LQWH UIHUHQFHLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQRIWKHGHYLFH Le présent appareil est conforme aux CNR d'ISEDC applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ISEDC Radiation Exposure Statement: 7KLVHTXLS PHQWFRP SOLHVZLWK,6('&5)UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUDQXQFRQWUROOHGHQYLURQP HQW7KLVWUDQVPLWWHUPXVWQRWEHFRORFDWHGRU RSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRUWUDQVPLWWHURapport d'exposition de la radiation d' ISEDC : &HWpTXLSHPHQWHVWFR QIRUPHDX[OLP LWHVGH[SRVLWLRQGDWLRQGHUDGLGHO,6('&UIGpWHUPLQpHVSRXUXQHQYLURQQHP HQWQRQFRQW U{Op&HWpP HWWHXUQHGRLWSDVrWUH &RSODFpRXIRQFWLRQQDQWGDQVODFRQMRQFWLRQDYHFDXFXQHDXWUHDQWHQQHRXpPHWWHXUIt should be installed and operated with minimum distance radiator& your body.& votre corps. AnyChangesor modificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.  Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:   Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver.  Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.  Consultthedealeroranexperiencedradio/TVtechnicianforhelp.   20 %.%*)2+*-/,!..!(!).&45?1=A5<91:@/;9<851?C5@4>-05-@5;:1D<;?A>18595@??1@2;>@42;>-:A:/;:@>;88101:B5>;:91:@ :0 A?1>? 9A?@ 2;88;C @41 ?<1/525/ ;<1>-@5:3 5:?@>A/@5;:? 2;> ?-@5?2E5:3 $between the 20cmThe transmitter should be installed and operated with minimum distanceradiator& your body.between the 20cm
