Gallagher Group G031404 Controller BR Series Reader User Manual 3E0680 SmartReader BR Series

Gallagher Group Ltd Controller BR Series Reader 3E0680 SmartReader BR Series

Part 3

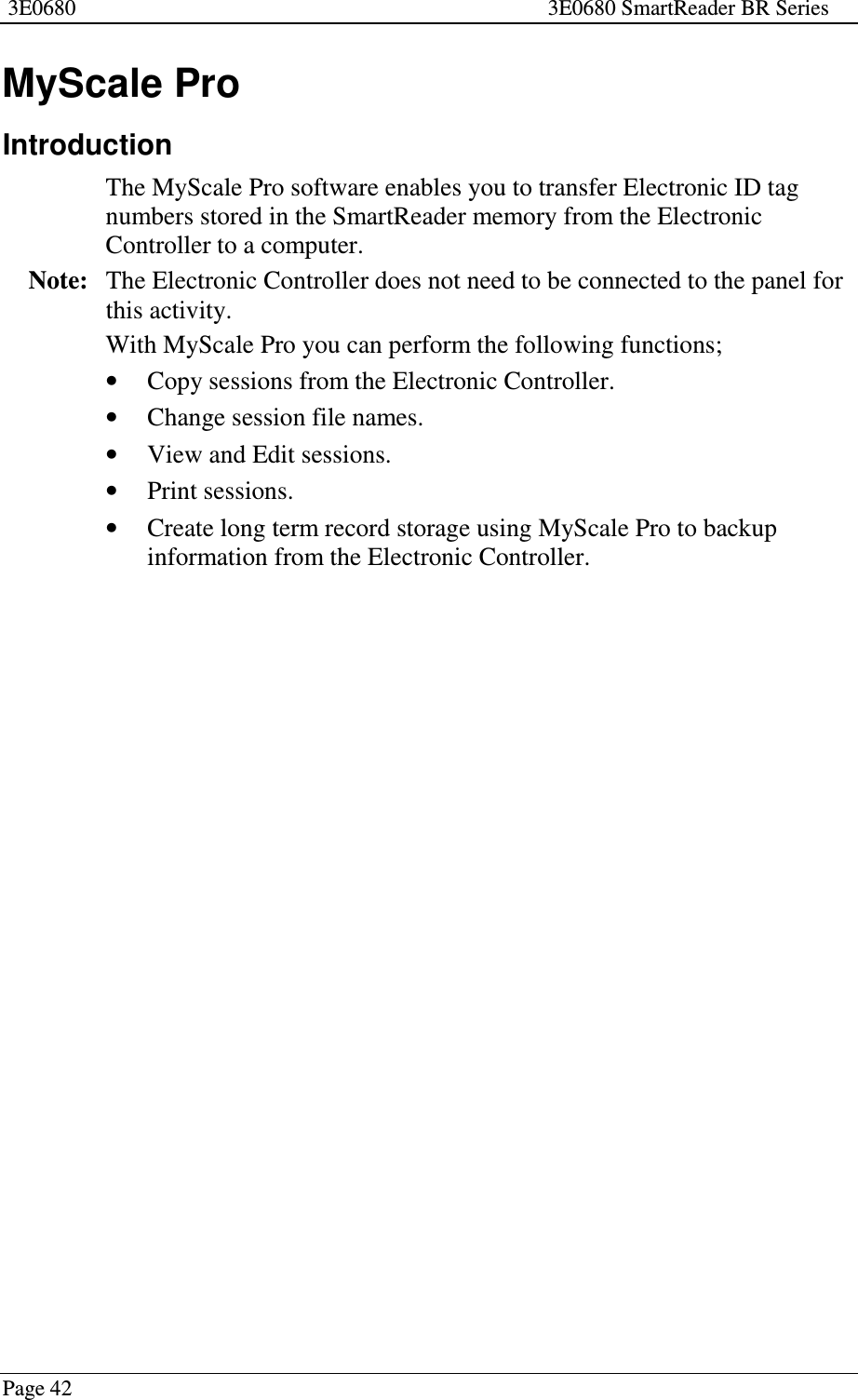

3E0680 3E0680 SmartReader BR SeriesPage 42MyScale ProIntroductionThe MyScale Pro software enables you to transfer Electronic ID tagnumbers stored in the SmartReader memory from the ElectronicController to a computer.Note: The Electronic Controller does not need to be connected to the panel forthis activity.With MyScale Pro you can perform the following functions;•Copy sessions from the Electronic Controller.•Change session file names.•View and Edit sessions.•Print sessions.•Create long term record storage using MyScale Pro to backupinformation from the Electronic Controller.

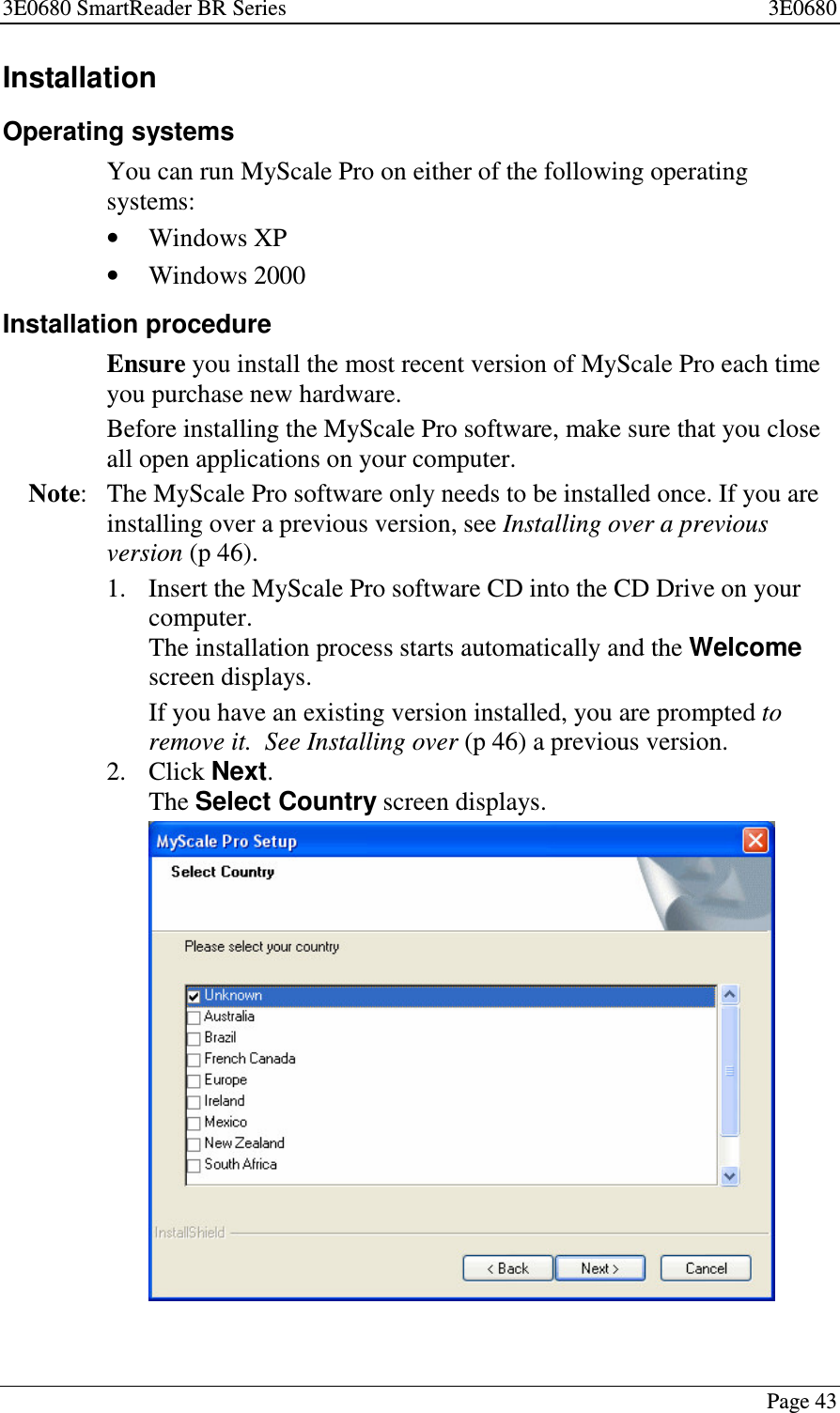

3E0680 SmartReader BR Series 3E0680Page 43InstallationOperating systemsYou can run MyScale Pro on either of the following operatingsystems:•Windows XP•Windows 2000Installation procedureEnsure you install the most recent version of MyScale Pro each timeyou purchase new hardware.Before installing the MyScale Pro software, make sure that you closeall open applications on your computer.Note: The MyScale Pro software only needs to be installed once. If you areinstalling over a previous version, see Installing over a previousversion (p 46).1. Insert the MyScale Pro software CD into the CD Drive on yourcomputer.The installation process starts automatically and the Welcomescreen displays.Ifyouhaveanexistingversioninstalled,youarepromptedtoremove it. See Installing over (p 46) a previous version.2. Click Next.The Select Country screen displays.
3E0680 3E0680 SmartReader BR SeriesPage 443. Check the box next to your country. If your country is notdisplayed, select Other.This option sets some of the terminology used, as well as theweight units. In the USA and Canada options, the default weightunit is pounds. In all other countries, the default weight unit iskilograms. The weight unit selection can be changed afterinstallation.4. Click Next.The License Agreement screen displays.5. Click Yes to accept the License Agreement.The Choose Destination Location screen displays.6. Do you want to change the Destination Folder?•If yes, click Browse and select a new folder.•If no, go to next step.The Destination Folder is the folder in to which the MyScalePro program files install.7. Click Next.The Select Hardware screen displays.8. Check the box next to the hardware you have.The options you select determine what options are installed on theMain menu.

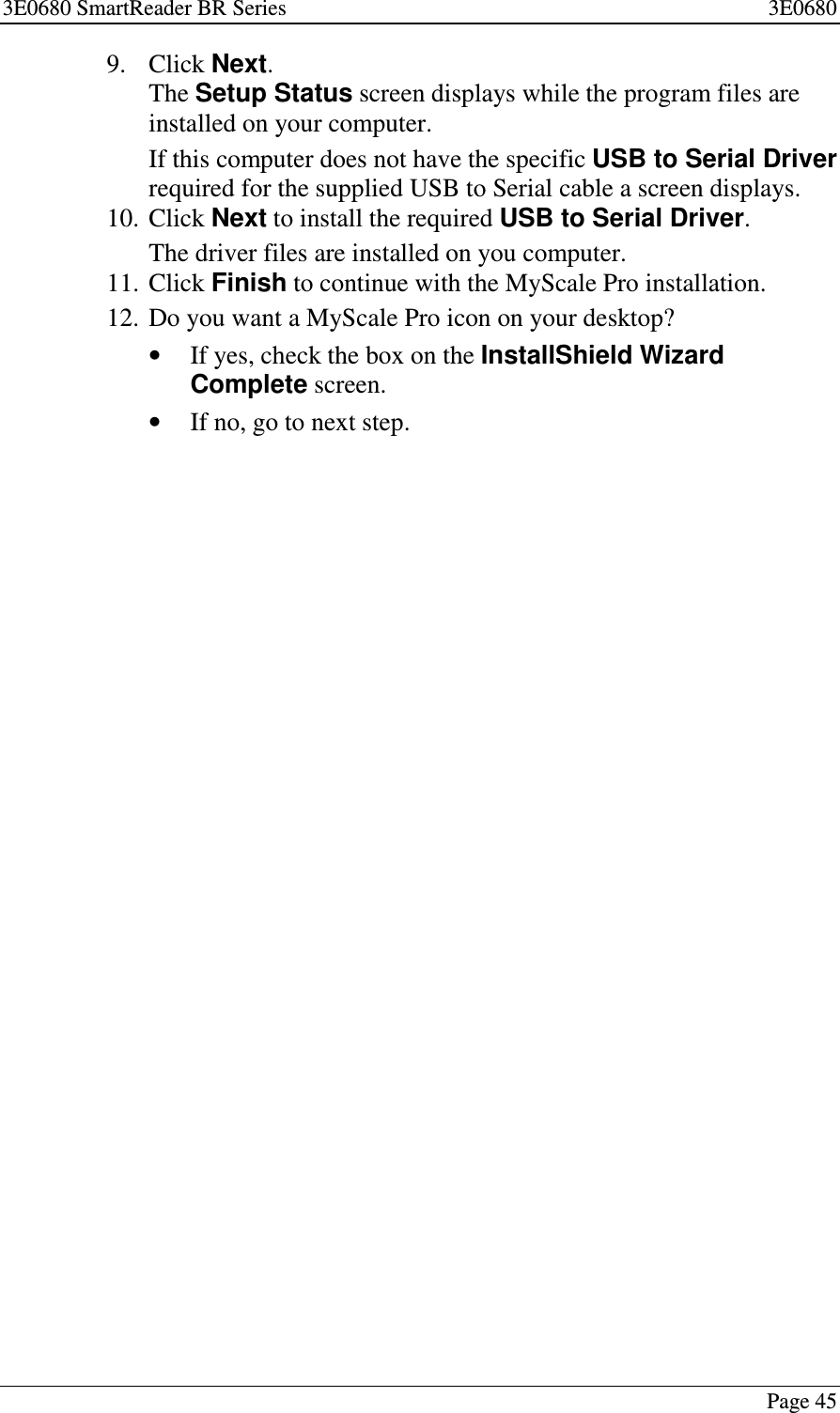

3E0680 SmartReader BR Series 3E0680Page 459. Click Next.The Setup Status screen displays while the program files areinstalled on your computer.If this computer does not have the specific USB to Serial Driverrequired for the supplied USB to Serial cable a screen displays.10. Click Next to install the required USB to Serial Driver.The driver files are installed on you computer.11. Click Finish to continue with the MyScale Pro installation.12. Do you want a MyScale Pro icon on your desktop?•If yes, check the box on the InstallShield WizardComplete screen.•If no, go to next step.

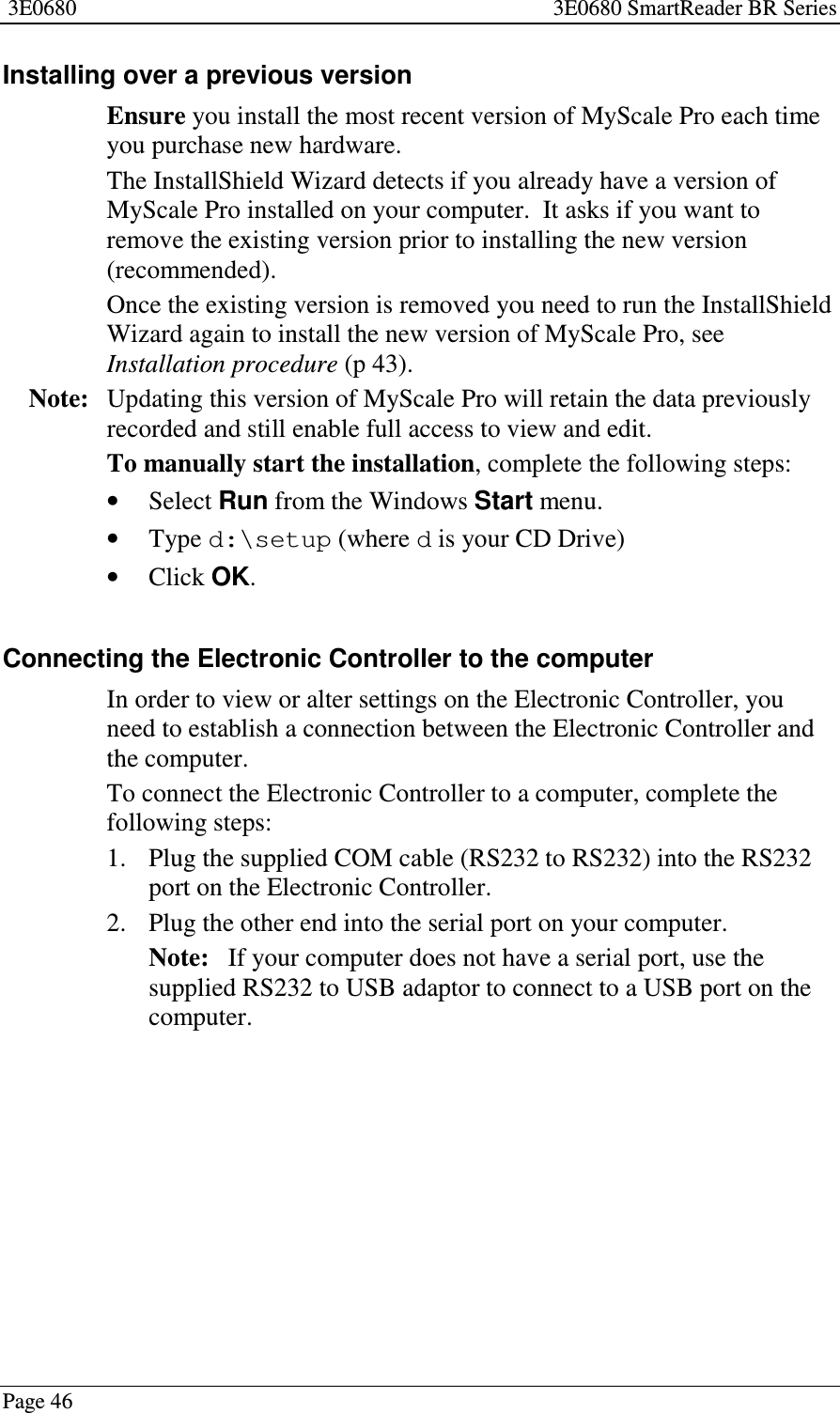

3E0680 3E0680 SmartReader BR SeriesPage 46Installing over a previous versionEnsure you install the most recent version of MyScale Pro each timeyou purchase new hardware.The InstallShield Wizard detects if you already have a version ofMyScale Pro installed on your computer. It asks if you want toremove the existing version prior to installing the new version(recommended).Once the existing version is removed you need to run the InstallShieldWizard again to install the new version of MyScale Pro, seeInstallation procedure (p 43).Note: Updating this version of MyScale Pro will retain the data previouslyrecorded and still enable full access to view and edit.To manually start the installation, complete the following steps:•Select Run from the Windows Start menu.•Type d:\setup (where dis your CD Drive)•Click OK.Connecting the Electronic Controller to the computerIn order to view or alter settings on the Electronic Controller, youneed to establish a connection between the Electronic Controller andthe computer.To connect the Electronic Controller to a computer, complete thefollowing steps:1. Plug the supplied COM cable (RS232 to RS232) into the RS232port on the Electronic Controller.2. Plug the other end into the serial port on your computer.Note: If your computer does not have a serial port, use thesupplied RS232 to USB adaptor to connect to a USB port on thecomputer.

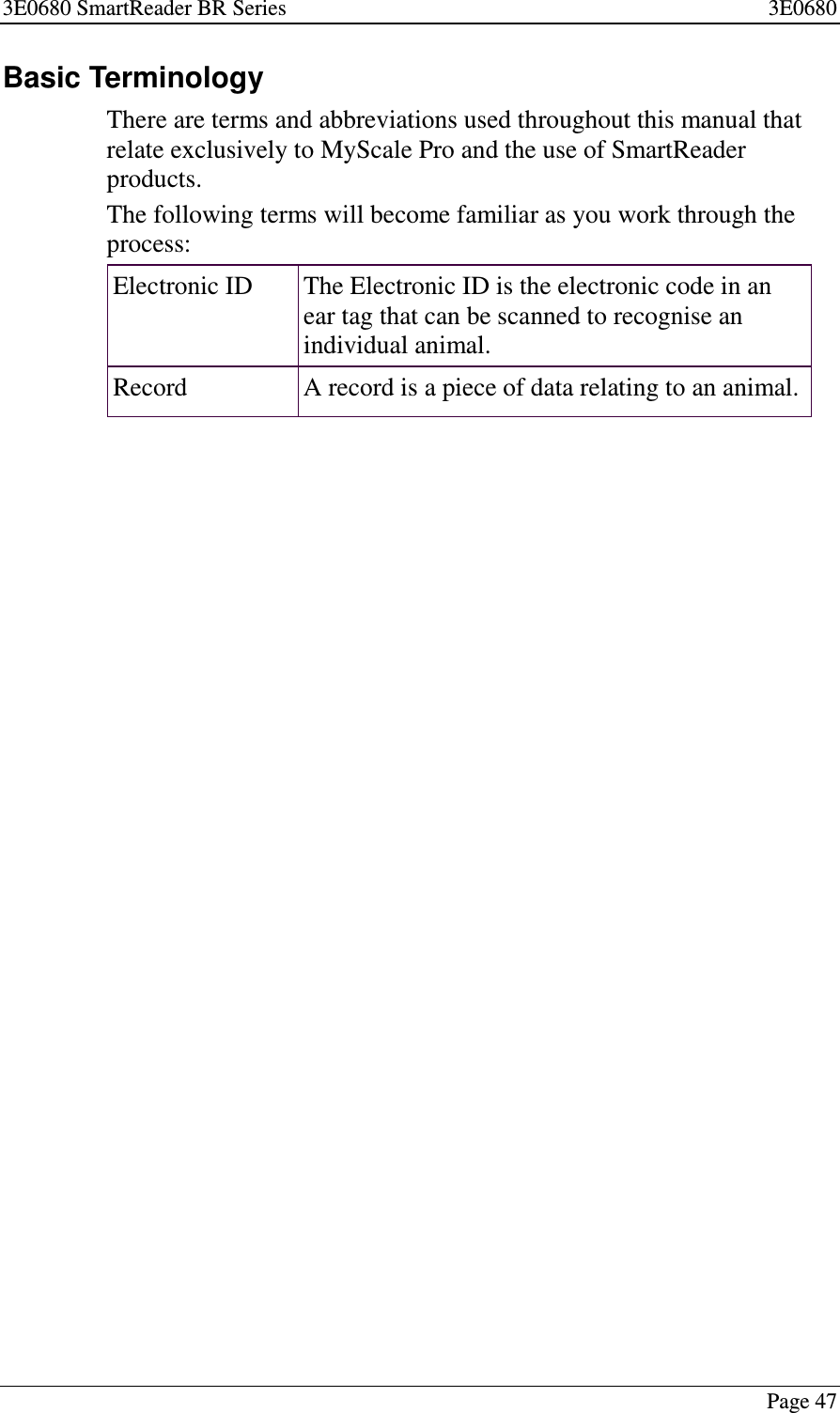

3E0680 SmartReader BR Series 3E0680Page 47Basic TerminologyThere are terms and abbreviations used throughout this manual thatrelate exclusively to MyScale Pro and the use of SmartReaderproducts.The following terms will become familiar as you work through theprocess:Electronic ID The Electronic ID is the electronic code in anear tag that can be scanned to recognise anindividual animal.Record A record is a piece of data relating to an animal.
3E0680 3E0680 SmartReader BR SeriesPage 48Starting MyScale ProTo Start MyScale Pro:•Double-click the MyScale Pro icon on the desktop.Alternatively...You can start MyScale Pro from the Windows Start menu.1. Click on the Windows Start button.2. Select All Programs (Windows XP) or Programs (Windows2000).3. Select MyScale.4. Click on .Closing MyScale ProTo close the MyScale Pro:1. Clickonthe button or on the at the top right of thewindow.Note: It is recommended that you close MyScale Pro when it is not in use, asit uses a serial port on your computer that will no longer be availableto other applications such as email programs or internet browsers.

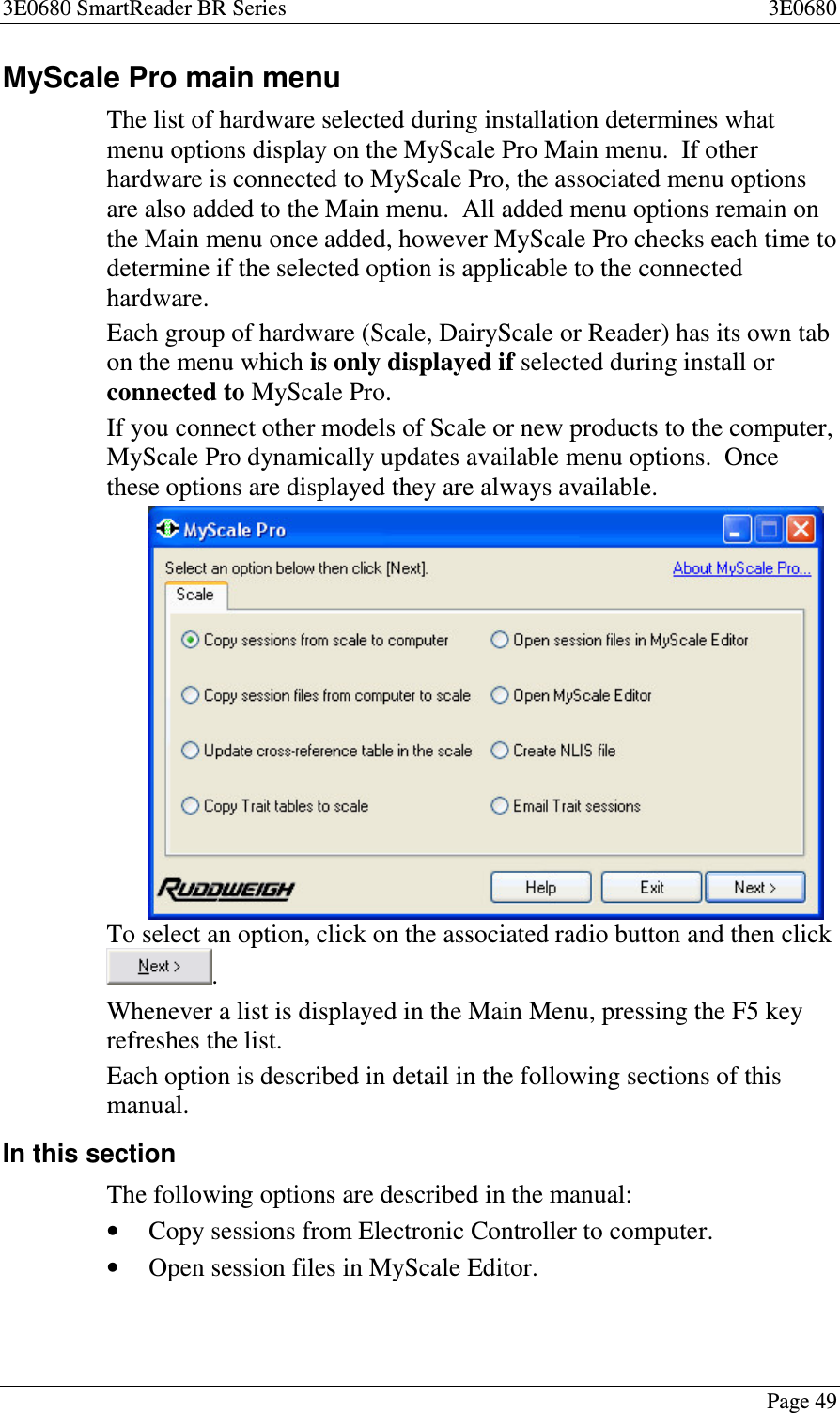

3E0680 SmartReader BR Series 3E0680Page 49MyScale Pro main menuThe list of hardware selected during installation determines whatmenu options display on the MyScale Pro Main menu. If otherhardware is connected to MyScale Pro, the associated menu optionsare also added to the Main menu. All added menu options remain onthe Main menu once added, however MyScale Pro checks each time todetermine if the selected option is applicable to the connectedhardware.Each group of hardware (Scale, DairyScale or Reader) has its own tabon the menu which is only displayed if selected during install orconnected to MyScale Pro.If you connect other models of Scale or new products to the computer,MyScale Pro dynamically updates available menu options. Oncethese options are displayed they are always available.To select an option, click on the associated radio button and then click.Whenever a list is displayed in the Main Menu, pressing the F5 keyrefreshes the list.Each option is described in detail in the following sections of thismanual.In this sectionThe following options are described in the manual:•Copy sessions from Electronic Controller to computer.•Open session files in MyScale Editor.
3E0680 3E0680 SmartReader BR SeriesPage 50Electronic Controller connection statusMyScale Pro checks that a valid connection between the computer andElectronic Controller exists each time a request is made.If text similar to thefollowing is displayed…Then…Unable to connect to a GallagherReader.Ensure that your Gallagher readeris connected to the computer andswitched on.The computer has tried to connectto the Electronic Controller andhas been unable to connect.Attempting to communicate withthe reader. Please wait....The computer is attempting toconnect to the ElectronicController.The Gallagher SmartReadermemory does not contain anysession records.A valid connection with theElectronic Controller exists butthere are no sessions on theElectronic Controller to transferto the computer.Gallagher SmartReader connectedandonline.The computer and ElectronicController are correctlyconnected. The download ofsessions begins automatically.Note: Only closed sessions arecopied to the computer. Thecurrent session is not copied.Opening MyScale EditorThere are two options for opening the MyScale Editor:•Open session files in MyScale EditorThis option allows you to open session files in MyScale Editor.File can then be viewed, altered, graphed etc.•Open MyScale EditorThis option allows you to open the MyScale Editor without havingto open a session file. Once the MyScale Editor is open you cancreate Draft lists and trait tables or alter the Scale setup, see Toolsmenu.

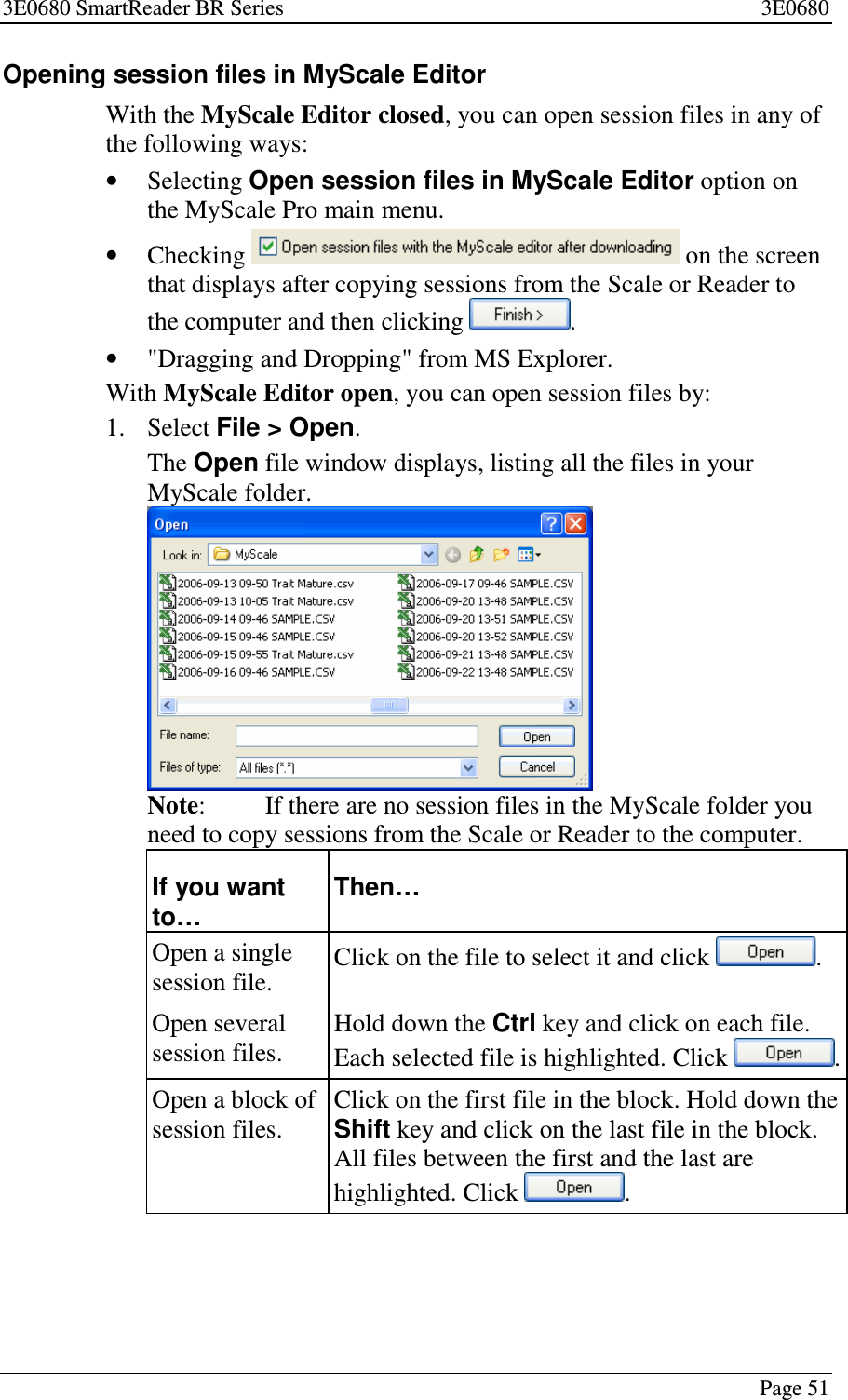

3E0680 SmartReader BR Series 3E0680Page 51Opening session files in MyScale EditorWith the MyScaleEditorclosed, you can open session files in any ofthe following ways:•Selecting Open session files in MyScale Editor option onthe MyScale Pro main menu.•Checking on the screenthat displays after copying sessions from the Scale or Reader tothe computer and then clicking .•"Dragging and Dropping" from MS Explorer.With MyScaleEditoropen, you can open session files by:1. Select File > Open.The Open file window displays, listing all the files in yourMyScale folder.Note: If there are no session files in the MyScale folder youneed to copy sessions from the Scale or Reader to the computer.If you wantto…Then…Open a singlesession file.Click on the file to select it and click .Open severalsession files.Hold down the Ctrl key and click on each file.Each selected file is highlighted. Click .Open a block ofsession files.Click on the first file in the block. Hold down theShift key and click on the last file in the block.Allfilesbetweenthefirstandthelastarehighlighted. Click .

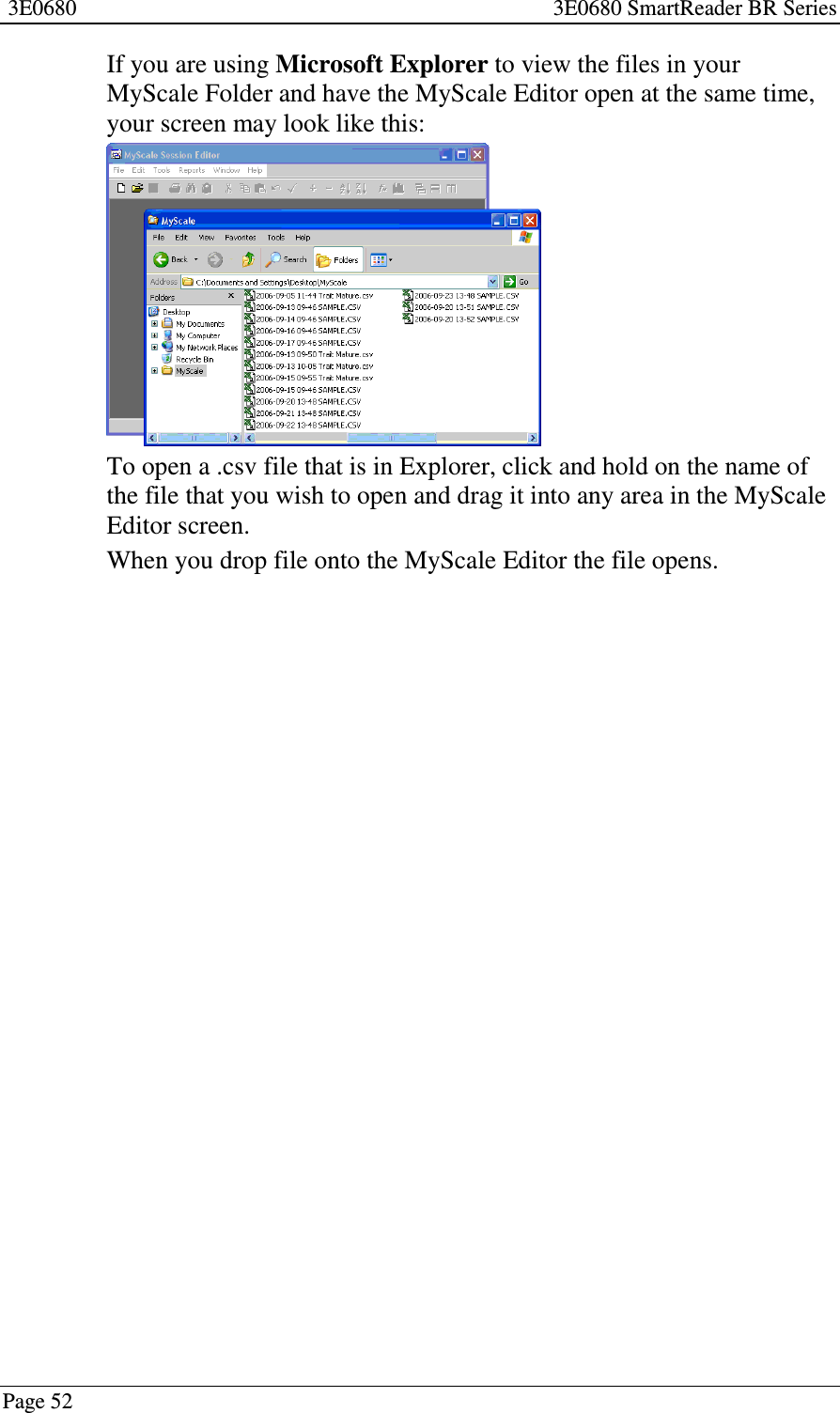

3E0680 3E0680 SmartReader BR SeriesPage 52If you are using Microsoft Explorer to view the files in yourMyScale Folder and have the MyScale Editor open at the same time,your screen may look like this:To open a .csv file that is in Explorer, click and hold on the name ofthe file that you wish to open and drag it into any area in the MyScaleEditor screen.When you drop file onto the MyScale Editor the file opens.

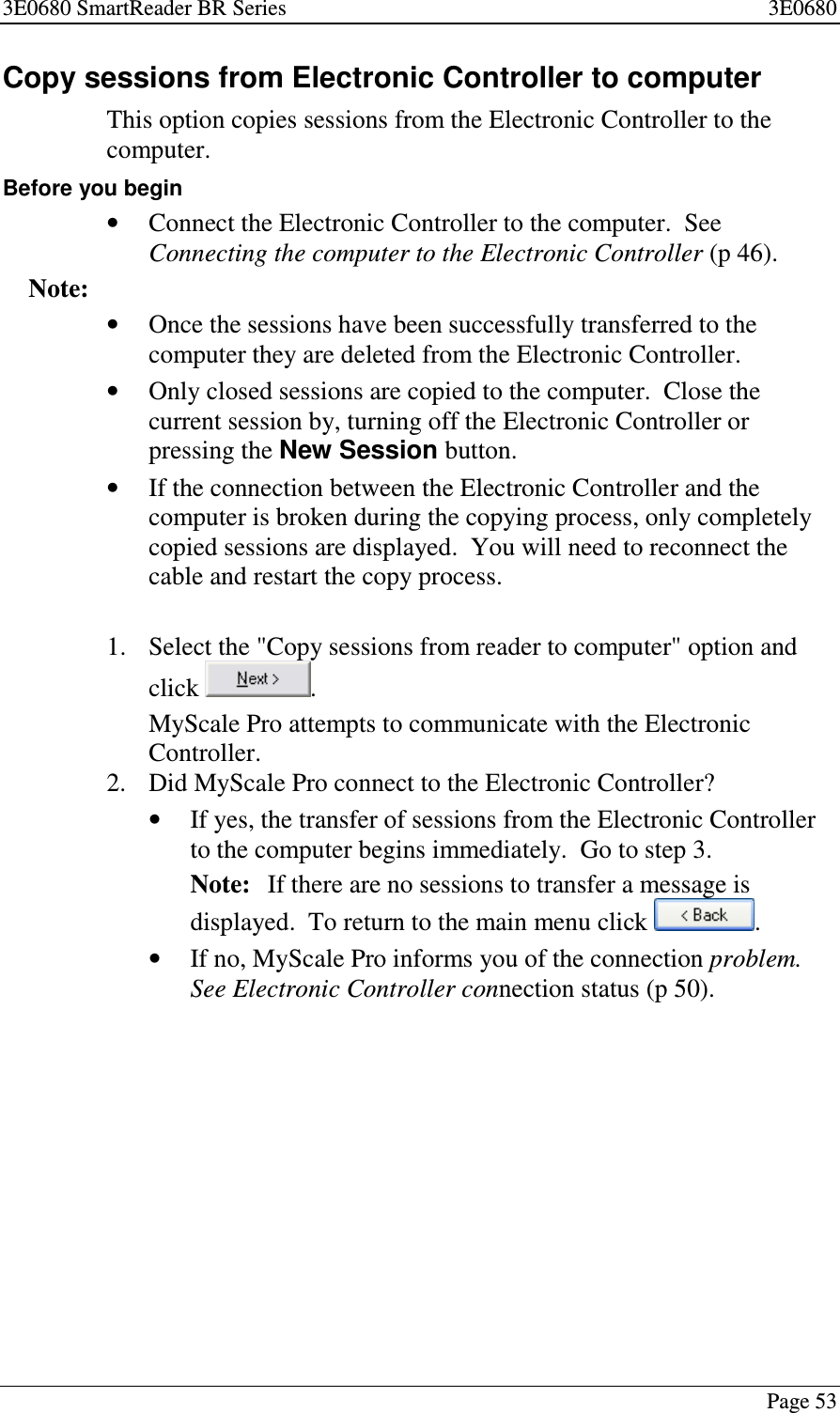

3E0680 SmartReader BR Series 3E0680Page 53Copy sessions from Electronic Controller to computerThis option copies sessions from the Electronic Controller to thecomputer.Before you begin•Connect the Electronic Controller to the computer. SeeConnecting the computer to the Electronic Controller (p 46).Note:•Once the sessions have been successfully transferred to thecomputer they are deleted from the Electronic Controller.•Only closed sessions are copied to the computer. Close thecurrent session by, turning off the Electronic Controller orpressing the New Session button.•If the connection between the Electronic Controller and thecomputer is broken during the copying process, only completelycopied sessions are displayed. You will need to reconnect thecable and restart the copy process.1. Select the "Copy sessions from reader to computer" option andclick .MyScale Pro attempts to communicate with the ElectronicController.2. Did MyScale Pro connect to the Electronic Controller?•If yes, the transfer of sessions from the Electronic Controllerto the computer begins immediately. Go to step 3.Note: If there are no sessions to transfer a message isdisplayed. To return to the main menu click .•If no, MyScale Pro informs you of the connection problem.See Electronic Controller connection status (p 50).

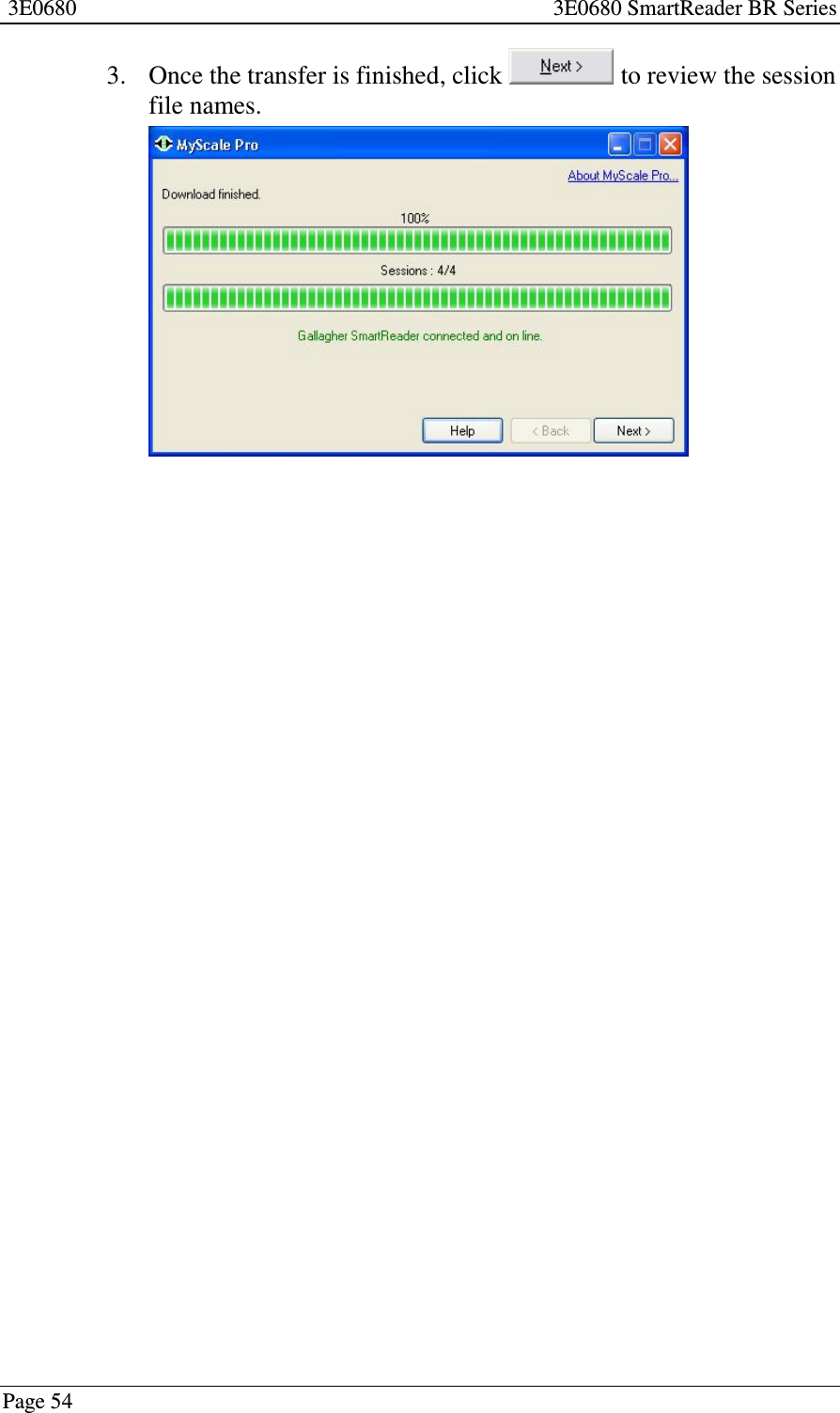

3E0680 3E0680 SmartReader BR SeriesPage 543. Once the transfer is finished, click to review the sessionfile names.

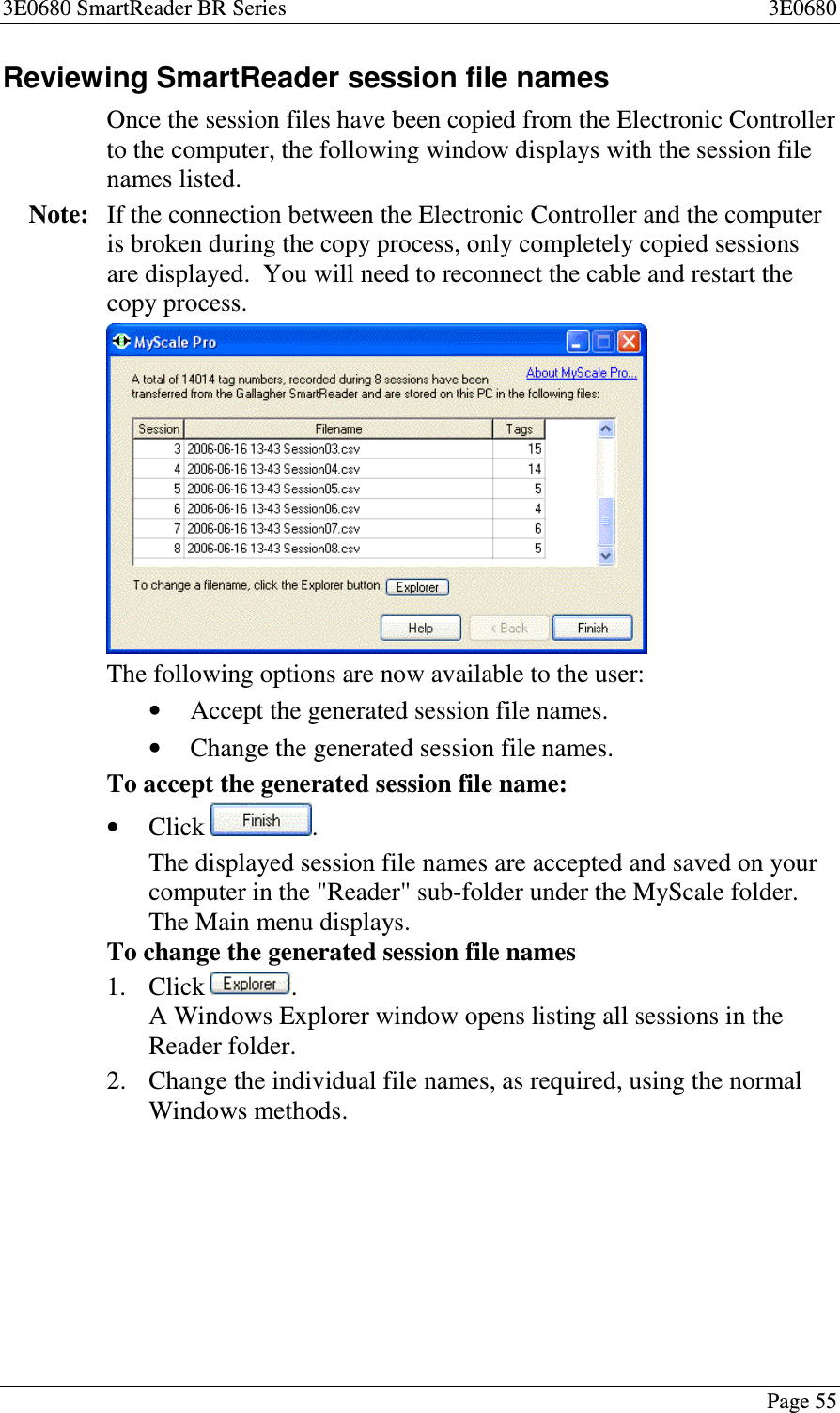

3E0680 SmartReader BR Series 3E0680Page 55Reviewing SmartReader session file namesOnce the session files have been copied from the Electronic Controllerto the computer, the following window displays with the session filenames listed.Note: If the connection between the Electronic Controller and the computeris broken during the copy process, only completely copied sessionsare displayed. You will need to reconnect the cable and restart thecopy process.The following options are now available to the user:•Accept the generated session file names.•Change the generated session file names.To accept the generated session file name:•Click .The displayed session file names are accepted and saved on yourcomputer in the "Reader" sub-folder under the MyScale folder.The Main menu displays.To change the generated session file names1. Click .A Windows Explorer window opens listing all sessions in theReader folder.2. Change the individual file names, as required, using the normalWindows methods.

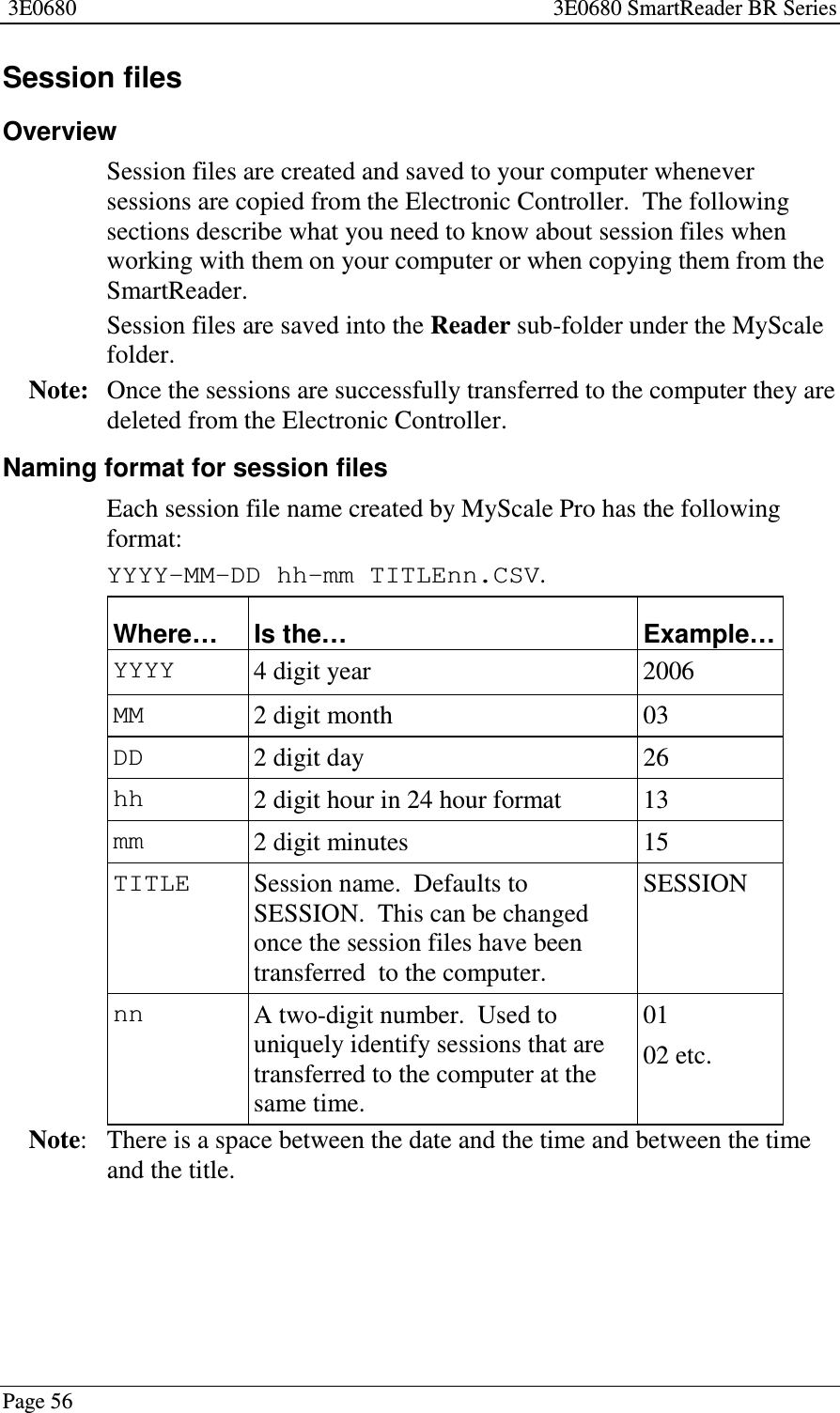

3E0680 3E0680 SmartReader BR SeriesPage 56Session filesOverviewSession files are created and saved to your computer wheneversessions are copied from the Electronic Controller. The followingsections describe what you need to know about session files whenworking with them on your computer or when copying them from theSmartReader.Session files are saved into the Reader sub-folder under the MyScalefolder.Note: Once the sessions are successfully transferred to the computer they aredeleted from the Electronic Controller.Naming format for session filesEach session file name created by MyScale Pro has the followingformat:YYYY-MM-DD hh-mm TITLEnn.CSV.Where… Is the… Example…YYYY 4 digit year 2006MM 2 digit month 03DD 2digitday 26hh 2 digit hour in 24 hour format 13mm 2 digit minutes 15TITLE Session name. Defaults toSESSION. This can be changedonce the session files have beentransferred to the computer.SESSIONnn A two-digit number. Used touniquely identify sessions that aretransferred to the computer at thesame time.0102 etc.Note: There is a space between the date and the time and between the timeand the title.
3E0680 SmartReader BR Series 3E0680Page 57Examples of valid formatsThe following are examples of valid session file names.2006-03-07 15-21 Session012005-03-07 15-21 Session022005-03-07 15-21 Session03Session file structureMyScale Pro creates session files in a comma separated values (CSV)format. This means that, within each record of the session file, fieldsare separated from each other by a comma.Each of the session files in your MyScale folder will have a CSV fileextension.Note: MyScale Pro requires files to be in CSV format if you want to copythem to a Gallagher Scale.How session files are createdEach time you copy a session to the computer, MyScale Pro creates anew session file. Session files are saved into the Reader sub-folderunder the MyScale folder.How this worksTo understand how this works:•The session file name includes the computer's date and time of thetransfer.•The file name is always in the same format, for example 2006-03-02 06-30 Session01 or 2006-03-02 06-30Session02.SeeNaming format for session files (p 56).

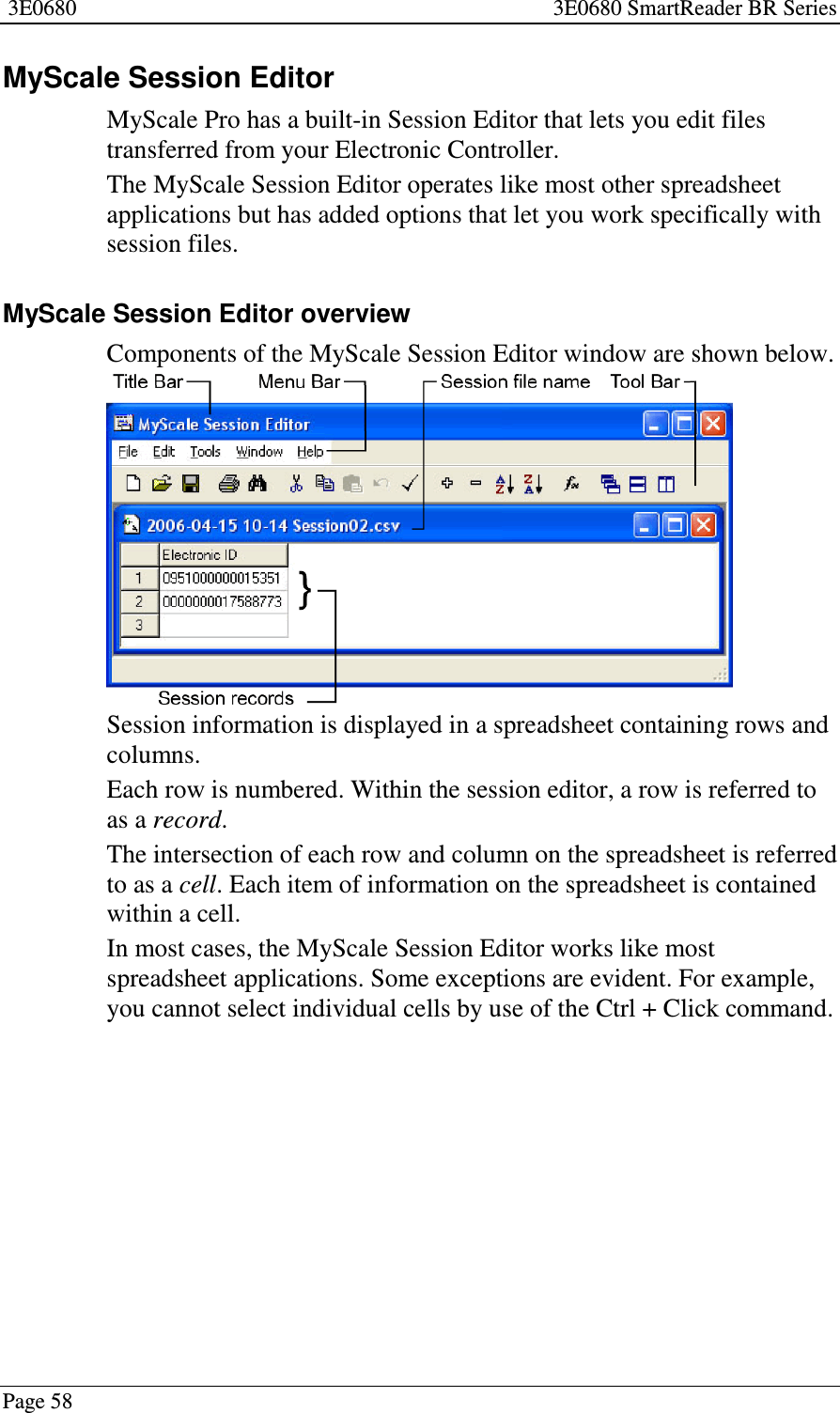

3E0680 3E0680 SmartReader BR SeriesPage 58MyScale Session EditorMyScale Pro has a built-in Session Editor that lets you edit filestransferred from your Electronic Controller.The MyScale Session Editor operates like most other spreadsheetapplications but has added options that let you work specifically withsession files.MyScale Session Editor overviewComponents of the MyScale Session Editor window are shown below.Session information is displayed in a spreadsheet containing rows andcolumns.Each row is numbered. Within the session editor, a row is referred toas a record.The intersection of each row and column on the spreadsheet is referredto as a cell.Eachitemofinformationonthe spreadsheet is containedwithin a cell.In most cases, the MyScale Session Editor works like mostspreadsheet applications. Some exceptions are evident. For example,you cannot select individual cells by use of the Ctrl + Click command.

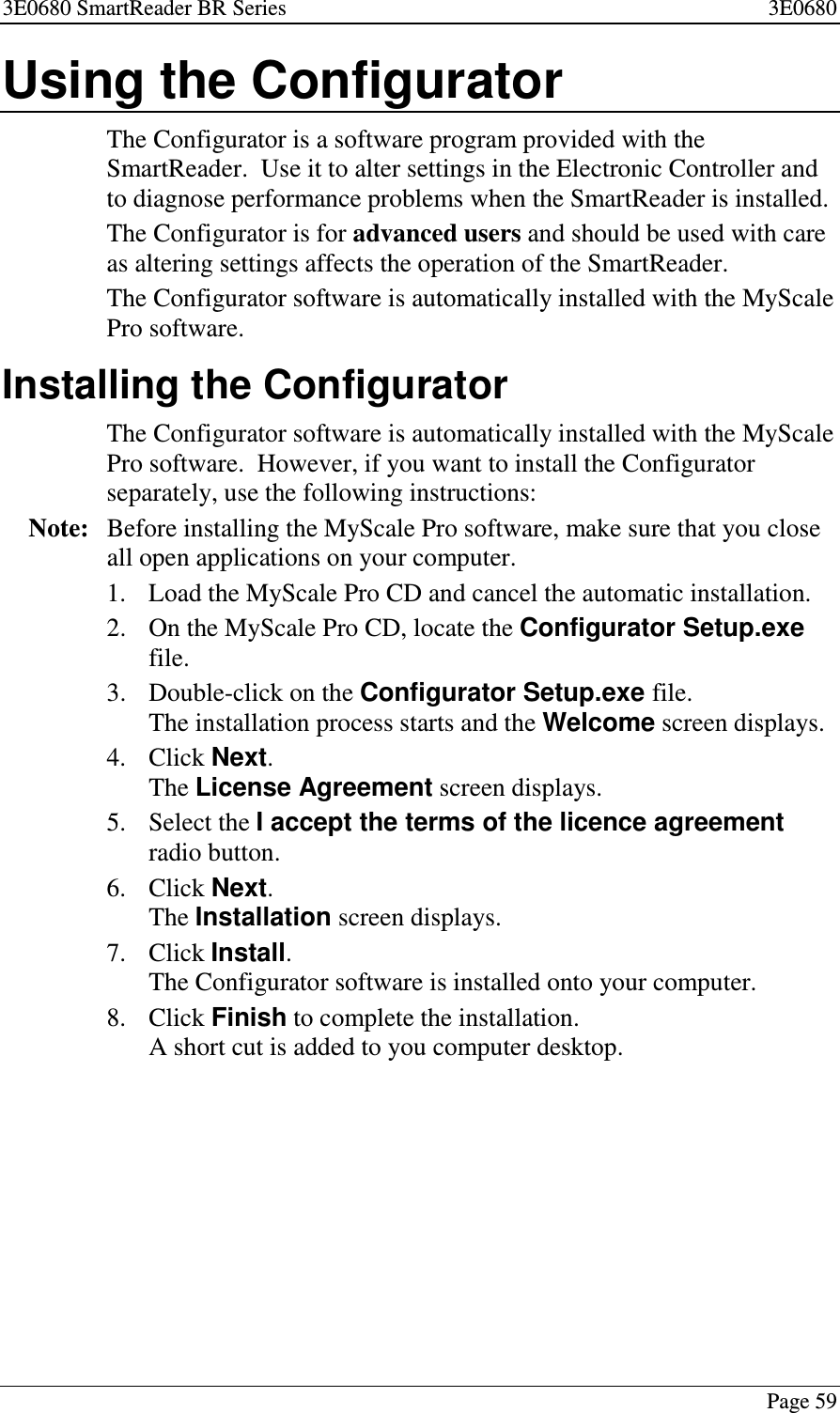

3E0680 SmartReader BR Series 3E0680Page 59Using the ConfiguratorThe Configurator is a software program provided with theSmartReader. Use it to alter settings in the Electronic Controller andto diagnose performance problems when the SmartReader is installed.The Configurator is for advanced users and should be used with careas altering settings affects the operation of the SmartReader.The Configurator software is automatically installed with the MyScalePro software.Installing the ConfiguratorThe Configurator software is automatically installed with the MyScalePro software. However, if you want to install the Configuratorseparately, use the following instructions:Note: Before installing the MyScale Pro software, make sure that you closeall open applications on your computer.1. Load the MyScale Pro CD and cancel the automatic installation.2. OntheMyScaleProCD,locatetheConfigurator Setup.exefile.3. Double-click on the Configurator Setup.exe file.The installation process starts and the Welcome screen displays.4. Click Next.The License Agreement screen displays.5. Select the I accept the terms of the licence agreementradio button.6. Click Next.The Installation screen displays.7. Click Install.The Configurator software is installed onto your computer.8. Click Finish to complete the installation.A short cut is added to you computer desktop.

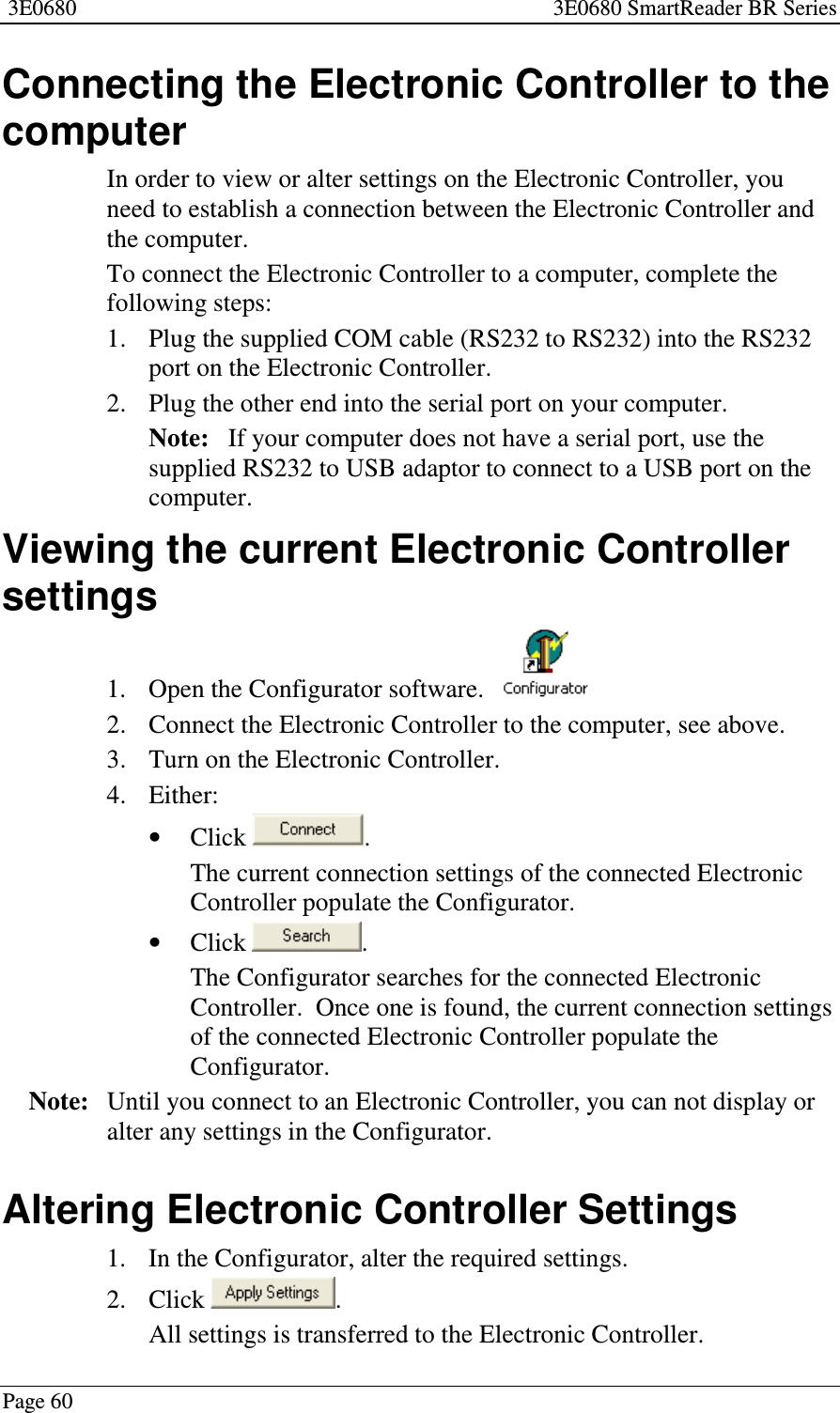

3E0680 3E0680 SmartReader BR SeriesPage 60Connecting the Electronic Controller to thecomputerIn order to view or alter settings on the Electronic Controller, youneed to establish a connection between the Electronic Controller andthe computer.To connect the Electronic Controller to a computer, complete thefollowing steps:1. Plug the supplied COM cable (RS232 to RS232) into the RS232port on the Electronic Controller.2. Plug the other end into the serial port on your computer.Note: If your computer does not have a serial port, use thesupplied RS232 to USB adaptor to connect to a USB port on thecomputer.Viewing the current Electronic Controllersettings1. Open the Configurator software.2. Connect the Electronic Controller to the computer, see above.3. Turn on the Electronic Controller.4. Either:•Click .The current connection settings of the connected ElectronicController populate the Configurator.•Click .The Configurator searches for the connected ElectronicController. Once one is found, the current connection settingsof the connected Electronic Controller populate theConfigurator.Note: Until you connect to an Electronic Controller, you can not display oralter any settings in the Configurator.Altering Electronic Controller Settings1. In the Configurator, alter the required settings.2. Click .All settings is transferred to the Electronic Controller.

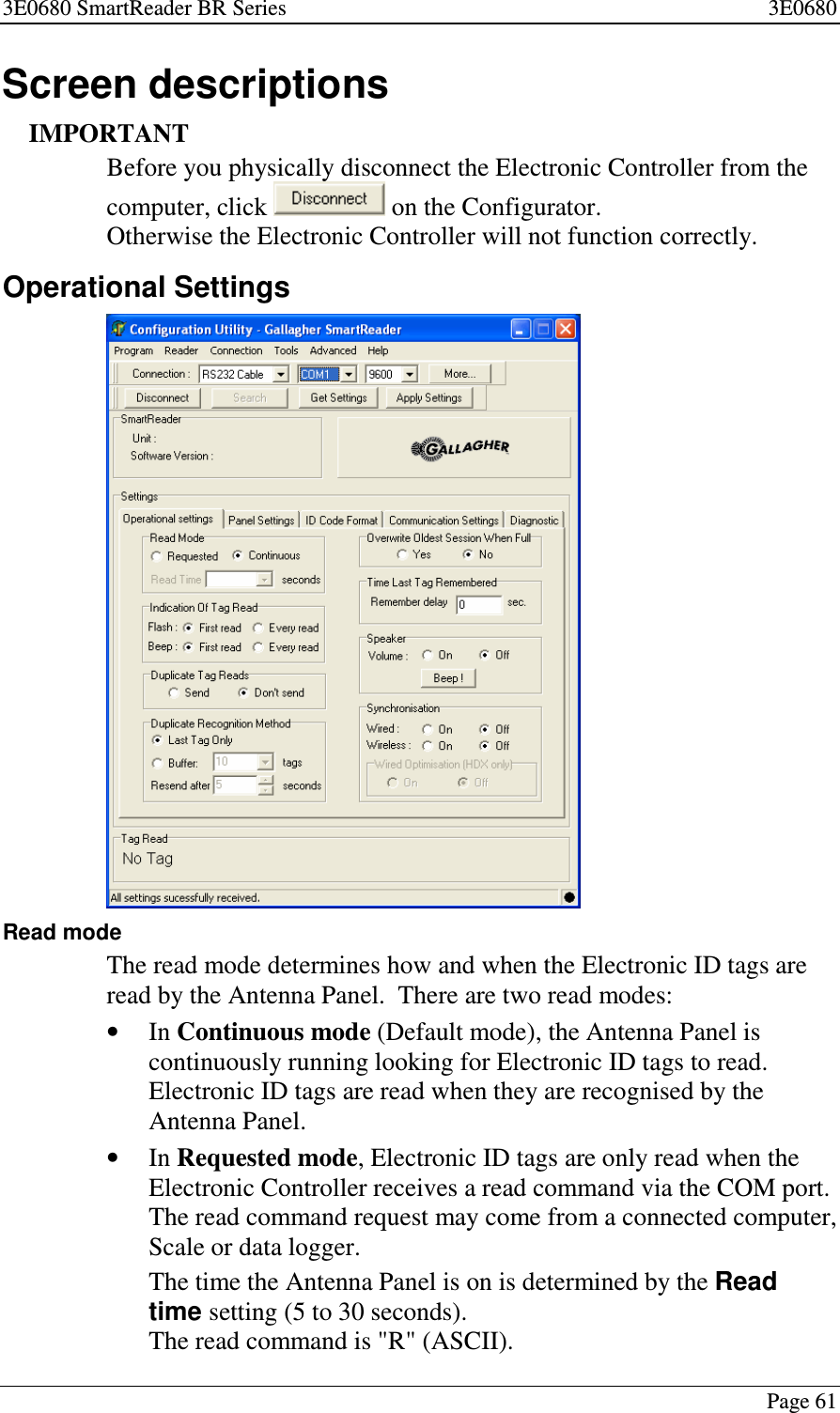

3E0680 SmartReader BR Series 3E0680Page 61Screen descriptionsIMPORTANTBefore you physically disconnect the Electronic Controller from thecomputer, click on the Configurator.Otherwise the Electronic Controller will not function correctly.Operational SettingsRead modeThe read mode determines how and when the Electronic ID tags areread by the Antenna Panel. There are two read modes:•In Continuous mode (Default mode), the Antenna Panel iscontinuously running looking for Electronic ID tags to read.Electronic ID tags are read when they are recognised by theAntenna Panel.•In Requested mode, Electronic ID tags are only read when theElectronic Controller receives a read command via the COM port.The read command request may come from a connected computer,Scale or data logger.The time the Antenna Panel is on is determined by the Readtime setting(5to30seconds).The read command is "R" (ASCII).

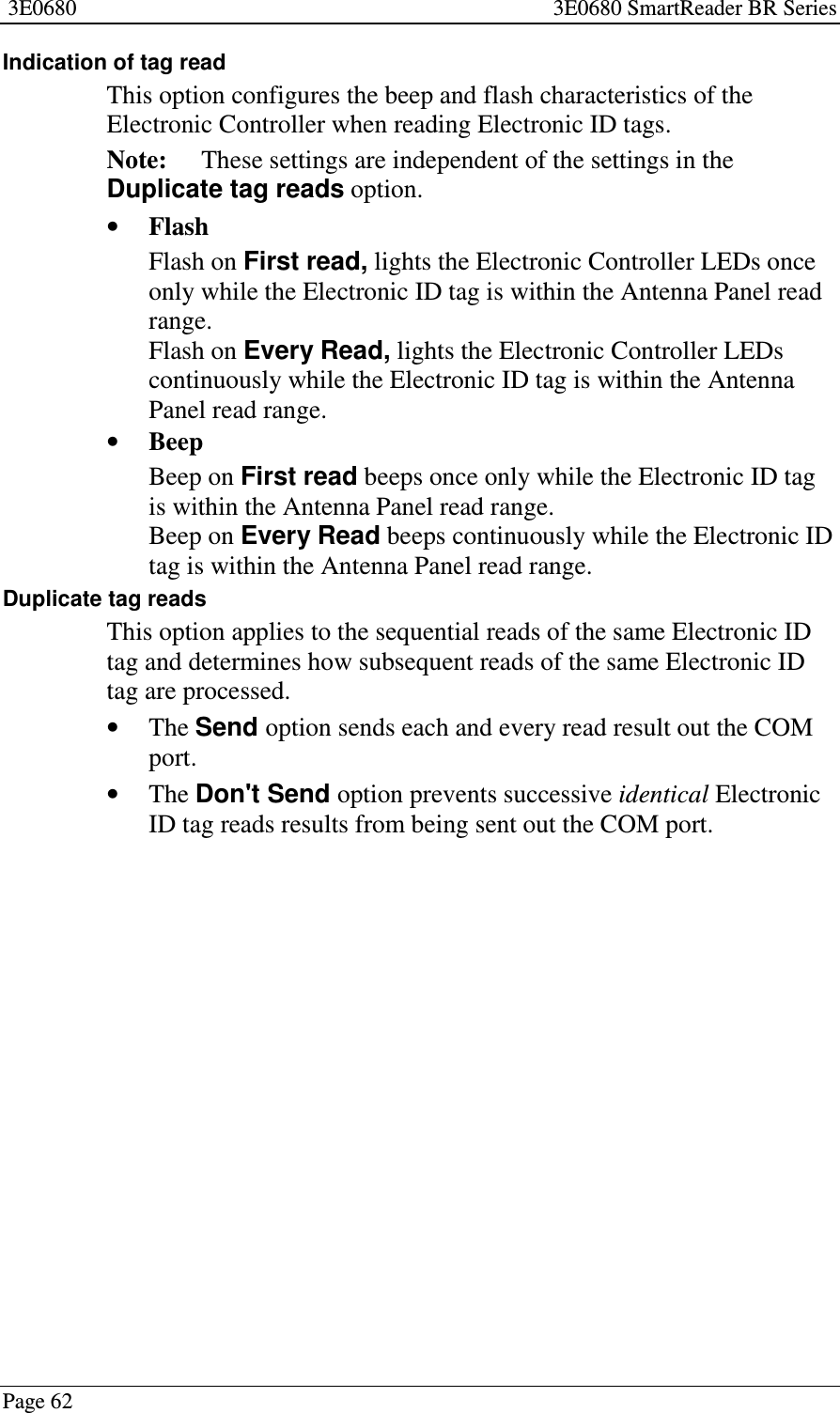

3E0680 3E0680 SmartReader BR SeriesPage 62Indication of tag readThis option configures the beep and flash characteristics of theElectronic Controller when reading Electronic ID tags.Note: These settings are independent of the settings in theDuplicate tag reads option.•FlashFlash on First read, lights the Electronic Controller LEDs onceonly while the Electronic ID tag is within the Antenna Panel readrange.Flash on Every Read, lights the Electronic Controller LEDscontinuously while the Electronic ID tag is within the AntennaPanel read range.•BeepBeep on First read beeps once only while the Electronic ID tagis within the Antenna Panel read range.Beep on Every Read beeps continuously while the Electronic IDtag is within the Antenna Panel read range.Duplicate tag readsThis option applies to the sequential reads of the same Electronic IDtag and determines how subsequent reads of the same Electronic IDtag are processed.•The Send option sends each and every read result out the COMport.•The Don't Send option prevents successive identical ElectronicID tag reads results from being sent out the COM port.

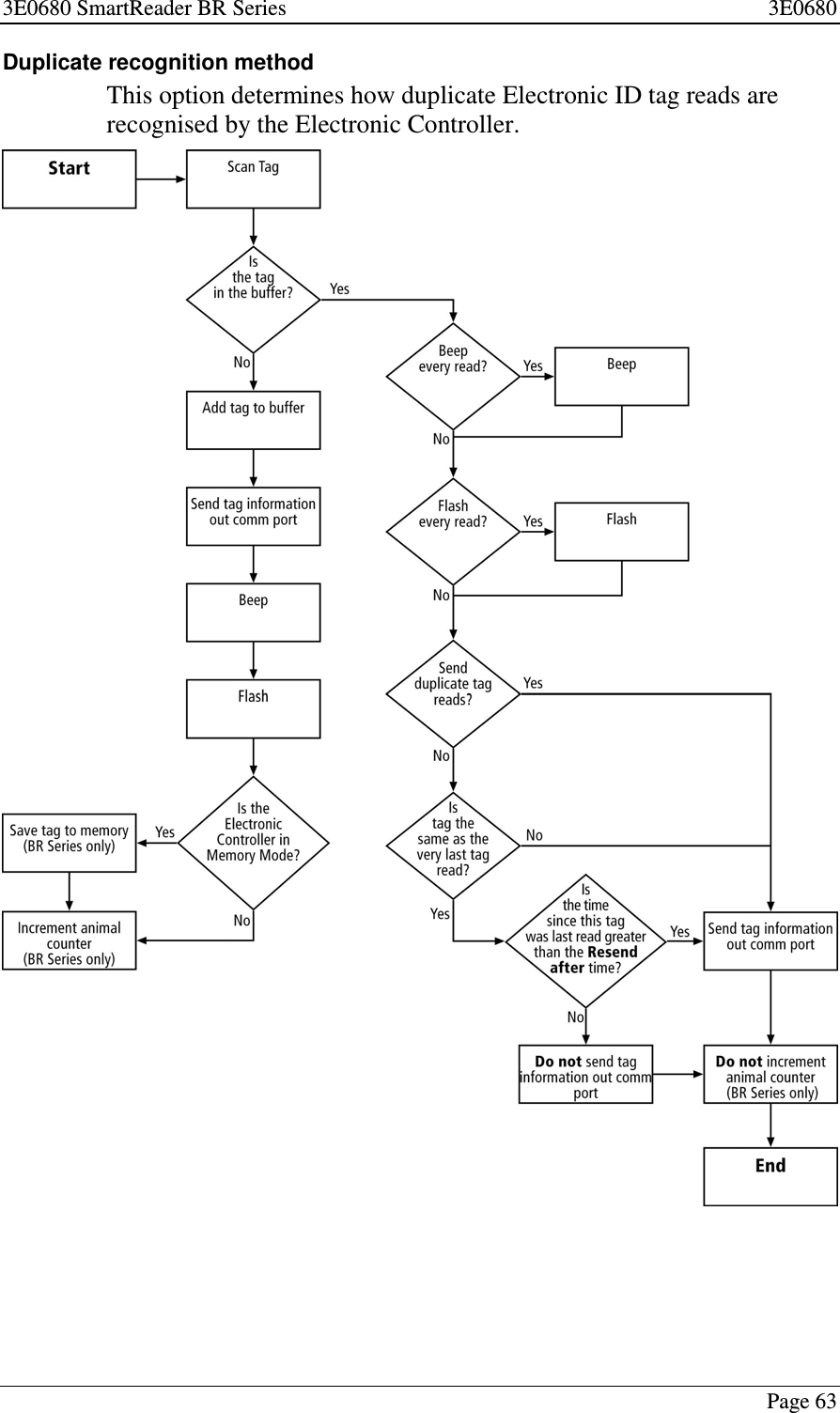

3E0680 SmartReader BR Series 3E0680Page 63Duplicate recognition methodThis option determines how duplicate Electronic ID tag reads arerecognised by the Electronic Controller.

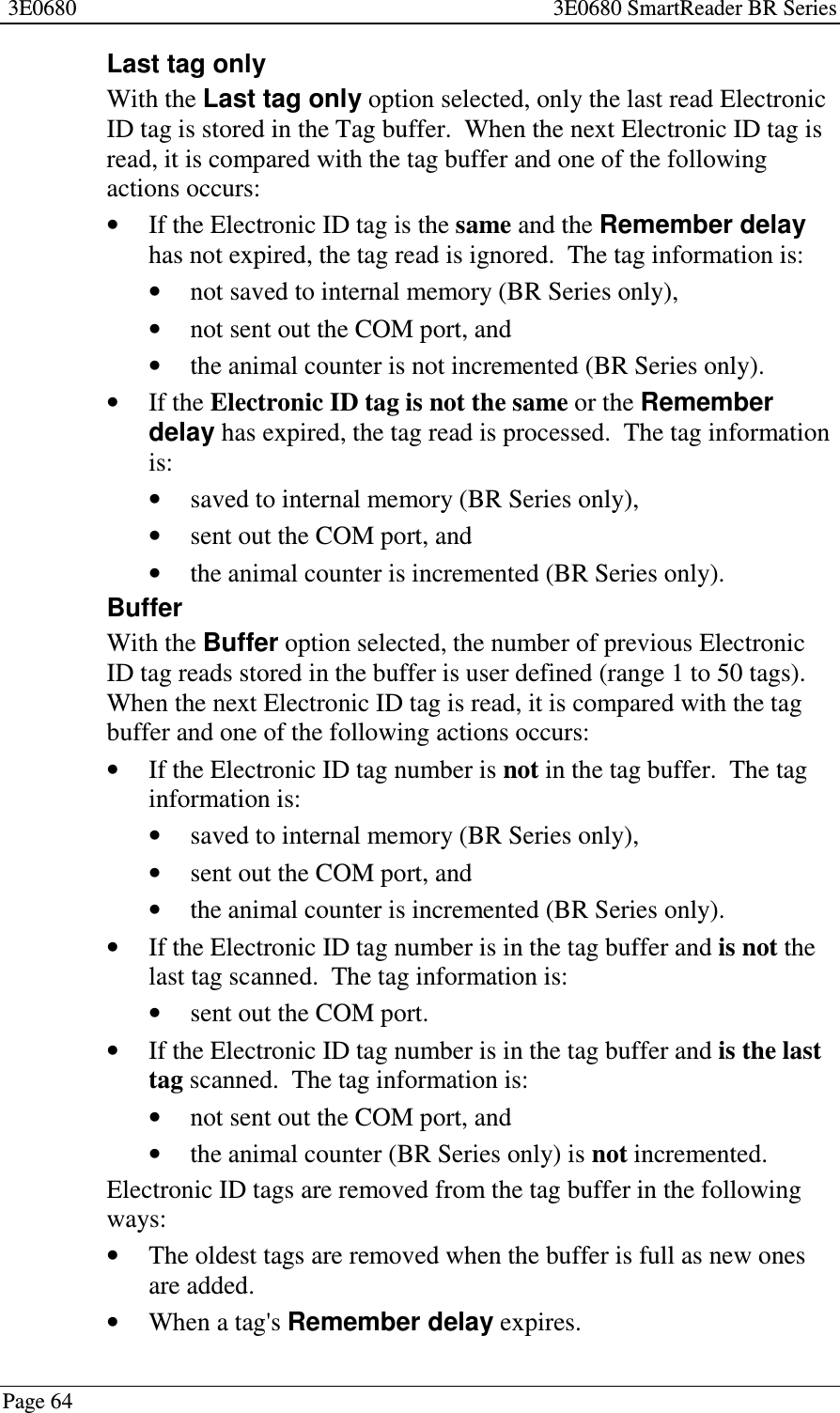

3E0680 3E0680 SmartReader BR SeriesPage 64Last tag onlyWith the Last tag only option selected, only the last read ElectronicID tag is stored in the Tag buffer. When the next Electronic ID tag isread, it is compared with the tag buffer and one of the followingactions occurs:•If the Electronic ID tag is the same and the Remember delayhas not expired, the tag read is ignored. The tag information is:•not saved to internal memory (BR Series only),•not sent out the COM port, and•the animal counter is not incremented (BR Series only).•If the Electronic ID tag is not the same or the Rememberdelay has expired, the tag read is processed. The tag informationis:•saved to internal memory (BR Series only),•sent out the COM port, and•the animal counter is incremented (BR Series only).BufferWith the Buffer option selected, the number of previous ElectronicID tag reads stored in the buffer is user defined (range 1 to 50 tags).When the next Electronic ID tag is read, it is compared with the tagbuffer and one of the following actions occurs:•If the Electronic ID tag number is not in the tag buffer. The taginformation is:•saved to internal memory (BR Series only),•sent out the COM port, and•the animal counter is incremented (BR Series only).•If the Electronic ID tag number is in the tag buffer and is not thelast tag scanned. The tag information is:•sent out the COM port.•If the Electronic ID tag number is in the tag buffer and is the lasttag scanned. The tag information is:•not sent out the COM port, and•the animal counter (BR Series only) is not incremented.Electronic ID tags are removed from the tag buffer in the followingways:•The oldest tags are removed when the buffer is full as new onesare added.•When a tag's Remember delay expires.
3E0680 SmartReader BR Series 3E0680Page 65The Resend after option limits the rate tag re-reads are sent multipletimes to the COM port when the reader is set to Continuous mode.The default is five seconds.Overwrite oldest session when full (BR Series only)This option determines what happens when the Electronic Controllerinternal memory becomes full. Once the memory is full, no more tagsare saved.Select Yes if you want the oldest sessions deleted.Select No and once the internal memory is full, no more ElectronicID tags can be saved (however the tags are read). The ElectronicController's display shows FULL when a tag is read.Time last tag rememberedThe Remember Delay options sets how long Electronic ID taginformation is stored in the tag buffer. The default is 300 seconds.SpeakerTurns the speaker on or off for the connected Electronic Controller.Alter the connected Electronic Controller settings and then click.To make the connected Electronic Controller beep click .SynchronisationWireless synchronisation is a means of detecting the presence of otherSmartReaders operating in the same vicinity. The tag read cycles thenadapt to ensure flawless operation of multiple active Antenna Panels.Wireless synchronisation does not require the Electronic Controllersto be connected via cable.Wired synchronisation requires all Electronic Controllers to beconnected via cable. The tag read cycles then adapt in order to ensureflawless operation of multiple active Antenna Panels.The Wired optimisation (HDX only) option, optimises theAntenna Panel for reading HDX (Half Duplex) Electronic ID tags.This option is only available when Wired synchronisation is ON.For more information see Installing multiple SmartReaders (p 36).

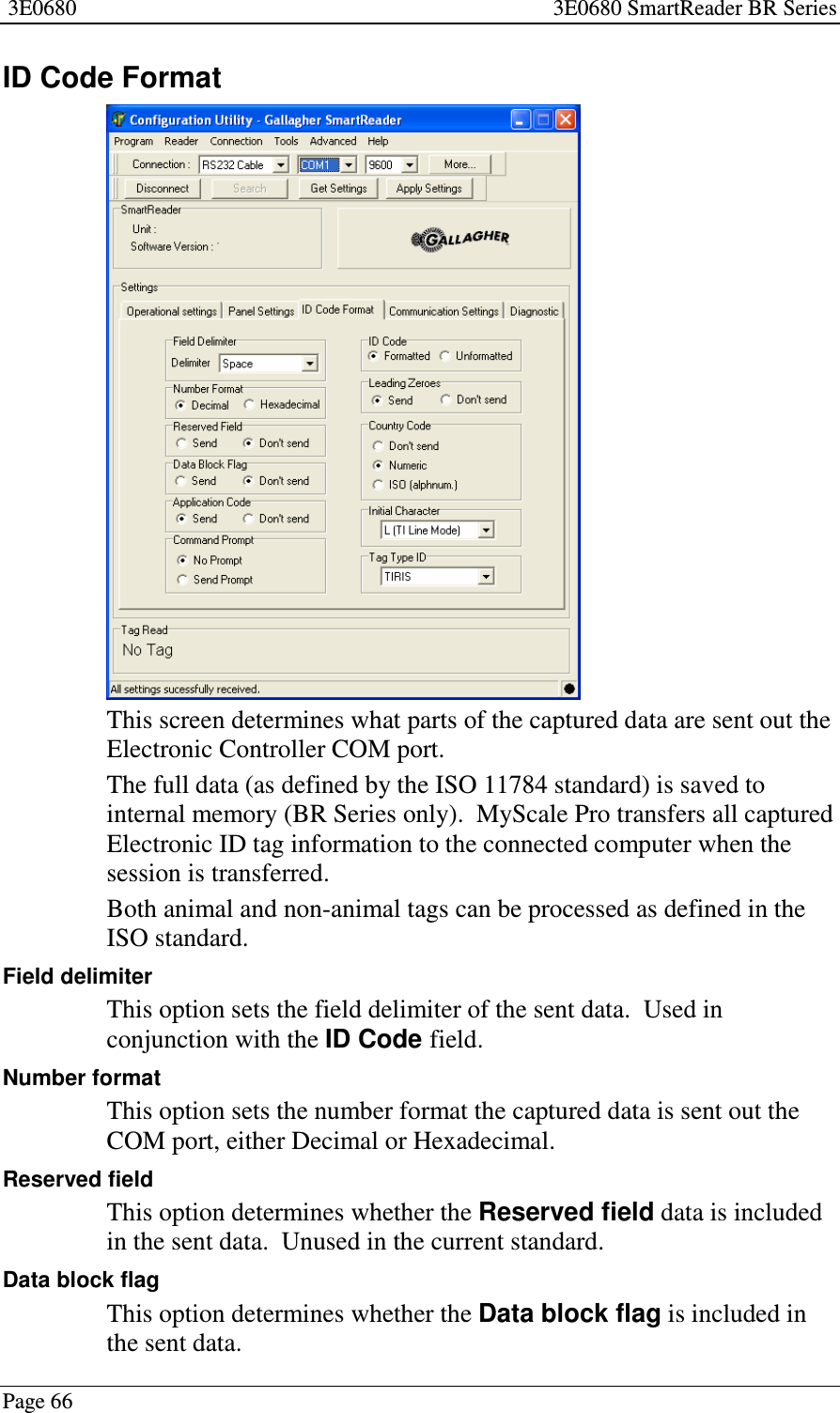

3E0680 3E0680 SmartReader BR SeriesPage 66ID Code FormatThis screen determines what parts of the captured data are sent out theElectronic Controller COM port.The full data (as defined by the ISO 11784 standard) is saved tointernal memory (BR Series only). MyScale Pro transfers all capturedElectronic ID tag information to the connected computer when thesession is transferred.Both animal and non-animal tags can be processed as defined in theISO standard.Field delimiterThis option sets the field delimiter of the sent data. Used inconjunction with the ID Code field.Number formatThis option sets the number format the captured data is sent out theCOM port, either Decimal or Hexadecimal.Reserved fieldThis option determines whether the Reserved field data is includedin the sent data. Unused in the current standard.Data block flagThis option determines whether the Data block flag is included inthe sent data.
