Grace MXHEM Monitoring unit for motion sensing man-down alarms User Manual User guide

Grace Industries Inc Monitoring unit for motion sensing man-down alarms User guide

User guide

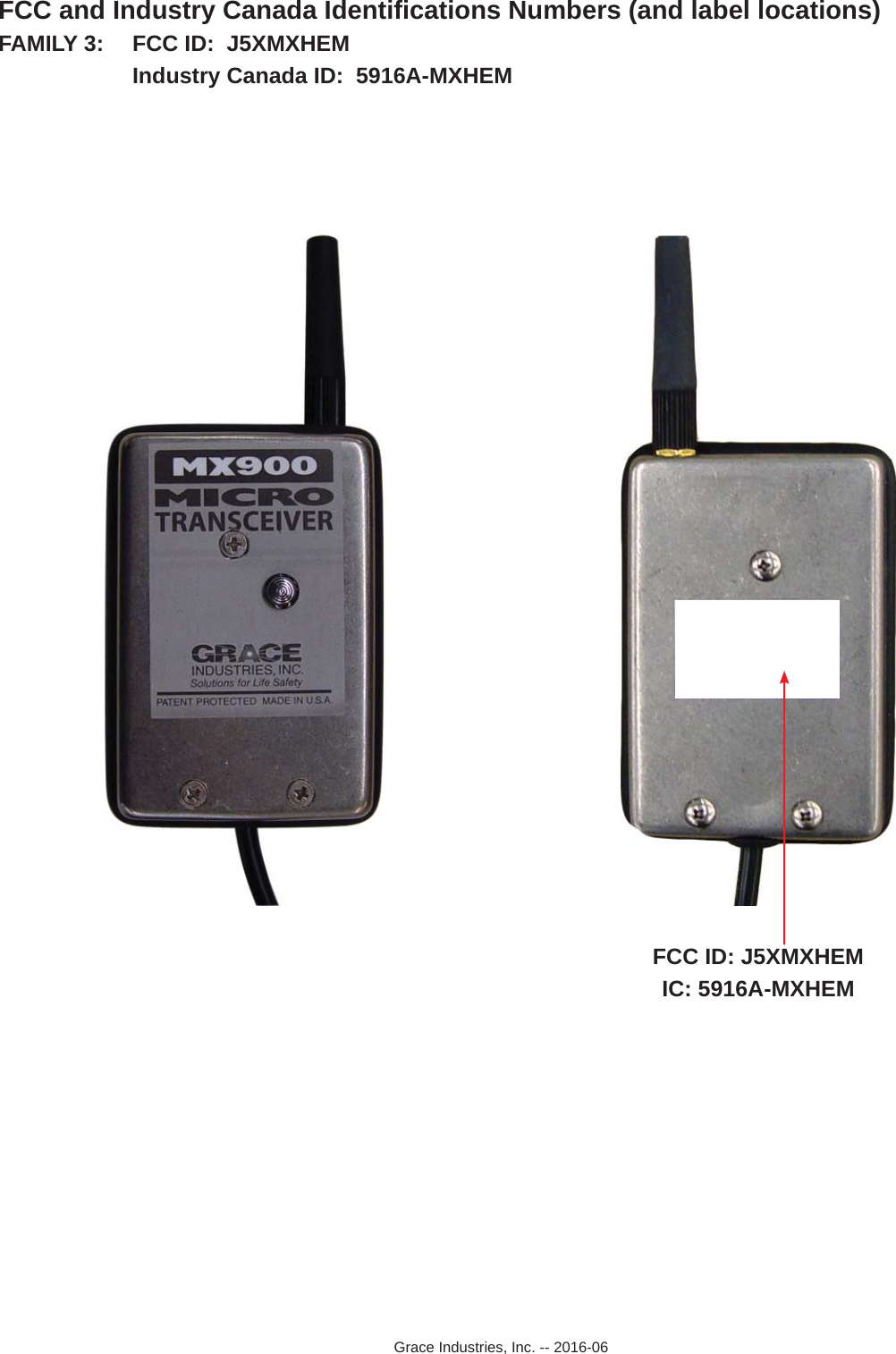

FCC and Industry Canada Identifi cations Numbers (and label locations)FAMILY 3: FCC ID: J5XMXHEM Industry Canada ID: 5916A-MXHEMFCC ID: J5XMXHEM IC: 5916A-MXHEM Grace Industries, Inc. -- 2016-06

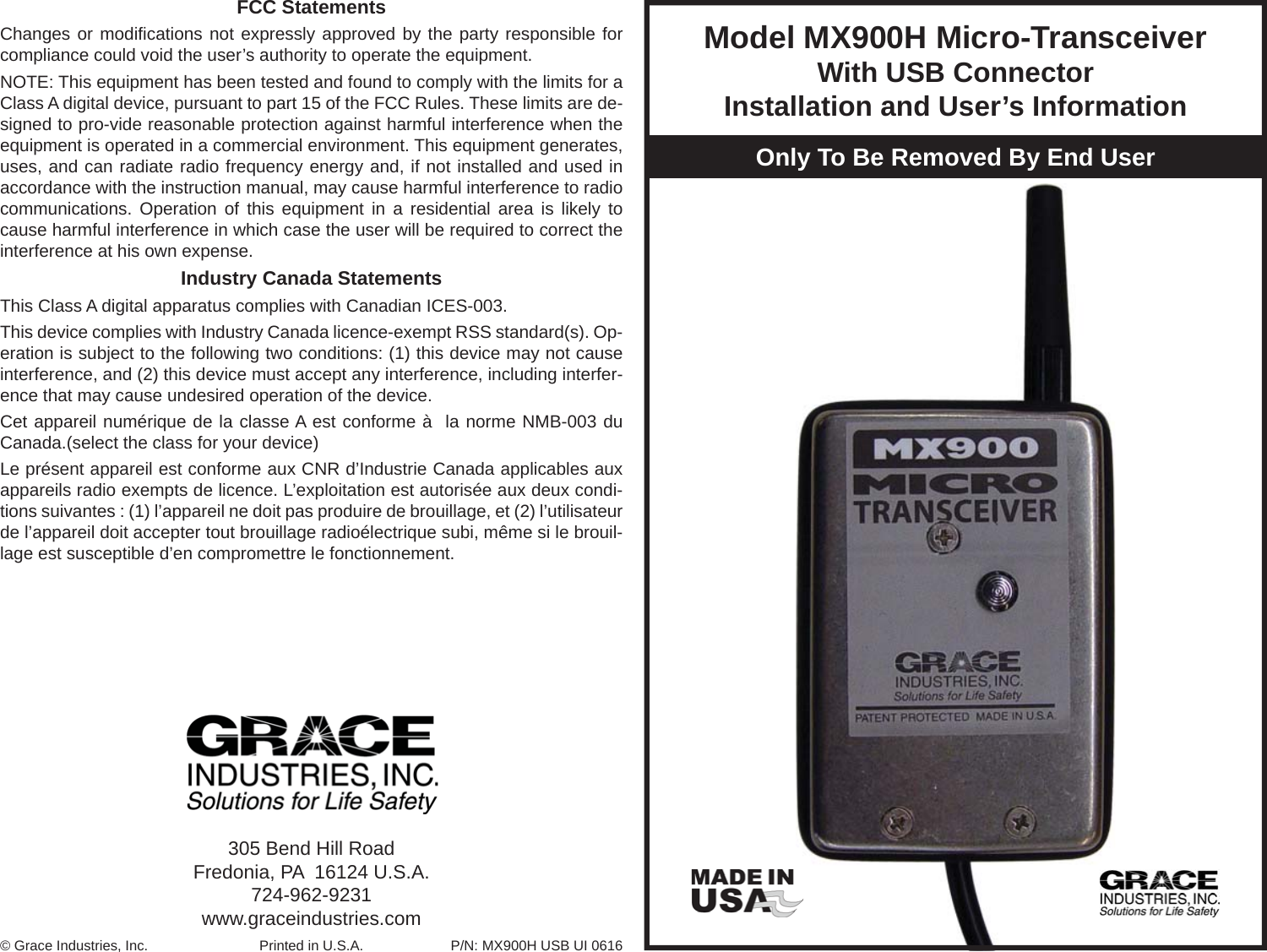

Model MX900H Micro-Transceiver With USB ConnectorInstallation and User’s InformationOnly To Be Removed By End User305 Bend Hill RoadFredonia, PA 16124 U.S.A.724-962-9231www.graceindustries.com© Grace Industries, Inc. Printed in U.S.A. P/N: MX900H USB UI 0616FCC StatementsChanges or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are de-signed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.Industry Canada StatementsThis Class A digital apparatus complies with Canadian ICES-003.This device complies with Industry Canada licence-exempt RSS standard(s). Op-eration is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer-ence that may cause undesired operation of the device.Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.(select the class for your device)Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux condi-tions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouil-lage est susceptible d’en compromettre le fonctionnement.

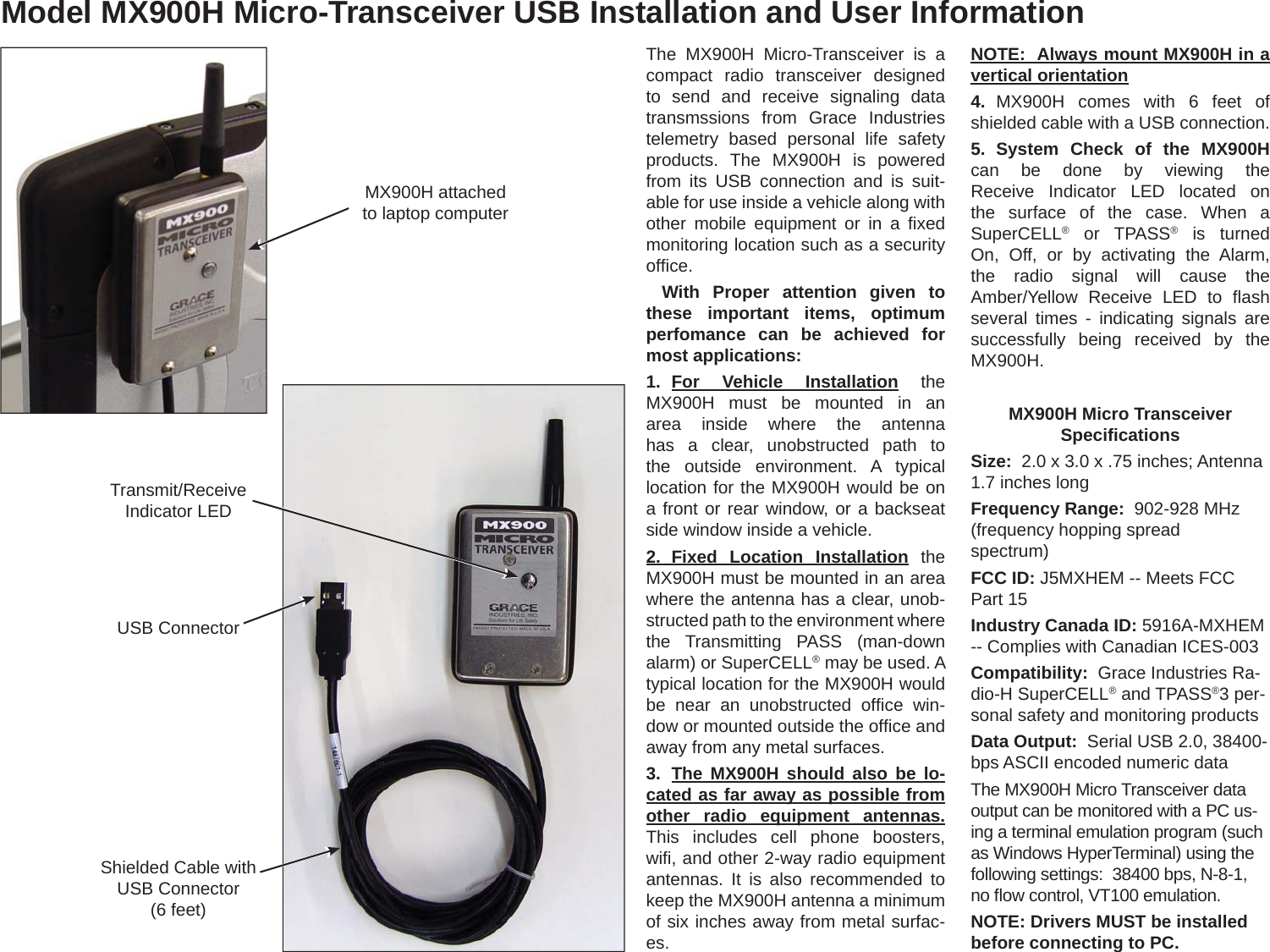

Model MX900H Micro-Transceiver USB Installation and User InformationThe MX900H Micro-Transceiver is a compact radio transceiver designed to send and receive signaling data transmssions from Grace Industries telemetry based personal life safety products. The MX900H is powered from its USB connection and is suit-able for use inside a vehicle along with other mobile equipment or in a fi xed monitoring location such as a security offi ce. With Proper attention given to these important items, optimum perfomance can be achieved for most applications: 1. For Vehicle Installation the MX900H must be mounted in an area inside where the antenna has a clear, unobstructed path to the outside environment. A typical location for the MX900H would be on a front or rear window, or a backseat side window inside a vehicle. 2. Fixed Location Installation the MX900H must be mounted in an area where the antenna has a clear, unob-structed path to the environment where the Transmitting PASS (man-down alarm) or SuperCELL® may be used. A typical location for the MX900H would be near an unobstructed offi ce win-dow or mounted outside the offi ce and away from any metal surfaces.3. The MX900H should also be lo-cated as far away as possible from other radio equipment antennas. This includes cell phone boosters, wifi , and other 2-way radio equipment antennas. It is also recommended to keep the MX900H antenna a minimum of six inches away from metal surfac-es. NOTE: Always mount MX900H in a vertical orientation4. MX900H comes with 6 feet of shielded cable with a USB connection. 5. System Check of the MX900H can be done by viewing the Receive Indicator LED located on the surface of the case. When a SuperCELL® or TPASS® is turned On, Off, or by activating the Alarm, the radio signal will cause the Amber/Yellow Receive LED to fl ash several times - indicating signals are successfully being received by the MX900H.MX900H Micro Transceiver Specifi cationsSize: 2.0 x 3.0 x .75 inches; Antenna 1.7 inches longFrequency Range: 902-928 MHz (frequency hopping spread spectrum)FCC ID: J5MXHEM -- Meets FCC Part 15Industry Canada ID: 5916A-MXHEM -- Complies with Canadian ICES-003Compatibility: Grace Industries Ra-dio-H SuperCELL® and TPASS®3 per-sonal safety and monitoring productsData Output: Serial USB 2.0, 38400-bps ASCII encoded numeric dataThe MX900H Micro Transceiver data output can be monitored with a PC us-ing a terminal emulation program (such as Windows HyperTerminal) using the following settings: 38400 bps, N-8-1, no fl ow control, VT100 emulation. NOTE: Drivers MUST be installed before connecting to PC.Transmit/Receive Indicator LEDShielded Cable with USB Connector(6 feet)USB ConnectorMX900H attached to laptop computer
