Grand Mate TX-01 TX-01 Remote controller User Manual

Grand Mate Co., Ltd TX-01 Remote controller Users Manual

Users Manual

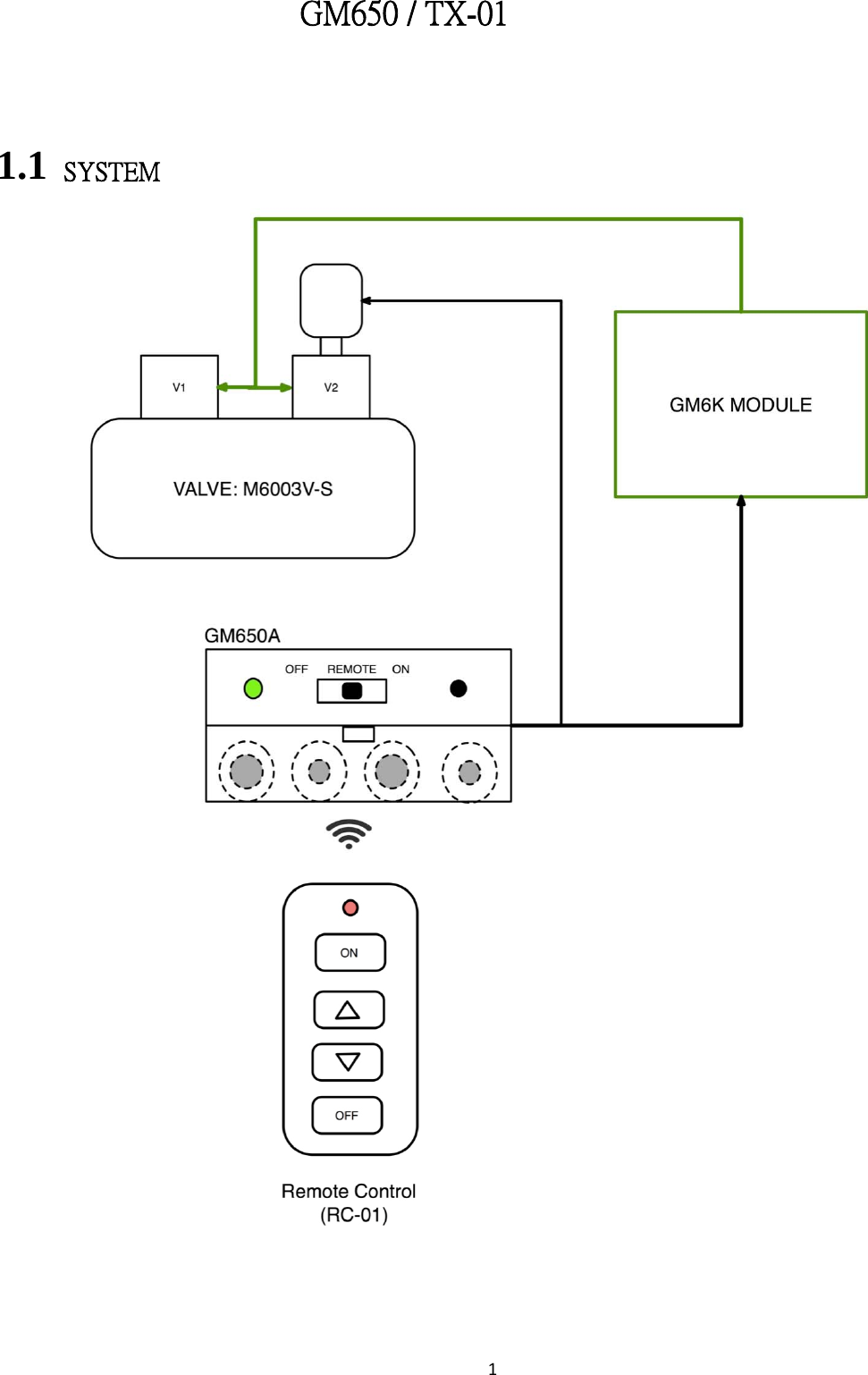

GM650 / TX-01 11.1 SYSTEM

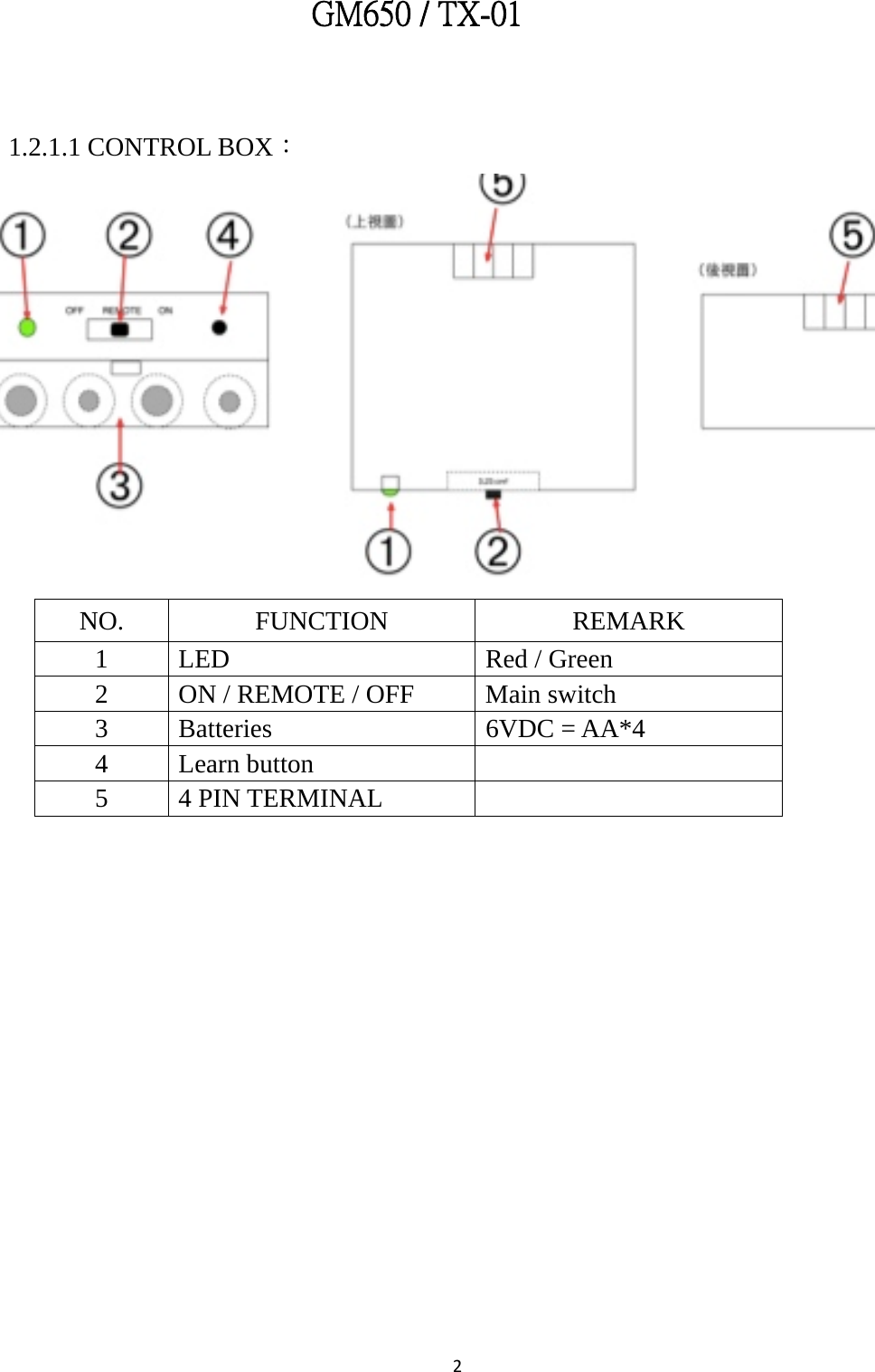

2 1.2.1.1 CONTROL BOX： NO. FUNCTION REMARK 1 LED Red / Green 2 ON / REMOTE / OFF Main switch 3 Batteries 6VDC = AA*4 4 Learn button 5 4 PIN TERMINAL GM650 / TX-01

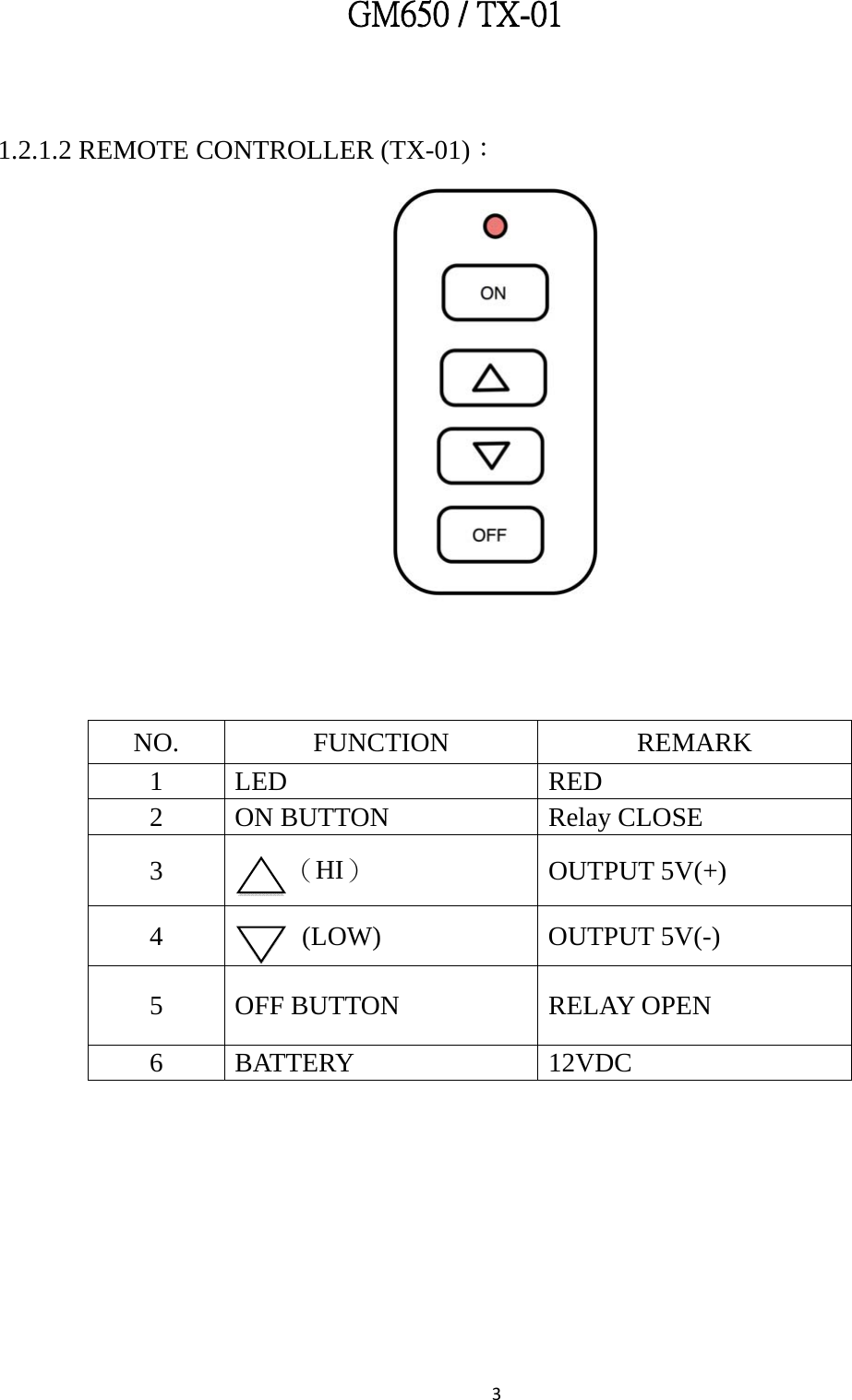

3 1.2.1.2 REMOTE CONTROLLER (TX-01)： NO. FUNCTION REMARK 1 LED RED 2 ON BUTTON Relay CLOSE 3 （HI） OUTPUT 5V(+) 4 (LOW) OUTPUT 5V(-) 5 OFF BUTTON RELAY OPEN 6 BATTERY 12VDC GM650 / TX-01

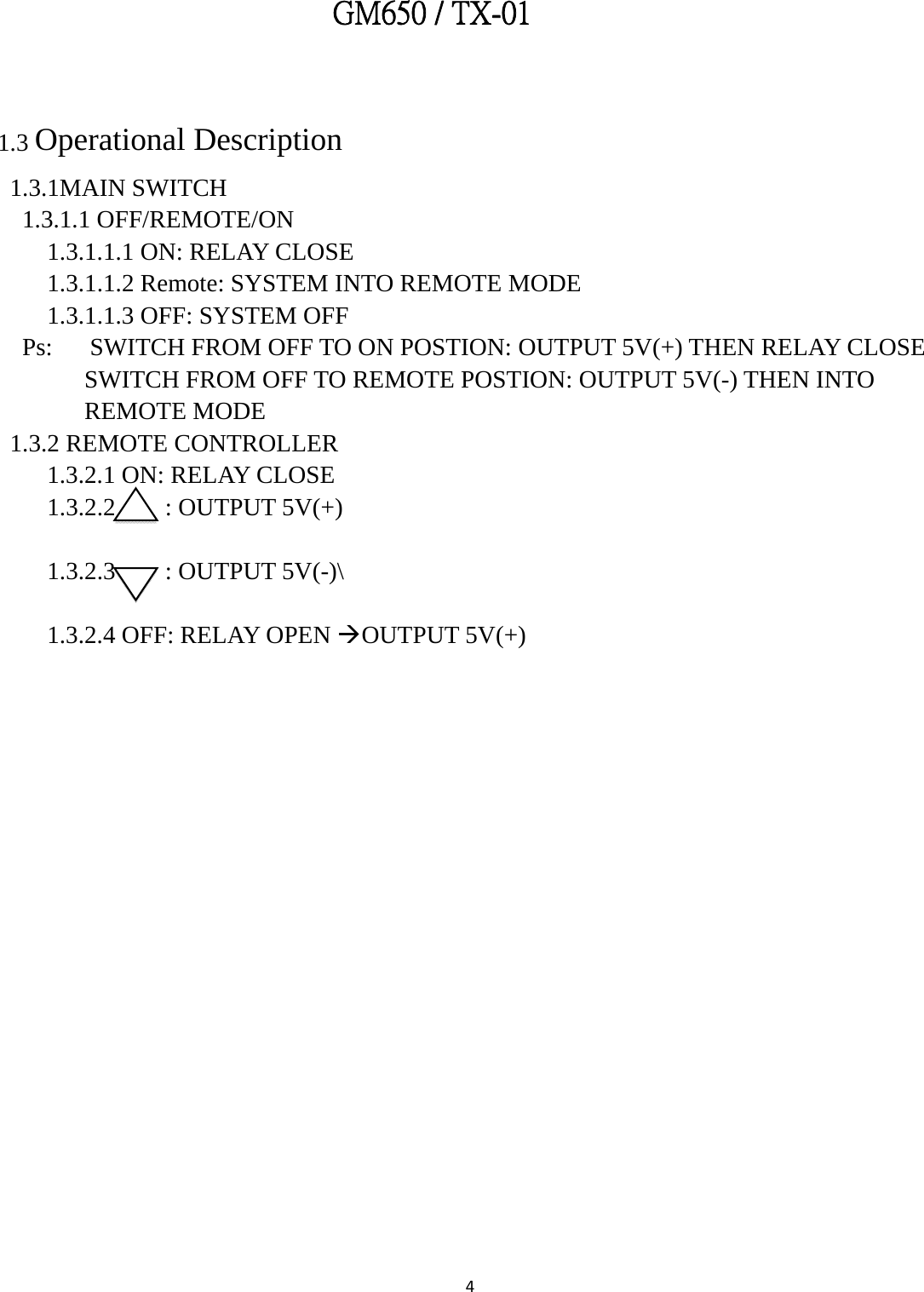

4 1.3 Operational Description 1.3.1MAIN SWITCH 1.3.1.1 OFF/REMOTE/ON 1.3.1.1.1 ON: RELAY CLOSE 1.3.1.1.2 Remote: SYSTEM INTO REMOTE MODE 1.3.1.1.3 OFF: SYSTEM OFF Ps: SWITCH FROM OFF TO ON POSTION: OUTPUT 5V(+) THEN RELAY CLOSE SWITCH FROM OFF TO REMOTE POSTION: OUTPUT 5V(-) THEN INTO REMOTE MODE 1.3.2 REMOTE CONTROLLER 1.3.2.1 ON: RELAY CLOSE 1.3.2.2 : OUTPUT 5V(+) 1.3.2.3 : OUTPUT 5V(-)\ 1.3.2.4 OFF: RELAY OPEN ÆOUTPUT 5V(+) GM650 / TX-01

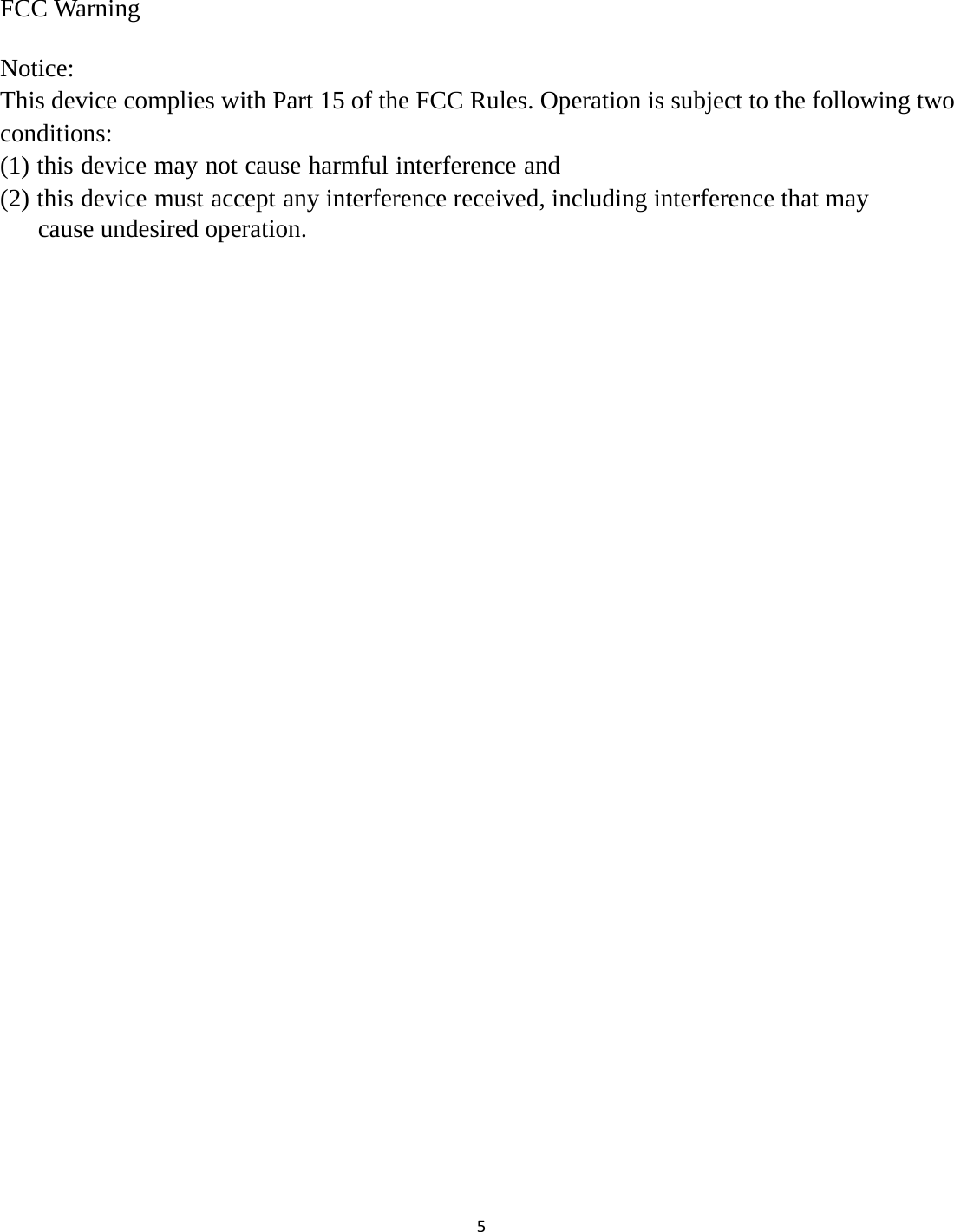

5FCC Warning Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. GM650 / TX-01
