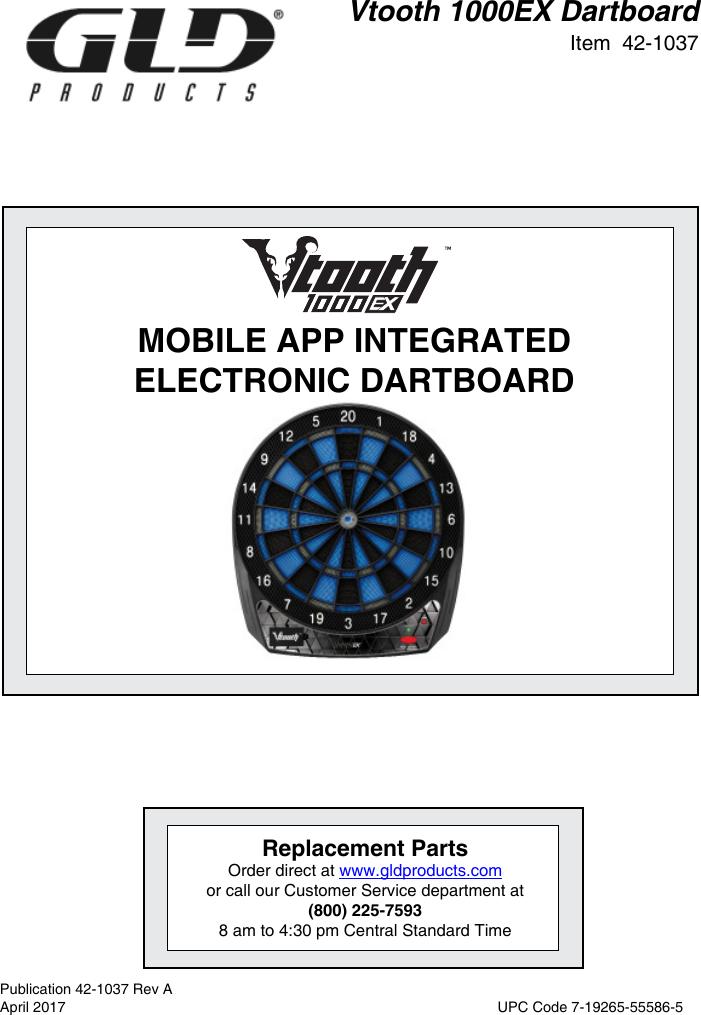

Vtooth 1000EX DartboardItem 42-1037MOBILE APP INTEGRATED ELECTRONIC DARTBOARDReplacement PartsOrder direct at www.gldproducts.com or call our Customer Service department at(800) 225-75938 am to 4:30 pm Central Standard TimePublication 42-1037 Rev AApril 2017 UPC Code 7-19265-55586-5

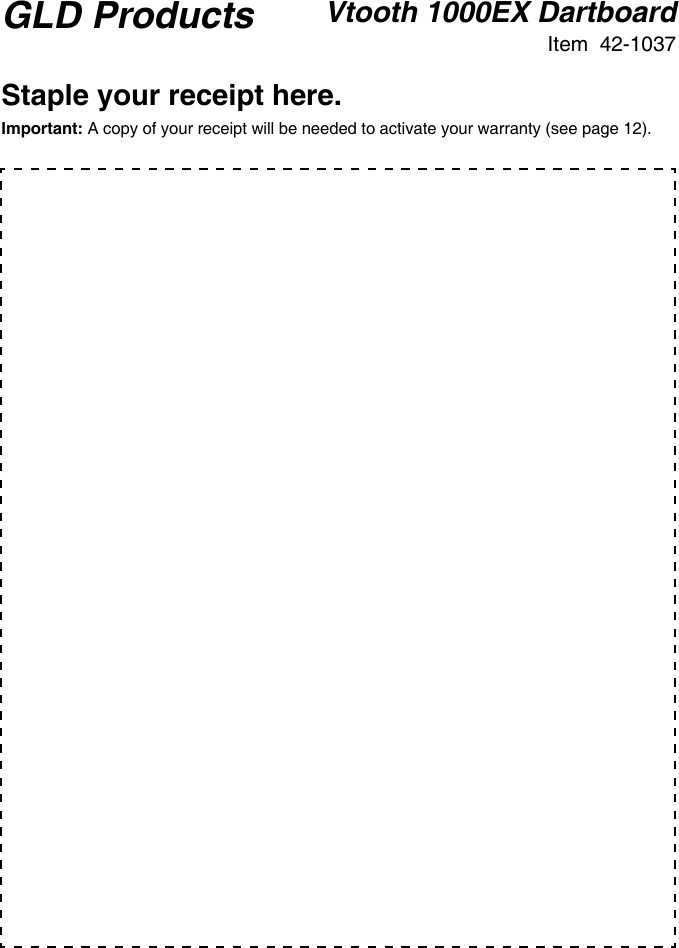

Vtooth 1000EX DartboardItem 42-1037GLD ProductsStaple your receipt here.Important: A copy of your receipt will be needed to activate your warranty (see page 12).

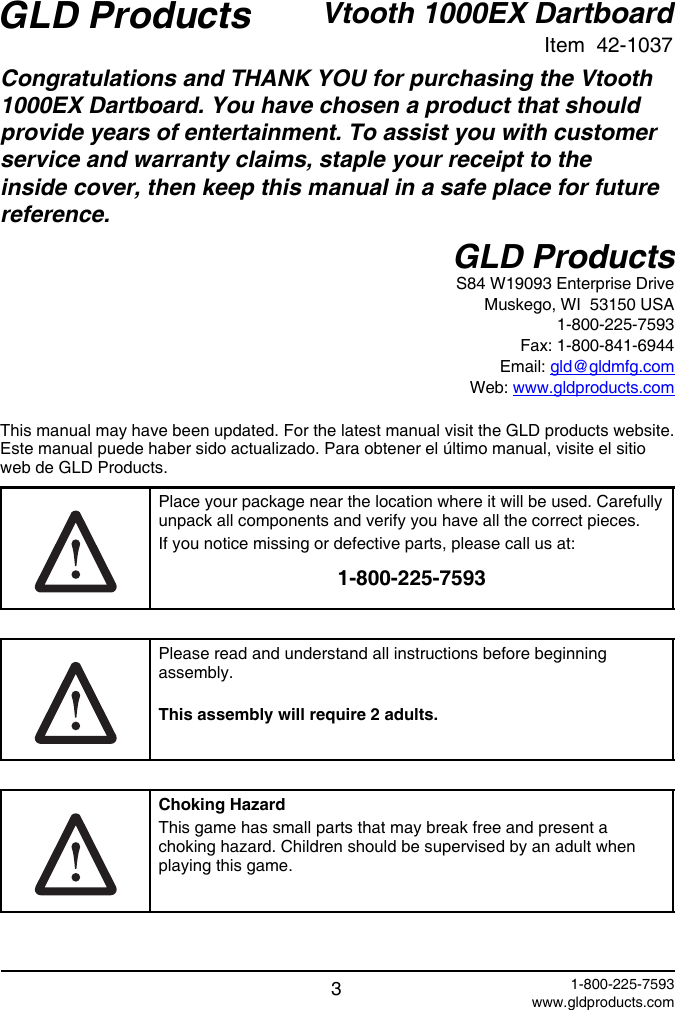

GLD Products Vtooth 1000EX DartboardItem 42-10371-800-225-7593 www.gldproducts.com3Congratulations and THANK YOU for purchasing the Vtooth 1000EX Dartboard. You have chosen a product that should provide years of entertainment. To assist you with customer service and warranty claims, staple your receipt to the inside cover, then keep this manual in a safe place for future reference.GLD ProductsS84 W19093 Enterprise DriveMuskego, WI 53150 USA1-800-225-7593Fax: 1-800-841-6944Email: gld@gldmfg.comWeb: www.gldproducts.comThis manual may have been updated. For the latest manual visit the GLD products website.Este manual puede haber sido actualizado. Para obtener el último manual, visite el sitio web de GLD Products.Place your package near the location where it will be used. Carefully unpack all components and verify you have all the correct pieces.If you notice missing or defective parts, please call us at:1-800-225-7593Please read and understand all instructions before beginning assembly.This assembly will require 2 adults.Choking HazardThis game has small parts that may break free and present a choking hazard. Children should be supervised by an adult when playing this game.

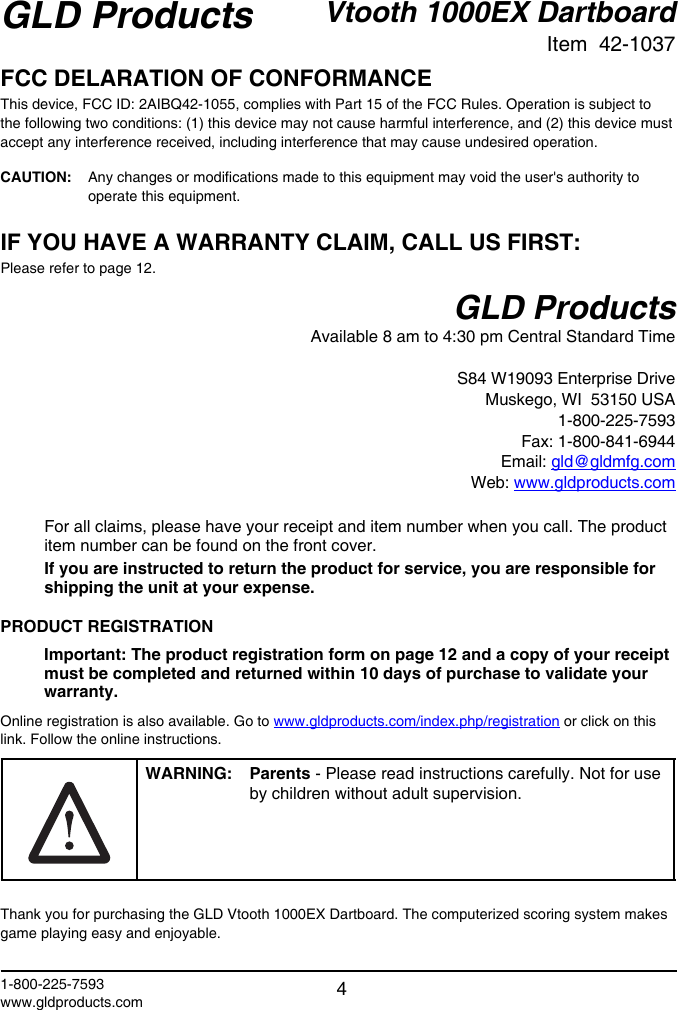

Vtooth 1000EX DartboardItem 42-1037GLD Products1-800-225-7593www.gldproducts.com 4FCC DELARATION OF CONFORMANCEThis device, FCC ID: 2AIBQ42-1055, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTION: Any changes or modi! cations made to this equipment may void the user's authority to operate this equipment.IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST:Please refer to page 12.GLD ProductsAvailable 8 am to 4:30 pm Central Standard TimeS84 W19093 Enterprise DriveMuskego, WI 53150 USA1-800-225-7593Fax: 1-800-841-6944Email: gld@gldmfg.comWeb: www.gldproducts.comFor all claims, please have your receipt and item number when you call. The product item number can be found on the front cover.If you are instructed to return the product for service, you are responsible for shipping the unit at your expense.PRODUCT REGISTRATIONImportant: The product registration form on page 12 and a copy of your receipt must be completed and returned within 10 days of purchase to validate your warranty.Online registration is also available. Go to www.gldproducts.com/index.php/registration or click on this link. Follow the online instructions.WARNING: Parents - Please read instructions carefully. Not for use by children without adult supervision.Thank you for purchasing the GLD Vtooth 1000EX Dartboard. The computerized scoring system makes game playing easy and enjoyable.

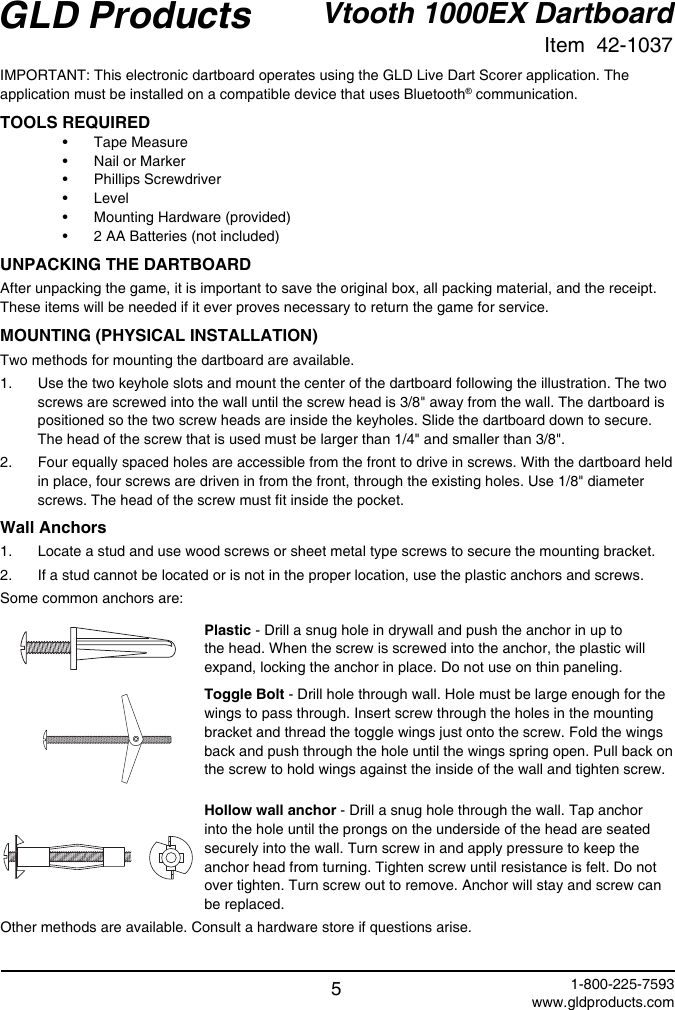

GLD Products Vtooth 1000EX DartboardItem 42-10371-800-225-7593 www.gldproducts.com5IMPORTANT: This electronic dartboard operates using the GLD Live Dart Scorer application. The application must be installed on a compatible device that uses Bluetooth® communication.TOOLS REQUIRED• Tape Measure• Nail or Marker• Phillips Screwdriver• Level• Mounting Hardware (provided)• 2 AA Batteries (not included)UNPACKING THE DARTBOARDAfter unpacking the game, it is important to save the original box, all packing material, and the receipt. These items will be needed if it ever proves necessary to return the game for service.MOUNTING (PHYSICAL INSTALLATION)Two methods for mounting the dartboard are available.1. Use the two keyhole slots and mount the center of the dartboard following the illustration. The two screws are screwed into the wall until the screw head is 3/8" away from the wall. The dartboard is positioned so the two screw heads are inside the keyholes. Slide the dartboard down to secure. The head of the screw that is used must be larger than 1/4" and smaller than 3/8".2. Four equally spaced holes are accessible from the front to drive in screws. With the dartboard held in place, four screws are driven in from the front, through the existing holes. Use 1/8" diameter screws. The head of the screw must ! t inside the pocket.Wall Anchors1. Locate a stud and use wood screws or sheet metal type screws to secure the mounting bracket.2. If a stud cannot be located or is not in the proper location, use the plastic anchors and screws.Some common anchors are:Plastic - Drill a snug hole in drywall and push the anchor in up to the head. When the screw is screwed into the anchor, the plastic will expand, locking the anchor in place. Do not use on thin paneling.Toggle Bolt - Drill hole through wall. Hole must be large enough for the wings to pass through. Insert screw through the holes in the mounting bracket and thread the toggle wings just onto the screw. Fold the wings back and push through the hole until the wings spring open. Pull back on the screw to hold wings against the inside of the wall and tighten screw.Hollow wall anchor - Drill a snug hole through the wall. Tap anchor into the hole until the prongs on the underside of the head are seated securely into the wall. Turn screw in and apply pressure to keep the anchor head from turning. Tighten screw until resistance is felt. Do not over tighten. Turn screw out to remove. Anchor will stay and screw can be replaced.Other methods are available. Consult a hardware store if questions arise.

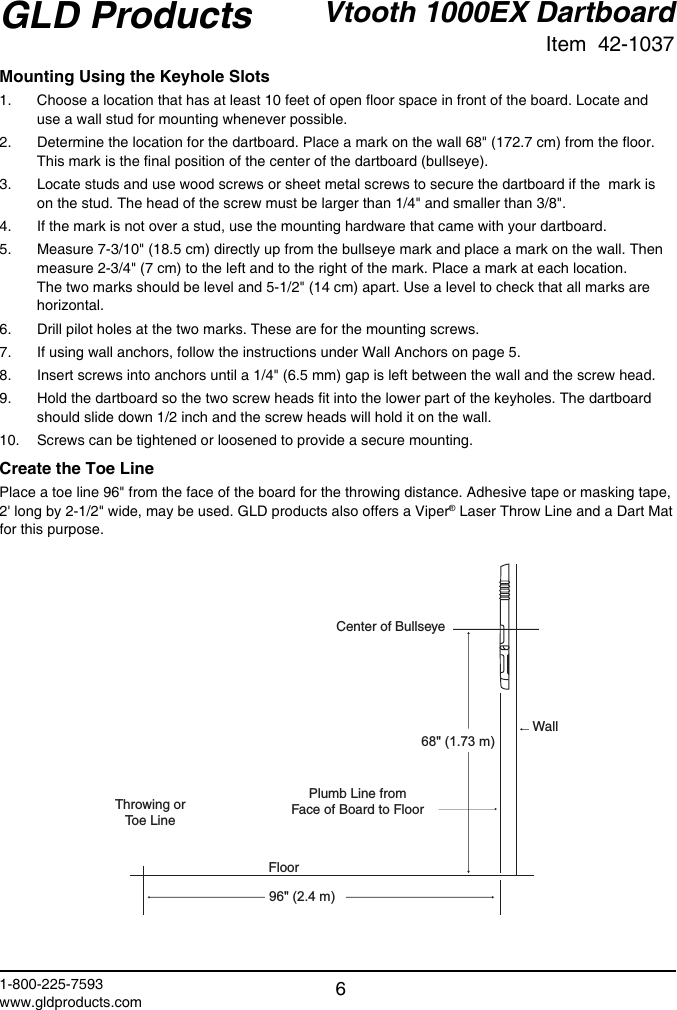

Vtooth 1000EX DartboardItem 42-1037GLD Products1-800-225-7593www.gldproducts.com 6Mounting Using the Keyhole Slots1. Choose a location that has at least 10 feet of open ! oor space in front of the board. Locate and use a wall stud for mounting whenever possible.2. Determine the location for the dartboard. Place a mark on the wall 68" (172.7 cm) from the ! oor. This mark is the # nal position of the center of the dartboard (bullseye).3. Locate studs and use wood screws or sheet metal screws to secure the dartboard if the mark is on the stud. The head of the screw must be larger than 1/4" and smaller than 3/8".4. If the mark is not over a stud, use the mounting hardware that came with your dartboard.5. Measure 7-3/10" (18.5 cm) directly up from the bullseye mark and place a mark on the wall. Then measure 2-3/4" (7 cm) to the left and to the right of the mark. Place a mark at each location. The two marks should be level and 5-1/2" (14 cm) apart. Use a level to check that all marks are horizontal.6. Drill pilot holes at the two marks. These are for the mounting screws.7. If using wall anchors, follow the instructions under Wall Anchors on page 5.8. Insert screws into anchors until a 1/4" (6.5 mm) gap is left between the wall and the screw head.9. Hold the dartboard so the two screw heads # t into the lower part of the keyholes. The dartboard should slide down 1/2 inch and the screw heads will hold it on the wall.10. Screws can be tightened or loosened to provide a secure mounting.Create the Toe LinePlace a toe line 96" from the face of the board for the throwing distance. Adhesive tape or masking tape, 2' long by 2-1/2" wide, may be used. GLD products also offers a Viper® Laser Throw Line and a Dart Mat for this purpose. Center of BullseyeWallThrowing orToe LinePlumb Line fromFace of Board to FloorFloor96" (2.4 m) 68" (1.73 m)

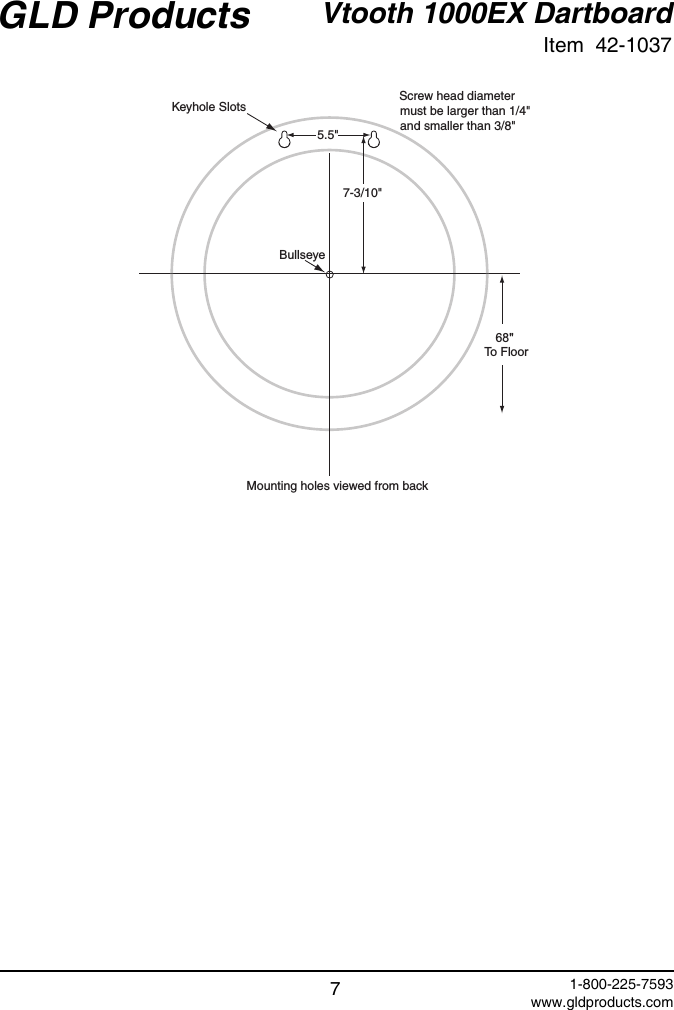

GLD Products Vtooth 1000EX DartboardItem 42-10371-800-225-7593 www.gldproducts.com77-3/10"68"To FloorBullseyeKeyhole Slots Screw head diameter must be larger than 1/4" and smaller than 3/8"Mounting holes viewed from back5.5"

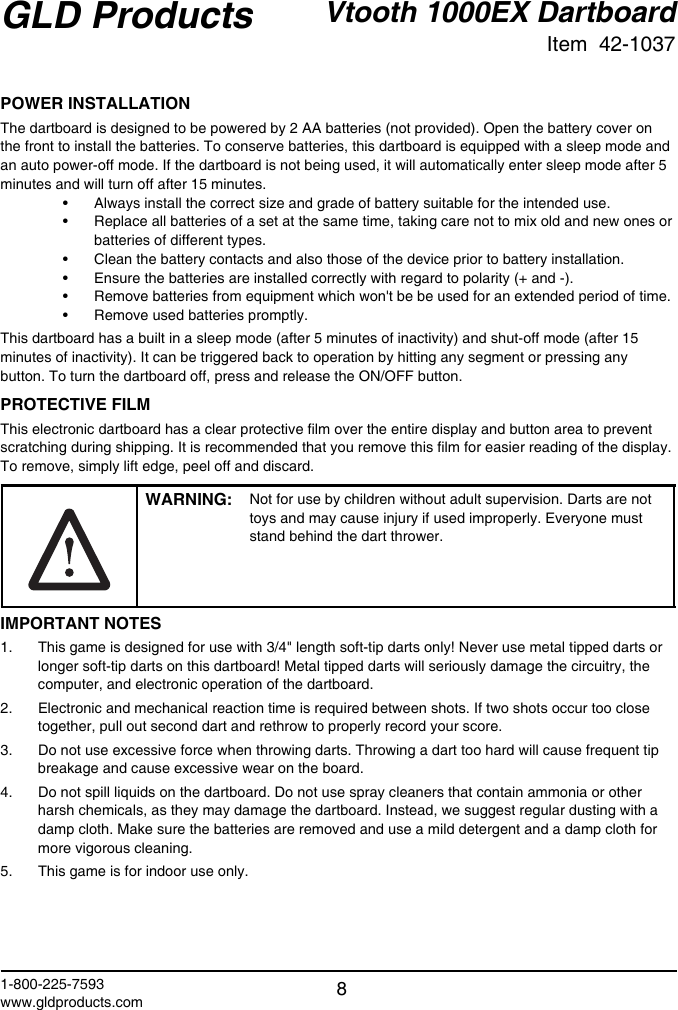

Vtooth 1000EX DartboardItem 42-1037GLD Products1-800-225-7593www.gldproducts.com 8POWER INSTALLATIONThe dartboard is designed to be powered by 2 AA batteries (not provided). Open the battery cover on the front to install the batteries. To conserve batteries, this dartboard is equipped with a sleep mode and an auto power-off mode. If the dartboard is not being used, it will automatically enter sleep mode after 5 minutes and will turn off after 15 minutes.• Always install the correct size and grade of battery suitable for the intended use.• Replace all batteries of a set at the same time, taking care not to mix old and new ones or batteries of different types.• Clean the battery contacts and also those of the device prior to battery installation.• Ensure the batteries are installed correctly with regard to polarity (+ and -). • Remove batteries from equipment which won't be be used for an extended period of time. • Remove used batteries promptly.This dartboard has a built in a sleep mode (after 5 minutes of inactivity) and shut-off mode (after 15 minutes of inactivity). It can be triggered back to operation by hitting any segment or pressing any button. To turn the dartboard off, press and release the ON/OFF button.PROTECTIVE FILMThis electronic dartboard has a clear protective ! lm over the entire display and button area to prevent scratching during shipping. It is recommended that you remove this ! lm for easier reading of the display. To remove, simply lift edge, peel off and discard.WARNING: Not for use by children without adult supervision. Darts are not toys and may cause injury if used improperly. Everyone must stand behind the dart thrower.IMPORTANT NOTES1. This game is designed for use with 3/4" length soft-tip darts only# Never use metal tipped darts or longer soft-tip darts on this dartboard# Metal tipped darts will seriously damage the circuitry, the computer, and electronic operation of the dartboard.2. Electronic and mechanical reaction time is required between shots. If two shots occur too close together, pull out second dart and rethrow to properly record your score.3. Do not use excessive force when throwing darts. Throwing a dart too hard will cause frequent tip breakage and cause excessive wear on the board.4. Do not spill liquids on the dartboard. Do not use spray cleaners that contain ammonia or other harsh chemicals, as they may damage the dartboard. Instead, we suggest regular dusting with a damp cloth. Make sure the batteries are removed and use a mild detergent and a damp cloth for more vigorous cleaning.5. This game is for indoor use only.

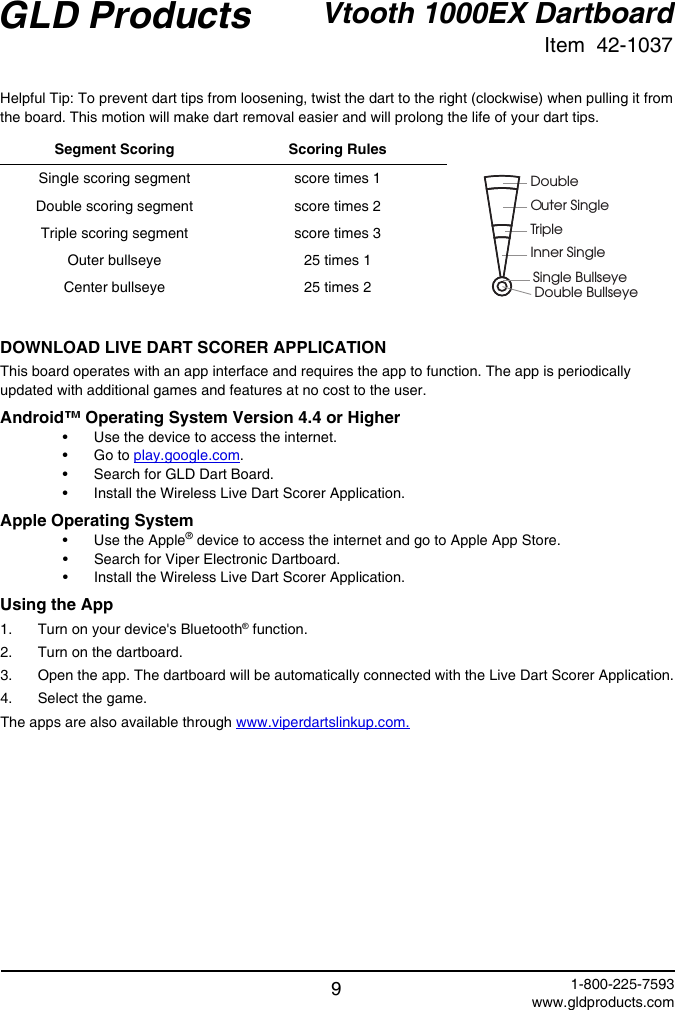

GLD Products Vtooth 1000EX DartboardItem 42-10371-800-225-7593 www.gldproducts.com9Helpful Tip: To prevent dart tips from loosening, twist the dart to the right (clockwise) when pulling it from the board. This motion will make dart removal easier and will prolong the life of your dart tips.Segment Scoring Scoring RulesSingle scoring segment score times 1DoubleOuter SingleTripleInner SingleSingle BullseyeDouble BullseyeDouble scoring segment score times 2Triple scoring segment score times 3Outer bullseye 25 times 1Center bullseye 25 times 2DOWNLOAD LIVE DART SCORER APPLICATIONThis board operates with an app interface and requires the app to function. The app is periodically updated with additional games and features at no cost to the user.Android™ Operating System Version 4.4 or Higher• Use the device to access the internet.• Go to play.google.com.• Search for GLD Dart Board.• Install the Wireless Live Dart Scorer Application.Apple Operating System• Use the Apple® device to access the internet and go to Apple App Store.• Search for Viper Electronic Dartboard.• Install the Wireless Live Dart Scorer Application.Using the App 1. Turn on your device's Bluetooth® function. 2. Turn on the dartboard.3. Open the app. The dartboard will be automatically connected with the Live Dart Scorer Application.4. Select the game.The apps are also available through www.viperdartslinkup.com.

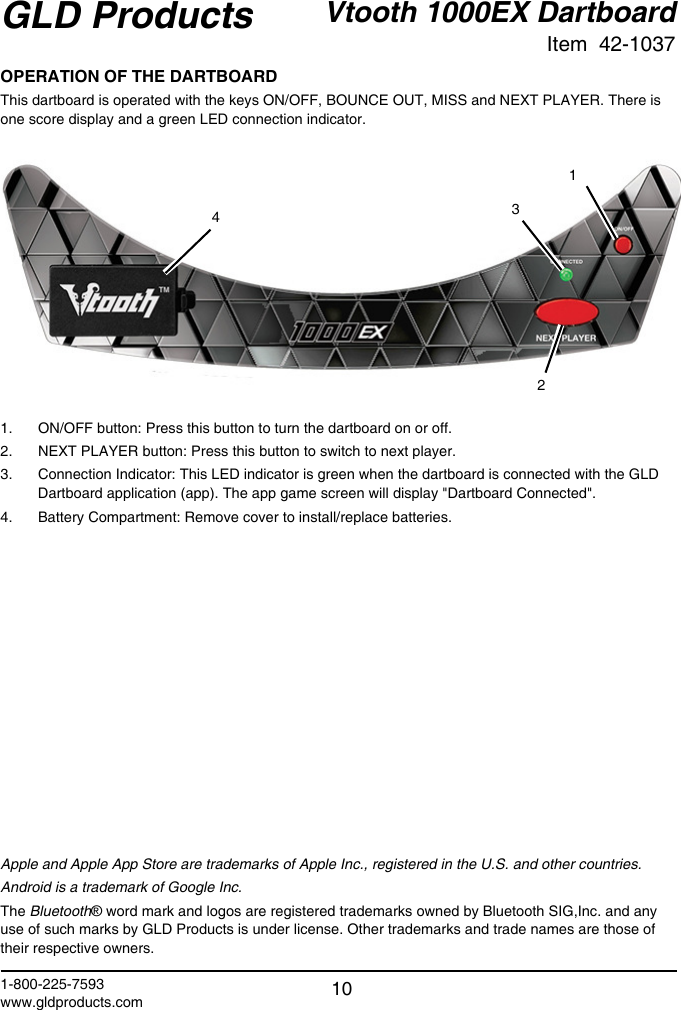

Vtooth 1000EX DartboardItem 42-1037GLD Products1-800-225-7593www.gldproducts.com 10OPERATION OF THE DARTBOARDThis dartboard is operated with the keys ON/OFF, BOUNCE OUT, MISS and NEXT PLAYER. There is one score display and a green LED connection indicator.13421. ON/OFF button: Press this button to turn the dartboard on or off.2. NEXT PLAYER button: Press this button to switch to next player.3. Connection Indicator: This LED indicator is green when the dartboard is connected with the GLD Dartboard application (app). The app game screen will display "Dartboard Connected".4. Battery Compartment: Remove cover to install/replace batteries.Apple and Apple App Store are trademarks of Apple Inc., registered in the U.S. and other countries.Android is a trademark of Google Inc.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by GLD Products is under license. Other trademarks and trade names are those of their respective owners.

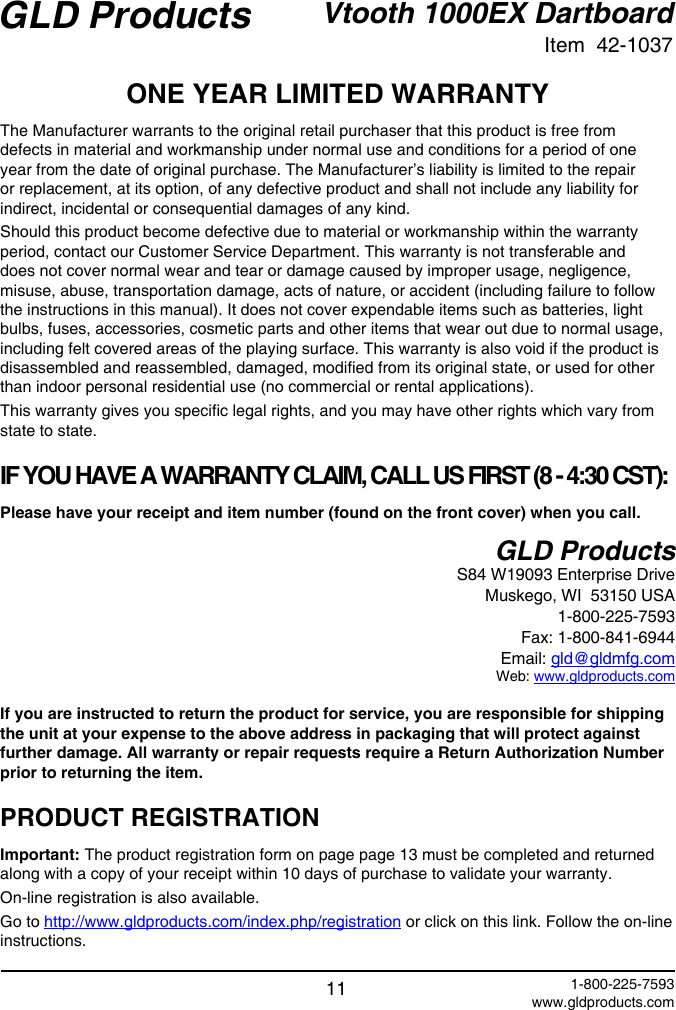

GLD Products Vtooth 1000EX DartboardItem 42-10371-800-225-7593 www.gldproducts.com11 ONE YEAR LIMITED WARRANTY The Manufacturer warrants to the original retail purchaser that this product is free from defects in material and workmanship under normal use and conditions for a period of one year from the date of original purchase. The Manufacturer’s liability is limited to the repair or replacement, at its option, of any defective product and shall not include any liability for indirect, incidental or consequential damages of any kind. Should this product become defective due to material or workmanship within the warranty period, contact our Customer Service Department. This warranty is not transferable and does not cover normal wear and tear or damage caused by improper usage, negligence, misuse, abuse, transportation damage, acts of nature, or accident (including failure to follow the instructions in this manual). It does not cover expendable items such as batteries, light bulbs, fuses, accessories, cosmetic parts and other items that wear out due to normal usage, including felt covered areas of the playing surface. This warranty is also void if the product is disassembled and reassembled, damaged, modi! ed from its original state, or used for other than indoor personal residential use (no commercial or rental applications). This warranty gives you speci! c legal rights, and you may have other rights which vary from state to state.IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST):Please have your receipt and item number (found on the front cover) when you call.GLD ProductsS84 W19093 Enterprise DriveMuskego, WI 53150 USA1-800-225-7593Fax: 1-800-841-6944Email: gld@gldmfg.comWeb: www.gldproducts.comIf you are instructed to return the product for service, you are responsible for shipping the unit at your expense to the above address in packaging that will protect against further damage. All warranty or repair requests require a Return Authorization Number prior to returning the item.PRODUCT REGISTRATIONImportant: The product registration form on page page 13 must be completed and returned along with a copy of your receipt within 10 days of purchase to validate your warranty.On-line registration is also available. Go to http://www.gldproducts.com/index.php/registration or click on this link. Follow the on-line instructions.

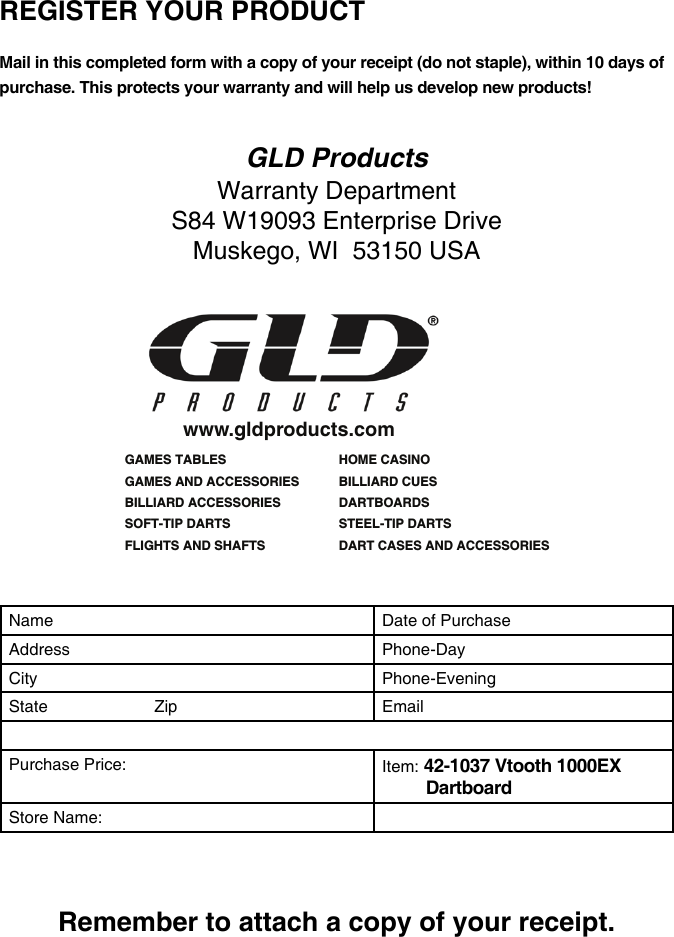

REGISTER YOUR PRODUCT Mail in this completed form with a copy of your receipt (do not staple), within 10 days of purchase. This protects your warranty and will help us develop new products!GLD ProductsWarranty DepartmentS84 W19093 Enterprise DriveMuskego, WI 53150 USAGAMES TABLESGAMES AND ACCESSORIESBILLIARD ACCESSORIESSOFT-TIP DARTSFLIGHTS AND SHAFTSHOME CASINOBILLIARD CUESDARTBOARDSSTEEL-TIP DARTS DART CASES AND ACCESSORIESwww.gldproducts.comName Date of PurchaseAddress Phone-DayCity Phone-EveningState Zip EmailPurchase Price: Item: 42-1037 Vtooth 1000EX DartboardStore Name:Remember to attach a copy of your receipt.

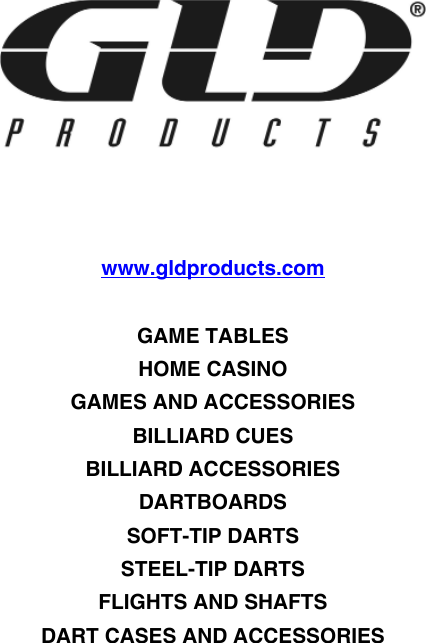

www.gldproducts.comGAME TABLESHOME CASINOGAMES AND ACCESSORIESBILLIARD CUESBILLIARD ACCESSORIESDARTBOARDSSOFT-TIP DARTSSTEEL-TIP DARTSFLIGHTS AND SHAFTSDART CASES AND ACCESSORIES

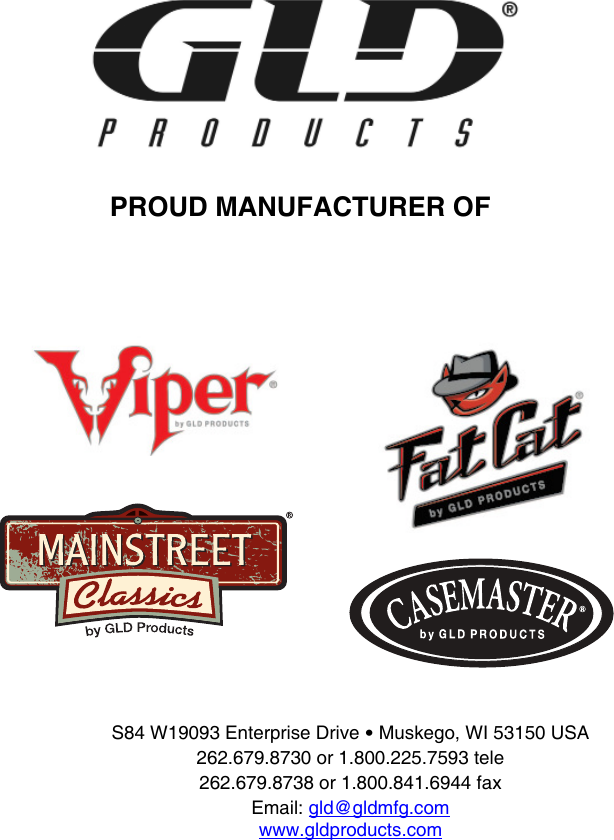

PROUD MANUFACTURER OFS84 W19093 Enterprise Drive • Muskego, WI 53150 USA262.679.8730 or 1.800.225.7593 tele262.679.8738 or 1.800.841.6944 faxEmail: gld@gldmfg.comwww.gldproducts.com

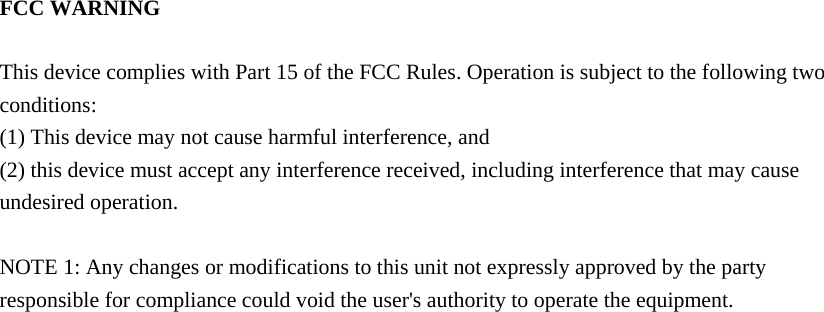

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
