GuangZhou SunFieldAimo Electronic Technology CG-1212 Multi Axis Wireless Follow Focus Controller User Manual

GuangZhou SunFieldAimo Electronic Technology Co., Ltd Multi Axis Wireless Follow Focus Controller

UserManual.wiki >

GuangZhou SunFieldAimo Electronic Technology >

CG 1212 User Manual

User Manual

MANUAL BOOK

ContentsControllersMulti Axis Motors and GearsAccessories Multi Axis Accessories Remote Recording Triggers Specifications CINEGEARS MULTI AXIS FOLLOW FOCUS KIT – User Manual InstructionsDisclaimersCustomer Support3458910111617

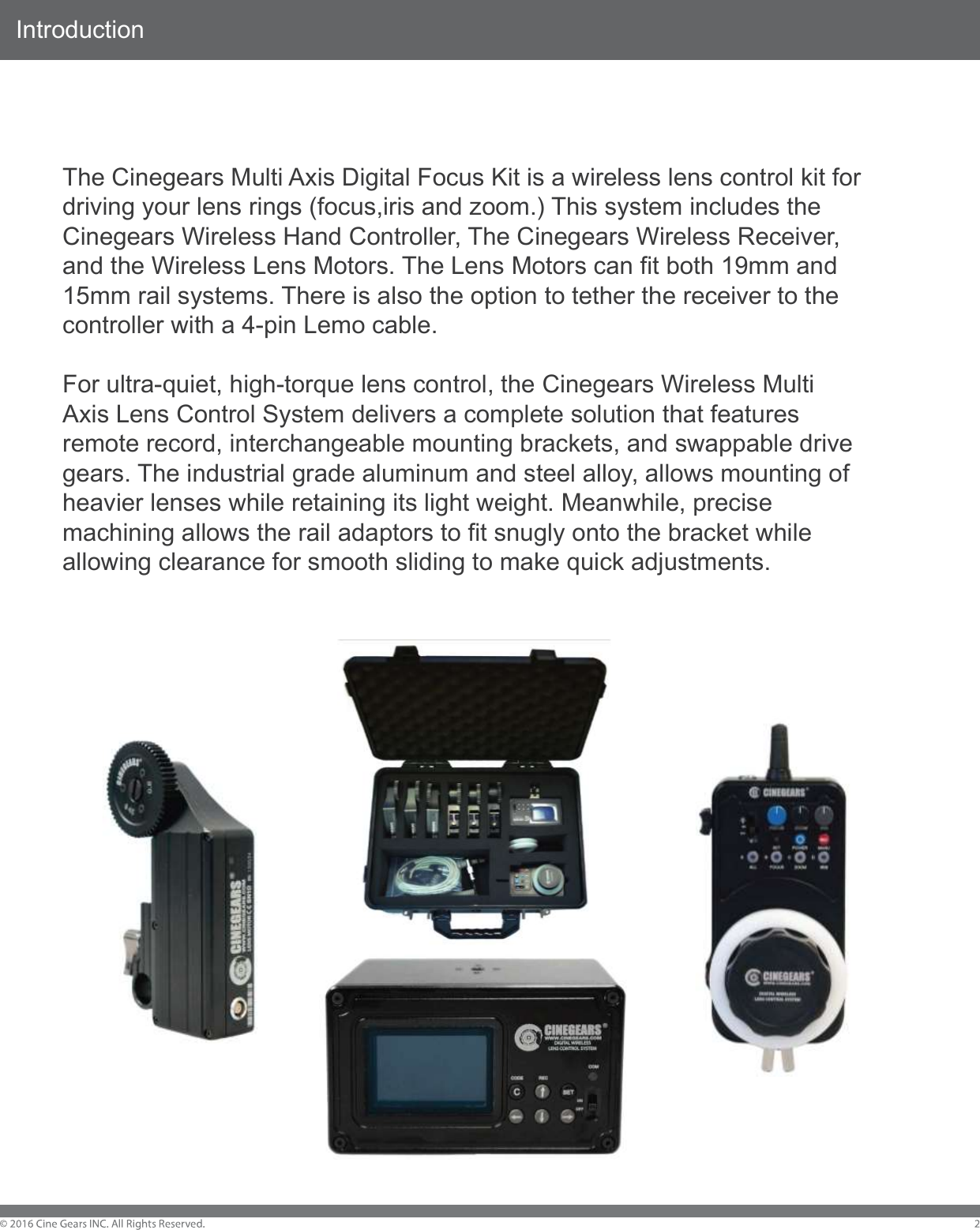

IntroductionThe Cinegears Multi Axis Digital Focus Kit is a wireless lens control kit for driving your lens rings (focus,iris and zoom.) This system includes the Cinegears Wireless Hand Controller, The Cinegears Wireless Receiver, and the Wireless Lens Motors. The Lens Motors can fit both 19mm and 15mm rail systems. There is also the option to tether the receiver to the controller with a 4-pin Lemo cable.For ultra-quiet, high-torque lens control, the Cinegears Wireless Multi Axis Lens Control System delivers a complete solution that features remote record, interchangeable mounting brackets, and swappable drive gears. The industrial grade aluminum and steel alloy, allows mounting of heavier lenses while retaining its light weight. Meanwhile, precise machining allows the rail adaptors to fit snugly onto the bracket while allowing clearance for smooth sliding to make quick adjustments.

Controllers and ReceiversMulti Axis Controller With the Wireless Hand Controller, you can deliver a reliable signal from up to 100 meters wirelessly. For jib, Steadicam, or helicopter shots, the Wireless Hand Controller allows focus pullers to stand farther away from camera without compromising precision. Set up to four Focus, Iris, and Zoom presets with a single press of a button, same as the integrated record button. Instead of using a follow focus with limited lens control and mobility, the CINEGEARS Wireless Hand Controller lets you control focus, iris, zoom, and remote REC trigger wirelessly – all from one device. Wired/Wireless Receiver The CINEGEARS Receiver drives up to 6 CINEGEARS Lens Control Motors, as well as providing wired control, start/stop, and Stereoscopic 3D filming support. The Cinegears Receiver mounts to your rig on a rail by quick clamp and is powered using the 2-PIN 1B TO 2-PIN 0B CABLE. It features a backlit LED screen so you can see exactly what your parameters are. The receiver now has all the trigger functions chipped in: supporting SONY, RED, and ARRI. The trigger cables are also included in the kit.

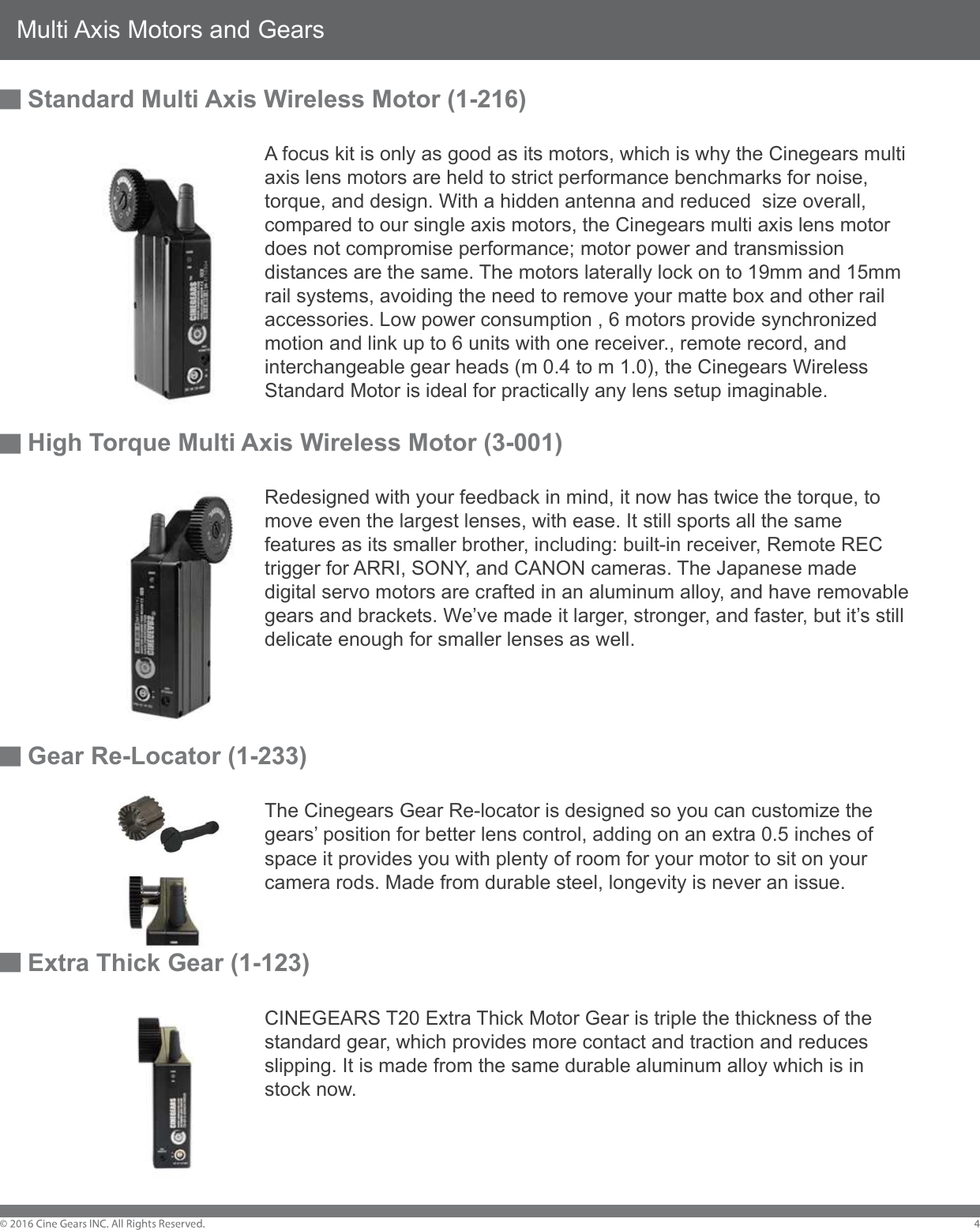

Multi Axis Motors and GearsStandard Multi Axis Wireless Motor (1-216) A focus kit is only as good as its motors, which is why the Cinegears multi axis lens motors are held to strict performance benchmarks for noise, torque, and design. With a hidden antenna and reduced size overall, compared to our single axis motors, the Cinegears multi axis lens motor does not compromise performance; motor power and transmission distances are the same. The motors laterally lock on to 19mm and 15mm rail systems, avoiding the need to remove your matte box and other rail accessories. Low power consumption , 6 motors provide synchronized motion and link up to 6 units with one receiver., remote record, and interchangeable gear heads (m 0.4 to m 1.0), the Cinegears Wireless Standard Motor is ideal for practically any lens setup imaginable.High Torque Multi Axis Wireless Motor (3-001) Redesigned with your feedback in mind, it now has twice the torque, to move even the largest lenses, with ease. It still sports all the same features as its smaller brother, including: built-in receiver, Remote REC trigger for ARRI, SONY, and CANON cameras. The Japanese made digital servo motors are crafted in an aluminum alloy, and have removable gears and brackets. We’ve made it larger, stronger, and faster, but it’s still delicate enough for smaller lenses as well. Gear Re-Locator (1-233) The Cinegears Gear Re-locator is designed so you can customize the gears’ position for better lens control, adding on an extra 0.5 inches of space it provides you with plenty of room for your motor to sit on your camera rods. Made from durable steel, longevity is never an issue. Extra Thick Gear (1-123) CINEGEARS T20 Extra Thick Motor Gear is triple the thickness of the standard gear, which provides more contact and traction and reduces slipping. It is made from the same durable aluminum alloy which is in stock now.

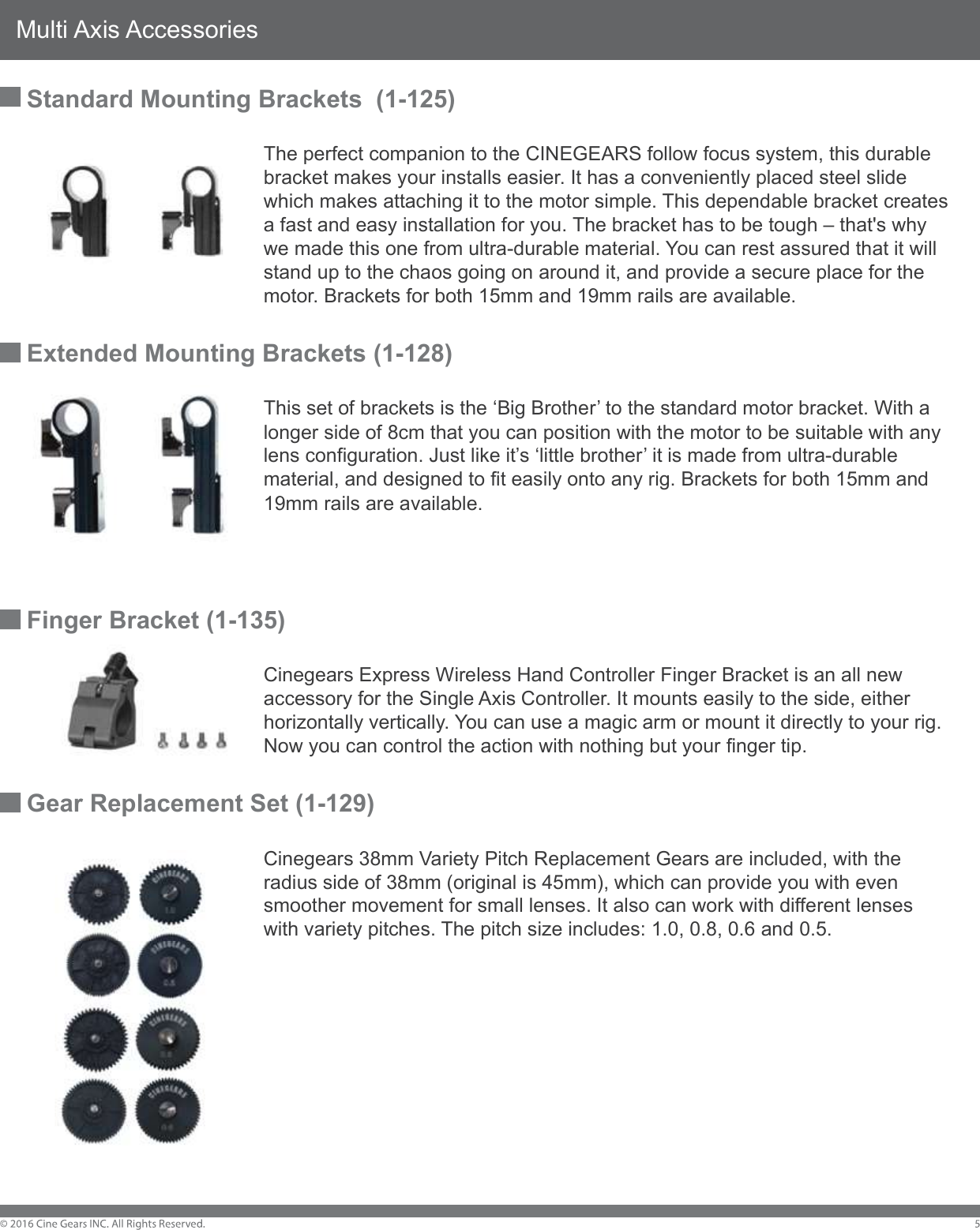

Multi Axis AccessoriesStandard Mounting Brackets (1-125) The perfect companion to the CINEGEARS follow focus system, this durable bracket makes your installs easier. It has a conveniently placed steel slide which makes attaching it to the motor simple. This dependable bracket creates a fast and easy installation for you. The bracket has to be tough – that's why we made this one from ultra-durable material. You can rest assured that it will stand up to the chaos going on around it, and provide a secure place for the motor. Brackets for both 15mm and 19mm rails are available. Extended Mounting Brackets (1-128) This set of brackets is the ‘Big Brother’ to the standard motor bracket. With a longer side of 8cm that you can position with the motor to be suitable with any lens configuration. Just like it’s ‘little brother’ it is made from ultra-durable material, and designed to fit easily onto any rig. Brackets for both 15mm and 19mm rails are available.Finger Bracket (1-135) Cinegears Express Wireless Hand Controller Finger Bracket is an all new accessory for the Single Axis Controller. It mounts easily to the side, either horizontally vertically. You can use a magic arm or mount it directly to your rig. Now you can control the action with nothing but your finger tip. Gear Replacement Set (1-129) Cinegears 38mm Variety Pitch Replacement Gears are included, with the radius side of 38mm (original is 45mm), which can provide you with even smoother movement for small lenses. It also can work with different lenses with variety pitches. The pitch size includes: 1.0, 0.8, 0.6 and 0.5.

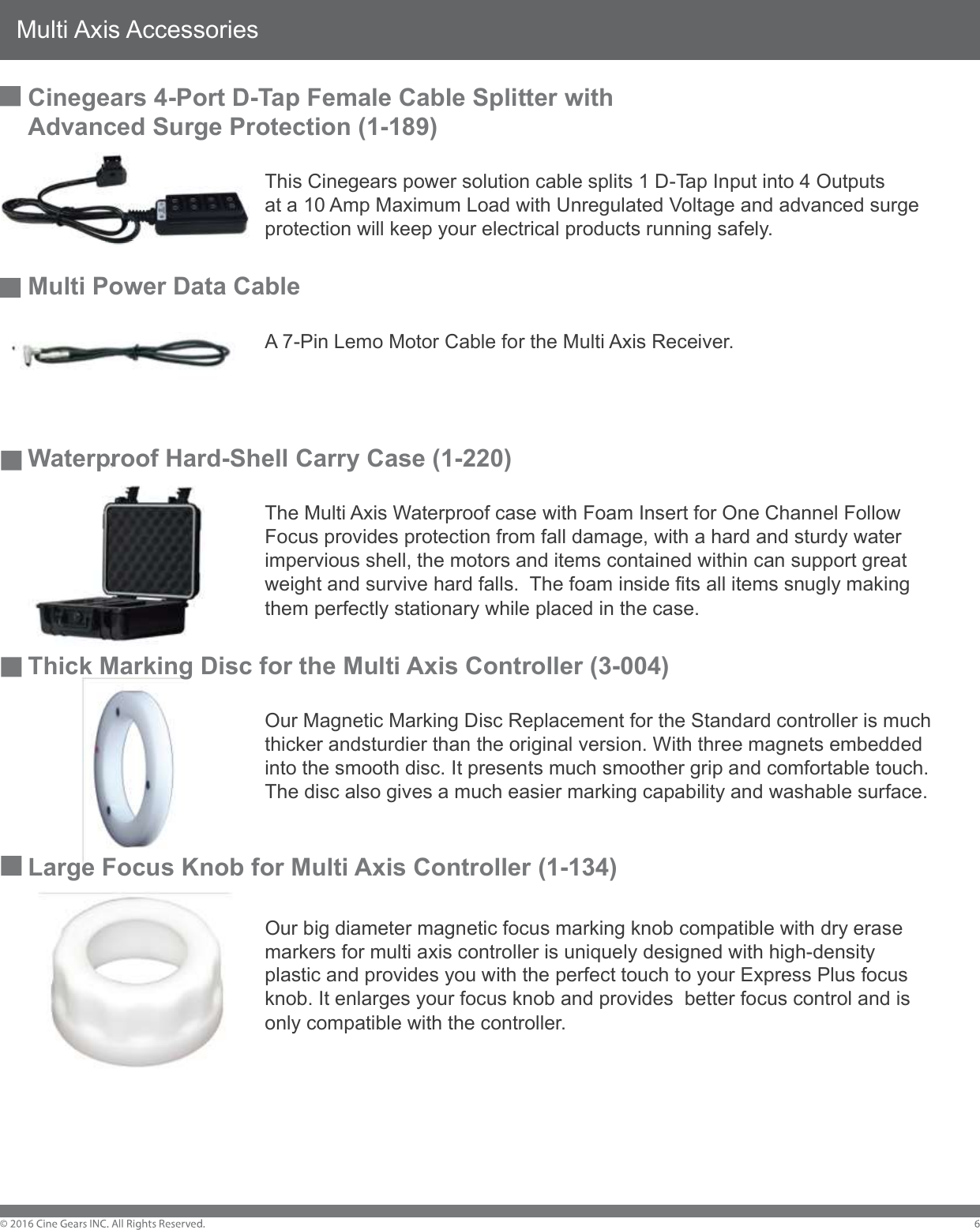

Multi Axis AccessoriesCinegears 4-Port D-Tap Female Cable Splitter with Advanced Surge Protection (1-189) This Cinegears power solution cable splits 1 D-Tap Input into 4 Outputs at a 10 Amp Maximum Load with Unregulated Voltage and advanced surge protection will keep your electrical products running safely. Multi Power Data Cable A 7-Pin Lemo Motor Cable for the Multi Axis Receiver.Waterproof Hard-Shell Carry Case (1-220) The Multi Axis Waterproof case with Foam Insert for One Channel Follow Focus provides protection from fall damage, with a hard and sturdy water impervious shell, the motors and items contained within can support great weight and survive hard falls. The foam inside fits all items snugly making them perfectly stationary while placed in the case. Thick Marking Disc for the Multi Axis Controller (3-004) Our Magnetic Marking Disc Replacement for the Standard controller is much thicker andsturdier than the original version. With three magnets embedded into the smooth disc. It presents much smoother grip and comfortable touch. The disc also gives a much easier marking capability and washable surface.Large Focus Knob for Multi Axis Controller (1-134) Our big diameter magnetic focus marking knob compatible with dry erase markers for multi axis controller is uniquely designed with high-density plastic and provides you with the perfect touch to your Express Plus focus knob. It enlarges your focus knob and provides better focus control and is only compatible with the controller.

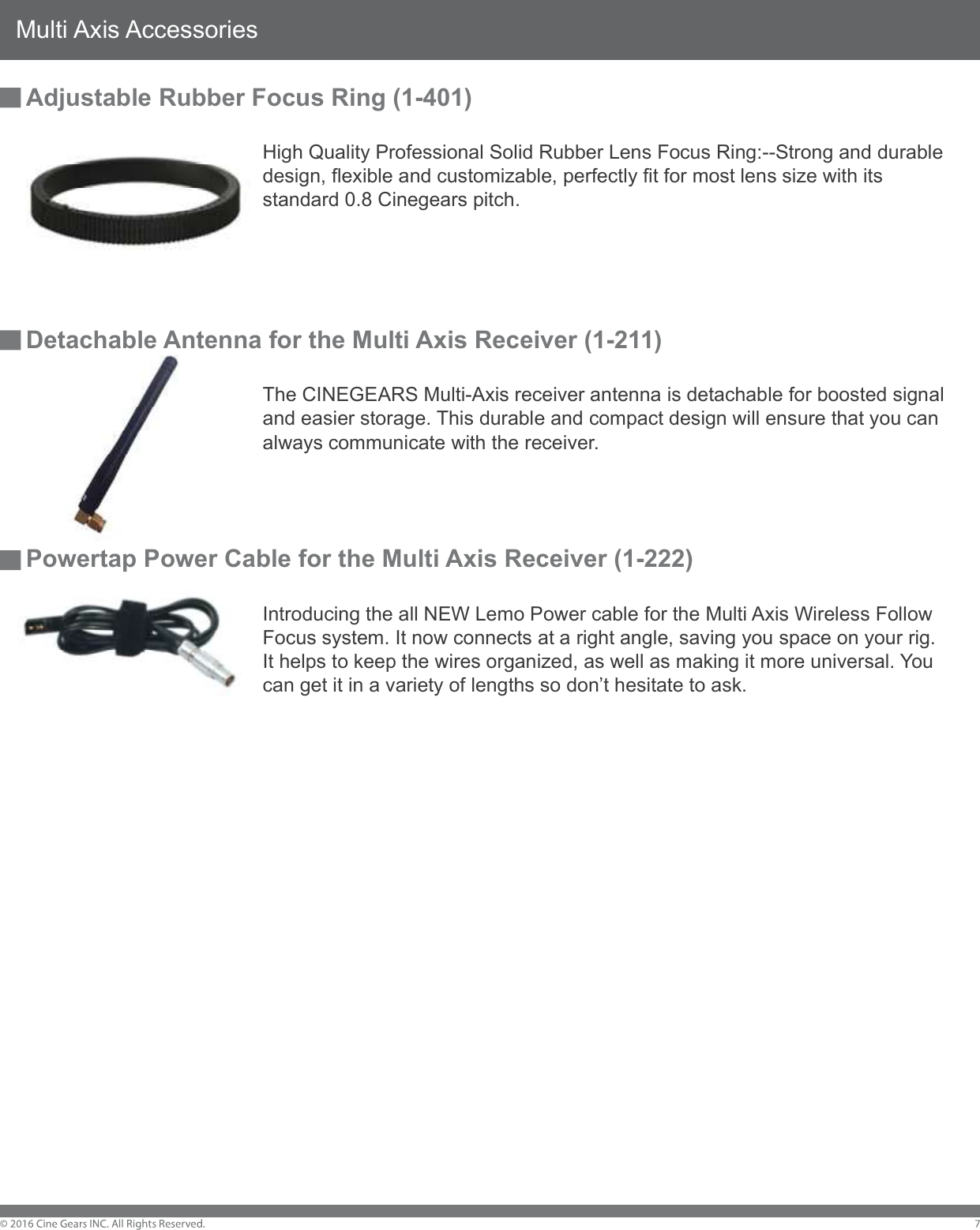

Multi Axis AccessoriesAdjustable Rubber Focus Ring (1-401) High Quality Professional Solid Rubber Lens Focus Ring:--Strong and durable design, flexible and customizable, perfectly fit for most lens size with its standard 0.8 Cinegears pitch. Detachable Antenna for the Multi Axis Receiver (1-211) The CINEGEARS Multi-Axis receiver antenna is detachable for boosted signal and easier storage. This durable and compact design will ensure that you can always communicate with the receiver.Powertap Power Cable for the Multi Axis Receiver (1-222) Introducing the all NEW Lemo Power cable for the Multi Axis Wireless Follow Focus system. It now connects at a right angle, saving you space on your rig. It helps to keep the wires organized, as well as making it more universal. You can get it in a variety of lengths so don’t hesitate to ask.

Remote Recording TriggersMulti Axis Remote Record Trigger: Sony/Canon (1-219) The versatile Cinegears Multi Axis Receiver Remote REC trigger cable (LANC) is compatible with Sony FS7/FS700, Black Magic Production Camera/4K Camera, Black Magic URSA, and Canon C100-C300. A built in LED light indicates recording status, and the black anodized aluminum casing ensures durability. Multi Axis Remote Record Trigger: RED Epic (1-521) CINEGEARS Multi Axis REC Trigger for RED Epic is designed for RED Epic cinema cameras. Effortlessly trigger your REC button with the Cinegears Multi Axis REC Trigger for RED Epic cameras; focus your mind, and hands, on other aspects of your shot. The trigger can be powered by D-Tap or USB cables, and can be used as a stand-alone REC trigger. This trigger works with any Cinegears Wireless Motors to add wireless remote REC start/stop control. Housed in sturdy aluminum alloy, durability won’t be a concern.Multi Axis Remote Record Trigger Cable for ARRI (1-218) The ARRI remote REC trigger cable for the CINEGEARS Multi Axis Motor provides a durable connection between the motor and the ARRI Camera. This REC trigger cable provides a reliable signal from the motor and the camera, with almost immediate synchronization.

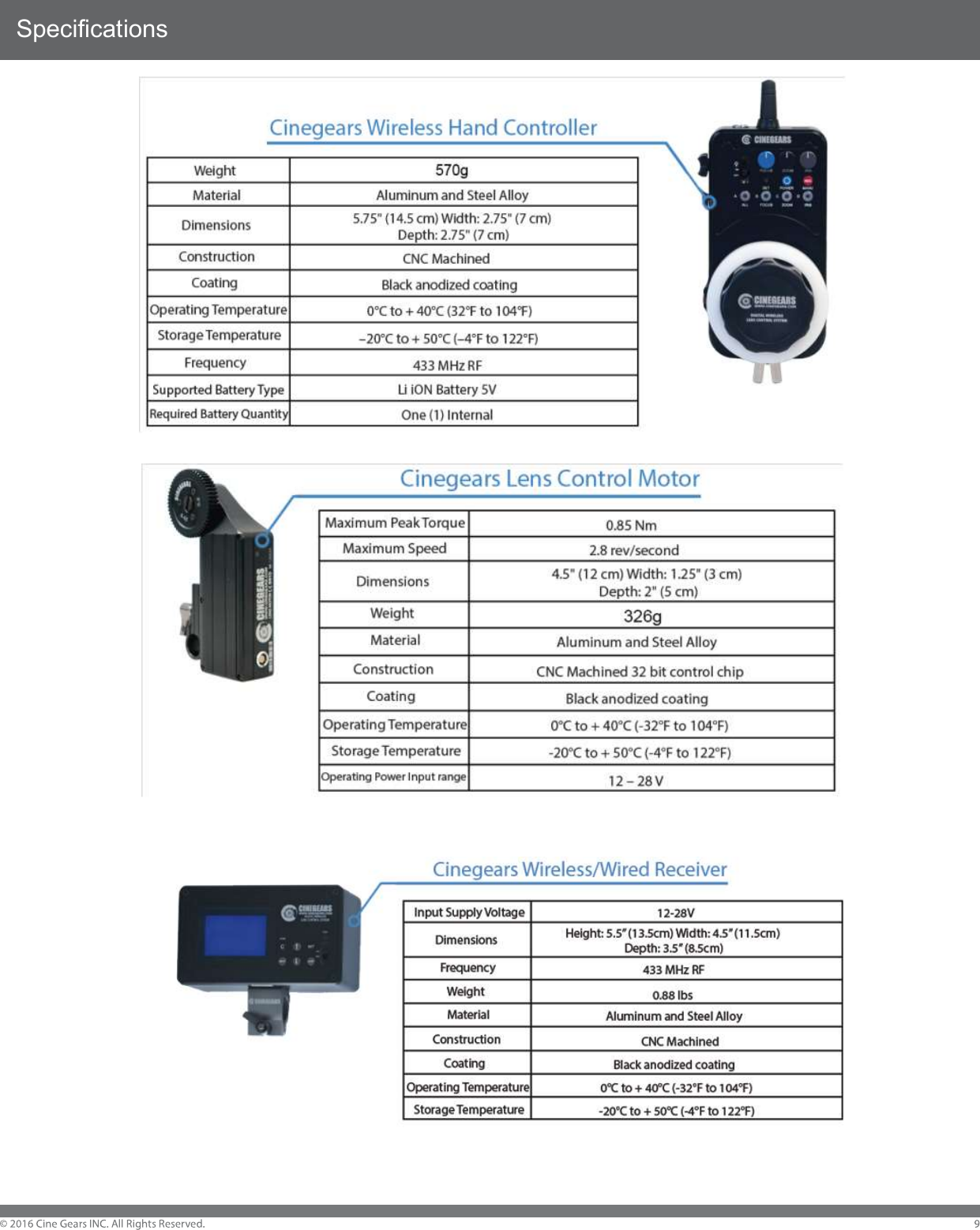

Specifications

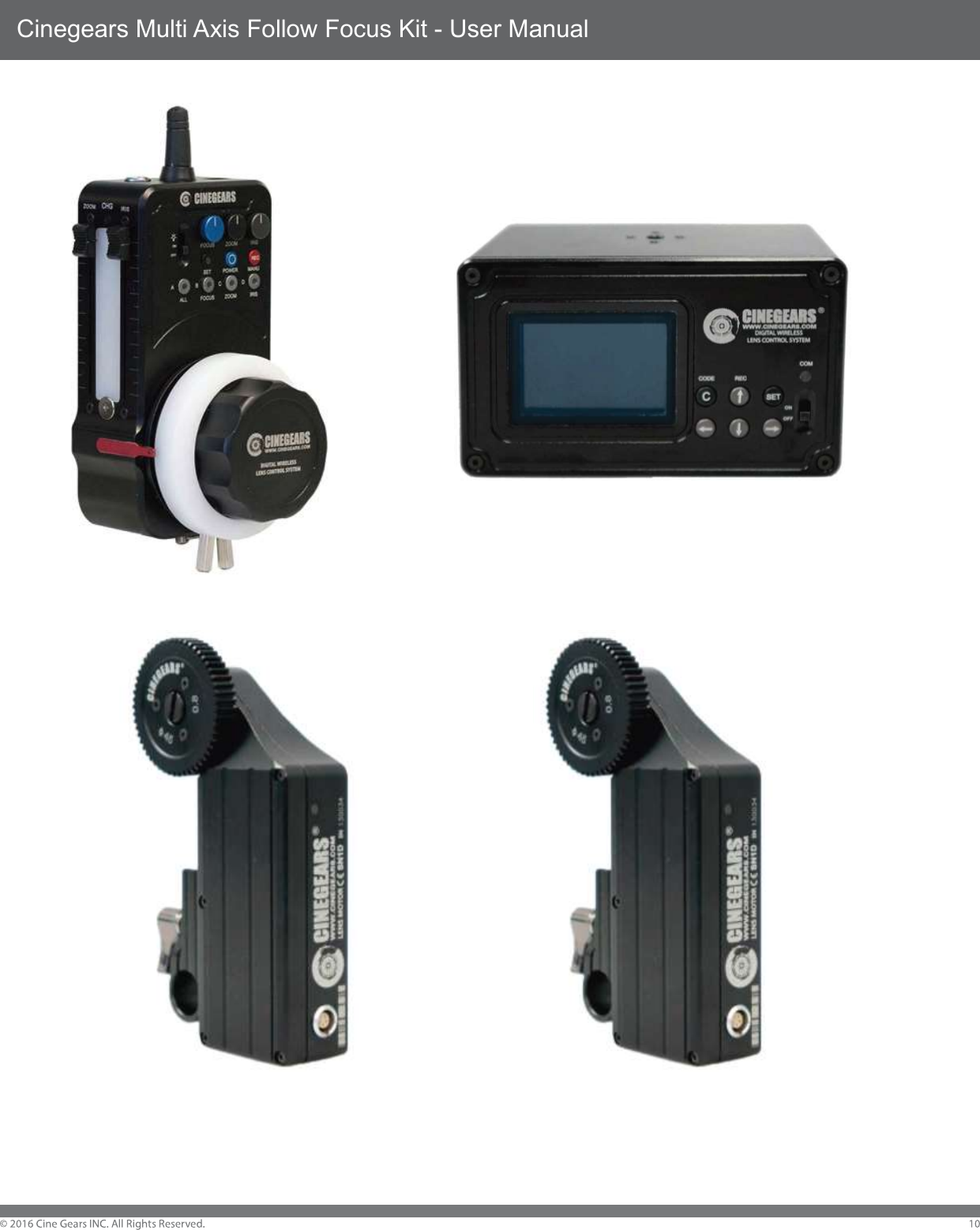

Cinegears Multi Axis Follow Focus Kit - User Manual

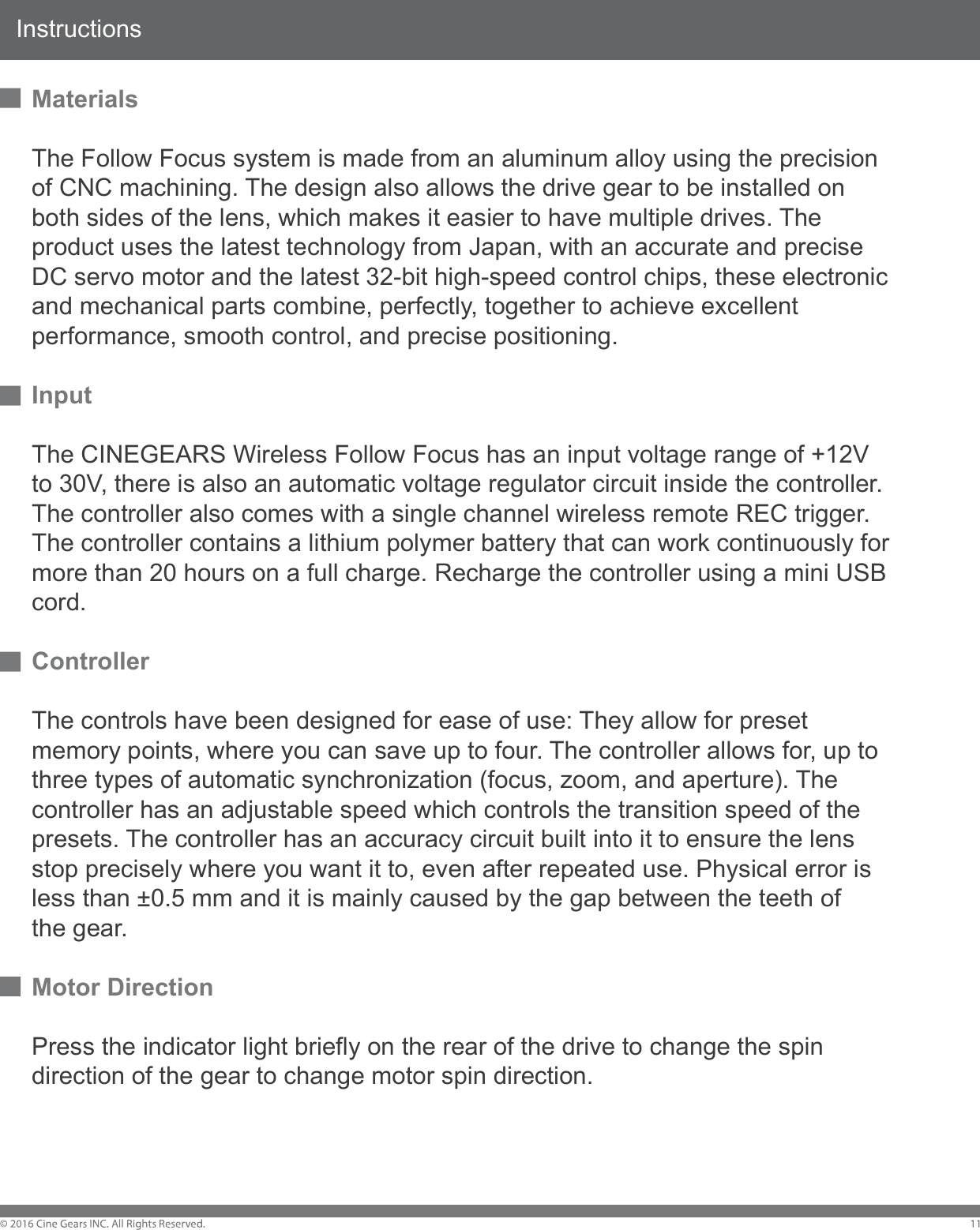

InstructionsMaterialsThe Follow Focus system is made from an aluminum alloy using the precision of CNC machining. The design also allows the drive gear to be installed on both sides of the lens, which makes it easier to have multiple drives. The product uses the latest technology from Japan, with an accurate and precise DC servo motor and the latest 32-bit high-speed control chips, these electronic and mechanical parts combine, perfectly, together to achieve excellent performance, smooth control, and precise positioning.InputThe CINEGEARS Wireless Follow Focus has an input voltage range of +12V to 30V, there is also an automatic voltage regulator circuit inside the controller. The controller also comes with a single channel wireless remote REC trigger. The controller contains a lithium polymer battery that can work continuously for more than 20 hours on a full charge. Recharge the controller using a mini USB cord. ControllerThe controls have been designed for ease of use: They allow for preset memory points, where you can save up to four. The controller allows for, up to three types of automatic synchronization (focus, zoom, and aperture). The controller has an adjustable speed which controls the transition speed of the presets. The controller has an accuracy circuit built into it to ensure the lens stop precisely where you want it to, even after repeated use. Physical error is less than ±0.5 mm and it is mainly caused by the gap between the teeth of the gear.Motor DirectionPress the indicator light briefly on the rear of the drive to change the spin direction of the gear to change motor spin direction.

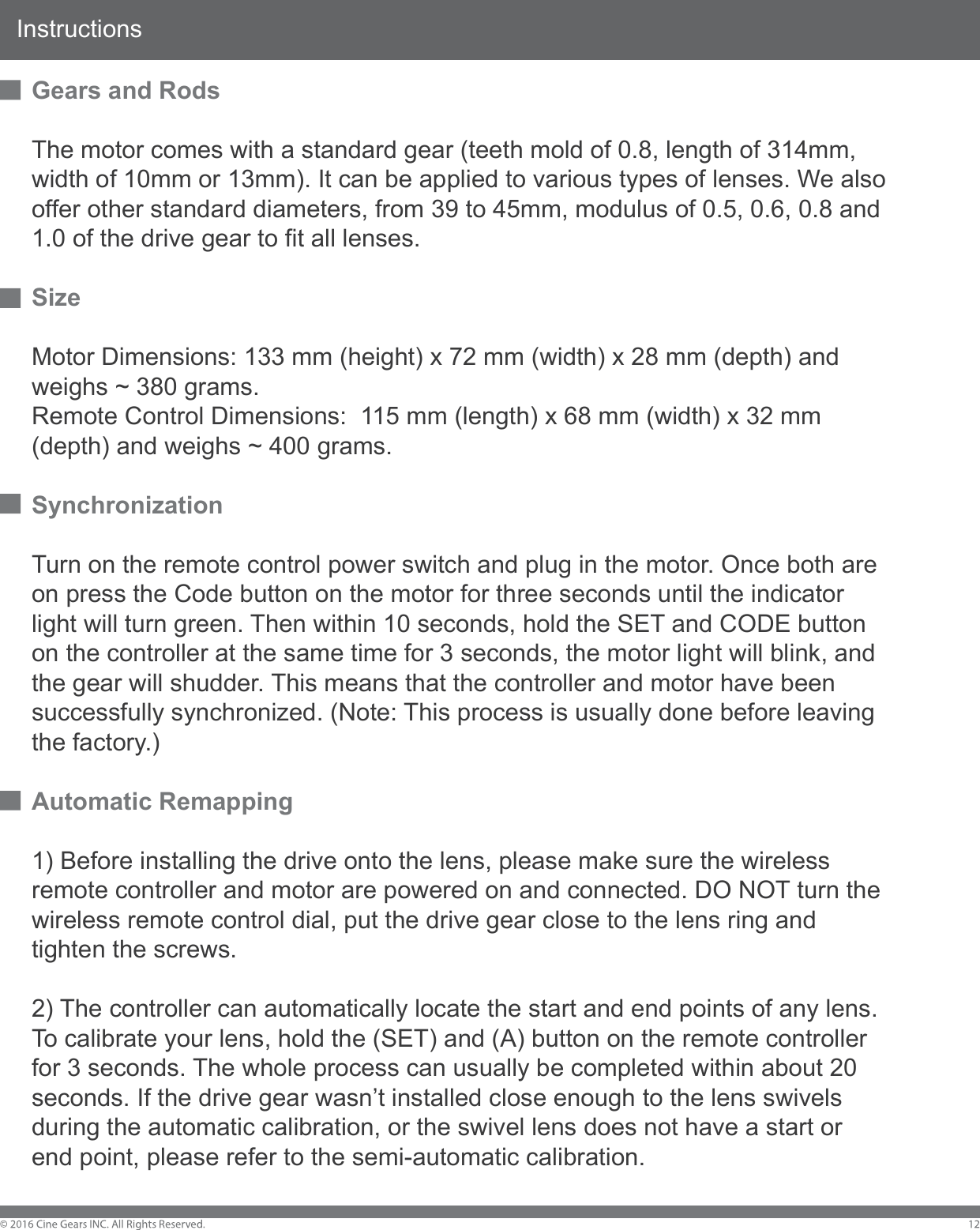

InstructionsGears and RodsThe motor comes with a standard gear (teeth mold of 0.8, length of 314mm, width of 10mm or 13mm). It can be applied to various types of lenses. We also offer other standard diameters, from 39 to 45mm, modulus of 0.5, 0.6, 0.8 and 1.0 of the drive gear to fit all lenses. SizeMotor Dimensions: 133 mm (height) x 72 mm (width) x 28 mm (depth) and weighs ~ 380 grams.Remote Control Dimensions: 115 mm (length) x 68 mm (width) x 32 mm (depth) and weighs ~ 400 grams.SynchronizationTurn on the remote control power switch and plug in the motor. Once both are on press the Code button on the motor for three seconds until the indicator light will turn green. Then within 10 seconds, hold the SET and CODE button on the controller at the same time for 3 seconds, the motor light will blink, and the gear will shudder. This means that the controller and motor have been successfully synchronized. (Note: This process is usually done before leaving the factory.)Automatic Remapping1) Before installing the drive onto the lens, please make sure the wireless remote controller and motor are powered on and connected. DO NOT turn the wireless remote control dial, put the drive gear close to the lens ring and tighten the screws. 2) The controller can automatically locate the start and end points of any lens. To calibrate your lens, hold the (SET) and (A) button on the remote controller for 3 seconds. The whole process can usually be completed within about 20 seconds. If the drive gear wasn’t installed close enough to the lens swivels during the automatic calibration, or the swivel lens does not have a start or end point, please refer to the semi-automatic calibration.

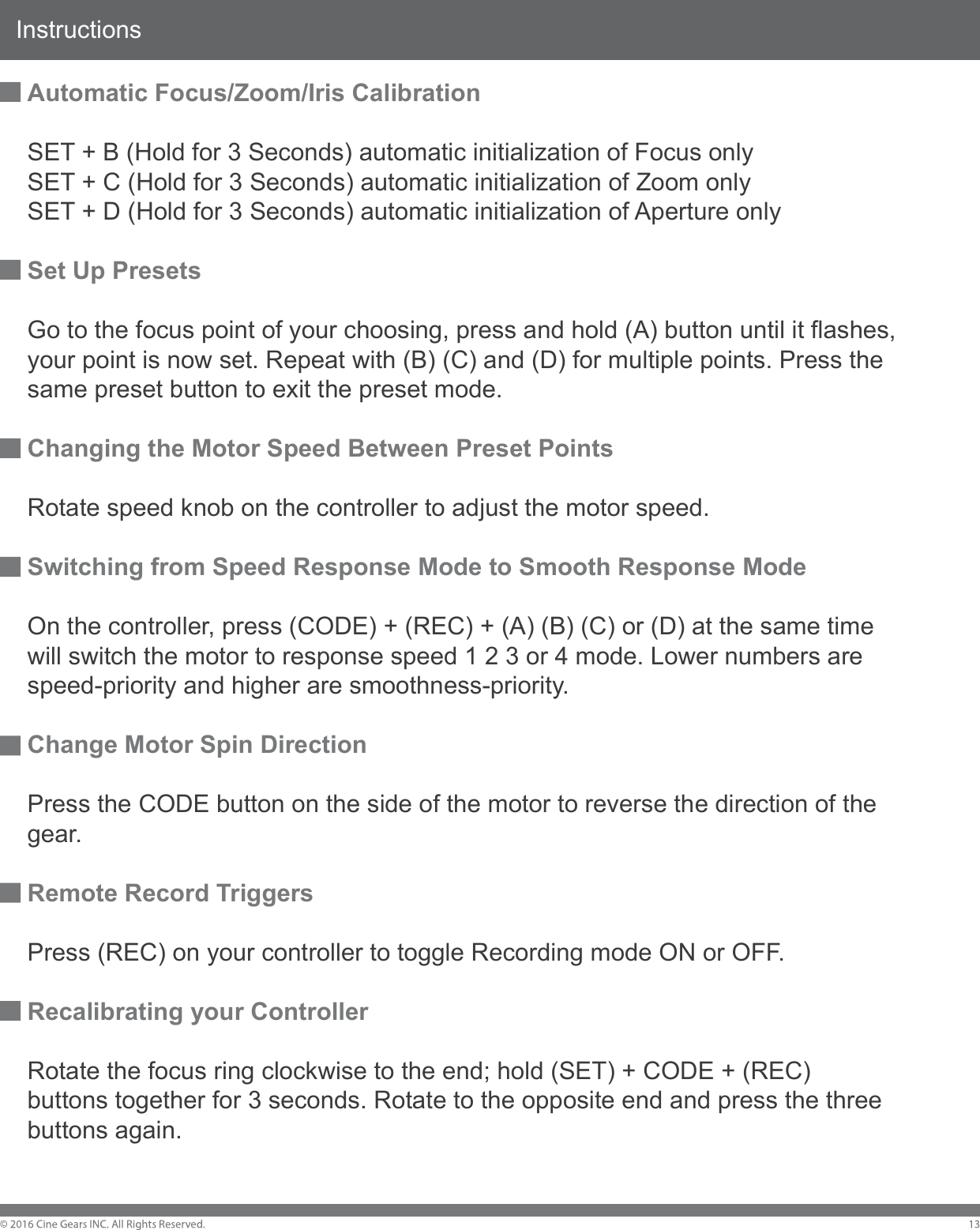

InstructionsAutomatic Focus/Zoom/Iris CalibrationSET + B (Hold for 3 Seconds) automatic initialization of Focus onlySET + C (Hold for 3 Seconds) automatic initialization of Zoom onlySET + D (Hold for 3 Seconds) automatic initialization of Aperture onlySet Up PresetsGo to the focus point of your choosing, press and hold (A) button until it flashes, your point is now set. Repeat with (B) (C) and (D) for multiple points. Press the same preset button to exit the preset mode. Changing the Motor Speed Between Preset PointsRotate speed knob on the controller to adjust the motor speed.Switching from Speed Response Mode to Smooth Response ModeOn the controller, press (CODE) + (REC) + (A) (B) (C) or (D) at the same time will switch the motor to response speed 1 2 3 or 4 mode. Lower numbers are speed-priority and higher are smoothness-priority.Change Motor Spin DirectionPress the CODE button on the side of the motor to reverse the direction of the gear.Remote Record TriggersPress (REC) on your controller to toggle Recording mode ON or OFF.Recalibrating your ControllerRotate the focus ring clockwise to the end; hold (SET) + CODE + (REC) buttons together for 3 seconds. Rotate to the opposite end and press the three buttons again.

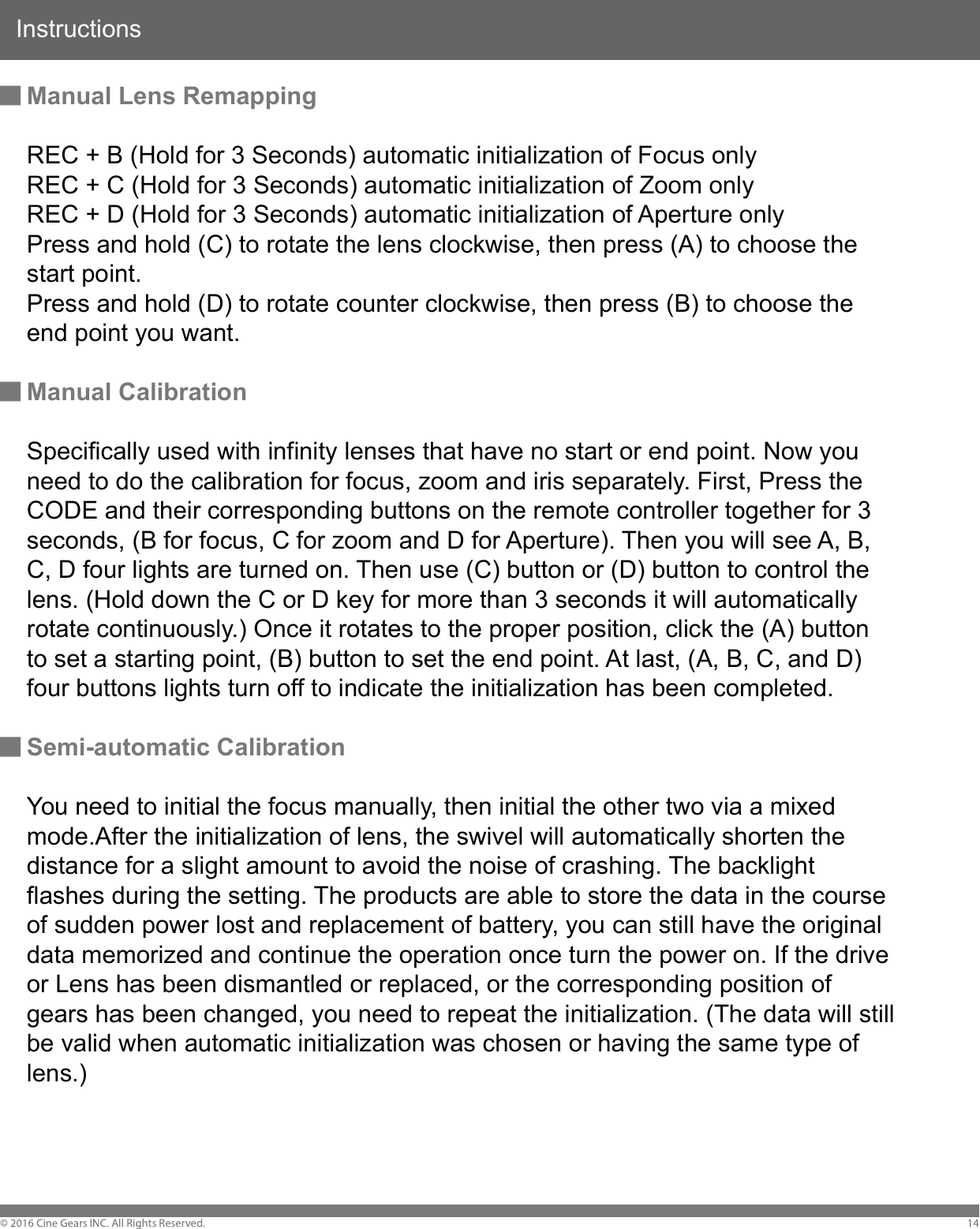

InstructionsManual Lens RemappingREC + B (Hold for 3 Seconds) automatic initialization of Focus onlyREC + C (Hold for 3 Seconds) automatic initialization of Zoom onlyREC + D (Hold for 3 Seconds) automatic initialization of Aperture onlyPress and hold (C) to rotate the lens clockwise, then press (A) to choose the start point. Press and hold (D) to rotate counter clockwise, then press (B) to choose the end point you want.Manual CalibrationSpecifically used with infinity lenses that have no start or end point. Now you need to do the calibration for focus, zoom and iris separately. First, Press the CODE and their corresponding buttons on the remote controller together for 3 seconds, (B for focus, C for zoom and D for Aperture). Then you will see A, B, C, D four lights are turned on. Then use (C) button or (D) button to control the lens. (Hold down the C or D key for more than 3 seconds it will automatically rotate continuously.) Once it rotates to the proper position, click the (A) button to set a starting point, (B) button to set the end point. At last, (A, B, C, and D) four buttons lights turn off to indicate the initialization has been completed.Semi-automatic CalibrationYou need to initial the focus manually, then initial the other two via a mixed mode.After the initialization of lens, the swivel will automatically shorten the distance for a slight amount to avoid the noise of crashing. The backlight flashes during the setting. The products are able to store the data in the course of sudden power lost and replacement of battery, you can still have the original data memorized and continue the operation once turn the power on. If the drive or Lens has been dismantled or replaced, or the corresponding position of gears has been changed, you need to repeat the initialization. (The data will still be valid when automatic initialization was chosen or having the same type of lens.)

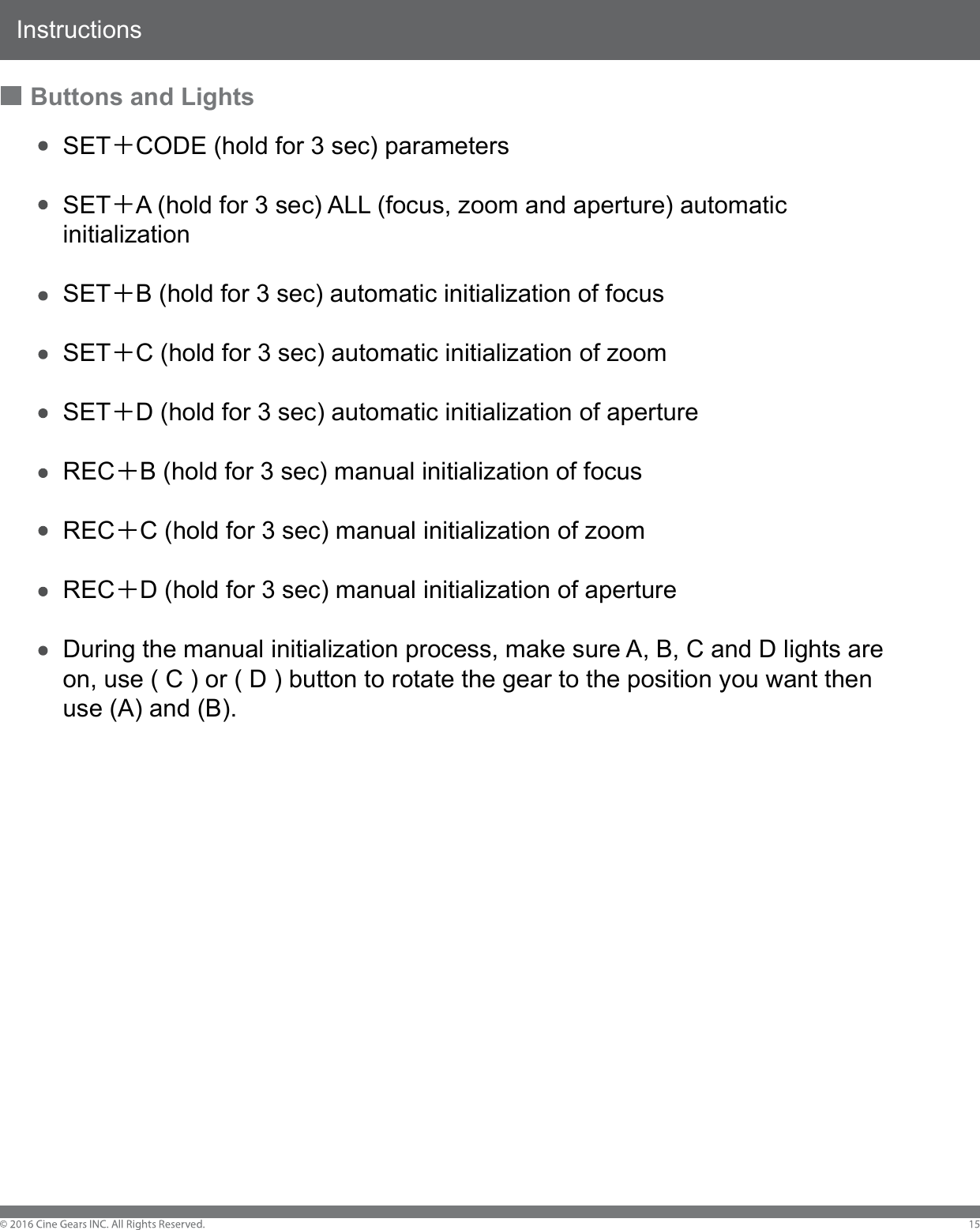

InstructionsButtons and LightsSET CODE (hold for 3 sec) parametersSET A (hold for 3 sec) ALL (focus, zoom and aperture) automatic initializationSET B (hold for 3 sec) automatic initialization of focusSET C (hold for 3 sec) automatic initialization of zoomSET D (hold for 3 sec) automatic initialization of apertureREC B (hold for 3 sec) manual initialization of focusREC C (hold for 3 sec) manual initialization of zoomREC D (hold for 3 sec) manual initialization of apertureDuring the manual initialization process, make sure A, B, C and D lights are on, use ( C ) or ( D ) button to rotate the gear to the position you want then use (A) and (B).

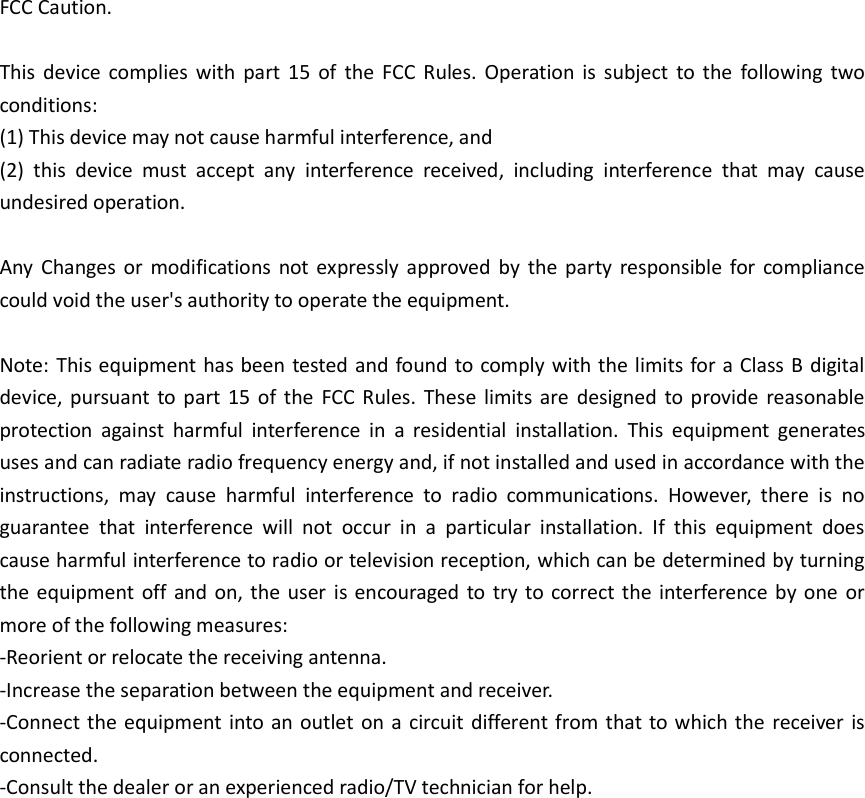

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
