Guangzhou Chiyuan Electronic N-6 Stick Radio Control User Manual N 6 2 4G

Guangzhou Chiyuan Electronic Co.,Ltd Stick Radio Control N 6 2 4G

Users Manual

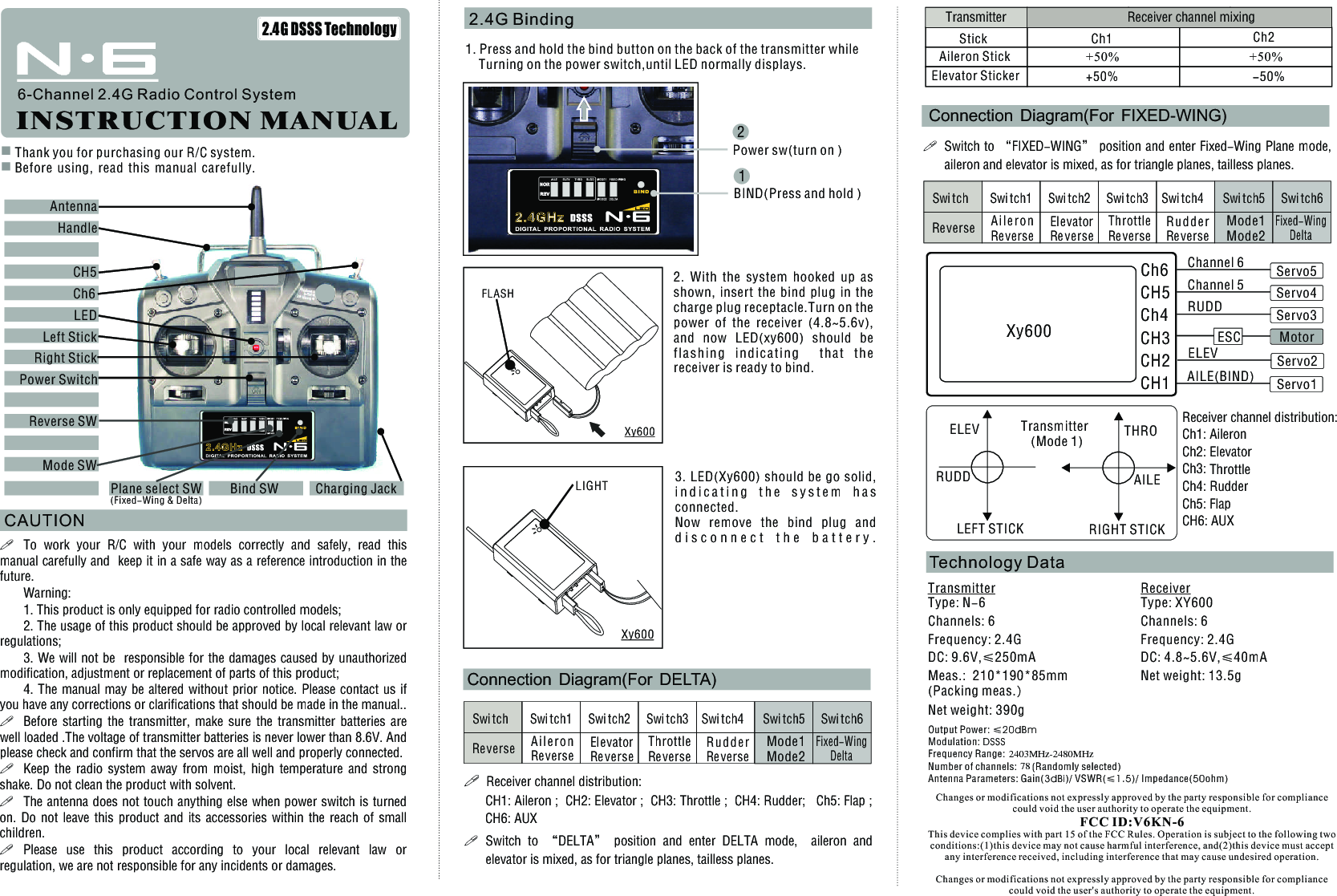

N-6INSTRUCTION MANUALCAUTION2.4G Binding!To work your R/C with your models correctly and safely, read this manual carefully and keep it in a safe way as a reference introduction in the future. Warning:1. This product is only equipped for radio controlled models;2. The usage of this product should be approved by local relevant law or regulations;3. We will not be responsible for the damages caused by unauthorized modification, adjustment or replacement of parts of this product;4. The manual may be altered without prior notice. Please contact us if you have any corrections or clarifications that should be made in the manual.. !Before starting the transmitter, make sure the transmitter batteries are well loaded .The voltage of transmitter batteries is never lower than 8.6V. And please check and confirm that the servos are all well and properly connected.!Keep the radio system away from moist, high temperature and strong shake. Do not clean the product with solvent. !The antenna does not touch anything else when power switch is turned on. Do not leave this product and its accessories within the reach of small children.!Please use this product according to your local relevant law or regulation, we are not responsible for any incidents or damages.Connection Diagram(For FIXED-WING)6-Channel 2.4G Radio Control System Power SwitchLeft Stick 2.4G DSSS Technology Right Stick Reverse SWThank you for purchasing our R/C system.Before using, read this manual carefully. Charging Jack1. Press and hold the bind button on the back of the transmitter while Turning on the power switch,until LED normally displays.3. LED(Xy600) should be go solid, i n d i c a t i n g t h e s y s t e m h a s connected. Now remove the bind plug and d i s c o n n e c t t h e b a t t e r y . LIGHTXy600FLASHXy6002. With the system hooked up as shown, insert the bind plug in the charge plug receptacle.Turn on the power of the receiver (4.8~5.6v), and now LED(xy600) should be fla s h i n g indica t i n g th a t t h e receiver is ready to bind.Receiver channel distribution:Ch1: Ch2: Ch3: Ch4: Ch5: FlapCH6: AUXAileronElevatorThrottleRudderRIGHT STICKLEFT STICKTransmitter (Mode 1) THROCh6CH5Ch4CH3CH2CH1Xy600Servo1MotorESCAILEAILE(BIND)TransmitterType: N-6Channels: 6Frequency: 2.4GDC: 9.6V,≤250mAMeas.: 210*190*85mm(Packing meas.）Net weight: 390g Technology DataReceiverType: XY600Channels: 6Frequency: 2.4GDC: 4.8~5.6V,≤40mANet weight: 13.5g ELEVRUDDServo2ELEVServo3RUDD! Receiver channel distribution: CH1: Aileron ; CH2: Elevator ; CH3: Throttle ; CH4: Rudder; Ch5: Flap ; CH6: AUXStick Aileron StickTransmitterCh1 Ch2Receiver channel mixingElevator Sticker+50%+50%+50% -50%Swi tch Swi tch1 Swi tch2 Swi tch3 Swi tch4 Swi tch5 Swi tch6Reverse Ai l e ro nReverseElevator Re verseThrottle ReverseRu d d e r ReverseMode1Mode2Connection Diagram(For DELTA)!Switch to “DELTA” position and enter DELTA mode, aileron and elevator is mixed, as for triangle planes, tailless planes.AntennaHandleLEDBIND(Press and hold )Power sw(turn on )12Bind SWPlane select SW(Fixed-Wing & Delta)Mode SWCH5Ch6 Servo4Channel 5Servo5Channel 6Fixed-WingDeltaSwi tch Swi tch1 Swi tch2 Swi tch3 Swi tch4 Swi tch5 Swi tch6Reverse Ai l e ro nReverseElevator Re verseThrottle ReverseRu d d e r ReverseMode1Mode2!Switch to “FIXED-WING” position and enter Fixed-Wing Plane mode, aileron and elevator is mixed, as for triangle planes, tailless planes.Fixed-WingDeltaOutput Power: ≤20dBmModulation: DSSSFrequency Range:Number of channels: (Randomly selected)Antenna Parameters: Gain(3dBi)/ VSWR(≤1.5)/ Impedance(50ohm)Changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.FCC ID:V6KN-6This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and(2)this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2403MHz-2480MHz78
