Guilin Zhishen Information Technology ZYYH Digital Camera Stabilizer User Manual

Guilin Zhishen Information Technology Co.,Ltd. Digital Camera Stabilizer Users Manual

Contents

User Manual

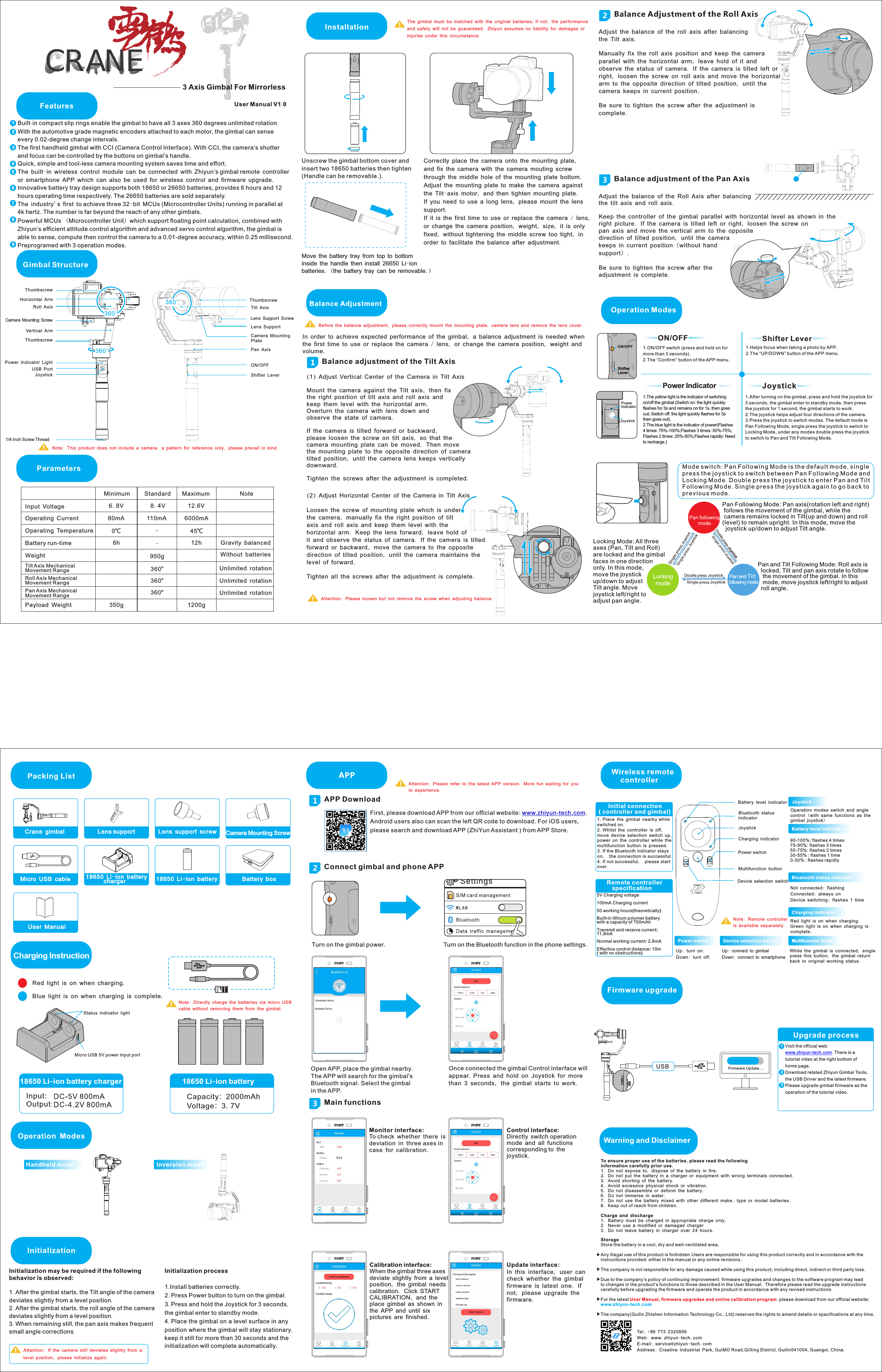

CRANE3 Axis Gimbal For Mirrorless User Manual V1.0Gimbal StructureInstallation Balance AdjustmentUnscrew the gimbal bottom cover and insert two 18650 batteries then tighten (Handle can be removable.).Correctly place the camera onto the mounting plate, and fix the camera with the camera mouting screwthrough the middle hole of the mounting plate bottom. Adjust the mounting plate to make the camera against the Tilt-axis motor, and then tighten mounting plate. If you need to use a long lens, please mount the lens support.If it is the first time to use or replace the camera / lens, or change the camera position, weight, size, it is only fixed, without tightening the middle screw too tight, in order to facilitate the balance after adjustment.Roll Axis Tilt Axis Camera Mounting Screw Camera Mounting Plate Pan Axis ON/OFFPower Indicator LightUSB Port Joystick Lens SupportThumbscrew Lens Support Screw 1/4 Inch Screw ThreadThe gimbal must be matched with the original batteries; if not, the performance and safety will not be guaranteed. Zhiyun assumes no liability for damages or injuries under this circumstance.Before the balance adjustment, please correctly mount the mounting plate, camera lens and remove the lens cover . In order to achieve expected performance of the gimbal, a balance adjustment is needed when the first time to use or replace the camera / lens, or change the camera position, weight and volume. 1Balance adjustment of the Tilt AxisNote：This product does not include a camera, a pattern for reference only, please prevail in kind. Move the battery tray from top to bottom inside the handle then install 26650 Li-ion batteries. (the battery tray can be removable.)Mount the camera against the Tilt axis, then fix the right position of tilt axis and roll axis and keep them level with the horizontal arm. Overturn the camera with lens down and observe the state of camera. If the camera is tilted forward or backward, please loosen the screw on tilt axis, so that the camera mounting plate can be moved. Then move the mounting plate to the opposite direction of camera tilted position, until the camera lens keeps vertically downward.Tighten the screws after the adjustment is completed.（1）Adjust Vertical Center of the Camera in Tilt Axis（2）Adjust Horizontal Center of the Camera in Tilt AxisLoosen the screw of mounting plate which is under the camera, manually fix the right position of tilt axis and roll axis and keep them level with the horizontal arm. Keep the lens forward, leave hold of it and observe the status of camera. If the camera is tilted forward or backward, move the camera to the opposite direction of tilted position, until the camera maintains the level of forward. Tighten all the screws after the adjustment is complete. 2Balance Adjustment of the Roll AxisAdjust the balance of the roll axis after balancing the Tilt axis. Manually fix the roll axis position and keep the camera parallel with the horizontal arm, leave hold of it and observe the status of camera. If the camera is tilted left orright, loosen the screw on roll axis and move the horizontal arm to the opposite direction of tilted position, until the camera keeps in current position. Be sure to tighten the screw after the adjustment is complete. Attention: Please loosen but not remove the screw when adjusting balance. 3Balance adjustment of the Pan AxisAdjust the balance of the Roll Axis after balancing the tilt axis and roll axis. Keep the controller of the gimbal parallel with horizontal level as shown in the right picture. If the camera is tilted left or right, loosen the screw on pan axis and move the vertical arm to the opposite direction of tilted position, until the camera keeps in current position（without hand support）. Be sure to tighten the screw after the adjustment is complete. Vertical Arm Horizontal Arm 360°360°360°Input VoltageOperating CurrentOperating TemperatureBattery run-timeWeightTilt Axis Mechanical Movement RangeMinimum Standard Maximum Note6.8V 8.4V 12.6V80mA 110mA 6000mA0℃45℃-6h -12h Gravity balancedWithout batteriesUnlimited rotation950g360°360°360°ParametersPayload Weight 350g 1200gShifter Lever ON/OFF1.ON/OFF switch (press and hold on for more than 3 seconds). 2.The “Confirm” button of the APP menu.1.Helps focus when taking a photo by APP.2.The “UP/DOWN” button of the APP menu. 1.After turning on the gimbal, press and hold the joystick for 3 seconds, the gimbal enter to standby mode, then press the joystick for 1 second, the gimbal starts to work.2.The joystick helps adjust four directions of the camera. 3.Press the joystick to switch modes. The default mode is Pan Following Mode, single press the joystick to switch to Locking Mode, under any modes double press the joystick to switch to Pan and Tilt Following Mode. Pan Following Mode: Pan axis(rotation left and right) follows the movement of the gimbal, while the camera remains locked in Tilt(up and down) and roll(level) to remain upright. In this mode, move the joystick up/down to adjust Tilt angle. Locking Mode: All three axes (Pan, Tilt and Roll)are locked and the gimbal faces in one direction only. In this mode, move the joystick up/down to adjust Tilt angle. Move joystick left/right to adjust pan angle. ON/OFFJoystick Joystick Joystick JoystickPan and Tilt Following Mode: Roll axis is locked, Tilt and pan axis rotate to follow the movement of the gimbal. In this mode, move joystick left/right to adjust roll angle.Mo d e sw i tc h : Pan F o ll o wi n g Mo d e is t h e de f au l t mo d e, s i n g l e pr e ss t h e jo y st i ck t o s wi t ch between Pa n F ol l ow i ng M o d e a n d Lo c ki n g Mode. Dou b le p r es s t he j o ys t ic k t o en t er P a n and Ti l t Fo l lo w in g M od e . Sin g le p r es s t he j o ys t ic k again t o go b a ck t o pr e vi o us mode. Shifter LeverPower Indicator 1.The yellow light is the indicator of switching on/off the gimbal (Switch on: the light quickly flashes for 3s and remains on for 1s, then goes out; Switch off: the light quickly flashes for 3s then goes out). 2.The blue light is the indicator of power(Flashes 4 times: 75%-100%;Flashes 3 times: 50%-75%;Flashes 2 times: 25%-50%;Flashes rapidly: Need to recharge.) Shifter Lever Built-incompactslipringsenable the gimbal to haveall3 axes360degreesunlimitedrotation.With the automotive grade magnetic encoders attached to each motor, the gimbal can sense every 0.02-degree change intervals.The first handheld gimbal with CCI (Camera Control Interface). With CCI, the camera’s shutter and focus can be controlled by the buttons on gimbal’s handle.Quick, simple and tool-less camera mounting system saves time and effort.The built-in wireless control module can be connected with Zhiyun’s gimbal remote controller or smartphone APP which can also be used for wireless control and firmware upgrade.Innovative battery tray design supports both 18650 or 26650 batteries, provides 6 hours and 12 hours operating time respectively. The 26650 batteries are sold separately. The industry's first to achieve three 32-bit MCUs (Microcontroller Units) running in parallel at 4k hertz. The number is far beyond the reach of any other gimbals.Powerful MCUs （MicrocontrollerUnit）which support floating point calculation, combined with Zhiyun’s efficient attitude control algorithm and advanced servo control algorithm, the gimbal is able to sense, compute then control the camera to a 0.01-degree accuracy, within 0.25 millisecond.Preprogramed with 3 operation modes.Features123456789ThumbscrewThumbscrewRoll Axis Mechanical Movement RangePan Axis Mechanical Movement RangeUnlimited rotationUnlimited rotationOperation Modes Power Indicator Joystick Joystick Joystick Joystick Joystick Joystick Joystick Joystick Joystick Wireless remote controllerCharging InstructionStatus indicator lightMicro USB 5V power input portRed light is on when charging.Blue light is on when charging is complete.18650 Li-ion battery chargerCapacity：2000mAhVoltage：3.7VInitialization Note: Directly charge the batteries via micro USB cable without removing them from the gimbal. Firmware upgradeUSB Firmware Update....Upgrade processVisit the official web: . There is a www.zhiyun-tech.comtutorial video at the right bottom of home page.Download related Zhiyun Gimbal Tools, the USB Driver and the latest firmware.Please upgrade gimbal firmware as the operation of the tutorial video.1Battery level indicatorBluetooth status indicatorJoystickCharging indicatorPower switchMultifunction buttonDevice selection switchNote: Remote controller is available separately.Operation modes switch and angle control (with same functions as the gimbal joystick)90-100%: flashes 4 times75-90%: flashes 3 times55-75%: flashes 2 times30-55% : flashes 1 time0-30% : flashes rapidlyNot connected: flashingConnected: always onDevice switching: flashes 1 timeRed light is on when charging.Green light is on when charging is complete.JoystickBattery level indicatorBluetooth status indicatorCharging indicatorUp: turn on.Down: turn off.Power switchWhile the gimbal is connected, single press this button, the gimbal return back to original working status.Multifunction buttonUp: connect to gimbalDown: connect to smartphoneDevice selection switch1.Place the gimbal nearby while switched on.2.Whilst the controller is off, move device selection switch up, power on the controller while the multifunction button is pressed.3.If the Bluetooth indicator stays on, the connection is successful.4.If not successful, please start over. Initial connection( controller and gimbal)APPWarning and DisclaimerTel：+86 773 2320856Web：www.zhiyun-tech.comE-mail：service@zhiyun-tech.comAddress：Creative Industrial Park,GuiMO Road,QiXing District, Guilin541004, Guangxi, China.Attention：If the camera still deviates slightly from a level position, please initialize again.Operation ModesHandheld mode Inversion mode1APP DownloadFirst, please download APP from our official website: . www.zhiyun-tech.comAndroid users also can scan the left QR code to download. For iOS users, please search and download APP (ZhiYun Assistant ) from APP Store.2Connect gimbal and phone APPTurn on the gimbal power. Turn on the Bluetooth function in the phone settings.PONYPONYOpen APP, place the gimbal nearby. The APP will search for the gimbal's Bluetooth signal. Select the gimbal in the APP. PONYOnce connected the gimbal Control interface will appear. Press and hold on Joystick for more than 3 seconds, the gimbal starts to work.3Main functionsPONY PONYMonitor interface:To check whether there is deviation in three axes in case for calibration. Control interface:Directly switch operation mode and all functionscorresponding to the joystick. Calibration interface:When the gimbal three axes deviate slightly from a level position, the gimbal needs calibration. Click START CALIBRATION, and the place gimbal as shown in the APP and until six pictures are finished. Update interface:In this interface, user can check whether the gimbal firmware is latest one. If not, please upgrade the firmware.Attention: Please refer to the latest APP version. More fun waiting for you to experience.Packing ListCrane gimbal Lens support Lens support screw Camera Mounting ScrewMicro USB cable 18650 Li-ion battery charger 18650 Li-ion battery Battery boxUser ManualInput:Output:18650 Li-ion battery Initializationmayberequiredifthefollowingbehaviorisobserved:1.Afterthegimbalstarts,theTiltangleofthecameradeviatesslightlyfromalevelposition.2.Afterthegimbalstarts,therollangleofthecameradeviatesslightlyfromalevelposition.3.Whenremainingstill,thepanaxismakesfrequentsmallanglecorrections.Initialization process1.Install batteries correctly.2.PressPowerbuttontoturnonthegimbal.3.PressandholdtheJoystickfor3seconds,thegimbalentertostandbymode.4.Place the gimbal on a level surface in any position where the gimbal will stay stationary,keep it still for more than 30 seconds and the initialization will complete automatically.5V Charging voltage100mA Charging current50 working hours(theoretically)Built-in lithium polymer battery with a capacity of 150mAhTransmit and receive current: 11.9mANormal working current: 2.8mAEffective control distance: 10m( with no obstructions)Remote controller specification 23To ensure proper use of the batteries, please read the following information carefully prior use. 1 Do not expose to dispose of the battery in fire. , .. .2 Do not put the battery in a charger or equipment with wrong terminals connected. .3 Avoid shorting of the battery. .4 Avoid excessive physical shock or vibration. .5 Do not disassemble or deform the battery. .6 Do not immerse in water. , .7 Do not use the battery mixed with other different make type or model batteries.8 Keep out of reach from children. Charge and discharge. .1 Battery must be charged in appropriate charge only. 2 Never use a modified or damaged charger3 Do not leave battery in charger over 24 hours. .StorageStore the battery in a cool, dry and well-ventilated area.Any illegal use of this product is forbidden.Users are responsible for using this product correctly and in accordance with the instructions provided: either in the manual or any online revisions.The company is not responsible for any damage caused while using this product; including direct, indirect or third party loss.Due to the company’s policy of continuing improvement: firmware upgrades and changes to the software program may leadto changes in the product’s functions to those described in the User Manual. Therefore please read the upgrade instructions carefully before upgrading the firmware and operate the product in accordance with any revised instructions.For the latest : please download from our official website:User Manual, firmware upgrades and online calibration programwww.zhiyun-tech.comThe company(Guilin Zhishen Information Technology Co., Ltd) reserves the rights to amend details or specifications at any time.PONY

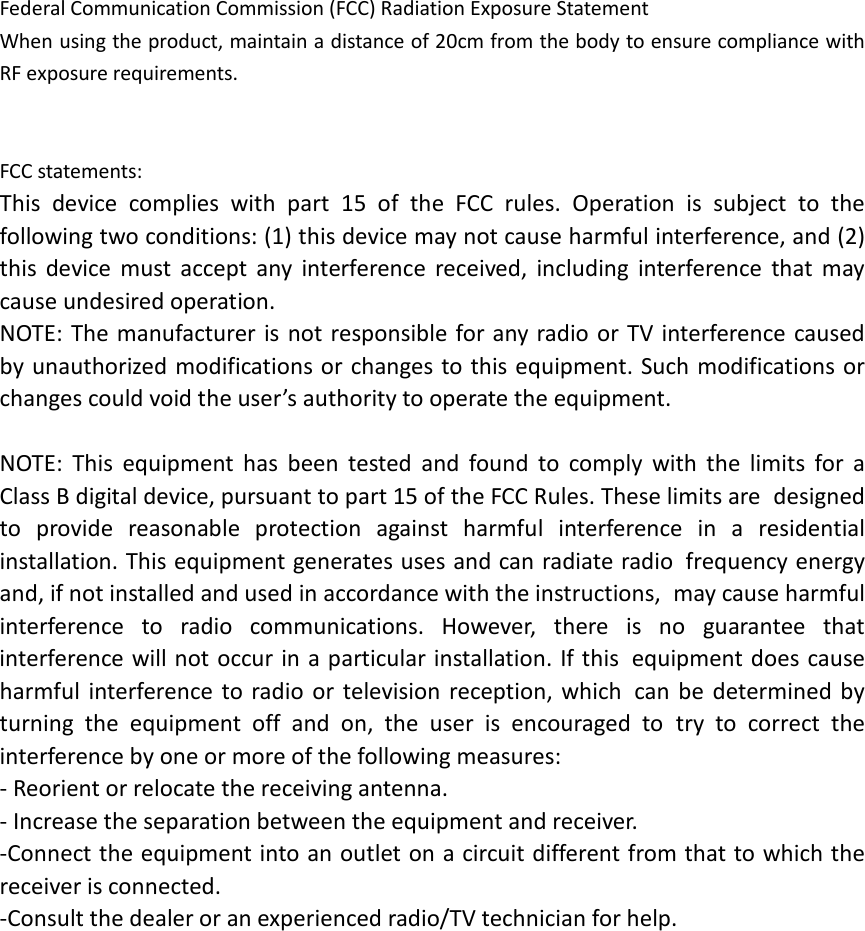

Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help.
