HIT orporated HBM004 Bluetooth Headset User Manual

HIT Incorporated Bluetooth Headset

User Manual

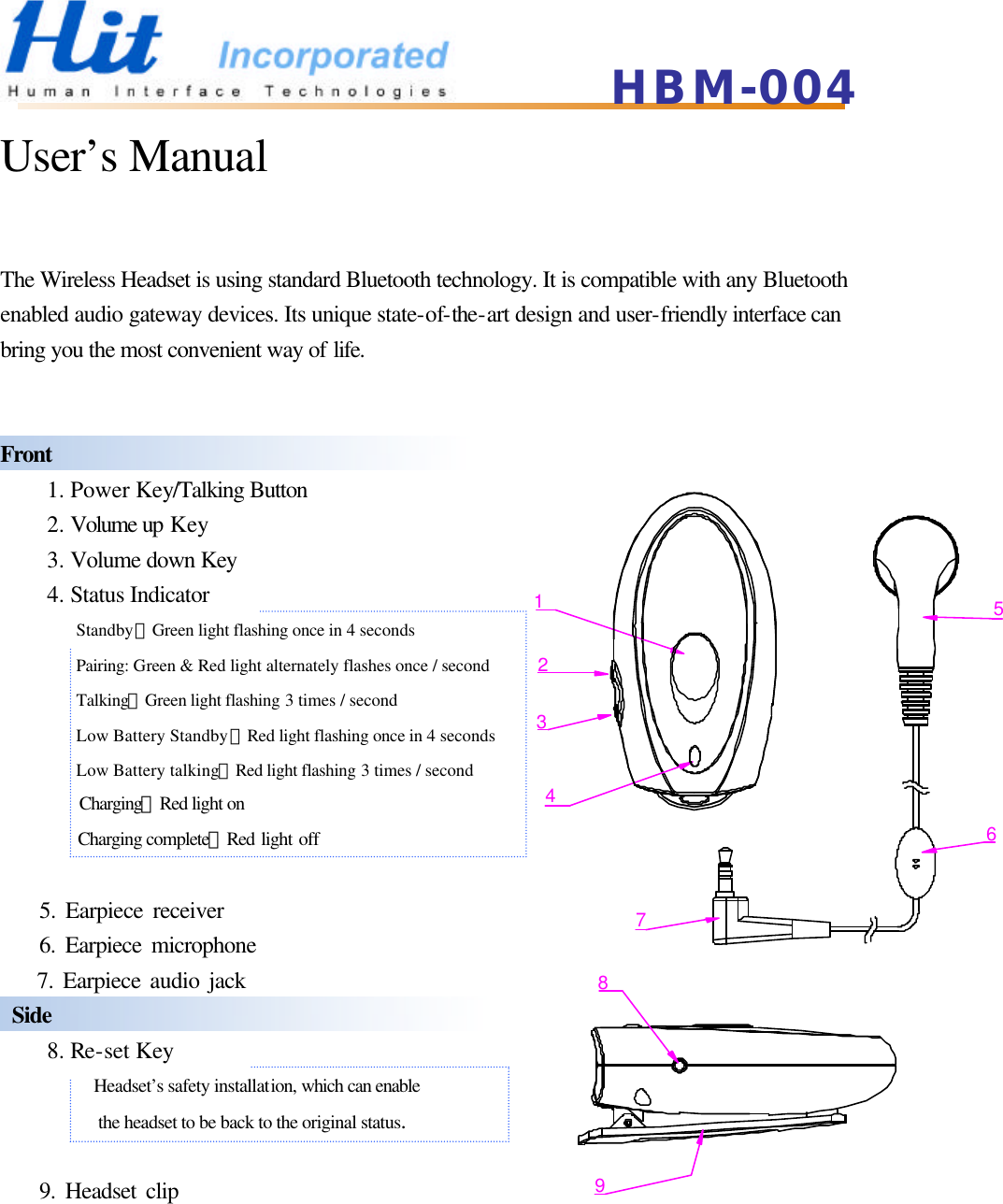

HBM-004 User’s Manual The Wireless Headset is using standard Bluetooth technology. It is compatible with any Bluetooth enabled audio gateway devices. Its unique state-of-the-art design and user-friendly interface can bring you the most convenient way of life. Front 1. Power Key/Talking Button 2. Volume up Key 3. Volume down Key 4. Status Indicator Standby：Green light flashing once in 4 seconds Pairing: Green & Red light alternately flashes once / second Talking：Green light flashing 3 times / second Low Battery Standby：Red light flashing once in 4 seconds Low Battery talking：Red light flashing 3 times / second Charging：Red light on Charging complete：Red light off 5. Earpiece receiver 6. Earpiece microphone 7. Earpiece audio jack Side 8. Re-set Key Headset’s safety installation, which can enable the headset to be back to the original status. 9. Headset clip 432156789

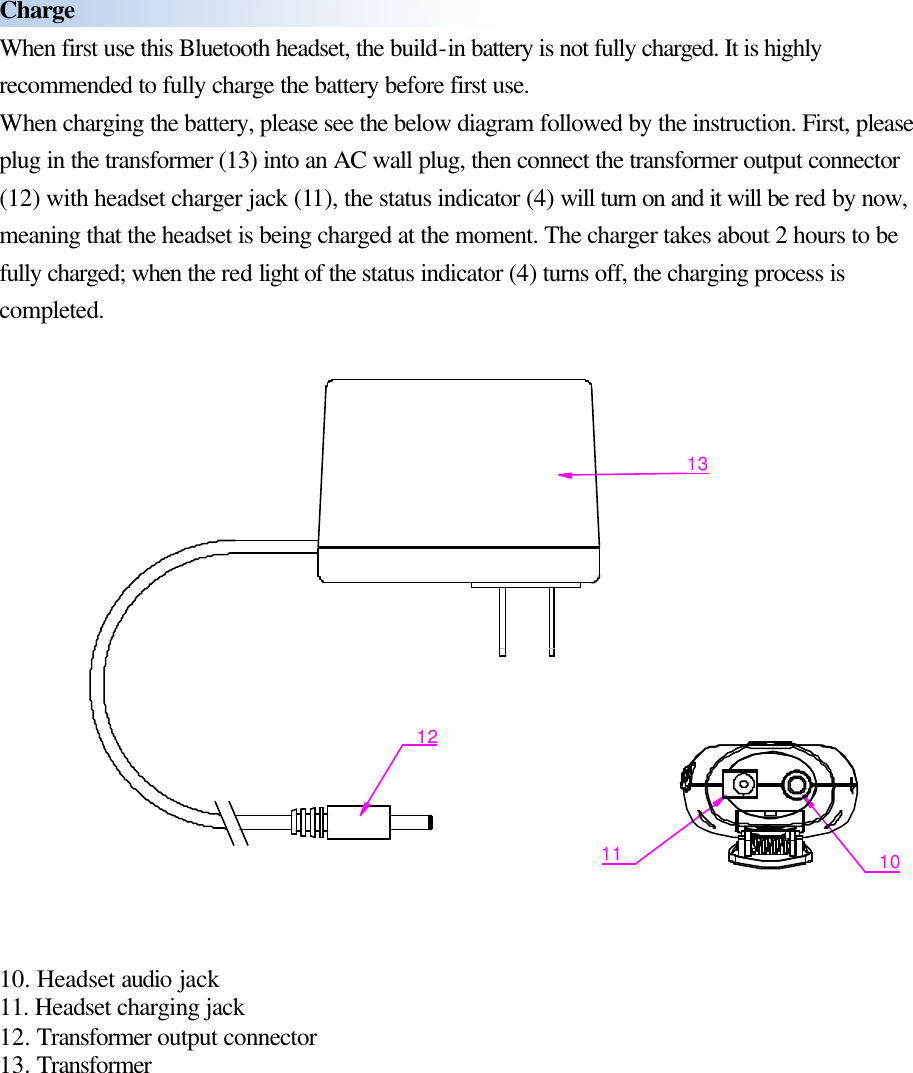

Charge When first use this Bluetooth headset, the build-in battery is not fully charged. It is highly recommended to fully charge the battery before first use. When charging the battery, please see the below diagram followed by the instruction. First, please plug in the transformer (13) into an AC wall plug, then connect the transformer output connector (12) with headset charger jack (11), the status indicator (4) will turn on and it will be red by now, meaning that the headset is being charged at the moment. The charger takes about 2 hours to be fully charged; when the red light of the status indicator (4) turns off, the charging process is completed. 11 101213 10. Headset audio jack 11. Headset charging jack 12. Transformer output connector 13. Transformer
Pairing Instruction When first use this Bluetooth headset, please go through the pairing process with a Bluetooth supported mobile phone. The pairing process only needs to go through once when first use. Headset： 1. With the headset turned off (the headset status indicator light is switched off). 2. Press & hold the power key for over 10 seconds (you can hear beeper tones from earpiece receiver at the 5th seconds), the green & red light will be flashing alternately once/second, meaning that the headset is already in pairing process. Mobile phone： When pairing with Bluetooth supported mobile phone, different brands may have different pairing instructions, please read the user manual carefully before start. The following operation instructions are based on Nokia 8910 &Ericsson T68： Nokia 8910 Scroll to Menu- Bluetooth - On The screen will show “Bluetooth switched on” Choose “Search for audio accessories” When the screen shows”HBM-004”, press Select Enter passcode: press 0000, then press OK When the screen shows “connected to HBM-004” & the headset status indicator changes to green light flashing once in 4 seconds from the green & red light flashing alternately once/ second, meaning that the pairing process succeeds. Press “ˇ”key on mobile phone to enter “View paired devices” press Select Press ”HBM-004” Options, Press “ˇ”key to enter “Request conn. Authorization” press Select, Select No The screen will show “No author. Required” Press Back､Exit return to Main Screen Attention：1. For power saving consideration, the headset will disconnect mobile phone after pairing completing 15 seconds without pressing mobile phone any keys. And mobile phone screen will show “Disconnected: HBM-004” at the same time. 2. If pairing process fails, please go through the process again. Finish the pairing process within 2 minutes if possible.
Sony Ericsson T68 Scroll to Menu, Connect – Bluetooth – Discover When the screen shows HBM-004 press YES Add to paired，press YES A headset is already paired with the phone. Replaced? Press YES Passkey：Press 0000，and then press YES Pairing succeeded，Name tag Press NO Add device，Press NO Operation mode can be set to On or Automatic However, if you wish to use the voice control function, you will need to set the Operation mode to On. Attention：If pairing process fails, please go through the process again. Finish the pairing process within 2 minutes if possible. Turn the headset on Press and hold Power Key over 5 seconds, you can hear beeper tones from earpiece receiver also the headset status indicator light flashes green. If the battery is low, the light flashes red. Turn the headset off Press and hold Power Key over 5 seconds, you can hear beeper tones from earpiece receiver also the headset status indicator light is switched off. Answering When the headset is on, the green light will be flashing once in 4 seconds, meaning that the headset is on standby mode. When call comes in, please press the talking button to answer the call. To hang up, press the same button or operate from the phone. ※Outgoing call Nokia 8910 Let headset establish connection with mobile phone at first: press headset talking button one time, you will hear beeper tone from headset & mobile phone screen will show ”Connected to HBM-004” Then directly dial numbers from mobile phone, the call will transfer automatically from the phone to headset. Attention: Please complete to dial numbers within 15 seconds after establishing connection between headset

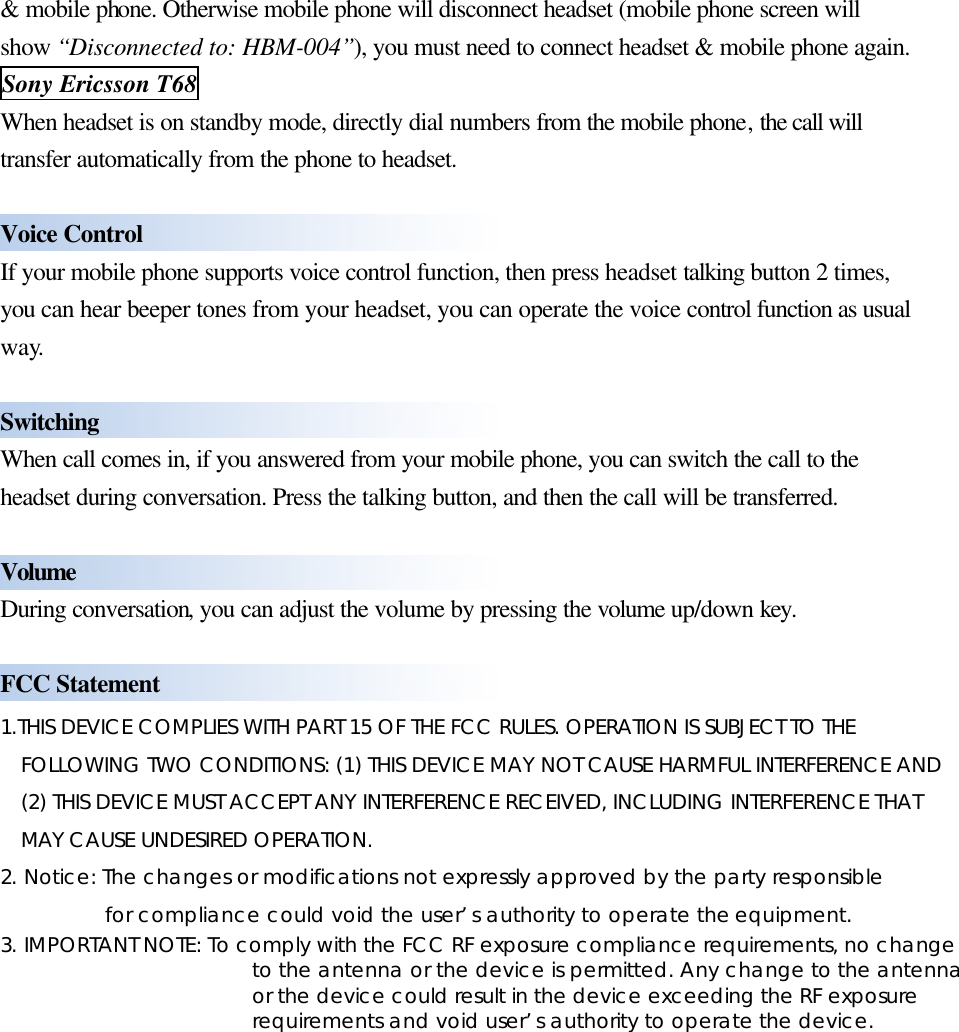

& mobile phone. Otherwise mobile phone will disconnect headset (mobile phone screen will show “Disconnected to: HBM-004”), you must need to connect headset & mobile phone again. Sony Ericsson T68 When headset is on standby mode, directly dial numbers from the mobile phone, the call will transfer automatically from the phone to headset. Voice Control If your mobile phone supports voice control function, then press headset talking button 2 times, you can hear beeper tones from your headset, you can operate the voice control function as usual way. Switching When call comes in, if you answered from your mobile phone, you can switch the call to the headset during conversation. Press the talking button, and then the call will be transferred. Volume During conversation, you can adjust the volume by pressing the volume up/down key. FCC Statement 1.THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 2. Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
