HK MGCOOL DIGITAL TECHNOLOGY MGCOOLBAND4 Continuous HR Monitoring Fitness Tracker User Manual B4 1020

HK MGCOOL DIGITAL TECHNOLOGY CO.,LIMITED Continuous HR Monitoring Fitness Tracker B4 1020

User Manual

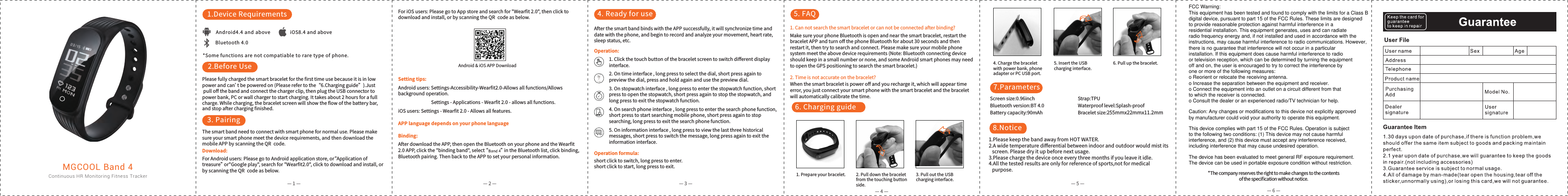

iOS8.4 and aboveAndroid4.4 and aboveBluetooth 4.0*Some functions are not compatiable to rare type of phone.1.Device Requirements2.Before Use3. Pairing4. Ready for use 5. FAQ6. Charging guideMGCOOL Band 4Continuous HR Monitoring Fitness TrackerAndroid & iOS APP DownloadPlease fully charged the smart bracelet for the first time use because it is in low power and can’t be powered on (Please refer to the“6.Charging guide”).Just pull off the band and connect the charger clip, then plug the USB connector topower bank, PC or wall charger to start charging. It takes about 2 hours for a fullcharge. While charging, the bracelet screen will show the flow of the battery bar,and stop after charging finished.The smart band need to connect with smart phone for normal use. Please make sure your smart phone meet the device requirements, and then download the mobile APP by scanning the QR code.7.Parameters8.NoticeScreen size:0.96inchBluetooth version:BT 4.0Battery capacity:90mAh Bracelet size:255mmx22mmx11.2mm1.Please keep the band away from HOT WATER.2.A wide temperature differential between indoor and outdoor would mist its screen. Please dry it up before next usage.3.Please charge the device once every three months if you leave it idle.4.All the tested results are only for reference of sports,not for medical purpose. *The company reserves the right to make changes to the contentsof the specification without notice.Strap:TPUWaterproof level:Splash-proofAfter the smart band binds with the APP successfully, it will synchronize time and date with the phone, and begin to record and analyze your movement, heart rate, sleep status, etc.1. Click the touch button of the bracelet screen to switch different display interface.2. On time interface , long press to select the dial, short press again to preview the dial, press and hold again and use the preview dial.3. On stopwatch interface , long press to enter the stopwatch function, short press to open the stopwatch, short press again to stop the stopwatch, and long press to exit the stopwatch function.4. On search phone interface , long press to enter the search phone function, short press to start searching mobile phone, short press again to stop searching, long press to exit the search phone function.5. On information interface , long press to view the last three historical messages, short press to switch the message, long press again to exit the information interface. 1. Can not search the smart bracelet or can not be connected after binding?Make sure your phone Bluetooth is open and near the smart bracelet, restart the bracelet APP and turn off the phone Bluetooth for about 30 seconds and then restart it, then try to search and connect. Please make sure your mobile phone system meet the above device requirements (Note: Bluetooth connecting device should keep in a small number or none, and some Android smart phones may need to open the GPS positioning to search the smart bracelet.)Download: fo noitacilppA“ro ,erots noitacilppa diordnA ot og esaelP :sresu diordnA roFtreasure” or"Google play", search for "Wearfit2.0", click to download and install, or by scanning the QR code as below.— 1 — — 2 — — 3 —— 4 —— 5 —— 6 —Setting tips:Android users: Settings-Accessibility-Wearfit2.0-Allows all functions/Allows background operation. Settings - Applications - Wearfit 2.0 - allows all functions.iOS users: Settings - Wearfit 2.0 - Allows all features.Binding:After download the APP, then open the Bluetooth on your phone and the Wearfit ,gnidnib kcilc ,tsil htooteulB eht ni ”“ tceles ,"dnab gnidnib" eht kcilc ,PPA 0.2Bluetooth pairing. Then back to the APP to set your personal information. Operation formula:short click to switch, long press to enter.short click to start, long press to exit.APP language depends on your phone languageOperation: 2. Time is not accurate on the bracelet?When the smart bracelet is power off and you recharge it, which will appear time error, you just connect your smart phone with the smart bracelet and the bracelet will automatically calibrate the time.1. Prepare your bracelet. 2. Pull down the braceletfrom the touching buttonside.3. Pull out the USBcharging interface.4. Charge the braceletwith power bank, phoneadapter or PC USB port. 5. Insert the USBcharging interface.6. Pull up the bracelet.For iOS users: Please go to App store and search for "Wearfit 2.0", then click to download and install, or by scanning the QR code as below.FCC Warning:This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radioor television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference byone or more of the following measures:o Reorient or relocate the receiving antenna.o Increase the separation between the equipment and receiver.o Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected.o Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications to this device not explicitly approvedby manufacturer could void your authority to operate this equipment.This device complies with part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) This device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation.The device has been evaluated to meet general RF exposure requirement.The device can be used in portable exposure condition without restriction.
