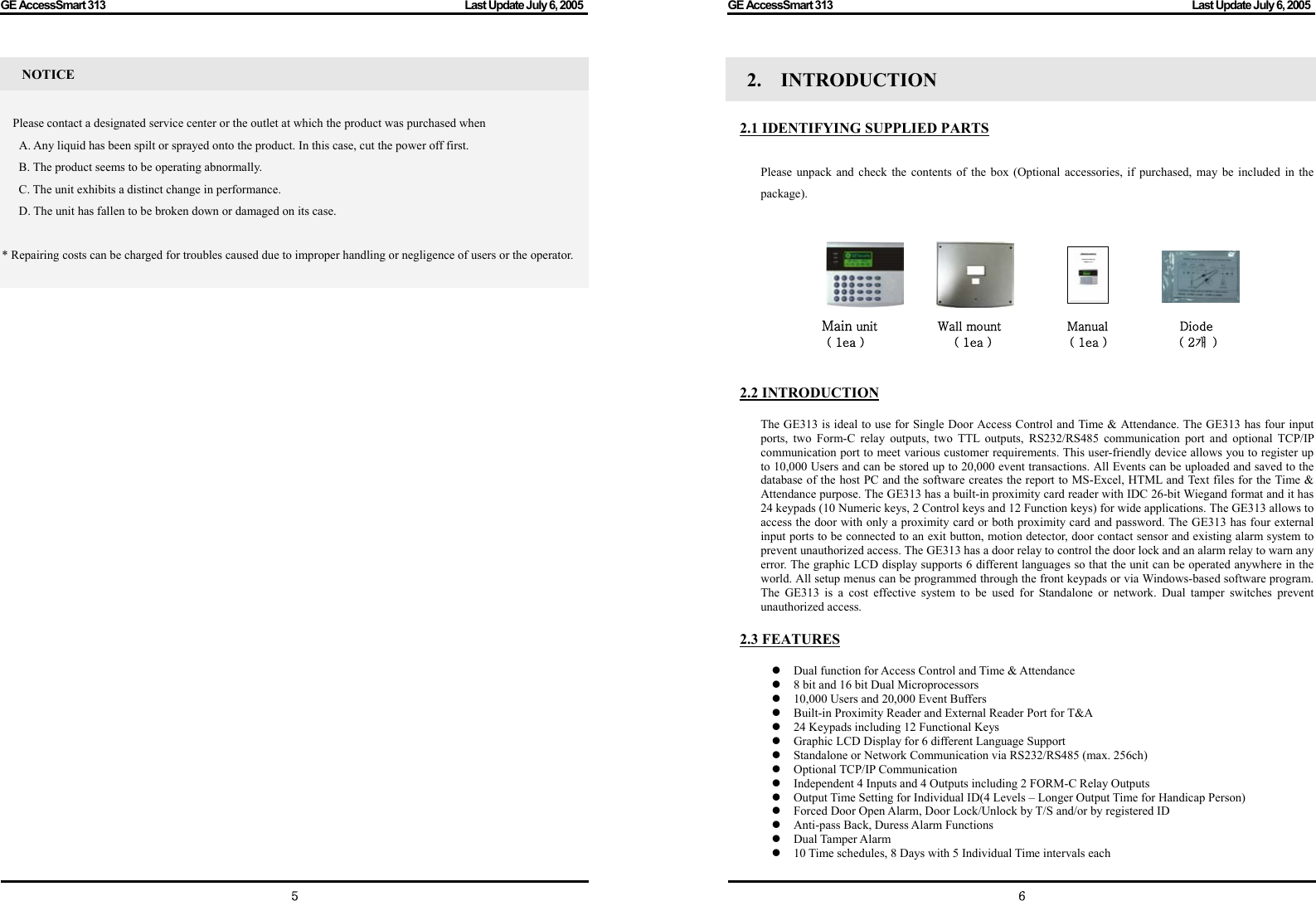

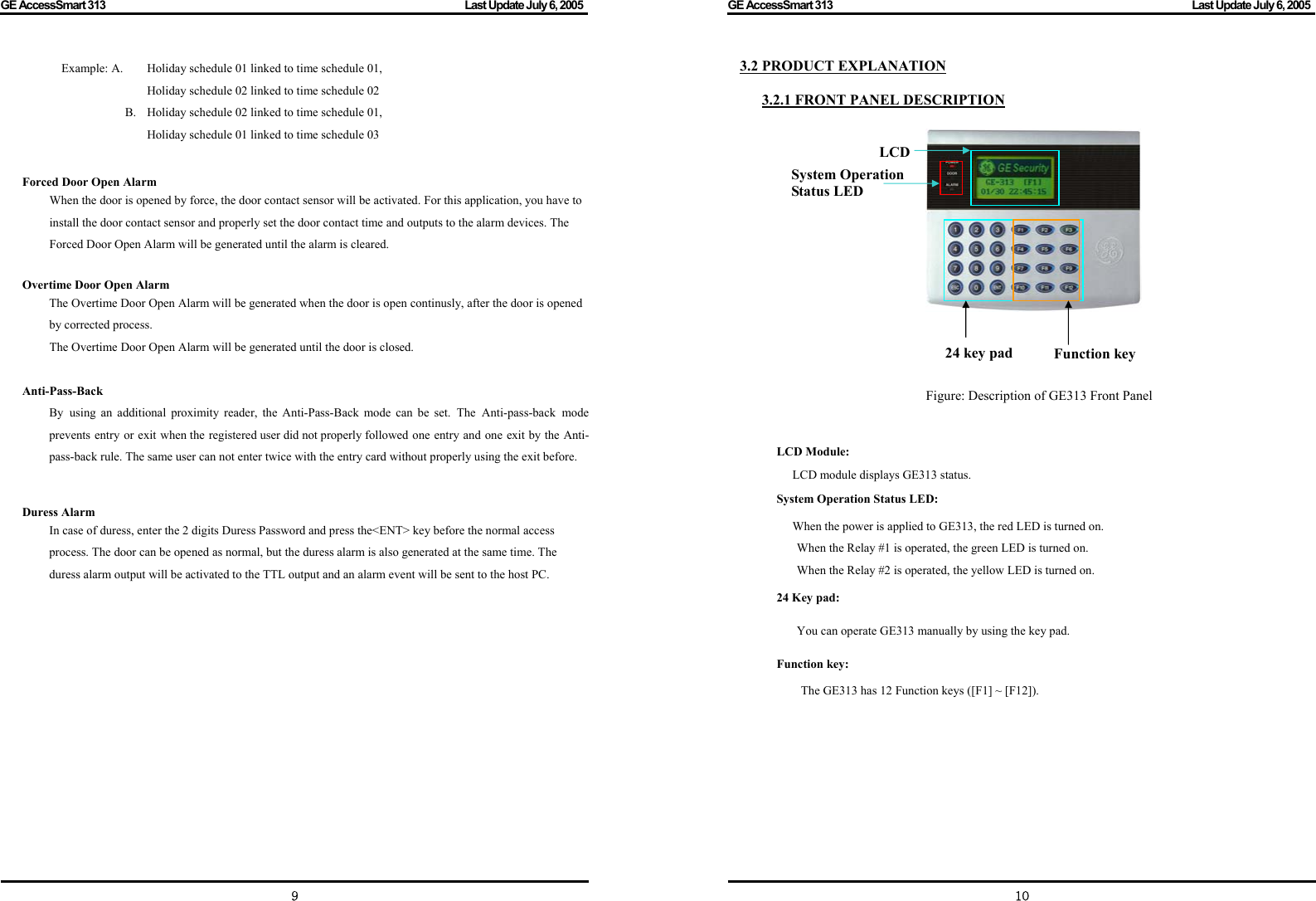

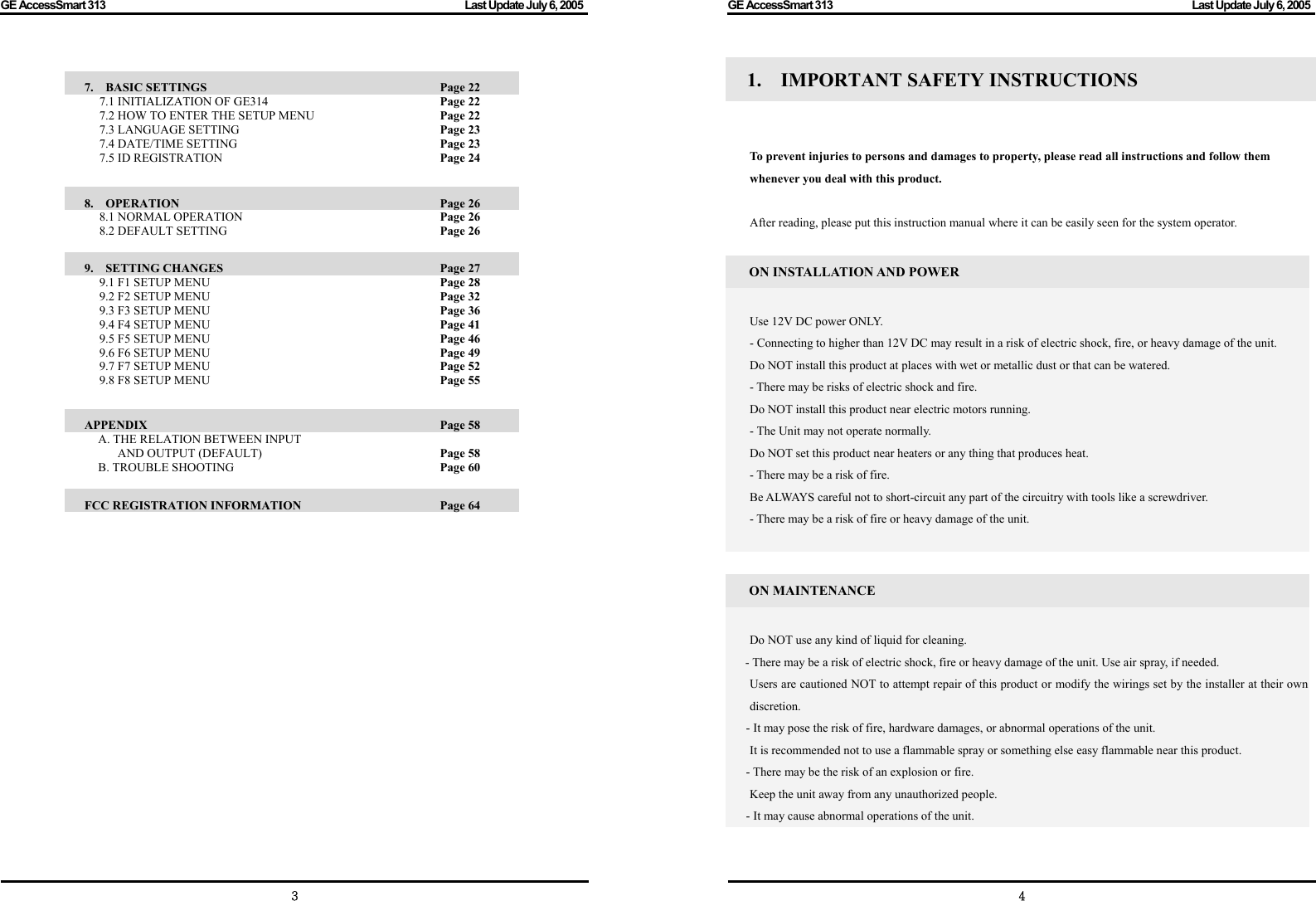

![GE AccessSmart 313 Last Update July 6, 2005 9 Example: A. Holiday schedule 01 linked to time schedule 01, Holiday schedule 02 linked to time schedule 02 B. Holiday schedule 02 linked to time schedule 01, Holiday schedule 01 linked to time schedule 03 Forced Door Open Alarm When the door is opened by force, the door contact sensor will be activated. For this application, you have to install the door contact sensor and properly set the door contact time and outputs to the alarm devices. The Forced Door Open Alarm will be generated until the alarm is cleared. Overtime Door Open Alarm The Overtime Door Open Alarm will be generated when the door is open continusly, after the door is opened by corrected process. The Overtime Door Open Alarm will be generated until the door is closed. Anti-Pass-Back By using an additional proximity reader, the Anti-Pass-Back mode can be set. The Anti-pass-back mode prevents entry or exit when the registered user did not properly followed one entry and one exit by the Anti-pass-back rule. The same user can not enter twice with the entry card without properly using the exit before. Duress Alarm In case of duress, enter the 2 digits Duress Password and press the<ENT> key before the normal access process. The door can be opened as normal, but the duress alarm is also generated at the same time. The duress alarm output will be activated to the TTL output and an alarm event will be sent to the host PC. GE AccessSmart 313 Last Update July 6, 2005 103.2 PRODUCT EXPLANATION 3.2.1 FRONT PANEL DESCRIPTION Figure: Description of GE313 Front Panel LCD Module: LCD module displays GE313 status. System Operation Status LED: When the power is applied to GE313, the red LED is turned on. When the Relay #1 is operated, the green LED is turned on. When the Relay #2 is operated, the yellow LED is turned on. 24 Key pad: You can operate GE313 manually by using the key pad. Function key: The GE313 has 12 Function keys ([F1] ~ [F12]). 24 key pad Function key LCD System Operation Status LED](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-5.png)

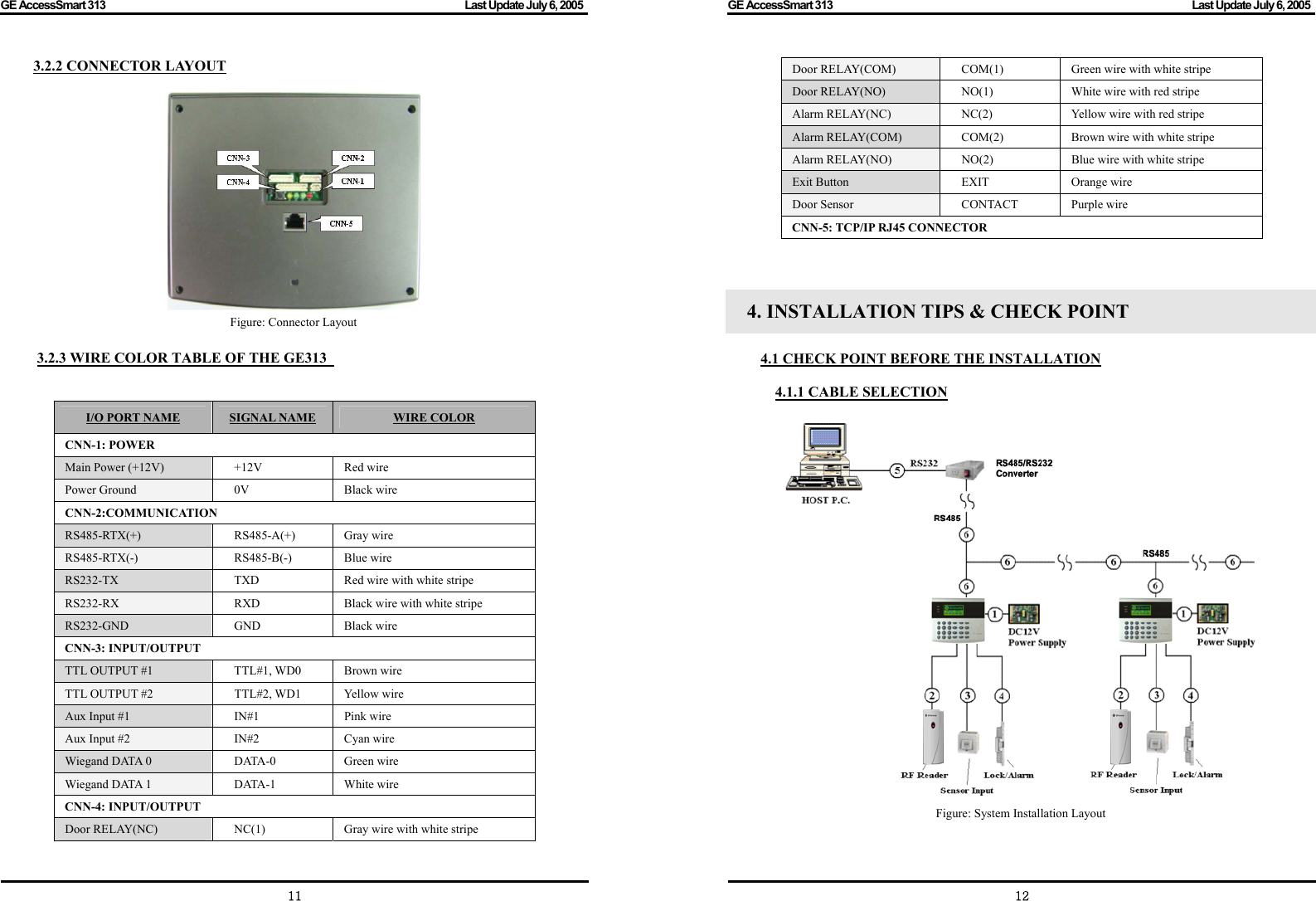

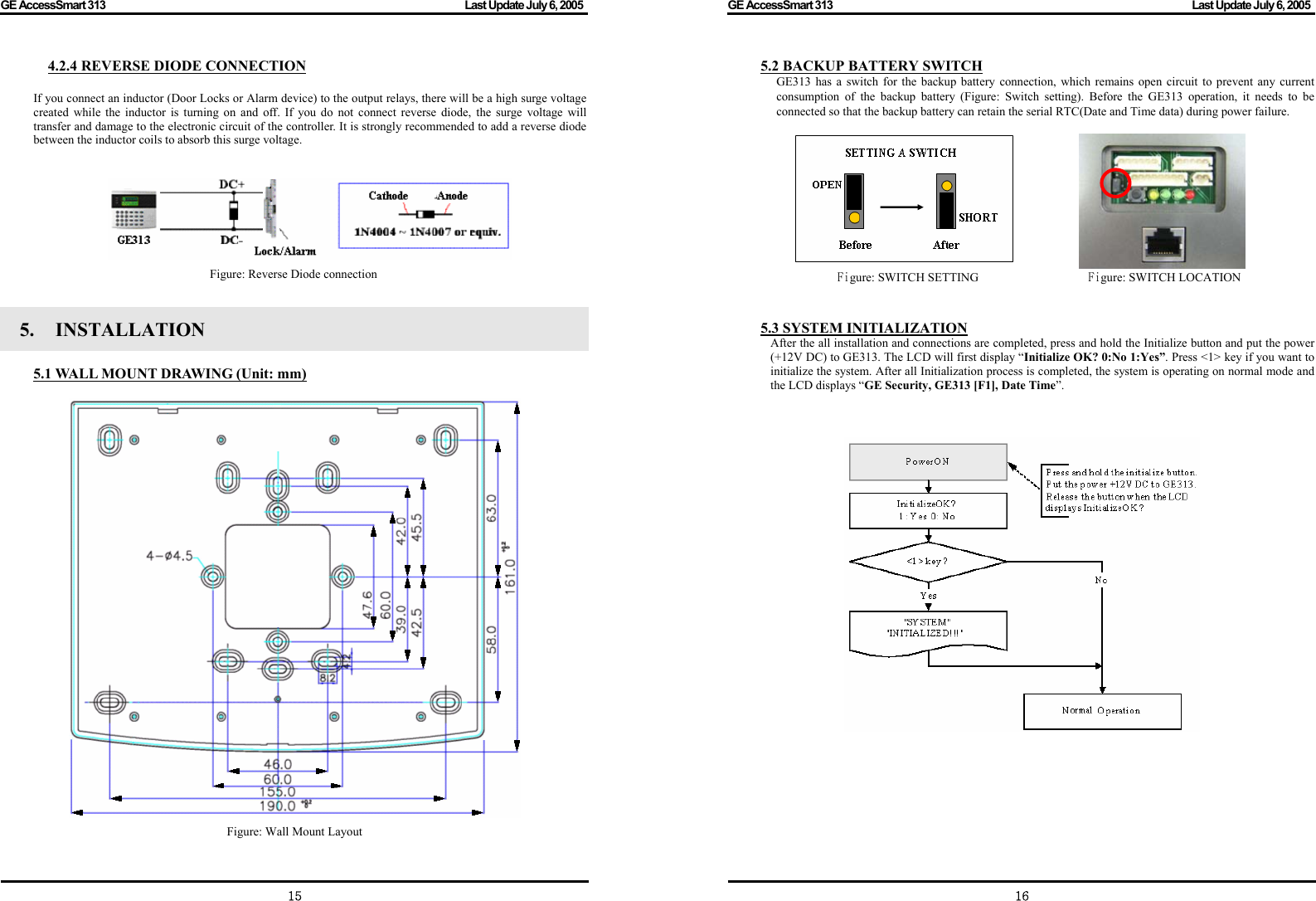

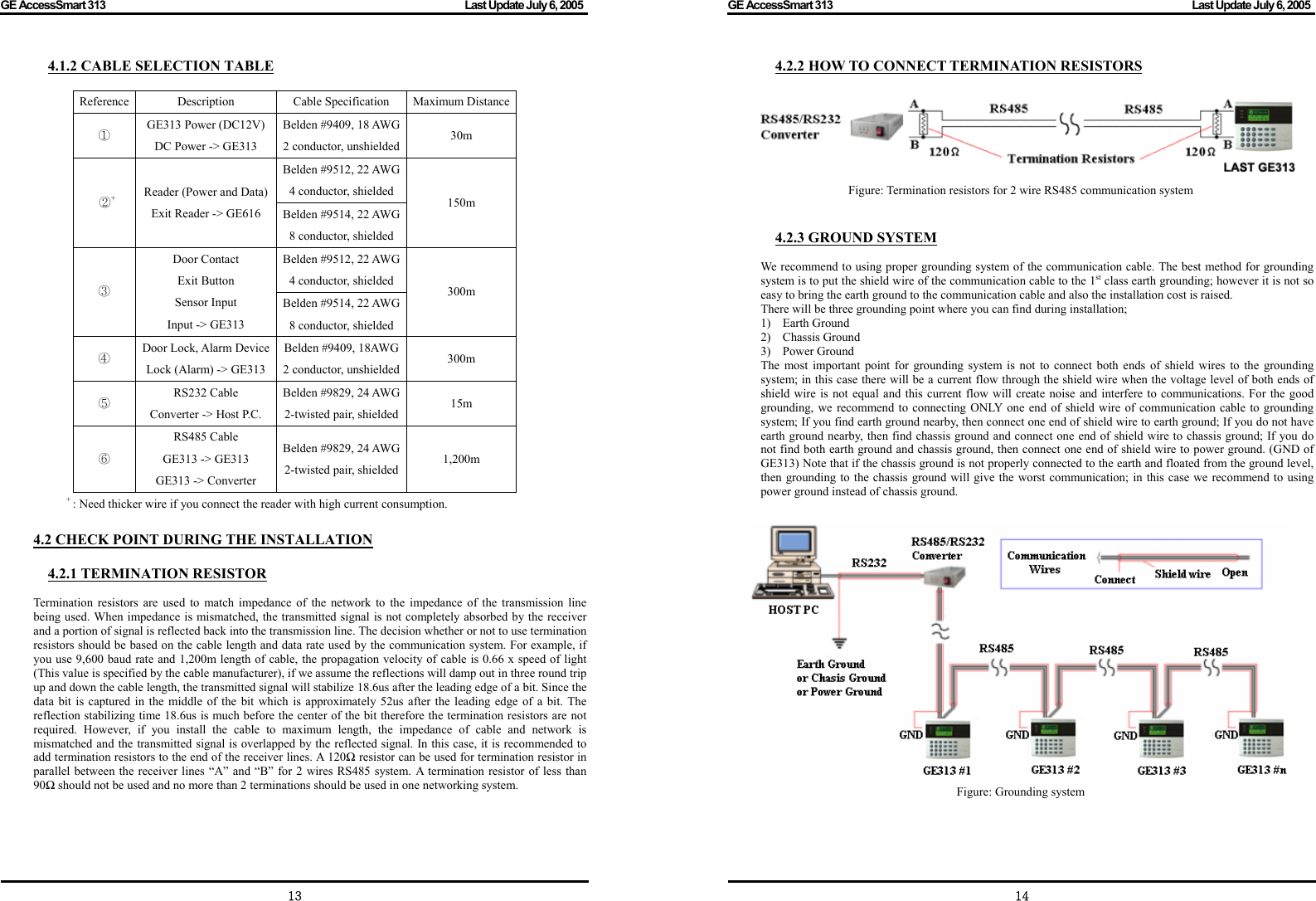

![GE AccessSmart 313 Last Update July 6, 2005 15 4.2.4 REVERSE DIODE CONNECTION If you connect an inductor (Door Locks or Alarm device) to the output relays, there will be a high surge voltage created while the inductor is turning on and off. If you do not connect reverse diode, the surge voltage will transfer and damage to the electronic circuit of the controller. It is strongly recommended to add a reverse diode between the inductor coils to absorb this surge voltage. Figure: Reverse Diode connection 5. INSTALLATION 5.1 WALL MOUNT DRAWING (Unit: mm) Figure: Wall Mount Layout GE AccessSmart 313 Last Update July 6, 2005 165.2 BACKUP BATTERY SWITCH GE313 has a switch for the backup battery connection, which remains open circuit to prevent any current consumption of the backup battery (Figure: Switch setting). Before the GE313 operation, it needs to be connected so that the backup battery can retain the serial RTC(Date and Time data) during power failure. Figure: SWITCH SETTING Figure: SWITCH LOCATION 5.3 SYSTEM INITIALIZATION After the all installation and connections are completed, press and hold the Initialize button and put the power (+12V DC) to GE313. The LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all Initialization process is completed, the system is operating on normal mode and the LCD displays “GE Security, GE313 [F1], Date Time”.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-8.png)

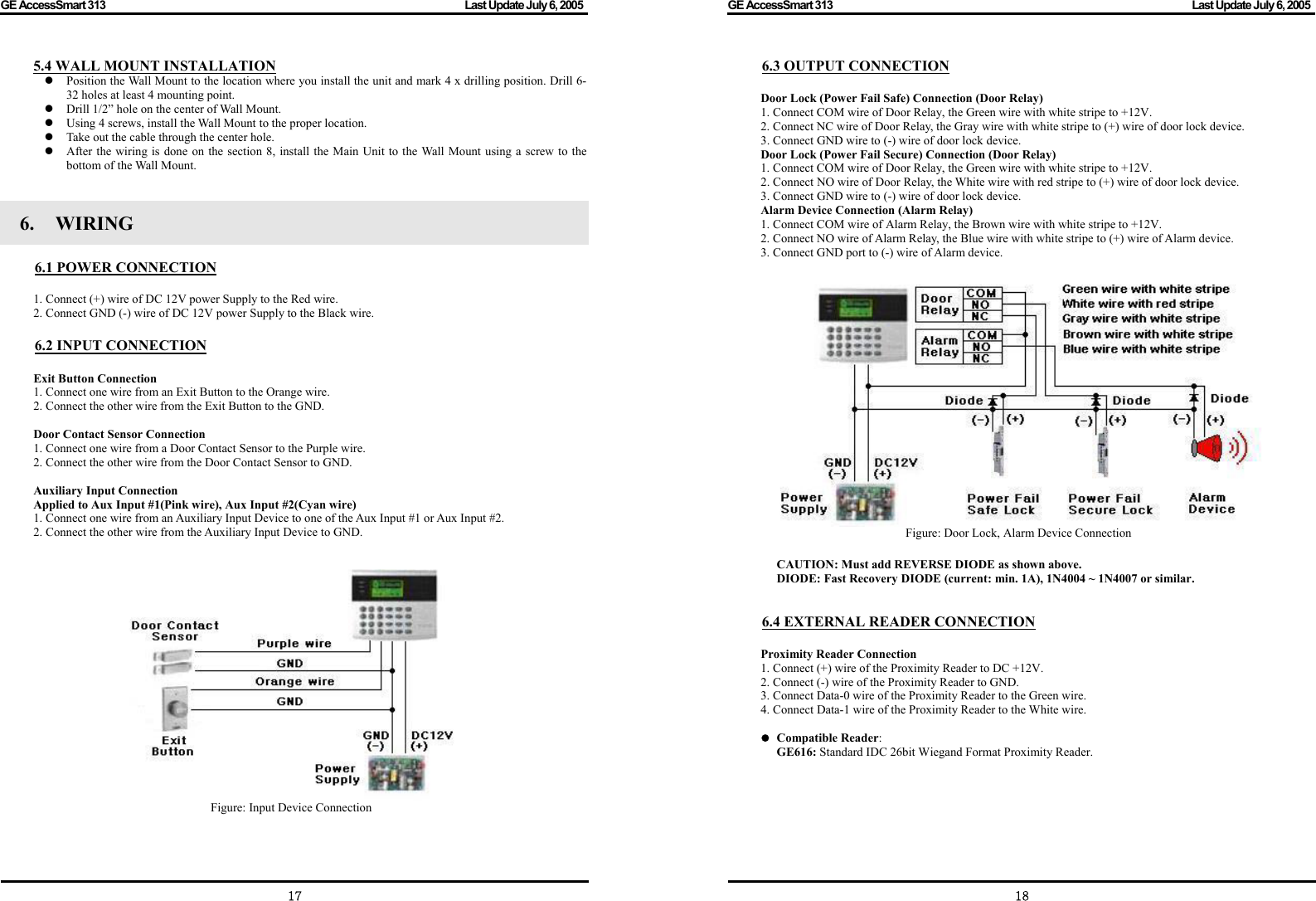

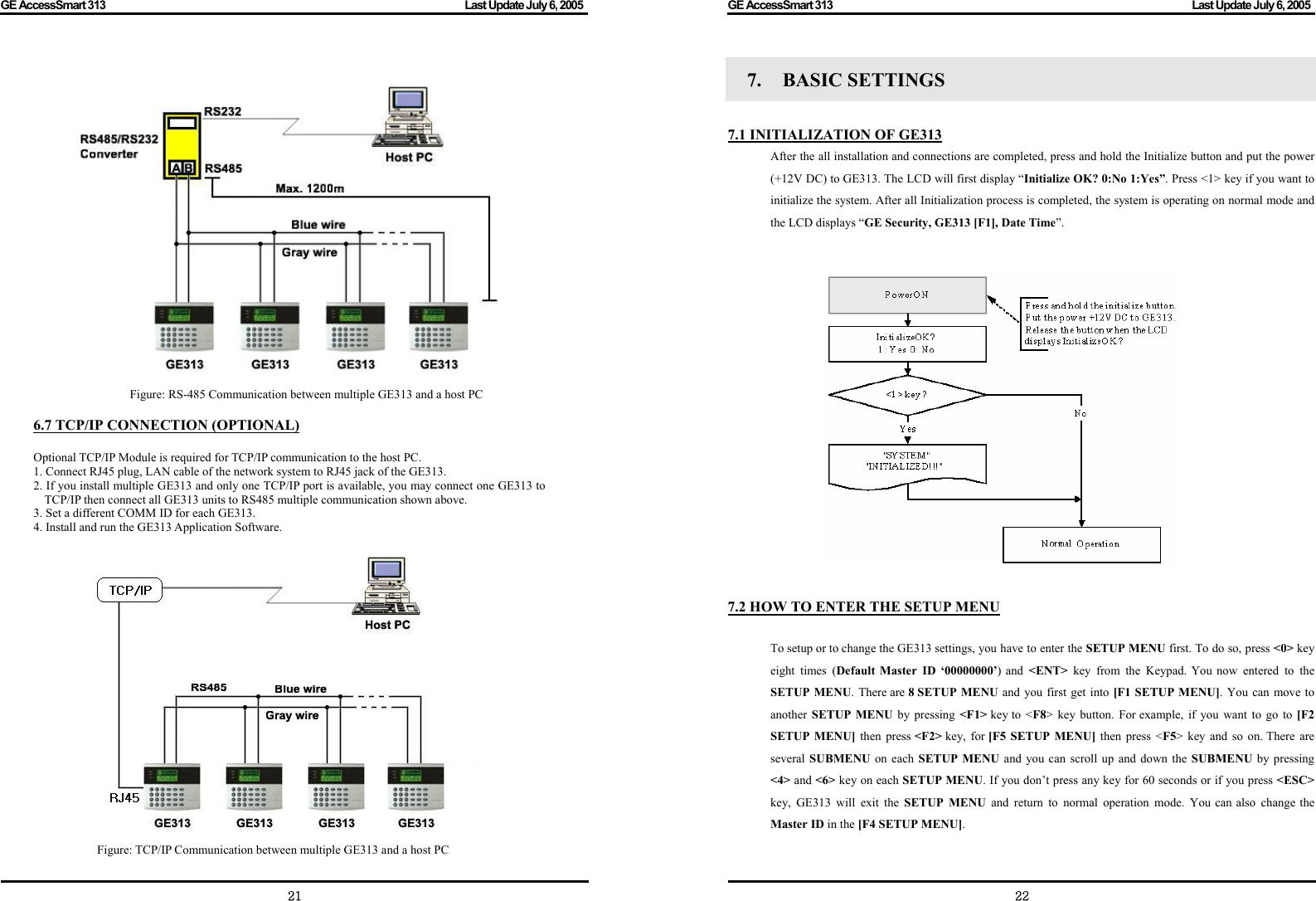

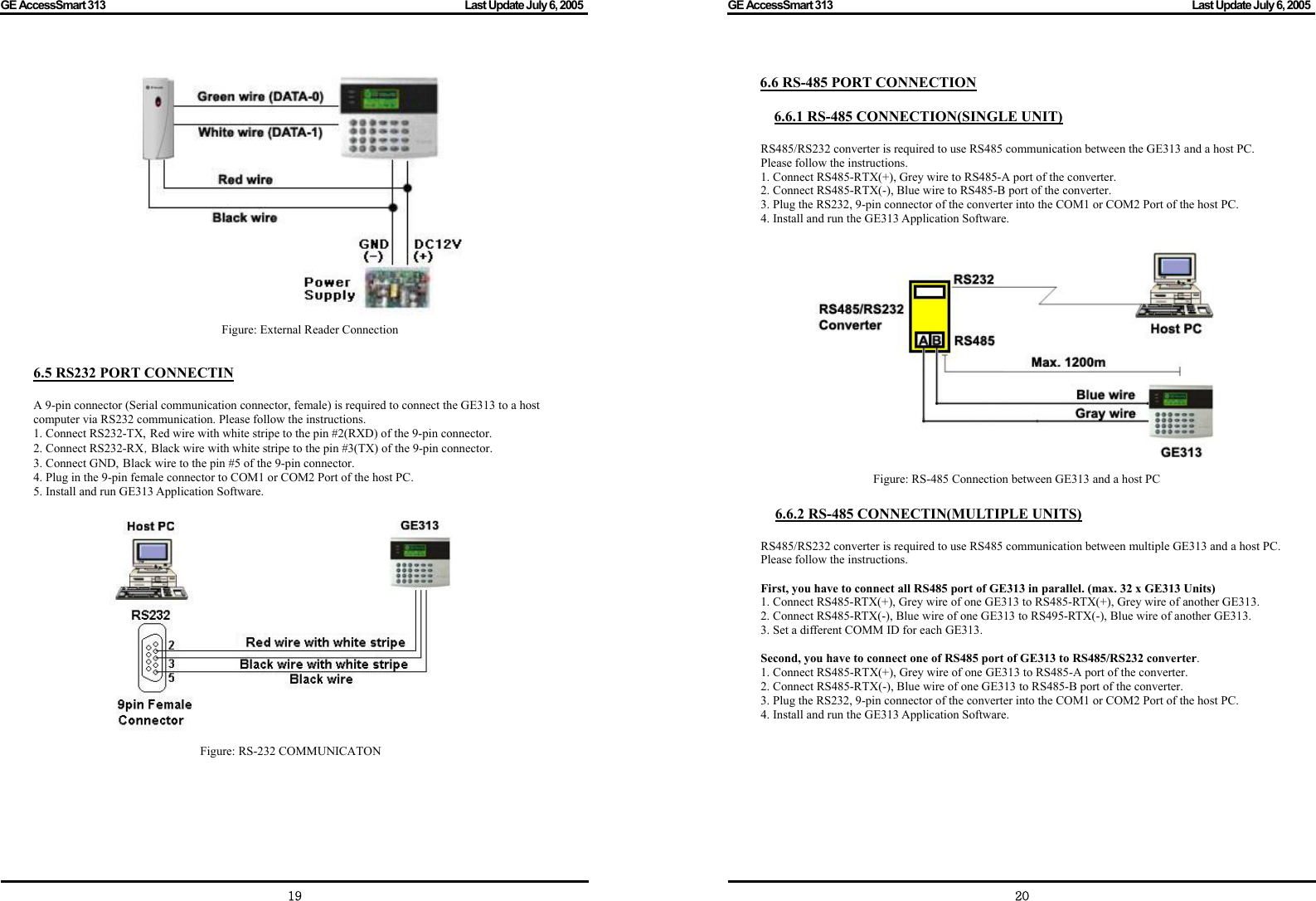

![GE AccessSmart 313 Last Update July 6, 2005 21 Figure: RS-485 Communication between multiple GE313 and a host PC 6.7 TCP/IP CONNECTION (OPTIONAL) Optional TCP/IP Module is required for TCP/IP communication to the host PC. 1. Connect RJ45 plug, LAN cable of the network system to RJ45 jack of the GE313. 2. If you install multiple GE313 and only one TCP/IP port is available, you may connect one GE313 to TCP/IP then connect all GE313 units to RS485 multiple communication shown above. 3. Set a different COMM ID for each GE313. 4. Install and run the GE313 Application Software. Figure: TCP/IP Communication between multiple GE313 and a host PC GE AccessSmart 313 Last Update July 6, 2005 227. BASIC SETTINGS 7.1 INITIALIZATION OF GE313 After the all installation and connections are completed, press and hold the Initialize button and put the power (+12V DC) to GE313. The LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all Initialization process is completed, the system is operating on normal mode and the LCD displays “GE Security, GE313 [F1], Date Time”. 7.2 HOW TO ENTER THE SETUP MENU To setup or to change the GE313 settings, you have to enter the SETUP MENU first. To do so, press <0> key eight times (Default Master ID ‘00000000’) and <ENT> key from the Keypad. You now entered to the SETUP MENU. There are 8 SETUP MENU and you first get into [F1 SETUP MENU]. You can move to another SETUP MENU by pressing <F1> key to <F8> key button. For example, if you want to go to [F2 SETUP MENU] then press <F2> key, for [F5 SETUP MENU] then press <F5> key and so on. There are several SUBMENU on each SETUP MENU and you can scroll up and down the SUBMENU by pressing <4> and <6> key on each SETUP MENU. If you don’t press any key for 60 seconds or if you press <ESC> key, GE313 will exit the SETUP MENU and return to normal operation mode. You can also change the Master ID in the [F4 SETUP MENU].](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-11.png)

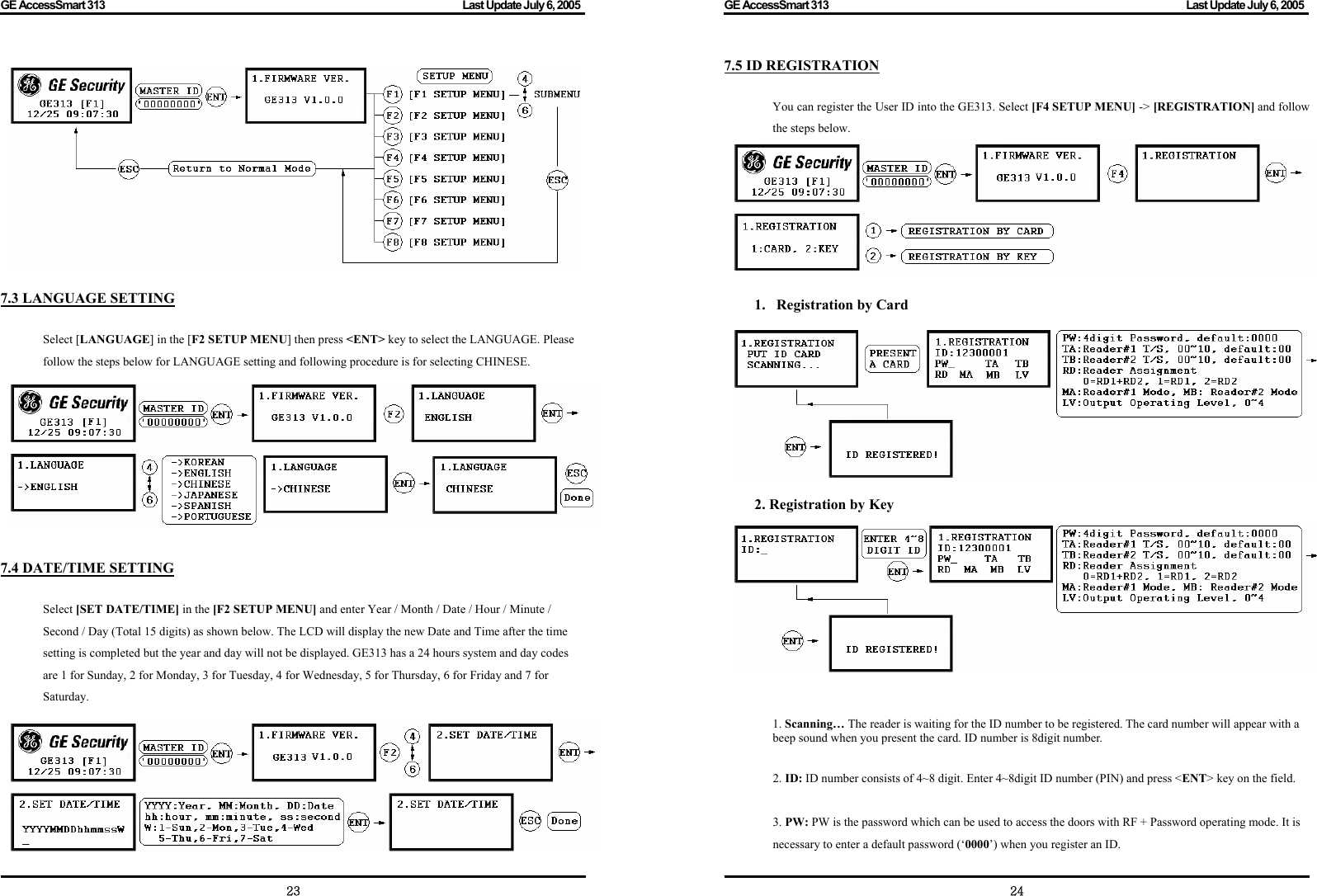

![GE AccessSmart 313 Last Update July 6, 2005 23 7.3 LANGUAGE SETTING Select [LANGUAGE] in the [F2 SETUP MENU] then press <ENT> key to select the LANGUAGE. Please follow the steps below for LANGUAGE setting and following procedure is for selecting CHINESE. 7.4 DATE/TIME SETTING Select [SET DATE/TIME] in the [F2 SETUP MENU] and enter Year / Month / Date / Hour / Minute / Second / Day (Total 15 digits) as shown below. The LCD will display the new Date and Time after the time setting is completed but the year and day will not be displayed. GE313 has a 24 hours system and day codes are 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday. GE AccessSmart 313 Last Update July 6, 2005 247.5 ID REGISTRATION You can register the User ID into the GE313. Select [F4 SETUP MENU] -> [REGISTRATION] and follow the steps below. 1. Registration by Card 2. Registration by Key 1. Scanning… The reader is waiting for the ID number to be registered. The card number will appear with a beep sound when you present the card. ID number is 8digit number. 2. ID: ID number consists of 4~8 digit. Enter 4~8digit ID number (PIN) and press <ENT> key on the field. 3. PW: PW is the password which can be used to access the doors with RF + Password operating mode. It is necessary to enter a default password (‘0000’) when you register an ID.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-12.png)

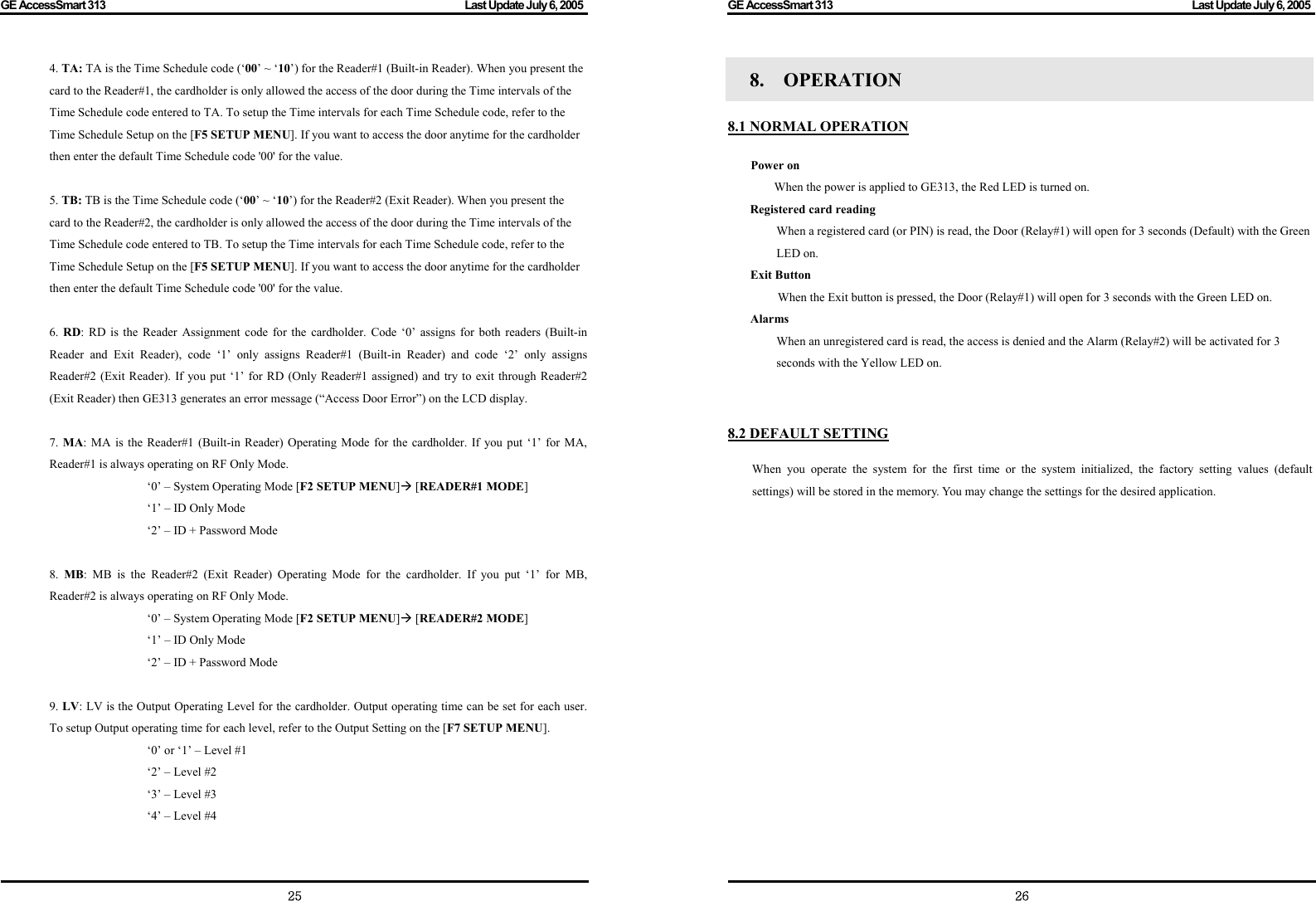

![GE AccessSmart 313 Last Update July 6, 2005 25 4. TA: TA is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#1 (Built-in Reader). When you present the card to the Reader#1, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TA. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 5. TB: TB is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#2 (Exit Reader). When you present the card to the Reader#2, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TB. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 6. RD: RD is the Reader Assignment code for the cardholder. Code ‘0’ assigns for both readers (Built-in Reader and Exit Reader), code ‘1’ only assigns Reader#1 (Built-in Reader) and code ‘2’ only assigns Reader#2 (Exit Reader). If you put ‘1’ for RD (Only Reader#1 assigned) and try to exit through Reader#2 (Exit Reader) then GE313 generates an error message (“Access Door Error”) on the LCD display. 7. MA: MA is the Reader#1 (Built-in Reader) Operating Mode for the cardholder. If you put ‘1’ for MA, Reader#1 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU]Æ [READER#1 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Password Mode 8. MB: MB is the Reader#2 (Exit Reader) Operating Mode for the cardholder. If you put ‘1’ for MB, Reader#2 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU]Æ [READER#2 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Password Mode 9. LV: LV is the Output Operating Level for the cardholder. Output operating time can be set for each user. To setup Output operating time for each level, refer to the Output Setting on the [F7 SETUP MENU]. ‘0’ or ‘1’ – Level #1 ‘2’ – Level #2 ‘3’ – Level #3 ‘4’ – Level #4 GE AccessSmart 313 Last Update July 6, 2005 268. OPERATION 8.1 NORMAL OPERATION Power on When the power is applied to GE313, the Red LED is turned on. Registered card reading When a registered card (or PIN) is read, the Door (Relay#1) will open for 3 seconds (Default) with the Green LED on. Exit Button When the Exit button is pressed, the Door (Relay#1) will open for 3 seconds with the Green LED on. Alarms When an unregistered card is read, the access is denied and the Alarm (Relay#2) will be activated for 3 seconds with the Yellow LED on. 8.2 DEFAULT SETTING When you operate the system for the first time or the system initialized, the factory setting values (default settings) will be stored in the memory. You may change the settings for the desired application.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-13.png)

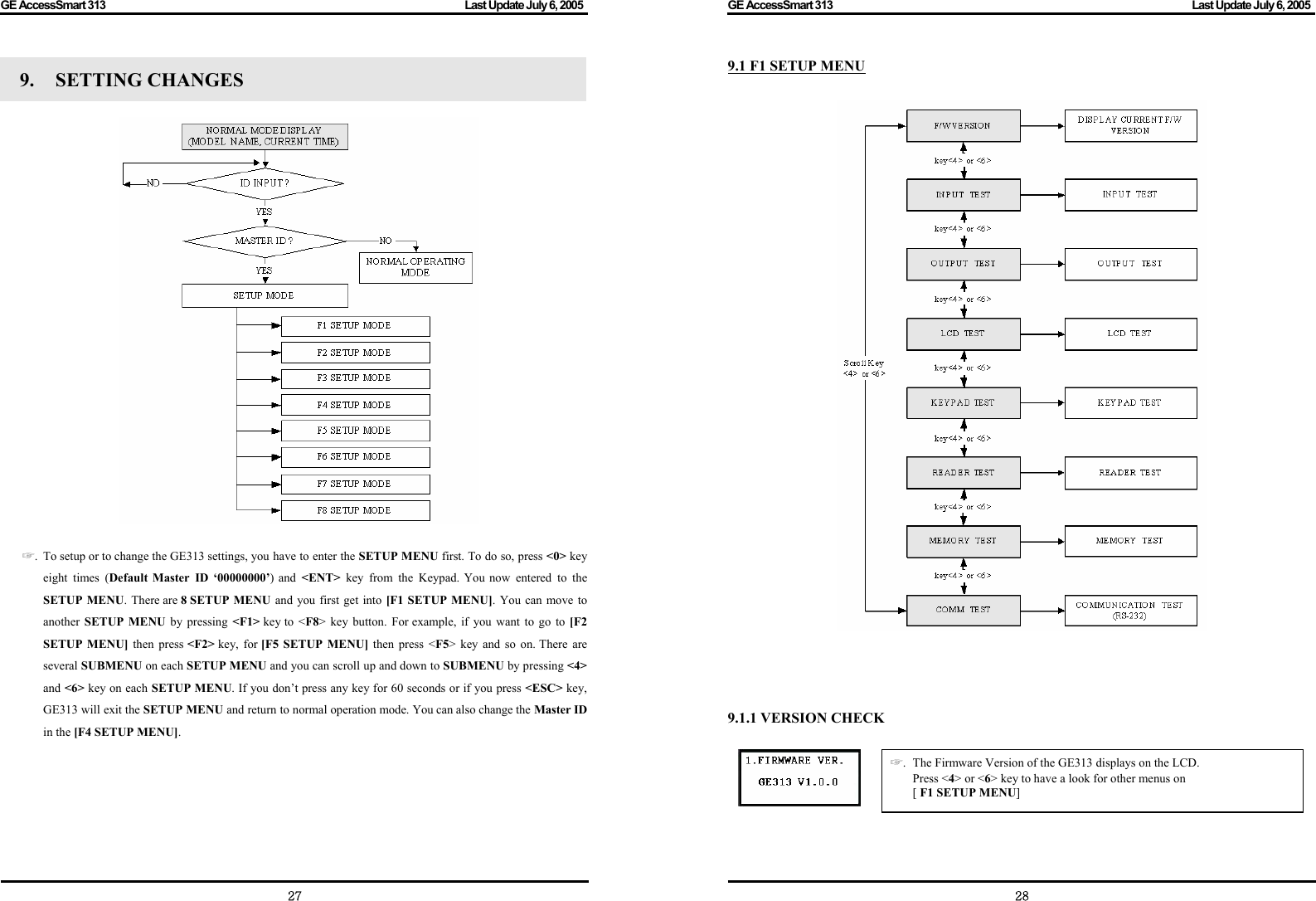

![GE AccessSmart 313 Last Update July 6, 2005 27 9. SETTING CHANGES ☞. To setup or to change the GE313 settings, you have to enter the SETUP MENU first. To do so, press <0> key eight times (Default Master ID ‘00000000’) and <ENT> key from the Keypad. You now entered to the SETUP MENU. There are 8 SETUP MENU and you first get into [F1 SETUP MENU]. You can move to another SETUP MENU by pressing <F1> key to <F8> key button. For example, if you want to go to [F2 SETUP MENU] then press <F2> key, for [F5 SETUP MENU] then press <F5> key and so on. There are several SUBMENU on each SETUP MENU and you can scroll up and down to SUBMENU by pressing <4> and <6> key on each SETUP MENU. If you don’t press any key for 60 seconds or if you press <ESC> key, GE313 will exit the SETUP MENU and return to normal operation mode. You can also change the Master ID in the [F4 SETUP MENU]. GE AccessSmart 313 Last Update July 6, 2005 289.1 F1 SETUP MENU 9.1.1 VERSION CHECK ☞. The Firmware Version of the GE313 displays on the LCD. Press <4> or <6> key to have a look for other menus on [ F1 SETUP MENU]](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-14.png)

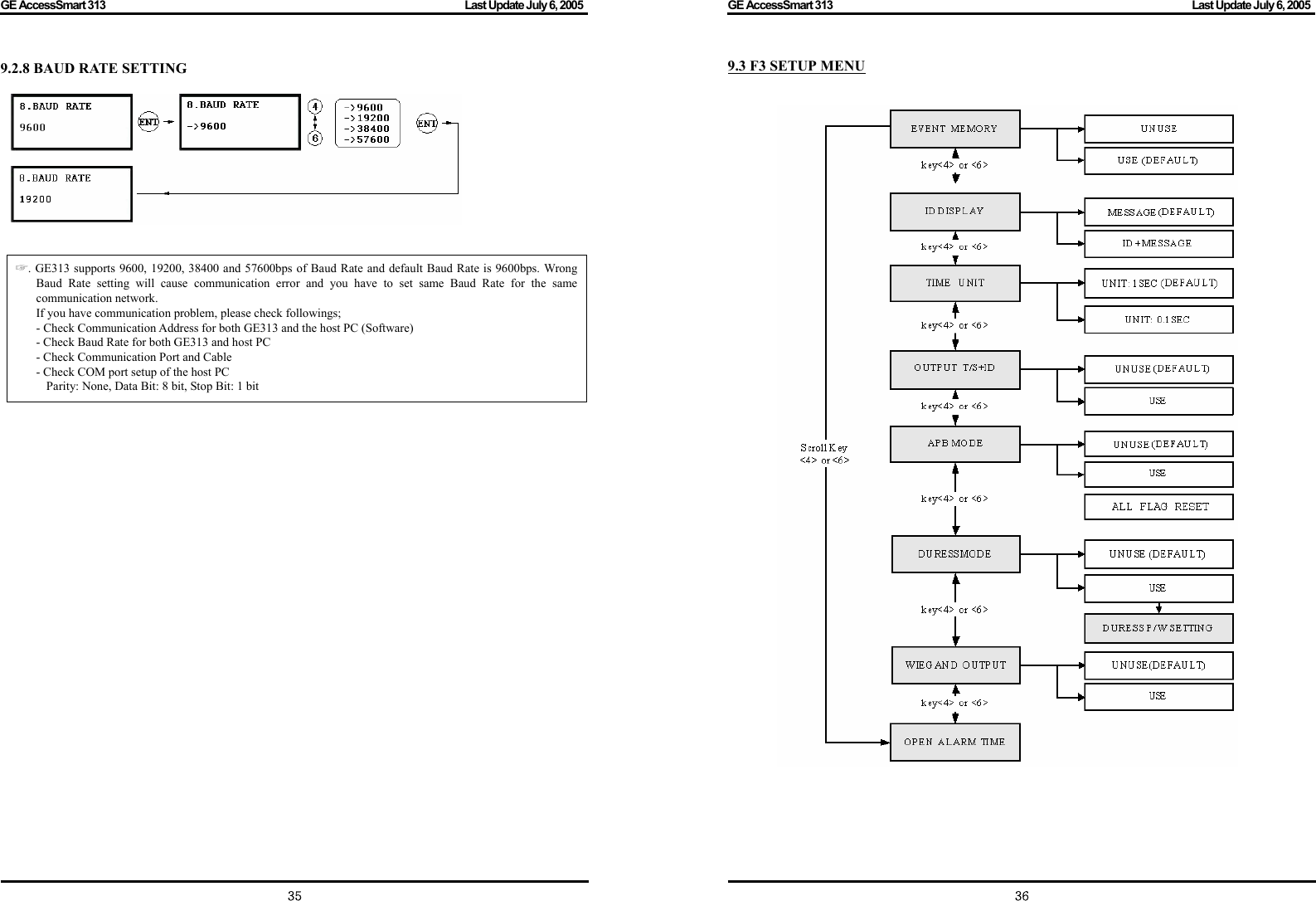

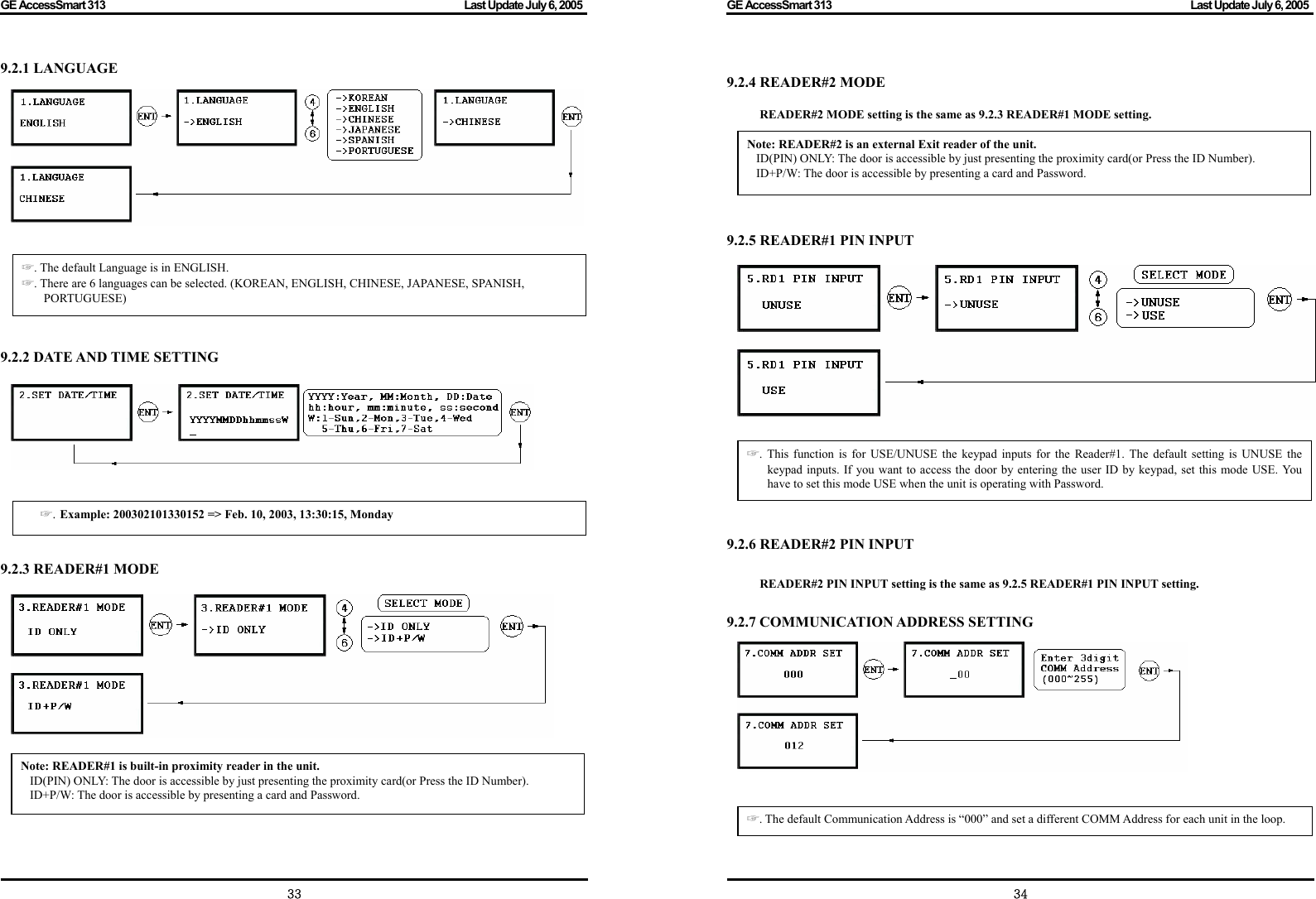

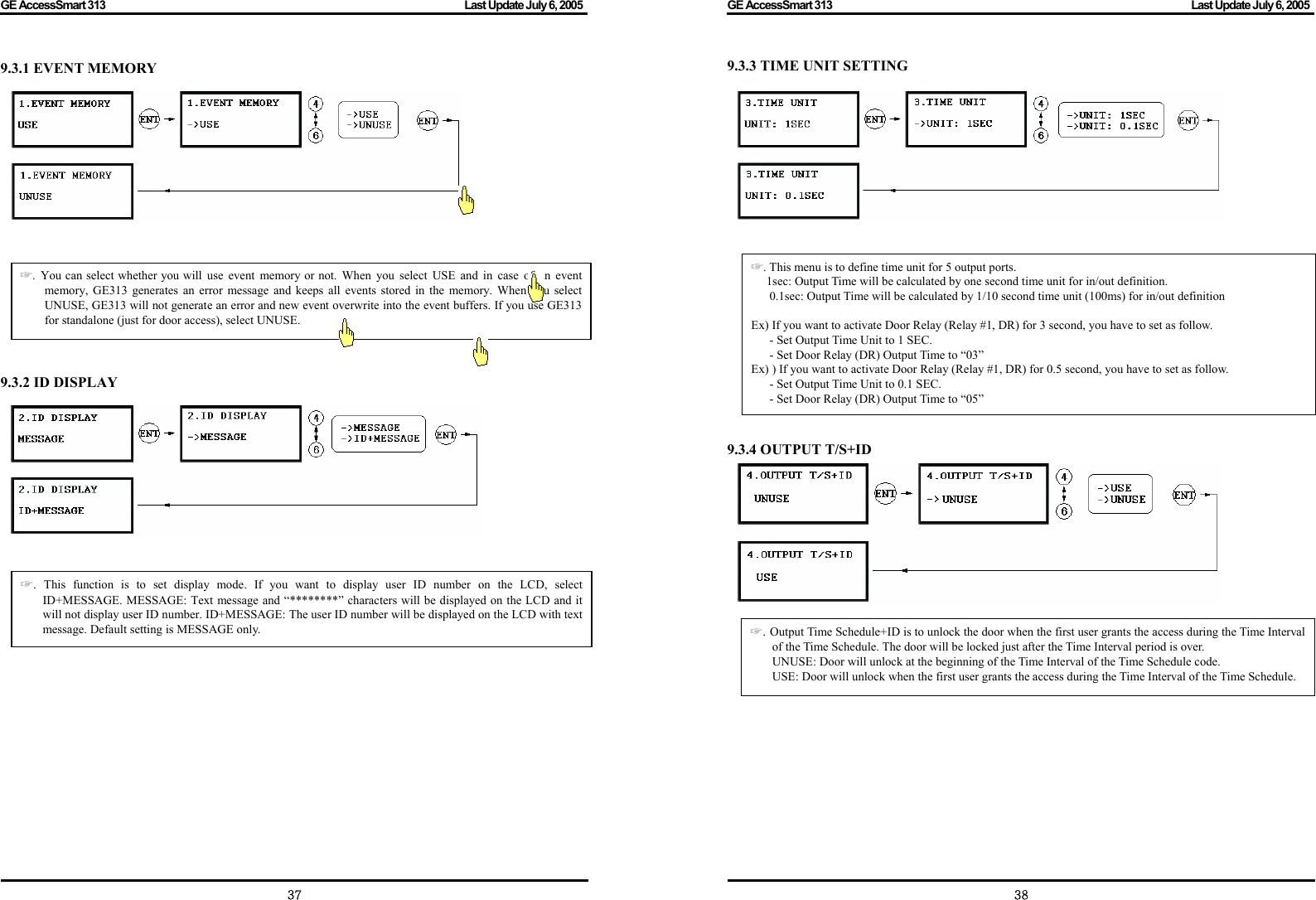

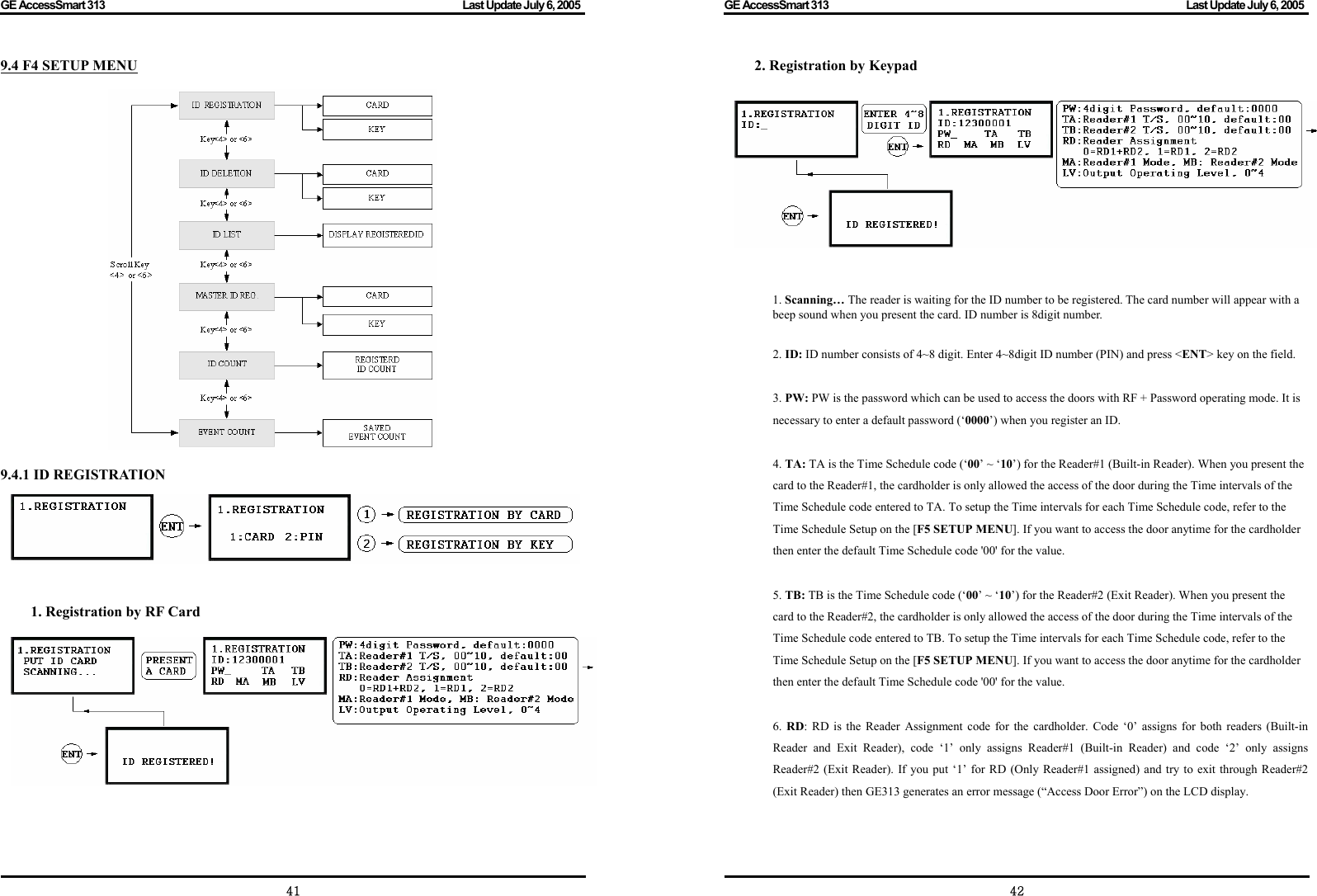

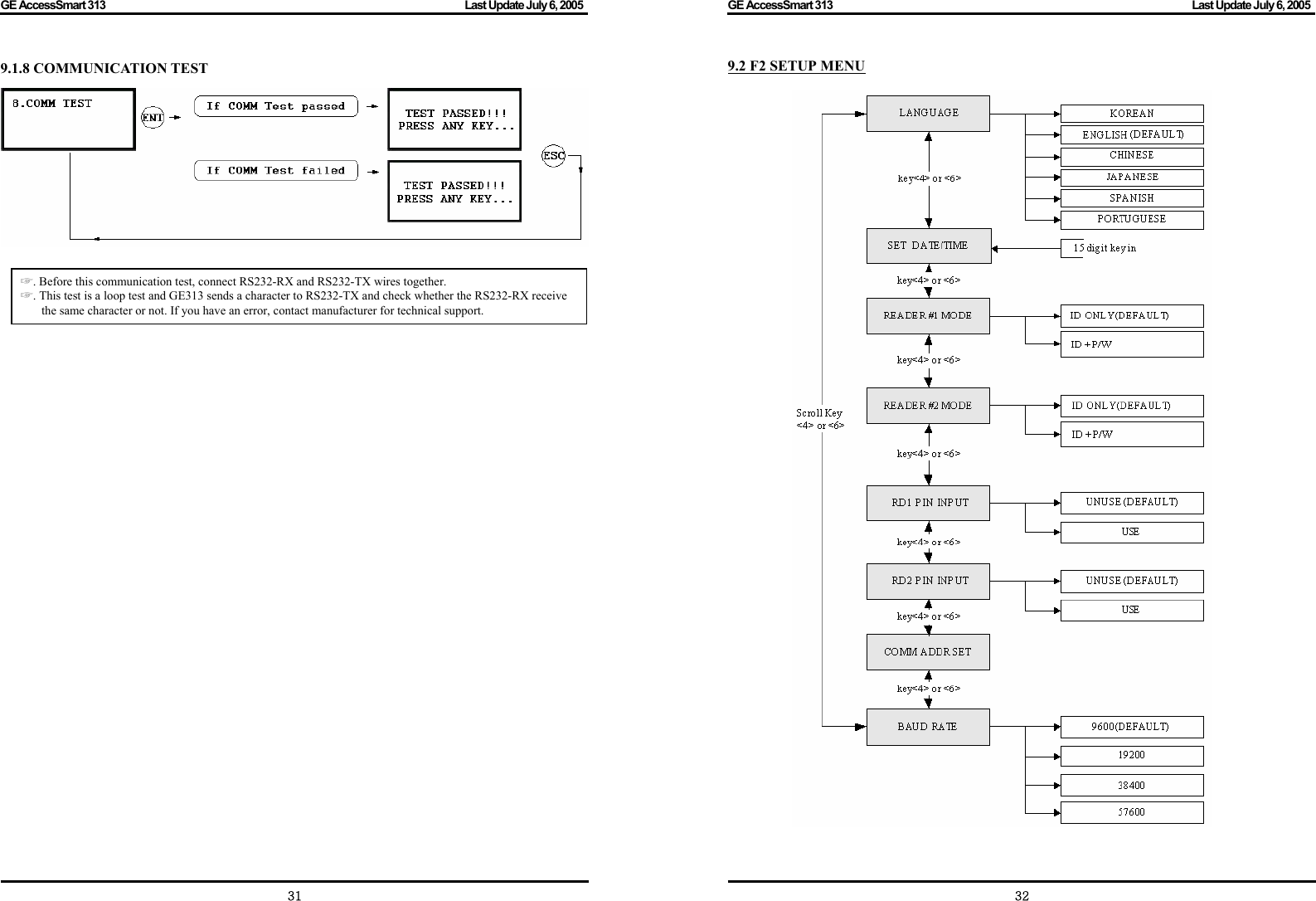

![GE AccessSmart 313 Last Update July 6, 2005 41 9.4 F4 SETUP MENU 9.4.1 ID REGISTRATION 1. Registration by RF Card GE AccessSmart 313 Last Update July 6, 2005 422. Registration by Keypad 1. Scanning… The reader is waiting for the ID number to be registered. The card number will appear with a beep sound when you present the card. ID number is 8digit number. 2. ID: ID number consists of 4~8 digit. Enter 4~8digit ID number (PIN) and press <ENT> key on the field. 3. PW: PW is the password which can be used to access the doors with RF + Password operating mode. It is necessary to enter a default password (‘0000’) when you register an ID. 4. TA: TA is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#1 (Built-in Reader). When you present the card to the Reader#1, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TA. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 5. TB: TB is the Time Schedule code (‘00’ ~ ‘10’) for the Reader#2 (Exit Reader). When you present the card to the Reader#2, the cardholder is only allowed the access of the door during the Time intervals of the Time Schedule code entered to TB. To setup the Time intervals for each Time Schedule code, refer to the Time Schedule Setup on the [F5 SETUP MENU]. If you want to access the door anytime for the cardholder then enter the default Time Schedule code '00' for the value. 6. RD: RD is the Reader Assignment code for the cardholder. Code ‘0’ assigns for both readers (Built-in Reader and Exit Reader), code ‘1’ only assigns Reader#1 (Built-in Reader) and code ‘2’ only assigns Reader#2 (Exit Reader). If you put ‘1’ for RD (Only Reader#1 assigned) and try to exit through Reader#2 (Exit Reader) then GE313 generates an error message (“Access Door Error”) on the LCD display.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-21.png)

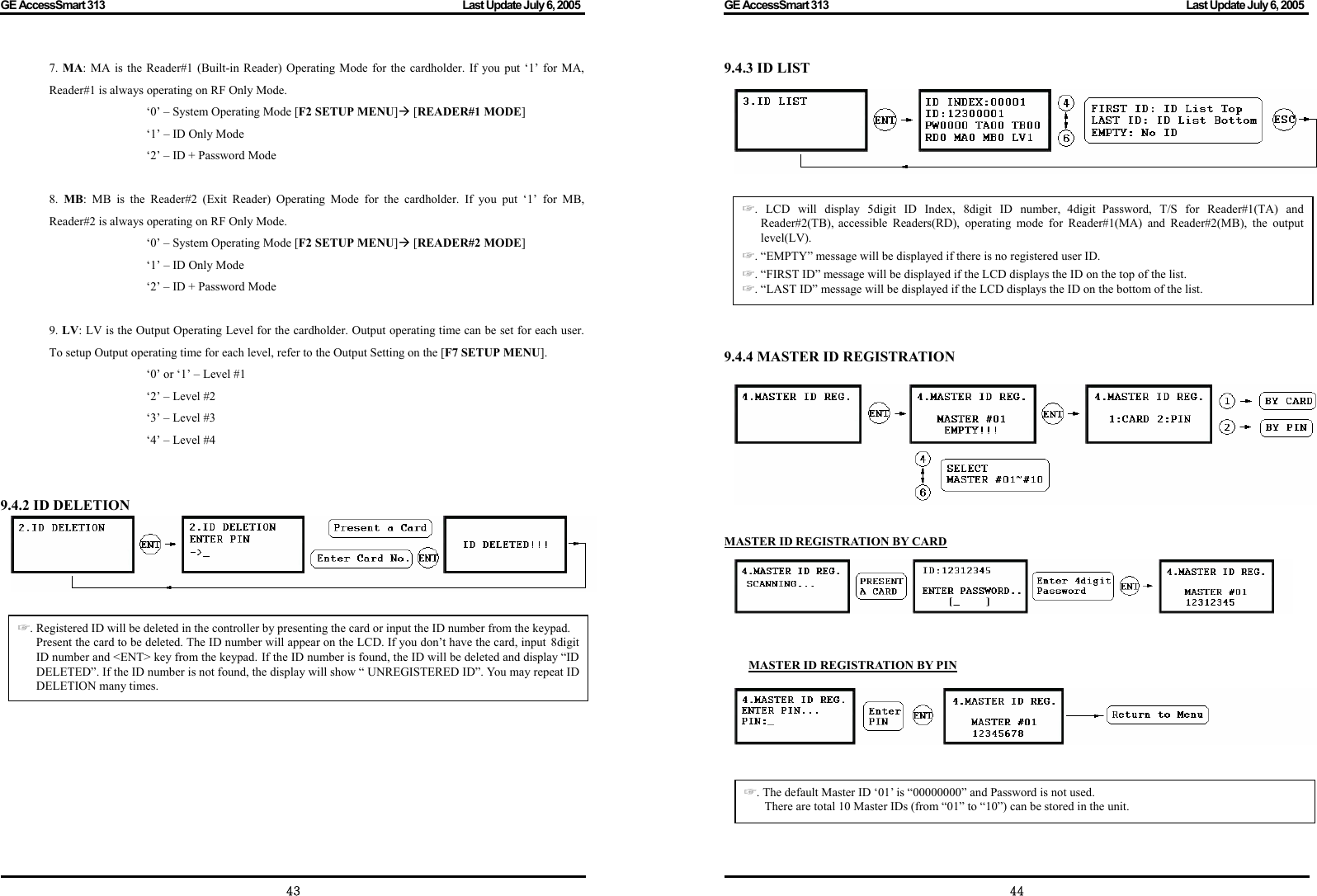

![GE AccessSmart 313 Last Update July 6, 2005 43 7. MA: MA is the Reader#1 (Built-in Reader) Operating Mode for the cardholder. If you put ‘1’ for MA, Reader#1 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU]Æ [READER#1 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Password Mode 8. MB: MB is the Reader#2 (Exit Reader) Operating Mode for the cardholder. If you put ‘1’ for MB, Reader#2 is always operating on RF Only Mode. ‘0’ – System Operating Mode [F2 SETUP MENU]Æ [READER#2 MODE] ‘1’ – ID Only Mode ‘2’ – ID + Password Mode 9. LV: LV is the Output Operating Level for the cardholder. Output operating time can be set for each user. To setup Output operating time for each level, refer to the Output Setting on the [F7 SETUP MENU]. ‘0’ or ‘1’ – Level #1 ‘2’ – Level #2 ‘3’ – Level #3 ‘4’ – Level #4 9.4.2 ID DELETION . ☞Registered ID will be deleted in the controller by presenting the card or input the ID number from the keypad. Present the card to be deleted. The ID number will appear on the LCD. If you don’t have the card, input 8digitID number and <ENT> key from the keypad. If the ID number is found, the ID will be deleted and display “ID DELETED”. If the ID number is not found, the display will show “ UNREGISTERED ID”. You may repeat ID DELETION many times. GE AccessSmart 313 Last Update July 6, 2005 449.4.3 ID LIST 9.4.4 MASTER ID REGISTRATION MASTER ID REGISTRATION BY CARD MASTER ID REGISTRATION BY PIN . LCD will display 5digit ID Index, 8digit I☞D number, 4digit Password, T/S for Reader#1(TA) and Reader#2(TB), accessible Readers(RD), operating mode for Reader#1(MA) and Reader#2(MB), the output level(LV). . ☞“EMPTY” message will be displayed if there is no registered user ID. . ☞“FIRST ID” message will be displayed if the LCD displays the ID on the top of the list. . ☞“LAST ID” message will be displayed if the LCD displays the ID on the bottom of the list. . ☞The default Master ID ‘01’ is “00000000” and Password is not used. There are total 10 Master IDs (from “01” to “10”) can be stored in the unit.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-22.png)

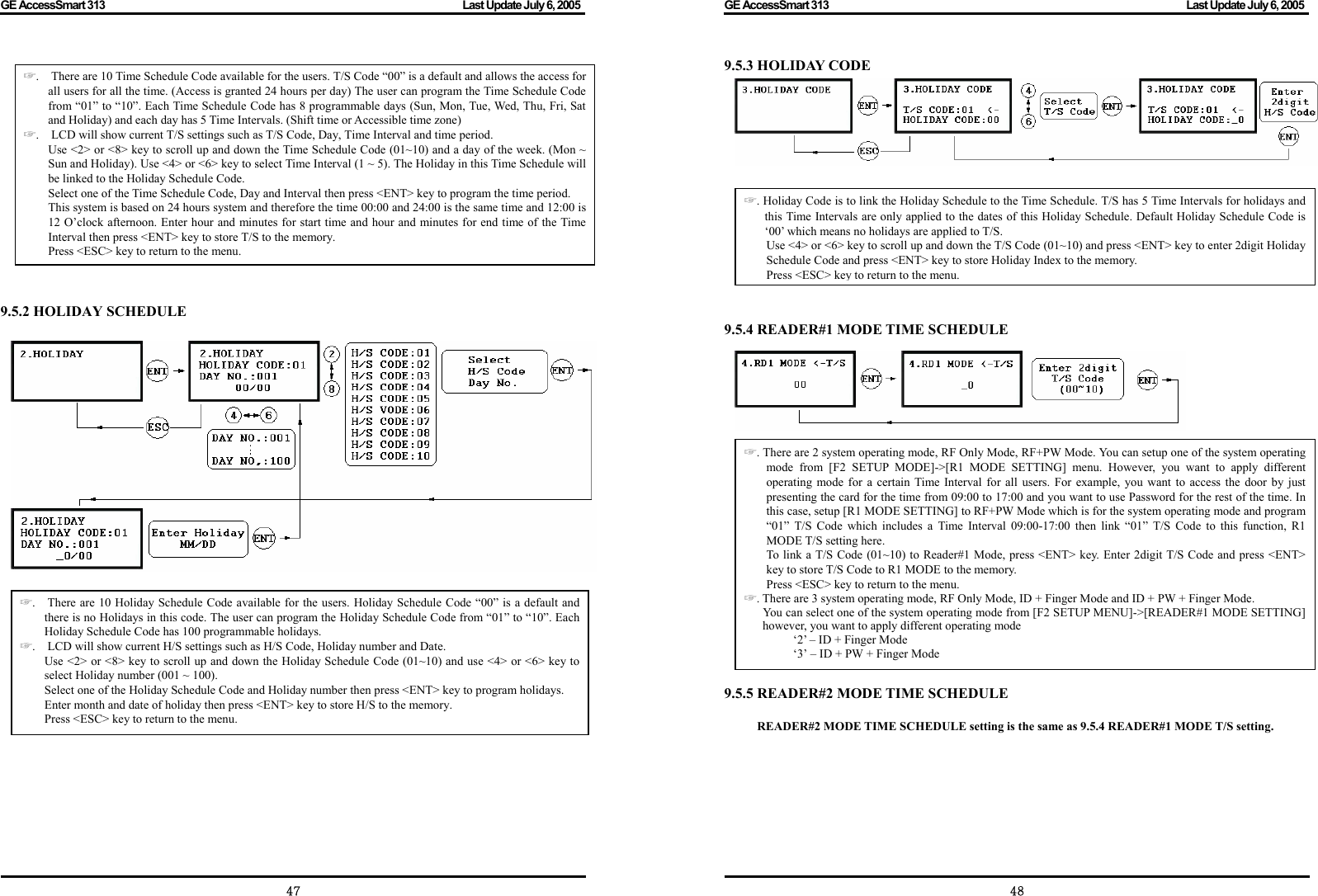

![GE AccessSmart 313 Last Update July 6, 2005 47 9.5.2 HOLIDAY SCHEDULE ☞. There are 10 Time Schedule Code available for the users. T/S Code “00” is a default and allows the access for all users for all the time. (Access is granted 24 hours per day) The user can program the Time Schedule Code from “01” to “10”. Each Time Schedule Code has 8 programmable days (Sun, Mon, Tue, Wed, Thu, Fri, Sat and Holiday) and each day has 5 Time Intervals. (Shift time or Accessible time zone) ☞. LCD will show current T/S settings such as T/S Code, Day, Time Interval and time period. Use <2> or <8> key to scroll up and down the Time Schedule Code (01~10) and a day of the week. (Mon ~ Sun and Holiday). Use <4> or <6> key to select Time Interval (1 ~ 5). The Holiday in this Time Schedule will be linked to the Holiday Schedule Code. Select one of the Time Schedule Code, Day and Interval then press <ENT> key to program the time period. This system is based on 24 hours system and therefore the time 00:00 and 24:00 is the same time and 12:00 is 12 O’clock afternoon. Enter hour and minutes for start time and hour and minutes for end time of the Time Interval then press <ENT> key to store T/S to the memory. Press <ESC> key to return to the menu. ☞. There are 10 Holiday Schedule Code available for the users. Holiday Schedule Code “00” is a default and there is no Holidays in this code. The user can program the Holiday Schedule Code from “01” to “10”. Each Holiday Schedule Code has 100 programmable holidays. ☞. LCD will show current H/S settings such as H/S Code, Holiday number and Date. Use <2> or <8> key to scroll up and down the Holiday Schedule Code (01~10) and use <4> or <6> key to select Holiday number (001 ~ 100). Select one of the Holiday Schedule Code and Holiday number then press <ENT> key to program holidays. Enter month and date of holiday then press <ENT> key to store H/S to the memory. Press <ESC> key to return to the menu. GE AccessSmart 313 Last Update July 6, 2005 489.5.3 HOLIDAY CODE 9.5.4 READER#1 MODE TIME SCHEDULE 9.5.5 READER#2 MODE TIME SCHEDULE READER#2 MODE TIME SCHEDULE setting is the same as 9.5.4 READER#1 MODE T/S setting. ☞. Holiday Code is to link the Holiday Schedule to the Time Schedule. T/S has 5 Time Intervals for holidays and this Time Intervals are only applied to the dates of this Holiday Schedule. Default Holiday Schedule Code is ‘00’ which means no holidays are applied to T/S. Use <4> or <6> key to scroll up and down the T/S Code (01~10) and press <ENT> key to enter 2digit Holiday Schedule Code and press <ENT> key to store Holiday Index to the memory. Press <ESC> key to return to the menu.☞. There are 2 system operating mode, RF Only Mode, RF+PW Mode. You can setup one of the system operating mode from [F2 SETUP MODE]->[R1 MODE SETTING] menu. However, you want to apply different operating mode for a certain Time Interval for all users. For example, you want to access the door by just presenting the card for the time from 09:00 to 17:00 and you want to use Password for the rest of the time. In this case, setup [R1 MODE SETTING] to RF+PW Mode which is for the system operating mode and program “01” T/S Code which includes a Time Interval 09:00-17:00 then link “01” T/S Code to this function, R1 MODE T/S setting here. To link a T/S Code (01~10) to Reader#1 Mode, press <ENT> key. Enter 2digit T/S Code and press <ENT> key to store T/S Code to R1 MODE to the memory. Press <ESC> key to return to the menu. . There are 3 system operating mode, RF Only Mode, ☞ID + Finger Mode and ID + PW + Finger Mode. You can select one of the system operating mode from [F2 SETUP MENU]->[READER#1 MODE SETTING] however, you want to apply different operating mode ‘2’ – ID + Finger Mode ‘3’ – ID + PW + Finger Mode](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-24.png)

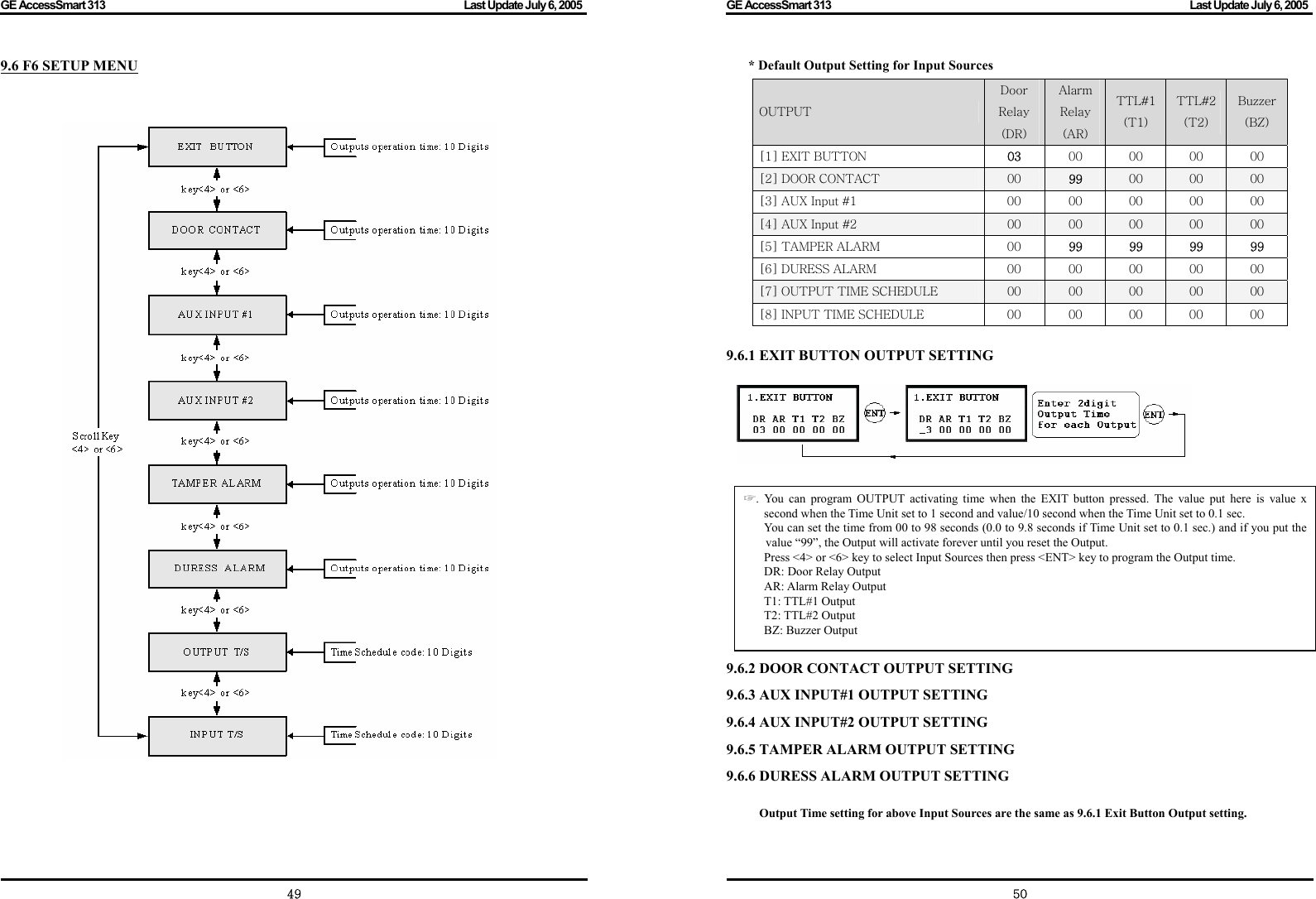

![GE AccessSmart 313 Last Update July 6, 2005 49 9.6 F6 SETUP MENU GE AccessSmart 313 Last Update July 6, 2005 50* Default Output Setting for Input Sources 9.6.1 EXIT BUTTON OUTPUT SETTING 9.6.2 DOOR CONTACT OUTPUT SETTING 9.6.3 AUX INPUT#1 OUTPUT SETTING 9.6.4 AUX INPUT#2 OUTPUT SETTING 9.6.5 TAMPER ALARM OUTPUT SETTING 9.6.6 DURESS ALARM OUTPUT SETTING Output Time setting for above Input Sources are the same as 9.6.1 Exit Button Output setting. OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2 (T2) Buzzer (BZ) [1] EXIT BUTTON 03 00 00 00 00 [2] DOOR CONTACT 00 99 00 00 00 [3] AUX Input #1 00 00 00 00 00 [4] AUX Input #2 00 00 00 00 00 [5] TAMPER ALARM 00 99 99 99 99 [6] DURESS ALARM 00 00 00 00 00 [7] OUTPUT TIME SCHEDULE 00 00 00 00 00 [8] INPUT TIME SCHEDULE 00 00 00 00 00 . You can program ☞OUTPUT activating time when the EXIT button pressed. The value put here is value x second when the Time Unit set to 1 second and value/10 second when the Time Unit set to 0.1 sec. You can set the time from 00 to 98 seconds (0.0 to 9.8 seconds if Time Unit set to 0.1 sec.) and if you put the value “99”, the Output will activate forever until you reset the Output. Press <4> or <6> key to select Input Sources then press <ENT> key to program the Output time. DR: Door Relay Output AR: Alarm Relay Output T1: TTL#1 Output T2: TTL#2 Output BZ: Buzzer Output](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-25.png)

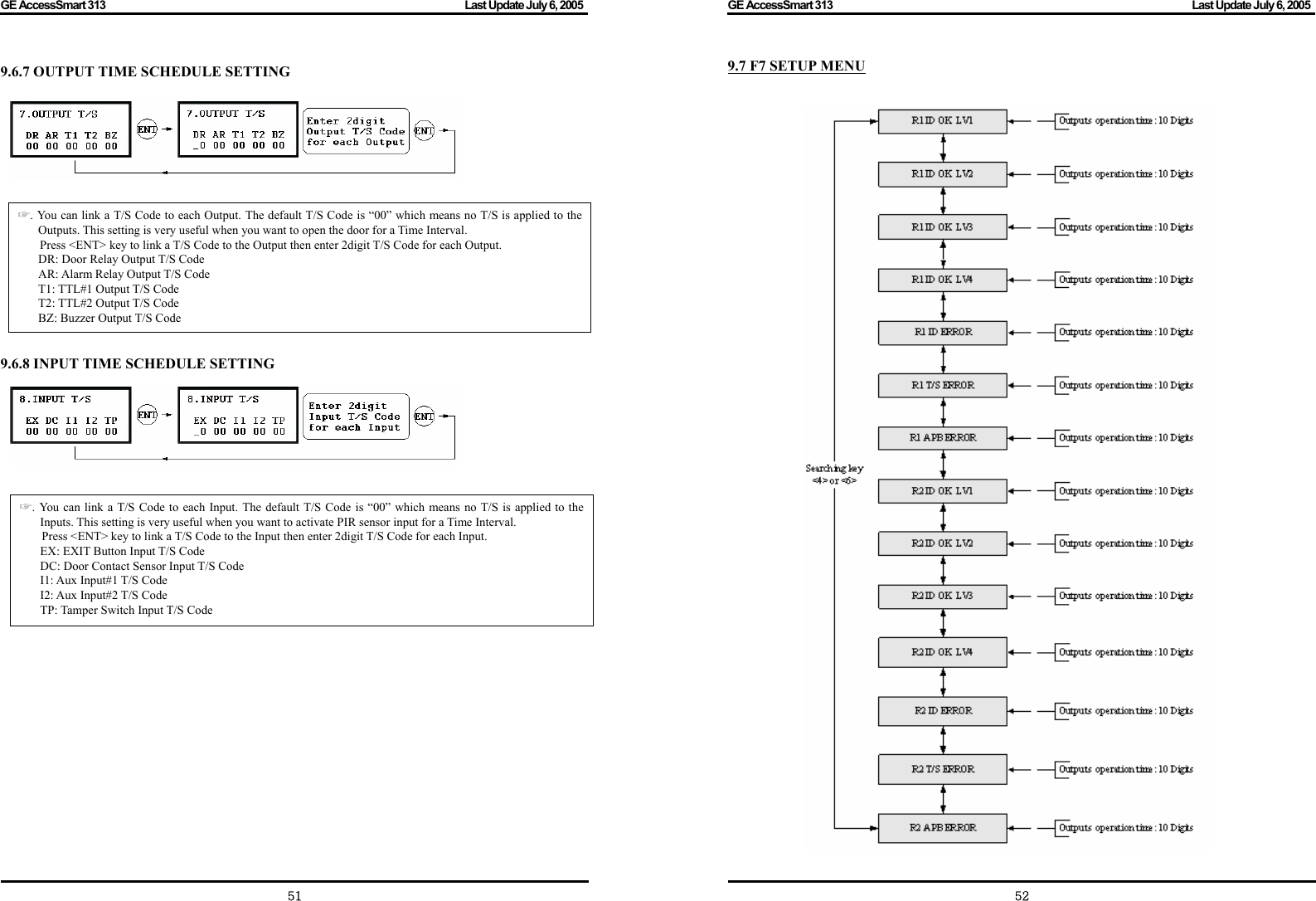

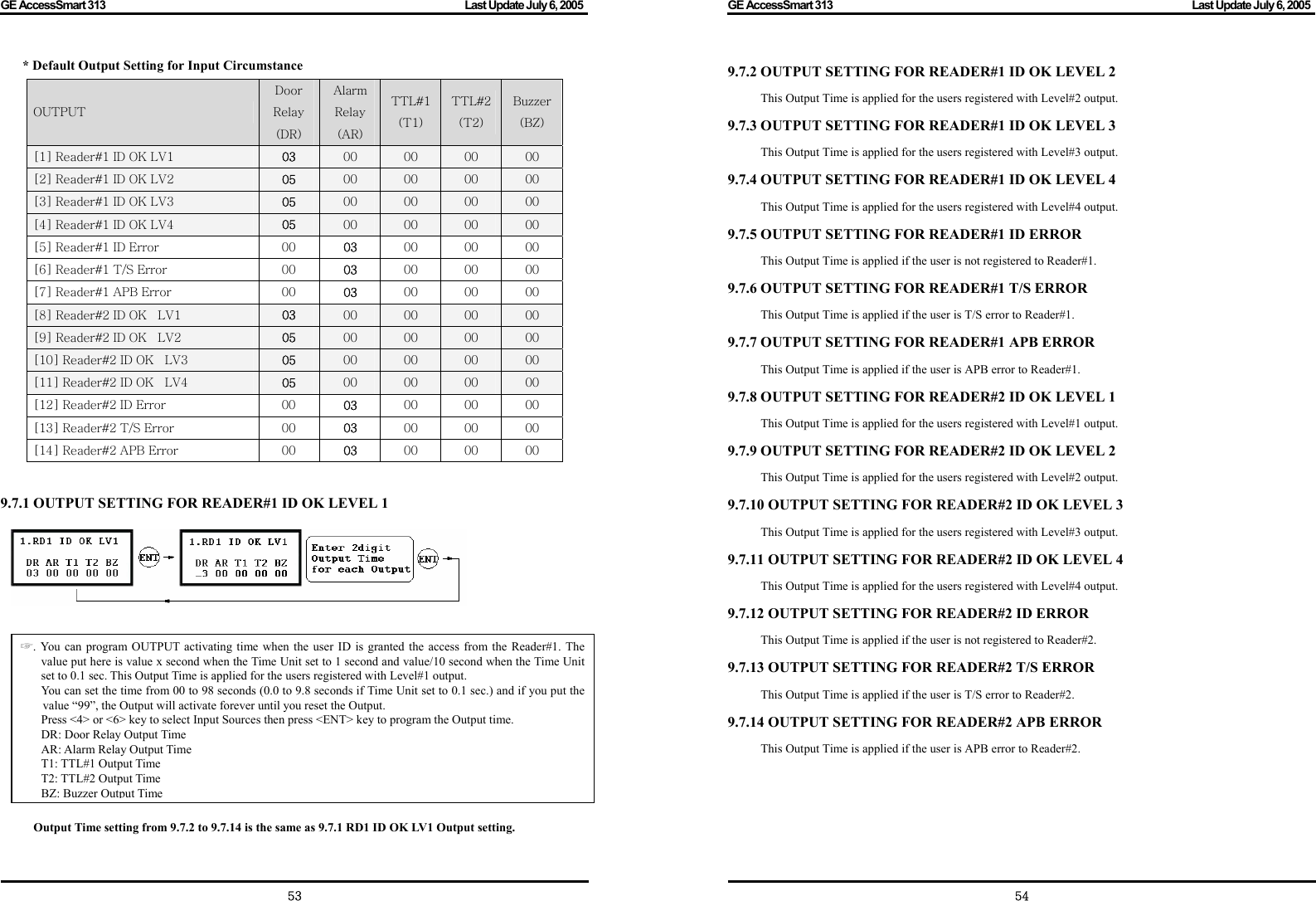

![GE AccessSmart 313 Last Update July 6, 2005 53 * Default Output Setting for Input Circumstance 9.7.1 OUTPUT SETTING FOR READER#1 ID OK LEVEL 1 Output Time setting from 9.7.2 to 9.7.14 is the same as 9.7.1 RD1 ID OK LV1 Output setting. OUTPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2(T2) Buzzer(BZ) [1] Reader#1 ID OK LV1 03 00 00 00 00 [2] Reader#1 ID OK LV2 05 00 00 00 00 [3] Reader#1 ID OK LV3 05 00 00 00 00 [4] Reader#1 ID OK LV4 05 00 00 00 00 [5] Reader#1 ID Error 00 03 00 00 00 [6] Reader#1 T/S Error 00 03 00 00 00 [7] Reader#1 APB Error 00 03 00 00 00 [8] Reader#2 ID OK LV1 03 00 00 00 00 [9] Reader#2 ID OK LV2 05 00 00 00 00 [10] Reader#2 ID OK LV3 05 00 00 00 00 [11] Reader#2 ID OK LV4 05 00 00 00 00 [12] Reader#2 ID Error 00 03 00 00 00 [13] Reader#2 T/S Error 00 03 00 00 00 [14] Reader#2 APB Error 00 03 00 00 00 . You can program ☞OUTPUT activating time when the user ID is granted the access from the Reader#1. The value put here is value x second when the Time Unit set to 1 second and value/10 second when the Time Unit set to 0.1 sec. This Output Time is applied for the users registered with Level#1 output. You can set the time from 00 to 98 seconds (0.0 to 9.8 seconds if Time Unit set to 0.1 sec.) and if you put the value “99”, the Output will activate forever until you reset the Output. Press <4> or <6> key to select Input Sources then press <ENT> key to program the Output time. DR: Door Relay Output Time AR: Alarm Relay Output Time T1: TTL#1 Output Time T2: TTL#2 Output Time BZ: Buzzer Output TimeGE AccessSmart 313 Last Update July 6, 2005 549.7.2 OUTPUT SETTING FOR READER#1 ID OK LEVEL 2 This Output Time is applied for the users registered with Level#2 output. 9.7.3 OUTPUT SETTING FOR READER#1 ID OK LEVEL 3 This Output Time is applied for the users registered with Level#3 output. 9.7.4 OUTPUT SETTING FOR READER#1 ID OK LEVEL 4 This Output Time is applied for the users registered with Level#4 output. 9.7.5 OUTPUT SETTING FOR READER#1 ID ERROR This Output Time is applied if the user is not registered to Reader#1. 9.7.6 OUTPUT SETTING FOR READER#1 T/S ERROR This Output Time is applied if the user is T/S error to Reader#1. 9.7.7 OUTPUT SETTING FOR READER#1 APB ERROR This Output Time is applied if the user is APB error to Reader#1. 9.7.8 OUTPUT SETTING FOR READER#2 ID OK LEVEL 1 This Output Time is applied for the users registered with Level#1 output. 9.7.9 OUTPUT SETTING FOR READER#2 ID OK LEVEL 2 This Output Time is applied for the users registered with Level#2 output. 9.7.10 OUTPUT SETTING FOR READER#2 ID OK LEVEL 3 This Output Time is applied for the users registered with Level#3 output. 9.7.11 OUTPUT SETTING FOR READER#2 ID OK LEVEL 4 This Output Time is applied for the users registered with Level#4 output. 9.7.12 OUTPUT SETTING FOR READER#2 ID ERROR This Output Time is applied if the user is not registered to Reader#2. 9.7.13 OUTPUT SETTING FOR READER#2 T/S ERROR This Output Time is applied if the user is T/S error to Reader#2. 9.7.14 OUTPUT SETTING FOR READER#2 APB ERROR This Output Time is applied if the user is APB error to Reader#2.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-27.png)

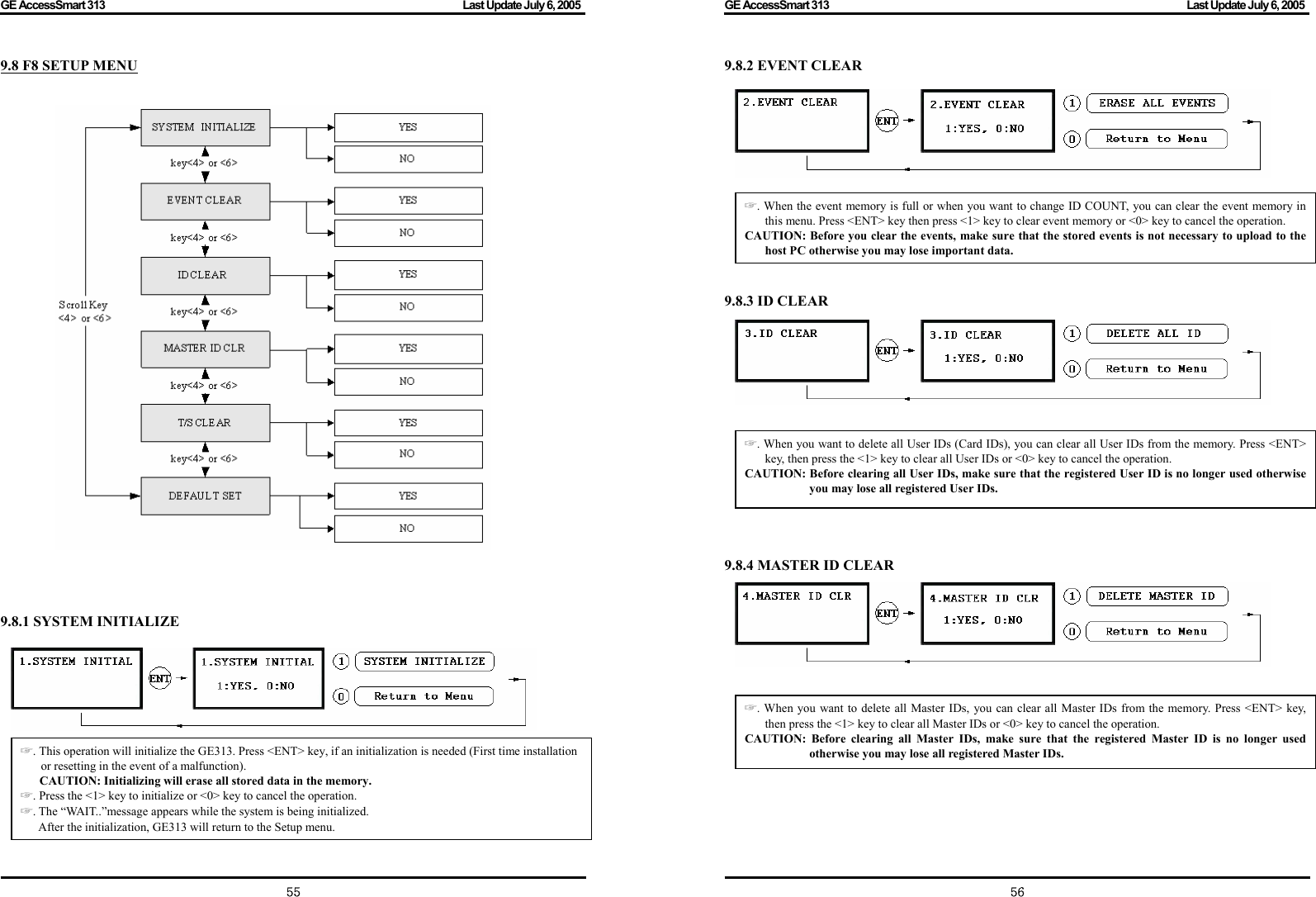

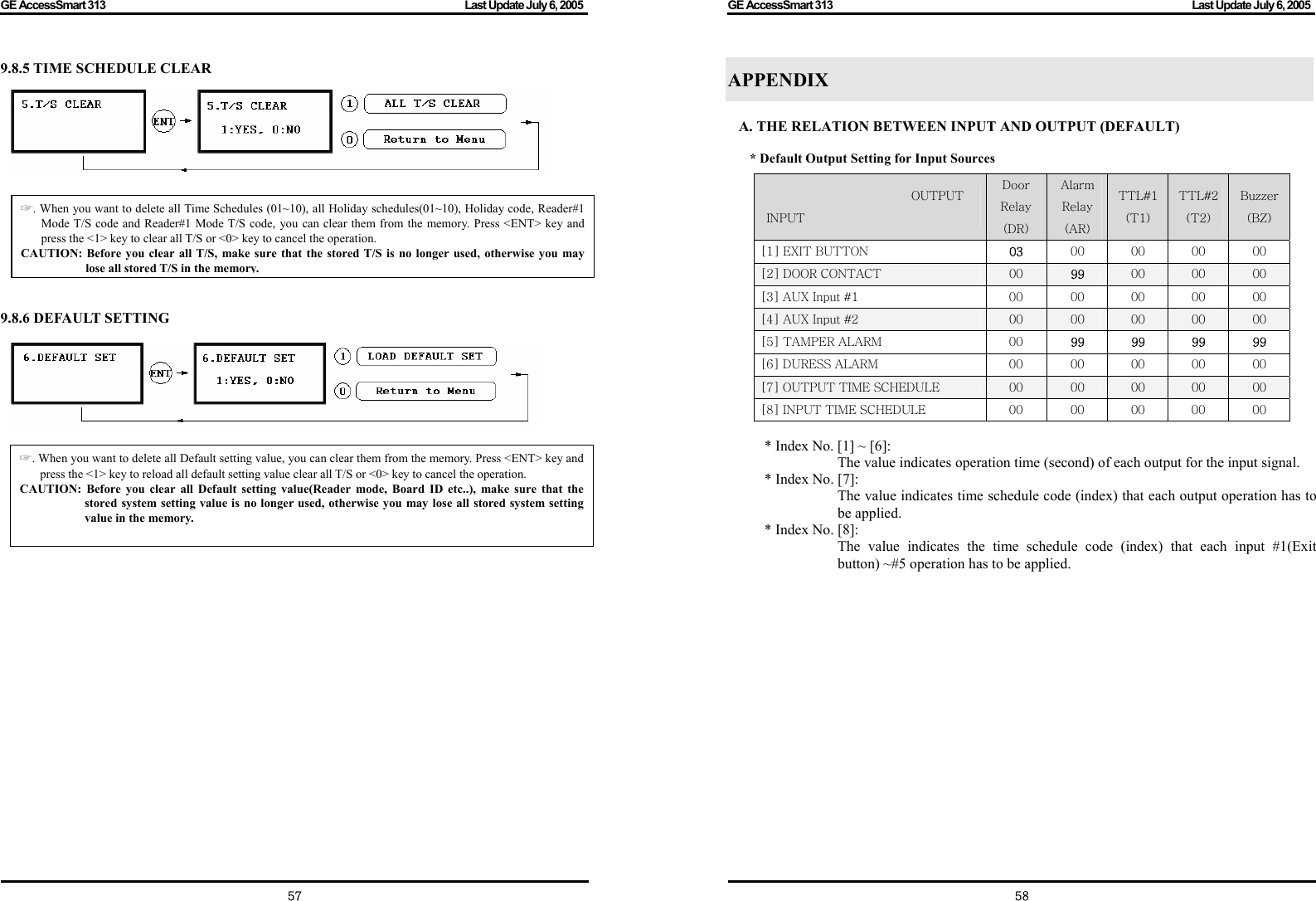

![GE AccessSmart 313 Last Update July 6, 2005 57 9.8.5 TIME SCHEDULE CLEAR 9.8.6 DEFAULT SETTING ☞. When you want to delete all Time Schedules (01~10), all Holiday schedules(01~10), Holiday code, Reader#1 Mode T/S code and Reader#1 Mode T/S code, you can clear them from the memory. Press <ENT> key and press the <1> key to clear all T/S or <0> key to cancel the operation. CAUTION: Before you clear all T/S, make sure that the stored T/S is no longer used, otherwise you may lose all stored T/S in the memory. ☞. When you want to delete all Default setting value, you can clear them from the memory. Press <ENT> key and press the <1> key to reload all default setting value clear all T/S or <0> key to cancel the operation. CAUTION: Before you clear all Default setting value(Reader mode, Board ID etc..), make sure that the stored system setting value is no longer used, otherwise you may lose all stored system setting value in the memory. GE AccessSmart 313 Last Update July 6, 2005 58APPENDIX A. THE RELATION BETWEEN INPUT AND OUTPUT (DEFAULT) * Default Output Setting for Input Sources * Index No. [1] ~ [6]: The value indicates operation time (second) of each output for the input signal. * Index No. [7]: The value indicates time schedule code (index) that each output operation has to be applied. * Index No. [8]: The value indicates the time schedule code (index) that each input #1(Exit button) ~#5 operation has to be applied. OUTPUT INPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2 (T2) Buzzer (BZ) [1] EXIT BUTTON 03 00 00 00 00 [2] DOOR CONTACT 00 99 00 00 00 [3] AUX Input #1 00 00 00 00 00 [4] AUX Input #2 00 00 00 00 00 [5] TAMPER ALARM 00 99 99 99 99 [6] DURESS ALARM 00 00 00 00 00 [7] OUTPUT TIME SCHEDULE 00 00 00 00 00 [8] INPUT TIME SCHEDULE 00 00 00 00 00](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-29.png)

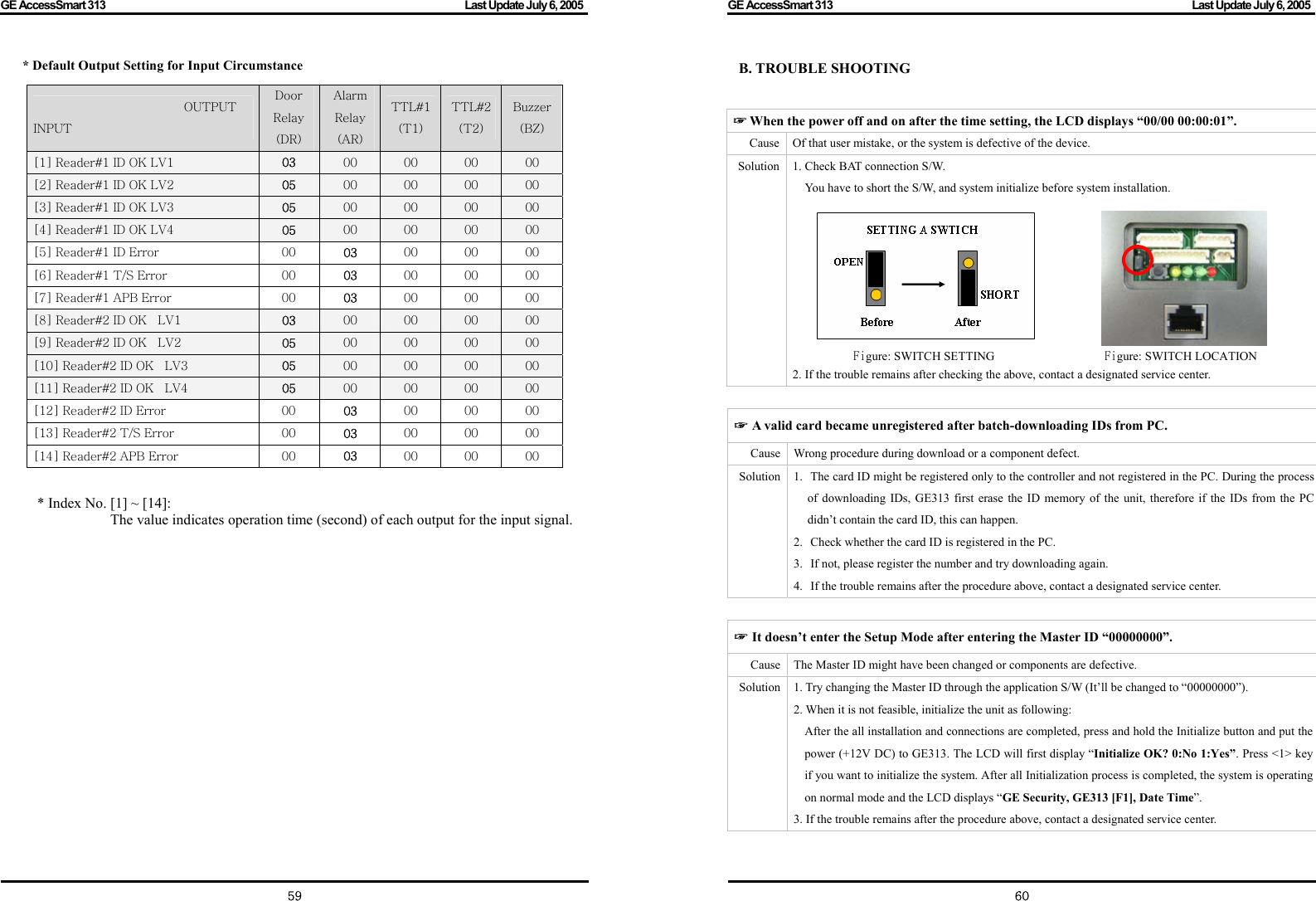

![GE AccessSmart 313 Last Update July 6, 2005 59 * Default Output Setting for Input Circumstance * Index No. [1] ~ [14]: The value indicates operation time (second) of each output for the input signal. OUTPUT INPUT Door Relay (DR) Alarm Relay (AR) TTL#1(T1) TTL#2(T2) Buzzer(BZ) [1] Reader#1 ID OK LV1 03 00 00 00 00 [2] Reader#1 ID OK LV2 05 00 00 00 00 [3] Reader#1 ID OK LV3 05 00 00 00 00 [4] Reader#1 ID OK LV4 05 00 00 00 00 [5] Reader#1 ID Error 00 03 00 00 00 [6] Reader#1 T/S Error 00 03 00 00 00 [7] Reader#1 APB Error 00 03 00 00 00 [8] Reader#2 ID OK LV1 03 00 00 00 00 [9] Reader#2 ID OK LV2 05 00 00 00 00 [10] Reader#2 ID OK LV3 05 00 00 00 00 [11] Reader#2 ID OK LV4 05 00 00 00 00 [12] Reader#2 ID Error 00 03 00 00 00 [13] Reader#2 T/S Error 00 03 00 00 00 [14] Reader#2 APB Error 00 03 00 00 00 GE AccessSmart 313 Last Update July 6, 2005 60B. TROUBLE SHOOTING ☞ A valid card became unregistered after batch-downloading IDs from PC. Cause Wrong procedure during download or a component defect. Solution 1. The card ID might be registered only to the controller and not registered in the PC. During the process of downloading IDs, GE313 first erase the ID memory of the unit, therefore if the IDs from the PC didn’t contain the card ID, this can happen. 2. Check whether the card ID is registered in the PC. 3. If not, please register the number and try downloading again. 4. If the trouble remains after the procedure above, contact a designated service center. ☞ It doesn’t enter the Setup Mode after entering the Master ID “00000000”. Cause The Master ID might have been changed or components are defective. Solution 1. Try changing the Master ID through the application S/W (It’ll be changed to “00000000”). 2. When it is not feasible, initialize the unit as following: After the all installation and connections are completed, press and hold the Initialize button and put the power (+12V DC) to GE313. The LCD will first display “Initialize OK? 0:No 1:Yes”. Press <1> key if you want to initialize the system. After all Initialization process is completed, the system is operating on normal mode and the LCD displays “GE Security, GE313 [F1], Date Time”. 3. If the trouble remains after the procedure above, contact a designated service center. ☞ When the power off and on after the time setting, the LCD displays “00/00 00:00:01”. Cause Of that user mistake, or the system is defective of the device. Solution 1. Check BAT connection S/W. You have to short the S/W, and system initialize before system installation. Figure: SWITCH SETTING Figure: SWITCH LOCATION 2. If the trouble remains after checking the above, contact a designated service center.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-30.png)

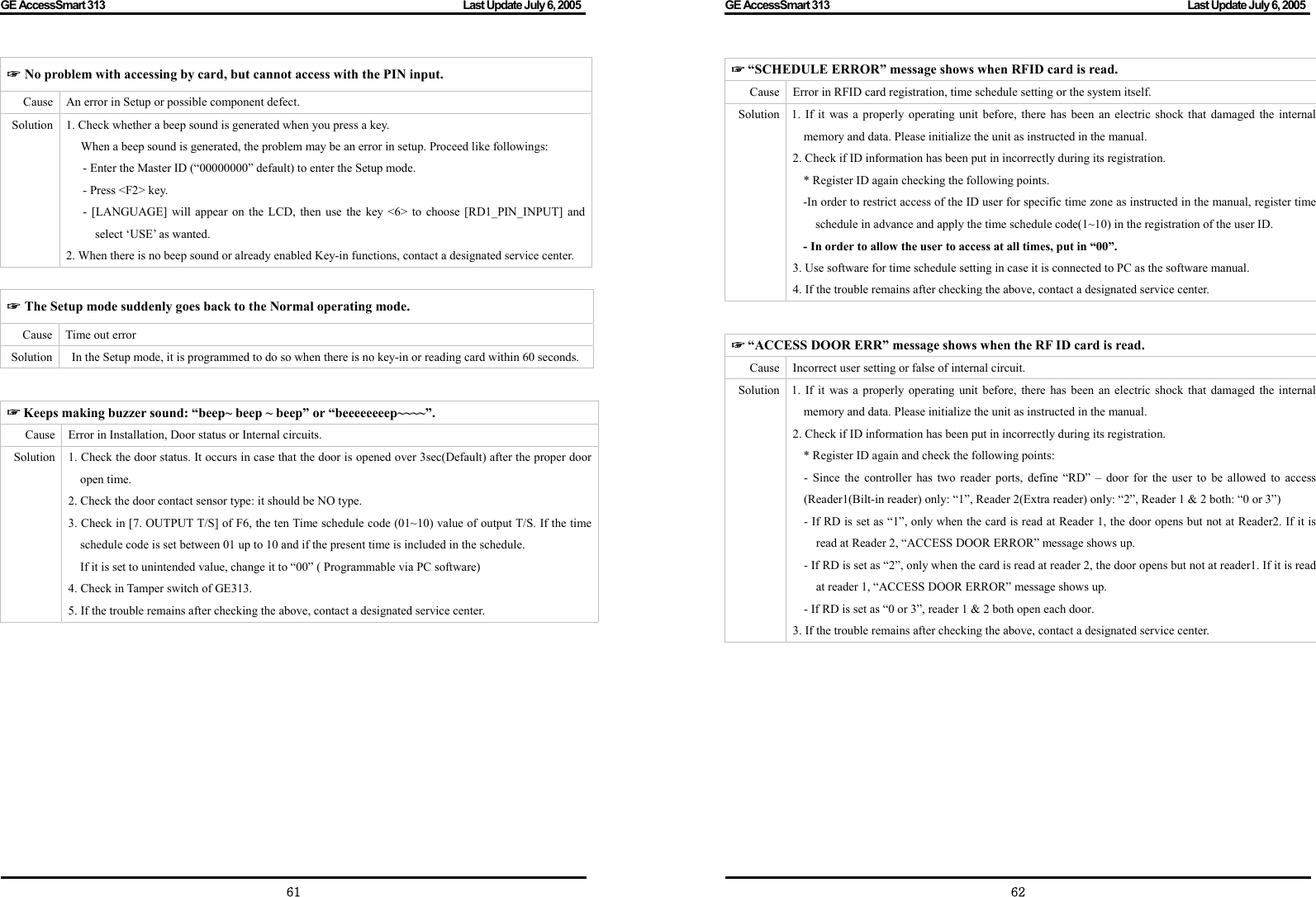

![GE AccessSmart 313 Last Update July 6, 2005 61 ☞ No problem with accessing by card, but cannot access with the PIN input. Cause An error in Setup or possible component defect. Solution 1. Check whether a beep sound is generated when you press a key. When a beep sound is generated, the problem may be an error in setup. Proceed like followings: - Enter the Master ID (“00000000” default) to enter the Setup mode. - Press <F2> key. - [LANGUAGE] will appear on the LCD, then use the key <6> to choose [RD1_PIN_INPUT] and select ‘USE’ as wanted. 2. When there is no beep sound or already enabled Key-in functions, contact a designated service center. ☞ The Setup mode suddenly goes back to the Normal operating mode. Cause Time out error Solution In the Setup mode, it is programmed to do so when there is no key-in or reading card within 60 seconds. ☞ Keeps making buzzer sound: “beep~ beep ~ beep” or “beeeeeeeep~~~~”. Cause Error in Installation, Door status or Internal circuits. Solution 1. Check the door status. It occurs in case that the door is opened over 3sec(Default) after the proper door open time. 2. Check the door contact sensor type: it should be NO type. 3. Check in [7. OUTPUT T/S] of F6, the ten Time schedule code (01~10) value of output T/S. If the time schedule code is set between 01 up to 10 and if the present time is included in the schedule. If it is set to unintended value, change it to “00” ( Programmable via PC software) 4. Check in Tamper switch of GE313. 5. If the trouble remains after checking the above, contact a designated service center. GE AccessSmart 313 Last Update July 6, 2005 62 ☞ “SCHEDULE ERROR” message shows when RFID card is read. Cause Error in RFID card registration, time schedule setting or the system itself. Solution 1. If it was a properly operating unit before, there has been an electric shock that damaged the internal memory and data. Please initialize the unit as instructed in the manual. 2. Check if ID information has been put in incorrectly during its registration. * Register ID again checking the following points. -In order to restrict access of the ID user for specific time zone as instructed in the manual, register time schedule in advance and apply the time schedule code(1~10) in the registration of the user ID. - In order to allow the user to access at all times, put in “00”. 3. Use software for time schedule setting in case it is connected to PC as the software manual. 4. If the trouble remains after checking the above, contact a designated service center. ☞ “ACCESS DOOR ERR” message shows when the RF ID card is read. Cause Incorrect user setting or false of internal circuit. Solution 1. If it was a properly operating unit before, there has been an electric shock that damaged the internal memory and data. Please initialize the unit as instructed in the manual. 2. Check if ID information has been put in incorrectly during its registration. * Register ID again and check the following points: - Since the controller has two reader ports, define “RD” – door for the user to be allowed to access (Reader1(Bilt-in reader) only: “1”, Reader 2(Extra reader) only: “2”, Reader 1 & 2 both: “0 or 3”) - If RD is set as “1”, only when the card is read at Reader 1, the door opens but not at Reader2. If it is read at Reader 2, “ACCESS DOOR ERROR” message shows up. - If RD is set as “2”, only when the card is read at reader 2, the door opens but not at reader1. If it is read at reader 1, “ACCESS DOOR ERROR” message shows up. - If RD is set as “0 or 3”, reader 1 & 2 both open each door. 3. If the trouble remains after checking the above, contact a designated service center.](https://usermanual.wiki/HONEYWELL-SECURITY-AMERICAS/GE313/User-Guide-591310-Page-31.png)
