HOSEOTELNET ATM200 Reflex Module User Manual ATM200 REV01

Hoseo Telnet Co., Ltd. Reflex Module ATM200 REV01

User Manual

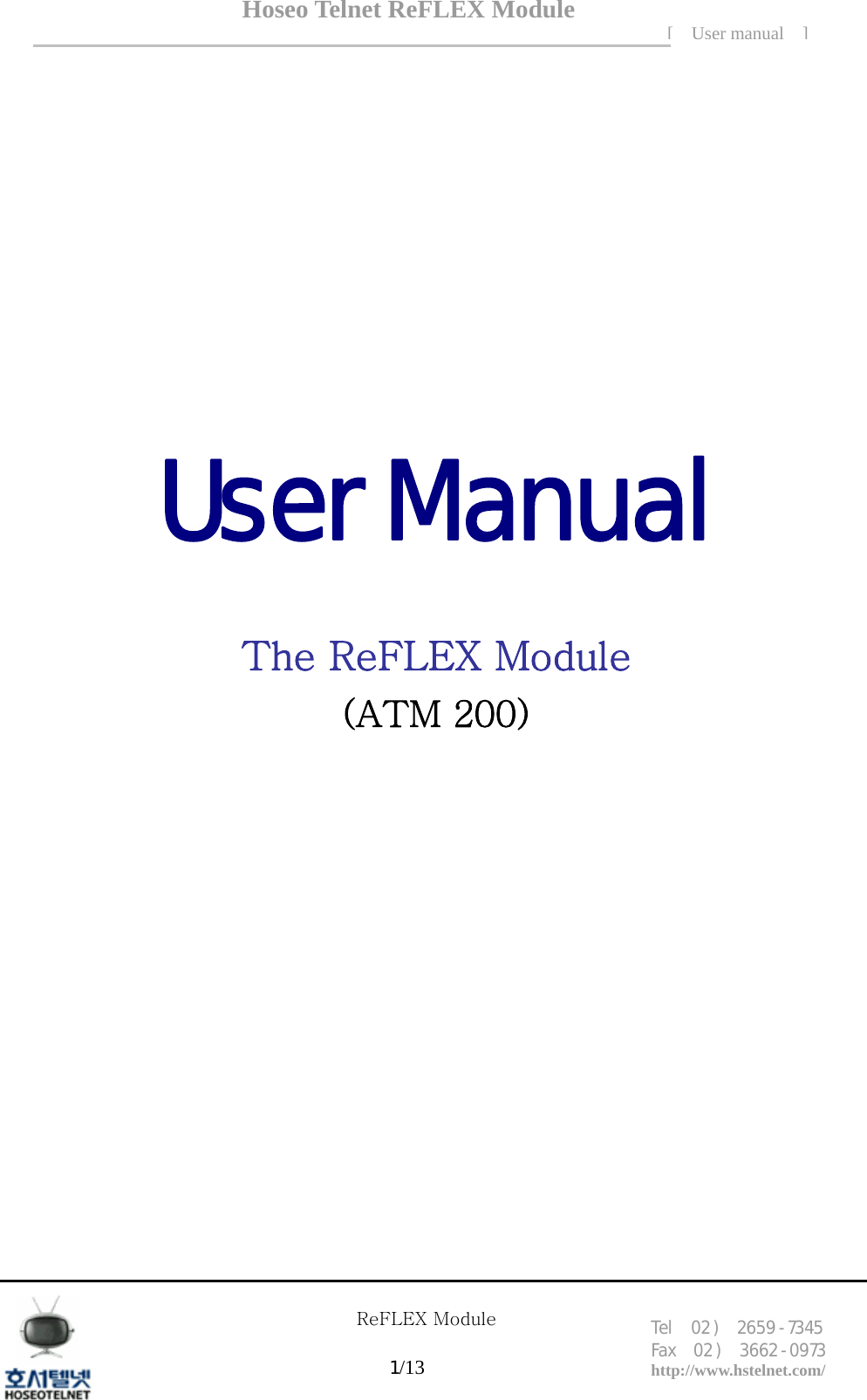

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 1/13       User Manual    The ReFLEX Module (ATM 200)

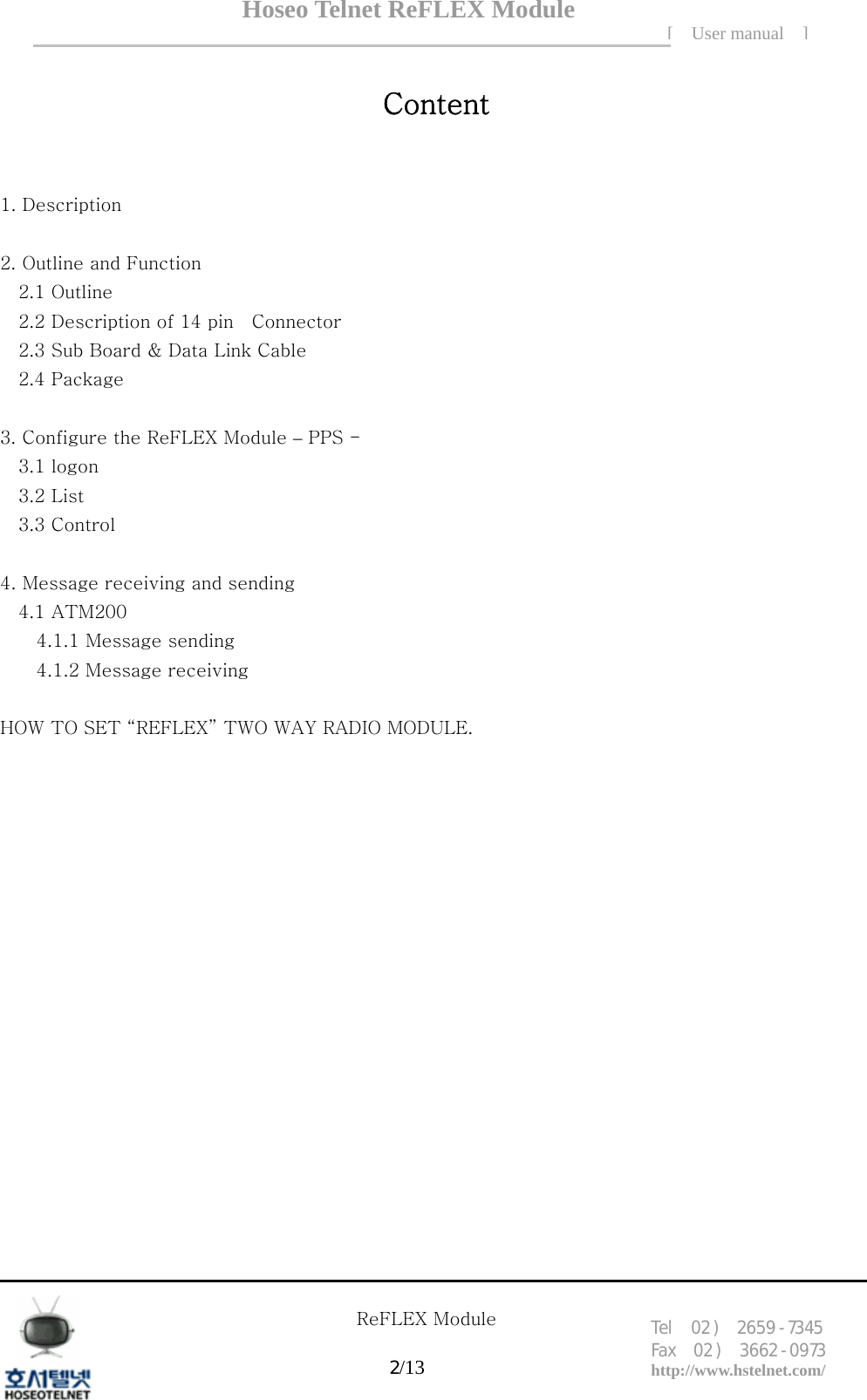

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 2/13   Content  1. Description    2. Outline and Function   2.1 Outline   2.2 Description of 14 pin    Connector   2.3 Sub Board & Data Link Cable 2.4 Package  3. Configure the ReFLEX Module – PPS - 3.1 logon 3.2 List 3.3 Control  4. Message receiving and sending 4.1 ATM200 4.1.1 Message sending   4.1.2 Message receiving  HOW TO SET “REFLEX” TWO WAY RADIO MODULE.

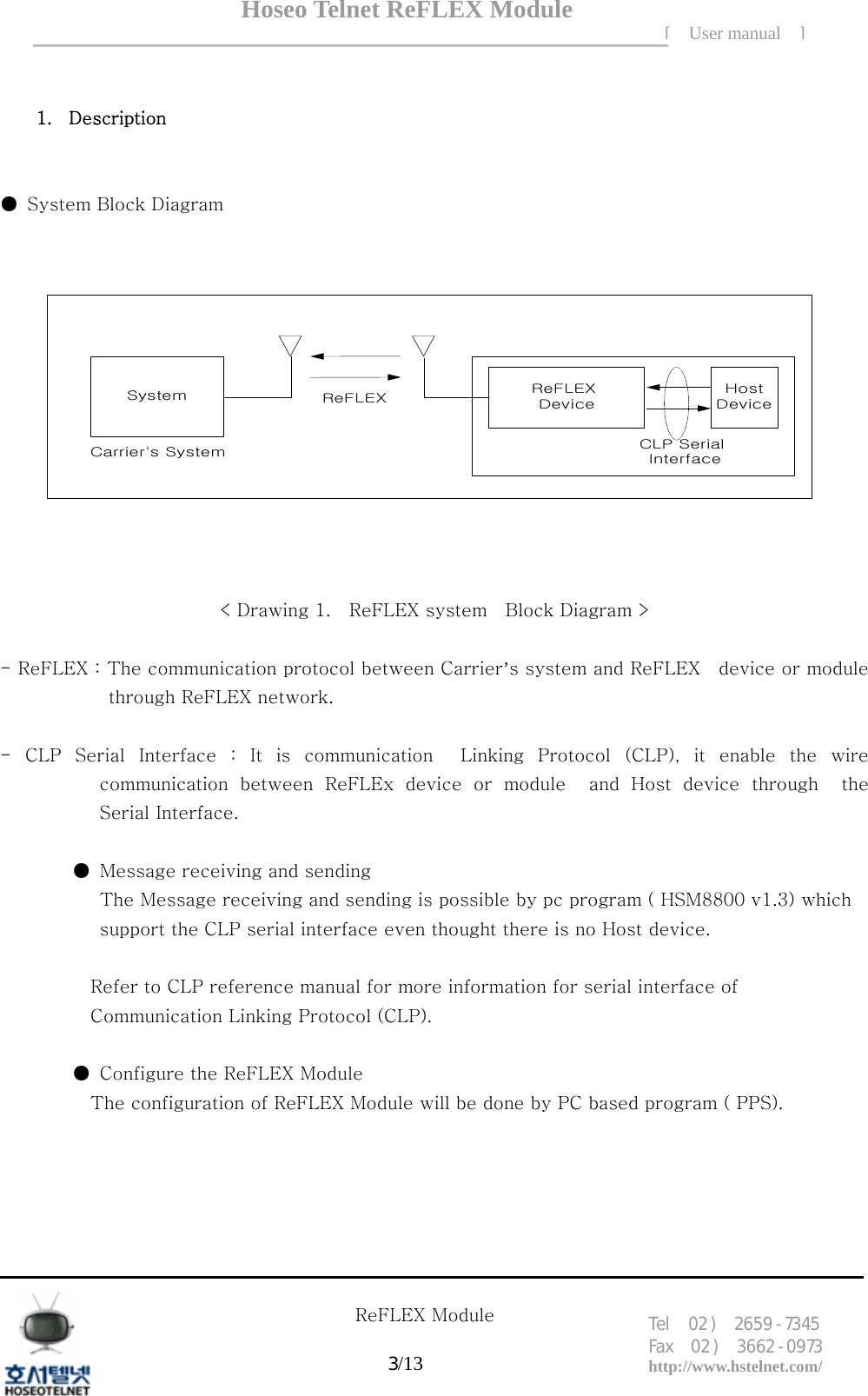

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 3/13    1. Description      ●  System Block Diagram System ReFLEX DeviceHostDeviceCarrier's SystemReFLEXCLP Serial Interface < Drawing 1.    ReFLEX system    Block Diagram >  - ReFLEX : The communication protocol between Carrier’s system and ReFLEX    device or module through ReFLEX network.  -  CLP  Serial  Interface  :  It  is  communication    Linking  Protocol  (CLP), it enable the wire communication  between  ReFLEx  device  or  module    and  Host  device  through    the Serial Interface.    ●  Message receiving and sending                  The Message receiving and sending is possible by pc program ( HSM8800 v1.3) which   support the CLP serial interface even thought there is no Host device.  Refer to CLP reference manual for more information for serial interface of   Communication Linking Protocol (CLP).          ●  Configure the ReFLEX Module   The configuration of ReFLEX Module will be done by PC based program ( PPS).

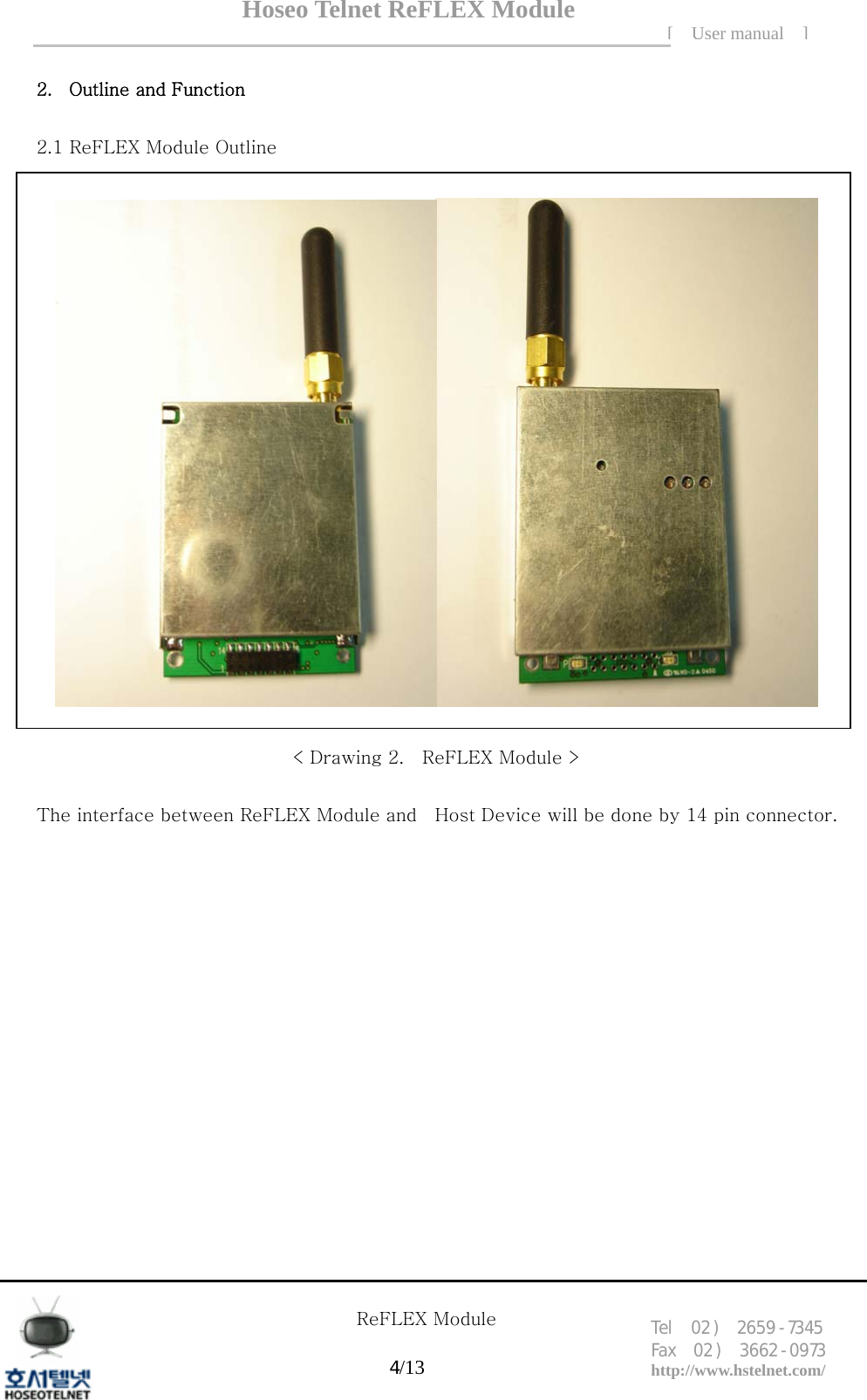

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 4/13   2. Outline and Function    2.1 ReFLEX Module Outline          < Drawing 2.    ReFLEX Module >  The interface between ReFLEX Module and    Host Device will be done by 14 pin connector.
Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 5/13   2.2    Description of 14 pin connector     1  8 2  9 3  104  115  126  137  14     < Drawing 3    14 pin connector > Pin Configuration  PIN Name  Type  Description 1  VCC_Tx    4V~10V, 3A, PA Voltage 2  VCC_Main    4V~10V,200mA, Controller Voltage 3  GPIO0    CMOS, General Purpose I/O 4  GPIO1    CMOS, General Purpose I/O 5 SI0   Reserved, NC 6 SO0   Reserved, NC 7 SCK0   Reserved, NC 8 VCC   Reserved, NC 9 GND   Signal Ground 10 Tx_Data    UART Output 11 Rx_Data    UART Input 12 Enable   Module Enable 13 VPP   Reserved, NC 14 GND   Signal Ground *Note :CMOS Level 3V < Table 1    pin description >

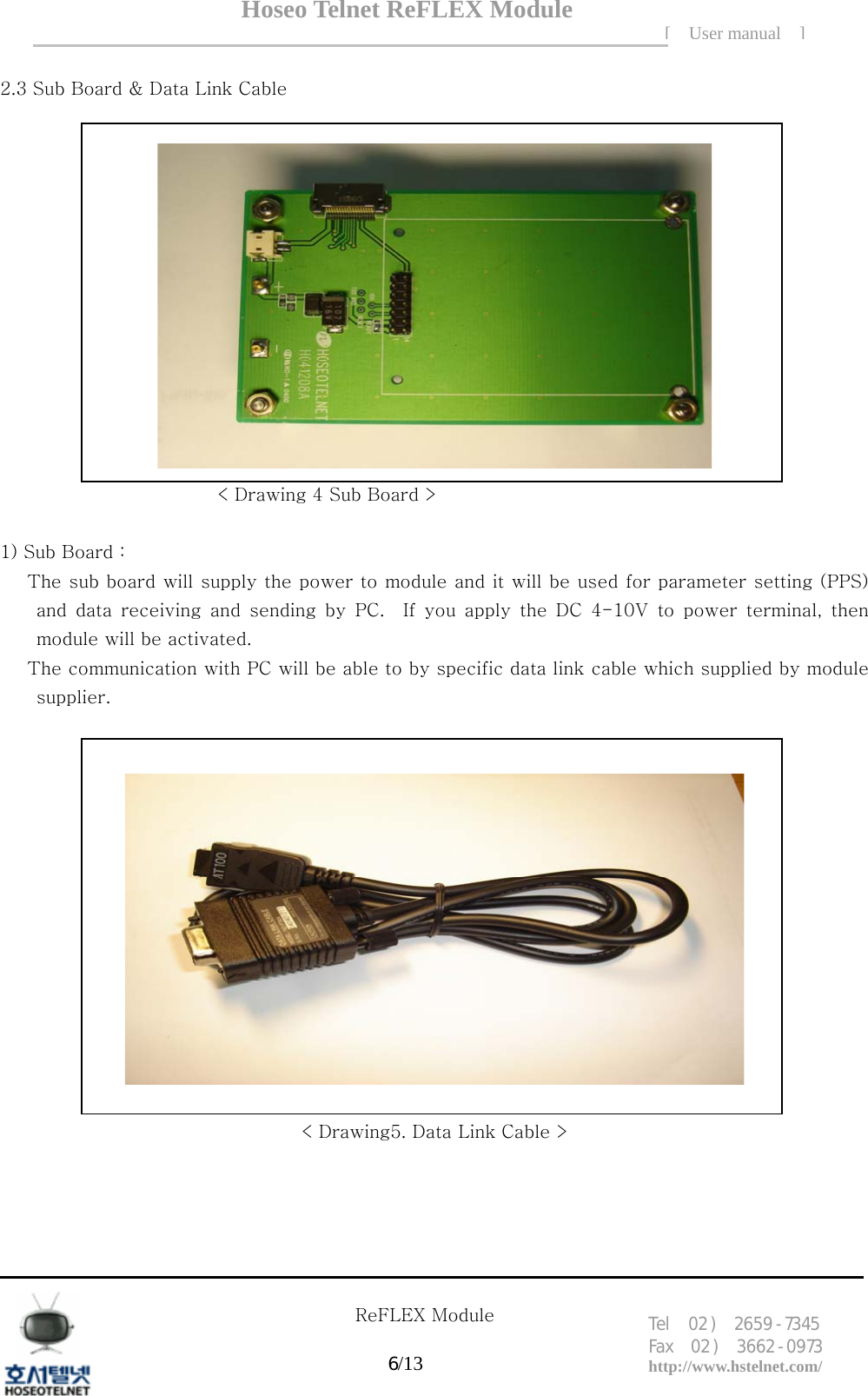

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 6/13   2.3 Sub Board & Data Link Cable         < Drawing 4 Sub Board >  1) Sub Board : The sub board will supply the power to module and it will be used for parameter setting (PPS) and  data  receiving  and  sending  by  PC.    If  you  apply  the  DC  4-10V to power terminal, then module will be activated.   The communication with PC will be able to by specific data link cable which supplied by module supplier.       < Drawing5. Data Link Cable >

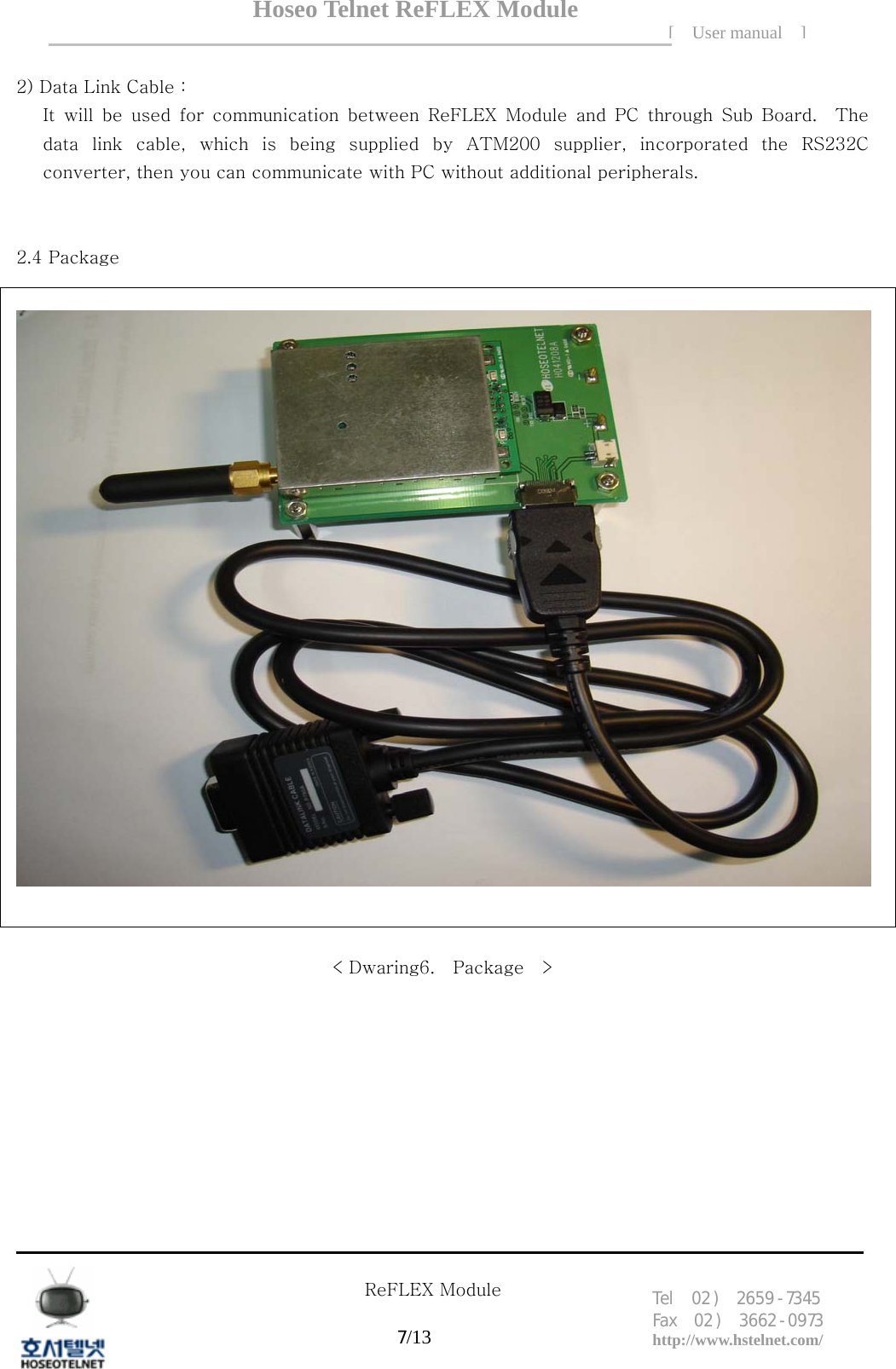

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 7/13   2) Data Link Cable :   It  will  be  used  for  communication  between  ReFLEX  Module  and  PC  through  Sub  Board.    The data  link  cable,  which  is  being  supplied  by  ATM200  supplier,  incorporated  the  RS232C converter, then you can communicate with PC without additional peripherals.   2.4 Package     < Dwaring6.    Package    >

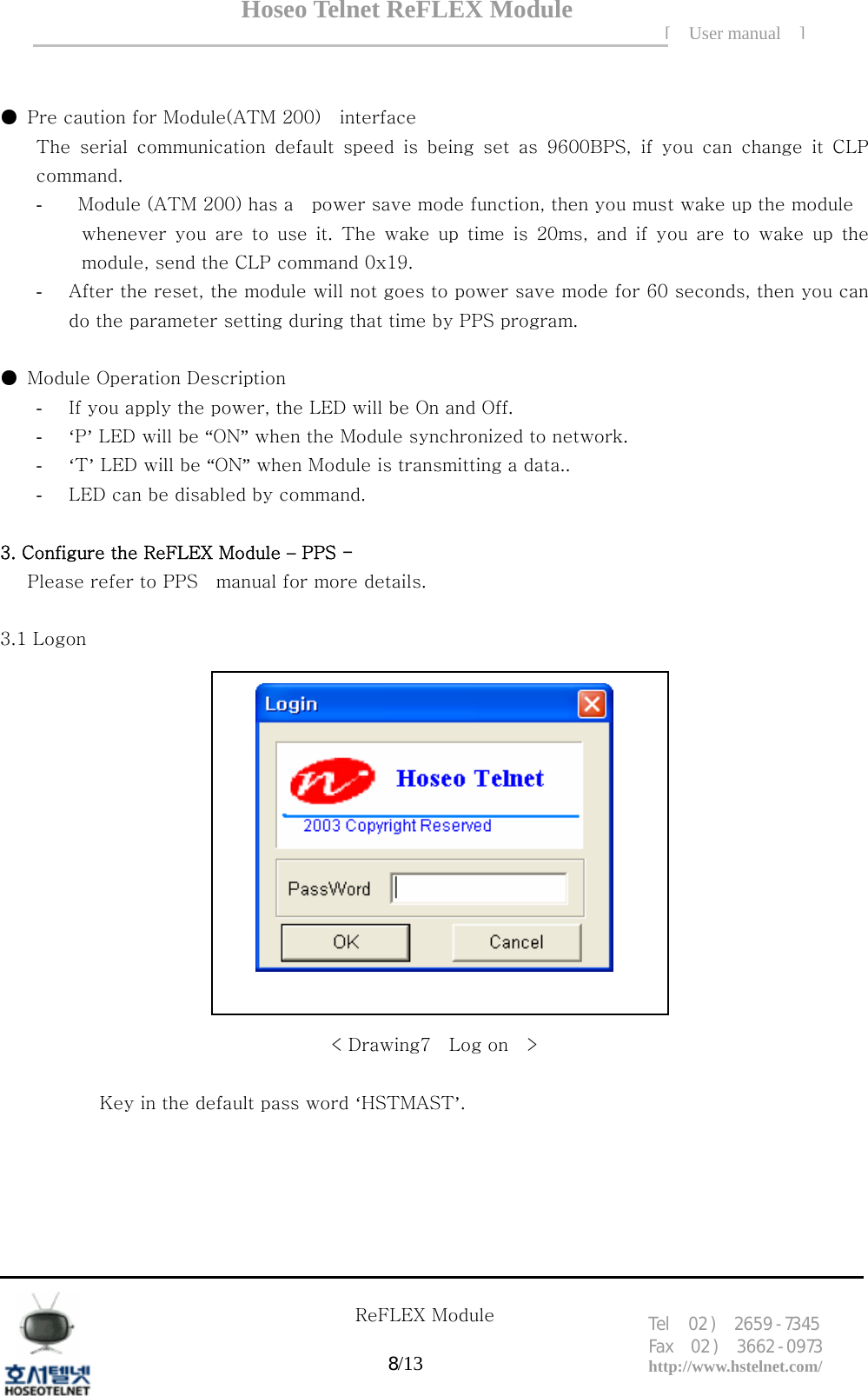

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 8/13    ●  Pre caution for Module(ATM 200)    interface   The  serial  communication  default  speed  is  being  set  as  9600BPS,  if  you  can  change  it  CLP command. -   Module (ATM 200) has a    power save mode function, then you must wake up the module        whenever you are to use it. The wake up time is 20ms, and if you are to wake up the module, send the CLP command 0x19. - After the reset, the module will not goes to power save mode for 60 seconds, then you can do the parameter setting during that time by PPS program.     ●  Module Operation Description - If you apply the power, the LED will be On and Off. - ‘P’ LED will be “ON” when the Module synchronized to network. - ‘T’ LED will be “ON” when Module is transmitting a data.. - LED can be disabled by command.            3. Configure the ReFLEX Module – PPS - Please refer to PPS    manual for more details.  3.1 Logon     < Drawing7    Log on    >  Key in the default pass word ‘HSTMAST’.

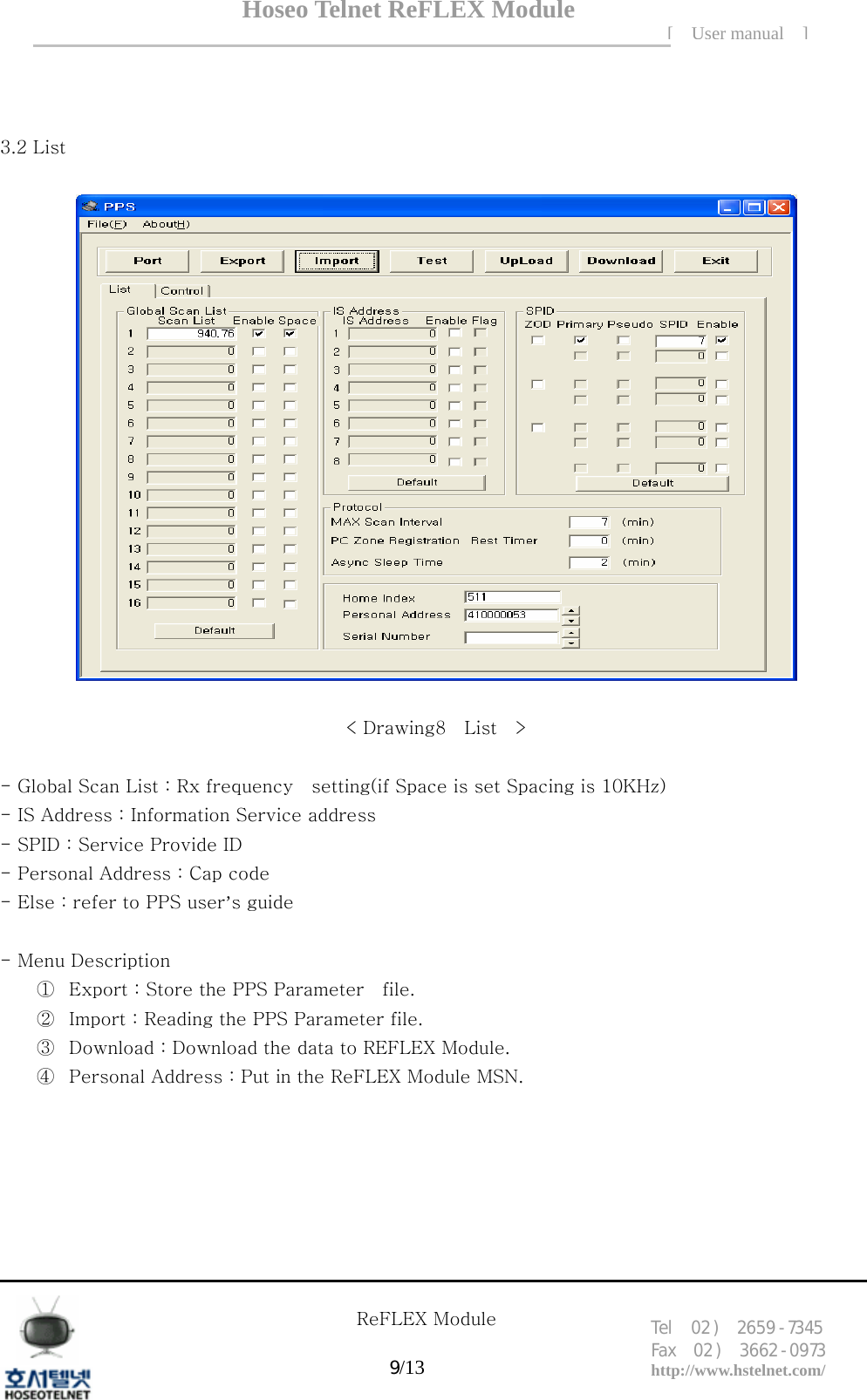

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 9/13     3.2 List    < Drawing8    List    >  - Global Scan List : Rx frequency    setting(if Space is set Spacing is 10KHz) - IS Address : Information Service address - SPID : Service Provide ID - Personal Address : Cap code - Else : refer to PPS user’s guide      - Menu Description ① Export : Store the PPS Parameter    file. ② Import : Reading the PPS Parameter file. ③ Download : Download the data to REFLEX Module. ④ Personal Address : Put in the ReFLEX Module MSN.

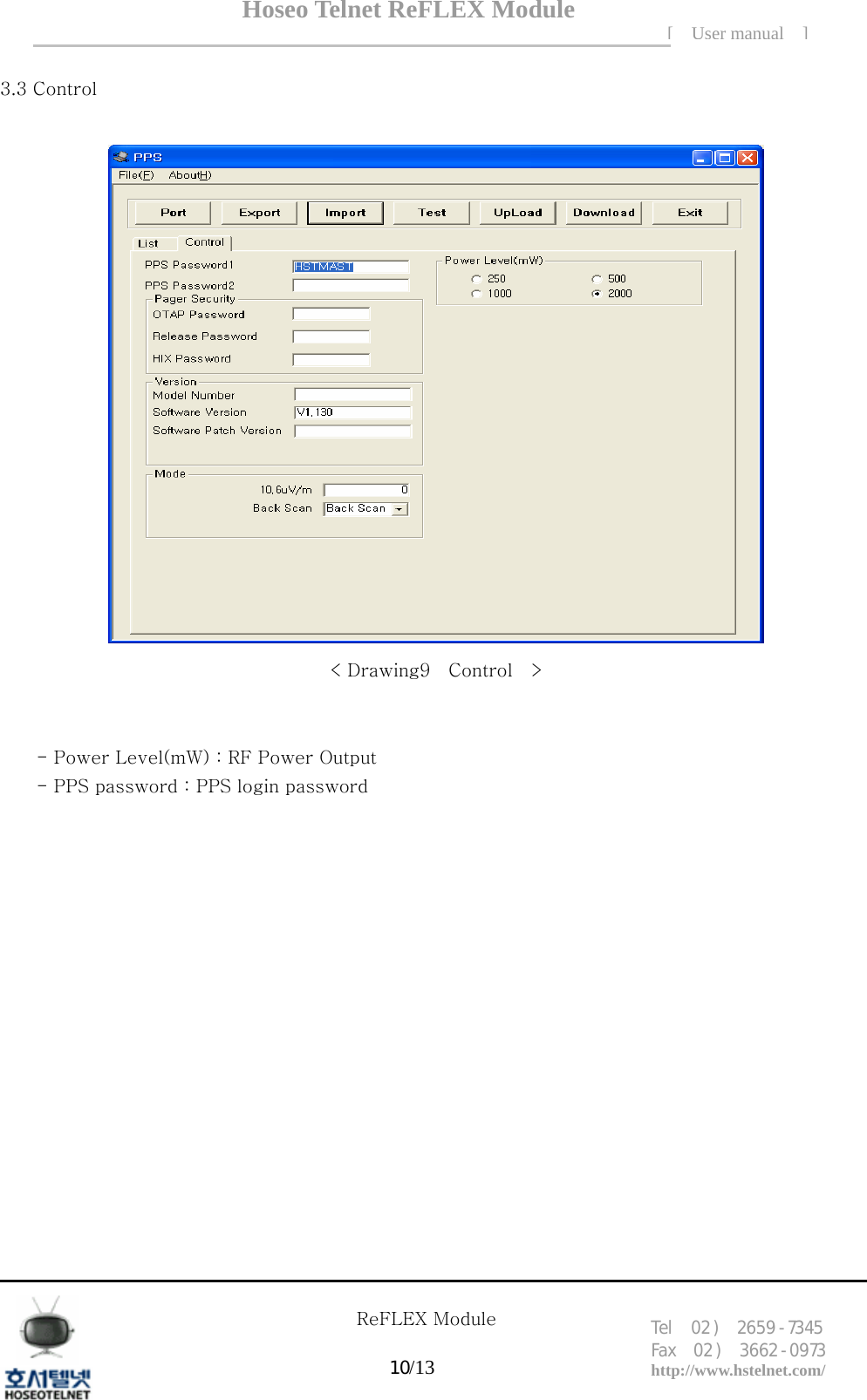

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 10/13 3.3 Control   < Drawing9    Control    >   - Power Level(mW) : RF Power Output - PPS password : PPS login password

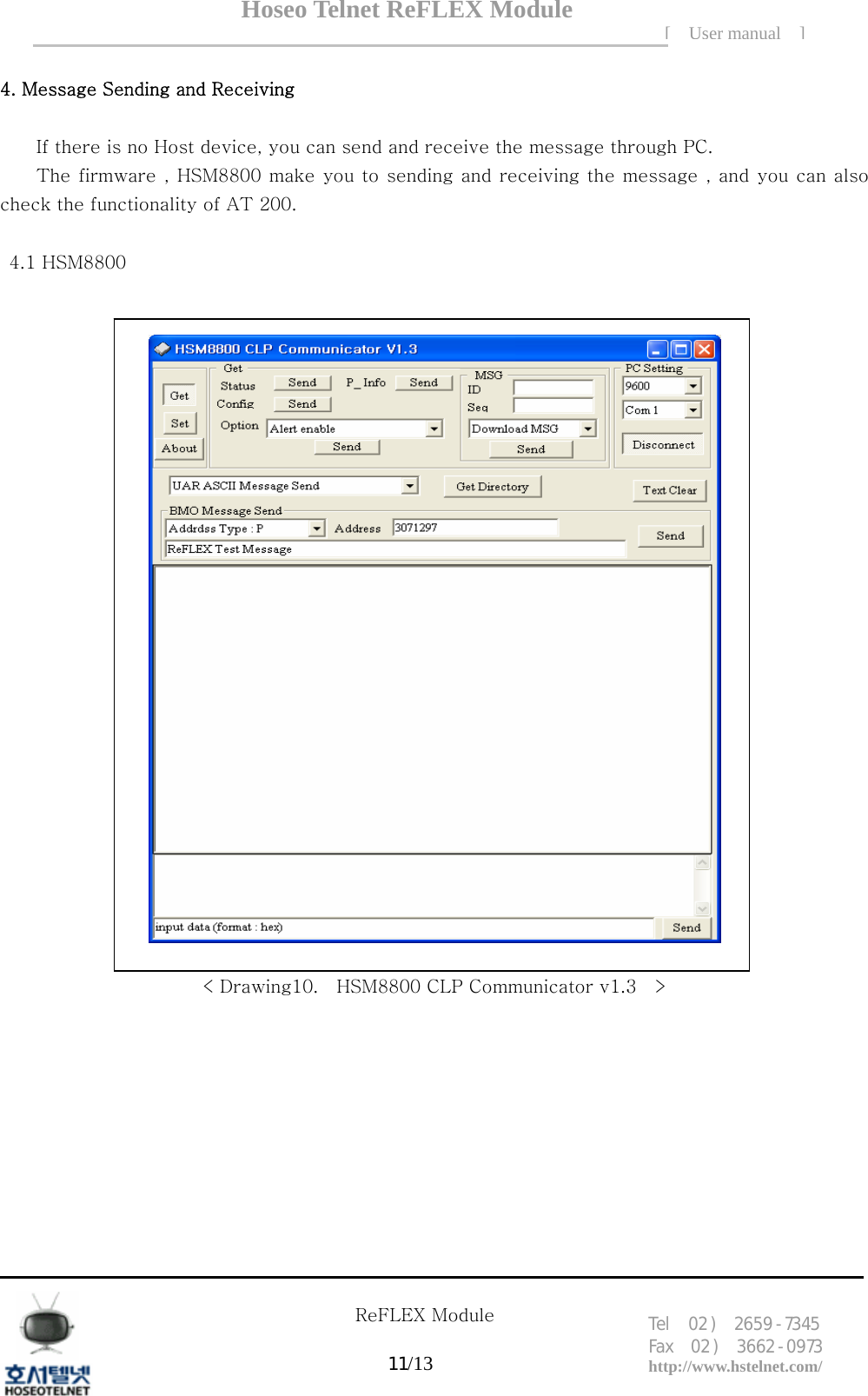

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 11/13 4. Message Sending and Receiving     If there is no Host device, you can send and receive the message through PC.         The firmware , HSM8800 make  you to sending  and receiving the message , and you can also check the functionality of AT 200.    4.1 HSM8800     < Drawing10.    HSM8800 CLP Communicator v1.3    >
Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 12/13 4.1.1 Message Sending   Sending the message to destination..      < Drawing11. BMO Message Send >  ①  Address Type : There are two(2) address type “P” and “E”  Address Type  Description P    Send the message using PIN number of    ReFLEX Module.     (Ex. : 3071297 ) E    Sending the message using email address.   ( Ex. : hjino5@hoseo.or.kr )  < Table2. Address Type    > ②  Address : key in the address of receiving part. ③  ReFLEX Test Message: key in the sending message. ④  Send : Click the “Send” button to send the message..    4.1.2 Message receiving Download the received message on ReFLEX Module.          < Drawing12. Download MSG >   ① Click the “Send” button to download the received message.

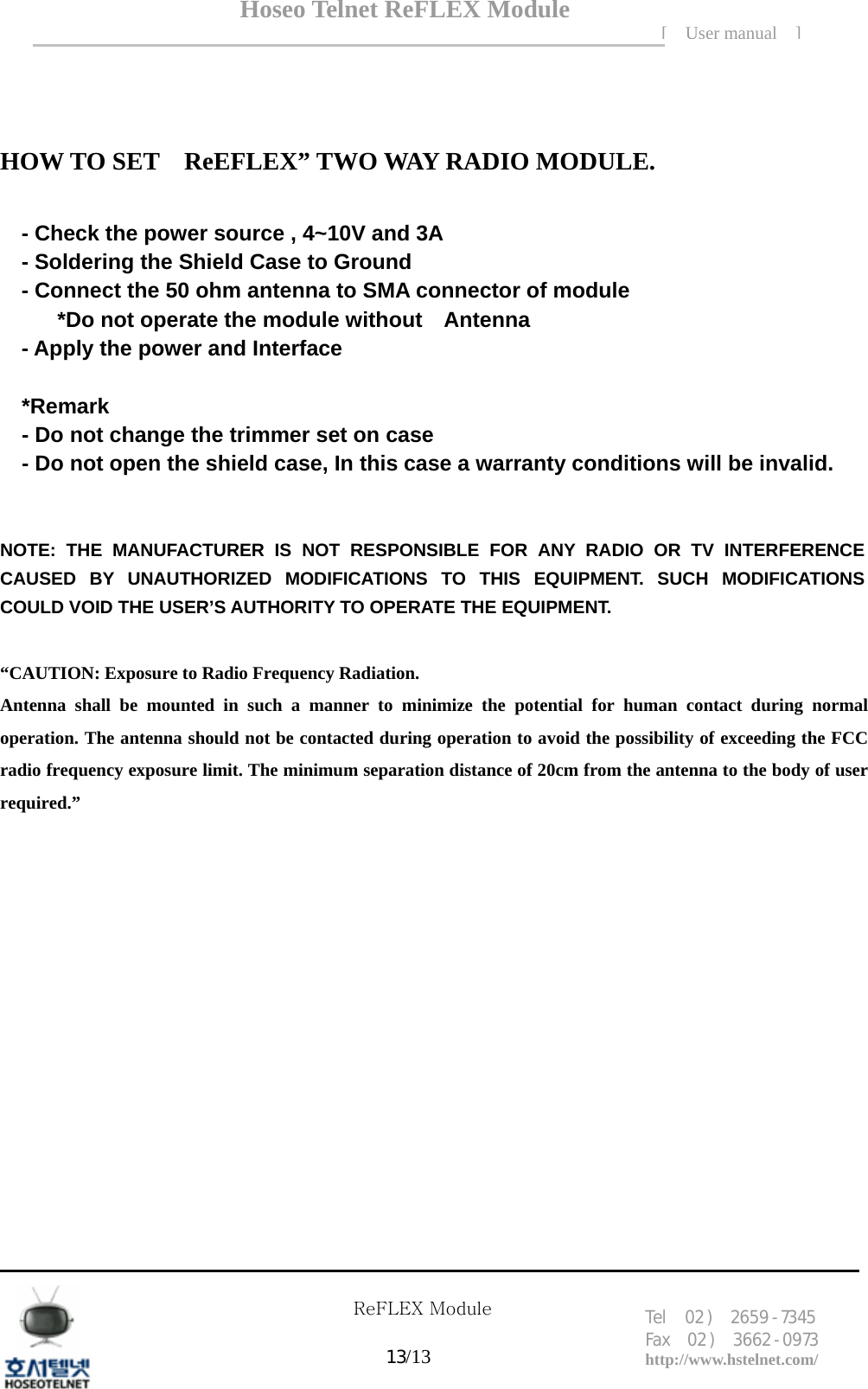

Hoseo Telnet ReFLEX Module [ User manual ]Tel  02 )  2659 - 7345 Fax  02 )  3662 - 0973  http://www.hstelnet.com/      ReFLEX Module 13/13  HOW TO SET    ReEFLEX” TWO WAY RADIO MODULE.  - Check the power source , 4~10V and 3A - Soldering the Shield Case to Ground   - Connect the 50 ohm antenna to SMA connector of module *Do not operate the module without    Antenna - Apply the power and Interface  *Remark - Do not change the trimmer set on case - Do not open the shield case, In this case a warranty conditions will be invalid.   NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.  “CAUTION: Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit. The minimum separation distance of 20cm from the antenna to the body of user required.”
