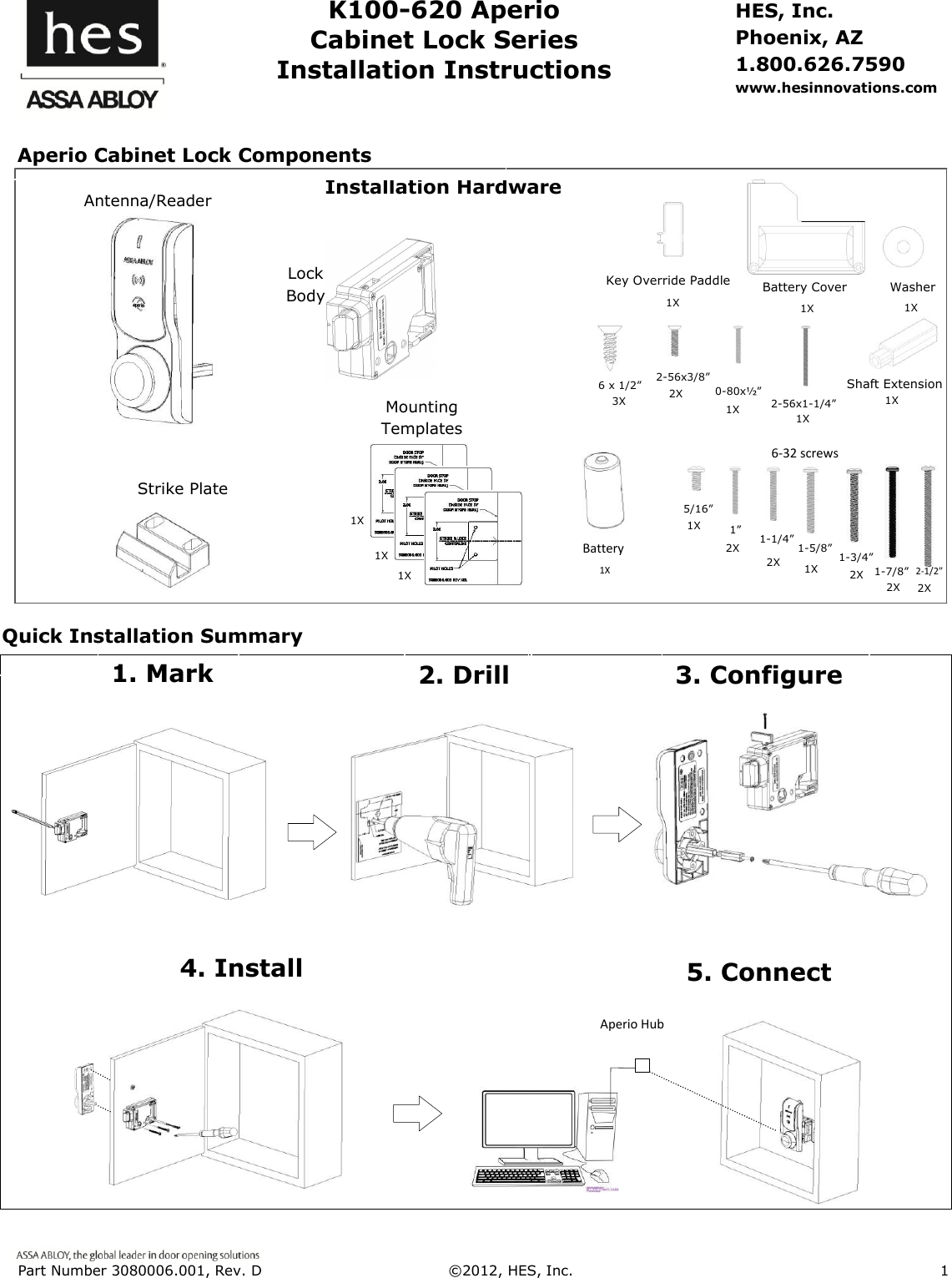

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 1 K100-620 Aperio Cabinet Lock Series Installation Instructions HES, Inc. Phoenix, AZ 1.800.626.7590 www.hesinnovations.com Machine screw with washer Card Reader Template Installation Hardware Strike Plate Antenna/Reader 6-32 screws 2X 5/16” 1” 1-5/8” 1-1/4” 1-3/4” 2-1/2” 2X 1X 1X 2X 2X Shaft Extension Battery Cover Washer 0-80x½” 2-56x3/8” 2-56x1-1/4” Battery Key Override Paddle 1X 1X 1X 1X 2X 1X 1X 1X Mounting Templates 1X 1X 1X 6 x 1/2” 3X Aperio Cabinet Lock Components Quick Installation Summary Lock Body 5. Connect 2. Drill 3. Configure 1. Mark 4. Install Aperio Hub 1-7/8” 2X

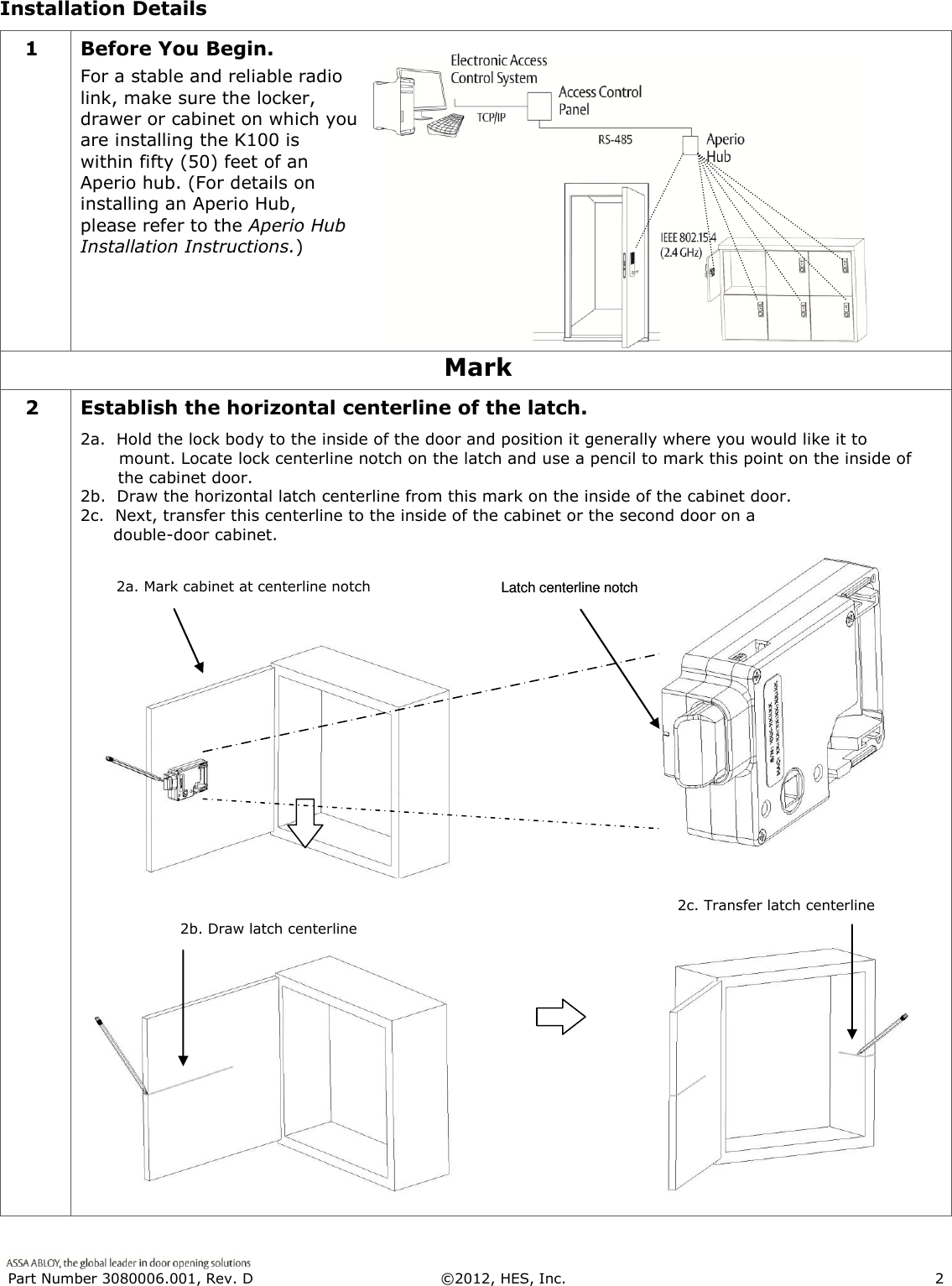

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 2 Installation Details 1 Before You Begin. For a stable and reliable radio link, make sure the locker, drawer or cabinet on which you are installing the K100 is within fifty (50) feet of an Aperio hub. (For details on installing an Aperio Hub, please refer to the Aperio Hub Installation Instructions.) Mark 2 Establish the horizontal centerline of the latch. 2a. Hold the lock body to the inside of the door and position it generally where you would like it to mount. Locate lock centerline notch on the latch and use a pencil to mark this point on the inside of the cabinet door. 2b. Draw the horizontal latch centerline from this mark on the inside of the cabinet door. 2c. Next, transfer this centerline to the inside of the cabinet or the second door on a double-door cabinet. 2b. Draw latch centerline 2c. Transfer latch centerline 2a. Mark cabinet at centerline notch Latch centerline notch

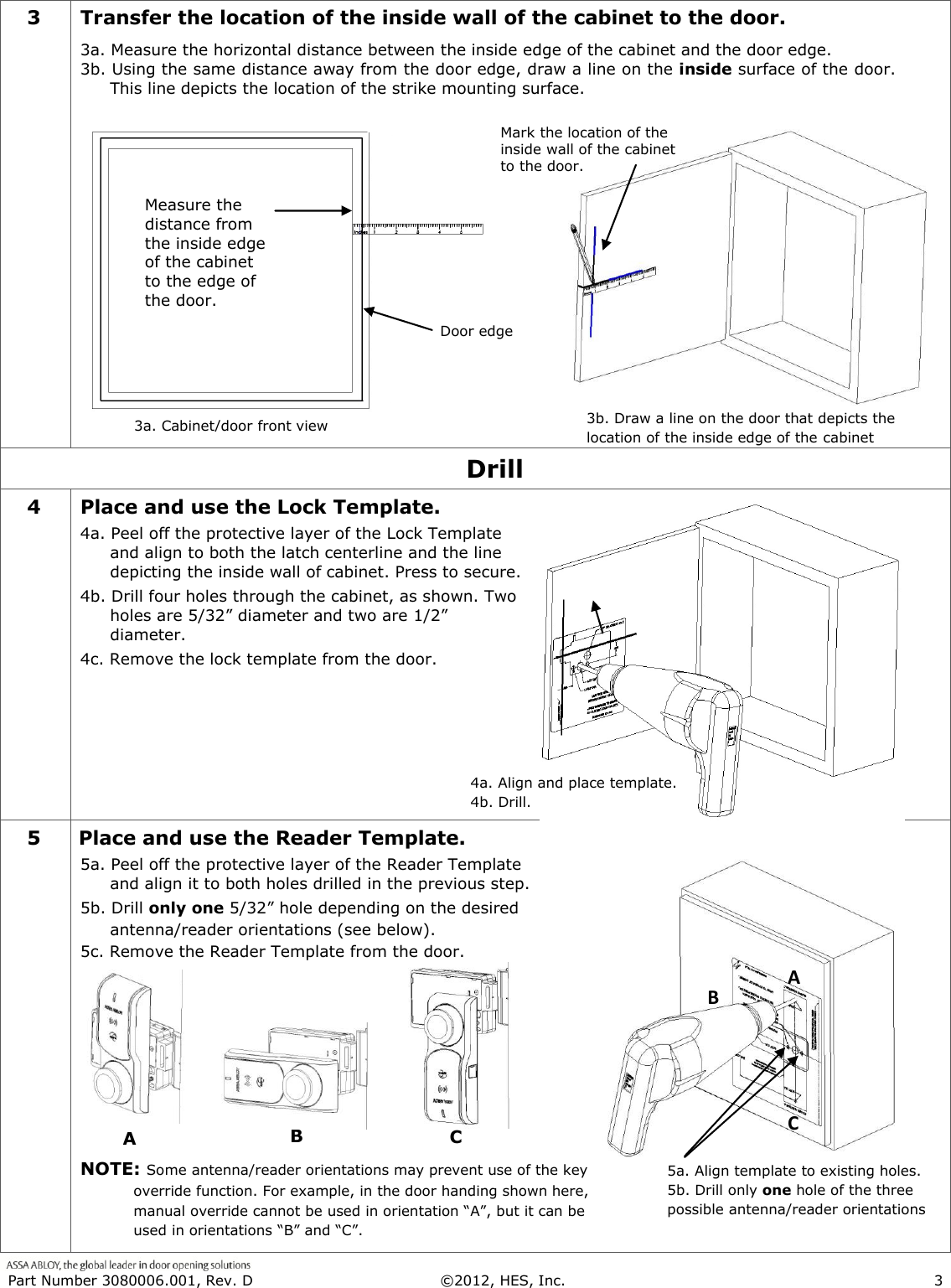

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 3 3 Transfer the location of the inside wall of the cabinet to the door. 3a. Measure the horizontal distance between the inside edge of the cabinet and the door edge. 3b. Using the same distance away from the door edge, draw a line on the inside surface of the door. This line depicts the location of the strike mounting surface. Drill 4 Place and use the Lock Template. 4a. Peel off the protective layer of the Lock Template and align to both the latch centerline and the line depicting the inside wall of cabinet. Press to secure. 4b. Drill four holes through the cabinet, as shown. Two holes are 5/32” diameter and two are 1/2” diameter. 4c. Remove the lock template from the door. 5 Place and use the Reader Template. 5a. Peel off the protective layer of the Reader Template and align it to both holes drilled in the previous step. 5b. Drill only one 5/32” hole depending on the desired antenna/reader orientations (see below). 5c. Remove the Reader Template from the door. NOTE: Some antenna/reader orientations may prevent use of the key override function. For example, in the door handing shown here, manual override cannot be used in orientation “A”, but it can be used in orientations “B” and “C”. 3a. Cabinet/door front view when 3.b 4a. Align and place template. 4b. Drill. 5a. Align template to existing holes. 5b. Drill only one hole of the three possible antenna/reader orientations A when B when C when Door edge Measure the distance from the inside edge of the cabinet to the edge of the door. 3b. Draw a line on the door that depicts the location of the inside edge of the cabinet when Mark the location of the inside wall of the cabinet to the door. A when B when C when

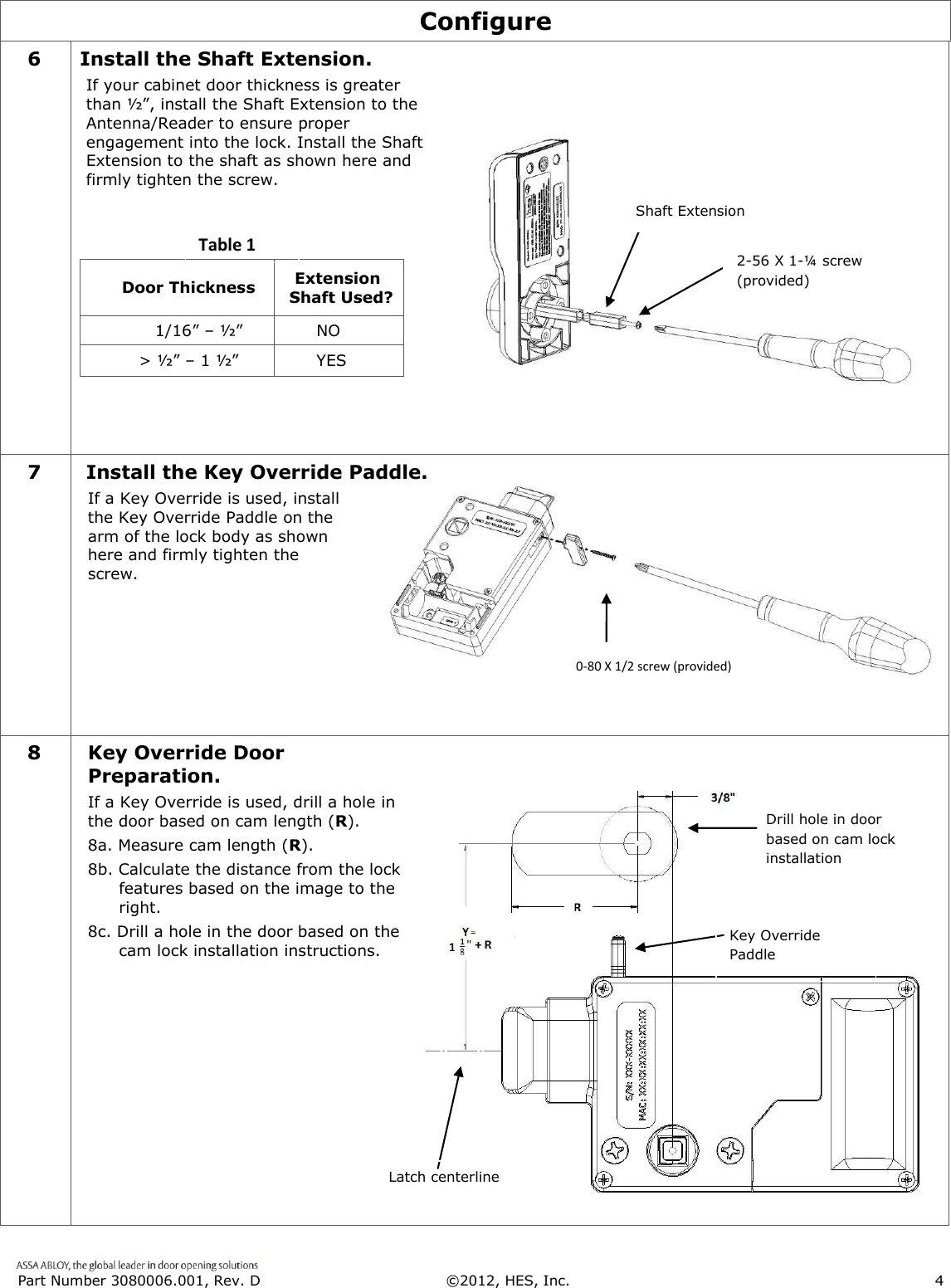

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 4 Configure 6 Install the Shaft Extension. If your cabinet door thickness is greater than ½”, install the Shaft Extension to the Antenna/Reader to ensure proper engagement into the lock. Install the Shaft Extension to the shaft as shown here and firmly tighten the screw. Door Thickness Extension Shaft Used? 1/16” – ½” NO > ½” – 1 ½” YES 7 Install the Key Override Paddle. If a Key Override is used, install the Key Override Paddle on the arm of the lock body as shown here and firmly tighten the screw. 8 Key Override Door Preparation. If a Key Override is used, drill a hole in the door based on cam length (R). 8a. Measure cam length (R). 8b. Calculate the distance from the lock features based on the image to the right. 8c. Drill a hole in the door based on the cam lock installation instructions. Shaft Extension 2-56 X 1-¼ screw (provided) 0-80 X 1/2 screw (provided) Table 1 Latch centerline Drill hole in door based on cam lock installation instructions. = Key Override Paddle

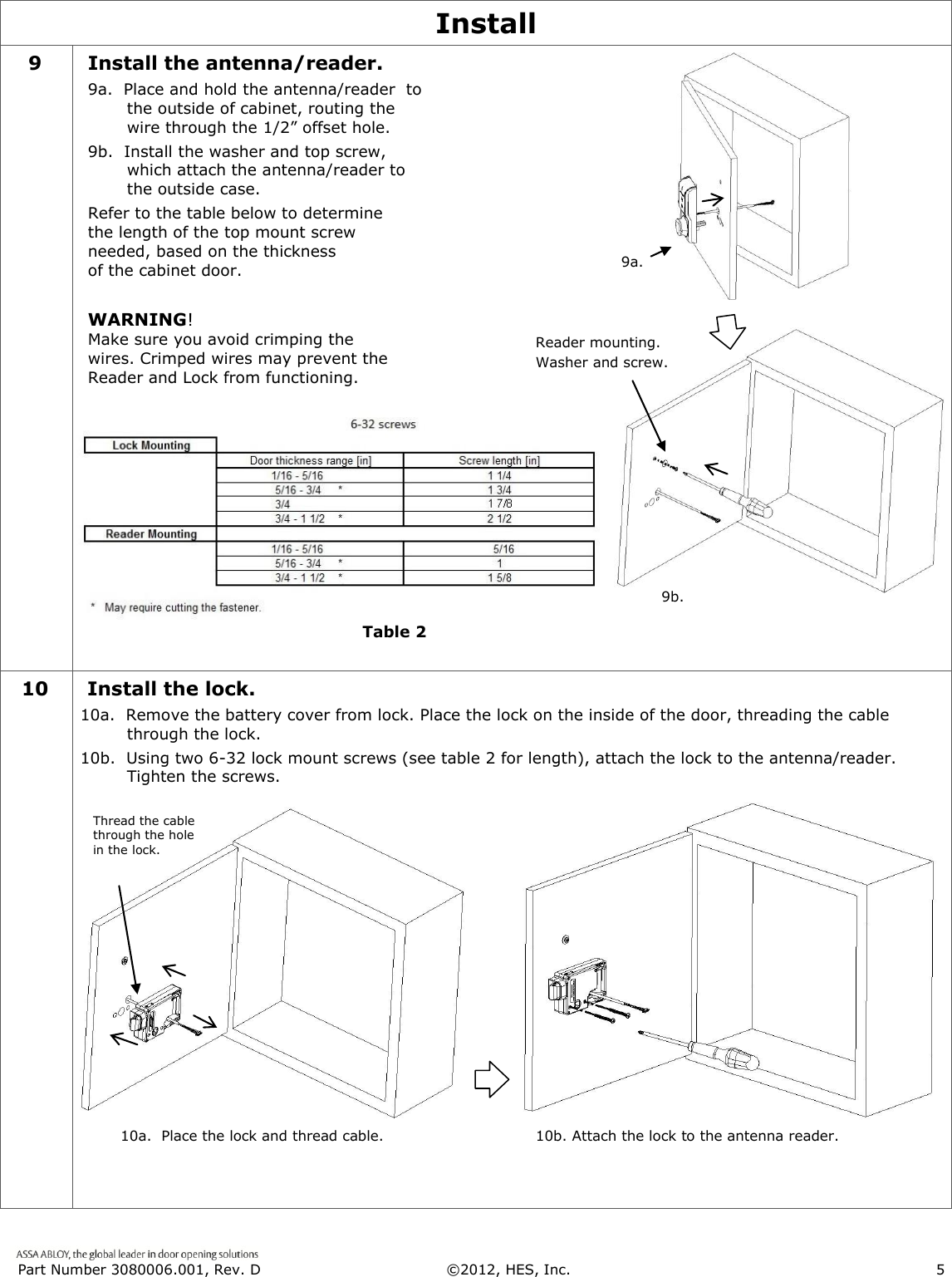

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 5 Install 9 Install the antenna/reader. 9a. Place and hold the antenna/reader to the outside of cabinet, routing the wire through the 1/2” offset hole. 9b. Install the washer and top screw, which attach the antenna/reader to the outside case. Refer to the table below to determine the length of the top mount screw needed, based on the thickness of the cabinet door. WARNING! Make sure you avoid crimping the wires. Crimped wires may prevent the Reader and Lock from functioning. Table 2. 10 Install the lock. 10a. Remove the battery cover from lock. Place the lock on the inside of the door, threading the cable through the lock. 10b. Using two 6-32 lock mount screws (see table 2 for length), attach the lock to the antenna/reader. Tighten the screws. Reader mounting. Washer and screw. 9a. 9b. Thread the cable through the hole in the lock. 10a. Place the lock and thread cable. 10b. Attach the lock to the antenna reader. Table 2

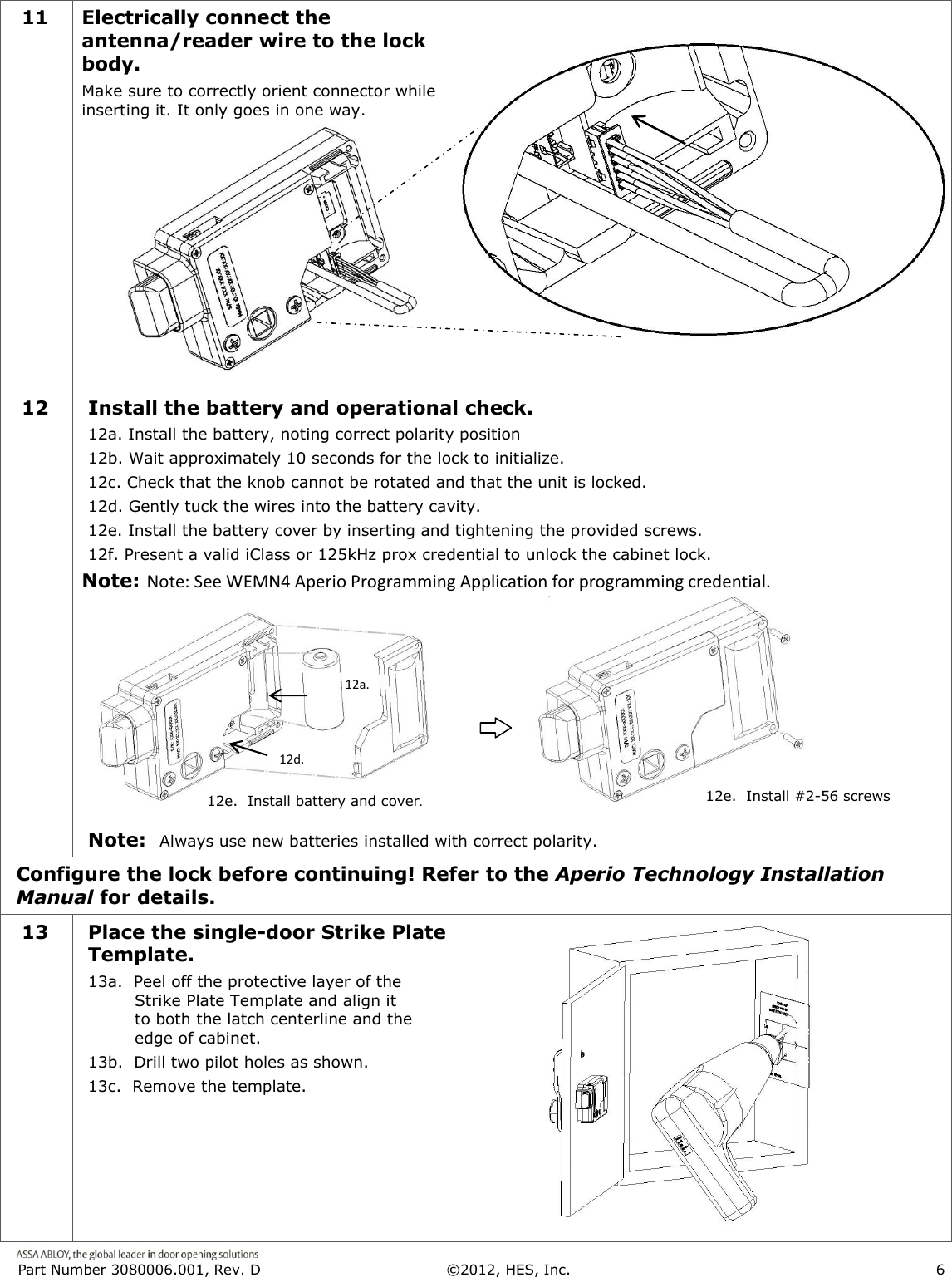

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 6 11 Electrically connect the antenna/reader wire to the lock body. Make sure to correctly orient connector while inserting it. It only goes in one way. 12 Install the battery and operational check. 12a. Install the battery, noting correct polarity position 12b. Wait approximately 10 seconds for the lock to initialize. 12c. Check that the knob cannot be rotated and that the unit is locked. 12d. Gently tuck the wires into the battery cavity. 12e. Install the battery cover by inserting and tightening the provided screws. 12f. Present a valid iClass or 125kHz prox credential to unlock the cabinet lock. Note: Note: See WEMN4 Aperio Programming Application for programming credential. Note: Always use new batteries installed with correct polarity. Configure the lock before continuing! Refer to the Aperio Technology Installation Manual for details. 13 Place the single-door Strike Plate Template. 13a. Peel off the protective layer of the Strike Plate Template and align it to both the latch centerline and the edge of cabinet. 13b. Drill two pilot holes as shown. 13c. Remove the template. 12d. 12a. 12e. Install battery and cover. 12e. Install #2-56 screws.

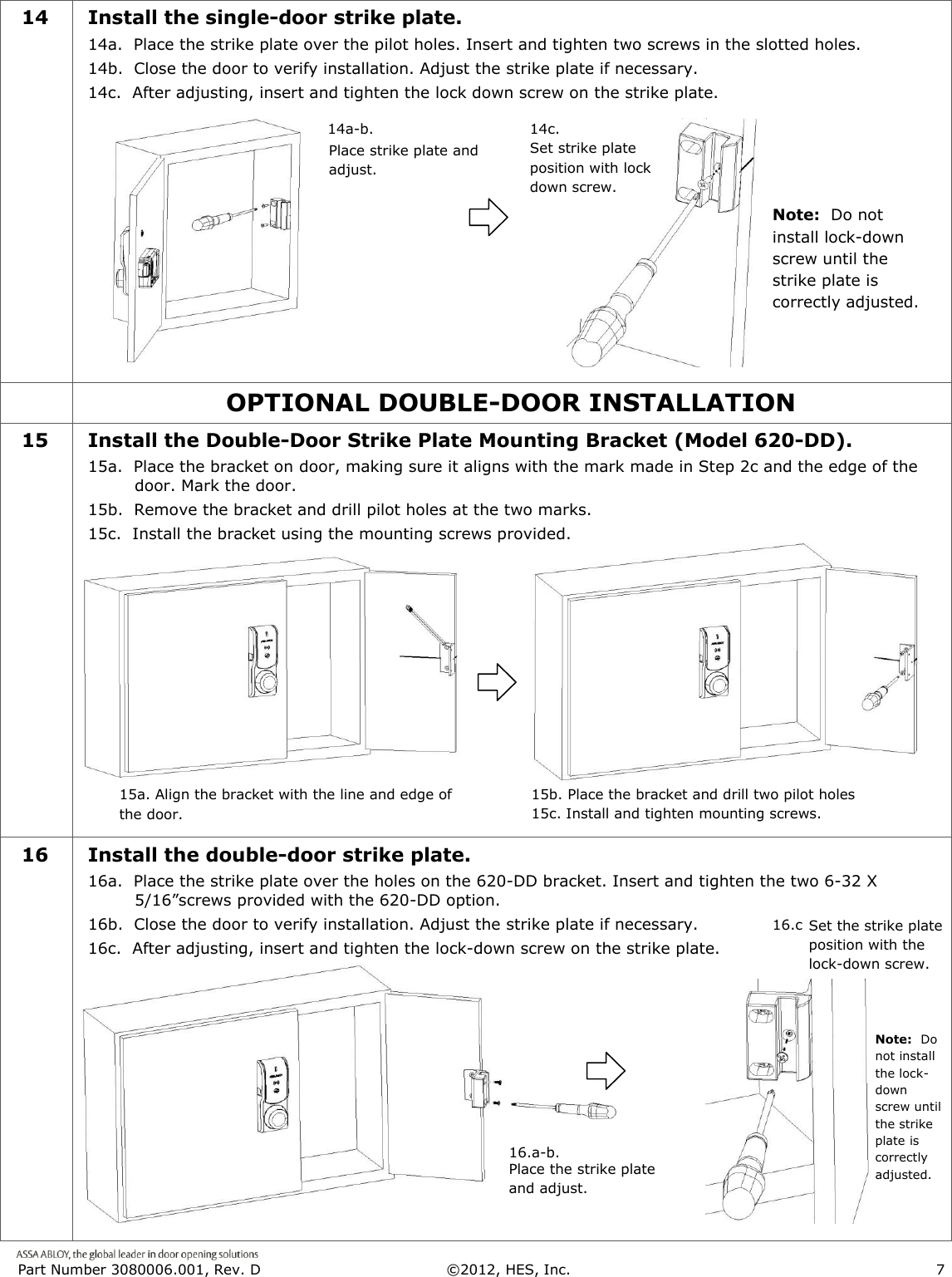

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 7 14 Install the single-door strike plate. 14a. Place the strike plate over the pilot holes. Insert and tighten two screws in the slotted holes. 14b. Close the door to verify installation. Adjust the strike plate if necessary. 14c. After adjusting, insert and tighten the lock down screw on the strike plate. OPTIONAL DOUBLE-DOOR INSTALLATION 15 Install the Double-Door Strike Plate Mounting Bracket (Model 620-DD). 15a. Place the bracket on door, making sure it aligns with the mark made in Step 2c and the edge of the door. Mark the door. 15b. Remove the bracket and drill pilot holes at the two marks. 15c. Install the bracket using the mounting screws provided. 16 Install the double-door strike plate. 16a. Place the strike plate over the holes on the 620-DD bracket. Insert and tighten the two 6-32 X 5/16”screws provided with the 620-DD option. 16b. Close the door to verify installation. Adjust the strike plate if necessary. 16c. After adjusting, insert and tighten the lock-down screw on the strike plate. Place strike plate and adjust. 14a-b. 14c. Set strike plate position with lock down screw. 15a. Align the bracket with the line and edge of the door. Place the bracket and drill two pilot holes 16.a-b. 16.c. Set the strike plate position with the lock-down screw. Place the strike plate and adjust. Note: Do not install lock-down screw until the strike plate is correctly adjusted. Note: Do not install the lock-down screw until the strike plate is correctly adjusted. 15b. Place the bracket and drill two pilot holes 15c. Install and tighten mounting screws.

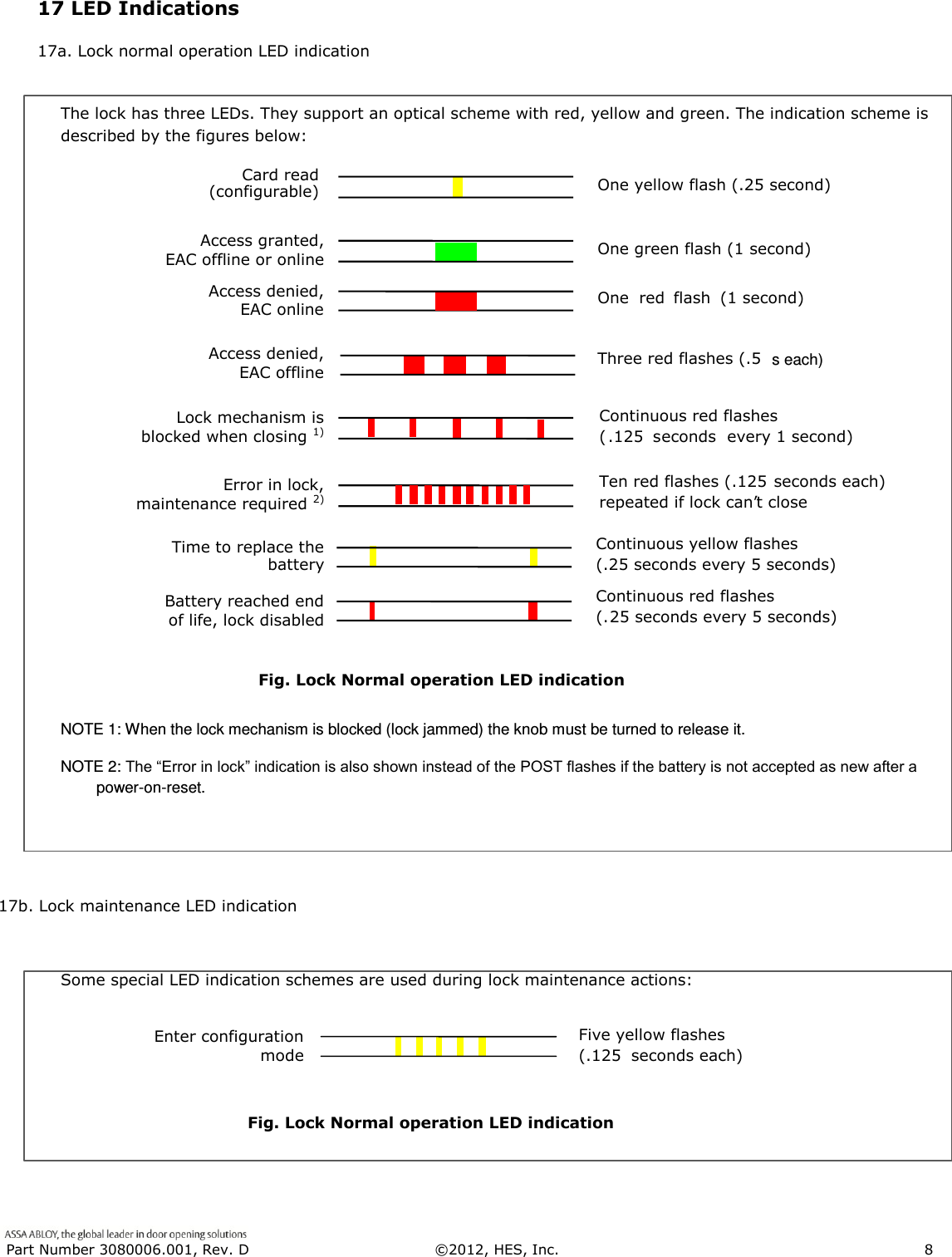

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 8 The lock has three LEDs. They support an optical scheme with red, yellow and green. The indication scheme is described by the figures below: Fig. Lock Normal operation LED indication NOTE 1: When the lock mechanism is blocked (lock jammed) the knob must be turned to release it. NOTE 2: The “Error in lock” indication is also shown instead of the POST flashes if the battery is not accepted as new after a power-on-reset. 17b. Lock maintenance LED indication Some special LED indication schemes are used during lock maintenance actions: Fig. Lock Normal operation LED indication Access denied, EAC offline Three red flashes (.5 s each) Access granted, EAC offline or online One red flash (1 second) One green flash (1 second) Access denied, EAC online Lock mechanism is blocked when closing 1) Continuous red flashes ( .125 s econds every 1 second) Card read (configurable) One yellow flash (.25 second) Error in lock, maintenance required 2) Ten red flashes (.125 seconds each) repeated if lock can ’ t close Battery reached end of life, lock disabled Continuous red flashes flashes (. 25 seconds every 5 seconds) Time to replace the battery Continuous yellow flashes (.25 seconds every 5 seconds) Enter configuration mode Five yellow flashes (.125 seconds each) 17 LED Indications 17a. Lock normal operation LED indication

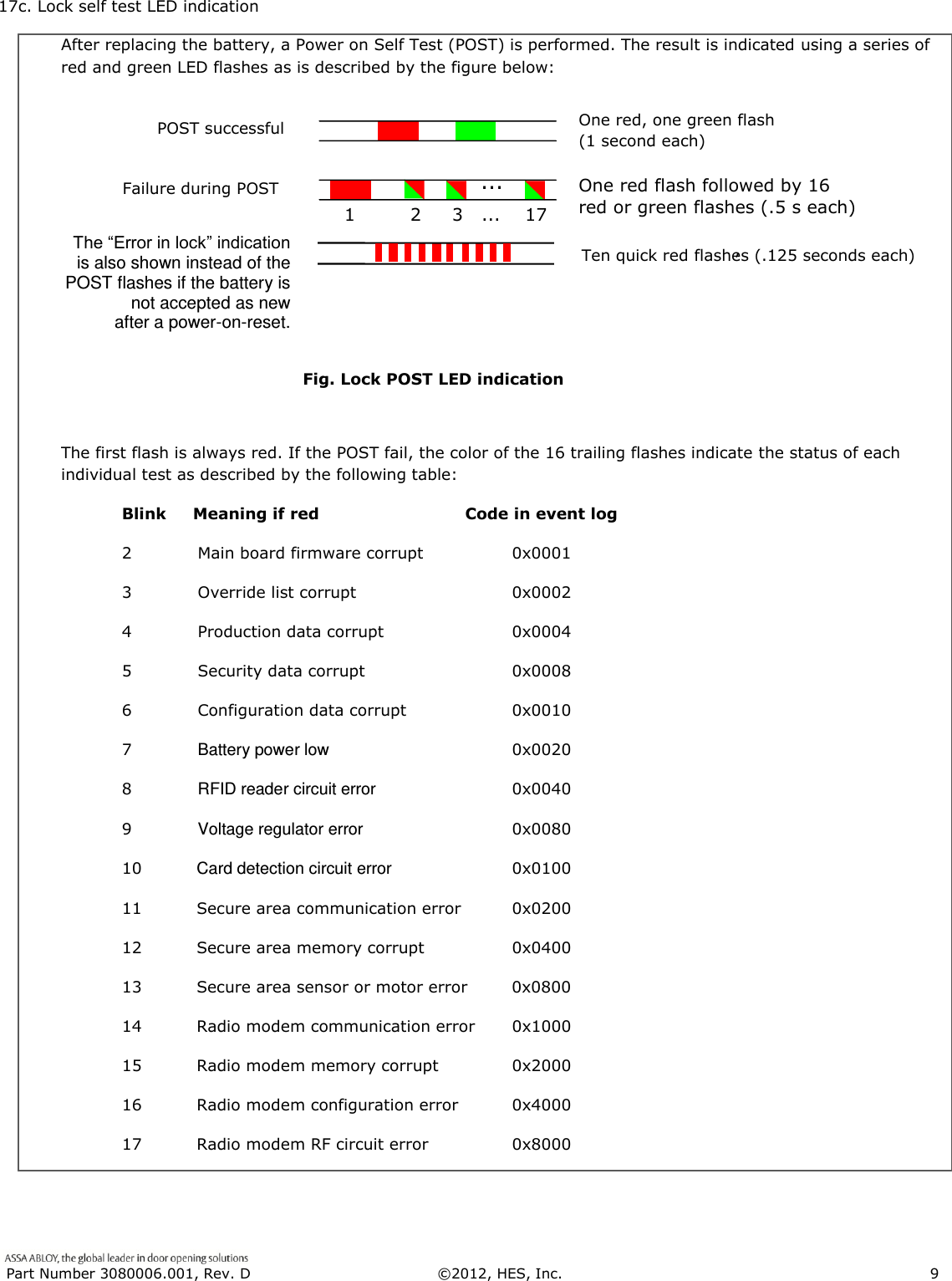

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 9 17c. Lock self test LED indication After replacing the battery, a Power on Self Test (POST) is performed. The result is indicated using a series of red and green LED flashes as is described by the figure below: Fig. Lock POST LED indication The first flash is always red. If the POST fail, the color of the 16 trailing flashes indicate the status of each individual test as described by the following table: Blink Meaning if red Code in event log 2 Main board firmware corrupt 0x0001 3 Override list corrupt 0x0002 4 Production data corrupt 0x0004 5 Security data corrupt 0x0008 6 Configuration data corrupt 0x0010 7 Battery power low 0x0020 8 RFID reader circuit error 0x0040 9 Voltage regulator error 0x0080 10 Card detection circuit error 0x0100 11 Secure area communication error 0x0200 12 Secure area memory corrupt 0x0400 13 Secure area sensor or motor error 0x0800 14 Radio modem communication error 0x1000 15 Radio modem memory corrupt 0x2000 16 Radio modem configuration error 0x4000 17 Radio modem RF circuit error 0x8000 1 2 3 ... 17 ... Failure during POST One red flash followed by 16 red or green flashes (.5 s each) POST successful One red, one green flash (1 second each) The “Error in lock” indication is also shown instead of the POST flashes if the battery is not accepted as new after a power-on-reset. Ten quick red flashes (.125 seconds each) ’

Part Number 3080006.001, Rev. D ©2012, HES, Inc. 10 WARNING FCC Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. IC Statement This device complies with Industry Canada license-exempt RSS standards(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. Conformité aux normes FCC Cet équipement a été testé et trouvé conforme aux limites pour un dispositif numérique de classe B, conformément à la Partie 15 des règlements de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre des fréquences radio et, s'il n'est pas installé et utilisé conformément ment aux instructions du fabricant, peut causer des interferences nuisibles aux communications radio. Rien ne garantit cependant que l'interférence ne se produira pas dans une installation particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou de télévision, qui peut être déterminé en comparant et en l'éteignant, l'utilisateur est encouragé à essayer de corriger les interférence par une ou plusieurs des mesures suivantes:  Réorienter ou déplacer l'antenne de réception.  Augmenter la distance entre l'équipement et le récepteur.  Branchez l'appareil dans une prise sur un circuit différent de celui auquel le récepteur est connecté.  Consultez votre revendeur ou un technicien radio / TV pour assistance.Avertissement Les changements ou modififications à cet appareil sans expressément approuvée par la partie responsable de conformité pourraient annuler l'autorité de l'utilisateur de faire fonctionner cet équipement. Conformité aux normes IC Cet appareil est confrome avec Industrie Canada exempt de license RSS standard(s). Son fonctionnement est souimes aux deux conditions suivantes: (1) cet appareil ne peut causer d’interférences, et (2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un fonctionnement indésirable du périphérique.
