Hanchett Entry Systems KS200 RFID Server Cabinet Lock User Manual 3085006 002 Rev A 031215a

Hanchett Entry Systems, Inc. RFID Server Cabinet Lock 3085006 002 Rev A 031215a

user guide

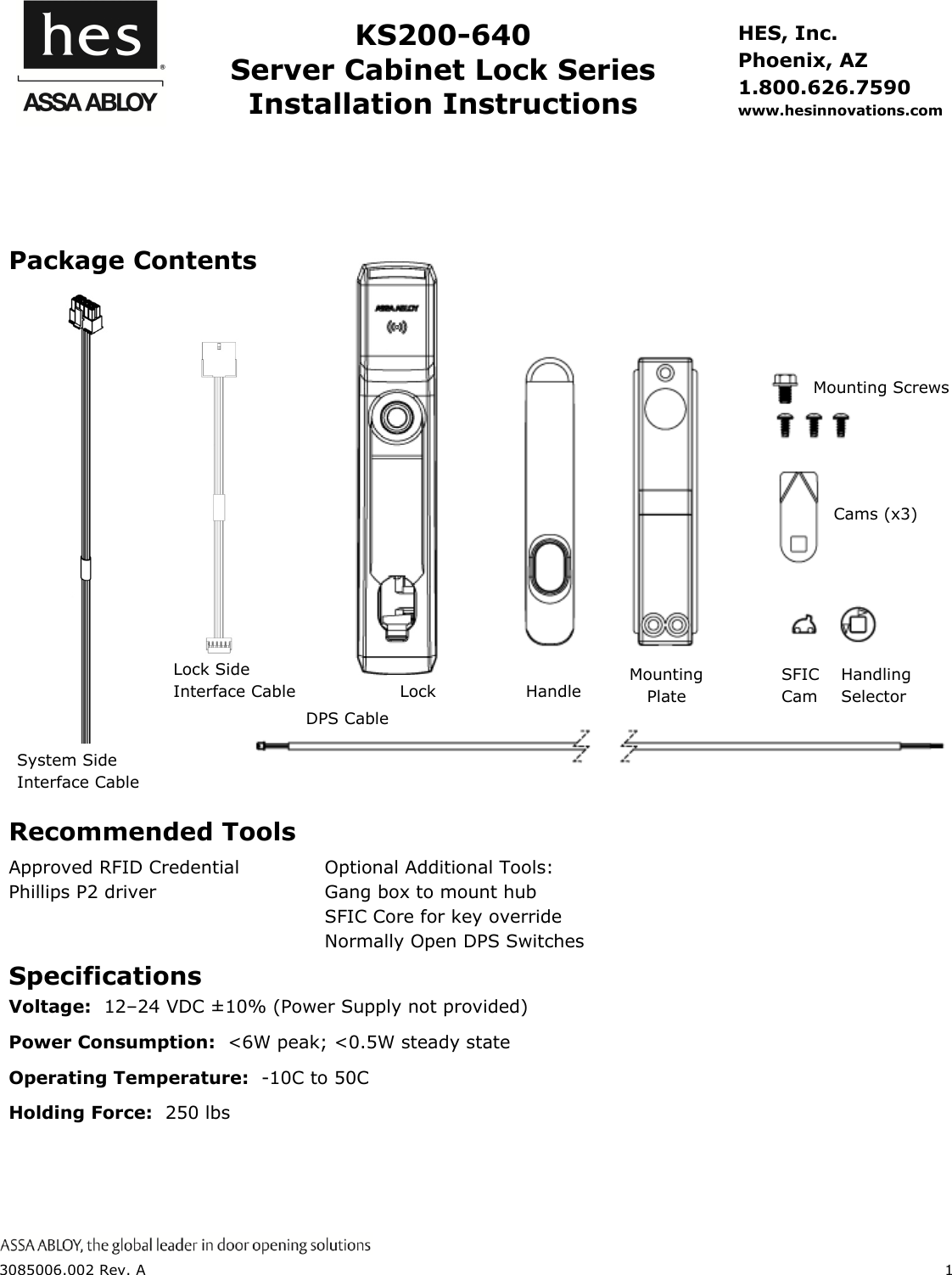

3085006.002 Rev. A 1 KS200-640 Server Cabinet Lock Series Installation Instructions HES, Inc. Phoenix, AZ 1.800.626.7590 www.hesinnovations.com Package Contents Recommended Tools Approved RFID Credential Phillips P2 driver Optional Additional Tools: Gang box to mount hub SFIC Core for key override Normally Open DPS Switches Specifications Voltage: 12–24 VDC ±10% (Power Supply not provided) Power Consumption: <6W peak; <0.5W steady state Operating Temperature: -10C to 50C Holding Force: 250 lbs Handling Selector Lock Handle Mounting Plate Mounting Screws Cams (x3) DPS Cable SFIC Cam System Side Interface Cable Lock Side Interface Cable Lock
3085006.002 Rev. A 2 External Interface Signals Summary: Lock Signal Name Lock Signal Direction and Wire Color Electrical Interface Logic Vin Input, Red/24 AWG Power to Reader Input Power Unlock Input, Orange/24 AWG Wetted Relay Contact Closure (0–35 VDC) Active High Tamper / Door Position + Output, Yellow/24 AWG Dry Contact (0–35 VDC, <100mA) Open = Unlocked Closed = Locked Tamper / Door Position – Output, Blue/24 AWG Dry Contact (0–35 VDC, <100mA) Open = Unlocked Closed = Locked Wiegand Data 0 Output, Green/24 AWG 0–5 VDC Active Low Wiegand Data 1 Output, White/24 AWG 0–5 VDC Active Low Green LED Input, Brown/24 AWG 0–5 VDC Active Low Red LED Input, White/Brown/24 AWG 0–5 VDC Active Low Ground/Return Input, Black/24 AWG – – LED Function: LED states are controlled and defined by the User’s EAC. Enabling the red and green LEDs on the KS200 occurs via an active low (ground) signal. Output Type: SIAAC-01-1996 Wiegand Output Compliant. FCC Part 15, Compliant, Industry Canada Compliant BHMA: A156.3, A156.36, A156.25 Compliant Credentials Supported: 125kHz Proximity or 13.56MHz iCLASS, iCLASS SEOS, iCLASS SE, ISO 15693 ICLASS, ISO 14443A Mifare, Mifare Plus, Desfire SE, Desfire EV1, and NFC over HCE. System Overview The KS200 is an radio-frequency (RFID) lock for server cabinet installation applications. The lock is capable of reading RFID credentials and providing that data to an electronic access control (EAC) system via Wiegand data signaling. The EAC determines whether user access should be granted or denied. When the EAC provides an active-high unlock signal to the lock in the access granted case, the KS200-640 drives a motor to complete the unlock/lock cycle. EAC indication of user access/denial is provided to the user by way of LED control inputs on the lock. Additional lock monitoring features (e.g., door position, tamper) are monitored within the lock and status provided to the EAC.
3085006.002 Rev. A 3 Installation Steps 2. Preparing the Cabinet 3. Installing the Lock 4. Installing the Handing Selector 1. Installing an SFIC Core 5. Installing the Wiring 6. Testing the Lock with the Access Control

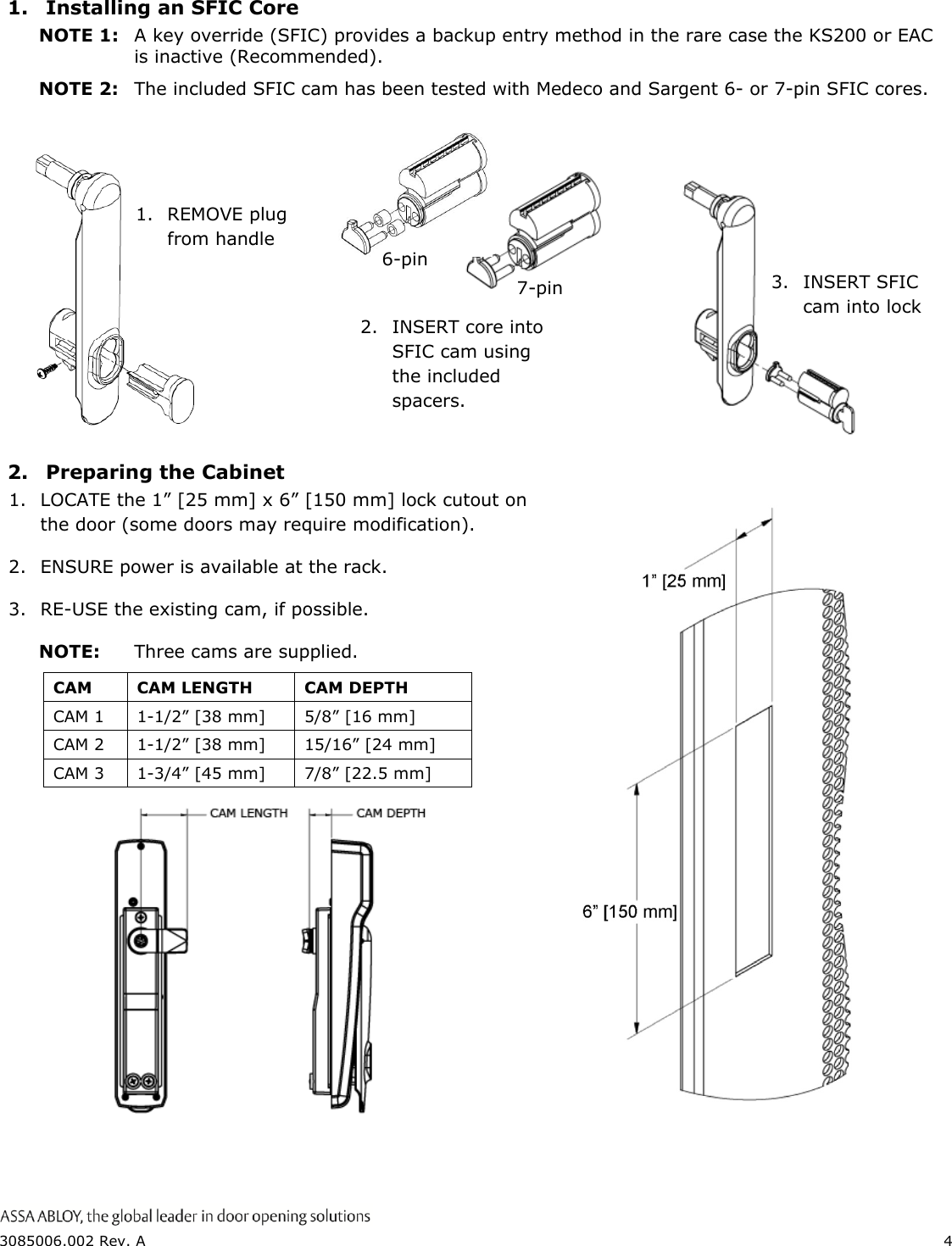

3085006.002 Rev. A 4 1. Installing an SFIC Core NOTE 1: A key override (SFIC) provides a backup entry method in the rare case the KS200 or EAC is inactive (Recommended). NOTE 2: The included SFIC cam has been tested with Medeco and Sargent 6- or 7-pin SFIC cores. 2. Preparing the Cabinet 1. LOCATE the 1” [25 mm] x 6” [150 mm] lock cutout on the door (some doors may require modification). 2. ENSURE power is available at the rack. 3. RE-USE the existing cam, if possible. NOTE: Three cams are supplied. CAM CAM LENGTH CAM DEPTH CAM 1 1-1/2” [38 mm] 5/8” [16 mm] CAM 2 1-1/2” [38 mm] 15/16” [24 mm] CAM 3 1-3/4” [45 mm] 7/8” [22.5 mm] 1. REMOVE plug from handle 7-pin 6-pin 2. INSERT core into SFIC cam using the included spacers. 3. INSERT SFIC cam into lock
3085006.002 Rev. A 5 3. Installing the Lock 3. SLIDE lock into cutout. NOTE: (Optional) The DPS signal is closed when the handle is resting in its locked position. The DPS circuit can be extended to include normally open DPS switches arranged in a series to monitor additional doors and panels. DPS Extension Cable DPS Switches (SPST-NO): As Needed Switch #1 (SPST-NO): Provided 2. PERFORM the following to extend the DPS Circuit. a. REMOVE the DPS jumper. b. CONNECT the included DPS extension cable. c. CONNECT additional normally-open DPS switches as shown to monitor additional panels. 3. CONNECT the female, 10-position Hirose™ connector on the lock side interface cable to the KS200. 4. ENSURE the lock side interface cable will properly protrude from the bottom of the KS200 prior to attaching the rear bracket.

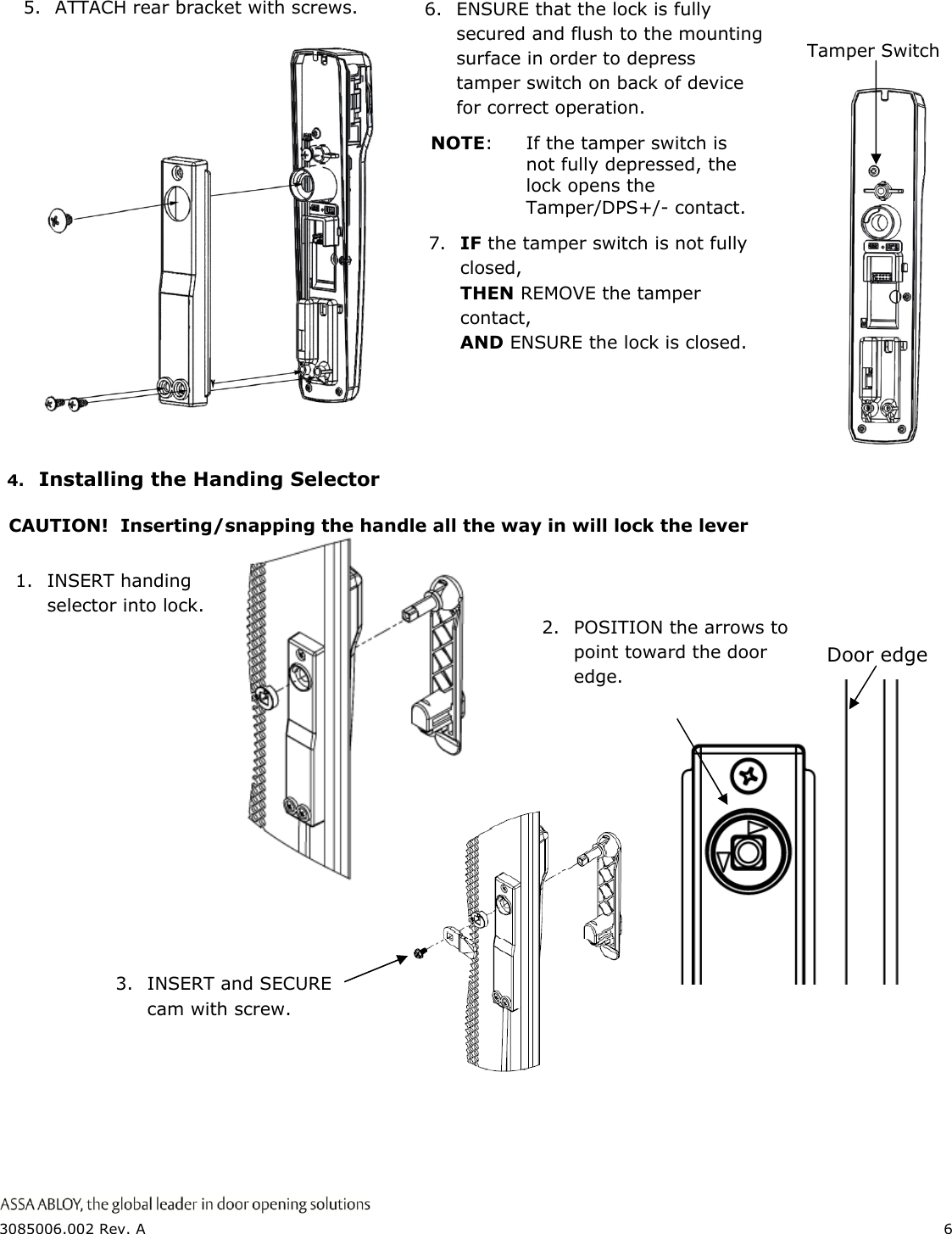

3085006.002 Rev. A 6 4. Installing the Handing Selector CAUTION! Inserting/snapping the handle all the way in will lock the lever 2. POSITION the arrows to point toward the door edge. 1. INSERT handing selector into lock. 6. ENSURE that the lock is fully secured and flush to the mounting surface in order to depress tamper switch on back of device for correct operation. Tamper Switch NOTE: If the tamper switch is not fully depressed, the lock opens the Tamper/DPS+/- contact. 5. ATTACH rear bracket with screws. 7. IF the tamper switch is not fully closed, THEN REMOVE the tamper contact, AND ENSURE the lock is closed. 3. INSERT and SECURE cam with screw. Door edge

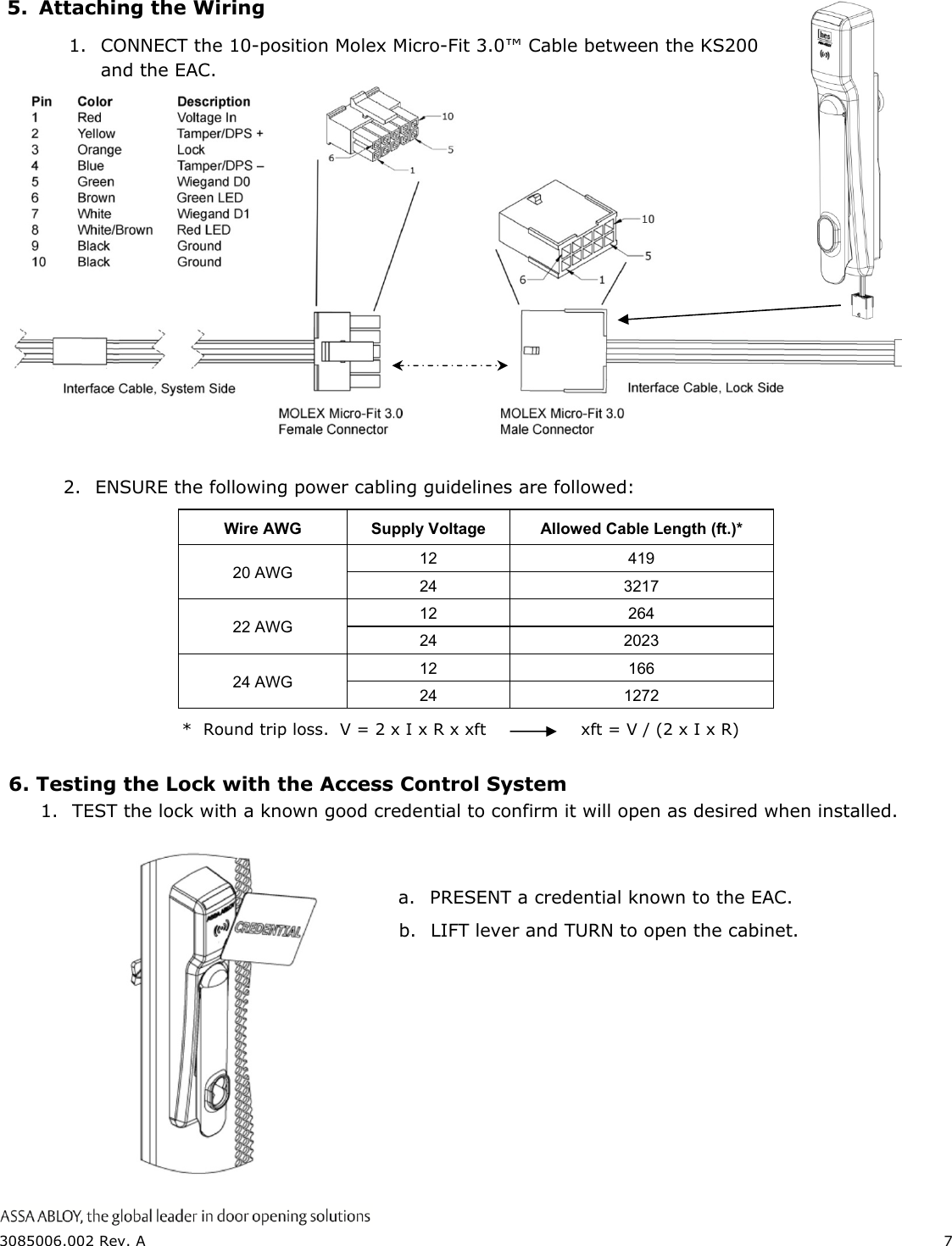

3085006.002 Rev. A 7 5. Attaching the Wiring Wire AWG Supply Voltage Allowed Cable Length (ft.)* 20 AWG 12 419 24 3217 22 AWG 12 264 24 2023 24 AWG 12 166 24 1272 * Round trip loss. V = 2 x I x R x xft xft = V / (2 x I x R) 6. Testing the Lock with the Access Control System 1. TEST the lock with a known good credential to confirm it will open as desired when installed. a. PRESENT a credential known to the EAC. b. LIFT lever and TURN to open the cabinet. 1. CONNECT the 10-position Molex Micro-Fit 3.0™ Cable between the KS200 and the EAC. 2. ENSURE the following power cabling guidelines are followed:

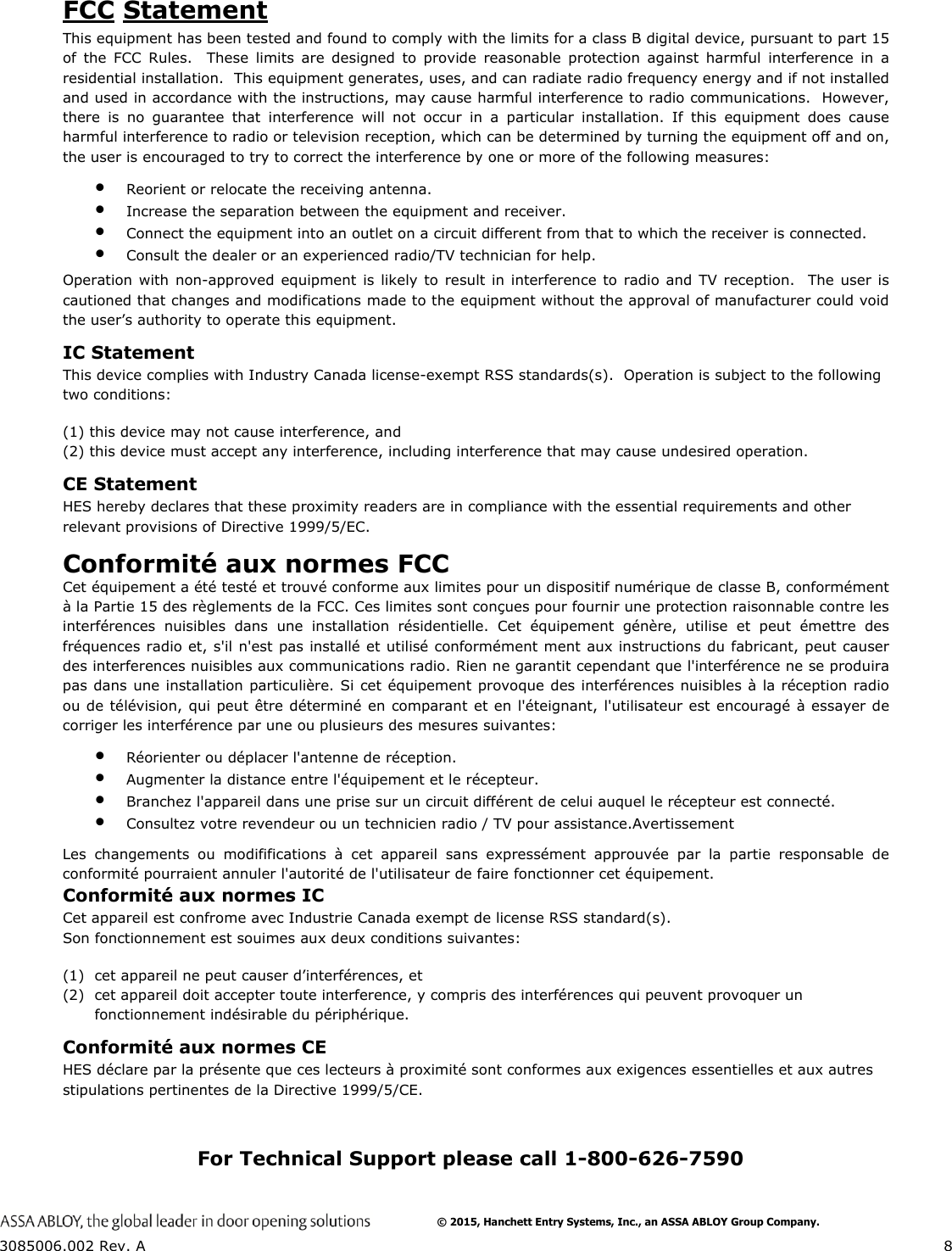

3085006.002 Rev. A 8 FCC Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. IC Statement This device complies with Industry Canada license-exempt RSS standards(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. CE Statement HES hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Conformité aux normes FCC Cet équipement a été testé et trouvé conforme aux limites pour un dispositif numérique de classe B, conformément à la Partie 15 des règlements de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre des fréquences radio et, s'il n'est pas installé et utilisé conformément ment aux instructions du fabricant, peut causer des interferences nuisibles aux communications radio. Rien ne garantit cependant que l'interférence ne se produira pas dans une installation particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou de télévision, qui peut être déterminé en comparant et en l'éteignant, l'utilisateur est encouragé à essayer de corriger les interférence par une ou plusieurs des mesures suivantes:  Réorienter ou déplacer l'antenne de réception.  Augmenter la distance entre l'équipement et le récepteur.  Branchez l'appareil dans une prise sur un circuit différent de celui auquel le récepteur est connecté.  Consultez votre revendeur ou un technicien radio / TV pour assistance.Avertissement Les changements ou modififications à cet appareil sans expressément approuvée par la partie responsable de conformité pourraient annuler l'autorité de l'utilisateur de faire fonctionner cet équipement. Conformité aux normes IC Cet appareil est confrome avec Industrie Canada exempt de license RSS standard(s). Son fonctionnement est souimes aux deux conditions suivantes: (1) cet appareil ne peut causer d’interférences, et (2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un fonctionnement indésirable du périphérique. Conformité aux normes CE HES déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE. For Technical Support please call 1-800-626-7590 © 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company.
