Hangzhou Sciener Smart Technology M503 Bluetooth Smart Lock User Manual

Hangzhou Sciener Smart Technology Co., Ltd. Bluetooth Smart Lock Users Manual

Users Manual

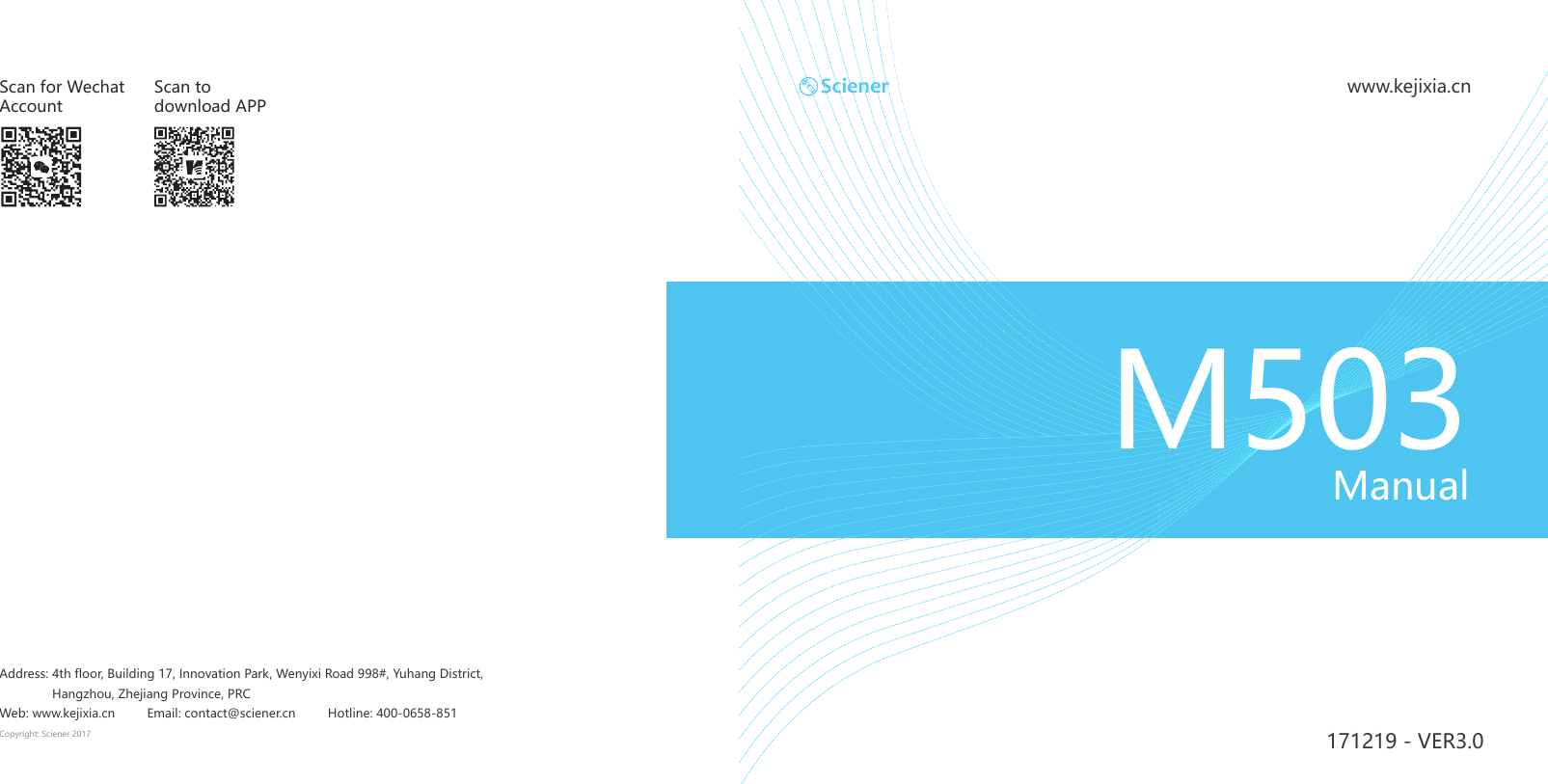

Scan for WechatAccountScan to download APPwww.kejixia.cn171219 - VER3.0Address: 4th floor, Building 17, Innovation Park, Wenyixi Road 998#, Yuhang District, Hangzhou, Zhejiang Province, PRCWeb: www.kejixia.cn Email: contact@sciener.cn Hotline: 400-0658-851Copyright: Sciener 2017ManualM503Sciener

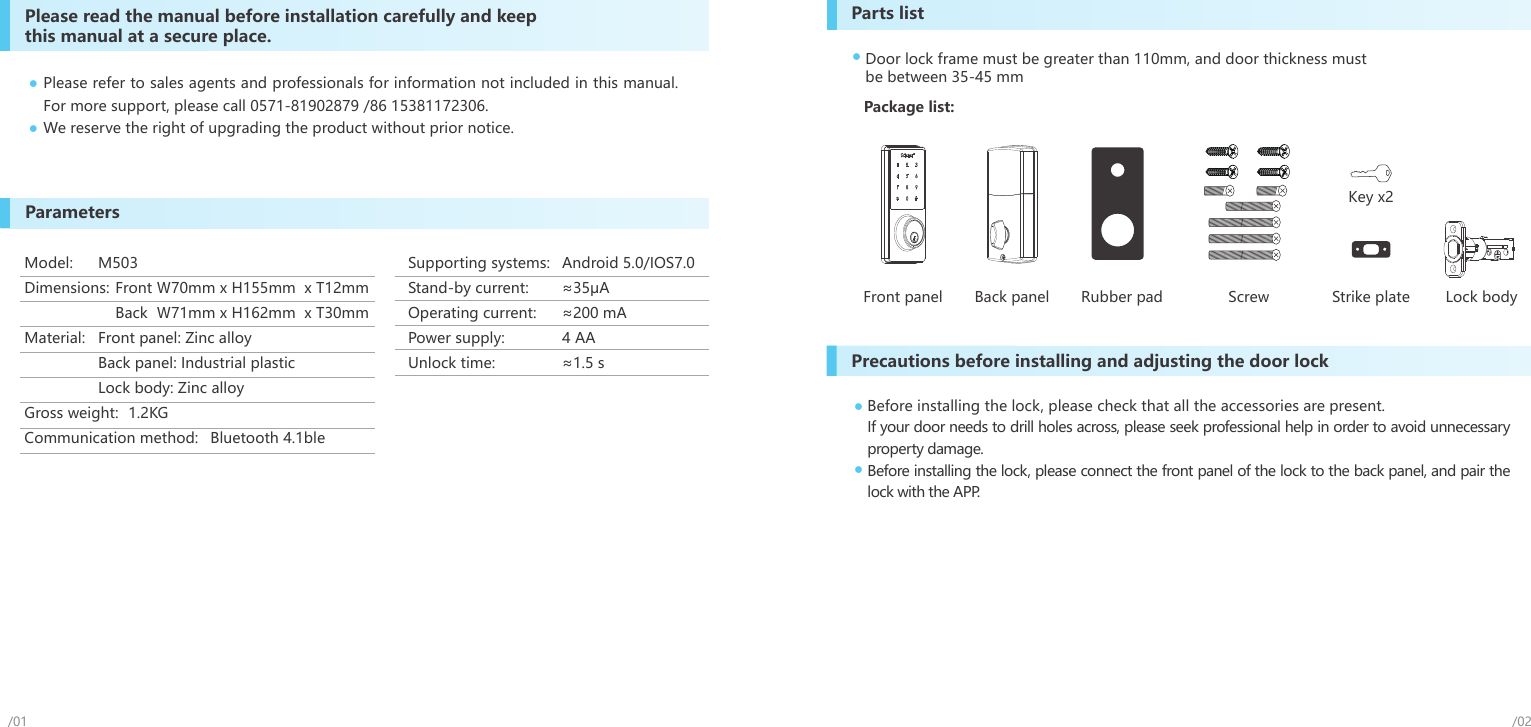

Lock bodyFront panel Back panel Rubber padParametersParts listModel:Dimensions:Material:Gross weight:Communication method:Supporting systems:Stand-by current:Operating current:Power supply:Unlock time:M503 Front Ｗ70mm x H155mm x T12mm Back Ｗ71mm x H162mm x T30mmFront panel: Zinc alloy Back panel: Industrial plasticLock body: Zinc alloy 1.2KG Bluetooth 4.1bleAndroid 5.0/IOS7.0≈35μA≈200 mA4 AA≈1.5 sDoor lock frame must be greater than 110mm, and door thickness must be between 35-45 mm●Package list:Precautions before installing and adjusting the door lockBefore installing the lock, please check that all the accessories are present. If your door needs to drill holes across, please seek professional help in order to avoid unnecessary property damage.Before installing the lock, please connect the front panel of the lock to the back panel, and pair the lock with the APP.●●/02Screw Strike plateKey x2/01Please read the manual before installation carefully and keepthis manual at a secure place.Please refer to sales agents and professionals for information not included in this manual. For more support, please call 0571-81902879 /86 15381172306.We reserve the right of upgrading the product without prior notice.●●

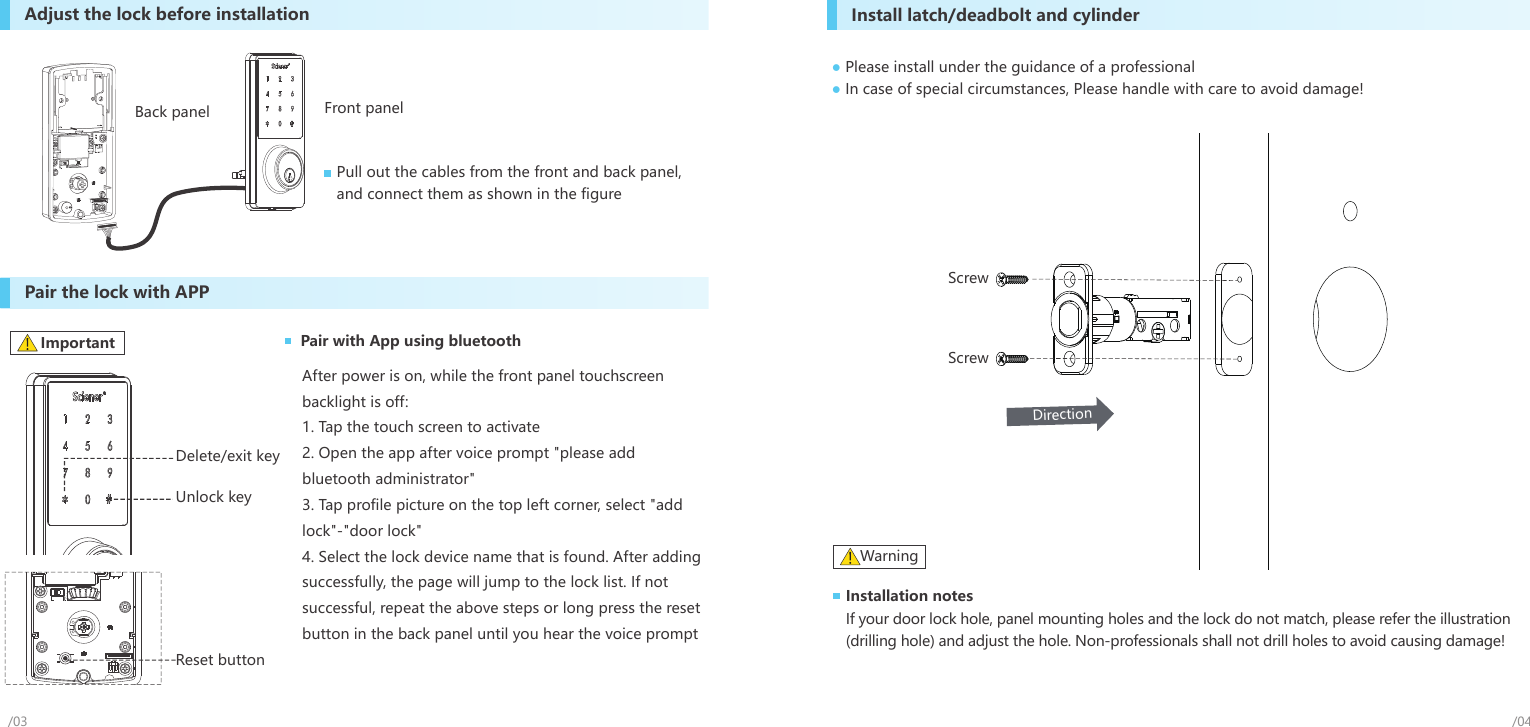

/03Pair the lock with APPInstall latch/deadbolt and cylinderPlease install under the guidance of a professionalIn case of special circumstances, Please handle with care to avoid damage!●●ScrewScrewDirectionUnlock keyReset buttonDelete/exit keyAdjust the lock before installationPull out the cables from the front and back panel, and connect them as shown in the figureInstallation notesIf your door lock hole, panel mounting holes and the lock do not match, please refer the illustration (drilling hole) and adjust the hole. Non-professionals shall not drill holes to avoid causing damage! Warning/04After power is on, while the front panel touchscreen backlight is off:1. Tap the touch screen to activate2. Open the app after voice prompt "please addbluetooth administrator"3. Tap profile picture on the top left corner, select "addlock"-"door lock" 4. Select the lock device name that is found. After addingsuccessfully, the page will jump to the lock list. If not successful, repeat the above steps or long press the reset button in the back panel until you hear the voice promptImportant Pair with App using bluetoothFront panelBack panel

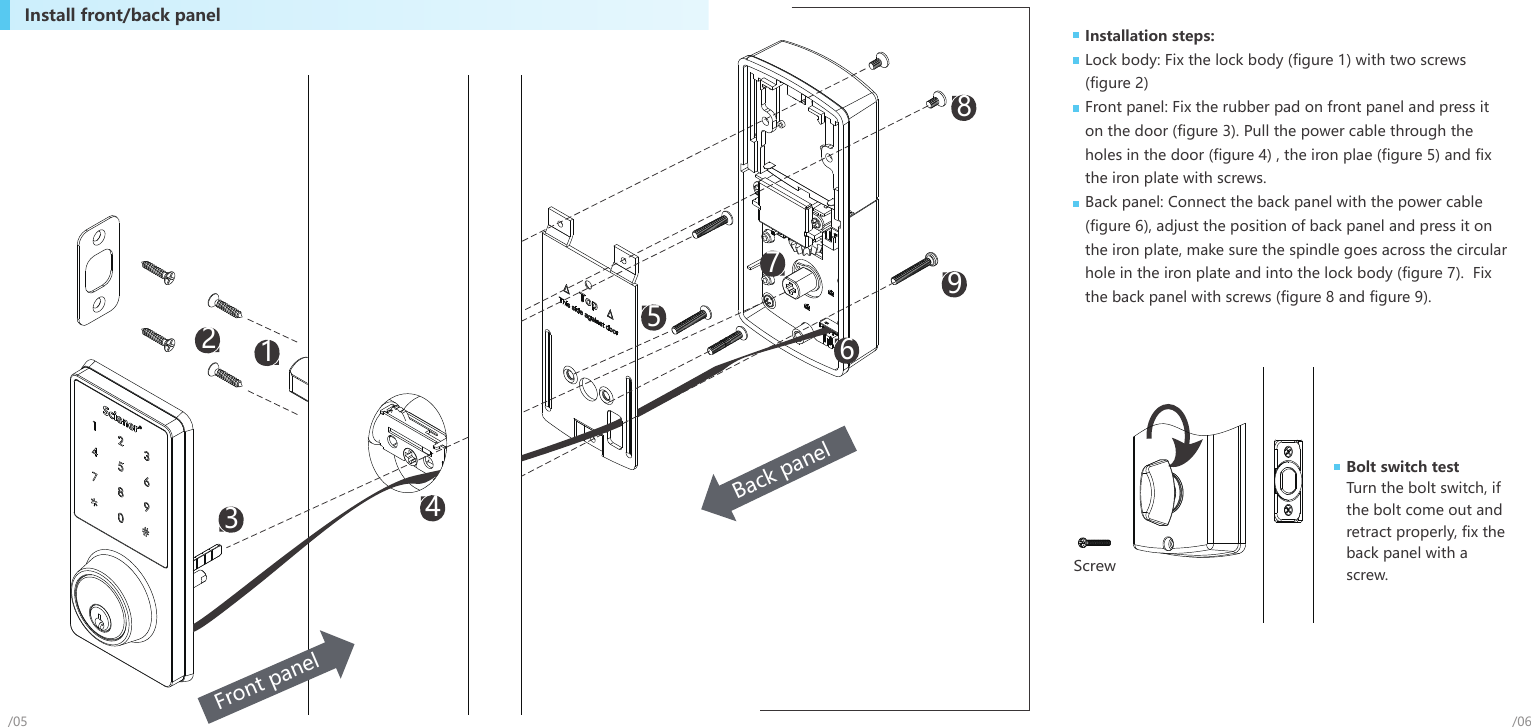

Installation steps:Lock body: Fix the lock body (figure 1) with two screws (figure 2)Front panel: Fix the rubber pad on front panel and press it on the door (figure 3). Pull the power cable through the holes in the door (figure 4) , the iron plae (figure 5) and fix the iron plate with screws.Back panel: Connect the back panel with the power cable (figure 6), adjust the position of back panel and press it on the iron plate, make sure the spindle goes across the circular hole in the iron plate and into the lock body (figure 7). Fix the back panel with screws (figure 8 and figure 9).Install front/back panelBolt switch test Turn the bolt switch, if the bolt come out and retract properly, fix the back panel with a screw.Screw/06/051358942Back panel67Front panel

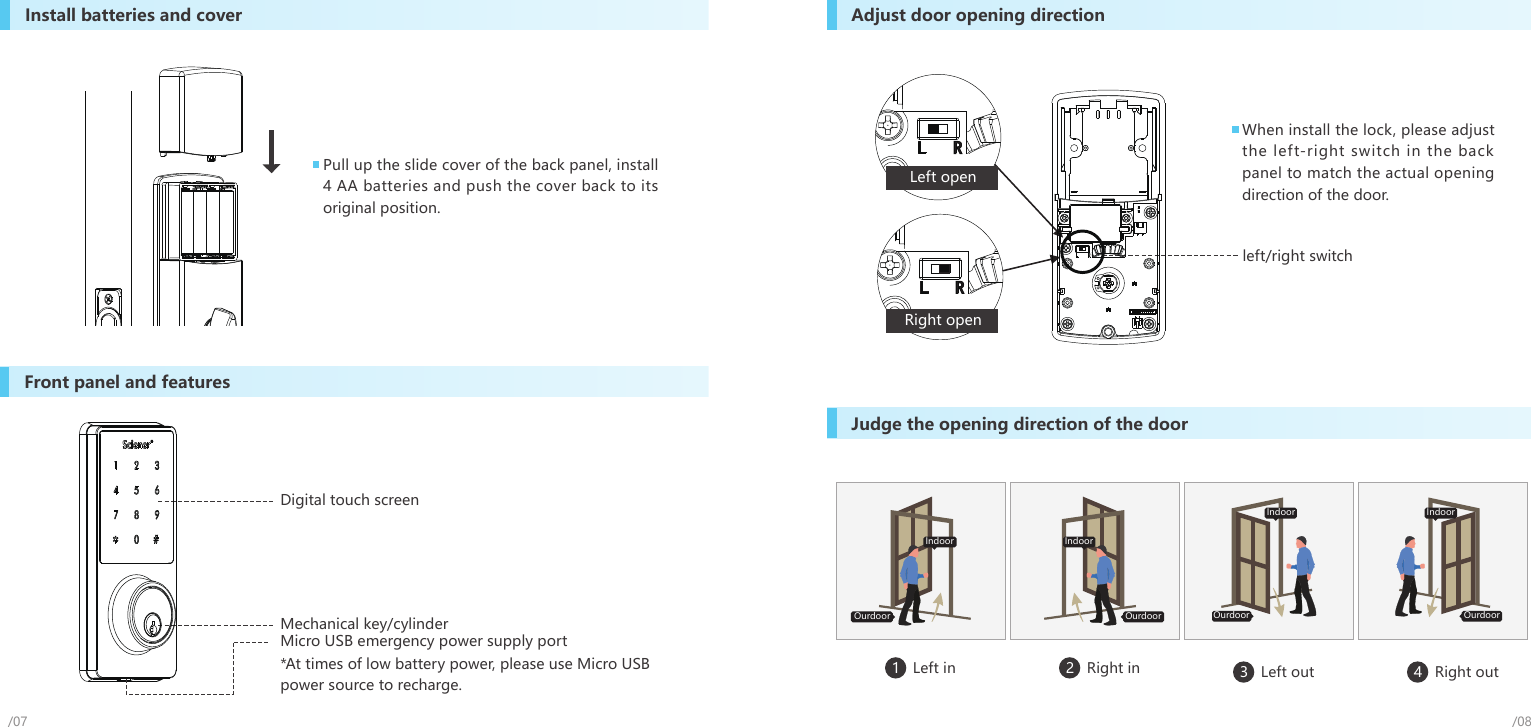

left/right switchInstall batteries and cover Adjust door opening directionJudge the opening direction of the doorFront panel and featuresPull up the slide cover of the back panel, install 4 AA batteries and push the cover back to its original position.When install the lock, please adjust the left-right switch in the back panel to match the actual opening direction of the door.*At times of low battery power, please use Micro USB power source to recharge.Micro USB emergency power supply portMechanical key/cylinderDigital touch screen/07 /081 Left in 3 Left out 4 Right out2 Right inLeft openRight openOurdoorIndoorOurdoorIndoor IndoorOurdoorOurdoorIndoor

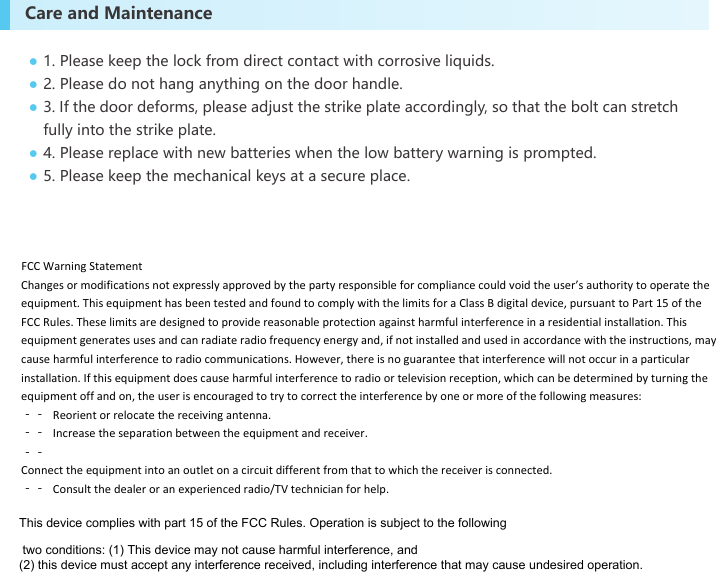

Care and Maintenance1. Please keep the lock from direct contact with corrosive liquids.2. Please do not hang anything on the door handle.3. If the door deforms, please adjust the strike plate accordingly, so that the bolt can stretch fully into the strike plate. 4. Please replace with new batteries when the low battery warning is prompted.5. Please keep the mechanical keys at a secure place.●●●●●FCCWarningStatementChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐‐ Reorientorrelocatethereceivingantenna.‐‐ Increasetheseparationbetweentheequipmentandreceiver.‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
