Hansong OD14W Wi-Fi Speaker User Manual Rev1

Hansong(Nanjing) Technology Ltd. Wi-Fi Speaker Rev1

User Manual--Rev1

ENGLISH

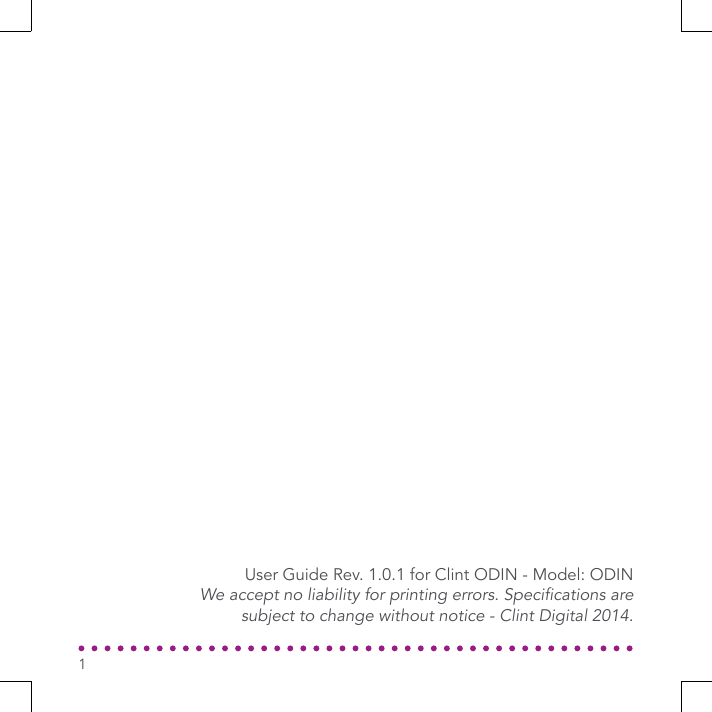

User Guide Rev. 1.0.1 for Clint ODIN - Model: ODINWe accept no liability for printing errors. Specications are subject to change without notice - Clint Digital 2014.1

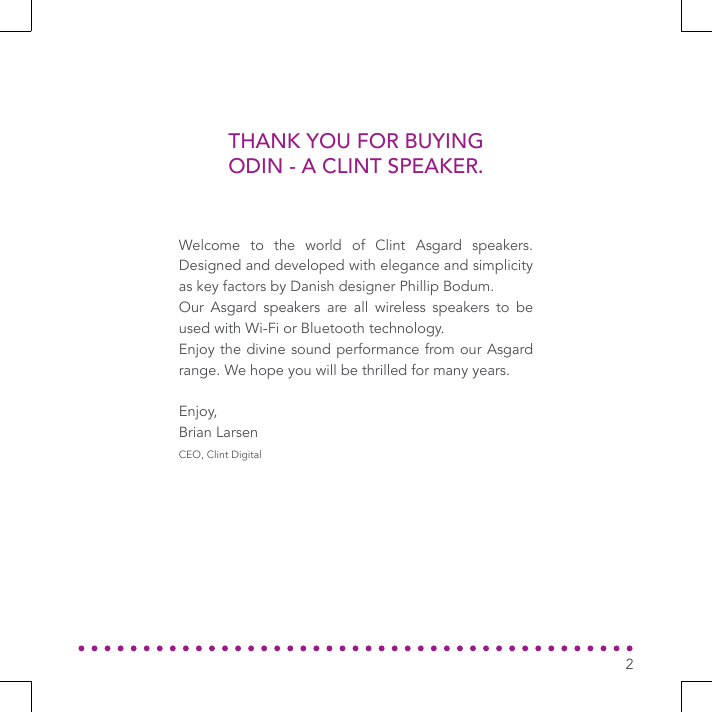

THANK YOU FOR BUYING ODIN - A CLINT SPEAKER.Welcome to the world of Clint Asgard speakers. Designed and developed with elegance and simplicity as key factors by Danish designer Phillip Bodum.Our Asgard speakers are all wireless speakers to be used with Wi-Fi or Bluetooth technology.Enjoy the divine sound performance from our Asgard range. We hope you will be thrilled for many years.Enjoy,Brian LarsenCEO, Clint Digital2

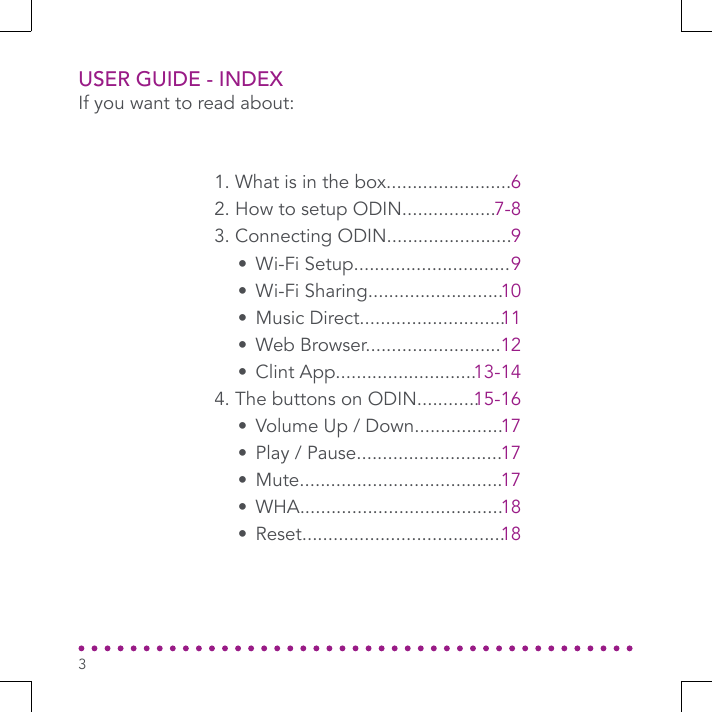

If you want to read about:1. What is in the box........................2. How to setup ODIN..................3. Connecting ODIN........................• Wi-Fi Setup..............................• Wi-Fi Sharing..........................• Music Direct............................• Web Browser..........................• Clint App...........................4. The buttons on ODIN............• Volume Up / Down.................• Play / Pause............................• Mute.......................................• WHA.......................................• Reset.......................................67-89910111213-1415-161717171818 USER GUIDE - INDEX3

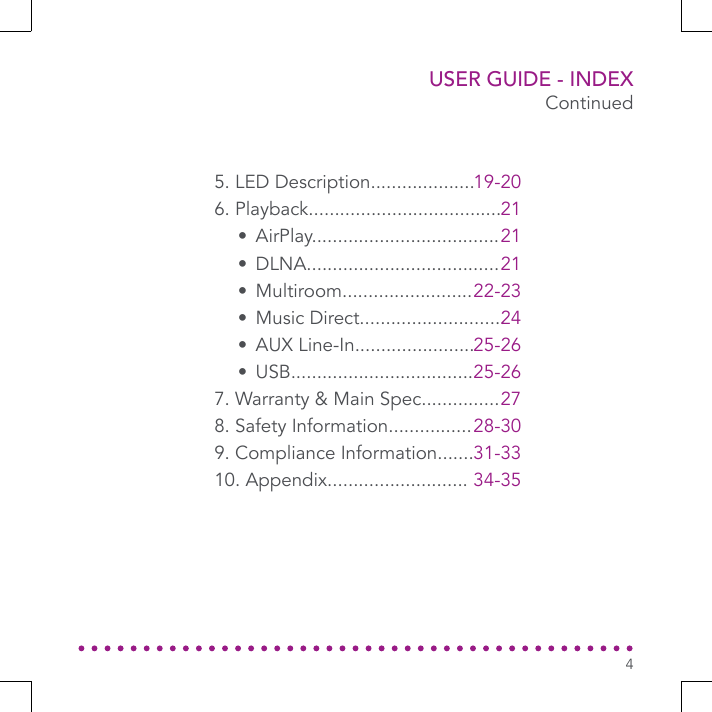

Continued5. LED Description....................6. Playback.....................................• AirPlay....................................• DLNA.....................................• Multiroom.........................• Music Direct............................• AUX Line-In.......................• USB...................................7. Warranty & Main Spec...............8. Safety Information................9. Compliance Information.......10. Appendix...........................19-2021212122-232425-2625-262728-3031-3334-35USER GUIDE - INDEX4
5

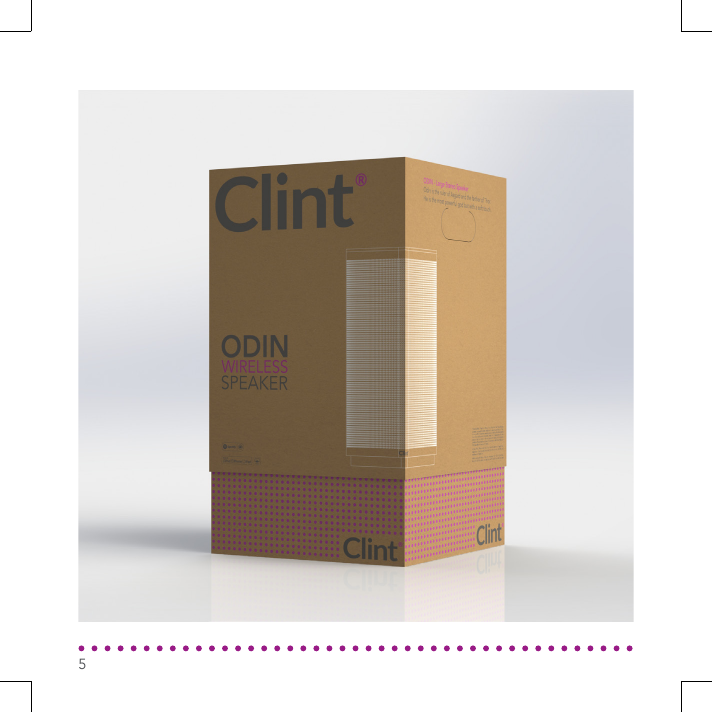

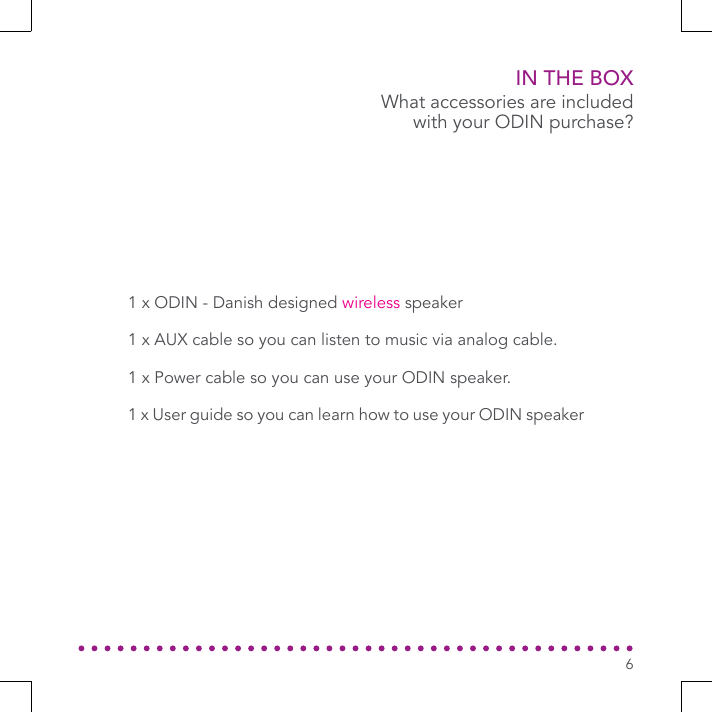

IN THE BOXWhat accessories are included with your ODIN purchase?61 x ODIN - Danish designed wireless speaker1 x AUX cable so you can listen to music via analog cable.1 x Power cable so you can use your ODIN speaker.1 x User guide so you can learn how to use your ODIN speaker

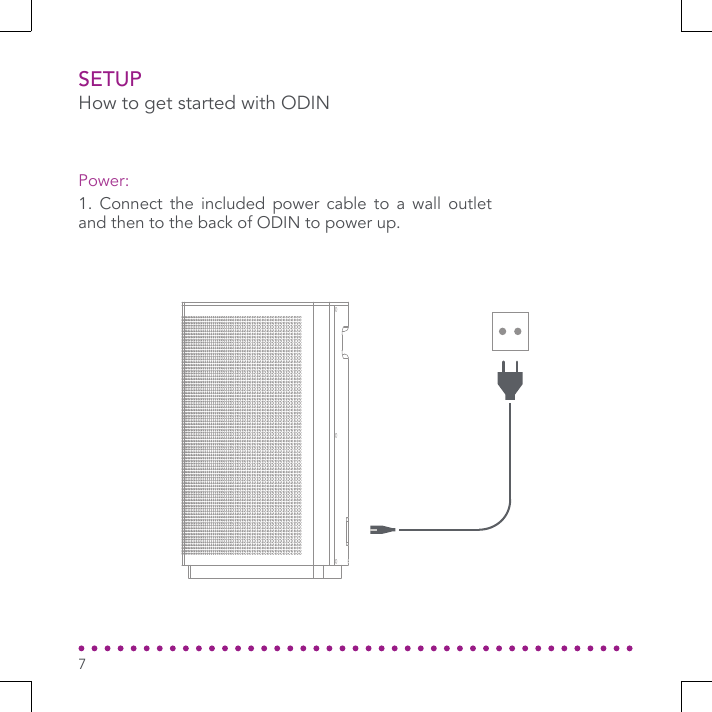

SETUP1. Connect the included power cable to a wall outlet and then to the back of ODIN to power up.Power:How to get started with ODIN7

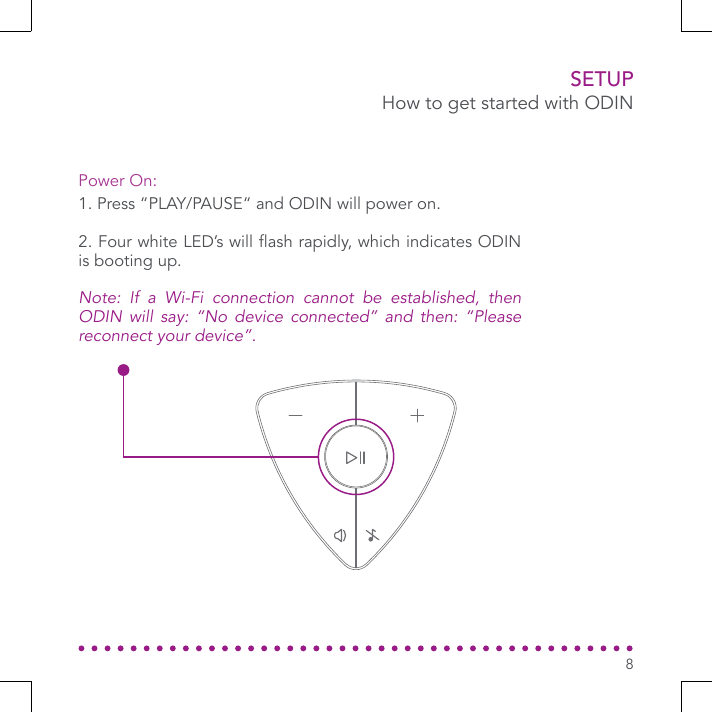

Power On:1. Press “PLAY/PAUSE“ and ODIN will power on. 2. Four white LED’s will ash rapidly, which indicates ODIN is booting up.Note: If a Wi-Fi connection cannot be established, then ODIN will say: “No device connected” and then: “Please reconnect your device”.SETUPHow to get started with ODIN8
CONNECTING TO NETWORKYou have a few options to connect ODIN to your networkMany modern routers have a “WPS” button somewhere - if yours does, continue this guide. If it does not, select another way to connect with ODIN.1. Start by pressing the “Wi-Fi setup” button on the back side of ODIN. ODIN will say: “Waiting for connection” and purple LED will ash rapidly.2. Quickly press your routers “WPS” button and wait until ODIN says: “Your device is now connected”. All ve LED will start breathing slowly.Wi-Fi Setup (Push button):Back side of ODIN.Note: On the right you will see some standard WPS symbols that your wireless router might have – If you do not press WPS within 2 mins. or a Wi-Fi connection cannot be established – ODIN will return to the previous state.9

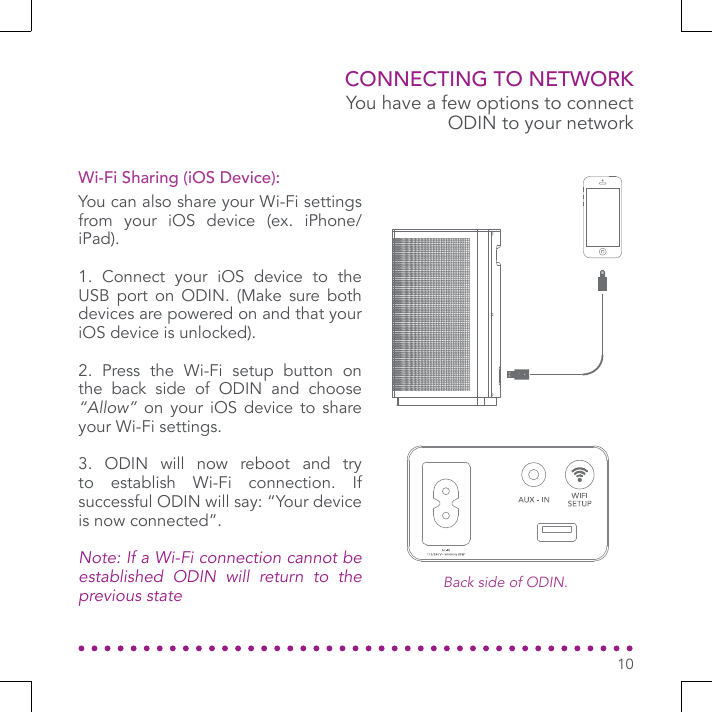

You have a few options to connect ODIN to your networkBack side of ODIN.CONNECTING TO NETWORKYou can also share your Wi-Fi settings from your iOS device (ex. iPhone/iPad).1. Connect your iOS device to the USB port on ODIN. (Make sure both devices are powered on and that your iOS device is unlocked).2. Press the Wi-Fi setup button on the back side of ODIN and choose “Allow” on your iOS device to share your Wi-Fi settings.3. ODIN will now reboot and try to establish Wi-Fi connection. If successful ODIN will say: “Your device is now connected”.Note: If a Wi-Fi connection cannot be established ODIN will return to the previous stateWi-Fi Sharing (iOS Device):10

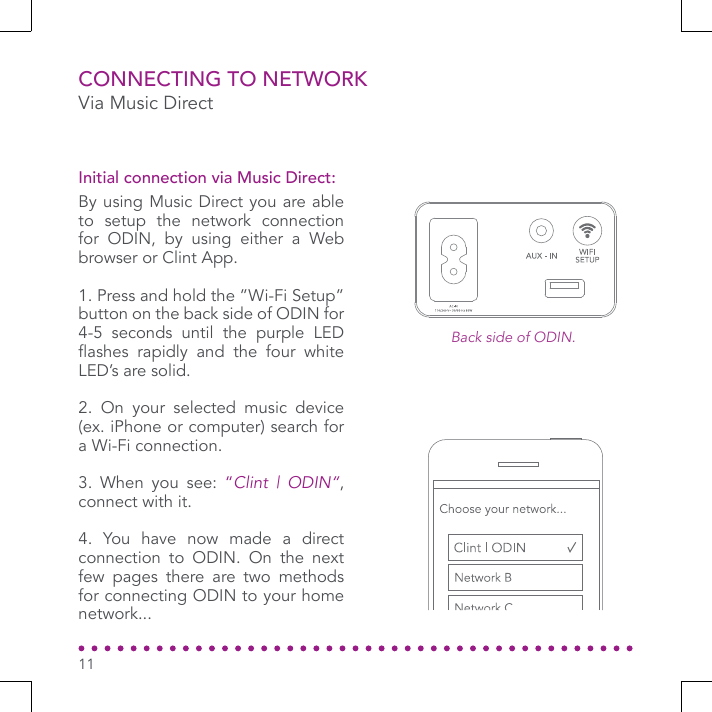

Via Music DirectCONNECTING TO NETWORKBy using Music Direct you are able to setup the network connection for ODIN, by using either a Web browser or Clint App.1. Press and hold the ”Wi-Fi Setup” button on the back side of ODIN for 4-5 seconds until the purple LED ashes rapidly and the four white LED’s are solid.2. On your selected music device (ex. iPhone or computer) search for a Wi-Fi connection.3. When you see: “Clint | ODIN“, connect with it.4. You have now made a direct connection to ODIN. On the next few pages there are two methods for connecting ODIN to your home network...Initial connection via Music Direct:11Back side of ODIN.

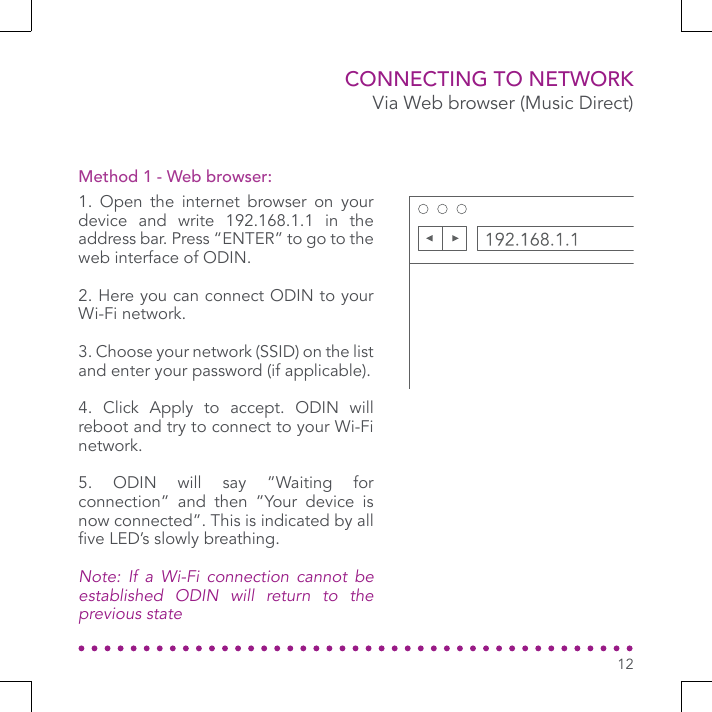

CONNECTING TO NETWORK1. Open the internet browser on your device and write 192.168.1.1 in the address bar. Press “ENTER” to go to the web interface of ODIN.2. Here you can connect ODIN to your Wi-Fi network.3. Choose your network (SSID) on the list and enter your password (if applicable).4. Click Apply to accept. ODIN will reboot and try to connect to your Wi-Fi network.5. ODIN will say ”Waiting for connection” and then ”Your device is now connected”. This is indicated by all ve LED’s slowly breathing. Note: If a Wi-Fi connection cannot be established ODIN will return to the previous stateMethod 1 - Web browser:Via Web browser (Music Direct)12

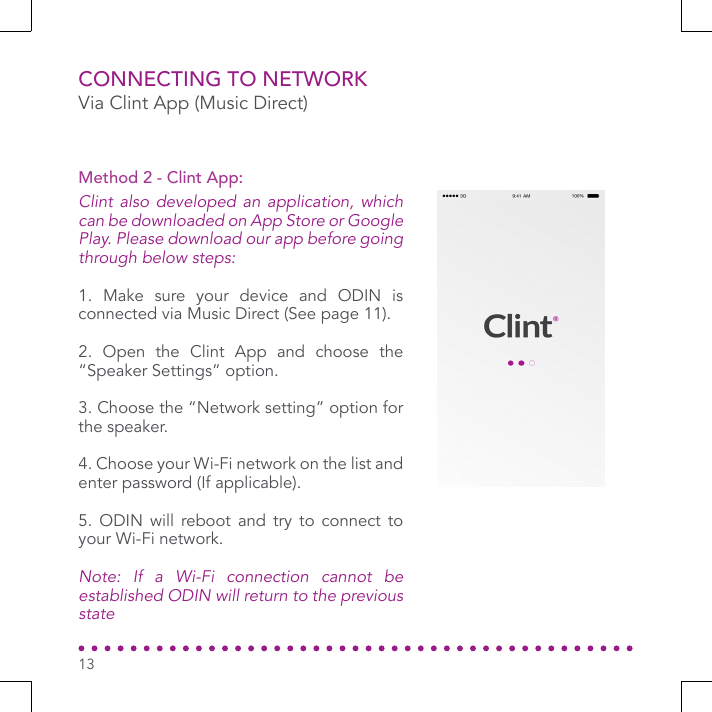

CONNECTING TO NETWORKVia Clint App (Music Direct)Clint also developed an application, which can be downloaded on App Store or Google Play. Please download our app before going through below steps:1. Make sure your device and ODIN is connected via Music Direct (See page 11).2. Open the Clint App and choose the “Speaker Settings” option.3. Choose the “Network setting” option for the speaker. 4. Choose your Wi-Fi network on the list and enter password (If applicable).5. ODIN will reboot and try to connect to your Wi-Fi network.Note: If a Wi-Fi connection cannot be established ODIN will return to the previous stateMethod 2 - Clint App:13

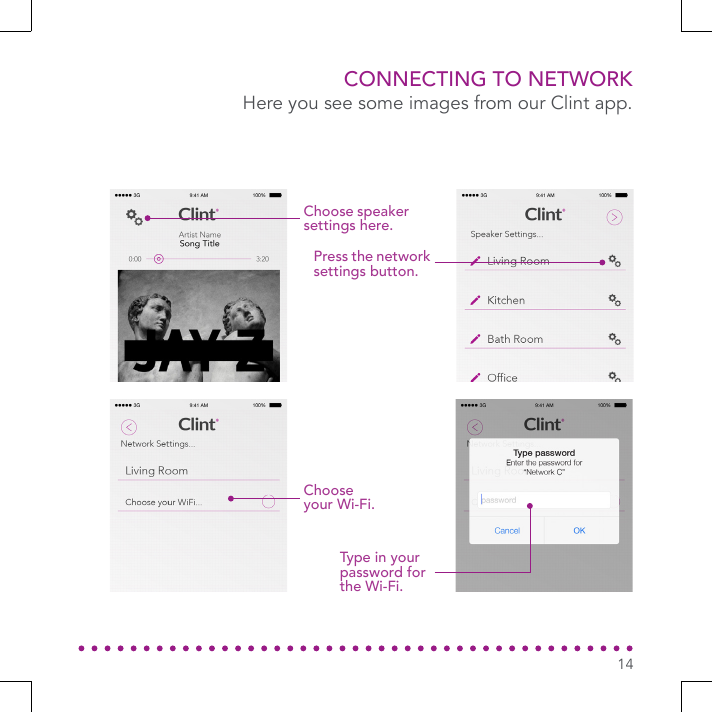

Choose speaker settings here.Press the network settings button.Choose your Wi-Fi.Type in your password for the Wi-Fi.CONNECTING TO NETWORKHere you see some images from our Clint app.14
BUTTONS ON ODINThese are the different buttons located on the top of ODINPlay / PausePower on / offMultiRoom(WHA)Mute the musicVolume upVolume down15

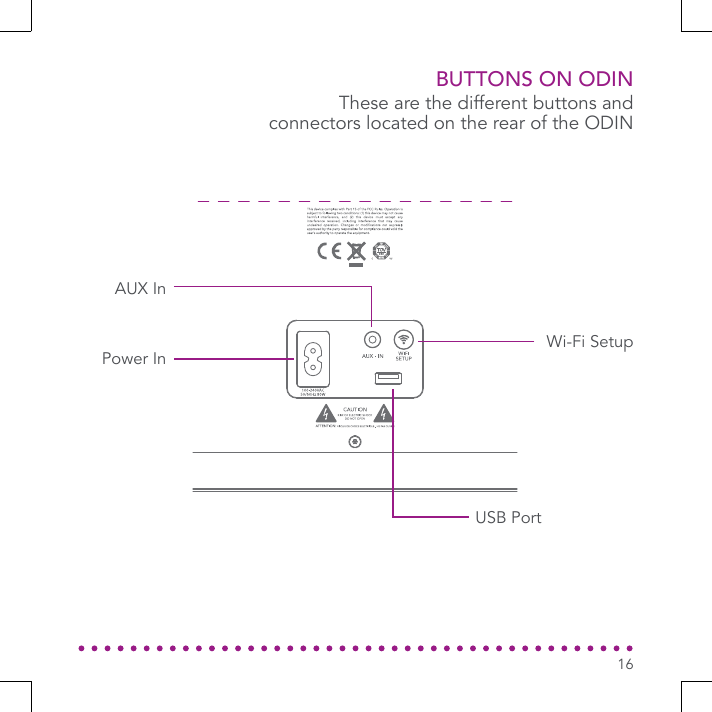

Wi-Fi SetupPower InUSB PortAUX InBUTTONS ON ODINThese are the different buttons and connectors located on the rear of the ODIN16

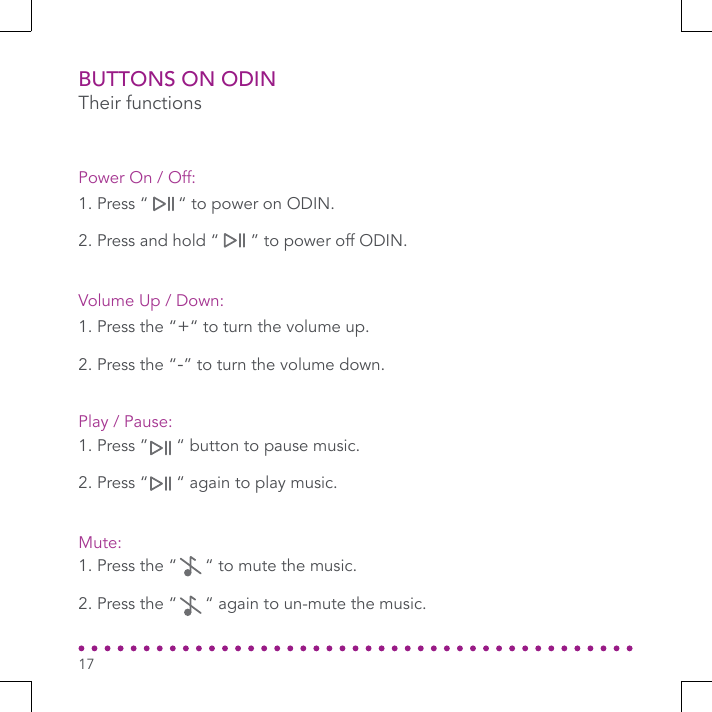

BUTTONS ON ODINTheir functions1. Press the “+“ to turn the volume up.2. Press the “-” to turn the volume down.Volume Up / Down:1. Press the “ “ to mute the music.2. Press the “ “ again to un-mute the music.Mute:1. Press “ “ to power on ODIN.2. Press and hold “ ” to power off ODIN.Power On / Off:1. Press ” “ button to pause music.2. Press “ “ again to play music.Play / Pause:17

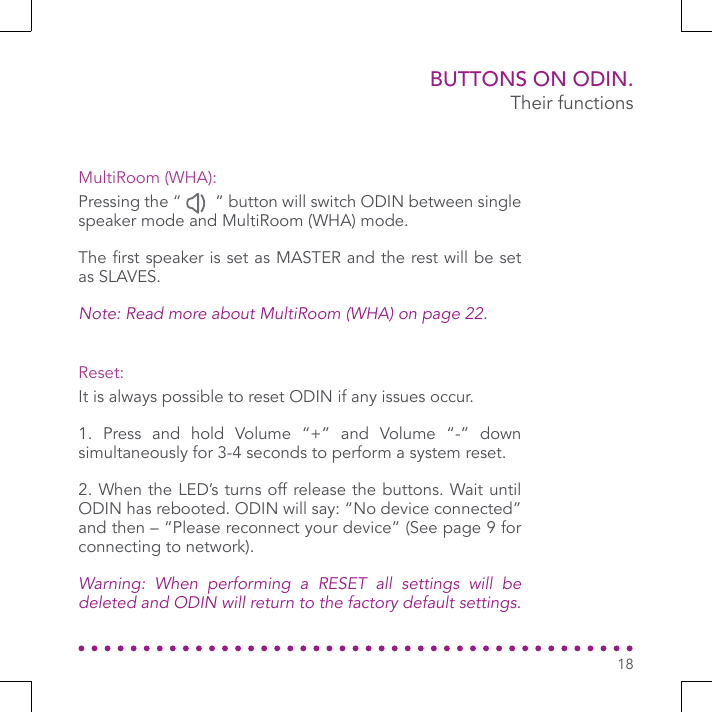

BUTTONS ON ODIN.Their functionsIt is always possible to reset ODIN if any issues occur.1. Press and hold Volume “+” and Volume “-” down simultaneously for 3-4 seconds to perform a system reset. 2. When the LED’s turns off release the buttons. Wait until ODIN has rebooted. ODIN will say: “No device connected” and then – “Please reconnect your device” (See page 9 for connecting to network).Warning: When performing a RESET all settings will be deleted and ODIN will return to the factory default settings.Pressing the “ ” button will switch ODIN between single speaker mode and MultiRoom (WHA) mode.The rst speaker is set as MASTER and the rest will be set as SLAVES.Note: Read more about MultiRoom (WHA) on page 22.Reset:MultiRoom (WHA):18

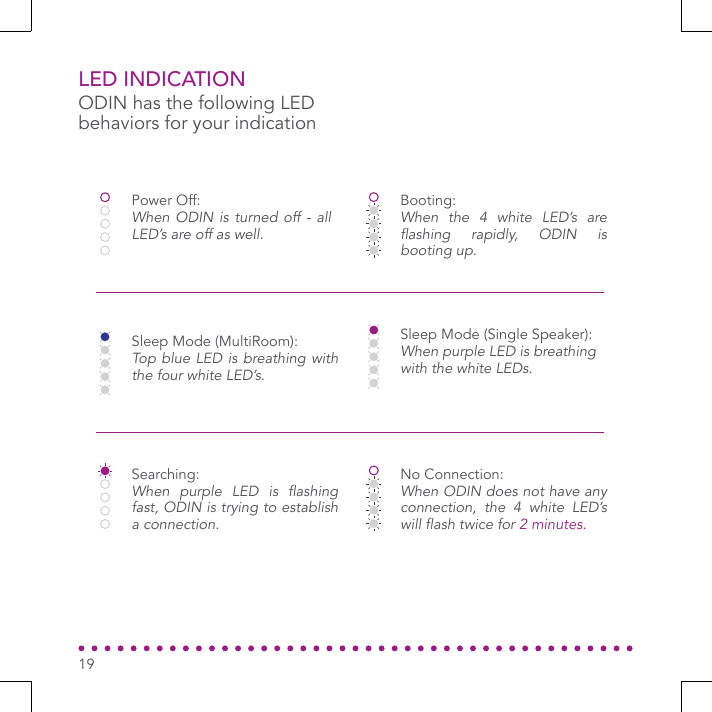

Power Off:When ODIN is turned off - all LED’s are off as well.Booting:When the 4 white LED’s are ashing rapidly, ODIN is booting up.Searching:When purple LED is ashing fast, ODIN is trying to establish a connection.No Connection:When ODIN does not have any connection, the 4 white LED’s will ash twice for 2 minutes.LED INDICATIONODIN has the following LED behaviors for your indicationSleep Mode (Single Speaker):When purple LED is breathing with the white LEDs.Sleep Mode (MultiRoom):Top blue LED is breathing with the four white LED’s.19

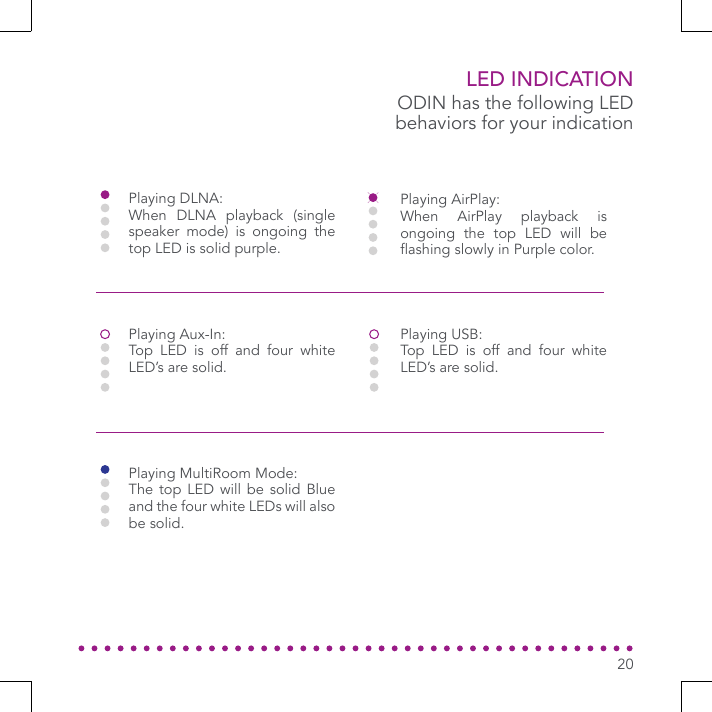

ODIN has the following LED behaviors for your indicationPlaying AirPlay:When AirPlay playback is ongoing the top LED will be ashing slowly in Purple color.Playing USB:Top LED is off and four white LED’s are solid.LED INDICATION Playing DLNA:When DLNA playback (single speaker mode) is ongoing the top LED is solid purple.Playing Aux-In:Top LED is off and four white LED’s are solid.Playing MultiRoom Mode:The top LED will be solid Blue and the four white LEDs will also be solid.20
PLAYBACK ON ODINWirelessAirPlay is Apple Inc. software feature that is used to stream audio and video between devices connected to a Wi-Fi network. You can stream from iTunes on Mac or PC. Or you can use an iOS device: iPad, iPhone or iPod Touch.1. Start playback on the iOS device and click on the AirPlay icon. 2. Choose “Clint | ODIN” as output device (speaker).With a DLNA music application on your Android / WP8 / Windows / iOS etc. device you can also stream music to ODIN. (Please use the Clint App for iOS and Android).For more information regarding Clint App please read the included App user guide or download it from www.clintdigital.comOther 3. party apps may also work but Clint cannot be held responsible for the use and/or functions of these apps. We refer to the user guide of the specic app for more information. Remember to choose “Clint | ODIN” as output device (speaker).AirPlay:DLNA:21

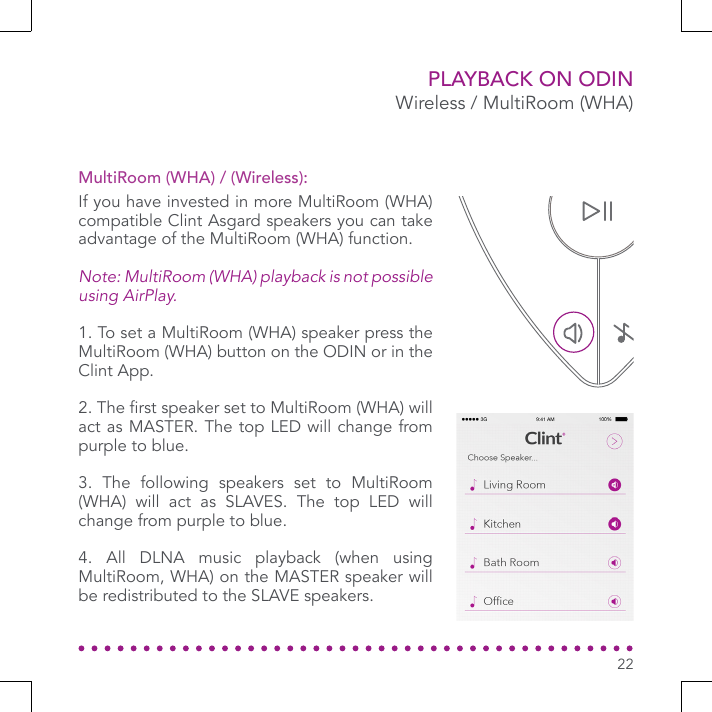

PLAYBACK ON ODINWireless / MultiRoom (WHA)If you have invested in more MultiRoom (WHA) compatible Clint Asgard speakers you can take advantage of the MultiRoom (WHA) function.Note: MultiRoom (WHA) playback is not possible using AirPlay.1. To set a MultiRoom (WHA) speaker press the MultiRoom (WHA) button on the ODIN or in the Clint App.2. The rst speaker set to MultiRoom (WHA) will act as MASTER. The top LED will change from purple to blue.3. The following speakers set to MultiRoom (WHA) will act as SLAVES. The top LED will change from purple to blue.4. All DLNA music playback (when using MultiRoom, WHA) on the MASTER speaker will be redistributed to the SLAVE speakers.MultiRoom (WHA) / (Wireless):22

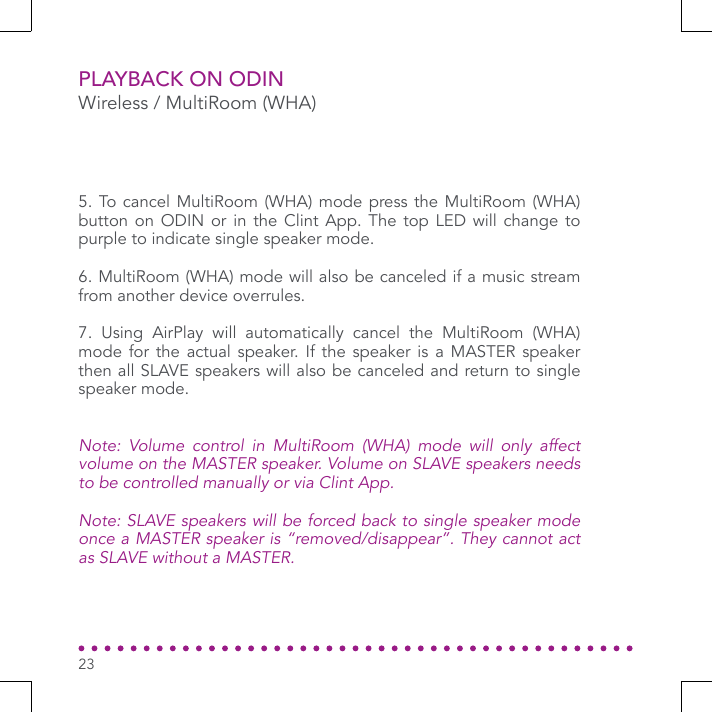

PLAYBACK ON ODINWireless / MultiRoom (WHA)5. To cancel MultiRoom (WHA) mode press the MultiRoom (WHA) button on ODIN or in the Clint App. The top LED will change to purple to indicate single speaker mode.6. MultiRoom (WHA) mode will also be canceled if a music stream from another device overrules.7. Using AirPlay will automatically cancel the MultiRoom (WHA) mode for the actual speaker. If the speaker is a MASTER speaker then all SLAVE speakers will also be canceled and return to single speaker mode.Note: Volume control in MultiRoom (WHA) mode will only affect volume on the MASTER speaker. Volume on SLAVE speakers needs to be controlled manually or via Clint App.Note: SLAVE speakers will be forced back to single speaker mode once a MASTER speaker is “removed/disappear”. They cannot act as SLAVE without a MASTER.23

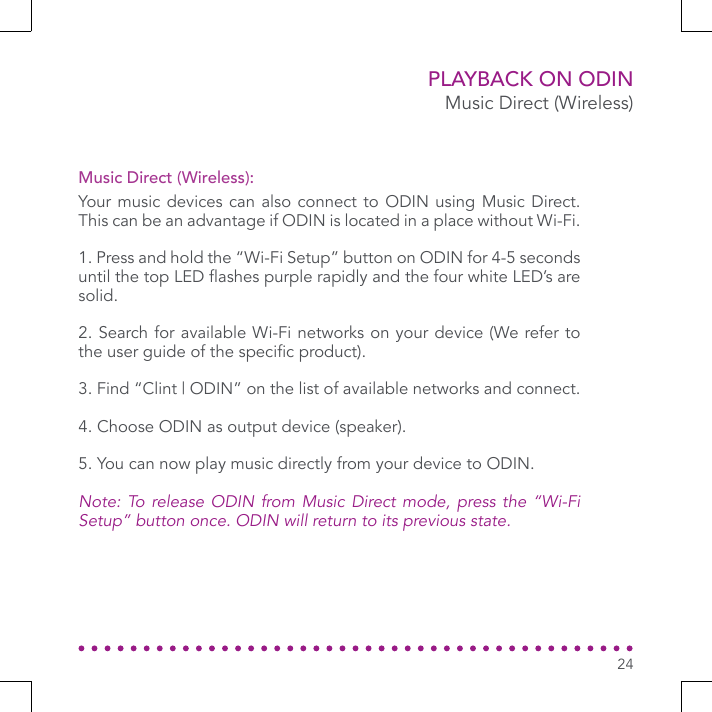

PLAYBACK ON ODINMusic Direct (Wireless)Your music devices can also connect to ODIN using Music Direct. This can be an advantage if ODIN is located in a place without Wi-Fi.1. Press and hold the “Wi-Fi Setup” button on ODIN for 4-5 seconds until the top LED ashes purple rapidly and the four white LED’s are solid.2. Search for available Wi-Fi networks on your device (We refer to the user guide of the specic product).3. Find “Clint | ODIN” on the list of available networks and connect.4. Choose ODIN as output device (speaker).5. You can now play music directly from your device to ODIN.Note: To release ODIN from Music Direct mode, press the “Wi-Fi Setup” button once. ODIN will return to its previous state.Music Direct (Wireless):24

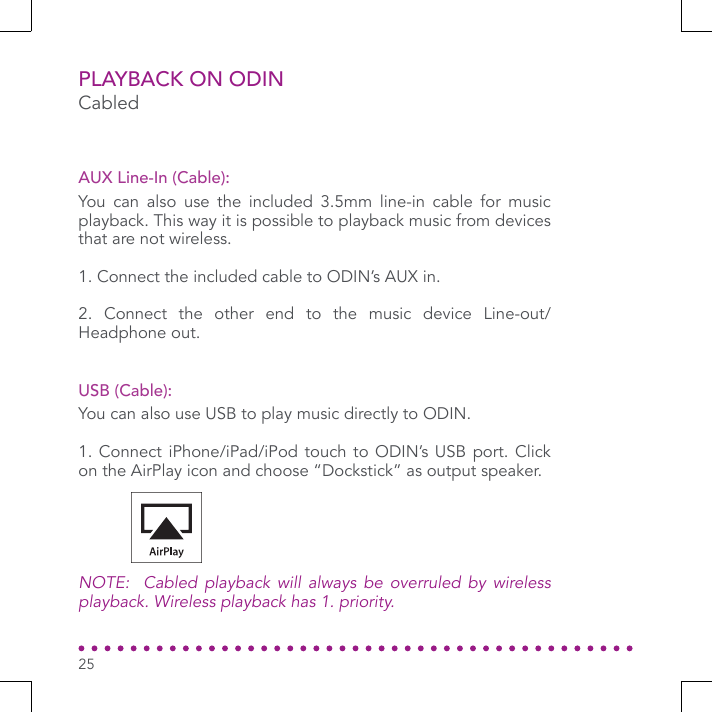

You can also use USB to play music directly to ODIN.1. Connect iPhone/iPad/iPod touch to ODIN’s USB port. Click on the AirPlay icon and choose “Dockstick” as output speaker.NOTE: Cabled playback will always be overruled by wireless playback. Wireless playback has 1. priority.PLAYBACK ON ODINCabledYou can also use the included 3.5mm line-in cable for music playback. This way it is possible to playback music from devices that are not wireless. 1. Connect the included cable to ODIN’s AUX in. 2. Connect the other end to the music device Line-out/Headphone out.AUX Line-In (Cable):USB (Cable):25

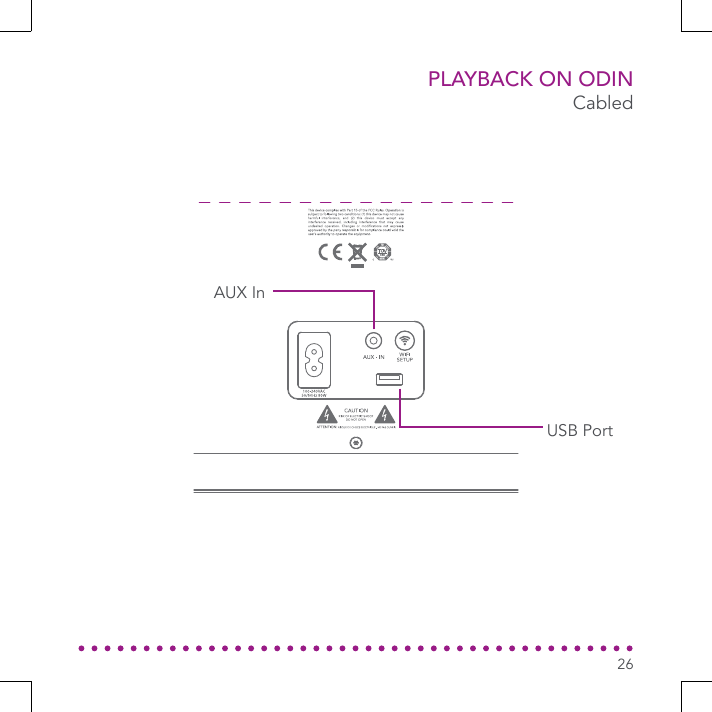

PLAYBACK ON ODINCabled26USB PortAUX In
WARRANTY AND MAIN SPECIFICATIONS27Warranty:ODIN Main Specications:ODIN AirPlay Requirements:Our Clint ODIN speaker is of cause covered by warranty but it may vary from country to country. Please consult your local dealer for more information or check Clint web site.iTunes 10.1 or later to operate from a MAC or PC.AirPlay can also operate from an iOS device capable of running iOS 4.2 or later (iPhone 3G, 3GS, 4 or 4S, iPod touch 2nd, 3rd or 4th gen, iPad, iPad 2 or iPad 3).• Wi-Fi speaker.• Weight: 6.9 Kg.• Dimension: height 394 mm x width 243 mm x depth 243 mm.• 2 x 25 watt amplier with DSP for optimum sound performance.• Wireless technology supported: AirPlay and DLNA.• USB port can handle up to 5V 2.4A output power.• Eco save function - FREYA will go to auto standby if not used for 20 minutes.

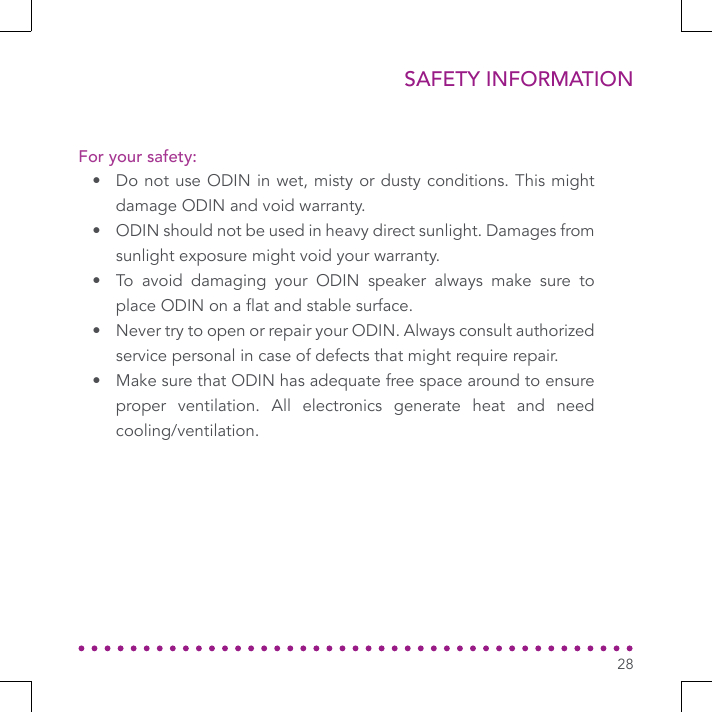

SAFETY INFORMATION28• Do not use ODIN in wet, misty or dusty conditions. This might damage ODIN and void warranty.• ODIN should not be used in heavy direct sunlight. Damages from sunlight exposure might void your warranty.• To avoid damaging your ODIN speaker always make sure to place ODIN on a at and stable surface.• Never try to open or repair your ODIN. Always consult authorized service personal in case of defects that might require repair.• Make sure that ODIN has adequate free space around to ensure proper ventilation. All electronics generate heat and need cooling/ventilation.For your safety:

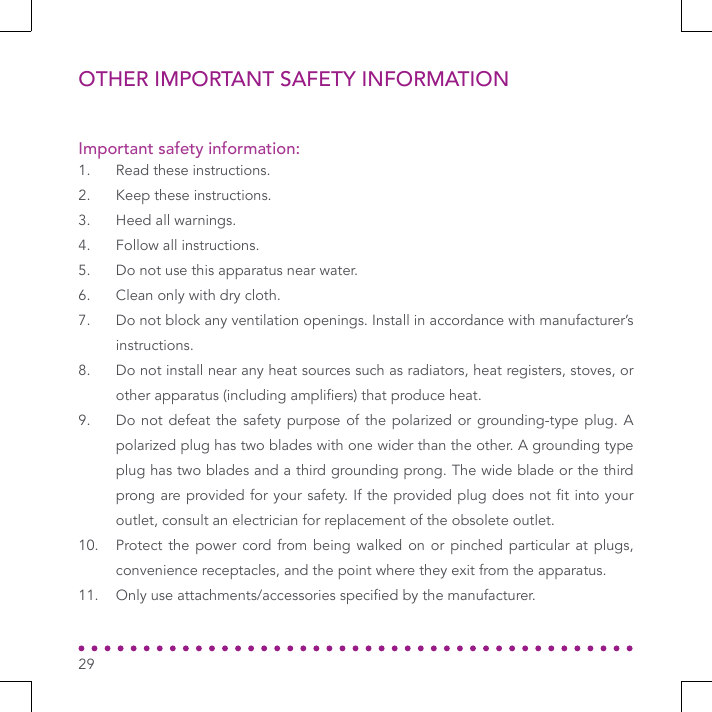

OTHER IMPORTANT SAFETY INFORMATION1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particular at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use attachments/accessories specied by the manufacturer.Important safety information:29

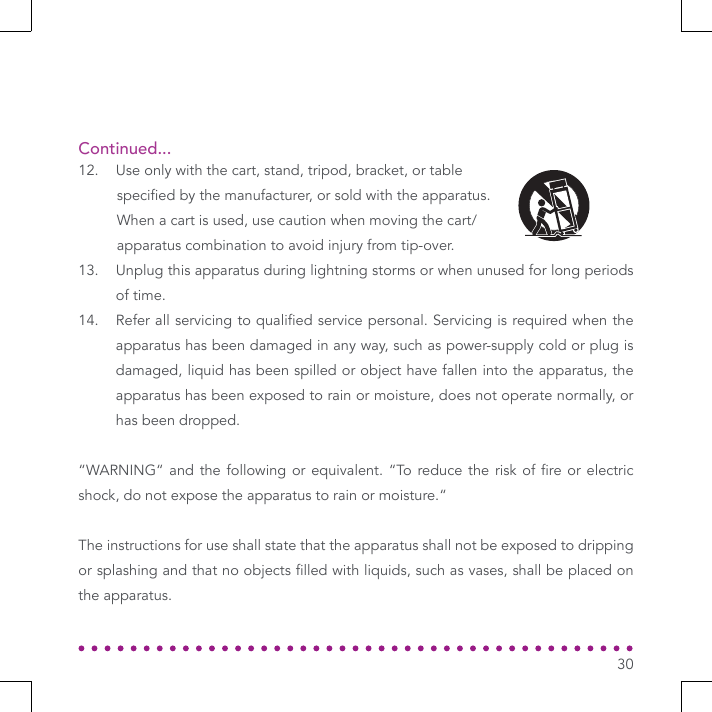

12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualied service personal. Servicing is required when the apparatus has been damaged in any way, such as power-supply cold or plug is damaged, liquid has been spilled or object have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.“WARNING“ and the following or equivalent. “To reduce the risk of re or electric shock, do not expose the apparatus to rain or moisture.“The instructions for use shall state that the apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on the apparatus.Continued...30

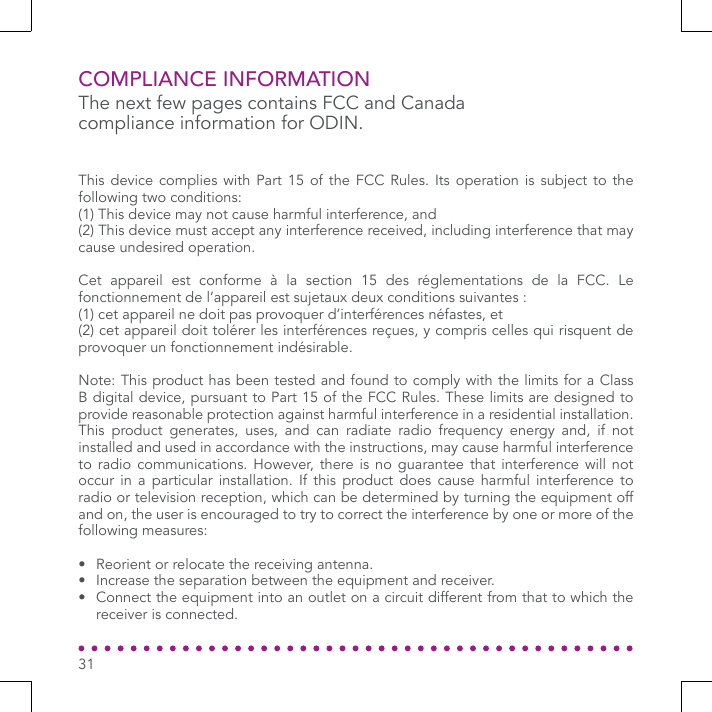

COMPLIANCE INFORMATIONThe next few pages contains FCC and Canada compliance information for ODIN.This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes :(1) cet appareil ne doit pas provoquer d’interférences néfastes, et(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable.Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 31
COMPLIANCE INFORMATION• Consult the dealer or an experienced radio/TV technician for help.User manuals for licence-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions suivantes:(1) l’appareil ne doit pas produire de brouillage, et(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.The next few pages contains FCC and Canada compliance information for ODIN.32

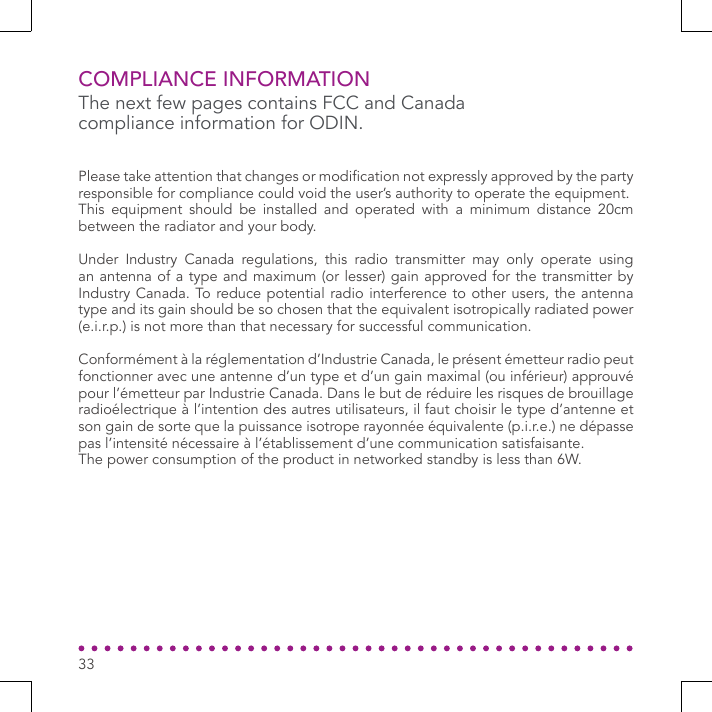

33COMPLIANCE INFORMATIONPlease take attention that changes or modication not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.The power consumption of the product in networked standby is less than 6W.The next few pages contains FCC and Canada compliance information for ODIN.

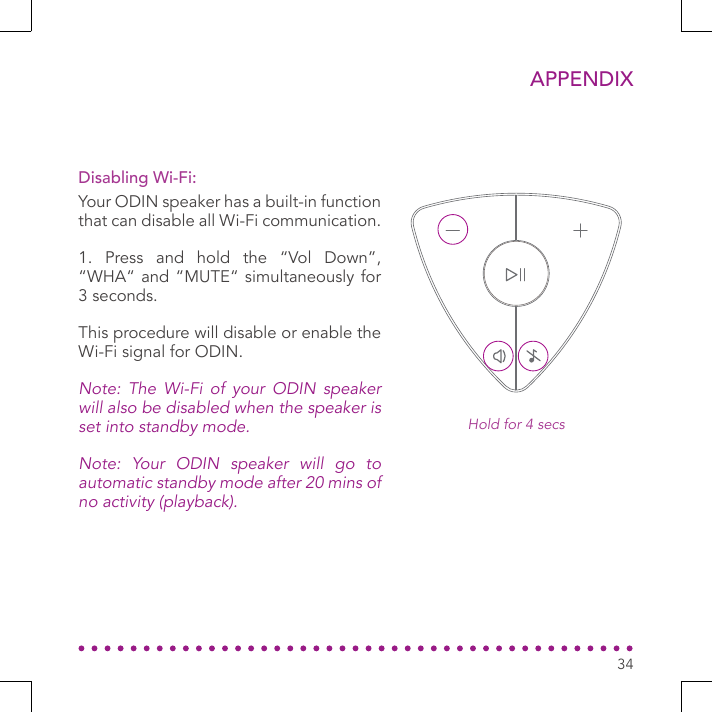

34APPENDIXYour ODIN speaker has a built-in function that can disable all Wi-Fi communication.1. Press and hold the “Vol Down”, “WHA“ and “MUTE“ simultaneously for 3 seconds.This procedure will disable or enable the Wi-Fi signal for ODIN.Note: The Wi-Fi of your ODIN speaker will also be disabled when the speaker is set into standby mode. Note: Your ODIN speaker will go to automatic standby mode after 20 mins of no activity (playback).Disabling Wi-Fi:Hold for 4 secs

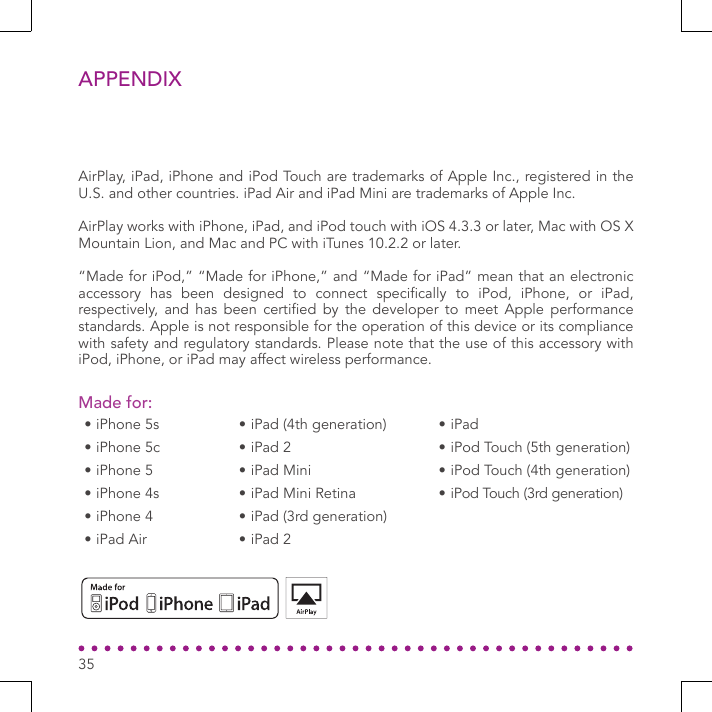

APPENDIXAirPlay, iPad, iPhone and iPod Touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad Mini are trademarks of Apple Inc. AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later.“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specically to iPod, iPhone, or iPad, respectively, and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.Made for:• iPhone 5s• iPhone 5c• iPhone 5• iPhone 4s• iPhone 4• iPad Air• iPad (4th generation)• iPad 2• iPad Mini• iPad Mini Retina• iPad (3rd generation)• iPad 2• iPad• iPod Touch (5th generation)• iPod Touch (4th generation)• iPod Touch (3rd generation)35

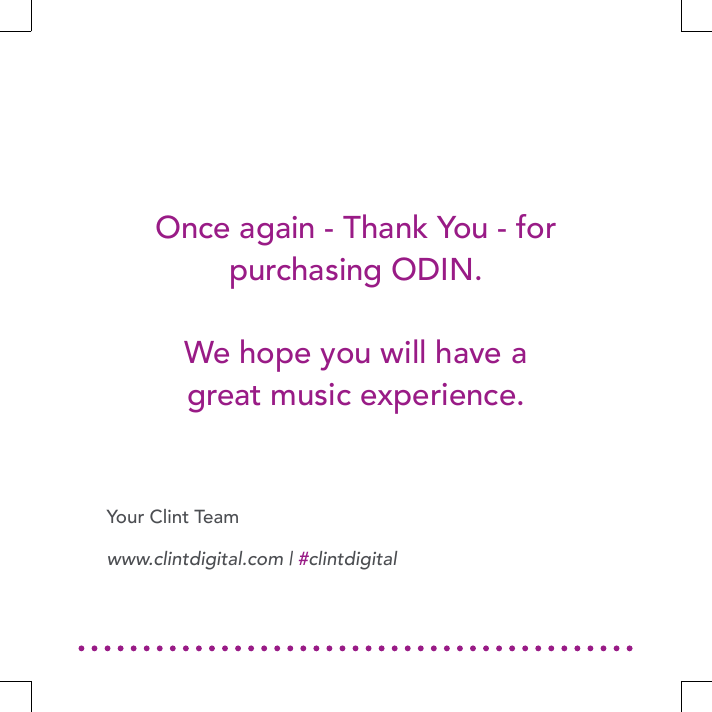

Once again - Thank You - for purchasing ODIN. We hope you will have a great music experience.Your Clint Teamwww.clintdigital.com | #clintdigital
