Model: MiniPod Bluetooth MK II – User Guide revision v1.0 – Sept 2016We accept no liability for printing errors. Specications are subject to change without notice. PODSPEAKERS 2016EET Group A/S, Tempovej 41, DK2750 Ballerup, Denmark.USER GUIDESDownload this user guide in other languages at:www.podspeakers.dkTélécharger ce guide de l’utilisateur dans d’autres langues à: www.podspeakers.dkHier können Sie die Bedienungsanleitung auch in anderen Sprachen herunterladen: www.podspeakers.dkDescargar éste manual de usuario in otro idioma aquí: www.podspeakers.dk请在此下载其他语言的用户指南:www.podspeakers.dk

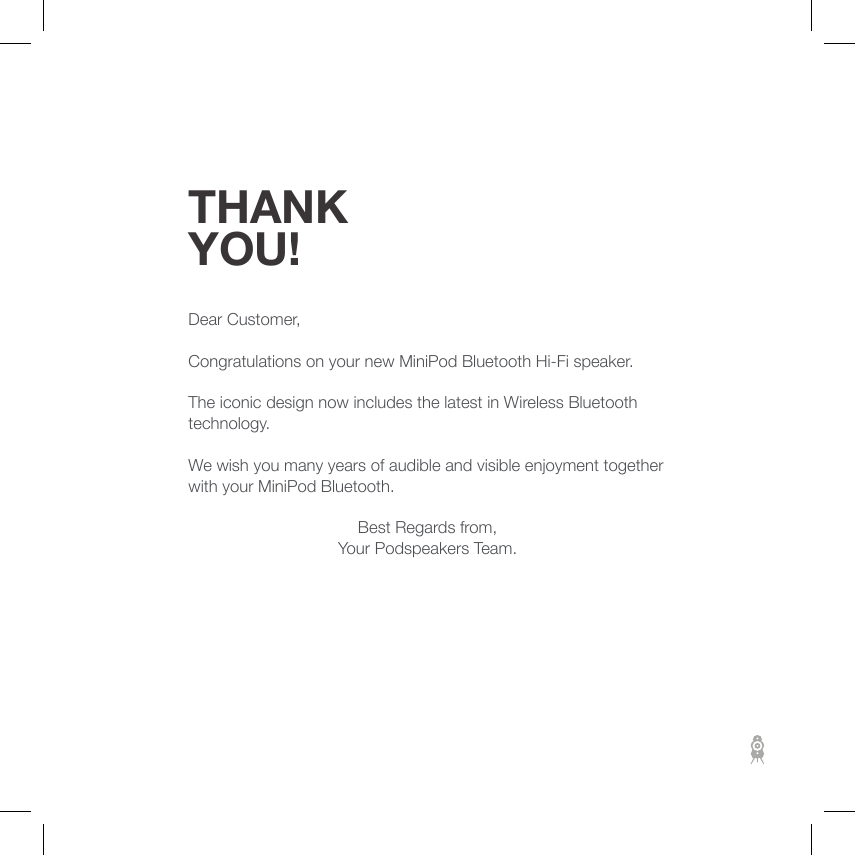

THANK YOU!Dear Customer,Congratulations on your new MiniPod Bluetooth Hi-Fi speaker.The iconic design now includes the latest in Wireless Bluetooth technology.We wish you many years of audible and visible enjoyment together with your MiniPod Bluetooth.Best Regards from,Your Podspeakers Team.

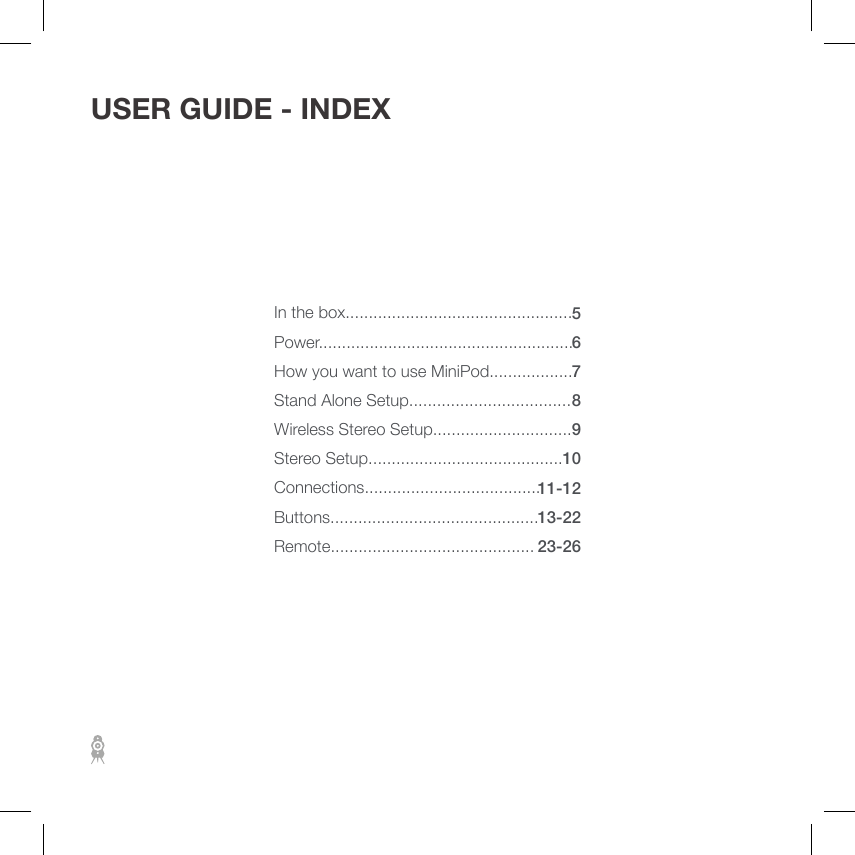

In the box.................................................Power.......................................................How you want to use MiniPod..................Stand Alone Setup...................................Wireless Stereo Setup..............................Stereo Setup..........................................Connections......................................Buttons.............................................Remote............................................567891011-1213-2223-26USER GUIDE - INDEX

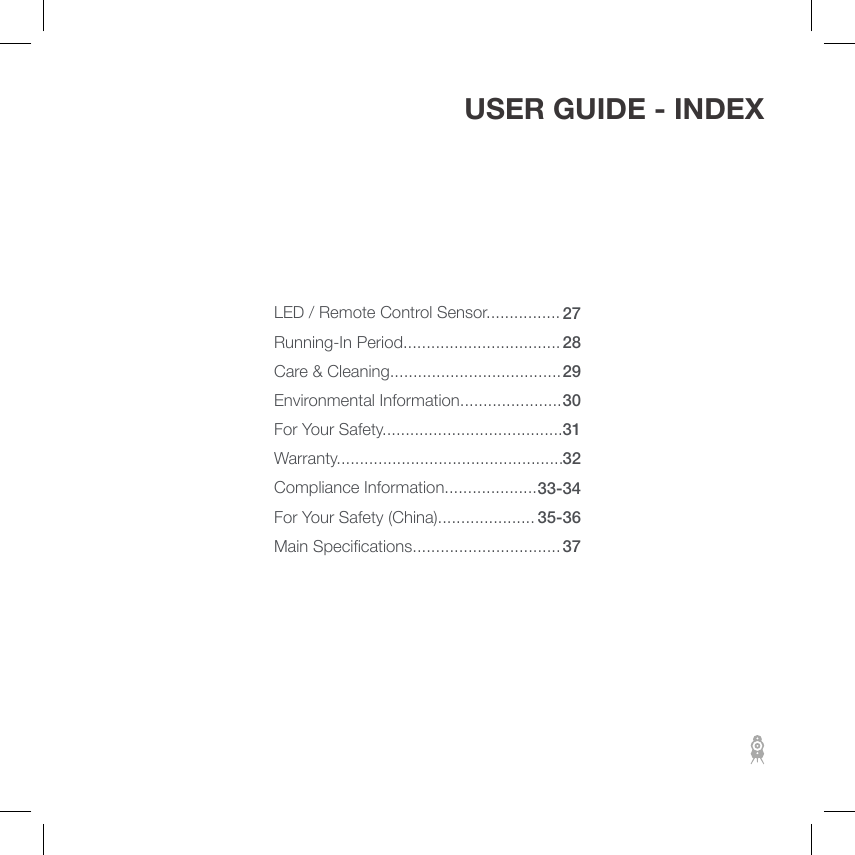

LED / Remote Control Sensor................Running-In Period..................................Care & Cleaning.....................................Environmental Information......................For Your Safety.......................................Warranty.................................................Compliance Information....................For Your Safety (China).....................Main Specications................................27282930313233-3435-3637USER GUIDE - INDEX

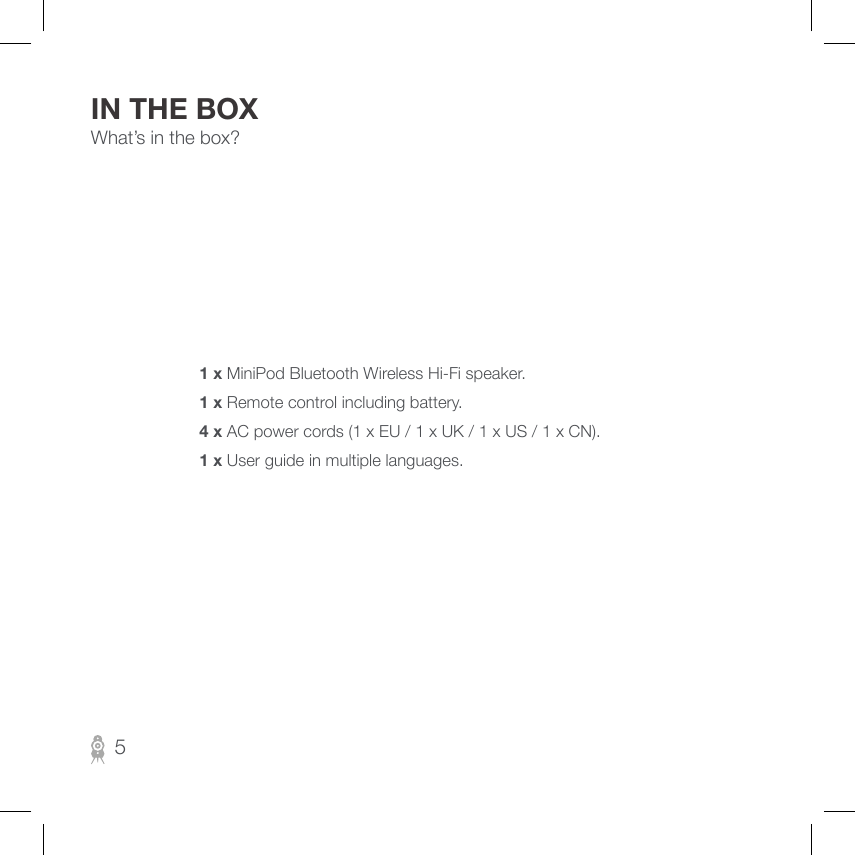

What’s in the box?1 x MiniPod Bluetooth Wireless Hi-Fi speaker.1 x Remote control including battery.4 x AC power cords (1 x EU / 1 x UK / 1 x US / 1 x CN).1 x User guide in multiple languages.IN THE BOX5

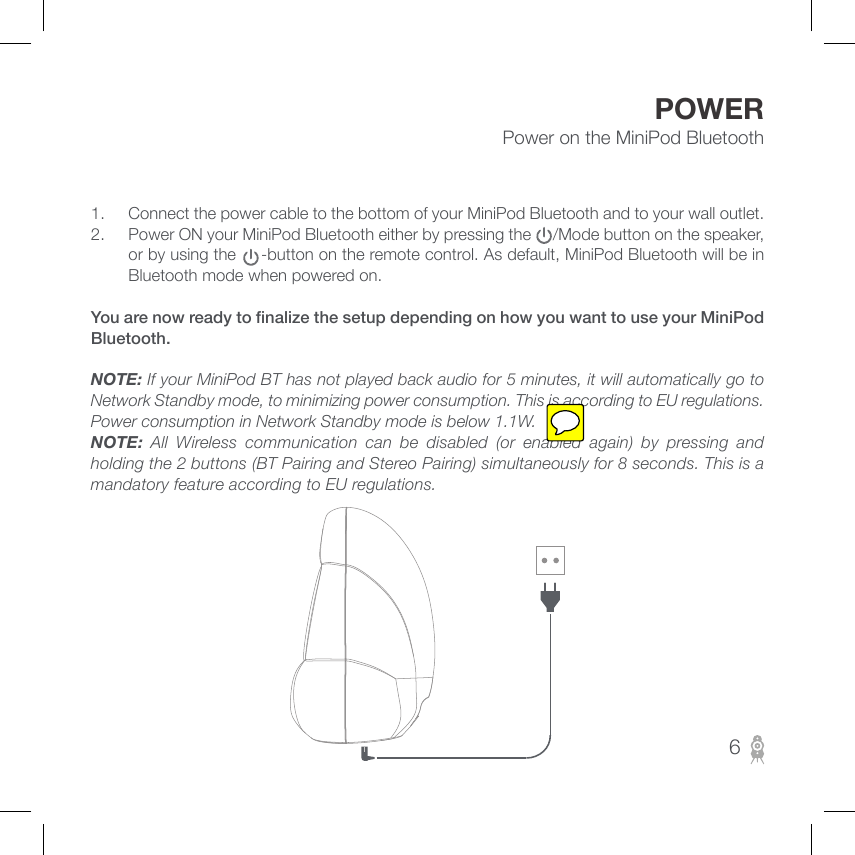

POWER1. Connect the power cable to the bottom of your MiniPod Bluetooth and to your wall outlet.2. Power ON your MiniPod Bluetooth either by pressing the /Mode button on the speaker, or by using the -button on the remote control. As default, MiniPod Bluetooth will be in Bluetooth mode when powered on.You are now ready to nalize the setup depending on how you want to use your MiniPod Bluetooth.NOTE: If your MiniPod BT has not played back audio for 5 minutes, it will automatically go to Network Standby mode, to minimizing power consumption. This is according to EU regulations. Power consumption in Network Standby mode is below 1.1W.NOTE: All Wireless communication can be disabled (or enabled again) by pressing and holding the 2 buttons (BT Pairing and Stereo Pairing) simultaneously for 8 seconds. This is a mandatory feature according to EU regulations.Power on the MiniPod Bluetooth6

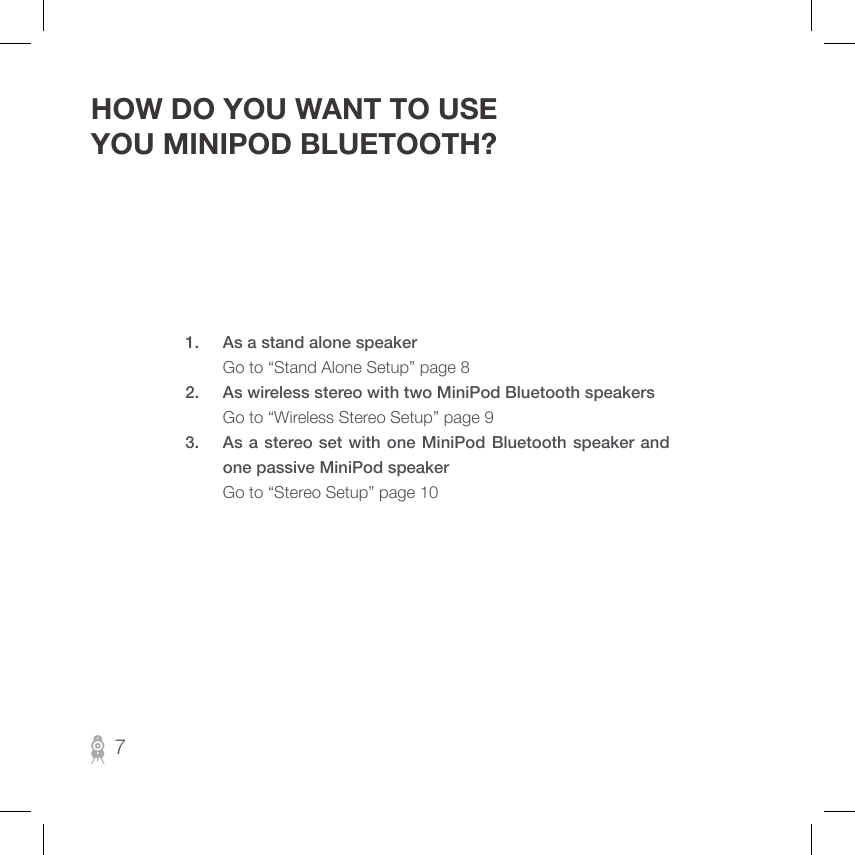

7HOW DO YOU WANT TO USE YOU MINIPOD BLUETOOTH?1. As a stand alone speaker Go to “Stand Alone Setup” page 82. As wireless stereo with two MiniPod Bluetooth speakers Go to “Wireless Stereo Setup” page 93. As a stereo set with one MiniPod Bluetooth speaker and one passive MiniPod speaker Go to “Stereo Setup” page 10

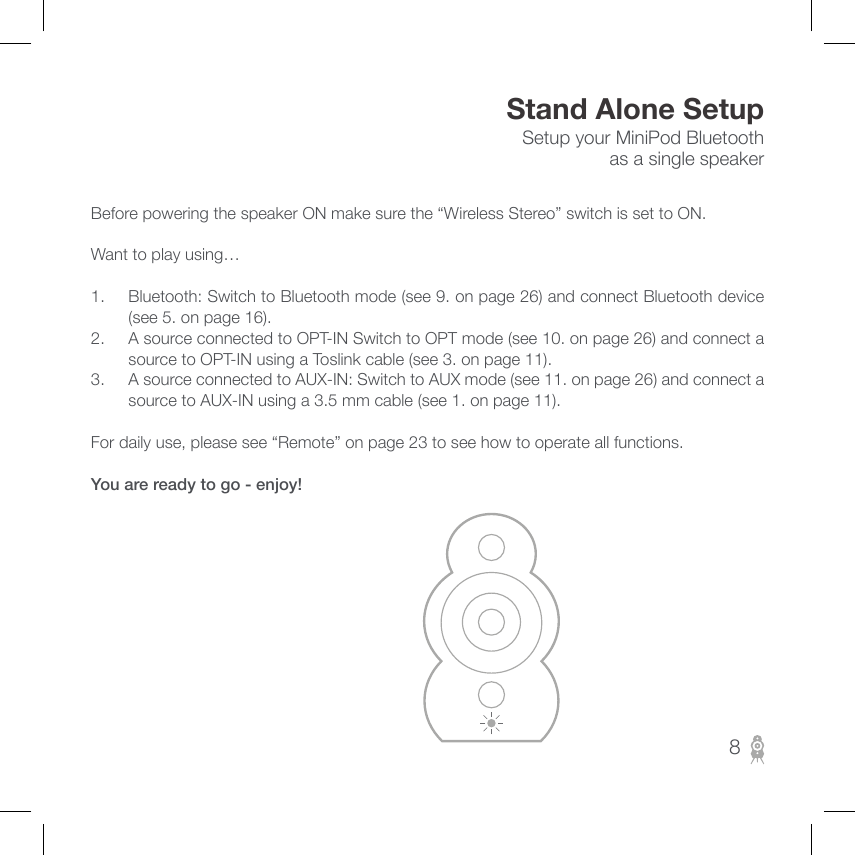

Setup your MiniPod Bluetooth as a single speakerStand Alone Setup8Before powering the speaker ON make sure the “Wireless Stereo” switch is set to ON.Want to play using…1. Bluetooth: Switch to Bluetooth mode (see 9. on page 26) and connect Bluetooth device (see 5. on page 16).2. A source connected to OPT-IN Switch to OPT mode (see 10. on page 26) and connect a source to OPT-IN using a Toslink cable (see 3. on page 11).3. A source connected to AUX-IN: Switch to AUX mode (see 11. on page 26) and connect a source to AUX-IN using a 3.5 mm cable (see 1. on page 11).For daily use, please see “Remote” on page 23 to see how to operate all functions.You are ready to go - enjoy!

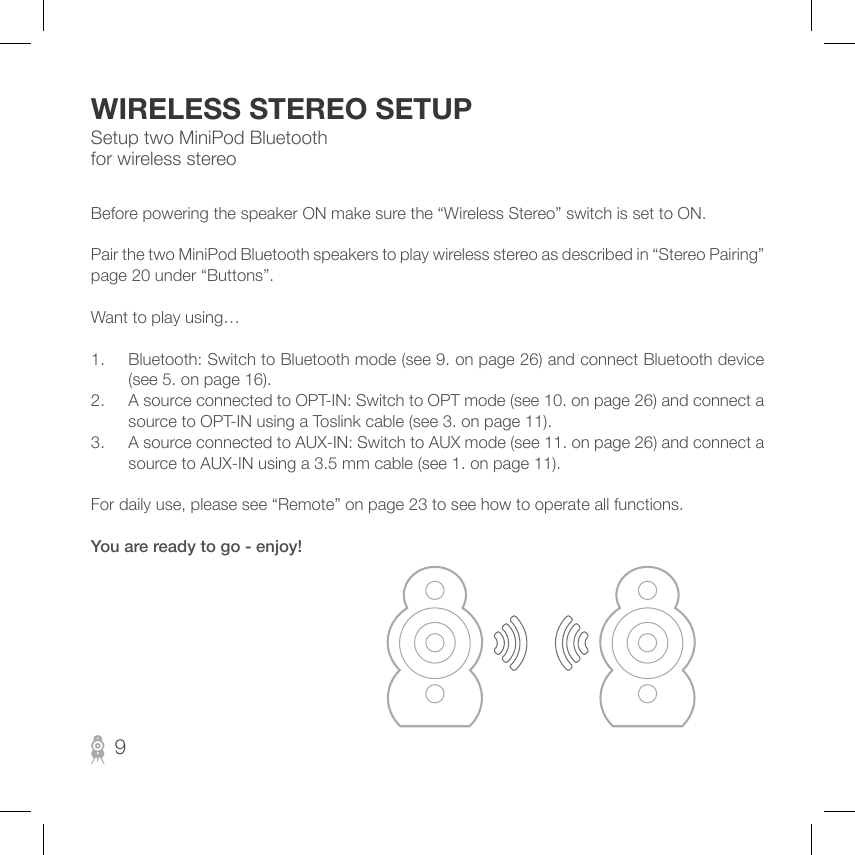

Setup two MiniPod Bluetooth for wireless stereoWIRELESS STEREO SETUPBefore powering the speaker ON make sure the “Wireless Stereo” switch is set to ON.Pair the two MiniPod Bluetooth speakers to play wireless stereo as described in “Stereo Pairing” page 20 under “Buttons”.Want to play using…1. Bluetooth: Switch to Bluetooth mode (see 9. on page 26) and connect Bluetooth device (see 5. on page 16).2. A source connected to OPT-IN: Switch to OPT mode (see 10. on page 26) and connect a source to OPT-IN using a Toslink cable (see 3. on page 11).3. A source connected to AUX-IN: Switch to AUX mode (see 11. on page 26) and connect a source to AUX-IN using a 3.5 mm cable (see 1. on page 11).For daily use, please see “Remote” on page 23 to see how to operate all functions.You are ready to go - enjoy!9

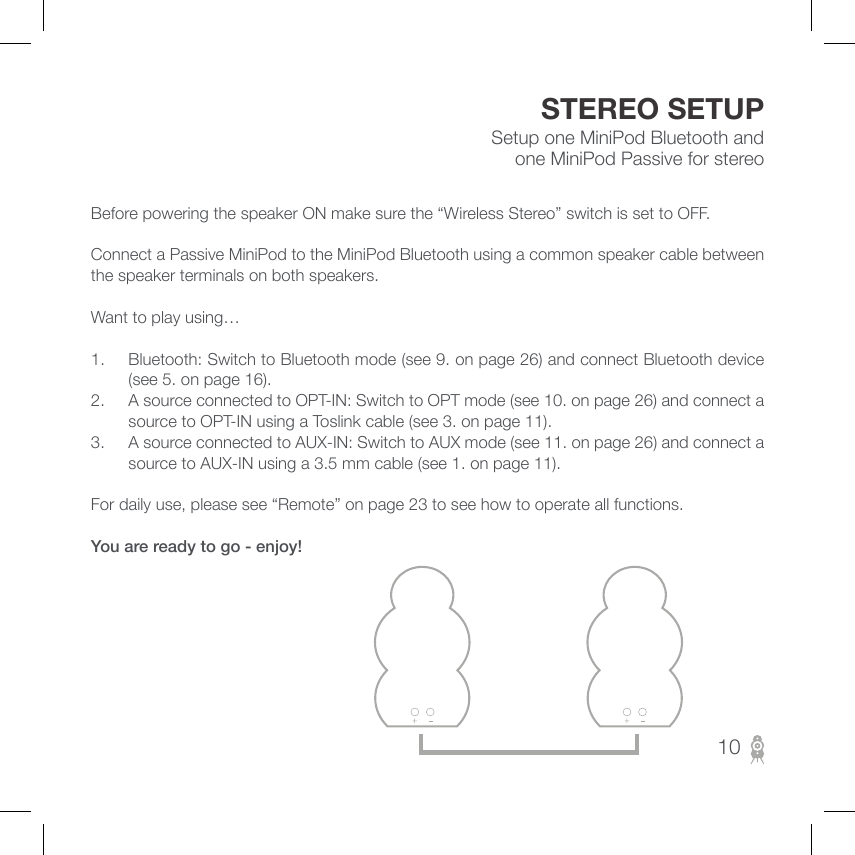

Setup one MiniPod Bluetooth and one MiniPod Passive for stereoSTEREO SETUPBefore powering the speaker ON make sure the “Wireless Stereo” switch is set to OFF.Connect a Passive MiniPod to the MiniPod Bluetooth using a common speaker cable between the speaker terminals on both speakers.Want to play using…1. Bluetooth: Switch to Bluetooth mode (see 9. on page 26) and connect Bluetooth device (see 5. on page 16).2. A source connected to OPT-IN: Switch to OPT mode (see 10. on page 26) and connect a source to OPT-IN using a Toslink cable (see 3. on page 11).3. A source connected to AUX-IN: Switch to AUX mode (see 11. on page 26) and connect a source to AUX-IN using a 3.5 mm cable (see 1. on page 11).For daily use, please see “Remote” on page 23 to see how to operate all functions.You are ready to go - enjoy!10
Descriptions of MiniPod Bluetooth input and outputCONNECTIONSBottom view4523111

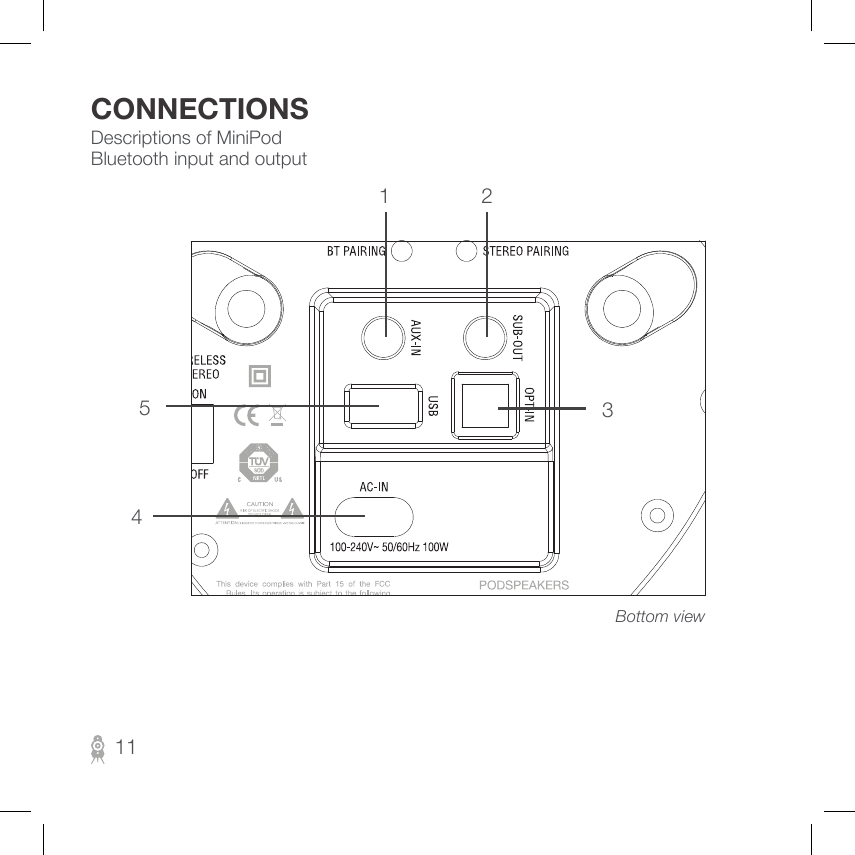

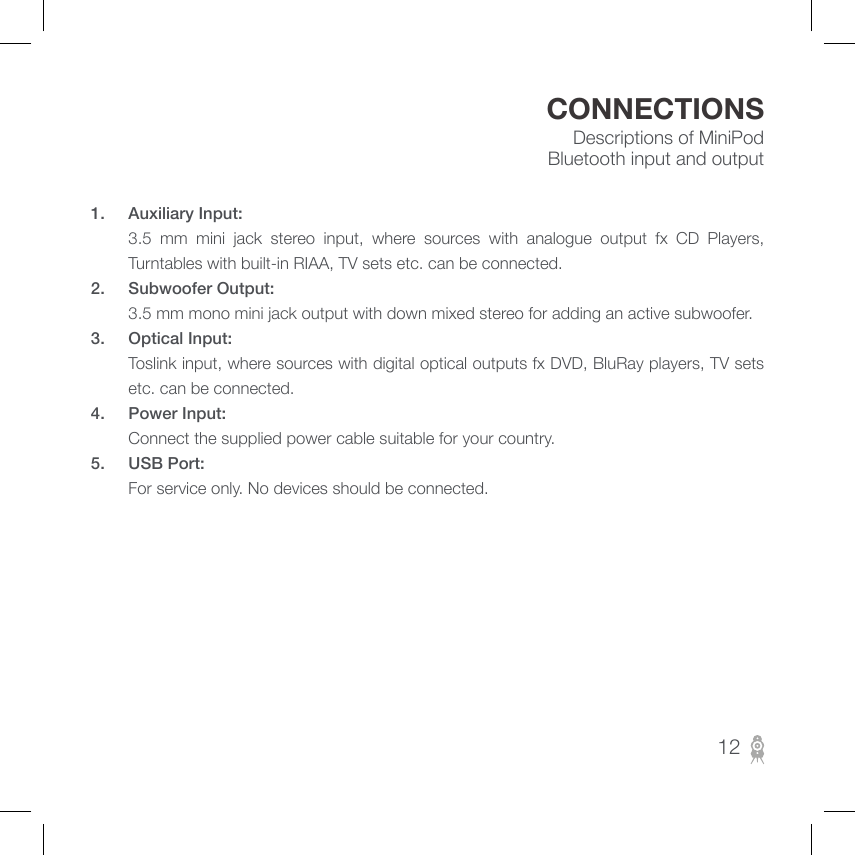

Descriptions of MiniPod Bluetooth input and outputCONNECTIONS121. Auxiliary Input: 3.5 mm mini jack stereo input, where sources with analogue output fx CD Players, Turntables with built-in RIAA, TV sets etc. can be connected.2. Subwoofer Output: 3.5 mm mono mini jack output with down mixed stereo for adding an active subwoofer.3. Optical Input: Toslink input, where sources with digital optical outputs fx DVD, BluRay players, TV sets etc. can be connected.4. Power Input: Connect the supplied power cable suitable for your country.5. USB Port: For service only. No devices should be connected.
Description of MiniPod Bluetooth buttonsBUTTONS1321 34Bottom view

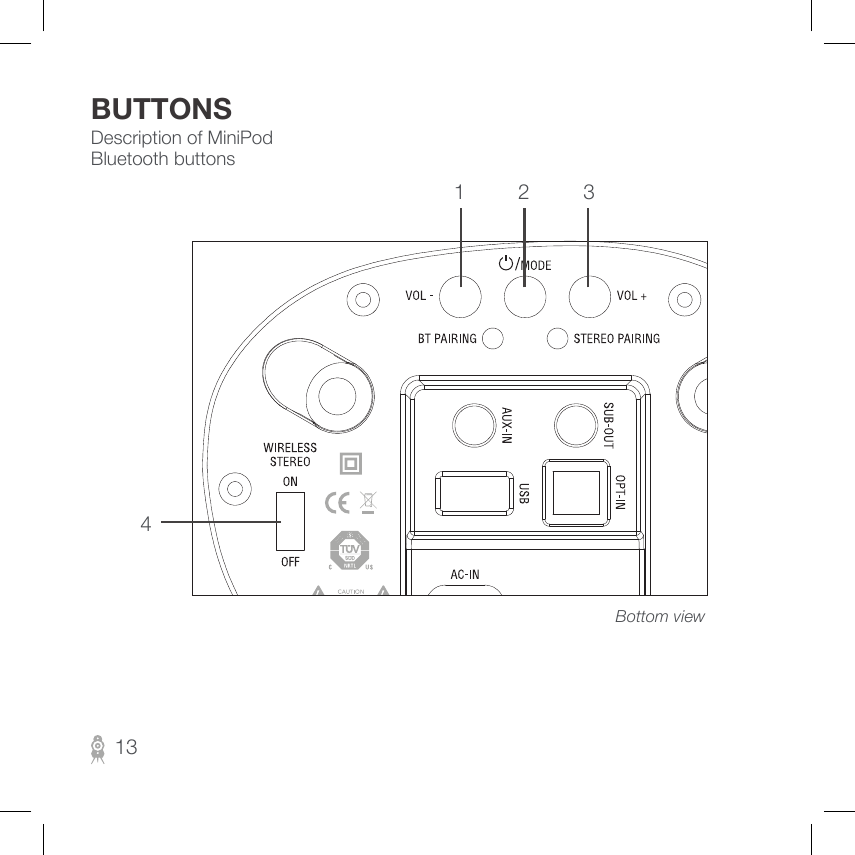

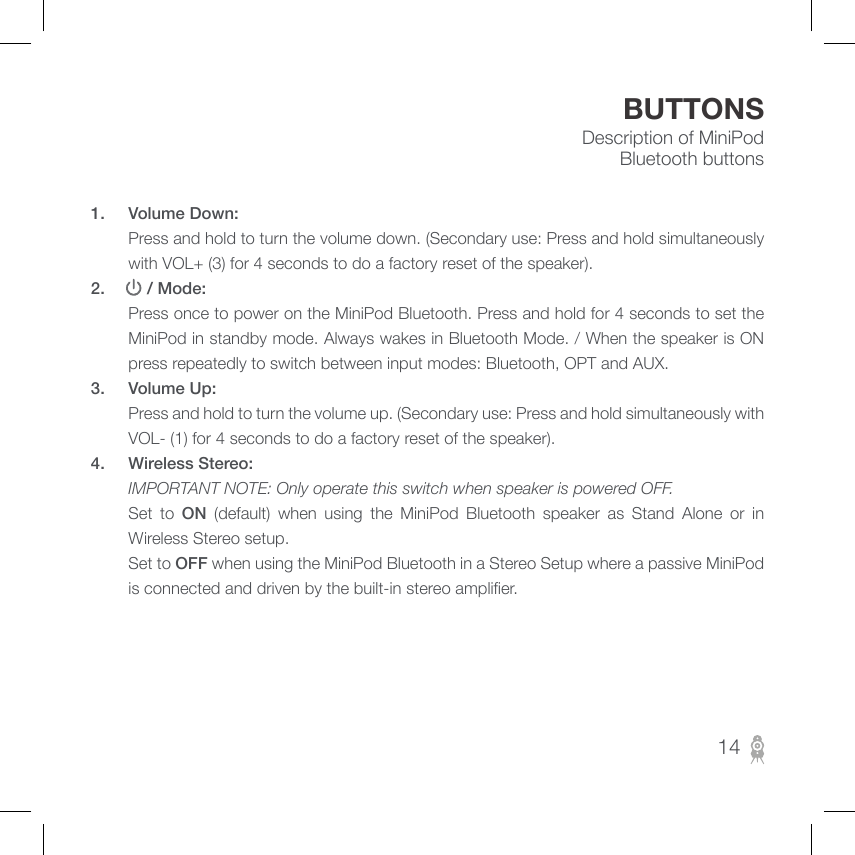

Description of MiniPod Bluetooth buttonsBUTTONS1. Volume Down: Press and hold to turn the volume down. (Secondary use: Press and hold simultaneously with VOL+ (3) for 4 seconds to do a factory reset of the speaker).2. / Mode: Press once to power on the MiniPod Bluetooth. Press and hold for 4 seconds to set the MiniPod in standby mode. Always wakes in Bluetooth Mode. / When the speaker is ON press repeatedly to switch between input modes: Bluetooth, OPT and AUX.3. Volume Up: Press and hold to turn the volume up. (Secondary use: Press and hold simultaneously with VOL- (1) for 4 seconds to do a factory reset of the speaker).4. Wireless Stereo: IMPORTANT NOTE: Only operate this switch when speaker is powered OFF. Set to ON (default) when using the MiniPod Bluetooth speaker as Stand Alone or in Wireless Stereo setup. Set to OFF when using the MiniPod Bluetooth in a Stereo Setup where a passive MiniPod is connected and driven by the built-in stereo amplier.14
Description of MiniPod Bluetooth buttonsBUTTONS515Bottom view

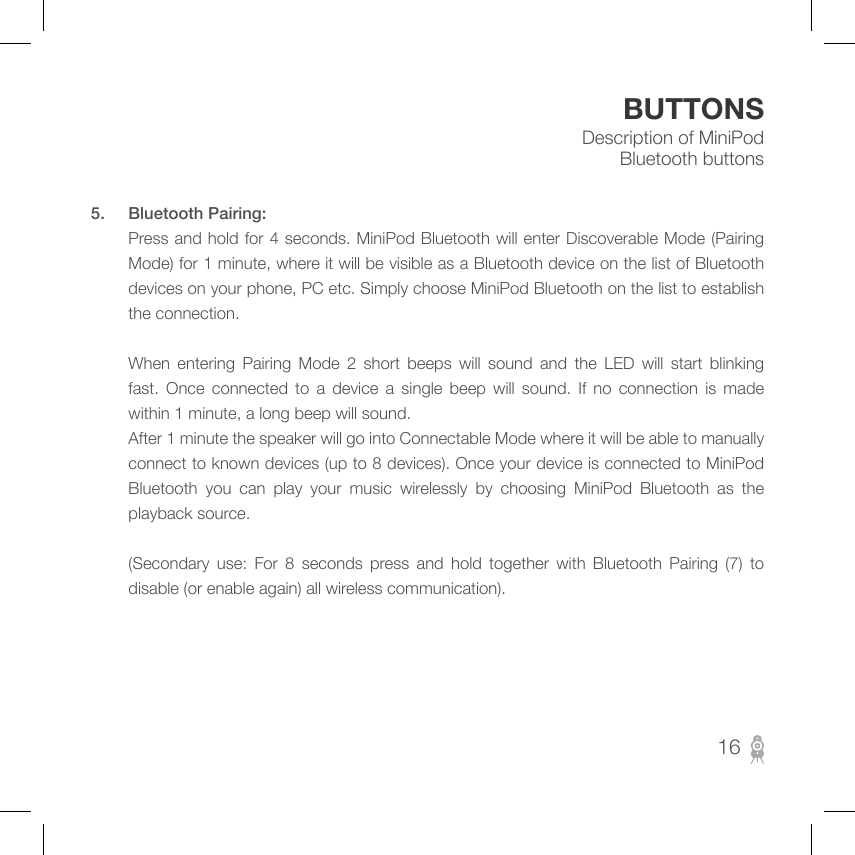

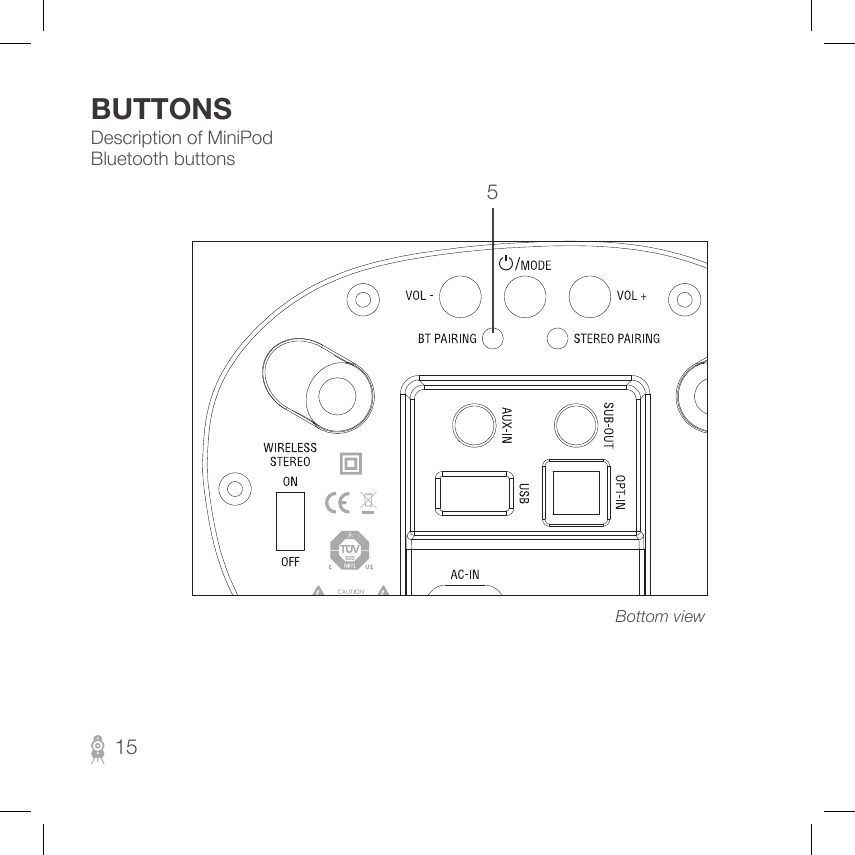

Description of MiniPod Bluetooth buttonsBUTTONS5. Bluetooth Pairing: Press and hold for 4 seconds. MiniPod Bluetooth will enter Discoverable Mode (Pairing Mode) for 1 minute, where it will be visible as a Bluetooth device on the list of Bluetooth devices on your phone, PC etc. Simply choose MiniPod Bluetooth on the list to establish the connection. When entering Pairing Mode 2 short beeps will sound and the LED will start blinking fast. Once connected to a device a single beep will sound. If no connection is made within 1 minute, a long beep will sound. After 1 minute the speaker will go into Connectable Mode where it will be able to manually connect to known devices (up to 8 devices). Once your device is connected to MiniPod Bluetooth you can play your music wirelessly by choosing MiniPod Bluetooth as the playback source. (Secondary use: For 8 seconds press and hold together with Bluetooth Pairing (7) to disable (or enable again) all wireless communication).16
Description of MiniPod Bluetooth buttonsBUTTONS17Bottom view6
Description of MiniPod Bluetooth buttonsBUTTONS6. Audio Settings: (EQ settings) While playing back audio press repeatedly to change between 3 preset audio settings in the following sequence Optimal - Flat - Boost. When changing audio setting, the speaker will briey mute and then start play again using the new audio setting. When in True Wireless stereo setup this has to be done on left and right channel individually Factory default is: Optimal.18
7Bottom viewDescription of MiniPod Bluetooth buttonsBUTTONS19

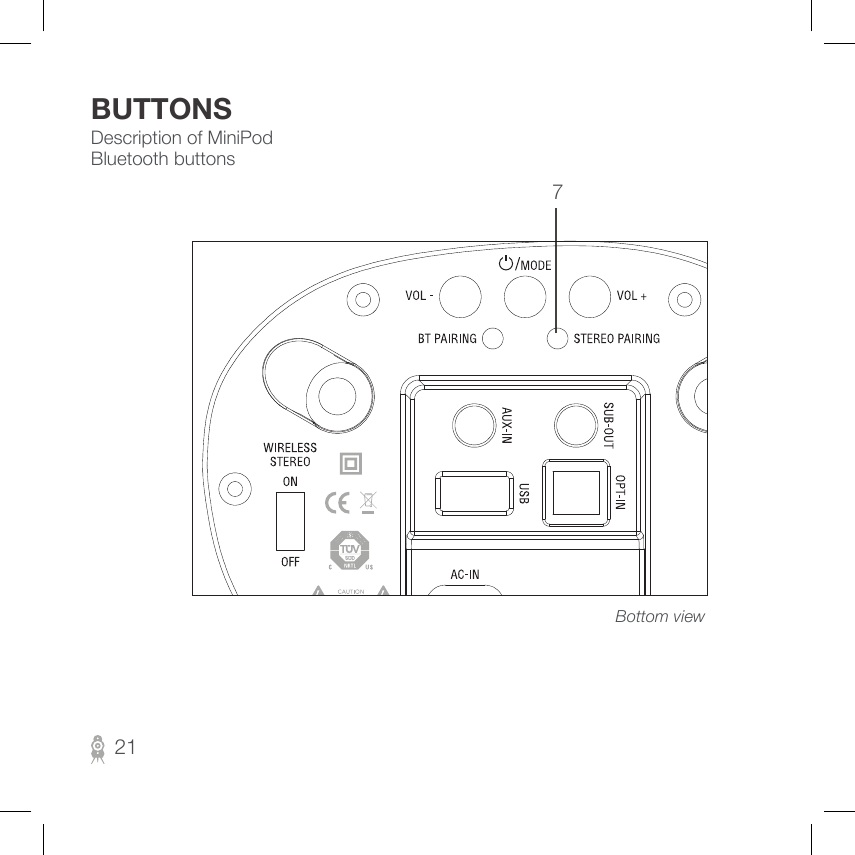

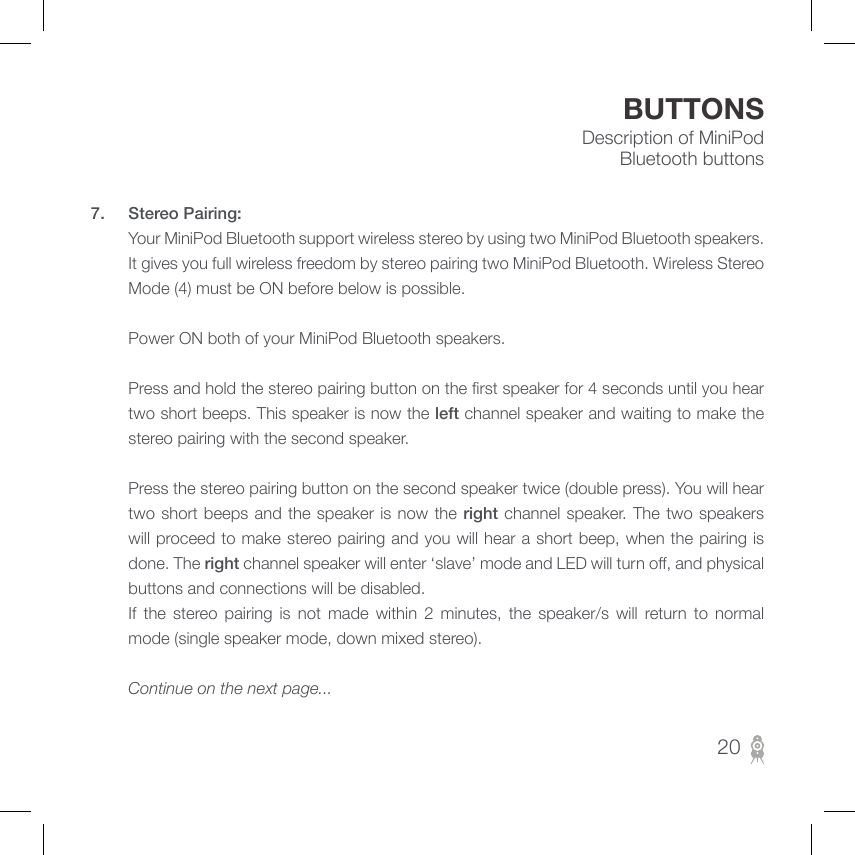

Description of MiniPod Bluetooth buttonsBUTTONS7. Stereo Pairing: Your MiniPod Bluetooth support wireless stereo by using two MiniPod Bluetooth speakers. It gives you full wireless freedom by stereo pairing two MiniPod Bluetooth. Wireless Stereo Mode (4) must be ON before below is possible. Power ON both of your MiniPod Bluetooth speakers. Press and hold the stereo pairing button on the rst speaker for 4 seconds until you hear two short beeps. This speaker is now the left channel speaker and waiting to make the stereo pairing with the second speaker. Press the stereo pairing button on the second speaker twice (double press). You will hear two short beeps and the speaker is now the right channel speaker. The two speakers will proceed to make stereo pairing and you will hear a short beep, when the pairing is done. The right channel speaker will enter ‘slave’ mode and LED will turn o, and physical buttons and connections will be disabled. If the stereo pairing is not made within 2 minutes, the speaker/s will return to normal mode (single speaker mode, down mixed stereo). Continue on the next page... 20
7Bottom viewDescription of MiniPod Bluetooth buttonsBUTTONS21

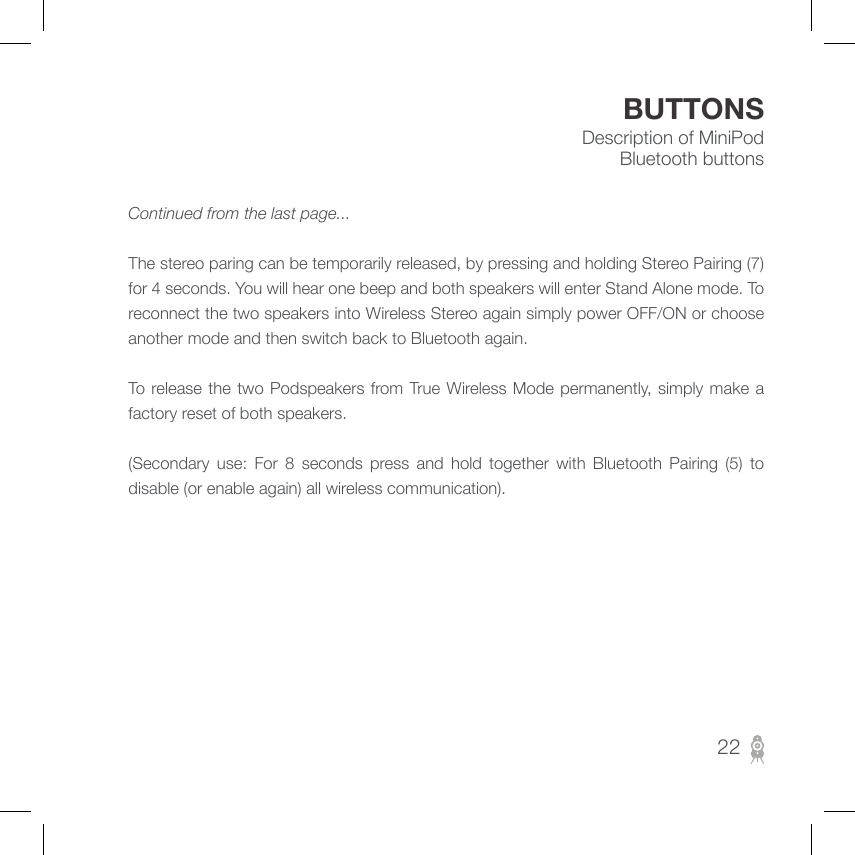

Description of MiniPod Bluetooth buttonsBUTTONSContinued from the last page... The stereo paring can be temporarily released, by pressing and holding Stereo Pairing (7) for 4 seconds. You will hear one beep and both speakers will enter Stand Alone mode. To reconnect the two speakers into Wireless Stereo again simply power OFF/ON or choose another mode and then switch back to Bluetooth again. To release the two Podspeakers from True Wireless Mode permanently, simply make a factory reset of both speakers. (Secondary use: For 8 seconds press and hold together with Bluetooth Pairing (5) to disable (or enable again) all wireless communication).22
MUTEOPTPAIRBT AUXV+Description of MiniPod Bluetooth Remote ControlREMOTE432675123

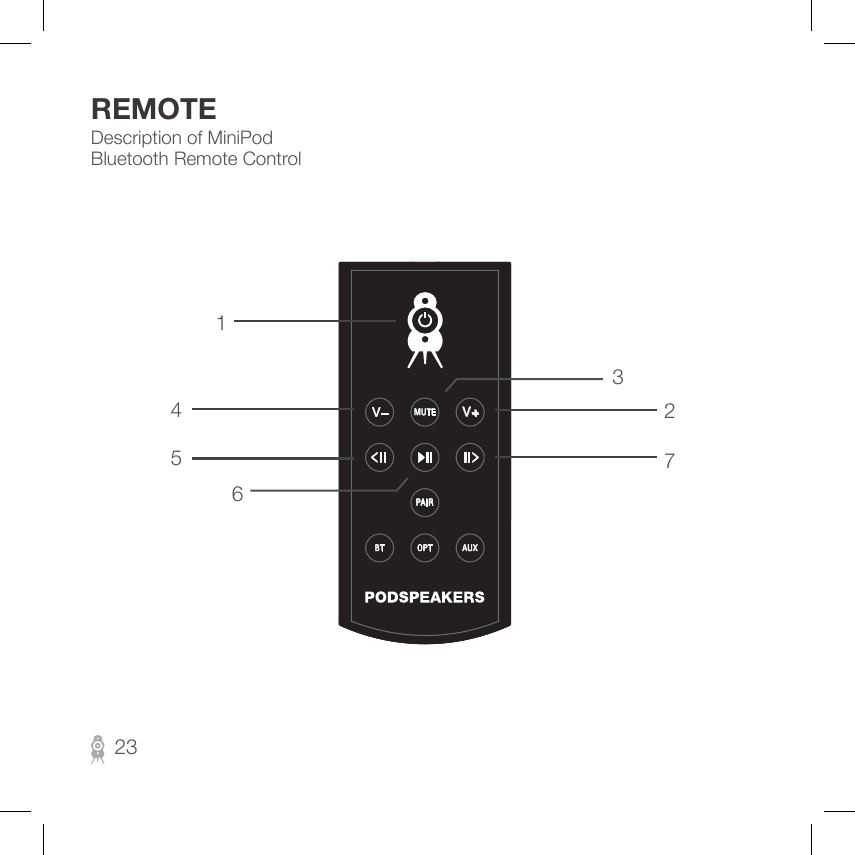

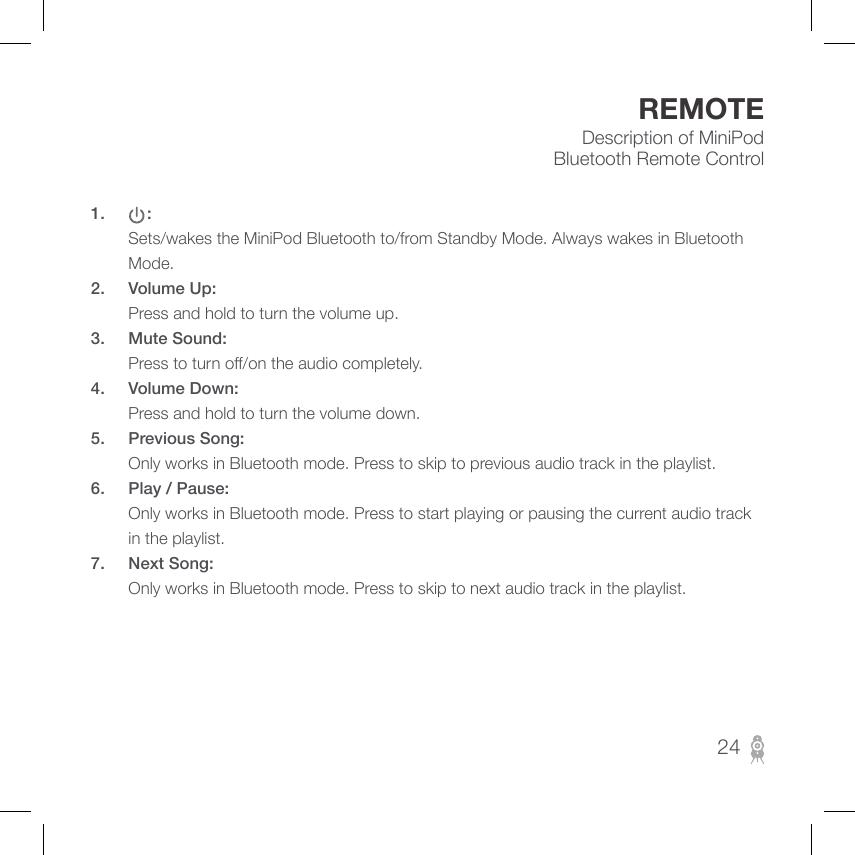

Description of MiniPod Bluetooth Remote ControlREMOTE1. : Sets/wakes the MiniPod Bluetooth to/from Standby Mode. Always wakes in Bluetooth Mode.2. Volume Up: Press and hold to turn the volume up.3. Mute Sound: Press to turn o/on the audio completely.4. Volume Down: Press and hold to turn the volume down.5. Previous Song: Only works in Bluetooth mode. Press to skip to previous audio track in the playlist.6. Play / Pause: Only works in Bluetooth mode. Press to start playing or pausing the current audio track in the playlist.7. Next Song: Only works in Bluetooth mode. Press to skip to next audio track in the playlist.24
MUTEOPTPAIRBT AUXV+Description of MiniPod Bluetooth Remote ControlREMOTE91011825

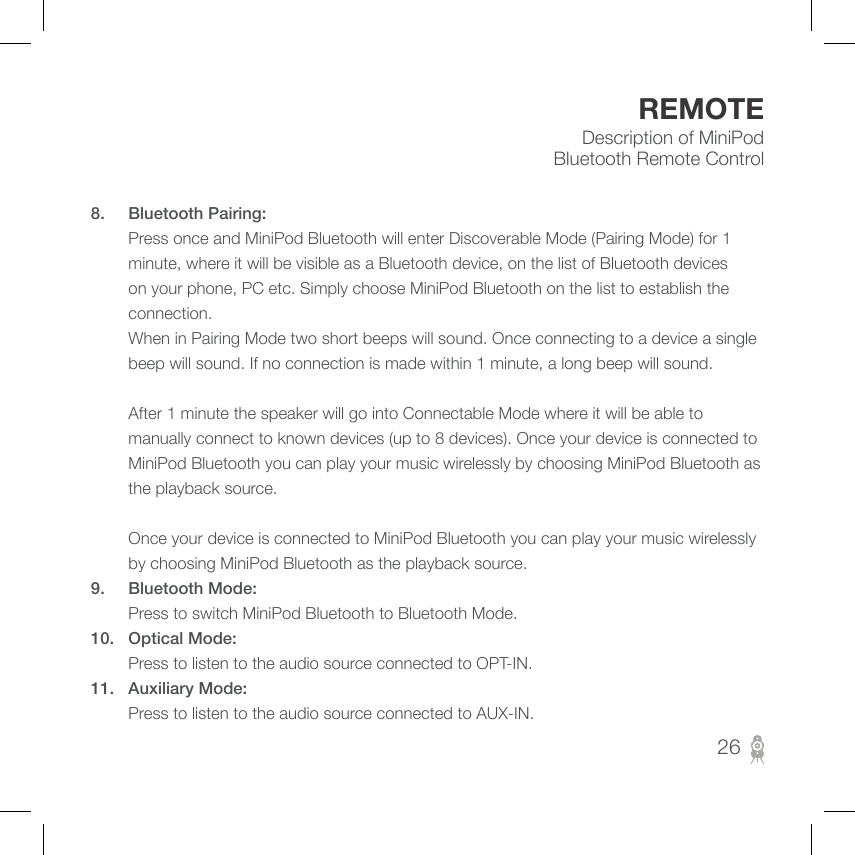

Description of MiniPod Bluetooth Remote ControlREMOTE8. Bluetooth Pairing: Press once and MiniPod Bluetooth will enter Discoverable Mode (Pairing Mode) for 1 minute, where it will be visible as a Bluetooth device, on the list of Bluetooth devices on your phone, PC etc. Simply choose MiniPod Bluetooth on the list to establish the connection. When in Pairing Mode two short beeps will sound. Once connecting to a device a single beep will sound. If no connection is made within 1 minute, a long beep will sound. After 1 minute the speaker will go into Connectable Mode where it will be able to manually connect to known devices (up to 8 devices). Once your device is connected to MiniPod Bluetooth you can play your music wirelessly by choosing MiniPod Bluetooth as the playback source. Once your device is connected to MiniPod Bluetooth you can play your music wirelessly by choosing MiniPod Bluetooth as the playback source.9. Bluetooth Mode: Press to switch MiniPod Bluetooth to Bluetooth Mode.10. Optical Mode: Press to listen to the audio source connected to OPT-IN.11. Auxiliary Mode: Press to listen to the audio source connected to AUX-IN.26

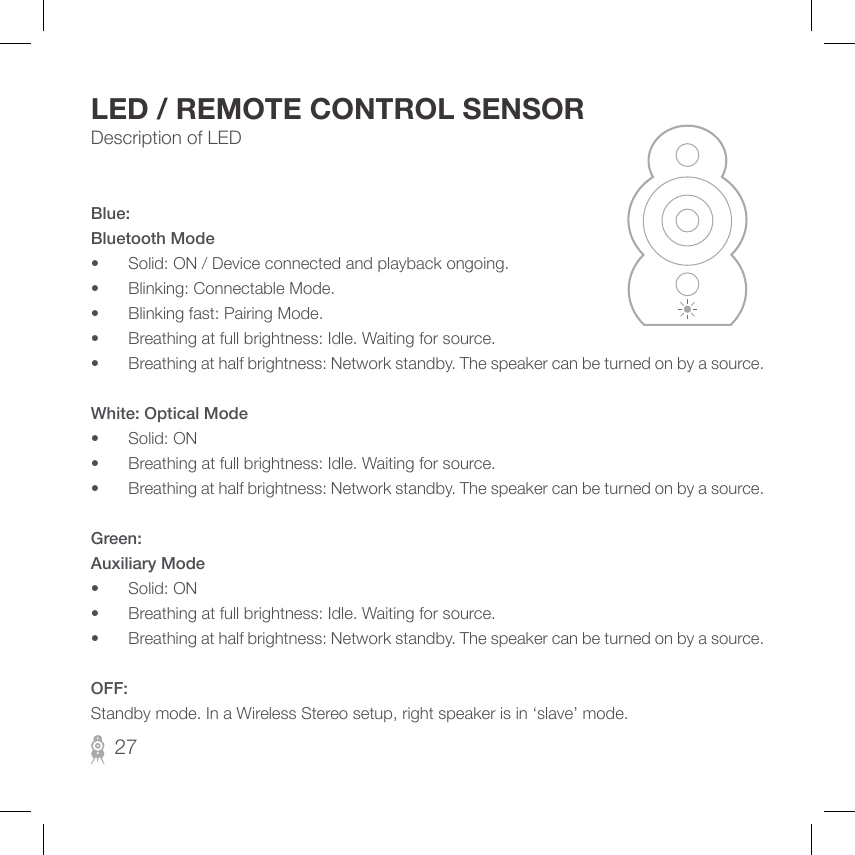

Description of LEDLED / REMOTE CONTROL SENSORBlue: Bluetooth Mode• Solid: ON / Device connected and playback ongoing.• Blinking: Connectable Mode.• Blinking fast: Pairing Mode.• Breathing at full brightness: Idle. Waiting for source.• Breathing at half brightness: Network standby. The speaker can be turned on by a source.White: Optical Mode• Solid: ON• Breathing at full brightness: Idle. Waiting for source.• Breathing at half brightness: Network standby. The speaker can be turned on by a source.Green: Auxiliary Mode• Solid: ON• Breathing at full brightness: Idle. Waiting for source.• Breathing at half brightness: Network standby. The speaker can be turned on by a source.OFF: Standby mode. In a Wireless Stereo setup, right speaker is in ‘slave’ mode.27

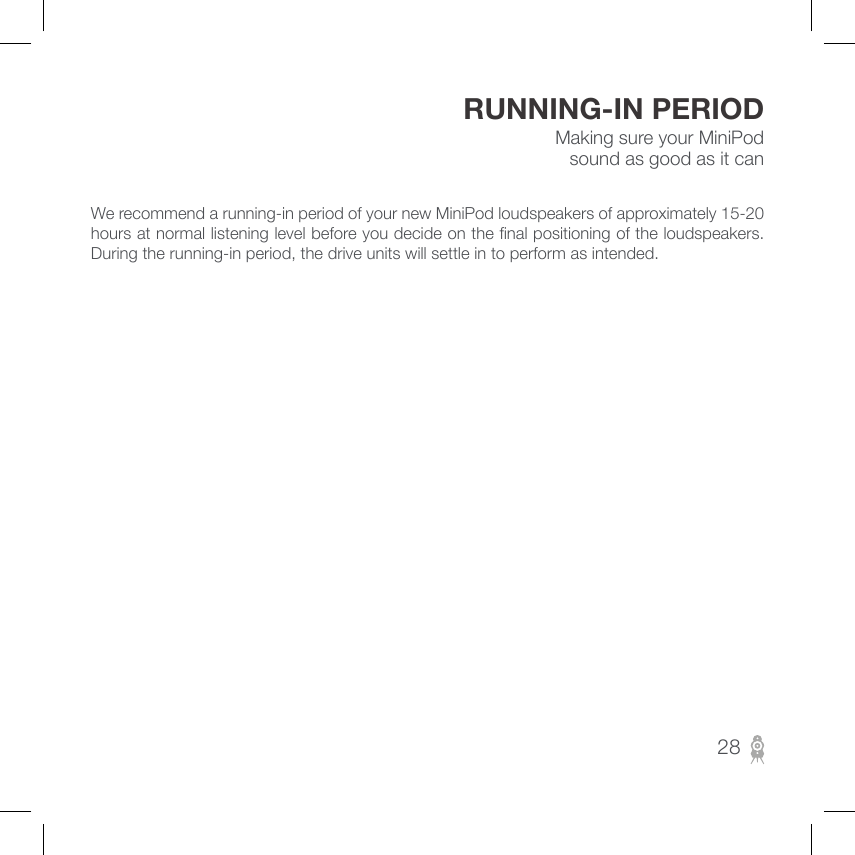

Making sure your MiniPod sound as good as it canRUNNING-IN PERIODWe recommend a running-in period of your new MiniPod loudspeakers of approximately 15-20 hours at normal listening level before you decide on the nal positioning of the loudspeakers. During the running-in period, the drive units will settle in to perform as intended.28

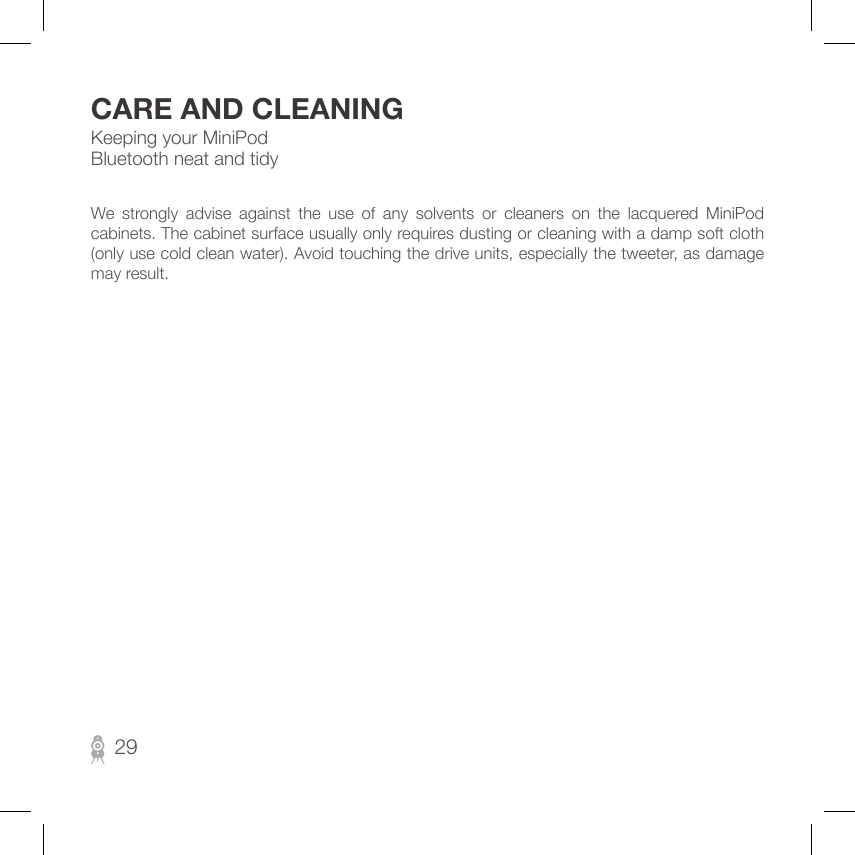

Keeping your MiniPod Bluetooth neat and tidyCARE AND CLEANINGWe strongly advise against the use of any solvents or cleaners on the lacquered MiniPod cabinets. The cabinet surface usually only requires dusting or cleaning with a damp soft cloth (only use cold clean water). Avoid touching the drive units, especially the tweeter, as damage may result.29

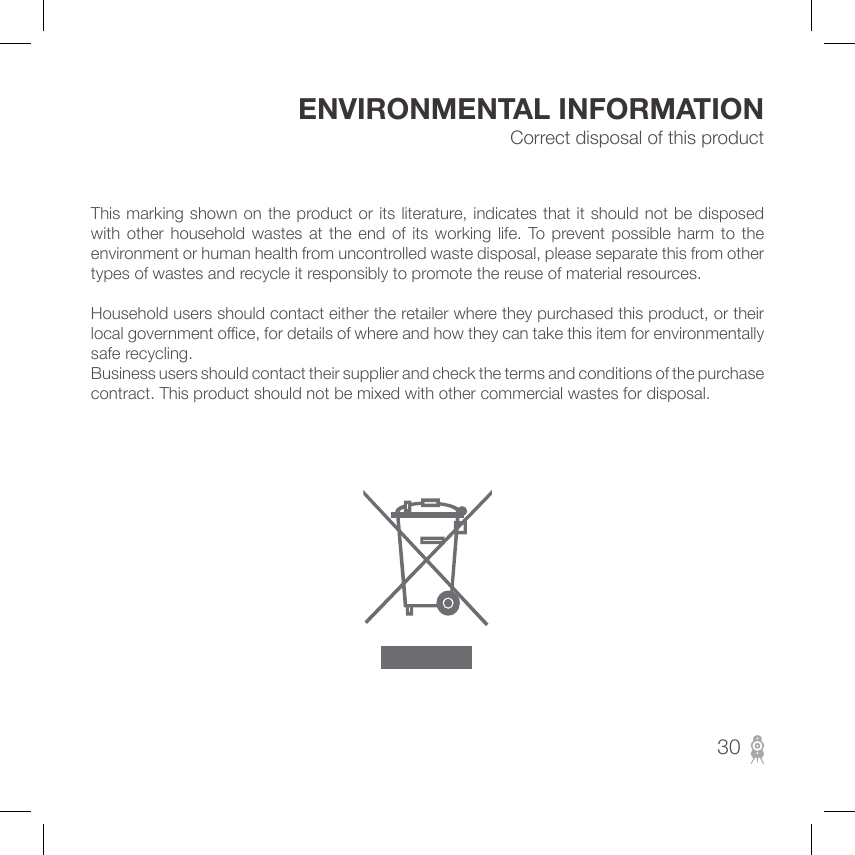

Correct disposal of this product ENVIRONMENTAL INFORMATION This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.30

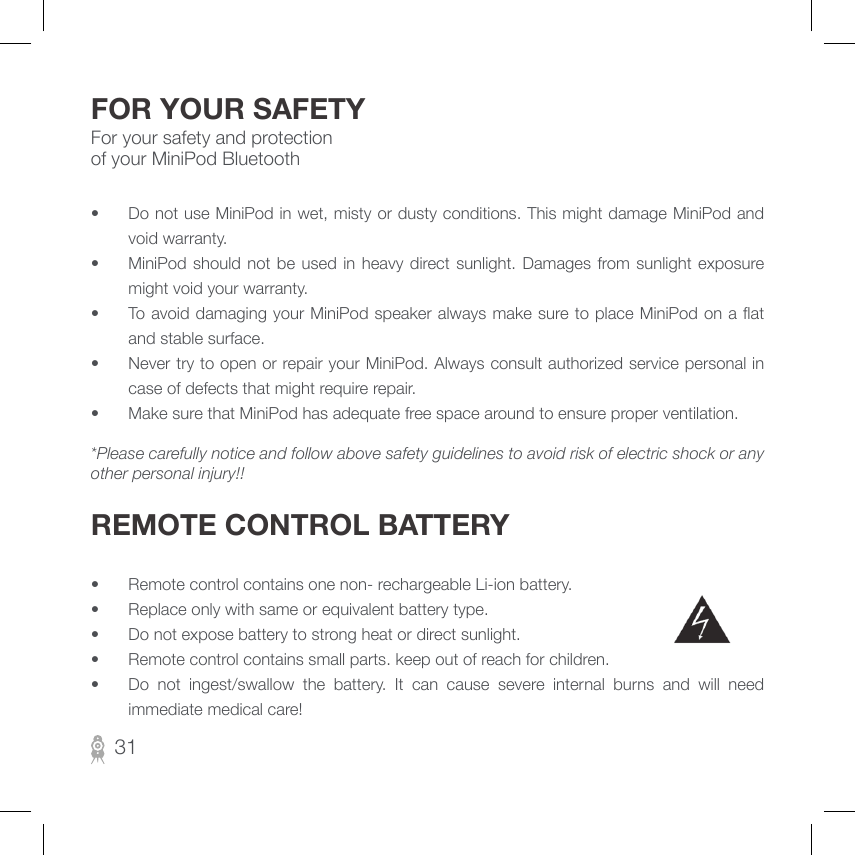

For your safety and protection of your MiniPod BluetoothFOR YOUR SAFETY• Do not use MiniPod in wet, misty or dusty conditions. This might damage MiniPod and void warranty.• MiniPod should not be used in heavy direct sunlight. Damages from sunlight exposure might void your warranty. • To avoid damaging your MiniPod speaker always make sure to place MiniPod on a at and stable surface. • Never try to open or repair your MiniPod. Always consult authorized service personal in case of defects that might require repair.• Make sure that MiniPod has adequate free space around to ensure proper ventilation.*Please carefully notice and follow above safety guidelines to avoid risk of electric shock or any other personal injury!!REMOTE CONTROL BATTERY• Remote control contains one non- rechargeable Li-ion battery.• Replace only with same or equivalent battery type.• Do not expose battery to strong heat or direct sunlight.• Remote control contains small parts. keep out of reach for children.• Do not ingest/swallow the battery. It can cause severe internal burns and will need immediate medical care!31

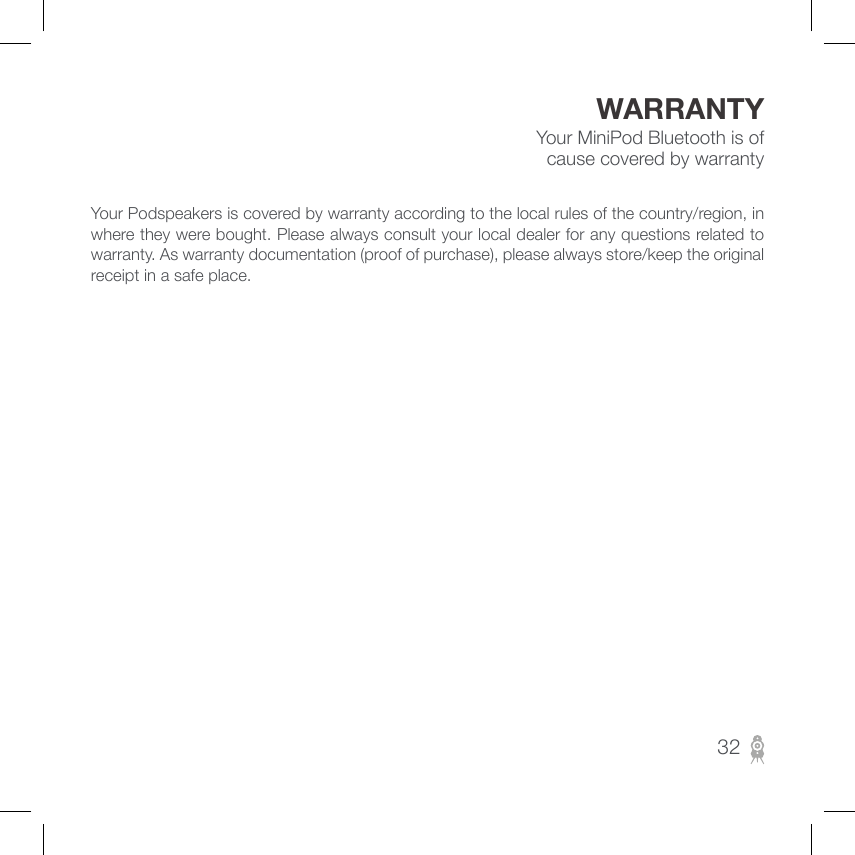

Your MiniPod Bluetooth is of cause covered by warrantyWARRANTYYour Podspeakers is covered by warranty according to the local rules of the country/region, in where they were bought. Please always consult your local dealer for any questions related to warranty. As warranty documentation (proof of purchase), please always store/keep the original receipt in a safe place.32

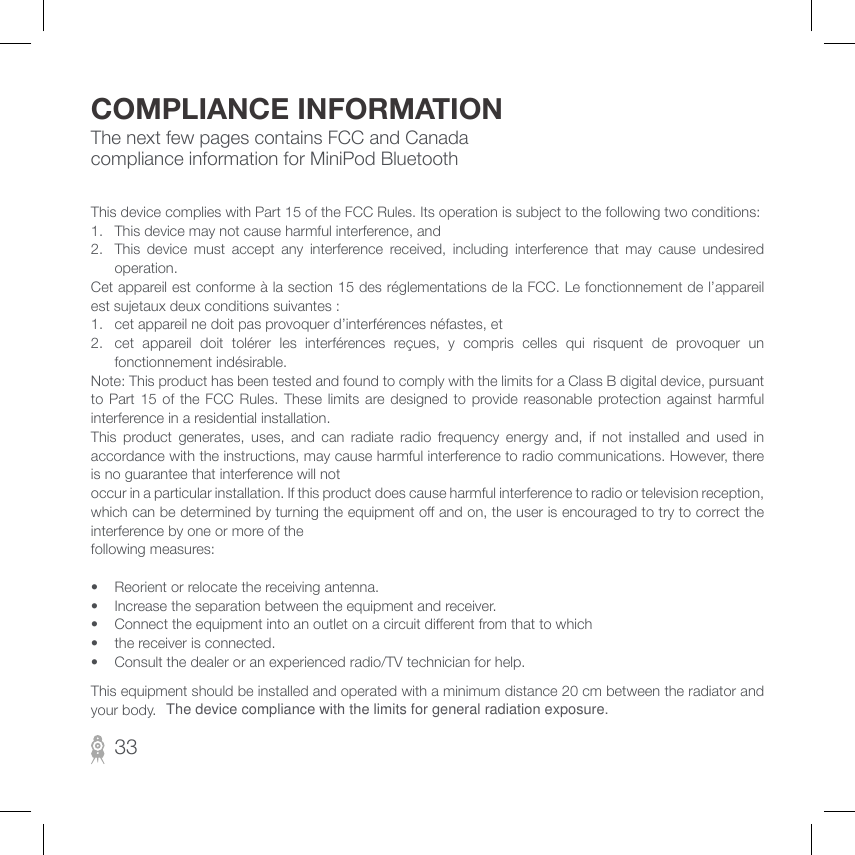

The next few pages contains FCC and Canada compliance information for MiniPod BluetoothCOMPLIANCE INFORMATIONThis device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes :1. cet appareil ne doit pas provoquer d’interférences néfastes, et2. cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable.Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which • the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.33This equipment should be installed and operated with a minimum distance 20 cm between the radiator and your body. The device compliance with the limits for general radiation exposure.

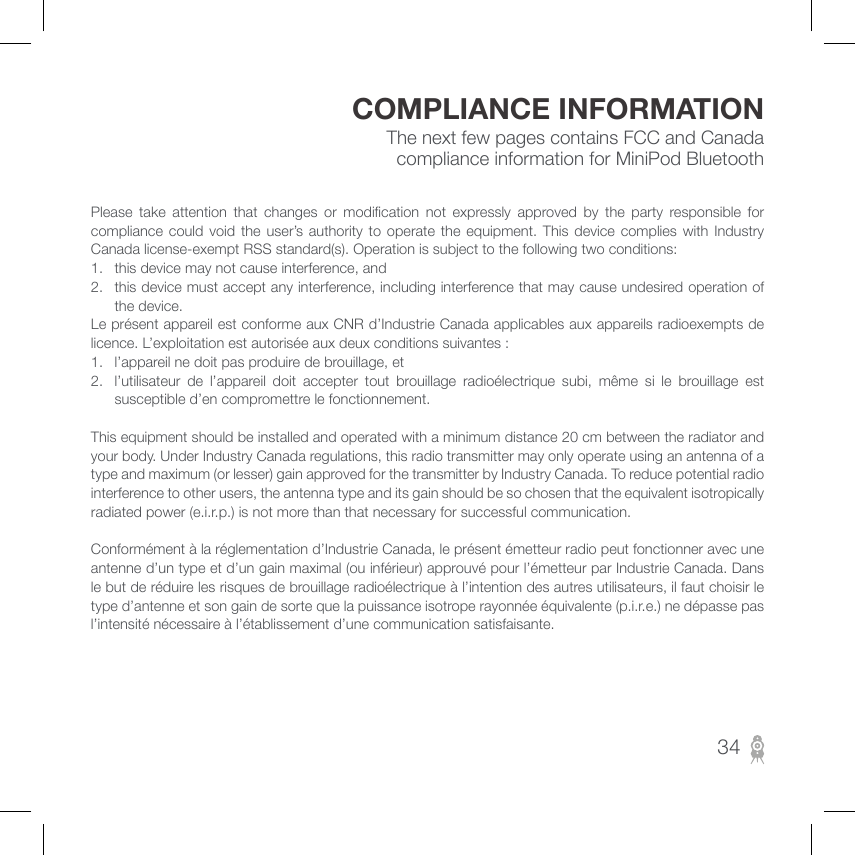

The next few pages contains FCC and Canada compliance information for MiniPod BluetoothCOMPLIANCE INFORMATIONPlease take attention that changes or modication not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:1. this device may not cause interference, and2. this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions suivantes :1. l’appareil ne doit pas produire de brouillage, et2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.This equipment should be installed and operated with a minimum distance 20 cm between the radiator and your body. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.34

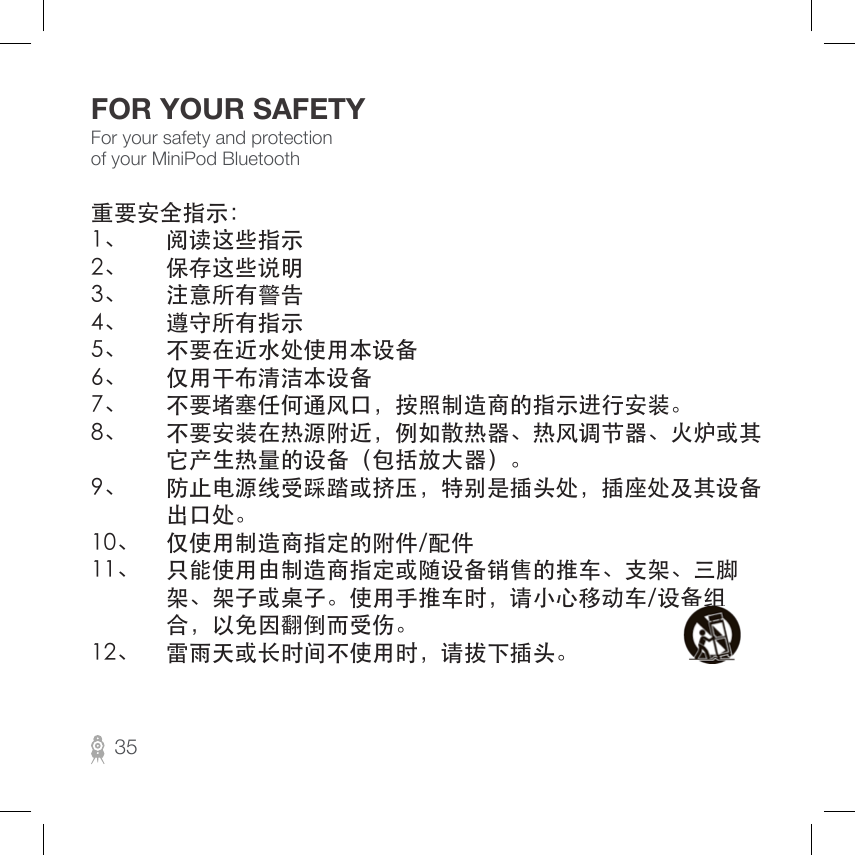

For your safety and protection of your MiniPod BluetoothFOR YOUR SAFETY重要安全指示：1、 阅读这些指示2、 保存这些说明3、 注意所有警告4、 遵守所有指示5、 不要在近水处使用本设备6、 仅用干布清洁本设备7、 不要堵塞任何通风口，按照制造商的指示进行安装。8、 不要安装在热源附近，例如散热器、热风调节器、火炉或其 它产生热量的设备（包括放大器）。9、 防止电源线受踩踏或挤压，特别是插头处，插座处及其设备 出口处。10、 仅使用制造商指定的附件/配件11、 只能使用由制造商指定或随设备销售的推车、支架、三脚 架、架子或桌子。使用手推车时，请小心移动车/设备组 合，以免因翻倒而受伤。12、 雷雨天或长时间不使用时，请拔下插头。35

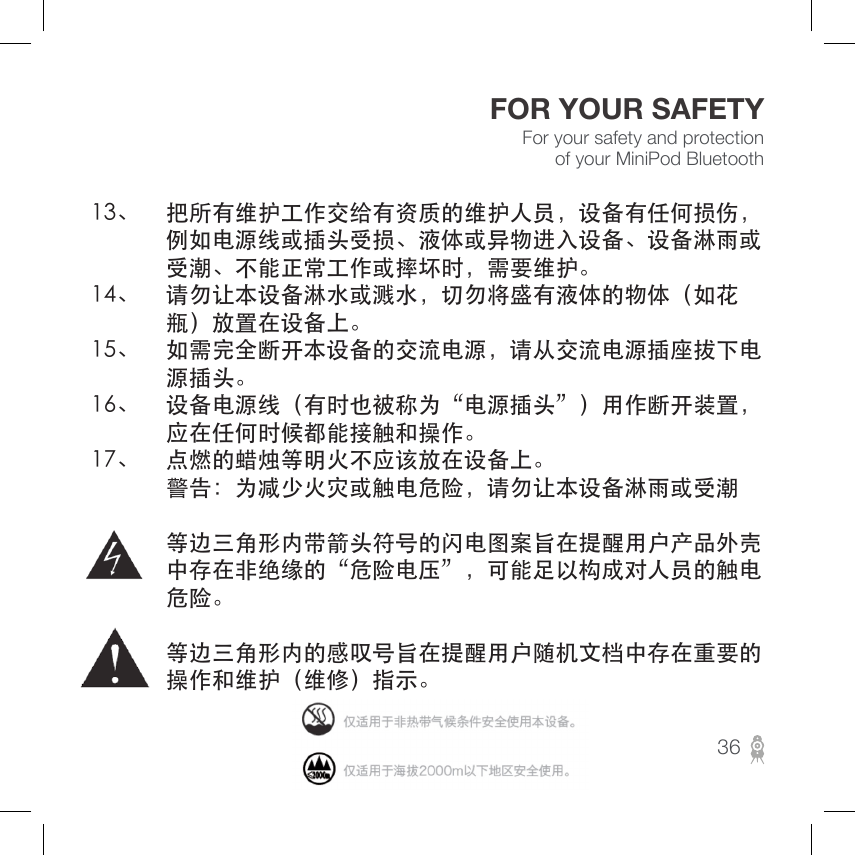

For your safety and protection of your MiniPod BluetoothFOR YOUR SAFETY13、 把所有维护工作交给有资质的维护人员，设备有任何损伤， 例如电源线或插头受损、液体或异物进入设备、设备淋雨或 受潮、不能正常工作或摔坏时，需要维护。14、 请勿让本设备淋水或溅水，切勿将盛有液体的物体（如花 瓶）放置在设备上。15、 如需完全断开本设备的交流电源，请从交流电源插座拔下电 源插头。16、 设备电源线（有时也被称为“电源插头”）用作断开装置， 应在任何时候都能接触和操作。17、 点燃的蜡烛等明火不应该放在设备上。 警告：为减少火灾或触电危险，请勿让本设备淋雨或受潮 等边三角形内带箭头符号的闪电图案旨在提醒用户产品外壳 中存在非绝缘的“危险电压”，可能足以构成对人员的触电 危险。 等边三角形内的感叹号旨在提醒用户随机文档中存在重要的 操作和维护（维修）指示。36

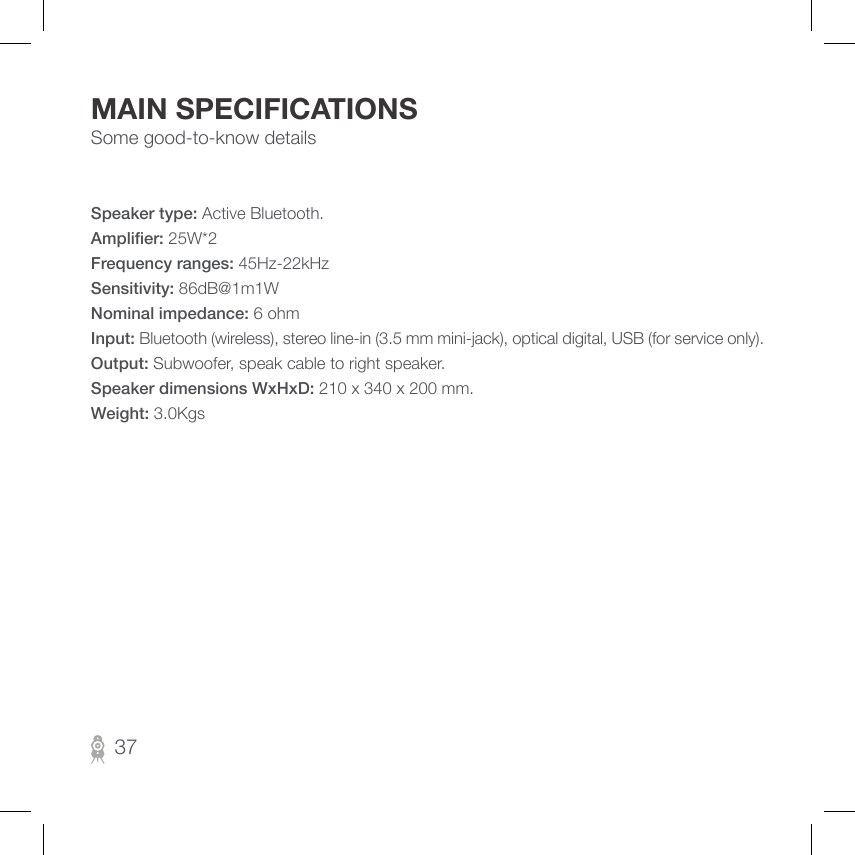

Some good-to-know detailsMAIN SPECIFICATIONSSpeaker type: Active Bluetooth. Amplier: 25W*2Frequency ranges: 45Hz-22kHzSensitivity: 86dB@1m1WNominal impedance: 6 ohmInput: Bluetooth (wireless), stereo line-in (3.5 mm mini-jack), optical digital, USB (for service only).Output: Subwoofer, speak cable to right speaker.Speaker dimensions WxHxD: 210 x 340 x 200 mm.Weight: 3.0Kgs37

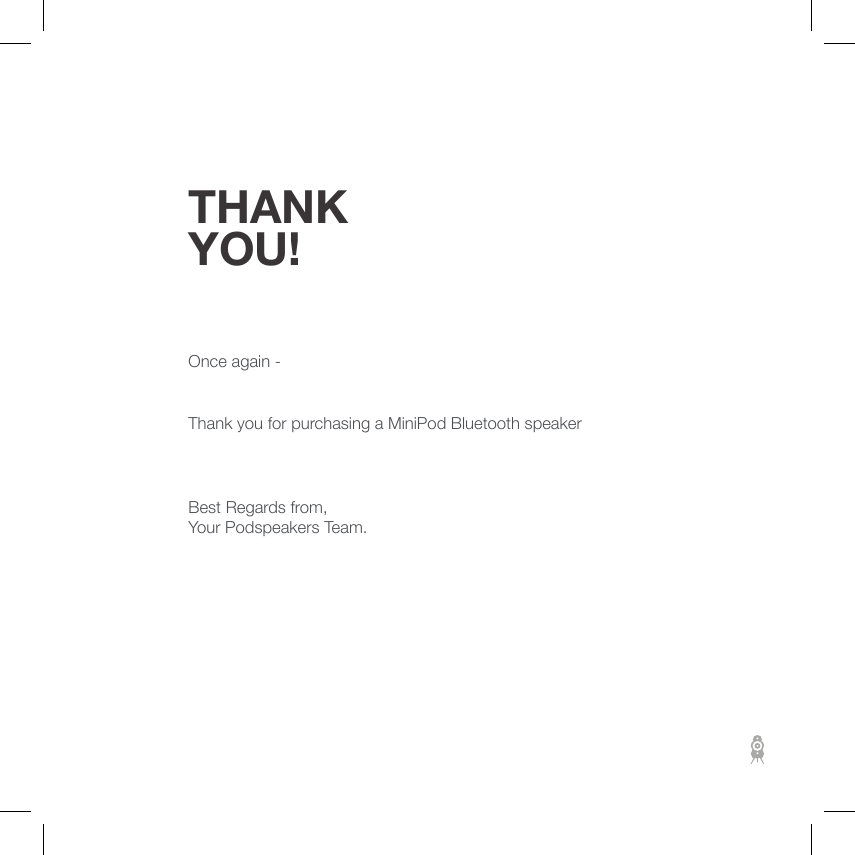

THANK YOU!Once again - Thank you for purchasing a MiniPod Bluetooth speakerBest Regards from,Your Podspeakers Team.
