Harsper HP-420M PDP Monitor User Manual 0416 Maple NTSC Eng

Harsper Co., Ltd. PDP Monitor 0416 Maple NTSC Eng

Contents

User Manual 3 of 3

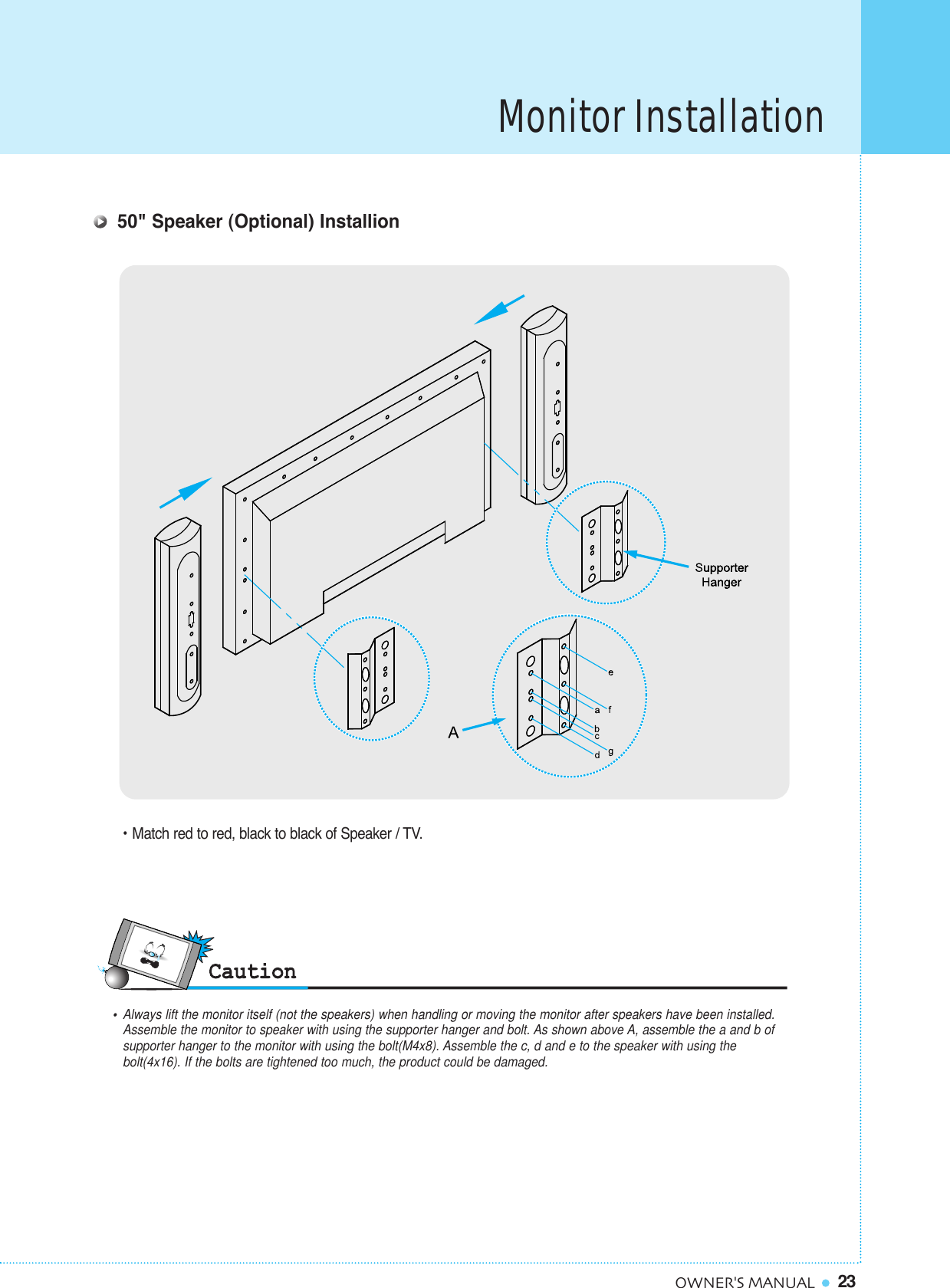

Monitor Installation23OWNER'S MANUAL50" Speaker (Optional) Installion• Match red to red, black to black of Speaker / TV.• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed. Assemble the monitor to speaker with using the supporter hanger and bolt. As shown above A, assemble the a and b of supporter hanger to the monitor with using the bolt(M4x8). Assemble the c, d and e to the speaker with using the bolt(4x16). If the bolts are tightened too much, the product could be damaged.

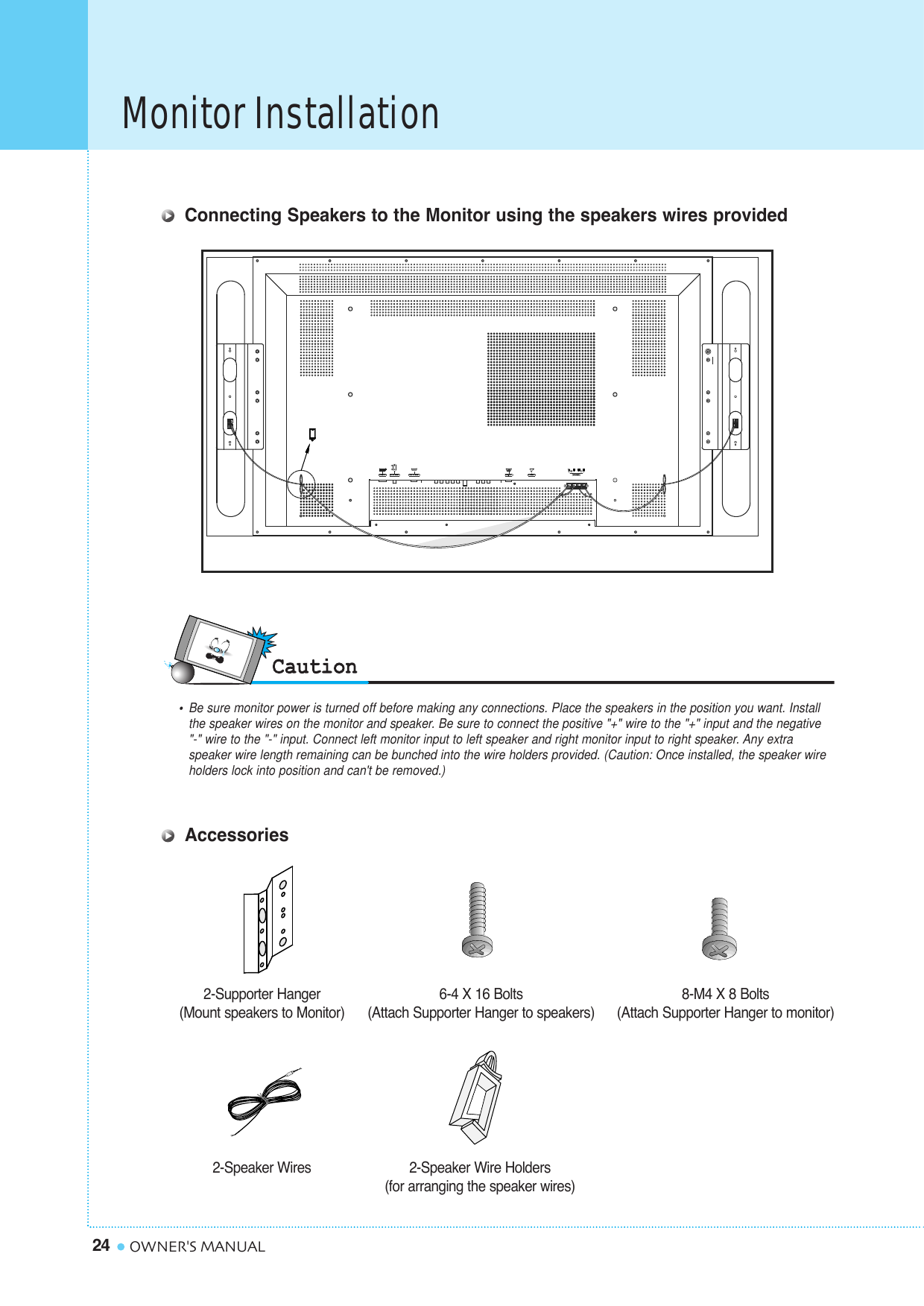

Monitor Installation24 OWNER'S MANUALConnecting Speakers to the Monitor using the speakers wires provided 2-Supporter Hanger(Mount speakers to Monitor)6-4 X 16 Bolts (Attach Supporter Hanger to speakers)8-M4 X 8 Bolts(Attach Supporter Hanger to monitor)2-Speaker Wires 2-Speaker Wire Holders(for arranging the speaker wires)AccessoriesR L • Be sure monitor power is turned off before making any connections. Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided. (Caution: Once installed, the speaker wire holders lock into position and can't be removed.)

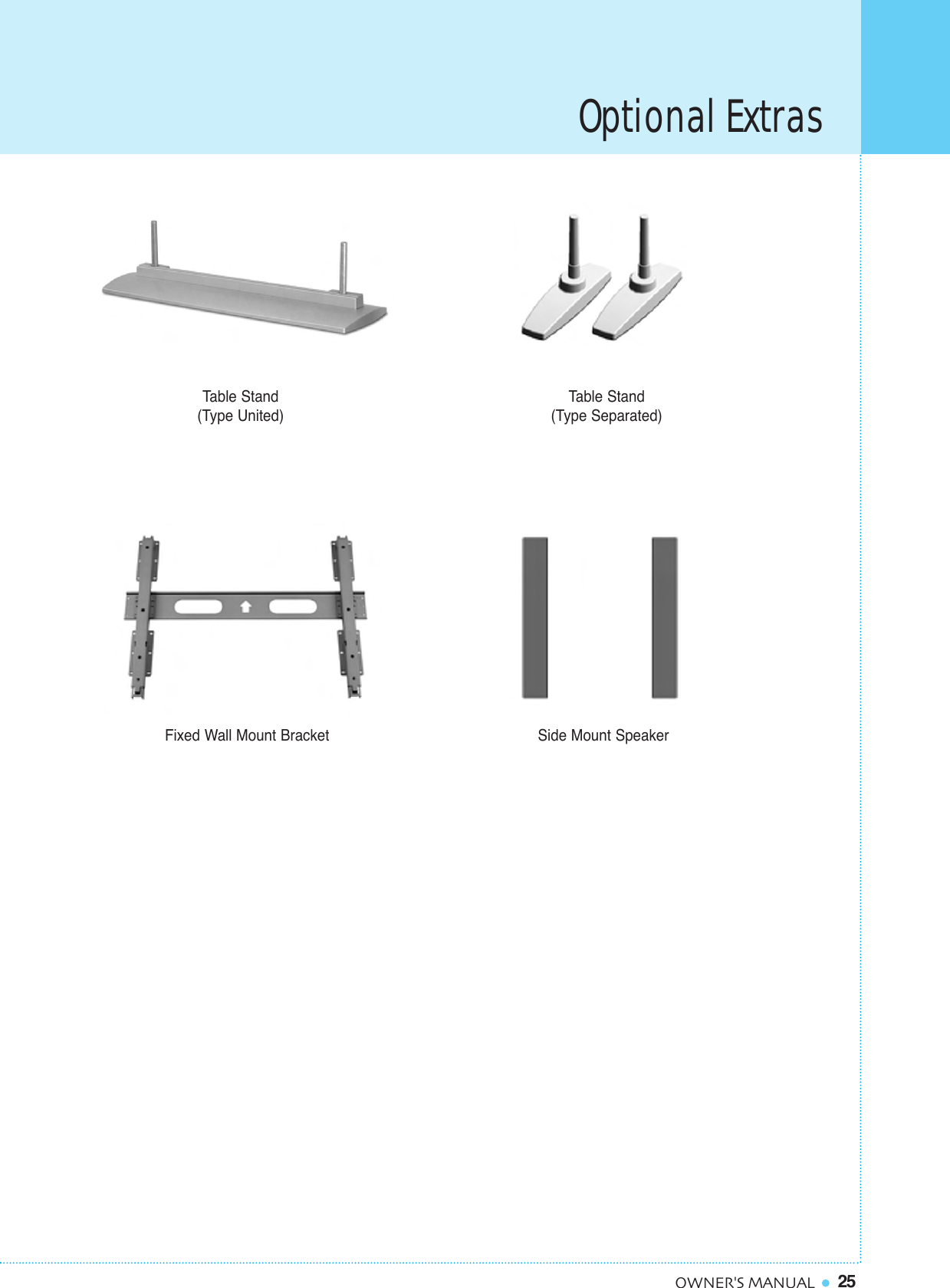

Optional Extras25OWNER'S MANUALTable Stand(Type United)Table Stand(Type Separated)Fixed Wall Mount Bracket Side Mount Speaker

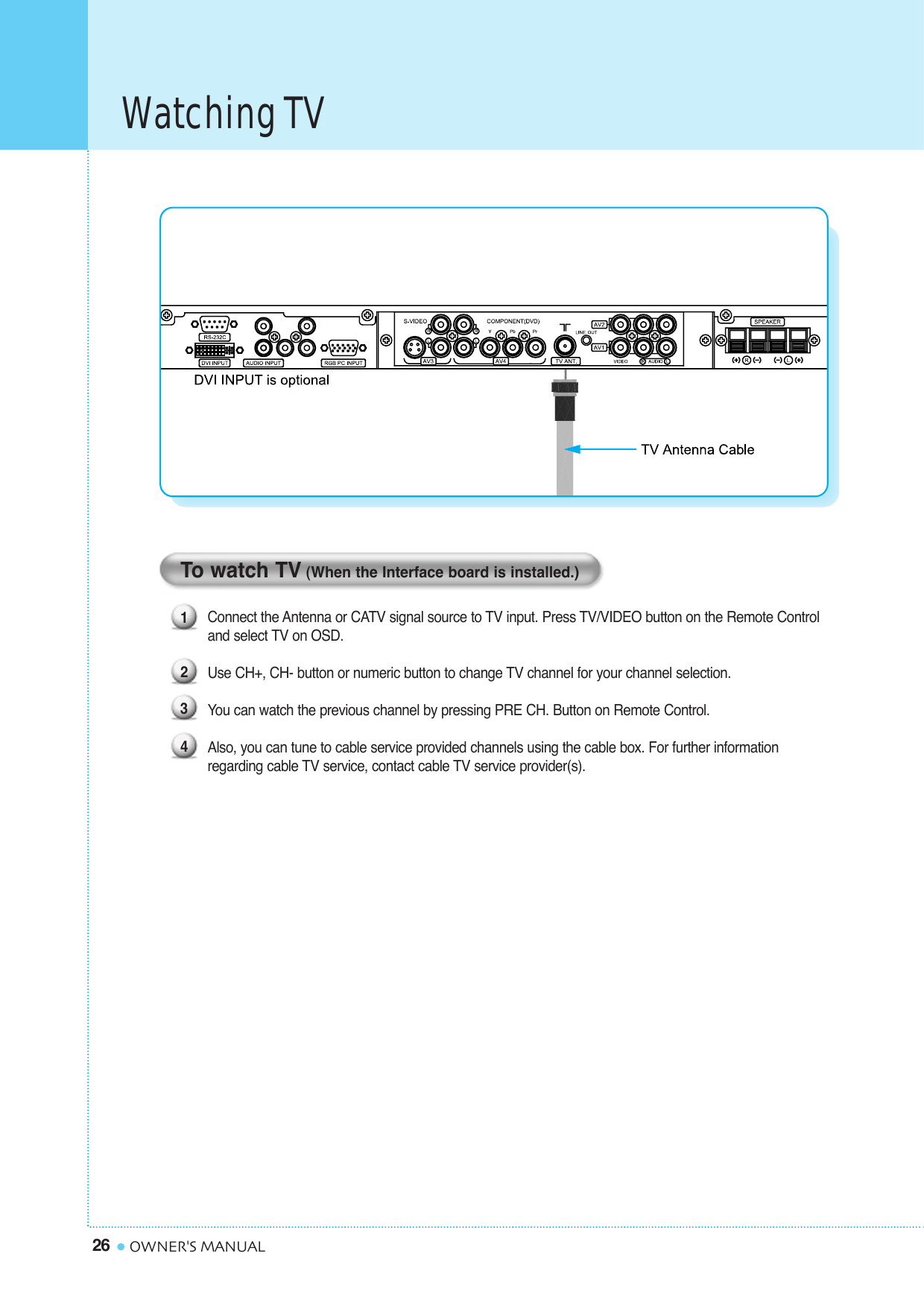

Watching TV26 OWNER'S MANUAL1234Connect the Antenna or CATV signal source to TV input. Press TV/VIDEO button on the Remote Controland select TV on OSD.Use CH+, CH- button or numeric button to change TV channel for your channel selection. You can watch the previous channel by pressing PRE CH. Button on Remote Control. Also, you can tune to cable service provided channels using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).To watch TV (When the Interface board is installed.)

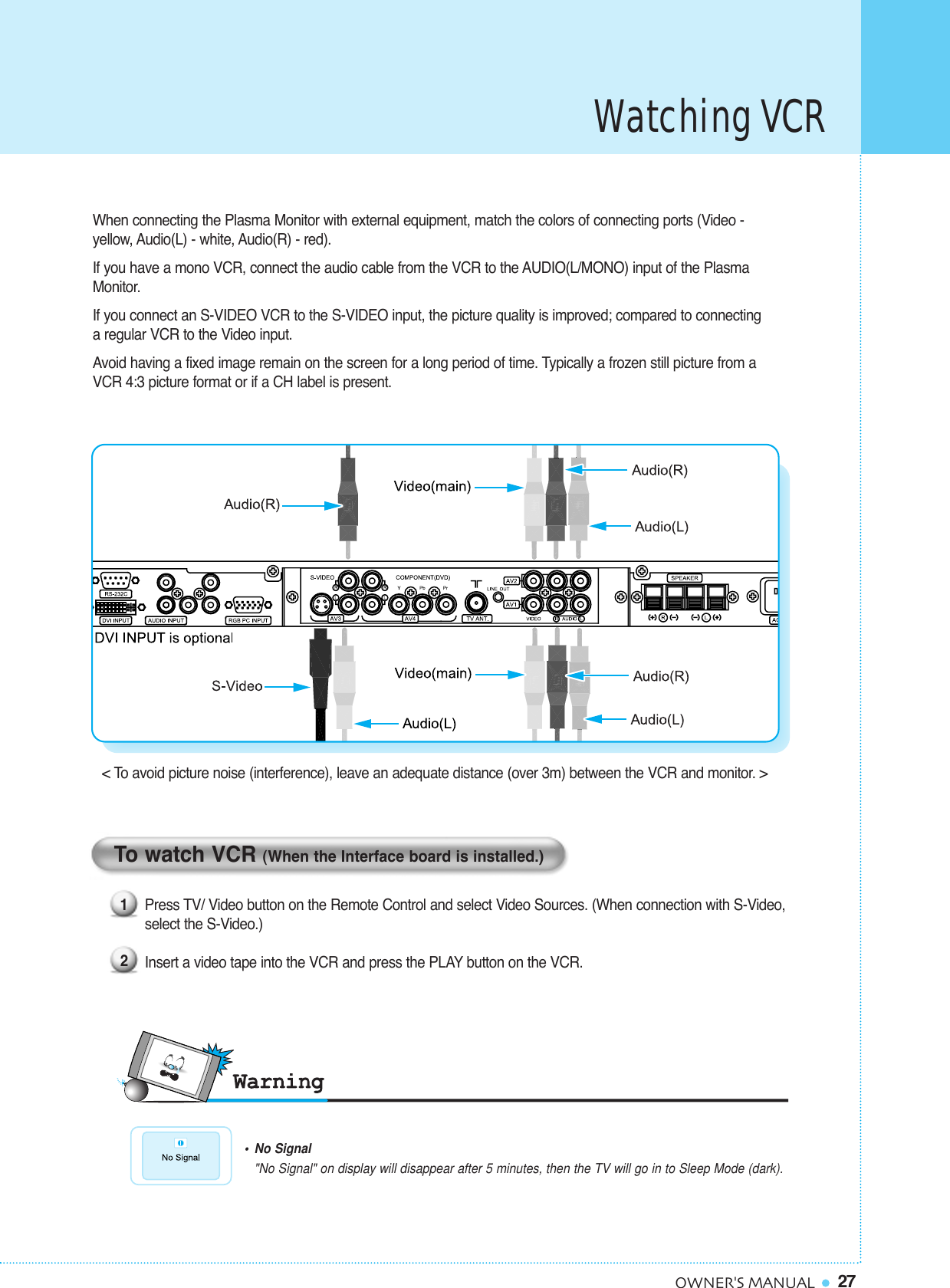

Watching VCR27OWNER'S MANUALPress TV/ Video button on the Remote Control and select Video Sources. (When connection with S-Video,select the S-Video.) Insert a video tape into the VCR and press the PLAY button on the VCR.12•No Signal "No Signal" on display will disappear after 5 minutes, then the TV will go in to Sleep Mode (dark).< To avoid picture noise (interference), leave an adequate distance (over 3m) between the VCR and monitor. >When connecting the Plasma Monitor with external equipment, match the colors of connecting ports (Video - yellow, Audio(L) - white, Audio(R) - red).If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the PlasmaMonitor.If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from aVCR 4:3 picture format or if a CH label is present.To watch VCR (When the Interface board is installed.)

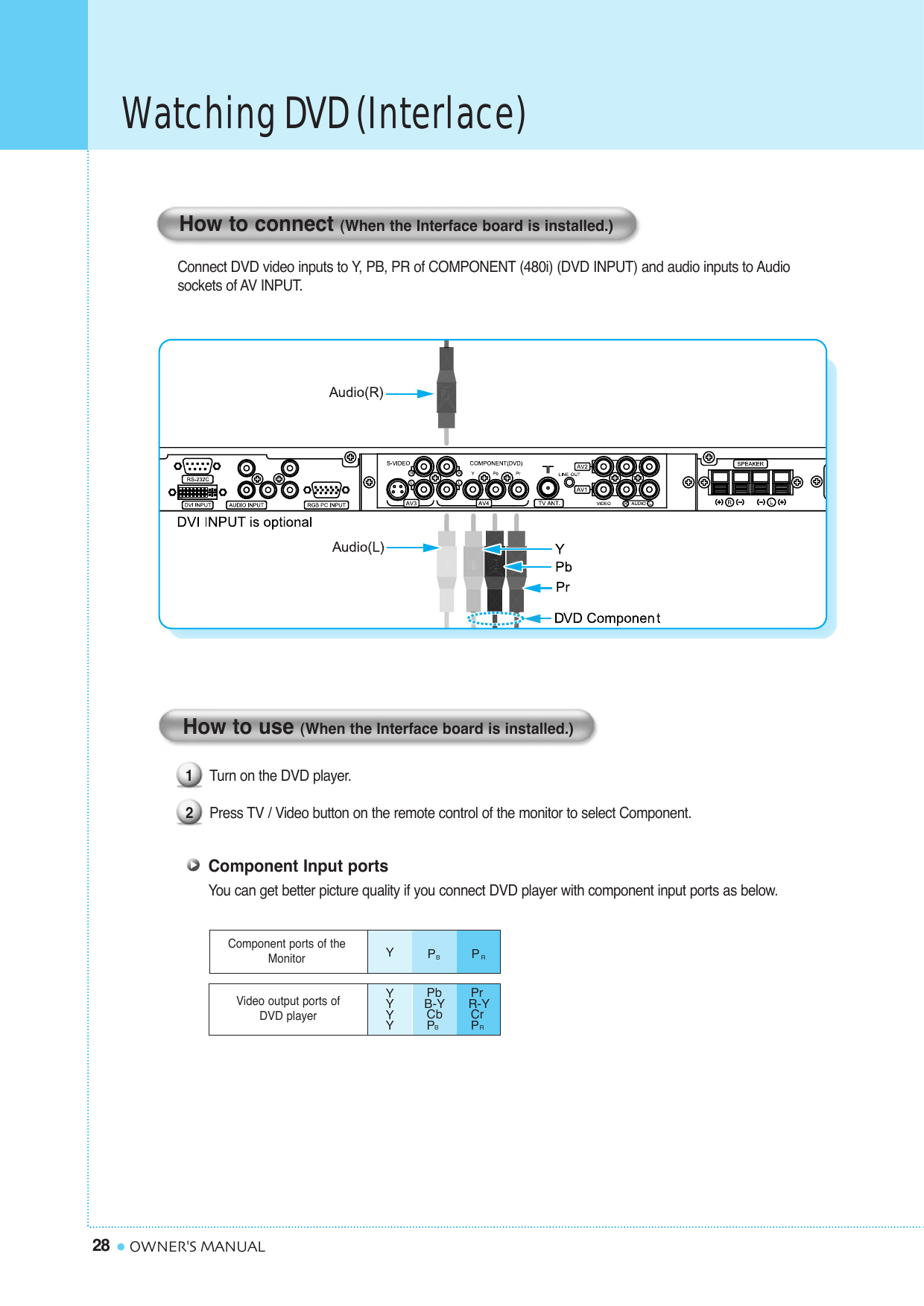

Watching DVD (Interlace)28 OWNER'S MANUALConnect DVD video inputs to Y, PB, PR of COMPONENT (480i) (DVD INPUT) and audio inputs to Audio sockets of AV INPUT.How to connect (When the Interface board is installed.)Component Input portsYou can get better picture quality if you connect DVD player with component input ports as below.Video output ports of DVD playerYYYYPbB-YCbPBPrR-YCrPRYPBPRComponent ports of theMonitorTurn on the DVD player. Press TV / Video button on the remote control of the monitor to select Component. 12How to use (When the Interface board is installed.)

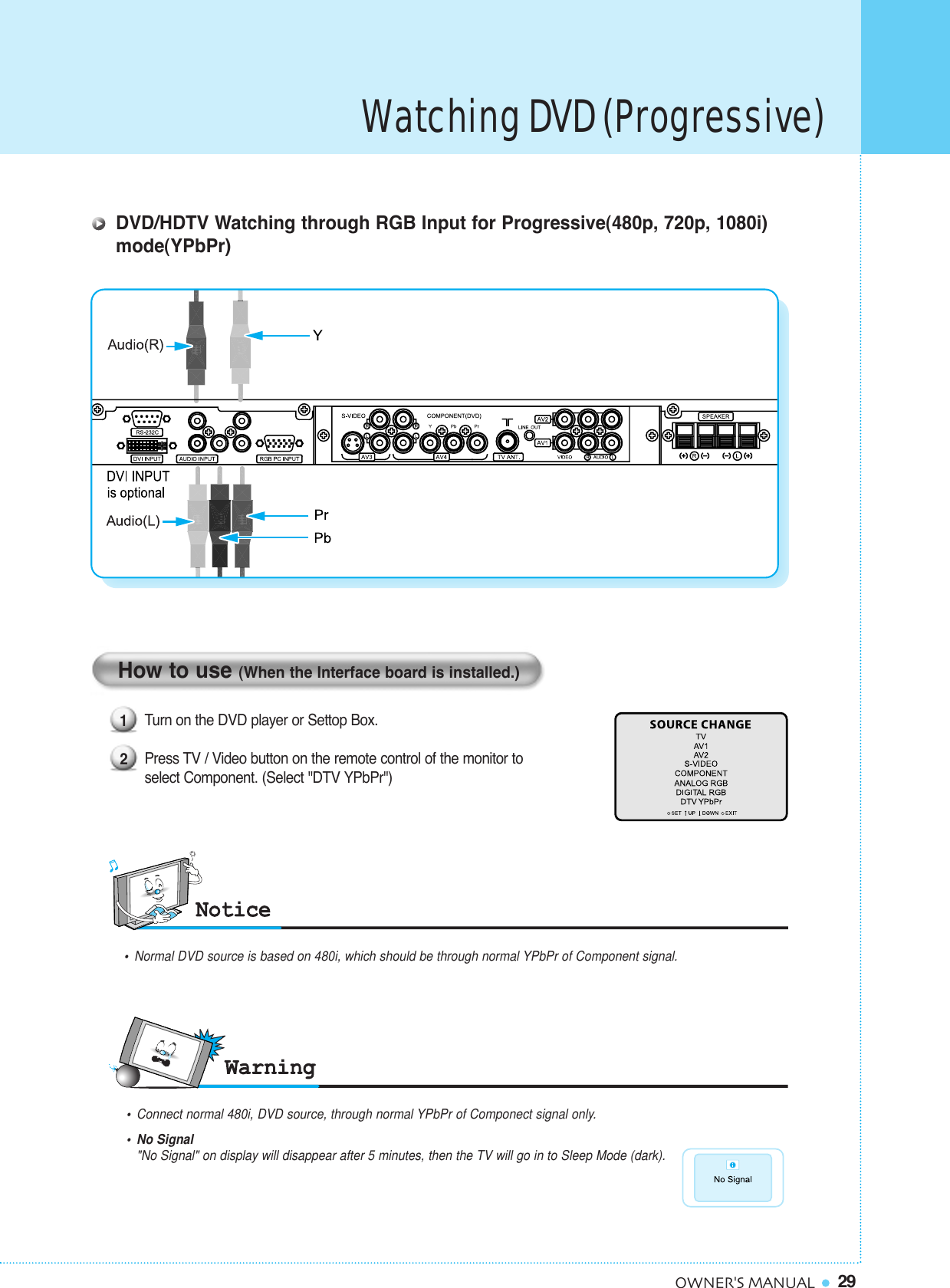

Watching DVD (Progressive)29OWNER'S MANUALTurn on the DVD player or Settop Box. Press TV / Video button on the remote control of the monitor to select Component. (Select "DTV YPbPr")12How to use (When the Interface board is installed.)•Connect normal 480i, DVD source, through normal YPbPr of Componect signal only.•No Signal "No Signal" on display will disappear after 5 minutes, then the TV will go in to Sleep Mode (dark).•Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.DVD/HDTV Watching through RGB Input for Progressive(480p, 720p, 1080i)mode(YPbPr)

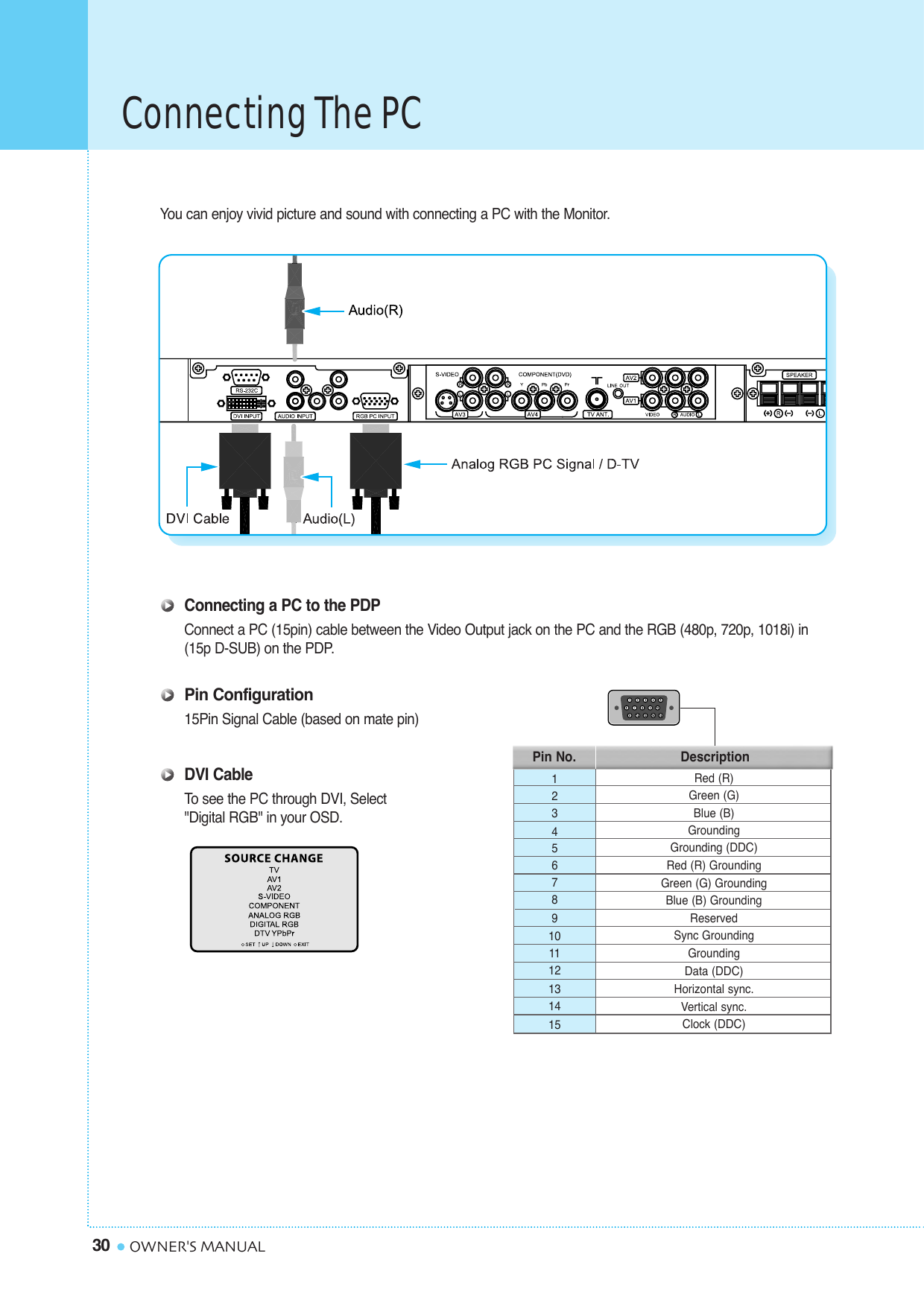

Connecting The PC30 OWNER'S MANUALYou can enjoy vivid picture and sound with connecting a PC with the Monitor.Connecting a PC to the PDPConnect a PC (15pin) cable between the Video Output jack on the PC and the RGB (480p, 720p, 1018i) in(15p D-SUB) on the PDP.Pin Configuration15Pin Signal Cable (based on mate pin)DVI CableTo see the PC through DVI, Select "Digital RGB" in your OSD.123456789101112131415Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Pin No. Description

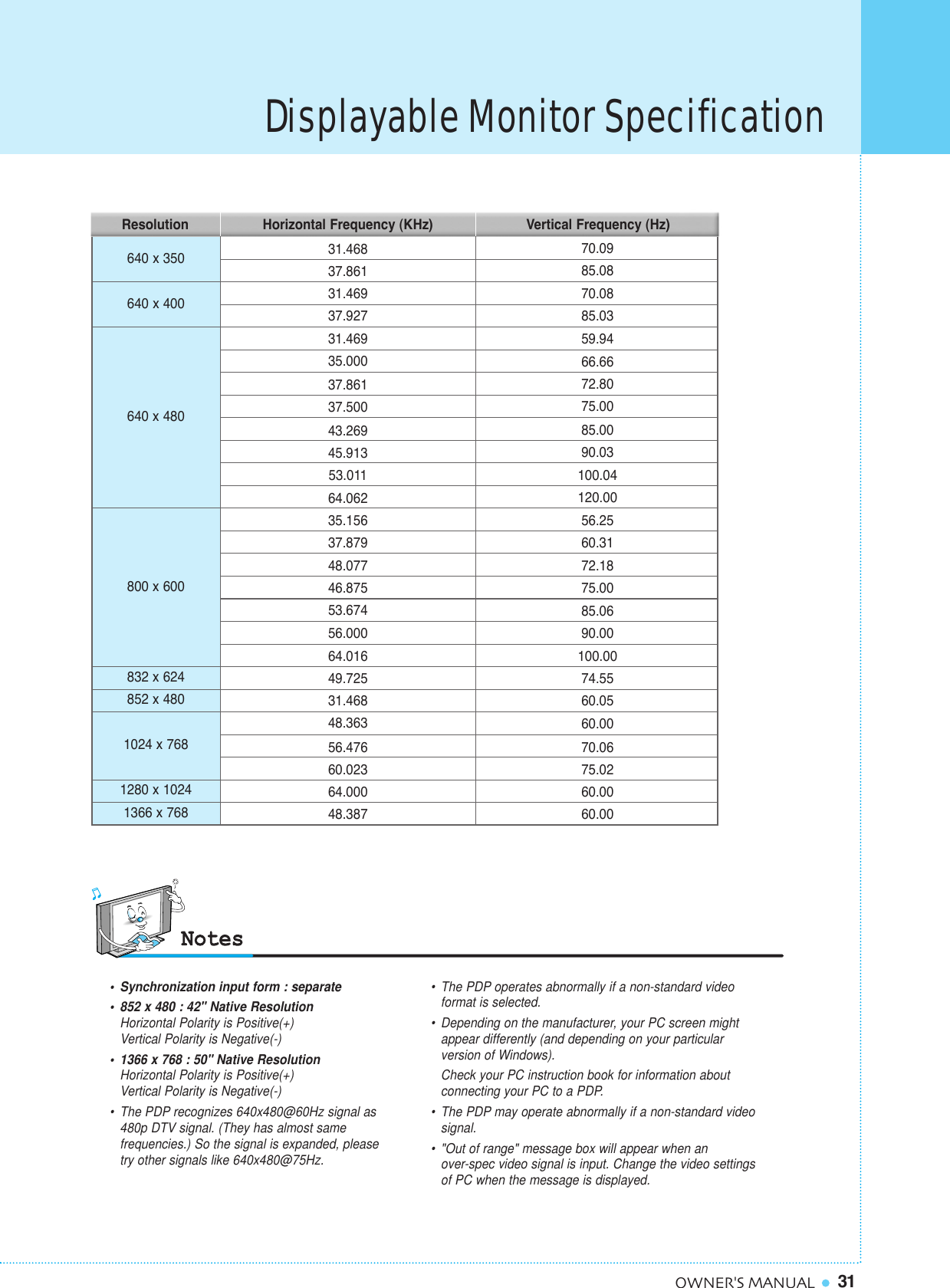

Displayable Monitor Specification31OWNER'S MANUAL31.46837.86131.46937.92731.46935.00037.86137.50043.26945.91353.01164.06235.15637.87948.07746.87553.67456.00064.01649.72531.46848.36356.47660.02364.00048.38770.0985.0870.0885.0359.9466.6672.8075.0085.0090.03100.04120.0056.2560.3172.1875.0085.0690.00100.0074.5560.0560.0070.0675.0260.0060.00Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)•Synchronization input form : separate•852 x 480 : 42" Native ResolutionHorizontal Polarity is Positive(+) Vertical Polarity is Negative(-)• 1366 x 768 : 50" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)•The PDP recognizes 640x480@60Hz signal as 480p DTV signal. (They has almost same frequencies.) So the signal is expanded, please try other signals like 640x480@75Hz.•The PDP operates abnormally if a non-standard video format is selected. •Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of Windows).Check your PC instruction book for information about connecting your PC to a PDP.• The PDP may operate abnormally if a non-standard video signal.• "Out of range" message box will appear when an over-spec video signal is input. Change the video settings of PC when the message is displayed.640 x 350640 x 400640 x 480800 x 600832 x 624852 x 4801024 x 7681280 x 10241366 x 768

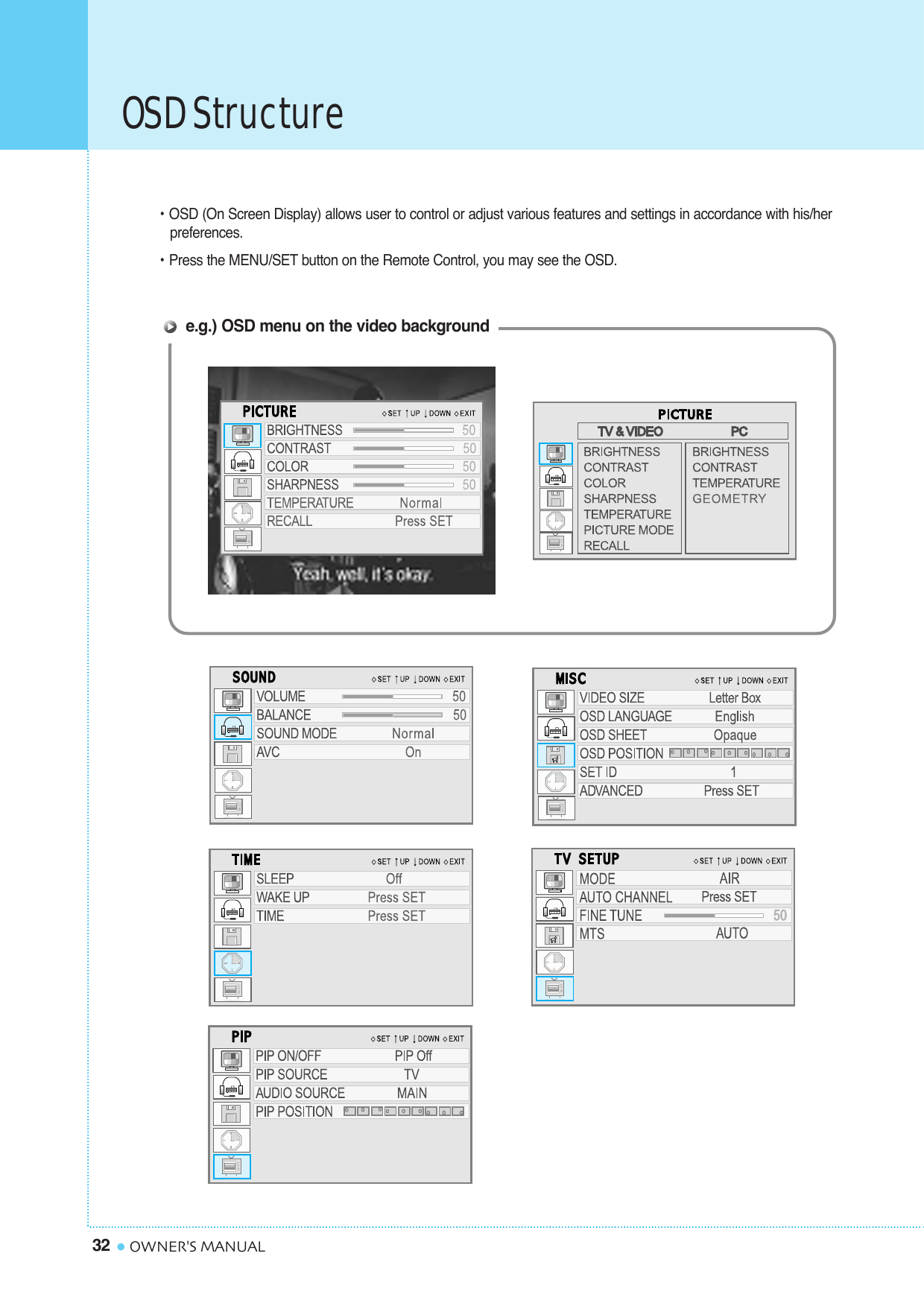

OSD Structure32 OWNER'S MANUAL• OSD (On Screen Display) allows user to control or adjust various features and settings in accordance with his/her preferences.• Press the MENU/SET button on the Remote Control, you may see the OSD.e.g.) OSD menu on the video background

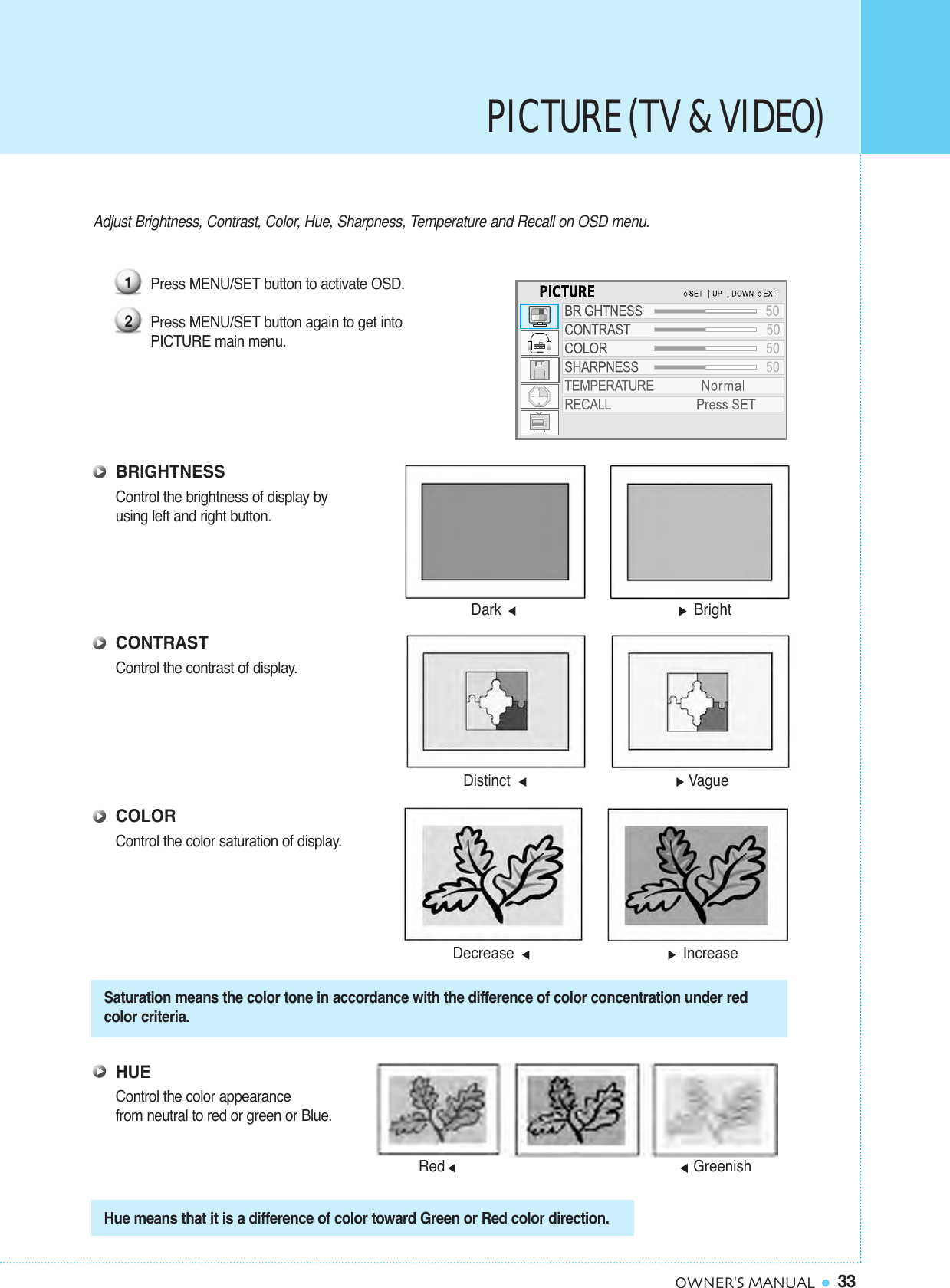

PICTURE (TV & VIDEO)33OWNER'S MANUALAdjust Brightness, Contrast, Color, Hue, Sharpness, Temperature and Recall on OSD menu.Press MENU/SET button to activate OSD. Press MENU/SET button again to get into PICTURE main menu.BRIGHTNESSControl the brightness of display by using left and right button.CONTRASTControl the contrast of display.COLORControl the color saturation of display.HUEControl the color appearancefrom neutral to red or green or Blue.12Distinct VagueDark BrightDecrease Red GreenishIncreaseSaturation means the color tone in accordance with the difference of color concentration under red color criteria.Hue means that it is a difference of color toward Green or Red color direction.

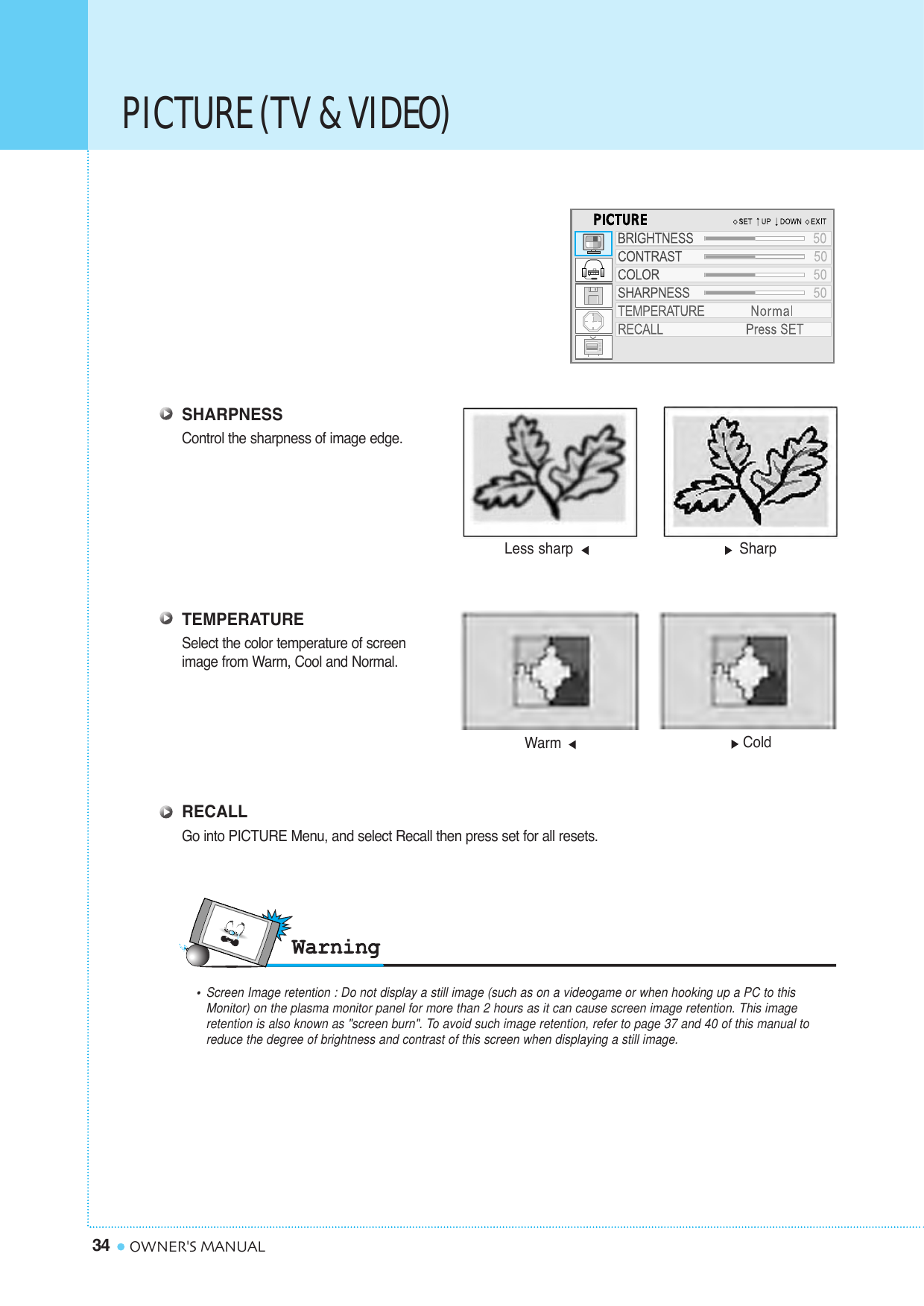

PICTURE (TV & VIDEO)34 OWNER'S MANUALSHARPNESSControl the sharpness of image edge.TEMPERATURESelect the color temperature of screen image from Warm, Cool and Normal.RECALLGo into PICTURE Menu, and select Recall then press set for all resets.Warm Cold•Screen Image retention : Do not display a still image (such as on a videogame or when hooking up a PC to this Monitor) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, refer to page 37 and 40 of this manual to reduce the degree of brightness and contrast of this screen when displaying a still image.Less sharp Sharp

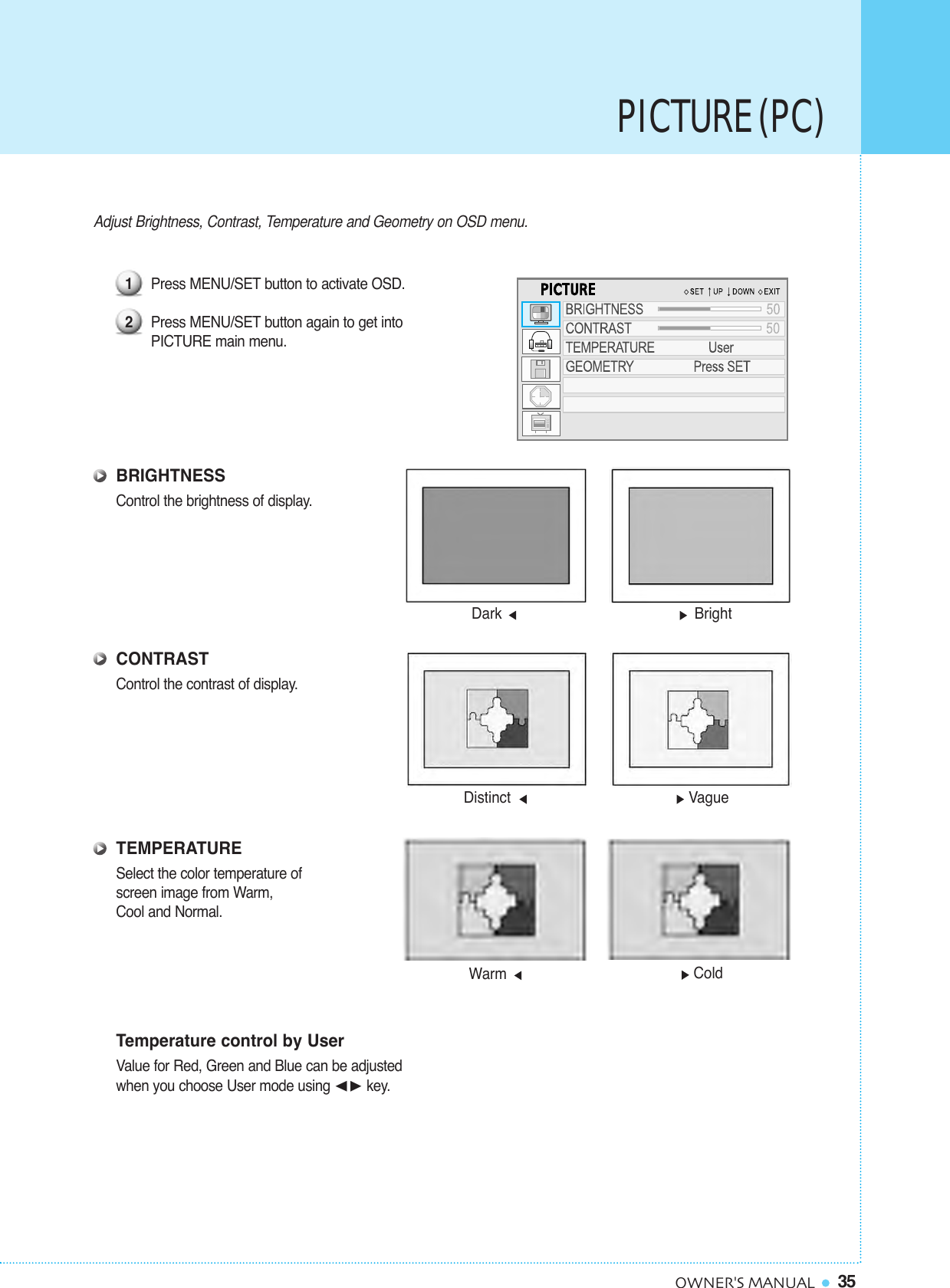

PICTURE (PC)35OWNER'S MANUALAdjust Brightness, Contrast, Temperature and Geometry on OSD menu.Press MENU/SET button to activate OSD. Press MENU/SET button again to get into PICTURE main menu.BRIGHTNESSControl the brightness of display.CONTRASTControl the contrast of display.TEMPERATURESelect the color temperature of screen image from Warm, Cool and Normal.Temperature control by UserValue for Red, Green and Blue can be adjusted when you choose User mode using ¥key.12Distinct VagueDark BrightWarm Cold

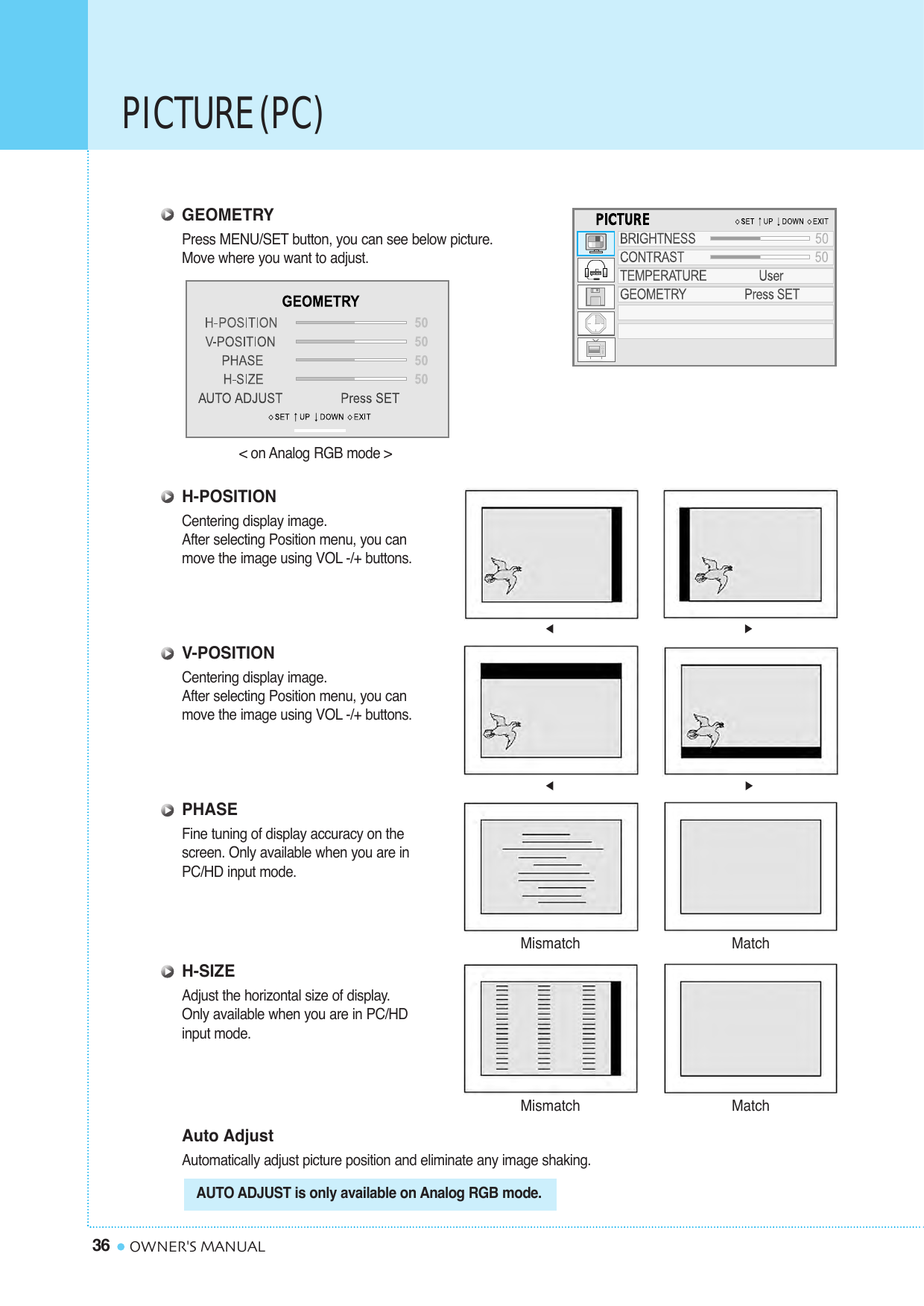

PICTURE (PC)36 OWNER'S MANUALGEOMETRYPress MENU/SET button, you can see below picture. Move where you want to adjust.H-POSITIONCentering display image. After selecting Position menu, you can move the image using VOL -/+ buttons.V-POSITIONCentering display image.After selecting Position menu, you canmove the image using VOL -/+ buttons.PHASEFine tuning of display accuracy on the screen. Only available when you are in PC/HD input mode.H-SIZEAdjust the horizontal size of display.Only available when you are in PC/HDinput mode.Auto AdjustAutomatically adjust picture position and eliminate any image shaking.Mismatch MatchMismatch Match< on Analog RGB mode >AUTO ADJUST is only available on Analog RGB mode.

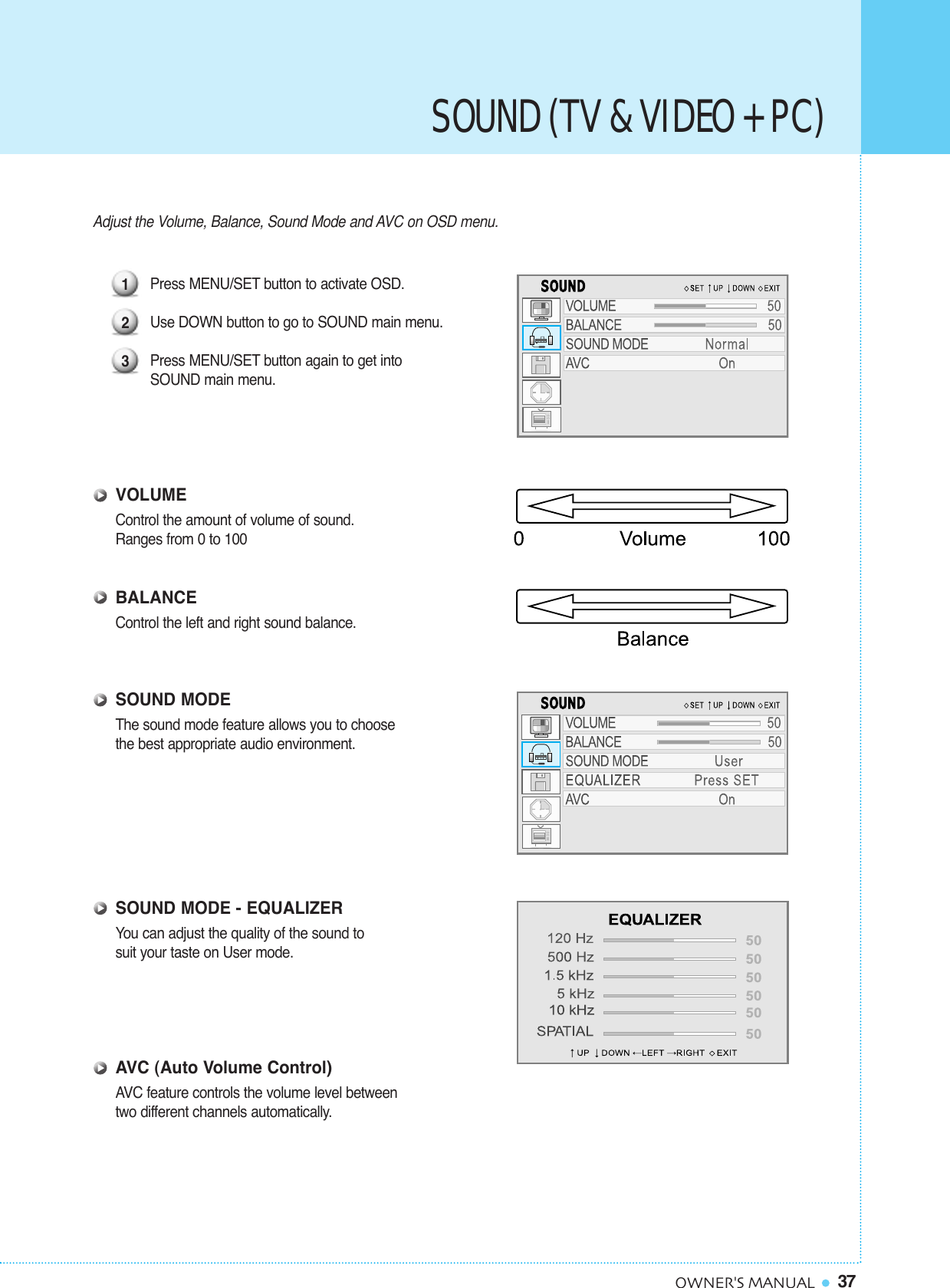

SOUND (TV & VIDEO + PC)37OWNER'S MANUALAdjust the Volume, Balance, Sound Mode and AVC on OSD menu.Press MENU/SET button to activate OSD. Use DOWN button to go to SOUND main menu. Press MENU/SET button again to get into SOUND main menu. VOLUMEControl the amount of volume of sound. Ranges from 0 to 100BALANCEControl the left and right sound balance.SOUND MODEThe sound mode feature allows you to choose the best appropriate audio environment.SOUND MODE - EQUALIZERYou can adjust the quality of the sound to suit your taste on User mode.AVC (Auto Volume Control)AVC feature controls the volume level betweentwo different channels automatically.123

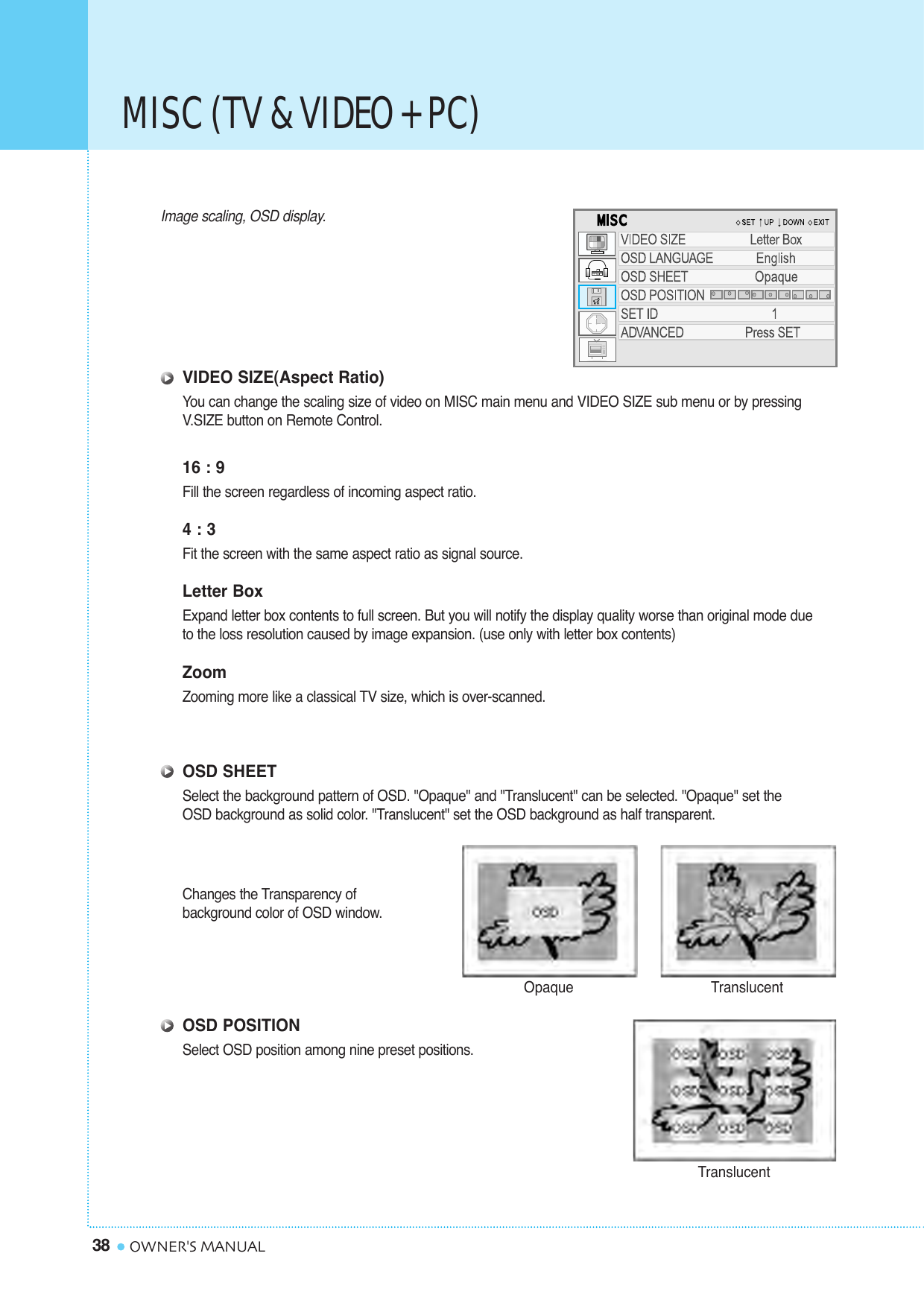

MISC (TV & VIDEO + PC)38 OWNER'S MANUALImage scaling, OSD display.VIDEO SIZE(Aspect Ratio)You can change the scaling size of video on MISC main menu and VIDEO SIZE sub menu or by pressing V.SIZE button on Remote Control.16 : 9Fill the screen regardless of incoming aspect ratio.4 : 3Fit the screen with the same aspect ratio as signal source.Letter BoxExpand letter box contents to full screen. But you will notify the display quality worse than original mode due to the loss resolution caused by image expansion. (use only with letter box contents)ZoomZooming more like a classical TV size, which is over-scanned.OSD SHEETSelect the background pattern of OSD. "Opaque" and "Translucent" can be selected. "Opaque" set the OSD background as solid color. "Translucent" set the OSD background as half transparent.Changes the Transparency of background color of OSD window.OSD POSITIONSelect OSD position among nine preset positions.Opaque TranslucentTranslucent

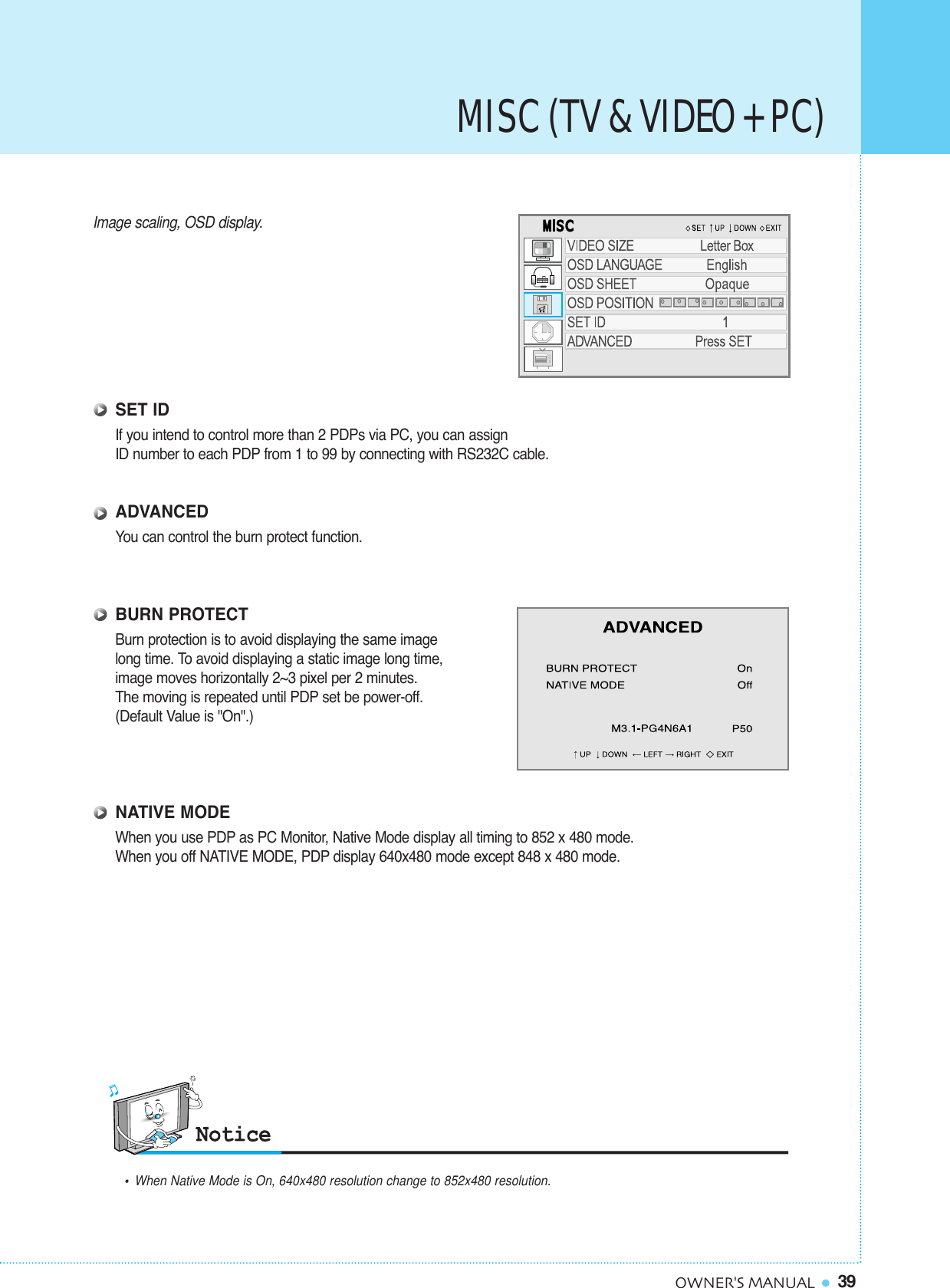

39OWNER'S MANUALImage scaling, OSD display.SET IDIf you intend to control more than 2 PDPs via PC, you can assign ID number to each PDP from 1 to 99 by connecting with RS232C cable.ADVANCEDYou can control the burn protect function.BURN PROTECTBurn protection is to avoid displaying the same imagelong time. To avoid displaying a static image long time, image moves horizontally 2~3 pixel per 2 minutes.The moving is repeated until PDP set be power-off. (Default Value is "On".)NATIVE MODEWhen you use PDP as PC Monitor, Native Mode display all timing to 852 x 480 mode. When you off NATIVE MODE, PDP display 640x480 mode except 848 x 480 mode.•When Native Mode is On, 640x480 resolution change to 852x480 resolution.MISC (TV & VIDEO + PC)

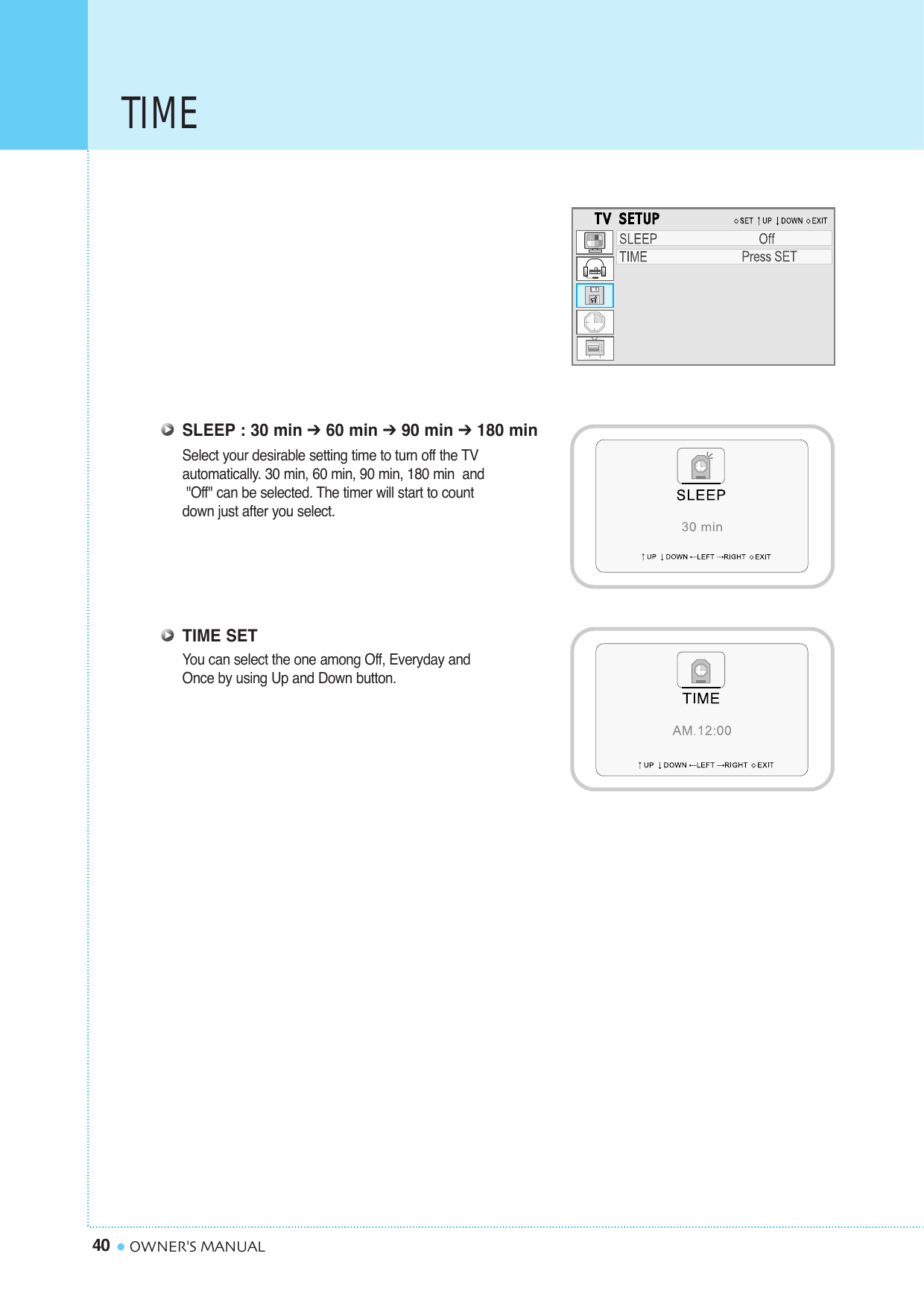

TIME40 OWNER'S MANUALSLEEP : 30 min ➔60 min ➔90 min ➔180 minSelect your desirable setting time to turn off the TV automatically. 30 min, 60 min, 90 min, 180 min and"Off" can be selected. The timer will start to count down just after you select.TIME SETYou can select the one among Off, Everyday and Once by using Up and Down button.

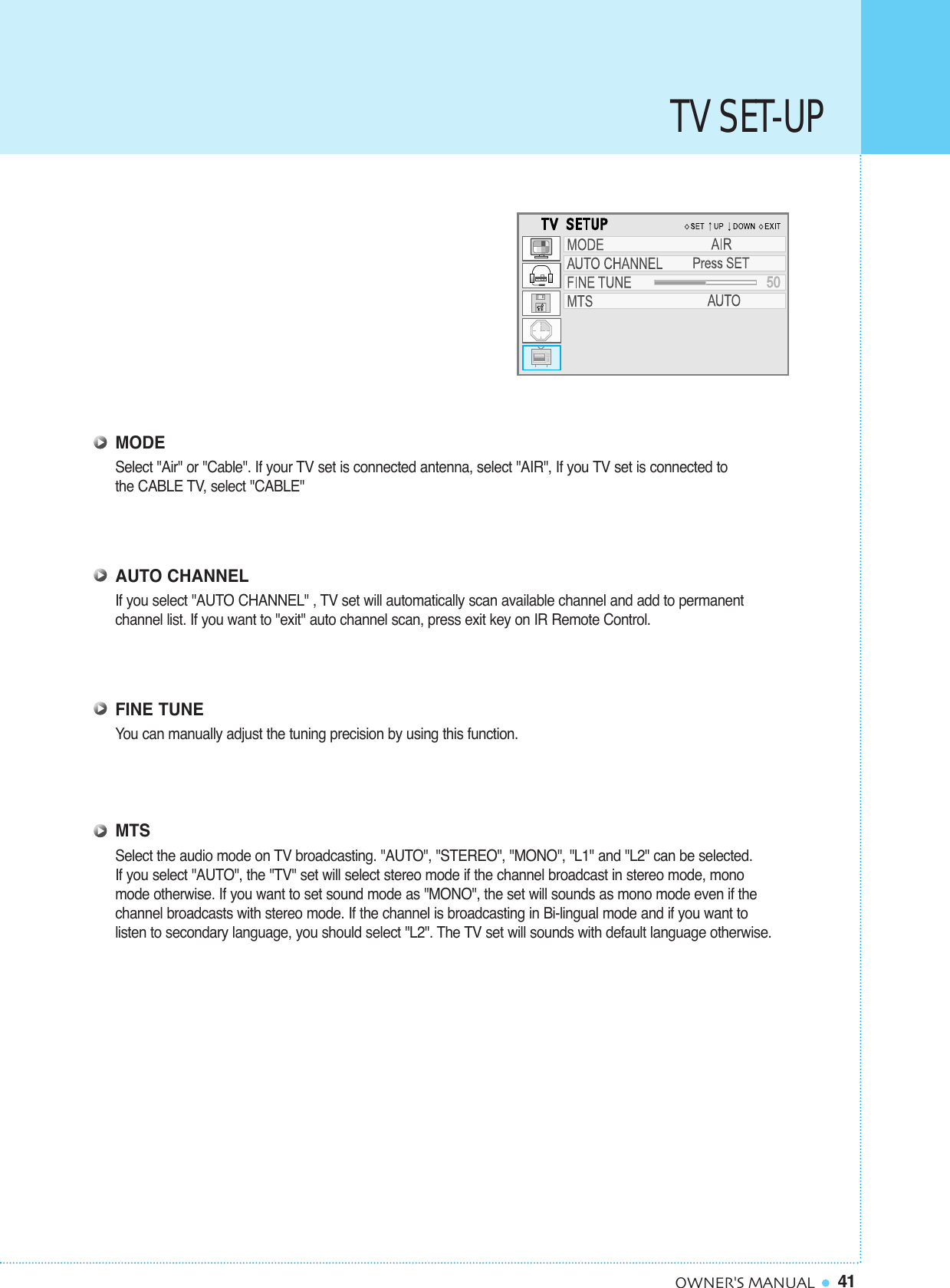

TV SET-UP41OWNER'S MANUALMODESelect "Air" or "Cable". If your TV set is connected antenna, select "AIR", If you TV set is connected tothe CABLE TV, select "CABLE"AUTO CHANNELIf you select "AUTO CHANNEL" , TV set will automatically scan available channel and add to permanent channel list. If you want to "exit" auto channel scan, press exit key on IR Remote Control.FINE TUNEYou can manually adjust the tuning precision by using this function.MTSSelect the audio mode on TV broadcasting. "AUTO", "STEREO", "MONO", "L1" and "L2" can be selected.If you select "AUTO", the "TV" set will select stereo mode if the channel broadcast in stereo mode, mono mode otherwise. If you want to set sound mode as "MONO", the set will sounds as mono mode even if the channel broadcasts with stereo mode. If the channel is broadcasting in Bi-lingual mode and if you want to listen to secondary language, you should select "L2". The TV set will sounds with default language otherwise.

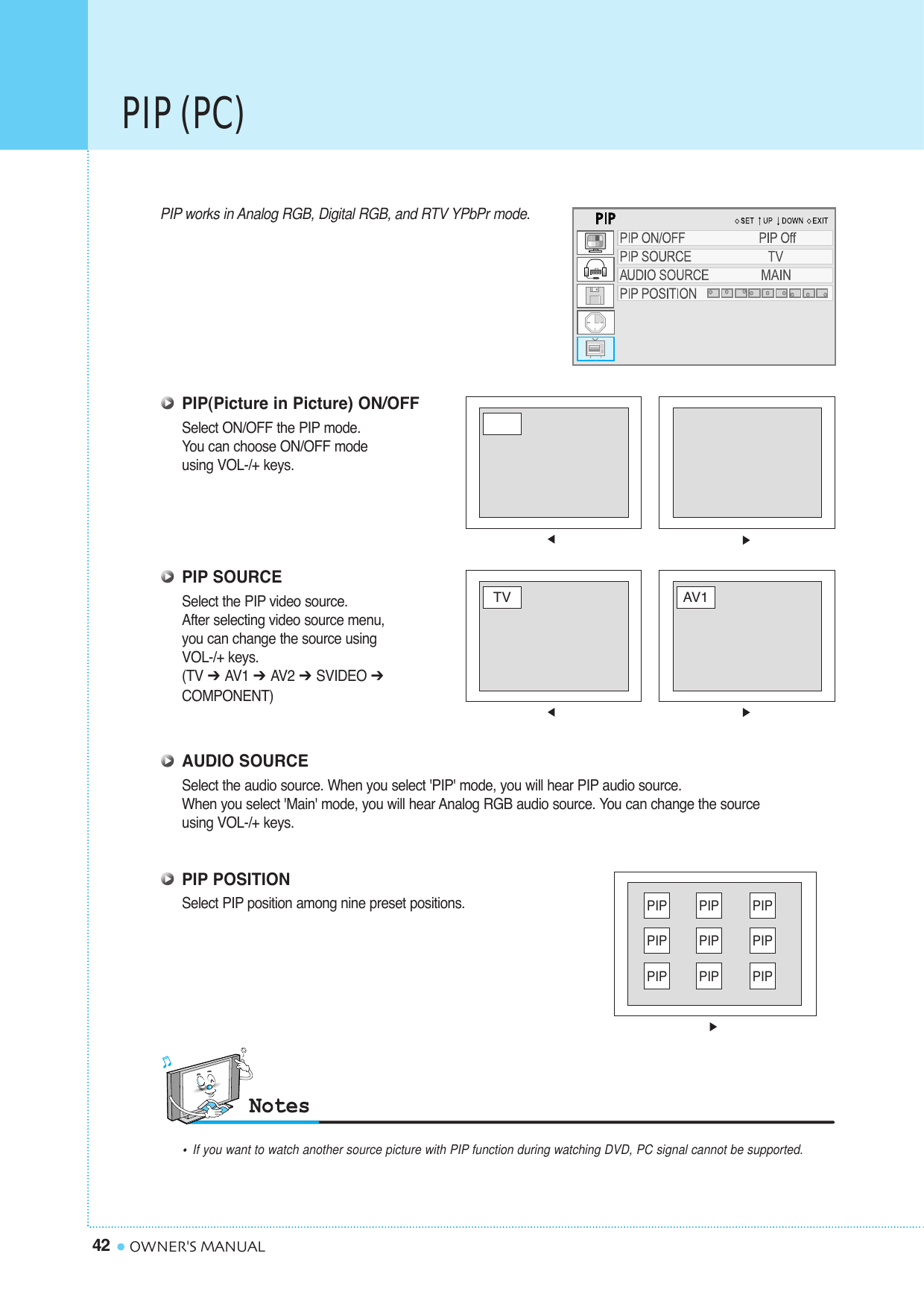

PIP (PC)42 OWNER'S MANUALPIP works in Analog RGB, Digital RGB, and RTV YPbPr mode.PIP(Picture in Picture) ON/OFFSelect ON/OFF the PIP mode.You can choose ON/OFF modeusing VOL-/+ keys.PIP SOURCESelect the PIP video source.After selecting video source menu, you can change the source using VOL-/+ keys.(TV ➔AV1 ➔AV2 ➔SVIDEO ➔COMPONENT)AUDIO SOURCESelect the audio source. When you select 'PIP' mode, you will hear PIP audio source.When you select 'Main' mode, you will hear Analog RGB audio source. You can change the sourceusing VOL-/+ keys.PIP POSITIONSelect PIP position among nine preset positions.•If you want to watch another source picture with PIP function during watching DVD, PC signal cannot be supported.TV AV1PIPPIPPIPPIPPIPPIPPIPPIPPIP

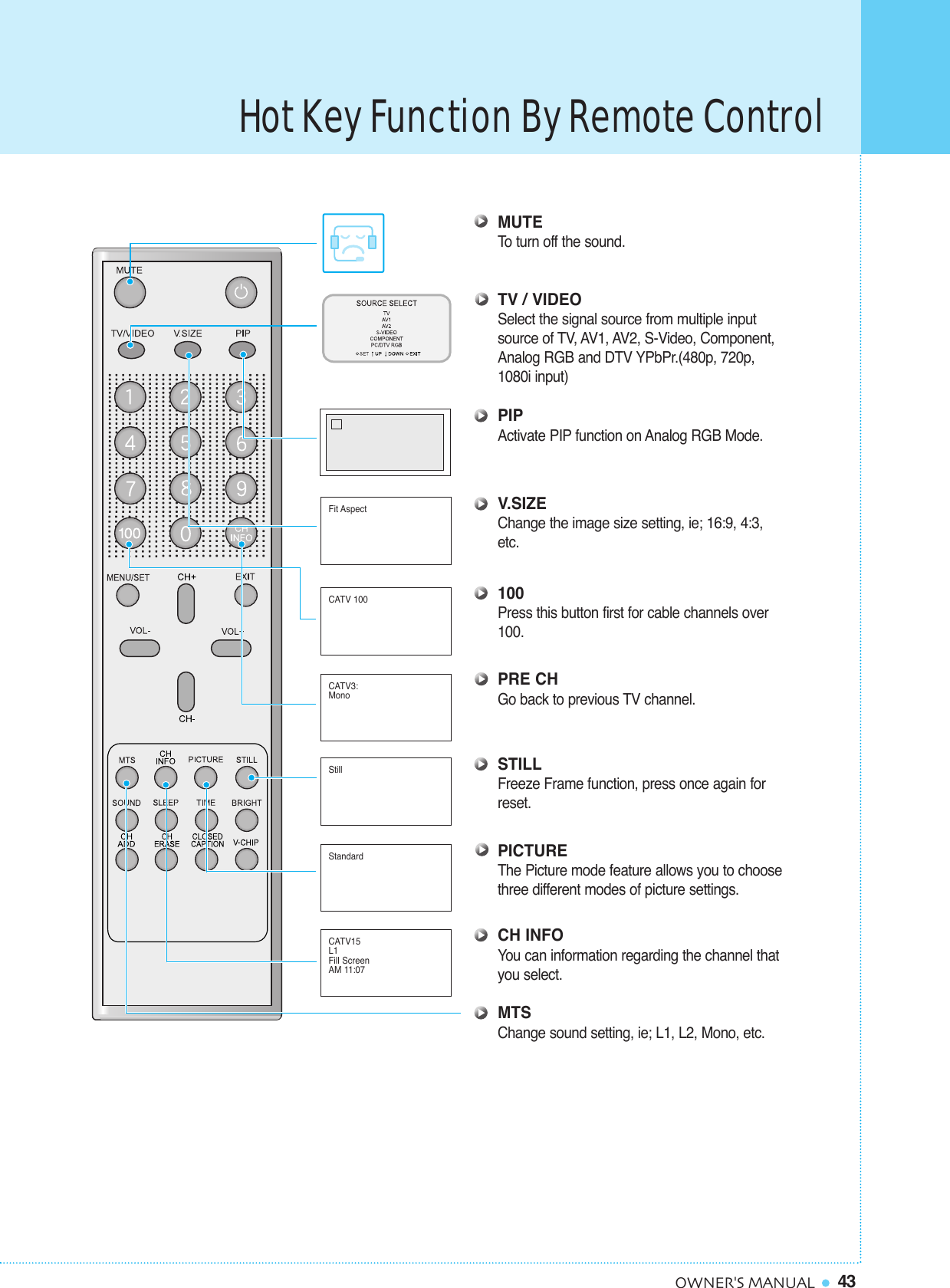

Hot Key Function By Remote Control43OWNER'S MANUALMUTETo turn off the sound.TV / VIDEOSelect the signal source from multiple input source of TV, AV1, AV2, S-Video, Component, Analog RGB and DTV YPbPr.(480p, 720p,1080i input)PIPActivate PIP function on Analog RGB Mode.V.SIZEChange the image size setting, ie; 16:9, 4:3, etc.100Press this button first for cable channels over100.PRE CHGo back to previous TV channel.STILLFreeze Frame function, press once again for reset.PICTUREThe Picture mode feature allows you to choosethree different modes of picture settings.CH INFOYou can information regarding the channel thatyou select.MTSChange sound setting, ie; L1, L2, Mono, etc.Fit AspectCATV 100CATV3:MonoStillStandardCATV15L1Fill ScreenAM 11:07

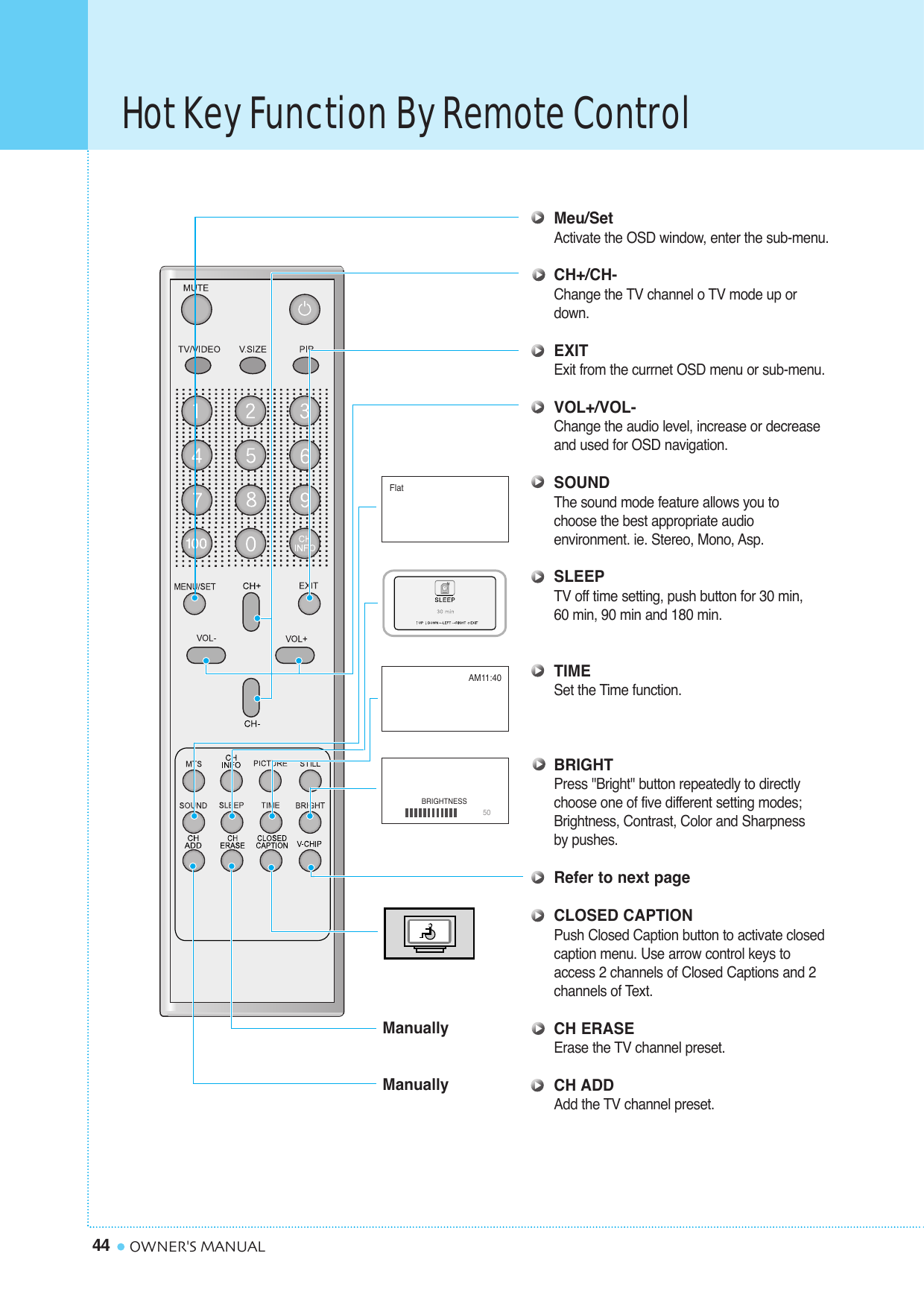

Hot Key Function By Remote Control44 OWNER'S MANUALMeu/SetActivate the OSD window, enter the sub-menu.CH+/CH-Change the TV channel o TV mode up ordown.EXITExit from the currnet OSD menu or sub-menu.VOL+/VOL-Change the audio level, increase or decreaseand used for OSD navigation.SOUNDThe sound mode feature allows you tochoose the best appropriate audioenvironment. ie. Stereo, Mono, Asp.SLEEPTV off time setting, push button for 30 min,60 min, 90 min and 180 min.TIMESet the Time function.BRIGHTPress "Bright" button repeatedly to directlychoose one of five different setting modes;Brightness, Contrast, Color and Sharpnessby pushes.Refer to next pageCLOSED CAPTIONPush Closed Caption button to activate closedcaption menu. Use arrow control keys toaccess 2 channels of Closed Captions and 2channels of Text.CH ERASEErase the TV channel preset.CH ADDAdd the TV channel preset.FlatAM11:40BRIGHTNESS50ManuallyManually

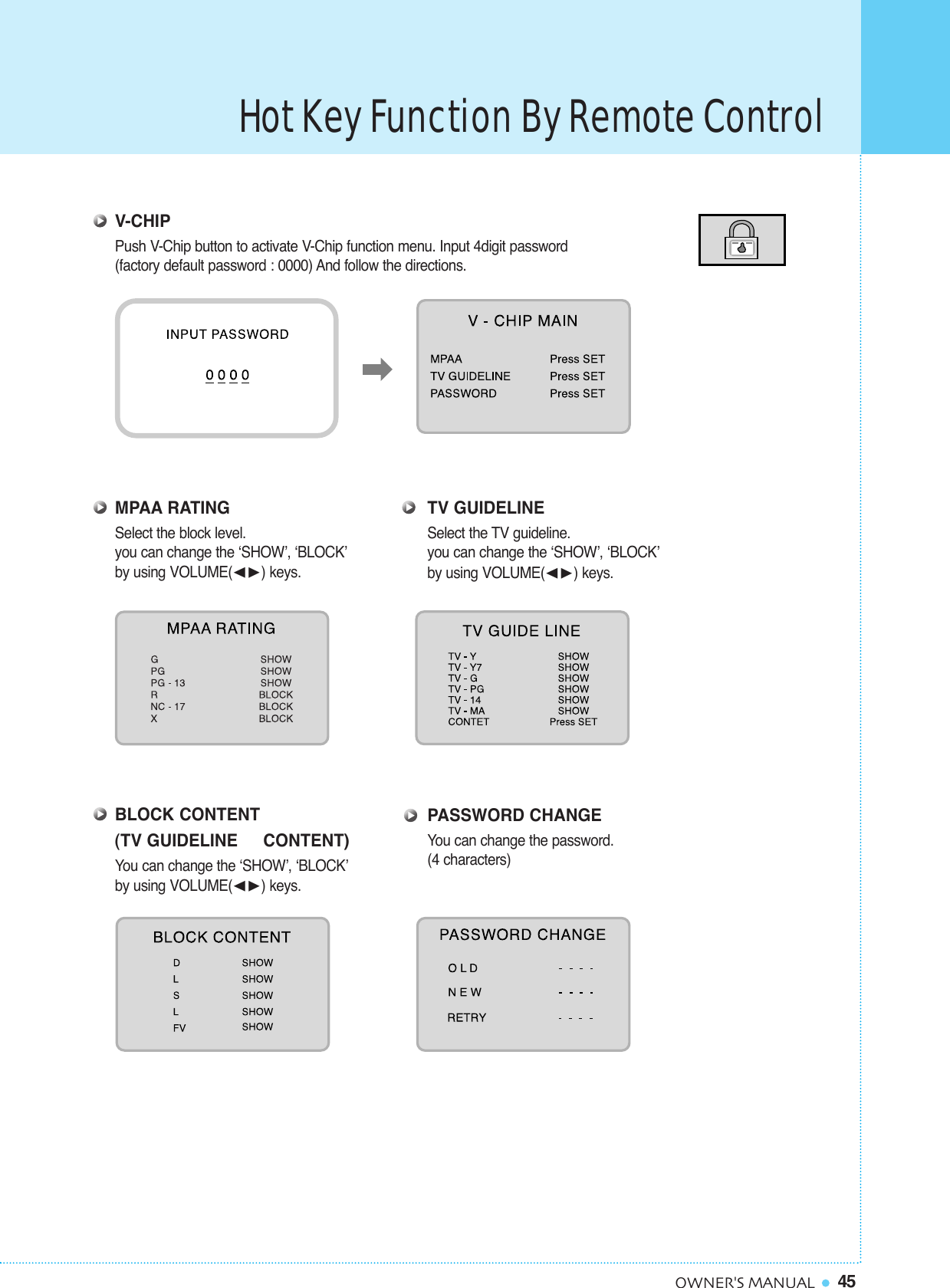

Hot Key Function By Remote Control45OWNER'S MANUALV-CHIPPush V-Chip button to activate V-Chip function menu. Input 4digit password(factory default password : 0000) And follow the directions.MPAA RATINGSelect the block level.you can change the ‘SHOW’, ‘BLOCK’by using VOLUME(¥) keys.BLOCK CONTENT (TV GUIDELINE CONTENT)You can change the ‘SHOW’, ‘BLOCK’by using VOLUME(¥) keys.TV GUIDELINESelect the TV guideline.you can change the ‘SHOW’, ‘BLOCK’by using VOLUME(¥) keys.PASSWORD CHANGEYou can change the password.(4 characters)

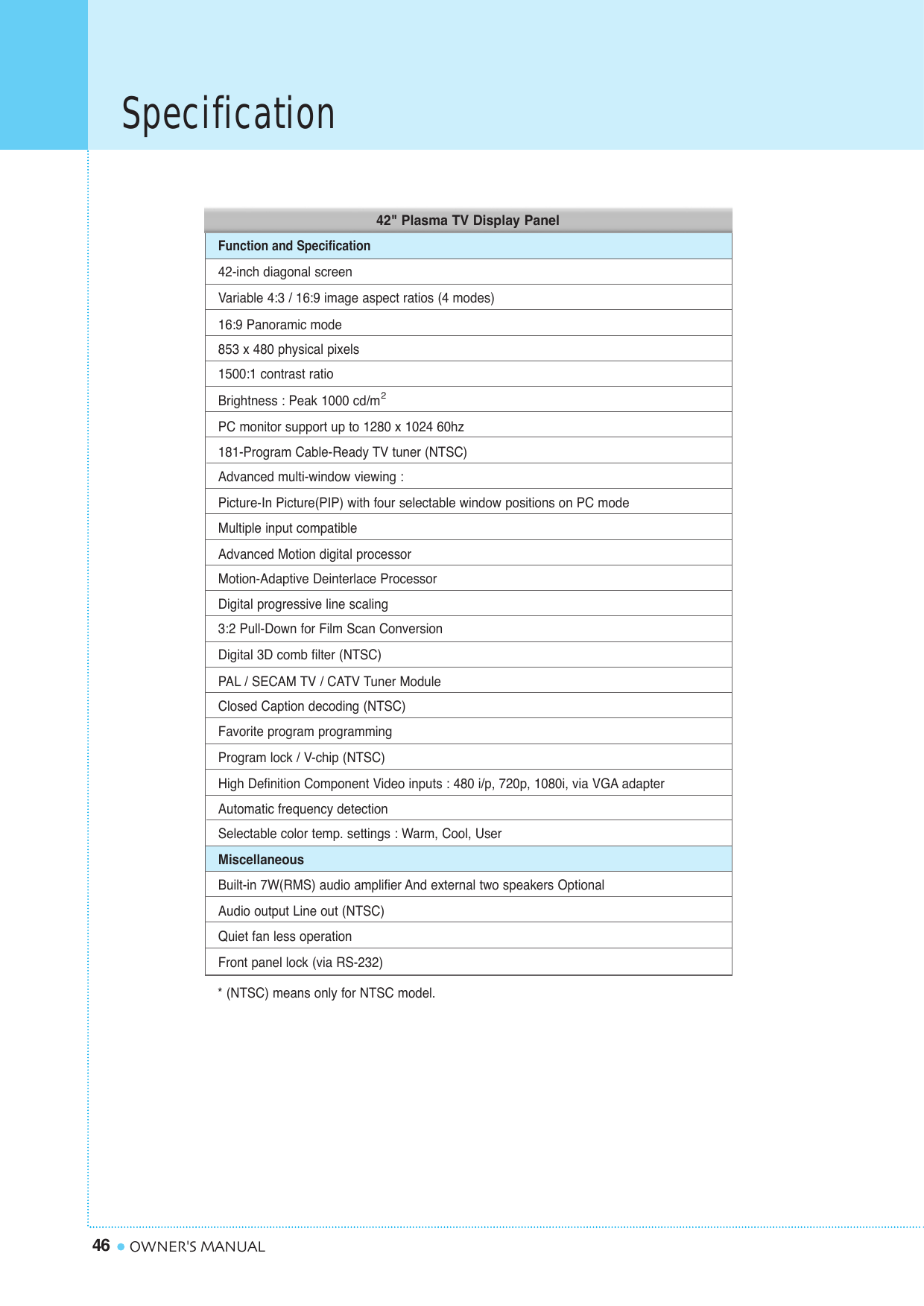

Specification46 OWNER'S MANUAL42-inch diagonal screenVariable 4:3 / 16:9 image aspect ratios (4 modes)16:9 Panoramic mode853 x 480 physical pixels1500:1 contrast ratioBrightness : Peak 1000 cd/mPC monitor support up to 1280 x 1024 60hz181-Program Cable-Ready TV tuner (NTSC)Advanced multi-window viewing :Picture-In Picture(PIP) with four selectable window positions on PC modeMultiple input compatibleAdvanced Motion digital processorMotion-Adaptive Deinterlace ProcessorDigital progressive line scaling3:2 Pull-Down for Film Scan ConversionDigital 3D comb filter (NTSC)PAL/ SECAM TV / CATV Tuner ModuleClosed Caption decoding (NTSC)Favorite program programmingProgram lock / V-chip (NTSC)High Definition Component Video inputs : 480 i/p, 720p, 1080i, via VGA adapterAutomatic frequency detectionSelectable color temp. settings : Warm, Cool, UserMiscellaneousBuilt-in 7W(RMS) audio amplifier And external two speakers OptionalAudio output Line out (NTSC)Quiet fan less operationFront panel lock (via RS-232)Function and Specification2* (NTSC) means only for NTSC model.42" Plasma TV Display Panel

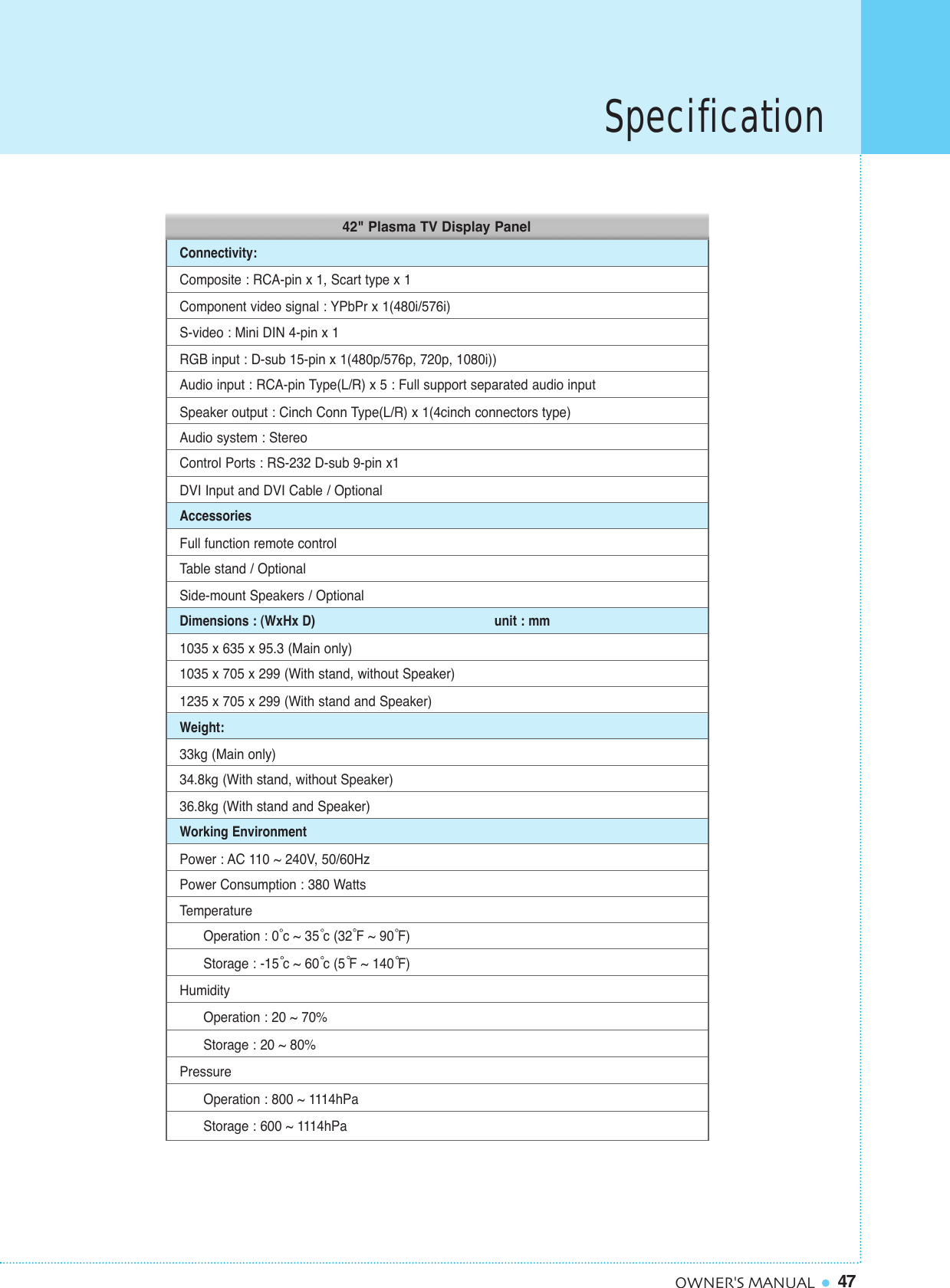

Specification47OWNER'S MANUALAccessoriesDimensions : (WxHx D) unit : mmWeight:Working EnvironmentComposite : RCA-pin x 1, Scart type x 1Component video signal : YPbPr x 1(480i/576i)S-video : Mini DIN 4-pin x 1RGB input : D-sub 15-pin x 1(480p/576p, 720p, 1080i))Audio input : RCA-pin Type(L/R) x 5 : Full support separated audio inputSpeaker output : Cinch Conn Type(L/R) x 1(4cinch connectors type)Audio system : StereoControl Ports : RS-232 D-sub 9-pin x1DVI Input and DVI Cable / OptionalFull function remote controlTable stand / OptionalSide-mount Speakers / Optional1035 x 635 x 95.3 (Main only)1035 x 705 x 299 (With stand, without Speaker)1235 x 705 x 299 (With stand and Speaker)33kg (Main only)34.8kg (With stand, without Speaker)36.8kg (With stand and Speaker)Power : AC 110 ~ 240V, 50/60HzPower Consumption : 380 WattsTemperatureOperation : 0 c ~ 35 c (32 F ~ 90 F)Storage : -15 c ~ 60 c (5 F ~ 140 F)HumidityOperation : 20 ~ 70%Storage : 20 ~ 80%PressureOperation : 800 ~ 1114hPaStorage : 600 ~ 1114hPaConnectivity:42" Plasma TV Display Panel

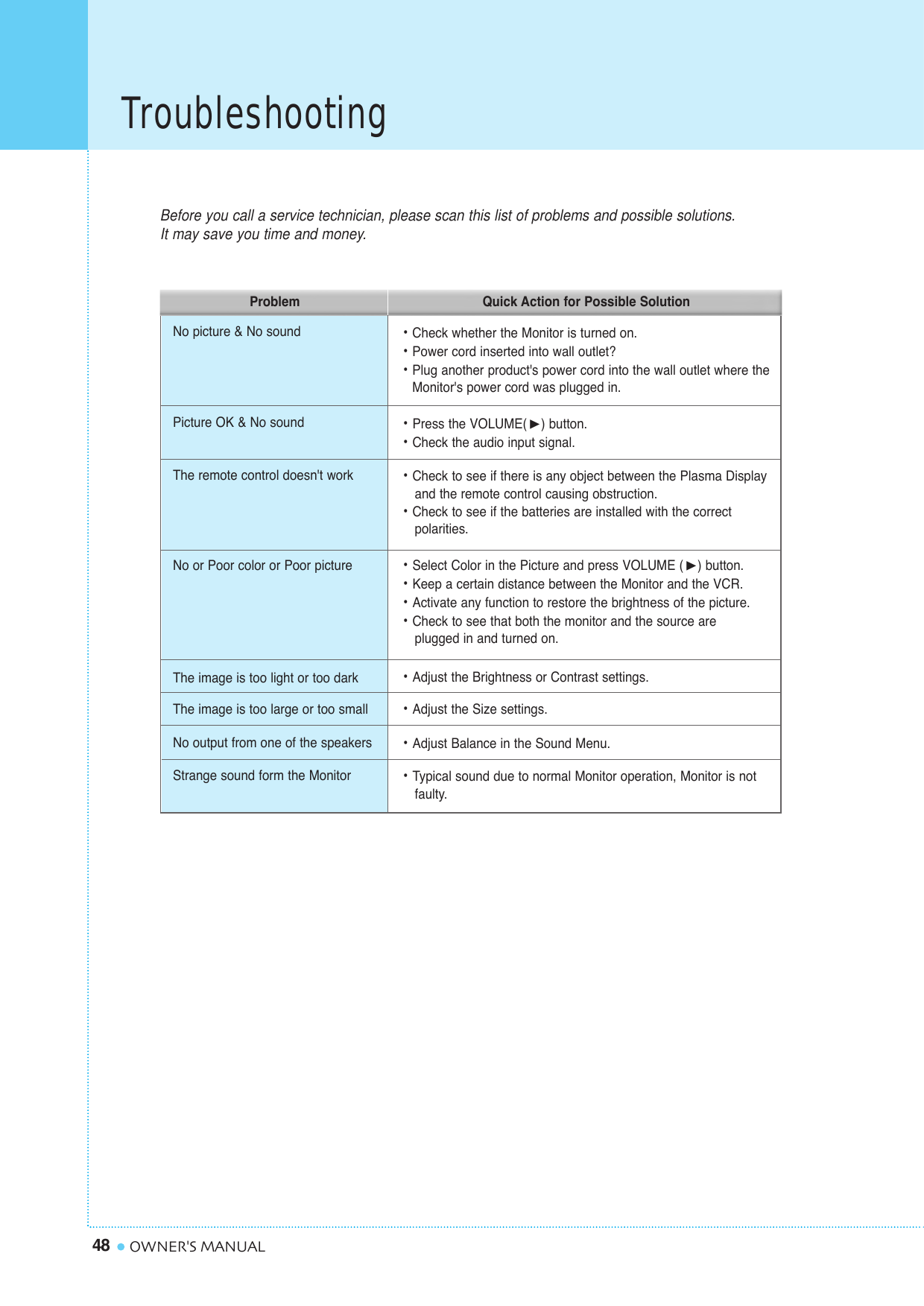

Troubleshooting48 OWNER'S MANUALBefore you call a service technician, please scan this list of problems and possible solutions. It may save you time and money.No picture & No sound • Check whether the Monitor is turned on.• Power cord inserted into wall outlet?• Plug another product's power cord into the wall outlet where the Monitor's power cord was plugged in.Picture OK & No sound • Press the VOLUME() button.• Check the audio input signal.The remote control doesn't work • Check to see if there is any object between the Plasma Display and the remote control causing obstruction.• Check to see if the batteries are installed with the correct polarities.No or Poor color or Poor picture • Select Color in the Picture and press VOLUME () button.• Keep a certain distance between the Monitor and the VCR.• Activate any function to restore the brightness of the picture.• Check to see that both the monitor and the source are plugged in and turned on.The image is too light or too dark • Adjust the Brightness or Contrast settings.The image is too large or too small • Adjust the Size settings.No output from one of the speakers • Adjust Balance in the Sound Menu.Strange sound form the Monitor • Typical sound due to normal Monitor operation, Monitor is not faulty.Problem Quick Action for Possible Solution

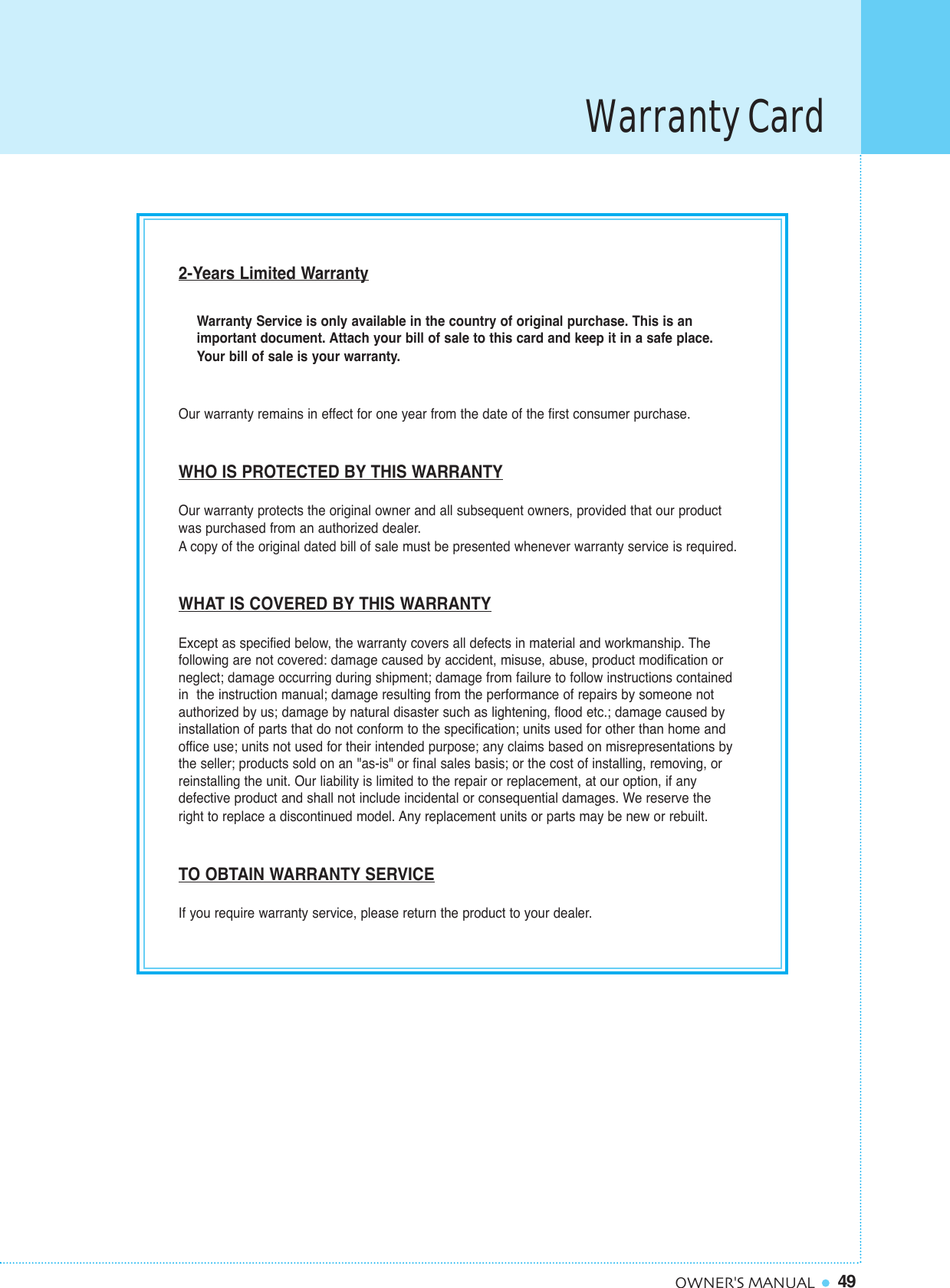

49OWNER'S MANUAL2-Years Limited WarrantyWarranty Service is only available in the country of original purchase. This is animportant document. Attach your bill of sale to this card and keep it in a safe place.Your bill of sale is your warranty.Our warranty remains in effect for one year from the date of the first consumer purchase.WHO IS PROTECTED BY THIS WARRANTYOur warranty protects the original owner and all subsequent owners, provided that our product was purchased from an authorized dealer.Acopy of the original dated bill of sale must be presented whenever warranty service is required.WHAT IS COVERED BY THIS WARRANTYExcept as specified below, the warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual; damage resulting from the performance of repairs by someone notauthorized by us; damage by natural disaster such as lightening, flood etc.; damage caused byinstallation of parts that do not conform to the specification; units used for other than home andoffice use; units not used for their intended purpose; any claims based on misrepresentations bythe seller; products sold on an "as-is" or final sales basis; or the cost of installing, removing, or reinstalling the unit. Our liability is limited to the repair or replacement, at our option, if any defective product and shall not include incidental or consequential damages. We reserve the right to replace a discontinued model. Any replacement units or parts may be new or rebuilt.TO OBTAIN WARRANTY SERVICEIf you require warranty service, please return the product to your dealer.Warranty Card

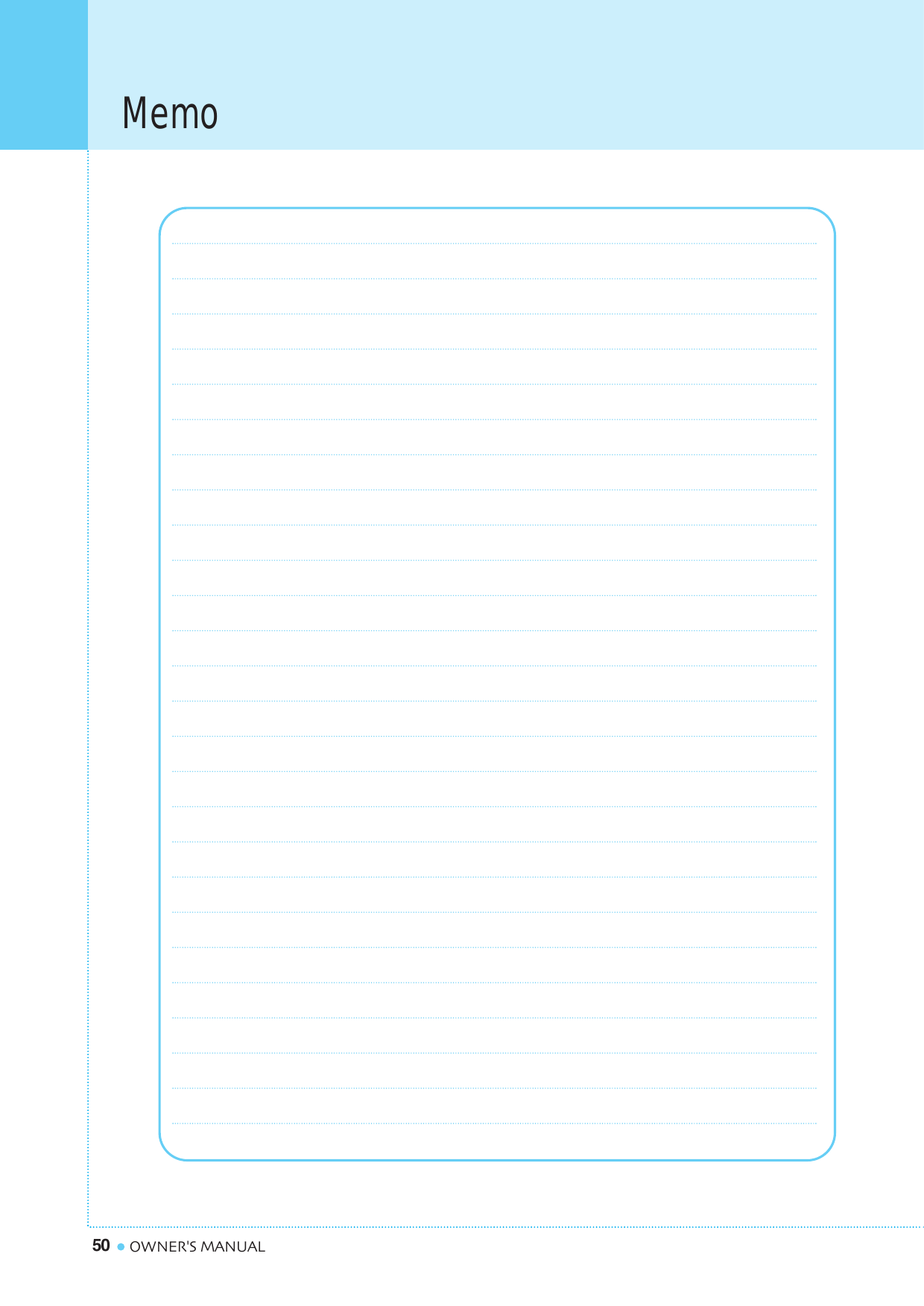

50 OWNER'S MANUALMemo
51OWNER'S MANUALMemo
52 OWNER'S MANUALMemo
Manual Version : HMN 1.0 E
