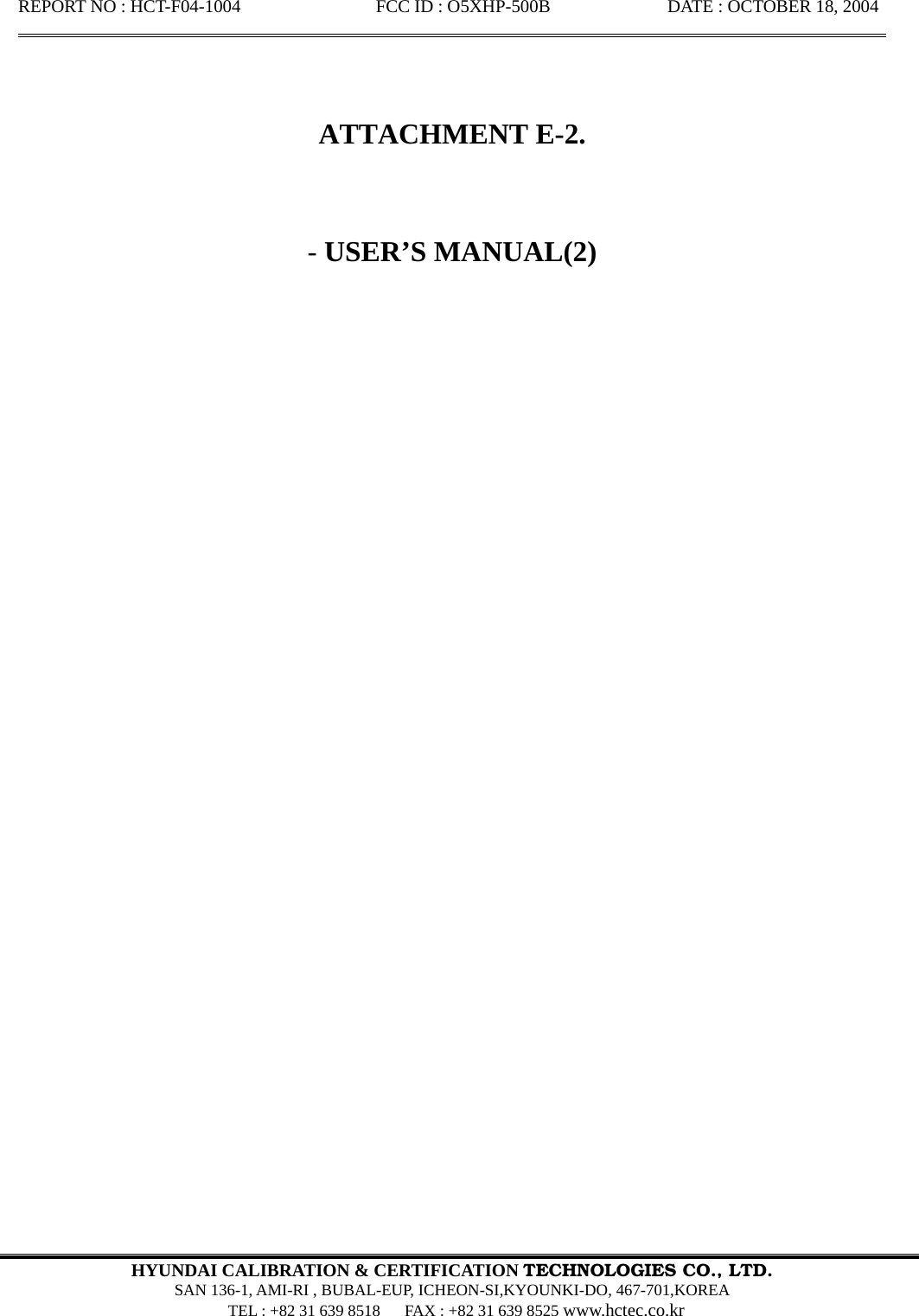

REPORT NO : HCT-F04-1004 FCC ID : O5XHP-500B DATE : OCTOBER 18, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E-2. - USER’S MANUAL(2)

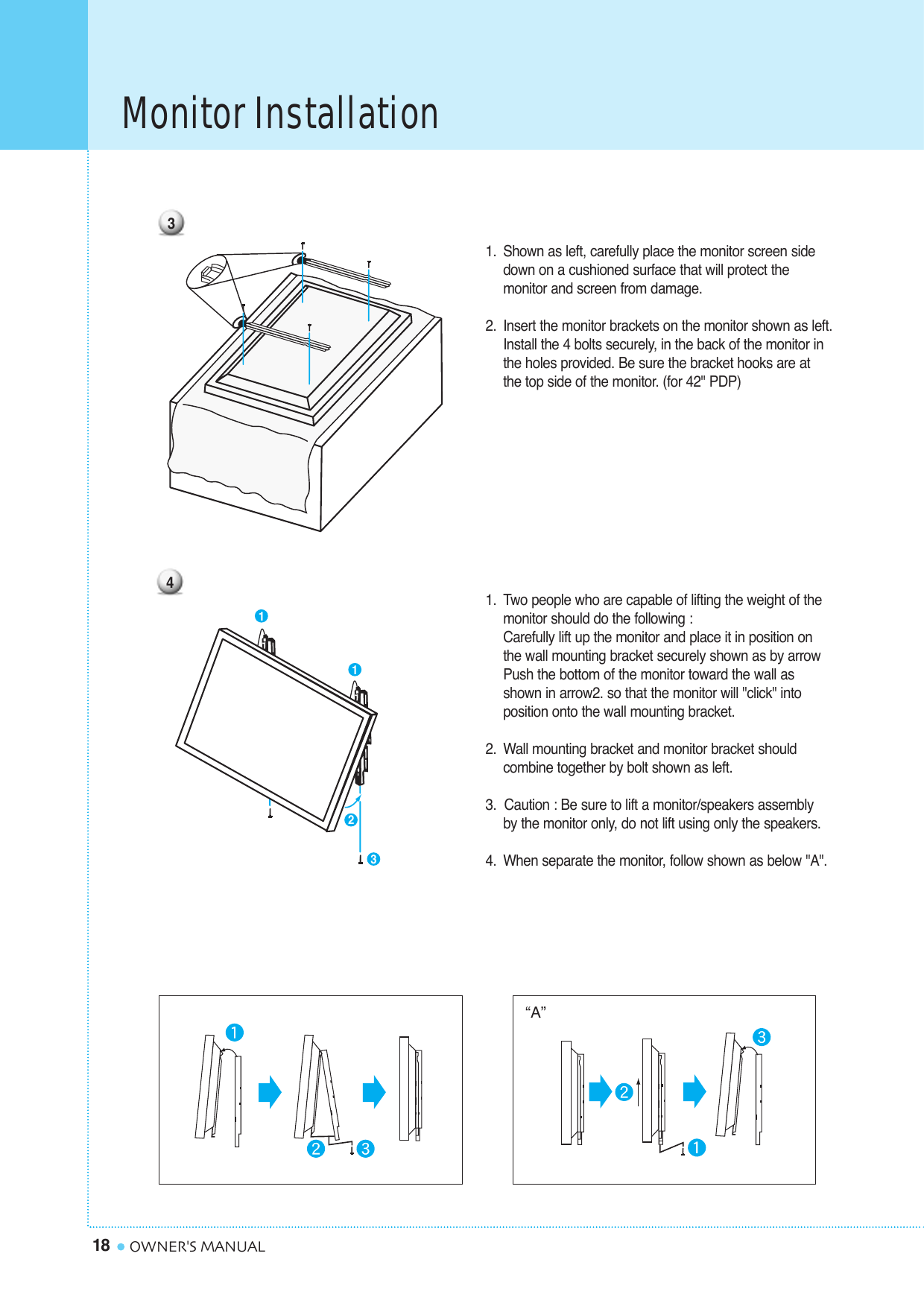

Monitor Installation18 OWNER'S MANUAL1. Shown as left, carefully place the monitor screen side down on a cushioned surface that will protect the monitor and screen from damage.2. Insert the monitor brackets on the monitor shown as left.Install the 4 bolts securely, in the back of the monitor inthe holes provided. Be sure the bracket hooks are at the top side of the monitor. (for 42" PDP)1. Two people who are capable of lifting the weight of themonitor should do the following : Carefully lift up the monitor and place it in position on the wall mounting bracket securely shown as by arrow Push the bottom of the monitor toward the wall as shown in arrow2. so that the monitor will "click" into position onto the wall mounting bracket.2. Wall mounting bracket and monitor bracket should combine together by bolt shown as left.3. Caution : Be sure to lift a monitor/speakers assembly by the monitor only, do not lift using only the speakers.4. When separate the monitor, follow shown as below "A".“A”341123

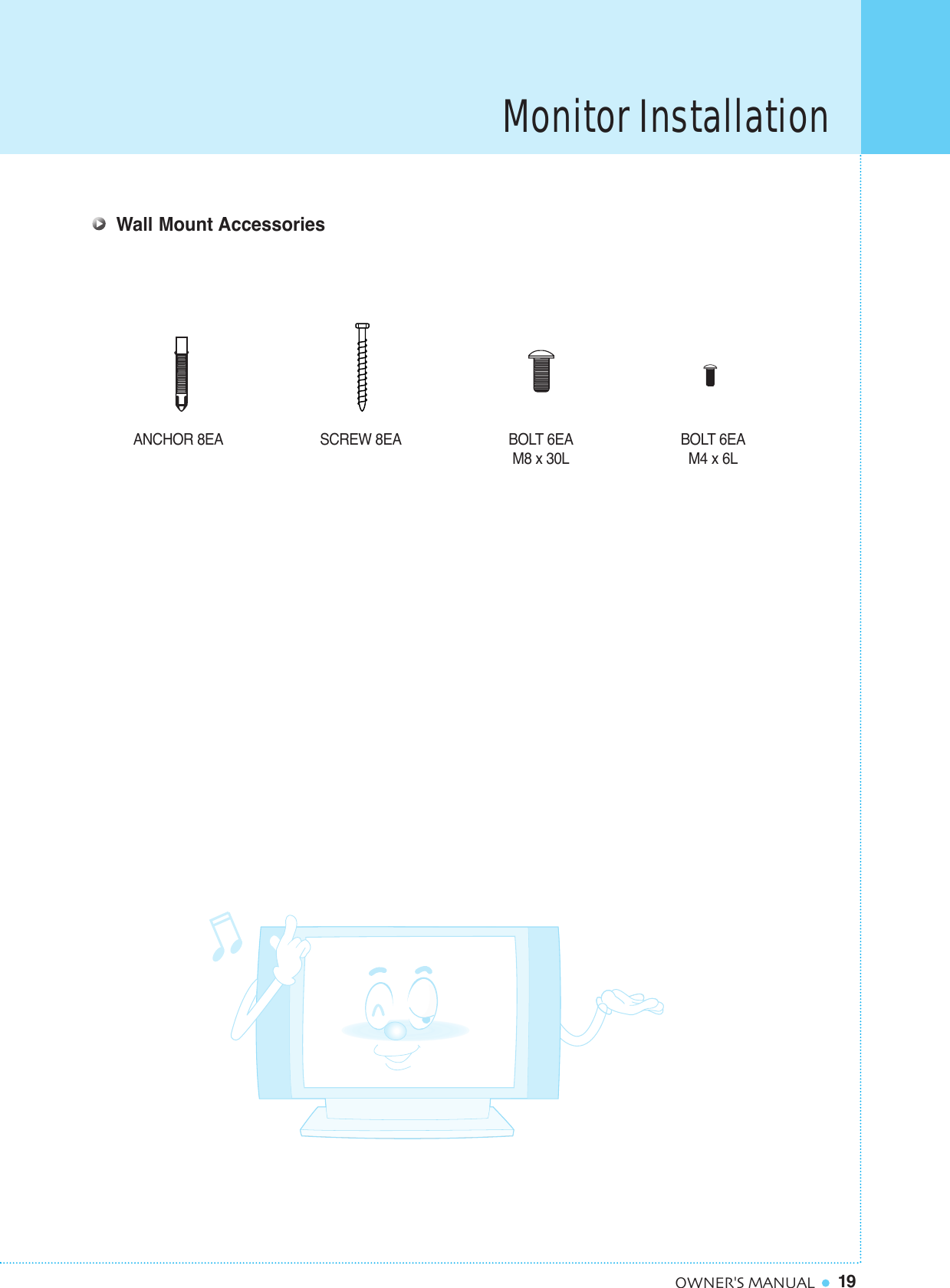

Monitor Installation19OWNER'S MANUALANCHOR 8EA SCREW 8EA BOLT 6EAM8 x 30LBOLT 6EAM4 x 6LWall Mount Accessories

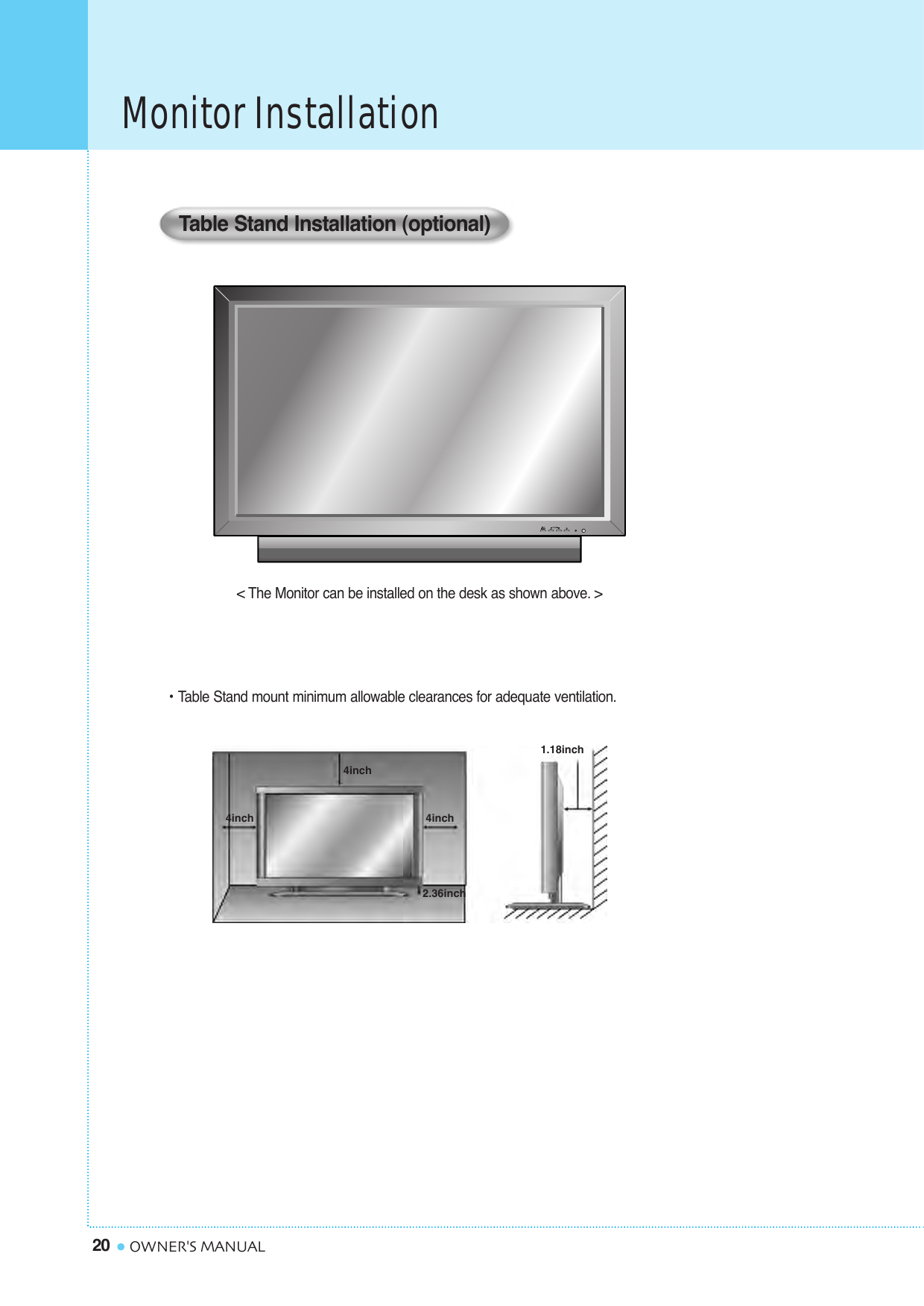

Monitor Installation20 OWNER'S MANUAL< The Monitor can be installed on the desk as shown above. >• Table Stand mount minimum allowable clearances for adequate ventilation.Table Stand Installation (optional)1.18inch4inch2.36inch4inch4inch

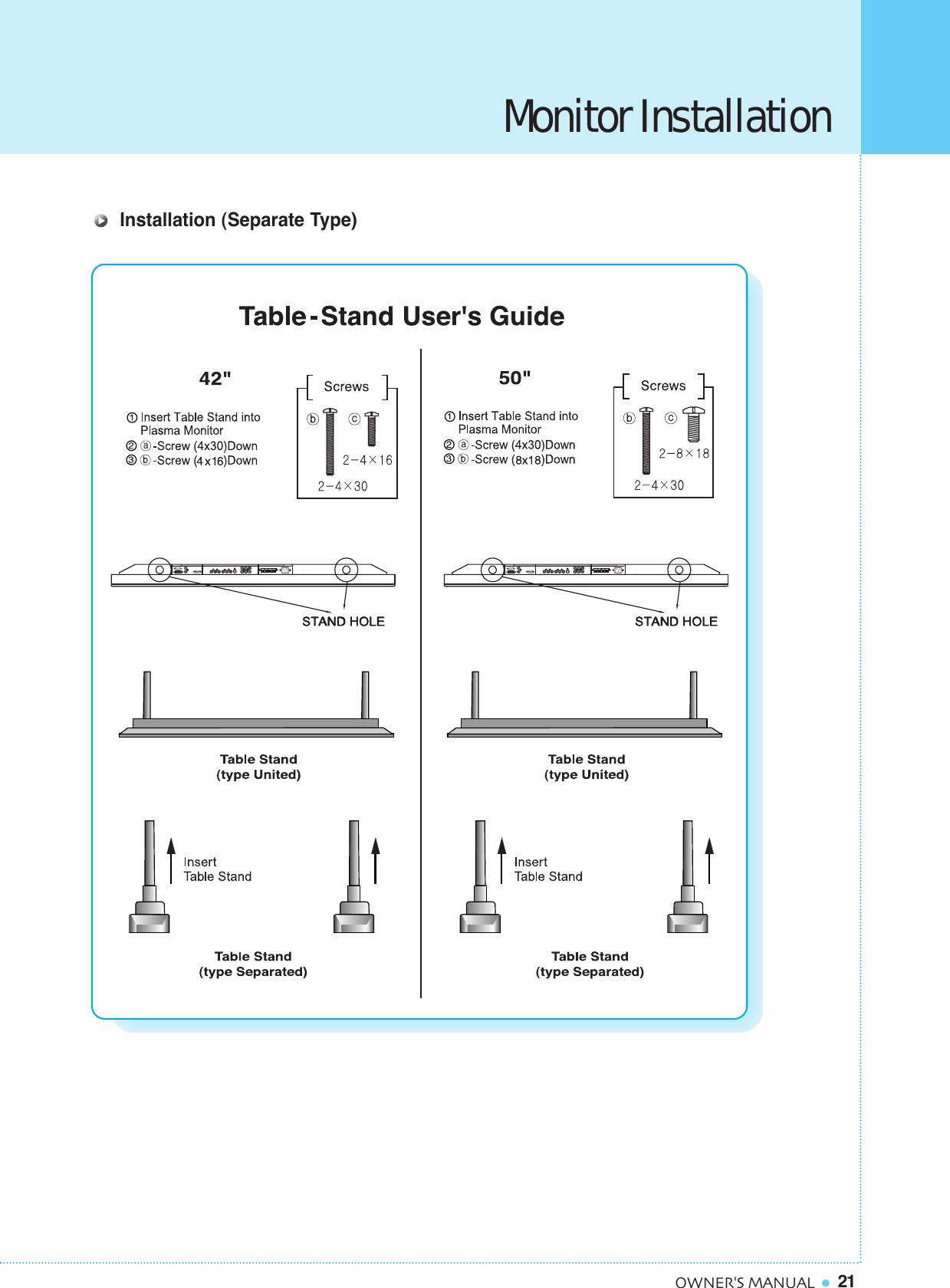

21OWNER'S MANUALMonitor InstallationInstallation (Separate Type)

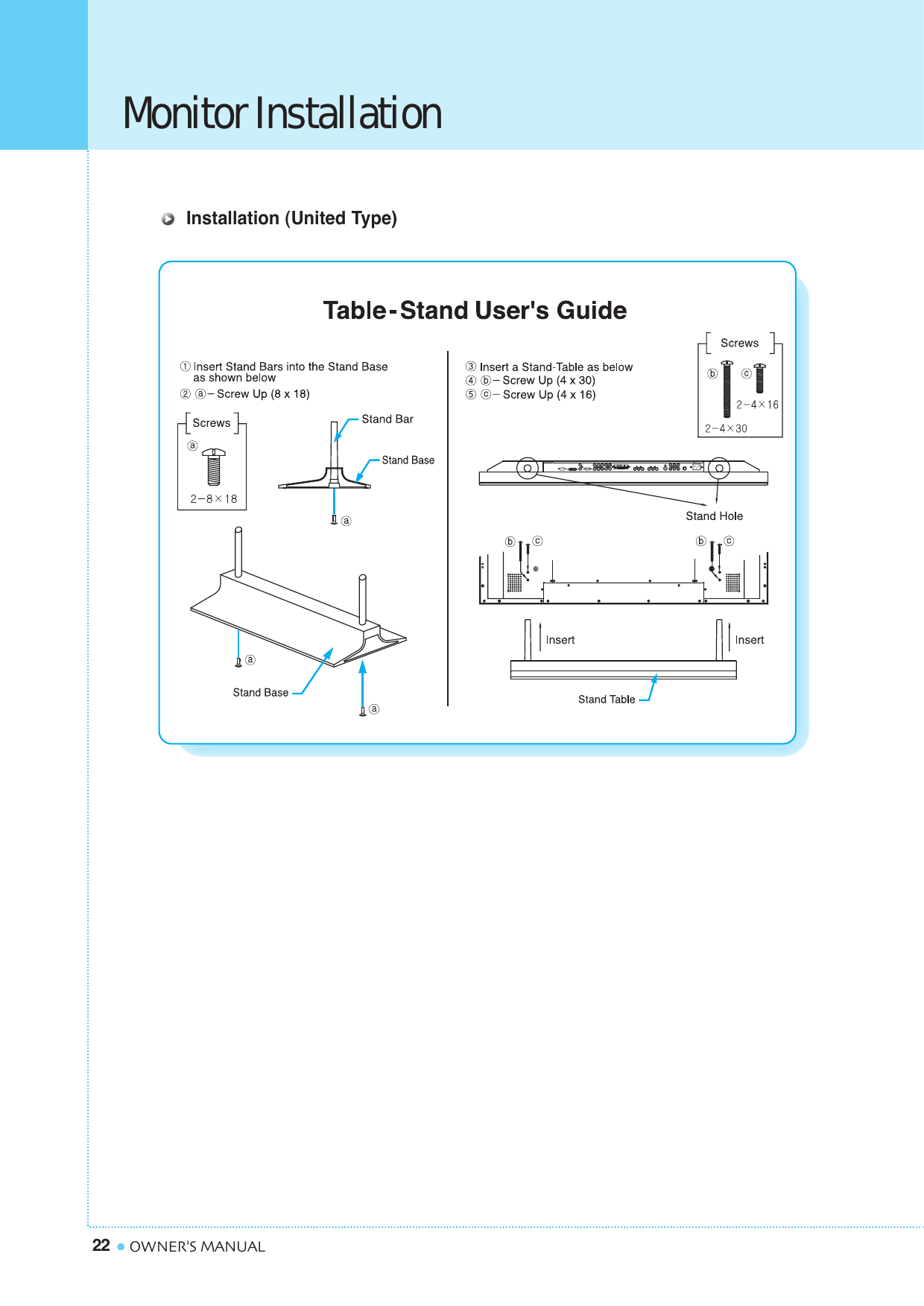

Monitor Installation22 OWNER'S MANUALInstallation (United Type)

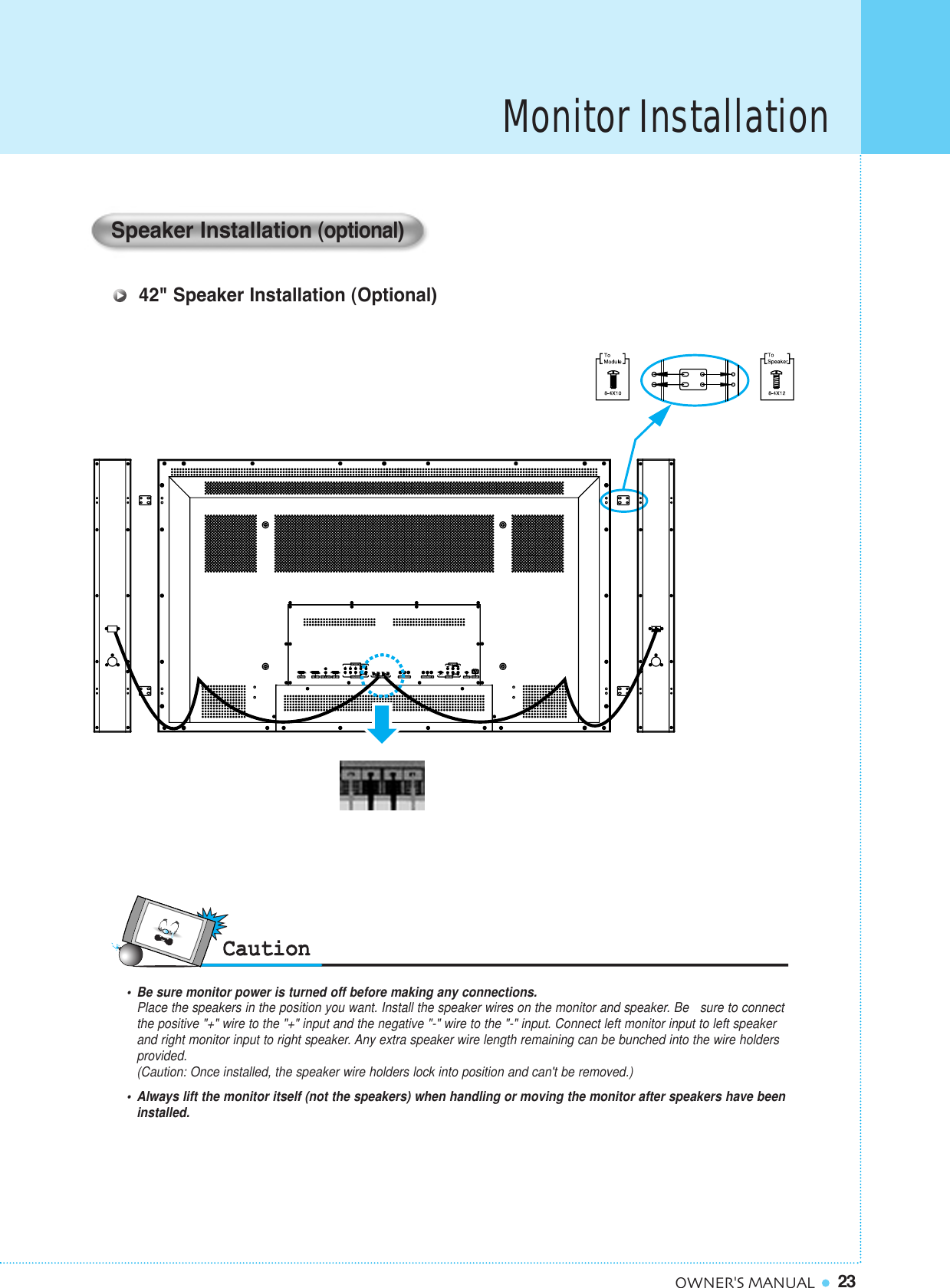

23OWNER'S MANUALMonitor Installation• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connectthe positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can't be removed.)• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have beeninstalled. Speaker Installation(optional) 42" Speaker Installation (Optional)

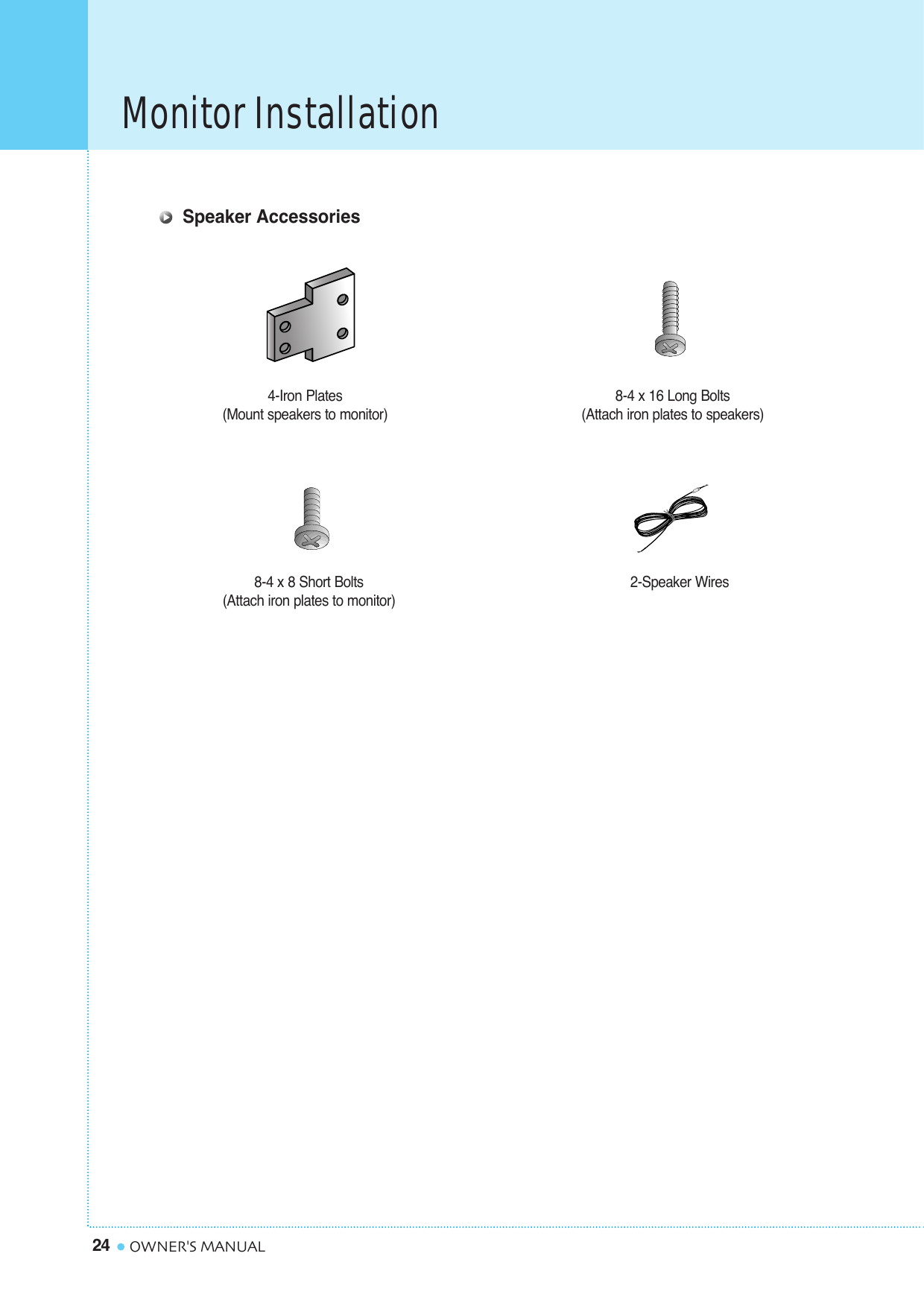

Monitor Installation24 OWNER'S MANUAL4-Iron Plates(Mount speakers to monitor) 8-4 x 16 Long Bolts(Attach iron plates to speakers)8-4 x 8 Short Bolts(Attach iron plates to monitor) 2-Speaker WiresSpeaker Accessories

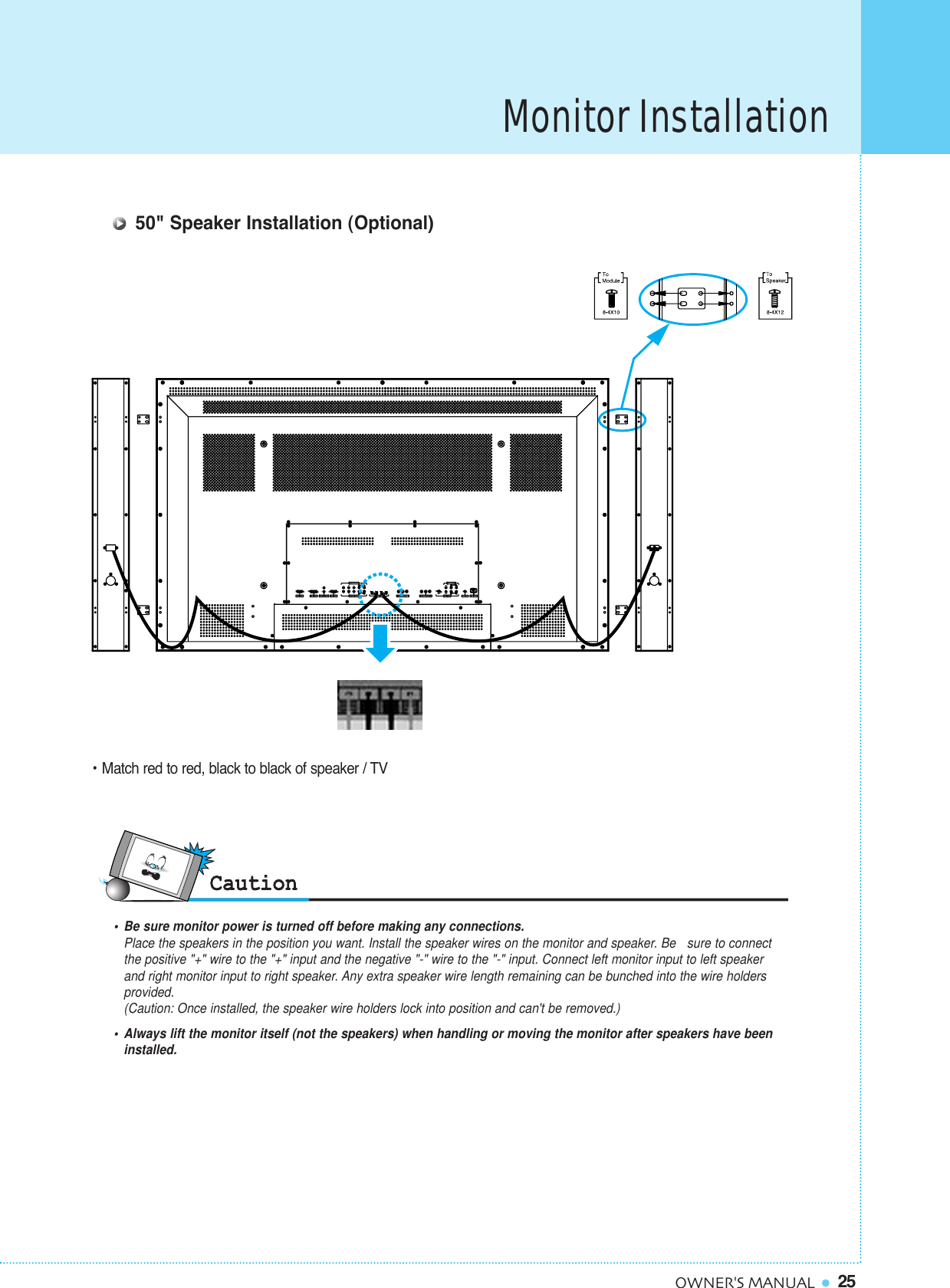

25OWNER'S MANUALMonitor Installation• Match red to red, black to black of speaker / TV• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can't be removed.)• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed. 50" Speaker Installation (Optional)
Monitor Installation26 OWNER'S MANUAL4-Iron Plates(Mount speakers to monitor) 8-4 x 16 Long Bolts(Attach iron plates to speakers)8-4 x 8 Short Bolts(Attach iron plates to monitor) 2-Speaker WiresSpeaker Accessories

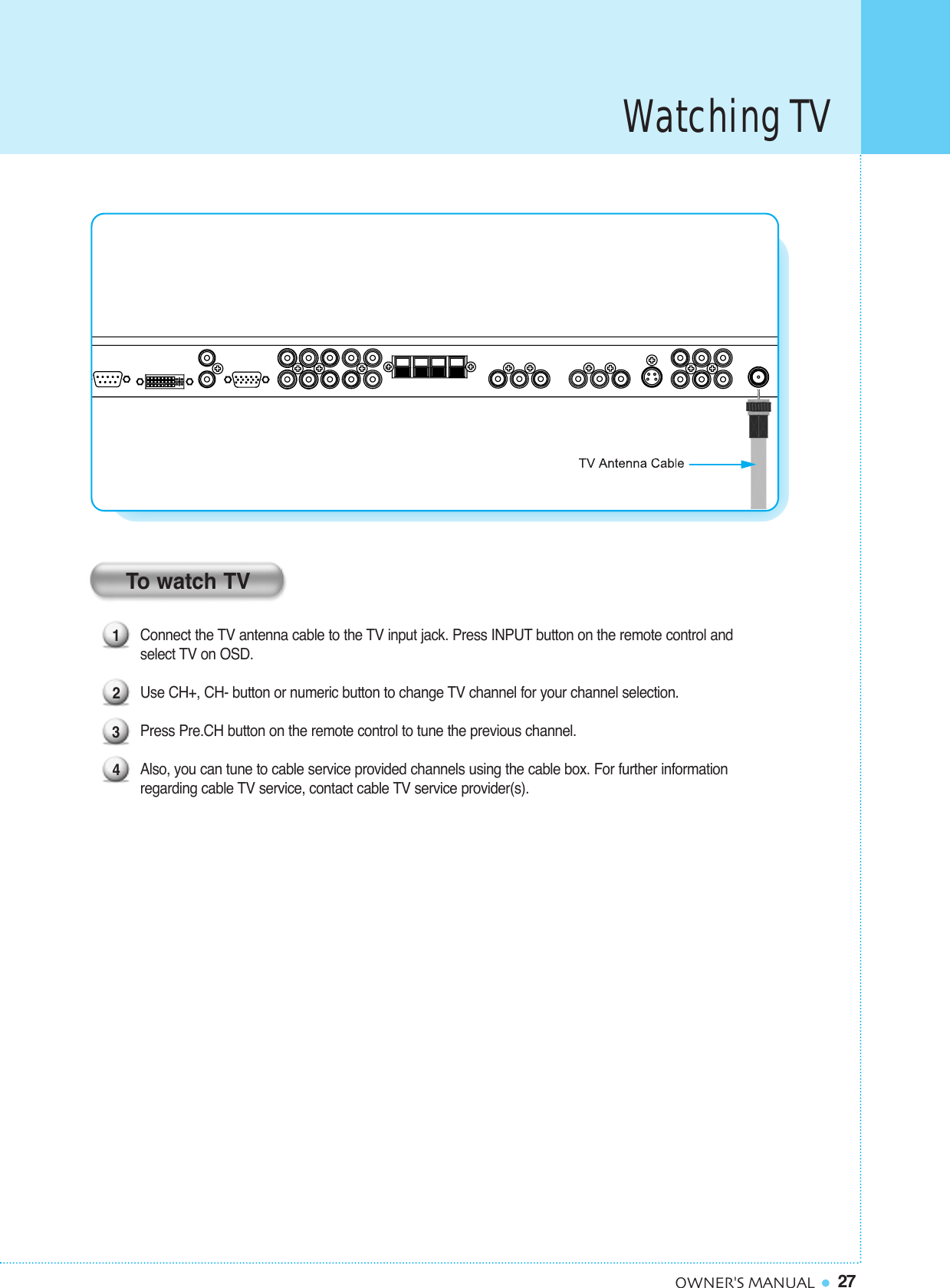

Watching TV27OWNER'S MANUAL1234To watch TVConnect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV on OSD.Use CH+, CH- button or numeric button to change TV channel for your channel selection. Press Pre.CH button on the remote control to tune the previous channel.Also, you can tune to cable service provided channels using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).

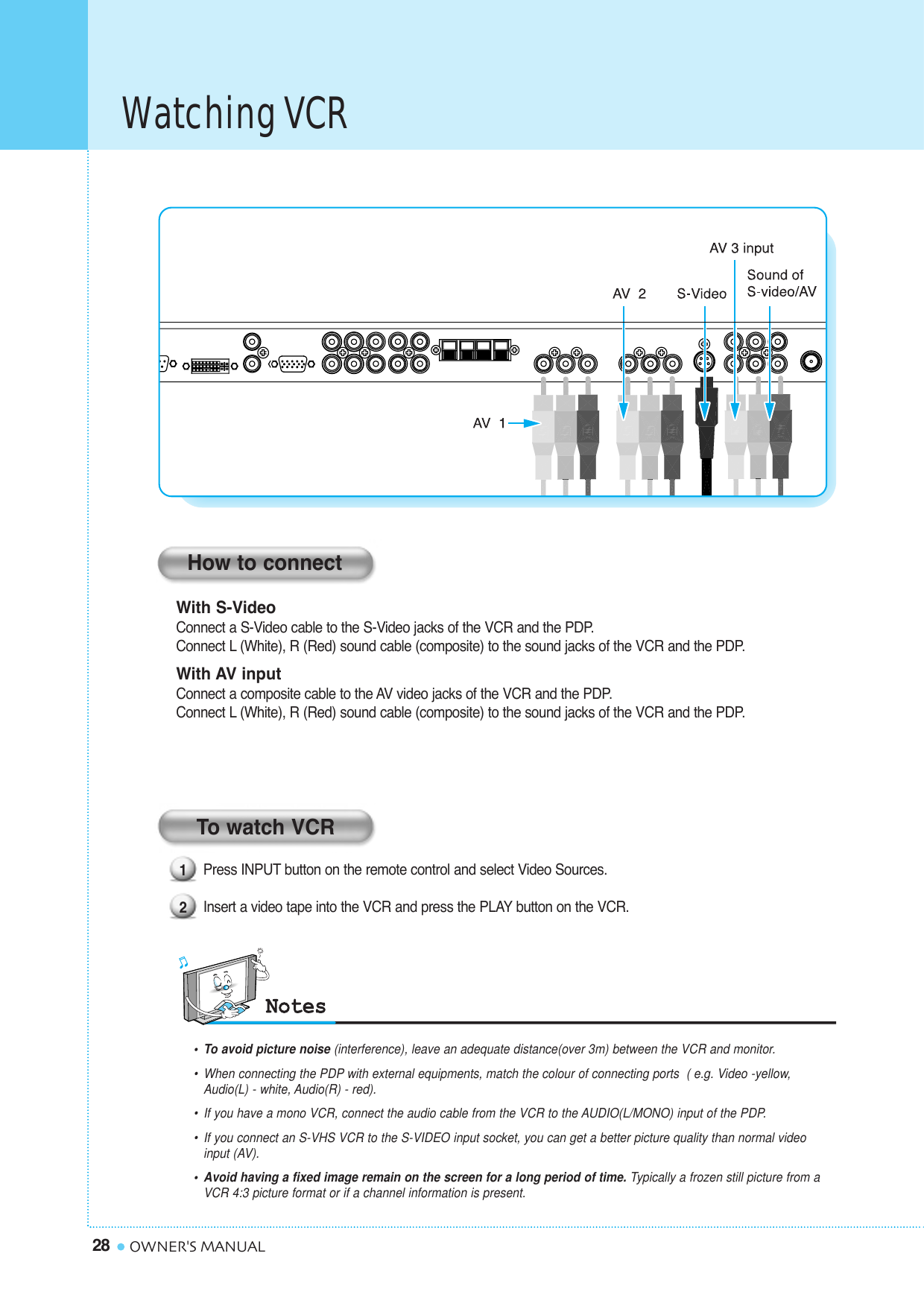

Watching VCR28 OWNER'S MANUALPress INPUT button on the remote control and select Video Sources. Insert a video tape into the VCR and press the PLAY button on the VCR. With S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the PDP.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the PDP.With AV inputConnect a composite cable to the AV video jacks of the VCR and the PDP.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the PDP.How to connect12To watch VCR•To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.• When connecting the PDP with external equipments, match the colour of connecting ports ( e.g. Video -yellow, Audio(L) - white, Audio(R) - red).•If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the PDP.• If you connect an S-VHS VCR to the S-VIDEO input socket, you can get a better picture quality than normal video input (AV).•Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR 4:3 picture format or if a channel information is present.

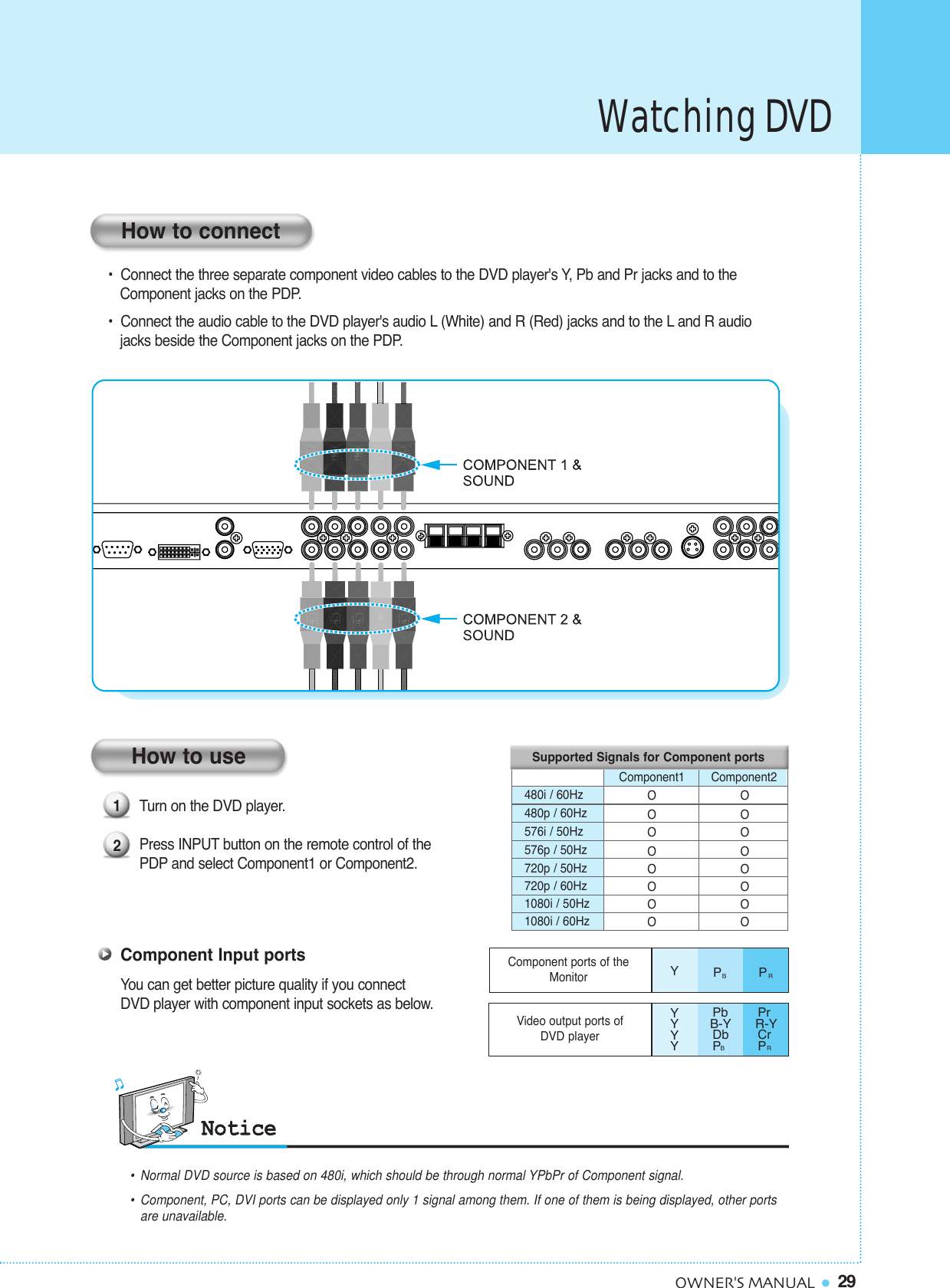

29OWNER'S MANUALTurn on the DVD player. Press INPUT button on the remote control of thePDP and select Component1 or Component2.• Connect the three separate component video cables to the DVD player's Y, Pb and Pr jacks and to the Component jacks on the PDP.• Connect the audio cable to the DVD player's audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the PDP.How to connect12How to useComponent Input portsYou can get better picture quality if you connect DVD player with component input sockets as below.Video output ports of DVD playerYYYYPbB-YDbPBPrR-YCrPRYPBPR480i / 60Hz480p / 60Hz576i / 50Hz576p / 50Hz720p / 50Hz720p / 60Hz1080i / 50Hz1080i / 60HzSupported Signals for Component portsOOOOOOOOOOOOOOOOComponent1 Component2Component ports of theMonitor•Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.•Component, PC, DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other portsare unavailable.Watching DVD

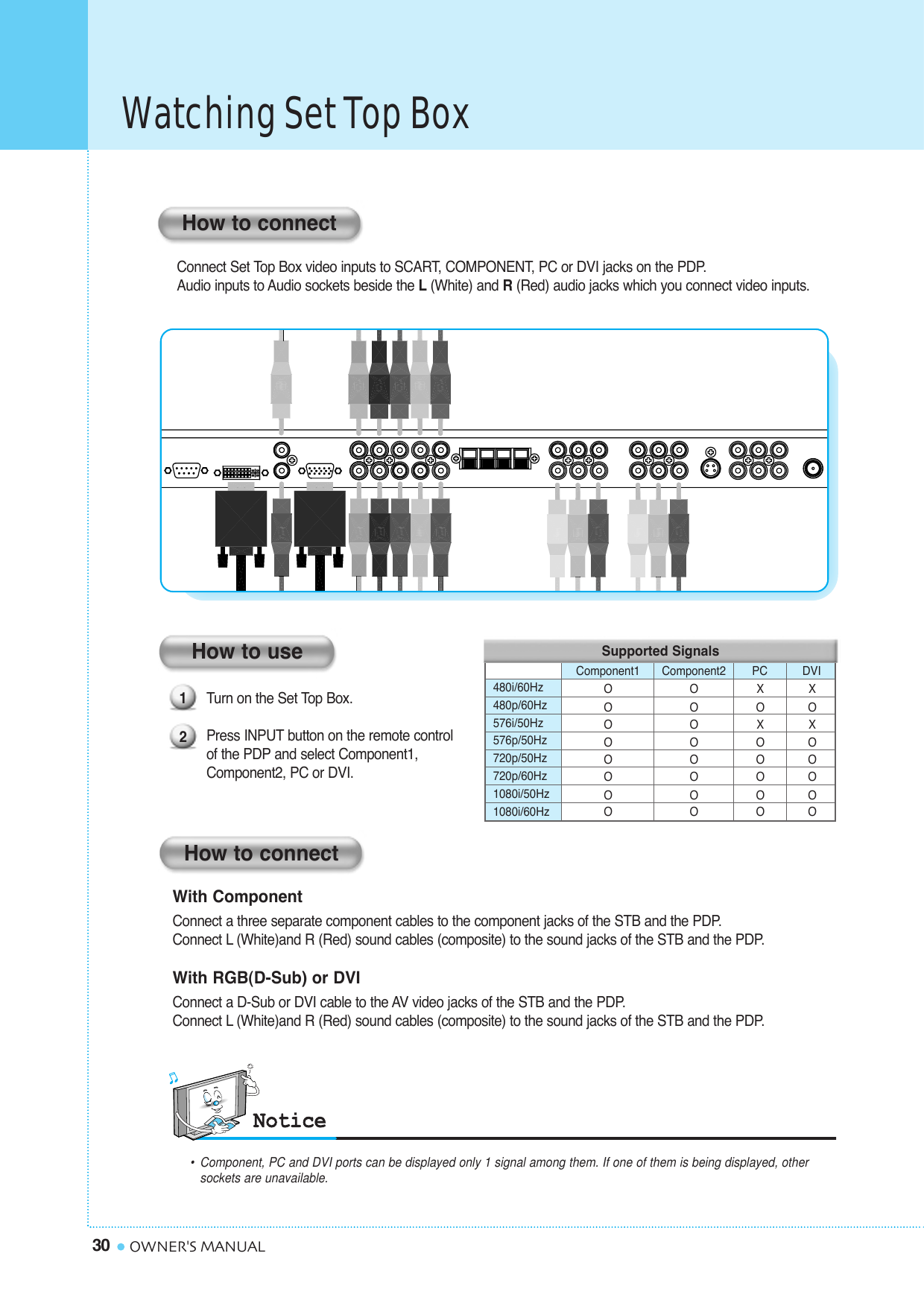

Watching Set Top Box30 OWNER'S MANUALTurn on the Set Top Box. Press INPUT button on the remote controlof the PDP and select Component1,Component2, PC or DVI.Connect Set Top Box video inputs to SCART, COMPONENT, PC or DVI jacks on the PDP. Audio inputs to Audio sockets beside the L(White) and R(Red) audio jacks which you connect video inputs.How to connect12How to useHow to connectWith ComponentConnect a three separate component cables to the component jacks of the STB and the PDP.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the PDP.With RGB(D-Sub) or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the PDP.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the PDP.•Component, PC and DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other sockets are unavailable.Supported Signals480i/60Hz480p/60Hz576i/50Hz576p/50Hz720p/50Hz720p/60Hz1080i/50Hz1080i/60HzOOOOOOOOOOOOOOOOXOXOOOOOXOXOOOOOComponent1 Component2 PC DVI

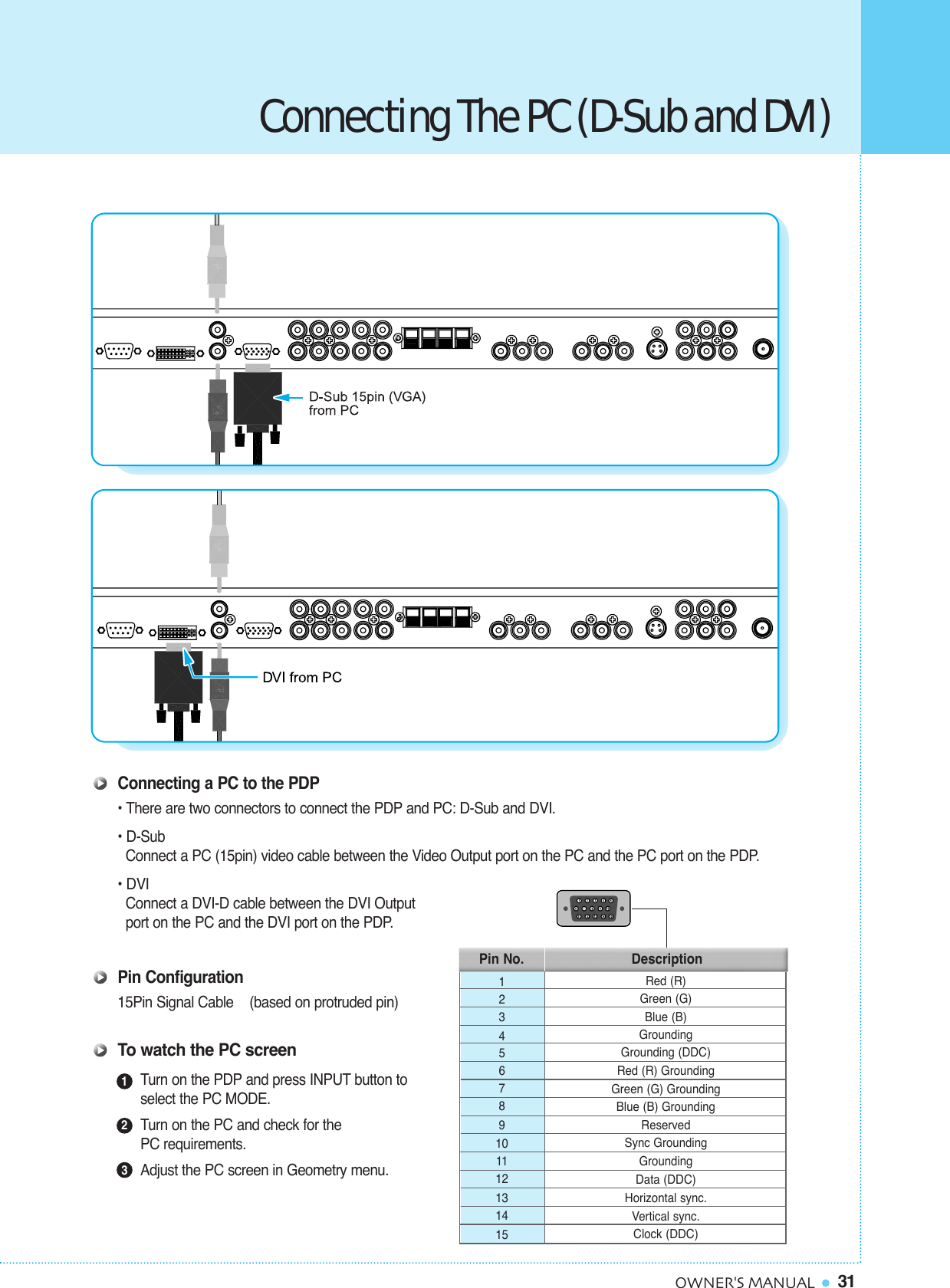

31OWNER'S MANUALPin Configuration15Pin Signal Cable (based on protruded pin)To watch the PC screenTurn on the PDP and press INPUT button to select the PC MODE.Turn on the PC and check for the PC requirements.Adjust the PC screen in Geometry menu. 123123456789101112131415Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Pin No. DescriptionConnecting The PC (D-Sub and DVI)Connecting a PC to the PDP• There are two connectors to connect the PDP and PC: D-Sub and DVI.• D-SubConnect a PC (15pin) video cable between the Video Output port on the PC and the PC port on the PDP. • DVIConnect a DVI-D cable between the DVI Output port on the PC and the DVI port on the PDP.

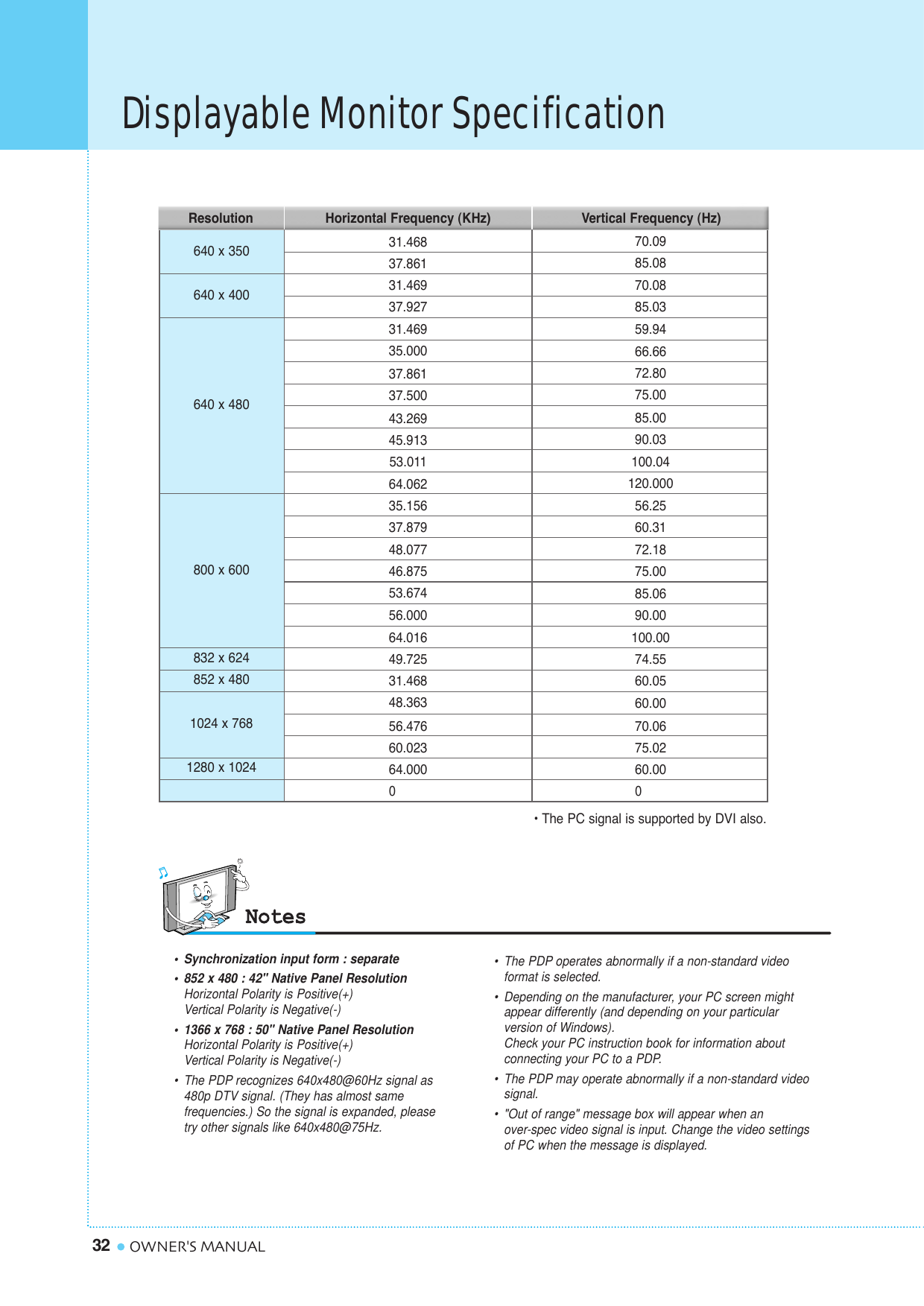

Displayable Monitor Specification32 OWNER'S MANUAL31.46837.86131.46937.92731.46935.00037.86137.50043.26945.91353.01164.06235.15637.87948.07746.87553.67456.00064.01649.72531.46848.36356.47660.02364.000070.0985.0870.0885.0359.9466.6672.8075.0085.0090.03100.04120.00056.2560.3172.1875.0085.0690.00100.0074.5560.0560.0070.0675.0260.000Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)•Synchronization input form : separate•852 x 480 : 42" Native Panel ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)• 1366 x 768 : 50" Native Panel ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)•The PDP recognizes 640x480@60Hz signal as 480p DTV signal. (They has almost same frequencies.) So the signal is expanded, please try other signals like 640x480@75Hz.•The PDP operates abnormally if a non-standard video format is selected. •Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of Windows).Check your PC instruction book for information about connecting your PC to a PDP.• The PDP may operate abnormally if a non-standard video signal.• "Out of range" message box will appear when an over-spec video signal is input. Change the video settings of PC when the message is displayed.• The PC signal is supported by DVI also.640 x 350640 x 400640 x 480800 x 600832 x 624852 x 4801024 x 7681280 x 1024
33OWNER'S MANUALPress the Power button on the remote control. The PDP will turn on and you will be ready to use its features. You can also use the Power button on the front panel.Press INPUT button on the remote control. Then you can see the source list menu shown as below.Connect the signal source (TV antenna) to TV input. Press INPUT button on the remote control and select TV on the source list.Use CH+, CH- button or numeric button to change TV channel you want. Press Pre.CH button on the remote control to watch the previous channel. Also, you can tune the cable service, provided channels while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Use VOL+/VOL- button on the remote control to adjust the volume level.Press MUTE button on the remote control when you need to cut the sound temporarily.1234Select the source to watch with CH+/CH- button on theremote control and press the Menu/Set button.Source list menu Source ChangeTVAV 1AV 2S-VIDEO /AV 3COMPONENTE 1COMPONENTE 2PCDVI12345678Turning PDP TV On/OffSelect SourceVolume ControlTV Channel SelectionBasic Operation

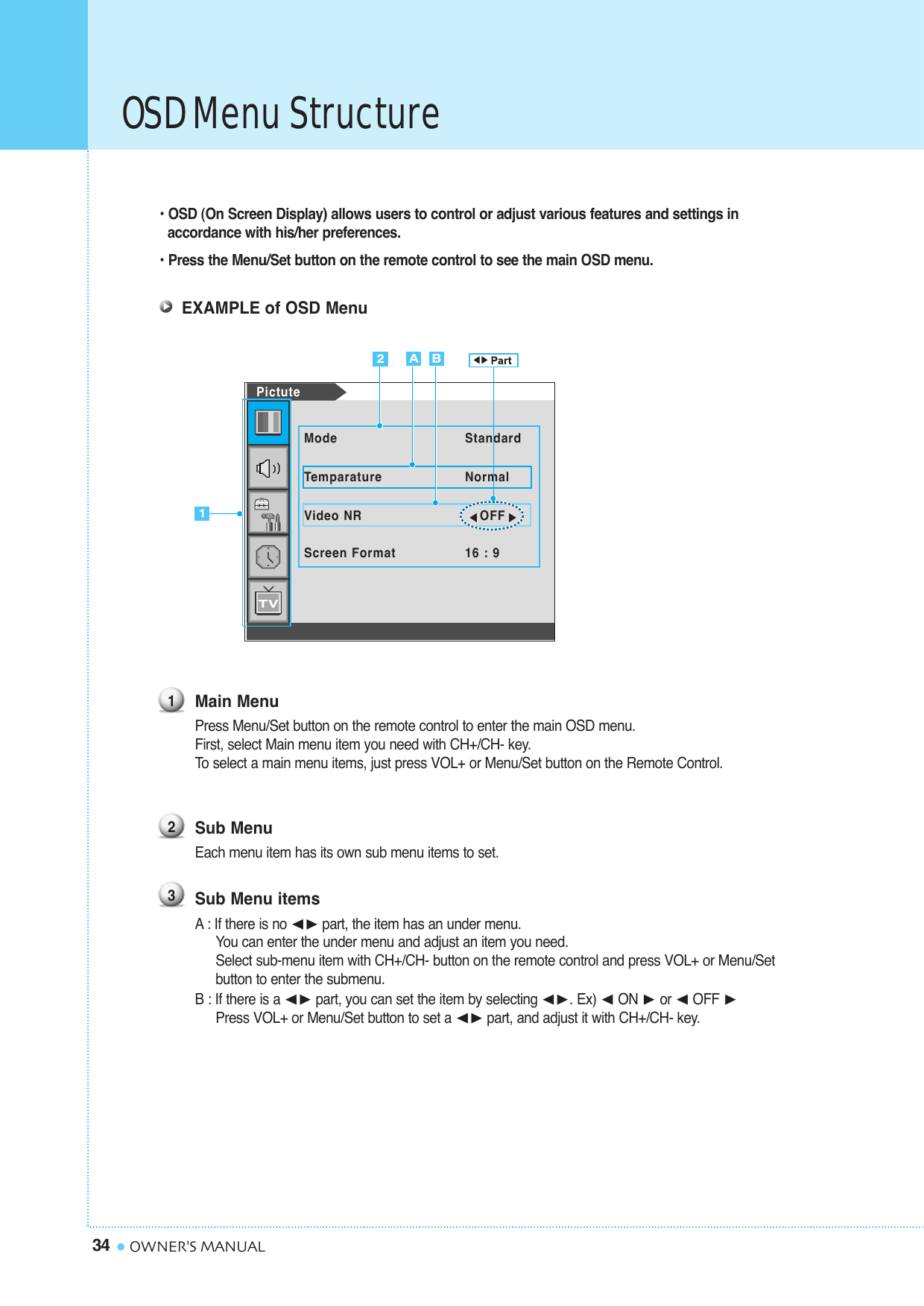

OSD Menu Structure34 OWNER'S MANUAL• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences.• Press the Menu/Set button on the remote control to see the main OSD menu.EXAMPLE of OSD MenuMain MenuPress Menu/Set button on the remote control to enter the main OSD menu.First, select Main menu item you need with CH+/CH- key.To select a main menu items, just press VOL+ or Menu/Set button on the Remote Control.Sub MenuEach menu item has its own sub menu items to set.Sub Menu itemsA: If there is no ¥part, the item has an under menu.You can enter the under menu and adjust an item you need.Select sub-menu item with CH+/CH- button on the remote control and press VOL+ or Menu/Set button to enter the submenu.B : If there is a ¥part, you can set the item by selecting ¥. Ex) ¥ON or ¥OFF Press VOL+ or Menu/Set button to set a ¥part, and adjust it with CH+/CH- key.123ModeTemparatureVideo NRScreen FormatStandardNormalOFF16 : 9Pictute

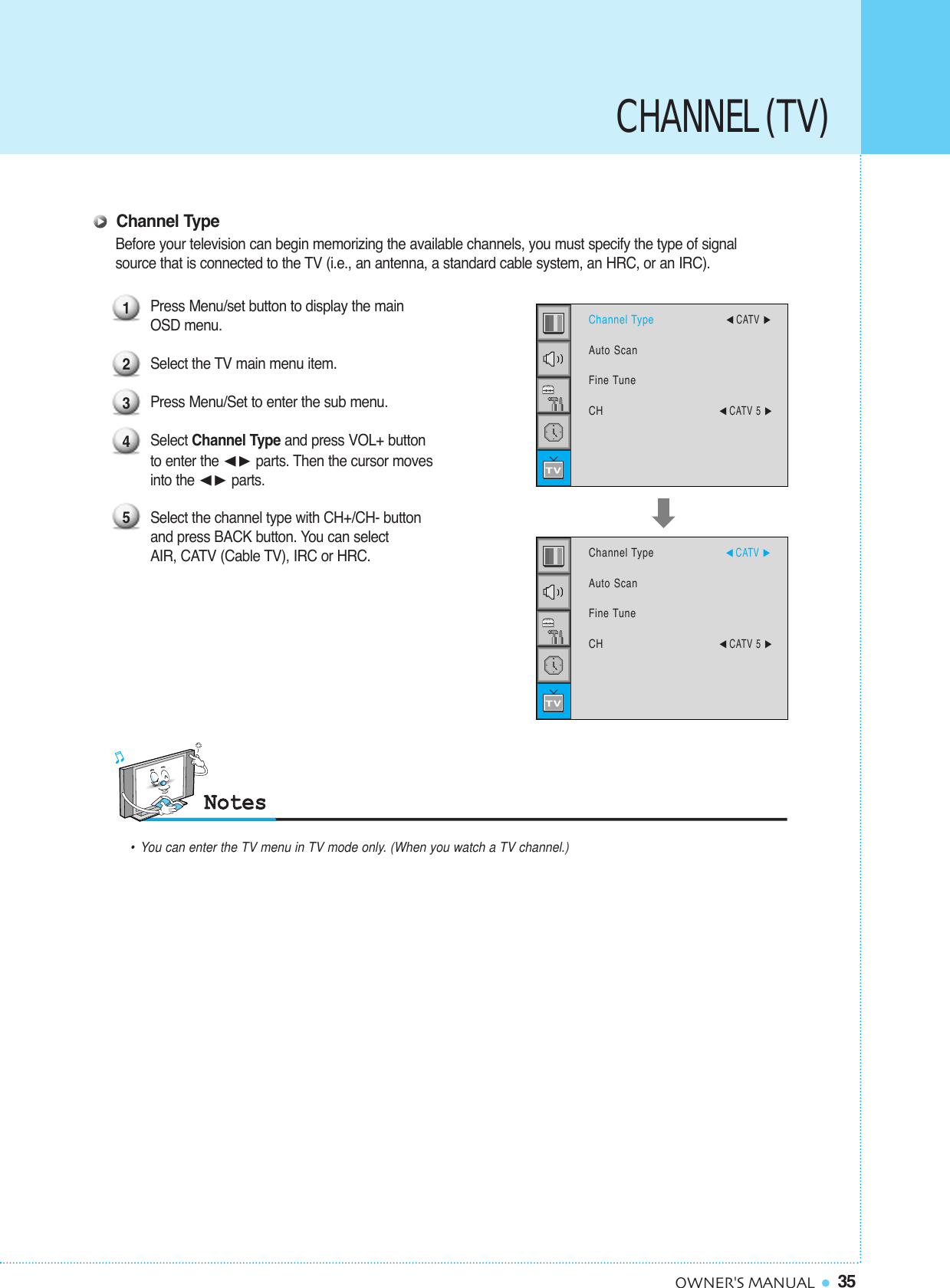

35OWNER'S MANUALBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e., an antenna, a standard cable system, an HRC, or an IRC).Press Menu/set button to display the main OSD menu.Select the TV main menu item. Press Menu/Set to enter the sub menu. Select Channel Type and press VOL+ button to enter the ¥ parts. Then the cursor movesinto the ¥ parts.Select the channel type with CH+/CH- buttonand press BACK button. You can select AIR, CATV (Cable TV), IRC or HRC.12345Channel Type•You can enter the TV menu in TV mode only. (When you watch a TV channel.)Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 CHANNEL (TV)

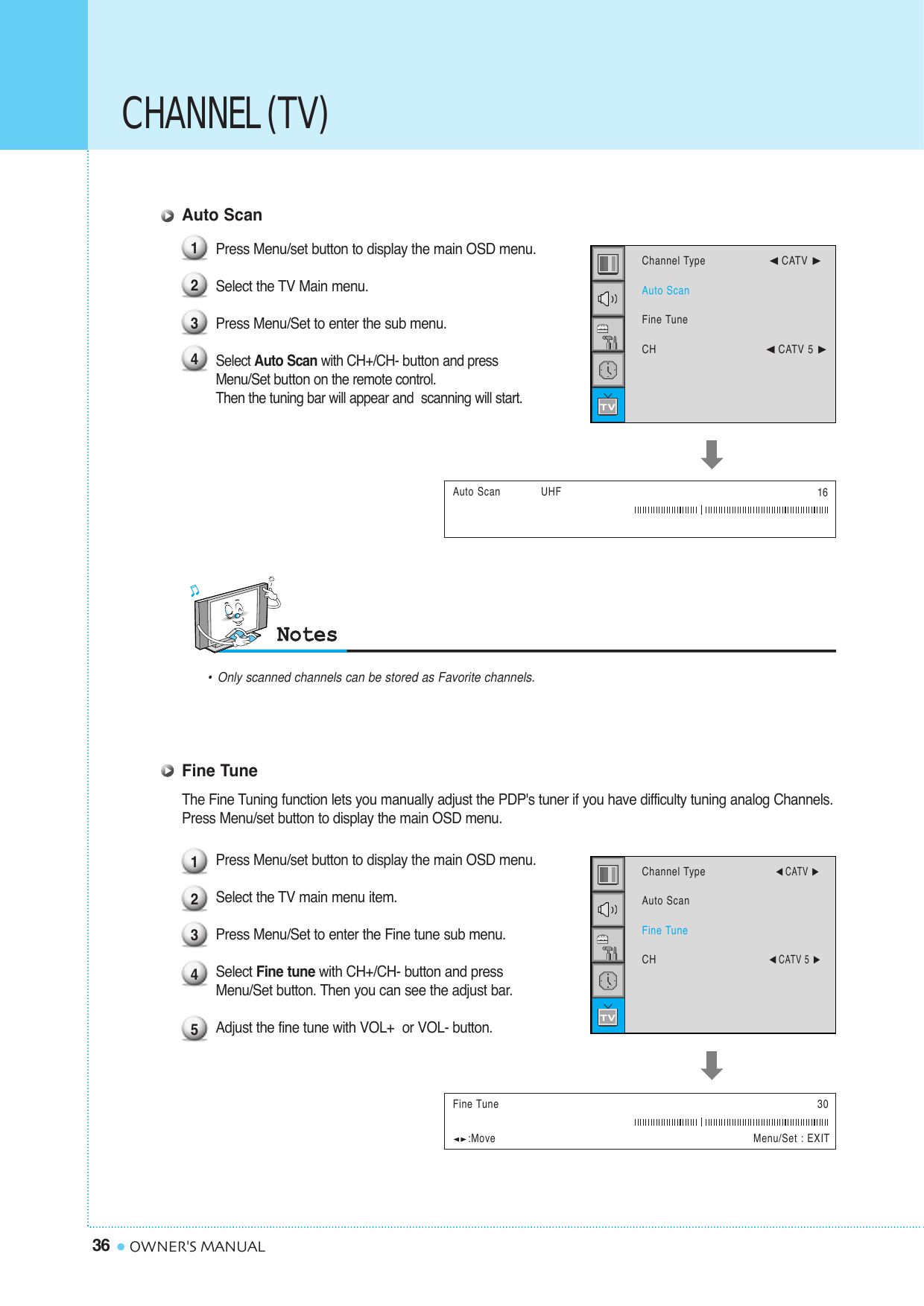

Auto ScanPress Menu/set button to display the main OSD menu. Select the TV Main menu.Press Menu/Set to enter the sub menu. Select Auto Scan with CH+/CH- buttonand press Menu/Set buttonon the remote control. Then the tuning bar will appear and scanning will start.Fine TuneThe Fine Tuning function lets you manually adjust the PDP's tuner if you have difficulty tuning analog Channels.Press Menu/set button to display the main OSD menu.Press Menu/set button to display the main OSD menu. Select the TV main menu item.Press Menu/Set to enter the Fine tune sub menu.Select Fine tune with CH+/CH- button and press Menu/Set button. Then you can see the adjust bar.Adjust the fine tune with VOL+ or VOL- button.CHANNEL (TV)36 OWNER'S MANUAL1234Auto Scan UHF 16•Only scanned channels can be stored as Favorite channels.12345Fine Tune 30:Move Menu/Set : EXITChannel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 

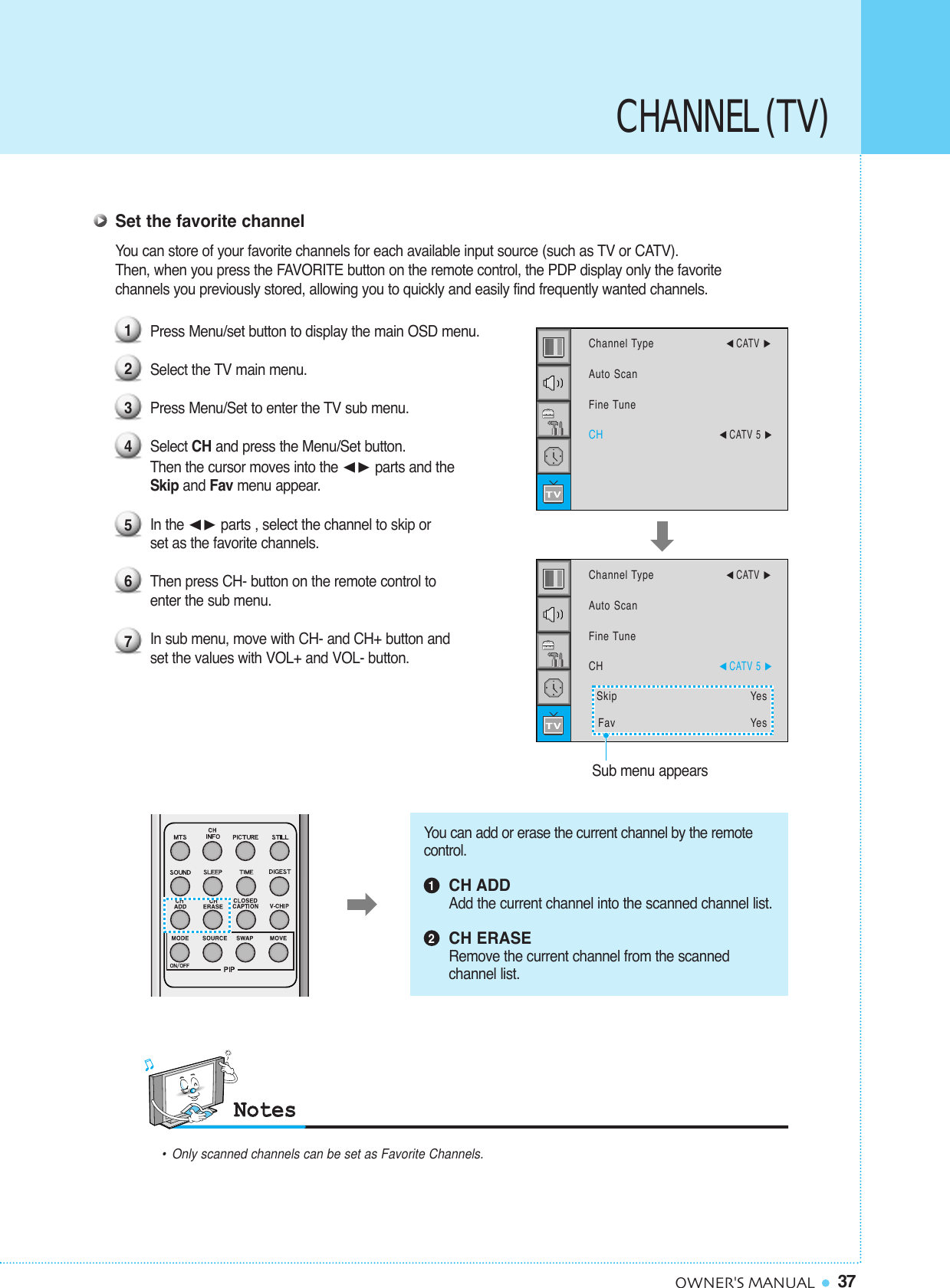

37OWNER'S MANUALSet the favorite channelYou can store of your favorite channels for each available input source (such as TV or CATV). Then, when you press the FAVORITE button on the remote control, the PDP display only the favorite channels you previously stored, allowing you to quickly and easily find frequently wanted channels. Press Menu/set button to display the main OSD menu. Select the TV main menu.Press Menu/Set to enter the TV sub menu.Select CH and press the Menu/Set button. Then the cursor moves into the ¥ parts and the Skip and Fav menu appear.In the ¥ parts , select the channel to skip or set as the favorite channels.Then press CH- button on the remote control to enter the sub menu. In sub menu, move with CH- and CH+ button and set the values with VOL+ and VOL- button.1234567CHANNEL (TV)You can add or erase the current channel by the remote control.CH ADD Add the current channel into the scanned channel list.CH ERASERemove the current channel from the scanned channel list.12•Only scanned channels can be set as Favorite Channels.Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Skip Yes Fav YesSub menu appears

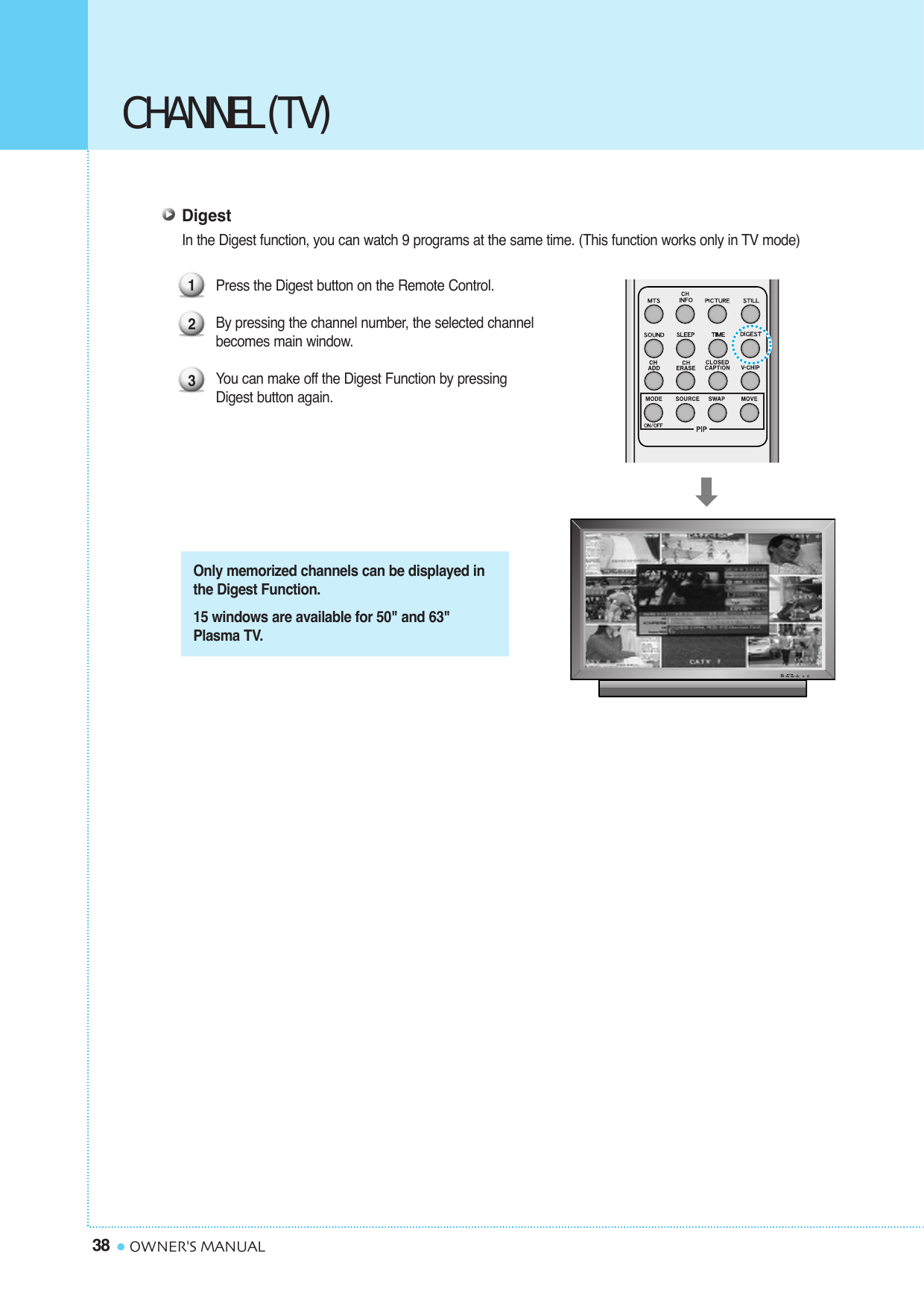

38 OWNER'S MANUALCHANNEL (TV)DigestIn the Digest function, you can watch 9 programs at the same time. (This function works only in TV mode)Press the Digest button on the Remote Control.By pressing the channel number, the selected channel becomes main window.You can make off the Digest Function by pressing Digest button again.123Only memorized channels can be displayed inthe Digest Function.15 windows are available for 50" and 63"Plasma TV.

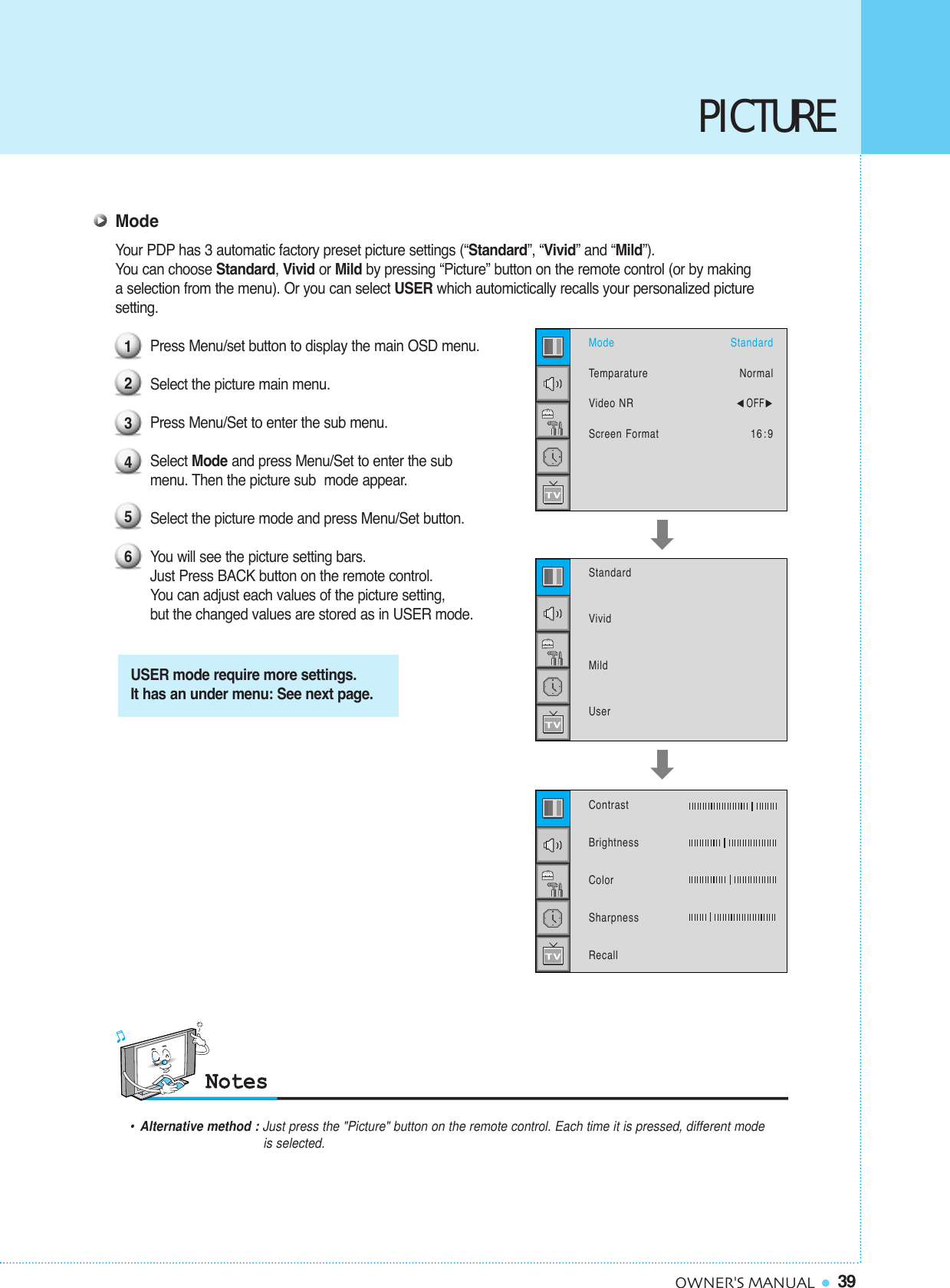

39OWNER'S MANUALModeYour PDP has 3 automatic factory preset picture settings (“Standard”, “Vivid” and “Mild”). You can choose Standard, Vivid or Mild by pressing “Picture” button on the remote control (or by making a selection from the menu). Or you can select USER which automictically recalls your personalized picture setting.Press Menu/set button to display the main OSD menu. Select the picture main menu.Press Menu/Set to enter the sub menu.Select Mode and press Menu/Set to enter the submenu. Then the picture sub mode appear.Select the picture mode and press Menu/Set button.You will see the picture setting bars. Just Press BACK button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in USER mode.123456ModeTemparatureVideo NRScreen FormatStandardNormal¥OFF16: 9StandardVividMildUserPICTUREUSER mode require more settings.It has an under menu: See next page.ContrastBrightnessColorSharpnessRecall•Alternative method : Just press the "Picture" button on the remote control. Each time it is pressed, different mode is selected.
PICTURE40 OWNER'S MANUALPicture Mode is to set CH+ or adjust Picture Adjust, Mode, Video Noise Reduction, Screen Formatand Burn Protection.Adjust USER ModeYou can change the Contrast, Brightness, Color, and Sharpness according to personal preference in USER mode.Select the item to adjust with CH-, CH+ button.Press Menu/Set button. Adjust the item with VOL-, VOL+ button.To cancel all adjust, select Recall and press Menu/Set button.1234To more detail description about these item,refer to the next pageSelect USER mode (Previous page)ContrastBrightnessColorSharpnessRecall

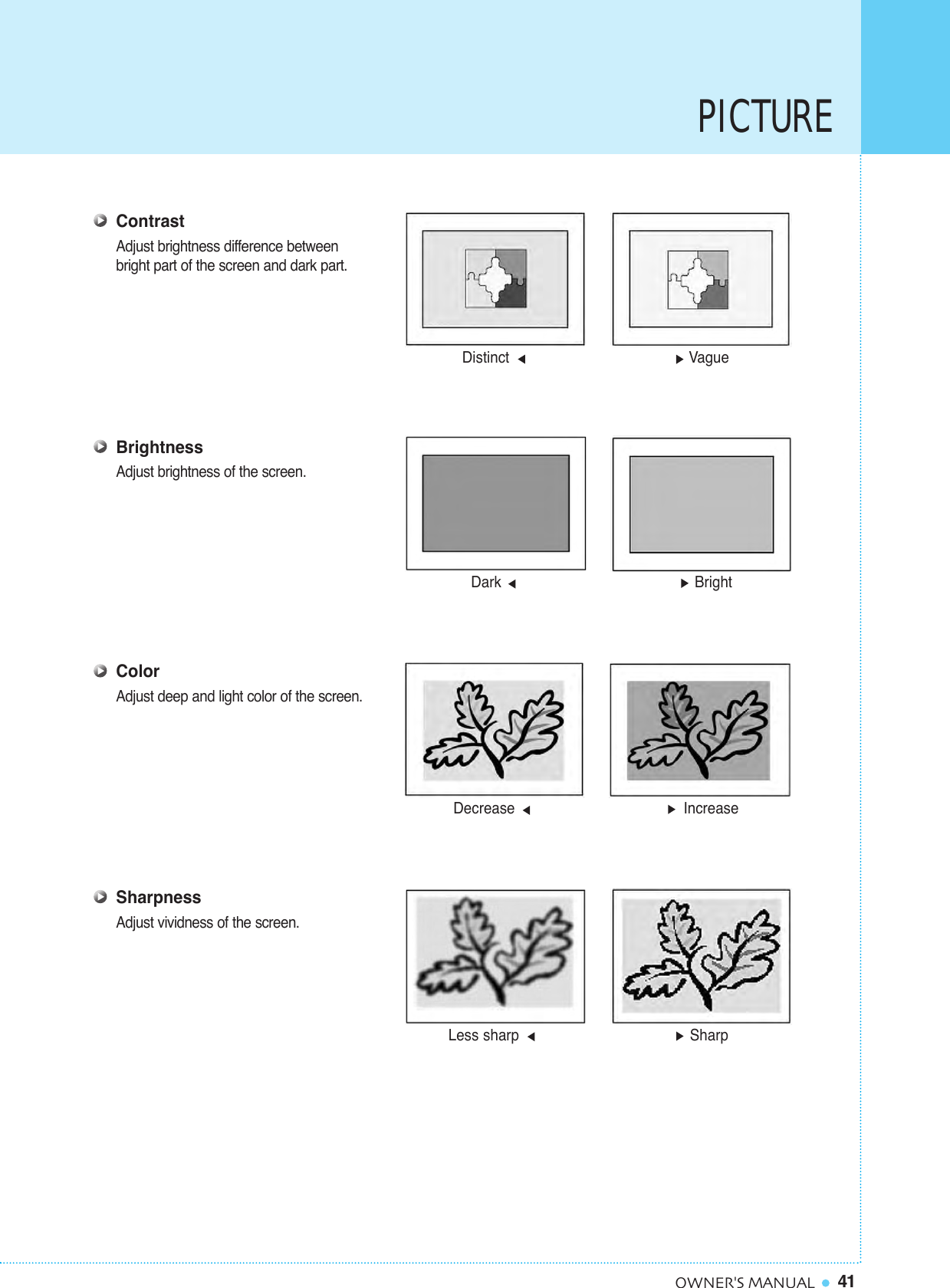

41OWNER'S MANUALContrastAdjust brightness difference between bright part of the screen and dark part.BrightnessAdjust brightness of the screen.ColorAdjust deep and light color of the screen.SharpnessAdjust vividness of the screen.Distinct VagueDark BrightDecrease IncreaseLess sharp SharpPICTURE

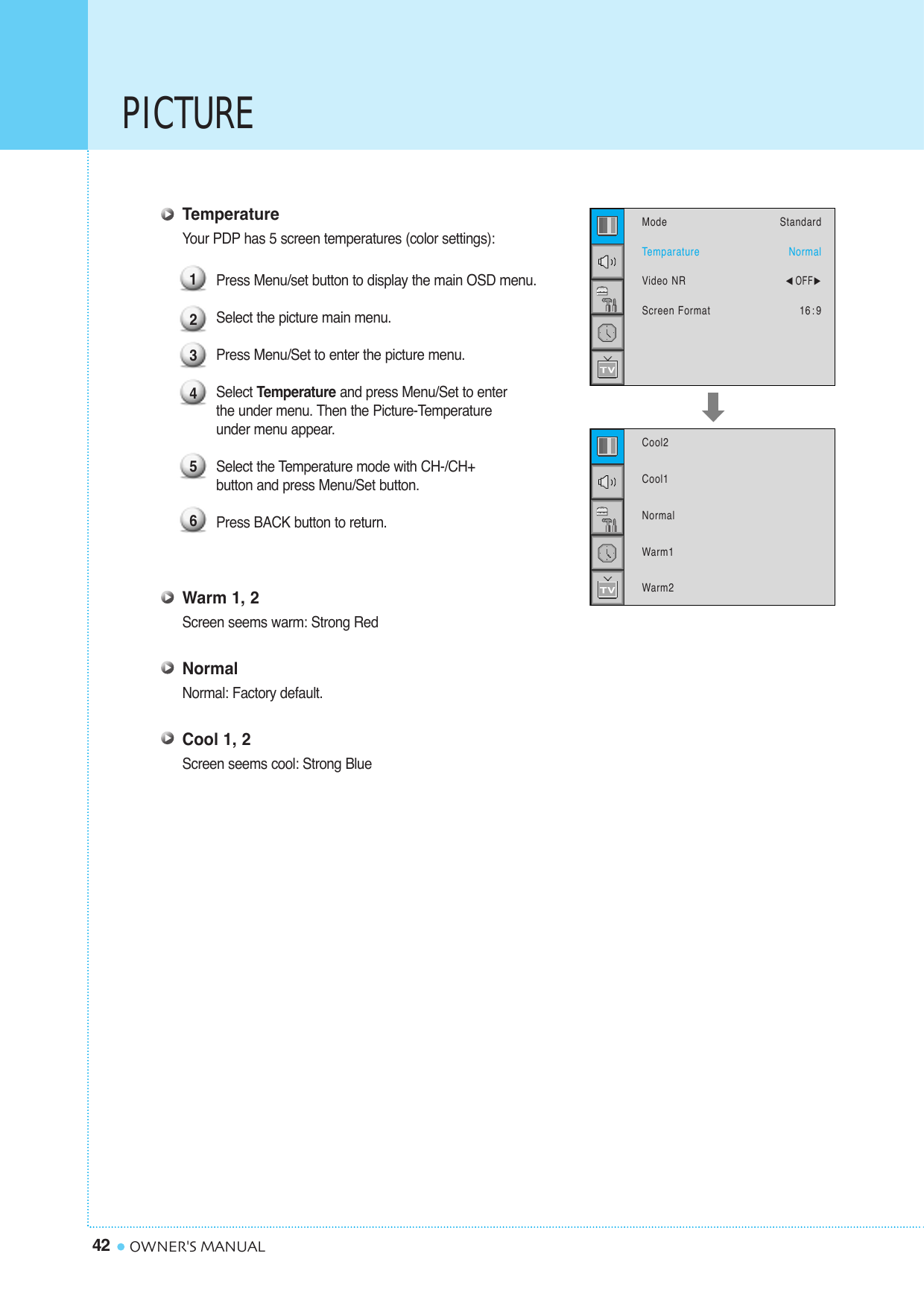

PICTURE42 OWNER'S MANUALTemperatureYour PDP has 5 screen temperatures (color settings): Press Menu/set button to display the main OSD menu.Select the picture main menu.Press Menu/Set to enter the picture menu.Select Temperature and press Menu/Set to enterthe under menu. Then the Picture-Temperature under menu appear.Select the Temperature mode with CH-/CH+ button and press Menu/Set button.Press BACK button to return. Warm 1, 2Screen seems warm: Strong RedNormalNormal: Factory default.Cool 1, 2Screen seems cool: Strong Blue123456ModeTemparatureVideo NRScreen FormatStandardNormal¥OFF16: 9Cool2Cool1NormalWarm1Warm2

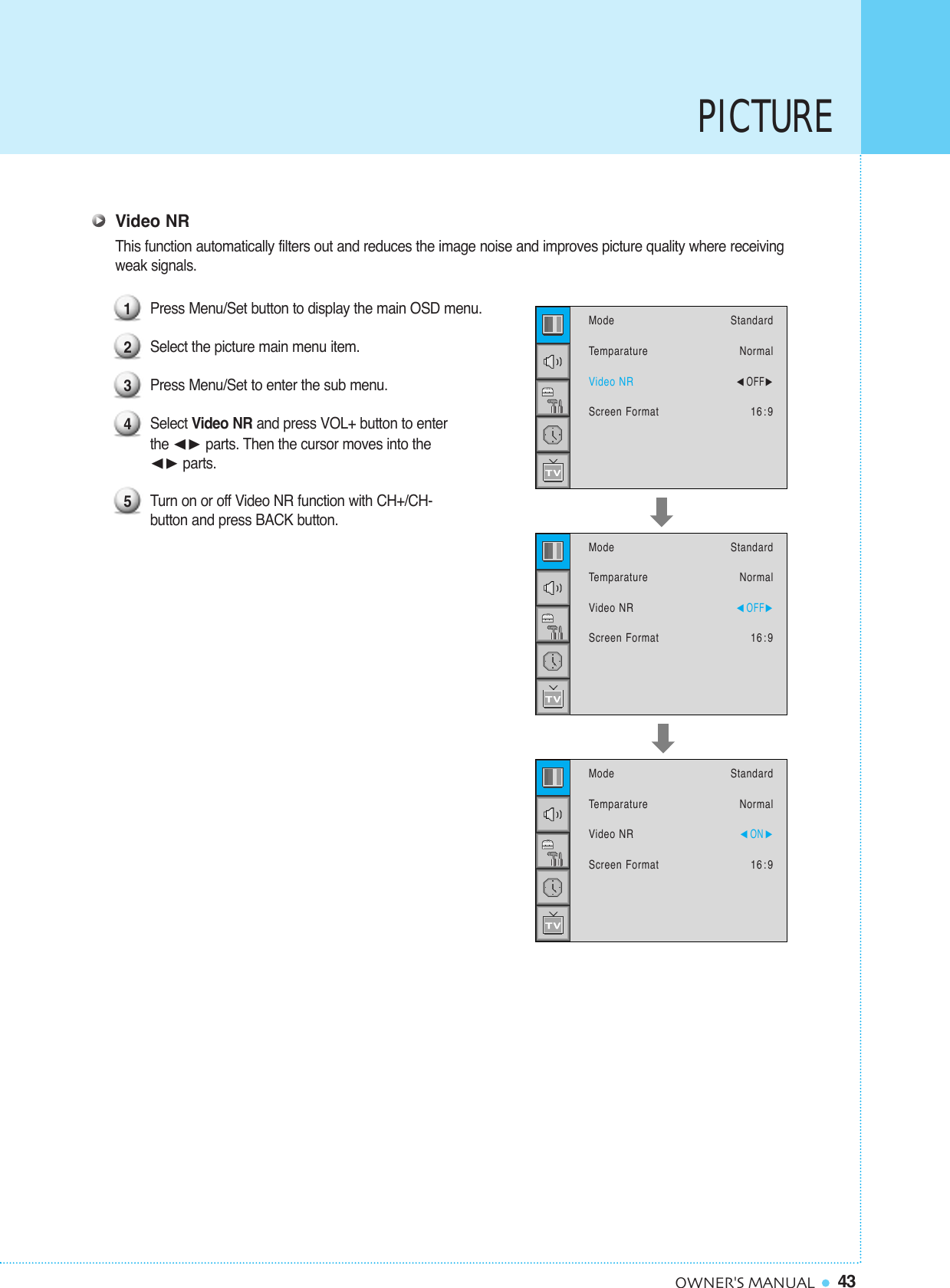

43OWNER'S MANUALVideo NRThis function automatically filters out and reduces the image noise and improves picture quality where receivingweak signals.Press Menu/Set button to display the main OSD menu.Select the picture main menu item. Press Menu/Set to enter the sub menu. Select Video NR and press VOL+ button to enterthe ¥ parts. Then the cursor moves into the ¥ parts.Turn on or off Video NR function with CH+/CH-button and press BACK button.12345PICTUREModeTemparatureVideo NRScreen FormatStandardNormal¥OFF16: 9ModeTemparatureVideo NRScreen FormatStandardNormal¥OFF16: 9ModeTemparatureVideo NRScreen FormatStandardNormal¥ON 16: 9

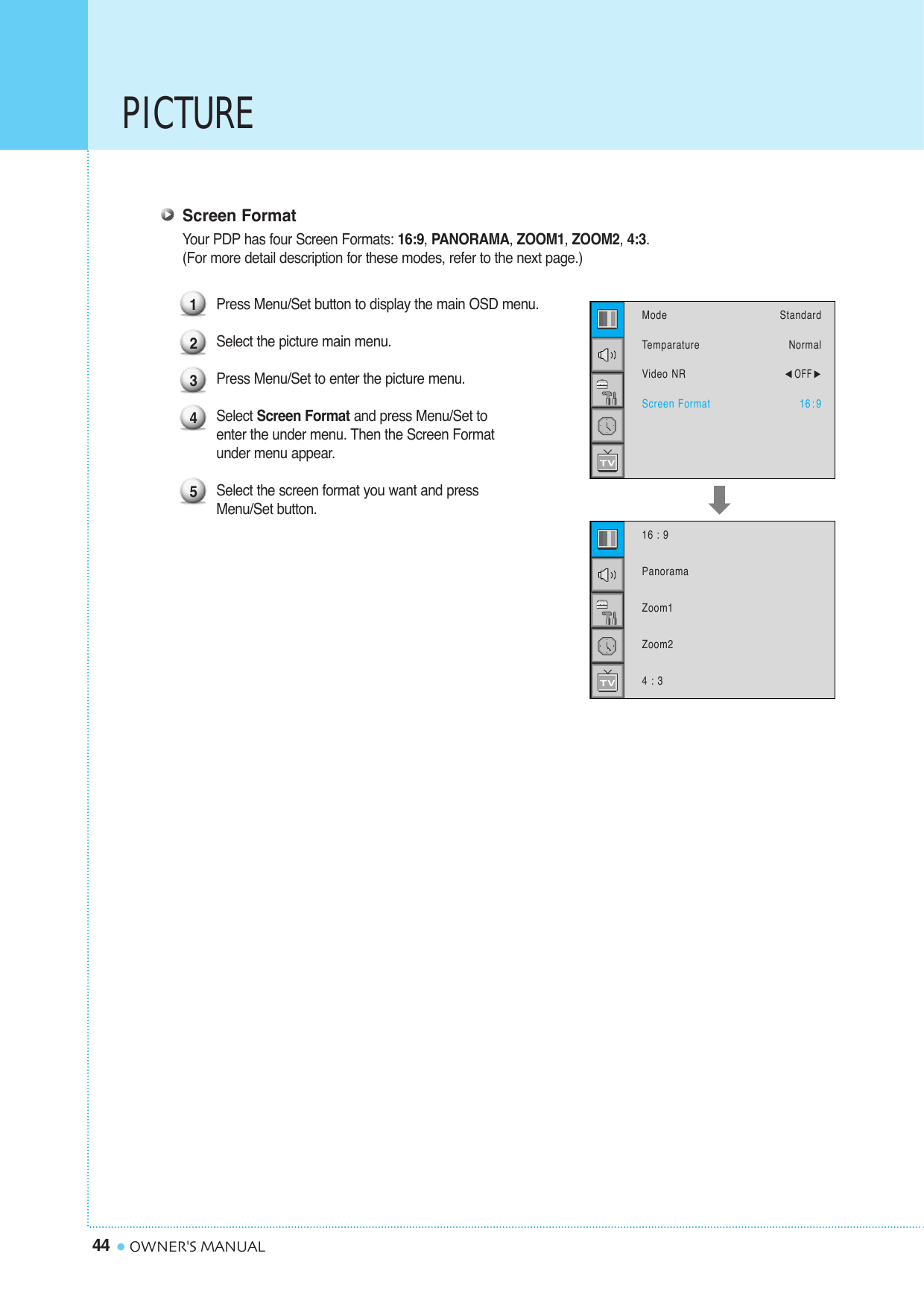

PICTURE44 OWNER'S MANUALScreen FormatYour PDP has four Screen Formats: 16:9, PANORAMA, ZOOM1, ZOOM2, 4:3.(For more detail description for these modes, refer to the next page.)Press Menu/Set button to display the main OSD menu.Select the picture main menu. Press Menu/Set to enter the picture menu. Select Screen Format and press Menu/Set to enter the under menu. Then the Screen Format under menu appear.Select the screen format you want and press Menu/Set button.12345ModeTemparatureVideo NRScreen FormatStandardNormal¥OFF 16: 916 : 9PanoramaZoom1Zoom24 : 3

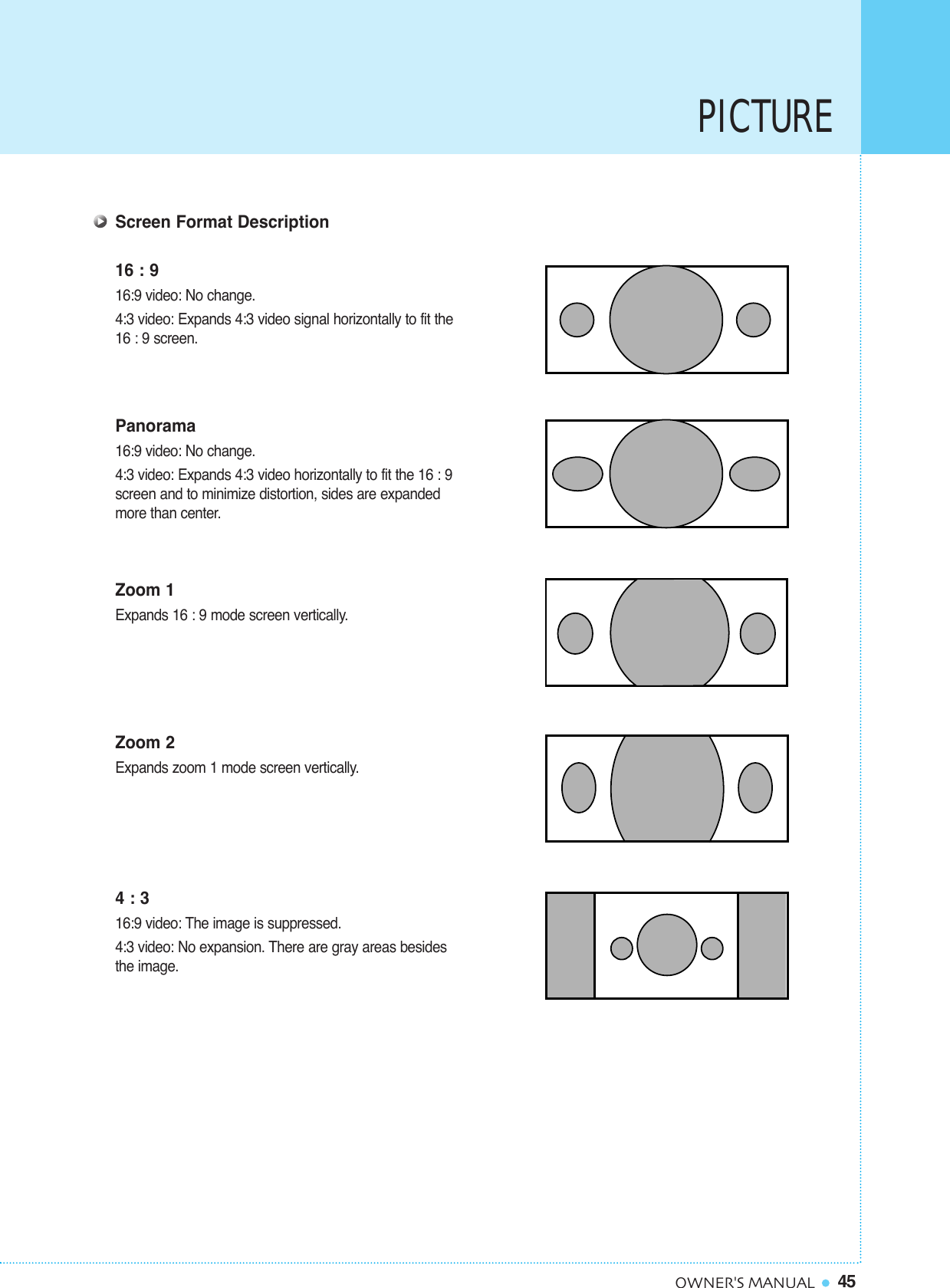

45OWNER'S MANUALScreen Format Description16 : 916:9 video: No change.4:3 video: Expands 4:3 video signal horizontally to fit the16 : 9 screen.Panorama16:9 video: No change.4:3 video: Expands 4:3 video horizontally to fit the 16 : 9 screen and to minimize distortion, sides are expanded more than center.Zoom 1Expands 16 : 9 mode screen vertically.Zoom 2Expands zoom 1 mode screen vertically.4 : 316:9 video: The image is suppressed.4:3 video: No expansion. There are gray areas besides the image.PICTURE

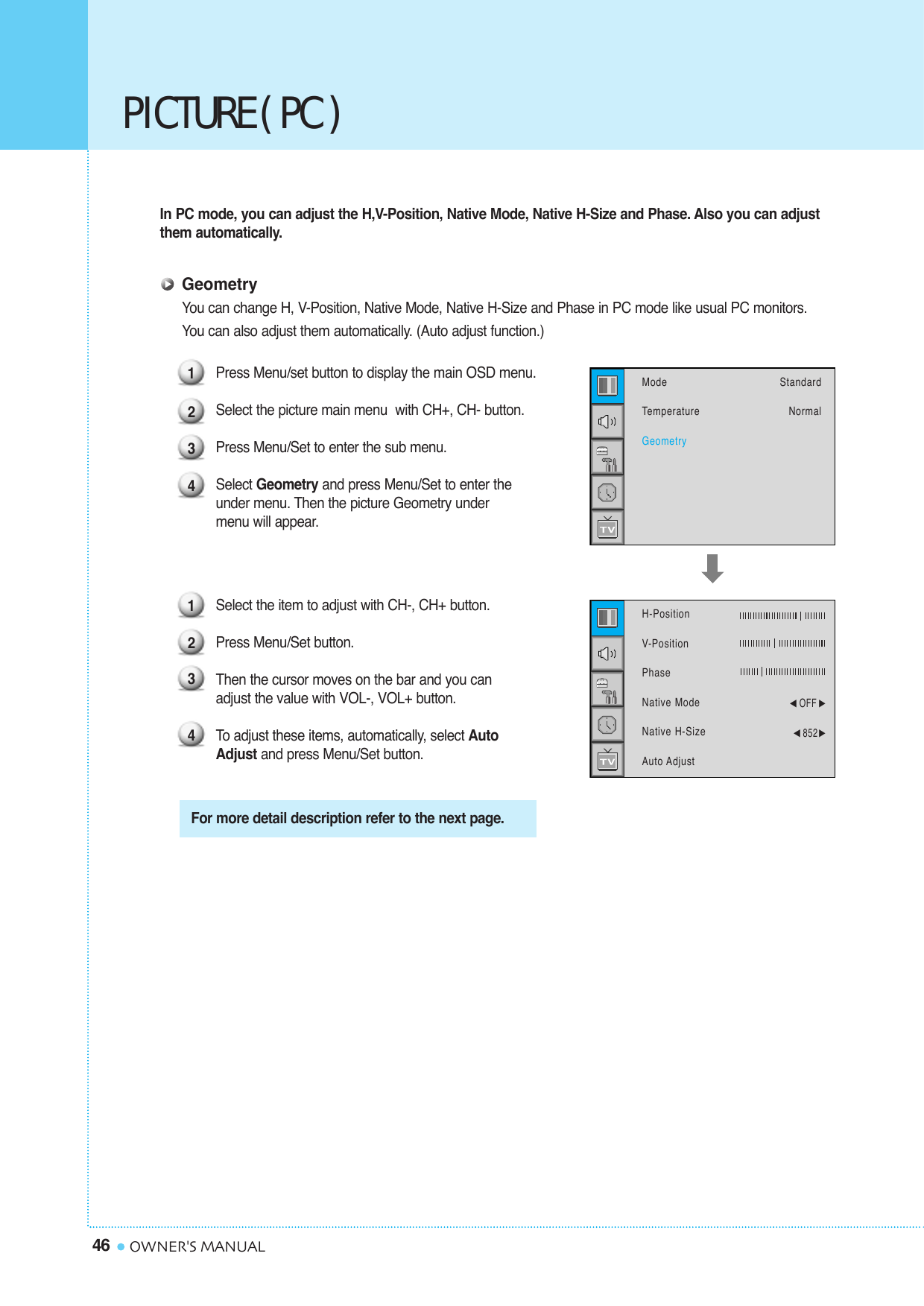

PICTURE ( PC )46 OWNER'S MANUALIn PC mode, you can adjust the H,V-Position, Native Mode, Native H-Size and Phase. Also you can adjustthem automatically.GeometryYou can change H, V-Position, Native Mode, Native H-Size and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.)Press Menu/set button to display the main OSD menu.Select the picture main menu with CH+, CH- button.Press Menu/Set to enter the sub menu.Select Geometry and press Menu/Set to enter the under menu. Then the picture Geometry under menu will appear.Select the item to adjust with CH-, CH+ button.Press Menu/Set button. Then the cursor moves on the bar and you can adjust the value with VOL-, VOL+ button. To adjust these items, automatically, select Auto Adjust and press Menu/Set button.1234For more detail description refer to the next page.1234ModeTemperatureGeometryStandardNormalH-PositionV-PositionPhaseNative ModeNative H-SizeAuto Adjust¥OFF ¥852

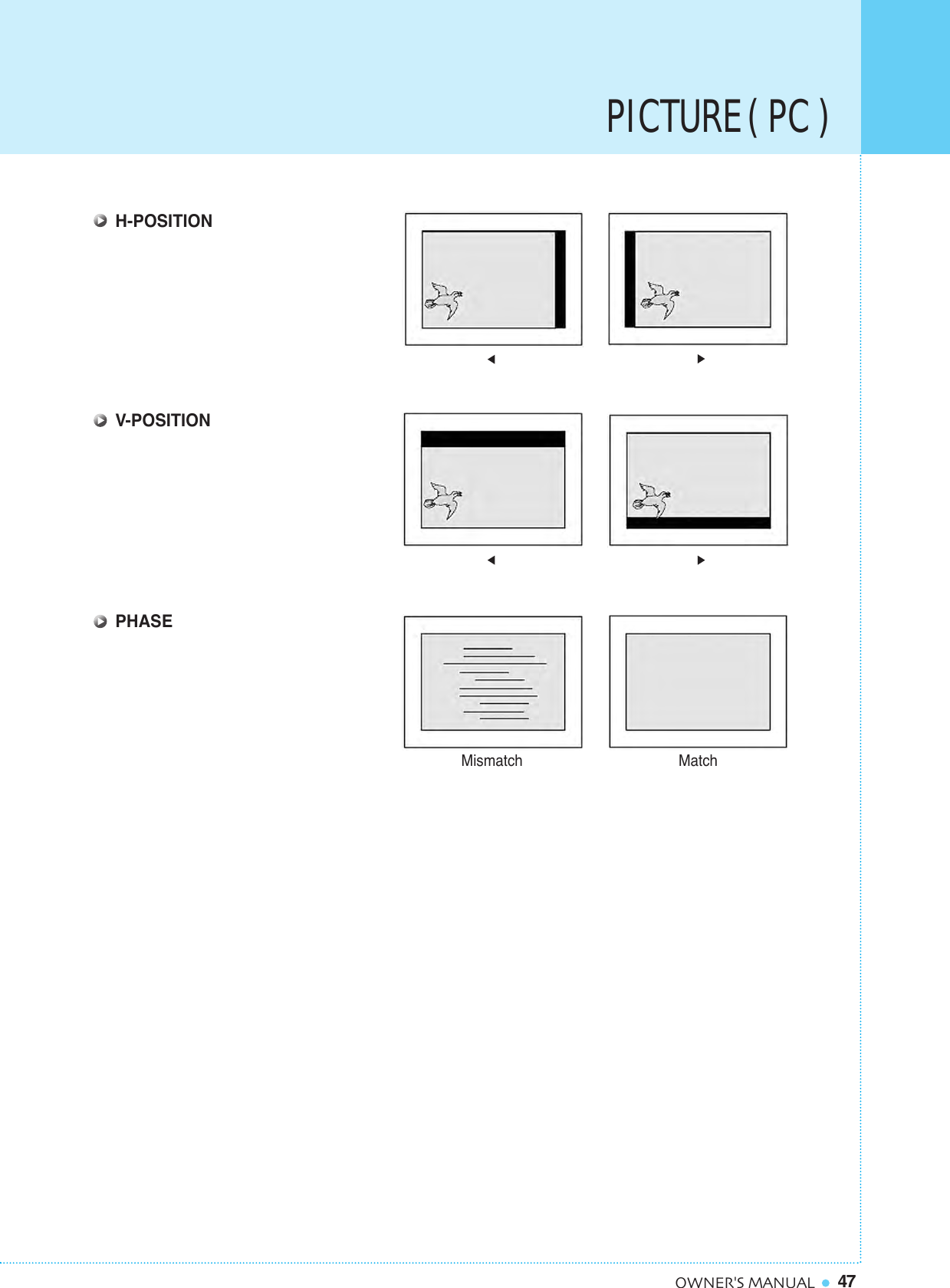

47OWNER'S MANUALH-POSITIONV-POSITIONPHASEMismatch MatchPICTURE ( PC )

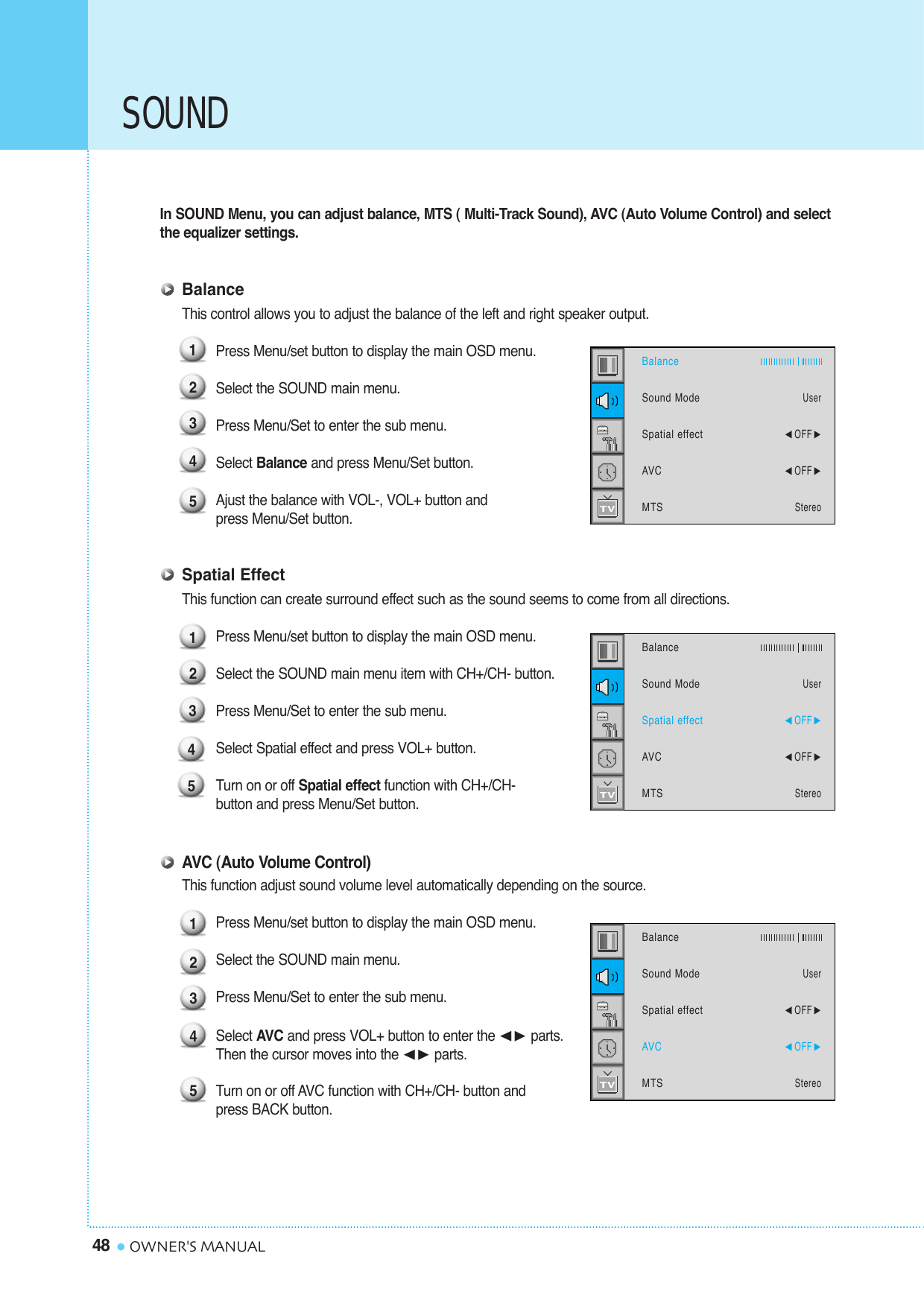

SOUND48 OWNER'S MANUALIn SOUND Menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and selectthe equalizer settings.BalanceThis control allows you to adjust the balance of the left and right speaker output.Press Menu/set button to display the main OSD menu.Select the SOUND main menu.Press Menu/Set to enter the sub menu. Select Balance and press Menu/Set button. Ajust the balance with VOL-, VOL+ button and press Menu/Set button.Spatial EffectThis function can create surround effect such as the sound seems to come from all directions.Press Menu/set button to display the main OSD menu.Select the SOUND main menu item with CH+/CH- button.Press Menu/Set to enter the sub menu. Select Spatial effect and press VOL+ button.Turn on or off Spatial effect function with CH+/CH- button and press Menu/Set button.AVC (Auto Volume Control)This function adjust sound volume level automatically depending on the source.Press Menu/set button to display the main OSD menu.Select the SOUND main menu. Press Menu/Set to enter the sub menu.Select AVC and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts.Turn on or off AVC function with CH+/CH- button and press BACK button.123451234512345BalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoBalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoBalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF Stereo
Sound ModeYour PDP has four automatic sound settings ("Standard", "Movie", "Music" and "News") that are preset at the factory. You can activate either Standard, Movie, Music or News by pressing "SOUND" on the remote control (or by making a selection from the menu) or you can select "Custom" which automatically recalls your personalized sound settings.Press Menu/set button to display the main OSD menu.Select the SOUND main menu.Press Menu/Set button to enter the sub menu.Select Sound Mode and press Menu/Set to enter the sub menu. Then the Mode sub menu appear.Select the Equalizer setting and press Menu/Set button.You will see the Equalizer bars. Just press BACK button on the remote control. You can adjust each values of Equalizer, but the changed values are stored as in USER mode.49OWNER'S MANUAL1234560.1 0.5 1.5 5.0 10.0kHzUSER mode require more settings.It has sub menu: See next page.EqualizerSOUNDBalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoStandardMovieMusicNewsUser

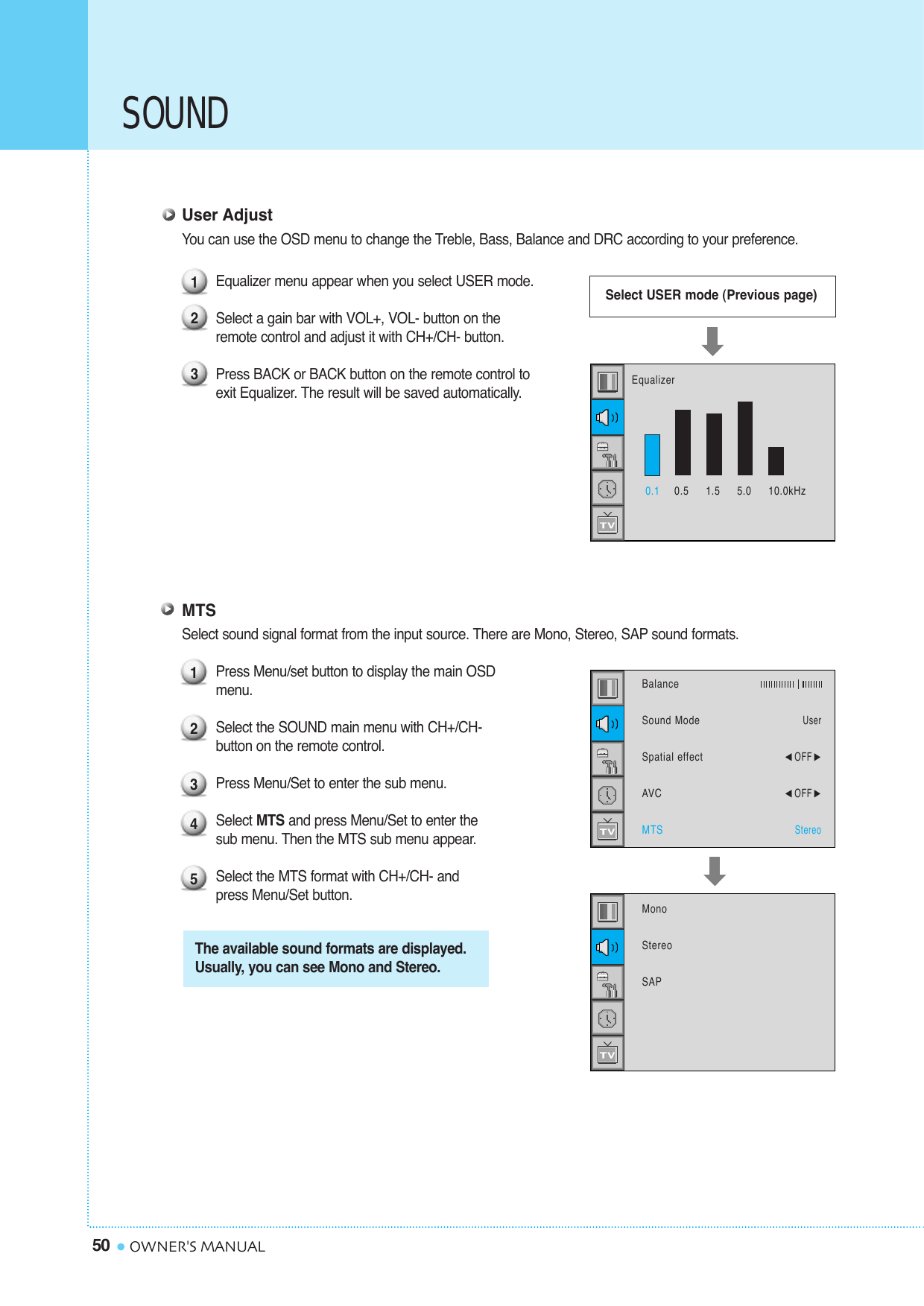

SOUND50 OWNER'S MANUALMTSSelect sound signal format from the input source. There are Mono, Stereo, SAP sound formats.Press Menu/set button to display the main OSD menu.Select the SOUND main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu. Select MTS and press Menu/Set to enter thesub menu. Then the MTS sub menu appear.Select the MTS format with CH+/CH- and press Menu/Set button.12345The available sound formats are displayed.Usually, you can see Mono and Stereo.User AdjustYou can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference.Equalizer menu appear when you select USER mode.Select a gain bar with VOL+, VOL- button on the remote control and adjust it with CH+/CH- button.Press BACK or BACK button on the remote control to exit Equalizer. The result will be saved automatically.123Select USER mode (Previous page)0.1 0.5 1.5 5.0 10.0kHzEqualizerBalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoMonoStereoSAP
51OWNER'S MANUALSET UPSource in PIPChange the source of the PIP window.Select Source and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.The available sources will be displayed.Select the source and press Menu/Set button.Picture Swap in PIP (Picture In Picture)Swap the sources of the main screen and the PIP window.SizeSourcePicture SwapPosition¥SMALL TVAV 1AV 2S-VIDEO/AV 312This picture is an example.The displayed sources may be different depending on the main input source.TVAV 1AV 2S-Video/AV 3Component1Component2PCDVIOOOOOOOOOXOOOOOOOOOXOOOOOOOOXXXXOOOOXXXXOOOOXXXX OOOOXXXX PIP Main TV AV 1OOXOOOOOAV 2S-Video/AV 3Componet1 Componet2 PC DVISelect Picture Swap and press Menu/Set button.
52 OWNER'S MANUALSET UPIn SET UP menu, you can adjust the transparency of the OSD menu and set PIP and others. TranslucentAdjust the transparency of the OSD menu. There are 8 step from OFF to 7.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select Translucent and press VOL+ button to enter the¥ parts. Then the cursor moves into the ¥ parts. Adjust with CH+/CH- button and press EXIT button.12345TrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF 

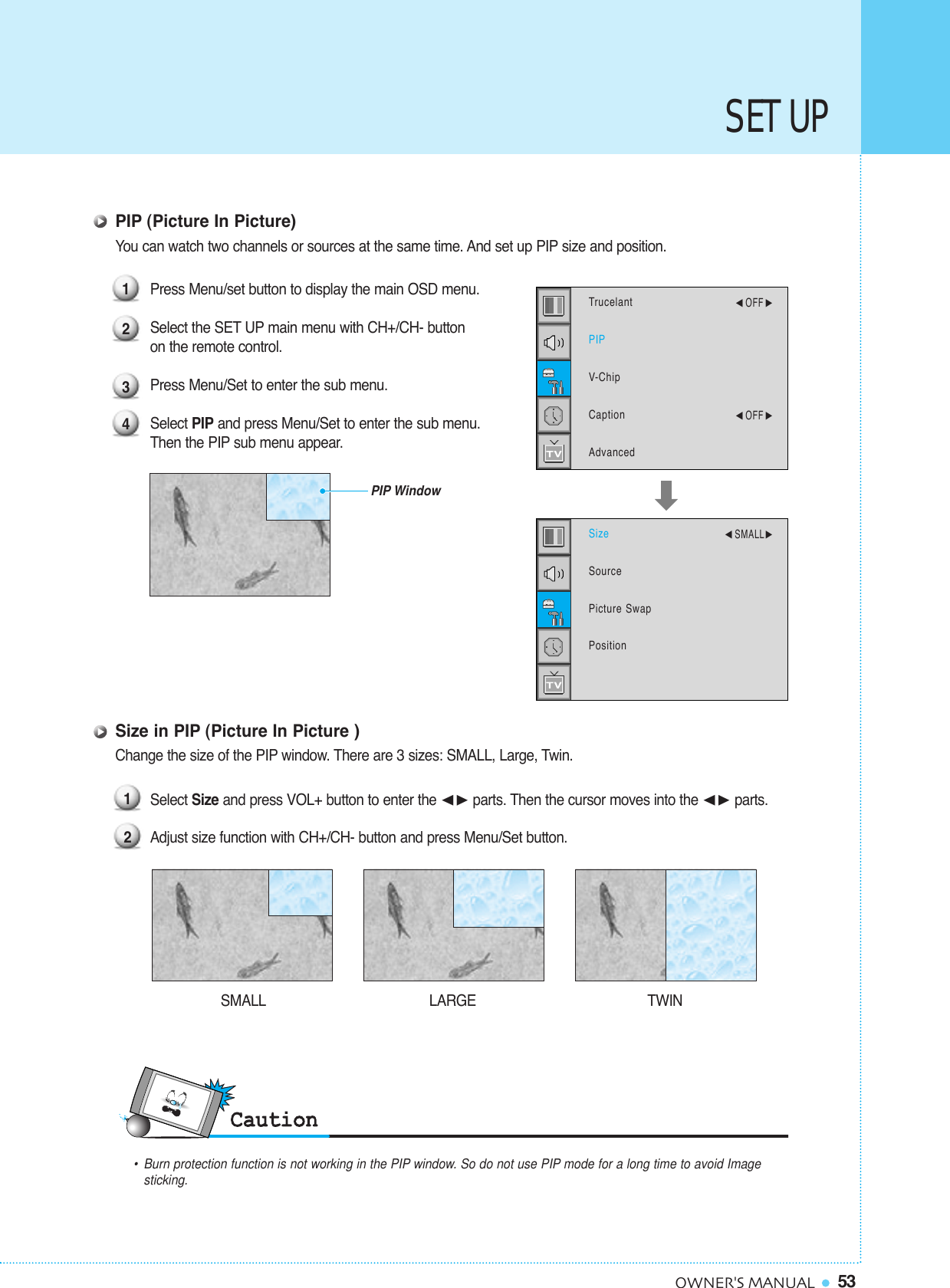

53OWNER'S MANUALSET UPPIP (Picture In Picture)You can watch two channels or sources at the same time. And set up PIP size and position.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu. Select PIP and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.Size in PIP (Picture In Picture )Change the size of the PIP window. There are 3 sizes: SMALL, Large, Twin.Select Size and press VOL+ button to enter the ¥parts. Then the cursor moves into the ¥parts.Adjust size function with CH+/CH- button and press Menu/Set button. 123412•Burn protection function is not working in the PIP window. So do not use PIP mode for a long time to avoid Image sticking.SMALL LARGE TWINPIP WindowTrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF SizeSourcePicture SwapPosition¥SMALL
54 OWNER'S MANUALPosition in PIPChange the position of the PIP window.Select Position with CH+/CH- button on the remotecontrol and press Menu/Set to enter the sub menu.Then the PIP sub menu appear.In Sub Menu, there are four positions. Select the position with CH+/CH- button on the remote control and press BACK button.12Right Down Right UpLeft Up Left DownSET UPSizeSourcePicture SwapPosition¥SMALLRight DownRight UpLeft UpLeft Down
55OWNER'S MANUALSET UPAdvancedYou can se up ID, Burn Protect, Burn Clear, Blue Back, Language and Child Lock in Advanced Menu.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+ / CH- button on the remote control. Press Menu/Set to enter the sub menu. Select Advanced and press Menu/Set to enter the Advanced menu. Then the Advanced sub menu appear.Set ID in AdvancedSet the ID of PDP for mass-controlling through the serial port.Select Set ID and press VOL+ button to enter the¥ part. Then the cursor moves into the ¥ part.Adjust with CH+ / CH- button and press BACK button.123412TrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF Set IDBurn ProtectBurn ClearBlue BackLanguageChild Lock¥99 ¥ON ¥OFF¥OFF ¥ENGLISH ¥OFF Set IDBurn ProtectBurn ClearBlue BackLanguageChild Lock¥99 ¥ON ¥OFF¥OFF ¥ENGLISH ¥OFF 

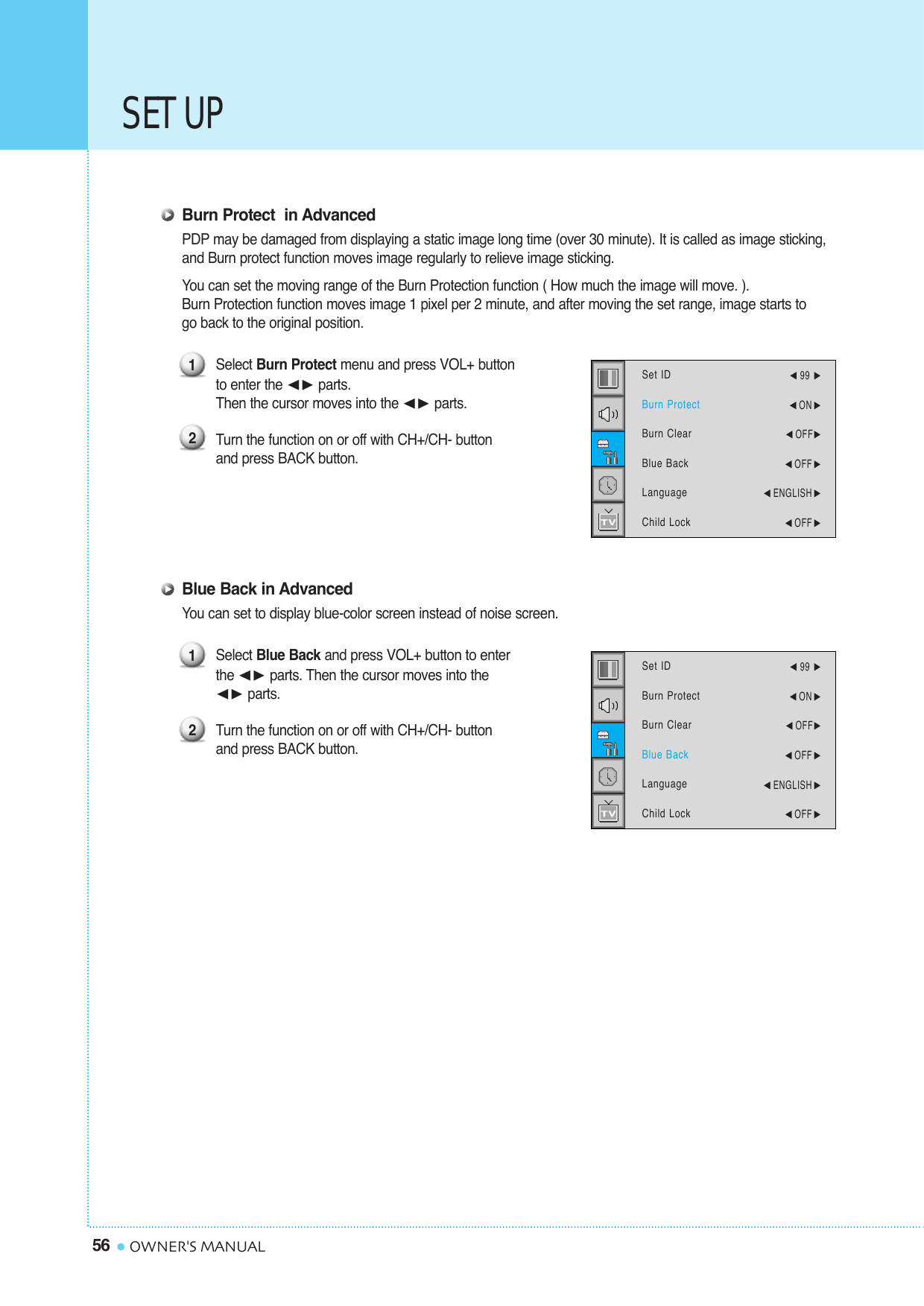

SET UP56 OWNER'S MANUALBurn Protect in AdvancedPDP may be damaged from displaying a static image long time (over 30 minute). It is called as image sticking, and Burn protect function moves image regularly to relieve image sticking.You can set the moving range of the Burn Protection function ( How much the image will move. ). Burn Protection function moves image 1 pixel per 2 minute, and after moving the set range, image starts to go back to the original position.Select Burn Protect menu and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts.Turn the function on or off with CH+/CH- buttonand press BACK button.Blue Back in AdvancedYou can set to display blue-color screen instead of noise screen.Select Blue Back and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts. Turn the function on or off with CH+/CH- button and press BACK button.1212Set IDBurn ProtectBurn ClearBlue BackLanguageChild Lock¥99 ¥ON ¥OFF¥OFF ¥ENGLISH ¥OFF Set IDBurn ProtectBurn ClearBlue BackLanguageChild Lock¥99 ¥ON ¥OFF¥OFF ¥ENGLISH ¥OFF 

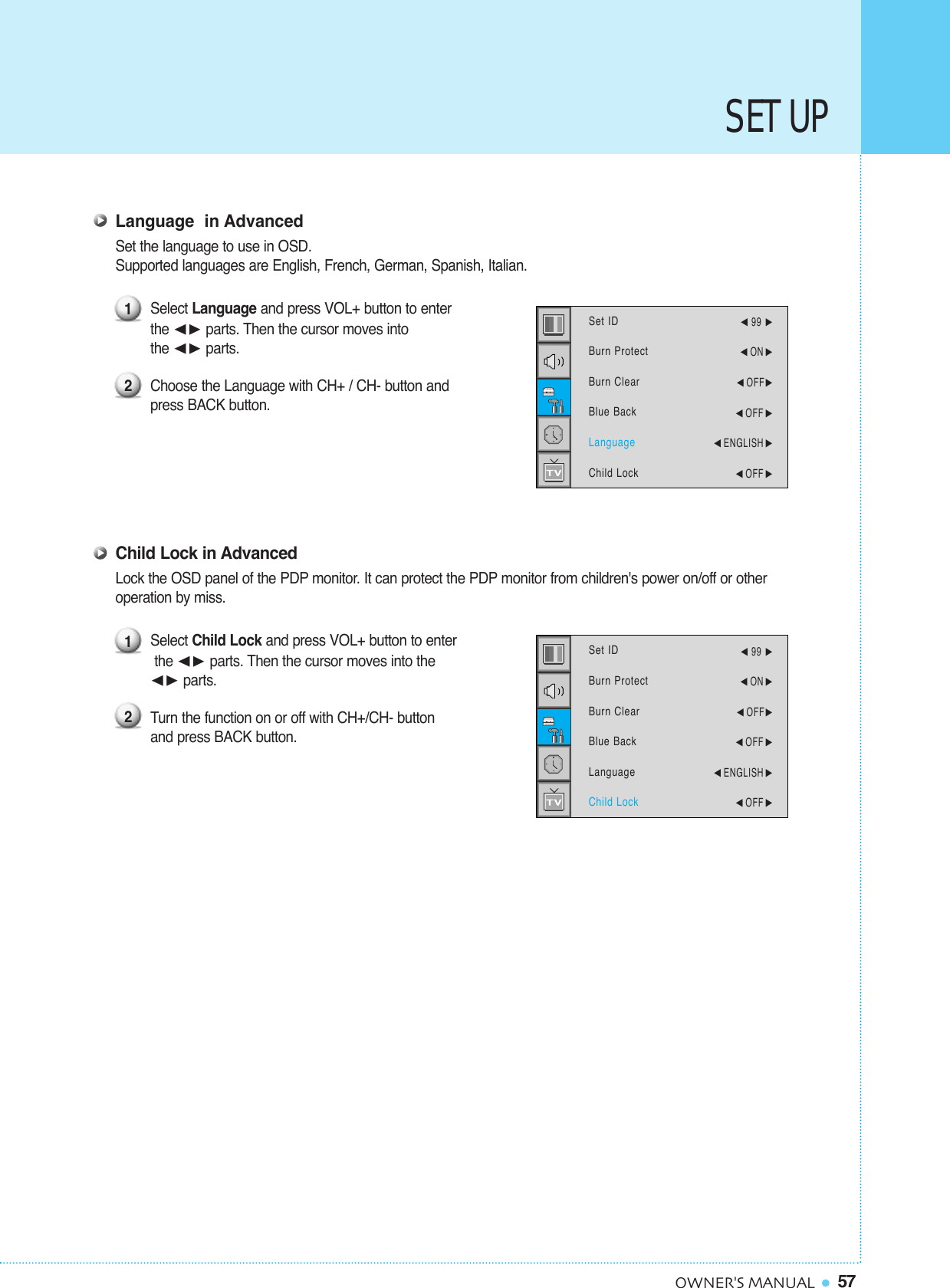

57OWNER'S MANUALSET UPLanguage in AdvancedSet the language to use in OSD.Supported languages are English, French, German, Spanish, Italian.Select Language and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts.Choose the Language with CH+ / CH- button and press BACK button.Child Lock in AdvancedLock the OSD panel of the PDP monitor. It can protect the PDP monitor from children's power on/off or other operation by miss.Select Child Lock and press VOL+ button to enterthe ¥ parts. Then the cursor moves into the ¥ parts.Turn the function on or off with CH+/CH- button and press BACK button.1212Set IDBurn ProtectBurn ClearBlue BackLanguageChild Lock¥99 ¥ON ¥OFF¥OFF ¥ENGLISH ¥OFF Set IDBurn ProtectBurn ClearBlue BackLanguageChild Lock¥99 ¥ON ¥OFF¥OFF ¥ENGLISH ¥OFF 

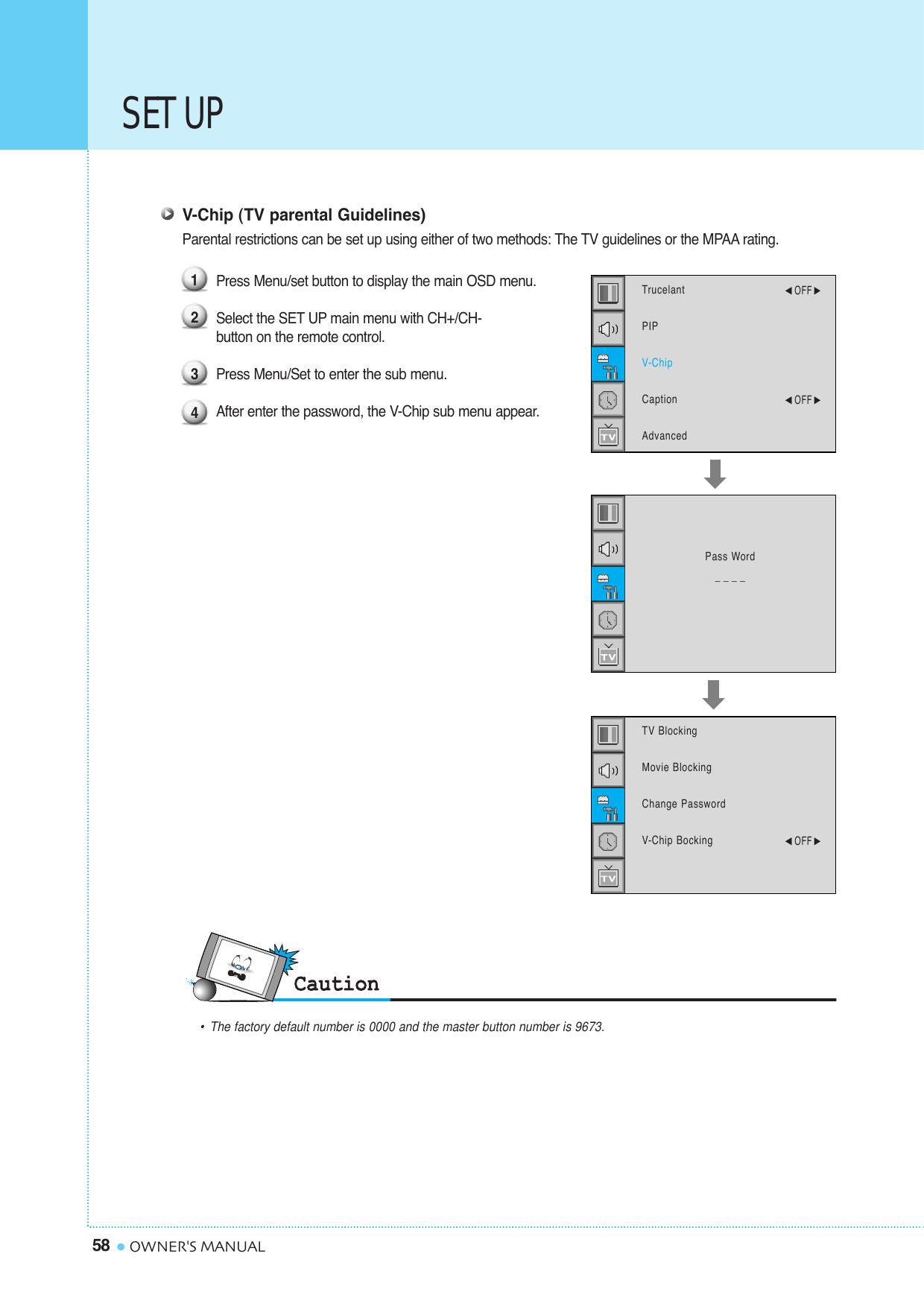

SET UP58 OWNER'S MANUALV-Chip (TV parental Guidelines)Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.After enter the password, the V-Chip sub menu appear.1234•The factory default number is 0000 and the master button number is 9673.TrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF Pass Word____

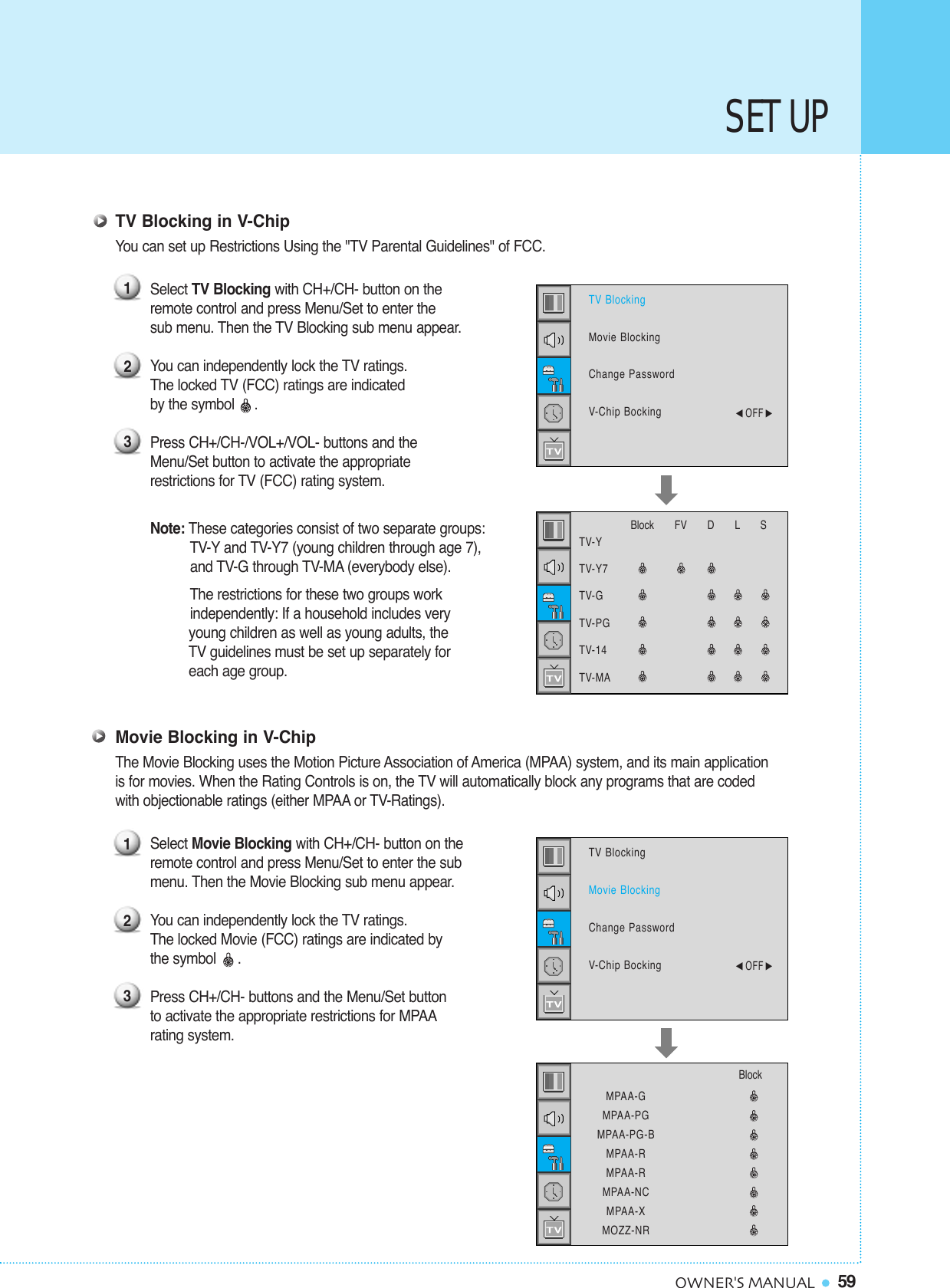

59OWNER'S MANUALSET UP TV Blocking in V-Chip You can set up Restrictions Using the "TV Parental Guidelines" of FCC.Select TV Blocking with CH+/CH- button on the remote control and press Menu/Set to enter the sub menu. Then the TV Blocking sub menu appear.You can independently lock the TV ratings. The locked TV (FCC) ratings are indicated by the symbol .Press CH+/CH-/VOL+/VOL- buttons and the Menu/Set button to activate the appropriate restrictions for TV (FCC) rating system.Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7),and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group.123TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF TV-YTV-Y7TV-GTV-PGTV-14TV-MABlock FV D L SMovie Blocking in V-Chip The Movie Blocking uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the Rating Controls is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).Select Movie Blocking with CH+/CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Movie Blocking sub menu appear.You can independently lock the TV ratings. The locked Movie (FCC) ratings are indicated by the symbol .Press CH+/CH- buttons and the Menu/Set buttonto activate the appropriate restrictions for MPAArating system. 123TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF MPAA-GMPAA-PGMPAA-PG-BMPAA-RMPAA-RMPAA-NCMPAA-XMOZZ-NRBlock
SET UP60 OWNER'S MANUALChange Password in V-Chip Select Change Password with CH+/CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Pass Word change sub menu appear.Enter the new password with numeric buttons onthe remote control.V-Chip Blocking in V-Chip Select V-Chip Blocking with CH+/CH- buttons on the remote control.Enter to the ¥ part by pressing VOL+ button. Then the cursor moves into the ¥ parts.ON / OFF the V-Chip Blocking with CH+/CH- buttons. Exit with Back button on the remote control. 121234TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF Pass Word____
61OWNER'S MANUALIn the TIME menu, you can set the current time and auto power on / off. Time SetSet the current time.Press Menu/set button to display the main OSD menu.Select the TIME main menu.Press Menu/Set to enter the sub menu.Select Time Set by pressing VOL+ button. Move the cursor by pressing VOL-, VOL+ buttonand adjust time by CH+, CH- button.On TimeThis PDP can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the PDP's Time as described previously.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select On Time with CH+/CH- button and press VOL+ button. Move the cursor by VOL-, VOL+ button and adjust time by CH+, CH- button.1234512345On Time AM 05:11 ONTIMETime SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100AM 05:11 OFF¥OFF Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100AM 05:11 OFF¥OFF 
TIME62 OWNER'S MANUALOn ChannelSet the channel when PDP power turn on automatically.• Available only when the Time is set and On Time is ON.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select On Channel. Enter to the ¥ part with VOL+ button. Then the cursor moves into the ¥ parts.Adjust the channel with CH+/CH- button. Press BACK button to return.On Volume Set the sound volume level when PDP power on automatically. • Available only when the Time is set and On Time is ON.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu. Select On Volume. Enter to the ¥ part by pressing VOL+ button. Then the cursor moves into the ¥ parts.Adjust the sound volume level with CH+/CH- button. 123456123456Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF 

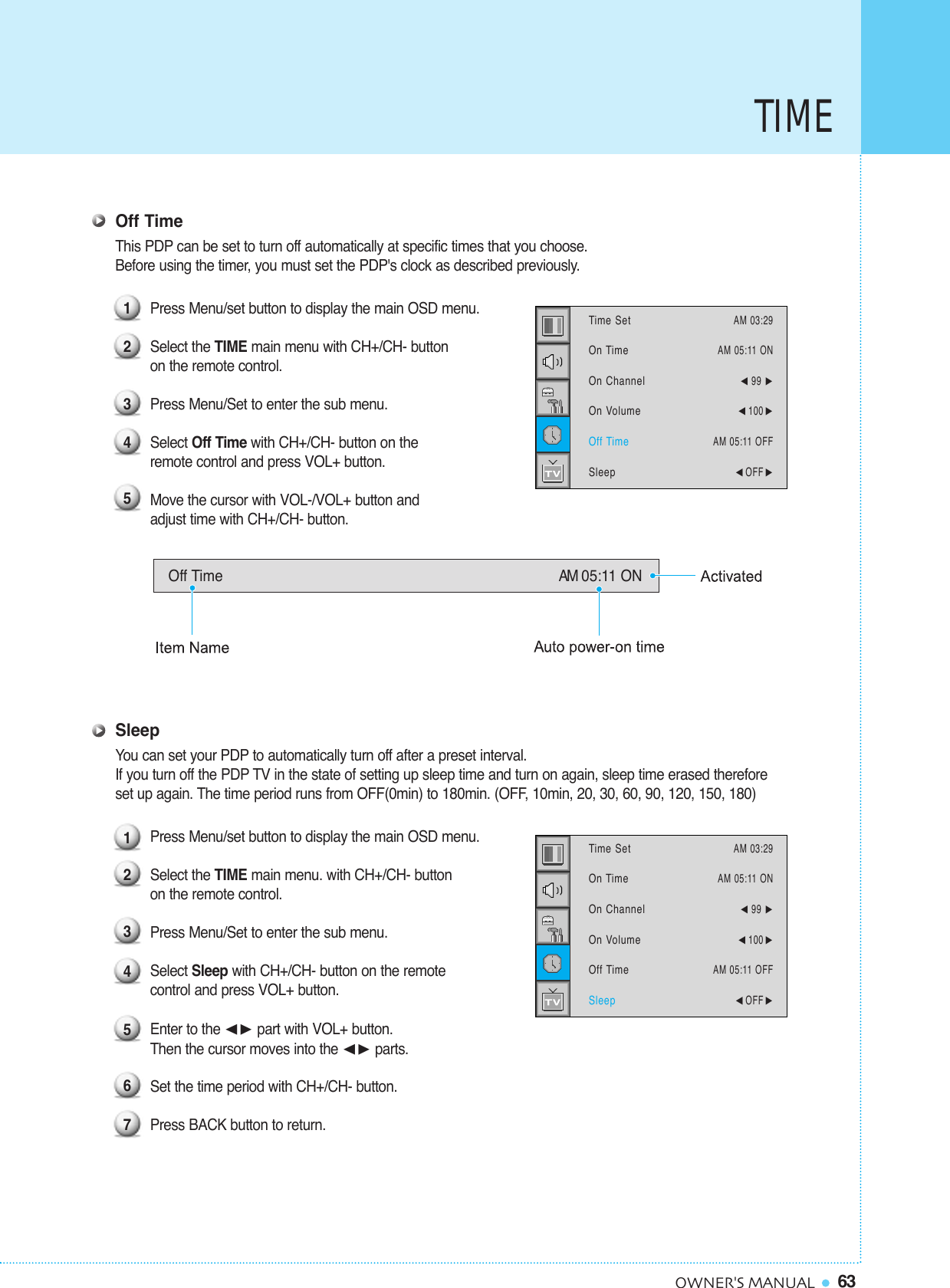

63OWNER'S MANUALOff TimeThis PDP can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the PDP's clock as described previously.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select Off Time with CH+/CH- button on the remote control and press VOL+ button. Move the cursor with VOL-/VOL+ button and adjust time with CH+/CH- button.SleepYou can set your PDP to automatically turn off after a preset interval.If you turn off the PDP TV in the state of setting up sleep time and turn on again, sleep time erased therefore set up again. The time period runs from OFF(0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)Press Menu/set button to display the main OSD menu.Select the TIME main menu. with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select Sleep with CH+/CH- button on the remote control and press VOL+ button. Enter to the ¥ part with VOL+ button. Then the cursor moves into the ¥ parts.Set the time period with CH+/CH- button.Press BACK button to return.123451234567Off Time AM 05:11 ONTIMETime SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF 
Viewing the Picture-in-Picture64 OWNER'S MANUALSource key : Change the source of the PIP window. The available sources are shown as below.Move key : Move the position of PIP window.Swap key : Swap the sources of the main screen and PIP window.Left UpRight Up (Start)Left Down Right DownMODE KEY : Change the PIP window mode.OFF ➔ SMALL ➔ LARGE ➔ TWINSMALL LARGE TWINTVAV 1AV 2S-Video/AV 3Component1Component2PCDVIOOOOOOOOOXOOOOOOOOOXOOOOOOOOXXXXOOOOXXXXOOOOXXXX OOOOXXXX PIP Main TV AV 1OOXOOOOOAV 2S-Video/AV 3Componet1 Componet2 PC DVI
Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i(60Hz)/480p(60Hz)/576i(50Hz)/576p(50Hz)/720p(60Hz)/1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timer, TTXprogrammingTV/CATV (PAL/SECAM)Tuner ModuleDigital progressive line scaling.Advanced motion digital / Motion-Adaptive De-interlace process,VideoMultiple input compatibleInput compatiblewith four selectable window positions on Video modeAdvanced multi-windows viewing PIP(picture in picture) PIP1280 X 768 / 50,60Hz Resolution (RGB)450 cd/㎡Brightness600:1Contrast Ratio1280x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode40-Inch 15 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification966(W) X 666.3(H) X 299(D) / 30.8 kgWith Stand966(W) X 617(H) X 103(D) / 29 kgMain OnlyDimension / WeightSpecification – 40 Inch LCD (1)Front OSD Key Control, Remote control, RS232C ControlExternal Control(optional),Selectable fixed/variable audio output(optional)Built-in amplifier and two speaker(7Watt/Typ.) systemsAudioMiscellaneous
300 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Speaker OutputRCA X 5PortAudio In/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480i, 480p, 576i, 576p, 720p, 1080i)DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480i, 480p, 576i, 576p, 720P, 1080i)PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 2Port (AV INPUT, AV OUTPUT)Composite Input/OutputSCART X 2Port (SCART1 (HALF), SCART2 (FULL))Scat1,2 InputRF/CATV (PAL/SECAM)TV1,2 InputConnectivitySpecification – 40 Inch LCD (2)

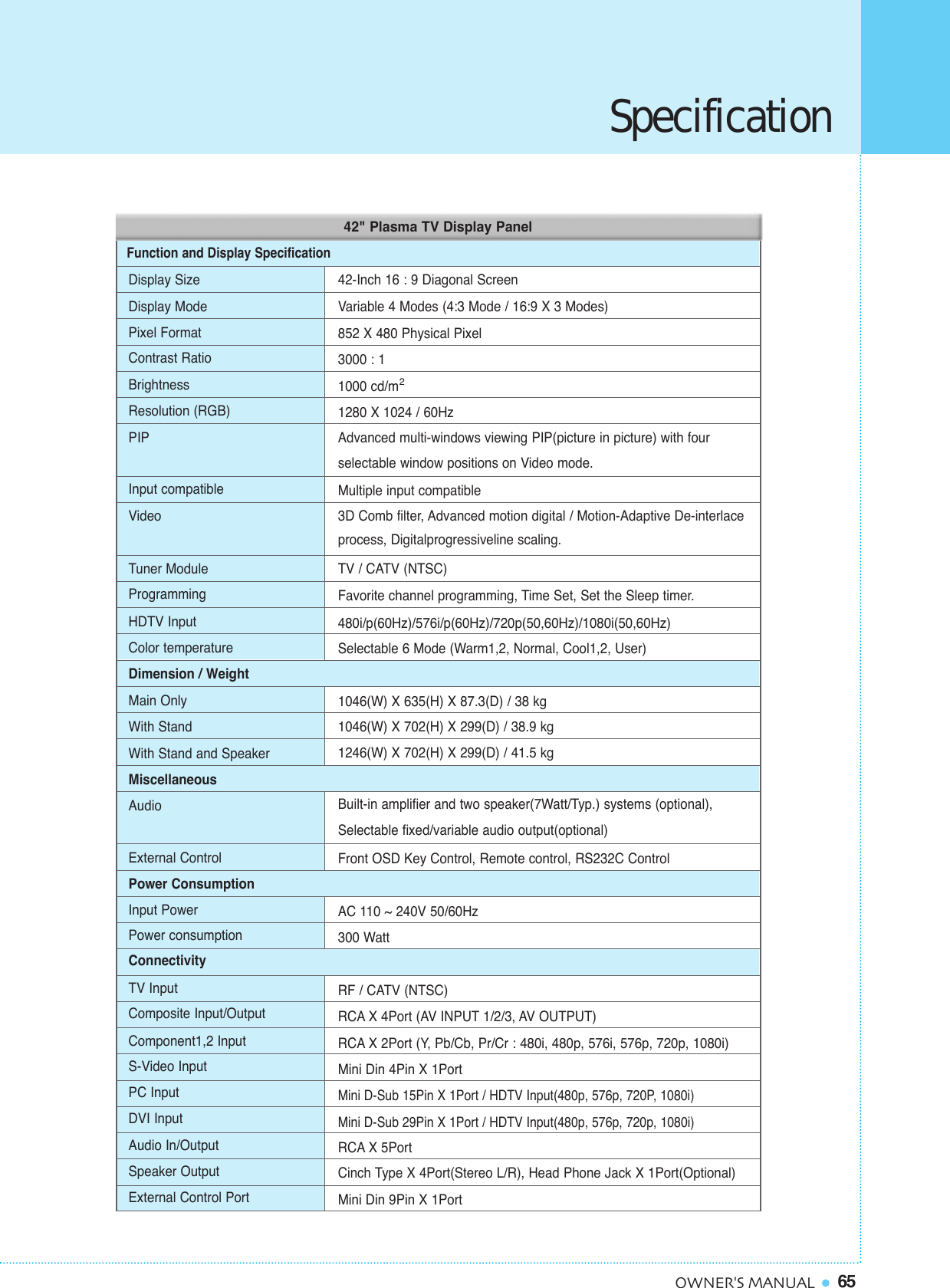

65OWNER'S MANUALDisplay SizeDisplay ModePixel FormatContrast RatioBrightnessResolution (RGB)PIPInput compatibleVideoTuner ModuleProgrammingHDTV InputColor temperatureDimension / WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower consumptionConnectivityTV InputComposite Input/OutputComponent1,2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port42-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)852 X 480 Physical Pixel3000 : 11000 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video mode.Multiple input compatible3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlace process, Digitalprogressiveline scaling.TV / CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer.480i/p(60Hz)/576i/p(60Hz)/720p(50,60Hz)/1080i(50,60Hz)Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)1046(W) X 635(H) X 87.3(D) / 38 kg1046(W) X 702(H) X 299(D) / 38.9 kg1246(W) X 702(H) X 299(D) / 41.5 kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)Front OSD Key Control, Remote control, RS232C ControlAC 110 ~ 240V 50/60Hz300 WattRF / CATV (NTSC)RCA X 4Port (AV INPUT 1/2/3, AV OUTPUT)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P, 1080i)Mini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720p, 1080i)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini Din 9Pin X 1PortFunction and Display Specification242" Plasma TV Display PanelSpecification

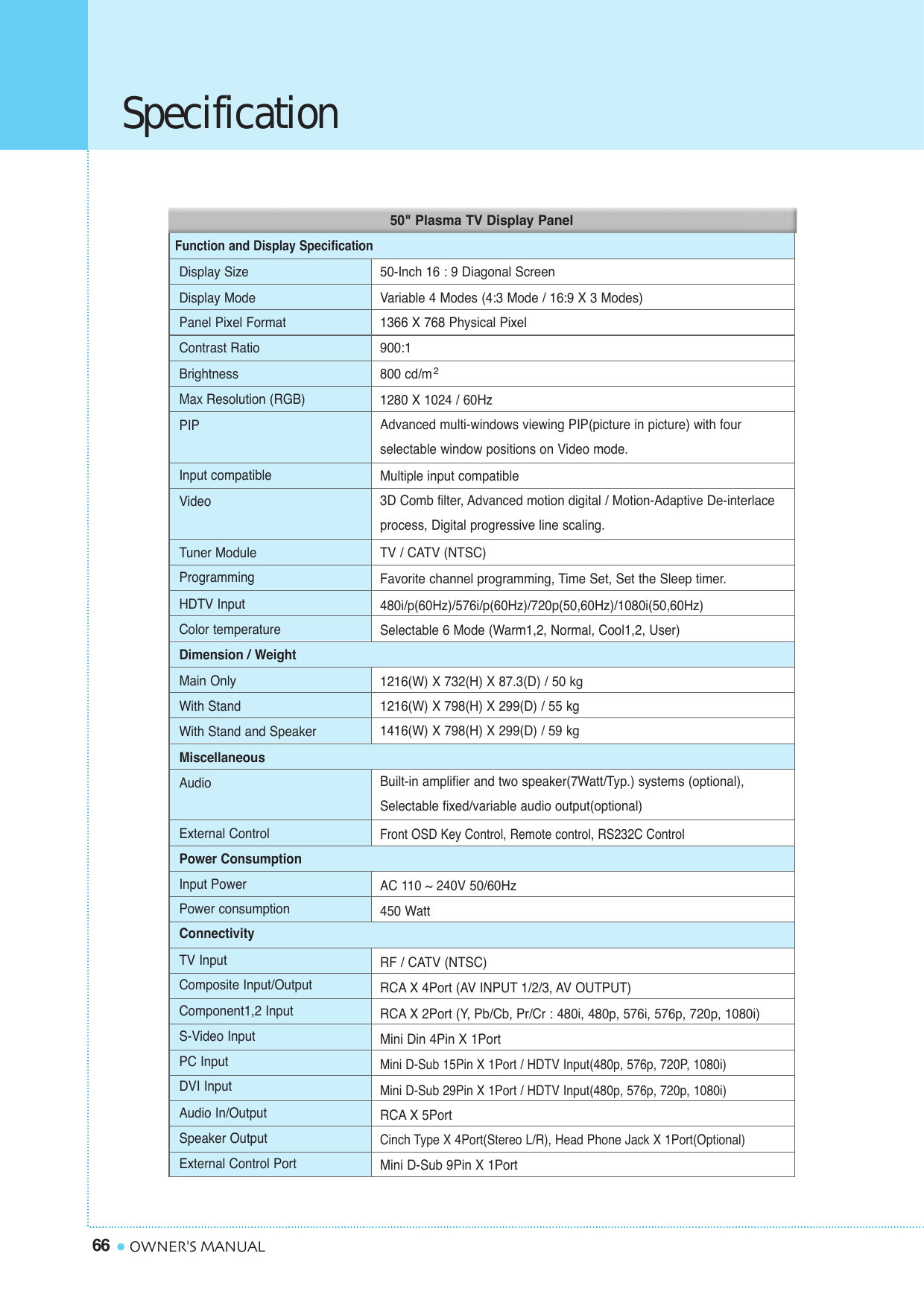

Specification66 OWNER'S MANUALDisplay SizeDisplay ModePanel Pixel FormatContrast RatioBrightnessMax Resolution (RGB)PIPInput compatibleVideoTuner ModuleProgrammingHDTV InputColor temperatureDimension / WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower consumptionConnectivityTV InputComposite Input/OutputComponent1,2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port50-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)1366 X 768 Physical Pixel900:1800 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video mode.Multiple input compatible3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlaceprocess, Digital progressive line scaling.TV / CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer.480i/p(60Hz)/576i/p(60Hz)/720p(50,60Hz)/1080i(50,60Hz)Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)1216(W) X 732(H) X 87.3(D) / 50 kg1216(W) X 798(H) X 299(D) / 55 kg1416(W) X 798(H) X 299(D) / 59 kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)Front OSD Key Control, Remote control, RS232C ControlAC 110 ~ 240V 50/60Hz450 WattRF / CATV (NTSC)RCA X 4Port (AV INPUT 1/2/3, AV OUTPUT)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P, 1080i)Mini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720p, 1080i)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini D-Sub 9Pin X 1PortFunction and Display Specification250" Plasma TV Display Panel

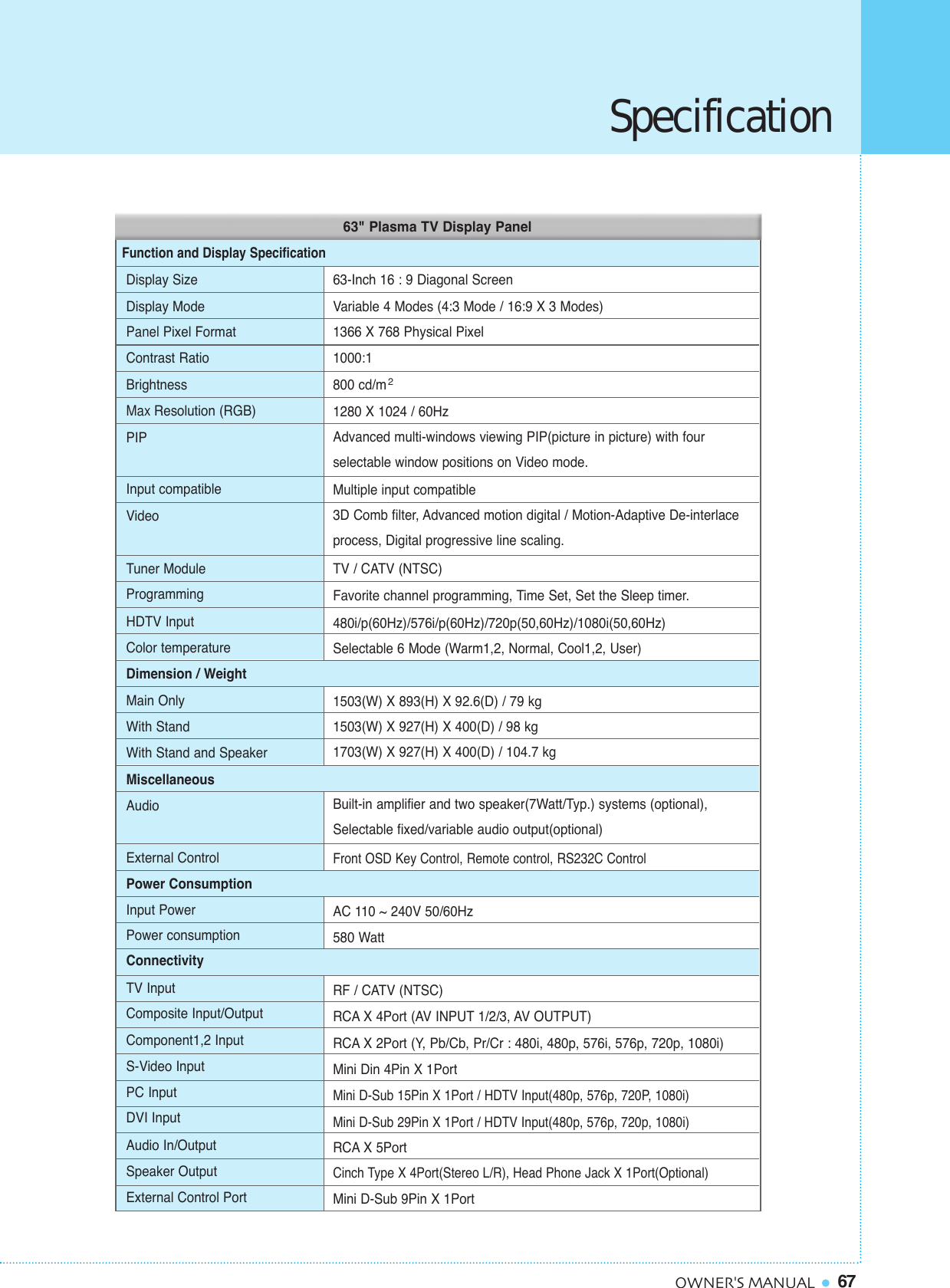

67OWNER'S MANUALDisplay SizeDisplay ModePanel Pixel FormatContrast RatioBrightnessMax Resolution (RGB)PIPInput compatibleVideoTuner ModuleProgrammingHDTV InputColor temperatureDimension / WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower consumptionConnectivityTV InputComposite Input/OutputComponent1,2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port63-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)1366 X 768 Physical Pixel1000:1800 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video mode.Multiple input compatible3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlaceprocess, Digital progressive line scaling.TV / CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer.480i/p(60Hz)/576i/p(60Hz)/720p(50,60Hz)/1080i(50,60Hz)Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)1503(W) X 893(H) X 92.6(D) / 79 kg1503(W) X 927(H) X 400(D) / 98 kg1703(W) X 927(H) X 400(D) / 104.7 kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)Front OSD Key Control, Remote control, RS232C ControlAC 110 ~ 240V 50/60Hz580 WattRF / CATV (NTSC)RCA X 4Port (AV INPUT 1/2/3, AV OUTPUT)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P, 1080i)Mini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720p, 1080i)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini D-Sub 9Pin X 1PortFunction and Display Specification263" Plasma TV Display PanelSpecification

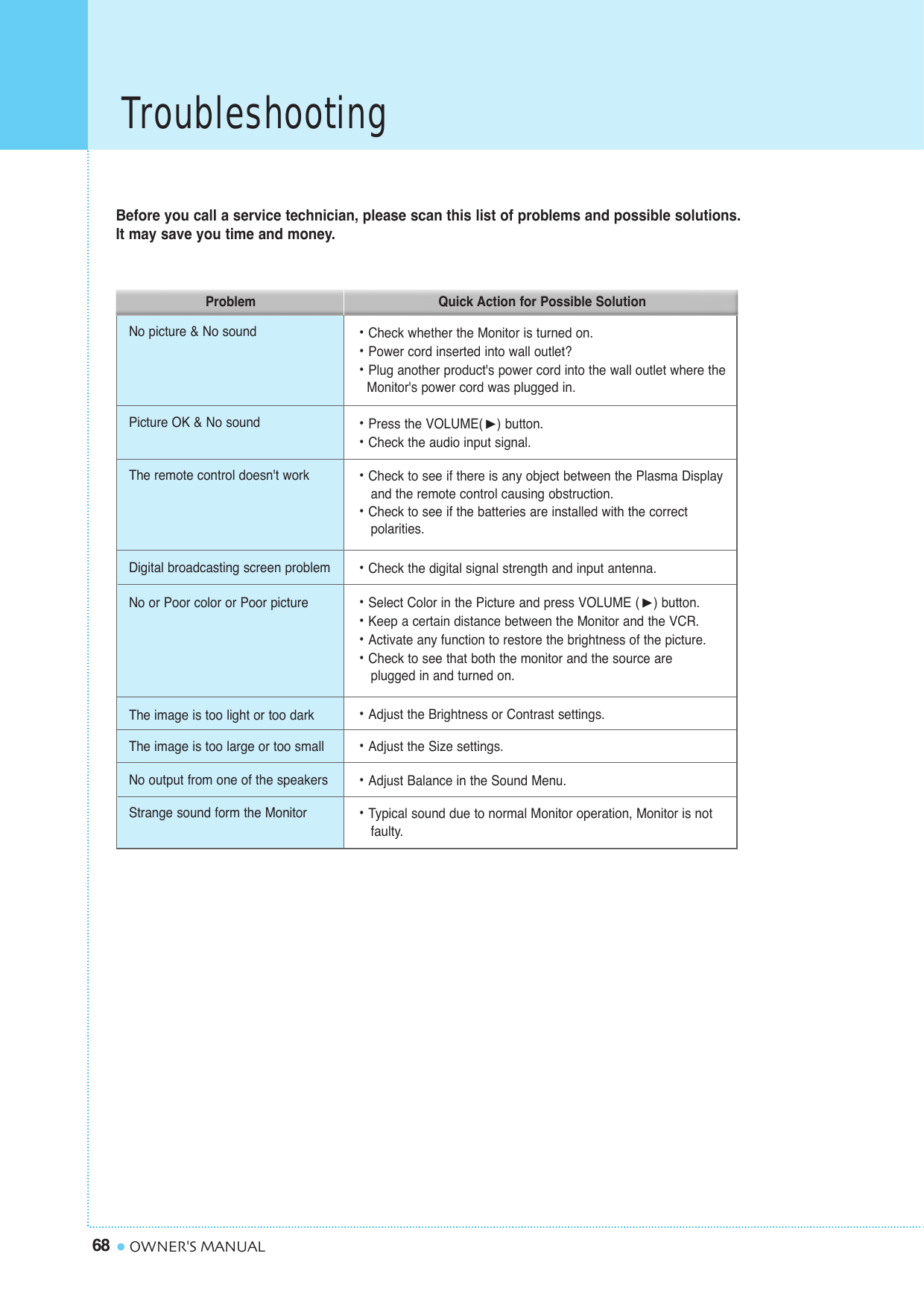

Troubleshooting68 OWNER'S MANUALBefore you call a service technician, please scan this list of problems and possible solutions. It may save you time and money.No picture & No sound • Check whether the Monitor is turned on.• Power cord inserted into wall outlet?• Plug another product's power cord into the wall outlet where the Monitor's power cord was plugged in.Picture OK & No sound • Press the VOLUME() button.• Check the audio input signal.The remote control doesn't work • Check to see if there is any object between the Plasma Display and the remote control causing obstruction.• Check to see if the batteries are installed with the correct polarities.Digital broadcasting screen problem • Check the digital signal strength and input antenna.No or Poor color or Poor picture • Select Color in the Picture and press VOLUME () button.• Keep a certain distance between the Monitor and the VCR.• Activate any function to restore the brightness of the picture.• Check to see that both the monitor and the source are plugged in and turned on.The image is too light or too dark • Adjust the Brightness or Contrast settings.The image is too large or too small • Adjust the Size settings.No output from one of the speakers • Adjust Balance in the Sound Menu.Strange sound form the Monitor • Typical sound due to normal Monitor operation, Monitor is not faulty.Quick Action for Possible SolutionProblem
69OWNER'S MANUAL1-Year Limited WarrantyWarranty Service is only available in the country of original purchase. This is an important document. Attach your bill of sale to this card and keep it in a safe place.Your bill of sale is your warranty.Our warranty remains in effect for one year from the date of the first consumer purchase.WHO IS PROTECTED BY THIS WARRANTYOur warranty protects the original owner and all subsequent owners, provided that our product was purchased from an authorized dealer A copy of the original dated bill of sale must be presented whenever warranty service is required.WHAT IS COVERED BY THIS WARRANTYExcept as specified below, the warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual; damage resulting from the performance of repairs by someone notauthorized by us; damage by natural disaster such as lightening, flood etc.; damage caused byinstallation of parts that do not conform to the specification; units used for other than home andoffice use; units not used for their intended purpose; any claims based on misrepresentations bythe seller; products sold on an "as-is" or final sales basis; or the cost of installing, removing, or reinstalling the unit. Our liability is limited to the repair or replacement, at our option, if any defective product and shall not include incidental or consequential damages. We reserve the right to replace a discontinued model. Any replacement units or parts may be new or rebuilt.TO OBTAIN WARRANTY SERVICEIf you require warranty service, please return the product to your dealer.Warranty Card
