Hellberg Safety LOCAL Family Radio Transceiver User Manual Local bruksanvisning

Hellberg Safety AB Family Radio Transceiver Local bruksanvisning

users manual

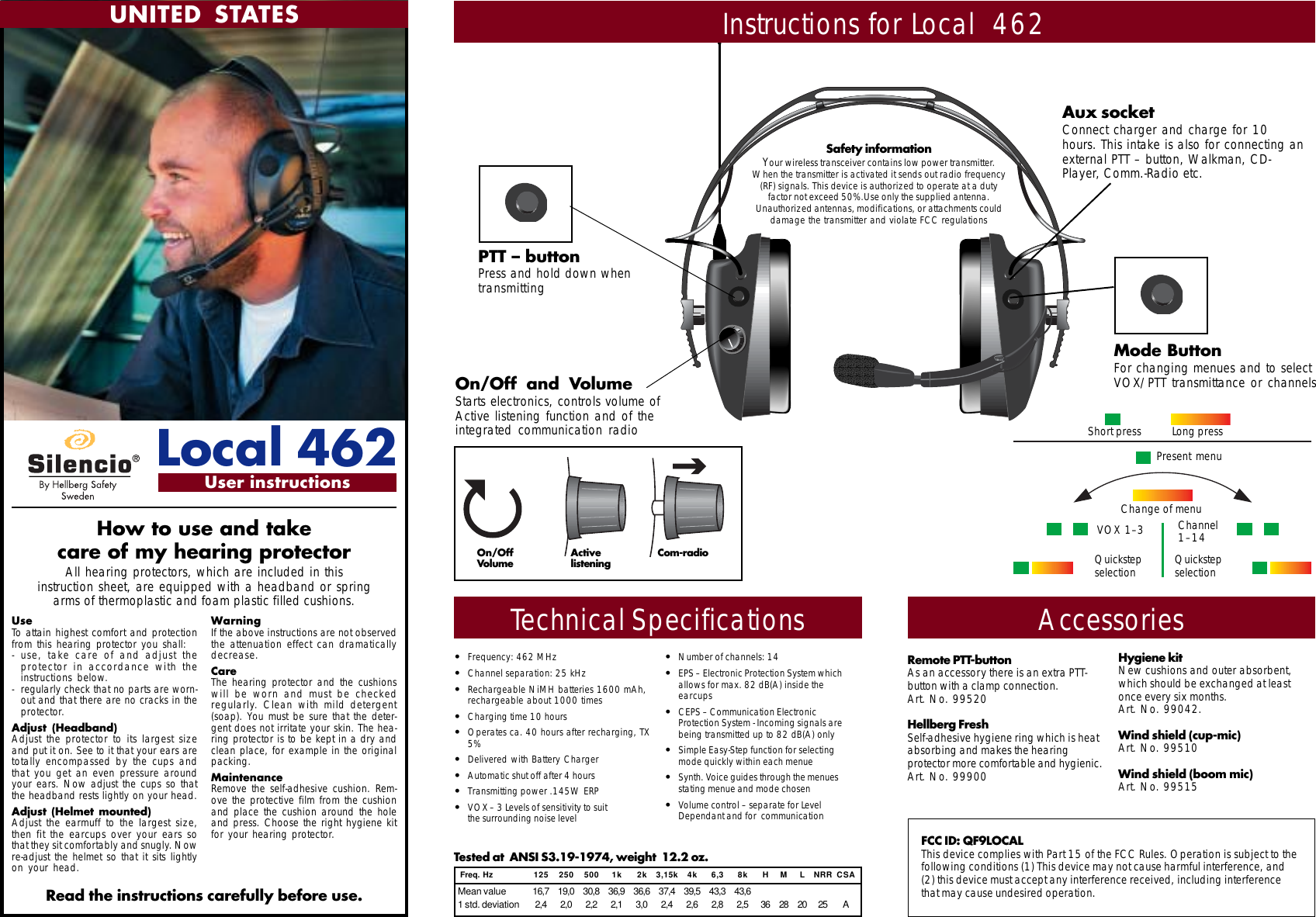

Short press Long pressChannel1–14VOX 1–3Quickstepselection Quickstepselection Change of menuPresent menuInstructions for Local 462 Freq. Hz 125 250 500 1k 2k 3,15k 4k 6,3 8k H M L NRR CSA Mean value 16,7 19,0 30,8 36,9 36,6 37,4 39,5 43,3 43,6 1 std. deviation 2,4 2,0 2,2 2,1 3,0 2,4 2,6 2,8 2,5 36 28 20 25 A•Frequency: 462 MHz•Channel separation: 25 kHz•Rechargeable NiMH batteries 1600 mAh,rechargeable about 1000 times•Charging time 10 hours•Operates ca. 40 hours after recharging, TX5%•Delivered with Battery Charger•Automatic shut off after 4 hours• Transmitting power .145W ERP•VOX – 3 Levels of sensitivity to suitthe surrounding noise level•Number of channels: 14•EPS – Electronic Protection System whichallows for max. 82 dB(A) inside theearcups•CEPS – Communication ElectronicProtection System - Incoming signals arebeing transmitted up to 82 dB(A) only•Simple Easy-Step function for selectingmode quickly within each menue•Synth. Voice guides through the menuesstating menue and mode chosen•Volume control – separate for LevelDependant and for communicationTechnical SpecificationsTested at ANSI S3.19-1974, weight 12.2 oz.AccessoriesHow to use and takecare of my hearing protectorAll hearing protectors, which are included in thisinstruction sheet, are equipped with a headband or springarms of thermoplastic and foam plastic filled cushions.UseTo attain highest comfort and protectionfrom this hearing protector you shall:- use, take care of and adjust theprotector in accordance with theinstructions below.- regularly check that no parts are worn-out and that there are no cracks in theprotector.Adjust (Headband)Adjust the protector to its largest sizeand put it on. See to it that your ears aretotally encompassed by the cups andthat you get an even pressure aroundyour ears. Now adjust the cups so thatthe headband rests lightly on your head.Adjust (Helmet mounted)Adjust the earmuff to the largest size,then fit the earcups over your ears sothat they sit comfortably and snugly. Nowre-adjust the helmet so that it sits lightlyon your head.WarningIf the above instructions are not observedthe attenuation effect can dramaticallydecrease.CareThe hearing protector and the cushionswill be worn and must be checkedregularly. Clean with mild detergent(soap). You must be sure that the deter-gent does not irritate your skin. The hea-ring protector is to be kept in a dry andclean place, for example in the originalpacking.MaintenanceRemove the self-adhesive cushion. Rem-ove the protective film from the cushionand place the cushion around the holeand press. Choose the right hygiene kitfor your hearing protector.Read the instructions carefully before use.Remote PTT-buttonAs an accessory there is an extra PTT-button with a clamp connection.Art. No. 99520Hellberg FreshSelf-adhesive hygiene ring which is heatabsorbing and makes the hearingprotector more comfortable and hygienic.Art. No. 99900Hygiene kitNew cushions and outer absorbent,which should be exchanged at leastonce every six months.Art. No. 99042.Wind shield (cup-mic)Art. No. 99510Wind shield (boom mic)Art. No. 99515Local 462User instructionsOn/Off and VolumeStarts electronics, controls volume ofActive listening function and of theintegrated communication radioPTT – buttonPress and hold down whentransmittingAux socketConnect charger and charge for 10hours. This intake is also for connecting anexternal PTT – button, Walkman, CD-Player, Comm.-Radio etc.Mode ButtonFor changing menues and to selectVOX/PTT transmittance or channelsOn/OffVolumeActivelisteningCom-radioUNITED STATESFCC ID: QF9LOCALThis device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing conditions (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interferencethat may cause undesired operation.Safety informationYour wireless transceiver contains low power transmitter.When the transmitter is activated it sends out radio frequency(RF) signals. This device is authorized to operate at a dutyfactor not exceed 50%.Use only the supplied antenna.Unauthorized antennas, modifications, or attachments coulddamage the transmitter and violate FCC regulations
