Hohem Technology D1 2-AXIS HANDHELD STABILIZING GIMBAL FOR SMART PHONE User Manual

Hohem Technology Co., Ltd. 2-AXIS HANDHELD STABILIZING GIMBAL FOR SMART PHONE Users Manual

Users Manual

Foldable Stabilizer for SmartphoneD1Hohem Technology Co.,Ltd

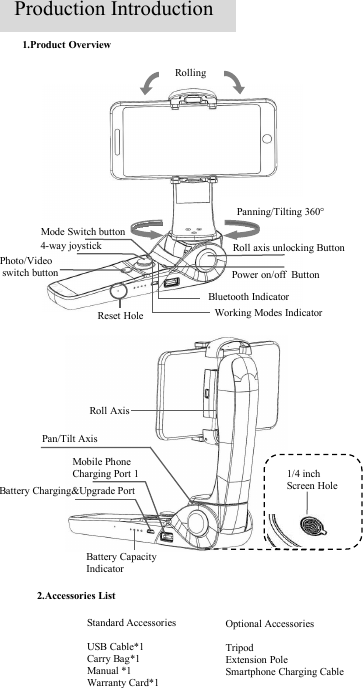

Panning/Tilting 360°2.Accessories ListStandard AccessoriesUSB Cable*1Carry Bag*1Manual *1Warranty Card*1Optional AccessoriesTripodExtension PoleSmartphone Charging Cable1.Product OverviewProduction IntroductionMode Switch buttonPhoto/Videoswitch buttonBluetooth Indicator4-way joystickPower on/off ButtonRoll axis unlocking ButtonWorking Modes IndicatorReset HoleMobile PhoneCharging Port 2RollingRoll AxisMobile PhoneCharging Port 1Battery CapacityIndicatorPan/Tilt AxisBattery Charging&Upgrade Port1/4 inchScreen Hole

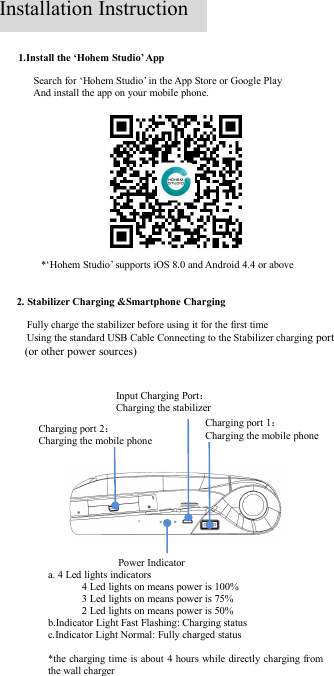

1.Install the ‘Hohem Studio’ AppSearch for ‘Hohem Studio’ in the App Store or Google PlayAnd install the app on your mobile phone.2. Stabilizer Charging &Smartphone ChargingFully charge the stabilizer before using it for the first timeUsing the standard USB Cable Connecting to the Stabilizer charging port(or other power sources)*‘Hohem Studio’ supports iOS 8.0 and Android 4.4 or aboveCharging port 2：Charging the mobile phoneCharging port 1：Charging the mobile phoneInput Charging Port：Charging the stabilizerPower Indicatora. 4 Led lights indicators4 Led lights on means power is 100%3 Led lights on means power is 75%2 Led lights on means power is 50%b.Indicator Light Fast Flashing: Charging statusc.Indicator Light Normal: Fully charged status*the charging time is about 4 hours while directly charging fromthe wall chargerInstallation Instruction

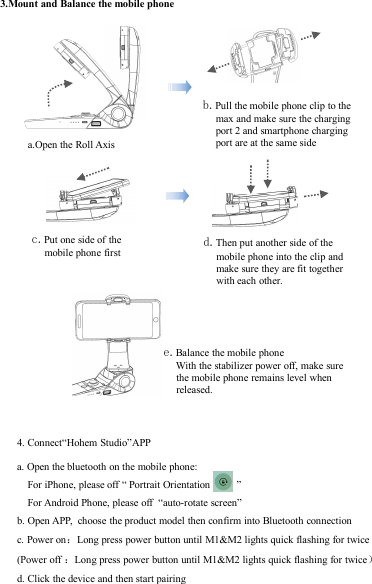

3.Mount and Balance the mobile phonea.Open the Roll Axisb.Pull the mobile phone clip to themax and make sure the chargingport 2 and smartphone chargingport are at the same sidee.Balance the mobile phoneWith the stabilizer power off, make surethe mobile phone remains level whenreleased.c.Put one side of themobile phone firstd.Then put another side of themobile phone into the clip andmake sure they are fit togetherwith each other.4. Connect“Hohem Studio”APPa. Open the bluetooth on the mobile phone:For iPhone, please off “ Portrait Orientation ”For Android Phone, please off “auto-rotate screen”b. Open APP, choose the product model then confirm into Bluetooth connectionc. Power on：Long press power button until M1&M2 lights quick flashing for twice(Power off ：Long press power button until M1&M2 lights quick flashing for twice）d. Click the device and then start pairing

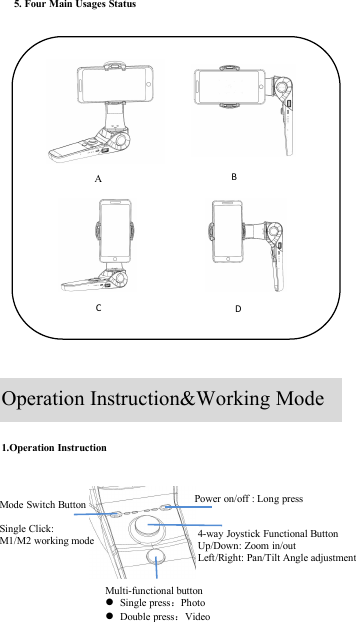

A④5. Four Main Usages Status1.Operation InstructionMulti-functional buttonSingle press：PhotoDouble press：VideoPower on/off : Long press4-way Joystick Functional ButtonUp/Down: Zoom in/outLeft/Right: Pan/Tilt Angle adjustmentMode Switch ButtonSingle Click:M1/M2 working modeOperation Instruction&Working ModeInstructionBCD

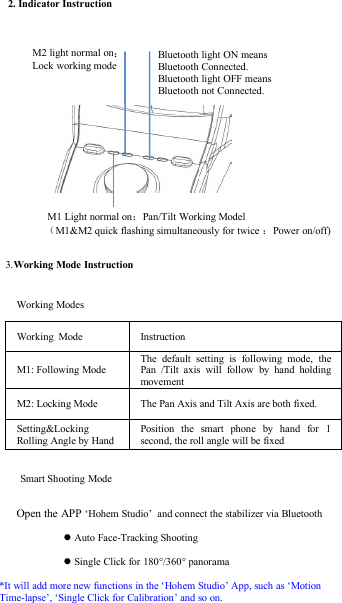

Working ModeInstructionM1: Following ModeThe default setting is following mode, thePan /Tilt axis will follow by hand holdingmovementM2: Locking ModeThe Pan Axis and Tilt Axis are both fixed.Setting&LockingRolling Angle by HandPosition the smart phone by hand for 1second, the roll angle will be fixed2. Indicator InstructionM1 Light normal on：Pan/Tilt Working Model（M1&M2 quick flashing simultaneously for twice ：Power on/off)3.Working Mode InstructionM2 light normal on：Lock working modeBluetooth light ON meansBluetooth Connected.Bluetooth light OFF meansBluetooth not Connected.Working ModesSmart Shooting ModeOpen the APP ‘Hohem Studio’ and connect the stabilizer via BluetoothAuto Face-Tracking ShootingSingle Click for 180°/360° panorama*It will add more new functions in the ‘Hohem Studio’ App, such as ‘MotionTime-lapse’, ‘Single Click for Calibration’ and so on.

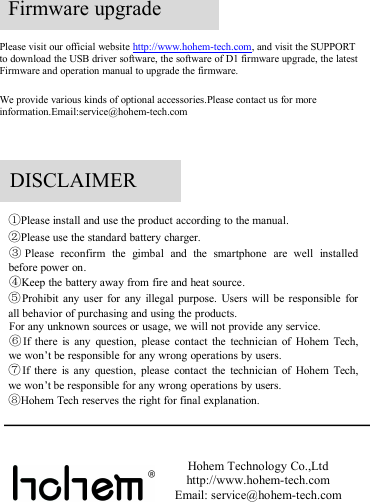

Please visit our official website http://www.hohem-tech.com, and visit the SUPPORTto download the USB driver software, the software of D1 firmware upgrade, the latestFirmware and operation manual to upgrade the firmware.We provide various kinds of optional accessories.Please contact us for moreinformation.Email:service@hohem-tech.comFirmware upgrade①Please install and use the product according to the manual.②Please use the standard battery charger.③Please reconfirm the gimbal and the smartphone are well installedbefore power on.④Keep the battery away from fire and heat source.⑤Prohibit any user for any illegal purpose. Users will be responsible forall behavior of purchasing and using the products.For any unknown sources or usage, we will not provide any service.⑥If there is any question, please contact the technician of Hohem Tech,we won’t be responsible for any wrong operations by users.⑦If there is any question, please contact the technician of Hohem Tech,we won’t be responsible for any wrong operations by users.⑧Hohem Tech reserves the right for final explanation.Hohem Technology Co.,Ltdhttp://www.hohem-tech.comEmail: service@hohem-tech.comDISCLAIMER
