Hohem Technology DG1 3-AXIS HANDHELD STABILIZING GIMBAL FOR DSLR User Manual

Hohem Technology Co., Ltd. 3-AXIS HANDHELD STABILIZING GIMBAL FOR DSLR Users Manual

Users Manual

Product Overview Quick Installation DG1Quick Start Guide V1.0 GuideV1.0 3. Balancing：（1）Balancing the Tilt Axis Roll Axis L-Shape Mounting Plate Thumb Screw 1 1.Insert 4PCS 18350 batteries, ensure battery positive pole upside *4 PCS Tilt Axis 2.Camera Installation：（1）Install Mounting Plate (2) Place the mounting plate which the camera is mounted on the clamping plate and tighten the screws Button up the mounting plate and clamping plate via a Z-shape socket Screwing clockwise to fix the mounting plate If camera lens tilts downside If camera lens tilts upside a. Adjust tilt axis balance in horizon direction：Placethe gimbal like picture 3-1-a, hold the roll axis and keep it in horizontal steady, position the camera lens pointing forwards and loosen the lens, observe the camera status. If camera lens tilts backwards Loosen the thumb screw 4 on tilt axis, move the camera downwards through sliding arm until camera is balanced. Move the camera backwards through sliding arm to make camera lens balanced. b. Adjust tilt axis balance in vertical direction: Place the gimbal like picture 3-1-b, hold the roll axis and keep it in horizontal steady,position the camera lens pointing upwards, then loosen the lens, observe the camera status. Loosen the thumb screw 5, move the camera forwards through sliding arm to make camera balanced 3-1-a Web：www.hohem-tech.com E-mail：service@hohem-tech.com Tel：0755-86573216 （Copyright: Hohem Technology Co.,Ltd） Rolling 360° Tilting 360° Panning 360° Len Holder*1 1/4 Inch Screw 18350 Battery*4 USB Cable*2 Battery Changer*2 Single Handle*1 (Please use the standard charger for charging) Connecting Arm*1 Accessories List Gimbal*1 1/4 Inch short screw*1 Thumb Screw 2 Lens Holder Pan Axis Signal Indicator Light 1/4”Extension Screw Hole Short*1 Long*1 Allen Wrench*1 Thumb Screw 5 L-Shape Mounting Plate*1 Thumb Screw 4 3-1-b Adjust the screw making mounting plate appropriate position. Ensure the camera tightly close to mounting plate margin If camera lens tilts forwards Thumb Screw 3 USB Port Move the camera upwards through sliding arm until camera is balanced 5-Way Joystick Multifunctional Button(Power On/ Off) & Status Indicator Light UARTExtendedPort DUO Handles*1

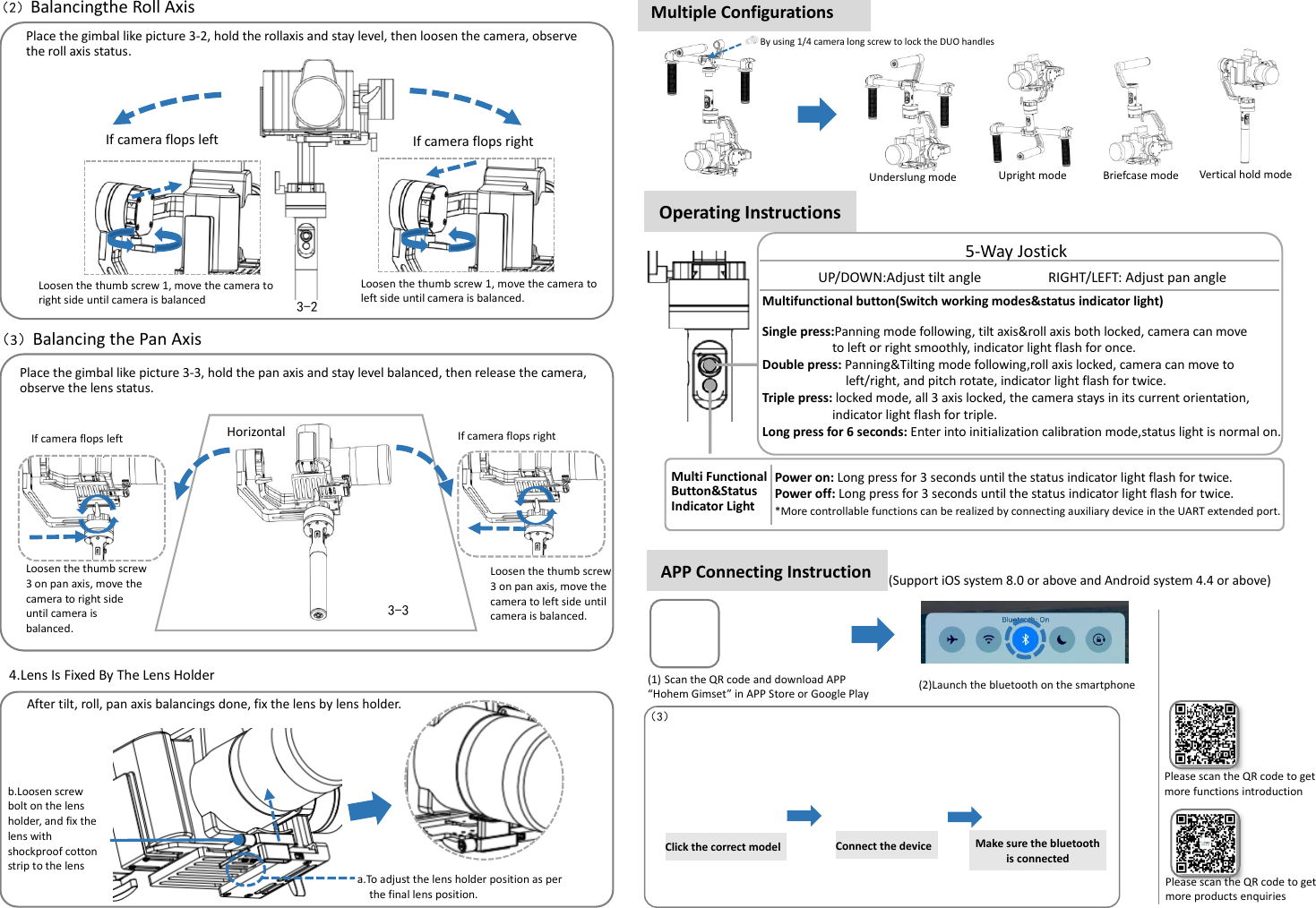

（2）Balancingthe Roll Axis Loosen the thumb screw 3 on pan axis, move the camera to right side until camera is balanced. Place the gimbal like picture 3-3, hold the pan axis and stay level balanced, then release the camera, observe the lens status. 3-2 （3）Balancing the Pan Axis 3-3 Horizontal If camera flops left 4.Lens Is Fixed By The Lens Holder After tilt, roll, pan axis balancings done, fix the lens by lens holder. 镜头。 b.Loosen screw bolt on the lens holder, and fix the lens with shockproof cotton strip to the lens holder a.To adjust the lens holder position as per the final lens position. If camera flops left Operating Instructions Multifunctional button(Switch working modes&status indicator light) Single press:Panning mode following, tilt axis&roll axis both locked, camera can move to left or right smoothly, indicator light flash for once. Double press: Panning&Tilting mode following,roll axis locked, camera can move to left/right, and pitch rotate, indicator light flash for twice. Triple press: locked mode, all 3 axis locked, the camera stays in its current orientation, indicator light flash for triple. Long press for 6 seconds: Enter into initialization calibration mode,status light is normal on. Power on: Long press for 3 seconds until the status indicator light flash for twice. Power off: Long press for 3 seconds until the status indicator light flash for twice. *More controllable functions can be realized by connecting auxiliary device in the UART extended port. Multi Functional Button&Status Indicator Light 5-Way Jostick UP/DOWN:Adjust tilt angle RIGHT/LEFT: Adjust pan angle APP Connecting Instruction (1) Scan the QR code and download APP “Hohem Gimset” in APP Store or Google Play (2)Launch the bluetooth on the smartphone (Support iOS system 8.0 or above and Android system 4.4 or above) Click the correct model （3） Connect the device Please scan the QR code to get more functions introduction Make sure the bluetooth is connected Multiple Configurations By using 1/4 camera long screw to lock the DUO handles Place the gimbal like picture 3-2, hold the rollaxis and stay level, then loosen the camera, observe the roll axis status. . If camera flops right Loosen the thumb screw 1, move the camera to left side until camera is balanced. Loosen the thumb screw 1, move the camera to right side until camera is balanced If camera flops right Loosen the thumb screw 3 on pan axis, move the camera to left side until camera is balanced. Please scan the QR code to get more products enquiries Underslung mode Upright mode Briefcase mode Vertical hold mode

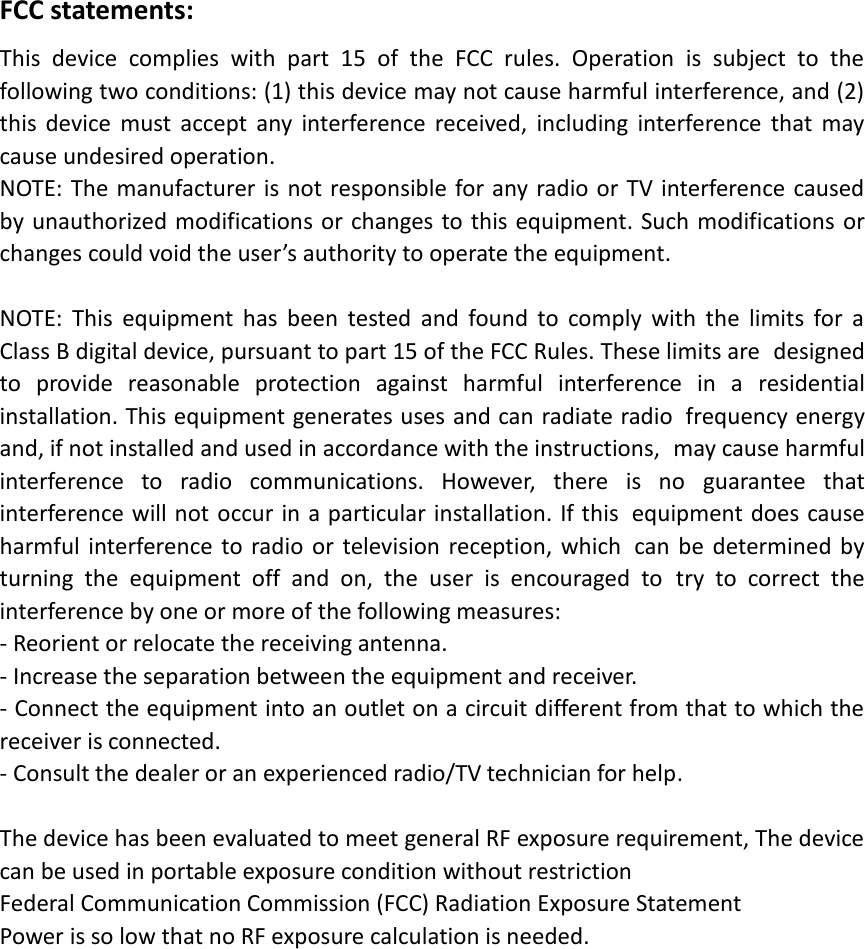

FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction Federal Communication Commission (FCC) Radiation Exposure Statement Power is so low that no RF exposure calculation is needed.
