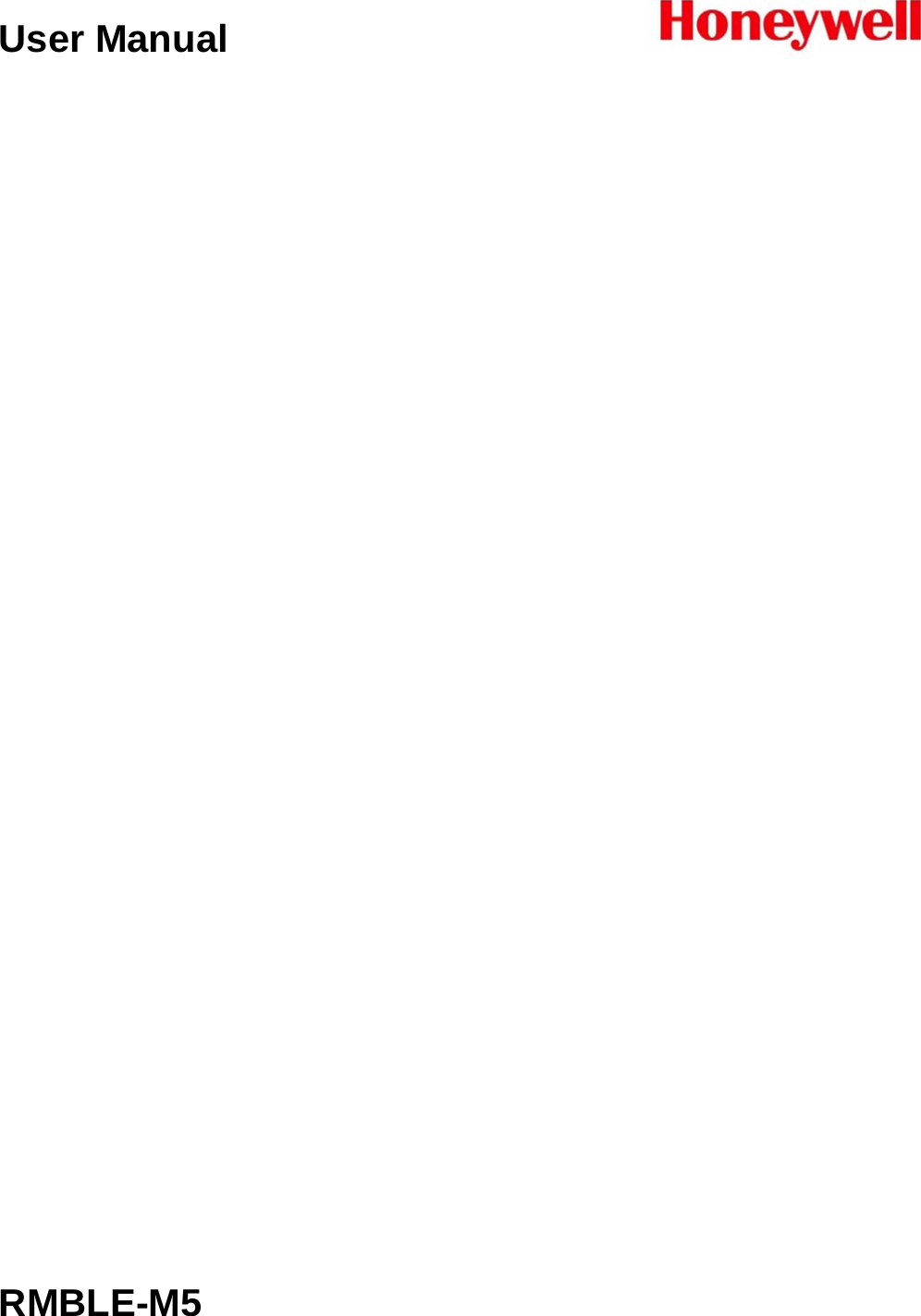

User Manual                            RMBLE-M5

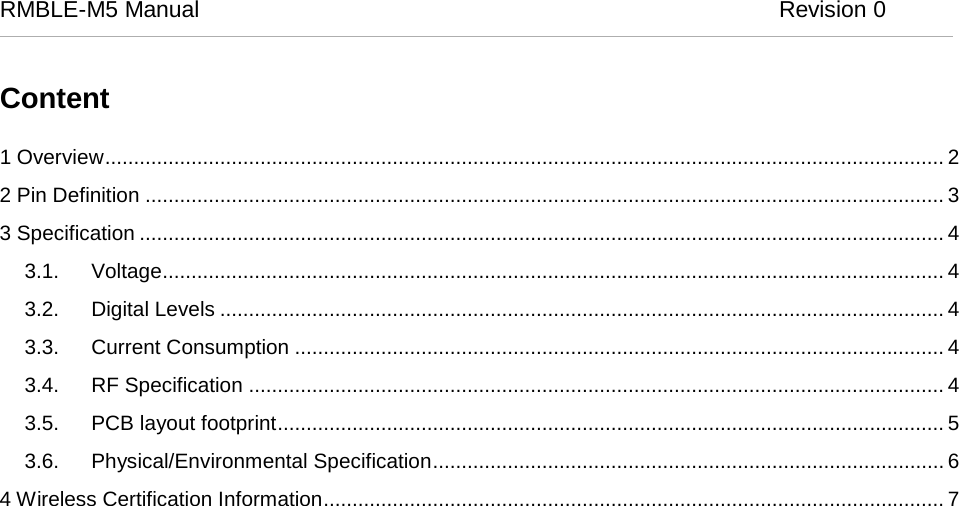

 RMBLE-M5 Manual                              Revision 0   Content 1 Overview .................................................................................................................................................. 2 2 Pin Definition ........................................................................................................................................... 3 3 Specification ............................................................................................................................................ 4 3.1. Voltage ........................................................................................................................................ 4 3.2. Digital Levels .............................................................................................................................. 4 3.3. Current Consumption ................................................................................................................. 4 3.4. RF Specification ......................................................................................................................... 4 3.5. PCB layout footprint .................................................................................................................... 5 3.6. Physical/Environmental Specification ......................................................................................... 6 4 Wireless Certification Information ............................................................................................................ 7

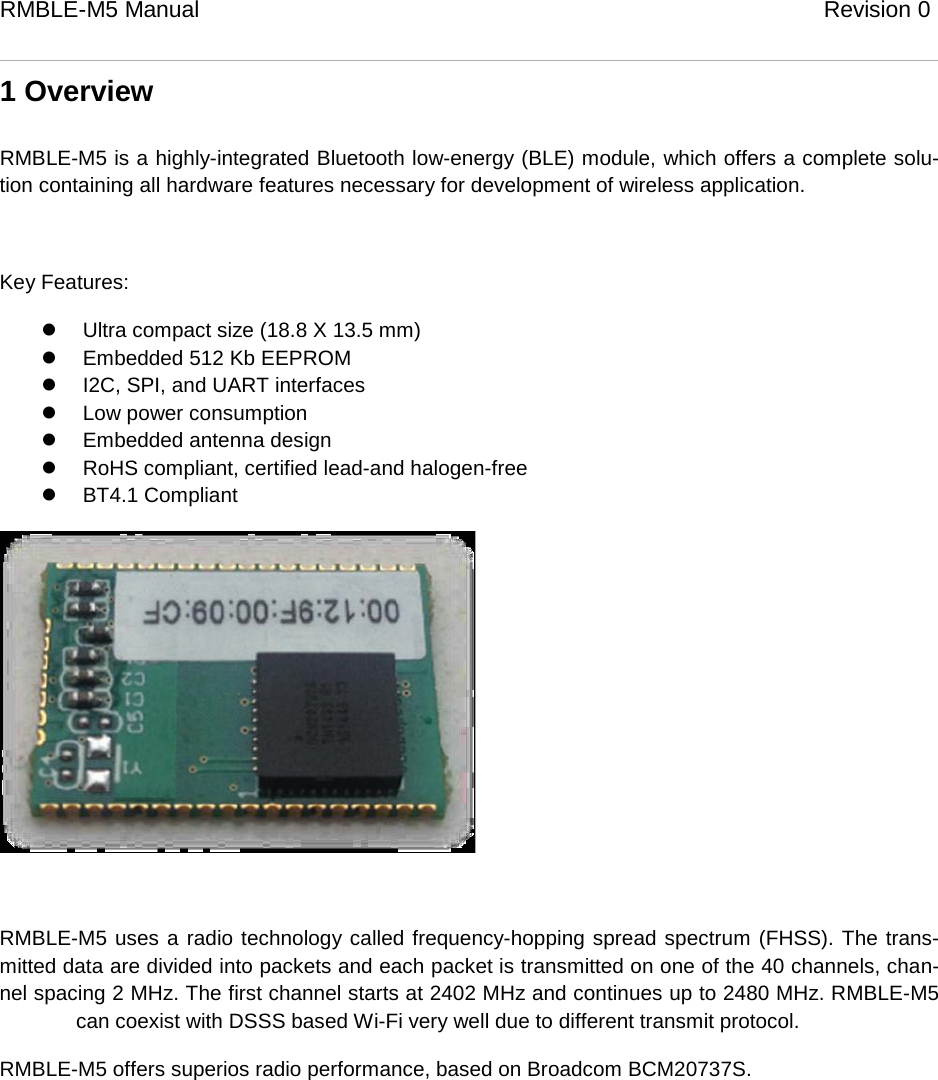

RMBLE-M5 Manual                              Revision 0   1 Overview RMBLE-M5 is a highly-integrated Bluetooth low-energy (BLE) module, which offers a complete solu-tion containing all hardware features necessary for development of wireless application.  Key Features:  Ultra compact size (18.8 X 13.5 mm)  Embedded 512 Kb EEPROM  I2C, SPI, and UART interfaces  Low power consumption  Embedded antenna design  RoHS compliant, certified lead-and halogen-free  BT4.1 Compliant   RMBLE-M5 uses a radio technology called frequency-hopping spread spectrum (FHSS). The trans-mitted data are divided into packets and each packet is transmitted on one of the 40 channels, chan-nel spacing 2 MHz. The first channel starts at 2402 MHz and continues up to 2480 MHz. RMBLE-M5   can coexist with DSSS based Wi-Fi very well due to different transmit protocol. RMBLE-M5 offers superios radio performance, based on Broadcom BCM20737S.

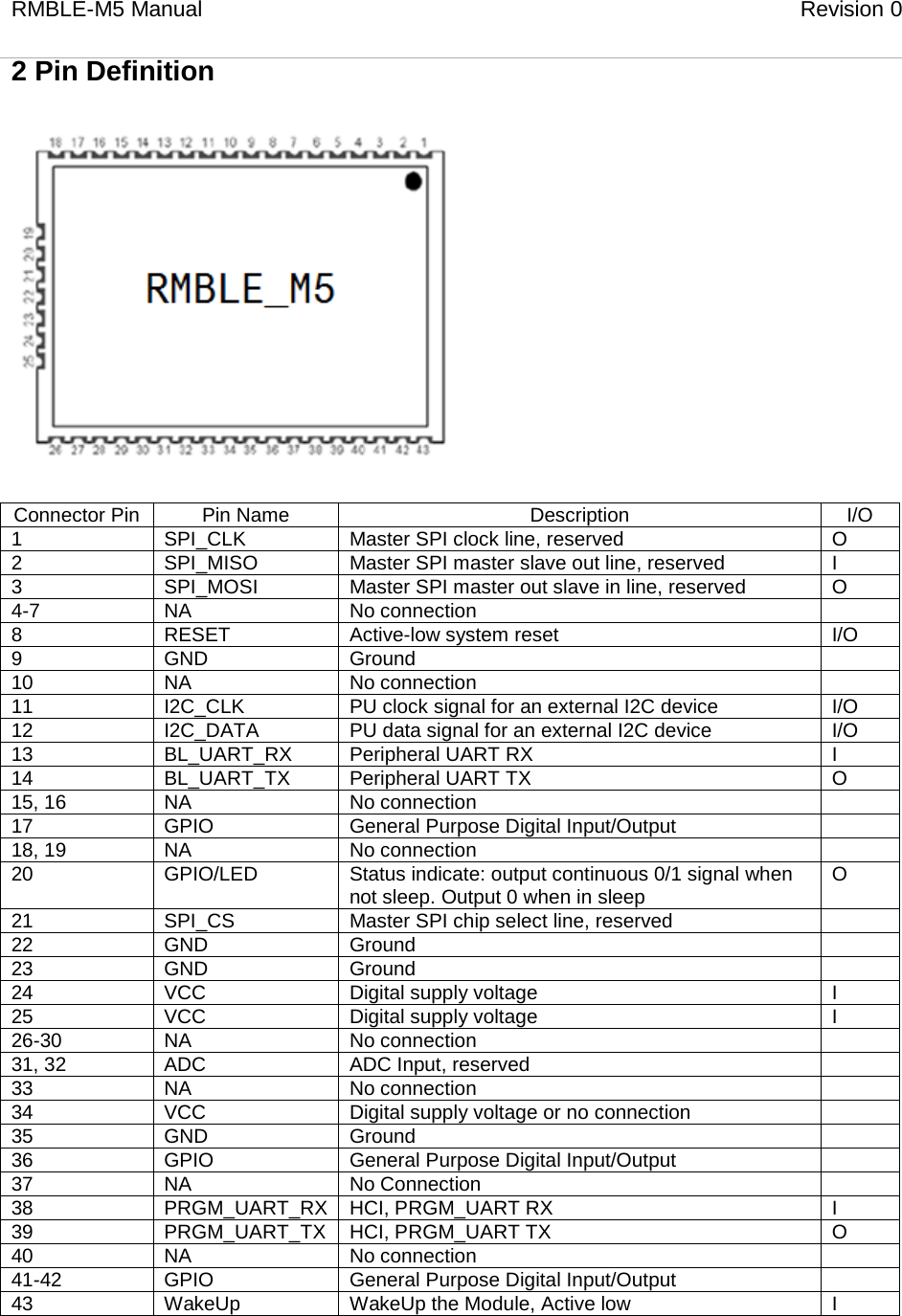

RMBLE-M5 Manual                              Revision 0   2 Pin Definition  Connector Pin Pin Name Description I/O 1 SPI_CLK Master SPI clock line, reserved O 2 SPI_MISO Master SPI master slave out line, reserved I 3 SPI_MOSI Master SPI master out slave in line, reserved O 4-7 NA No connection  8 RESET Active-low system reset I/O 9 GND Ground  10 NA No connection  11 I2C_CLK PU clock signal for an external I2C device I/O 12 I2C_DATA PU data signal for an external I2C device I/O 13 BL_UART_RX Peripheral UART RX I 14 BL_UART_TX Peripheral UART TX O 15, 16 NA No connection  17 GPIO General Purpose Digital Input/Output  18, 19 NA No connection  20 GPIO/LED Status indicate: output continuous 0/1 signal when not sleep. Output 0 when in sleep O 21 SPI_CS Master SPI chip select line, reserved  22 GND Ground  23 GND Ground  24 VCC Digital supply voltage I 25 VCC Digital supply voltage I 26-30 NA No connection  31, 32 ADC ADC Input, reserved  33 NA No connection  34 VCC Digital supply voltage or no connection  35 GND Ground  36 GPIO General Purpose Digital Input/Output  37 NA No Connection  38 PRGM_UART_RX HCI, PRGM_UART RX I 39 PRGM_UART_TX HCI, PRGM_UART TX O 40 NA No connection  41-42 GPIO General Purpose Digital Input/Output  43 WakeUp WakeUp the Module, Active low I

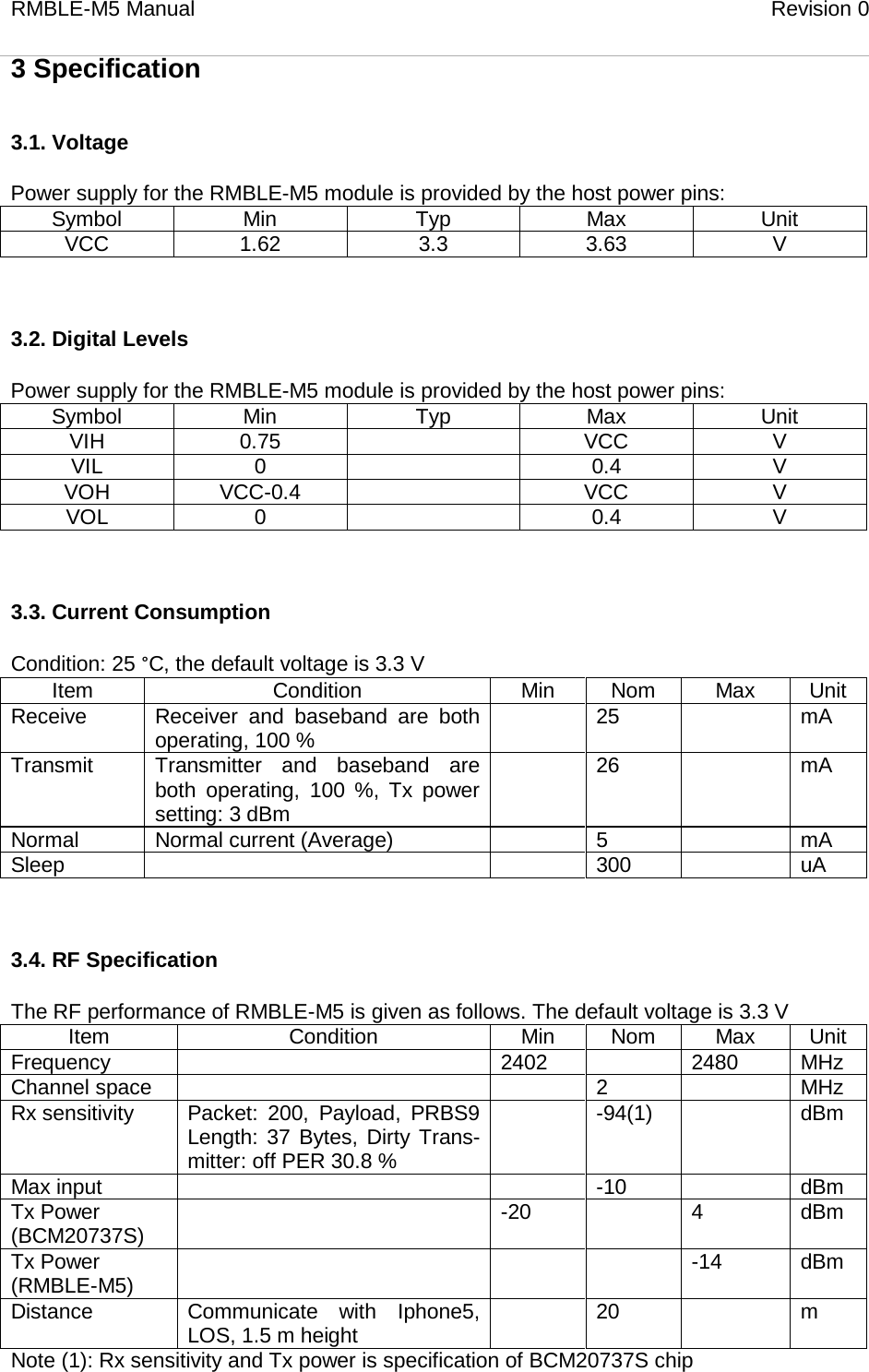

RMBLE-M5 Manual                              Revision 0   3 Specification 3.1. Voltage Power supply for the RMBLE-M5 module is provided by the host power pins: Symbol Min Typ Max Unit VCC 1.62 3.3 3.63 V  3.2. Digital Levels Power supply for the RMBLE-M5 module is provided by the host power pins: Symbol Min Typ Max Unit VIH 0.75  VCC V VIL 0  0.4 V VOH VCC-0.4  VCC V VOL 0  0.4 V  3.3. Current Consumption Condition: 25 °C, the default voltage is 3.3 V Item Condition Min Nom Max Unit Receive Receiver and baseband are both operating, 100 %  25  mA  Transmit Transmitter and baseband are both operating, 100 %, Tx power setting: 3 dBm  26  mA  Normal Normal current (Average)  5  mA  Sleep   300  uA   3.4. RF Specification The RF performance of RMBLE-M5 is given as follows. The default voltage is 3.3 V Item Condition Min Nom Max Unit Frequency  2402  2480 MHz Channel space   2  MHz Rx sensitivity Packet: 200, Payload,  PRBS9 Length: 37 Bytes, Dirty Trans-mitter: off PER 30.8 %  -94(1)  dBm Max input   -10  dBm Tx Power (BCM20737S)  -20  4 dBm Tx Power (RMBLE-M5)    -14 dBm Distance Communicate with Iphone5, LOS, 1.5 m height  20  m Note (1): Rx sensitivity and Tx power is specification of BCM20737S chip

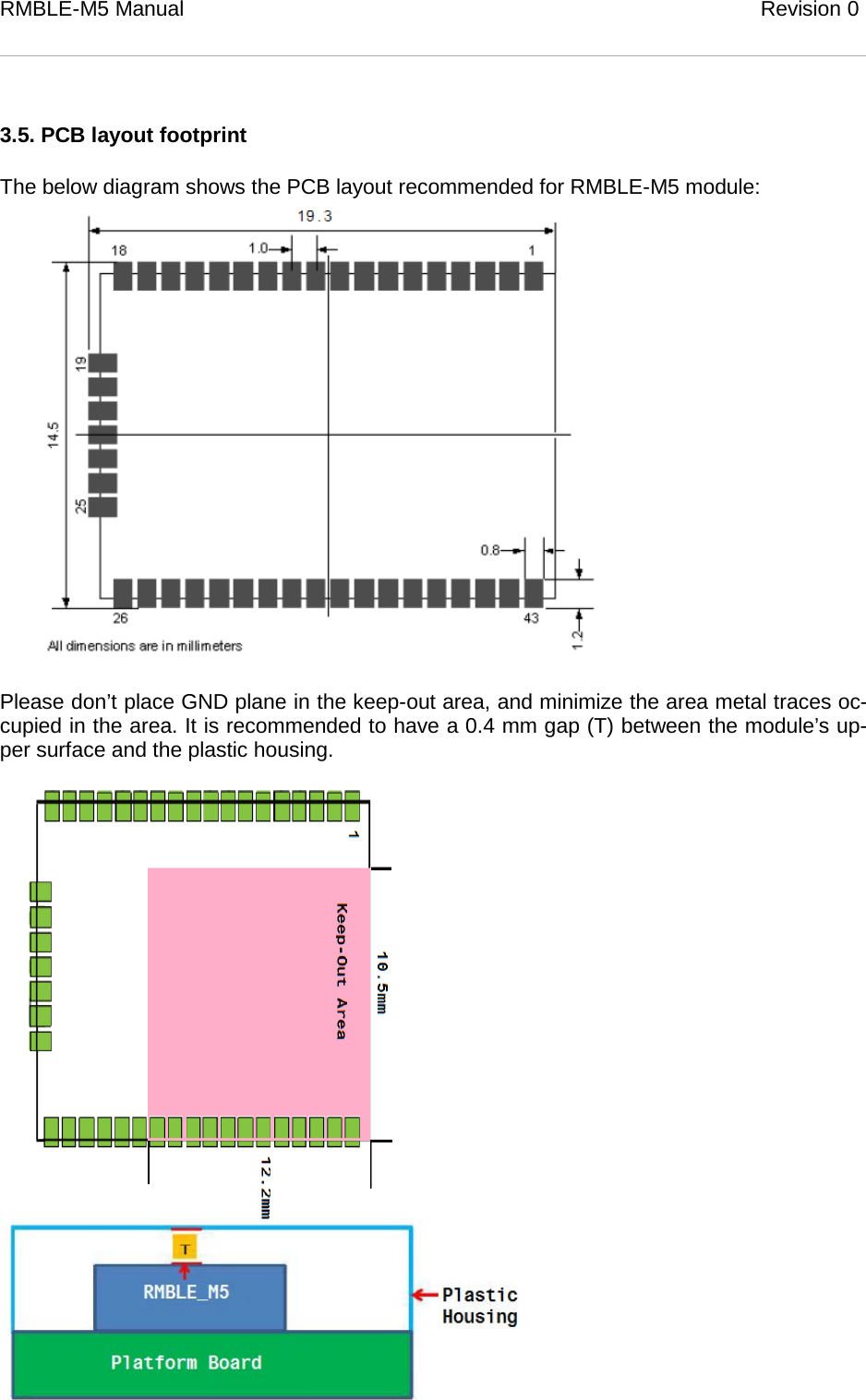

RMBLE-M5 Manual                              Revision 0    3.5. PCB layout footprint The below diagram shows the PCB layout recommended for RMBLE-M5 module:  Please don’t place GND plane in the keep-out area, and minimize the area metal traces oc-cupied in the area. It is recommended to have a 0.4 mm gap (T) between the module’s up-per surface and the plastic housing.

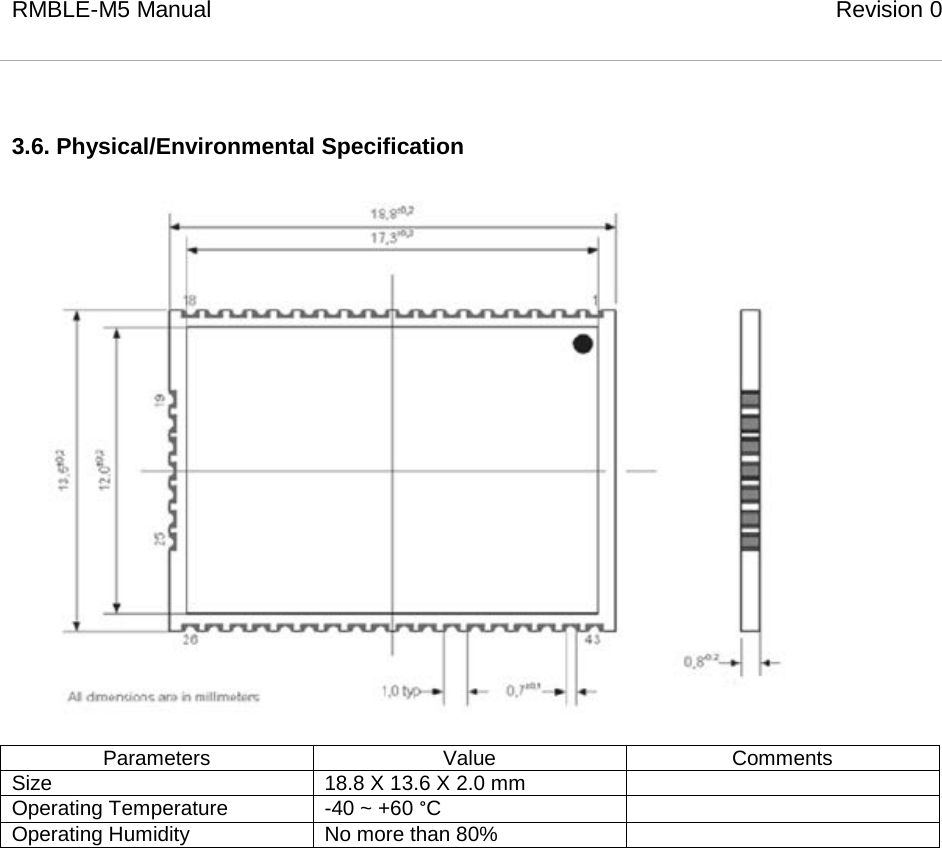

RMBLE-M5 Manual                              Revision 0    3.6. Physical/Environmental Specification  Parameters Value Comments Size 18.8 X 13.6 X 2.0 mm  Operating Temperature -40 ~ +60 °C  Operating Humidity No more than 80%

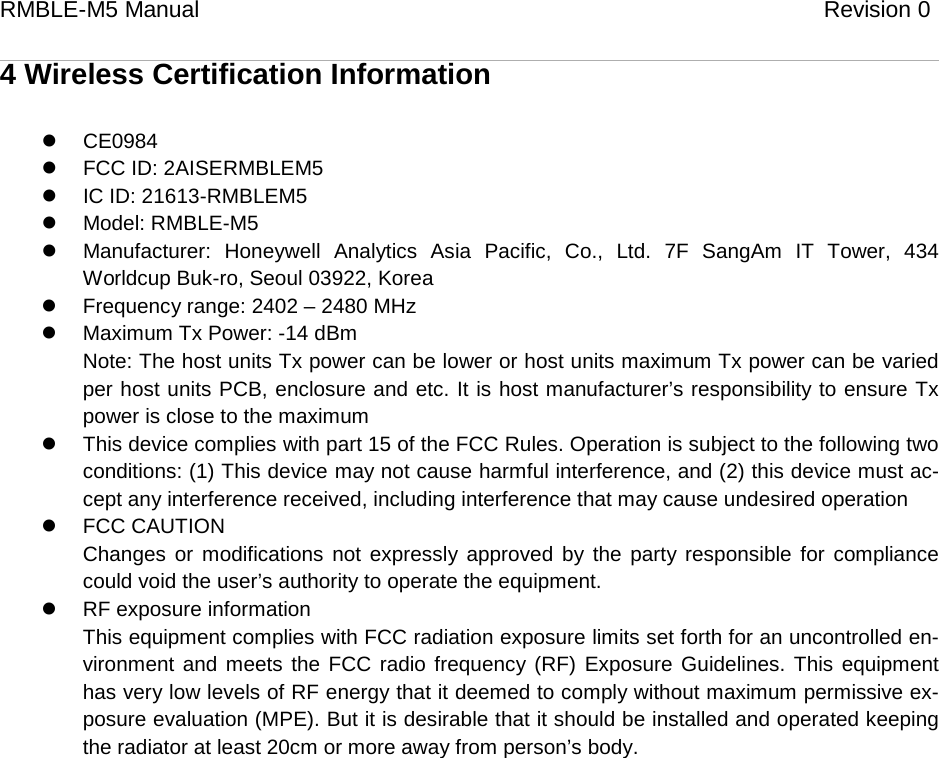

RMBLE-M5 Manual                              Revision 0   4 Wireless Certification Information  CE0984  FCC ID: 2AISERMBLEM5  IC ID: 21613-RMBLEM5  Model: RMBLE-M5  Manufacturer: Honeywell Analytics Asia Pacific, Co., Ltd. 7F SangAm IT Tower, 434 Worldcup Buk-ro, Seoul 03922, Korea  Frequency range: 2402 – 2480 MHz  Maximum Tx Power: -14 dBm Note: The host units Tx power can be lower or host units maximum Tx power can be varied per host units PCB, enclosure and etc. It is host manufacturer’s responsibility to ensure Tx power is close to the maximum  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must ac-cept any interference received, including interference that may cause undesired operation  FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  RF exposure information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled en-vironment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive ex-posure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body.

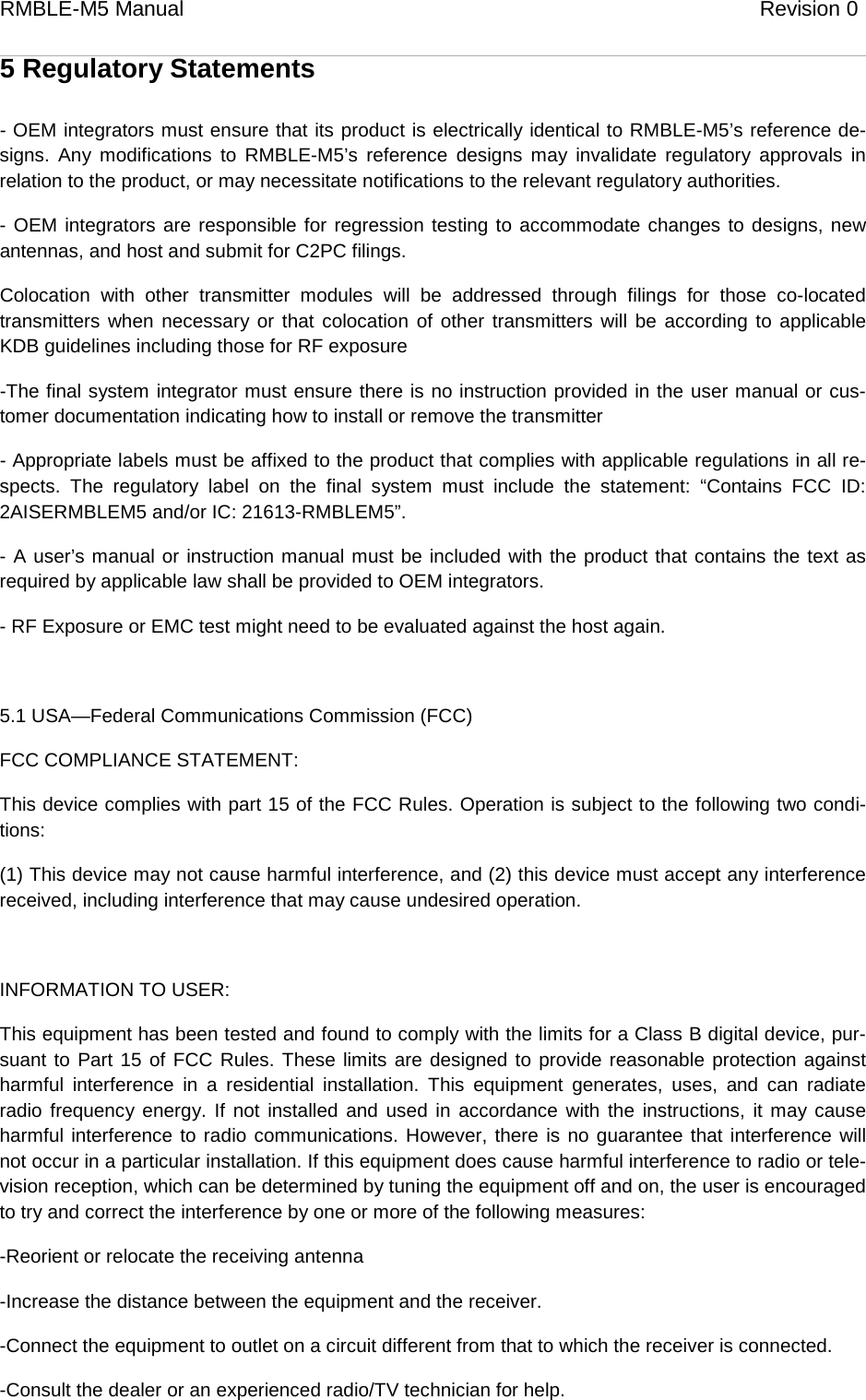

RMBLE-M5 Manual                              Revision 0   5 Regulatory Statements - OEM integrators must ensure that its product is electrically identical to RMBLE-M5’s reference de-signs. Any modifications to RMBLE-M5’s reference designs may invalidate regulatory approvals in relation to the product, or may necessitate notifications to the relevant regulatory authorities. - OEM integrators are responsible for regression testing to accommodate changes to designs, new antennas, and host and submit for C2PC filings.  Colocation with other transmitter modules will be addressed through filings for those co-located transmitters when necessary or that colocation of other transmitters will be according to applicable KDB guidelines including those for RF exposure -The final system integrator must ensure there is no instruction provided in the user manual or cus-tomer documentation indicating how to install or remove the transmitter - Appropriate labels must be affixed to the product that complies with applicable regulations in all re-spects. The regulatory label on the final system must include the statement: “Contains FCC ID: 2AISERMBLEM5 and/or IC: 21613-RMBLEM5”. - A user’s manual or instruction manual must be included with the product that contains the text as required by applicable law shall be provided to OEM integrators.  - RF Exposure or EMC test might need to be evaluated against the host again.  5.1 USA—Federal Communications Commission (FCC) FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi-tions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  INFORMATION TO USER: This equipment has been tested and found to comply with the limits for a Class B digital device, pur-suant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-vision reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
RMBLE-M5 Manual                              Revision 0    Caution: Exposure to Radio Frequency Radiation.  To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be col-located or operating in conjunction with any other antenna or transmitter.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for com-pliance could void the user's authority to operate this equipment.    The final host manual shall include the following regulatory statement:  This equipment has been tested and found to comply with the limits for a Class B digital device, pur-suant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-vision reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter-ference received, including interference that may cause undesired operation.  To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be col-located or operating in conjunction with any other antenna or transmitter.  5.2. Canada - Industry Canada (IC) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must ac-cept any interference, including interference that may cause undesired operation of the device.

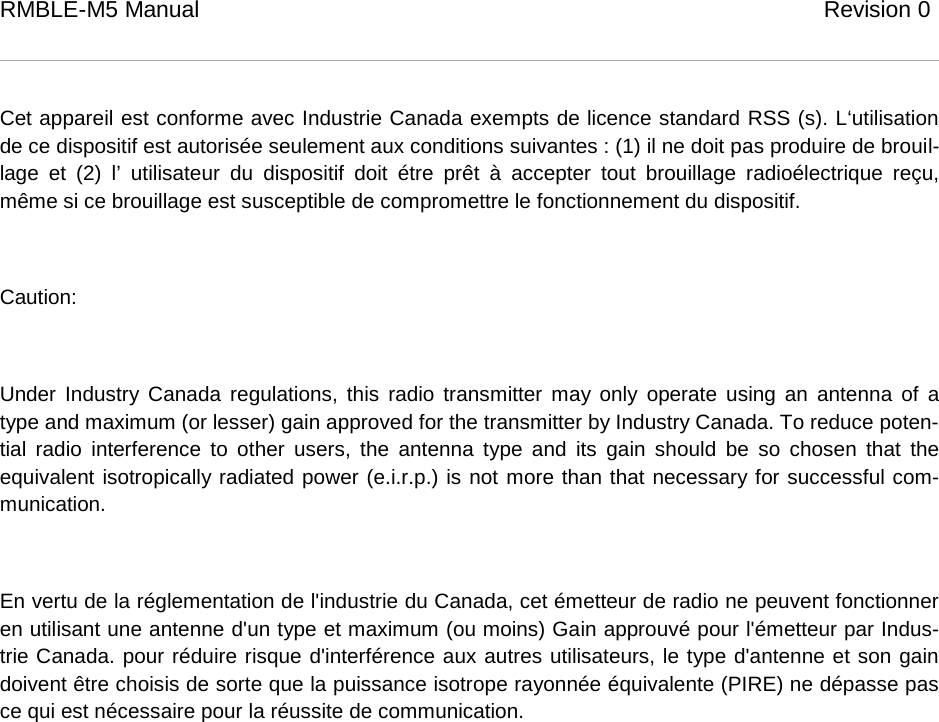

RMBLE-M5 Manual                              Revision 0    Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). L‘utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouil-lage  et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.  Caution:   Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce poten-tial radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful com-munication.   En vertu de la réglementation de l'industrie du Canada, cet émetteur de radio ne peuvent fonctionner en utilisant une antenne d'un type et maximum (ou moins) Gain approuvé pour l'émetteur par Indus-trie Canada. pour réduire risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour la réussite de communication.
