User Manual

Hooke verseMOBILE 3D AUDIO

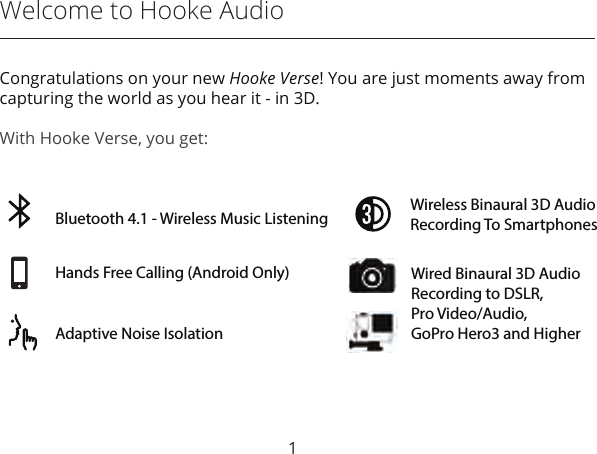

Welcome to Hooke AudioCongratulations on your new Hooke Verse! You are just moments away from capturing the world as you hear it - in 3D.With Hooke Verse, you get:1Hands Free Calling (Android Only)Bluetooth 4.1 - Wireless Music Listening Wireless Binaural 3D AudioRecording To SmartphonesAdaptive Noise IsolationWired Binaural 3D AudioRecording to DSLR,Pro Video/Audio, GoPro Hero3 and Higher

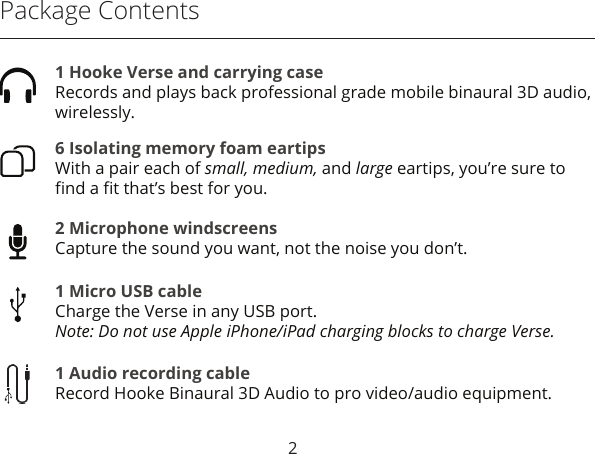

Package Contents6 Isolating memory foam eartipsWith a pair each of small, medium, and large eartips, you’re sure to find a fit that’s best for you.2 Microphone windscreensCapture the sound you want, not the noise you don’t.1 Micro USB cableCharge the Verse in any USB port.Note: Do not use Apple iPhone/iPad charging blocks to charge Verse.1 Audio recording cableRecord Hooke Binaural 3D Audio to pro video/audio equipment.1 Hooke Verse and carrying case Records and plays back professional grade mobile binaural 3D audio, wirelessly.2

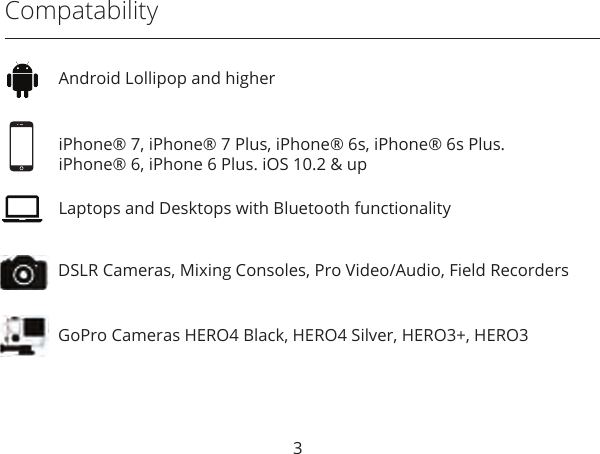

3CompatabilityDSLR Cameras, Mixing Consoles, Pro Video/Audio, Field RecordersGoPro Cameras HERO4 Black, HERO4 Silver, HERO3+, HERO3Android Lollipop and higheriPhone® 7, iPhone® 7 Plus, iPhone® 6s, iPhone® 6s Plus. iPhone® 6, iPhone 6 Plus. iOS 10.2 & upLaptops and Desktops with Bluetooth functionality

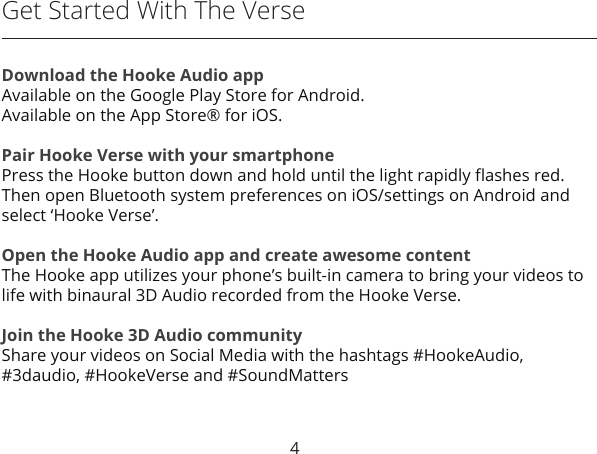

4Get Started With The VerseDownload the Hooke Audio appAvailable on the Google Play Store for Android.Available on the App Store® for iOS.Pair Hooke Verse with your smartphonePress the Hooke button down and hold until the light rapidly flashes red.Then open Bluetooth system preferences on iOS/settings on Android and select ‘Hooke Verse’.Open the Hooke Audio app and create awesome contentThe Hooke app utilizes your phone’s built-in camera to bring your videos to life with binaural 3D Audio recorded from the Hooke Verse.Join the Hooke 3D Audio communityShare your videos on Social Media with the hashtags #HookeAudio,#3daudio, #HookeVerse and #SoundMatters
5The Hooke VerseLED INDICATOR1 Blink Red: Power on/offRapid Red: Pairing modeSolid Blue: ConnectedBlinking Blue: DisconnectedGlowing Orange: Charging(light off when fully charged)Hooke Button(Power on/off)MicrophoneEartipReset Button(Right earpiece shown)Memory wireSpeaker driver

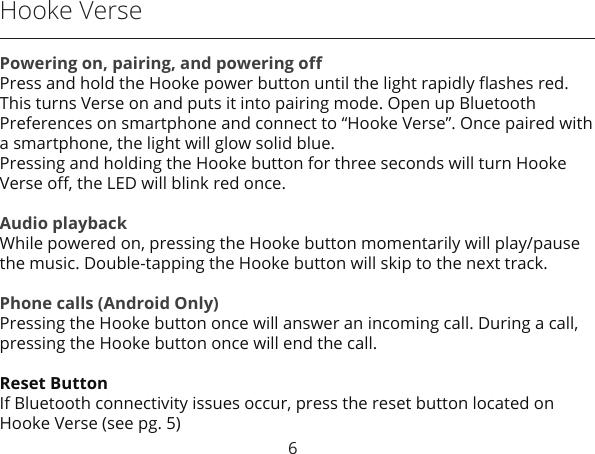

6Hooke VersePowering on, pairing, and powering offPress and hold the Hooke power button until the light rapidly flashes red. This turns Verse on and puts it into pairing mode. Open up Bluetooth Preferences on smartphone and connect to “Hooke Verse”. Once paired with a smartphone, the light will glow solid blue.Pressing and holding the Hooke button for three seconds will turn Hooke Verse off, the LED will blink red once. Audio playbackWhile powered on, pressing the Hooke button momentarily will play/pause the music. Double-tapping the Hooke button will skip to the next track.Phone calls (Android Only)Pressing the Hooke button once will answer an incoming call. During a call, pressing the Hooke button once will end the call.Reset ButtonIf Bluetooth connectivity issues occur, press the reset button located on Hooke Verse (see pg. 5)

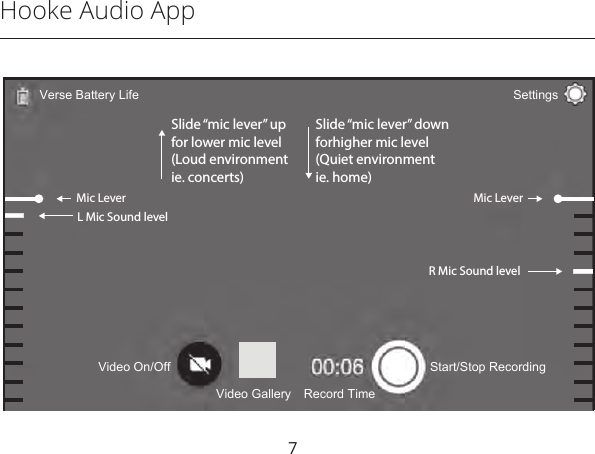

Hooke Audio App7L Mic Sound level Mic LeverMic LeverSlide “mic lever” upfor lower mic level(Loud environment ie. concerts)Slide “mic lever” downforhigher mic level(Quiet environment ie. home)R Mic Sound level Hooke Verse Battery LifeStart/Stop RecordingRecord TimeSettingsVerse Battery LifeVideo GalleryVideo On/Off
Capturing Wired Binaural Audio With Hooke Verse8HERO4 Black,HERO4 Silver HERO3+HERO33.5mm TRS5pin Micro USB Cable RetractorDSLR CamerasMixing ConsolesPro AudioField Recorders10pin Mini USBThe Hooke Cable allows for 3D Binaural Audio capture on any pro video orpro audio equipment that contains a microphone input.To Use: 1. Plug cable into Hooke Verse, then plug cable into desired device. 2. Press Hooke power button on, Hooke button will glow solid red.3. Press record on desired device. Hooke Verse will send audio.
Light And Sound IndicatorsChargingThe Hooke button will pulse orange while charging. When fully charged the LED will turn off.Powered OnWhen the Verse is powered on and connected, the Hooke button will glow solid blue.When the Verse is powered on and charging, the charging indicator andpower indicator will glow simultaneously.Battery StatusVerse battery life can be found in the Hooke Audio app.PairingWhen the Verse is in pairing mode, it will flash red rapidly.Lost ConnectionWhen a connection is lost, the Hooke Button will blink blue.RecordingThe Hooke button will glow solid red while recording and when Hooke cable is used.9

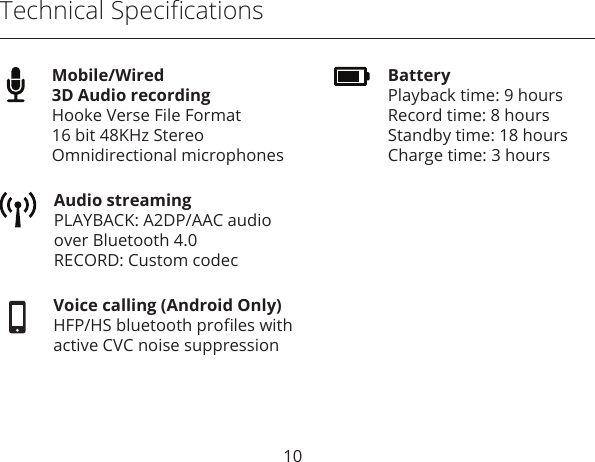

Technical SpecificationsVoice calling (Android Only)HFP/HS bluetooth profiles withactive CVC noise suppressionAudio streamingPLAYBACK: A2DP/AAC audioover Bluetooth 4.0 RECORD: Custom codecBatteryPlayback time: 9 hoursRecord time: 8 hoursStandby time: 18 hoursCharge time: 3 hoursMobile/Wired 3D Audio recording Hooke Verse File Format16 bit 48KHz StereoOmnidirectional microphones10

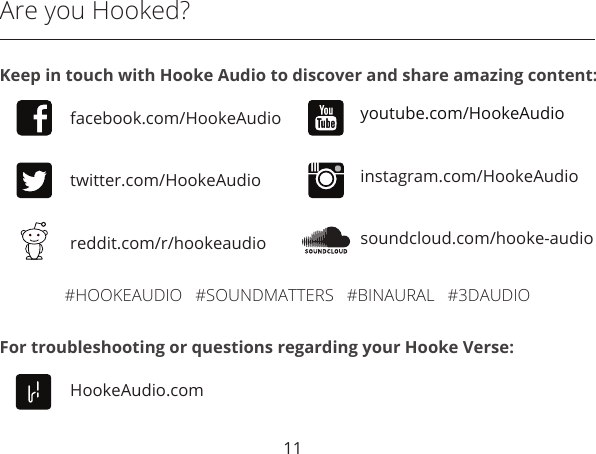

11Are you Hooked?facebook.com/HookeAudiotwitter.com/HookeAudioyoutube.com/HookeAudioinstagram.com/HookeAudioreddit.com/r/hookeaudio soundcloud.com/hooke-audioKeep in touch with Hooke Audio to discover and share amazing content:HookeAudio.comFor troubleshooting or questions regarding your Hooke Verse:#HOOKEAUDIO #SOUNDMATTERS #BINAURAL #3DAUDIO

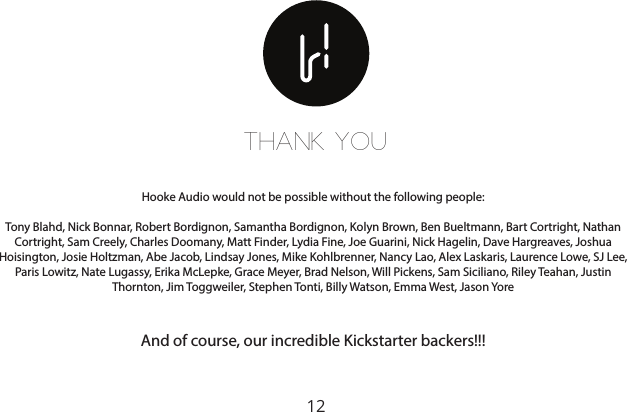

12THANK YOUHooke Audio would not be possible without the following people:Tony Blahd, Nick Bonnar, Robert Bordignon, Samantha Bordignon, Kolyn Brown, Ben Bueltmann, Bart Cortright, Nathan Cortright, Sam Creely, Charles Doomany, Matt Finder, Lydia Fine, Joe Guarini, Nick Hagelin, Dave Hargreaves, Joshua Hoisington, Josie Holtzman, Abe Jacob, Lindsay Jones, Mike Kohlbrenner, Nancy Lao, Alex Laskaris, Laurence Lowe, SJ Lee, Paris Lowitz, Nate Lugassy, Erika McLepke, Grace Meyer, Brad Nelson, Will Pickens, Sam Siciliano, Riley Teahan, Justin Thornton, Jim Toggweiler, Stephen Tonti, Billy Watson, Emma West, Jason YoreAnd of course, our incredible Kickstarter backers!!!

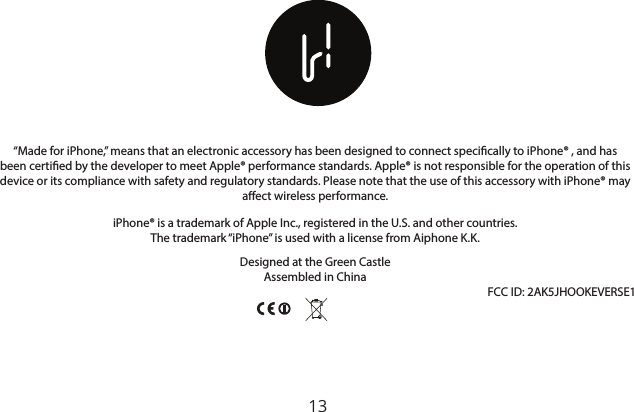

13“Made for iPhone,” means that an electronic accessory has been designed to connect specically to iPhone® , and has been certied by the developer to meet Apple® performance standards. Apple® is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone® may aect wireless performance.iPhone® is a trademark of Apple Inc., registered in the U.S. and other countries.The trademark “iPhone” is used with a license from Aiphone K.K.Designed at the Green CastleAssembled in China FCC ID: 2AK5JHOOKEVERSE1

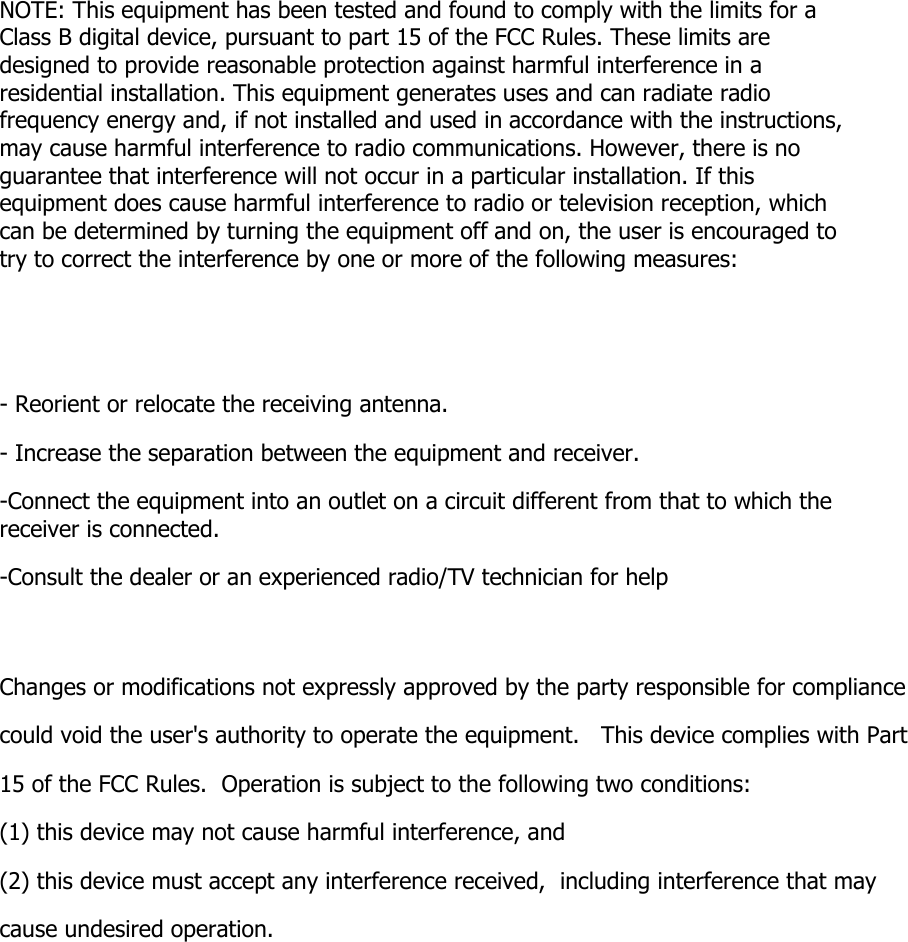

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
