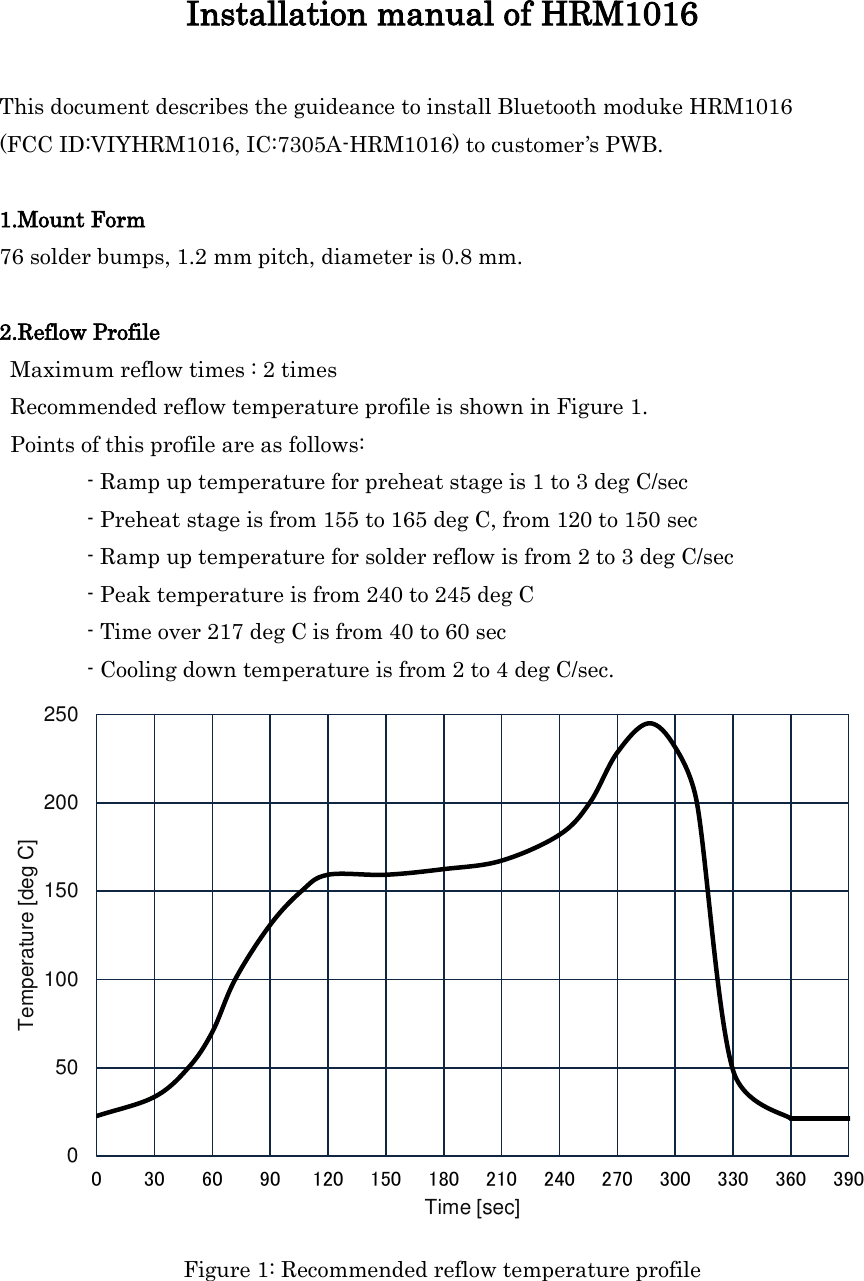

Installation manual of HRM1016 This document describes the guideance to install Bluetooth moduke HRM1016 (FCC ID:VIYHRM1016, IC:7305A-HRM1016) to customer’s PWB. 1.Mount Form 76 solder bumps, 1.2 mm pitch, diameter is 0.8 mm. 2.Reflow Profile Maximum reflow times : 2 times Recommended reflow temperature profile is shown in Figure 1. Points of this profile are as follows: - Ramp up temperature for preheat stage is 1 to 3 deg C/sec - Preheat stage is from 155 to 165 deg C, from 120 to 150 sec - Ramp up temperature for solder reflow is from 2 to 3 deg C/sec - Peak temperature is from 240 to 245 deg C - Time over 217 deg C is from 40 to 60 sec - Cooling down temperature is from 2 to 4 deg C/sec. Figure 1: Recommended reflow temperature profile 050100150200250030 60 90 120 150 180 210 240 270 300 330 360 390Temperature [deg C] Time [sec]

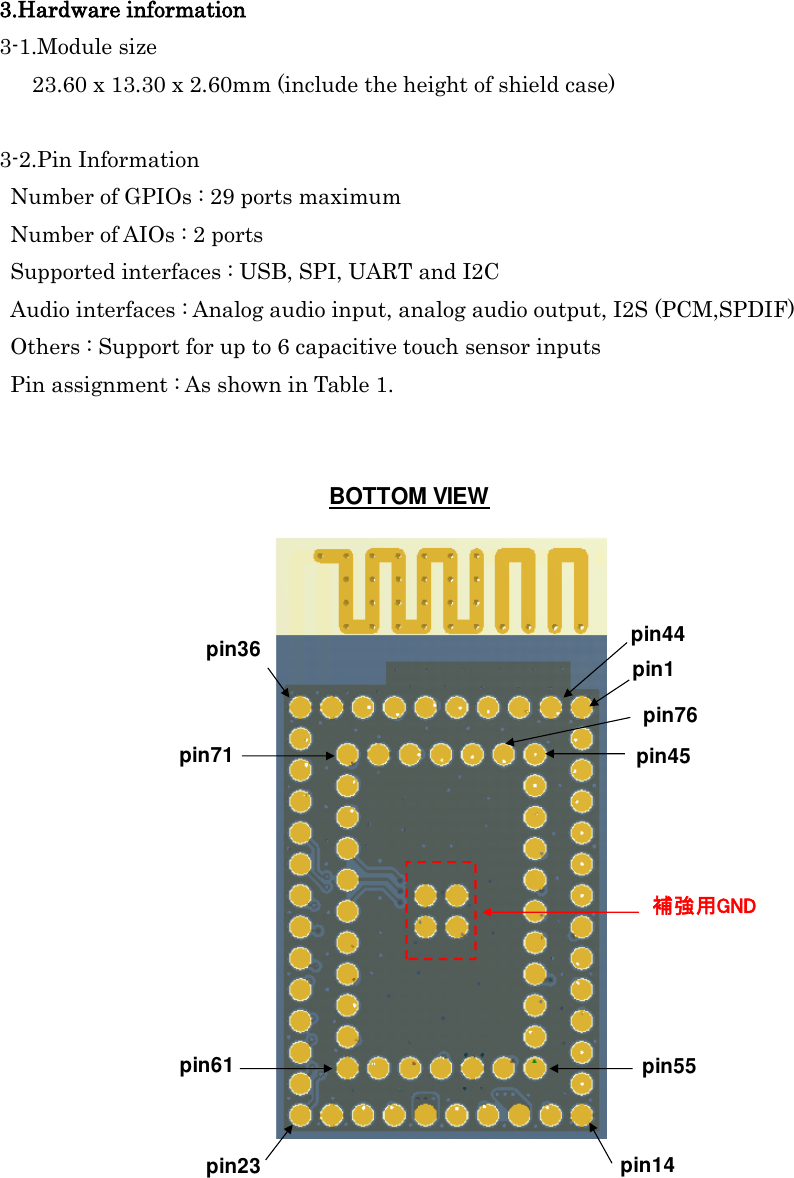

3.Hardware information 3-1.Module size 23.60 x 13.30 x 2.60mm (include the height of shield case) 3-2.Pin Information Number of GPIOs : 29 ports maximum Number of AIOs : 2 ports Supported interfaces : USB, SPI, UART and I2C Audio interfaces : Analog audio input, analog audio output, I2S (PCM,SPDIF) Others : Support for up to 6 capacitive touch sensor inputs Pin assignment : As shown in Table 1. BOTTOM VIEWUse from second page of SPECIFICATIONpin1pin44pin14pin23pin36pin45pin55pin61pin71pin76補強用GND

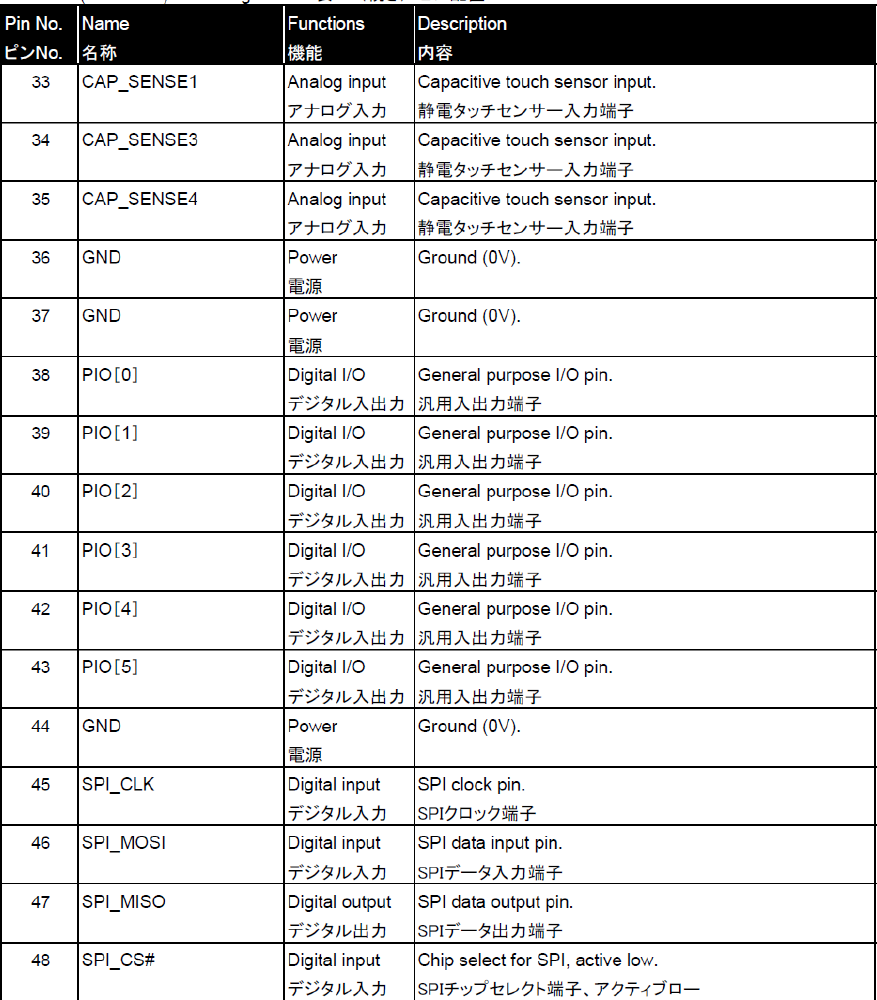

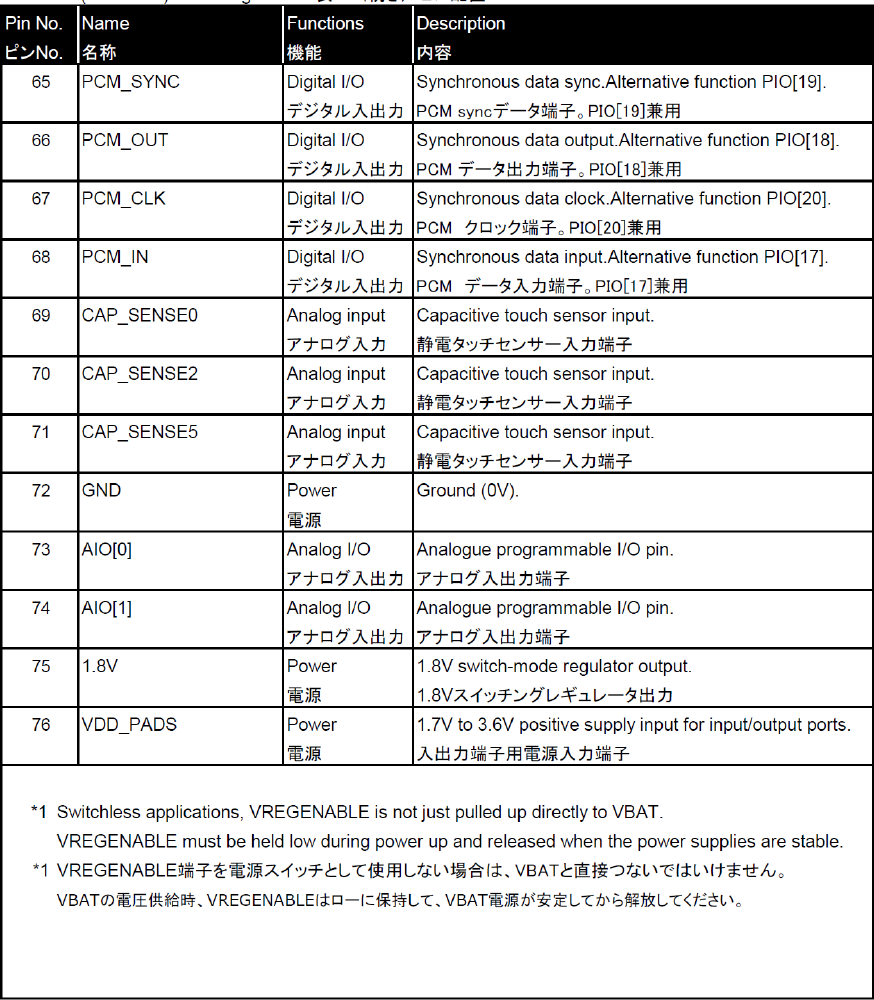

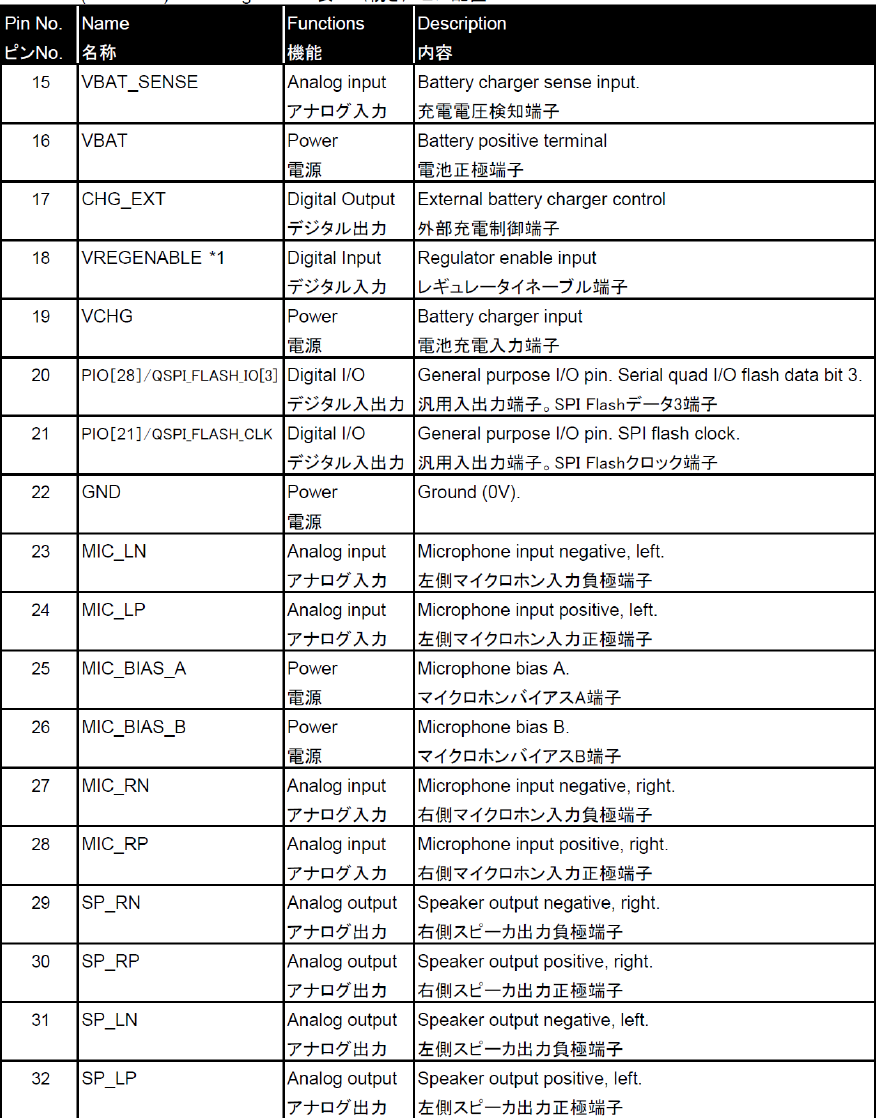

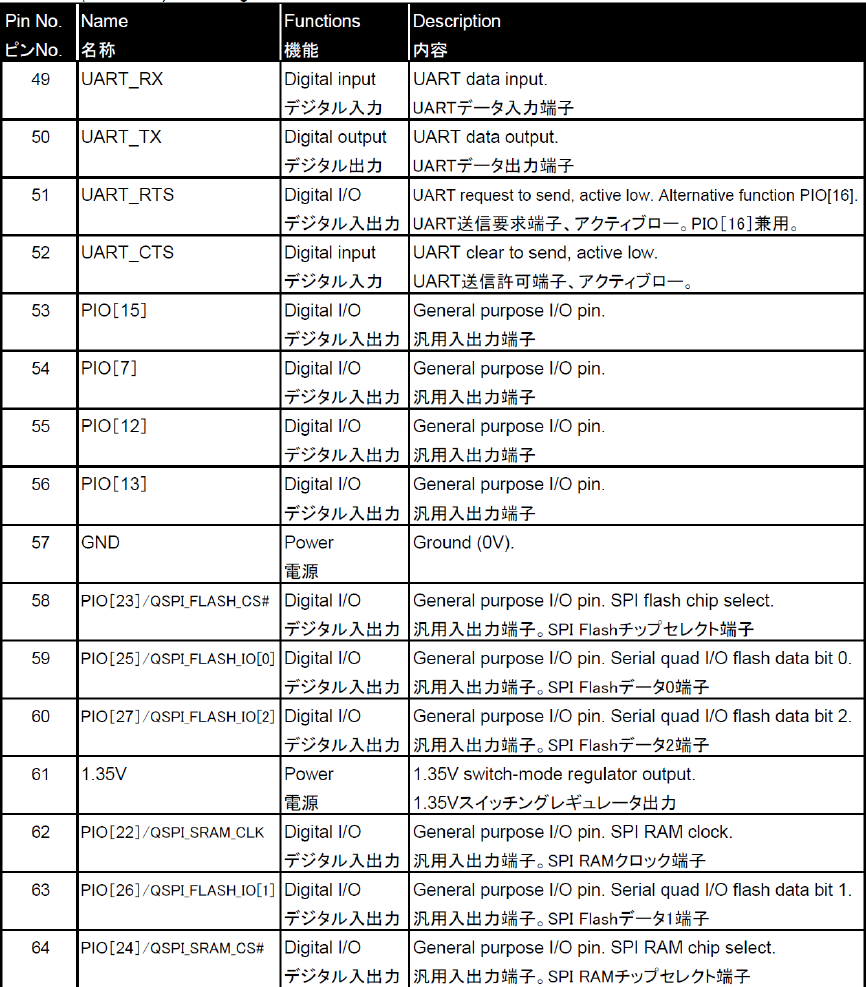

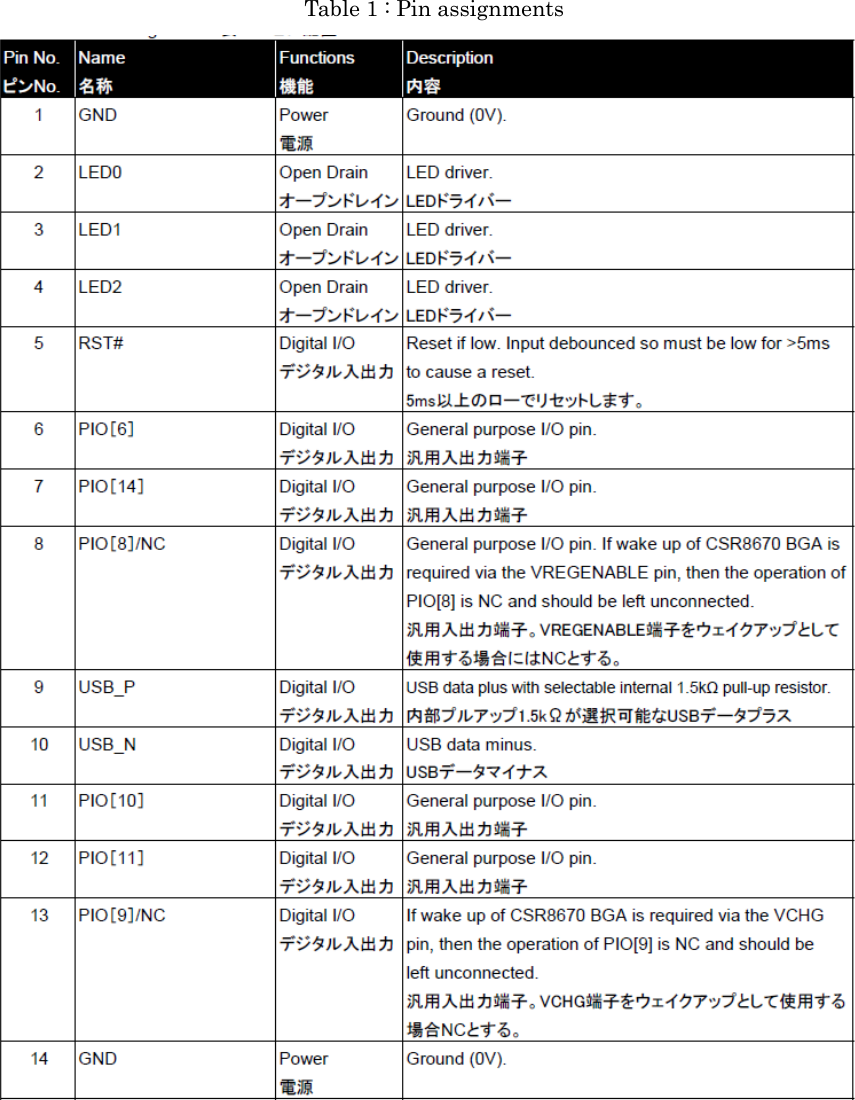

Table 1 : Pin assignments

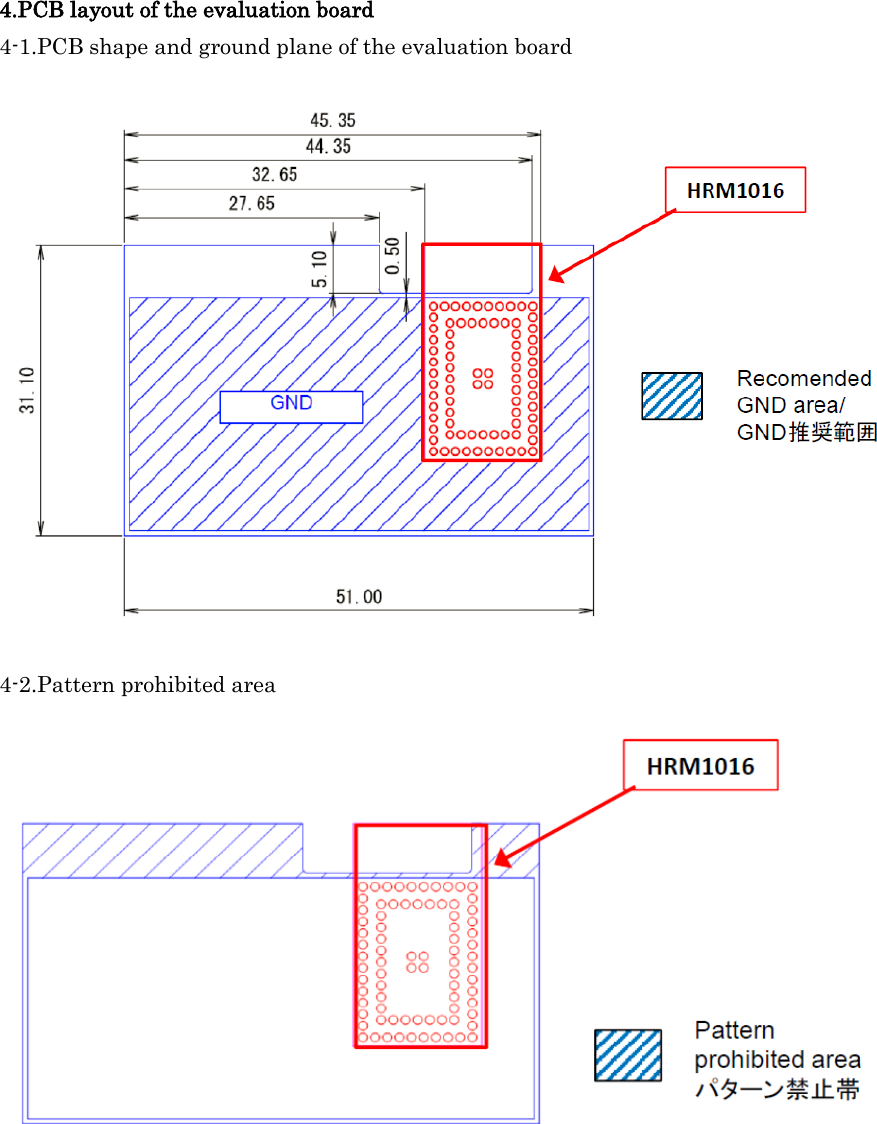

4.PCB layout of the evaluation board 4-1.PCB shape and ground plane of the evaluation board 4-2.Pattern prohibited area

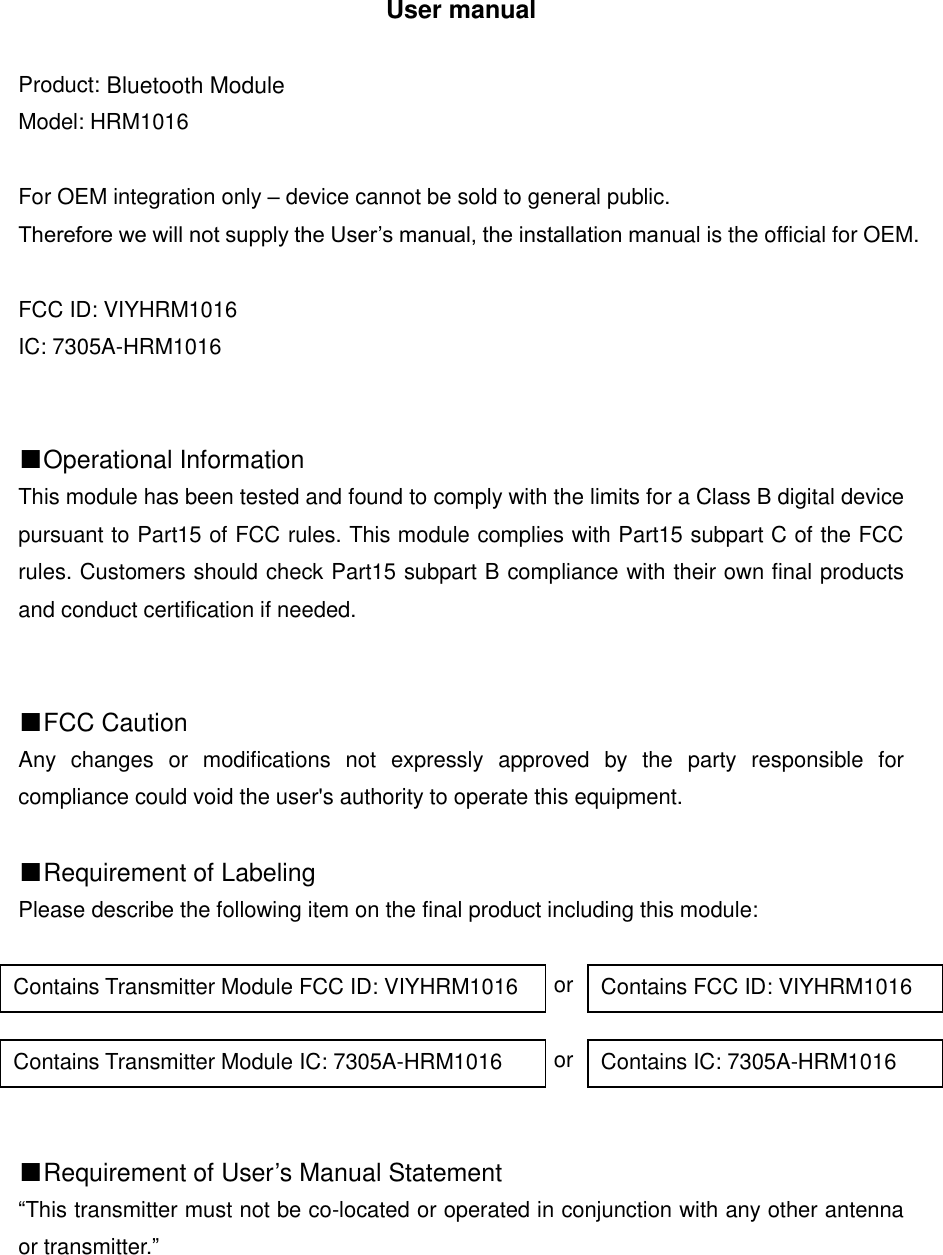

User manual Product: Wireless low energy module Model: HRM1016 For OEM integration only – device cannot be sold to general public. Therefore we will not supply the User’s manual, the installation manual is the official for OEM. FCC ID: VIYHRM1016 IC: 7305A-HRM1016 ■Operational Information This module has been tested and found to comply with the limits for a Class B digital device pursuant to Part15 of FCC rules. This module complies with Part15 subpart C of the FCC rules. Customers should check Part15 subpart B compliance with their own final products and conduct certification if needed. ■FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. ■Requirement of Labeling Please describe the following item on the final product including this module: or or ■Requirement of User’s Manual Statement “This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” Contains Transmitter Module FCC ID: VIYHRM1016 Contains FCC ID: VIYHRM1016 Contains Transmitter Module IC: 7305A-HRM1016 Contains IC: 7305A-HRM1016 Bluetooth Module

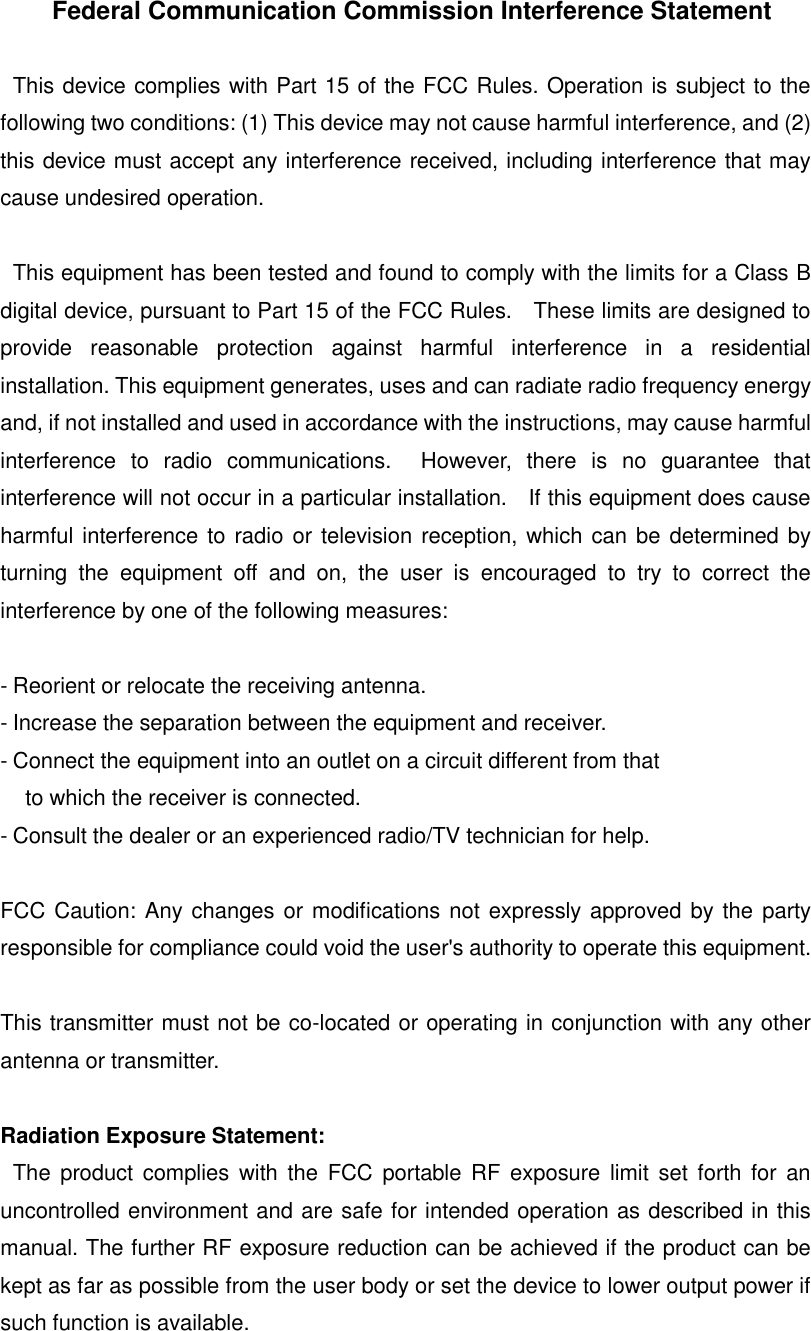

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna. As long as 1 condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: VIYHRM1016”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

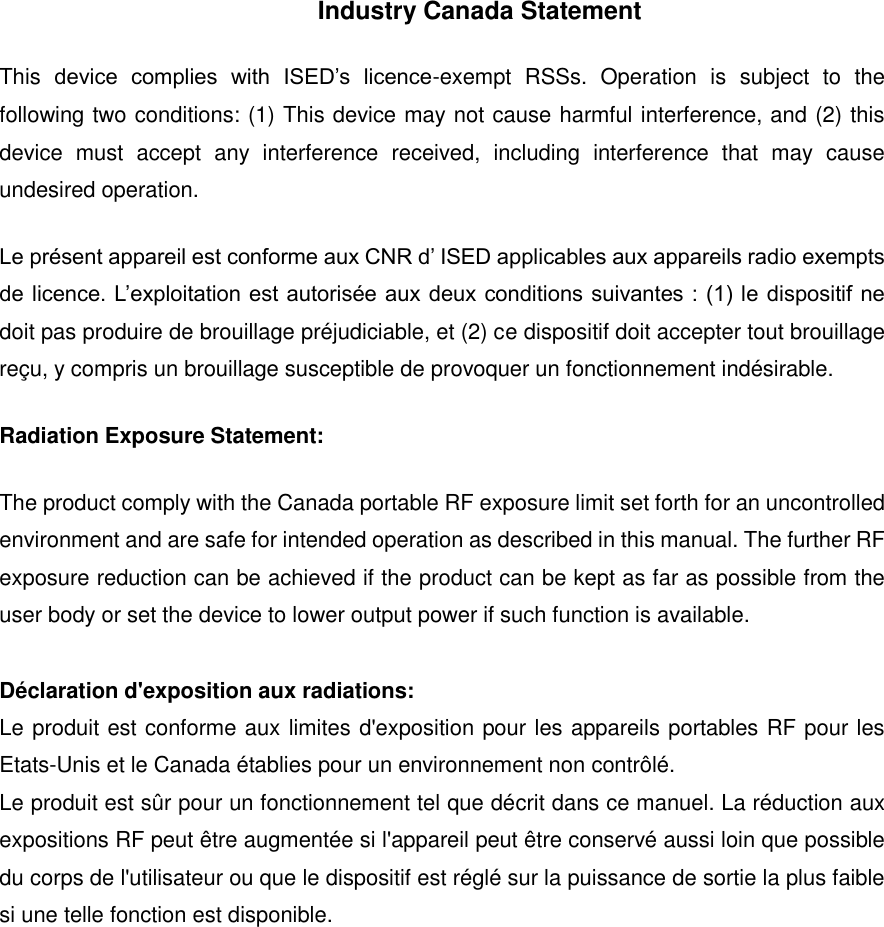

Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Déclaration d'exposition aux radiations: Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible.

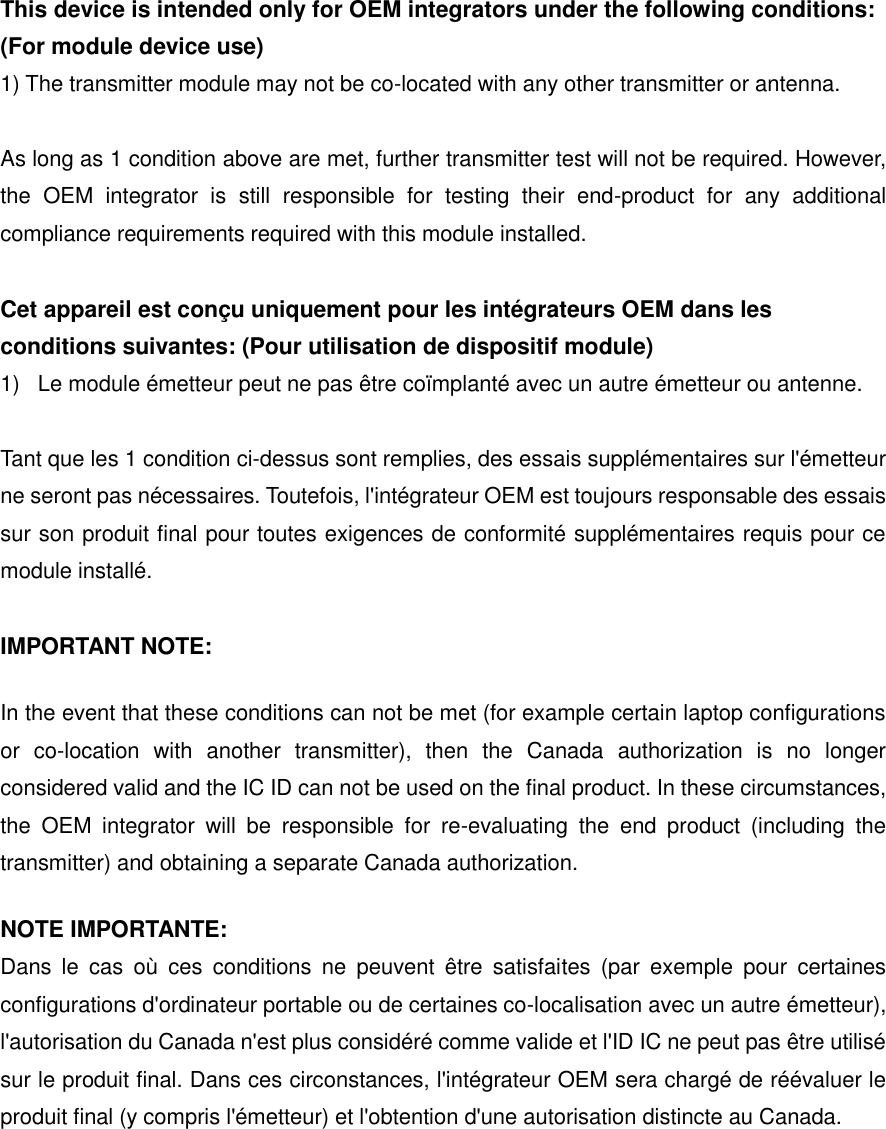

This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The transmitter module may not be co-located with any other transmitter or antenna. As long as 1 condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) 1) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the Canada authorization is no longer considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization. NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.

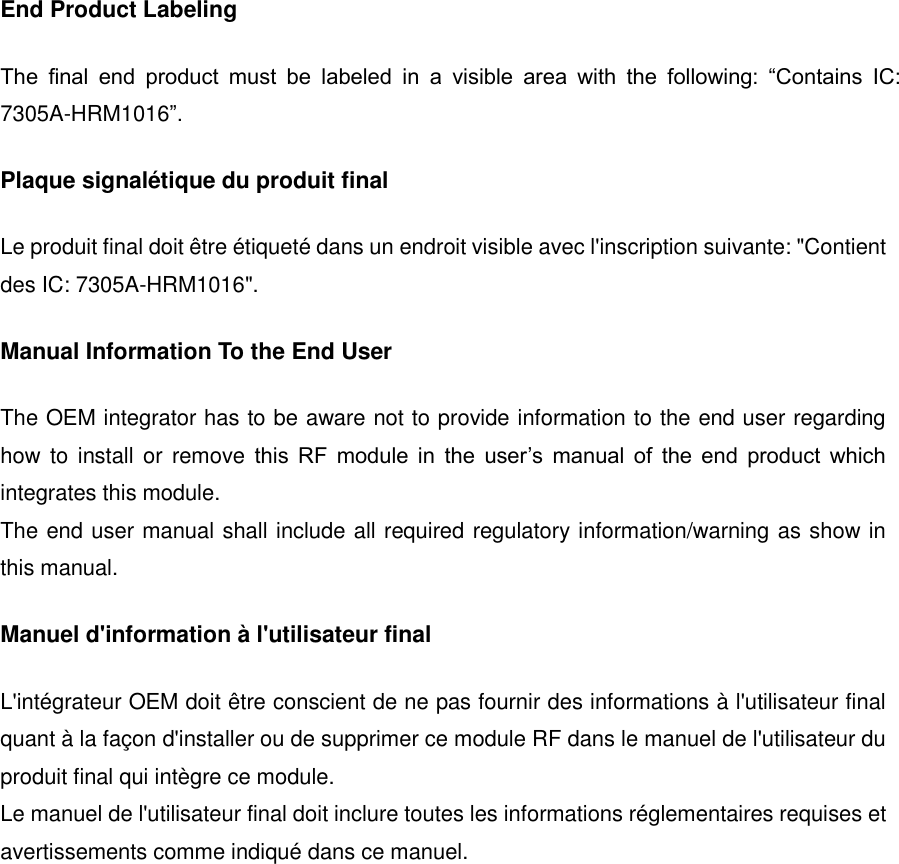

End Product Labeling The final end product must be labeled in a visible area with the following: “Contains IC: 7305A-HRM1016”. Plaque signalétique du produit final Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des IC: 7305A-HRM1016". Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Manuel d'information à l'utilisateur final L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué dans ce manuel.

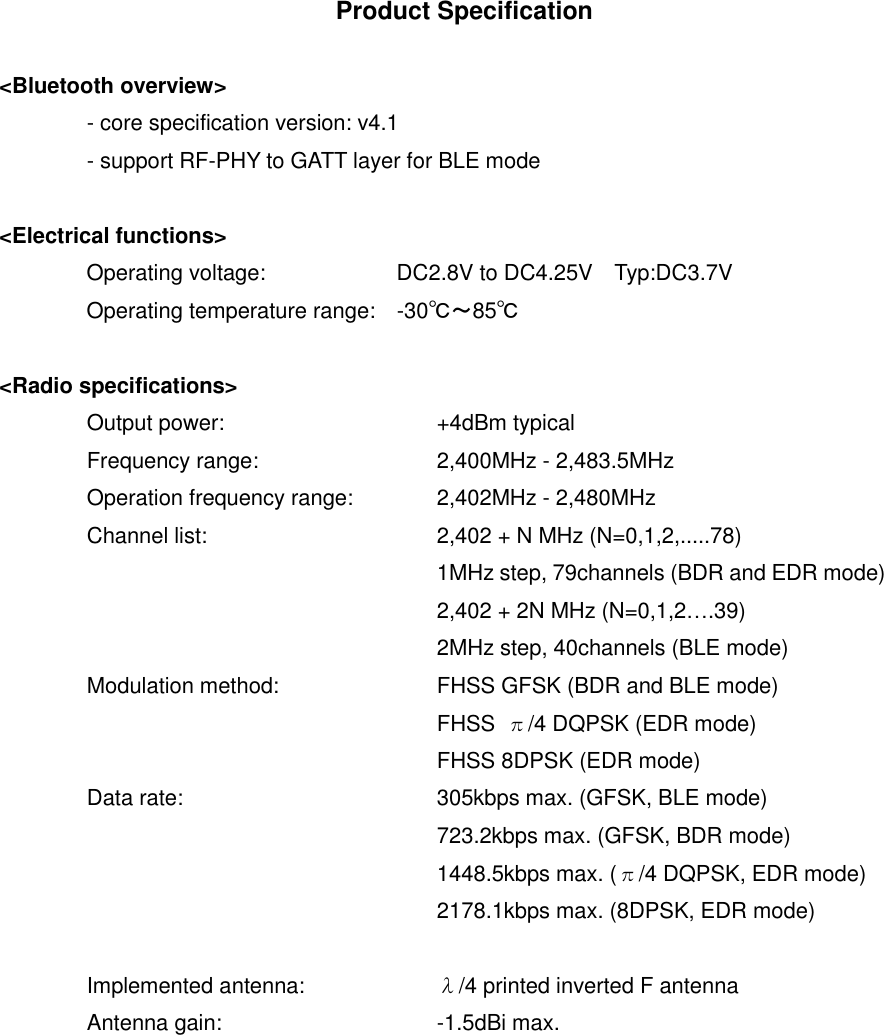

Product Specification <Bluetooth overview> - core specification version: v4.1 - support RF-PHY to GATT layer for BLE mode <Electrical functions> Operating voltage: DC2.8V to DC4.25V Typ:DC3.7V Operating temperature range: -30℃～85℃ <Radio specifications> Output power: +4dBm typical Frequency range: 2,400MHz - 2,483.5MHz Operation frequency range: 2,402MHz - 2,480MHz Channel list: 2,402 + N MHz (N=0,1,2,.....78) 1MHz step, 79channels (BDR and EDR mode) 2,402 + 2N MHz (N=0,1,2….39) 2MHz step, 40channels (BLE mode) Modulation method: FHSS GFSK (BDR and BLE mode) FHSS π/4 DQPSK (EDR mode) FHSS 8DPSK (EDR mode) Data rate: 305kbps max. (GFSK, BLE mode) 723.2kbps max. (GFSK, BDR mode) 1448.5kbps max. (π/4 DQPSK, EDR mode) 2178.1kbps max. (8DPSK, EDR mode) Implemented antenna: λ/4 printed inverted F antenna Antenna gain: -1.5dBi max.
